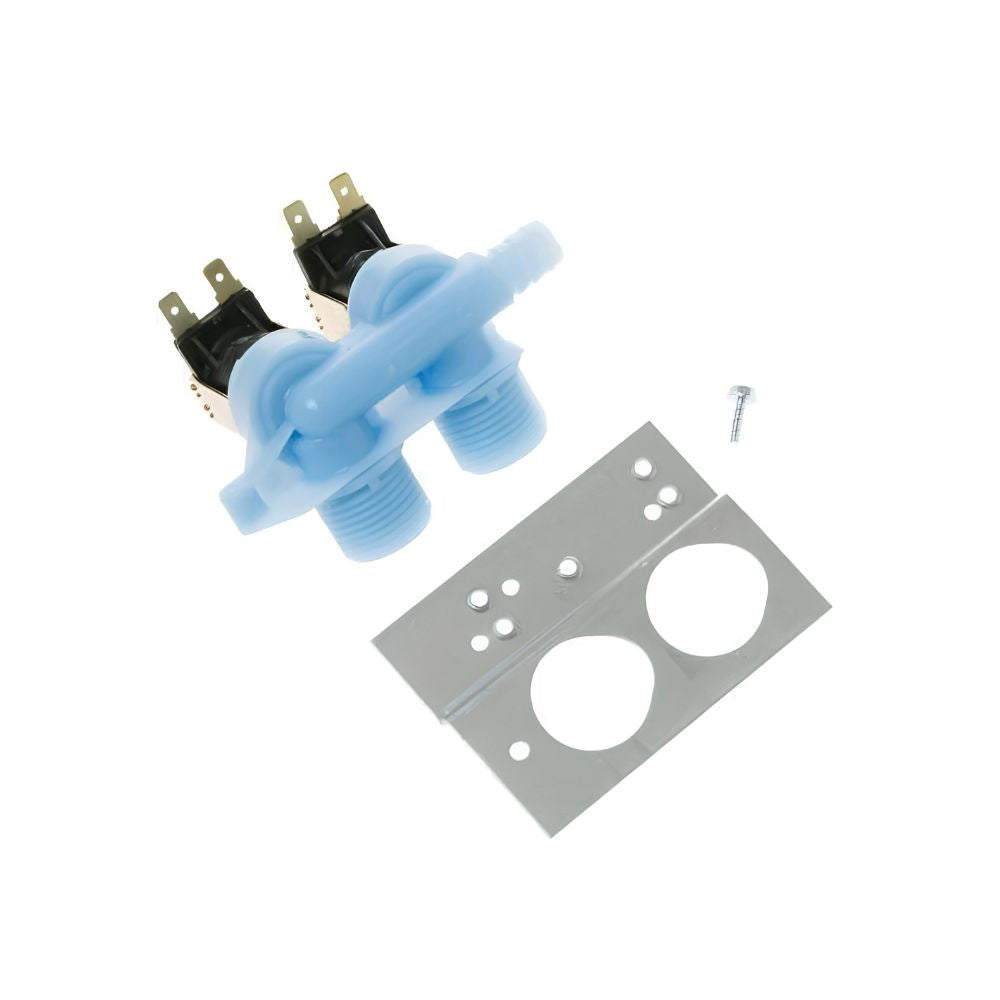

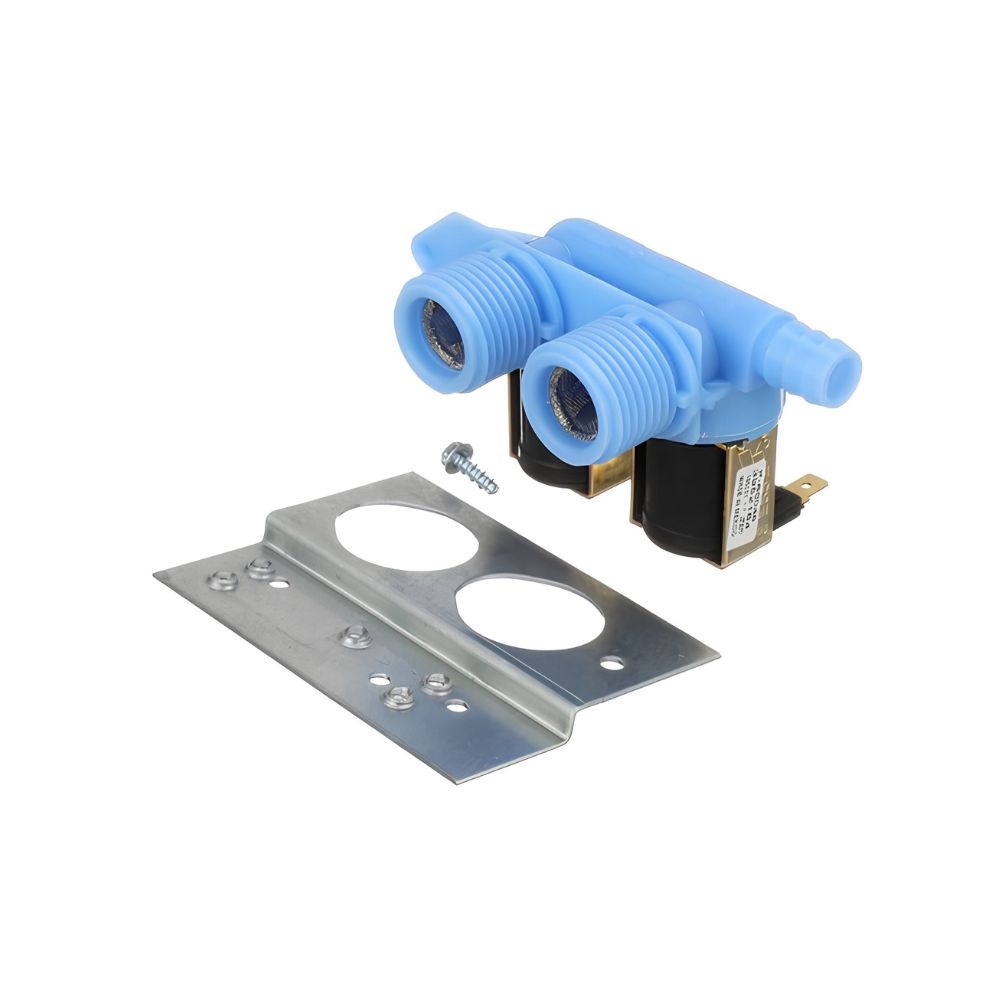

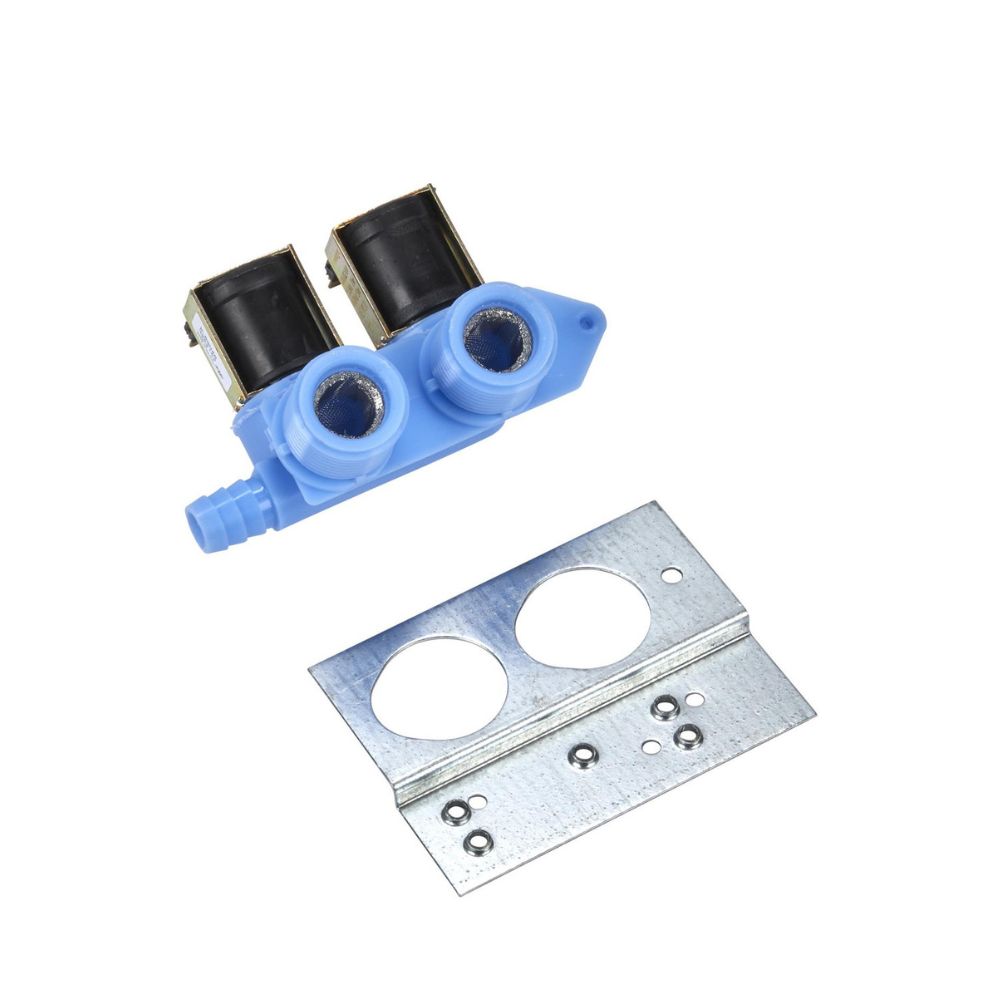

XPARTCO WH13X10014 Washer Water Inlet Valve
The XPARTCO WH13X10014 is an aftermarket replacement water inlet valve for GE washer/dryer combination units — a single cabinet that houses both wash and dry functions and shares one door, lid, and control system for both. This valve sits at the point where the hot and cold water supply lines connect, and it's the gatekeeper for every drop of water that enters the tub during the wash portion of a cycle. When the control calls for a fill, the valve's solenoid opens to admit water; once the correct level is reached, it closes again.
Common causes of failure include mineral or sediment buildup inside the valve body that prevents it from sealing fully, and a burned-out internal solenoid coil. A failing valve on a combo unit produces the same core symptoms you'd see on a standalone washer: the wash side won't fill, fills too slowly, won't stop filling, or leaks after the cycle ends — but because a combo unit shares more components in a single cabinet than separate machines do, it's worth confirming the water issue is isolated to the valve and not connected to other combo-specific parts nearby, such as our WH12X955 lid switch listing, which serves this same GE combo platform. It directly replaces WH13X0084, WH13X10013, WH13X84, AP3203931, and 944040.
Quick Answer
The XPARTCO WH13X10014 Washer Water Inlet Valve fixes GE washer/dryer combo units that won't fill with water, fill slowly, won't stop filling, or leak after the cycle ends. For GE's combination washer/dryer platform (WSM2420/WSM2480 series). Replaces WH13X0084, WH13X10013, WH13X84, AP3203931, 944040. This valve is specific to GE's washer/dryer combo unit — not a standalone front-load or top-load washer valve.
Common Problems This Part Fixes
- Washer/dryer combo won't fill with water at the start of the wash cycle
- Water fills much more slowly than normal
- Unit won't stop filling — water continues past the normal level
- Water leaking or dripping after the cycle has ended
- Cycle stalling at the fill step and never advancing to wash
- No hot water reaching the tub, or no cold water reaching the tub
- Unit not washing properly due to insufficient or incorrect-temperature water
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer water inlet valve directly replaces the following OEM and cross-reference part numbers:
WH13X10014, WH13X0084, WH13X10013, WH13X84, AP3203931, 944040, AH756629, EA756629, AGE844170, PD00066092, PS756629
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select GE washer/dryer combination units, including model numbers such as:
- GE WSM2420D0WW, WSM2420D1WW, WSM2420D2WW, WSM2420D3WW, WSM2420D4WW, WSM2420D5WW
- GE WSM2420D0CC, WSM2420D1CC, WSM2420D2CC
- GE WSM2420TAAWW, WSM2420TBAWW, WSM2420TCAWW, WSM2420TAAAA, WSM2420TAACC, WSM2420TBAAA
- GE WSM2420SAZAA, WSM2420SBZAA, WSM2420SBZWW, WSM2420SCZAA, WSM2420SCZWW, WSM2420SDZWW
- GE WSM2480D0WW, WSM2480D1WW, WSM2480D2WW, WSM2480D3WW
- GE WSM2480SAZAA, WSM2480SAZWW, WSM2480SBZAA, WSM2480SBZWW, WSM2480SEZAA, WSM2480TCAWW
Note: This valve is built specifically for GE's washer/dryer combination units. It is not the same valve used on GE's standalone front-load washers (such as our WH13X10029 listing) and is not interchangeable with them. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement water inlet valve for GE washer/dryer combination units
- Resolves "won't fill," "fills slowly," "won't stop filling," and "leaking after cycle" symptoms caused by valve failure
- Solenoid-actuated design opens and closes precisely on the control's signal
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces WH13X0084, WH13X10013, WH13X84, AP3203931, and 944040
- Compatible with GE washer/dryer combo units, including WSM2420 and WSM2480 series
- Aftermarket replacement built to OEM-equivalent quality standards
- Straightforward DIY repair using basic hand tools
Product Specifications
| Part Number |
WH13X10014 |
| OEM Part Number |
WH13X10014 |
| Part Type |
Washer Water Inlet Valve |
| Condition |
Aftermarket Replacement |
| Application |
GE Washer/Dryer Combination Units |
| Actuation |
Solenoid-operated |
| Connections |
Hot and cold water supply inlets |
| Quantity |
1 valve |
| Compatible Brand |
GE |
Installation Notes
⚠️ Shut Off Water Supply And Unplug Unit Before Starting Disconnect power at the outlet or shut off the circuit breaker, and shut off both hot and cold water supply valves before beginning. Wear work gloves. On these combination units, the top of the cabinet often lifts off or opens as a single enclosure covering both the wash and dry sections, which also carries the lid switch wiring — note this connector's location before pulling the panel free. Disconnect the hot and cold water supply hoses from the back of the valve, keeping a towel handy for residual water. Photograph the wiring and hose connections before disconnecting anything. Disconnect the electrical connector from the old valve, remove its mounting screws, and pull it free. Install the new WH13X10014 in the same position, reconnect the electrical connector fully, and secure the mounting screws. Reattach the hot and cold water supply hoses to the correct ports, tightening securely by hand plus a partial turn with pliers. Reinstall the cabinet enclosure, reconnecting the lid switch harness if it was disturbed, restore the water supply, and check every connection for leaks before restoring power. Run a short cycle and confirm the wash side fills at the normal rate with no leaking. Tools needed: Phillips screwdriver, pliers, towel, work gloves.
Frequently Asked Questions
Is this the same valve used on a standalone GE washer?
No. This valve is built specifically for GE's washer/dryer combination units, which share a single cabinet and control system for both wash and dry functions. GE's standalone front-load washers use a different valve (such as our WH13X10029 listing), and the two are not interchangeable. Always confirm whether your appliance is a combo unit or a standalone washer before ordering.
My unit won't stop filling. Is that this valve?
Yes, this is one of the most common symptoms of a failing valve. A worn internal seal can fail to close fully, letting water continue flowing even after the correct fill level is reached. Since this could lead to overflow, it's worth shutting off the water supply at the wall if you notice this happening rather than waiting to address it.
Only hot or only cold water isn't coming in. Do I need the whole valve?
Usually yes. Most washer inlet valves use two separate solenoid coils in one housing — one for hot, one for cold — but they're not typically sold or serviced as separately replaceable coils. If just one side has stopped working while the other functions normally, that still points to a failure inside this valve assembly, and replacing the complete unit is the standard repair.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the solenoid design, connection type, and mounting configuration of the original WH13X10014 valve used in compatible GE washer/dryer combination units.
