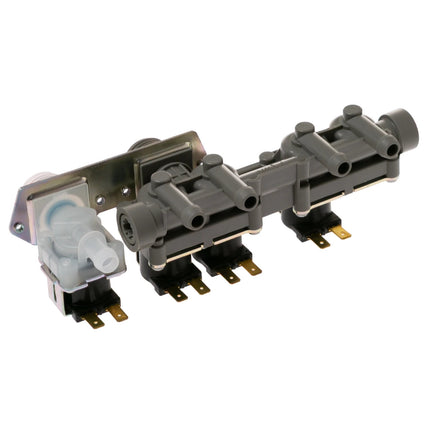

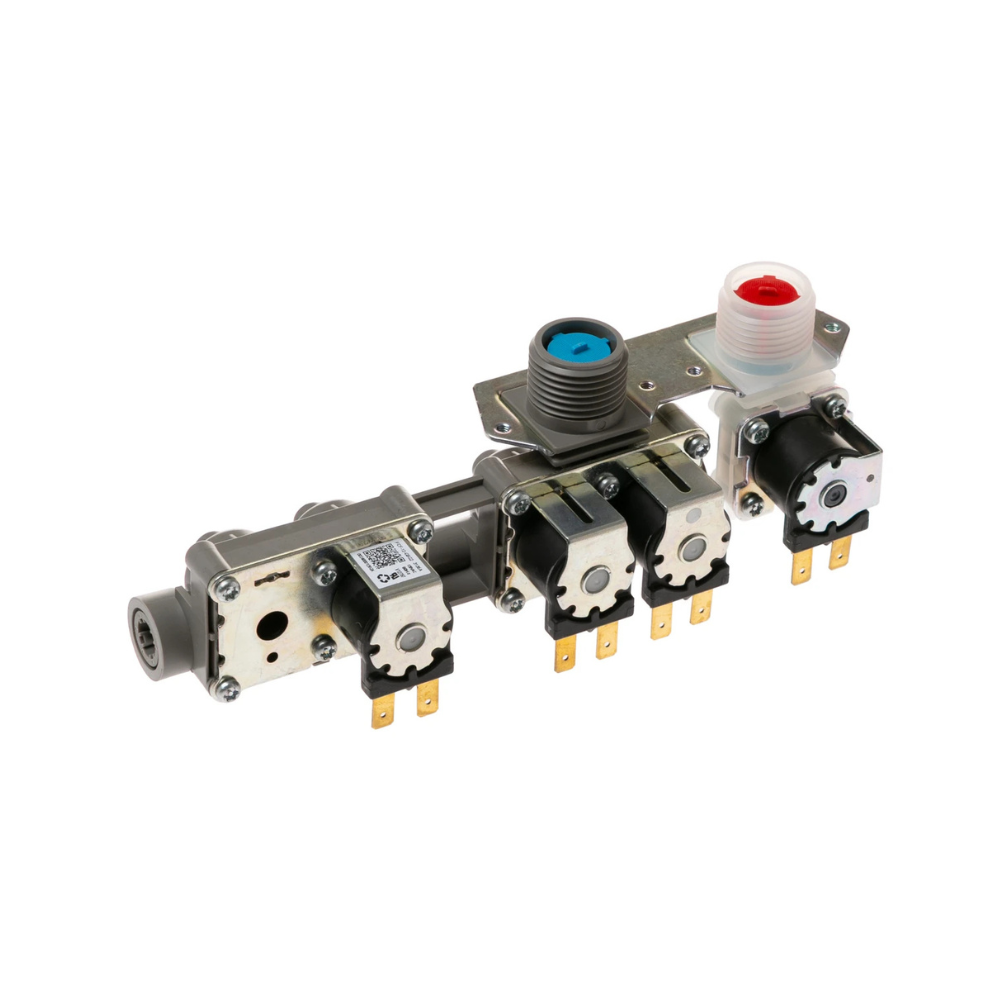

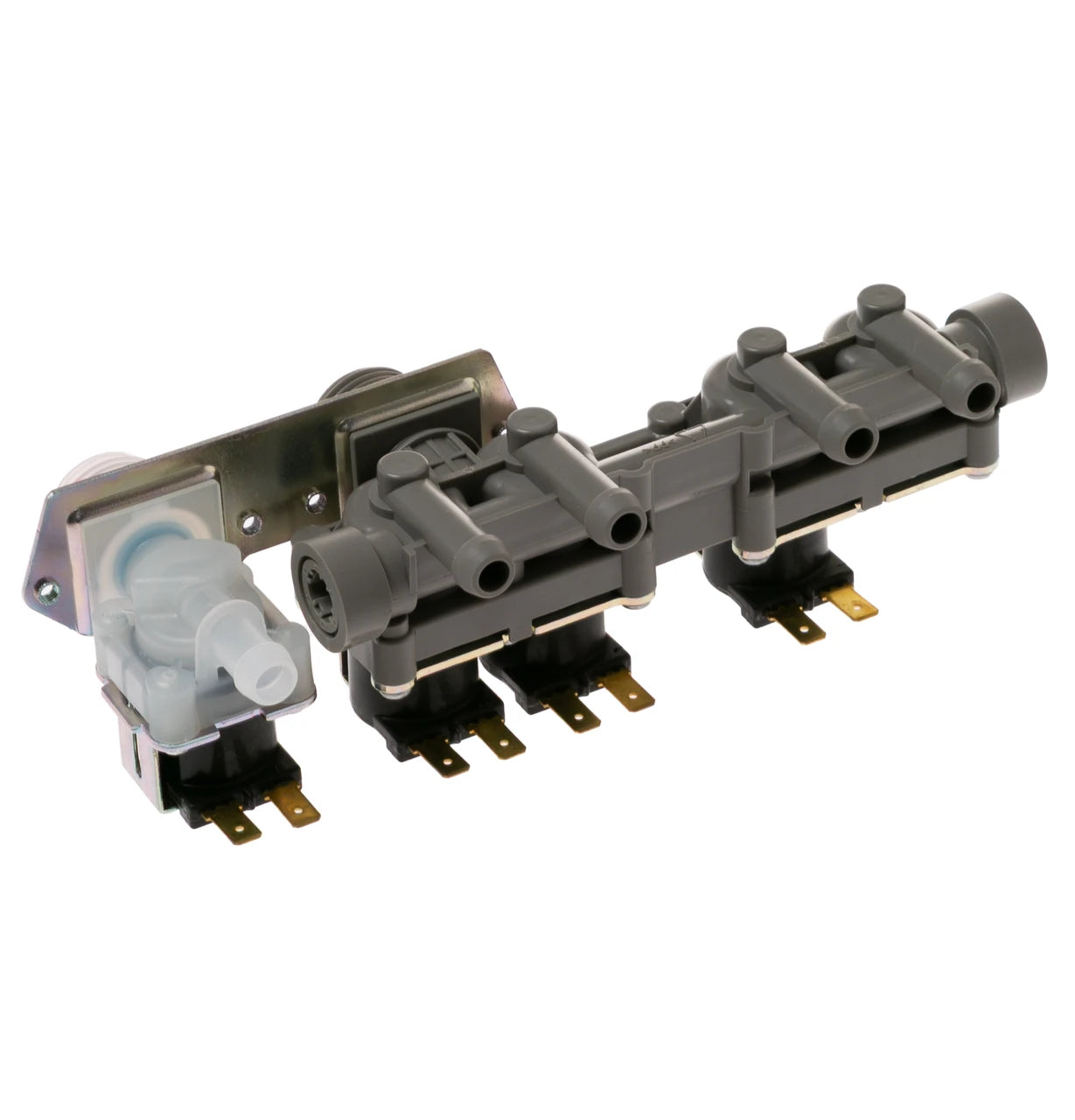

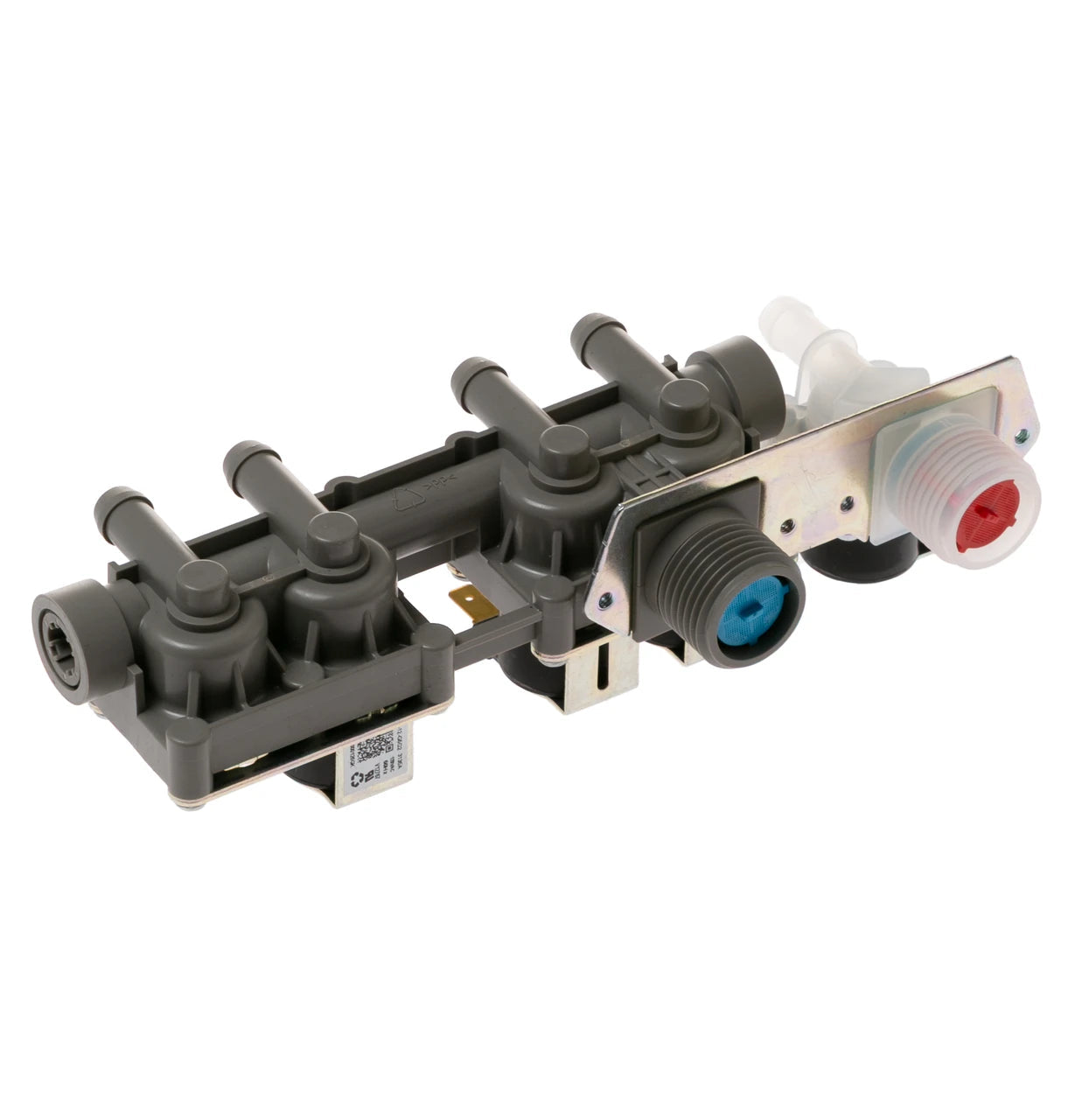

WH23X29538 (OE) Washer Water Valve
The WH23X29538 is an OE (Original Equipment) water inlet valve for GE front-load washers. This valve regulates the flow of water into the wash tub from the household supply line, with two water inlets (each with its own filter), four solenoid coils, and five water outlets working together to precisely control flow, temperature blending, and fill level throughout the cycle.
Rated 120V, 60Hz. Built with a stainless steel-reinforced, high-quality ABS plastic body for corrosion resistance and long-term sealing. Common failure causes include mineral or sediment buildup inside the valve body and general electrical wear in the solenoid coils. A failing valve produces a range of symptoms: leaking or overflowing water, slow or irregular water filling, the washer filling non-stop or not filling at all, incorrect water temperature, or unusual noise during the fill cycle. It directly replaces WH23X29538, C-163/21-A13, 33090201, PD00071094, EAP16217225, AP6990115, AGE26158, PS16217225.
Quick Answer
The WH23X29538 (OE) Washer Water Valve fixes GE front-load washers with water leaking or overflowing, slow or irregular filling, non-stop filling, no water filling at all, incorrect water temperature, or unusual fill-cycle noise. 120V, 60Hz, 2 inlets with filters, 4 solenoid coils, 5 outlets. Replaces WH23X29538, C-163/21-A13, 33090201, PD00071094, EAP16217225, AP6990115, AGE26158, PS16217225. This valve is specific to the GFW550 series — it is a separate part from our WH23X29553 listing, which fits the GFW650/850 and PFW870/950 series.
Common Problems This Part Fixes
- Water leaking or overflowing from the valve area
- Slow or irregular water filling
- Washer filling non-stop and not shutting off
- Washer not filling with water at all
- Incorrect water temperature during fill
- Unusual noise during the water fill cycle
- Error code related to water fill or temperature
What Is an OE Part?
OE (Original Equipment) means this part is manufactured by the same original supplier that produces the Genuine OEM version — identical fit, materials, and performance. The only difference is packaging: OE parts ship under our XPARTCO brand rather than the appliance manufacturer's branded box, which is why they can't be listed as Genuine OEM. You get factory-original quality at a more affordable price.
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer water inlet valve directly replaces the following OEM and cross-reference part numbers:
WH23X29538, C-163/21-A13, 33090201, PD00071094, EAP16217225, AP6990115, AGE26158, PS16217225
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water valve is compatible with select GE front-load washers, including model numbers such as:
- GFW550SPN0DG, GFW550SPN1DG, GFW550SPN2DG, GFW550SPN3DG
- GFW550SPR0RS, GFW550SPR3RS, GFW550SPR4RS, GFW550SPR5RS
- GFW550SSN0WW, GFW550SSN1WW, GFW550SSN2WW, GFW550SSN3WW, GFW550SSN4WW, GFW550SSN5WW
Note — not the same as WH23X29553: This valve is specific to the GFW550 series. It is a separate part from our WH23X29553 listing, which fits the GFW650/850 and PFW870/950 series and has a completely different cross-reference set. The two are easy to confuse given the similar numbering — always confirm your exact part number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- OE (Original Equipment) water inlet valve — manufactured by the same supplier as the Genuine OEM version
- Two water inlets with filters, four solenoid coils, five water outlets for precise fill control
- Resolves "leaking/overflowing," "slow or irregular fill," "non-stop filling," "won't fill," and "wrong temperature" symptoms
- ABS plastic body with stainless steel reinforcement for corrosion resistance
- Rated 120V, 60Hz
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces WH23X29538, C-163/21-A13, 33090201, PD00071094, EAP16217225, AP6990115, AGE26158, PS16217225
- Compatible with GE front-load washers in the GFW550 series
Product Specifications
| Part Number |
WH23X29538-OE |
| Designation |
OE (Original Equipment) |
| Part Type |
Washer Water Inlet Valve |
| Brand |
GE |
| Application |
Front-Load Washers (GFW550 Series) |
| Voltage |
120V |
| Frequency |
60 Hz |
| Inlets |
2, each with a filter |
| Outlets |
5 |
| Solenoid Coils |
4 |
| Body Material |
ABS plastic with stainless steel reinforcement |
| Quantity |
1 valve |
| Compatible Brand |
GE |
Installation Notes
⚠️ Shut Off Water Supply And Unplug Washer Before Starting Disconnect power at the outlet or shut off the circuit breaker, and shut off both hot and cold water supply valves before beginning. Wear work gloves. Access to this valve is typically behind the front control panel or top of the cabinet, depending on your model. Have a towel or shallow pan ready, since residual water will spill out when you disconnect the lines. Photograph the wiring and hose connections before disconnecting anything — this valve has multiple inlets and outlets, and reconnecting one in the wrong position can cause a fill or temperature issue. Disconnect the water supply lines from the old valve, disconnect the electrical connector, and remove the mounting screws holding it in place, then pull the valve free. Install the new WH23X29538 in the same position, reconnect all outlet hoses to their original positions exactly as photographed, reconnect the electrical connector, and secure the mounting screws. Reattach the hot and cold supply lines, tightening securely by hand plus a partial turn with pliers — avoid overtightening plastic threaded fittings. Restore the water supply and check every connection for leaks before restoring power. Run a full test cycle across a few different temperature settings to confirm correct fill behavior and water temperature. Tools needed: Phillips screwdriver, pliers, towel or shallow pan, work gloves.
Frequently Asked Questions
My washer won't stop filling. Is that this valve?
Yes, this is one of the most common symptoms of a failing valve. A worn internal seal on one of the four solenoid coils can fail to close fully, letting water continue flowing even after the correct fill level is reached. Since this could lead to overflow, it's worth shutting off the water supply at the wall if you notice this happening rather than waiting to address it.
My water temperature seems off during the wash. Could this valve be the cause?
Yes. Because this valve has two separate inlets (hot and cold) and multiple solenoid coils that blend water to reach the correct temperature for each cycle setting, a fault in one of those coils can throw off the temperature blend even while the washer otherwise fills normally. This is a documented symptom this valve resolves.
Is this the same as WH23X29553? The numbers are very close.
No, these are two separate GE valve part numbers with completely different cross-reference sets and different compatible model series — this WH23X29538 serves the GFW550 series, while WH23X29553 serves the GFW650/850 and PFW870/950 series. Always confirm the exact part number from your washer's parts diagram rather than assuming based on a close number match.
Is this a genuine OEM part?
This is an OE (Original Equipment) part sold under our XPARTCO brand. OE parts are manufactured by the same original supplier that produces the Genuine OEM part, so the fit, materials, and performance are identical — the difference is that OE parts ship in XPARTCO packaging rather than the appliance manufacturer's branded box, which is why we can't list them as Genuine OEM. This gives you factory-original quality at a more affordable price than the branded version.
