XPARTCO WH49X10042 Washer Agitator Coupler
The XPARTCO WH49X10042 is an aftermarket replacement agitator coupling kit for GE top-load washers, and also fits select Hotpoint, RCA, Haier, Monogram, and Café models. Also known as the agitator drive bell or drive block, this small but essential part connects the transmission drive shaft to the agitator base, transmitting the back-and-forth rotational motion that lets the agitator move clothes through the wash cycle.

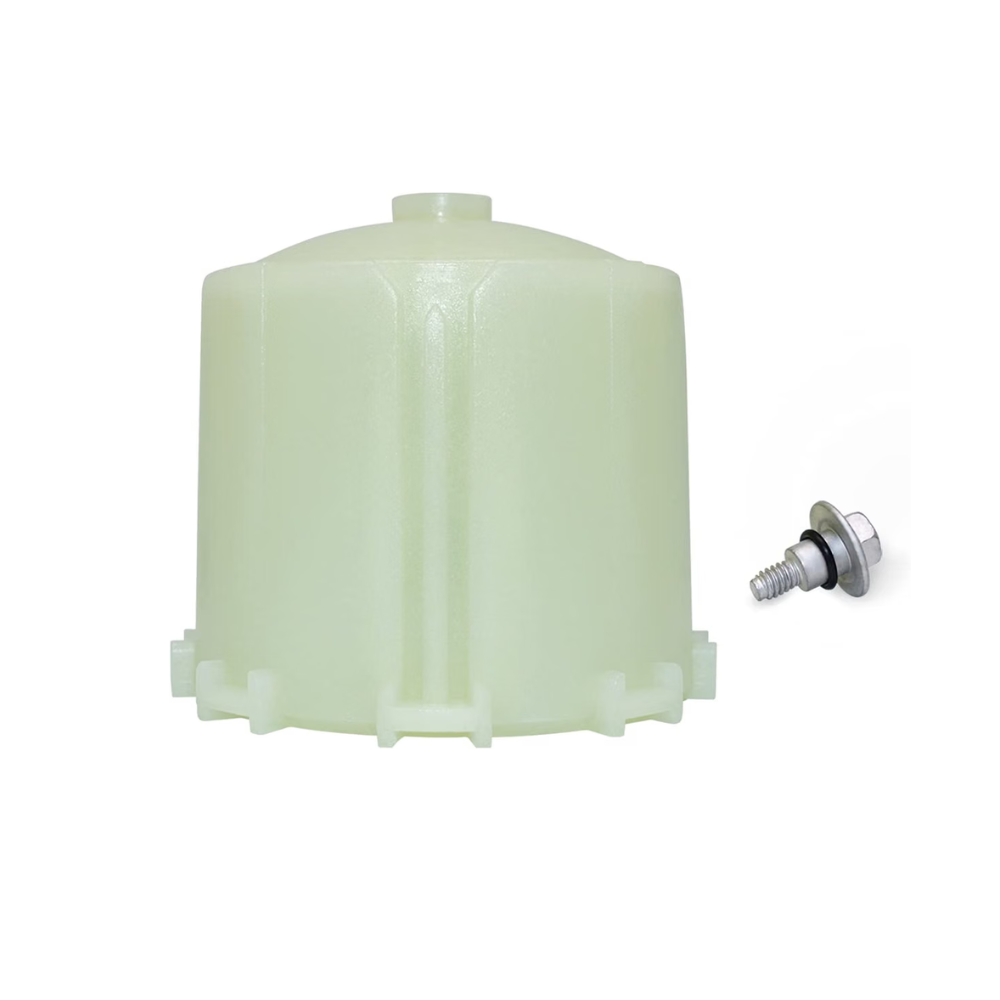

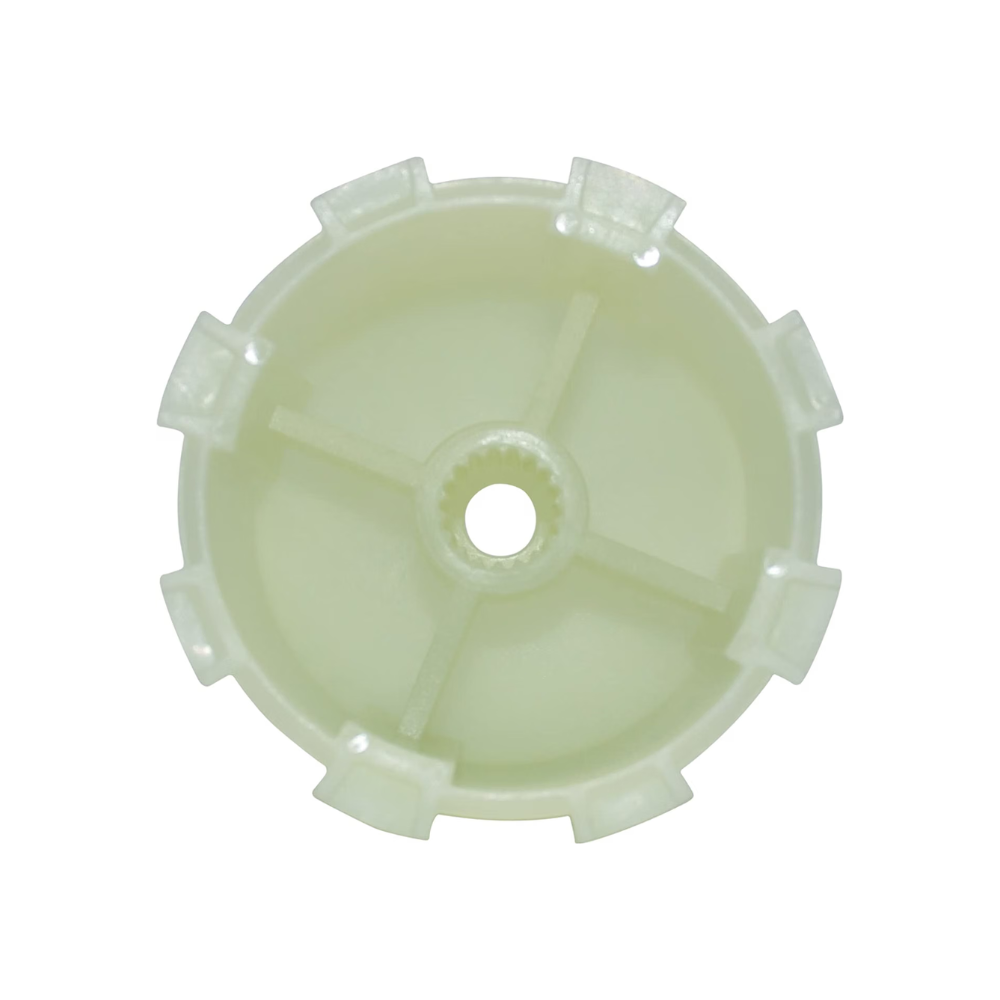

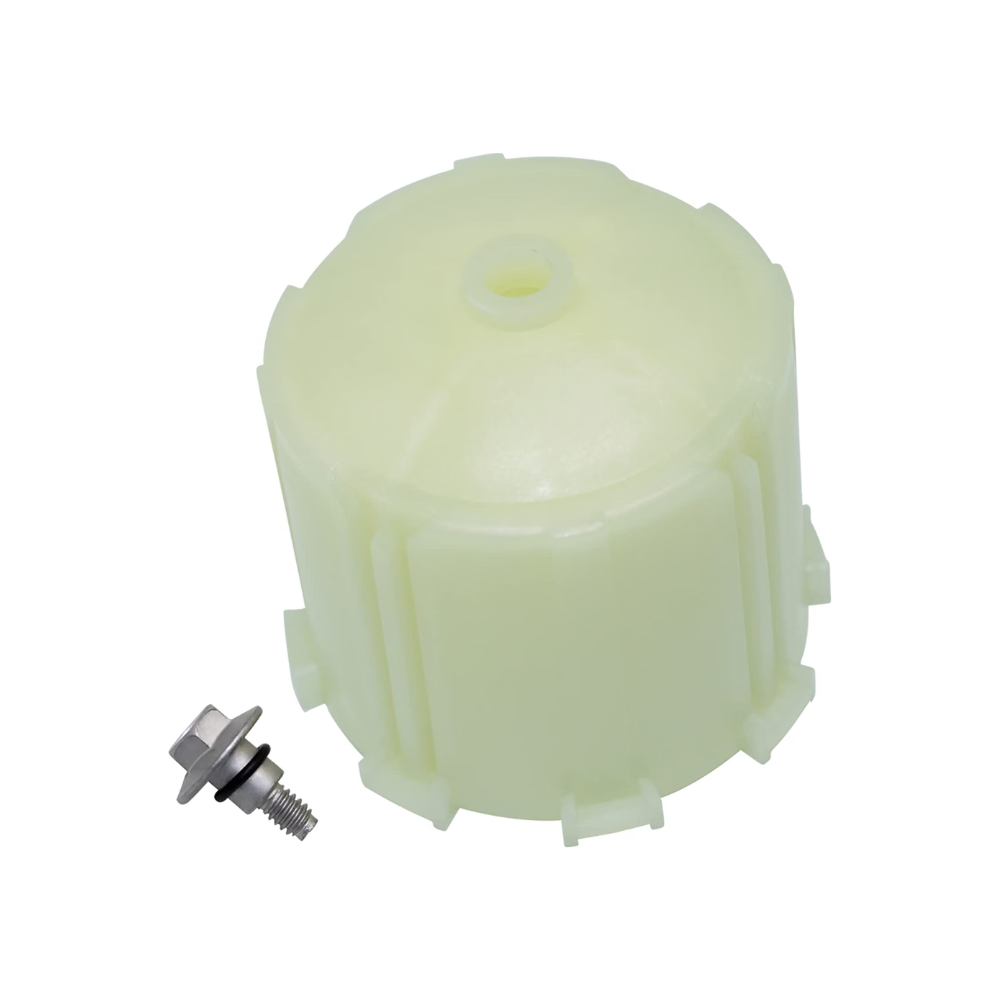

Made of pale yellow plastic with a matte finish, this coupler measures approximately 3-7/16"L x 3-7/16"W x 3-1/8"H, and includes 1 agitator drive bell plus 1 hold-down bolt. Common causes of failure include normal wear and tear over time, or overuse with heavy or unbalanced loads that place extra strain on the coupler's plastic teeth. Symptoms of a bad coupler include the agitator not moving at all, moving too slowly or weakly, loud banging or grinding noises during operation, or oil stains appearing on clothes. It directly replaces WH43X10032, WH02X10037, WH43X10009, AH1517844, WH02X1200, WH2X10037, WH2X1200, WH43X0137, WH43X137, 175D2110P002, 175D2846P001, LP10042, 1195917, 1264702, AH1482517, EA1482517, EA1517844, EAP1517844, PD00001044, PS1482517, PS1517844, AP3964635, and AP3995059.
Quick Answer
The XPARTCO WH49X10042 Washer Agitator Coupler fixes GE, Hotpoint, RCA, Haier, Monogram, and Café top-load washers where the agitator won't move, moves too slowly, makes banging or grinding noise, or leaves oil stains on clothes. Pale yellow plastic, includes drive bell and bolt. Replaces WH43X10032, WH02X10037, WH43X10009, AH1517844, WH02X1200, WH2X10037, WH2X1200, WH43X0137, WH43X137, 175D2110P002, 175D2846P001, LP10042, 1195917, 1264702, AH1482517, EA1482517, EA1517844, EAP1517844, PD00001044, PS1482517, PS1517844, AP3964635, AP3995059. Several customers describe this as an easy repair — a 7/16" socket removes the bolt, and the agitator hub then pulls off by hand.
Common Problems This Part Fixes
- Agitator not moving at all during the wash cycle
- Agitator moving too slowly or weakly
- Loud banging or grinding noise during operation
- Oil stains appearing on clothes after washing
- Agitator feeling loose or slipping when pushed or pulled by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer agitator coupler directly replaces the following OEM and cross-reference part numbers:
WH49X10042, WH43X10032, WH02X10037, WH43X10009, WH02X1200, WH2X10037, WH2X1200, WH43X0137, WH43X137, 175D2110P002, 175D2846P001, LP10042, 1195917, 1264702, AH1482517, AH1517844, AGE26676, AP3964635, OEM11893914, EA1517844, EAP1517844, PD00001044, PS1517844
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This agitator coupler is compatible with select GE top-load washers, and also fits select Hotpoint, RCA, Haier, Monogram, and Café washers built on the GE platform. Fits newer top-load washer designs.
Note: Always verify your full model number before ordering, since GE uses different agitator coupler designs across its washer lineup. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement agitator coupling kit — also known as the agitator drive bell or drive block
- Connects the transmission drive shaft to the agitator base
- Resolves "agitator not moving," "moving too slowly," "banging or grinding noise," and "oil stains on clothes" symptoms
- Pale yellow plastic, matte finish

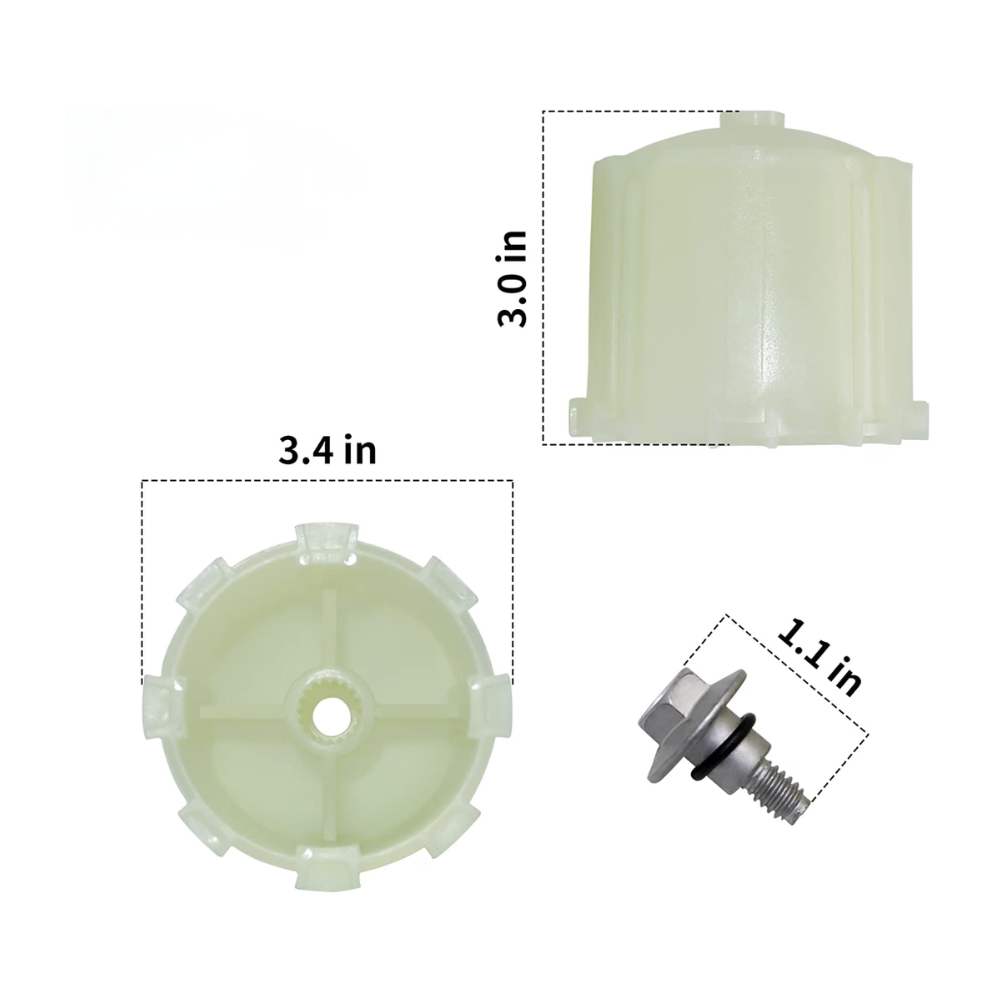

- Approximately 3-7/16"L x 3-7/16"W x 3-1/8"H
- Includes 1 agitator drive bell and 1 hold-down bolt
- Direct drop-in replacement matching the original mounting
- Replaces WH43X10032, WH02X10037, WH43X10009, AH1517844, WH02X1200, WH2X10037, WH2X1200, WH43X0137, WH43X137, 175D2110P002, 175D2846P001, LP10042, 1195917, 1264702, AH1482517, EA1482517, EA1517844, EAP1517844, PD00001044, PS1482517, PS1517844, AP3964635, and AP3995059
- Compatible with GE, Hotpoint, RCA, Haier, Monogram, and Café top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- Simple, quick DIY repair with basic tools
Product Specifications
| Part Number |
XPWH49X10042 |
| OEM Part Number |
WH49X10042 |
| Part Type |
Washer Agitator Coupling Kit (Drive Bell) |
| Condition |
Aftermarket Replacement |
| Color |
Pale Yellow |
| Material |
Plastic |
| Finish |
Matte |
| Dimensions |
3-7/16"L x 3-7/16"W x 3-1/8"H |
| Includes |
1 agitator drive bell, 1 hold-down bolt |
| Repair Difficulty |
Easy — 7/16" socket required |
| Quantity |
1 agitator coupling kit |
| Compatible Brands |
GE, Hotpoint, RCA, Haier |
Installation Notes
⚠️ Unplug Washer Before Starting Disconnect power at the outlet before beginning. Wear work gloves. Remove the fabric softener dispenser or cap from the top of the agitator if your model has one. Using a 7/16" socket, remove the hold-down bolt securing the agitator to the transmission drive shaft. Pull the agitator straight up and off the hub — this typically comes off easily by hand once the bolt is removed. Locate the old coupler (drive bell) on the drive shaft and remove it, noting its orientation. Install the new WH49X10042 coupler onto the drive shaft in the same orientation. Place the agitator back down onto the hub, aligning it correctly, and reinstall the hold-down bolt, tightening it securely with the 7/16" socket. Reattach the fabric softener dispenser or cap. Restore power and run a test cycle to confirm the agitator moves properly through its full back-and-forth range with no unusual noise. Tools needed: 7/16" socket and ratchet, work gloves.
Frequently Asked Questions
My agitator isn't moving at all. Is this the part I need?
Yes, this is the most common symptom of a failed agitator coupler. Since this part is what transmits rotational motion from the transmission to the agitator, worn or stripped plastic teeth inside the coupler can prevent that motion from being transferred, leaving the agitator still or barely moving even though the motor and transmission are working fine.
Is this a difficult repair?
No, this is one of the simpler washer repairs. Multiple customers describe it as very easy: remove a single 7/16" bolt, pull the agitator off the hub by hand, swap the coupler, and reverse the process. No special skills are typically required.
Why does my washer make banging or grinding noise?
A worn agitator coupler can cause this noise as its plastic components degrade and no longer mesh smoothly with the transmission shaft. Replacing the coupler typically resolves this noise along with any accompanying agitation problems.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the size, material, and drive shaft fit of the original WH49X10042 agitator coupling kit used in compatible GE, Hotpoint, RCA, Haier, Monogram, and Café top-load washers.
