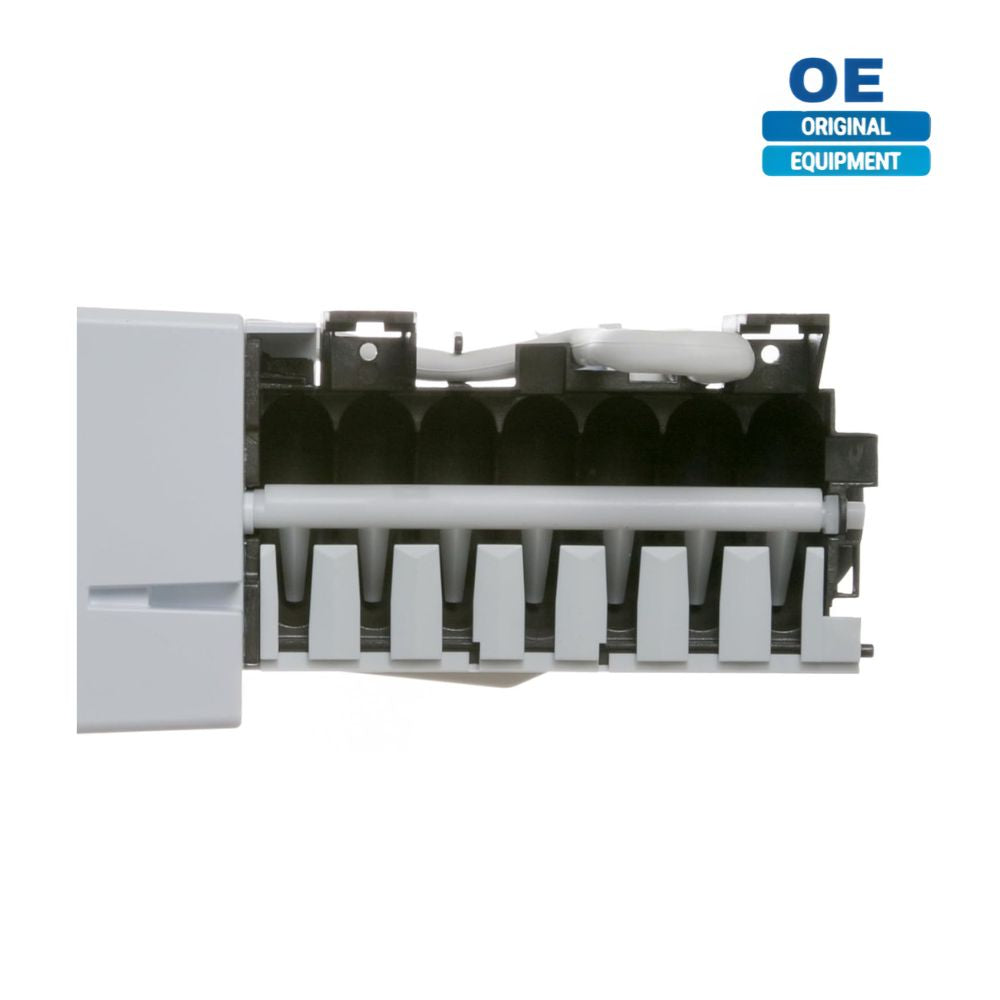

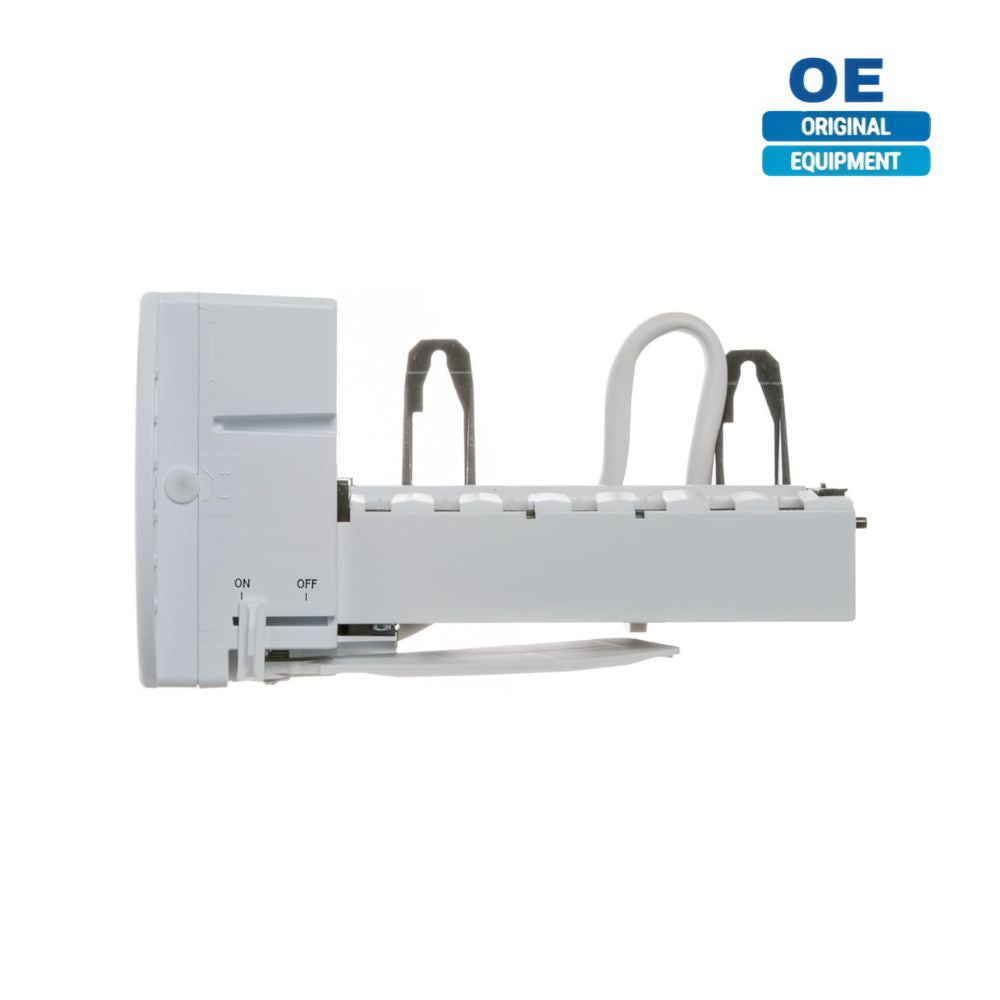

WR30X10093 Refrigerator Ice Maker Assembly — XPARTCO OE
Product Description
The WR30X10093 is an XPARTCO OE ice maker assembly for GE-manufactured refrigerators. This listing is for the ice maker assembly only — attachments such as fill cups, wire harnesses, and fill tubes are not included. You will reuse the existing attachments from your old ice maker. This ice maker does not replace old-style ice maker models — verify your model number against the parts diagram before ordering to confirm compatibility.
This is an electromechanical ice maker — it uses a small timing motor to drive the harvest cycle rather than an electronic control board. During operation, a thermostat embedded in the ice mold monitors temperature. When the water in the mold freezes and the mold temperature drops to the thermostat's setpoint (typically around 15°F), the thermostat closes and energizes a small heater element beneath the mold. This heater warms the mold just enough to release the ice cubes from the aluminum surface. At the same time, the timing motor begins turning the ejector blades — a set of curved metal fingers that rotate through the mold cavities, pushing the loosened cubes up and over the front edge into the ice bin.
As the ejector blades complete their rotation, a cam on the motor shaft activates the water fill switch, which opens the refrigerator's water inlet valve for a timed fill — typically 7 to 8 seconds — sending a measured dose of water into the mold through the fill cup and fill tube. The shut-off arm (bail arm) is a wire lever that rests on top of the ice in the bin. As the bin fills, the rising ice pushes the arm up. When the arm reaches a certain height, it mechanically disengages the timing motor, stopping the harvest cycle until ice is removed from the bin and the arm drops back down. This entire cycle — freeze, sense, heat, eject, refill — repeats automatically and produces roughly 7 cubes per cycle.
Quick Answer
Is Your Ice Maker the Problem?
If your GE refrigerator has stopped producing ice, produces only partial cubes, or the ice maker runs continuously without ejecting, the ice maker assembly may need replacement. Before ordering, check that the water supply valve behind the refrigerator is open, the water filter is not overdue for replacement, the freezer temperature is at or below 0°F, and the shut-off arm moves freely up and down. If the water supply is confirmed and the freezer is cold enough but the ice maker still does not cycle, the internal thermostat or timing motor has likely failed and the assembly should be replaced as a unit. This listing is for the ice maker assembly only — attachments are not included. You will reuse the fill cup, wire harness, and fill tube from your existing ice maker. This ice maker does not replace old-style ice maker models.
Common Symptoms
- Ice maker not producing ice — no harvest cycle initiating
- Ice maker produces only small, hollow, or partial cubes
- Ice maker runs continuously — ejector blades keep turning without stopping
- Ice maker leaks water into the bin or onto the freezer floor
- Shut-off arm does not stop ice production when the bin is full
What Is an OE Part?
An OE (Original Equipment) part is manufactured by the same factory that produces the genuine OEM component. It is the same part — same materials, same tolerances, same production line — shipped in XPARTCO packaging instead of the original manufacturer's box. The only difference is the packaging and the brand name on the label. The part inside is identical to the one you would receive from the original manufacturer's parts channel.
OE parts offer the same fit, function, and reliability as the branded OEM version at a different price point.
Replaces Part Numbers
The WR30X10093 is the current GE part number for this electromechanical ice maker assembly. It replaces all earlier versions of this ice maker going back through decades of GE, Hotpoint, and RCA refrigerator production.
WR30X10093 replaces WR30X10102, WR29X10080, WR29X5162, SWR29X5121, SWR29X5126, WR29X0191, WR29X20949, WR29X5007, WR29X5012, WR29X5023, WR30M0149, WR30M0153, WR30X0138, WR30X0147, WR30X0148, WR30X0159, WR30X0169, WR30X0199, WR30X0203, WR30X0213, WR30X0214, WR30X0238, WR30X0241, WR30X0259, WR30X0282, WR30X0283, WR30X0289, WR30X0290, WR30X0304, WR30X0306, WR30X0307, WR30X0315, WR30X0318, WR30X0320, WR30X0327, WR30X0328, WR30X0329, WR30X10012, WR30X10014, WR30X10044, WR30X10058, WR30X10061, WR30X10082, WR30X10109, WR30X10139, WR30X148, WR30X27952, WR30X28735, WR30X29421, WR30X320, 162D3868G010, 200D1181G011, AGE28454, AH1993870, AP4345120, EAP1993870, EA1993870, PD00000998, PS1993870
Compatibility & Model Cross Reference
This OE ice maker assembly fits select GE-manufactured refrigerators including side-by-side, top-freezer, and bottom-freezer models. It is compatible with over 850 GE refrigerator models. Always confirm your specific model number against the manufacturer's parts diagram before ordering.
GE: GSS25XGPEWW, GSH25KGPACC, PSC25NSWASS, TFX26KRDAWW, GSS20IEMBCC, GSL22JFTABS
GE Profile: PSS26SGRBSS, PSC23NSWASS
Hotpoint: HSM25IFTFSA, HTS16BCSERWW, HSS25GFPDWW
RCA: Select RCA-branded refrigerator models manufactured by GE
Kenmore (363-prefix): 363.9652711, 363.9761514, 363.9534781, 363.9537881
This is a partial list of verified sample models — not every model from these brands uses this ice maker. Your model number is typically on a sticker inside the refrigerator compartment on the sidewall or ceiling. Not sure if this fits? Send us your model number and we'll confirm compatibility before you order.
Key Features
- XPARTCO OE ice maker assembly — same part as GE OEM WR30X10093, XPARTCO packaging
- Ice maker assembly only — attachments (fill cups, wire harnesses, fill tube) are not included
- Reuse the existing attachments from your old ice maker
- Electromechanical design — thermostat-driven harvest cycle with timing motor
- 7-cube mold with curved ejector blades and wire shut-off arm
- 6-post plug-in connector — plugs directly into the refrigerator's ice maker wiring harness
- Does not replace old-style ice maker models — verify model compatibility before ordering
Product Specifications
| Part Number |
WR30X10093 |
| Condition |
OE |
| Brand |
XPARTCO |
| Part Type |
Electromechanical Ice Maker Assembly |
| Appliance Type |
Refrigerator (Side-by-Side, Top-Freezer, Bottom-Freezer) |
| Color |
White |
| Dimensions |
10-1/8" L × 5-3/8" W × 5-1/4" H |
| Connector |
6-post plug-in |
| Cubes Per Cycle |
7 |
| Includes |
Ice maker assembly with shut-off arm only — attachments not included, reuse from existing unit |
Installation & Safety Notes
Safety Warning
Turn off the water supply to the refrigerator before replacing the ice maker. Unplug the refrigerator or turn off the circuit breaker. Remove the ice bin, then unplug the ice maker's wiring harness from the socket in the freezer wall. Remove the two mounting screws securing the ice maker to the freezer wall bracket. Lift the old ice maker out. Before removing the old unit, note the fill cup position and wire harness routing — you will transfer these attachments to the new ice maker. Mount the new ice maker with the original screws, reconnect the existing wire harness, reinstall your existing fill cup, and route the fill tube. Restore water supply and power. Allow 24 hours for the first batch of ice. If the ice maker does not cycle after 24 hours, verify the freezer temperature is at or below 0°F and confirm the shut-off arm is in the down position.
Frequently Asked Questions
- How does the electromechanical ice maker harvest cycle work?
- The cycle is controlled by a thermostat embedded in the ice mold and a small timing motor. When water in the mold freezes and the mold temperature drops to the thermostat's setpoint, the thermostat closes a circuit that energizes a heater beneath the mold. The heater warms the mold surface just enough to break the bond between the ice and the aluminum. Simultaneously, the timing motor begins turning the ejector blades through the mold cavities. The blades push the loosened cubes up and over the front edge into the ice bin. As the motor completes its rotation, a cam activates the water fill switch, which opens the water inlet valve for a timed fill — sending a measured dose of fresh water into the mold to begin the next cycle.
- What does the shut-off arm do and how does it work?
- The shut-off arm (also called the bail arm or feeler arm) is a wire lever that rests on top of the ice in the bin. As ice accumulates and the level in the bin rises, the ice pushes the arm upward. When the arm reaches a preset height, it mechanically disengages the timing motor, preventing the ice maker from starting another harvest cycle. When you remove ice from the bin, the arm drops back down under its own weight, re-engaging the motor and allowing production to resume. If the arm is stuck in the up position — due to ice bridging in the bin, a jammed pivot, or accidental bumping — the ice maker will not produce ice even though nothing is mechanically wrong with the unit itself.
- Why does the ice maker produce small, hollow, or misshapen cubes?
- Undersized or hollow cubes almost always indicate a water supply problem rather than an ice maker malfunction. The most common cause is a clogged or overdue water filter restricting flow to the ice maker. Check the filter and replace it if it has been in service longer than the manufacturer's recommended interval (typically 6 months). Low household water pressure, a partially closed supply valve behind the refrigerator, or a kinked water supply line can also reduce fill volume. If the water supply checks out, the fill valve itself may be partially clogged with mineral deposits and not opening fully during the timed fill cycle.
- Do I need to order attachments separately?
- No. This listing is for the ice maker assembly only — fill cups, wire harnesses, and fill tubes are not included because you reuse the existing attachments from your old ice maker. When you remove the old unit, carefully detach the fill cup, wire harness, and fill tube and transfer them to the new assembly. These attachments are specific to your refrigerator model and do not wear out at the same rate as the ice maker itself, so they typically do not need replacement.
- What does "does not replace old-style ice maker models" mean?
- GE has manufactured several generations of ice makers with different mounting configurations, wiring connectors, and mold designs. The WR30X10093 fits a specific generation of GE refrigerators — it is not a universal replacement for every GE ice maker ever made. If your refrigerator originally used an older-style ice maker with a different mounting pattern, connector type, or mold dimensions, the WR30X10093 will not fit. Always verify your model number against the manufacturer's parts diagram before ordering to confirm this is the correct replacement for your unit.
