XPARTCO WR55X26671 Refrigerator LED Light Board

Description

XPARTCO WR55X26671 Refrigerator LED Light Board

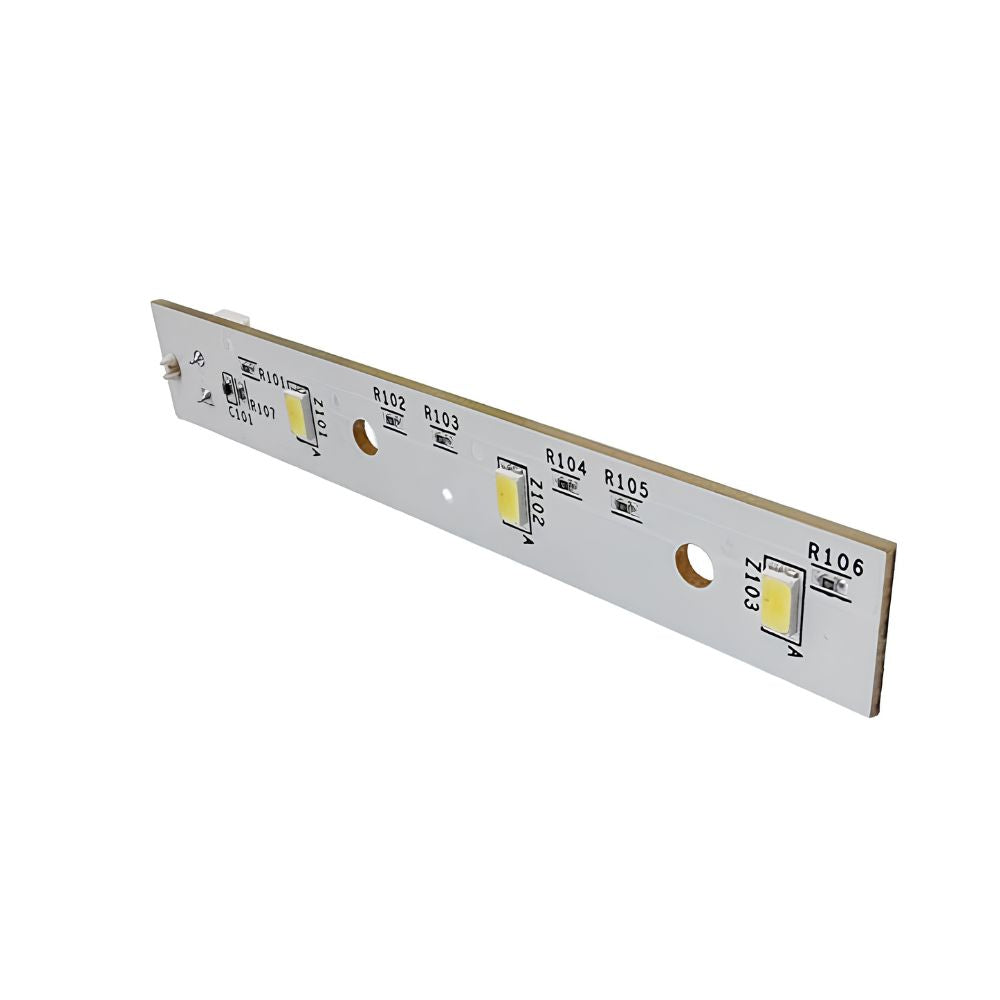

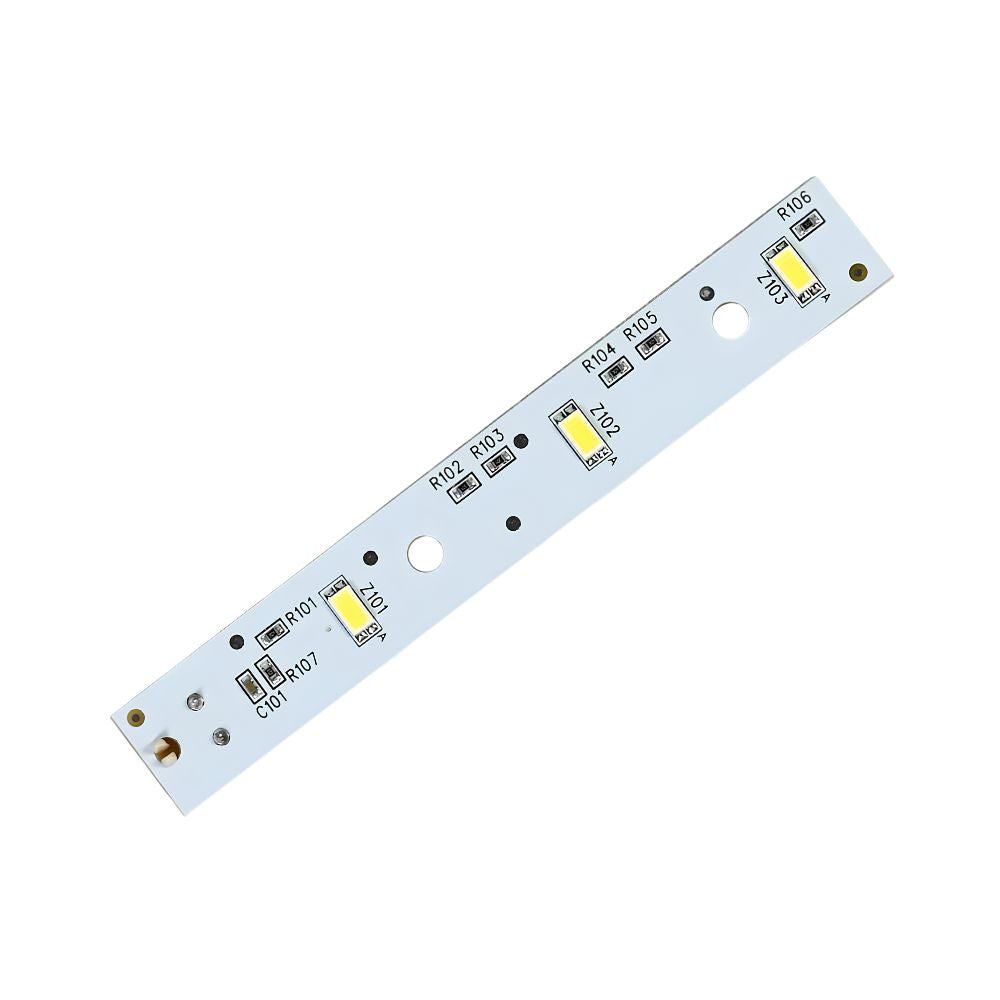

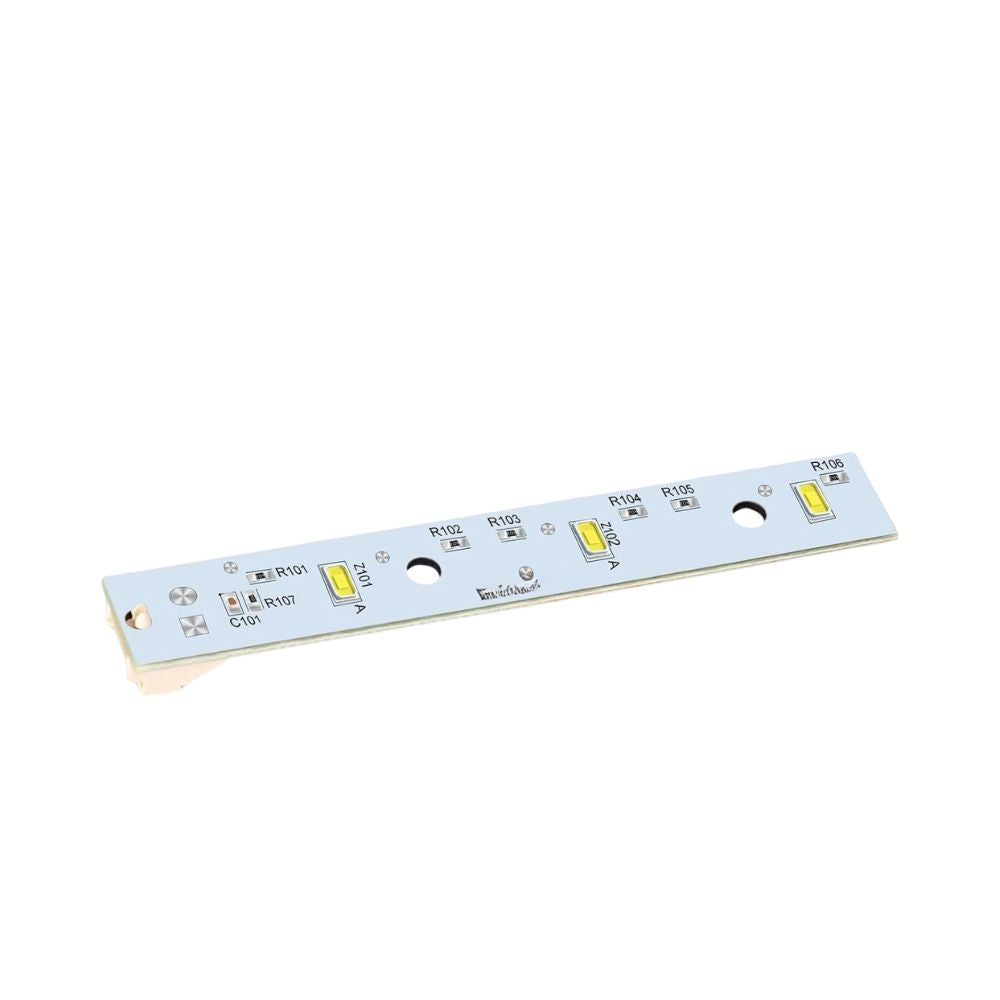

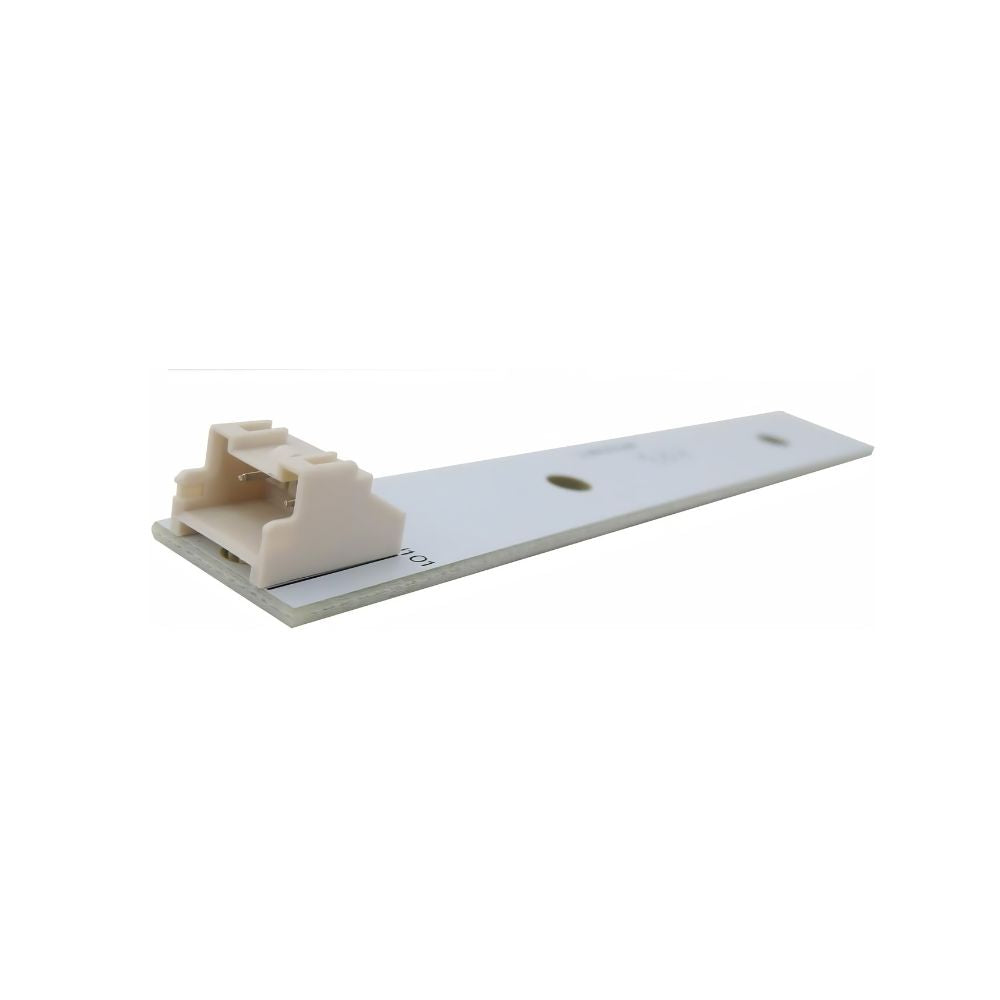

The XPARTCO WR55X26671 is an aftermarket replacement LED light board compatible with select GE and Hotpoint refrigerators, commonly used in side-by-side and French door models. The LED light board sits behind the light lens inside the refrigerator or freezer compartment and provides interior illumination when the door is opened. It features 3 LED light clusters that deliver brighter, more energy-efficient lighting compared to traditional incandescent bulbs. When the light board fails, the refrigerator interior will be dark, making it difficult to see food contents.

The board measures approximately 4" L x 3/8" W x 5/8" H with a white, yellow, and taupe plastic and metal construction. The surface is coated with three-proof paint to resist moisture damage from condensation inside the refrigerator. It directly replaces AP6035586, PS11767930, 4468532, EAP11767930, and PD00048392. Sold individually. Installs in under 5 minutes — no tools required in most cases.

Quick Answer

The XPARTCO WR55X26671 Refrigerator LED Light Board fixes GE and Hotpoint refrigerators where the interior light is out or flickering. LED board with 3 light clusters. Approx. 4" L x 3/8" W x 5/8" H. Moisture-resistant three-proof coating. Sold individually — some models use multiple boards in series. Replaces AP6035586, PS11767930, 4468532, EAP11767930. Compatible with GE side-by-side and French door refrigerators.

Common Problems This Part Fixes

  • Refrigerator interior light not working — compartment is dark when door is opened
  • Freezer compartment light not working
  • Interior light flickering or intermittently cutting out
  • Only some LEDs on the light board working — partial illumination
  • Light board visibly damaged, discolored, or burned
  • Interior light stays dim after replacing the door switch (failed board, not switch)

Replaces Part Numbers

This LED light board directly replaces the following OEM and cross-reference part numbers:

WR55X26671, 4468532, 225D9507G001, 57935, OT7849, W5B3Y3, AGE28912, EAP11767930, FIX11767930, PD00048392, AP6035586, PS11767930.

Contact our support team with your model number if you need compatibility confirmation before ordering.

Compatibility

This LED light board is compatible with select refrigerators from the following brands:

  • GE refrigerators — side-by-side models (GSS, GSE, DSE, CZS series and more)
  • GE refrigerators — French door models (select models)
  • Hotpoint refrigerators (select GE-platform models)

Important: Some GE refrigerator models use multiple LED light boards wired in series. If your refrigerator has more than one light board, all boards in the series may need to be replaced at the same time — a single failed board in a series circuit can cause all boards on that circuit to go dark. Verify how many boards your model uses before ordering. Always verify your model number before ordering.

Key Features

  • 3 LED light clusters — brighter illumination than traditional incandescent bulbs with lower energy consumption
  • Fits behind the light lens inside the refrigerator or freezer compartment — direct replacement for WR55X26671
  • Operates automatically with the door switch — lights when door opens, turns off when door closes
  • Three-proof coating on the board surface — moisture, dust, and corrosion resistant for long service life inside the refrigerator
  • Dimensions: approx. 4" L x 3/8" W x 5/8" H
  • Sold individually — verify quantity needed for your model before ordering
  • Ships in anti-static bag to protect sensitive electronic components during transit
  • Aftermarket replacement built to OEM-equivalent quality standards
  • Quick installation — under 5 minutes, no tools required in most cases

Product Specifications

Part Number WR55X26671
Part Type Refrigerator Interior LED Light Board
Condition Aftermarket Replacement
Application GE and Hotpoint side-by-side and French door refrigerators
LED Clusters 3 light clusters per board
Dimensions Approx. 4" L x 3/8" W x 5/8" H
Color White / Yellow / Taupe
Material Plastic / Metal
Coating Three-proof paint (moisture, dust, corrosion resistant)
Packaging Ships in anti-static bag
Sold As Single board (some models require multiple — verify before ordering)
Compatible Brands GE, Hotpoint

Installation Notes

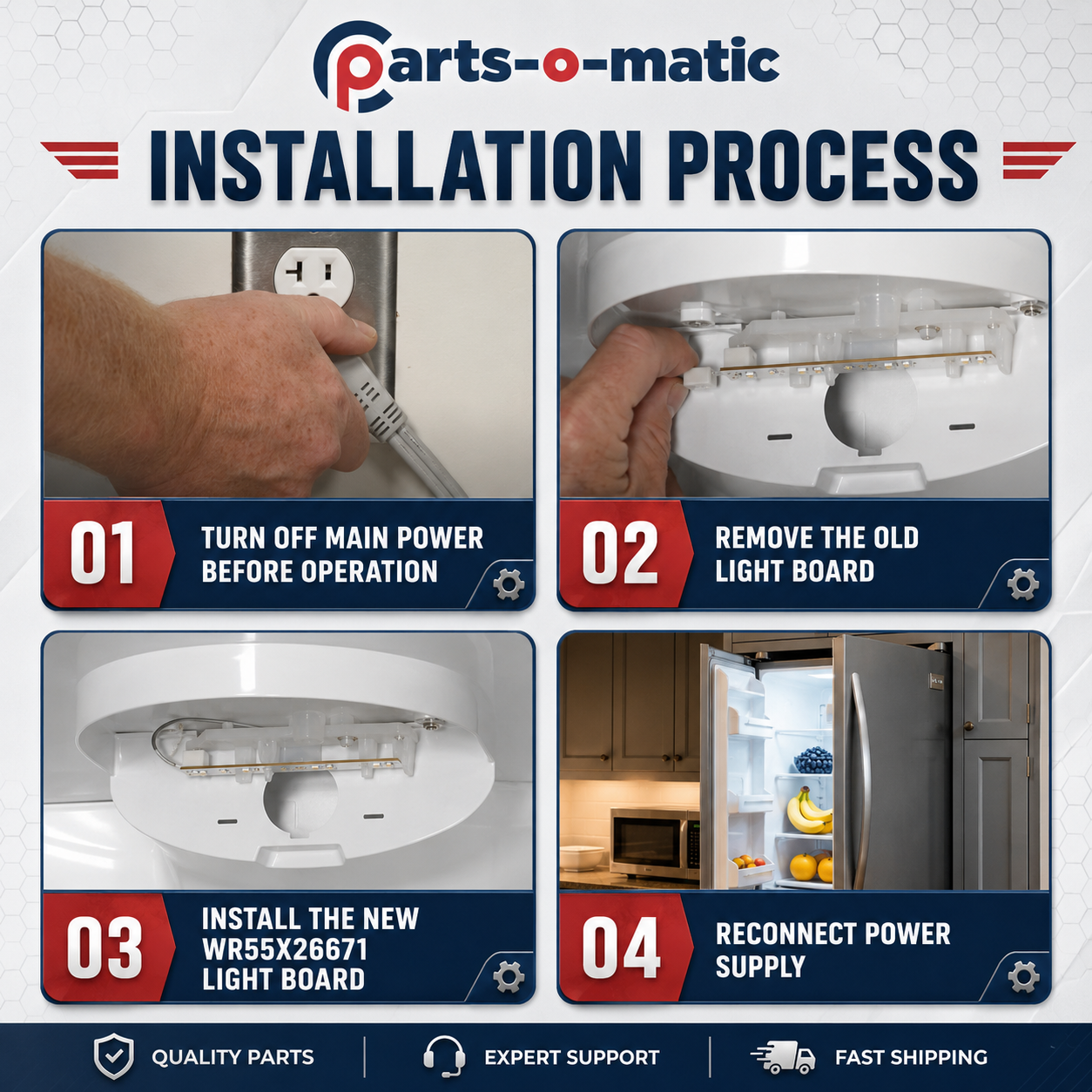

⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator before beginning. Open the refrigerator door and locate the light lens cover inside the compartment. Gently pry off or unscrew the light lens cover to expose the light board behind it. Carefully disconnect the old light board from its electrical connector. Remove the old board and insert the new WR55X26671 in the same orientation, pressing it into its housing until it seats securely. Reconnect the electrical connector. Reinstall the light lens cover. Restore power and open the door to confirm the new light board illuminates correctly. Tools needed: None in most cases; a small flat-head screwdriver may help with the lens cover on some models.

Frequently Asked Questions

My refrigerator light is out — how do I know if it's the light board or the door switch?

The easiest test is to manually press the door switch (the small button inside the door frame that the door presses when closed) — if pressing it causes the light to turn off and releasing it causes it to come back on, the door switch is functioning and the light board itself has failed. If pressing the door switch has no effect and the light remains off, the door switch may be faulty. You can also inspect the light board visually — if any LED clusters are visibly dark, discolored, or burned, the board has failed.

My refrigerator uses multiple light boards — do I need to replace all of them?

Possibly yes. Some GE refrigerator models wire their LED light boards in a series circuit, where all boards share the same electrical path. If one board in the series fails, it can break the circuit and cause all boards on that circuit to go dark — even boards that are otherwise still functional. If your refrigerator went completely dark in a compartment that uses multiple boards, it is recommended to replace all boards in that series at the same time rather than trying to identify and replace a single failed board.

Is the WR55X26671 used in both the refrigerator and freezer sections?

Yes — on compatible GE models, the same WR55X26671 light board is used in both the fresh food compartment and the freezer compartment. If the light is out in only one section, that section's board (or boards) has failed. If both sections are dark simultaneously, the issue may be with the door switch, main control board, or wiring rather than the light boards themselves.

Why does the board ship in an anti-static bag?

The WR55X26671 contains sensitive electronic components that can be permanently damaged by static electricity discharge during handling. The anti-static bag prevents static buildup during shipping and storage. When installing the board, avoid touching the circuit board traces or components directly — handle it by the edges or plastic frame. Do not open the anti-static bag until you are ready to install.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured with a three-proof moisture-resistant coating and to match the dimensions and performance of the original WR55X26671 LED light board.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
Product form

XPARTCO WR55X26671 Refrigerator LED Light Board

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $26.00 List Price $12.75You Save: $13.25Delivered to your address
Store Walk-In
Discounted Price $9.88Walk-In Savings: $2.87In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
🔍 CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check compatibility.

View Full Compatibility List ↓

    Description

    XPARTCO WR55X26671 Refrigerator LED Light Board

    The XPARTCO WR55X26671 is an aftermarket replacement LED light board compatible with select GE and Hotpoint refrigerators, commonly used in side-by-side and French door models. The LED light board sits behind the light lens inside the refrigerator or freezer compartment and provides interior illumination when the door is opened. It features 3 LED light clusters that deliver brighter, more energy-efficient lighting compared to traditional incandescent bulbs. When the light board fails, the refrigerator interior will be dark, making it difficult to see food contents.

    The board measures approximately 4" L x 3/8" W x 5/8" H with a white, yellow, and taupe plastic and metal construction. The surface is coated with three-proof paint to resist moisture damage from condensation inside the refrigerator. It directly replaces AP6035586, PS11767930, 4468532, EAP11767930, and PD00048392. Sold individually. Installs in under 5 minutes — no tools required in most cases.

    Quick Answer

    The XPARTCO WR55X26671 Refrigerator LED Light Board fixes GE and Hotpoint refrigerators where the interior light is out or flickering. LED board with 3 light clusters. Approx. 4" L x 3/8" W x 5/8" H. Moisture-resistant three-proof coating. Sold individually — some models use multiple boards in series. Replaces AP6035586, PS11767930, 4468532, EAP11767930. Compatible with GE side-by-side and French door refrigerators.

    Common Problems This Part Fixes

    • Refrigerator interior light not working — compartment is dark when door is opened
    • Freezer compartment light not working
    • Interior light flickering or intermittently cutting out
    • Only some LEDs on the light board working — partial illumination
    • Light board visibly damaged, discolored, or burned
    • Interior light stays dim after replacing the door switch (failed board, not switch)

    Replaces Part Numbers

    This LED light board directly replaces the following OEM and cross-reference part numbers:

    WR55X26671, 4468532, 225D9507G001, 57935, OT7849, W5B3Y3, AGE28912, EAP11767930, FIX11767930, PD00048392, AP6035586, PS11767930.

    Contact our support team with your model number if you need compatibility confirmation before ordering.

    Compatibility

    This LED light board is compatible with select refrigerators from the following brands:

    • GE refrigerators — side-by-side models (GSS, GSE, DSE, CZS series and more)
    • GE refrigerators — French door models (select models)
    • Hotpoint refrigerators (select GE-platform models)

    Important: Some GE refrigerator models use multiple LED light boards wired in series. If your refrigerator has more than one light board, all boards in the series may need to be replaced at the same time — a single failed board in a series circuit can cause all boards on that circuit to go dark. Verify how many boards your model uses before ordering. Always verify your model number before ordering.

    Key Features

    • 3 LED light clusters — brighter illumination than traditional incandescent bulbs with lower energy consumption
    • Fits behind the light lens inside the refrigerator or freezer compartment — direct replacement for WR55X26671
    • Operates automatically with the door switch — lights when door opens, turns off when door closes
    • Three-proof coating on the board surface — moisture, dust, and corrosion resistant for long service life inside the refrigerator
    • Dimensions: approx. 4" L x 3/8" W x 5/8" H
    • Sold individually — verify quantity needed for your model before ordering
    • Ships in anti-static bag to protect sensitive electronic components during transit
    • Aftermarket replacement built to OEM-equivalent quality standards
    • Quick installation — under 5 minutes, no tools required in most cases

    Product Specifications

    Part Number WR55X26671
    Part Type Refrigerator Interior LED Light Board
    Condition Aftermarket Replacement
    Application GE and Hotpoint side-by-side and French door refrigerators
    LED Clusters 3 light clusters per board
    Dimensions Approx. 4" L x 3/8" W x 5/8" H
    Color White / Yellow / Taupe
    Material Plastic / Metal
    Coating Three-proof paint (moisture, dust, corrosion resistant)
    Packaging Ships in anti-static bag
    Sold As Single board (some models require multiple — verify before ordering)
    Compatible Brands GE, Hotpoint

    Installation Notes

    ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator before beginning. Open the refrigerator door and locate the light lens cover inside the compartment. Gently pry off or unscrew the light lens cover to expose the light board behind it. Carefully disconnect the old light board from its electrical connector. Remove the old board and insert the new WR55X26671 in the same orientation, pressing it into its housing until it seats securely. Reconnect the electrical connector. Reinstall the light lens cover. Restore power and open the door to confirm the new light board illuminates correctly. Tools needed: None in most cases; a small flat-head screwdriver may help with the lens cover on some models.

    Frequently Asked Questions

    My refrigerator light is out — how do I know if it's the light board or the door switch?

    The easiest test is to manually press the door switch (the small button inside the door frame that the door presses when closed) — if pressing it causes the light to turn off and releasing it causes it to come back on, the door switch is functioning and the light board itself has failed. If pressing the door switch has no effect and the light remains off, the door switch may be faulty. You can also inspect the light board visually — if any LED clusters are visibly dark, discolored, or burned, the board has failed.

    My refrigerator uses multiple light boards — do I need to replace all of them?

    Possibly yes. Some GE refrigerator models wire their LED light boards in a series circuit, where all boards share the same electrical path. If one board in the series fails, it can break the circuit and cause all boards on that circuit to go dark — even boards that are otherwise still functional. If your refrigerator went completely dark in a compartment that uses multiple boards, it is recommended to replace all boards in that series at the same time rather than trying to identify and replace a single failed board.

    Is the WR55X26671 used in both the refrigerator and freezer sections?

    Yes — on compatible GE models, the same WR55X26671 light board is used in both the fresh food compartment and the freezer compartment. If the light is out in only one section, that section's board (or boards) has failed. If both sections are dark simultaneously, the issue may be with the door switch, main control board, or wiring rather than the light boards themselves.

    Why does the board ship in an anti-static bag?

    The WR55X26671 contains sensitive electronic components that can be permanently damaged by static electricity discharge during handling. The anti-static bag prevents static buildup during shipping and storage. When installing the board, avoid touching the circuit board traces or components directly — handle it by the edges or plastic frame. Do not open the anti-static bag until you are ready to install.

    Is this an OEM or aftermarket part?

    This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured with a three-proof moisture-resistant coating and to match the dimensions and performance of the original WR55X26671 LED light board.

    Shop With Confidence

    A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

    ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
    WR55X26671, 4468532, 225D9507G001, 57935, OT7849, W5B3Y3, AGE28912, EAP11767930, FIX11767930, PD00048392, AP6035586, PS11767930

    Model Compatibility

    Search your appliance model number below. Supports partial or full model search.

    🔍 CHECK YOUR MODEL COMPATIBILITY

    Type your full or partial model number above to instantly check if this part fits your appliance.

    ✓ Guaranteed Fit — exact model match found.
    No matching model found. Please verify your full model number or contact support.
    Loading compatible models...
    Model Number Manufacturer Appliance Type

    ⚠️ Note: This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
