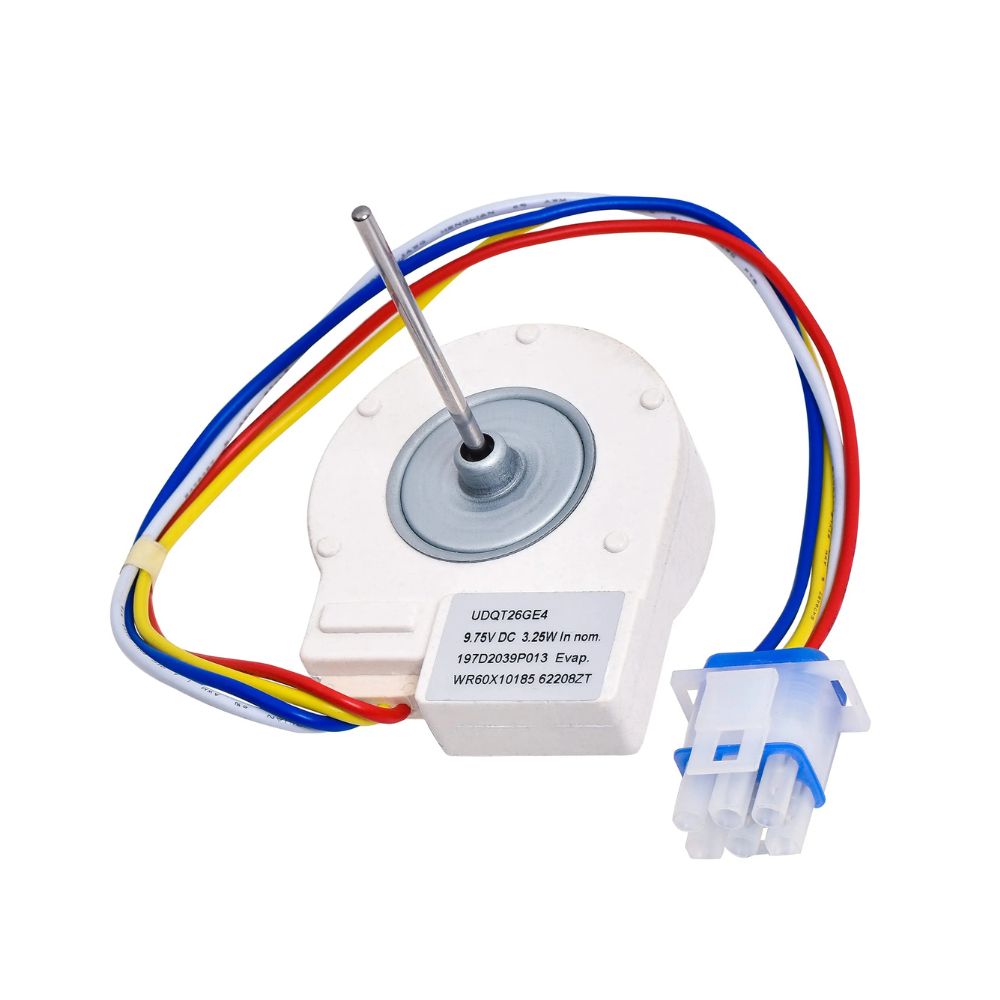

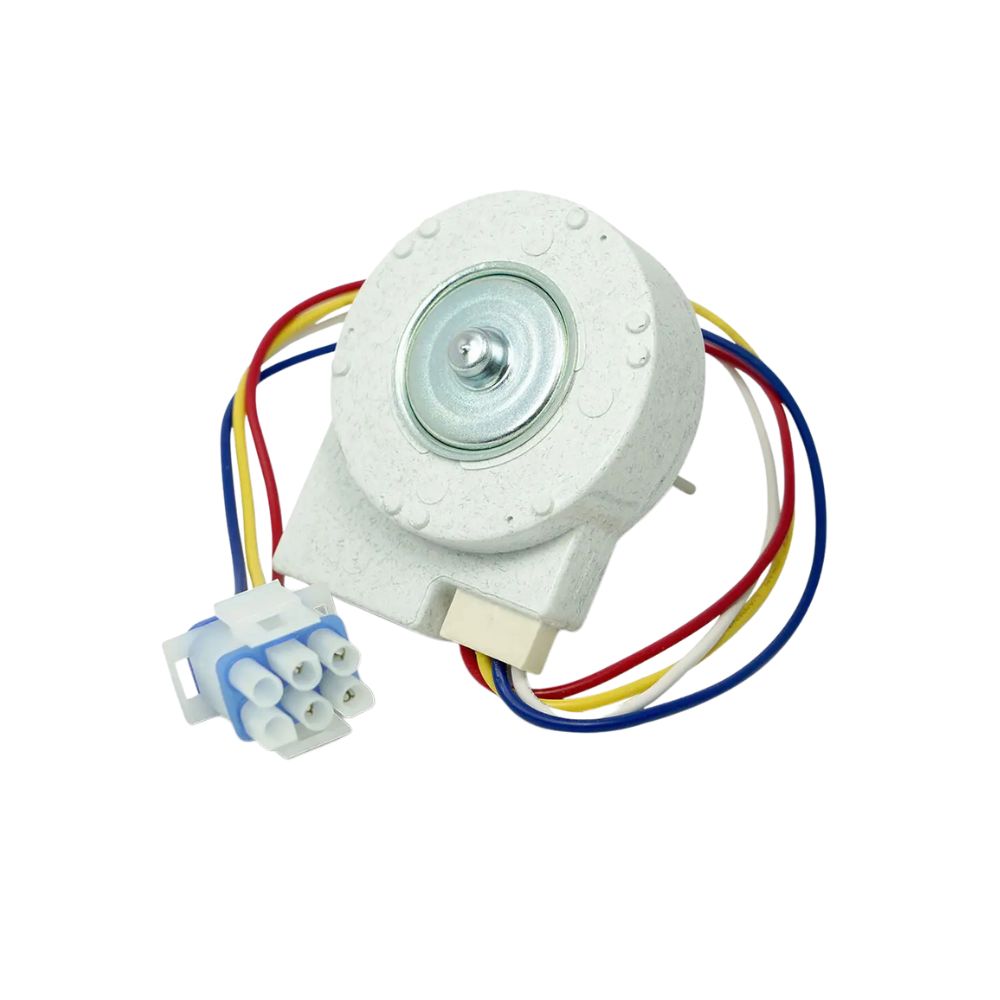

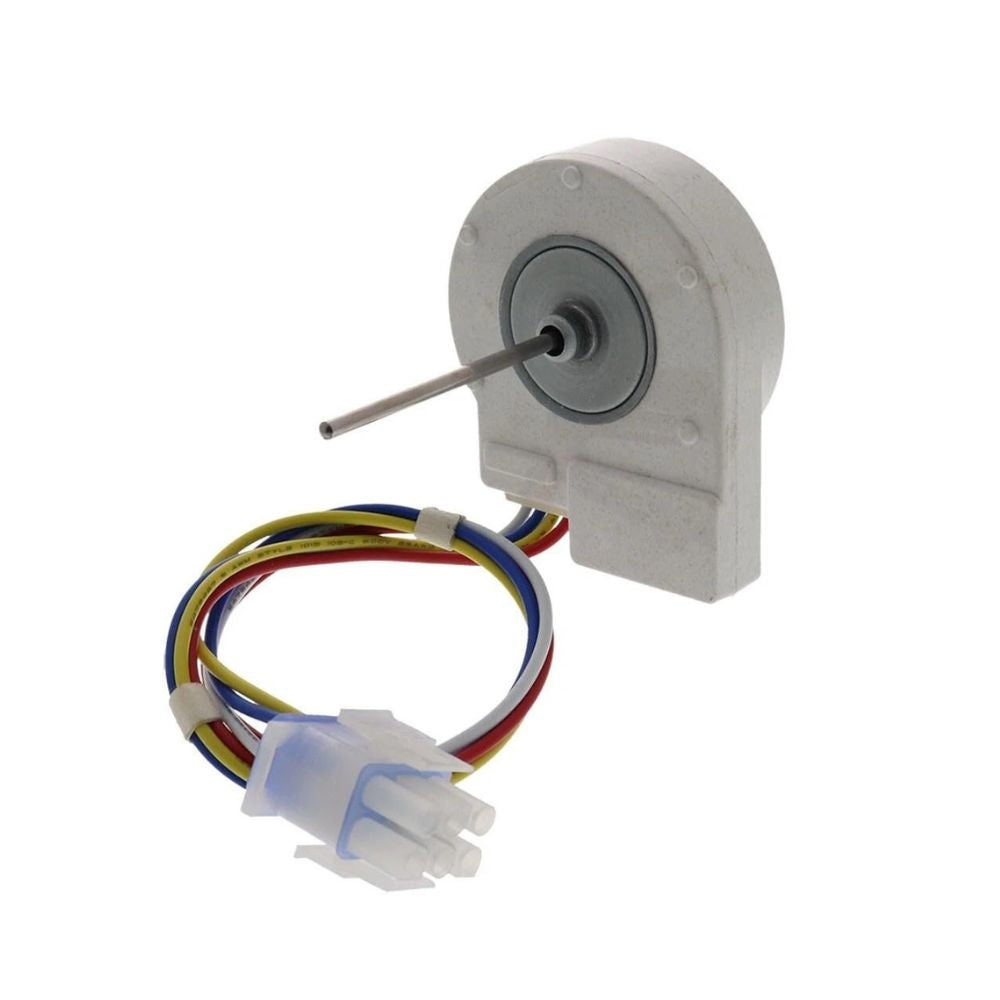

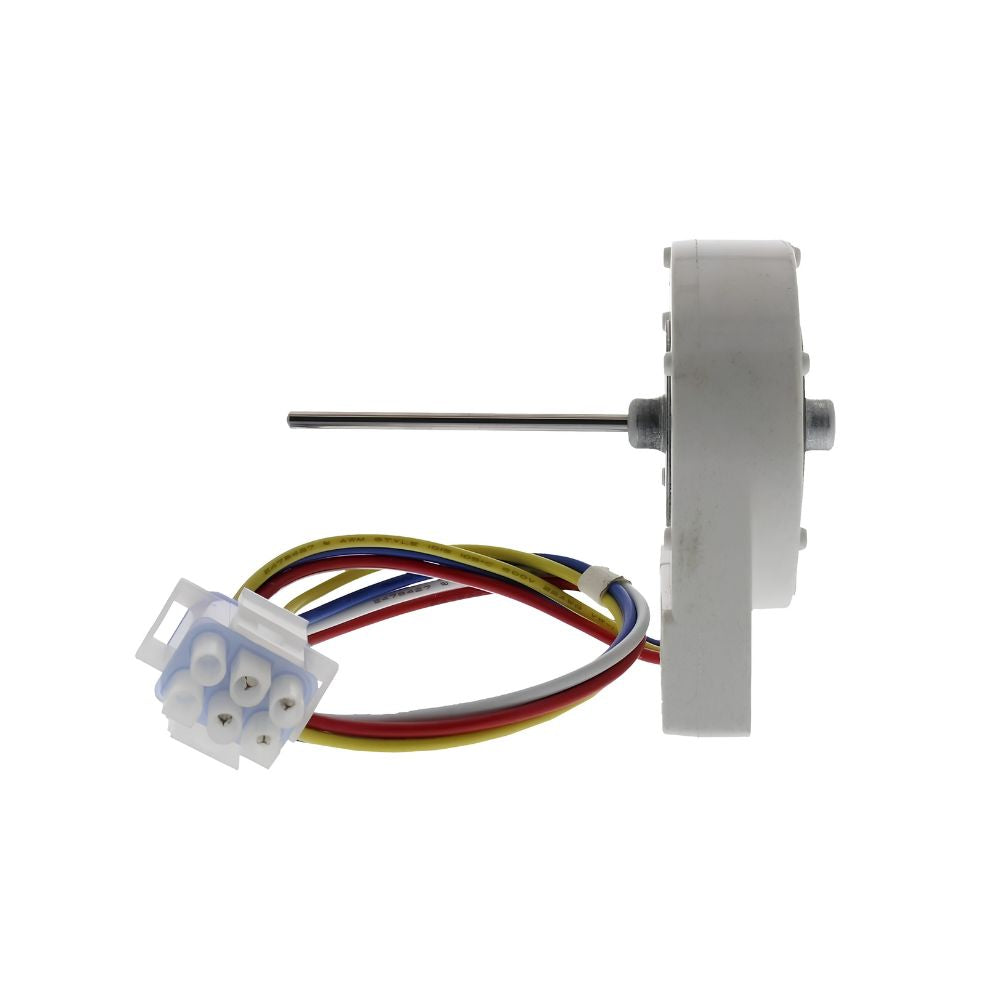

XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor
The XPARTCO WR60X10185 is an aftermarket replacement evaporator fan motor located in the freezer compartment, for GE, Hotpoint, and select Kenmore, Haier, Monogram, and Café refrigerators. This motor pulls air across the evaporator coils to strip heat from it, then circulates that cold air through the freezer and, via ducting, to the fresh food compartment. This particular motor does not include a thermistor — it ships as a fan motor with a 4-wire harness on a 6-pin connector, with two of those six pin slots left empty. If your refrigerator's original connector has a white thermistor wire in it, or a separate connector for a freezer light, this is not the correct motor for your unit.
Rated 9.75V DC, 3.25W. A fan motor generally has a long service life, but it can burn out quickly if debris or ice buildup obstructs the blade and forces the motor to work against resistance it wasn't designed for. Common symptoms of a failing motor include unusual noise from the freezer, a fresh food compartment that's warmer than it should be while the freezer stays reasonably cold, frost or ice accumulating around the fan or coil, and a refrigerator that runs constantly trying to compensate for lost circulation. It directly replaces AP3875639, 1170107, 197D2039P007, 197D2039P008, PS1019114, EAP1019114, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, and WR60X10157. As an aftermarket replacement, the WR60X10185 is built to OEM-equivalent quality standards.
Quick Answer
The XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, and select Kenmore refrigerators where the fresh food section runs warm while the freezer stays cold, there's unusual noise from the freezer, or frost is building up around the coil. 9.75V DC, 3.25W, 4-wire harness on a 6-pin connector (2 pins empty). Does NOT include a thermistor. Replaces AP3875639, 1170107, 197D2039P007, 197D2039P008, PS1019114, WR23X10353, WR23X10355, WR23X10364, WR60X10043, WR60X10154, and others listed below. If your old connector has a white thermistor wire, you need WR60X10074 instead; if it has a light connector, you need WR23X10467.
Common Problems This Part Fixes
- Fresh food compartment running warmer than normal while the freezer stays reasonably cold
- Unusual noise — humming, buzzing, or grinding — coming from the freezer
- Freezer not cooling properly, which in turn affects compressor performance
- Frost or ice buildup accumulating around the fan blade or evaporator coil
- Refrigerator running continuously as it struggles to maintain temperature
- Fan motor that has burned out due to an obstruction preventing the blade from turning
- Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X10185, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, WR60X10157, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, 197D2039P013, 1170107, UDQT26GE4, AP3875639, AGE29155, PD00000986, PS1019114, EAP1019114
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE and Hotpoint refrigerators, and also fits select Kenmore, Haier, Monogram, and Café refrigerators built on the GE platform.
Note — check your connector before ordering: GE uses several different evaporator fan motor variants that look nearly identical, and choosing the wrong one means the connector or function won't match your refrigerator. This WR60X10185 motor has no thermistor and a plain 4-wire harness with 2 empty slots on its 6-pin connector. If your old motor's connector has a white thermistor wire in it, you need WR60X10074 instead (harness with integrated thermistor). If your old connector instead has a dedicated light connector, you need WR23X10467. This part is also a separate motor from our WR60X10318 listing, which is a side-by-side platform assembly with its own integrated thermistor and a longer harness. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor fits your refrigerator.
Key Features
- Aftermarket replacement built to match GE's factory-specified motor and blade design
- Pulls air across the evaporator coils and circulates it through the freezer and fresh food compartments
- Resolves "fresh food warm while freezer stays cold," "unusual noise," and "frost buildup" symptoms caused by fan motor failure
- Rated 9.75V DC, 3.25W
- Includes the fan motor and 4-wire harness assembly (does not include thermistor)
- Direct drop-in replacement matching the original mounting and blade fitment
- Replaces a wide range of legacy WR23X and WR60X part numbers plus AP3875639 and PS1019114
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
XPWR60X10185 |
| OEM Part Number |
WR60X10185 |
| Part Type |
Refrigerator Evaporator Fan Motor |
| Condition |
Aftermarket Replacement |
| Brand |
GE |
| Location |
Freezer compartment |
| Voltage |
9.75V DC |
| Wattage |
3.25 W |
| Harness |
4-wire, 6-pin connector (2 pins unused) |
| Includes Thermistor |
No |
| Quantity |
1 fan motor |
| Compatible Brands |
GE, Hotpoint, Kenmore, Haier, Monogram, Café |
Installation Notes
⚠️ Unplug Refrigerator Before Starting — Check Your Connector Type First Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Before removing the old motor, look closely at its connector: confirm it's a plain 4-wire harness with no thermistor wire and no separate light connector, matching this replacement. Access is through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator coil and fan assembly. If there's significant frost or ice around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation. Mount the new WR60X10185 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
How do I know if I need this motor or the one with the thermistor?
Look directly at your old motor's electrical connector before ordering. This WR60X10185 motor has a plain 4-wire harness on a 6-pin plug, with two of the six pin positions left empty — there's no thermistor wire involved. If your connector instead has a white thermistor wire running into it, you'll need WR60X10074, which includes an integrated thermistor and is not interchangeable with this motor. If your connector has a separate plug specifically for a freezer light, you'll need WR23X10467 instead.
My fresh food section is warm but the freezer seems fine. Is this the right part?
Yes, this is a very common and telling symptom pattern. The freezer sits right next to the evaporator coil and can stay reasonably cold through proximity even with weakening air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area, and GE's own guidance confirms that a fresh-food-warm/freezer-fine pattern points to this fan.
Why would a fan motor "burn out quickly" instead of just wearing out slowly?
While this motor generally has a long service life, it can fail rapidly if something obstructs the fan blade from turning — commonly built-up frost or ice, or occasionally debris. When the blade can't turn freely, the motor works against resistance it wasn't designed for, which accelerates internal wear and can burn it out much faster than normal aging would. Clearing ice from around the fan before or during replacement helps prevent stressing the new motor the same way.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the original 9.75V, 3.25W motor design, blade fitment, and 4-wire harness configuration of the fan motor originally installed in your refrigerator.
