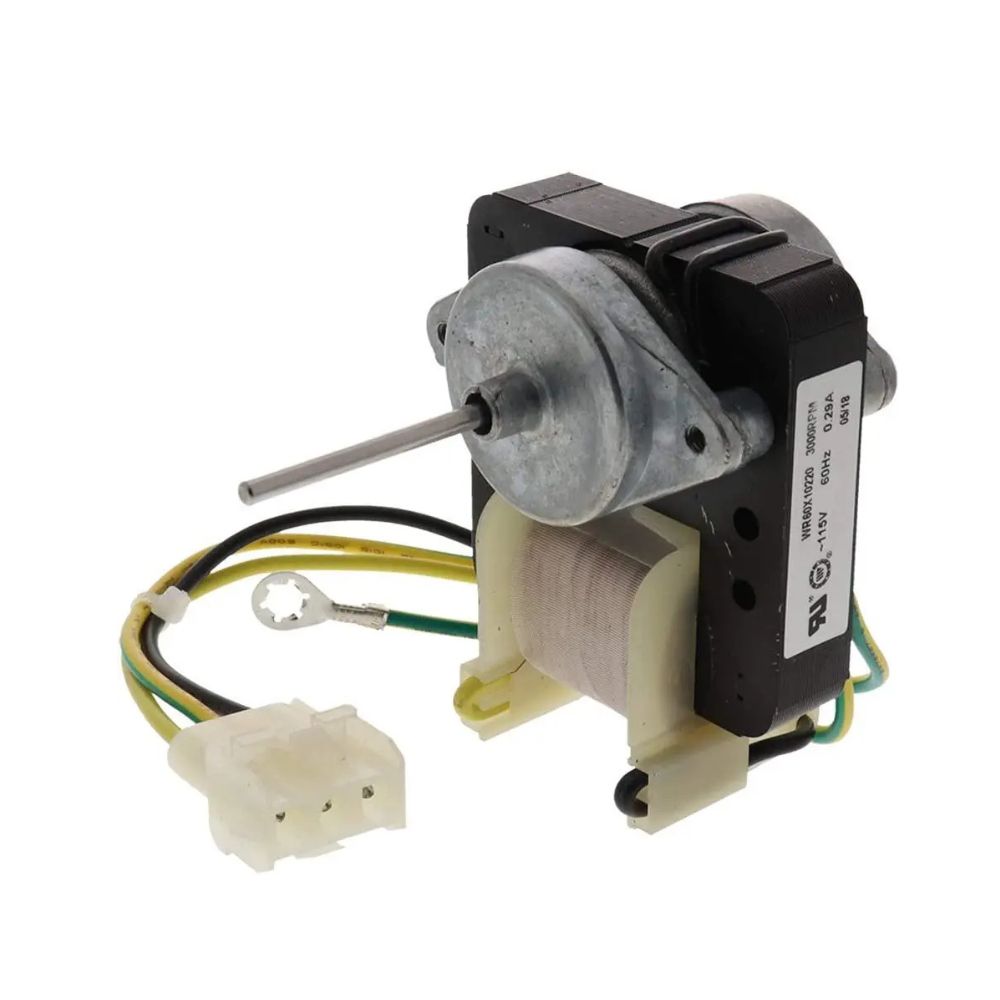

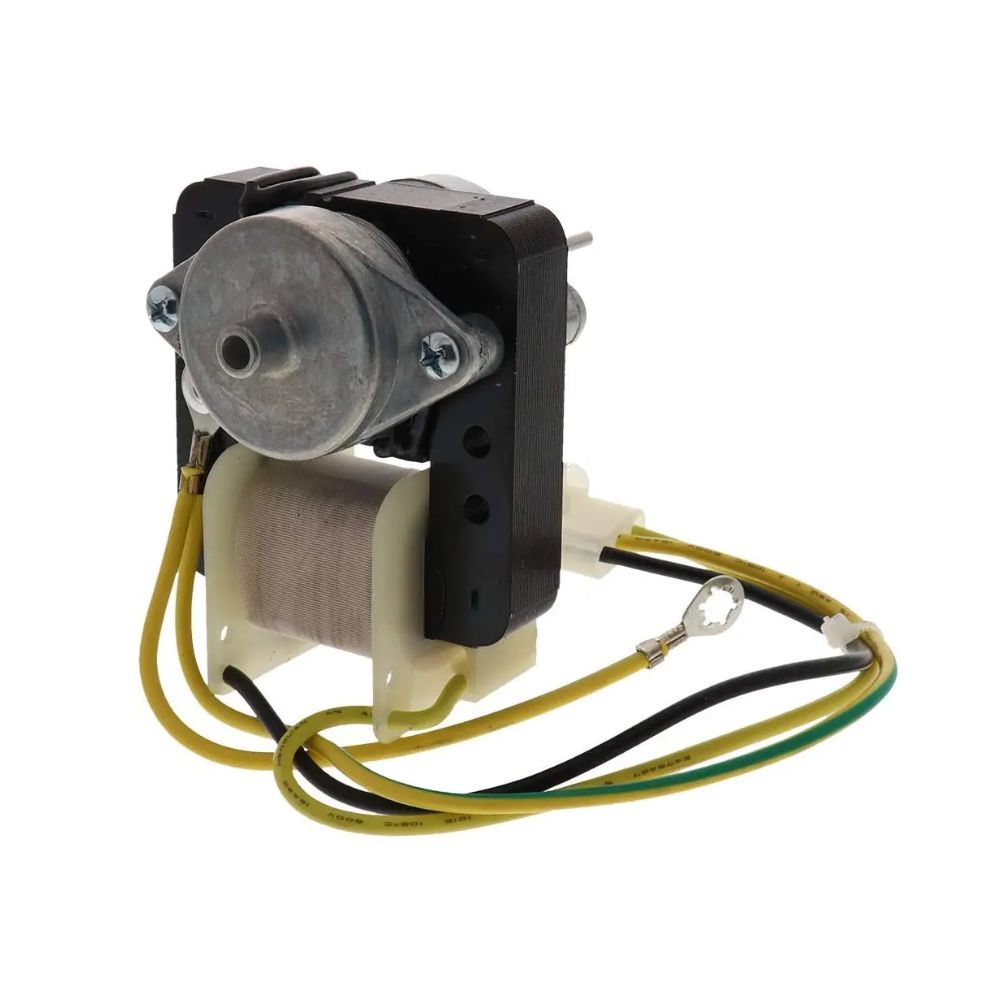

XPARTCO WR60X10220 Refrigerator Condenser Fan Motor
The XPARTCO WR60X10220 is an aftermarket replacement condenser fan motor for GE frost-free refrigerators with a condenser coil. This motor lives in the compressor/machine compartment at the back or bottom of the refrigerator. Whenever the compressor runs, this fan runs right along with it, circulating air through the refrigerator's grille to cool both the compressor and the condenser coils as they work. It also plays a secondary role in helping evaporate excess water that collects in the drain pan.
Because the condenser fan cools the mechanical side of the refrigeration system rather than circulating cold air to your food, a failing motor tends to affect the whole refrigerator's cooling capacity rather than just one compartment. The harness and plug extend approximately 8" from the motor body. Common failure causes include worn motor bearings, dust and debris buildup around the coils restricting airflow, and general electrical wear over time. Symptoms include a refrigerator that runs warm overall, a hot cabinet area near the back or bottom of the unit, a squealing or grinding noise, or the compressor running constantly as it struggles to shed heat. It directly replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, and SM10220.
Quick Answer
The XPARTCO WR60X10220 Refrigerator Condenser Fan Motor fixes GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café frost-free refrigerators with a hot cabinet area, squealing or grinding noise, or a fridge running warm overall. Harness and plug extend approximately 8" from the motor. Replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, SM10220. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments.
Common Problems This Part Fixes
- Refrigerator running warm overall, in both the fresh food and freezer compartments
- Hot cabinet area noticeable near the back or bottom of the refrigerator
- Squealing, grinding, or buzzing noise coming from the compressor compartment
- Refrigerator running constantly as the compressor struggles to shed heat
- Water pooling or not evaporating properly in the drain pan
- Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand
- Excessive dust or debris buildup visible around the condenser coils and fan
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator condenser fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X10220, WR60X10133, WR60X10171, WR60X10192, 197D1871P026, IS-2321GEN, AH1766247, EA1766247, EAP1766247, AP4298602, AGE29216, PD00001198, PS1766247, SM10220
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This condenser fan motor is compatible with select GE, Hotpoint, and RCA frost-free refrigerators, and also fits select Kenmore, Haier, Monogram, and Café refrigerators built on the GE platform.
Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our WR60X10185 or WR60X10318 listings), which sits behind the freezer's rear panel and circulates cold air to the food compartments. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs.
Key Features
- Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat
- Resolves "hot cabinet area," "squealing or grinding noise," "runs warm overall," and "runs constantly" symptoms caused by fan failure
- Also helps evaporate excess water collecting in the drain pan
- Harness and plug extend approximately 8" from the motor body
- Sturdy construction built for long-term reliable performance
- Direct drop-in replacement matching the original mounting and blade fitment
- Replaces WR60X10133, WR60X10171, WR60X10192, AP4298602, 1257132, AH1766247, EA1766247, PS1766247, and SM10220
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY-friendly repair — typically under 30 minutes
Product Specifications
| Part Number |
WR60X10220 |
| OEM Part Number |
WR60X10220 |
| Part Type |
Refrigerator Condenser Fan Motor |
| Condition |
Aftermarket Replacement |
| Brand |
GE |
| Location |
Compressor/machine compartment (back or bottom of cabinet) |
| Function |
Cools the condenser coils and compressor; aids drain pan evaporation |
| Dimensions |
2-1/2"H x 4"W x 11"D |
| Harness/Plug Length |
Approx. 8" from motor |
| Repair Difficulty |
Easy — under 30 minutes |
| Quantity |
1 fan motor |
| Compatible Brands |
GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café |
Installation Notes
⚠️ Unplug Refrigerator Before Starting Shut off power at the circuit breaker or fuse box, then pull the refrigerator away from the wall and disconnect the power cord from the outlet. Wear work gloves. Remove the condenser fan motor cover, typically held on by two screws, to access the motor. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring and the fan blade's position before disconnecting anything. Disconnect the power wire and the ground wire from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. If the old fan blade is seized onto the motor shaft, a firm, sudden strike (rather than steady pressure) will typically break the blade loose from the shaft without damaging the plastic blade, so it can be reused on the new motor. Mount the new WR60X10220 in the same position, reconnect the power and ground wires, and confirm the blade spins freely by hand without contacting the housing before reinstalling the fan cover. Restore power and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any hot cabinet area or noise has resolved. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My refrigerator has a hot spot on the cabinet and runs warm overall. Is this the right part?
Yes, this is a classic symptom pair for a failing condenser fan motor. Without proper airflow across the condenser coils and compressor, heat builds up in the machine compartment (producing that hot cabinet area) while the whole refrigeration cycle loses efficiency, which shows up as both compartments running warmer than normal rather than just one.
The old fan blade is stuck on the motor shaft. How do I remove it without breaking it?
A gentle, steady pull often won't budge a seized blade, but a firm, sudden strike to the blade (rather than continuous pressure) will typically pop it loose from the metal shaft without damaging the plastic blade itself, so you can reuse it on the new motor if a blade isn't included. Work carefully and support the blade so it doesn't fall and crack once it releases.
Could dirty condenser coils cause the same symptoms as a bad fan motor?
Yes, and it's worth checking before you buy a new motor. A condenser fan pushing air through coils caked in dust, pet hair, or debris will struggle to cool the system properly even if the motor itself is working fine. Clean the coils and the fan blade thoroughly first; if the fan still doesn't spin freely, spins with a wobble, or doesn't run at all afterward, the motor itself has failed and this replacement is the correct fix.
Does this fan also affect my drain pan?
Yes, indirectly. In addition to cooling the compressor and condenser coils, this fan helps evaporate excess water that collects in the drain pan beneath the refrigerator. If the fan has failed, you may notice water pooling or not evaporating as it normally would, in addition to the more obvious cooling and noise symptoms.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the mounting configuration, dimensions, and airflow performance of the original WR60X10220 condenser fan motor used in compatible GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café refrigerators.
