XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor (OE)
The XPARTCO WR60X26866 (OE — Original Equipment specification) is replacement axial evaporator fan motor built to OEM specifications, designed as a direct fit for the fresh food section of select GE French door refrigerators, including the CFE28, CFE29, CWE23, CYE22, CYE23, DFE28, DFE29, GFD28, GFE26, GFE27, GFE28, GFE29, GFS26, GFS28, GNE26, GNE29, GYE22, GYS22, PFD28, PFE28, PFE29, PWE23, PYD22, PYE22, PYE23, and ZWE23 series. The evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air inside the refrigerator. Without a functioning evaporator fan, the refrigerator compartment cannot maintain its target temperature even when the compressor and condenser are running normally — the cold air generated at the evaporator simply isn't being circulated to the food storage areas.

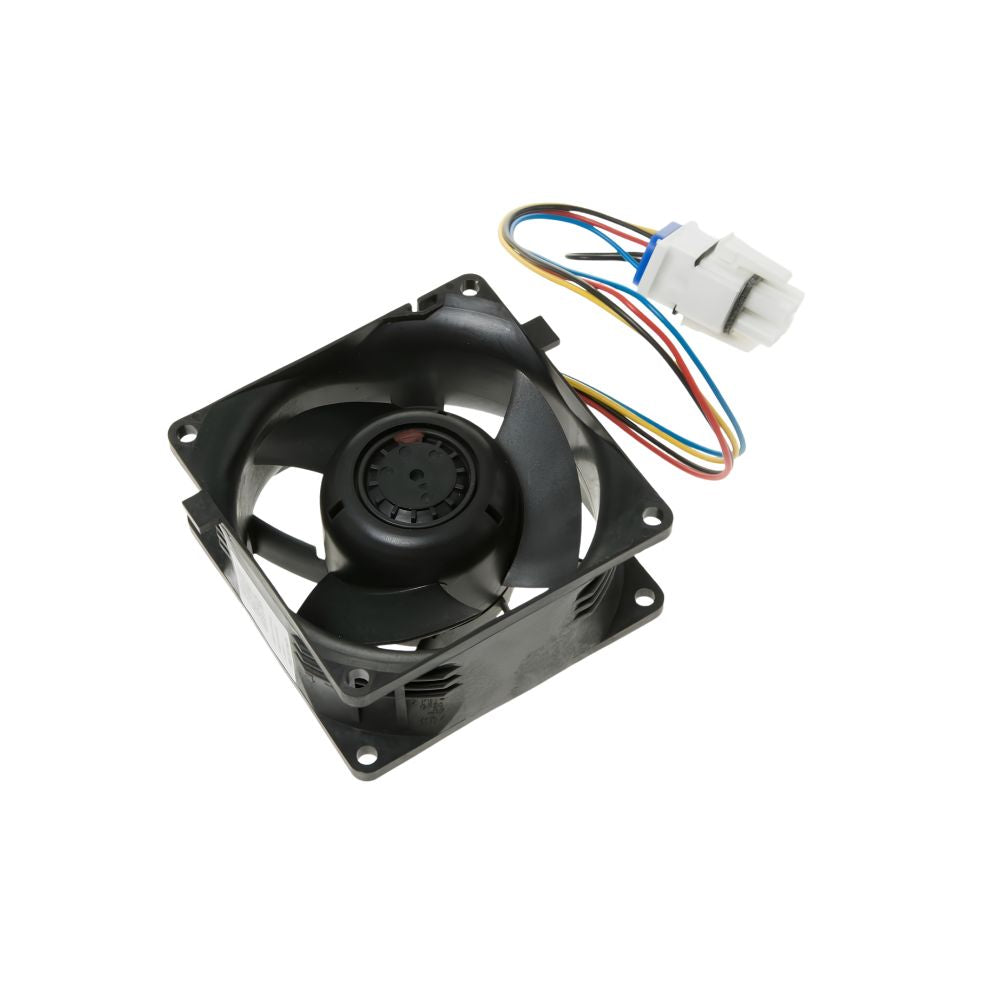

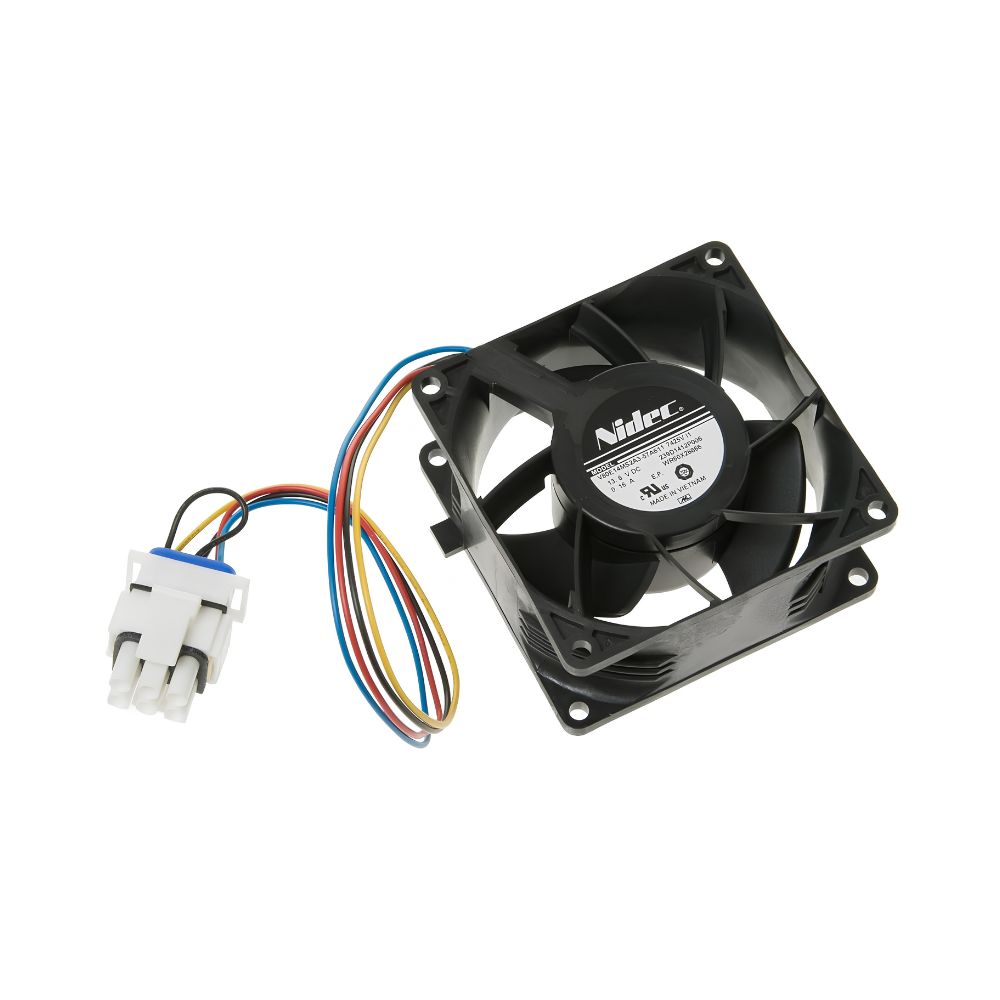

The WR60X26866 is a DC motor rated at 13.6V DC, 0.16A, with a fan housing measuring 3-4/7"L x 2"W x 3-1/8"H, plus a multi-color wire harness and plug approximately 11-1/2" long. It includes the axial fan blade and harness as a complete assembly. It directly replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, and PS12172983. Important: if your refrigerator was built between May 2014 and March 2015 with serial range FF–HD, the unit's software must be updated before installing this fan motor — see FAQ below. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor (OE) fixes GE French door refrigerators where the fridge isn't cooling but the freezer is cold, the evaporator coils are frosted over, the ice maker isn't working due to insufficient cooling, or there's loud humming or grinding from the freezer area. Axial fan motor, 13.6V DC, 0.16A. Fan housing: 3-4/7"L x 2"W x 3-1/8"H; harness ~11-1/2"L. Replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, PS12172983. Note: May 2014 – Mar 2015 build refrigerators (serial range FF–HD) require a software update before installation.
Common Problems This Part Fixes
- Refrigerator not cooling properly while the freezer remains cold — classic evaporator fan failure
- Freezer cold but fridge warm — fresh food compartment air not being circulated
- Frosty or frozen evaporator coils due to insufficient air circulation
- Ice maker failure caused by inadequate cooling in the compartment
- Loud humming, grinding, or buzzing noise from the freezer or fresh food compartment
- Refrigerator running continuously without reaching set temperature
- Fan blade not spinning freely or seized when checked by hand
- Multimeter shows no continuity through the motor windings
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE French door refrigerators, including:
- GE refrigerators — CFE28, CFE29, CWE23, CYE22, CYE23 series (CFE28TP2MBS1, CFE28USHNSS, CWE23SP2MBS1, CYE22TP2MBS1 and related)
- GE refrigerators — DFE28, DFE29 series (DFE28JELCDS and related)
- GE refrigerators — GFD28, GFE26, GFE27, GFE28, GFE29 series (GFD28GBLBTS, GFE26GGHEBB and related)
- GE refrigerators — GFS26, GFS28, GNE26, GNE29 series
- GE refrigerators — GYE22, GYS22 series (GYE22HMKEES and related)
- GE refrigerators — PFD28, PFE28, PFE29 series (PFE28KELFDS and related)
- GE refrigerators — PWE23 series (PWE23KSKDSS and related)
- GE refrigerators — PYD22, PYE22, PYE23 series (PYE22KSKBSS and related)
- GE refrigerators — ZWE23 series and select related Café and Profile French door models
Important — Software Update Requirement: If your GE refrigerator was manufactured between May 2014 and March 2015 with a serial number in the range FF–HD, the refrigerator's control software must be updated by GE factory service (or via Software Update Module WR98R882802) before installing this fan motor. Installing the new motor without the software update on these affected units may result in improper performance. Check your refrigerator's serial number plate before ordering.
Key Features
- Axial evaporator fan motor for the fresh food section of GE French door refrigerators
- Pulls air through the evaporator coils to remove heat and circulate cold air through the refrigerator compartment
- DC motor — rated 13.6V DC, 0.16A — runs on DC voltage from the refrigerator control board

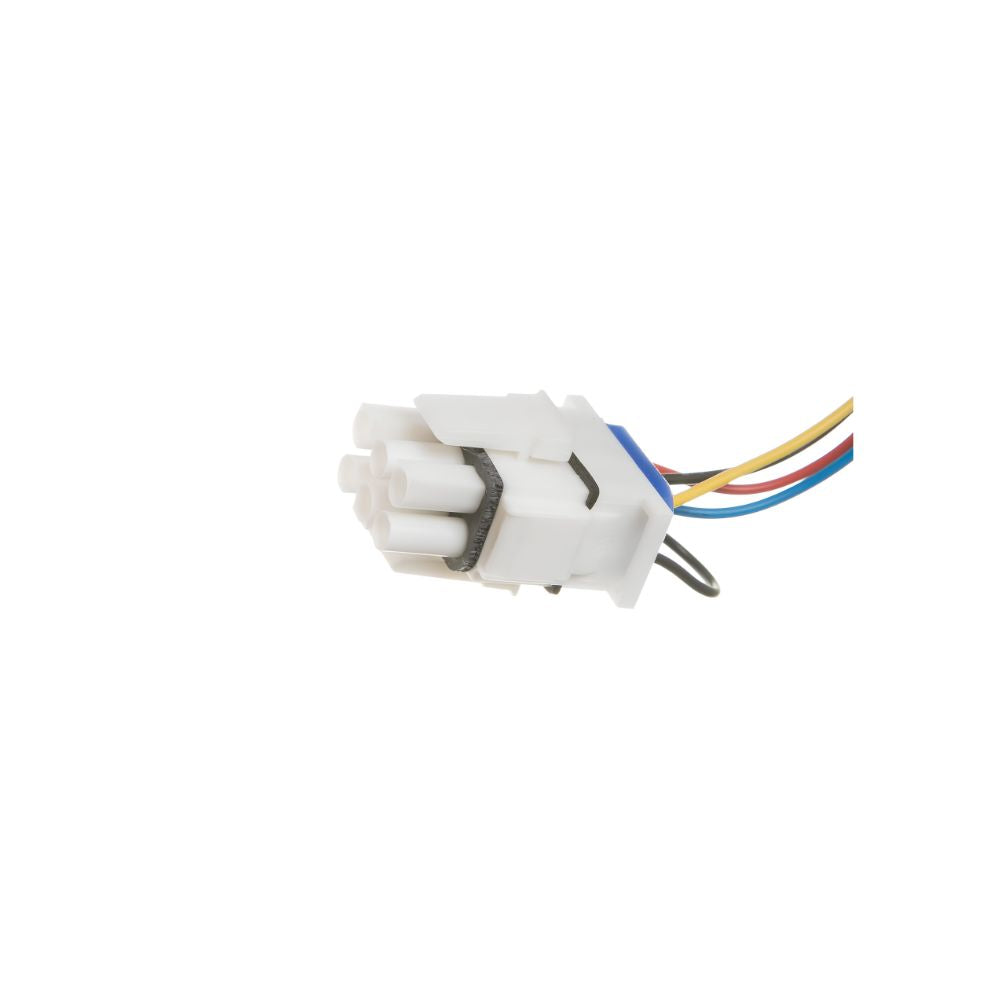

- Includes the axial fan blade and pre-attached multi-color wire harness with plug
- Fan housing dimensions: 3-4/7"L x 2"W x 3-1/8"H; harness and plug approximately 11-1/2" long
- Quiet operation — engineered to minimize hum and vibration in the refrigerator cabinet
- Plastic and metal construction, black housing with multi-color harness
- Replaces an extensive list of GE part numbers including WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, and additional cross-references
- Compatible with GE, GE Café, and GE Profile French door refrigerators in the CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GYE, GYS, PFD, PFE, PWE, PYD, PYE, and ZWE series
- Aftermarket Original Equipment (OE) replacement — built to OEM specifications for direct fit and performance
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number |
WR60X26866-OE |
| Part Type |
Refrigerator Evaporator Fan Motor (Fresh Food / Axial) |
| Condition |
OEM Replacement |
| Application |
GE French Door Refrigerators |
| Voltage |
13.6V DC |
| Amperage |
0.16A |
| Fan Type |
Axial |
| Fan Housing Dimensions |
3-4/7"L x 2"W x 3-1/8"H |
| Harness Length |
Approximately 11-1/2 inches |
| Color |
Black housing with multi-color harness |
| Material |
Plastic / Metal |
| Includes |
Axial fan motor assembly with harness |
| Software Update Required |
For May 2014 – Mar 2015 builds (serial range FF–HD) — use WR98R882802 |
| Compatible Brands |
GE, GE Café, GE Profile |
Installation Notes
⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor for the fresh food section is mounted on the back wall of the fresh food (refrigerator) compartment, behind an access panel. Take a photo of the existing fan position and wire harness routing before disconnecting. Remove the shelves and any internal components blocking access to the back wall, then remove the screws holding the rear access panel in place. Disconnect the fan motor's wire harness connector and remove the mounting screws securing the old motor. Note the fan blade orientation on the motor shaft. Install the new WR60X26866 motor assembly in the same position with the blade facing the same direction, reconnect the wiring harness, and reinstall the mounting screws and access panel. Replace the shelves and other internal components, restore power, and confirm the fan spins and the refrigerator cools properly. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves.
Frequently Asked Questions
My fridge is warm but my freezer is cold — is the evaporator fan motor the problem?
Yes — this is one of the most recognizable symptoms of evaporator fan motor failure on GE French door refrigerators with a separate fresh food evaporator. The freezer side has its own cooling circuit and remains cold, while the fresh food side relies on this fan to circulate air across its evaporator coils. When the fan fails, the freezer continues working but the fresh food compartment loses its cold air supply, warming up while the freezer stays at temperature. If you also notice frost building up on the evaporator coils behind the back panel of the fresh food compartment, the fan failure is confirmed.
What is the software update requirement for May 2014 – March 2015 refrigerators?
GE issued a software update for certain refrigerators manufactured between May 2014 and March 2015 (serial range FF–HD) before they could properly support newer revisions of the WR60X26866 evaporator fan motor. If your refrigerator falls in this date and serial range, the control software must be updated before installing this fan motor — either by GE factory service or by using the Software Update Module part WR98R882802. Installing the new fan on an unupdated unit can result in improper performance. Check the serial number plate inside your refrigerator (typically on the left side wall) to confirm whether your unit is affected. Refrigerators built outside this range do not require the update.
How do I test if the evaporator fan motor has failed?
Unplug the refrigerator, then access the fan behind the rear panel of the fresh food compartment. First, try turning the fan blade by hand — if it doesn't spin freely, is stiff, or seizes, the motor bearing has failed. Next, listen during normal operation — if the motor is unusually noisy or makes a grinding sound, the bearings are worn even if it still spins. Finally, with the unit unplugged and the motor disconnected, use a multimeter on the motor windings to check for continuity. If the windings show no continuity, the motor has failed electrically. Also check for approximately 11–14V DC at the connector when the refrigerator is running — if voltage is present but the motor doesn't spin, the motor has failed.
My fridge has two evaporator fans — which one does this replace?
Some GE French door refrigerators have separate evaporator fan motors for the freezer and the fresh food sections. The WR60X26866 is the fresh food evaporator fan motor — it's the axial fan located behind the rear panel of the fresh food compartment, not in the freezer. If your symptom is "freezer cold, fridge warm," this is the correct part. If your symptom is "freezer warm" or "ice maker not making ice but fridge is fine," the freezer evaporator fan motor (a different part number) is more likely the cause. Confirm which compartment has the cooling problem before ordering.
Is this an OEM or aftermarket part?
This is a “OE (Original Equipment) parts are manufactured to meet the same specifications, materials, and performance standards as the original factory-installed components. XPARTCO parts are engineered to provide equivalent fit and function to OEM components while offering reliable quality at a competitive price.”
