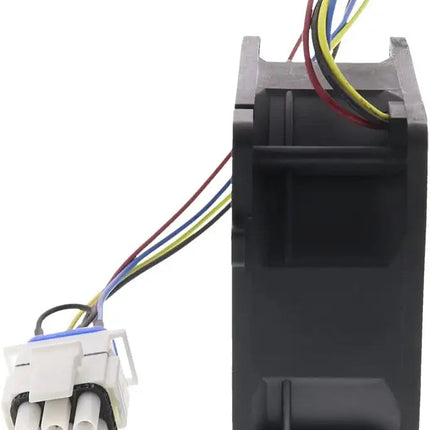

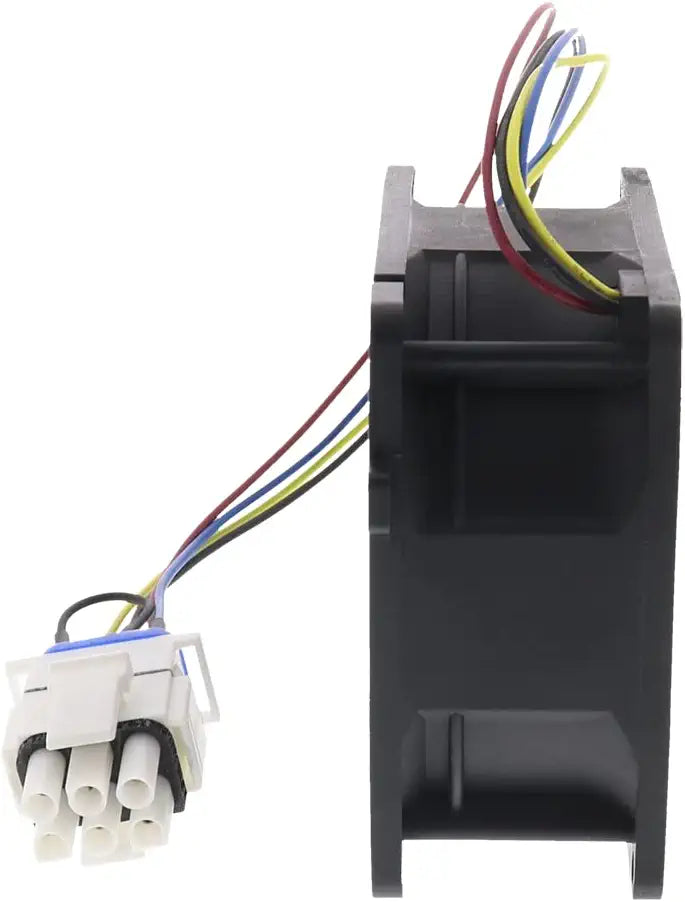

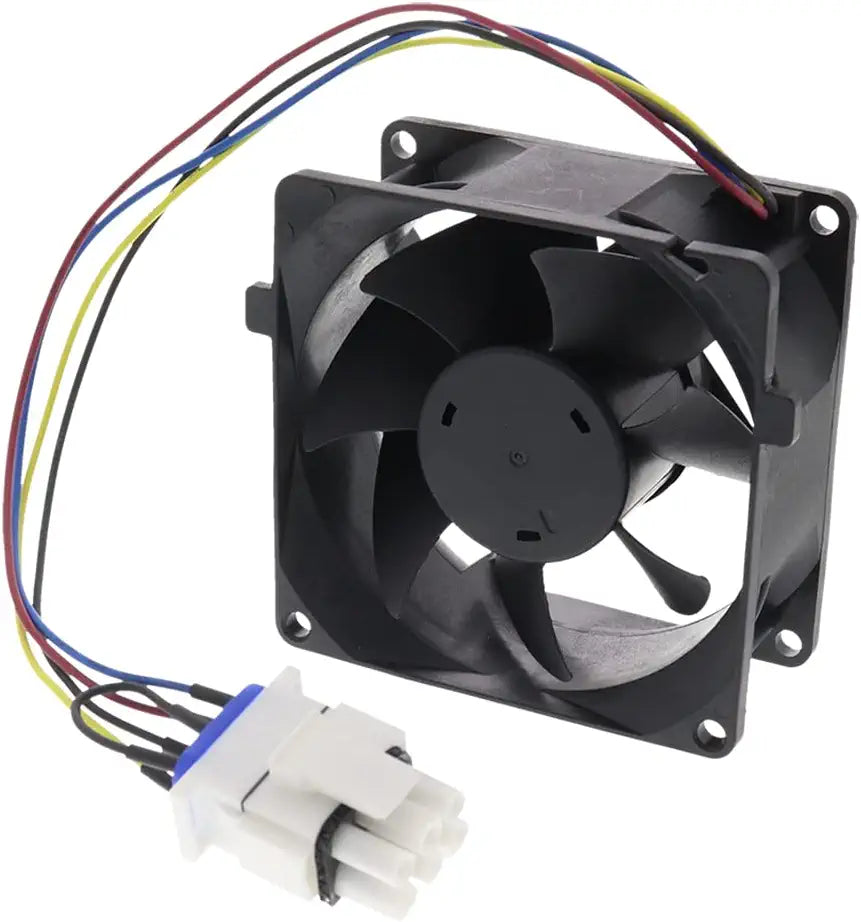

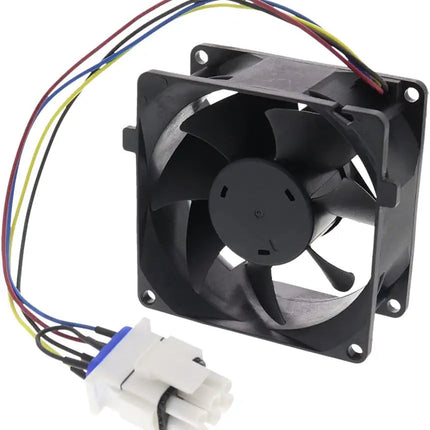

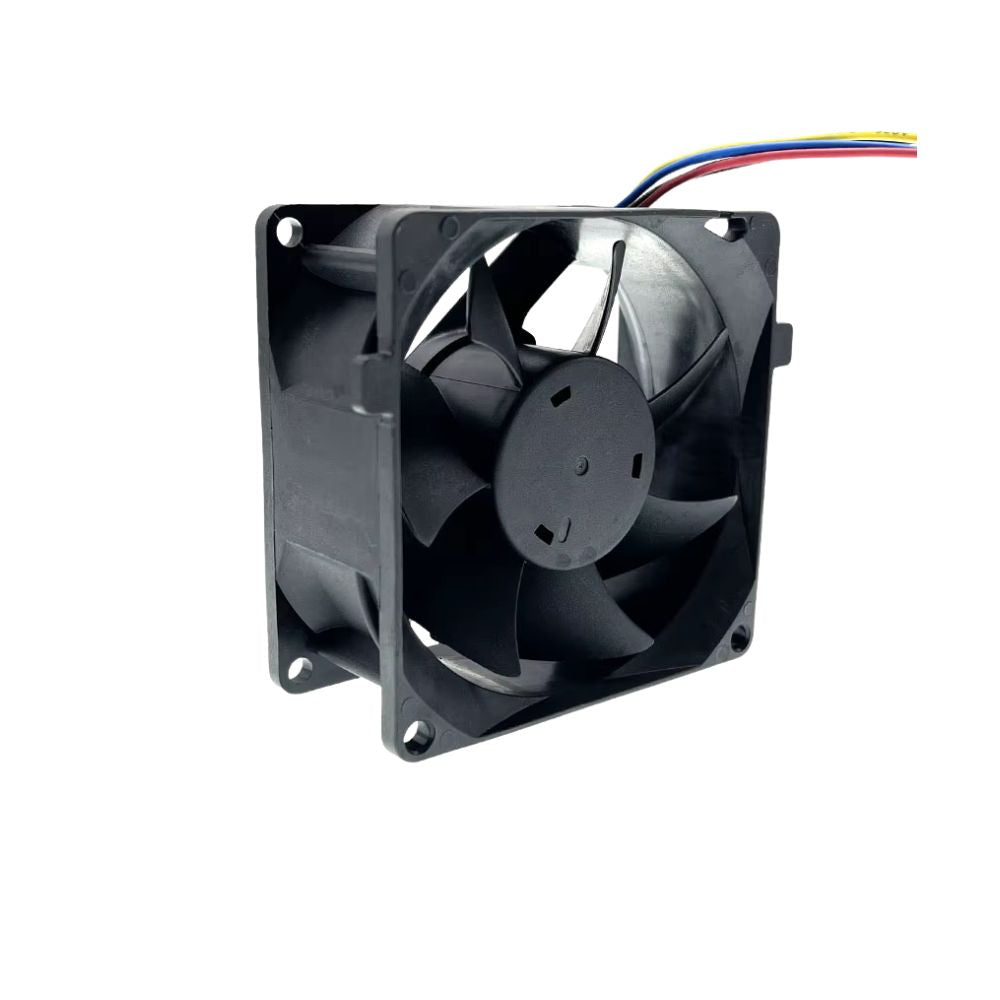

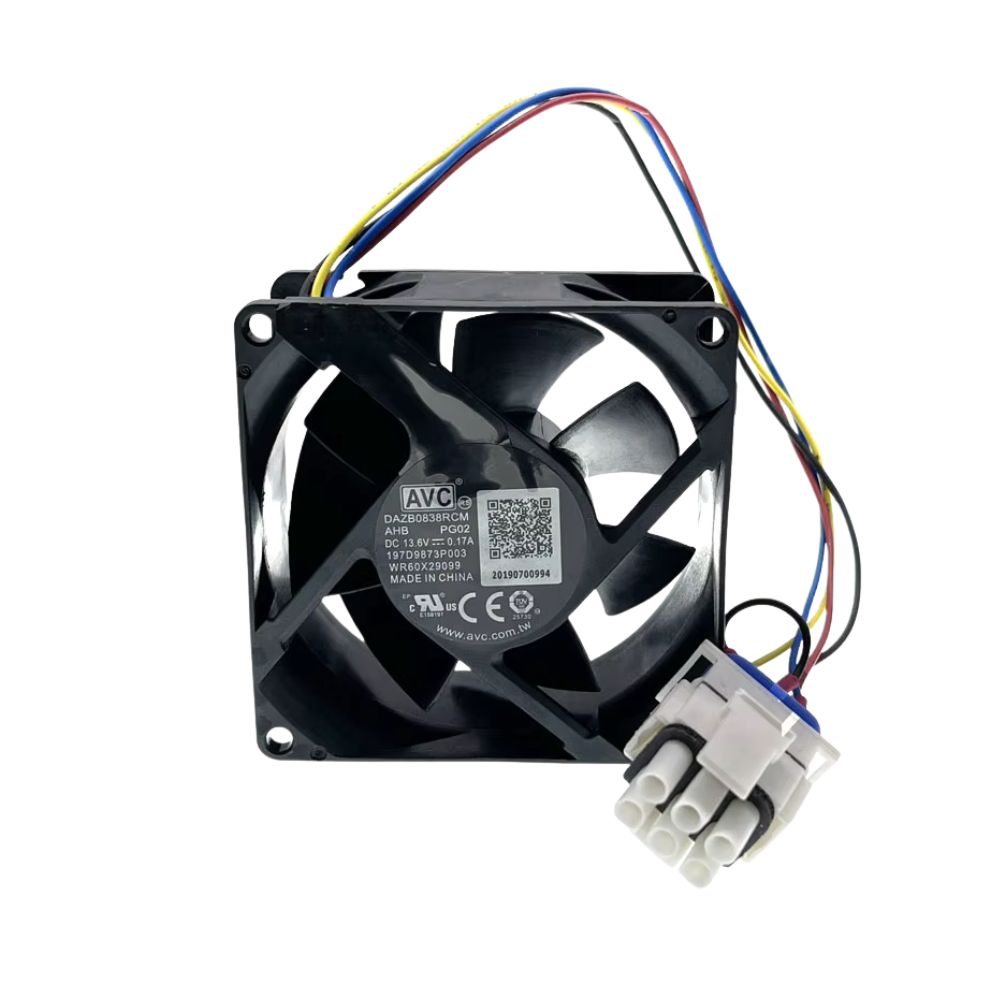

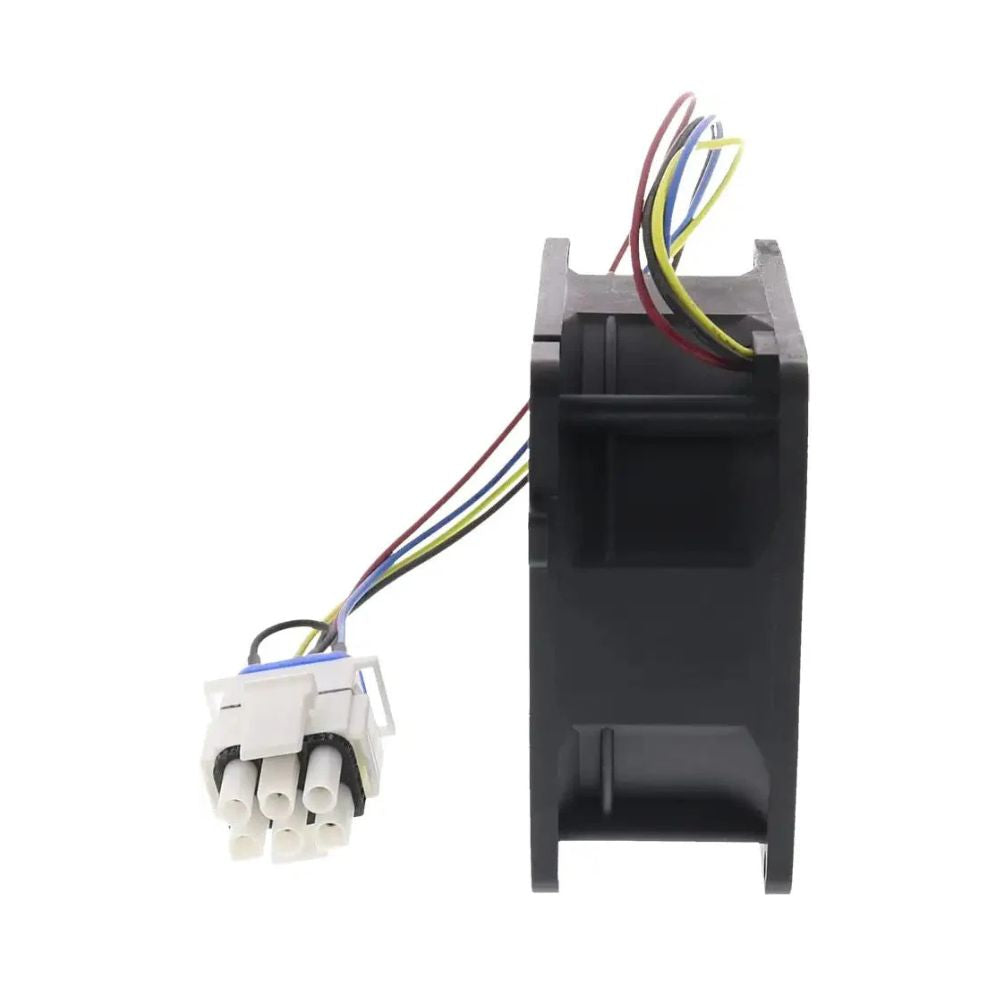

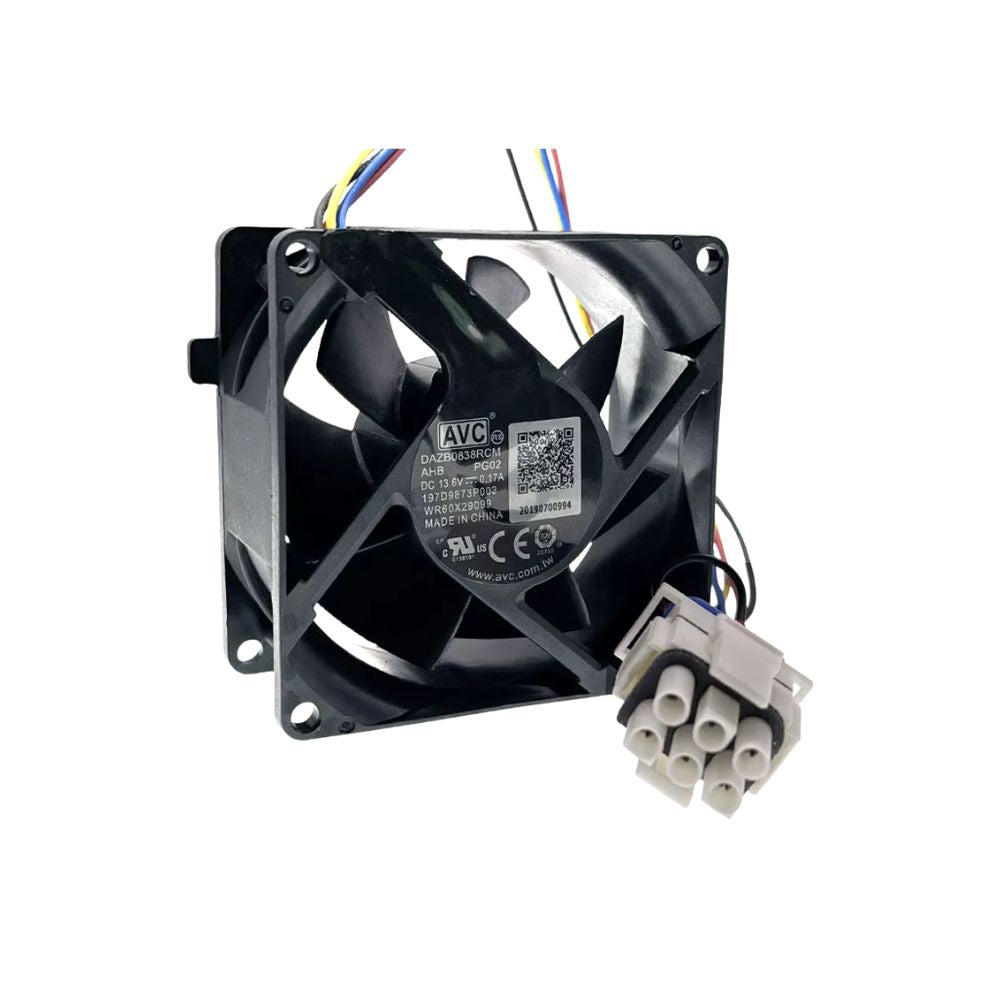

XPARTCO WR60X35205 Refrigerator Evaporator Fan Motor
The XPARTCO WR60X35205 is an aftermarket replacement fresh food evaporator fan motor for GE refrigerators. This small DC motor drives the fan that circulates cold air from the evaporator across the fresh food (refrigerator) compartment, keeping temperature consistent throughout the section — especially important on larger or multi-zone units where air needs to reach multiple shelves and drawers evenly. When the motor's bearings wear out or the windings fail, airflow to the fresh food section drops off even though the freezer keeps working normally, since the two compartments typically run on separate fan motors.
Rated 13.6V DC, 0.16A, this is a direct-fit aftermarket replacement built to the same mounting and electrical specification as the original motor. A quieter-running motor than a worn original is a common result after replacement, since failing bearings are often what make the old motor noisy before it fails outright.
Quick Answer
The XPARTCO WR60X35205 Evaporator Fan Motor fixes a GE refrigerator whose fresh food (fridge) compartment is running warm while the freezer still works fine, or that makes a new buzzing/grinding noise from the fan area. 13.6V DC / 0.16A, direct-fit replacement. Classic symptom: fridge section creeping up toward 50-55°F while the freezer stays cold, often paired with a noisy fan just before failure.
Common Problems This Part Fixes
- Fresh food (refrigerator) compartment running warm while the freezer stays cold
- Buzzing, grinding, or rattling noise from the fan area — often a sign of a failing bearing
- Inconsistent or uneven cooling across refrigerator shelves and drawers
- Food in the bottom crisper drawers freezing unexpectedly due to airflow imbalance
- Fan not running at all, or running intermittently
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This fan motor directly replaces the following part numbers:
WR60X35205, WR60X29099, WR60X20880, WR60X24723, WR60X26281, DAZB0838RCM, 197D9873P003, AGE29910, AP6997194, EAP16226575, PD00071276, PS16226575
These numbers span several generations of GE's own part numbering for this fan motor as the design was updated over time — all are the correct replacement for this fan motor regardless of which number appears on your refrigerator's parts diagram.
Compatibility
This fan motor is compatible with 30+ GE refrigerator models, including:
- CFE28TP2MDS1, CFE28TP2MES1, CFE28TP2MFS1
- CFE28TP3MDD1, CFE28TP3MED1, CFE28TP3MFD1
- CFE28TP4MDW2, CFE28TP4MEW2, CFE28TP4MFW2
- CFE28TSHBSS
- GFE28HSHDSS, and numerous additional GE French-door and multi-zone refrigerator models
Note: This is specifically the fresh food (refrigerator) compartment evaporator fan motor, not the freezer fan motor — many GE refrigerators use a separate fan for each compartment, and this part will not resolve a freezer-side airflow problem. Confirm which compartment's fan has failed before ordering, or contact our support team with your model number to verify before ordering.
Key Features
- Direct-fit aftermarket fresh food evaporator fan motor for GE refrigerators
- 13.6V DC, 0.16A rating matches OEM specification
- Resolves warm-fridge-with-cold-freezer, noisy fan, and uneven cooling symptoms
- Often runs quieter than a worn original motor after replacement
- Fits 30+ GE French-door and multi-zone refrigerator models
- Straightforward swap — typically 30–60 minutes with basic hand tools
Product Specifications
| Part Number |
XPWR60X35205 |
| OEM Part Number |
WR60X35205 |
| Part Type |
Refrigerator Fresh Food Evaporator Fan Motor |
| Condition |
Aftermarket Replacement |
| Voltage |
13.6 Volt DC |
| Amperage |
0.16 Amp |
| Application |
GE French-Door & Multi-Zone Refrigerators |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the refrigerator or switch off its circuit breaker before beginning. Remove the interior back panel or evaporator cover inside the fresh food compartment per your model's service guide — you may need to remove shelves or drawers first for access. Some models require a short defrost/thaw wait if frost has built up around the evaporator assembly. Disconnect the wire harness from the old fan motor, remove the mounting screws or clips, and note the fan blade's orientation before removing it. Transfer the fan blade to the new motor if it isn't included, install the new motor in the same position, reconnect the wire harness, and reinstall the cover and any shelves. Restore power and confirm the fan runs quietly and the compartment begins cooling normally.
Frequently Asked Questions
My fridge is warm but my freezer is fine — is this the part I need?
Yes, this is a classic symptom of a failed fresh food evaporator fan motor. Since many GE refrigerators use separate fans for the fridge and freezer compartments, a fan failure on the fridge side won't affect freezer cooling.
My fan is making a buzzing or grinding noise but still runs — should I wait until it fails completely?
Not recommended. A buzzing or grinding noise is a common sign of a failing motor bearing, and these motors often run noisy for a period before failing outright. Replacing it at the first sign of noise can prevent a sudden loss of cooling.
Is this the freezer fan or the fridge fan?
This is specifically the fresh food (refrigerator) compartment fan motor, not the freezer fan. If your freezer isn't cooling or circulating air properly, you'll need the separate freezer evaporator fan motor part instead.
Does this include the fan blade?
This listing is for the fan motor. In most cases the original fan blade transfers over to the new motor during installation — check your specific motor and blade assembly when you remove the old unit.
