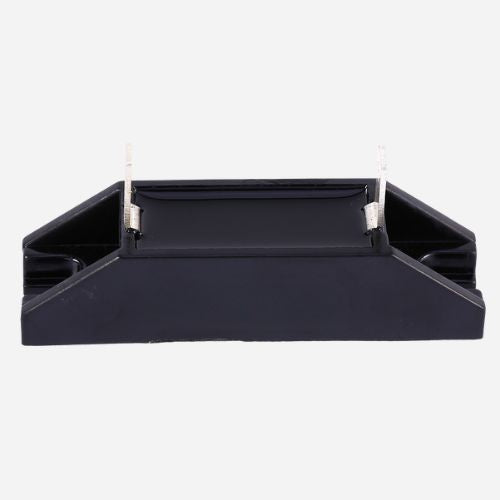

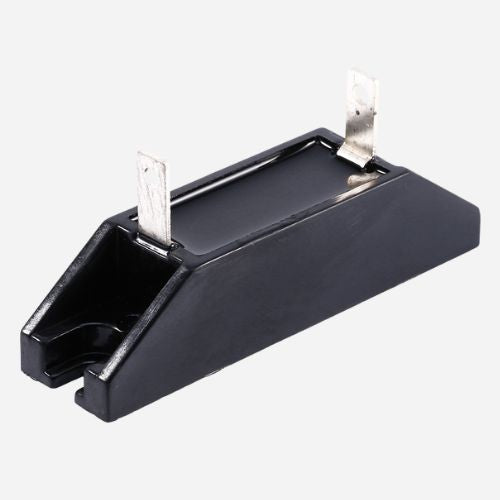

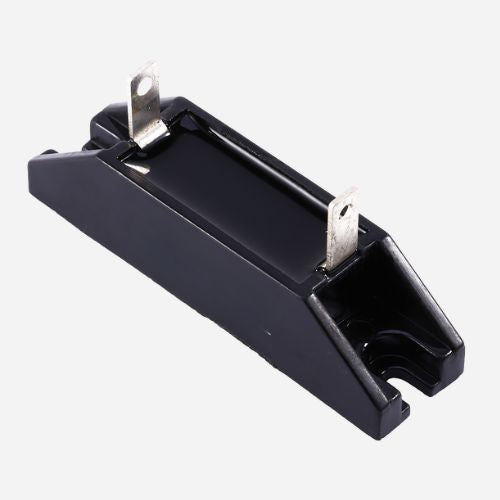

XPHVP-16 Microwave Convection Oven High Voltage Diode – Replaces TurboChef 100481 – Compatible with Commercial & Residential Microwave Models
Product Description
Restore proper heating performance in your commercial or residential microwave with the XPHVP-16 Microwave Convection Oven High Voltage Diode. This high-quality aftermarket diode replaces TurboChef 100481 and is engineered to handle the elevated heat and voltage levels found in high-speed ovens and convection microwave systems. A failing HV diode can cause the microwave to run without heating, blow fuses, or produce loud humming sounds. Installing this XPHVP-16 diode restores safe high-voltage operation and consistent heating.
Replaces Part Numbers
XPHVP-16, TurboChef 100481, HV07-16, HVP-16, TBC100481, CKTE100481 equivalent high-voltage microwave diodes.
Compatibility
This aftermarket high-voltage diode replaces TurboChef 100481 and fits many commercial and household microwave or convection microwave ovens, including:
-
Fits specific TurboChef models including Bullet, ECO ST, Encore, Encore 2, G5, I3, NGC, NGC2, NGO, Sota/I1, TORNADO 2, i5.
Typical compatible equipment includes:
TurboChef High-Speed Ovens, and other convection microwave systems requiring a 12–16kV diode.
Always verify electrical specifications before ordering.
Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Designed to replace TurboChef 100481 and match OEM electrical performance
- 🔥 High-Heat & High-Voltage Rated – Built for demanding commercial microwave environments
-
💰 Cost-Effective Commercial Repair – A reliable alternative to costly OEM replacement parts
-
🛡️ Solves Common Issues – Fixes no-heat conditions, humming, blown fuses, and weak heating output

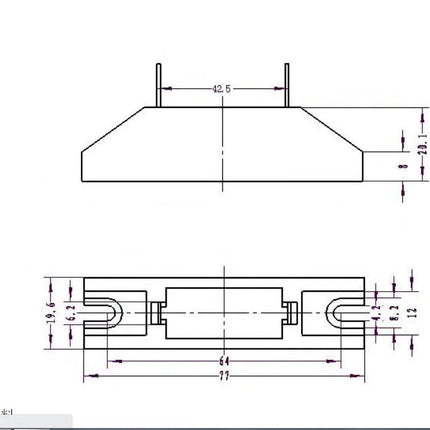

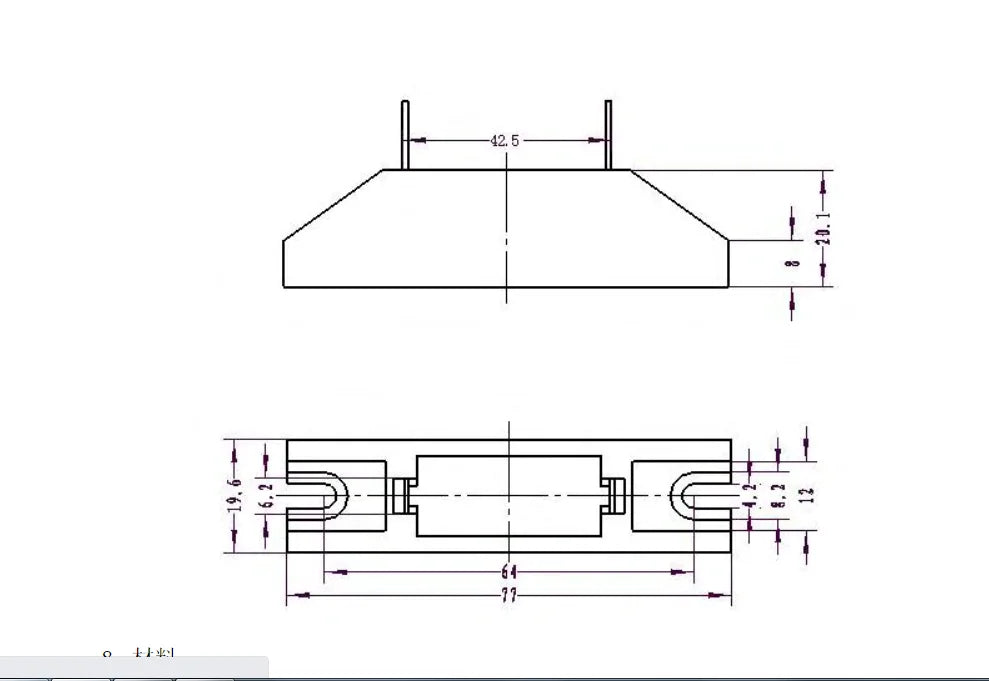

📐 Product Specification
-
Part Number: XPHVP-16
-
Replaces: TurboChef 100481
-
Component Type: High Voltage Rectifier Diode
-
Voltage Rating: 12–16 kV peak
-
Current Rating: Max. Forward Current 750MA
-
Polarity: Standard microwave HV polarity (stripe = cathode)
-
Material: Heat-resistant high-voltage diode with insulated leads
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Screwdriver, insulated gloves, needle-nose pliers
⚠️ Safety First: Microwave and commercial oven repairs involve dangerously high voltage even when unplugged. Only qualified technicians should replace HV components.
Steps (for trained professionals):
-
Disconnect power and properly discharge the HV capacitor.
-
Remove the microwave or oven’s service cover.
-
Locate the HV diode near the capacitor and transformer.
-
Remove the old diode and install the new XPHVP-16, ensuring correct polarity.
-
Reassemble unit and test heating performance.
⏱️ Time Required: 20–30 minutes (professional repair recommended)
