Search results for "refrigerator switch"

WR55X10025 Genuine OEM GE Refrigerator Temperature Sensor The WR55X10025 is a genuine GE OEM temperature sensor, also called a thermistor, for GE, Hotpoint, and Kenmore refrigerators. This sensor measures air temperature inside the refrigerator or freezer compartment and reports it continuously to the main control board, which uses that reading to regulate the cooling cycle. On some models, this same sensor design also serves as the defrost sensor mounted on the evaporator coil, monitoring temperature there to help manage the defrost cycle. Because the control board relies entirely on this sensor's reading to make cooling decisions, a failing or inaccurate sensor can cause the refrigerator to run too cold, too warm, or run for excessively long periods as it tries to correct a temperature it's misreading. On models where it doubles as a defrost sensor, a failure here can also contribute to frost or ice buildup in the freezer. This is a relatively inexpensive part, and it's commonly the actual cause behind symptoms that get mistakenly blamed on the main control board. It directly replaces AP3185407, 914093, AH304103, EA304103, PS304103, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11150, WR55X11151, and WR55X11152. Quick Answer The WR55X10025 Genuine OEM GE Refrigerator Temperature Sensor fixes GE, Hotpoint, and Kenmore refrigerators that run too cold, too warm, run for excessively long periods, or (on models where this sensor doubles as a defrost sensor) show frost or ice buildup in the freezer. A healthy sensor reads approximately 5,000 ohms at 77°F. Replaces AP3185407, 914093, AH304103, EA304103, PS304103, and a wide range of WR50X/WR55X-prefix numbers listed below. This is an inexpensive part that's frequently the actual cause behind symptoms mistakenly blamed on the main control board — worth testing or replacing before assuming a costlier board repair is needed. Common Problems This Part Fixes Refrigerator running too cold Refrigerator running too warm Refrigerator running for excessively long periods Freezer not defrosting properly (on models where this sensor also serves as the defrost sensor) Freezer too cold or showing frost buildup Display temperature reading that doesn't match the actual temperature inside the compartment Inconsistent or fluctuating cooling performance Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select GE, Hotpoint, and Kenmore refrigerators, and is used broadly across most GE side-by-side and French door refrigerator configurations. Note: While this sensor is used across a very broad range of GE refrigerator models, always verify your full model number before ordering, since some models use a different sensor design. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified resistance curve for accurate temperature reporting Measures air temperature and reports it continuously to the main control board Also used as a defrost sensor on the evaporator coil on select models Resolves "too cold," "too warm," "runs too long," and "display reading doesn't match actual temperature" symptoms Direct drop-in replacement — matches the original mounting and wiring Replaces a wide range of WR50X and WR55X-prefix part numbers listed above Compatible with GE, Hotpoint, and Kenmore refrigerators Genuine OEM replacement — guaranteed fit, materials, and performance DIY-friendly repair, typically completed in under an hour Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Genuine OEM Brand GE Function Measures compartment or evaporator temperature and reports it to the control board Typical Resistance Approx. 5,000 ohms at 77°F Repair Difficulty Easy — typically under 1 hour Quantity 1 temperature sensor Compatible Brands GE, Hotpoint, Kenmore Installation Notes ⚠️ Danger — Authorized Service Part Required For Flammable Refrigerant Systems GE's own service guidance carries an explicit warning for this component: it is a manufacturer-authorized service part intended for use in refrigerator models that use a flammable refrigerant, such as R600a. Using an unauthorized or incorrectly rated service part in a unit that uses a flammable refrigerant could lead to a risk of fire or explosion. Before ordering or installing, confirm your refrigerator's refrigerant type and verify this part is correct for your specific model. If you have any doubt about your refrigerant type or the correct part for your unit, contact our support team with your model number before proceeding, or have a qualified appliance technician perform this repair. ⚠️ Unplug Refrigerator Before Starting — Test With A Multimeter Before Replacing Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Before replacing, it's worth testing the old sensor with a multimeter set to ohms — a healthy sensor reads approximately 5,000 ohms at 77°F; a reading well outside that range, or an open circuit, confirms a failed sensor. Locate the sensor, typically mounted on an interior wall of the compartment or clipped to the evaporator coil depending on your model. Photograph the wiring and mounting position before disconnecting anything. Disconnect the sensor's wire connector, remove any mounting clip or bracket, and pull the old sensor free. When positioning the new WR55X10025, make sure it sits in open air away from direct contact with ice buildup areas, since ice touching the sensor can cause it to read colder than the compartment's actual temperature. Reconnect the wire connector and secure the mounting clip. Restore power and monitor the refrigerator over the next 24 hours, comparing the display temperature to an independent thermometer placed in the compartment to confirm accuracy. Tools needed: multimeter, work gloves. Frequently Asked Questions How do I test whether this sensor has actually failed? Use a multimeter set to ohms and test the sensor across its two terminals. A healthy sensor typically reads approximately 5,000 ohms at 77°F room temperature; a reading significantly outside that range, or no reading at all (open circuit), confirms the sensor has failed and should be replaced. My display shows a temperature that doesn't match how cold the fridge actually feels. Could positioning be the issue, not the sensor itself? Yes, this is a documented and somewhat subtle failure mode. If the sensor ends up positioned too close to an area where ice or frost accumulates, the ice's surface temperature can pull the sensor's reading colder than the actual compartment air temperature, causing the display to show a colder number than reality — sometimes off by several degrees. One customer traced exactly this issue to ice buildup near the sensor location and resolved it by ensuring the new sensor sat clear of that ice-prone area during installation. Could my problem actually be the control board instead of this sensor? It's worth testing this sensor first before assuming a control board issue. This is a relatively inexpensive part, and it's commonly the actual root cause behind symptoms that get misdiagnosed as a control board failure, since the board is only ever as accurate as the temperature data it receives. Testing or simply replacing this sensor is a low-cost step worth taking before pursuing a more expensive board repair. Why is there a fire/explosion warning on this part? Some refrigerators use a flammable refrigerant, such as R600a (isobutane), instead of older non-flammable refrigerants. Electrical components near refrigerant lines can be a source of ignition if a leak were ever present, which is why GE requires an authorized, correctly rated service part for these systems rather than a generic substitute. Confirming your model and refrigerant type before ordering is the appropriate precaution. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original resistance curve and mounting configuration of the temperature sensor originally installed in your refrigerator. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

67006390 Refrigerator Hv Control Box   Replaces Part Numbers: WP67006390, 67006390, 12957601, 12957601SP, 4435670, AP6010509, PS11743690.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

W10503278 Refrigerator Control Board Refrigerator electronic (JAZZ) control board. Be aware the board will need to programmed after installation to work properly Replaces Part Numbers: WPW10503278, 12784415, W10503278, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415V, 12868502, 12868510, 12868513, 2684578, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, AP6022400, PS11755733, W10165748. Description: This Electronic Control Board is a replacement part for Specific Maytag, Whirlpool refrigerator models. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

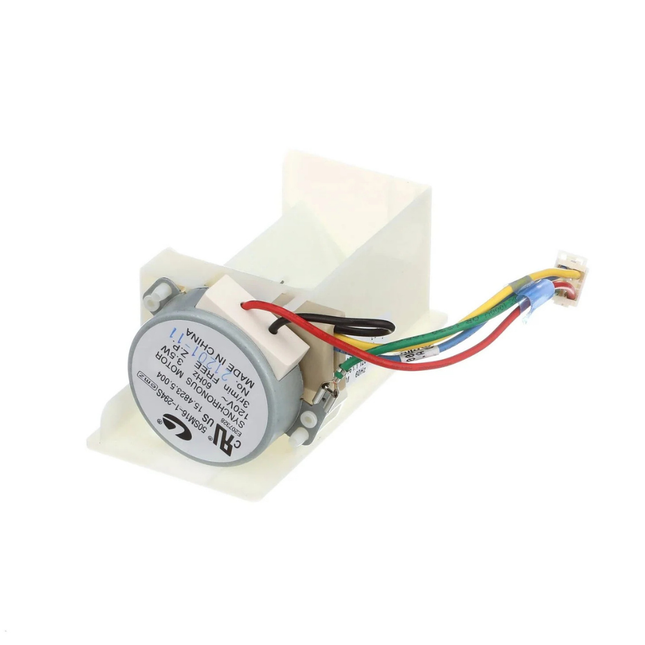

Genuine OEM WPW10196393 Refrigerator Damper Control Assembly The Genuine OEM Whirlpool WPW10196393 is the damper control assembly for select Whirlpool-built refrigerators, sold under brands including Kenmore, Maytag, KitchenAid and Amana. The damper meters cold air from the freezer into the fresh food section, and the refrigerator's thermostat controls it. When it fails, the fresh food section can run too warm or too cold, and the refrigerator may be noisy. This is the original Whirlpool part, not an aftermarket equivalent. It is sold individually. Check your model number before ordering. Quick Answer The Genuine OEM WPW10196393 Damper Control Assembly replaces the damper that lets freezer air into the fresh food section when it has failed. Replaces W10196393, 67006116, W10127429 and W10196393N. Classic symptoms: the fresh food section is too warm or too cold, or the refrigerator is unusually noisy. Common Problems This Part Fixes Refrigerator section running too warm Refrigerator section running too cold Excessive noise Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This damper control assembly replaces or supersedes the following part numbers: WPW10196393, 1481880, 67006116, W10127429, W10196393, W10196393N, AP6016813, EAP11750106, AWP49242, PD00004826, PS11750106 If your old assembly shows a different number, contact our support team and we'll check whether it matches. Compatibility This damper control assembly is listed for refrigerators sold under Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Inglis, Dacor and other Whirlpool-built brands, including these examples: Kenmore 59665232402, 59665234402, 59665239402, 59665262700, 59665332600, 59665932402, 59665934402 Kenmore 59666032603, 59669969013, 59669983014, 59669984010 KitchenAid KBRS22KWWH4 Maytag MFX2571XEW3, MBL1956KES6, MFI2665XEM4 Amana ABB2224WES0 Note: The models above are a sample, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering. Key Features Genuine OEM Whirlpool part, not an aftermarket equivalent Controls airflow from the freezer into the fresh food section Works with the refrigerator's thermostat Sold individually Product Specifications Part Number WPW10196393 OEM Part Number WPW10196393 Part Type Refrigerator Damper Control Assembly Condition Genuine OEM Manufacturer Whirlpool Quantity 1 Assembly Application Select Whirlpool-Built Refrigerators Installation Notes ⚠️ Disconnect Power Before Installing Unplug the refrigerator before you begin. Remove the damper control cover, then the screws and foam protector behind it, and unplug the wire harness. Unclip the old assembly, clip in the new one, reconnect the harness, and reassemble in reverse order. Restore power and watch the damper open and close to confirm it lets air through. Frequently Asked Questions My refrigerator section is too warm or too cold. Is this the part I need? It can be. If the freezer is cold but the fresh food section is not, the damper may not be opening. If the section is too cold or the refrigerator is noisy, the damper may be stuck open or failing. Confirm the damper is the cause before replacing it. Is this an OEM or aftermarket part? This is a genuine OEM part from Whirlpool, not an aftermarket equivalent. Does this replace W10196393? Yes. W10196393 is replaced by WPW10196393, and the assembly is also cross-referenced to 67006116, W10127429 and W10196393N. Substitute parts can look different from the original. Will this fit my refrigerator? It is listed for many Whirlpool-built models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DA47-00243K Refrigerator Defrost Thermostat The XPARTCO DA47-00243K is an aftermarket replacement defrost bi-metal thermostat compatible with select Samsung French door and bottom freezer refrigerators. This thermostat is a critical component in the automatic defrost system, functioning as a thermal safety device that monitors the temperature of the evaporator coils during the defrost cycle. When the evaporator reaches the preset maximum temperature of 140°F (60°C), the bi-metal thermostat opens the circuit and cuts power to the defrost heater — preventing overheating and damage to the evaporator. It resets and closes again at 104°F (40°C), allowing the next defrost cycle to begin normally. When the thermostat fails, it can cause excessive frost buildup on the evaporator coils, poor cooling performance, or a heater that won't shut off — all resulting in the refrigerator failing to maintain proper temperatures. Quick Answer The XPARTCO DA47-00243K Refrigerator Defrost Thermostat fixes refrigerators with excessive frost buildup, a freezer that is too cold while the fridge is too warm, a heater that won't shut off, or a refrigerator that stops cooling. It is compatible with select Samsung French door and bottom freezer refrigerators and opens at 140°F to protect the evaporator from overheating. Common Problems This Part Fixes Excessive frost or ice buildup on evaporator coils Freezer too cold while refrigerator section is too warm Defrost heater not shutting off after defrost cycle Refrigerator not cooling or maintaining temperature Food spoiling faster than normal Unusual humming or running sounds from the back of the fridge Replaces Part Numbers This thermostat directly replaces the following OEM and cross-reference part numbers: DA47-00243K, 2025696, DA47-00243B, DA47-00243C, DA47-00243J, ASM30257, PD00002154, EAP4140510, AP4403832, PS4140510. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This defrost thermostat is compatible with select refrigerators from the following brands: Samsung French door refrigerators Samsung bottom freezer refrigerators Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Bi-metal thermal safety device — opens at 140°F (60°C) to cut power to the defrost heater and prevent evaporator overheating Resets automatically at 104°F (40°C) — allowing the next defrost cycle to begin normally Aftermarket replacement built to OEM-equivalent quality standards 2-terminal design — direct drop-in replacement, no modification required Restores proper frost-free operation and refrigerator cooling performance DIY-friendly repair — installs with basic hand tools in 30–45 minutes Budget-friendly alternative to OEM at a lower cost without sacrificing performance Product Specifications Part Number DA47-00243K Part Type Defrost Bi-Metal Thermostat Condition Aftermarket Replacement Application Refrigerator Defrost System Open Temperature 140°F (60°C) Close Temperature 104°F (40°C) Terminals 2 Compatible Brands Samsung Installation Notes ⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. Access the evaporator coils by removing the rear panel inside the freezer compartment. Disconnect the wiring harness from the old thermostat and clip the new DA47-00243K thermostat onto the evaporator coil in the same position. Reconnect the wiring harness and reassemble the freezer panel. Allow 24 hours for the refrigerator to return to normal operating temperature. Consult your refrigerator's service manual for model-specific instructions. Frequently Asked Questions Will the DA47-00243K fit my Samsung refrigerator? This thermostat is compatible with select Samsung French door and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering. What does a defrost thermostat do? The defrost bi-metal thermostat monitors the temperature of the evaporator coils during the defrost cycle. It opens the circuit and cuts power to the defrost heater when the evaporator reaches 140°F (60°C), preventing overheating. It automatically resets and closes again at 104°F (40°C) to allow the next cycle. What are signs that my defrost thermostat needs replacement? Common signs include: excessive frost or ice buildup on the evaporator coils, the freezer running too cold while the refrigerator section is too warm, the defrost heater failing to shut off, or the refrigerator not maintaining proper temperatures and food spoiling faster than normal. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, long-lasting performance at a more affordable price point. At what temperatures does the DA47-00243K open and close? The thermostat opens (cuts power to the heater) at 140°F (60°C) and closes (resets) at 104°F (40°C). Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

242252603 Refrigerator Ice Maker Water Valve Description: This Water Valve is a Genuine part for specific Frigidaire refrigerator models. It is crucial for controlling the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control to supply water when needed, ensuring efficient operation and reliable delivery of ice and water. Replaces Part Numbers: 242252603, PS7784017, AP5671756, 7241803701, 241803703, 7241803701, 7241803701, 241803701, 240519601, 240380301, 5303304971, 5303289068, 218720400, 218475600. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

Genuine Whirlpool OEM Whirlpool WP2305258 Refrigerator Ice Dispenser Door Chute Genuine OEM ice chute door for select Whirlpool, KitchenAid, JennAir, and Kenmore side-by-side refrigerators. Product Overview The Whirlpool WP2305258 Refrigerator Ice Dispenser Door Chute is a Genuine OEM dispenser component that opens to allow ice to pass through the chute and closes to help seal the dispenser opening when not in use. A damaged, warped, or sticking chute door can allow ice to spill, prevent the dispenser from sealing correctly, or cause frost and moisture around the dispenser area. Quick Answer WP2305258 is the Genuine Whirlpool OEM ice dispenser chute door. It replaces original part number 2305258 and fits select Whirlpool-built side-by-side refrigerators. Common Problems This Part May Fix Ice falls out of the dispenser unexpectedly Ice chute door will not close fully Door is cracked, warped, or broken Warm air enters through the dispenser opening Frost or moisture forms around the chute Dispenser flap does not seal after dispensing Replaces and Cross-References WP2305258, 1174891, 2305258, AP3854387, AWP885431, AH986856, EAP986856, OEM18021486, PD00004757, PS986856 Cross-reference numbers are supplied for identification. Verify the refrigerator model number before ordering. Compatibility Confirmed applications include select Whirlpool-built side-by-side refrigerators sold under Whirlpool, KitchenAid, JennAir, and Kenmore brands. Examples include: GS6NBEXRY02 KSRS25RVMS05 KSRS25RVMK05 KSCS25FVSS03 KSRT25CRSS00 KSRS25RSMS01 KSCS25FTMK02 KSCS23FVMS01 KSRS25RVMK02 106.54782803 106.57794704 106.57792704 Important: This is only a partial fitment list. Verify the complete model number from the refrigerator data label before purchase. Key Features Genuine Whirlpool OEM replacement part Ice dispenser chute door / flap Helps direct ice into the dispensing chute Closes after dispensing to help seal the opening Direct-fit component for compatible models Product Specifications Manufacturer Part Number WP2305258 Brand Whirlpool Part Type Refrigerator Ice Dispenser Door Chute OEM Status Genuine OEM Appliance Type Refrigerator Condition New Package Quantity 1 Ice Chute Door Installation Notes Disconnect refrigerator power before service. Remove the dispenser trim or front housing according to the model-specific procedure. Photograph the original chute-door position and linkage before removal. Inspect the support bracket, spring, motor/actuator, and seal surfaces for damage. Install the new chute door in the same orientation and confirm free movement. Reassemble the dispenser and confirm the door opens during dispensing and closes completely afterward. Diagnostic tip: If the chute door does not close after replacement, inspect the actuator motor, support bracket, spring, linkage, and dispenser control before replacing additional parts. Frequently Asked Questions Is WP2305258 a Genuine OEM part? Yes. It is a Genuine Whirlpool OEM refrigerator dispenser ice chute door. Does WP2305258 replace 2305258? Yes. WP2305258 is the current replacement for original part number 2305258. What does the ice chute door do? It opens when ice is dispensed and closes afterward to help seal the dispenser opening. Will this fit every Whirlpool refrigerator? No. It fits specific dispenser designs. Confirm the complete refrigerator model number before ordering. Shop With Confidence Verify the refrigerator model before ordering. This listing is for the Genuine Whirlpool OEM WP2305258 ice chute door. Genuine Whirlpool OEMIce Chute DoorCompatibility SupportFast U.S. Shipping

Read more less

XPARTCO 8318084 Washer Lid Switch Replaces WP8318084 The XPARTCO 8318084 is an aftermarket replacement lid switch assembly compatible with a wide range of Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, and Admiral direct-drive top-load washing machines. The lid switch is a safety component located under the control panel at the top rear left corner of the washer — it detects whether the lid is open or closed and prevents the washer from spinning and agitating when the lid is open. When the lid is closed, the switch signals the control that it's safe to operate. Without a functioning lid switch, the washer may refuse to start, won't spin, won't agitate, won't drain, or stop advancing through its cycle. Gray and white plastic housing. Electrical rating: 125–250V, 50–60Hz, 1/2 HP. Dimensions: 3"L x 2"W x 1-15/16"H. Features 3 flat terminals that the wiring harness plugs onto, plus a green grounding wire. It directly replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957, and 11480-61. This is one of the most widely used lid switches across the Whirlpool direct-drive platform, fitting hundreds of top-load washer models. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO 8318084 Washer Lid Switch fixes Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, and Crosley direct-drive top-load washers that won't start, won't spin, won't agitate, won't drain, won't advance through the cycle, or have a burning smell from the motor. Gray/white, 125–250V, 50–60Hz, 1/2 HP. 3"L x 2"W x 1-15/16"H. 3 flat terminals + green grounding wire. Replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957. Classic symptom: won't spin but may still fill. Common Problems This Part Fixes Washer won't spin — the classic lid switch failure symptom on direct-drive washers Washer won't start at all — control not detecting a closed lid Washer won't agitate — lid switch blocking motor engagement Washer won't drain — drain is tied to the spin/lid interlock on many models Wash cycle not advancing past fill — stuck waiting for lid-closed signal Burning smell from the motor area — motor stalling because the switch won't engage Lid won't close properly or switch doesn't activate when lid is shut Intermittent operation — washer sometimes works, sometimes doesn't, depending on lid position Lid switch visibly cracked, broken, or with a failed lever Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer lid switch directly replaces the following OEM and cross-reference part numbers: WP8318084, 8318084, WP8318084VP, ES8084, TJ90ES8084, 045903691979, 11480-61, PN8318084, AWP48129, EAP11745957, 11480-61, PN8318084, PD00002474, AP6012742, PS11745957. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch assembly is compatible with select direct-drive top-load washing machines from the following brands: Whirlpool top-load washers — direct-drive models (including 1CLBR, 1CLSQ, 1CLSR, LSQ, LSR, LSW, WTW series and many more) Kenmore and Kenmore Elite top-load washers (select Whirlpool-built models — 110-series) KitchenAid top-load washers (select models) Roper top-load washers (select models) Estate top-load washers (select models) Maytag top-load washers (select Whirlpool-built models) Amana top-load washers (select models) Magic Chef top-load washers (select models) Crosley top-load washers (select models) Admiral top-load washers (select models) Note: This lid switch is specific to direct-drive top-load washers on the Whirlpool platform. It is NOT the same switch used on stacked laundry centers, washer/dryer combos, or front-load washers — those use different lid switch or door lock part numbers. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure. Key Features Direct-drive washer lid switch assembly — detects whether the lid is open or closed and prevents spinning, agitating, and draining when the lid is open Resolves "won't start," "won't spin," "won't agitate," "won't drain," "cycle not advancing," and "burning smell" symptoms caused by lid switch failure Gray and white plastic housing — durable construction Electrical rating: 125–250V, 50–60Hz, 1/2 HP Dimensions: 3"L x 2"W x 1-15/16"H 3 flat terminals that the wiring harness plugs onto, plus a green grounding wire Located under the control panel on the top rear left corner of the washer One of the most widely used lid switches on the Whirlpool direct-drive platform — fits hundreds of top-load washer models Replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957, and 11480-61 Compatible with Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, and Admiral direct-drive top-load washers Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number 8318084 OEM Part Number WP8318084 Part Type Washer Lid Switch Assembly (Direct-Drive Top-Load) Condition Aftermarket Replacement Application Direct-Drive Top-Load Washing Machines (Whirlpool platform) Voltage 125–250V Frequency 50–60 Hz Motor Rating 1/2 HP Dimensions 3"L x 2"W x 1-15/16"H Terminals 3 flat terminals + green grounding wire Color Gray / White Material Plastic housing Location Under the control panel, top rear left corner Compatible Brands Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, Admiral Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The lid switch is located under the control panel at the top rear left corner of the washer. To access it, you'll need to remove the control panel: on most direct-drive washers, use a putty knife or flat-blade screwdriver to release the spring clips at the bottom edge of the control panel (typically two clips), then flip the control panel up and back on its hinges to rest against the wall behind the washer. You should now see the lid switch mounted on the left side with two screws. Photograph the wiring before disconnecting. Unplug the wiring harness from the 3 flat terminals on the old lid switch — note how the harness connects. Remove the two mounting screws holding the old switch in place. Also disconnect the green grounding wire (it's attached separately with its own screw). Remove the old switch. Install the new 8318084 switch in the same position using the two mounting screws. Reconnect the green grounding wire with its screw. Plug the wiring harness back onto the 3 flat terminals, matching your photos. Flip the control panel back down and press it into place until the spring clips snap. Plug the washer back in and test by closing the lid and running a cycle — confirm the washer starts, agitates, spins, and drains. Tools needed: Phillips screwdriver, putty knife or flat-blade screwdriver (for spring clips), work gloves. Frequently Asked Questions My washer won't spin but still fills — is the lid switch the problem? Very likely, yes. On direct-drive top-load washers, the lid switch is a safety interlock that prevents spinning and agitating when the lid is open. When the switch fails, the control never receives the "lid closed" signal, so it blocks the spin (and often the agitate and drain) as a safety measure — but filling still works because that doesn't require the lid interlock. If your washer fills but won't advance past that point, or agitates but refuses to spin, the lid switch is the prime suspect. You can confirm by testing the switch for continuity with a multimeter when the lever is pressed — a working switch shows continuity when activated. Why would a bad lid switch cause a burning smell? This happens when the motor tries to engage but the lid switch isn't signaling correctly, causing the motor to stall or repeatedly attempt to start without completing the cycle. A stalling direct-drive motor generates heat that produces a burning smell. If you notice a burning smell AND the washer isn't spinning or agitating properly, check the lid switch first — it's far more likely (and cheaper) than a motor failure. If the burning smell continues after replacing the switch, have the motor and motor coupling inspected by a technician. What's the difference between 8318084 and WP8318084? These are the same lid switch across production revisions. 8318084 was the original part number and WP8318084 is the Whirlpool-era part number (with the "WP" prefix Whirlpool adopted). WP8318084VP is a variant packaging code. All are physically and functionally identical — if your washer's parts diagram shows any of these numbers, this listing is the correct replacement. The many additional cross-references (AP3180933, AP6012742, ES8084, PS886960, PS11745957, etc.) are catalog identifiers from various parts distributors for the same switch. Does this fit my stacked laundry center or front-load washer? No — the 8318084 is specifically designed for standalone direct-drive top-load washers on the Whirlpool platform. Stacked washer/dryer laundry centers use different lid switch part numbers (such as the 3355806 for Whirlpool thin twin units), and front-load washers use door lock assemblies instead of lid switches. Always search by your appliance's model number to confirm the correct part. Contact our support team with your model number if you're unsure which switch fits your machine. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications (125–250V, 50–60Hz, 1/2 HP), dimensions (3"L x 2"W x 1-15/16"H), 3-flat-terminal configuration, grounding wire, and lid-detection function of the original WP8318084 lid switch used in compatible Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, and related direct-drive top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10350564 Refrigerator Run Capacitor Replaces WPW10350564 The XPARTCO W10350564 is an aftermarket replacement compressor run capacitor compatible with a wide range of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, and Kenmore refrigerators and freezers. The run capacitor is a small but critical electrical component mounted near the compressor at the back of the refrigerator — it delivers a phase-shifted power boost that helps the compressor motor start at the beginning of each cooling cycle, and supports smooth, efficient motor operation while the compressor runs. When the capacitor fails — typically from dielectric breakdown, age, heat, or moisture intrusion — the compressor may fail to start, hum without starting, kick on and off repeatedly, or cause inconsistent cooling throughout the refrigerator. Rated 12 µF (MFD) ±5% capacitance, 180VAC, 50/60Hz. This capacitor works together with the compressor start relay/start device — the two components are frequently replaced together, since a failed capacitor often stresses the relay and vice versa. It directly replaces WPW10350564, W10350564, AP6020176, PS11753490, EAP11753490, and 2683570. This is one of the most cost-effective refrigerator repairs — a failed run capacitor mimics symptoms of a failed compressor (a far more expensive repair), so testing and replacing the capacitor first can save hundreds of dollars. Installs in about 15 minutes with basic hand tools. Quick Answer The XPARTCO W10350564 Refrigerator Run Capacitor fixes Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore refrigerators and freezers where the compressor won't start, hums without starting, kicks on and off, or the fridge/freezer is too warm with inconsistent cooling. 12 µF (MFD) ±5%, 180VAC, 50/60Hz. Replaces WPW10350564, AP6020176, PS11753490, EAP11753490, 2683570. Often replaced together with the compressor start relay. A 15-minute repair that can save you from misdiagnosing a "failed compressor." Common Problems This Part Fixes Compressor won't start — no power boost from the failed capacitor Compressor hums or clicks but doesn't start running Compressor kicks on and off repeatedly (short cycling) Refrigerator and freezer too warm — cooling cycles not completing Fridge too warm while freezer seems okay — weak compressor operation Noticeable humming sounds from the back of the refrigerator Inconsistent cooling and variable temperatures inside the refrigerator Refrigerator will not start at all Capacitor visibly bulged, leaking, or burned Capacitance test reads significantly off from 12 µF Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This run capacitor directly replaces the following OEM and cross-reference part numbers: WPW10350564, W10350564, PD00030179, EAP11753490, AP6020176, AWP50050, PS11753490. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This run capacitor is compatible with select refrigerators and freezers from the following brands: Whirlpool refrigerators — French door, side-by-side, and bottom-mount models (including WRX735SDBM00 and related WRX/WRF series) Maytag refrigerators (select models) KitchenAid refrigerators (select models) Jenn-Air refrigerators (select models) Amana refrigerators (select models) Magic Chef refrigerators (select models) Roper refrigerators (select models) Admiral refrigerators (select models) Ikea refrigerators (select Whirlpool-built models) Kenmore / Sears refrigerators (select Whirlpool-built models) Also fits compatible upright and chest freezers on the Whirlpool platform Note: The run capacitor works together with the compressor start relay/start device. When one fails, the other has typically been stressed by the same electrical events — many repair scenarios call for replacing both at the same time since both are accessible in the same location and the combined parts cost is still far below a service call. Always verify your model number before ordering. Key Features Compressor run capacitor — delivers the phase-shifted power boost that starts the compressor motor and supports smooth operation during cooling cycles Rated 12 µF (MFD) capacitance with ±5% tolerance — precise match to OEM electrical specifications 180VAC, 50/60Hz rating for compatible refrigerator compressor circuits Resolves "compressor won't start," "humming but not starting," "short cycling," and "too warm" symptoms when caused by capacitor failure A cost-effective first repair — failed capacitors commonly mimic the symptoms of a far more expensive failed compressor Replaces WPW10350564, AP6020176, PS11753490, EAP11753490, and 2683570 Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, and Kenmore refrigerators and freezers Often replaced together with the compressor start relay/start device as a paired repair Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in about 15 minutes with basic hand tools Product Specifications Part Number W10350564 OEM Part Number WPW10350564 Part Type Refrigerator Compressor Run Capacitor Condition Aftermarket Replacement Application Refrigerators and Freezers (Whirlpool platform) Capacitance 12 µF (MFD) Tolerance ±5% Voltage 180V AC Frequency 50/60 Hz Mounting Location Near compressor, rear of refrigerator Often Paired With Compressor Start Relay / Start Device Compatible Brands Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, Kenmore Installation Notes ⚠️ Capacitor Safety Warning — Stored Electrical Charge Capacitors store an electrical charge even after the refrigerator is unplugged. Before handling the old capacitor, discharge it safely: with the refrigerator unplugged, touch the blade of an insulated-handle screwdriver across both capacitor terminals simultaneously to short them together (you may see or hear a small spark — that's the stored charge dissipating). Never touch the capacitor terminals with bare hands before discharging. If you're not comfortable with this step, have the repair done by a qualified appliance technician. ⚠️ Unplug Refrigerator Before Starting — Wear Work Gloves Unplug the refrigerator and pull it away from the wall to access the rear. Safely store any food that could spoil if the repair takes longer than expected. Wear work gloves to protect your hands. The run capacitor is located near the compressor at the bottom rear of the refrigerator, typically behind a lower rear access panel. Remove the screws holding the access panel and set it aside. Locate the capacitor — a small rectangular or oval component connected to the compressor's start relay/start device by wire terminals. Photograph the wire connections before disconnecting anything. Discharge the old capacitor before touching the terminals (see the safety warning above). Disconnect the wire terminals from the old capacitor — note which wire goes to which terminal. Release the capacitor from its mounting clip or bracket. Install the new W10350564 capacitor in the same position, secure the mounting clip, and reconnect the wires to the same terminals as photographed. While the panel is open, inspect the start relay/start device on the side of the compressor — if it rattles when shaken, shows burn marks, or has corroded terminals, replace it at the same time. Reinstall the rear access panel, push the refrigerator back into place, plug it in, and listen for the compressor to start smoothly within a few minutes. Allow several hours for the refrigerator to return to its set temperature. Tools needed: Phillips screwdriver, 1/4" nut driver, insulated-handle flathead screwdriver (for discharging), needle-nose pliers, work gloves. Frequently Asked Questions How do I know if the run capacitor has failed and not the compressor? This is the key question — because a failed $15–30 capacitor produces nearly identical symptoms to a failed $300+ compressor. Signs pointing to the capacitor: the compressor hums or clicks but won't start; the compressor tries to start, runs briefly, then shuts off (short cycling); or the refrigerator gradually stopped cooling with humming from the rear. To test: unplug the refrigerator, discharge the capacitor, disconnect it, and measure it with a multimeter that has a capacitance setting — a healthy capacitor reads close to 12 µF (within ±5%). A reading far off, zero, or infinite confirms the capacitor has failed. Visual signs like bulging, leaking, or burn marks also confirm failure. Given the low cost, replacing the capacitor (and start relay) first is the standard diagnostic approach before condemning the compressor. Should I replace the start relay at the same time? Yes, it's strongly recommended. The run capacitor and the compressor start relay/start device work together in the compressor's starting circuit — the relay switches power to the start winding while the capacitor provides the phase-shifted boost. When one fails, the other has typically been stressed by the same electrical events (voltage spikes, overheating, repeated failed start attempts). Both components are inexpensive, mounted in the same location on or near the compressor, and accessible in the same repair session. A quick relay check: with the refrigerator unplugged, remove the relay and shake it — if it rattles, the internal components have failed and it needs replacement. Why does the capacitor need to be discharged before handling? Capacitors store electrical energy — that's their job. Even after the refrigerator is unplugged, the capacitor can hold a charge capable of delivering a painful (and potentially dangerous) shock when you touch both terminals. Before handling, always discharge the capacitor by shorting both terminals together with the blade of an insulated-handle screwdriver — touch the metal blade across both terminals at once and hold for a second or two. You may see a small spark as the charge dissipates; that's normal. After discharging, the capacitor is safe to handle. This takes five seconds and eliminates the shock risk entirely. What's the difference between a run capacitor and a start capacitor? Both assist the compressor motor but in different phases of operation. A start capacitor delivers a large, brief boost only during the initial moment of motor startup, then is switched out of the circuit. A run capacitor — like the W10350564 — stays in the circuit continuously while the motor runs, providing an ongoing phase shift that improves the motor's running efficiency and torque. Household refrigerators on the Whirlpool platform typically use a run capacitor working alongside the start relay/start device. Match the replacement to your original: the W10350564 is a 12 µF, 180VAC run capacitor, and the capacitance rating must match for correct compressor operation. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications (12 µF ±5%, 180VAC, 50/60Hz), terminal configuration, and compressor-support function of the original WPW10350564/W10350564 run capacitor used in compatible Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore refrigerators and freezers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

Genuine GE OEM Refrigerator Part GE WR14X29372 Refrigerator Genuine Fresh Food Door Gasket - White Genuine OEM fresh-food compartment door gasket for select GE and Hotpoint top-mount refrigerators. Product Overview The GE WR14X29372 Refrigerator Fresh Food Door Gasket is a Genuine GE OEM replacement seal for compatible refrigerator fresh-food doors. The gasket creates an airtight seal around the door perimeter to help keep warm room air out and cooled air inside. This gasket is white and is designed for select GE and Hotpoint top-mount refrigerators. Quick Answer WR14X29372 is a Genuine GE OEM white fresh-food refrigerator door gasket. Replace it when the original gasket is torn, cracked, deformed, or no longer sealing properly. Always verify the complete appliance model number before ordering. Common Problems This Part May Fix Warm air entering the fresh-food compartment Condensation or moisture around the refrigerator door Excess frost or temperature instability Door gasket is torn, split, cracked, or hardened Door gasket has pulled away from the liner Refrigerator runs longer because of air leakage Replaces and Cross-References WR14X29372, 4589966, AP6328755, EAP12298193, AGE28136, OEM18986274, PD00056633, PS12298193 Cross-reference numbers are provided for identification. Confirm fit using the complete refrigerator model number. Compatibility Fits select GE and Hotpoint top-mount refrigerators. Compatible model examples include: GTE15CTHLRWW GTE15CTHLLWW GTE15CTHMRWW GTE15NTHMRWW GTS15CTHLRWW GTS15CTHMRWW FBS15RCKLRWW HPS15BTHMRWW HPE15BTHLRWW Important: This is only a partial model list. Verify the complete refrigerator model number before purchase. Similar GE refrigerators may use a different fresh-food or freezer gasket. Key Features Genuine GE OEM replacement part Fresh-food compartment door gasket White color Helps maintain an airtight door seal Helps reduce warm-air infiltration and moisture Designed for select GE and Hotpoint refrigerators Product Specifications Manufacturer Part Number WR14X29372 Brand GE Appliances Part Type Fresh Food Door Gasket Color White Condition New Part Quality Genuine OEM Application Refrigerator Fresh-Food Door Approx. Shipping Weight 3.28 lb Package Quantity 1 Door Gasket Installation Notes Safely store temperature-sensitive food before leaving the refrigerator door open for service. Compare the new gasket with the original before removing the old seal. If the replacement gasket arrives folded or creased, allow it to relax at room temperature or gently warm it according to manufacturer guidance before installation. Remove the old gasket carefully and clean the mounting surface. Install the new gasket evenly around the door perimeter without stretching it. Close the door and inspect the entire seal for gaps, twists, or rolled edges. Fit tip: GE service guidance notes that shipping folds/creases can be smoothed by warming the gasket gently. Do not overheat or deform the gasket. Frequently Asked Questions Is WR14X29372 a Genuine GE OEM gasket? Yes. WR14X29372 is a Genuine GE Appliances refrigerator door gasket. Is this the fresh-food or freezer gasket? This part is for the fresh-food refrigerator door. The freezer door on many compatible models uses a different gasket. What color is this gasket? White. Why does the new gasket look folded when it arrives? Door gaskets are often folded for shipping. Gentle warming and allowing the gasket to relax can help remove temporary creases before installation. Will this fit every GE refrigerator? No. Verify the complete model number because GE uses different gaskets across refrigerator platforms. Shop With Confidence Verify the complete refrigerator model number before ordering. This is a Genuine GE OEM part made for compatible GE and Hotpoint refrigerators. Genuine GE OEMFresh Food Door GasketWhiteCompatibility Support

Read more less

XPARTCO WB24X10190 Microwave Door Switch – Compatible with GE, Hotpoint, and RCA Microwaves Product Description Restore safe and reliable microwave operation with the XPARTCO WB24X10190 Microwave Door Switch. This high-quality replacement detects when the microwave door is closed, allowing power to flow safely to the control board. A faulty door switch can cause the microwave not to start, stop mid-cycle, or run with the door open. Installing this durable replacement ensures proper safety interlock function and restores dependable performance. Replaces Part Numbers WB24X10190, 1810589, AH3486598, PD00054718, EAP3486598, EA3486598, AP4980350, PS3486598. Compatibility This replacement door switch fits select GE, Hotpoint, and RCA microwave models. Example compatible models include (but are not limited to): GE JVM1540LM1CS, GE JVM6175DK1WW, and Hotpoint RVM1535DM1BB. Always verify your microwave’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM safety and performance standards ⚡ Restores Safe Operation – Ensures microwave runs only when the door is properly closed 💰 Affordable Solution – High-quality part at a lower price than OEM versions 🛠️ Quick Installation – Direct-fit replacement installs in minutes with basic tools 🛡️ Fixes Common Issues – Resolves microwaves not starting, stopping mid-cycle, or running with the door open 📐 Product Specification Part Number: WB24X10190 Component Type: Microwave Door Interlock Switch Material: Heat-resistant plastic housing with metal terminals Mounting: Snap-in style for interlock bracket assembly Operating Conditions: Rated for high-voltage microwave circuits Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, flathead screwdriver ⚠️ Safety First: Unplug the microwave before servicing. Capacitors can retain high voltage even when unplugged — use caution or contact a qualified technician. Steps: Unplug the microwave and remove the outer cover. Locate the door latch assembly and access the switch bracket. Disconnect the wiring harness and release the old switch from the bracket. Install the new XPARTCO WB24X10190 switch in the same orientation. Reconnect wires, reinstall the cover, and test operation. ⏱️ Time Required: 15–20 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Restore your microwave’s safety and performance — Add to Cart Now for a reliable, budget-friendly repair!

Read more less

XPARTCO 2188820 Refrigerator Thermistor (Sensor) Replaces WP2188820 The XPARTCO 2188820 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador refrigerators. The thermistor is an NTC (negative temperature coefficient) sensor that continuously monitors the air temperature inside the refrigerator or freezer compartment and sends resistance-based readings to the electronic control board. The control board uses these readings to regulate compressor run time and fan operation, maintaining the set temperature accurately and efficiently. This thermistor features an NTC resistance of 50K ohms at 25°C (27K ohms at 0°C/32°F) and a standard wire length of approximately 5.3 inches (13.46 cm), compatible with low-voltage refrigerator control boards (5V/12V). It directly replaces WP2188820, 2213442, AP6006068, PS11739132, and 1057764. Note: this thermistor is compatible with non-WISE system refrigerators only — it is not compatible with newer Whirlpool refrigerators using the WISE (Whirlpool Intelligent Smart Energy) control system. Installs in under 15 minutes. Quick Answer The XPARTCO 2188820 Refrigerator Thermistor fixes Whirlpool-family refrigerators that are too warm, too cold, have erratic temperatures, run the compressor too long, or display temperature-related error codes. NTC sensor, 50K ohm at 25°C, ~5.3" wire. Non-WISE system models only. Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador. Replaces WP2188820, 2213442, AP6006068, PS11739132. Common Problems This Part Fixes Refrigerator not maintaining set temperature — too warm or too cold Freezer section too warm or food not freezing properly Compressor running continuously without cycling off Temperature fluctuating erratically despite stable ambient conditions Refrigerator temperature-related error codes displayed on the control panel Excessive frost buildup caused by incorrect temperature regulation Food or beverages freezing in the fresh food section Replaces Part Numbers This refrigerator thermistor directly replaces the following OEM and cross-reference part numbers: WP2188820, 2188820, 2213442, EAP11739132, AWP46934, PD00033406, AP6006068, PS11739132. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermistor is compatible with select refrigerators from the following brands and series: Whirlpool refrigerators — 5VW, GC3, EC3, GC5 series Kenmore / Sears refrigerators — 106 series (Whirlpool-built models) KitchenAid refrigerators — KSCS, KSSS, JS series Maytag refrigerators (select models) Jenn-Air refrigerators (select models) Dacor refrigerators (select models) Thermador refrigerators (select models) Important — WISE System Compatibility: The 2188820 thermistor is compatible with non-WISE system refrigerators only. It is not compatible with newer Whirlpool refrigerators equipped with the WISE (Whirlpool Intelligent Smart Energy) control system. If your refrigerator uses the WISE system, this thermistor will not work correctly. Verify your model number before ordering, or contact our support team to confirm compatibility. Key Features NTC (negative temperature coefficient) thermistor — resistance decreases as temperature increases, allowing precise temperature monitoring 50K ohm resistance at 25°C (27K ohm at 0°C/32°F) — matches original WP2188820 specifications Wire length approximately 5.3 inches (13.46 cm) — standard length matching OEM dimensions Low-voltage design compatible with 5V/12V refrigerator control boards Continuously sends temperature readings to the control board to regulate compressor and fan operation Non-WISE system compatible only — verify your model before ordering Direct replacement for WP2188820, 2213442, AP6006068, and PS11739132 Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador refrigerators Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 15 minutes Product Specifications Part Number 2188820 OEM Part Number WP2188820 Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Aftermarket Replacement Sensor Type NTC (Negative Temperature Coefficient) Resistance at 25°C 50,000 ohms (50K ohm) Resistance at 0°C (32°F) 27,000 ohms (27K ohm) Wire Length Approximately 5.3 inches (13.46 cm) Voltage 5V / 12V (low voltage) WISE System Compatibility Non-WISE models only Compatible Brands Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, Thermador Installation Notes ⚠️ Unplug Refrigerator Before Starting Disconnect power before beginning. The thermistor location varies by model — it is typically clipped to a bracket on the interior side wall of the fresh food or freezer compartment, or mounted near the evaporator coil. Consult your model's parts diagram or service manual to confirm the exact location before disassembly. Open the sensor cover or unclip the sensor bracket, disconnect the wiring connector, and pull the old thermistor out. Insert the new 2188820 thermistor, reconnect the wiring connector, and snap the cover or bracket back into place. Ensure the sensor head is positioned close to the compartment wall and the wiring is not pinched. Restore power and monitor the refrigerator temperature over the next few hours to confirm stable, accurate cooling. Tools needed: Phillips screwdriver (for panel access on some models); no tools needed for sensor replacement itself. Frequently Asked Questions What is the difference between 2188820 and WP2188820? These are the same thermistor. WP2188820 is the updated Whirlpool OEM part number that superseded the original 2188820. The 2213442 is also a cross-reference for the same part. This aftermarket replacement is compatible with all three numbers. What does an NTC thermistor do and how do I know if mine has failed? An NTC thermistor is a resistor whose resistance decreases as temperature increases. The control board sends a small voltage through the thermistor and measures the resulting resistance — a lower resistance means warmer temperature, and a higher resistance means cooler temperature. The board uses this reading to decide when to run the compressor and fans. A failed thermistor either reads open circuit (no continuity), short circuit (zero resistance), or provides incorrect readings that cause the refrigerator to run too warm, too cold, or cycle erratically. Test with a multimeter at room temperature — a working 2188820 should read approximately 50K ohms at 25°C (77°F). Significant deviation indicates failure. How do I know if my refrigerator uses the WISE system? The WISE (Whirlpool Intelligent Smart Energy) system was introduced on newer Whirlpool refrigerator models and uses a different thermistor specification that is not interchangeable with the 2188820. Models that use the WISE system are typically marked in the product documentation or on the control board. The easiest way to confirm compatibility is to verify your model number with our support team before ordering, or check whether WP2188820 appears in your model's official parts diagram. If your parts diagram lists WP2188820, this replacement is compatible. Where is the thermistor located in my refrigerator? The thermistor location varies by model and brand. On Whirlpool and KitchenAid models, it is commonly found on the interior side wall of the fresh food compartment clipped to a plastic housing. On some models it is located near the evaporator coil behind the freezer back panel. On Kenmore 106 series models, it may be on the fresh food section wall or inside the back panel. Consult your specific model's parts diagram or search for a model-specific installation video to locate the sensor before disassembling the refrigerator. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with an NTC thermistor rated to the same 50K ohm specification as the original WP2188820 to match the performance and accuracy of the factory sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less
