XPARTCO DC34-00025B Washer Door Lock
Replaces Part Numbers: DC34-00025B, AP5799391, PS8763546.
Fits Specific Samsung Washer Models
DC 12V
Description: This Door Lock Switch is essential for maintaining the secure operation of your washer. fits specific Samsung washer models. This replacement part ensures that the door lock mechanism functions correctly, providing peace of mind during every wash cycle.
This is an aftermarket part that can be used as a replacement for the OEM part.
XPARTCO W10820036 Washer / Dryer Door Switch
The XPARTCO W10820036 is an aftermarket replacement door switch used on select Whirlpool-built combination washer/dryer units. This switch is a safety interlock: it detects whether the door is fully closed and latched, and it signals the control board that it is safe to run the motor, heater, and water valves. On a combo unit, this single interlock typically governs both the wash and dry portions of the cycle, since both functions share the same drum and door. If the switch fails to detect a closed door — or fails electrically even when the door is closed properly — the control will refuse to start the cycle, or will stop mid-cycle if the switch drops out while running.
Typical failure modes for a part like this include a cracked or worn switch lever that no longer depresses fully when the door closes, internal contacts that have pitted or burned out from years of cycling, and a housing that has come loose from its mounting bracket so the plunger no longer lines up with the door strike. A functioning door switch should click firmly when the door closes and should show continuity across its terminals only when the lever is pressed.
Quick Answer
The XPARTCO W10820036 Washer/Dryer Door Switch is a door safety interlock switch for select Whirlpool-built combination washer/dryer units. It fixes units that won't start with the door closed, stop mid-cycle, or fail to register the door as closed even when it's latched properly. Note: this listing was built from general parts knowledge because current supplier and cross-reference data was not available at build time — see the note below before publishing.
Common Problems This Part Fixes
Washer/dryer combo won't start even though the door is fully closed
Cycle stops partway through, as if the door had been opened
Door doesn't feel like it's "clicking" or latching the way it used to
Console shows a door-related error or won't advance past the door-closed step
Intermittent operation — sometimes starts, sometimes doesn't, depending on how the door is closed
Visibly cracked, loose, or broken switch housing or lever
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This door switch directly replaces the following OEM part number:
W10820036, 279347, 2-2770, 2-50062, 2-5415, 2020, 202770, 233480, 235462, 237194, 238775, 238980, 239868, 24198, 247207, 26000279347, 279290, 287219, 287220, 291679, 291697, 292212, 296141, 296144, 3347287, 338883, 3392266, 3397503, 3399991, 347207, 350526, 359230, 359484, 364090, 364091, 367034, 388322, 389105, 4273196, 4319330, 660308, 687429, 75958, 8224, 83333, 84144, 86628, 89556, 99788, 99838, LP210, AP5985146, AWP41434, EAP334185, PD00023982, PS11723153.
No additional cross-reference numbers have been confirmed for this part yet. If you have a superseded or alternate number for your appliance, contact our support team and we will verify compatibility before you order.
Compatibility
This door switch is intended for select Whirlpool-built washer/dryer combination units, where a single door and drum serve both the wash and dry functions.
Model list not yet confirmed: A specific compatible model list for W10820036 was not available at the time this page was built. Please verify your exact model number before ordering. Contact our support team with your model number and we will confirm fitment before you purchase.
Key Features
Aftermarket replacement door safety switch for Whirlpool-built washer/dryer combo units
Detects whether the door is closed and latched before allowing the wash or dry cycle to run
Resolves "won't start with door closed," "stops mid-cycle," and "door not detected" symptoms
Direct drop-in replacement for the original W10820036 switch — no modification required
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
XPW10820036
OEM Part Number
W10820036
Part Type
Washer/Dryer Combo Door Safety Switch
Condition
Aftermarket Replacement
Application
Whirlpool-Built Washer/Dryer Combination Units
Function
Door-closed safety interlock for wash and dry cycles
Quantity
1 switch
Compatible Brand
Whirlpool (combo platform)
Installation Notes
⚠️ Unplug The Unit Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access to the door switch on combo units is typically through the front or top control panel — photograph the wiring harness before disconnecting it so you can match it exactly on reassembly. Confirm the new switch's lever aligns with the door strike before securing the mounting screws, and test for a firm, positive click when the door closes before restoring power and running a cycle. If your unit's service manual is available, follow its specific access and mounting steps rather than relying solely on general guidance.
Frequently Asked Questions
My combo unit won't start. Is this definitely the door switch?
It's one of the most common causes when a unit refuses to start with the door visibly closed. Before replacing the switch, confirm the door is latching fully and that nothing (a stray sock, a bent strike bracket) is preventing it from closing all the way. If the door latches firmly but the unit still won't start, or a multimeter shows no continuity across the switch terminals when the lever is pressed, the switch itself is the likely culprit.
Does this switch control both the washer and dryer functions?
On combination washer/dryer units, yes — a single door and drum typically serve both functions, so one door switch acts as the safety interlock for both the wash and dry portions of the cycle.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the mounting, switching function, and door-interlock behavior of the original W10820036 switch used in compatible combination washer/dryer units.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DC97-16350V Washer Suspension Rod Kit (Set of 4)
The XPARTCO DC97-16350V is an aftermarket replacement washer suspension rod kit (set of 4) compatible with select Samsung top-load washers in the WA48, WA50, WA52, and WA54 series. The suspension rods are spring-loaded shock-absorbing rods that connect the outer tub to the top of the washer cabinet, suspending the tub and dampening the vibrations generated during agitation and high-speed spin cycles. All four rods work together to keep the tub centered and stable — when one or more rods weaken, break, or lose their spring tension, the tub swings off-center and strikes the cabinet walls, causing violent shaking, banging, error code dc (out of balance), UE imbalance errors, and progressive damage to the washer cabinet and internal components.
Each rod is 27.5 inches in overall length and is constructed from spring steel with a plastic top cap and bottom cup that clip into the tub and cabinet mounting points. The kit includes all 4 suspension rods — always replace all four at the same time since the rods wear at the same rate. Installs in 20–30 minutes — no special tools required. Note: rods are coated with grease — wear gloves during installation.
Quick Answer
The XPARTCO DC97-16350V Washer Suspension Rod Kit fixes Samsung top-load washers that vibrate violently, bang loudly, walk across the floor, display dc or UE imbalance error codes, or stop mid-cycle during spin. Set of 4 rods, 27.5" overall length, spring steel. Replace all 4 at the same time. Wear gloves — rods are greased. Compatible with Samsung WA48, WA50, WA52, and WA54 series. Replaces DC97-16350V, AP6975426, EAP12740434, PS12740434, ASM34760, PD00071611
Common Problems This Kit Fixes
Washer vibrating violently or shaking excessively during the spin cycle
Loud banging or thumping — tub striking the cabinet walls during spin
Washer "walking" or moving across the floor during high-speed spin
Error code dc displayed — Samsung out-of-balance error during spin
Error code UE displayed — unbalanced load error the washer cannot correct
Washer repeatedly stopping and rebalancing the load without completing the spin cycle
Visible broken, detached, or sagging suspension rod visible inside the cabinet
Rattling or clunking noise during agitation — tub no longer centered
Replaces Part Numbers
This suspension rod kit directly replaces the following OEM and cross-reference part numbers:
DC97-16350V, AP6975426, EAP12740434, PS12740434, ASM34760, PD00071611.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This suspension rod kit is compatible with select top-load washers from the following Samsung series:
Samsung WA48 series — WA48H7400AW, WA48H7400AP, WA48J7700AW, WA48J7770AP and related models
Samsung WA50 series — WA50F9A6DSW, WA50F9A7DSP, WA50F9A7DSW, WA50F9A8DSP, WA50R5200AW, WA50R5400AV, WA50T5300AC and related models
Samsung WA52 series — WA52A5500AV, WA52A5500AW, WA52A5500AC and related models
Samsung WA54 series — WA54R7200AV, WA54R7200AW, WA54R7600AC, WA54R7600AV, WA54R7600AW, WA5AR7200AV and related models
Samsung WA45 series — WA45H7000AW, WA45K7600AW, WA45M7050AW (select models)
Kenmore / Sears top-load washers (select Samsung-built models)
Important: Samsung uses several different suspension rod lengths across its top-load washer lineup. The DC97-16350V is 27.5 inches long and is for larger-capacity WA48–WA54 series models. Shorter-capacity models (WA40–WA45) typically use DC97-16350C or DC97-16350U rods. Always verify your model number before ordering to confirm you need the 27.5-inch version.
Key Features
Set of 4 suspension rods — complete replacement kit covering all four tub mounting points
Suspends and centers the outer tub within the cabinet — dampens agitation and spin vibration to prevent tub-to-cabinet contact
Resolves Samsung error codes dc (out of balance) and UE (unbalanced load)
27.5 inches overall length — correct size for WA48, WA50, WA52, and WA54 series Samsung top-load washers
Spring steel construction with plastic top cap and bottom cup — durable and corrosion resistant
Rods are pre-coated with grease — wear work gloves during installation
Replace all 4 rods at the same time — rods wear together and partial replacement leads to uneven tub support
No special tools required — installs in 20–30 minutes
Replaces DC97-16350V, AP6975426, EAP12740434, PS12740434, ASM34760, PD00071611, and more
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
DC97-16350V
Part Type
Washer Suspension Rod and Spring Assembly
Condition
Aftermarket Replacement
Application
Samsung Top-Load Washers — WA48, WA50, WA52, WA54 series
Quantity
Set of 4 (replace all four rods at the same time)
Rod Length
27.5 inches overall
Material
Spring steel / Plastic / Metal
Color
Black / Silver / Gray
Lubrication
Pre-coated with grease — wear gloves during installation
Error Codes Resolved
dc (out of balance), UE (unbalanced load)
Compatible Brands
Samsung, Kenmore (Samsung-built)
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Gloves Disconnect power and turn off the water supply before beginning. Wear work gloves throughout — the suspension rods are coated with grease. Remove the lid of the washer and the top panel (typically secured by screws under the lid hinge covers and at the rear corners). With the top panel removed, the four suspension rods are visible, each running from a mounting point on the tub rim up to a hook or bracket at the top corners of the cabinet frame. Note the orientation and attachment method of each rod before removing. Unhook the top of the old rod from the cabinet bracket and lift the bottom cup off the tub mounting pin. Install each new DC97-16350V rod by seating the bottom cup onto the tub mounting pin and hooking the top over the cabinet bracket. Replace all four rods before reassembling. Reinstall the top panel and lid, restore power and water, then run a spin cycle to verify smooth, stable operation. Tools needed: Phillips screwdriver; no special tools required for the rods themselves.
Frequently Asked Questions
What do the suspension rods do?
The suspension rods are spring-loaded shock absorbers that hang the outer washer tub from the top corners of the cabinet frame. They suspend the tub in the center of the cabinet and absorb the vibrations and movement generated during agitation and high-speed spin cycles. As long as all four rods have equal spring tension, the tub stays centered and stable. When one or more rods lose tension, stretch, or break, the tub is no longer held evenly and begins to swing off-center during spin — striking the cabinet walls, causing the loud banging, vibration, and imbalance error codes that indicate the rods need replacement.
Why must I replace all 4 rods instead of just the broken one?
All four suspension rods experience the same amount of wear over the same number of wash cycles. When one rod fails, the remaining three have experienced the same stress and fatigue and are likely to fail soon after. Replacing only the broken rod leaves three worn rods supporting the tub unevenly, which can cause the new rod to wear faster and may not fully resolve the vibration problem. Replacing all four at the same time ensures even tub support, fully resolves the imbalance, and prevents a repeat repair in the near future.
What do error codes dc and UE mean on Samsung washers?
On Samsung top-load washers, error code dc (or sometimes dC) means the washer has detected an out-of-balance condition during the spin cycle and has stopped to prevent damage. Error code UE means an unbalanced load that the machine cannot automatically correct by redistributing. Both codes can be caused by an actual overloaded or unevenly distributed laundry load — but if the errors occur frequently even with normal loads and proper load distribution, worn or broken suspension rods are the most common mechanical cause. Replacing the rod kit resolves these errors in most cases.
How is the DC97-16350V different from DC97-16350U or DC97-16350S?
The DC97-16350V, DC97-16350U, and DC97-16350S are all Samsung suspension rods, but they have different lengths for different washer model generations and capacities. The DC97-16350V is 27.5 inches long and is used on larger-capacity WA48–WA54 series Samsung washers. The DC97-16350U is approximately 26.4 inches and is used on mid-capacity WA45–WA50 series models. The DC97-16350S and DC97-16350C are shorter versions for earlier or smaller-capacity models. Using the wrong length rod can cause the tub to sit at the incorrect height inside the cabinet. Always verify your model number before ordering to confirm the correct rod length.
Is this an OEM or aftermarket part?
This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured from spring steel with plastic end caps to match the length and spring tension of the original DC97-16350V suspension rods.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO W10528947 Washer Drive Hub Kit
The XPARTCO W10528947 is an aftermarket replacement washer basket drive hub kit compatible with select top-load washing machines from Whirlpool, Maytag, Kenmore, Amana, Admiral, Crosley, and Inglis. The drive hub is a critical transmission component that connects the spin basket to the spin shaft, transferring power from the motor to rotate the wash basket and agitate laundry during each cycle.
This kit includes one basket drive hub and one drive block retainer — everything needed to restore proper spinning and agitation function. Common causes of drive hub failure include normal wear over time, strain from heavy or unbalanced loads, and physical damage from impact. A worn or cracked hub typically results in the basket slipping, failing to spin, or producing loud clicking and grinding noises during operation.
Quick Answer
The XPARTCO W10528947 Washer Drive Hub Kit fixes washers that won't spin, spin weakly, make clicking or grinding noises, or leave clothes too wet after the cycle. It connects the spin basket to the spin shaft and is compatible with select Whirlpool, Maytag, Kenmore, Amana, Admiral, Crosley, and Inglis top-load washers.
Common Problems This Part Fixes
Washer not spinning or agitating at all
Weak or slow spin — clothes coming out too wet
Clicking, grinding, or loud noises during spin cycle
Basket slipping under load
Washer pumping but not spinning
Excessive shaking or movement during operation
Replaces Part Numbers
This kit directly replaces the following OEM and cross-reference part numbers:
W10528947, 2684908, W10396887, W10528947VP, W11771931, EAP6012095, AWP40580, PD00024946, AP5665171, PS6012095.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drive hub kit is compatible with select top-load washers from the following brands:
Whirlpool top-load washers
Maytag top-load washers (including Bravos series)
Kenmore top-load washers (select models)
Amana top-load washers
Admiral top-load washers
Crosley top-load washers
Inglis top-load washers
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
Connects the spin basket to the spin shaft — restoring proper agitation and spin performance
Aftermarket replacement built to OEM-equivalent quality standards
Kit includes one basket drive hub and one drive block retainer for a complete repair
Made from durable plastic construction designed to withstand regular wash cycle stress
DIY-friendly repair — installs with basic hand tools in 30–60 minutes
Budget-friendly alternative to OEM at a lower cost without sacrificing performance
Product Specifications
Part Number
W10528947
Part Type
Washer Basket Drive Hub Kit
Condition
Aftermarket Replacement
Application
Top-Load Washing Machine
Material
Durable Plastic (ABS)
Hub Dimensions
3-5/8" Diameter x 13/16" H
Retainer Clip Length
2-7/8"
Kit Includes
1 Basket Drive Hub + 1 Drive Block Retainer
Compatible Brands
Whirlpool, Maytag, Kenmore, Amana, Admiral, Crosley, Inglis
Installation Notes
⚠️ Safety First — Disconnect Power and Water Before Starting Unplug the washer from the power source and shut off the hot and cold water supply valves before beginning any repair. Remove the agitator or impeller (depending on your model) to access the drive hub. Unscrew the old hub and retainer, install the new drive hub kit in the same position, and reassemble the washer. Tools needed: multi-bit screwdriver, 7/16-inch socket with extension, and a nut driver. Allow 30–60 minutes for a complete repair. Consult your washer's service manual for model-specific instructions.
Frequently Asked Questions
Will the W10528947 fit my washer?
This kit is compatible with select top-load washers from Whirlpool, Maytag, Kenmore, Amana, Admiral, Crosley, and Inglis. Always verify your washer's model number before ordering. Contact our support team if you need help confirming compatibility.
What does the drive hub do?
The drive hub connects the spin basket to the spin shaft beneath the agitator. It transfers power from the motor to rotate the wash basket during the spin and agitation cycles. When the hub wears out or cracks, the basket can slip or stop spinning entirely.
What are the signs that my drive hub needs replacement?
Common signs include: the washer won't spin or agitate, the spin cycle is weak or slow, clothes come out too wet, or you hear clicking and grinding noises during operation. Excessive shaking or movement during the cycle can also indicate a worn hub.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is designed to deliver reliable, long-lasting performance at a more affordable price point.
What is included in the kit?
The kit includes one basket drive hub and one drive block retainer — the two components needed for a complete drive hub replacement.
Shop With Confidence
Parts-O-Matic is a U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock parts for major appliance brands and ship quickly from our U.S. warehouse. Our team is available to help you verify compatibility before you buy.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO W11130362 Washer Suspension Rod Kit
The XPARTCO W11130362 is an aftermarket replacement suspension rod kit for Whirlpool top-load washers. The wash tub inside a top-load washer hangs suspended inside the cabinet, and this set of rods is what supports that tub and absorbs the vibration and movement it generates during unbalanced loads and high-speed spin. Without healthy suspension rods, the tub can bang against the cabinet, shake the whole machine, and produce loud, rhythmic noise that gets worse the more unbalanced a load is.
This kit includes 4 suspension rods, 4 bushings, and 4 suspension balls, plus installation instructions — everything needed to replace the full suspension system in one job. Each steel rod measures approximately 23.3" long, with plastic components at the connection points. Over time, the bushings and balls wear down, and the rods themselves can lose their damping effectiveness, producing a loud banging or rattling noise often described as a "death rattle" during spin. It directly replaces W10594080, W10735786, W10748956, W10780040, W10821710, W10901056, W11027174, W11033491, W11228718, and W11035751.
Quick Answer
The XPARTCO W11130362 Washer Suspension Rod Kit fixes Whirlpool, Maytag, Kenmore, and Crosley top-load washers with loud banging, rattling, or a "death rattle" noise during spin, excessive tub movement, or a washer that feels unbalanced even after leveling. Complete kit: 4 rods, 4 bushings, 4 suspension balls. Each rod approx. 23" long. Replaces W10594080, W10735786, W10748956, W10780040, W10821710, W10901056, W11027174, W11033491, W11228718, W11035751. Replace all four rods together, even if only one has failed — uneven wear across the set reduces the effectiveness of the whole suspension system.
Common Problems This Part Fixes
Loud banging, knocking, or rattling noise during the spin cycle
Washer tub that moves excessively or bounces during unbalanced loads
Washer that shakes or "walks" even after the unit has been leveled
Persistent rattling noise sometimes described as a "death rattle"
Tub that wobbles noticeably when pushed by hand
Noise that has gradually gotten worse over the years
Washer that seems off-balance even with a properly distributed load
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer suspension rod kit directly replaces the following OEM and cross-reference part numbers:
W11130362, W11027174, W10780040, W10594080, W10735786, W10748956, W10821710, W10901056, W11033491, W11228718, AP6262443, AWP43166, EAP12347546, PD00038547, PS12347546
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This suspension rod kit is compatible with select Whirlpool top-load washers, and also fits select Maytag, Kenmore, and Crosley top-load washers built on the same platform, including model numbers such as:
WTW5000DW, WTW5000DW1, WTW5000DW2, WTW5000DW3
WTW5005KW
MVWC565FW, MVWC565FW0, MVWC565FW1, MVWC565FW2
MVWX655DW, MVWX655DW1
MVWC555DW
Note: Always verify your full model number before ordering, since Whirlpool uses different suspension systems across its top-load washer lineup. Contact our support team with your model number if you're unsure.
Key Features
Aftermarket replacement suspension rod kit — supports and dampens tub movement during spin
Complete kit includes 4 suspension rods, 4 bushings, and 4 suspension balls
Resolves "banging or rattling noise," "excessive tub movement," and "washer that feels unbalanced" symptoms caused by worn suspension
Durable steel rods with plastic components at the connection points
Each rod approximately 23.3" long
Direct drop-in replacement — no modification required
Replaces W10594080, W10735786, W10748956, W10780040, W10821710, W10901056, W11027174, W11033491, W11228718, and W11035751
Compatible with Whirlpool, Maytag, Kenmore, and Crosley top-load washers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
W11130362
OEM Part Number
W11130362
Part Type
Washer Suspension Rod Kit
Condition
Aftermarket Replacement
Application
Whirlpool-Platform Top-Load Washers
Kit Contents
4 suspension rods, 4 bushings, 4 suspension balls, installation instructions
Rod Length
Approx. 23.3 in. each
Material
Steel rods with plastic components
Function
Supports the tub and dampens vibration during spin
Repair Difficulty
Medium — basic hand tools and some disassembly required
Quantity
1 kit (4 rods, 4 bushings, 4 balls)
Compatible Brands
Whirlpool, Maytag, Kenmore, Crosley
Installation Notes
⚠️ Unplug Washer Before Starting — Replace All Four Rods Together Disconnect power at the outlet and shut off the water supply before beginning. Place a towel underneath the washer to protect the floor from any residual water. Wear work gloves. Open the lid and locate the suspension rod kit connecting the tub to the cabinet. Photograph how each old rod, bushing, and ball connects at both ends before removing anything, since these components are symmetrical around the tub and easy to reverse or mismatch. Use a flathead screwdriver to loosen the screws securing each rod assembly, then carefully pull each one free. Replace all four rods, bushings, and balls together, even if only one position shows obvious wear — the manufacturer specifically advises replacing the full set at once, since uneven wear across the suspension system reduces its overall effectiveness. Install each new rod assembly in the same position, making sure it fits snugly, and tighten the screws securely. Once all four are installed, gently rock the tub by hand to confirm even resistance at each corner before closing the lid. Restore water and power, then run a full spin cycle to confirm the noise and excess movement have resolved. Tools needed: flathead screwdriver, pliers, adjustable wrench, work gloves.
Frequently Asked Questions
My washer has a loud "death rattle" during spin. Will this kit fix it?
Yes, this is one of the most common symptoms this kit resolves. Worn suspension rods, bushings, and balls lose their ability to dampen the tub's movement, and the result is often described as exactly this kind of loud, persistent rattling or banging during spin. Replacing the full suspension system typically restores quiet, stable operation.
Do I really need to replace all four rods, or just the one that's broken?
It's strongly recommended to replace all four together, and it's the manufacturer's own installation guidance for this kit. All four rods are typically the same age and under the same stress, so if one has worn out or broken, the others are likely not far behind. Replacing only one risks leaving the tub unevenly supported and having to repeat this repair again soon.
My washer is off-balance even though it's level and the load looks even. Could this be the cause?
Yes, this is a good sign to check the suspension system. If you bounce or push on the tub by hand and feel excessive movement or hear the tub knock against the cabinet even with a properly distributed load, worn suspension rods are a likely cause rather than a leveling or load-balance issue.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, materials, and mounting configuration of the original W11130362 suspension rod kit used in compatible Whirlpool, Maytag, Kenmore, and Crosley top-load washers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
6601EN1003D Washer Door Lock Interlock Switch
Replaces Part Numbers: 6601EN1003D, 6601ER1005A, 2651099, AH3636296, AP5594317, EA3636296, PS3636296.
This is an aftermarket part that can be used as a replacement for the OEM part.
WARNING: California’s Proposition 65 (California Residents Only)
XPARTCO W10734521 Washer Clutch Slider Kit
The XPARTCO W10734521 is an aftermarket replacement washer clutch slider kit compatible with a wide range of Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, and Kirkland HE top-load washers. The clutch slider kit is part of the drive system that engages and disengages the inner tub from the gearcase — it's responsible for transitioning the washer between agitation and spin modes. The slider gear works together with the electromagnetic clutch and gearcase to move the inner tub during the wash and spin portions of every cycle. When the slider or its spring fails, the washer typically won't spin properly, won't agitate, makes grinding noise, or leaves clothes soaking wet at the end of a cycle.
This kit includes the slider, spring support, 30mm spiral, and bolt. Slider dimensions: 2-7/8" outer diameter x 7/8" deep. Support spring: 1-5/8" outer diameter x 1-1/8" long. Spiral: 1-5/16" outer diameter. Bolt: 7/8" head diameter x 1" high. Construction is metal and plastic in black, white, and gray. Important: this is the slider kit only — it does NOT include the electromagnetic clutch (sold separately as W10754448). The current W10734521 part number supersedes the earlier W10006484, W10006494, W10275082, W10447975, and W10905025. It also replaces 3452506, AP5952873, EAP10060062, PD00025495, and PS10060062. Installs in 60–90 minutes with basic hand tools.
Quick Answer
The XPARTCO W10734521 Washer Clutch Slider Kit fixes Whirlpool, Maytag, Kenmore, KitchenAid, and related HE top-load washers that won't spin or agitate properly, won't transition between cycle phases, leave clothes soaking wet, or make grinding noise during the spin cycle. Slider kit only — electromagnetic clutch (W10754448) is sold separately. Includes slider (2-7/8" OD), spring support (1-5/8" OD), 30mm spiral, and bolt. Replaces W10006484, W10006494, W10275082, W10447975, W10905025, 3452506, AP5952873, EAP10060062, PD00025495, PS10060062.
Common Problems This Part Fixes
Washer won't spin or spins very slowly — slider not engaging the gearcase for spin mode
Washer won't agitate — slider not transitioning the drive system to agitation mode
Clothes left soaking wet at the end of the cycle — incomplete spin
Grinding, rattling, or clunking noise during the spin or agitation phase
Washer fills and drains normally but never spins or agitates
Worn or broken slider gear teeth visible on the drive assembly
Weak or broken slider spring — washer drive losing positive engagement
Repeated cycle interruptions in the spin or agitation portion of cycles
What's in the Kit
Part 1
Slider Gear
2-7/8" outer diameter x 7/8" deep · Slides over the drive assembly shaft to engage/disengage the gearcase for agitation and spin transitions · Install with the teeth facing outward
Part 2
Spring Support
1-5/8" outer diameter x 1-1/8" long · Provides return tension for the slider · Replace whenever the gearcase or slider is replaced — spring can weaken over time
Part 3
30mm Spiral
1-5/16" outer diameter · Spiral retaining component that holds the slider assembly together on the drive shaft
Part 4
Bolt
7/8" head diameter x 1" high · Secures the assembly
Replaces Part Numbers
This clutch slider kit directly replaces the following OEM and cross-reference part numbers:
W10734521, 3452506, W10006484, W10006494, W10275082, W10447975, AP5952873, AWP41487, EAP10060062, PD00025495, PS10060062.
W10734521 is the current production part superseding W10006484, W10006494, W10275082, W10447975, and W10905025. Contact our support team with your model number if you need confirmation before ordering.
Compatibility
This clutch slider kit is compatible with select HE top-load washers from the following brands:
Whirlpool top-load washers (Cabrio, WTW5000, WTW5500, WTW5700, WTW6000, WTW6200, WTW6400, WTW7000, WTW7120, WTW8000, WTW8200, WTW8500, WTW8700 series and related models)
Maytag top-load washers (Bravos and Centennial series and related models)
Kenmore / Sears top-load washers (Whirlpool-built — select 110-series and related models)
KitchenAid top-load washers (select models)
Amana top-load washers (select models)
Crosley top-load washers (select models)
Estate top-load washers (select models)
Jenn-Air top-load washers (select models)
Roper top-load washers (select models)
Magic Chef top-load washers (select models)
Admiral top-load washers (select models)
Kirkland top-load washers (select models)
Important — Slider Kit Only, NOT Clutch: This is the clutch slider kit (slider, spring, spiral, bolt) — it does not include the electromagnetic clutch assembly. The electromagnetic clutch is part number W10754448 and is sold separately. If you need both components, order each part separately. Many repair scenarios call for replacing both at the same time, since both wear together. Always verify your model number and confirm exactly which component has failed before ordering.
Key Features
Complete slider repair kit — slider, spring support, 30mm spiral, and bolt included as a matched set
Works with the electromagnetic clutch and gearcase to drive the inner tub during agitation and spin modes
Resolves "won't spin," "won't agitate," and "clothes left soaking wet" symptoms when the slider has worn or the spring has weakened
Current production part number — supersedes W10006484, W10006494, W10275082, W10447975, and W10905025
Slider: 2-7/8" outer diameter x 7/8" deep · Spring: 1-5/8" OD x 1-1/8"L · Spiral: 1-5/16" OD · Bolt: 7/8" head x 1"H
Metal and plastic construction in black, white, and gray
Important: slider kit only — electromagnetic clutch (W10754448) sold separately
For full performance, replace all components in the kit together as a set
Compatible with Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, and Kirkland HE top-load washers
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 60–90 minutes with basic hand tools
Product Specifications
Part Number
W10734521
Supersedes
W10006484, W10006494, W10275082, W10447975, W10905025
Part Type
Washer Clutch Slider Kit
Condition
Aftermarket Replacement
Application
HE Top-Load Washers (Whirlpool platform)
Includes
1x Slider, 1x Spring Support, 1x 30mm Spiral, 1x Bolt
Slider Dimensions
2-7/8" Outer Diameter x 7/8" Deep
Spring Support Dimensions
1-5/8" Outer Diameter x 1-1/8" Long
Spiral Dimensions
1-5/16" Outer Diameter
Bolt Dimensions
7/8" Head Diameter x 1" High
Material
Metal / Plastic
Color
Black / White / Gray
Electromagnetic Clutch
NOT included — see W10754448 (sold separately)
Compatible Brands
Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, Kirkland
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Work Gloves Disconnect power and turn off the water supply before beginning. Place towels under the washer — some residual water may spill from hoses during disassembly. Wear work gloves to protect your hands. Unthread the hot and cold water supply hoses from the inlet valve ports. Disconnect the drain hose from the outlet port using channel-lock pliers to release the spring clamp. Carefully tip the washer onto its side or back on a padded surface to access the underside. Disconnect the wiring harnesses to the drive motor and pull the rotor free — be prepared for some resistance, as the permanent magnets in the rotor require some effort to remove. Use a small awl inserted between the slider gear teeth to release the spring retainer. With the retainer released, pull off the old spring and slider gear. Note the orientation of the slider — teeth facing outward. Install the new W10734521 components in sequence: slide the new slider gear onto the drive assembly shaft with teeth facing outward, install the new spring support and 30mm spiral, and secure with the new bolt. Reinstall the rotor (the magnets will pull it into place), reconnect the wiring harnesses, return the washer to upright, reconnect supply hoses and drain hose, restore power and water, and test the spin cycle for proper function. Tools needed: Phillips screwdriver, socket set, channel-lock pliers, small awl, padded surface for tipping, work gloves.
Frequently Asked Questions
What's the difference between W10734521 and W10754448?
These are two different parts in the same drive system. The W10734521 is the clutch slider kit — it includes the slider gear, spring support, spiral, and bolt that physically engage/disengage the inner tub from the gearcase to transition between agitation and spin modes. The W10754448 is the electromagnetic clutch itself — the electrical component that drives the engagement. Both can fail independently, and many repair scenarios call for replacing both at the same time since they work together. Confirm exactly which component has failed before ordering, or order both if you're rebuilding the drive system as a full repair.
My washer won't spin — is it the slider or something else?
A washer that won't spin can have several causes: a failed slider kit, a failed electromagnetic clutch (W10754448), a damaged drive belt, a failed motor or rotor, a broken lid switch, or — on some models — a failed gearcase. The slider kit is one of the more common causes when the symptom is "fills and drains but won't spin" with no obvious noise or burning smell. Before replacing the slider, check that the lid latch strike (W11457841 on some models) is engaging properly, the drive belt is intact, and the motor is functioning. If those check out and the slider gear shows visible wear, missing teeth, or a stretched spring, the W10734521 kit is the right repair.
Should I replace all parts in the kit together?
Yes — for the kit to perform as designed, all components should be replaced as a matched set. The slider, spring support, spiral, and bolt all work together — if one is worn, the others have typically experienced the same load and wear. Reusing old components alongside new ones can cause premature failure of the new parts and a repeat repair. The W10734521 kit is priced and packaged for a complete replacement, so install all four pieces during your repair.
What is the difference between W10734521 and the older part numbers it replaces?
W10734521 is the current production version of this slider kit. It directly supersedes W10006484, W10006494, W10275082, W10447975, and W10905025 — all of which were earlier OEM part numbers for variations of the same slider kit across production revisions. Whirlpool consolidated these into the W10734521 to streamline the parts catalog. If your washer's parts diagram shows any of these older numbers, the W10734521 is the correct current replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from metal and plastic to match the dimensions, gear profile, and drive engagement function of the original W10734521 clutch slider kit used in compatible Whirlpool, Maytag, Kenmore, and related HE top-load washers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
EXPMS32 Microwave Door Switch Set
Can be used in many applications, Microwave, Washers, Dishwasher, Ranges and many other. Can replace 2 terminal micro switches
Specifications:
3/16" Terminal size
16A 1/2HP 125 250 VAC
2 Terminals
****(All Switches are not Same) *****
This Kit Includes:
1 X Normal Open Switch
1 X Normal Close Switch
Replaces all Following Microwave Door Switch Parts number and more:
Normally Closed Switch Replaces: WB24X10075, WB24X800, WB24X830, WB24X0830, AP2024338, 253820, AH237422, EA237422, PS237422, WB24X0800, WB24X0830, WB24X10075, WB24X800WB24X817, WB24X10112, FFSBA016 (No Fuse Included), 00606695, AP4067354,1386420, 606695, AH3477007, EA3477007, PS3477007, PS8726632, 5304408937, 5304509459, 5304464098, 4583655, AP6230614, PS12071302, ANE61784L0AG, AP7040623, WB24X10205, WB24X10147, 251201600930, 3025959, AP5790849, PS8754455.
Normally open Replaces: 3B73362F, WB24X816, 6600W1K003C, QSWMA085WRE0, WB24X829, WB24X10180, 00606693, 00633795, WB23X10019, 251201600929, 5304408938, WB24X10029, 5304408938, 5304423463, 5304440026, WB24X0815, WB24X10038, WB24X10047, WB24X10072, WB24X10139, WB24X10140, WB24X368, WB24X384, WB24X414, WB24X426, WB24X439, WB24X441, WB24X445, WB24X796, WB24X5228, WB24X796, WB24X815, WB24X816, WB24X829, 53001019, 54001080, 54001081, 56001036, 8183561, 8184285, R0654097, R0852501, WB24X10204, WB24X10148, 251201600929, 3025958, WB24X28940, AP5790848, PS8754454.
This is an aftermarket part that can be used as a replacement for the OEM part.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
XPARTCO W10721967 Washer Drive Clutch Kit
The XPARTCO W10721967 is an aftermarket replacement drive clutch kit — often called a "splutch" kit — for Whirlpool-built top-load washers. This assembly sits at the base of the transmission and works together with the mode shift actuator to control how power reaches the washer: during agitation, the clutch engages to drive the washplate back and forth, and during spin, it locks up to spin the inner wash basket at full speed. The name "splutch" comes from what it actually is — part spring, part clutch — and that spring-loaded design is what lets the same assembly smoothly transition between the gentle agitate motion and the much more forceful spin cycle.
This is a complete 6-piece kit: spring, clutch housing, cam ring, basket drive gear, drive pulley, and mounting nut, so you're replacing the entire wear-prone assembly at once rather than chasing individual worn components. Over time the clutch's friction surfaces glaze over and wear down, the cam ring's engagement points round off, and the spring loses tension — all of which produce the same telltale complaint: a loud grinding, clicking, or clunking noise during agitation or spin, sometimes alongside a washer that spins weakly, agitates but won't spin, or runs hot and starts to smell from the friction of a slipping clutch. It directly replaces AP5951296, W10006352, W10006353, W10006354, W10006356, W10006382, W10239973, W10315818, W10326374, W10536113, W10721967VP, W10818965, W11396423, 3319979, and PS10057144.
Quick Answer
The XPARTCO W10721967 Washer Drive Clutch Kit fixes Whirlpool-built top-load washers with loud grinding, clicking, or clunking noise during agitation or spin, a washer that agitates but won't spin, weak or no spin, an overheating smell, or a drum that doesn't spin the pump properly. Complete 6-piece "splutch" kit — spring, housing, cam ring, basket drive gear, pulley, and nut. Replaces AP5951296, W10006352, W10006353, W10006354, W10006356, W10006382, W10239973, W10315818, W10326374, W10536113, W10721967VP, W10818965, W11396423, 3319979, PS10057144. Often replaced together with the drive belt, since both wear on a similar schedule and share the same teardown.
Common Problems This Part Fixes
Loud grinding, clicking, or clunking noise during agitation or spin
Washer agitates normally but won't spin, or spins very weakly
Drive pump doesn't rotate properly, leading to slow or incomplete draining
Washer stops agitating partway through a cycle
Washer running unusually hot, sometimes with a burning or odd odor
Loud noise specifically when transitioning between agitate and spin
Clothes coming out excessively wet because the spin cycle isn't reaching full speed
Rattling or looseness felt at the drive pulley when the basket is turned by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drive clutch kit directly replaces the following OEM and cross-reference part numbers:
W10721967, W10721967VP, AP5951296, W10006352, W10006353, W10006354, W10006356, W10006382, W10239973, W10315818, W10326374, W10536113, W10818965, W11396423, 3319979, PS10057144, EAP10057144, AWP40988, PD00005593.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drive clutch kit is compatible with select Whirlpool-built top-load washers across the Whirlpool family of brands, including:
Whirlpool top-load washers — WTW series
Maytag top-load washers — MVWC series (select Whirlpool-built models)
Kenmore top-load washers — KATW and NTW series (select Whirlpool-built models)
Amana top-load washers (select models)
Crosley top-load washers (select models)
Roper top-load washers (select models)
Inglis top-load washers (select models)
Verified model numbers include: 1CWTW4705GW0, 1CWTW4705GW1, 1CWTW4705GW2, 1CWTW4815EW0, 1CWTW4815EW1, 1CWTW4815EW2, 1CWTW4815EW3, 1CWTW4840YW2, 1CWTW4845EW0, 1CWTW4845EW1, 1CWTW4845EW2, 1CWTW4845EW3, 2DWTW4740YQ1, 4GWTW1805LW0, 4GWTW1805LW1, 4GWTW1955LW0, 4GWTW1955LW1, 4GWTW3000FW0, 4GWTW3000FW1, 4GWTW4740YQ3, 4GWTW4800YQ3, 4KATW5215FW0, 4KATW5415FW0, 4KMVWC215FW0, 4KMVWC315FW0, 4KMVWC410JW0, 4KMVWC415FW0, 4KMVWC420JW0, 4KMVWC425FW0, 4KMVWC430JW0, 4KMVWC440JW0, 4KNTW3100JW0, 4KNTW3200JW0, 4KNTW3300JW0, 7MWGT4027HW1, WTW5000DW1, and MVWX655DW1.
Note: This kit fits Whirlpool's belt-drive top-load washer platform specifically. It is not intended for direct-drive designs that don't use a separate clutch and belt system. Because this drive clutch kit fits an extremely broad range of model years and revisions, always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Complete 6-piece "splutch" kit — spring, clutch housing, cam ring, basket drive gear, drive pulley, and mounting nut
Works together with the mode shift actuator to engage agitation and lock up for full-speed spin
Resolves "grinding or clicking noise," "won't spin," "agitates but won't spin," and "overheating smell" symptoms caused by clutch wear
Replaces the entire wear-prone assembly at once rather than individual components
Direct drop-in replacement for the washer transmission's drive pulley and clutch assembly
Replaces AP5951296, W10006352, W10006353, W10006354, W10006356, W10006382, W10239973, W10315818, W10326374, W10536113, W10721967VP, W10818965, W11396423, 3319979, and PS10057144
Compatible with a wide range of Whirlpool, Maytag, Kenmore, Amana, Crosley, Roper, and Inglis top-load washers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
W10721967
OEM Part Number
W10721967 / AP5951296
Part Type
Washer Drive Clutch Kit ("Splutch")
Condition
Aftermarket Replacement
Application
Whirlpool-Built Belt-Drive Top-Load Washers
Kit Contents
Spring, clutch housing, cam ring, basket drive gear, drive pulley, mounting nut
Function
Engages agitation and locks up for full-speed spin
Repair Difficulty
Moderate — 30-45 minutes
Quantity
1 clutch kit (6 pieces)
Compatible Brands
Whirlpool, Maytag, Kenmore, Amana, Crosley, Roper, Inglis
Installation Notes
⚠️ Unplug Washer And Shut Off Water Before Starting — Tip Onto Its Back Or Front With Care Disconnect power at the outlet or shut off the circuit breaker, and close the water supply valves before beginning. Wear work gloves. Access is from underneath the washer: remove the inner wash basket first (this typically requires a large basket-hub or spanner tool and applying steady upward pressure to break the basket free from the drive hub), then carefully tip the washer onto its back or front, protecting the top and any control panel with a blanket or padding as you lay it down. Photograph the belt and pulley arrangement before disconnecting anything. Remove the drive belt from the motor pulley, then remove the mounting nut and pull the old clutch/pulley assembly off the transmission shaft — a puller tool can help if it's seized. Install the new W10721967 assembly onto the shaft in the same orientation, torque the mounting nut to the manufacturer's specification, and reinstall the drive belt, checking that it seats correctly in the pulley grooves. Carefully stand the washer back upright, reinstall the wash basket, and reconnect it to the drive hub. Restore water and power, then run a full test cycle through agitate and spin, listening for the grinding or clicking noise that prompted the repair. Tools needed: basket-hub removal tool or spanner wrench, socket set, 13mm socket, 5/16" nut driver, pliers, work gloves, and a helper to assist with tipping the washer.
Frequently Asked Questions
What does "splutch" mean, and why is it sold as one kit instead of individual parts?
"Splutch" is shorthand for spring-clutch — the assembly combines a spring-loaded clutch mechanism with the drive pulley and gear that together control agitation and spin. Whirlpool sells this as a single kit because the individual components wear together and interact closely; replacing just the pulley while leaving a worn cam ring or a fatigued spring in place often means the noise or slipping symptom returns quickly. Replacing the complete kit resolves the failure at its actual source.
My washer agitates fine but won't spin. Is this the clutch?
It's one of the most common causes of exactly that symptom. The clutch has to lock up firmly to transfer full power into spinning the basket; if its friction surfaces have worn down or glazed over, it can still engage well enough for the lighter agitation motion but slip under the higher torque demand of spin. If you hear grinding or clicking specifically as the washer transitions into spin, that reinforces the clutch as the likely cause.
Should I replace the drive belt at the same time?
It's worth strongly considering. The belt and clutch wear on a similar schedule and share the same teardown — you're already tipping the washer over and removing the belt to access the clutch, so replacing a belt that's showing wear at the same time saves you from repeating the whole disassembly again in the near future. Inspect the belt for glazing, cracking, or fraying while it's off and replace it if it shows any of those signs.
The washer smells hot or burnt. Is that dangerous, and does it point to this part?
A worn clutch that's slipping generates friction heat, which can produce a warm, slightly burnt smell — this is a real symptom of clutch wear and not something to ignore, since continued operation in that state accelerates wear on the clutch and can stress the drive motor. If you notice this smell along with weak or absent spin, stop using the washer and address the clutch before running further loads.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the spring tension, cam ring engagement geometry, pulley dimensions, and mounting configuration of the original W10721967 clutch kit used in compatible Whirlpool, Maytag, Kenmore, Amana, Crosley, Roper, and Inglis top-load washers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

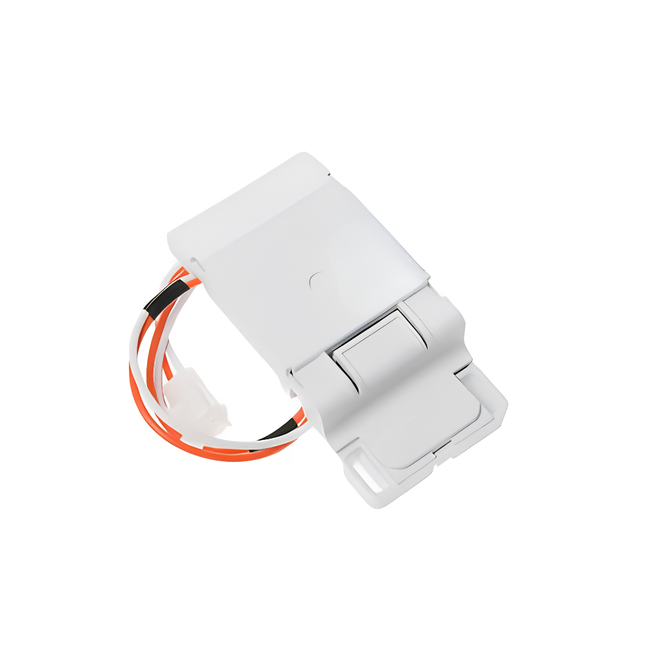

WH12X10531 Genuine OEM GE Washer Lid Switch Assembly
The WH12X10531 is a genuine GE OEM lid switch assembly for GE, Hotpoint, Haier, Monogram, and Café top-load washers. This switch detects whether the washer's lid is closed, and the control board relies on that signal to allow the machine to proceed with agitation and spin — without a proper "lid closed" signal, the washer won't safely operate those cycle stages.
Over time, the internal switch mechanism can wear out or fail electrically. A failing lid switch typically shows up as the washer stopping mid-cycle unexpectedly, or the tub failing to spin even though the wash portion of the cycle completes normally, since the control interprets a bad or missing signal as the lid being open. It directly replaces WH12X10275, 2319707, AGE26465, AP5646395, PD00031363, PS5135698
Quick Answer
The WH12X10531 Genuine OEM GE Washer Lid Switch Assembly fixes GE, Hotpoint, Haier, Monogram, and Café top-load washers that stop mid-cycle unexpectedly, or where the tub fails to spin even though washing completes normally. Replaces WH12X10275, 2319707, AGE26465, AP5646395, PD00031363, PS5135698. This is a different lid switch from the similarly-numbered WH12X10334 and our WH12X955 listing — GE has used several distinct lid switch designs across its washer lineup, so always match your exact part number.
Common Problems This Part Fixes
Washer stops mid-cycle unexpectedly
Tub fails to spin even though the wash portion completes normally
Washer won't start or won't proceed past the fill stage
Lid not properly detected as closed even when it is
Cycle interrupted whenever the lid is bumped or jostled
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer lid switch assembly directly replaces the following OEM and cross-reference part numbers:
WH12X10531, WH12X10275, 2319707, AGE26465, AP5646395, PD00031363, PS5135698
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lid switch assembly is compatible with select GE top-load washers, and also fits select Hotpoint, Haier, Monogram, and Café washers built on the GE platform, including model numbers such as 57731H7WW, 57731H8WW, 57731H9WW, GCAP1000M0WW, GCAP1000M1WW, GCSR2090H0WW, GCSR2090H2WW, GCSR2090H3WW, GCSR2090H5WW, GCSR2090H6WW, and GCSR2090H7WW.
Note: GE has used multiple distinct lid switch designs across its top-load washer lineup, including the similarly-numbered WH12X10334 (a separate part) and our WH12X955 combo lid switch listing, which serve different models and are not interchangeable with this WH12X10531 switch. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which switch your washer needs.
Key Features
Genuine GE OEM part — factory-specified switch mechanism
Detects lid closure and signals the control board to allow agitation and spin
Resolves "stops mid-cycle," "tub won't spin," and "won't proceed past fill" symptoms caused by switch failure
Direct drop-in replacement — matches the original mounting and wiring
Replaces WH12X10275, 2319707, AGE26465, AP5646395, PD00031363, PS5135698
Compatible with GE, Hotpoint, Haier, Monogram, and Café top-load washers
Genuine OEM replacement — guaranteed fit, materials, and performance
Straightforward installation, no professional assistance typically needed
Product Specifications
Part Number
WH12X10531
Part Type
Washer Lid Switch Assembly
Condition
Genuine OEM
Brand
GE
Application
Top-Load Washers
Function
Detects lid closure and signals the control board
Repair Difficulty
Easy — basic hand tools
Quantity
1 lid switch assembly
Compatible Brands
GE, Hotpoint, Haier, Monogram, Café
Installation Notes
⚠️ Unplug Washer Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Open the washer lid and locate the lid switch assembly mounted at the front of the cabinet, typically accessible after removing the console or a portion of the top panel depending on your model. Photograph the wiring harness connection before disconnecting anything. Remove the mounting screws, disconnect the wiring harness connector from the old switch, and pull it free. Install the new WH12X10531 in the same position, reconnect the wiring harness connector fully, and secure the mounting screws. Restore power and run a test cycle to confirm the washer proceeds through the full cycle, including agitation and spin, without stopping unexpectedly. Tools needed: multi-screwdriver, work gloves.
Frequently Asked Questions
My washer stops in the middle of the cycle. Is this the lid switch?
Yes, this is a classic symptom of a failed lid switch. The control board relies on this switch to confirm the lid is closed before allowing the washer to continue through agitation and spin — if the switch fails or sends an inconsistent signal, the washer can interpret that as the lid being open and stop the cycle unexpectedly.
My washer washes fine but the tub won't spin. Could that be this part too?
Yes. Spin cycles in particular require confirmation that the lid is securely closed as a safety measure, so a failing lid switch can allow the wash portion to run while still preventing the spin cycle from engaging, since the control board won't spin the tub without that closed-lid signal.
Is this the same lid switch as other GE washer parts you sell?
Not necessarily — GE has used several different lid switch designs across its top-load washer lineup, including other similarly-numbered parts elsewhere in our catalog. Always match your exact original part number, or your full washer model number, rather than assuming any "GE lid switch" will fit your machine.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original switch mechanism and mounting configuration of the lid switch assembly originally installed in your washer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO MHY62044106 Refrigerator Door Mullion Spring - Compatible with LG, Kenmore Refrigerators
Product Description
Restore proper sealing in your refrigerator with the replacement MHY62044106 Refrigerator Door Mullion Spring. This high-quality spring, designed for LG and Kenmore French-door refrigerators, ensures the mullion flap closes securely, maintaining an airtight seal between the doors to prevent energy loss and maintain cooling efficiency. Made of heavy-duty steel with a clockwise winding and 6 coils, this spring fits into the mullion hinge to resolve issues like doors not closing properly, mullion flap misalignment, or beeping alarms.
Note: Includes one spring. Disconnect power before installation.
Replaces part numbers: MHY62044106, 2676261, MHY62044104, PD00035635, EAP6012670, AP5657415, PS6012670
Compatibility:
Compatible with models including but not limited to:
LG: LFC25765ST, LFX21976ST, LFX25973ST, LFX25976ST, LFX25978SB, LFX25978ST, LFX25991ST, LFX28968SB, LFX28968ST, LFX28978SB, LFX28978ST, LFX28979ST, LFX31925SB, LFX31925ST, LFX31935ST, LFX31945ST, LMX28988ST, LMX31985ST
Kenmore: 795.71054.010, 795.71056.011, 795.71063.011
Other LG models: GF-B620BSL, GF-B620PL, GF-D613SL, GF-L613PL, GM-F208ST, GR-L218ASL, GR-L218CSL
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select LG and Kenmore French-door refrigerator models.
🔥 Specifications: replacement mullion spring, clockwise wound, 6 coils, heavy-duty steel, approximately 1-1/8" long, two legs (one shorter for door side), corrosion-resistant.
💰 Cost-Effective Alternative: replacement spring offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires Phillips screwdriver, flathead screwdriver, pliers, work gloves; typically installed in 15–30 minutes.
🛡️ Reliable Fixes: Resolves doors not closing, mullion flap misalignment, beeping alarms, or cooling inefficiencies.
Installation Notes:
Safety First: Disconnect the refrigerator from the power source before installation.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Ensure your refrigerator seals perfectly today!
Add to cart now for a budget-friendly fix!
