W11645245 Genuine OEM Whirlpool Refrigerator Dual Water Valve
The W11645245 is a genuine Whirlpool OEM dual water inlet valve for Whirlpool-built refrigerators. Mounted at the rear of the refrigerator where the household water line connects, this single valve is the central control point for water flow to two separate features: the ice maker and the door-mounted water dispenser. When either feature calls for water, this valve's solenoids open to admit it and close again once the request is satisfied — since one valve handles both jobs, a failure here can affect the ice maker, the dispenser, or both at the same time.
Common causes of failure include mineral and sediment buildup from the household water supply interfering with the valve's internal operation over time, and electrical faults either in the valve itself or in the refrigerator's electronic control board that signals it. A failing dual water valve produces a recognizable set of symptoms: the door dispenser stops delivering water, the ice maker slows down, stops producing ice, or fails intermittently, water leaking around the valve area, or an audible electronic buzzing or humming sound coming from the back of the refrigerator. It directly replaces AP7208917, W11546685, W11446818, W11563296, and PS16875686. As a genuine OEM part, the W11645245 is manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance.
Quick Answer
The W11645245 Genuine OEM Whirlpool Refrigerator Dual Water Valve fixes Whirlpool-built refrigerators where the door water dispenser stops working, the ice maker slows down or stops making ice, there's a leak near the valve at the back of the refrigerator, or you hear an electronic buzzing or humming sound. Controls water flow to both the ice maker and water dispenser from a single valve. Replaces AP7208917, W11546685, W11446818, W11563296, PS16875686. Before replacing, rule out a simple mineral clog and a faulty control board signal — both can produce identical symptoms to a failed valve.
Common Problems This Part Fixes
Water dispenser on the refrigerator door has stopped working
Ice maker has slowed down, stopped producing ice, or is malfunctioning intermittently
Both the ice maker and water dispenser affected at the same time
Water leaking around the valve area at the back of the refrigerator
Electronic buzzing or humming sound coming from behind the refrigerator
Reduced water flow or pressure at the dispenser
Valve that hums but doesn't appear to be passing water through
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator dual water valve directly replaces the following OEM and cross-reference part numbers:
W11546685, W11446818, W11563296, AP7208917, AWP46513, K-79524K, N-86-QC N, PD00080446, PS16875686
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This dual water valve is compatible with select Whirlpool-built refrigerators across the Whirlpool family of brands, including:
Whirlpool refrigerators — WRS series (including WRS321SDHZ08)
Maytag, Jenn-Air, and Amana refrigerators (select models)
KitchenAid, Magic Chef, Admiral, and Norge refrigerators (select models)
Roper refrigerators (select models)
Select Kenmore and Ikea refrigerators built on the Whirlpool platform
Note: This is a dual-function valve serving both the ice maker and water dispenser from a single unit — it is not a hot/cold laundry-style valve pair. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Genuine Whirlpool OEM part — factory-specified solenoid design and flow-rate calibration
Dual water inlet valve — controls water flow to both the ice maker and door water dispenser
Resolves "dispenser not working," "ice maker slow or not making ice," "leak near the valve," and "buzzing or humming noise" symptoms caused by valve failure
Single central valve simplifies diagnosis and replacement compared to separate dedicated valves
Direct drop-in replacement — mounts to the original rear connection point
Replaces W11546685, W11446818, W11563296, AP7208917, and PS16875686
Compatible with a wide range of Whirlpool, Maytag, Jenn-Air, Amana, KitchenAid, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators
Genuine OEM replacement — guaranteed fit, materials, and performance
Straightforward DIY repair using basic hand tools
Product Specifications
Part Number
W11645245
Part Type
Refrigerator Dual Water Inlet Valve (Ice Maker + Dispenser)
Condition
Genuine OEM
Brand
Whirlpool
Location
Rear of refrigerator, at the household water line connection
Function
Controls water flow to the ice maker and door water dispenser
Connection Type
1/2" water line inlet, NPT threaded
Quantity
1 valve
Compatible Brands
Whirlpool, Maytag, Jenn-Air, Amana, KitchenAid, Magic Chef, Admiral, Norge, Roper, Kenmore
Installation Notes
⚠️ Shut Off Water Supply And Unplug Refrigerator Before Starting — Have A Towel Ready Disconnect power at the outlet, and shut off the water supply valve behind or below the refrigerator before beginning. Wear work gloves. Pull the refrigerator away from the wall for access, then locate the valve at the rear or bottom of the cabinet where the water supply line connects. Have a towel or shallow pan ready, since residual water will spill out when you disconnect the line. Photograph the wiring and water line connections before disconnecting anything. Disconnect the water supply line from the old valve, disconnect the electrical connector, and remove the mounting screws holding it in place, then pull the valve free. Install the new W11645245 in the same position, secure the mounting screws, and reconnect the electrical connector fully. Reattach the water supply line, tightening securely by hand plus a partial turn with pliers — avoid overtightening plastic threaded fittings. Restore the water supply and check the connection for leaks before restoring power. Push the refrigerator back into place, then test both the ice maker and water dispenser over the next day to confirm normal operation has returned. Tools needed: Phillips screwdriver, adjustable wrench or pliers, towel or shallow pan, work gloves.
Frequently Asked Questions
My dispenser stopped working but the ice maker still works. Is this the right part?
It's possible, but worth checking a couple of things first, since this valve serves both features from one unit. Confirm the water supply line isn't kinked or restricted, and check the inline water filter for a clog, since a blocked filter can starve the dispenser specifically while the ice maker (which may draw from a different point in the flow path depending on your model) keeps working. If the filter and supply line are clear and the dispenser still won't deliver water, the valve itself is the likely cause.
I hear a buzzing or humming sound from the back of the fridge. What does that mean?
This is a common symptom of a valve that's receiving an electrical signal to open but isn't passing water through correctly — the solenoid coil energizes and hums, but water flow is restricted or absent, often due to internal mineral buildup or a failing internal mechanism. If you hear this sound whenever the ice maker or dispenser is called on, the valve is a strong suspect.
Could the problem actually be my water filter instead of this valve?
Yes, it's worth ruling out first. A clogged inline water filter can produce very similar symptoms to a failing valve — reduced dispenser flow, slow ice production, or both. Try replacing the water filter first if it's been a while since the last change; if symptoms persist afterward, the dual water valve is the more likely cause.
Could this be a control board issue instead of the valve?
It's possible. This valve is triggered electrically by the refrigerator's control board, so a fault there can produce symptoms that look identical to a failed valve — no water reaching the ice maker or dispenser even though the valve itself is fine. If replacing the valve doesn't resolve the issue, the control board is the next component worth investigating.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It includes the same dual-function solenoid design and connection configuration as the valve originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
MSWF Refrigerator Water Filter
Description: This water filter is designed to remove impurities from the water and ice dispensed by your refrigerator, providing clean and fresh-tasting water. It effectively reduces contaminants such as chlorine, lead, mercury, and other particulates, ensuring safe drinking water for you and your family. You should replace this water filter if it becomes clogged or reaches the end of its usable life, typically every six months. Causes of a bad water filter can include normal usage leading to clogging, the accumulation of sediments and impurities over time, or damage to the filter casing. Failing to replace the filter regularly can also compromise its effectiveness.
Replaces Part Number: 1262070, AH1559689, EA1559689, MSWF3PK, WR02X12345, WR02X12801, WR02X13618, AP3997949, PS1559689.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
WR30X39385 Genuine OEM GE Refrigerator Ice Maker
The WR30X39385 is a genuine GE OEM ice maker assembly for GE refrigerators. This complete unit receives water, holds it in an internal mold, and freezes it into cubes, then ejects the finished ice into the freezer's ice bucket or drawer, repeating the cycle automatically until the bucket is full. It's the full assembly, not just an internal component, so replacing it addresses the ice-making mechanism, mold, and cycling controls together as one unit.
Over time, internal components can wear or fail electrically, or the mold itself can develop issues that affect how cleanly ice releases. A failing ice maker typically shows up as reduced or stopped ice production, or ice cubes coming out hollow or malformed rather than solid. It directly replaces AP7179920.
Quick Answer
The WR30X39385 Genuine OEM GE Refrigerator Ice Maker fixes GE refrigerators that have stopped making ice, are producing significantly less ice than usual, or are making hollow or malformed cubes. Complete ice maker assembly. Replaces AP7179920. Installation is a moderate DIY repair, typically 30-45 minutes.
Common Problems This Part Fixes
Ice maker has stopped producing ice entirely
Ice maker producing significantly less ice than usual
Ice cubes coming out hollow or malformed instead of solid
Ice maker cycling but not ejecting cubes into the bucket
Inconsistent ice production from cycle to cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator ice maker directly replaces the following OEM and cross-reference part numbers:
WR30X39385, 200D1181G118, 4983508, Model CAN07-018, WR01F04991, AP7179920, EAP16660009, AGE28641, PD00079707, PS16660009
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This ice maker is compatible with select GE refrigerators, and also fits select Hotpoint, Haier, Monogram, and Café refrigerators built on the GE platform.
Note: Always verify your full model number before ordering, since GE uses several different ice maker designs across its refrigerator lineup. Contact our support team with your model number if you're unsure.
Key Features
Genuine GE OEM part — factory-specified mold design and cycling mechanism
Complete ice maker assembly — freezes water into cubes and ejects them automatically
Resolves "not making ice," "reduced ice production," and "hollow or malformed cubes" symptoms
Direct drop-in replacement — no modification required
Replaces AP7179920
Compatible with GE, Hotpoint, Haier, Monogram, and Café refrigerators
Genuine OEM replacement — guaranteed fit, materials, and performance
Moderate DIY repair, typically 30-45 minutes
Product Specifications
Part Number
WR30X39385
Part Type
Refrigerator Ice Maker Assembly
Condition
Genuine OEM
Brand
GE
Function
Freezes water into cubes and ejects them automatically into the ice bucket/drawer
Repair Difficulty
Moderate — 30 to 45 minutes
Quantity
1 ice maker assembly
Compatible Brands
GE, Hotpoint, Haier, Monogram, Café
Installation Notes
⚠️ Unplug Refrigerator Before Starting — Allow Components To Defrost Disconnect power to the refrigerator before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. If there's frost or ice buildup around the ice maker or its fill tube, allow the area to defrost fully before continuing, since ice buildup can make removal difficult and may mask the fill tube's actual condition. Open the freezer door and locate the ice maker assembly. Remove the ice bucket or drawer to improve access. Photograph the wiring harness connection and the fill tube position before disconnecting anything. Remove the mounting screws securing the ice maker in place, then disconnect the wire harness connector and the water fill tube connection. Remove the old ice maker fully. Install the new WR30X39385 in the same mounting position, making sure the fill tube aligns correctly so water reaches the mold without leaking, and reconnect the wire harness connector securely. Secure the mounting screws, reinstall the ice bucket or drawer, and restore power. Allow several hours for the first cycle to complete and confirm ice is being produced and ejected normally. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My ice cubes are coming out hollow. Is that the ice maker?
Yes, hollow or malformed cubes are a documented symptom of ice maker issues on this platform, alongside reduced or stopped ice production altogether. This can point to a problem with how the mold fills or releases ice, and replacing the complete assembly addresses the mold and cycling mechanism together rather than trying to diagnose and repair individual internal components.
Why does the fill tube alignment matter so much during installation?
The fill tube is what delivers water from the refrigerator's supply line into the ice maker's mold at the start of each cycle. If it's not aligned correctly during installation, water can miss the mold, leak into the freezer compartment, or fail to fill the mold completely, all of which prevent normal ice production even with a perfectly good new ice maker installed.
Do I need to defrost anything before starting this repair?
If there's visible frost or ice buildup around the old ice maker or its fill tube, yes — letting that area defrost fully makes removal easier and gives you a clearer look at the fill tube's actual condition, rather than working around ice that could mask damage or make the old unit harder to detach cleanly.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It includes the same mold design, cycling mechanism, and mounting configuration as the ice maker originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
WR57X30890 Refrigerator Genuine Water Valve
Water inlet valve assembly with Wire Harness
Replaces Part Numbers: WR57X30890, WR57X26569, WR57X30891, AP6891693, PS12727426.
Description: This water inlet valve is a Genuine OEM part for select GE Refrigerator models, responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. It is typically located at the back of the appliance, near the water supply line. The water inlet valve features quick-connect fittings for easy installation and ensures a reliable and steady supply of water for ice production and dispensing.
XPARTCO DA31-00342A Refrigerator Evaporator Fan Motor - Compatible with Samsung Refrigerators
Product Description
Restore optimal cooling in your refrigerator with the replacement DA31-00342A Refrigerator Evaporator Fan Motor. This high-quality replacement evaporator fan motor, designed for Samsung refrigerators, circulates chilled air through the fresh food and freezer compartments to maintain even temperatures. Constructed from durable plastic with sticky insulation and a silent sponge for quiet operation, this DC motor (12V, 4.2W, 0.35A, 1850 RPM) addresses issues like temperature fluctuations, frost buildup, or noisy operation.
Note: Includes one evaporator fan motor with 3-pin connector and 60cm wire;. Disconnect power before installation.
Replaces part numbers: DA31-00342A, EAP12590899, 4982090, ARES2130RA, PD00080451, EAP12590899, AP6803165, PS12590899
Compatibility:
Compatible with models including but not limited to:
Samsung: DA31-00342A Refrigerator FAN is the correct replacement for model numbers. RM80F22WEWAA RM70F22NERAA RM80F23VMRAA RF32CG5B10SRAA RF27CG5B10SRAA DRZ30980RAP/DA DRZ30980LAP/DA DRZ36980RAP/DA DRZ36980LAP/DA RQ48T9432T1/AA RS28A5F61SG/AA RS27T5202SR/AA RQ48T94B277/AA RS28A500ASR/AA RS28A500ASG/AA RS22T5561SR/AA RF32CG5N10SRAA RS27T5200WW/AA RS23A500ASG/AA RS28A5F61SR/AA RF32CG5900MTAC RS23CB7600QLAA RF32CG5900SRAA RF27CG5900SRAA RF32CG5100SRAA RF26CG7400SRAA RF27CG5400SRAA RF32CG5400MTAA RF31CG7400MTAA RF27CG5100SRAA RS23CB760012AA RF31CG7200SRAA RF32CG5100MTAA RF27CG5010S9AA RF32CG5400SRAA RF32CG5300SRAA RS28CB7600QLAA RS28CB760012AA RF31CG7400SRAA RF31CG7220SRAA DRZ36980RAP/DA DRZ30990LAP/DA DRZ30980RAP/DA DRZ36980LAP/DA DRZ30990RAP/DA DRZ30980LAP/DA RS22T5561SG/AA RS27T5561SG/AA RS23A500ASR/AA RS27T5561SR/AA RS27T5201SR/AA RS27T5200SR/AA RS22T5561SR RS27T5200SG/AA RS22T5201SR/AA
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Samsung refrigerator models.
🔥 Specifications: replacement evaporator fan motor, DC 12V, 4.2W, 0.35A, 1850 RPM, 3-pin connector, 60cm/23.62" wire length, 5.3" fan diameter, plastic construction with sticky insulation and silent sponge for quiet operation.
💰 Cost-Effective Alternative: replacement motor offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires a Phillips screwdriver, work gloves; typically installed in 30–60 minutes.
🛡️ Reliable Fixes: Resolves poor cooling, frost buildup, noisy operation (grinding or buzzing), or evaporator coil freezing.
Installation Notes:
Safety First: Disconnect the refrigerator from the power source before installation.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today!
Add to cart now for a budget-friendly fix!
Genuine Refrigerator Replacement Part

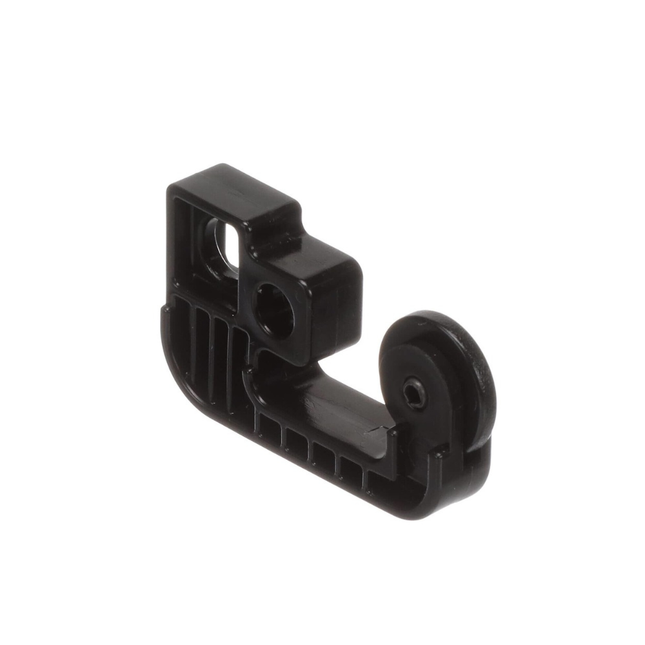

DA97-14992A Refrigerator Genuine Auto-Close Lever
