XPARTCO 4681JB1027C Refrigerator Evaporator Fan Motor
Replaces Part Numbers: 4681JB1027C, EAU60694512, 4681JB1027V, 4681JK1004E, AH3523323, EA3523323, EAU52096201, EAU60694529, SM1027C, AP4507961, PS3523323.
Replaces LG #4681JB1027C.
13VDC, 3.1 W, .24A.
Has quick disconnect.
Description: This Fan Motor is a replacement part for specific LG refrigerator models. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.
This is an aftermarket part that can be used as a replacement for the OEM part.
Genuine Whirlpool OEM Part
Whirlpool W10918008 Refrigerator Door Closer - Gray (Left Hand)
Left-hand gray refrigerator door closer for the door hinge and closing assembly.
Quick Answer
W10918008 is a genuine Whirlpool OEM left-hand gray refrigerator door closer. It works with the door hinge and closure mechanism to help guide the refrigerator door into its proper closed position and replaces earlier part number W10833741.
Product Description
The W10918008 door closer works with the refrigerator door hinge and closing mechanism to guide the left-hand fresh-food door through the final portion of its closing movement. The closer helps the door settle into its intended closed position as the hinge moves.
A cracked or worn closer can cause the door to close unevenly, need extra force near the end of travel, or fail to settle into position correctly. A door that remains partially open can allow cold air to escape, which may contribute to temperature problems, condensation, frost, and longer compressor run time.
Symptoms This Part Fixes
Left-hand refrigerator door does not close smoothly
Door needs an extra push near the fully closed position
Door feels uneven or shifts as it closes
Auto-closing action is weak or inconsistent
Original closer is visibly cracked, worn, or broken
Door does not settle securely into its normal closed position
Replaces Part Numbers
Use these verified numbers to identify the correct replacement:
W10918008, W10833741, 4461320, AP6038207, AWP42675, EAP11770044, PD00065465, PS11770044
Cross-reference numbers are listed for identification only. This listing ships the genuine Whirlpool OEM part.
Compatibility
Fits select Whirlpool-built refrigerators that specify part number W10918008, including the following verified model examples:
WRF532SNHZ06 · JFC2089BEP07 · MFC2062FEZ08 · WRF535SMHZ06 · KRFF302ESS05 · MFI2570FEZ12 · WRF535SWHZ06 · KRFF302EWH04 · WRFA35SWHZ06 · WRF535SMHZ07
⚠️ Important: This is the left-hand gray door closer. Always verify your refrigerator's complete model number, door side, and original part number before ordering. Contact our support team if you're unsure.
Key Features
Genuine Whirlpool OEM replacement part
Manufacturer part number W10918008
Left-hand refrigerator door position
Gray finish
Replaces previous part number W10833741
Designed for the refrigerator door closing and hinge assembly
Product Specifications
Part Number
W10918008
Brand
Whirlpool
Part Type
Refrigerator Door Closer / Closing Cam
Assembly
Refrigerator Door / Hinge Closing Assembly
Position
Left Hand
Color
Gray
Function
Helps guide the refrigerator door into the closed position
Part Quality
Genuine Whirlpool OEM
Condition
New
Installation Notes
Disconnect refrigerator power before service.
Support the refrigerator door before loosening or removing hinge-related hardware.
Confirm that the existing closer is on the left-hand side and matches W10918008 or previous part number W10833741.
Inspect the closer, hinge, mounting points, and nearby hardware for cracks, wear, looseness, or deformation.
Remove the original closer while noting its installed position and orientation.
Install W10918008 in the same left-hand position.
Reassemble the hinge hardware and verify that the door opens, aligns, and closes normally.
⚠️ Diagnostic tip: Poor door closing can also be caused by worn hinge components, loose hardware, cabinet leveling problems, or gasket interference. Inspect the complete door system before replacing only the closer.
Frequently Asked Questions
What does Whirlpool W10918008 do?
W10918008 is the left-hand refrigerator door closer. It works with the door hinge and closing mechanism to help guide the door through the final portion of its travel and into the proper closed position.
Is W10918008 a genuine Whirlpool OEM part?
Yes. W10918008 is a genuine Whirlpool OEM refrigerator door closer. It is used on select Whirlpool-built refrigerator models and brands.
How can I check whether the door closer is actually damaged?
Open the left-hand refrigerator door and slowly move it through the final portion of closing while watching the lower hinge and closer area. If the closer is visibly cracked, broken, deformed, loose, or fails to move smoothly while the hinge hardware remains secure, the closer may need replacement.
Does the left-hand position matter?
Yes. W10918008 is specifically identified as the left-hand gray door closer. The matching right-hand closer is a different part, so verify the door side and complete appliance model before ordering.
Why should I match the model number instead of comparing the part visually?
Door closers can look very similar while having different geometry, mounting points, colors, or left/right orientation. Matching the complete refrigerator model and manufacturer part number is more reliable than appearance alone.
What should I inspect while replacing the closer?
Inspect the hinge, mounting hardware, door alignment, and gasket contact while the door is supported. If another closure component is worn or loose, replacing the closer alone may not fully correct the door problem.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
2 Pack - XPARTCO DE63-00666A Microwave Grease Filter
The XPARTCO DE63-00666A is an aftermarket replacement aluminum mesh grease filter for Samsung, GE, and Kenmore over-the-range microwaves. This 12-layer aluminum mesh filter sits in the vent opening on the bottom of the microwave and captures airborne grease from cooking below before it can be pulled into the microwave's internal fan, motor, and electronics. Over time the mesh becomes saturated with grease and cooking residue, which restricts airflow, reduces the range hood function's effectiveness, and — if left unreplaced — creates a fire hazard from trapped, hardened grease.
This is a direct-fit aftermarket replacement built to the same dimensions and 12-layer mesh construction as the original filter. Regular replacement (most manufacturers recommend every 1–2 years depending on cooking frequency) keeps ventilation performance up and reduces fire risk.
Quick Answer
The XPARTCO DE63-00666A Microwave Grease Filter fixes reduced range-hood suction, lingering cooking odors/smoke, or a visibly grease-clogged filter on Samsung, GE, and Kenmore over-the-range microwaves. 12-layer aluminum mesh, approx. 6-3/4" x 6-3/8". Classic symptom: weaker venting over the stovetop, or a filter that looks dark, gummy, or saturated with grease.
Common Problems This Part Fixes
Weak or reduced range-hood ventilation over the stovetop
Lingering smoke, steam, or cooking odors that don't clear
Visibly clogged, discolored, or grease-saturated filter mesh
Increased fire risk from accumulated grease buildup
Microwave fan sounds like it's working harder than normal
Grease dripping or residue visible around the vent opening
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This grease filter directly replaces the following part numbers:
DE63-00666A, AP5306190, ASM36232, EAP4228252, PD00031284, PS4228252, WB02X11534, 2309683, AP5331907, 2218485, AGE21451, AH3506741, EA3506741, PD00035255, PS3506741
AP5306190 was the earlier part number for this filter, later superseded by DE63-00666A under Samsung's current numbering. WB02X11534 is the equivalent GE-branded part number for the same physical filter design.
Note: DE63-00367G is a separate charcoal/carbon odor filter often sold alongside this aluminum grease filter for ductless (recirculating) installations. It is a different part and is not interchangeable with this grease filter — do not confuse the two when ordering.
Compatibility
This grease filter is compatible with the following Samsung and Kenmore over-the-range microwave models:
Samsung: CVM517P2M1S1, CVM521P2M1S1, DVM7195BL2TS, JNM7196DK4BB/WW, JVM-1950BTC01/STC01/WTC01, JVM7195DK4BB/WW, MC17J8000CG/CS, MC17J8100CS, MC17T8000CG/CS, ME16A4021AB/AS/AW, ME16H702SEB/SES
Kenmore: 40185052010, 40185052210, 40185052310, 40185053010, 40185053210, 40185053310, 40185059010, 40185059210
Note: Via the equivalent WB02X11534 part number, this same filter design is also used on select GE over-the-range microwaves. We were not able to confirm a specific GE model list at this time — if your microwave is GE-branded, compare your existing filter's dimensions (approximately 6-3/4" x 6-3/8") against this listing, or contact our support team with your model number to verify before ordering.
Key Features
Direct-fit aftermarket replacement grease filter for Samsung, GE, and Kenmore over-the-range microwaves
12-layer aluminum mesh construction traps airborne grease before it reaches internal components
Helps maintain proper range-hood ventilation performance
Reduces fire risk from accumulated grease buildup
No tools required — simple slide-in/slide-out installation
Aftermarket replacement built to OEM-equivalent dimensions and mesh layer count
Product Specifications
Part Number
XPDE63-00666A
OEM Part Number
DE63-00666A
Part Type
Microwave Aluminum Mesh Grease Filter
Condition
Aftermarket Replacement
Filter Construction
12-Layer Aluminum Mesh
Dimensions
Approx. 6-3/4" W x 6-3/8" H x 1/4" Thick
Application
Samsung, GE & Kenmore Over-the-Range Microwaves
Recommended Replacement Interval
Every 1–2 Years (Cooking-Frequency Dependent)
Installation Notes
ℹ️ No Tools Required Unplug the microwave or switch off its circuit breaker before beginning, as a safety precaution. Locate the grease filter along the bottom vent opening of the microwave — it typically has a small tab or handle and slides straight out once released from its retaining clips. Remove the old filter and note its orientation. Slide the new filter into the same position and orientation, pressing gently until it clicks or seats into the retaining clips. No screwdriver or other tools are needed. For best results, clean or replace this filter regularly, especially if you cook frequently or fry foods often, since grease buildup accelerates with heavier cooking use.
Frequently Asked Questions
How do I know if my grease filter needs replacing?
Look for a mesh filter that appears dark, gummy, or heavily coated with grease residue, or notice reduced ventilation performance and lingering cooking smoke or odors. Most manufacturers recommend replacing this filter every 1–2 years depending on how often you cook.
Can I wash and reuse the grease filter instead of replacing it?
Some aluminum mesh grease filters can be hand-washed with degreasing dish soap, but heavily saturated or discolored filters lose effectiveness over time even after washing. If yours is old, warped, or has visible buildup that won't clean out, replacement is the more reliable fix.
Is this the same as the charcoal/odor filter?
No. This is the aluminum mesh grease filter, which traps grease particles. The charcoal/carbon filter (DE63-00367G) is a separate component used for odor control in ductless recirculating installations. They are not interchangeable — check which one your microwave uses before ordering.
Will this fit my GE microwave?
This filter design is also sold under the GE part number WB02X11534 for the same physical filter. We don't have a confirmed GE model list, so compare your existing filter's dimensions against this listing or contact our support team with your model number to verify before ordering.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor
The XPARTCO WR60X10185 is an aftermarket replacement evaporator fan motor located in the freezer compartment, for GE, Hotpoint, and select Kenmore, Haier, Monogram, and Café refrigerators. This motor pulls air across the evaporator coils to strip heat from it, then circulates that cold air through the freezer and, via ducting, to the fresh food compartment. This particular motor does not include a thermistor — it ships as a fan motor with a 4-wire harness on a 6-pin connector, with two of those six pin slots left empty. If your refrigerator's original connector has a white thermistor wire in it, or a separate connector for a freezer light, this is not the correct motor for your unit.
Rated 9.75V DC, 3.25W. A fan motor generally has a long service life, but it can burn out quickly if debris or ice buildup obstructs the blade and forces the motor to work against resistance it wasn't designed for. Common symptoms of a failing motor include unusual noise from the freezer, a fresh food compartment that's warmer than it should be while the freezer stays reasonably cold, frost or ice accumulating around the fan or coil, and a refrigerator that runs constantly trying to compensate for lost circulation. It directly replaces AP3875639, 1170107, 197D2039P007, 197D2039P008, PS1019114, EAP1019114, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, and WR60X10157. As an aftermarket replacement, the WR60X10185 is built to OEM-equivalent quality standards.
Quick Answer
The XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, and select Kenmore refrigerators where the fresh food section runs warm while the freezer stays cold, there's unusual noise from the freezer, or frost is building up around the coil. 9.75V DC, 3.25W, 4-wire harness on a 6-pin connector (2 pins empty). Does NOT include a thermistor. Replaces AP3875639, 1170107, 197D2039P007, 197D2039P008, PS1019114, WR23X10353, WR23X10355, WR23X10364, WR60X10043, WR60X10154, and others listed below. If your old connector has a white thermistor wire, you need WR60X10074 instead; if it has a light connector, you need WR23X10467.
Common Problems This Part Fixes
Fresh food compartment running warmer than normal while the freezer stays reasonably cold
Unusual noise — humming, buzzing, or grinding — coming from the freezer
Freezer not cooling properly, which in turn affects compressor performance
Frost or ice buildup accumulating around the fan blade or evaporator coil
Refrigerator running continuously as it struggles to maintain temperature
Fan motor that has burned out due to an obstruction preventing the blade from turning
Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X10185, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, WR60X10157, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, 197D2039P013, 1170107, UDQT26GE4, AP3875639, AGE29155, PD00000986, PS1019114, EAP1019114
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE and Hotpoint refrigerators, and also fits select Kenmore, Haier, Monogram, and Café refrigerators built on the GE platform.
Note — check your connector before ordering: GE uses several different evaporator fan motor variants that look nearly identical, and choosing the wrong one means the connector or function won't match your refrigerator. This WR60X10185 motor has no thermistor and a plain 4-wire harness with 2 empty slots on its 6-pin connector. If your old motor's connector has a white thermistor wire in it, you need WR60X10074 instead (harness with integrated thermistor). If your old connector instead has a dedicated light connector, you need WR23X10467. This part is also a separate motor from our WR60X10318 listing, which is a side-by-side platform assembly with its own integrated thermistor and a longer harness. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor fits your refrigerator.
Key Features
Aftermarket replacement built to match GE's factory-specified motor and blade design
Pulls air across the evaporator coils and circulates it through the freezer and fresh food compartments
Resolves "fresh food warm while freezer stays cold," "unusual noise," and "frost buildup" symptoms caused by fan motor failure
Rated 9.75V DC, 3.25W
Includes the fan motor and 4-wire harness assembly (does not include thermistor)
Direct drop-in replacement matching the original mounting and blade fitment
Replaces a wide range of legacy WR23X and WR60X part numbers plus AP3875639 and PS1019114
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
XPWR60X10185
OEM Part Number
WR60X10185
Part Type
Refrigerator Evaporator Fan Motor
Condition
Aftermarket Replacement
Brand
GE
Location
Freezer compartment
Voltage
9.75V DC
Wattage
3.25 W
Harness
4-wire, 6-pin connector (2 pins unused)
Includes Thermistor
No
Quantity
1 fan motor
Compatible Brands
GE, Hotpoint, Kenmore, Haier, Monogram, Café
Installation Notes
⚠️ Unplug Refrigerator Before Starting — Check Your Connector Type First Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Before removing the old motor, look closely at its connector: confirm it's a plain 4-wire harness with no thermistor wire and no separate light connector, matching this replacement. Access is through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator coil and fan assembly. If there's significant frost or ice around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation. Mount the new WR60X10185 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
How do I know if I need this motor or the one with the thermistor?
Look directly at your old motor's electrical connector before ordering. This WR60X10185 motor has a plain 4-wire harness on a 6-pin plug, with two of the six pin positions left empty — there's no thermistor wire involved. If your connector instead has a white thermistor wire running into it, you'll need WR60X10074, which includes an integrated thermistor and is not interchangeable with this motor. If your connector has a separate plug specifically for a freezer light, you'll need WR23X10467 instead.
My fresh food section is warm but the freezer seems fine. Is this the right part?
Yes, this is a very common and telling symptom pattern. The freezer sits right next to the evaporator coil and can stay reasonably cold through proximity even with weakening air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area, and GE's own guidance confirms that a fresh-food-warm/freezer-fine pattern points to this fan.
Why would a fan motor "burn out quickly" instead of just wearing out slowly?
While this motor generally has a long service life, it can fail rapidly if something obstructs the fan blade from turning — commonly built-up frost or ice, or occasionally debris. When the blade can't turn freely, the motor works against resistance it wasn't designed for, which accelerates internal wear and can burn it out much faster than normal aging would. Clearing ice from around the fan before or during replacement helps prevent stressing the new motor the same way.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the original 9.75V, 3.25W motor design, blade fitment, and 4-wire harness configuration of the fan motor originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
Genuine OEM W11613295 Refrigerator Condenser Fan Motor
The Genuine OEM Whirlpool W11613295 is the condenser fan motor for select Whirlpool, Maytag, Kenmore and KitchenAid refrigerators. The motor runs when the compressor runs, pulling air across the condenser coils to cool the compressor and the coils. When it fails or its bearings wear out, the refrigerator may get noisy or warm up.
This is the original Whirlpool part, not an aftermarket equivalent. It is sold individually. Check your model number before ordering.
Quick Answer
The Genuine OEM W11613295 Condenser Fan Motor replaces the condenser fan motor on a compatible refrigerator when it has failed. Replaces W11387394, W11123104, W10239053, WPW10239053, W10609117, W11117459, W10909377, W11373924, W11505534, 12825101 and 8208221. Classic symptoms: the refrigerator is noisy, or the fridge and freezer are too warm.
Common Problems This Part Fixes
Noisy refrigerator, such as a rattling or vibrating condenser fan
Refrigerator or freezer too warm, or not cooling
Fan not running or the motor overheating
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan motor replaces or supersedes the following part numbers:
W11613295, W11387394, W10239053, W10609117, W11117459, W11123104, WPW10239053, 12825101, W10909377, W11373924, W11505534, FDQR107WD, UDQR107A1, FDQG107W2, 81623ZT, 115V-60HZ 3.0W E.P., AP7196151, AWP45631, PD00083292
If your old motor shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This condenser fan motor is listed for frost-free refrigerators from Whirlpool, Maytag, Kenmore and KitchenAid.
Note: Retailers show different model lists for the numbers this motor replaces, so we have not published a model list here. Check your full model number against your parts diagram, or contact our support team and we'll verify fit before you order.
Key Features
Genuine OEM Whirlpool part, not an aftermarket equivalent
Pulls air across the condenser coils to cool the compressor and coils
Replaces eleven earlier Whirlpool motor part numbers
Sold individually
Product Specifications
Part Number
W11613295
OEM Part Number
W11613295
Part Type
Refrigerator Condenser Fan Motor
Condition
Genuine OEM
Manufacturer
Whirlpool
Quantity
1 Motor
Application
Select Whirlpool-Built Refrigerators
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the refrigerator before you begin. The motor is at the back or bottom of the refrigerator near the condenser coils, so you will need to pull the refrigerator out and remove the back panel. Unplug the motor's electrical connector, remove the screws or brackets holding the old motor, and take it out. Install the new motor and secure it, reconnect the connector, and replace the back panel. Restore power and check that the fan runs quietly.
Frequently Asked Questions
My refrigerator is noisy or too warm. Is this the part I need?
It can be. Check for dirt on the condenser coils and for anything blocking the fan blade first. If the fan doesn't turn freely or the bearings are noisy, replace the motor.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Whirlpool, not an aftermarket equivalent.
Does this replace my old motor number?
It replaces W11387394, W11123104, W10239053, WPW10239053, W10609117, W11117459, W10909377, W11373924, W11505534, 12825101 and 8208221. If your motor shows another number, contact our support team and we'll check it.
Will this fit my refrigerator?
It is listed for many Whirlpool-built refrigerators. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 5304506469 Refrigerator Door Handle (White)
Replaces Part Numbers: 5304506469, 5304486359, 5304497105, 5304504507, 242059501, 242059504, 4456321, 5304510038, 5304510040, AP6036330, PS11770473.
Description: This Door Handle Set is a replacement part designed to offer a perfect fit and finish for select Frigidaire refrigerator models. This set includes handles that are crucial for the easy opening and closing of your refrigerator or freezer doors. Common causes of a bad door handle set can include regular wear and tear, which may lead to loosening or breakage, or accidental damage from impacts. Over time, handles may also discolor or degrade, affecting the overall appearance and functionality of your appliance.
This is an aftermarket part that can be used as a replacement for the OEM part.
W10280608 Freezer Bracket
Bracket - Left Side
Replaces Part Numbers: WPW10280608, W10280608, W10187668, 12812301, 12812303, 4443902, 67004014, 8171234, AP6018544, PS11751846.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
ERWR50X122 Refrigerator Defrost Thermostat
L60-32F. 1/4" side push on clip. 11-3/4" leads with stripped wire ends.
Replaces Part Numbers: WR50X122, 2387, AH303471, AP2071262, EA303471, PS303471, WR50X0122, WR50X0128, WR50X10014, WR50X128
This is an aftermarket part that can be used as a replacement for the OEM part.
California Residents Only - Warning: Cancer and Reproductive harm - https://www.p65warnings.ca.gov/

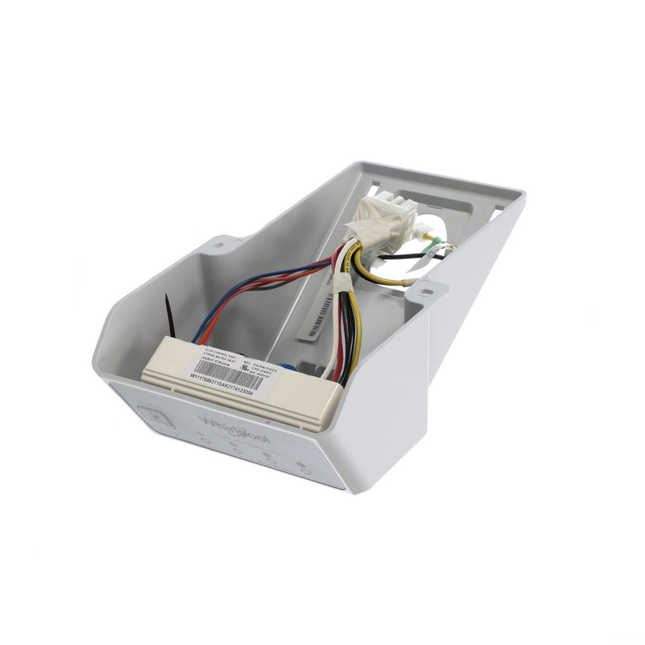

Genuine OEM W11353813 Refrigerator Control Box Assembly
The Genuine OEM Whirlpool W11353813 is the control box assembly for select Whirlpool top-mount refrigerators. It houses the temperature controls that set the refrigerator and freezer temperatures from one location. Replace it when the controls no longer respond, the temperatures can't be adjusted or held, or the box is cracked or damaged.
This is the original Whirlpool part, not an aftermarket equivalent. It is sold as an assembly, which may include more than one component, so check the parts diagram for your model to confirm it matches what you need to replace.
Quick Answer
The Genuine OEM W11353813 Refrigerator Control Box Assembly replaces a faulty or damaged temperature control box on a compatible Whirlpool top-mount refrigerator. Replaces W10869714, W10884375, W11039821, W11211884 and W11223731. Classic symptoms: the temperature controls don't respond, or the refrigerator and freezer temperatures can't be adjusted or held.
When To Replace This Part
Temperature controls that don't respond or can't be adjusted
Refrigerator or freezer temperatures that won't hold at the setting
Cracked or damaged control box
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This control box assembly replaces or supersedes the following part numbers:
W11353813 • W10869714 • W10884375 • W11039821 • W11211884 • W11223731
If your old control box shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This control box assembly is listed for Whirlpool top-mount refrigerators, including these examples:
Whirlpool WRT519SZDM06, WRT519SZDD01, WRT519SZDG04, WRT519SZDD06
Whirlpool WRT519SZDT06, WRT519SZDW01, WRT519SZDW05, WRT549SZDM03
Whirlpool WRT138FZDB00, WRT138FZDM00, WRT318FZDM00, WRT519SZDW00
Note: The models above are a sample, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
Genuine OEM Whirlpool part, not an aftermarket equivalent
Control box assembly that houses the refrigerator and freezer temperature controls
Replaces five earlier Whirlpool part numbers
Sold individually
Product Specifications
Part Number
W11353813
OEM Part Number
W11353813
Part Type
Refrigerator Control Box Assembly
Condition
Genuine OEM
Manufacturer
Whirlpool
Quantity
1 Assembly
Application
Select Whirlpool Top-Mount Refrigerators
Installation Notes
⚠️ Unplug The Refrigerator First
Unplug the refrigerator before you start, and take a photo of the wiring connections before disconnecting anything. Transfer the connectors to the new assembly one at a time, matching the original positions, then secure it and restore power. The assembly may include multiple parts, so check the parts diagram for your model to confirm what comes with it. If the problem remains, the cause may be a different component such as a sensor or the main control board.
Frequently Asked Questions
My refrigerator isn't cooling right. Is this the fix?
Only if the temperature controls in this box are the problem. Poor cooling can also come from sensors, fans or other control components, so confirm the cause before replacing it.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Whirlpool, not an aftermarket equivalent.
What comes in the assembly?
It is a control box assembly and may include more than one part. Check the parts diagram for your model, or contact our support team and we'll confirm before you order.
Will this fit my refrigerator?
It is listed for many Whirlpool top-mount refrigerators, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping
✓ Genuine OEM Parts
✓ Compatibility Support
✓ Secure Checkout
XPARTCO W10120998 Dryer Lint Screen Filter
The XPARTCO W10120998 is an aftermarket replacement lint screen filter for select Whirlpool-built dryers, including Kenmore, Maytag, Amana, Roper and other brands, replacing Whirlpool part W10120998. The lint screen traps lint and debris from the exhaust air flowing out of the dryer to help prevent clogging and support performance. Replace it if it is damaged or missing.
Lint screens differ between dryers, so check your model number before ordering. Clean and inspect the screen regularly.
Quick Answer
The XPARTCO W10120998 Lint Screen Filter replaces a damaged or missing lint screen on a compatible Whirlpool-built dryer. Replaces W10120998, W10049370 and 8066170. Classic symptoms: long drying times, lint on clothes, or poor drying. Other problems can cause the same symptoms.
Common Problems This Part Fixes
Long drying times
Lint on clothing
Poor drying
Damaged or missing lint screen
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This lint screen directly replaces the following part numbers:
W10120998, 1206293, 3390721, 8066170, 8572268, W10049370, W10120998VP, W10178353, W10596627, AP3967919, AWP40367, AH1491676, EA1491676, EAP1491676, PD00002655, PS1491676
Whirlpool uses many similar lint screen numbers for different dryers, and they are not interchangeable by number alone. If your old lint screen shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This lint screen is listed for Kenmore, Whirlpool, Maytag, Amana, Roper, KitchenAid, Crosley, Inglis and other Whirlpool-built dryers, including these examples:
Kenmore 11087994500, 11087983830, 11097195800, 11087994300
Whirlpool WED7500GW0, WGD7500GW0, WED6120HW0, 3LWGD4800YQ0
Maytag MGDB765FC0, MGDB850YG2, MGDB725BW0
Note: The models above are a small sample, not a full list. It fits only some models of each brand. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
Aftermarket replacement for the Whirlpool W10120998 lint screen
Traps lint and debris from the dryer's exhaust air
Slides into place in the lint compartment, with no tools required
Replaces several earlier Whirlpool lint screen numbers
Product Specifications
Part Number
XPW10120998
OEM Part Number
W10120998
Part Type
Dryer Lint Screen Filter
Condition
Aftermarket Replacement
Quantity
1 Lint Screen
Application
Select Whirlpool-Built Dryers
Installation Notes
⚠️ Make Sure The Dryer Is Off And Cool Make sure the dryer is off and has cooled before you begin. Remove the old lint screen, clear any lint from the lint compartment, and slide the new screen into place. Follow your dryer's owner's manual for model-specific details. Clean and inspect the screen regularly, and avoid harsh chemicals or rough materials when cleaning.
Frequently Asked Questions
What does the lint screen do?
It traps lint and debris from the exhaust air flowing out of the dryer, which helps prevent clogging. Replace it if it is damaged or missing.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace Whirlpool part W10120998. If you specifically need a genuine Whirlpool part, contact our support team.
Can I use a lint screen with a similar part number?
Not by number alone. Whirlpool uses different lint screens for different dryers, so match the part number and your model number, or contact our support team and we'll check for you.
Will this fit my dryer?
It is listed for many Whirlpool-built dryers, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO WR60X10358 Refrigerator Condenser Fan Motor
The XPARTCO WR60X10358 is an aftermarket replacement condenser fan motor, made to replace GE part WR60X10358, for select GE bottom-mount refrigerators. The motor runs the fan that blows air across the condenser coils, pulling heat away so the refrigerator does not overheat and keeps a consistent temperature. It sits in the machine compartment.
This is an aftermarket replacement from XPARTCO, not a genuine GE part. It is sold individually. Check your model number before ordering.
Quick Answer
The XPARTCO WR60X10358 Condenser Fan Motor replaces the condenser fan motor on a compatible GE bottom-mount refrigerator when it has failed. Replaces WR60X10339. Common signs of a failing condenser fan motor: the fan is noisy or not turning, or the refrigerator runs warm.
When To Replace This Part
Condenser fan is noisy
Condenser fan is not turning
Refrigerator or freezer is running warm because the condenser is not being cooled
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan motor is made to replace the following GE part numbers:
WR60X10358, WR60X10339, 3033263, D1225X14BXCPB47, AGE29414, AP5781519, EAP8690738, PD00024607, PS8690738
If your old motor shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This condenser fan motor is listed for GE bottom-mount refrigerators, including these examples:
GE GNE26GMDDES, GNE26GGDAWW, GNE26GSDASS, GNE26GMDAES
GE GFE29HGDEWW, GFE29HGDCWW, GFE29HMDDES
GE DFE29JGDAWW, DFE29JMDAES, DFE29JSDESS
GE PFE27KSDDSS, PYE23KSDASS, PYE23PSDASS, CYE23TSDASS
Note: The models above are a sample, not a full list. GE sells many condenser fan motors with different part numbers that look alike. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
Aftermarket replacement for the GE WR60X10358 condenser fan motor
Moves air across the condenser coils to keep the refrigerator cooling efficiently
Cross-references GE WR60X10339
Sold individually
Product Specifications
Part Number
XPWR60X10358
OEM Part Number
WR60X10358
Part Type
Refrigerator Condenser Fan Motor
Condition
Aftermarket Replacement
Quantity
1 Motor
Application
Select GE Bottom-Mount Refrigerators
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the refrigerator, move any food that could spoil, and wear work gloves. Remove the rear access panel to the machine compartment, note how the wiring connects, and disconnect the motor. Remove the old motor and fan blade, install the new motor, reconnect the wiring, and refit the panel. Restore power and check that the fan runs.
Frequently Asked Questions
My refrigerator is warm or noisy. Is this the part I need?
It can be. Check the condenser coils for dust and make sure nothing is blocking the fan first. If the fan does not spin freely or the motor is noisy, replace the motor.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace GE part WR60X10358. If you specifically need a genuine GE part, contact our support team.
Does this replace WR60X10339?
Yes. WR60X10339 is an earlier GE number for this condenser fan motor, and this motor is made to replace both. If your motor shows another number, contact our support team and we'll check it.
Will this fit my refrigerator?
It is listed for select GE bottom-mount models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
