XPARTCO 8318314 Dryer Thermal Cutoff Fuse (352°F) The XPARTCO 8318314 is an aftermarket replacement 352°F thermal cutoff fuse compatible with a wide range of Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Crosley, Roper, Inglis, and Estate dryers. The thermal cutoff fuse is a critical safety device mounted near the heating element housing — it acts as a backup safety in case the high-limit thermostat fails to open. When the air temperature inside the heating element area reaches 352°F, the fuse permanently opens and cuts power to the heater circuit, preventing the dryer from continuing to overheat and creating a fire risk. This is a one-time fuse — once it has tripped, it cannot be reset and must be replaced. White and gray metal/ceramic construction. Dimensions: 1-1/4"L x 1-1/4"W x 2-3/16"H, with approximately 1-5/8" between mounting holes (center to center). It directly replaces 8318314. Important: when the thermal cutoff blows, the high-limit thermostat (8557403 — sold separately) is often also stressed and should be tested or replaced at the same time. Installs in 15–20 minutes with basic hand tools. Quick Answer The XPARTCO 8318314 Dryer Thermal Cutoff Fuse (352°F) fixes Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Crosley, Roper, Inglis, and Estate dryers that suddenly stopped heating after an overheat event. One-time fuse — 352°F open, must be replaced once blown. 1-1/4"L x 1-1/4"W x 2-3/16"H, ~1-5/8" between mounting holes. Metal/ceramic. Often replaced alongside the high-limit thermostat (8557403, sold separately). Common Problems This Part Fixes Dryer suddenly stopped heating with no warning — thermal cutoff has blown after an overheat event Dryer runs and tumbles normally but produces no heat No-heat fault following a partially blocked exhaust vent or restricted airflow event Multimeter continuity test shows the cutoff has an open circuit (no continuity) Visible damage or discoloration around the thermal cutoff housing from a prior overheat event Repeated no-heat problems where the thermal cutoff has tripped more than once Replaces Part Numbers This thermal cutoff fuse directly replaces the following OEM and cross-reference part numbers: 8318314 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This 352°F thermal cutoff fuse is compatible with select dryers from the following brands: Whirlpool dryers (Elite, Cabrio, Duet, and WED series — select models including WED9200, WED7300, WED7400, WED7600 and related) Maytag dryers (Maxima and MED series — select models including MED3500, MED6000XW, MEDE900VW and related) KitchenAid dryers (select models) Kenmore / Sears dryers — Elite 110-series and related Whirlpool-built models Amana dryers — NED and YNED series (select models including NED7500VW1 and related) Crosley dryers (CED series and related models) Roper dryers (select models) Inglis dryers (select models) Estate dryers (select models) Important — Check Vent Before Restarting: A blown thermal cutoff is almost always the result of restricted dryer airflow. Before replacing this fuse and restoring service, thoroughly clean the dryer's exhaust vent line all the way to the exterior wall outlet, the lint screen, and any internal lint buildup. Installing a new thermal cutoff without fixing the underlying airflow problem will cause the new fuse to blow within a short time, repeating the failure. Key Features 352°F one-time safety fuse — permanently opens to cut power to the heater circuit if the dryer overheats Backup safety device — protects against overheating in case the high-limit thermostat fails to open Cannot be reset — must be replaced once blown Dimensions: 1-1/4"L x 1-1/4"W x 2-3/16"H; approximately 1-5/8" between mounting holes (center to center) Metal and ceramic construction in white/gray Often replaced together with the high-limit thermostat (8557403, sold separately) as a paired safety repair Compatible with Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Crosley, Roper, Inglis, and Estate dryers Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 8318314 Part Type Dryer Thermal Cutoff Fuse (Safety Fuse) Condition Aftermarket Replacement Application Electric and Gas Dryers (Whirlpool platform) Trip Temperature 352°F Fuse Type One-Time (must be replaced once blown — cannot be reset) Dimensions 1-1/4"L x 1-1/4"W x 2-3/16"H Mounting Hole Spacing Approx. 1-5/8" center to center Color White / Gray Material Metal / Ceramic Often Replaced With High-Limit Thermostat (8557403, sold separately) Compatible Brands Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Crosley, Roper, Inglis, Estate Installation Notes ⚠️ Unplug Dryer Before Starting — Clean Vent System First Disconnect power before beginning. Wear work gloves to protect your hands. Before installing the new thermal cutoff, thoroughly clean the dryer's vent line — from the lint screen through the duct to the exterior wall outlet, plus any internal lint buildup around the heater housing. A blown thermal cutoff is virtually always caused by restricted airflow; if you don't fix the underlying cause, the new fuse will trip again soon. Access the thermal cutoff by removing the rear (or front, depending on model) access panel of the dryer to expose the heating element housing. The 8318314 thermal cutoff is mounted on or near the heater housing. Photograph the wire connections before disconnecting. Disconnect the wires from the old cutoff and remove the mounting screw(s). Install the new 8318314 cutoff in the same position and reconnect the wires. While the panel is open, this is also the ideal time to test or replace the high-limit thermostat (8557403) — overheat events that blow this fuse often damage that component too. Reassemble the panel, restore power, and run a test heat cycle to confirm normal heat operation. Tools needed: Phillips screwdriver, 1/4" nut driver, multimeter, work gloves. Frequently Asked Questions What's the difference between a thermal cutoff, a thermal fuse, and a high-limit thermostat? All three are safety components in a dryer's heating circuit but they serve different roles. The high-limit thermostat (such as 8557403 or 3391914) is a resettable safety switch — it opens when the air gets too hot, then closes again automatically once it cools. The thermal cutoff (8318314, 352°F) is a one-time fuse on the heating element circuit — it blows permanently if the temperature exceeds 352°F, meaning the high-limit thermostat failed to do its job. The thermal fuse (often 3392519) is a separate one-time fuse mounted on the exhaust duct — it blows if exhaust airflow temperature exceeds its rating. Each protects against a different failure mode and is replaced individually when it blows. Why did my thermal cutoff blow in the first place? A blown thermal cutoff is almost always the result of restricted airflow through the dryer. The most common causes are: a clogged or kinked exhaust vent line, a clogged lint screen, lint buildup inside the dryer cabinet near the heater housing, or a failed blower wheel/motor that's not moving enough air. Less commonly, a failed high-limit thermostat (stuck closed) can let the dryer overheat until the thermal cutoff blows as a last-resort safety. Before replacing this part, identify and fix the underlying airflow issue — otherwise the new fuse will blow within a short time. Should I replace the high-limit thermostat at the same time? Yes, it's highly recommended. The thermal cutoff is the second line of defense against overheating — for it to trip, the high-limit thermostat ahead of it likely failed to open at its normal cycling temperature, was stressed by the overheat event, or was already weakened. Replacing the high-limit thermostat (8557403 on many compatible Whirlpool-platform dryers) at the same time is standard practice and ensures both safety components work correctly together. The 279973 kit even bundles a thermal cutoff with a high-limit thermostat for this reason. Can the thermal cutoff be reset like a circuit breaker? No — the 8318314 is a one-time thermal fuse. Once it opens at 352°F, it permanently breaks the electrical circuit and cannot be reset. Some appliance components (like a high-limit thermostat) can reset automatically as they cool, but a thermal cutoff fuse is a single-use safety device by design. If your dryer suddenly stopped heating and a continuity test on this fuse shows an open circuit, it must be replaced. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from metal and ceramic with the same 352°F trip temperature, dimensions (1-1/4"L x 1-1/4"W x 2-3/16"H), and mounting hole spacing (1-5/8" center to center) as the original 8318314 thermal cutoff fuse. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 35001087 Dryer Thermal Cut Off - Compatible with Samsung, Kenmore, Maytag Dryers Product Description Safeguard your dryer with the replacement XPARTCO 35001087 Dryer Thermal Cut Off. This thermal cut-off fuse is designed for select Samsung, Kenmore, and Maytag dryers, shutting off the heating element or burner when the dryer overheats to prevent fires or damage. It addresses issues like no heat, failure to start, or premature shutoff, offering a cost-effective alternative to OEM parts. Note: Includes one thermal cut-off fuse with two 1/4" male spade terminals. Disconnect power before installation. Replaces part numbers: WP35001087, 35001087, 1122480, PD00003747, EAP11741821, AP6008681, PS11741821.  Compatibility: Compatible with models including but not limited to: Samsung: DV203AES, DV209AEW/XAA-0000, DV210AEW/XAA, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2 Kenmore: 40289032010, 40289032011, 40299032010, 40299032012 Maytag: MDE3000AYW, MEDB200VQ0, MEDB850WB0 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung, Kenmore, Maytag, Amana, and Inglis dryers. 🔥 Specifications: replacement thermal cut-off fuse, opens at 185°F (85°C), 25A at 125/250VAC. 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires Phillips screwdriver, pliers, work gloves; typically installed in 15–20 minutes. 🛡️ Effective Fixes: Resolves no heat, failure to start, or premature shutoff due to overheating. Product Specification Part Number: XPARTCO 35001087 Component Type: Thermal cut-off fuse Material: Plastic and metal Electrical Specs: 25A at 125/250VAC, opens at 185°F (85°C) Mounting: Two 1/4" male spade terminals, 1" between mounting holes (center to center) Operating Conditions: Suitable for high-temperature dryer environments Compliance: UL-listed components, Prop 65 warning for California Installation Notes: Safety First: Disconnect the dryer from the power source before installation. Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your dryer safe and operational today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO 280148 Dryer Thermostat Set The XPARTCO 280148 is an aftermarket replacement thermal fuse and high-limit thermostat set for Whirlpool electric dryers, and also fits select Kenmore, Maytag, Amana, Roper, Estate, Crosley, Admiral, KitchenAid, and Norge models. This set bundles the 8557403 high-limit thermostat, which monitors temperature and automatically cuts power to the heating element if it overheats, then resets itself once the dryer cools, together with the 8318314 thermal fuse, a one-time backup safety device that permanently opens the circuit if temperatures climb high enough that the thermostat alone doesn't prevent an overheat. These two parts are sold together and commonly fail around the same time, since they protect the same circuit and respond to the same underlying overheating conditions — most often restricted exhaust venting. Symptoms include the dryer not heating at all, taking longer than normal to dry a load, or overheating before shutting down. It directly replaces 280148VP, 1175772, AP3874047, PS991443, EAP991443, and 314634. Quick Answer The XPARTCO 280148 Dryer Thermostat Set fixes Whirlpool, Kenmore, Maytag, Amana, Roper, Estate, Crosley, Admiral, KitchenAid, and Norge electric dryers with no heat, drying that takes too long, or a dryer that overheats before shutting down. Includes the 8557403 high-limit thermostat (auto-resetting) and 8318314 thermal fuse (one-time). Replaces 280148VP, 1175772, AP3874047, PS991443, EAP991443, 314634. Always inspect and clean the exhaust venting when replacing this set — a blown thermal fuse is a symptom of restricted airflow, and skipping the vent check leads to repeat failures. What's In The Set Component Type Function 8557403 High-Limit Thermostat Auto-resetting Cuts power to the heating element if temperature exceeds safe limits, resets automatically once the dryer cools. 8318314 Thermal Fuse One-time, non-resettable Backup safety device — permanently opens the circuit if temperature exceeds safe limits. Must be replaced once blown. Common Problems This Set Fixes Dryer runs but produces no heat at all Dryer won't start at all — no lights, no tumble, no response Drying takes noticeably longer than it used to Dryer overheating before shutting down Dryer that stopped working suddenly after running unusually hot Repeated thermal fuse failures on a dryer with a known venting issue Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermostat set directly replaces the following OEM and cross-reference part numbers: 280148, 1175772, 280148VP, PD00002627, FIX991443, EAP991443, AH991443, AP3874047, AWP39427, EA991443, PS991443, 8318314, WP8557403, 8557403, 1180102, AP6013164, AWP48681, PD00003588, PS11746386 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat set is compatible with select Whirlpool electric dryers, and also fits select Kenmore, Maytag, Amana, Roper, Estate, Crosley, Admiral, KitchenAid, and Norge dryers built on the Whirlpool platform, including model numbers such as: 7MWED5620HW0, 7MWED5620HW1, 7MWED6613HC0, 7MWED6613HC1, 7MWED6613HW0, 7MWED6613HW1 MED5500FC1, MED5500FC2, MED5500FW1, MED5500FW2 MED5630HC0, MED5630HC1, MED5630HC2, MED5630HW0, MED5630HW1, MED5630HW2 MED6000XG0, MED6000XG1, MED6000XG2, MED6000XR0, MED6000XR1, MED6000XW0, MED6000XW1, MED6000XW2 MED6630HC0, MED6630HC1, MED6630HC2, MED6630HW0, MED6630HW1, MED6630HW2 MED7000XG0, MED7000XG1, MED7000XR0, MED7000XR1, MED7000XW0, MED7000XW1, MED7000XW2 MED7230HC0, MED7230HC1, MED7230HC2, MED7230HC3, MED7230HW0, MED7230HW1, MED7230HW2, MED7230HW3 MED8200FC1, MED8200FC2, MED8200FW1, MED8200FW2 Note: Always verify your full model number before ordering, since Whirlpool uses several different thermostat and fuse designs across its dryer lineup. This set is commonly purchased alongside heating element WP8544771. Contact our support team with your model number if you're unsure. Key Features 2-piece set: 8557403 auto-resetting high-limit thermostat and 8318314 one-time thermal fuse Resolves "no heat," "won't start at all," "takes too long to dry," and "overheating" symptoms Addresses two overheat-protection thresholds in the same circuit at once Commonly purchased alongside heating element WP8544771 No special tools required for installation Replaces 280148VP, 1175772, AP3874047, PS991443, EAP991443, and 314634 Compatible with Whirlpool, Kenmore, Maytag, Amana, Roper, Estate, Crosley, Admiral, KitchenAid, and Norge electric dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Set Part Number 280148 OEM Part Number 280148 Set Contents 1x High-Limit Thermostat (8557403), 1x Thermal Fuse (8318314) Condition Aftermarket Replacement Application Whirlpool Electric Dryers High-Limit Thermostat Type Automatically resetting Thermal Fuse Type One-time use, non-resettable Companion Heating Element WP8544771 (commonly used together) Repair Difficulty Easy to Moderate — no special tools required Compatible Brands Whirlpool, Kenmore, Maytag, Amana, Roper, Estate, Crosley, Admiral, KitchenAid, Norge Installation Notes ⚠️ Unplug Dryer Before Starting — Inspect And Clean The Venting Before Reassembling Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel, near the heating element and blower housing where both components are mounted. Photograph the wiring connections before disconnecting anything, since the thermostat and fuse can be easy to swap positions by mistake. Remove each old component from its mounting position, noting orientation, and disconnect its wiring. Before reassembling, fully inspect and clean the dryer's exhaust vent, from the lint trap housing all the way to the exterior vent hood, checking for lint buildup, crushed sections, or excessive length. Restricted airflow is the leading cause of failure for both of these components, and skipping the vent check often leads to repeat failures even with new parts installed. Install the new 8557403 thermostat and 8318314 thermal fuse from this set in the same positions as the parts they replace, reconnecting wiring exactly as photographed. Reassemble the panel, restore power, and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips or nut driver (model-dependent), work gloves. Frequently Asked Questions Why replace both the thermostat and the fuse together instead of just the one that failed? These two parts protect the same circuit at different thresholds and tend to fail from the same underlying cause. If the high-limit thermostat isn't regulating temperature correctly, the thermal fuse often ends up blowing as the backup safety measure. Replacing only one risks the other failing again shortly after, so they're sold and serviced together as a set. I replaced this set and the dryer failed again. What should I check? This is a strong sign the underlying cause — almost always restricted airflow — was never addressed. Thoroughly inspect and clean the entire exhaust path from the lint trap housing to the outside vent hood, checking for lint buildup, crushed or kinked ductwork, or a vent run that's too long. Failing to correct a venting issue will cause repetitive failures of this set even when it's brand new. Should I replace the heating element at the same time? It's worth considering if your dryer's heating element (commonly WP8544771 on compatible models) is original and has been running alongside a failing thermostat, since sustained overheating can stress the element as well. It's not required, but since you'll already have the panel open for this repair, it's a reasonable time to inspect the element for visible damage. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the temperature thresholds and mounting configuration of the original 280148 high-limit thermostat and thermal fuse set used in compatible Whirlpool, Kenmore, Maytag, Amana, Roper, and related electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XP8767 Dryer Thermostat Set — DC47-00018A, DC96-00887C, DC47-00016A, DC32-00007A The XPARTCO XP8767 is an aftermarket dryer thermal component set containing four heat-sensing and safety parts for select Samsung and Kenmore dryers. The set includes the high-limit thermostat (DC47-00018A), thermal fuse with bracket (DC96-00887C), blower housing thermal fuse (DC47-00016A), and thermistor temperature sensor (DC32-00007A) — the complete set of thermal components that regulate temperature and prevent overheating in compatible Samsung dryers. When any one of these components fails, the dryer may produce no heat, run too hot, shut off too early, or fail to start. Because overheating events that blow a thermal fuse also stress the other thermal components, replacing all four together in a single repair is the recommended approach. The DC96-00887C replaces the DC96-00887A used in earlier models — both are included in this kit's cross-references. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO XP8767 Dryer Thermostat Set fixes Samsung and Kenmore dryers with no heat, insufficient heat, overheating, early shutoff, or failure to start. Includes all four thermal components: DC47-00018A high-limit thermostat (L260-50), DC96-00887C thermal fuse with bracket (320°F), DC47-00016A blower housing thermal fuse, and DC32-00007A thermistor. Compatible with Samsung and Kenmore (Samsung-built) dryers. Common Problems This Set Fixes Dryer produces no heat — thermal fuse or high-limit thermostat has failed Dryer produces insufficient heat — thermistor not regulating temperature correctly Dryer shuts off too early before clothes are dry Dryer will not start at all Dryer overheats — drum or clothes too hot at end of cycle Dryer cycle runs but timer does not advance Clothes not drying properly despite the dryer running normally What's in the Set Part 1 of 4 DC47-00018A High-Limit Thermostat Rated L260-50 · Opens at 260°F (127°C), resets at 210°F (99°C) · Mounted on the heating element housing · Cuts power to the heating element if drum temperature exceeds safe limits · Auto-resets when cooled · Should show closed continuity at room temperature Part 2 of 4 DC96-00887C Thermal Fuse with Bracket Opens at 320°F (160°C) · One-time safety device mounted on the exhaust duct with bracket · Permanently cuts power to heat source if dryer overheats · Cannot be reset — must be replaced if blown · Replaces DC96-00887A used in earlier models Part 3 of 4 DC47-00016A Thermal Fuse (Blower Housing) Located on the blower housing · One-time safety device that cuts power to the motor if the dryer overheats · Cannot be reset — must be replaced if blown · Should show closed continuity at room temperature when working Part 4 of 4 DC32-00007A Thermistor Temperature Sensor Attached to the blower housing · Varies in resistance during the drying cycle to monitor and regulate drum temperature in real time · Communicates temperature readings to the control board · A failed thermistor causes incorrect drying temperatures, premature shutoff, or erratic cycle behavior Replaces Part Numbers DC47-00018A Dryer Hi Limit Thermostat Dryer high-limit thermostat, L260-50F. Replaces Parts Numbers: DC47-00018A, AP4201898, EAP2430930, PS2430930, ASM33627, PD00002011, 35001092, WP35001092, ASM33627, PD00004704, EAP11741822, AP6008682, PS11741822. DC96-00887C  Dryer Thermal Cut Off The fuse is not re-settable and will need to be replaced if blown. If the dryer does not heat, the thermal fuse may be blown. Replaces Part Numbers: DC96-00887C, DC96-00887A, ASM65115, PD00035400, AP4207819, EAP4216838, PS4216838, 2074129, WP35001193, 35001193, EAP11741829, AP6008689, PS11741829, AWP47381, PD00003365. DC47-00016A Dryer Thermostat Replaces Part Number: DC47-00016A, 2068545, ASM868996, PD00003747, AP4201894, PS4205213, WP35001087, 35001087, AWP47334, PD00003747, AP6008681, PS11741821. DC32-00007A Dryer Thermistor: Dryers Replacement Thermistor Replaces Part Numbers: DC32-00007A, ASM654843, PD00001996, 2068429, AP4201716, PS4204984, WP35001191, 35001191, 1185513, AH2038482, PD00003059, EAP11741828, AP6008688, PS11741828. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat set is compatible with select dryers from the following brands: Samsung dryers (gas and electric — DV, DVE, DVG series) Kenmore / Sears dryers (select Samsung-built models) Important: If a thermal fuse has blown, always check for the root cause before replacing — a clogged exhaust vent is the most common cause of dryer overheating. Clean the full length of the exhaust duct before running the dryer after this repair. Key Features Complete 4-part thermal set — covers all Samsung dryer thermal components in a single repair DC47-00018A high-limit thermostat (L260-50) — auto-resets; cuts heating element power at 260°F DC96-00887C thermal fuse with bracket (320°F) — one-time safety device; replaces DC96-00887A used in earlier models DC47-00016A thermal fuse on blower housing — one-time safety device that protects the motor DC32-00007A thermistor — monitors real-time drum temperature and communicates with the control board to regulate drying cycles Replacing all four parts together renews the complete thermal circuit — prevents recurrence if a failing component caused the fuse to blow Compatible with Samsung DV, DVE, and DVG series dryers and Samsung-built Kenmore models Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Set Part Number XP8767 Condition Aftermarket Replacement Application Samsung and Kenmore Gas and Electric Dryers Set Includes 1x DC47-00018A High-Limit Thermostat, 1x DC96-00887C Thermal Fuse with Bracket, 1x DC47-00016A Thermal Fuse, 1x DC32-00007A Thermistor DC47-00018A Rating L260-50 — opens at 260°F (127°C), resets at 210°F (99°C) — auto-resets DC96-00887C Trip Temp 320°F (160°C) — one-time, non-resettable DC47-00016A One-time thermal fuse on blower housing — non-resettable DC32-00007A Thermistor — resistance varies with temperature; communicates with control board Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Dryer and Shut Off Gas Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the back panel of the dryer to access the heating element housing and exhaust duct. Take a photo of all wire connections before disconnecting anything — the thermistor and thermal fuses use similar small connectors and it is important to reconnect them to the correct terminals. The DC47-00018A high-limit thermostat is mounted on the heating element housing — unscrew and replace it. The DC96-00887C thermal fuse with bracket is mounted on the exhaust duct — unscrew, remove the bracket assembly, and install the new one. The DC47-00016A thermal fuse is on the blower housing — disconnect the wires and unscrew or unclip it. The DC32-00007A thermistor is clipped to the blower housing — pull the old one out and press the new one into the clip. Reconnect all wires, reassemble the back panel, restore power, and run a test cycle. Tip: Clean the full length of the exhaust duct before running the dryer after this repair. Tools needed: Phillips screwdriver, 1/4" nut driver, needle-nose pliers. Frequently Asked Questions What does each part in this set do? The DC47-00018A high-limit thermostat monitors the heating element temperature and cuts power to the element at 260°F if the dryer gets too hot — it resets automatically when cooled. The DC96-00887C thermal fuse is a one-time safety device on the exhaust duct that permanently cuts power to the heat source at 320°F if the dryer overheats. The DC47-00016A is a second one-time thermal fuse on the blower housing that cuts power to the motor if overheating occurs there. The DC32-00007A thermistor monitors real-time drum temperature and sends resistance-based readings to the control board, which uses them to regulate the drying cycle and control the heating element. What is the difference between DC96-00887A and DC96-00887C? The DC96-00887C is the updated current part number that superseded the DC96-00887A. Both are the same thermal fuse with bracket used on the exhaust duct — the C suffix denotes a minor revision. Either part number is covered by this kit and both are fully interchangeable. How do I test these parts with a multimeter? Set the multimeter to continuity or resistance mode. At room temperature, the DC47-00018A high-limit thermostat and both thermal fuses (DC96-00887C and DC47-00016A) should all show closed continuity (near-zero resistance). Any of these that reads open (no continuity) has failed. The DC32-00007A thermistor should show a resistance reading at room temperature — typically around 10,000–50,000 ohms depending on ambient temperature — rather than zero or open. A thermistor that reads open or zero at room temperature has failed. Why should I replace all four parts instead of just the one that failed? When a thermal fuse blows in a Samsung dryer, it almost always means the dryer overheated — and that overheating event stresses all four thermal components simultaneously. Replacing just the blown fuse without replacing the other parts risks a repeat failure if the thermistor is providing incorrect readings or the high-limit thermostat is no longer protecting accurately. Replacing all four parts at once renews the entire thermal circuit and reduces the chance of a repeat failure in the near future. Is this set for electric and gas Samsung dryers? Yes — the XP8767 set is compatible with both electric (DVE series) and gas (DVG series) Samsung dryers that use these four thermal components. Always verify your specific model number before ordering to confirm all four parts apply to your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

197XP Dryer Thermostat Kit – Replaces 279816, WP3977767, W10900067 – Compatible with Whirlpool, Kenmore, Maytag, and Amana Dryers Product Description Restore safe and efficient drying performance with the 197XP Dryer Thermostat Kit. This high-quality aftermarket replacement includes both a high-limit thermostat and a thermal cut-off fuse to regulate dryer temperature and prevent overheating. A failed thermostat or cut-off can cause long dry times, no-heat conditions, or overheating. Installing this complete kit ensures dependable temperature control and long-lasting dryer operation. Replaces Part Numbers 279816, 2651, 279816VP, 3399848, 3977393, AH334299, AP3094244, EA334299, PS334299, WP3977767, 3977767, 3399693, 898078, AP6009043, ER3977767, PS11742185, SET185, TJ90SET185, WP3977767VP, W10900067, PD00046493, EAP11769432, AP6036100, PS11769432. Compatibility This replacement thermostat kit fits select Whirlpool, Kenmore, Maytag, Amana, Roper, Crosley, and Estate dryers. Example compatible models include (but are not limited to): Whirlpool WED4815EW1, Kenmore 110.87562602, and Amana NED4655EW1. Always verify your dryer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM temperature ratings and safety standards 🔥 Dual-Protection Design – Includes thermal cut-off fuse and high-limit thermostat for overheat prevention 💰 Affordable Alternative – Provides OEM-level performance at a lower cost 🛠️ Easy DIY Installation – Pre-terminated connectors and hardware for quick repair 🛡️ Fixes Common Issues – Solves dryer not heating, overheating, or short-cycling problems 📐 Product Specification Part Number: 197XP Temperature Ratings: 309* degree F Thermal Fuse with L250-80* degree F Limit Thermostat. High Limit Thermostat and Thermal Fuse for the Heater.      No need to splice any wires, no re wiring needed.  Component Type: Dryer Thermal Cut-Off & High-Limit Thermostat Kit Includes: Thermal cut-off fuse, high-limit thermostat, mounting hardware, and wire connectors Material: Metal thermostat housing with heat-resistant wiring Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Nut driver, Phillips screwdriver ⚠️ Safety First: Always unplug the dryer before performing any repairs to prevent electrical shock. Steps: Disconnect power and remove the back panel of the dryer. Locate the heater housing and identify the existing thermostat and cut-off fuse. Remove wires and mounting screws from old components. Install the new 197XP thermostat kit in the same positions. Reconnect wires, reassemble the panel, and restore power. Run a drying cycle to confirm proper operation. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Protect your dryer and restore heat safely — Add to Cart Now for a reliable, budget-friendly repair!

Read more less

XPARTCO XP311 Dryer Thermostat Kit for LG The XPARTCO XP311 is an aftermarket replacement 3-piece thermostat kit for LG electric dryers, bundling the thermal fuse, thermistor, and high-limit thermostat that work together to regulate and protect the dryer's heating system. These three components monitor heat continuously during normal operation and step in at different thresholds if something goes wrong, which is why they're commonly replaced as a set — a single overheating event or a slow age-related drift in one part can put stress on the others, and buying them together also saves a second teardown if one of the remaining parts fails soon after. This kit includes: the 6931EL3003D thermal fuse, a one-time safety device that permanently cuts power to the dryer if internal temperatures climb dangerously high; the 6323EL2001B thermistor, a temperature sensor assembly with wire harness that continuously reports drum temperature to the control board so it can regulate heat output during the cycle; and the 6931EL3001E high-limit thermostat, which automatically shuts off the heating element if the dryer's temperature exceeds safe operating limits, without needing to be replaced like the thermal fuse does. Symptoms of failure in this circuit include incomplete drying, insufficient heating time, overheating that damages clothing, and the dryer shutting down prematurely or failing to start at all. It directly replaces AP4440975, 1268366, 6931EL3003E, AH3530485, EA3530485, PS3530485 (thermal fuse); AP4441539, 1268206, 6323EL2001H, AH3529026, EA3529026, PS3529026 (thermistor); and AP4440977, 1268363, 6931EL3001B, 6931EL3001C, AH3530481, EA3530481, PS3530481, 6931EL3001F (high-limit thermostat). Quick Answer The XPARTCO XP311 Dryer Thermostat Kit fixes LG (and select Kenmore) electric dryers with incomplete drying, insufficient heat, overheating that damages clothes, or a dryer that shuts down prematurely or won't start. 3-piece kit: thermal fuse (6931EL3003D), thermistor (6323EL2001B), and high-limit thermostat (6931EL3001E). Replaces 6323EL2001B, 6931EL3001E, 6931EL3003D, and their full cross-reference sets listed below. These three parts share the same circuit and commonly fail together — replacing all three at once is standard practice when one has failed. What's In The Kit Component Part Number Function Thermal Fuse 6931EL3003D One-time safety device — permanently cuts power if the dryer overheats. Cannot be reset once blown. Thermistor 6323EL2001B Continuously senses drum temperature and reports it to the control board to regulate heat output. High-Limit Thermostat 6931EL3001E Automatically shuts off the heating element if temperature exceeds safe limits. Resets automatically, unlike the thermal fuse. Common Problems This Kit Fixes Dryer runs but clothes come out only partially dry Insufficient heating time or reduced heat output Overheating that scorches or damages clothing Dryer shuts down prematurely mid-cycle Dryer won't start at all Inconsistent drying results from cycle to cycle Dryer that recently blew a thermal fuse and needs the related components checked Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermostat kit directly replaces the following OEM and cross-reference part numbers: 6931EL3003D, 1268366, AH3530485, EA3530485, PD00001818, EAP3530485, AP4440975, PS3530485, 6323EL2001B, 1268206, 6323EL2001H, AH3529026, PD00001821, EAP3529026, EA3529026, AP4441539, PS3529026, 6931EL3001E, 1268363, 6931EL3001C, PD00023869, EAP3530481, AH3530481, EA3530481, AP4440977, PS3530481. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This kit is compatible with select LG electric dryers, and also fits select Kenmore dryers built on the LG platform, including model numbers such as: CDE3379WN DLE0332W, DLE0442G, DLE0442W, DLE0442W01 DLE1310W, DLE2101W, DLE2140W, DLE2240W DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2522W, DLE2524W, DLE2532W DLE3733D, DLE3733S, DLE5955W Note: This kit is for LG electric dryers. Different resistance values, dimensions, and mounting methods apply across brands and models, so always verify your full model number before ordering rather than relying on physical resemblance alone. Contact our support team with your model number if you're unsure. Key Features Complete 3-piece kit — thermal fuse, thermistor, and high-limit thermostat in one purchase Addresses the full temperature-regulation and safety circuit at once, rather than piecemeal Resolves "incomplete drying," "insufficient heat," "overheating," and "premature shutdown" symptoms Thermistor ships with its wire harness included No special tools required for installation Direct drop-in replacement for all three original components Replaces the full cross-reference set for 6931EL3003D, 6323EL2001B, and 6931EL3001E listed above Compatible with LG and select Kenmore electric dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Kit Part Number XP311 Kit Contents 1x Thermal Fuse (6931EL3003D), 1x Thermistor (6323EL2001B), 1x High-Limit Thermostat (6931EL3001E) Condition Aftermarket Replacement Application LG Electric Dryers Thermal Fuse Type One-time use, non-resettable High-Limit Thermostat Type Automatically resetting Thermistor Includes wire harness Repair Difficulty Easy to Moderate — no special tools required Compatible Brands LG, select Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Test Before Assuming All Three Have Failed Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel or the front, depending on your model — these components are commonly mounted on or near the blower housing and heater duct assembly. Photograph the wiring connections before disconnecting anything, since the thermal fuse, thermistor, and high-limit thermostat can look similar and are easy to swap positions by mistake. Before installing the full kit, it's reasonable to test each old component with a multimeter to confirm which have actually failed — the thermal fuse and high-limit thermostat can each be checked for continuity, though replacing all three together is still standard practice given how this circuit tends to fail. Remove each old component from its mounting position, noting orientation, and disconnect its wiring. Install each new component from the kit in the same position and orientation as the part it replaces, reconnecting wiring exactly as photographed. Reassemble the panel, restore power, and run a full test cycle to confirm normal heating, consistent drying, and no premature shutoffs. Tools needed: Phillips or nut driver (model-dependent), multimeter (recommended), work gloves. Frequently Asked Questions Do I really need to replace all three parts, or can I just replace the one that failed? You can test each component individually with a multimeter and replace only the ones that fail, but there's a good reason these are commonly sold and replaced together: they share the same heating circuit and tend to age or fail around the same time, especially if an overheating event caused the original failure. Replacing all three at once avoids a second teardown if one of the remaining original parts fails again soon after. What's the difference between the thermal fuse and the high-limit thermostat? They sound similar. Both protect against overheating, but they behave very differently. The high-limit thermostat is the first line of defense — it shuts off the heating element automatically if temperature climbs too high, then resets itself once things cool down, letting the dryer resume normal operation. The thermal fuse is the backup: if temperatures climb high enough that the thermostat alone doesn't prevent a dangerous overheat, the fuse permanently opens the circuit and cuts all power. Unlike the thermostat, the fuse cannot reset itself and must be physically replaced once it blows. What does the thermistor actually do, and why does it matter if it's a sensor rather than a switch? The thermistor doesn't switch anything on or off directly — it's a variable resistor whose resistance changes with temperature, and the control board reads that resistance continuously to know exactly how hot the drum is running. That ongoing feedback is what lets the control board fine-tune heat output throughout the cycle rather than just running hot or cold. A failing thermistor can cause the control to misjudge temperature, leading to insufficient heat, inconsistent drying, or the control cutting the cycle short. My dryer blew a thermal fuse. Should I get this whole kit instead of just the fuse? It's worth considering, especially since a blown thermal fuse usually means the dryer actually overheated at some point — and that same overheating event can stress the thermistor and high-limit thermostat even if they haven't failed outright yet. Also worth checking regardless of which parts you replace: restricted exhaust venting is the most common root cause of dryer overheating, so inspect and clean the vent ducting when you do this repair, or the new parts may face the same stress that damaged the originals. Is this an OEM or aftermarket kit? This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine LG OEM kit, but each component is manufactured to match the electrical specifications, resistance values, and mounting configuration of the original 6931EL3003D thermal fuse, 6323EL2001B thermistor, and 6931EL3001E high-limit thermostat used in compatible LG electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set The XPARTCO DC96-00887C / DC47-00018A is an aftermarket replacement 2-piece thermal protection set for Samsung and select Kenmore electric dryers. These two components sit in different locations along the same heating circuit and guard against overheating in different ways. The DC47-00018A is a true cycling high-limit thermostat — it opens at approximately 260°F to cut power to the heating element, then automatically closes again once the temperature drops to around 210°F, letting the dryer resume heating without any part replacement needed. The DC96-00887C, despite frequently being labeled a "thermostat" by third-party sellers, is actually a one-time thermal fuse mounted with its bracket on the blower housing — once it opens from excess heat, it stays open permanently and must be physically replaced. Because these two parts monitor different points in the same circuit, they tend to be replaced together when a dryer has been running hot: if the high-limit thermostat has been cycling excessively or failed to catch a temperature spike, the downstream thermal fuse can end up blowing as the last line of defense. Symptoms of failure in this circuit include no heat or insufficient heat, drying that takes too long, the dryer shutting off too soon, or the timer failing to advance. It directly replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, AP6008689 (DC96-00887C); and 35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, AP6008682, WP35001092 (DC47-00018A). Quick Answer The XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set fixes Samsung and select Kenmore electric dryers with no heat or insufficient heat, drying that takes too long, premature shutoff, or a timer that won't advance. Set includes the DC47-00018A cycling high-limit thermostat (260°F open / 210°F reset) and the DC96-00887C thermal fuse with bracket. Replaces the full cross-reference sets listed below for both parts. Despite common marketplace labeling, the DC96-00887C is a one-time thermal fuse, not a resettable thermostat — it must be replaced once it blows, while the DC47-00018A resets itself automatically. What's In This Set Component Type Function DC47-00018A Cycling High-Limit Thermostat Opens at ~260°F to cut heat, automatically resets and closes again around 210°F. No replacement needed after each trip. DC96-00887C Thermal Fuse (with bracket) Mounted on the blower housing. Permanently opens if temperature exceeds safe limits. Cannot reset — must be replaced once blown. Common Problems This Set Fixes Dryer has no heat or insufficient heat Drying takes too long to complete a cycle Dryer shuts off too soon, before clothes are fully dry Timer will not advance through the cycle Dryer that stopped working suddenly after running unusually hot Dryer with a history of repeated thermal fuse failures Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermostat/thermal fuse set directly replaces the following OEM and cross-reference part numbers: DC96-00887C, DC96-00887A, AP5966894, PS4276292, WP35001193, 35001193, AP6008689, PS11741829, DC47-00018A, AP4201898, PS4205217, 35001092, WP35001092 AP6008682, PS11741822, EXPDC47-00018A, L260-50F If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This set is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as: DV5471AEW/XAA DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2 DV400EWHDWR/AA DVE50M7450W/A3 Note: Always verify your full model number before ordering, since Samsung uses several different thermal protection components across its dryer lineup. Contact our support team with your model number if you're unsure. Key Features 2-piece set covering both the cycling high-limit thermostat and the blower housing thermal fuse DC47-00018A thermostat opens at approximately 260°F and resets automatically around 210°F DC96-00887C thermal fuse ships with its mounting bracket included Resolves "no heat," "insufficient heat," "takes too long to dry," and "shuts off too soon" symptoms Addresses two failure points in the same overheat-protection circuit at once No special tools required for installation Replaces the full cross-reference sets for both DC96-00887C and DC47-00018A listed above Compatible with Samsung and select Kenmore electric dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Set Contents 1x DC47-00018A high-limit thermostat, 1x DC96-00887C thermal fuse with bracket Condition Aftermarket Replacement Application Samsung Electric Dryers DC47-00018A Type Automatically resetting, cycling high-limit thermostat DC47-00018A Open Temperature ~260°F DC47-00018A Reset Temperature ~210°F DC96-00887C Type One-time thermal fuse — non-resettable DC96-00887C Location Blower housing Repair Difficulty Easy to Moderate — no special tools required Compatible Brands Samsung, select Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Note Which Component Goes Where Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel, near the blower housing and heater duct assembly where both components are mounted. Photograph the wiring connections before disconnecting anything, since the thermal fuse and thermostat can look similar at a glance and are easy to install in the wrong position. Test each old component with a multimeter for continuity if you want to confirm which has actually failed before replacing both — the DC47-00018A thermostat and DC96-00887C fuse can each be checked this way. Remove each old component from its mounting position, noting orientation and location, and disconnect its wiring. Install the DC47-00018A thermostat and the DC96-00887C fuse (with its bracket) from this set in the same positions as the parts they replace, reconnecting wiring exactly as photographed. Reassemble the panel, restore power, and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips or nut driver (model-dependent), multimeter (recommended), work gloves. Frequently Asked Questions Is DC96-00887C really a thermostat, or something else? Different sellers call it different things. This is a genuinely common point of confusion in the marketplace, and it's worth clearing up: DC96-00887C is actually a one-time thermal fuse mounted with its bracket on the blower housing, even though many third-party listings label it a "thermostat." The distinction matters for how you diagnose and handle it — once this fuse blows from excess heat, it stays open permanently and must be physically replaced, unlike a true thermostat (like the DC47-00018A in this same set) which resets itself automatically once things cool down. Why replace both parts together instead of just the one that failed? These two components sit at different points in the same overheat-protection circuit, and a problem with one often puts stress on the other. If the high-limit thermostat has been cycling excessively or didn't catch a temperature spike in time, the downstream thermal fuse can end up blowing as the last line of defense. Replacing both together addresses the full circuit rather than risking a second failure and a second repair shortly after. My dryer shuts off before the load is fully dry. Is that this set? It's a strong possibility. If the high-limit thermostat is tripping prematurely — opening at a lower temperature than it should, or failing to reset properly — the dryer can cut heat and end the cycle early even though the load isn't actually dry yet. This is one of the more common symptoms this thermostat set addresses. Is this an OEM or aftermarket set? This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Samsung OEM set, but each component is manufactured to match the electrical specifications, opening/reset temperatures, and mounting configuration of the original DC96-00887C thermal fuse and DC47-00018A high-limit thermostat used in compatible Samsung and Kenmore electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XP6974 Dryer Thermostat Kit Replaces WP3387134, WP3392519, W10900067, 279816 The XPARTCO XP6974 is an aftermarket dryer thermostat kit containing four thermal components for Whirlpool-family electric and gas dryers including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The kit includes the cycling thermostat (WP3387134), thermal fuse (WP3392519), high-limit thermostat and thermal cut-off kit (279816 / W10900067) — the complete set of heat-sensing and safety components that regulate dryer temperature and prevent dangerous overheating. These four components work together to control and protect the dryer's heating system. When any one of them fails, the dryer may produce no heat, overheat, run too long, or stop mid-cycle. Because a failed thermal fuse is almost always caused by an underlying overheating condition that also stresses the other components, replacing all four together in a single repair is the recommended approach. Includes all wiring hardware needed for installation. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO XP6974 Dryer Thermostat Kit fixes Whirlpool-family dryers that produce no heat, overheat, take too long to dry, or stop mid-cycle. Includes all four thermal components: cycling thermostat (L155-25), thermal fuse (196°F), high-limit thermostat (L250-80), and thermal cut-off (309°F). Compatible with Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef electric and gas dryers. Common Problems This Kit Fixes Dryer produces no heat — thermal fuse or high-limit thermostat has blown Dryer takes multiple cycles or very long time to dry clothes Dryer overheats — clothes or drum too hot to touch after a cycle Dryer shuts off mid-cycle and will not restart Dryer tumbles normally but generates no heat at all Dryer runs too long because cycling thermostat is not regulating temperature Repeated thermal fuse failures — underlying thermostat fault causing recurring overheating What's in the Kit Part 1 of 4 WP3387134 Cycling Thermostat Rated L155-25 · Monitors drum air temperature and cycles the heating element on and off to maintain the set drying temperature · Located on the exhaust duct or blower housing · Should show closed continuity at room temperature Part 2 of 4 WP3392519 Thermal Fuse Opens at 196°F (91°C) · One-time safety device located on the exhaust duct · Permanently interrupts power to the heating element if the dryer overheats · Cannot be reset — must be replaced if blown · Most common cause of no-heat in Whirlpool-family dryers Part 3 of 4 High-Limit Thermostat (279816 / W10900067) Rated L250-80 · Mounted on the heating element housing · Opens at approximately 250°F to cut power to the heating element if temperature exceeds safe limits · Resets automatically when it cools · Should show closed continuity at room temperature Part 4 of 4 Thermal Cut-Off Fuse (3977393 / 279816 kit) Opens at 309°F · Backup one-time safety device on the heating element housing · Permanently interrupts power to the heating element if the high-limit thermostat fails to open · Cannot be reset — must be replaced if blown Replaces Part Numbers WP3387134 Cycling Thermostat cross-references: WP3387134, WP3387134VP, 3387134, 3387135, 3387139, 306910, 3-6910, ET187, AP6008270, PS11741405 WP3392519 Thermal Fuse cross-references: WP3392519, WP3392519VP, 3392519, 3388651, 694511, 80005, ET401, G4AP0500, AP6008325, PS11741460 279816 High-Limit Thermostat and Thermal Cut-Off Kit cross-references: 279816, 279816VP, W10900067, 3977393, 3977767, WP3977767, WP3977767VP, 3399848, 3399693, 2651, AP3094244, AH334299, EA334299, EAP334299, PS334299 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat kit is compatible with select gas and electric dryers from the following brands: Whirlpool dryers (gas and electric) Kenmore / Sears dryers (Whirlpool-built models) Maytag dryers (gas and electric) Amana dryers KitchenAid dryers Roper dryers Admiral dryers Estate dryers Crosley dryers Inglis dryers Magic Chef dryers Important: If your thermal fuse has blown, always check for the root cause before replacing — a clogged exhaust vent is the most common cause of dryer overheating. Clean the full length of the exhaust duct before or after this repair. If the vent is clear, a failed cycling thermostat or high-limit thermostat is likely the root cause. Key Features Complete 4-part thermal kit — covers the cycling thermostat, thermal fuse, high-limit thermostat, and thermal cut-off in a single repair Cycling thermostat (L155-25) — regulates drum temperature to maintain consistent, efficient drying Thermal fuse (196°F) — one-time safety device that permanently interrupts heat if the dryer overheats High-limit thermostat (L250-80, ~250°F) — cuts power to the heating element when temperature exceeds safe limits; auto-resets Thermal cut-off (309°F) — backup one-time safety device protecting against heating element runaway Replacing all four parts together ensures the complete thermal circuit is renewed — prevents recurrence if a failing thermostat caused the fuse to blow Includes all wiring hardware for installation Compatible with 11 major appliance brands on the Whirlpool platform Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Kit Part Number XP6974 Condition Aftermarket Replacement Application Gas and Electric Dryers Kit Includes 1x WP3387134 Cycling Thermostat, 1x WP3392519 Thermal Fuse, 1x High-Limit Thermostat (L250-80), 1x Thermal Cut-Off Fuse (309°F), wiring hardware Cycling Thermostat Rating L155-25 (closes at 155°F, opens at 25°F differential) Thermal Fuse Trip Temp 196°F (91°C) — one-time, non-resettable High-Limit Thermostat Rating L250-80 (opens at ~250°F) — auto-resets Thermal Cut-Off Trip Temp 309°F — one-time, non-resettable Compatible Brands Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, Magic Chef Installation Notes ⚠️ Unplug Dryer and Shut Off Gas Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the back panel of the dryer to access the heating element housing and exhaust duct. The thermal fuse (WP3392519) and cycling thermostat (WP3387134) are located on the exhaust duct or blower housing — disconnect the wires, unscrew the mounting screws, and install the new parts in the same positions. The high-limit thermostat and thermal cut-off (279816 kit) are located on the heating element housing — disconnect the wires and unscrew the mounting screws to remove the old parts and install the new ones. Reconnect all wires to the correct terminals — take a photo before disconnecting to reference during reinstallation. Reassemble the back panel, restore power, and run a test cycle to verify heat. Tip: Before running the dryer, also clean the full length of the exhaust duct — a clogged vent is the most common root cause of dryer overheating and repeated thermal fuse failures. Tools needed: Phillips screwdriver, 1/4" nut driver, needle-nose pliers. Frequently Asked Questions What does each part in this kit do? The cycling thermostat (WP3387134) monitors the air temperature in the exhaust duct and cycles the heating element on and off to maintain the correct drying temperature — it is the part that controls how hot the dryer gets during normal operation. The thermal fuse (WP3392519) is a one-time safety device that permanently cuts power to the heating element if the dryer overheats above 196°F — it is the most common cause of no-heat in Whirlpool-family dryers. The high-limit thermostat opens at approximately 250°F to cut heating element power if temperature gets too high, and resets automatically when it cools. The thermal cut-off is a backup one-time fuse on the heating element that opens at 309°F if the high-limit thermostat fails to protect the heater. Why should I replace all four parts instead of just the one that failed? When a thermal fuse blows, it almost always blew because the dryer overheated — and that overheating event put significant stress on all the other thermal components as well. A failing cycling thermostat is the most common cause of repeated thermal fuse failures: if the cycling thermostat stops regulating temperature correctly, the dryer runs too hot, the high-limit thermostat is repeatedly stressed, and the thermal fuse eventually blows. Replacing just the fuse without replacing the cycling thermostat means the same overheating will blow the new fuse. Replacing all four parts at once eliminates that risk in a single repair. How do I test these parts with a multimeter? Set the multimeter to continuity or resistance mode. The thermal fuse (WP3392519), cycling thermostat (WP3387134), and high-limit thermostat should all show closed continuity (near-zero resistance) at room temperature. The thermal cut-off should also show closed continuity at room temperature. Any part that reads open (no continuity / infinite resistance) at room temperature has failed and needs to be replaced. A blown thermal fuse or cut-off will always read open — they are one-time devices and cannot reset. What causes the thermal fuse to blow repeatedly? The most common cause by far is a clogged exhaust vent — lint accumulation inside the dryer duct restricts airflow, causing heat to build up inside the dryer cabinet until the thermal fuse trips. Always clean the full length of the exhaust duct before and after replacing these parts. Other causes include a failing cycling thermostat that is not regulating temperature correctly, a stuck heating element relay, or a dryer placed in an enclosed space without adequate ventilation. Is this kit compatible with both electric and gas dryers? Yes — the XP6974 kit is compatible with both electric and gas Whirlpool-family dryers. Both types use the same cycling thermostat (WP3387134) and thermal fuse (WP3392519). The high-limit thermostat and thermal cut-off (279816 kit) are located on the heating element in electric models and on the burner assembly area in gas models. Always verify your specific model number before ordering to confirm all four parts apply to your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

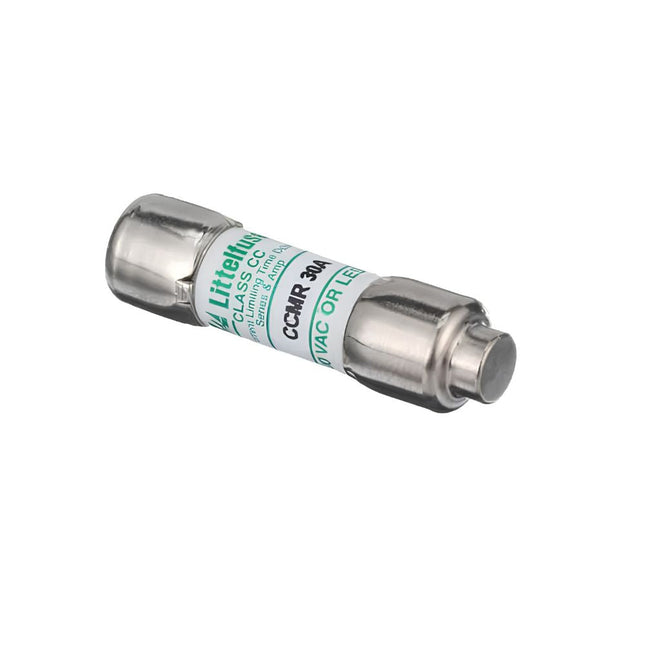

XPARTCO WE1M1002 Dryer Fuse, 30 AMP 120V The XPARTCO WE1M1002 is an aftermarket replacement power fuse for GE and Hotpoint dryers, commonly used on GE's commercial and stacked laundry center dryer models. This is a CCMR-class fuse — a current-limiting, fast-acting power fuse — and it plays a fundamentally different protective role than a thermal cut-off fuse. Rather than reacting to excess heat from restricted airflow, this fuse reacts to electrical faults: if the dryer experiences a short circuit or a current overload beyond what the wiring is rated to handle, this fuse opens the circuit immediately to prevent damage to the dryer's electrical components. Rated 30A, 120V, measuring approximately 3/8"H x 3/8"W x 1-1/2"D. Because this fuse protects against electrical faults rather than heat buildup, a blown WE1M1002 points toward a different diagnostic path than a thermal fuse would: rather than checking the exhaust venting, the more relevant checks are the dryer's wiring, connections, and any component that may have shorted internally. A blown fuse produces a complete loss of power to the dryer — no lights, no display, no response to any control. It directly replaces WE01M1002, 1974262, AP5270172, PS3496852, and EAP3496852. Quick Answer The XPARTCO WE1M1002 Dryer Fuse fixes GE and Hotpoint dryers, including commercial and stacked laundry center models, that have completely lost power — no lights, no display, no response to any control. CCMR-class, 30A, 120V. Replaces WE01M1002, 1974262, AP5270172, PS3496852, EAP3496852. This is a power/overcurrent fuse, not a thermal cut-off fuse — if it's blown, check the dryer's wiring and electrical connections for a short or fault rather than the exhaust venting. Common Problems This Part Fixes Dryer has completely lost power — no lights, no display, no response to any control Dryer that stopped working suddenly, especially after an electrical fault or short Dryer that trips repeatedly after a wiring or component issue elsewhere in the unit Continuity test shows an open circuit across the old fuse Complete electrical dead-out on a commercial or stacked laundry center dryer Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer fuse directly replaces the following OEM and cross-reference part numbers: WE1M1002, 1974262, PD00029481, EAP3496852, AGE25598, AH3496852, EA3496852, AP5270172, PS3496852 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This fuse is compatible with select GE dryers, and also fits select Hotpoint and RCA dryers, including commercial and stacked laundry center models such as: DCCB330EJ3WC, DCCB330EJ4WC, DCCB330GJ3WC, DCCB330GJ4WC DDC4400T5WH DISR333FCGWW, DISR333FCHWW, DISR333FGDWW, DISR333FGEWW DISR473CG8WW, DISR473CGBWW, DISR473DGEWW, DISR473DGFWW DIST333JTMWW, DIST333JTNWW DMCD330EJ3WC, DMCD330EJ4WC, DMCD330GJ3WC, DMCD330GJ4WC DNCD450EGBWC, DNCD450EGCWC, DNCD450GGCWC 2661532210, 2661532211, 2671532210 Note: This part is distinct from a thermal cut-off fuse used on residential dryer platforms — it's a CCMR-class power fuse most commonly found on GE's commercial and stacked laundry center dryer models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement CCMR-class power fuse — protects against electrical faults and current overload Resolves "complete loss of power" symptoms caused by an electrical short or overload Rated 30A, 120V Compact size: approximately 3/8"H x 3/8"W x 1-1/2"D Direct drop-in replacement — no modification required Replaces WE01M1002, 1974262, AP5270172, PS3496852, and EAP3496852 Compatible with GE, Hotpoint, and RCA dryers, including commercial and stacked laundry center models Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number WE1M1002 OEM Part Number WE1M1002 Part Type Dryer Power Fuse (CCMR Class) Condition Aftermarket Replacement Current Rating 30A Voltage 120V Fuse Class CCMR (current-limiting, fast-acting) Protects Against Electrical short circuits and current overload Resettable No — one-time use, must be replaced once blown Dimensions 3/8"H x 3/8"W x 1-1/2"D Quantity 1 fuse Compatible Brands GE, Hotpoint, RCA Installation Notes ⚠️ Unplug Dryer Before Starting — Investigate The Cause Of The Short Before Replacing Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Locate the fuse holder inside the dryer's electrical panel or control housing — access varies by model, so consult your unit's service diagram. Before removing the old fuse, visually inspect nearby wiring and connections for signs of a short, such as scorching, melted insulation, or a loose connection, since this fuse type responds to electrical faults rather than heat buildup from airflow issues. Test the old fuse with a multimeter to confirm it's open (no continuity) before assuming it needs replacement. Remove the old fuse from its holder and install the new WE1M1002 in the same position, making sure it seats fully and securely. Restore power and test the dryer to confirm normal operation. If the new fuse blows again shortly after installation, stop and have a qualified technician diagnose the underlying electrical fault before continuing, since repeatedly replacing this fuse without addressing the root cause can be a sign of a more serious wiring or component issue. Tools needed: fuse puller or needle-nose pliers, multimeter, work gloves. Frequently Asked Questions How is this different from a thermal cut-off fuse? They protect against completely different problems. A thermal cut-off fuse reacts to excess heat, usually from restricted exhaust airflow, and its diagnosis typically starts with checking the venting. This WE1M1002 is a CCMR-class power fuse that reacts to electrical faults — a short circuit or current overload — and its diagnosis should focus on the dryer's wiring and electrical connections rather than the exhaust system. My dryer has completely no power at all. Is this the fuse? It's a strong possibility, especially if this occurred suddenly or followed any unusual electrical event. Since this fuse protects the dryer's power circuit broadly, a blown fuse can result in a total loss of power — no lights, no display, nothing. Test it with a multimeter for continuity before replacing to confirm. I replaced the fuse and it blew again right away. What should I do? This is a sign that the underlying electrical fault that blew the original fuse hasn't been addressed. Unlike a thermal fuse blowing from airflow restriction, a repeat blow on this type of fuse points to an ongoing short circuit or wiring problem elsewhere in the dryer. Stop and have a qualified technician trace and repair the fault rather than continuing to replace fuses, since the underlying issue could pose a safety risk if left unresolved. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the electrical rating and fuse class of the original WE1M1002 power fuse used in compatible GE, Hotpoint, and RCA dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

279769 Dryer Thermostat Kit - Compatible with Whirlpool, Kenmore, Maytag Product Description Keep your dryer running safely with the replacement 279769 Dryer Thermostat Kit. This kit is designed for select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers, featuring a high-limit thermostat (L250-80F) and a thermal cut-off fuse (352F) to prevent overheating. It addresses issues like no heat, not enough heat, overheating, or failure to start, offering a cost-effective alternative to OEM parts. Note: Includes one high-limit thermostat, one thermal cut-off fuse. Disconnect power before installation. Check dryer venting for blockages to prevent repeat failures. Replaces part numbers: 279769, 2004, 279548, 2796769, 279769VP, 2821, 3387812, 3389946, 3398671, 3977394, 695563, 80001, SET184, AH334278, EA334278, EAP334278, PD00002485, AP3094224, PS334278. Compatibility: Compatible with models including but not limited to: Whirlpool: NGD4655EW, WGD4815EW, WGD5000DW, MGDC215EW, MGDX655DW Kenmore: 110.60022010, 110.70102312, 110.78002012 Maytag: MEDC215EW1, MGDX655DW1 Roper: RED4640YQ0 Estate: EED4400WQ0 KitchenAid: YKEHS01PMT0 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers. 🔥 Specifications: High-limit thermostat (L250-80F), thermal cut-off fuse (352F). 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires screwdriver, pliers, work gloves; typically installed in 15–20 minutes. 🛡️ Effective Fixes: Resolves no heat, not enough heat, overheating, or failure to start. Product Specification Part Number: 279769 Component Type: Dryer thermostat kit Material: Metal and plastic Dimensions: High-limit thermostat: 2" L x 1-1/2" W; Thermal cut-off fuse: 2" L x 1-1/2" W (Based on web:6, web:16) Weight: 2.4 oz (Based on web:1, web:15) Electrical Specs: High-limit thermostat: L250-80F (121°C); Thermal cut-off fuse: 352F (178°C) Mounting: Screw-mounted on heater housing. Operating Conditions: Suitable for high-heat dryer environments Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the dryer from the power source before installation. Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your dryer running safely today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO LA1053 Dryer Thermostat Kit – Replaces LA-1053 – Compatible with Whirlpool, Maytag, Admiral, and Amana Dryers Product Description Restore proper dryer temperature control with the XPARTCO LA1053 Dryer Thermostat Kit. This Dryer Thermostat Kit is a replacement part for specific Maytag, Whirlpool dryer models. This kit includes a high-limit thermostat and a thermal fuse, both of which are crucial for regulating the dryer’s temperature. The high-limit thermostat prevents the dryer from overheating, while the thermal fuse will cut off power if a critical temperature is exceeded, ensuring safety. The kit includes a high-limit thermostat (53-0771) and two thermal fuses. 53-1096 (blue dot for Gas) 53-1182 (Red dot for Electric) Replaces Part Numbers LA-1053, 3344, 53-0143, 53-0170, 53-0261, 53-1133, 53-1526, AH2162282, EA2162282, ERLA1053, ET403, ET405, K35-601, LA-1053VP, LA1053, SET405, TJ90SET405, 531526, 531182, 531133, 530261, LA1053, 530143, WP53-1182, 53-1182, 53-0143, 53-1096 , L248-80F, PD00002446, EAP2162282, AP4242472, PS2162282, WP53-0771, 53-0771, 1422, 53-0306, 53-1037, 53-1459, ER53-0771, SET176, TJSET176, AP6009638, PS11742806, WP53-1096, 53-1096, 4434853, AP6009640, PS11742808.  Compatibility This replacement thermostat kit fits select Whirlpool, Maytag, Admiral, and Amana dryers. Example compatible models include (but are not limited to): Maytag DE303, Whirlpool LDE8824ACE, and Amana LEA30AW. Always verify your dryer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Compatibility – Compatible with Whirlpool, Maytag, Admiral, and Amana dryers 🔥 Complete Kit – Includes cycling thermostat, high-limit thermostat, and thermal fuse. Dryer thermal fuse and high limit thermostat kit for both gas and electric models. If the dryer does not heat then the thermal fuse may have blown and will need to be replaced.  💰 Cost-Effective Repair – Replaces multiple components in one package 🛠️ Easy to Install – Direct-fit parts require only basic tools 🛡️ Fixes Common Issues – Resolves dryers not heating, overheating, or shutting off early 📐 Product Specification Part Number: LA1053 Component Type: Dryer Thermostat and Thermal Fuse Kit Material: Heat-resistant metal with high-quality electrical connectors Mounting: Direct-fit replacement on heater housing and blower housing Operating Conditions: Designed for residential electric dryers Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Always unplug the dryer before performing any repairs to prevent electrical shock. Steps: Unplug the dryer and remove the rear access panel. Locate the thermostat and thermal fuse on the heater housing. Remove screws securing the old components and disconnect wires. Install the new thermostats and fuse from the XPARTCO LA1053 kit. Reconnect wiring, reinstall the back panel, and restore power. Run a test cycle to confirm proper heating and temperature control. ⏱️ Time Required: 20–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders 🛠️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Get your dryer running safely and efficiently again — Add to Cart Now for a reliable, budget-friendly repair kit!

Read more less

XPARTCO 279816 Dryer Thermostat Kit The XPARTCO 279816 is an aftermarket replacement thermal fuse and high-limit thermostat combo kit for Whirlpool-built dryers. These are the dryer's two thermal safety devices, and they're bundled together in this kit because they tend to fail around the same time and share a common cause: restricted airflow that lets heat build up beyond safe levels. The high-limit thermostat is the first line of defense, opening at approximately 250°F (L250-80F) to interrupt heating if the dryer runs too hot. If that isn't enough to bring the temperature back down, the thermal fuse is the final failsafe, opening permanently at approximately 309°F to cut power to the dryer entirely. That's an important distinction between the two parts: the high-limit thermostat is a cycling safety device that can open and close as temperature rises and falls, while the thermal fuse is a one-time device — once it blows, it's done, and the dryer won't run again until it's replaced. This kit includes both components plus mounting screws and a wiring set with a jumper wire and extra terminals, which is used specifically when replacing an older-style thermostat that had a wire pressing directly onto the heating element. A dryer that won't start at all, with no lights or response, usually means the thermal fuse has blown; a dryer that runs but won't heat, or that stops heating partway through a cycle, points more toward the thermostat. It directly replaces 2651, 279816VP, 3399848, 3977393, 3390291, AP3094244, AH334299, EA334299, EAP334299, PD00002348, and PS334299. Quick Answer The XPARTCO 279816 Dryer Thermostat Kit fixes Whirlpool-built dryers that won't start at all, won't heat, or stop heating partway through a cycle. Includes a thermal fuse (opens ~309°F), a high-limit thermostat (opens ~250°F), mounting screws, and a wiring set. Replaces 2651, 279816VP, 3399848, 3977393, 3390291, AP3094244, AH334299, EA334299, EAP334299, PD00002348, PS334299. Always inspect and clean the dryer venting when replacing this kit — a blown fuse or tripped thermostat is a symptom of restricted airflow, and skipping this step means the new parts are likely to fail again. Common Problems This Part Fixes Dryer won't start at all — no lights, no tumble, no response to any button Dryer runs and tumbles but produces no heat Dryer heats for a while, then stops heating partway through a cycle Dryer that stopped working suddenly, especially after running unusually hot Clothes coming out extremely hot right before the dryer stopped heating or stopped entirely Repeated blown fuses or tripped thermostats on a dryer with a known venting restriction Continuity test shows an open circuit across the old fuse or thermostat Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermostat kit directly replaces the following OEM and cross-reference part numbers: 279816, 279816VP, 3399848, 3977393, PD00002348, AWP39198, EAP334299, AH334299, EA334299, AP3094244, PS334299. 3977393 is the thermal fuse component and 3390291 is the "new-style" high-limit thermostat component included in this kit. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat kit is compatible with select Whirlpool-built dryers across the Whirlpool family of brands, including: Whirlpool electric and gas dryers — WED series Maytag electric and gas dryers — NED series (select Whirlpool-built models) Admiral, Amana, Crosley, Estate, Inglis, Magic Chef, and Roper dryers (select models) Kenmore and KitchenAid dryers (select Whirlpool-built models) Verified model numbers include: WED6200SW1, NED4600YQ0, NED4600YQ1, NED4655EW1, and LER3624EQ. Note: The wiring set included in this kit is designed for replacing an older-style thermostat that used a wire pressed directly onto the heating element. If your dryer uses the true old-style push-on thermostat and fuse combination (part 3977767), you'll need a different kit (commonly listed as APN197) instead of this one. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which kit fits your dryer. Key Features Complete combo kit — thermal fuse, high-limit thermostat, mounting screws, and wiring set in one package Thermal fuse opens at approximately 309°F as a one-time, non-resettable safety cutoff High-limit thermostat opens at approximately 250°F (L250-80F) as a cycling safety device Resolves "won't start at all," "runs but doesn't heat," and "stops heating mid-cycle" symptoms Wiring set includes jumper wire and extra terminals for older-style push-on thermostat connections Replaces 2651, 279816VP, 3399848, 3977393, 3390291, AP3094244, AH334299, EA334299, EAP334299, PD00002348, and PS334299 Compatible with Whirlpool, Maytag, Admiral, Amana, Crosley, Estate, Inglis, Magic Chef, Roper, Kenmore, and KitchenAid dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number 279816 OEM Part Number 279816 Part Type Dryer Thermal Fuse & High-Limit Thermostat Kit Condition Aftermarket Replacement Kit Contents Thermal fuse, high-limit thermostat, mounting screws, wiring set Thermal Fuse Opening Temp Approx. 309°F (one-time, non-resettable) High-Limit Thermostat Opening Temp Approx. 250°F / L250-80F (cycling) Wiring Set Jumper wire + extra terminals for older-style push-on thermostats Quantity 1 kit Compatible Brands Whirlpool, Maytag, Admiral, Amana, Crosley, Estate, Inglis, Magic Chef, Roper, Kenmore, KitchenAid Installation Notes ⚠️ Unplug Dryer Before Starting — Inspect And Clean The Venting Before Reassembling Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel: remove the screws securing the panel to reach the blower housing area where both the thermal fuse and high-limit thermostat are mounted, usually close together near the heating element or blower assembly. Photograph the wiring before disconnecting anything, and note whether your old thermostat used a push-on wire connection at the heating element — if so, use the included jumper wire and extra terminals to make the new connection correctly. Remove the mounting screws holding each old component in place and disconnect their wire terminals. Before installing the new parts, test the old fuse and thermostat with a multimeter to confirm which one (or both) is actually open, rather than assuming. This is the most important step: fully inspect and clean the dryer's exhaust vent, from the lint trap housing all the way to the exterior vent hood, checking for lint buildup, crushed sections, or excessive length. A blown fuse or tripped thermostat is a symptom of restricted airflow, and skipping this step means the new parts are likely to fail again. Install the new thermal fuse and thermostat from this kit in the same mounting positions, reconnect the wire terminals (using the included wiring set if applicable), and secure the mounting screws. Reinstall the rear panel, restore power, and run a test cycle to confirm normal heating and shutoff behavior. Tools needed: Phillips or nut driver (model-dependent), multimeter, vent brush or vacuum attachment for cleaning ductwork, work gloves. Frequently Asked Questions Why does this kit include two different parts instead of just one? The thermal fuse and high-limit thermostat work together as a two-stage safety system, and they're bundled because they commonly fail together — both are reacting to the same underlying overheating condition, usually restricted airflow. The high-limit thermostat trips first at a lower temperature and can cycle open and closed; if that's not enough to control the heat, the thermal fuse trips at a higher temperature and shuts the dryer down permanently until replaced. Replacing both together addresses the full safety chain rather than just one link in it. My dryer won't start at all versus my dryer runs but doesn't heat — which part is which? A dryer with absolutely no response — no lights, no tumbling, nothing — usually points to the thermal fuse, since it's wired to cut power more broadly when it blows. A dryer that tumbles and runs normally but produces no heat, or that starts heating and then stops partway through, points more toward the high-limit thermostat. Testing both components with a multimeter will confirm exactly which one has failed. I replaced both parts and the dryer failed again. What's going on? This is a strong sign that the underlying cause — almost always restricted airflow — was never addressed. Neither of these parts fails from age; they trip or blow because the dryer overheated. If new parts fail again, thoroughly inspect and clean the entire exhaust path from the lint trap housing to the outside vent hood, checking for lint buildup, crushed or kinked ductwork, or a vent run that's too long. If airflow checks out and the parts still fail, have the heating element checked as well, since a shorted element can also drive excess heat. Do I need the wiring set included in this kit? Only if your dryer's original thermostat used a wire that pressed directly onto the heating element (an older-style connection) rather than a standard push-on terminal. If your dryer already uses a straightforward terminal connection, you can skip the jumper wire and extra terminals and connect the new thermostat directly. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the opening temperatures, terminal configuration, and mounting positions of the original 279816 thermal fuse and high-limit thermostat kit used in compatible Whirlpool, Maytag, and related dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
