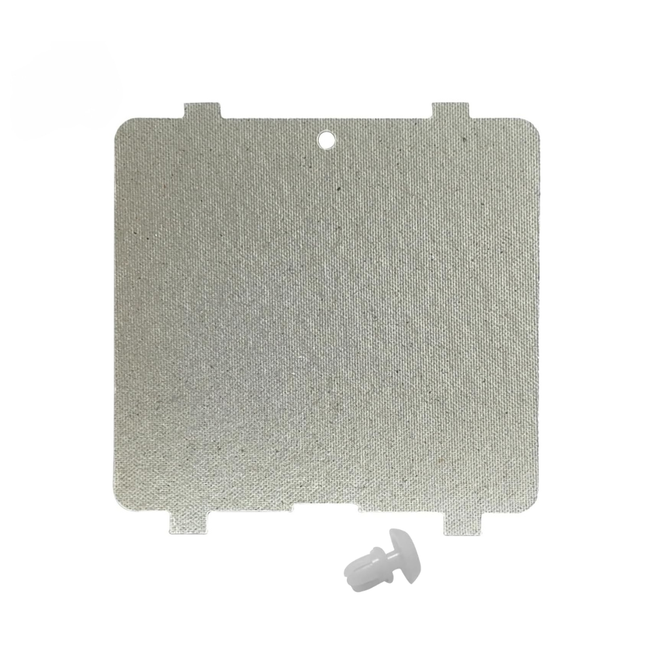

WG447 Microwave Mica Sheet, Waveguide Cover – Compatible with Whirlpool, GE, Samsung, LG, Panasonic, and More
Product Description
Protect your microwave’s internal components with the WG447 Microwave Mica Sheet / Waveguide Cover. Microwave mica chips can effectively prevent water or oil and other substances from splashing on the magnetron or other components during the heating process of food. Protect the microwave oven from burning.
Size can be cut: The waveguide cover size is 10 cm*10.8 cm (3.93 in x 4.65 in), you could cut it into any size to fit your microwave oven. Easy to cut.
Widely used: As a kind of heat resisting and insulating product. Mica Plates is widely used in household appliances such as hair dryers, toasters, microwave ovens, warmers, etc.
Replaces Part Numbers
universal microwave mica sheet equivalents.
Size can be cut: The waveguide cover size is 10 cm*10.8 cm (3.93 in x 4.65 in), you could cut it into any size to fit your microwave oven. Easy to cut.
Compatibility
This replacement waveguide cover fits a wide range of Whirlpool, GE, Samsung, LG, Panasonic, Emerson, Sharp, Kenmore, and other microwaves that use a cut-to-fit mica sheet.
Common compatible models include (but are not limited to):Whirlpool WMH31017HS, GE JVM3160RFSS, Samsung ME18H704SFS, LG LMV1762ST, Panasonic NN-SN766S.
Always compare dimensions before ordering. Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Universal cut-to-fit design matches OEM insulation and heat resistance
⚡ Restores Safe Operation – Prevents arcing, sparking, and microwave energy leakage
🔥 Heat & Moisture Resistant – Made from high-grade mica composite
✂️ Easy to Trim – Can be cut to match original waveguide cover size
🛡️ Fixes Common Issues – Solves sparking, burning smell, and uneven heating caused by damaged covers
📐 Product Specification
Part Number: WG447
Component Type: Microwave Mica Sheet / Waveguide Cover
Material: Heat-resistant mica composite
Dimensions: Approx. 6" × 6" (can be trimmed to size)
Thickness: Standard 0.3–0.4 mm mica sheet
Mounting: Press-fit or screw-secured depending on model
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Scissors or utility knife (for trimming), screwdriver (if applicable)
⚠️ Safety First: Always unplug the microwave before servicing. Do not operate the microwave without a waveguide cover.
Steps:
Disconnect power and remove the old burned or damaged mica cover.
Use the old cover as a template to trim the new WG447 mica sheet.
Align the new cover over the waveguide opening.
Press into clips or secure with screws depending on your model.
Restore power and test heating performance.
⏱️ Time Required: 5–10 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Stop microwave sparking and restore safe heating — Add to Cart Now for a quick, reliable fix!
(5 Pack) EXPHV11 Microwave High Voltage Diode (Rectifier)
Replaces:GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL, Frigidaire T3512, 3512, T4512, H, CL01-12, HVM12, 512 H, 12Kv, 350mA.
Replaces Part Numbers: 11QBP0236, AP5633254, PS4085133, AP3192533, PS239740 EA239740, WB27X10597, 13091701, AP6005641 PS11738693, WP13091701, 417726, 00188507 AP3382376 PS8712310, 00417726, PS11745270, AP6012063, 8205489, AP4357534, PS2339491, EA2339491, 5304467670, AP4564925, 3518400400, PS11745270, AP6012063, WP8205489, PS3654932, AP5631218, W10245187, W10492278.
Description: This Diode Assembly is a replacement part for specific microwave models. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy. Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.
Microwave High Voltage Diode – Universal Replacement
Restore your microwave’s heating function with this high-quality high voltage diode. Built to handle up to 12,000V / 500mA, it’s a reliable replacement for worn or damaged diodes in many major brands.
Features:
Direct replacement for most microwave models
Durable and rated for high-voltage performance
Fixes common issues like no heat or humming
Fits brands: GE, Whirlpool, LG, Samsung, Panasonic, Frigidaire, and more.
⚠️ Installation should be done with power disconnected. Not sure if it fits? Contact us to confirm compatibility.
EXPHV14 Microwave H. V. Diode
Replaces Part Numbers: 00625682, 10001605, 3278398, AP5804800, PS8770335, W11256462, W10492276, W10492278, W10886077, WPW10492276, WPW10575765, 4393600, 461964697812, 4845678, 8184664, 8205361, W10163432, W10245187, W10575765, W11222648, AP6784287, PS12584264.
Description: This Diode Assembly is a replacement part for specific microwave models. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy. Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.
XPMTC-180 Microwave Thermal Cut-Off Fuse 180℃ (356°F) – Normally Closed – Universal Microwave Safety Cutoff
Product Description
Protect your microwave from extreme overheating with the XPMTC-180 Microwave Thermal Cut-Off Fuse 180℃ (356°F), Normally Closed. This high-temperature safety device is designed to remain closed (conductive) during normal operation and open permanently when internal temperatures exceed 180℃, immediately cutting power to prevent serious damage or fire risk. A tripped thermal cut-off can cause the microwave to lose power or stop heating. Replacing it with the correctly rated NC fuse restores safe and reliable operation.
Replaces Part Numbers
XPMTC-180, MTC-180, Microwave Thermal Fuse 180C NC, 356F Normally Closed Thermal Cutoff, WB24X29270, 4586233, PD00045446, EAP12170419, KSD1 BR1 180, AP6262395, PS12170419, 6930W1A003X, 1365203, AH3530468, EA3530468, PD00001857, AP4443816, PS3530468.
Compatibility
This normally closed microwave thermal cut-off fuse is compatible with many GE, Whirlpool, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwave ovens that require a 180℃ (356°F) NC thermal cutoff.
Commonly used near the magnetron, high-heat zones, or cavity protection points.
Always verify temperature rating and contact type before ordering.Contact our support team if you’re unsure.
🔍 What’s the Difference Between NC and NO Thermal Cut-Offs?
Normally Closed (NC): Circuit is closed during normal operation and opens permanently when the rated temperature is reached.👉 Most microwave thermal cut-offs are NC.
Normally Open (NO): Circuit is open during normal operation and closes only when overheated (used in limited designs).
⚠️ Installing the wrong type (NC vs NO) may cause the microwave not to run or fail to protect against overheating.
✅ Key Features
🔄 Aftermarket Replacement – Built to OEM-equivalent safety specifications
🌡️ 180℃ (356°F) Rating – Designed for high-temperature protection zones
🔁 Normally Closed (NC) – Conducts power during normal operation
🛡️ Critical Safety Component – Prevents overheating and fire hazards
💰 Cost-Effective Repair – Affordable alternative to OEM thermal cut-offs
📐 Product Specification
Part Number: XPMTC-180
Component Type: Microwave Thermal Cut-Off Fuse
Temperature Rating: 180℃ (356°F)
Contact Type: Normally Closed (NC)
Function: One-time safety cutoff
Material: Heat-resistant metal body
Application: Magnetron or high-heat cavity temperature protection
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, insulated pliers
⚠️ Safety First:Unplug the microwave before servicing. Microwaves contain high-voltage components—allow capacitors to discharge before handling internal parts.
Basic Steps:
Disconnect microwave power.
Remove the outer cabinet or access panel.
Locate the thermal cut-off near the magnetron or high-heat area.
Disconnect wiring and remove the failed fuse.
Install the new XPMTC-180 (NC) thermal cut-off in the same position.
Reassemble the microwave and restore power.
Test operation.
⏱️ Time Required: 15–25 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Aftermarket Appliance Parts
🔄 30-Day Return Policy
Restore microwave safety under extreme heat conditions — Add to Cart Now for a dependable, budget-friendly repair!
6 Pack - XPG499 Microwave Door Switch (Normally Closed)
The XPG499 is a universal replacement normally closed (NC) door interlock switch for microwave ovens and microwave/oven combination units. This is a critical safety component: microwave door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing any possibility of microwave radiation escaping the cavity while the door isn't fully closed and latched. This switch's normally closed contact design matches a wide range of microwave door latch mechanisms across GE, Whirlpool, Samsung, LG, Kenmore, and other brands.
Rated 16A, 125/250VAC. Over time, this switch's contacts can wear, pit, or fuse together from repeated cycling and the electrical load carried every time the door opens and closes. A failing interlock switch typically shows up as a microwave that won't start at all, a display that works but the unit won't heat, or intermittent operation tied to the door latch area. This is the normally closed counterpart to our EXP497 (normally open) and EXP480 (combined NC/NO) listings — always confirm which specific contact configuration your microwave's failed switch uses before ordering.
Quick Answer
The XPG499 Microwave Door Switch (Normally Closed) fixes microwave ovens and microwave/oven combos that won't start, won't heat, or operate intermittently near the door latch area. 16A, 125/250VAC, normally closed (NC) contact design. Never operate a microwave with a bypassed, disconnected, or suspected-faulty door interlock switch — these switches exist to prevent radiation exposure and must always be replaced with a properly rated part, never removed or defeated.
Common Problems This Part Fixes
Microwave won't start at all, even though the display and buttons respond normally
Microwave display and timer work, but the unit won't heat
Microwave stops working intermittently, especially around the door latch
Clicking or buzzing sound from the door area without the microwave starting
Breaker tripping when the door is opened, indicating a switch contact that has fused shut
Door that doesn't feel like it's latching securely
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave door switch directly replaces the following OEM and cross-reference part numbers:
WB24X830, AH237422, EA237422, WB24X0800, WB24X0830, WB24X10075, WB24X800, AP2024338, PS237422, WB24X25397, WB24X817, WB24X10112, WB24X0817, AP6037282, PS11766871, 00606695, 1386420, 606695, AH3477007, EA3477007, AP4067354, PS3477007, PS8726632, 5304408937, 5304509459, 5304464098, 4583655, AP6230614, PS12071302, ANE61784L0AG, AP7040623, WB24X10205, WB24X10147, 251201600930, 3025959, AP5790849, PS8754455, W10269458, W10211973, 1550016, 4393598, 8206347, AH2361111, EA2361111, AP4429884, PS2361111, 6600W1K001C, AP4650823, PS3529293, WB24X824, 253814, WB24X0824, AH237416, EA237416, AP2024332, PS237416, 5304456101, 1198245, 75304456101, AH1532505, EA1532505, AP3960662, PS1532505, 6600W1K001R, 1583495, AH3598700, EA3598700, AP5254801, PS3598700, 3405-001033, DE34-20019A, WP3405-001033, 2028596, 3405-000176, AP4044665, PS4131191, WB24X804 253795, WB24X0422, WB24X0804, WB24X422, AH237397, EA237397, AP2024313, PS237397, WB24X10189, 1810588, AH3486597, EA3486597, AP4980349, PS3486597, 3B73361E, 1325767, 3B73361D, 6600W1K003C, 6600W1K004B, AH3522736, EA3522736, AP4629337, PS3522736, 4415A66600, 1206671, 4415A66610, GSM-V1602A2, AP5322919
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door switch is a universal replacement compatible with convection microwave ovens, grill microwave ovens, microwave/oven combination units, and solo microwave ovens across many brands including GE, Whirlpool, Samsung, LG, and Kenmore, wherever the original switch matches this normally closed (NC) contact configuration and electrical rating.
Note: Microwave door interlock systems typically use two or three separate switches working together (primary interlock, monitor/secondary switch, and sometimes a third safety switch), and not all of them share this same normally closed (NC) configuration. This is a different part from our EXP497 (normally open) and EXP480 (combined NC/NO) listings. Confirm which specific switch position has failed on your microwave, and match the contact configuration and electrical rating exactly — never substitute a switch with a different configuration. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which switch your microwave needs.
Key Features
Universal replacement microwave door interlock switch — normally closed (NC) contact design
Resolves "won't start," "won't heat," and "intermittent operation near the door latch" symptoms caused by switch failure
Rated 16A, 125/250VAC
Suitable for convection, grill, combination, and solo microwave ovens
Direct drop-in replacement matching the original mounting and terminal configuration
Replaces a wide range of OEM part numbers across GE, Whirlpool, Samsung, LG, and Kenmore platforms — see full list above
Built to OEM-equivalent quality standards
Product Specifications
Part Number
XPG499
Part Type
Microwave Door Interlock Switch (Normally Closed)
Condition
New — Universal Replacement Part
Contact Configuration
Normally Closed (NC)
Max. Current
16A
Max. Voltage
125/250VAC
Terminal Size
4.7mm
Application
Convection, Grill, Combination, and Solo Microwave Ovens
Related Parts
EXP497 (normally open)
Quantity
1 door interlock switch
Installation Notes
⚠️ Danger — Never Bypass A Door Interlock Switch Unplug the microwave before beginning any work, and if it's a built-in or over-the-range unit, shut off power at the breaker as well. Microwave ovens also contain a high-voltage capacitor that can retain a dangerous electrical charge even after the unit is unplugged — avoid touching internal components near the capacitor and magnetron. Door interlock switches are a critical safety system: they exist specifically to cut power the instant the door opens, preventing microwave radiation from escaping the cavity. Never operate a microwave with an interlock switch disconnected, bypassed, or jumpered, even temporarily — doing so can expose you and others to microwave radiation. If you are not fully comfortable working inside a microwave's internal compartment, have a qualified appliance technician perform this repair instead.
⚠️ Photograph Wiring Before Disconnecting — Match The Failed Switch Exactly Wear work gloves. Remove the outer cabinet or access panel per your model's service instructions to reach the door switch assembly, typically located near the door latch mechanism. Photograph the wiring on the old switch before disconnecting anything, and confirm you're replacing the correct switch position if your microwave uses multiple interlock switches. Disconnect the wire terminals from the old switch, remove its mounting screws, and pull it free. Install the new XPG499 in the same position, reconnect each wire terminal to its original position, and secure the mounting screws. Reinstall the cabinet or access panel. Restore power and test that the microwave starts normally with the door closed, and — this is the critical safety check — confirm the unit stops heating immediately when the door is opened during a test run with a cup of water. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My microwave stopped working. How do I know if it's actually a door switch and not something else?
A common pattern is a microwave where the display and buttons respond normally, but pressing start does nothing, or the unit hums without heating — this points toward the door interlock circuit rather than the control board. Since these switches also serve a critical safety function, if you suspect a fault in this area, it's best to have it properly diagnosed and replaced rather than working around the symptom.
Is it safe to just disconnect a faulty interlock switch so the microwave will run?
No — this is not safe under any circumstances. Door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing microwave radiation from escaping. Bypassing, disconnecting, or jumpering one of these switches removes that protection and can expose you and anyone nearby to microwave radiation, even if the microwave otherwise appears to run normally. Always replace a faulty switch with a correctly rated new one rather than working around it.
How is this different from your EXP497 and EXP480 listings?
These are different contact configurations for different switch positions in a microwave's door interlock system. This XPG499 is normally closed (NC) only. Our EXP497 listing is normally open (NO) only, and our EXP480 listing combines both NC and NO contacts in a single switch body. Since most microwaves use two or three interlock switches with different configurations, check which contact type your specific failed switch uses before ordering.
My microwave trips the breaker whenever I open the door. What does that mean?
This can indicate that one of the door switches has fused or welded its contacts shut from repeated electrical stress, so it continues carrying current when it shouldn't. This is a genuine safety concern and the affected switch should be replaced promptly rather than continuing to use the microwave.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO EXP497 Microwave Door Switch (Normally Open)
The XPARTCO EXP497 is an aftermarket replacement Normally Open (NO) microwave door interlock switch compatible with a wide range of GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, and Sharp microwaves. The door interlock switch is one of several safety switches in the microwave door system. It allows the microwave to operate only when the door is fully closed — when the door closes, the switch is mechanically activated, completing the circuit and signaling the control board that it's safe for the magnetron to fire. When the door is open, the switch is released and the circuit is broken, preventing the microwave from generating microwave radiation.
This switch is rated for 16A at 125/250V AC, giving it the heavy-load capacity required for microwave door safety circuits. It directly replaces an extensive list of cross-reference part numbers from multiple manufacturers, including 3B73362F, SZM-V16-FA-63, WB24X816, WB24X829, WB24X10180, 6600W1K003C, WP56001036, 5304408938, AP4437957, PS3522738, and dozens more. Important: confirm your original switch is a Normally Open (NO) type before ordering — this part will not replace Normally Closed (NC) or COM-style switches. Installs in 15–25 minutes with basic hand tools.
Quick Answer
The XPARTCO EXP497 Microwave Door Switch (Normally Open) fixes microwaves that won't start, won't heat, stop mid-cycle, or won't shut off when the door opens. Universal-fit Normally Open (NO) interlock switch, 16A at 125/250V AC. Replaces 3B73362F, SZM-V16-FA-63, WB24X816, WB24X829, WB24X10180, 6600W1K003C, WP56001036, 5304408938, AP4437957, PS3522738 (and many more). Compatible with GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, and Sharp microwaves. Important: confirm your original switch is "Normally Open" before ordering.
Common Problems This Part Fixes
Microwave won't start when the door is closed and the start button is pressed
Microwave runs but produces no heat — turntable spins, light works, but food doesn't warm
Microwave starts and then immediately stops mid-cycle
Microwave continues running with the door open (unsafe failure mode — replace immediately)
Intermittent start failure — works sometimes, doesn't work other times
Door switch button visibly stuck, broken, or fails to click when pressed
Multimeter continuity test on the switch shows it doesn't change state when actuated
Replaces Part Numbers
This Normally Open microwave door switch directly replaces an extensive list of OEM and cross-reference part numbers:
3B73362F, 3B73362E, 6600W1K003D, 6600W1K004C, 6600W1K004F, AH3522738, EA3522738, AP4437957, PS3522738, WB24X816, WB24X0816, AP2024324, QSWMA085WRE0, QSWMA168WRZZ, WB24X10180, AH2370055, EA2370055, AP4484237, PS2370055, 00606693, 00415824, 1386418, 35-00-780, 415824, 606693, AH3477005, EA3477005, PS3477005, AP4070531, PS8726630, 00633795, 00415825, 35-00-781, 415825, 4162223, AP5952985, PS10060855, WB23X10019, 1810578, AH3486591, EA3486591, AP4980343, PS3486591, WB24X10204, WB24X10148, WB24X28940, 251201600929, 3025958, AP5790848, PS8754454, 5304408938, 5304430284, 639405, AH471434, EA471434, AP2151217, PS471434, WB24X10047, WB24X10029, WB24X0815, WB24X10072, WB24X10113, WB24X815, AH237015, EA237015, AP2622452, PS237015, 5304408938, 5304430284, 639405, AH471434, EA471434, AP2151217, PS471434, 5304423463, 892734, AH472733, EA472733, AP2151744, PS472733, 5304493153, 5304440026, 3018427, 5303319558, 5304467694, 75304440026, 75304467694, AP5804011, PS8769124, WB24X10139 1086028, AH953555, EA953555, PS953555, AP3792702, WB24X10140 AH953556, EA953556, AP3792654, PS953556, WB24X829, WB24X10038, WB24X368, WB24X384, WB24X414, WB24X426, WB24X439, WB24X441, WB24X445, WB24X796, WB24X5228, WB24X796, AP2024337, AH237421, EA237421, PS237421, WP56001036, 56001036, 0053464, R0654097, AP6009674, PS11742843, 3405-001034, 3405-000178, 111698, 2028597, AP4044834, PS4131192, WB24X823, WB24X0820, WB24X0823, WB24X820, AH237415, EA237415, AP2024331, PS237415, 5304509460, 5304520020, 5304464099, 4583656, AP6230615, PS12071303, WB24X28941, AH1019163, EA1019163, MW-7100-33, AP3866977, PS1019163, 5304493153, 5304440026, 3018427, 5303319558, 5304467694, 75304440026, 75304467694, AP5804011, PS8769124, D3V-16G-3C25, SZM-V16-FA63.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This Normally Open door switch is compatible with select microwaves from a wide range of brands:
GE microwaves (countertop, over-the-range, and built-in models)
Whirlpool microwaves
Samsung microwaves
LG microwaves — MV, LMV, LMH, MQ, MS, LMA, LMVM series (MV1560M, MV1310W, MV1560T, LMV1625B, LMA2112WT, MS1443ASV, LMH1017CVST and many more)
Frigidaire microwaves
Kenmore / Sears microwaves (multi-brand built models)
Panasonic microwaves
Sharp microwaves
Bosch microwaves (select models — cross-references 00606693, 00633795)
Important — Confirm Switch Type Before Ordering: This is a Normally Open (NO) switch. Microwaves typically use 2–3 door switches: one Normally Open and one or two Normally Closed/COM. They are not interchangeable. Inspect your original switch's markings or test it with a multimeter before ordering — if your failed switch is Normally Closed, you need the EXP499 instead. If you're unsure, contact our support team with your microwave model number.
Key Features
Normally Open (NO) microwave door interlock switch — closes the circuit when the door is closed, allowing the microwave to operate
Rated 16A at 125/250V AC — heavy-duty capacity for microwave door safety circuits
Universal fit — replaces door switches from GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, Sharp, and Bosch
Replaces 50+ OEM and aftermarket cross-reference part numbers across multiple appliance brands
Common alternate part numbers include 3B73362F, SZM-V16-FA-63, D3V-16G-3C25, AP4437957, and PS3522738
Important: verify your switch is Normally Open before ordering — NOT a replacement for Normally Closed (use EXP499) or COM-style switches
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
Part Number
EXP497
Part Type
Microwave Door Interlock Switch (Normally Open)
Condition
Aftermarket Replacement
Application
Microwaves (cross-brand)
Switch Type
Normally Open (NO)
Max Current
16A
Voltage Rating
125/250V AC
Common OEM Equivalents
3B73362F, SZM-V16-FA-63, D3V-16G-3C25
Compatible Brands
GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, Sharp, Bosch
Installation Notes
⚠️ High-Voltage Safety Warning — Microwave Capacitor Microwaves contain a high-voltage capacitor that can hold a lethal electrical charge even after the appliance is unplugged. Before opening the microwave cabinet to access the door switches, always unplug the unit and discharge the high-voltage capacitor using proper safety procedure (with an insulated screwdriver across the capacitor terminals while wearing insulated gloves). If you are not familiar with safely discharging a microwave capacitor, have this repair done by a qualified technician.
⚠️ Wear Work Gloves — Identify Switch Position Before Removing Disconnect power before beginning. Wear work gloves to protect your hands. After safely discharging the high-voltage capacitor, remove the microwave's outer cabinet or control panel as needed to access the door interlock switch assembly — typically located behind the right side of the door frame on most microwaves. Take a photo of all switch positions and wire connections before disconnecting anything. Microwaves usually have 2–3 switches in the door interlock assembly: confirm which one is the Normally Open switch (the EXP497 fits this position only). Disconnect the wires from the old switch — make a note of which wire goes where. Release the switch from its mounting tabs and pull it free. Install the new EXP497 in the same position with the same wire connections. Reassemble the cabinet, restore power, and test the microwave by closing the door and confirming it starts and heats normally, then opening the door and confirming it shuts off immediately. Tools needed: Phillips screwdriver, work gloves, insulated tools (for capacitor discharge).
Frequently Asked Questions
What's the difference between a Normally Open and Normally Closed microwave door switch?
Microwave door interlock systems use both types together to provide redundant safety. A Normally Open (NO) switch — like the EXP497 — has open contacts at rest; when the door closes and pushes the switch button, the contacts close to complete a circuit, signaling "door closed." A Normally Closed (NC) switch is the opposite — contacts are closed at rest and open when the door pushes the button. Most microwaves use one or more of each type wired together so the control system can confirm the door is genuinely closed from multiple inputs. They are not interchangeable — you must replace each switch with the same type. If your switch is NC, order the EXP499 instead.
How do I know if I need the Normally Open or Normally Closed switch?
The easiest way is to read the part number printed on the side of the failed switch and compare it to the cross-reference lists for the EXP497 (Normally Open) versus the EXP499 (Normally Closed). If the markings are unreadable, you can also test the switch with a multimeter set to continuity mode: with the switch at rest (button released), a Normally Open switch reads open (no continuity) and a Normally Closed switch reads closed (continuity). Replacing each switch with the same type is essential — installing the wrong type can prevent the microwave from starting or create unsafe conditions.
My microwave runs but doesn't heat — could this be the door switch?
Yes — this is one of the most recognizable symptoms of a failed door switch in a multi-switch interlock system. A microwave that turns on (light, fan, turntable) but does not heat often has a failed door switch in one of the door positions while the others continue to work. The control system may allow the auxiliary components to run but blocks the magnetron from firing without confirmation from all switches. Check all door switches systematically — one Amazon review noted a customer needed three identical switches to fully repair their microwave because the third switch (at the top of the door) was the actual cause of the no-heat condition. Replacing all door switches together is a common approach.
My microwave keeps running with the door open — what should I do?
This is a serious safety concern. Disconnect power to the microwave immediately and do not use it until the door switch is replaced. A microwave that continues to run with the door open exposes you to microwave radiation, which can cause serious injury. This usually indicates one or more door switches are stuck in the "door closed" position. Replace the failed switches with matching NO or NC type (EXP497 for NO, EXP499 for NC) before using the microwave again.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a manufacturer-branded OEM switch from any single brand, but is manufactured to match the dimensions, contact configuration, and 16A/125-250V AC rating of the dozens of OEM door switches it cross-references across multiple appliance brands.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
EXPHV13 Microwave High Voltage Diode (Rectifier)
Replaces Part Numbers: W11256462, W10492278, W10886077, WPW10492276, WPW10575765, AP6784287, PS12584264, WPW10687786, W10687786, 4449228, AP6023790, PS11757136, 5304470521, AP4396425, PS2353199, WB27X10597, AH239740, EA239740, AP3192533, PS239740.
CL04-12A=500mA CL04-12 12kV
Description: This Diode Assembly is a replacement part for specific microwave models. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy. Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.
EXPHV13 Microwave High Voltage Diode – OEM-Quality Replacement
Replace your faulty diode with the EXPHV13, a high-quality, aftermarket microwave high voltage diode rated for 12,000V / 500mA. It restores proper heating function and is compatible with many leading microwave brands.
Key Features:
✅ Rated for 12kV, 500mA
✅ Direct replacement for most standard microwaves
✅ Solves issues like no heat, humming, or tripped breakers
✅ Easy-to-install universal fit for GE, LG, Whirlpool, Panasonic, etc.
⚠️ Always disconnect power before installation. For compatibility questions, contact us—we’re happy to help!
📦 Part Number: EXPHV13💯 30-Day Money Back Guarantee
XPARTCO MCK69074904 Microwave Waveguide Cover / Insulator
The XPARTCO MCK69074904 is an aftermarket replacement waveguide cover, also known as an insulator cover or mica plate, for LG microwaves and select Bosch models. This cover protects the opening where microwave energy enters the cooking cavity from the magnetron. By covering that opening, it ensures microwaves are distributed evenly throughout the cavity while also preventing food particles, grease, and moisture from reaching and damaging the internal waveguide components.
Made of mica, a material that's essentially invisible to microwave energy, this cover measures approximately 4.88" x 4.94" (126mm x 124mm including tabs) and includes a locking button/pin tab for secure mounting. Over time, splattering food and moisture exposure can cause the mica to degrade, warp, or become contaminated, and old, damp, or contaminated mica can react to microwave energy by arcing. If this cover becomes damaged, you'll typically notice sparks or arcing inside the microwave during use, along with possible uneven heating as microwave distribution is no longer properly controlled. It directly replaces MCK69074904, MCK69074902, 4957254, AP6888006, EAP12725272, ALG55468, PD00056750, PS12725272.
Quick Answer
The XPARTCO MCK69074904 Microwave Waveguide Cover / Insulator fixes LG (and select Bosch) microwaves showing sparks or arcing inside the cavity during use, or heating unevenly. Mica plate, approx. 4.88" x 4.94", locking button/pin tab. Replaces MCK69074904, MCK69074902, 4957254, AP6888006, EAP12725272, ALG55468, PD00056750, PS12725272. Accessing this cover means opening the microwave's outer cabinet, which also exposes the high-voltage capacitor — treat that area with the same caution as any internal microwave repair.
Common Problems This Part Fixes
Sparks or arcing visible inside the microwave cavity during use
Uneven heating as microwave energy distribution is disrupted
Visibly damaged, warped, or contaminated mica cover
Burning smell during operation caused by arcing at the waveguide opening
Food particles or moisture damage near the magnetron opening
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave waveguide cover directly replaces the following OEM and cross-reference part numbers:
MCK69074904, MCK69074902, 4957254, AP6888006, EAP12725272, ALG55468, PD00056750, PS12725272.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This waveguide cover is compatible with select LG microwaves, including model numbers such as LMC0975AST, LMC0975ASZ, LMC0975SB, LMC0975ST, LMC1275SB, LMC1375SB, LMC1375SW, LMC1575BD, LMC1575SB, LMC1575ST, LMC1575SW, MH1536GIR, MH1596CIR, MS0936GIS, MS1536GIR, MS1596CIR, and MSWN1590L. It has also been used as a compatible replacement on select Bosch microwave models built on related platforms.
Note: Always verify your full model number before ordering, since LG uses several different waveguide cover sizes and mounting styles across its microwave lineup. Contact our support team with your model number if you're unsure.
Key Features
Aftermarket replacement waveguide cover — protects the magnetron opening and ensures even microwave distribution
Resolves "sparking or arcing inside the cavity" and "uneven heating" symptoms caused by a damaged cover
Mica construction — resistant to high temperature and corrosion, essentially invisible to microwave energy
Approximately 4.88" x 4.94" (126mm x 124mm including tabs)
Locking button/pin tab for secure mounting
Direct drop-in replacement matching the original mounting and dimensions
Replaces MCK69074904, MCK69074902, 4957254, AP6888006, EAP12725272, ALG55468, PD00056750, PS12725272
Compatible with LG and select Bosch microwaves
Aftermarket replacement built to OEM-equivalent quality standards
Simple 15 to 30 minute repair
Product Specifications
Part Number
XPMCK69074904
OEM Part Number
MCK69074904
Part Type
Microwave Waveguide Cover / Insulator (Mica Plate)
Condition
Aftermarket Replacement
Material
Mica
Dimensions
Approx. 4.88" x 4.94" (126mm x 124mm incl. tabs)
Mounting
Locking button/pin tab
Function
Protects the waveguide opening and ensures even microwave distribution
Repair Difficulty
Easy — 15 to 30 minutes
Quantity
1 waveguide cover
Compatible Brands
LG, select Bosch
Installation Notes
⚠️ Unplug Microwave Before Starting — Be Aware Of The High-Voltage Capacitor Inside Unplug the microwave from the wall outlet and move it away from the wall to give yourself room to work. Wear work gloves. Carefully remove the microwave's exterior cover, taking care not to tear or damage the clips that secure it in place, and set it aside. Microwave ovens contain a high-voltage capacitor that can retain a dangerous electrical charge even after the unit is unplugged — avoid touching internal components near the capacitor and magnetron while working inside the cabinet. Locate the old waveguide cover inside the cavity, typically secured by a locking tab or small screws depending on your model. Remove the old cover, taking care not to damage the surrounding cavity surface. Install the new MCK69074904 in the same position, making sure it seats flush and the locking tab engages securely. Reinstall the exterior cover, restore power, and run a quick test with a cup of water to confirm normal heating with no sparking or arcing. Tools needed: Phillips screwdriver (model-dependent), work gloves.
Frequently Asked Questions
I see sparks inside my microwave. Is this the part I need?
Yes, this is the classic and most direct symptom of a damaged waveguide cover. Old, damp, warped, or food-contaminated mica can react to microwave energy by arcing at the point where it's damaged. Replacing the cover typically resolves this sparking immediately.
Is it safe to keep using my microwave if I notice sparking?
No, it's best to stop using the microwave once you notice sparking or arcing and replace the cover as soon as possible. Continued arcing can cause more serious damage to the magnetron and other internal components, turning a simple, inexpensive repair into a much costlier one.
What is mica, and why is it used for this part?
Mica is a naturally heat-resistant, corrosion-resistant material that is essentially invisible to microwave energy, meaning it doesn't interfere with or absorb the microwaves passing through it. This makes it ideal for a cover positioned directly in the path of the microwave energy entering the cavity, since it protects the opening without disrupting how the microwave actually cooks food.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the mica composition, dimensions, and mounting configuration of the original MCK69074904 waveguide cover used in compatible LG and Bosch microwaves.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPMTC-100 Microwave Thermal Cut-Off Fuse 100℃ (212°F) – Normally Closed – Universal Microwave Safety Cutoff
Product Description
Protect your microwave from overheating with the XPMTC-100 Microwave Thermal Cut-Off Fuse 100℃ (212°F), Normally Closed. This high-quality aftermarket safety device is designed to remain closed (conductive) during normal operation and open permanently when temperatures exceed 100℃, cutting power to prevent damage or fire risk. A failed or tripped thermal cut-off can cause the microwave to lose power or stop heating. Replacing it with this correctly rated normally closed fuse restores safe operation and proper protection.
Replaces Part Numbers
XPMTC-100, MTC-100, Microwave Thermal Fuse 100C NC, 212F Normally Closed Thermal Cutoff, KSD-100LC, WB27X11094, 1556167, AH2370184, EA2370184, PD00044040, EAP2370184, AP4484359, PS2370184, WB27X10909, 1262954, AH1481222, EA1481222, PD00075864, EAP1481222, AP3994059, PS1481222, DE47-20196C, 2079793, DE47-20196A, PD00023369, AP4580114, PS4226487, 5304456094, 1198238, AH1532498, PD00083148, EA1532498, AP3960659, PS1532498.
Compatibility
This normally closed microwave thermal cut-off fuse is compatible with many GE, Whirlpool, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwave ovens that require a 100℃ (212°F) NC thermal cutoff.
Commonly used in countertop, over-the-range, and built-in microwave models.
Always verify temperature rating and NC (Normally Closed) configuration before ordering.Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Built to OEM-equivalent safety specifications
🌡️ 100℃ (212°F) Rating – Trips at unsafe temperature levels
🔁 Normally Closed (NC) – Conducts power during normal operation
🛡️ Critical Safety Component – Prevents overheating and fire hazards
💰 Cost-Effective Repair – Affordable alternative to OEM thermal cut-offs
📐 Product Specification
Part Number: XPMTC-100
Component Type: Microwave Thermal Cut-Off Fuse
Temperature Rating: 100℃ (212°F)
Contact Type: Normally Closed (NC)
Function: One-time safety cutoff
Material: Heat-resistant metal body
Application: Magnetron or microwave cavity temperature protection
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, insulated pliers
⚠️ Safety First:Unplug the microwave before servicing. Microwaves contain high-voltage components—allow capacitors to discharge before handling internal parts.
Basic Steps:
Disconnect microwave power.
Remove the outer cabinet or access panel.
Locate the thermal cut-off near the magnetron or cavity.
Disconnect wiring and remove the failed fuse.
Install the new XPMTC-100 (NC) thermal cut-off in the same position.
Reassemble the microwave and restore power.
Test operation.
⏱️ Time Required: 15–25 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Aftermarket Appliance Parts
🔄 30-Day Return Policy
Restore microwave safety and dependable operation — Add to Cart Now for a reliable, budget-friendly repair!
XP5KV07A Microwave High Voltage Fuse 0.7A (700mA), 5kV – Compatible with GE, LG, Whirlpool, Samsung, and Panasonic Microwaves
Product Description
Protect your microwave’s high-voltage system with the XP5KV07A Microwave High Voltage Fuse (0.7A, 5kV). This high-quality aftermarket replacement safeguards essential high-voltage components—including the magnetron, diode, and capacitor—from power surges and electrical overloads. If your microwave is completely dead or stops heating, a blown HV fuse is a common cause. Replacing it with this XPARTCO fuse restores safe, reliable operation.
Replaces Part Numbers
5KV0.7A, 700mA 5kV Fuse, HVF-07A, AP-HV07A, and equivalent high-voltage 0.7A microwave fuses
Compatibility
This replacement high-voltage fuse fits many GE, LG, Samsung, Whirlpool, Panasonic, Sharp, Kenmore, Maytag, and other leading microwave brands.
Common compatible models include (but are not limited to):GE JVM3160RFSS, LG LMV2031ST, Samsung ME19R7041FG, Whirlpool WMH31017HS, Panasonic NN-SN686S.
Always verify your microwave’s fuse specs before ordering. Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Matches OEM electrical ratings and safety performance
⚡ High-Voltage Protection – Rated 0.7A (700mA) at 5,000 volts for microwave HV systems
💰 Budget-Friendly Fix – Reliable option for restoring microwave operation
🛠️ Easy Installation – Direct-fit size compatible with standard HV fuse holders
🛡️ Fixes Common Issues – Solves “microwave dead,” no heat, or fuse-blown conditions
📐 Product Specification
Part Number: XP5KV07A
Component Type: Microwave High Voltage Fuse
Amperage: 0.7A (700mA)
Voltage Rating: 5 kV
Material: Ceramic-body fuse with metal end caps
Dimensions: Standard HV fuse size (approx. 6×40 mm)
Compliance: Meets high-voltage protection standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, needle-nose pliers
⚠️ Safety First: Microwave repairs involve high voltage even when unplugged. Only qualified persons should replace HV fuses.
Steps (for trained technicians):
Unplug the microwave and safely discharge the HV capacitor.
Remove outer cabinet screws and lift the cover.
Locate the high-voltage fuse near the HV transformer and capacitor.
Remove the blown fuse and install the new XP5KV07A fuse.
Reassemble the unit and test heating operation.
⏱️ Time Required: 10–20 minutes (professional preferred)
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Restore microwave safety and power protection — Add to Cart Now for a reliable, affordable replacement!
XPMTC-110 Microwave Thermal Cut-Off Fuse 110℃ (230°F) – Normally Closed – Universal Microwave Safety Cutoff
Product Description
Protect your microwave from overheating with the XPMTC-110 Microwave Thermal Cut-Off Fuse 110℃ (230°F), Normally Closed. This high-quality aftermarket safety device is designed to remain closed (conductive) during normal operation and open permanently when internal temperatures exceed 110℃, cutting power to prevent damage or fire risk. A tripped thermal cut-off can cause loss of power or heating failure. Replacing it with the correctly rated NC fuse restores safe operation and proper protection.
Replaces Part Numbers
XPMTC-110, MTC-110, Microwave Thermal Fuse 110C NC, 230F Normally Closed Thermal Cutoff, WB27X10810, 1086422, AH953949, EA953949, PD00057547, AP3792919, PS953949, 6930W1A003J, 1266877, 1365195, 6930W1A002D, 6930WRT003C, PD00030706, EAP3530463, AP4441844, PS3530463, WB27X11208, WB27X10851, 251201300912, 3026289, PD00034878, EAP8754624, AP5791053, S8754624, WB18X35517, PD00066985, EAP16219519, AP6990372, PS16219519, 5304509449, 5304464074, 4583645, PD00050915, EAP12071292, AP6230604, PS12071292.
Compatibility
This normally closed microwave thermal cut-off fuse is compatible with many GE, Whirlpool, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwave ovens that require a 110℃ (230°F) NC thermal cutoff.
Commonly used in countertop, over-the-range, and built-in microwave models.
Always verify temperature rating and contact type before ordering.Contact our support team if you’re unsure.
🔍 What’s the Difference Between NC and NO Thermal Cut-Offs?
Normally Closed (NC): Circuit is closed during normal operation and opens permanently when the rated temperature is reached.👉 Most microwave thermal cut-offs are NC.
Normally Open (NO): Circuit is open during normal operation and closes only when overheated (used in limited designs).
⚠️ Installing the wrong type (NC vs NO) may cause the microwave not to run or fail to protect against overheating.
✅ Key Features
🔄 Aftermarket Replacement – Built to OEM-equivalent safety specifications
🌡️ 110℃ (230°F) Rating – Trips at unsafe temperature levels
🔁 Normally Closed (NC) – Conducts power during normal operation
🛡️ Critical Safety Component – Helps prevent overheating and fire hazards
💰 Cost-Effective Repair – Affordable alternative to OEM thermal cut-offs
📐 Product Specification
Part Number: XPMTC-110
Component Type: Microwave Thermal Cut-Off Fuse
Temperature Rating: 110℃ (230°F)
Contact Type: Normally Closed (NC)
Function: One-time safety cutoff
Material: Heat-resistant metal body
Application: Magnetron or microwave cavity temperature protection
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, insulated pliers
⚠️ Safety First:Unplug the microwave before servicing. Microwaves contain high-voltage components—allow capacitors to discharge before handling internal parts.
Basic Steps:
Disconnect microwave power.
Remove the outer cabinet or access panel.
Locate the thermal cut-off near the magnetron or cavity.
Disconnect wiring and remove the failed fuse.
Install the new XPMTC-110 (NC) thermal cut-off in the same position.
Reassemble the microwave and restore power.
Test operation.
⏱️ Time Required: 15–25 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Aftermarket Appliance Parts
🔄 30-Day Return Policy
Restore microwave safety and dependable operation — Add to Cart Now for a reliable, budget-friendly repair!
EXP499 Microwave Door Switch (Normally Closed)
The EXP499 is a universal replacement normally closed (NC) door interlock switch for microwave ovens and microwave/oven combination units. This is a critical safety component: microwave door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing any possibility of microwave radiation escaping the cavity while the door isn't fully closed and latched. This switch's normally closed contact design matches a wide range of microwave door latch mechanisms across GE, Whirlpool, Samsung, LG, Kenmore, and other brands.
Rated 16A, 125/250VAC. Over time, this switch's contacts can wear, pit, or fuse together from repeated cycling and the electrical load carried every time the door opens and closes. A failing interlock switch typically shows up as a microwave that won't start at all, a display that works but the unit won't heat, or intermittent operation tied to the door latch area. This is the normally closed counterpart to our EXP497 (normally open) and EXP480 (combined NC/NO) listings — always confirm which specific contact configuration your microwave's failed switch uses before ordering.
Quick Answer
The EXP499 Microwave Door Switch (Normally Closed) fixes microwave ovens and microwave/oven combos that won't start, won't heat, or operate intermittently near the door latch area. 16A, 125/250VAC, normally closed (NC) contact design. Never operate a microwave with a bypassed, disconnected, or suspected-faulty door interlock switch — these switches exist to prevent radiation exposure and must always be replaced with a properly rated part, never removed or defeated.
Common Problems This Part Fixes
Microwave won't start at all, even though the display and buttons respond normally
Microwave display and timer work, but the unit won't heat
Microwave stops working intermittently, especially around the door latch
Clicking or buzzing sound from the door area without the microwave starting
Breaker tripping when the door is opened, indicating a switch contact that has fused shut
Door that doesn't feel like it's latching securely
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave door switch directly replaces the following OEM and cross-reference part numbers:
WB24X830, AH237422, EA237422, WB24X0800, WB24X0830, WB24X10075, WB24X800, AP2024338, PS237422, WB24X25397, WB24X817, WB24X10112, WB24X0817, AP6037282, PS11766871, 00606695, 1386420, 606695, AH3477007, EA3477007, AP4067354, PS3477007, PS8726632, 5304408937, 5304509459, 5304464098, 4583655, AP6230614, PS12071302, ANE61784L0AG, AP7040623, WB24X10205, WB24X10147, 251201600930, 3025959, AP5790849, PS8754455, W10269458, W10211973, 1550016, 4393598, 8206347, AH2361111, EA2361111, AP4429884, PS2361111, 6600W1K001C, AP4650823, PS3529293, WB24X824, 253814, WB24X0824, AH237416, EA237416, AP2024332, PS237416, 5304456101, 1198245, 75304456101, AH1532505, EA1532505, AP3960662, PS1532505, 6600W1K001R, 1583495, AH3598700, EA3598700, AP5254801, PS3598700, 3405-001033, DE34-20019A, WP3405-001033, 2028596, 3405-000176, AP4044665, PS4131191, WB24X804 253795, WB24X0422, WB24X0804, WB24X422, AH237397, EA237397, AP2024313, PS237397, WB24X10189, 1810588, AH3486597, EA3486597, AP4980349, PS3486597, 3B73361E, 1325767, 3B73361D, 6600W1K003C, 6600W1K004B, AH3522736, EA3522736, AP4629337, PS3522736, 4415A66600, 1206671, 4415A66610, GSM-V1602A2, AP5322919
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door switch is a universal replacement compatible with convection microwave ovens, grill microwave ovens, microwave/oven combination units, and solo microwave ovens across many brands including GE, Whirlpool, Samsung, LG, and Kenmore, wherever the original switch matches this normally closed (NC) contact configuration and electrical rating.
Note: Microwave door interlock systems typically use two or three separate switches working together (primary interlock, monitor/secondary switch, and sometimes a third safety switch), and not all of them share this same normally closed (NC) configuration. This is a different part from our EXP497 (normally open) and EXP480 (combined NC/NO) listings. Confirm which specific switch position has failed on your microwave, and match the contact configuration and electrical rating exactly — never substitute a switch with a different configuration. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which switch your microwave needs.
Key Features
Universal replacement microwave door interlock switch — normally closed (NC) contact design
Resolves "won't start," "won't heat," and "intermittent operation near the door latch" symptoms caused by switch failure
Rated 16A, 125/250VAC
Suitable for convection, grill, combination, and solo microwave ovens
Direct drop-in replacement matching the original mounting and terminal configuration
Replaces a wide range of OEM part numbers across GE, Whirlpool, Samsung, LG, and Kenmore platforms — see full list above
Built to OEM-equivalent quality standards
Product Specifications
Part Number
EXP499
Part Type
Microwave Door Interlock Switch (Normally Closed)
Condition
New — Universal Replacement Part
Contact Configuration
Normally Closed (NC)
Max. Current
16A
Max. Voltage
125/250VAC
Terminal Size
4.7mm
Application
Convection, Grill, Combination, and Solo Microwave Ovens
Related Parts
EXP497 (normally open)
Quantity
1 door interlock switch
Installation Notes
⚠️ Danger — Never Bypass A Door Interlock Switch Unplug the microwave before beginning any work, and if it's a built-in or over-the-range unit, shut off power at the breaker as well. Microwave ovens also contain a high-voltage capacitor that can retain a dangerous electrical charge even after the unit is unplugged — avoid touching internal components near the capacitor and magnetron. Door interlock switches are a critical safety system: they exist specifically to cut power the instant the door opens, preventing microwave radiation from escaping the cavity. Never operate a microwave with an interlock switch disconnected, bypassed, or jumpered, even temporarily — doing so can expose you and others to microwave radiation. If you are not fully comfortable working inside a microwave's internal compartment, have a qualified appliance technician perform this repair instead.
⚠️ Photograph Wiring Before Disconnecting — Match The Failed Switch Exactly Wear work gloves. Remove the outer cabinet or access panel per your model's service instructions to reach the door switch assembly, typically located near the door latch mechanism. Photograph the wiring on the old switch before disconnecting anything, and confirm you're replacing the correct switch position if your microwave uses multiple interlock switches. Disconnect the wire terminals from the old switch, remove its mounting screws, and pull it free. Install the new EXP499 in the same position, reconnect each wire terminal to its original position, and secure the mounting screws. Reinstall the cabinet or access panel. Restore power and test that the microwave starts normally with the door closed, and — this is the critical safety check — confirm the unit stops heating immediately when the door is opened during a test run with a cup of water. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My microwave stopped working. How do I know if it's actually a door switch and not something else?
A common pattern is a microwave where the display and buttons respond normally, but pressing start does nothing, or the unit hums without heating — this points toward the door interlock circuit rather than the control board. Since these switches also serve a critical safety function, if you suspect a fault in this area, it's best to have it properly diagnosed and replaced rather than working around the symptom.
Is it safe to just disconnect a faulty interlock switch so the microwave will run?
No — this is not safe under any circumstances. Door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing microwave radiation from escaping. Bypassing, disconnecting, or jumpering one of these switches removes that protection and can expose you and anyone nearby to microwave radiation, even if the microwave otherwise appears to run normally. Always replace a faulty switch with a correctly rated new one rather than working around it.
How is this different from your EXP497 and EXP480 listings?
These are different contact configurations for different switch positions in a microwave's door interlock system. This EXP499 is normally closed (NC) only. Our EXP497 listing is normally open (NO) only, and our EXP480 listing combines both NC and NO contacts in a single switch body. Since most microwaves use two or three interlock switches with different configurations, check which contact type your specific failed switch uses before ordering.
My microwave trips the breaker whenever I open the door. What does that mean?
This can indicate that one of the door switches has fused or welded its contacts shut from repeated electrical stress, so it continues carrying current when it shouldn't. This is a genuine safety concern and the affected switch should be replaced promptly rather than continuing to use the microwave.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
