Search results for "dryer thermostat"

XPARTCO WE4M137 Dryer High Limit Thermostat The XPARTCO WE4M137 is an aftermarket replacement high limit thermostat for GE, Hotpoint, and Kenmore dryers. Mounted on the upper right side of the heater housing, this safety thermostat monitors the temperature of the heating circuit and cuts power to the heating element (and in some conditions the motor) if the dryer runs hotter than it should — typically from restricted airflow, a clogged vent, or a failing cycling thermostat. Unlike a one-time thermal fuse, this is an auto-resetting high limit thermostat (rated L315-65F): it opens at approximately 315°F to stop overheating, then automatically closes again once the unit cools down, without needing to be replaced after each trip. This is a direct-fit aftermarket replacement built to the same temperature rating and mounting as the original thermostat. If this component trips repeatedly, it's worth checking the underlying cause of the overheating at the same time — a clogged lint trap or restricted exhaust vent is the most common root cause. Quick Answer The XPARTCO WE4M137 High Limit Thermostat fixes a GE, Hotpoint, or Kenmore dryer that shuts off a few minutes into a heat cycle, stops early and won't restart until it cools down, or cycles on and off intermittently. Auto-resetting, rated to open at approximately 315°F. Classic symptom: dryer runs fine for a few minutes then quits on heat, and won't restart again until it's had time to cool. Common Problems This Part Fixes Dryer shuts off a few minutes into a heat-dry cycle Dryer stops early and won't restart until it cools down Intermittent shutdowns during the drying cycle Clothes coming out damp because the cycle keeps cutting short Dryer won't start at all if the thermostat has failed in an open position Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This thermostat directly replaces the following part numbers: WE4M137, WE4M457, 276438, WE04M0137, WE04X25197, 559C131G04, AGE25626, AH267900, AP2042565, EAP267900, EA267900, PD00001228, PS267900 These numbers span several generations of GE's own part numbering for this thermostat as model lines and sub-assemblies were updated — all are the correct replacement for this component regardless of which number appears on your dryer's parts diagram. Compatibility This thermostat is compatible with 28+ GE, Hotpoint, and Kenmore dryer models, including: Kenmore 2661532110, GE 2661532210 Numerous additional GE, Hotpoint, and Kenmore dryer and washer-dryer combo models Note: This thermostat has also been referenced for some Fisher & Paykel dryer applications in sourcing, though we were not able to confirm a specific Fisher & Paykel model list. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering. Key Features Direct-fit aftermarket high limit thermostat for GE-built dryers Auto-resetting design — no need to replace after each trip, unlike a one-time thermal fuse Rated to open at approximately 315°F to prevent overheating damage Resolves early-shutoff, won't-restart-until-cool, and intermittent cycling symptoms Fits 28+ GE, Hotpoint, and Kenmore dryer and washer-dryer combo models Straightforward swap — typically 15–30 minutes with basic hand tools Product Specifications Part Number XPWE4M137 OEM Part Number WE4M137 Part Type Dryer High Limit Thermostat (Auto-Reset) Condition Aftermarket Replacement Temperature Rating L315-65F (Opens ~315°F, Auto-Resets on Cooling) Location Upper Right Side of Heater Housing Application GE, Hotpoint & Kenmore Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning. Remove the dryer's rear or front panel per your model's service guide to access the heater housing — the thermostat is mounted on its upper right side. Disconnect the wire terminals from the old thermostat, noting their positions, and remove the mounting screw holding it in place. Install the new thermostat in the same position and reconnect the wire terminals. Before closing the dryer back up, clean out the lint trap and check the exhaust vent for restrictions — a clogged vent is the most common cause of this thermostat tripping repeatedly, and clearing it now can prevent a repeat failure. Frequently Asked Questions My dryer shuts off a few minutes into the cycle and won't restart — is this the part I need? Yes, this is a classic symptom of a failing high limit thermostat. It's designed to cut power when the dryer overheats and automatically reset once things cool down, so if your dryer won't restart until it's had time to sit, this thermostat is a likely cause. Is this a one-time fuse like the thermal fuse, or does it reset itself? This is an auto-resetting thermostat, not a one-time thermal fuse. It opens to cut power when the dryer overheats, then closes again automatically once the unit cools — it doesn't need to be replaced every time it trips. If yours has failed and won't reset or close again, that's when replacement is needed. Why does my dryer keep tripping this thermostat? Repeated tripping is usually caused by restricted airflow — a clogged lint trap, a crushed or blocked exhaust duct, or a bird's nest or lint buildup in the outside vent hood — or a failed cycling thermostat elsewhere in the heating circuit. Clear the airflow path when you replace this thermostat, or the new one may trip again. How do I test if this thermostat has failed? With the dryer unplugged, you can test the thermostat with a multimeter for continuity across its terminals at room temperature. No continuity when it should be closed (cool) is a sign it has failed and needs replacement. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 3387134 Dryer Cycling Thermostat The XPARTCO 3387134 is an aftermarket replacement dryer cycling thermostat, the operating thermostat that controls drying temperature. It switches the heating element off when the dryer reaches its set temperature and back on after it cools, keeping the inside of the dryer at a steady temperature throughout the cycle. This one is rated L155-25: it cuts out at approximately 155°F and cycles back on once the temperature drops about 25°F. When a cycling thermostat fails, the dryer may stop heating, run too hot, or keep heating after the drum has stopped. This is a direct-fit aftermarket replacement for the original Whirlpool WP3387134, and it fits a wide range of Whirlpool-built dryers sold under the Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, Amana, and other brand names. Quick Answer The XPARTCO 3387134 Cycling Thermostat fixes a Whirlpool-built dryer that isn't heating, runs too hot, or has inconsistent drying temperatures. Rated L155-25, it cycles the heating element off at about 155°F and back on after a 25°F drop. Classic symptom: clothes come out damp or the dryer runs excessively hot, with no sign of a clogged vent. Common Problems This Part Fixes Dryer not heating Dryer running too hot Inconsistent drying temperatures Heat staying on after the drum has stopped Dryer won't start or the timer doesn't advance, if the thermostat has failed Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This cycling thermostat directly replaces the following part numbers: 3387134, WP3387134, 3387135, 3387139, 306910, 3-6910, 2011 These numbers span several generations of Whirlpool's own part numbering for this thermostat as model lines were updated. All are the correct replacement regardless of which number appears on your dryer's parts diagram. Compatibility This thermostat fits a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, Amana and related dryers, including these examples: Kenmore 11060012000, 11060012001, 11060022010, 11060172000, 11060232000, 11060602990 Numerous additional Whirlpool-built dryer models Note: This is the cycling (operating) thermostat, not the high limit thermostat or the thermal fuse, which are separate safety parts. The models above are a sample, not a full list. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering. Key Features Direct-fit aftermarket cycling thermostat for Whirlpool-built dryers Rated L155-25: cuts out at about 155°F and cycles back on after a 25°F drop Keeps dryer temperature steady by cycling the heating element on and off Resolves no-heat, overheating, and inconsistent-temperature symptoms Fits Whirlpool, Kenmore, Maytag, KitchenAid, and other Whirlpool-built dryers Medium-difficulty repair with basic hand tools Product Specifications Part Number XP3387134 OEM Part Number 3387134, WP3387134 Part Type Dryer Cycling Thermostat Condition Aftermarket Replacement Temperature Rating L155-25 (Cuts Out ~155°F, 25°F Differential) Application Whirlpool, Kenmore, Maytag, KitchenAid & Related Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning, and shut off the gas supply first on gas models. Wear work gloves, as the cabinet edges are sharp. Remove the panel that gives access to the heater housing per your model's service guide, note the wire terminal positions, and disconnect them from the old thermostat. Remove the thermostat, install the new one in the same position, and reconnect the wires. A screwdriver and needle-nose pliers are typically all you need. Before closing the dryer, clean the lint trap and check the exhaust vent for restrictions, since poor airflow is a common cause of overheating. Frequently Asked Questions My dryer isn't heating or runs too hot. Is this the part I need? A failed cycling thermostat can cause either symptom. It may stay open and prevent heat, or stay closed and let the dryer overheat. Check for a clogged vent and test the thermostat for continuity before replacing it. What's the difference between the cycling thermostat and the high limit thermostat? The cycling thermostat controls normal drying temperature by switching the heating element on and off. The high limit thermostat and thermal fuse are separate safety devices that cut power if the dryer overheats. This listing is for the cycling thermostat only. How do I test this thermostat? With the dryer unplugged and the wires removed, check for continuity across the terminals with a multimeter at room temperature. A properly working cycling thermostat should show continuity when cool. No continuity means it has failed. Will this fit my dryer? It fits many Whirlpool-built dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 279973 Dryer Thermostat Kit The XPARTCO 279973 is an aftermarket replacement dryer thermostat and thermal cut-off kit compatible with a wide range of Whirlpool-family electric dryers including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral. The kit contains two components — the high-limit thermostat (L295-80F) and the thermal cut-off fuse — both located on the heating element housing. Together they protect the dryer's heating element from overheating: the high-limit thermostat monitors element temperature and cuts power if it exceeds safe levels, then resets when cooled. The thermal cut-off fuse is a backup one-time device that permanently opens the circuit if the thermostat fails to protect the element. Both parts are mounted on the side of the heating element housing and can be accessed through the dryer's back panel. The thermal cut-off fuse is a non-resettable one-time device — once it opens, it must be replaced. The 279973 kit includes both parts, an instruction sheet, and hardware. It directly replaces 3391913, 3404151, 3404152, 3977395, 8318314, 897710, 279973VP, AP3094323, and several additional cross-reference numbers. Note: this kit is for electric dryers only. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO 279973 Dryer Thermostat Kit fixes Whirlpool-family electric dryers with no heat, overheating, or a dryer that shuts off too early. Kit includes the L295-80F high-limit thermostat (auto-reset, opens at 295°F) and the thermal cut-off fuse (352°F, one-time). Both mount on the heating element housing. Electric dryers only. Replaces 3391913, 3404151, 8318314, 897710, AP3094323. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral. Common Problems This Kit Fixes Dryer produces no heat — thermal cut-off fuse or high-limit thermostat has failed Dryer overheats — clothes or drum too hot at the end of a cycle Dryer shuts off early before clothes are dry Dryer takes multiple cycles or very long time to dry clothes Repeated no-heat failures — underlying overheating condition affecting the element housing components Dryer tumbles normally but produces no heat at all What's in the Kit Part 1 of 2 High-Limit Thermostat (L295-80F) Opens at 295°F — cuts power to the heating element if temperature exceeds safe levels · Auto-resets when cooled · Located on the heating element housing · Should show closed continuity (near-zero resistance) at room temperature Part 2 of 2 Thermal Cut-Off Fuse (352°F) Opens at 352°F — one-time backup safety device on the heating element housing · Permanently interrupts power to the heating element if the high-limit thermostat fails to protect it · Cannot be reset — must be replaced if blown · Should show closed continuity at room temperature when working Replaces Part Numbers This thermostat kit directly replaces the following OEM and cross-reference part numbers: 279973, 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, ER279973, PD00002626, EAP334387, AWP39286, AH334387, AP3094323, EA334387, PS334387. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat kit is compatible with select electric dryers only from the following brands: Whirlpool electric dryers (Duet, Cabrio, and standard series) Kenmore / Sears electric dryers (Whirlpool-built models) Maytag electric dryers KitchenAid electric dryers Amana electric dryers Inglis electric dryers Roper electric dryers Admiral electric dryers Important: This kit is for electric dryers only. Gas dryers use a different burner assembly and require a different thermostat kit (XP6974 for Whirlpool-family gas dryers). Always verify your dryer type and model number before ordering. Also: if the thermal cut-off fuse has blown, always check for a clogged exhaust vent before replacing — a blocked vent is the most common root cause of overheating and repeated fuse failures. Key Features 2-part kit — high-limit thermostat and thermal cut-off fuse, both on the heating element housing High-limit thermostat (L295-80F) — opens at 295°F to cut element power, auto-resets when cooled Thermal cut-off fuse (352°F) — one-time backup safety device; permanently opens if thermostat fails to protect the element Both parts located on the heating element housing — accessible from the dryer back panel Replacing both together ensures complete thermal protection is restored on the element housing Replaces 3391913, 3404151, 8318314, 897710, AP3094323, and over 10 additional cross-reference numbers Electric dryers only — not for gas dryer models Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral electric dryers Aftermarket replacement built to OEM-equivalent quality standards Installs in 20–30 minutes with basic hand tools Product Specifications Kit Part Number 279973 Condition Aftermarket Replacement Application Electric Dryers Only Kit Includes 1x High-Limit Thermostat (L295-80F), 1x Thermal Cut-Off Fuse (352°F), hardware, instruction sheet High-Limit Thermostat Rating L295-80F — opens at 295°F, resets at 215°F — auto-resets Thermal Cut-Off Fuse Trip Temp 352°F — one-time, non-resettable Location Heating element housing (both parts) Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, Admiral Installation Notes ⚠️ Unplug Dryer Before Starting — Electric Dryers Only Disconnect power before beginning. Remove the back panel of the dryer by unscrewing the perimeter screws to expose the heating element housing. Both the high-limit thermostat and thermal cut-off fuse are mounted on the side of the heating element housing — the thermostat is typically the larger component and the thermal cut-off fuse is smaller. Test each component with a multimeter before removing (both should show closed continuity at room temperature; the failed one will read open). Photograph the wiring before disconnecting. Disconnect the wires, remove the mounting screws, and install the new components in the same positions. Reconnect the wires and mounting screws, reinstall the back panel, restore power, and run a test cycle to confirm heat. Tip: Before running the dryer, clean the full length of the exhaust duct — a clogged vent is the most common cause of overheating and a blown thermal cut-off fuse. Tools needed: Phillips screwdriver, 1/4" nut driver, multimeter. Frequently Asked Questions What is the difference between the high-limit thermostat and the thermal cut-off fuse in this kit? The high-limit thermostat (L295-80F) is a resettable safety switch that opens at 295°F to cut power to the heating element and resets automatically when the temperature drops. It is the primary protection against overheating during normal operation. The thermal cut-off fuse is a one-time backup device rated at 352°F — it permanently opens the circuit if the heating element temperature climbs beyond the point the thermostat should have caught. Once the cut-off fuse opens, it must be replaced; it does not reset on its own. If the cut-off fuse has blown, it usually means the high-limit thermostat also failed to do its job and should be replaced at the same time — which is exactly what this kit provides. How do I test these parts with a multimeter? Unplug the dryer and remove the back panel to access the heating element housing. Disconnect each component from the wiring and probe both terminals with a multimeter set to continuity or resistance mode. At room temperature, both the high-limit thermostat and the thermal cut-off fuse should show closed continuity (near-zero resistance). Any component that reads open circuit (no continuity) has failed and needs to be replaced. The thermal cut-off fuse reads open even after it cools — it is non-resettable. The high-limit thermostat may read open at room temperature if it has failed internally rather than by an overheat trip. How is the 279973 kit different from the XP6974 thermostat kit? The 279973 is a 2-part kit — high-limit thermostat and thermal cut-off fuse — designed specifically for the heating element housing of Whirlpool-family electric dryers. The XP6974 is a 4-part kit — cycling thermostat, thermal fuse, high-limit thermostat, and thermal cut-off — designed for Whirlpool-family gas and electric dryers, covering both the exhaust duct components and the burner/element housing components. If your electric dryer is showing no-heat and you need only the heating element housing components, the 279973 kit covers exactly those two parts. If you want to replace all thermal components in one repair, the XP6974 covers a broader set. Why does the thermal cut-off fuse keep blowing? If the thermal cut-off fuse blows repeatedly after replacement, it almost always means there is an underlying overheating condition causing the heating element housing to run hotter than it should. The most common cause is a clogged or restricted exhaust vent — lint accumulation in the duct reduces airflow, trapping heat inside the dryer cabinet and around the element. Other causes include a failed cycling thermostat that is not regulating element temperature correctly, a stuck heating element relay, or a dryer in an enclosed space with inadequate ventilation. Always clean the full exhaust duct and check the cycling thermostat (WP3387134) before replacing the thermal cut-off fuse a second time. Is this an OEM or aftermarket part? This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the temperature ratings and specifications of the original 279973 high-limit thermostat and thermal cut-off fuse kit. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

W10169881 Dryer Genuine OEM Thermostat Kit Description: This Dryer thermostat kit is an OEM replacement part responsible for ensuring the safety and temperature regulation of the dryer. The high-limit thermostat serves as a critical safety device that monitors and regulates the temperature inside the dryer. When the temperature rises to a level beyond the safe operating range, the high-limit thermostat interrupts the flow of electricity to the heating element. The thermal cut-out fuse, included in this kit, offers an additional layer of protection by disconnecting power to the heating element if it detects excessively high temperatures. Replaces Part Numbers: W10169881, 1455409, AH1964653, EA1964653, AP4316800, PS1964653.    California Residents only WARNING: California’s Proposition 65

Read more less

WP8577891 Genuine OEM Whirlpool Dryer High-Limit Thermostat The WP8577891 is a genuine Whirlpool OEM high-limit thermostat for Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers. This part combines two functions in a single component: it acts as a safety mechanism that shuts off the heating element when the dryer overheats, and it includes an inlet thermistor that monitors the temperature of the inlet air feeding into the dryer. Rated L260-68F: the heating element cuts out once internal temperature reaches 260°F, and kicks back in once temperature drops to 192°F, a 68°F differential built into the design. Weighing approximately 0.08 lbs, with package dimensions of 4.33" x 3.43" x 0.79". Because this is a safety-critical component, a malfunctioning thermostat can shut off the dryer even when it isn't actually overheating, in addition to producing the more expected overheating symptom if it fails to trip when it should. Symptoms include the dryer overheating, blown thermal fuses, or the dryer shutting off unexpectedly during a cycle. It directly replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753. Quick Answer The WP8577891 Genuine OEM Whirlpool Dryer High-Limit Thermostat fixes Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers with overheating, blown thermal fuses, or unexpected shutoffs during a cycle. L260-68F rating. Replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753. Test the old thermostat's continuity with a multimeter before ordering — one customer found this quick check would have confirmed the part was actually needed before they bought a replacement. Common Problems This Part Fixes Dryer overheating during a cycle Dryer blowing thermal fuses repeatedly Dryer shutting off unexpectedly, even when it doesn't seem to be overheating Dryer not heating properly due to a malfunctioning safety cutoff Irregular or inconsistent drying cycles Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer high-limit thermostat directly replaces the following OEM and cross-reference part numbers: WP8577891, 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This high-limit thermostat is compatible with select Whirlpool electric dryers, and also fits select Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers built on the Whirlpool platform, including model numbers such as MED6600TQ0, WED6200SW0, WED6200SW1, WED6600VU0, WED6600VW0, WED6600WL0, YMED6600TQ0, YWED6200SW1, YWED6600VU0, YWED6600VW0, and YWED6600WL0. Note: Always verify your full model number before ordering, since Whirlpool uses different high-limit thermostat designs across its dryer lineup. Contact our support team with your model number if you're unsure. Key Features Genuine Whirlpool OEM part — factory-specified opening and reset temperatures Combines high-limit thermostat and inlet thermistor functions in one component Resolves "overheating," "blown thermal fuses," and "unexpected shutoff mid-cycle" symptoms L260-68F rating — opens at 260°F Automatically resetting — no replacement needed after each trip Direct drop-in replacement matching the original mounting and terminal configuration Replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753 Compatible with Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers Genuine OEM replacement — guaranteed fit, materials, and performance Approximately 30-minute repair Product Specifications Part Number WP8577891 Part Type Dryer High-Limit Thermostat with Inlet Thermistor Condition Genuine OEM Brand Whirlpool Rating L260-68F Type Automatically resetting Weight Approx. 0.08 lbs Package Dimensions 4.33" x 3.43" x 0.79" Repair Difficulty Easy — approx. 30 minutes Quantity 1 high-limit thermostat Compatible Brands Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, Roper Installation Notes ⚠️ Unplug Dryer Before Starting — Test With A Multimeter Before Assuming It's This Part Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Unscrew and remove the dryer's exhaust vent hose, then use a nut driver to remove the back panel. Locate the high-limit thermostat, typically mounted near the heating element housing. Before removing the old part, test it with a multimeter set to continuity — a healthy thermostat shows continuity; one that doesn't should be replaced. Photograph the wiring before disconnecting anything. Disconnect the wire terminals from the old thermostat, remove its mounting screw, and pull it free. Install the new WP8577891 in the same position, reconnect the wire terminals, and secure the mounting screw. Reattach the back panel and exhaust vent hose. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: nut driver, flat-head screwdriver, multimeter, work gloves. Frequently Asked Questions How do I know if this thermostat has actually failed before I order one? Test the old thermostat with a multimeter set to continuity before ordering — it's a simple, quick check. One customer specifically noted they wished they had tested the part first: they ordered a replacement, then discovered testing the old one with a multimeter was easy to do and would have confirmed whether they actually needed the new part before buying it. My dryer shuts off even though it doesn't feel like it's overheating. Could this still be the thermostat? Yes. A malfunctioning high-limit thermostat can shut off the dryer even when actual temperatures are normal, not just when the dryer is genuinely running too hot. If your dryer stops mid-cycle without an obvious overheating cause, this thermostat is worth testing. Should I replace other parts at the same time as this thermostat? If your dryer has also blown a thermal fuse, it's worth replacing the fuse and any related thermal cutoff components together with this thermostat, since they often fail from the same underlying overheating cause. Also check your exhaust venting for restrictions while you have the dryer open, since blocked airflow is a common root cause of repeated thermal component failures. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original opening and reset temperatures and mounting configuration of the high-limit thermostat originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

Genuine OEM WE4M137 Dryer High Limit Thermostat The WE4M137 is a genuine OEM high limit thermostat for GE, Hotpoint, and Kenmore dryers. Mounted on the upper right side of the heater housing, this safety thermostat monitors the temperature of the heating circuit and cuts power to the heating element (and in some conditions the motor) if the dryer runs hotter than it should — typically from restricted airflow, a clogged vent, or a failing cycling thermostat. Unlike a one-time thermal fuse, this is an auto-resetting high limit thermostat (rated L315-65F): it opens at approximately 315°F to stop overheating, then automatically closes again once the unit cools down, without needing to be replaced after each trip. This is a genuine OEM part manufactured to the original factory temperature rating and mounting — not an aftermarket equivalent — so trip point and reset behavior match what came on the dryer originally. If this component trips repeatedly, it's worth checking the underlying cause of the overheating at the same time — a clogged lint trap or restricted exhaust vent is the most common root cause. Quick Answer The Genuine OEM WE4M137 High Limit Thermostat fixes a GE, Hotpoint, or Kenmore dryer that shuts off a few minutes into a heat cycle, stops early and won't restart until it cools down, or cycles on and off intermittently. Genuine OEM, factory temperature rating, auto-resetting, rated to open at approximately 315°F. Classic symptom: dryer runs fine for a few minutes then quits on heat, and won't restart again until it's had time to cool. Common Problems This Part Fixes Dryer shuts off a few minutes into a heat-dry cycle Dryer stops early and won't restart until it cools down Intermittent shutdowns during the drying cycle Clothes coming out damp because the cycle keeps cutting short Dryer won't start at all if the thermostat has failed in an open position Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This thermostat directly replaces the following part numbers: WE4M137 replaces WE4M457, 276438, WE04M0137, WE04X25197, 559C131G04, AGE25626, AH267900, AP2042565, EAP267900, EA267900, PD00001228, PS267900 These numbers span several generations of GE's own part numbering for this thermostat as model lines and sub-assemblies were updated — all are the correct genuine replacement for this component regardless of which number appears on your dryer's parts diagram. Compatibility This thermostat is compatible with 28+ GE, Hotpoint, and Kenmore dryer models, including: Kenmore 2661532110, GE 2661532210 Numerous additional GE, Hotpoint, and Kenmore dryer and washer-dryer combo models DBXR463ED1WW, DBXR463ED2WW, DBXR463EG7WW, DHDVH52EF0WW, DHDVH66EH0BB, DPSR610EG0WT, DPSR610EG1WT, DPSR610EG2WT, DPSR610EG3WT, DPSR610EG4WT, DPSR610EG5WT, DPSR610EG6WT, DPSR610EG7WT, DPSR610EG8WT, GFDN245EL1MS, GFDS350GL0WW, GFDS350GL1WW, GFDS355EL0MV, GLDP280ED0WS, GLDP280GD0WS, GTDN500EM0WS, GTDN500EM1WS, GTDN500EM2WS, GTDX180ED0WW, GTDX180ED1WW, GTDX180ED3WW, GTDX180ED4WW, GTDX180ED5WW, GTDX180ED6WW, GTDP180ED0WW, GTDP180ED1WW, GTDP200EF1WS, GTDP220EF1WW, GTDP301EL1WS, GTDP490ED0WS, HTDP120ED0WW, HTDX100ED0WW, NBXR333EG1WW, NWXR483EG8WW Note: This thermostat has also been referenced for some Fisher & Paykel dryer applications in sourcing, though we were not able to confirm a specific Fisher & Paykel model list. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering. Key Features Genuine OEM high limit thermostat — factory fit and trip-point accuracy, not an aftermarket equivalent Auto-resetting design — no need to replace after each trip, unlike a one-time thermal fuse Rated to open at approximately 315°F to prevent overheating damage Resolves early-shutoff, won't-restart-until-cool, and intermittent cycling symptoms Fits 28+ GE, Hotpoint, and Kenmore dryer and washer-dryer combo models Straightforward swap — typically 15–30 minutes with basic hand tools Product Specifications Part Number WE4M137 OEM Part Number WE4M137 Part Type Dryer High Limit Thermostat (Auto-Reset) Condition Genuine OEM Temperature Rating L315-65F (Opens ~315°F, Auto-Resets on Cooling) Location Upper Right Side of Heater Housing Application GE, Hotpoint & Kenmore Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning. Remove the dryer's rear or front panel per your model's service guide to access the heater housing — the thermostat is mounted on its upper right side. Disconnect the wire terminals from the old thermostat, noting their positions, and remove the mounting screw holding it in place. Install the new thermostat in the same position and reconnect the wire terminals. Before closing the dryer back up, clean out the lint trap and check the exhaust vent for restrictions — a clogged vent is the most common cause of this thermostat tripping repeatedly, and clearing it now can prevent a repeat failure. Frequently Asked Questions My dryer shuts off a few minutes into the cycle and won't restart — is this the part I need? Yes, this is a classic symptom of a failing high limit thermostat. It's designed to cut power when the dryer overheats and automatically reset once things cool down, so if your dryer won't restart until it's had time to sit, this thermostat is a likely cause. Is this a one-time fuse like the thermal fuse, or does it reset itself? This is an auto-resetting thermostat, not a one-time thermal fuse. It opens to cut power when the dryer overheats, then closes again automatically once the unit cools — it doesn't need to be replaced every time it trips. If yours has failed and won't reset or close again, that's when replacement is needed. Why does my dryer keep tripping this thermostat? Repeated tripping is usually caused by restricted airflow — a clogged lint trap, a crushed or blocked exhaust duct, or a bird's nest or lint buildup in the outside vent hood — or a failed cycling thermostat elsewhere in the heating circuit. Clear the airflow path when you replace this thermostat, or the new one may trip again. Is this a genuine GE part or an aftermarket copy? This is a genuine OEM thermostat manufactured to the original factory specification — not an aftermarket equivalent — so trip temperature and reset behavior match what came on the dryer originally. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XP53-0771 Dryer Thermostat This thermostat has a limit of 248°F. It will turn the heating element back on when the temperature drops by 80°F. Fits Maytag, Admiral, Norge Electric Dryers Replaces Part Numbers:WP53-0771, 53-0771, 53-0306, 53-1037, 53-1459, ER53-0771, OEM18028919, AP6009638, PS11742806, SET176, TJSET176.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

31001192 Genuine OEM Dryer Cycling Thermostat Replaces Part Numbers: WP31001192, 31001192, 487706, 53-2880, AP6007590, PS11740707.  Description: This Dryer Cycling Thermostat is a Genuine OEM replacement part for Select Maytag, Kenmore, Whirlpool dryer models. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results

Read more less

AGM30045804 Genuine OEM LG Dryer Thermistor and Thermostat Kit The AGM30045804 is a genuine LG OEM high-limit thermostat and thermistor kit for LG dryers. These two components work together in the same temperature-regulation circuit: the thermistor is a temperature sensor, mounted in the blower housing with its wire harness included, that continuously reports drum temperature to the control board so it can fine-tune heat output throughout the cycle. The high-limit thermostat is a safety switch that automatically shuts off the heating element if temperatures climb past a safe threshold, then resets itself once the dryer cools, without needing to be replaced the way a thermal fuse does. Because these two parts share the same circuit and tend to wear or fail around a similar timeline, LG sells and services them together as one kit rather than as separate individual parts. Symptoms of failure in this circuit include the dryer overheating (which can scorch clothing or, left unaddressed, pose a fire risk), the dryer running with little or no heat, drying times that have become inconsistent, an error code related to temperature control on the display, or clothes coming out damp after a full cycle. It directly replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335. Quick Answer The AGM30045804 Genuine OEM LG Dryer Thermistor and Thermostat Kit fixes LG (and select Kenmore, GE-branded LG-built) dryers with overheating, little or no heat, inconsistent drying times, a temperature-related error code, or clothes coming out damp after a full cycle. High-limit thermostat + thermistor with wire harness. Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, PS16732335. If you've already replaced the high-limit thermostat alone and the problem returns, this combined kit — which also addresses the thermistor — is the next step. What's In The Kit Component Function High-Limit Thermostat Automatically shuts off the heating element if temperature exceeds safe limits, then resets itself once the dryer cools. Thermistor (with wire harness) Continuously senses drum/blower housing temperature and reports it to the control board to regulate heat output throughout the cycle. Common Problems This Kit Fixes Dryer overheating, sometimes scorching or damaging clothing Dryer running with little or no heat Inconsistent drying times — cycle shuts off too early or runs longer than necessary Temperature-related error code displayed on the control panel Clothes remaining damp after a full drying cycle High-limit thermostat that keeps tripping repeatedly Dryer that has already had its high-limit thermostat replaced once but the problem returned Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermistor and thermostat kit directly replaces the following OEM and cross-reference part numbers: AGM30045804, 6931EL3003C, 6931EL3004B, 6931EL3002B, 6931EL3003F, 6931EL3003G, 6323EL2001B, ALG53406, AP7206815, EAP16732335, PD00079467, PS16732335 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This kit is compatible with select LG dryers, and also fits select Kenmore and GE-branded dryers built on the LG platform. Note: A specific verified model list was not consistently available across sources at the time this page was built. Some parts diagrams reference additional related thermostat components (such as a separate blower thermostat) beyond what's included in this kit — if your repair involves more than a high-limit thermostat and thermistor, or if you're unsure exactly what's failed on your model, contact our support team with your model number and we'll help confirm which parts you need before you order. Key Features Genuine LG OEM part — factory-specified resistance values and switch thresholds Combined kit addresses the high-limit thermostat and thermistor together, since both share the same temperature-regulation circuit Resolves "overheating," "little or no heat," "inconsistent drying," and "damp clothes after a full cycle" symptoms Thermistor ships with its wire harness included High-limit thermostat resets automatically after tripping — no replacement needed after each trip Direct drop-in replacement for both original components Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335 Compatible with LG and select Kenmore and GE-branded LG-built dryers Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number AGM30045804 Part Type Dryer High-Limit Thermostat and Thermistor Kit Condition Genuine OEM Brand LG Kit Contents High-limit thermostat + thermistor with wire harness Thermistor Location Blower housing High-Limit Thermostat Type Automatically resetting Repair Difficulty Easy to Moderate — 30 to 60 minutes Compatible Brands LG, select Kenmore, GE (LG-built models) Installation Notes ⚠️ Unplug Dryer Before Starting — Let It Cool Fully First Disconnect power at the outlet or shut off the circuit breaker before beginning, and allow the dryer to cool completely if it was recently run. Wear work gloves. Access on many LG models follows this general sequence: remove the lint screen, then remove the two front panel screws underneath it, the two screws on the face of the panel, and the two screws holding the blower cover in place. Disconnect the door switch connector and remove the front panel. With the front open, release the drive belt from the tensioner and remove the drum to access the blower housing where the thermistor is located. Photograph the wiring connections before disconnecting anything, since the thermistor and high-limit thermostat can be easy to confuse with other similar-looking components nearby. Disconnect and remove the old thermistor and high-limit thermostat, noting their exact mounting positions. Install the new components from this kit in the same positions, reconnecting wiring exactly as photographed. Reinstall the drum, re-tension the belt over the tensioner, and reassemble the front panel, blower cover, and lint screen area in reverse order. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions I already replaced the high-limit thermostat, but it keeps tripping. Why would I need this kit instead? This is a well-documented pattern. If the thermistor — the sensor that reports temperature to the control board — is misreading heat, the control can keep driving the heating element past the point where the high-limit thermostat has to trip repeatedly to protect the dryer, even with a brand-new thermostat installed. Replacing the thermistor alongside the thermostat addresses the root cause rather than just the symptom, which is exactly why LG packages them together as one kit. What's the difference between the thermistor and the high-limit thermostat? The thermistor is a sensor, not a switch — it's a variable resistor whose resistance changes with temperature, and the control board reads that value continuously to regulate heat output throughout the cycle. The high-limit thermostat is a safety switch that does one job: it shuts off the heating element automatically if temperature exceeds a safe limit, then resets itself once things cool down. A failing thermistor causes inconsistent or inaccurate heat regulation; a failing high-limit thermostat causes the dryer to shut off unexpectedly or fail to protect against overheating. My parts diagram shows more thermostat-like parts than what's in this kit. Did I order the wrong thing? Not necessarily — some LG dryer models have additional related components, such as a separate blower thermostat, that are not part of this specific kit. This kit covers the high-limit thermostat and thermistor. If your repair calls for additional related parts, or if you're not sure exactly which components your model needs, contact our support team with your model number and we'll help you confirm the complete parts list before you order. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It includes the same resistance values, switch threshold, and wire harness configuration as the high-limit thermostat and thermistor originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

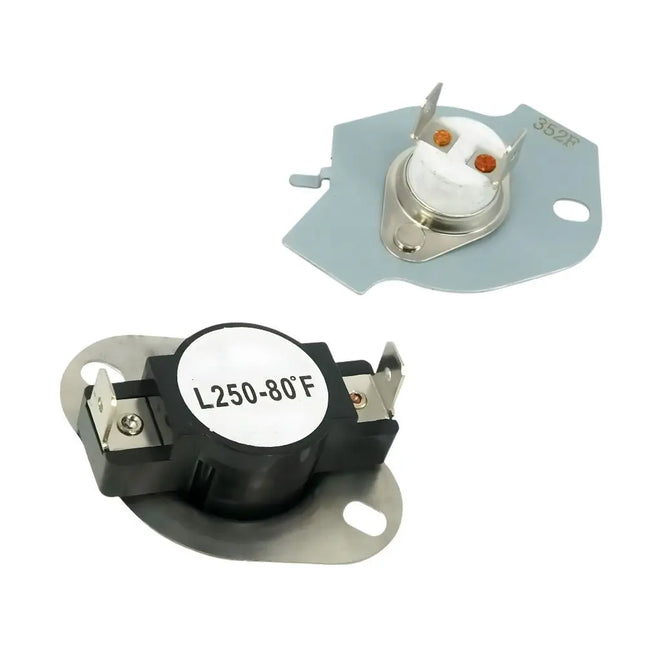

279769 Dryer Thermostat Kit - Compatible with Whirlpool, Kenmore, Maytag Product Description Keep your dryer running safely with the replacement 279769 Dryer Thermostat Kit. This kit is designed for select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers, featuring a high-limit thermostat (L250-80F) and a thermal cut-off fuse (352F) to prevent overheating. It addresses issues like no heat, not enough heat, overheating, or failure to start, offering a cost-effective alternative to OEM parts. Note: Includes one high-limit thermostat, one thermal cut-off fuse. Disconnect power before installation. Check dryer venting for blockages to prevent repeat failures. Replaces part numbers: 279769, 2004, 279548, 2796769, 279769VP, 2821, 3387812, 3389946, 3398671, 3977394, 695563, 80001, SET184, AH334278, EA334278, EAP334278, PD00002485, AP3094224, PS334278. Compatibility: Compatible with models including but not limited to: Whirlpool: NGD4655EW, WGD4815EW, WGD5000DW, MGDC215EW, MGDX655DW Kenmore: 110.60022010, 110.70102312, 110.78002012 Maytag: MEDC215EW1, MGDX655DW1 Roper: RED4640YQ0 Estate: EED4400WQ0 KitchenAid: YKEHS01PMT0 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers. 🔥 Specifications: High-limit thermostat (L250-80F), thermal cut-off fuse (352F). 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires screwdriver, pliers, work gloves; typically installed in 15–20 minutes. 🛡️ Effective Fixes: Resolves no heat, not enough heat, overheating, or failure to start. Product Specification Part Number: 279769 Component Type: Dryer thermostat kit Material: Metal and plastic Dimensions: High-limit thermostat: 2" L x 1-1/2" W; Thermal cut-off fuse: 2" L x 1-1/2" W (Based on web:6, web:16) Weight: 2.4 oz (Based on web:1, web:15) Electrical Specs: High-limit thermostat: L250-80F (121°C); Thermal cut-off fuse: 352F (178°C) Mounting: Screw-mounted on heater housing. Operating Conditions: Suitable for high-heat dryer environments Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the dryer from the power source before installation. Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your dryer running safely today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO 35001092 Dryer Thermostat – Replaces WP35001092 – Compatible with Whirlpool, Maytag & Kenmore Dryers Product Description Maintain proper dryer temperature and consistent drying results with the XPARTCO 35001092 Dryer Thermostat. This High Limit Thermostat is a replacement part for specific dryer models. It plays a role in the safety and efficiency of the dryer's operation by monitoring and regulating the temperature within the dryer. This thermostat acts as a safety device, cutting off the heat source if the internal temperature exceeds safe levels, preventing potential overheating and fire hazards. Replaces Part Numbers WP35001092, 35001092, 1122485, PD00004704, EAP11741822, AP6008682, PS11741822.  Compatibility This replacement dryer thermostat fits select Whirlpool, Maytag, Kenmore, Amana, Crosley, and Estate electric dryers. Example compatible models include (but are not limited to):Whirlpool WED4815EW1, Maytag MEDC215EW1, Kenmore 110.65132411. Always verify your dryer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Matches OEM temperature cycling performance 🌡️ Accurate Heat Regulation – Maintains safe, consistent drying temperatures 🔧 Reliable Thermal Control – Helps prevent overheating and heat loss 💰 Cost-Effective Repair – Quality alternative to OEM thermostats 🛡️ Fixes Common Issues – Solves no heat, overheating, long dry times, or blown fuses 📐 Product Specification Part Number: 35001092 Component Type: Dryer Operating Thermostat Application: Heater or exhaust temperature regulation Material: Heat-resistant metal thermostat housing Mounting: Screw-mounted Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Always unplug the dryer before servicing to avoid electrical shock. Steps: Disconnect dryer power and remove the rear access panel. Locate the thermostat on the heater housing or exhaust duct. Disconnect wiring and remove the old thermostat. Install the new XPARTCO 35001092 thermostat. Reconnect wiring, reinstall the panel, and restore power. Run a test cycle to confirm proper heating. ⏱️ Time Required: 10–15 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Restore proper dryer temperature control — Add to Cart Now for a dependable, budget-friendly repair!

Read more less

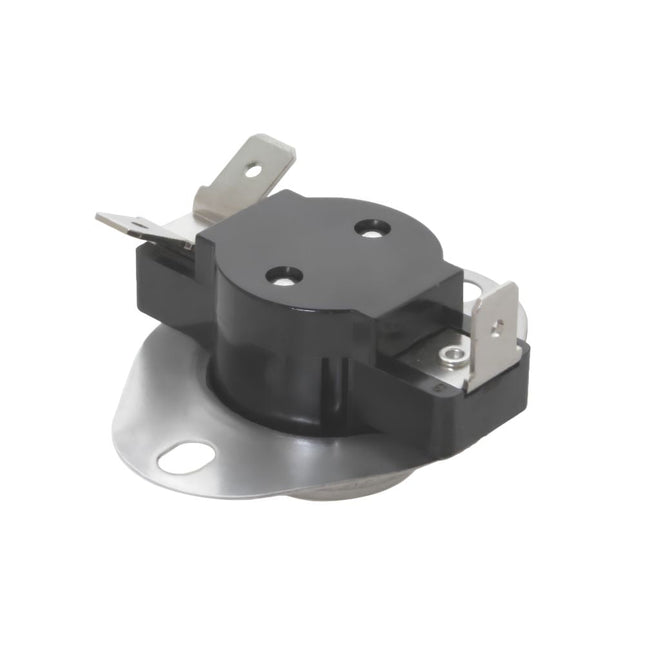

XPARTCO 6931EL3001F Dryer Hi-Limit Thermostat The XPARTCO 6931EL3001F is an aftermarket replacement dryer rear hi-limit heater thermostat compatible with select LG and Kenmore electric and gas dryers. The hi-limit thermostat is a safety switch mounted on the heater housing that monitors the temperature at the heating element. If the heater temperature exceeds the safe operating limit, the thermostat opens its contacts to cut power to the heating element, protecting the dryer and its contents from overheating. When cooled, the thermostat resets automatically — but if it fails internally, it may remain open permanently, causing the dryer to produce no heat despite the thermal fuse and other components being intact. Rated L125-31C, 250V, 25A, this 3-terminal thermostat measures 2"L x 1-3/4"W x 1-1/4"H with approximately 1-5/8" between mounting holes (center to center). It is constructed from metal and plastic in gray/black and mounts directly on the heater housing. It directly replaces 1377779, AP5072172, AH3530482, EA3530482, EAP3530482, PS3530482, and PD00023316. Often replaced together with the 6931EL3003D thermal fuse — both mount on the heater housing and work as a system to protect the dryer from overheating. Installs in 15–20 minutes with basic hand tools. Quick Answer The XPARTCO 6931EL3001F Dryer Hi-Limit Thermostat fixes LG and Kenmore dryers with no heat where the thermostat has failed open. Rated L125-31C, 250V/25A, 3 terminals. 2"L x 1-3/4"W x 1-1/4"H, ~1-5/8" between mounting holes. Mounts on heater housing. Test with multimeter — should show closed continuity at room temperature. Often replaced together with 6931EL3003D thermal fuse. Replaces 1377779, AP5072172, AH3530482, EA3530482, EAP3530482, PS3530482. Common Problems This Part Fixes Dryer produces no heat — hi-limit thermostat has failed open and is permanently interrupting the heater circuit Dryer takes much longer than normal to dry a load Dryer tumbles normally but generates no heat during the cycle No heat even after the thermal fuse has already been replaced — thermostat also failed Dryer overheating intermittently — thermostat not opening at the correct temperature Multimeter test shows open circuit (no continuity) across the thermostat at room temperature Replaces Part Numbers This hi-limit thermostat directly replaces the following OEM and cross-reference part numbers: 6931EL3001F, 1377779, AH3530482, ALG51960, EA3530482, EAP3530482, AP5072172, PD00023316, PS3530482 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This hi-limit thermostat is compatible with select LG and Kenmore electric and gas dryers. Compatible models include LG DLE, DLG, DLEX, DLGX, and DLB series dryers, and Kenmore 796-series dryers built on the LG platform. LG electric dryers — DLE series (DLE2050W, DLE3777W, DLE5955W and related models) LG electric dryers — DLEX series (select models) LG gas dryers — DLG series (DLG2051W, DLG3788W and related models) LG gas dryers — DLGX series (select models) LG electric and gas dryers — DLB series (select models) Kenmore / Sears dryers — 796-series (LG-built models) Tip: When replacing the 6931EL3001F thermostat, also replace the 6931EL3003D thermal fuse at the same time. Both mount on the heater housing and are commonly replaced together — an overheating event that causes one to fail typically stresses both. Key Features Hi-limit heater thermostat — safety switch that cuts power to the heating element if heater temperature exceeds safe limits Auto-resets when cooled — but a failed thermostat that remains open causes permanent no-heat Rated L125-31C, 250V, 25A — correct specifications for compatible LG and Kenmore dryers 3-terminal design — matches the original wiring configuration on compatible heater housings Dimensions: 2"L x 1-3/4"W x 1-1/4"H; ~1-5/8" between mounting holes (center to center) Metal and plastic construction (gray/black) — heat-resistant materials for heater housing application Mounts directly on the heater housing — accessible from the dryer back panel Often replaced together with 6931EL3003D thermal fuse for a complete heater housing thermal repair Test with multimeter before replacing — should show closed continuity at room temperature Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 6931EL3001F Part Type Dryer Rear Hi-Limit Heater Thermostat Condition Aftermarket Replacement Application LG and Kenmore Electric and Gas Dryers Thermostat Rating L125-31C — auto-resets after cooling Voltage 250V Amperage 25A Terminals 3-terminal Dimensions 2"L x 1-3/4"W x 1-1/4"H Mounting Hole Spacing Approx. 1-5/8" center to center Color Gray / Black Material Metal / Plastic Location Heater housing (rear of dryer) Normal Behavior Closed continuity at room temperature Often Replaced With 6931EL3003D Thermal Fuse Compatible Brands LG, Kenmore (LG-built) Installation Notes ⚠️ Unplug Dryer and Shut Off Gas Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the back panel of the dryer by unscrewing the perimeter screws to access the heater housing. The 6931EL3001F thermostat is mounted on the heater housing — it is the 3-terminal component with gray/black housing. Before removing it, test it with a multimeter: disconnect the wires and probe the terminals. At room temperature a working thermostat shows closed continuity. An open reading confirms failure. Photograph the 3-wire connections before disconnecting — reconnecting in the correct positions is important. Remove the 2 mounting screws and lift the old thermostat off. Install the new thermostat in the same position with the 2 mounting screws and reconnect the wires in the same positions. While the heater housing is accessible, also test and replace the 6931EL3003D thermal fuse if needed. Reinstall the back panel, restore power, and run a test heat cycle. Tools needed: Phillips screwdriver, multimeter. Frequently Asked Questions What is the difference between the 6931EL3001F thermostat and the 6931EL3003D thermal fuse? Both are mounted on the heater housing and protect the dryer from overheating, but they work differently. The 6931EL3001F is a resettable hi-limit thermostat rated L125-31C — it opens when the heater temperature gets too high and resets automatically when cooled. The 6931EL3003D is a one-time thermal fuse that permanently interrupts the circuit if the temperature exceeds its rated limit — once blown, it cannot reset and must be replaced. Both should show closed continuity at room temperature when working. Because both are on the heater housing and experience the same thermal stress, replacing both at the same time is recommended. How do I test the 6931EL3001F thermostat with a multimeter? Unplug the dryer and disconnect all three wires from the thermostat terminals. Set your multimeter to continuity or resistance mode. At room temperature, a working 6931EL3001F thermostat should show closed continuity (near-zero resistance) across its contacts. If your multimeter reads open circuit (no continuity / OL), the thermostat has failed and needs replacement. Since this thermostat auto-resets when cooled, always test at room temperature — testing while the dryer is still warm may give a false open reading if the thermostat has legitimately opened due to heat. My LG dryer has no heat but the thermal fuse is good — could it be the thermostat? Yes — when the thermal fuse tests good but there is still no heat, the hi-limit thermostat (6931EL3001F) is the next most common culprit. A thermostat that has failed internally may remain permanently open even at room temperature, cutting power to the heating element exactly as a blown thermal fuse would. Test the thermostat with a multimeter for continuity. Also check the cycling thermostat (6931EL3002M) and the thermistor (6323EL2001B) — all three are part of the LG dryer thermal control system and any one of them can cause a no-heat condition. What does the "L125-31C" rating mean? The L125-31C rating describes the thermostat's operating parameters. L125 means the thermostat opens (trips) when the temperature reaches approximately 125°C (257°F). The 31 indicates the reset differential — the thermostat resets when the temperature drops approximately 31°C below the trip point, around 94°C (201°F). This rating ensures the thermostat allows the heater to operate at normal drying temperatures while protecting against dangerous overheating. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from metal and plastic to match the L125-31C rating, dimensions, and 3-terminal configuration of the original 6931EL3001F hi-limit heater thermostat. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
