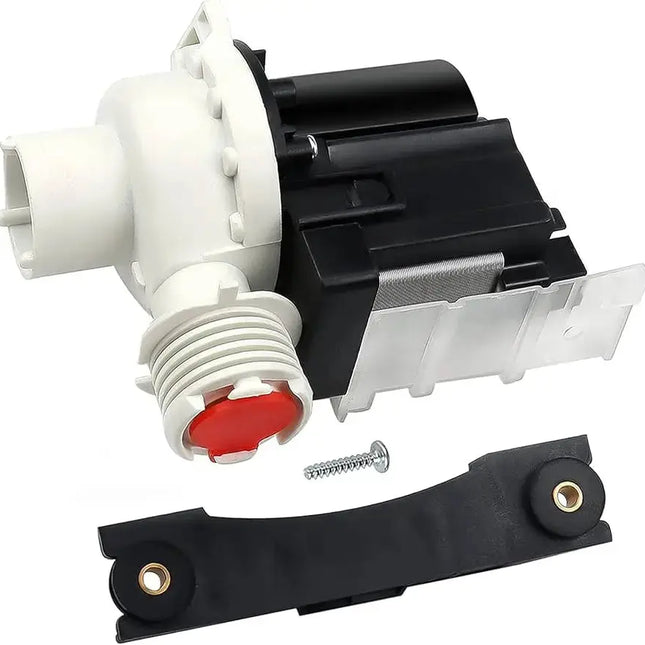

XPARTCO 137221600 Washer Drain Pump The XPARTCO 137221600 is an aftermarket replacement washer drain pump compatible with a wide range of Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers — including popular Affinity series and washer-dryer combo models. The drain pump is mounted at the base of the washer and is responsible for evacuating the wash and rinse water from the tub through the drain hose at the end of each cycle. When the drain pump fails, the washer can't drain — leaving clothes soaking wet, water pooling in the tub, and the wash cycle unable to advance to spin. Common failure symptoms include humming without pumping (blocked or seized impeller), leaks from the pump housing, loud grinding or clicking noises, and complete pump silence when a drain cycle should be running. Rated 120V AC, 60Hz, 85W, 1.25A. Based on the Askol M65 design, with a firmly attached red flapper to prevent drain backflow into the tub. Constructed from strong, durable plastic to resist cracking and leaking through many years of cycling. Package includes the drain pump, mounting base, and mounting screw. This part directly replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, and PS7783938. Important: before installing the new pump, clean any lint or debris from the rubber boot, verify the drain hose is clear and properly fastened, and check the pump filter for blockage — installing a new pump on a system with the underlying blockage will not resolve the drainage problem. Installs in 30–60 minutes with basic hand tools. Quick Answer The XPARTCO 137221600 Washer Drain Pump fixes Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers that won't drain, leave clothes soaking wet, are noisy or humming during the drain cycle, or display an E11 error code. 120V AC, 60Hz, 85W, 1.25A. Askol M65 design with red backflow flapper. Kit includes pump + mounting base + screw. Replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, PS7783938. Common Problems This Part Fixes Washer not draining — pump failed to remove water at the end of the wash or rinse cycle Clothes left soaking wet at the end of the cycle — no drain, so no spin can start Water leaking from the bottom of the washer — cracked pump housing or failed seal Loud humming noise but no water flowing — pump motor running against a seized impeller or blockage Grinding, clicking, or unusual noises during the drain cycle E11 error code displayed on the control panel (drain fault) Washer pumps but won't spin — drain cycle can't complete, blocking spin Cycles taking much longer than normal as the washer tries to drain Pump silent during drain — motor windings open or electrical fault Impeller broken, cracked, or missing pieces after opening the pump Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: 137221600, 131724000, 134051200, 134740500, 137108100, 137151800, 137151800KITK, 2754548, TJ137108100, ER137108100, PD00000118, EAP7783938, BPX401-72J, AFR14249, AP5684706, PS7783938, Also replaces GE WH23X10041, 2119312, WH23X10009, WH23X10017, WH23X10031, WH23X10034, AH3502779, EA3502779, AP5324214, PS3502779. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select front-load washers and washer-dryer combos from the following brands: Frigidaire front-load washers — Affinity series (FAFW3001LW3, FAFW3801LW3 and related), FEX831FS2/FS4, FTF2140ES1, FWS445RFS2, FWX445RFS3 series Frigidaire front-load washers — ATF6000ES1, ATF8000FS1, ATFB6700FS0 series Frigidaire front-load washers — GLTF2940ES3, GLTF2940FS1 and related GLTF series Frigidaire washer-dryer combos — CWS3600AS1 and related Electrolux front-load washers — select models Crosley front-load washers — select models Gibson front-load washers — select models Kelvinator front-load washers — select models Kenmore / Sears front-load washers — select Frigidaire-built models (41744052400, 41744052401, 41744052500, 41744082500, 41748102700, 41748106700, 41748116700, 41790812995 and related 417-series) Tappan front-load washers — select models Westinghouse front-load washers — select models Note: The redesigned 137221600 may look slightly different from your original (e.g., white or gray housing vs. original black), but functions identically. Ensure proper orientation and flapper alignment during installation. Always verify your appliance model number before ordering. Key Features Aftermarket replacement built to OEM-equivalent quality standards Drain pump — removes water from the washer tub through the drain hose at the end of the wash and rinse cycles Resolves "won't drain," "won't spin," "wet clothes," "E11 error," and "humming pump" symptoms 120V AC, 60Hz, 85W, 1.25A — correct electrical specifications for compatible Frigidaire-platform washers Askol M65 design with red backflow flapper to prevent water from flowing back into the tub Strong, durable plastic construction resistant to cracking and leaking Kit includes: 1x drain pump, 1x mounting base, 1x mounting screw Replaces 15+ OEM and cross-reference part numbers including 137108100, 137151800, 131724000, 134051200, 134740500, 134740800, AP5684706, and PS7783938 Compatible with Frigidaire (Affinity, FEX, FTF, FWS, FWX, ATF, ATFB, GLTF, CWS series), Electrolux, Crosley, Gibson, Kelvinator, Kenmore (417-series), Tappan, and Westinghouse front-load washers and washer-dryer combos DIY repair — installs in 30–60 minutes with basic hand tools Product Specifications Part Number XP137221600 Part Type Washer Drain Pump Condition Aftermarket Replacement Application Front-Load Washers and Washer-Dryer Combos (Frigidaire/Electrolux platform) Voltage 120V AC Frequency 60 Hz Wattage 85W Amperage 1.25A Design Askol M65 with red backflow flapper Material Durable plastic Includes 1x Drain Pump, 1x Mounting Base, 1x Mounting Screw Error Codes Resolved E11 (drain fault) Compatible Brands Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, Westinghouse Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Work Gloves — Check for Blockage First Disconnect power at the outlet or breaker and shut off both water supplies at the wall before beginning. Wear work gloves to protect your hands — pump components can have sharp edges. Have towels ready — residual water remains in the pump housing and hoses. Important: before replacing the pump, check for the underlying cause of the drain problem. Inspect the pump filter (accessible on many models via the lower front kick panel), the drain hose for kinks, and the rubber boot at the bottom of the tub for lint, coins, buttons, or other debris — installing a new pump on a system with an unresolved blockage will not fix the drain problem. Remove the appropriate access panel (typically the rear or front lower kick panel — model-dependent) to expose the pump. Photograph the wire harness and hose connections before disconnecting. Disconnect the electrical wire connectors from the pump motor. Squeeze the hose clamps with pliers and slide them back to release the tub-to-pump hose and the pump-to-drain-hose from the pump. Remove the 2 mounting screws holding the pump to its base and lift the old pump out. Clean any residual debris from the rubber boot, hoses, and pump filter area. Install the new 137221600 pump using the included mounting base and screw. Reconnect the hoses with the clamps, orient the red backflow flapper correctly, and reconnect the electrical connectors. Reinstall the access panel, restore water and power, and run a rinse cycle to test drainage and check for leaks at all connections. Tools needed: Phillips screwdriver, needle-nose pliers, channel-lock pliers, small flathead screwdriver, towel, work gloves. Frequently Asked Questions My washer won't drain — is it always the pump? Not always. Before replacing the pump, check for these common causes: 1) Clogged pump filter — most Frigidaire front-load washers have a filter accessible via the lower front kick panel; coins, buttons, lint, and small items can block it. 2) Kinked or clogged drain hose — inspect the entire drain hose from the pump to the wall standpipe or sink. 3) Blocked rubber boot — small items can get stuck between the tub and the pump inlet. 4) Failed lid lock/door switch — if the washer doesn't detect a locked door, it won't run the drain cycle. If all of these check out and the pump still isn't draining (or is humming without moving water), the pump has failed and this is the correct repair. What is the E11 error code on my Frigidaire washer? E11 on Frigidaire and Electrolux front-load washers indicates a drain fault — the control board is not detecting successful drainage within the expected time. Common causes are a failed drain pump, a clogged pump filter, a kinked or clogged drain hose, or debris blocking the impeller. If you've verified the filter and hose are clear but the code persists, replacing the 137221600 drain pump typically resolves it. If the code returns after replacement, check the wire harness between the pump and the control board. Does the pump come with everything I need for installation? Yes — the 137221600 (OE) package includes the drain pump itself, a mounting base, and a mounting screw. This is everything you need for the pump replacement itself. However, you should reuse the original hose clamps and hoses from your old pump (they should still be in good condition). If you find that the rubber boot at the base of the tub is cracked, hardened, or torn during the repair, that's a separate part that would need to be ordered — inspect it before completing the reinstallation. The new pump looks different from my old one — is it the right part? Very likely, yes. The 137221600 has been through several revisions over its production history — some housings are black, others white or gray, and the exact shape can vary slightly across production runs. As long as the mounting bolt pattern, hose inlet/outlet sizes, and electrical connector are the same, and the specs match (120V, 60Hz, 85W, Askol M65 design), the pump will function identically to your original. During installation, focus on correct orientation and flapper alignment — the flapper (red) must be positioned so it opens outward toward the drain hose direction to prevent backflow. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire/Electrolux OEM part, but is manufactured to match the electrical specifications (120V AC, 60Hz, 85W, 1.25A), Askol M65 design, red backflow flapper, dimensions, and drain pump function of the original 137221600 used in compatible Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WPW10409079 Washer Genuine OEM Drain Pump Replaces Part Number: WPW10409079, W10409079, 2118648, AP6021043, PS11754363, LP09079. Description: This Drain Pump is a replacement part for specific Whirlpool top-loading washing machine models. Located near the bottom center of the machine, it actively pumps water out of the washer tub at the end of each cycle.  The pump motor spins an impeller chamber to push water through the drain hose and out of the home. Causes of failure include clogging from mineral buildup or fabric fibers within the pumping components. Over time, motor windings experience excess heat and may burn out from consistent drainage cycles. WPW10409079 is the part number for a Whirlpool washer drain pump that removes water from the washer during the drain cycle. It is compatible with many Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef models.

Read more less

Genuine OEM WH23X10043 Washer Drain Pump The WH23X10043 is a genuine OEM drain pump from GE for GE and Hotpoint washers. The drain pump pushes wash water out of the tub and through the drain hose during the drain portion of the cycle. When it clogs, wears out, or leaks, the washer may leave water in the drum, stop before the spin, throw drain-related problems, leak from the pump, or make unusual noise while draining. This is a genuine OEM part, not an aftermarket equivalent, so the fit and operation match the original pump. It is a straightforward repair for most owners, usually under an hour, with a nutdriver, pliers and screwdrivers. Quick Answer The Genuine OEM WH23X10043 Drain Pump fixes a GE or Hotpoint washer that won't drain, leaves water in the drum, drains slowly, leaks from the pump, or makes noise while draining because the pump has failed. Genuine OEM from GE Appliances. Classic symptom: the cycle stalls with water still in the tub, or you hear the pump hum or grind but the water doesn't leave. Common Problems This Part Fixes Washer won't drain, or water is left in the drum after the cycle Slow or incomplete draining Water leaking from the pump Unusual noise while the washer drains Cycle stopping before the spin because the water hasn't drained Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This drain pump is listed under the following part number: WH23X10043, 2754597, DP035-043, AGE26084, AP5632594, EAP3654194, PD00023322, PS3654194 We have not found any superseded or alternate manufacturer numbers for this pump. If your old pump or parts diagram shows a different number, contact our support team and we'll check whether it matches. Compatibility This drain pump is listed for washers from: GE, including GBAN2800F0WW, GCWN4950D0WS, GHWN4250D0WW, GLWN5550D0WW, GMAN4250F0WS, and GTWN5650F2WS Hotpoint, including HTAP1200D1WW and MTAP1200D0WW Note: The model list above is only a sample, since retailers list 100 or more compatible models. Confirm fit by matching the number on your old pump or your parts diagram, or contact our support team with your model number and we'll verify before you order. Key Features Genuine OEM GE washer drain pump, not an aftermarket equivalent Restores full draining so cycles finish and the washer can spin Fits a wide range of GE and Hotpoint washers Simple replacement, typically under an hour with basic hand tools Product Specifications Part Number WH23X10043 OEM Part Number WH23X10043 Part Type Washer Drain Pump Condition Genuine OEM Manufacturer GE Appliances Approx. Size About 9 in H x 6 in L x 4 in Thick Application Select GE & Hotpoint Washers Installation Notes ⚠️ Unplug Power and Expect Water Unplug the washer and turn off the water supply before starting. Work gloves are recommended. Put towels and a shallow pan under the work area, since some water will remain in the pump and hoses. Following your model's service guide, remove the panel needed to reach the pump, disconnect its wiring connector, and loosen the clamps holding the hoses. Pull the hoses off, remove the pump's mounting fasteners, and take out the old pump. Install the new pump in the same position, reattach the hoses with their clamps (replace worn clamps if needed), and reconnect the wiring. Replace the panel, restore power and water, and run a drain cycle while checking for leaks. Reviewers note the hose clamps can be difficult, so have pliers ready. Frequently Asked Questions My washer won't drain. Is this the part I need? A failed or clogged drain pump is a common cause. Before replacing it, check the drain hose and the pump for a clog from a sock, coin, or lint. If the path is clear but the pump hums, grinds, leaks, or doesn't run, replacing it should fix the problem. Will this fit my GE or Hotpoint washer? It is listed for a wide range of GE and Hotpoint washers. Match the number on your old pump or parts diagram, or contact our support team with your model number and we'll confirm fit before you order. Do I need special tools? No. A nutdriver, pliers, and screwdrivers are typically all you need. Pliers help with the hose clamps. Is this a genuine GE part? Yes. This is a genuine OEM part from GE Appliances, not an aftermarket equivalent. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WP3363394 Genuine OEM Washer Drain Pump The WP3363394 is a genuine Whirlpool OEM drain pump for direct-drive (no-belt) Whirlpool, Kenmore, Maytag, KitchenAid, Estate, Roper, Crosley, and Inglis top-load washers. This pump mounts directly to the washing machine's motor using two clips, and removes water from the tub during the drain portion of the wash cycle. It has one large port and one small port for its hose connections. Over time, the pump can become locked up internally, or a small object can get lodged inside and clog it, preventing normal drainage. Symptoms of a failing pump include the washer not draining at all, or a small leak appearing near the front of the washer from a defective pump. A DIY replacement typically takes about 10 to 15 minutes. It directly replaces 3363394, WP3363394VP, AP6008107, 21024, 3296, 3348014, 3348015, 3348215, 3352492, 3352493, 3352292, 3352293, 62516, 63347, 64076, 8235, PS11741239, EAP11741239, and 1195967. Quick Answer The WP3363394 Genuine OEM Washer Drain Pump fixes direct-drive Whirlpool, Kenmore, Maytag, KitchenAid, Estate, Roper, Crosley, and Inglis top-load washers that aren't draining, or are leaking near the front of the unit. Mounts to the motor with two clips; one large port, one small port. Replaces 3363394, WP3363394VP, AP6008107, 21024, 3296, 3348014, 3348015, 3348215, 3352492, 3352493, 3352292, 3352293, 62516, 63347, 64076, 8235, PS11741239, EAP11741239, 1195967. This pump is specifically for direct-drive (no-belt) washers — confirm your washer's drive type before ordering. Common Problems This Part Fixes Washer not draining — standing water left in the tub after a cycle Small leak near the front of the washer Pump that has locked up or become clogged with a small object Cycle stalling at the drain step and never advancing Unusual noise coming from the pump during the drain phase Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer drain pump directly replaces the following OEM and cross-reference part numbers: WP3363394, 3363394, 21024, 3296, 3348014, 3348015, 3348215, 3352492, 62516, 63347, 64076, 8235, AP6008107, AWP47721, EAP11741239, PD00002328, PS11741239 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select direct-drive Whirlpool top-load washers, and also fits select Kenmore, Maytag, KitchenAid, Estate, Roper, Crosley, and Inglis washers built on the Whirlpool platform, including model numbers such as WET4024EW, LTE5243DQ, LTE5243DQA, LTG5243DQ, CAM2742TQ, MAT14PDAWW, LSW9750PQ3, TAWS850PQ2, LSR7233EQ, and Kenmore 110.26812690 and 110.28522701. Note: This pump is designed specifically for direct-drive (no-belt) washers. Belt-drive models use a different pump design. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which pump your washer needs. Key Features Genuine Whirlpool OEM part — factory-specified pump design for direct-drive washers Mounts directly to the motor with two clips Resolves "not draining" and "leaking near the front of the washer" symptoms caused by pump failure One large port, one small port for hose connections Factory Certified Part built to Whirlpool's engineering specifications Direct drop-in replacement — matches the original mounting and hose connections Replaces 3363394, WP3363394VP, AP6008107, 21024, 3296, 3348014, 3348015, 3348215, 3352492, 3352493, 3352292, 3352293, 62516, 63347, 64076, 8235, PS11741239, EAP11741239, and 1195967 Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Estate, Roper, Crosley, and Inglis top-load washers Genuine OEM replacement — guaranteed fit, materials, and performance DIY-friendly repair, typically 10 to 15 minutes Product Specifications Part Number WP3363394 Part Type Washer Drain Pump Condition Genuine OEM Brand Whirlpool Application Direct-Drive (No-Belt) Top-Load Washers Mounting Direct to motor, secured with two clips Ports 1 large port, 1 small port Companion Clip WP8546127 (recommended addition) Repair Difficulty Easy — 10 to 15 minutes Quantity 1 drain pump Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Estate, Roper, Crosley, Inglis Installation Notes ⚠️ Unplug Washer Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Remove the two screws securing the top panel of the washer, then carefully lift off the panel and set it aside. Disconnect the hoses connected to the drain pump by squeezing the clamps and pulling them off, then disconnect the wires from the terminals. Using a Phillips-head screwdriver, unscrew the four screws around the old pump and carefully lift it out. Take the new WP3363394 and place it into the same position as the old one, securing it with the screws. Attach the hoses back onto their ports and plug the wires back into the terminals. Reinstall the top panel and secure its screws. Restore power and run a test cycle to confirm the washer drains completely with no leaks. Tools needed: multi-screwdriver, standard pliers, work gloves. Frequently Asked Questions My washer isn't draining. Is this the right pump? Yes, this is the most direct symptom of a failed drain pump. If the pump has locked up internally or become clogged by a small object, water won't be removed from the tub during the drain phase, leaving standing water behind after the cycle finishes. How do I know if my washer is direct-drive or belt-drive? This pump is specifically designed for direct-drive washers, which don't use a belt to connect the motor to the transmission. If you're not sure which type your washer uses, check your model number against the compatibility list, or contact our support team for confirmation before ordering, since belt-drive washers require a different pump design. Should I replace the mounting clips at the same time? It's worth considering, especially if your original clips show wear or damage. The companion clip, WP8546127, is commonly recommended alongside this pump since it secures the pump to the motor, and replacing a worn clip at the same time can help ensure a secure fit for the new pump. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original pump design, port configuration, and motor mounting of the drain pump originally installed in your washer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

W10919003 Washer Genuine OEM Drain Pump Replaces Part Numbers: W10919003, 4461359, W10775446, AP6038235, PS11770076. Description: This Water Pump is a Genuine OEM replacement part for specific Maytag, Kenmore, Whirlpool washing machine models. It plays a crucial role in circulating water throughout the wash cycles and draining the used water from the tub.

Read more less

W11396717 Genuine OEM Whirlpool Washer Drain Pump Assembly The W11396717 is a Genuine OEM Whirlpool replacement drain pump assembly compatible with select Whirlpool, Maytag, and Kenmore high-efficiency top-load washers — including the Whirlpool WTW5100, WTW6120, WTW7120, WTW8120, and WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, and MVW8230 series. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, or make loud humming, grinding, or rattling noises during the drain phase. Rated 120V, 60Hz, 1.2A (CL.F duty class), this complete pump assembly is mounted to the underside of the outer tub and secured by three mounting screws. It directly replaces the earlier W11263349 as well as 4960510, AP6974116, PS12731177, and EAP12731177. Note: the pump is accessed from the bottom of the washer — the machine must be tilted or laid on its back to reach the mounting screws. Installs in 20–35 minutes with basic hand tools. Quick Answer The W11396717 Genuine OEM Whirlpool Washer Drain Pump fixes Whirlpool and Maytag HE top-load washers that won't drain, leave standing water, stop mid-cycle, or make loud noise during the drain cycle. 120V/60Hz/1.2A CL.F. Mounted on the underside of the outer tub — access by tilting the washer. Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177. Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Washer stopping mid-cycle due to a drain fault Loud humming during the drain phase — motor energized but pump not moving water Grinding or rattling during drain — damaged impeller or worn bearings Clothes excessively wet after a full cycle — pump not fully removing water before spin Water draining very slowly — pump motor weakening below rated performance Water leaking from the pump area underneath the washer Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: W11396717, W11263349, Hanyu B25-3A04, AP6974116, AWP44690, EAP12731177, PD00065247, PS12731177 W11396717 is the current production part number superseding W11263349. If your parts diagram shows W11263349, the W11396717 is the correct current replacement. Contact our support team if you need confirmation before ordering. Compatibility This drain pump is compatible with select HE top-load washers from the following brands and series: Whirlpool top-load washers — WTW5100HC0, WTW5100HW0, WTW5105HC0, WTW5105HW0, WTW6120HC0, WTW6120HW0, WTW7120HC0, WTW7120HC1, WTW7120HW0, WTW8120HC0, WTW8120HW0, WTW8127LC1, WTW8127LW0, WTW8127LW1 and related models Maytag top-load washers — MVW6200KW0, MVW6230HC0, MVW6230HW0, MVW6230RHW0, MVW7230HC0, MVW7230HC1, MVW7230HW0, MVW7230HW1, MVW7232HC0, MVW7232HC1, MVW7232HC2, MVW7232HW0, MVW7232HW1, MVW7232HW2, MVW8230HC0, 7MMVW7230LC0, 7MMVW7230LW0 and related models Kenmore / Sears top-load washers — 11021112021, 11021652020, 11031652020 and related models Note: This pump is mounted on the underside of the outer tub and requires tilting or laying the washer on its back for access. Always verify your model number before ordering. Key Features Removes water from the tub during drain and spin cycles for proper washer operation Rated 120V, 60Hz, 1.2A (CL.F) — correct electrical specifications for compatible HE top-load washers Current production part — directly supersedes W11263349 Mounted on the underside of the outer tub and secured by three mounting screws — tilt or lay washer on its back for access Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177, and B25-3A04 Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance DIY repair — installs in 20–35 minutes with basic hand tools Product Specifications Part Number W11396717 Supersedes W11263349 Part Type HE Top-Load Washer Drain Pump Assembly Condition Genuine OEM Application Whirlpool / Maytag / Kenmore HE Top-Load Washers Voltage 120V AC Frequency 60 Hz Amperage 1.2A Duty Class CL.F Mounting 3 screws on underside of outer tub — tilt washer for access Compatible Brands Whirlpool, Maytag, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Work Gloves Recommended Disconnect power and turn off the water supply before beginning. Wear work gloves throughout. The drain pump is mounted on the underside of the outer tub — to access it, disconnect the water supply hoses, drain hose, and lid switch wiring, then carefully tilt the washer onto its back or side on a padded surface. Locate the pump on the bottom of the tub. Using a 5/16" nut driver, remove the three mounting screws securing the pump assembly to the tub. Release the two spring clamps with channel-lock pliers and disconnect the inlet and outlet hoses from the pump. Disconnect the wiring harness and remove the old pump. Install the new W11396717 pump in the same position, reconnect hoses and clamps, reconnect the wiring harness, and secure with the three mounting screws. Return the washer to upright, reconnect all hoses and wiring, restore power and water, and run a drain/spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, 5/16" nut driver, channel-lock pliers, padded surface for tilting, work gloves. Frequently Asked Questions What is the difference between W11396717 and W11263349? These are the same drain pump assembly across two production revisions. W11263349 was the original part number, and W11396717 is the current updated version that supersedes it. Whirlpool issues updated part numbers when minor engineering changes are made during production. Both are the same pump with the same specifications, dimensions, and function. If your washer's parts diagram shows W11263349, the W11396717 is the correct current replacement to order. Why does accessing this pump require tilting the washer? On compatible Whirlpool WTW and Maytag MVW HE top-load washers, the drain pump is mounted directly to the underside of the outer tub — not on the cabinet side panel or behind a front access panel as on some other models. The pump's three mounting screws are only reachable from below the machine. The standard repair procedure is to unplug and disconnect the washer, tilt it onto its back or side on a padded surface, access the pump from underneath, and return the washer to upright after installation. How do I know if it's the drain pump versus a blocked drain hose? Before replacing the pump, check the drain hose for kinks or blockages — disconnect the hose and blow through it to confirm it is clear. Also check whether the drain hose standpipe height is within the recommended range (typically 39–96 inches from the floor). If the hose is clear and properly positioned but the washer still won't drain, listen during the drain phase: a completely silent drain cycle (motor not running) suggests a failed motor or control board issue, while a humming or grinding noise during drain confirms the pump motor is receiving power but the pump is mechanically failed and needs replacement. Is this pump the same as the W10876600 used in older Whirlpool Cabrio models? No — the W11396717 and the W10876600 are different drain pumps for different Whirlpool top-load washer generations. The W10876600 (and its successor WPW10730972) is used in older Whirlpool Cabrio and Maytag Centennial models. The W11396717 is used in newer WTW5100/6120/7120/8120 and MVW6200/6230/7230/7232/8230 series models. They are not interchangeable — verify your model number before ordering. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same drain pump assembly installed in compatible Whirlpool, Maytag, and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

W10876600 Washer Genuine OEM Drain Pump – Compatible with Whirlpool, Maytag, Amana, and Crosley Washers Product Description Quickly and efficiently remove water from your washer with the W10876600 Washer Genuine OEM Drain Pump. This factory-approved replacement pump removes water from the tub during wash and spin cycles, ensuring smooth performance and proper draining. A faulty drain pump can cause standing water, error codes, or incomplete cycles. Replacing it with this Genuine OEM part restores dependable drainage and long-lasting washer performance. Replaces Part Numbers W10876600, 4455877, W10727777, W10876600VP, PD00034529, EAP11738156, AP6004933, PS11738156. Compatibility This Genuine OEM drain pump fits select Whirlpool, Maytag, Amana, and Crosley top-load and front-load washers. Example compatible models include (but are not limited to): Whirlpool WTW5000DW1, Maytag MVWC465HW0, and Amana NTW4516FW3. Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Genuine OEM Replacement – Factory-approved for perfect fit and reliable operation 💧 Efficient Water Removal – Quickly drains water from the washer tub after each cycle 💪 Durable Motor Design – Built to withstand repeated use and heavy loads 🛠️ DIY Installation – Direct-fit replacement installs easily with basic tools 🛡️ Fixes Common Issues – Solves washer not draining, standing water, or “F9E1”/“SD” error codes 📐 Product Specification Part Number: W10876600 Component Type: Washer Drain Pump Assembly Material: Heavy-duty plastic pump housing and electric motor Voltage: 120V AC Mounting: Direct-fit on washer base with wiring harness connection Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Nut driver, pliers, towel or bucket ⚠️ Safety First: Always unplug the washer and disconnect water supply before performing repairs to prevent electrical shock or leaks. Steps: Disconnect power and water hoses. Tilt the washer back or remove the front access panel. Unplug the wiring harness and loosen the clamps on the drain hoses. Remove the old pump and install the new W10876600 pump. Reconnect hoses and wiring, secure the pump, and restore power. Run a rinse or drain cycle to verify proper operation. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Genuine OEM Replacement Part 🔄 30-Day Return Policy Fix washer drainage issues fast — Add to Cart Now for a factory-quality repair that lasts!

Read more less

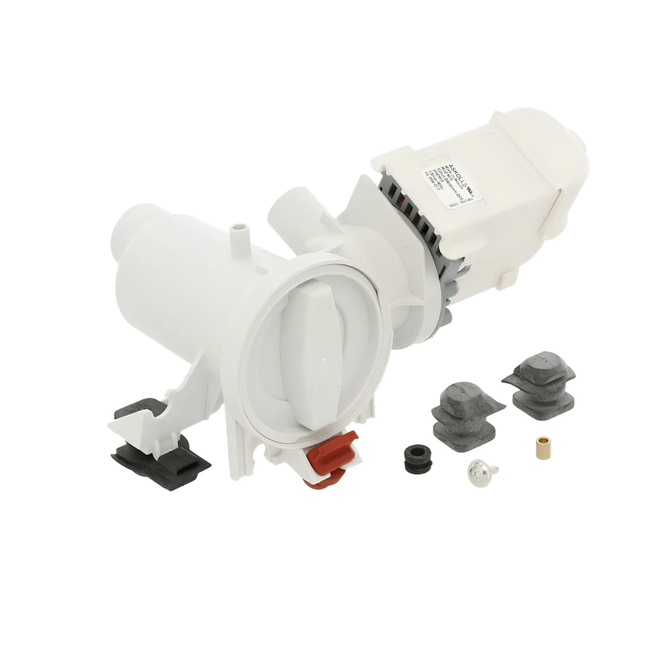

Genuine OEM 280187 Washer Drain Pump Assembly The 280187 is a genuine OEM drain pump assembly from Whirlpool for Whirlpool-built front-load washers sold under the Whirlpool, Kenmore, Kenmore Elite, Maytag, KitchenAid, and Amana names. The drain pump pushes water out of the tub through the drain hose at the end of the wash and rinse stages. When it clogs, wears out, or seizes, the washer can stop with water still in the drum, throw drain errors, stop before the spin cycle, leak, or make loud humming or grinding noises. This is a complete drain pump assembly, including the pump motor and housing, so it replaces the whole unit rather than just an internal part. As a genuine OEM part, not an aftermarket equivalent, it matches the original factory fit and specification. The pump sits at the base of the washer behind the lower front panel, and the swap typically takes 15–30 minutes with common hand tools. Quick Answer The Genuine OEM 280187 Drain Pump Assembly fixes a Whirlpool-built front-load washer that won't drain, leaves water in the drum, stops before spinning, leaks from the pump, or makes loud noise during draining. Complete pump motor and housing, genuine OEM. Classic symptom: the cycle stalls with water still in the tub, or you hear a loud hum or grind while it tries to drain. Common Problems This Part Fixes Washer won't drain, or water is left in the drum after the cycle Drain error codes or the cycle stopping before the spin Loud humming, grinding, or rattling while the washer drains Water leaking from the pump or its housing Pump motor seized or not running Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This drain pump assembly replaces the following part numbers: 280187 replaces 1200164, 285998, 8181684, 8182819, 8182821, AH1485610, AP3953640, AWP39453, EA1485610, EAP1485610, PD00002352, PS1485610 These are Whirlpool's current and earlier numbers for this pump. If your old pump or parts diagram shows any of them, this is the matching replacement. Compatibility This pump is listed for select front-load washers from: Whirlpool, including Duet models such as WFW9400VE03, WFW9500TW03, and WFW9600TW02 Kenmore and Kenmore Elite, including 11042822200, 11042926200, 11045962400, and 11045966403 Maytag, including MHWE400WR00 and MHWE400WW0 KitchenAid, including KHWS02RWH0 Amana Note: The model list above is only a sample, since this pump fits many more models. Confirm fit by matching the number on your old pump or parts diagram against the Replaces list, or contact our support team with your model number and we'll verify before you order. This pump is for front-load washers and is not intended for top-load machines. Key Features Genuine OEM Whirlpool drain pump assembly, not an aftermarket equivalent Complete unit with pump motor and housing Restores full draining so cycles finish and the washer can spin Cross-references to Whirlpool 280187, 285998, 8181684, 8182819, and 8182821 Fits select Whirlpool, Kenmore, Maytag, KitchenAid, and Amana front-load washers Typical installation 15–30 minutes with common hand tools Product Specifications Part Number 280187 OEM Part Number 280187 Part Type Washer Drain Pump Assembly Condition Genuine OEM Included Pump Motor and Housing Application Select Whirlpool, Kenmore, Kenmore Elite, Maytag, KitchenAid & Amana Front-Load Washers Installation Notes ⚠️ Unplug Power and Expect Water Unplug the washer and turn off the water supply before starting. Remove the lower front panel to reach the pump at the base of the washer, then drain any residual water into a shallow pan or with a wet/dry vacuum, using the drain hose or the small drain cap if your model has one. Disconnect the wiring harness from the pump, then loosen the clamps holding the hoses and pull the hoses off. Remove the pump's mounting screw and take out the old pump. Fit the new pump in the same position, reattach the hoses with the clamps (replace worn clamps if needed), and reconnect the wiring harness. Check that the pump and hose connections are secure, replace the front panel, restore power and water, and run a drain cycle while checking for leaks. Common tools include a nutdriver or Torx driver, screwdrivers, and pliers. Frequently Asked Questions My washer won't drain. Is this the part I need? A failed or clogged drain pump is one of the most common causes. Before replacing it, check the drain hose and the pump filter for a clog, such as a sock or coin. If the filter is clear but the pump hums, grinds, or doesn't run, replacing the pump should fix it. Does this include the pump motor? Yes. This is the complete assembly, with the pump motor and housing. My old pump is marked 285998, 8181684, 8182819, or 8182821. Will this work? Yes. All of those are earlier Whirlpool numbers for this pump, and 280187 is the current number. Will this fit my top-load washer? It is intended for front-load washers. Contact our support team with your model number if you're unsure, and we'll confirm before you order. Is this an OEM part? Yes. This is a genuine OEM Whirlpool part, not an aftermarket equivalent, so it matches the original factory fit and specification. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10730972 Washer Drain Pump Replaces WPW10730972 The XPARTCO W10730972 is an aftermarket replacement front-load washer drain pump and motor assembly compatible with a wide range of Whirlpool, Maytag, Kenmore, Amana, Inglis, and KitchenAid front-load washers — including the Whirlpool Duet, Maytag 2000/3000/4000 series, and Kenmore HE2/HE2T Plus. The drain pump removes water from the washer tub during the drain and spin phases of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, display error codes F21, F33, or SD, or leak from the pump area. This complete assembly includes the motor, pump housing, and integrated filter — these components are only available as a complete assembly and are not sold separately. Rated 120V, 60Hz, 78W, 1.2A (CL.F duty class). Assembly dimensions are 8-3/4"L x 7"W x 5-1/4"H in off-white plastic housing. Note: Whirlpool redesigned this pump — the replacement may look different from the original but fits and functions identically. It directly replaces WPW10730972, W10130913, W10130913-B, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, AP6023956, PS11757304, and additional cross-reference numbers. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO W10730972 Washer Drain Pump fixes Whirlpool Duet, Maytag 2000/3000/4000 series, and Kenmore HE2/HE2T Plus front-load washers that won't drain, leave standing water, or display error codes F21, F33, or SD. Complete assembly — motor, pump housing, and filter included. 120V/60Hz/78W/1.2A. 8-3/4"L x 7"W x 5-1/4"H. Note: redesigned — may look different from original but fits identically. Replaces WPW10730972, W10130913, 8540024, 8540996, W10117829, AP6023956, PS11757304. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Error code F21 displayed — long drain fault (washer unable to drain in allotted time) Error code F33 displayed — pump motor fault Error code SD displayed — suds detection or drain issue Washer stopping mid-cycle due to a drain fault Loud humming or grinding noise during the drain phase Water leaking from the front lower area of the washer — pump seal failure Pump motor running but water not being expelled from the tub Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: WPW10730972, W10730972, W10130913, 4281917, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, WPW10730972VP, AP6023956, AWP50633, B40-3A01, EAP11757304, PD00025949, PS11757304 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select front-load washers from the following brands and series: Whirlpool front-load washers — Duet series (WFW8300, WFW8400, WFW9050, WFW9150, WFW9200, WFW9250, WFW9400, WFW9450, WFW9500, WFW9550, WFW9600, WFW96HEA, WFW97HED, WFW98HEB and related models) Maytag front-load washers — 2000 series (MHW2000AW, MHW2000BWW and related models) Maytag front-load washers — 3000 series (MHW3000BW and related models) Maytag front-load washers — 4000 series (MHW4000BW, MHW4200BW, MHW5100DW, MHW6000AW, MHW6000XW and related models) Kenmore / Sears front-load washers — HE2 and HE2T Plus series (110.45862400, 110.47532602 and related models) Amana front-load washers (select models) Inglis front-load washers (select models) KitchenAid front-load washers (select models) Note: Whirlpool redesigned this pump assembly — the replacement may look different from your original pump (larger in size on some versions) but is engineered to fit and function identically in all compatible models. Always verify your model number before ordering. Before replacing the pump, check and clear the coin trap/drain filter — a clogged filter is a common cause of F21/F33 errors that does not require pump replacement. Key Features Removes water from the tub during drain and spin cycles — essential for proper washer operation Complete assembly — motor, pump housing, and integrated filter included; components are not sold separately Rated 120V, 60Hz, 78W, 1.2A (CL.F) — correct electrical specifications for compatible Whirlpool-family front-load washers Dimensions: 8-3/4"L x 7"W x 5-1/4"H — off-white plastic housing Resolves error codes F21 (long drain), F33 (pump motor fault), and SD (suds/drain) on compatible models Redesigned assembly — may look different from original but fits and functions identically Replaces WPW10730972, W10130913, 8540024, 8540996, W10117829, AP6023956, and over 20 additional cross-references Compatible with Whirlpool Duet, Maytag 2000/3000/4000 series, Kenmore HE2/HE2T Plus, Amana, Inglis, and KitchenAid Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number XPW10730972 OEM Part Number WPW10730972 Part Type Front-Load Washer Drain Pump and Motor Assembly Condition Aftermarket Replacement Application Front-Load Washers (Duet, Maytag 2000/3000/4000, Kenmore HE2/HE2T Plus) Voltage 120V AC Frequency 60 Hz Wattage 78W Amperage 1.2A Duty Class CL.F Dimensions 8-3/4"L x 7"W x 5-1/4"H Color Off-White Material Plastic housing Includes Motor, pump housing, and integrated filter — complete assembly Design Note Redesigned — may look different from original; fits identically Error Codes Resolved F21 (long drain), F33 (pump motor fault), SD (suds/drain) Compatible Brands Whirlpool, Maytag, Kenmore, Amana, Inglis, KitchenAid Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Work Gloves Recommended Disconnect power and turn off the water supply before beginning. Place towels on the floor — residual water will drain when the pump is disconnected. The drain pump is accessed through the lower front panel of the washer. Remove the screws on the lower kick panel or snap panel to expose the pump access area. Before removing the pump, drain residual water by removing the coin trap/filter cap from the filter housing (have a shallow pan ready — up to a quart of water may flow out). After draining, disconnect the pump wiring harness. Release the drain hose clamps and disconnect the hoses from the pump. Unscrew or unclip the pump mounting hardware and remove the old pump. Transfer the hoses and wiring to the new W10730972 pump, secure the mounting hardware, and reinstall the front panel. Restore power and water, run a drain/spin cycle, and check for leaks. Tools needed: Phillips screwdriver, Torx screwdriver (T20 on some models), pliers, shallow pan, towels, work gloves. Frequently Asked Questions What do error codes F21, F33, and SD mean on Whirlpool Duet and Maytag washers? F21 indicates a long drain fault — the washer was unable to drain within the expected time (typically 8 minutes). F33 indicates a pump motor fault — the control board is not detecting the pump motor operating correctly. SD is a suds detection code that can also appear when drain issues prevent the suds from clearing properly. All three codes point toward the drain pump or a drain obstruction. Before replacing the pump, check and clean the coin trap filter — a clogged filter is one of the most common causes of F21 errors and clearing it often resolves the code without needing a new pump. Should I check the coin trap filter before replacing the pump? Yes — always check the coin trap filter before replacing the pump. On Whirlpool Duet and Maytag front-load washers, the coin trap filter is located inside the lower front access panel, typically behind a small cap or cover. Removing the cap and clearing lint, coins, and debris from the filter restores drain flow and clears F21/F33 errors in many cases without any part replacement needed. If the filter is clear and the pump still humbles or fails to drain, the pump needs replacement. Why does the replacement pump look different from the original? Whirlpool redesigned this drain pump assembly during its production lifecycle — the WPW10730972 replacement is physically larger than some of the older 8540024-series pumps it supersedes. Despite looking different, the redesigned pump uses the same hose and electrical connection points and is a direct fit in all compatible models. The larger housing is an intentional design improvement to increase pumping capacity. If the pump looks bigger than what you removed, this is normal and expected — install it in the same way as the original. What is the difference between W10730972 and WPW10730972? These are the same drain pump assembly. WPW10730972 is the updated Whirlpool OEM part number that superseded the original W10730972. The W10130913 and 8540024 are also cross-references for earlier versions of this same pump. This aftermarket replacement is compatible with all of these numbers. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and performance of the original WPW10730972 drain pump assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DC97-20621C Washer Drain Pump Assembly The XPARTCO DC97-20621C is an aftermarket replacement drain pump assembly compatible with a wide range of Samsung front-load washers in the specific series, as well as select Kenmore front-load washers built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, leave standing water in the tub, stop mid-cycle, display error codes 5C, SE, nd, 5E, or 4E, or make loud grinding or humming noises during the drain phase. The DC97-20621C is the current production revision of this pump, which also covers the earlier DC97-20621A variants — all three are the same pump in successive production runs. It also replaces DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, and EAP12592830. Before ordering, always check the drain filter/coin trap at the bottom front of the washer — a clogged filter is a common cause of drain error codes that does not require pump replacement. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO DC97-20621C Washer Drain Pump Assembly fixes Samsung front-load washers displaying error codes 5C, SE, nd, 5E, or 4E, not draining, leaving standing water, or making loud grinding or humming noises during the drain cycle. Covers DC97-20621A and DC97-20621B variants. Compatible with select Samsung series and Kenmore (Samsung-built). Replaces DC97-20621A, DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, EAP12592830. Check drain filter before replacing pump. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Error codes 5C, SE, nd, 5E, or 4E displayed — drain fault detected Washer stopping mid-cycle due to a drain fault Loud humming during the drain phase — pump motor running but not pumping Grinding or rattling noise during drain — damaged impeller or worn pump bearings Water draining very slowly — worn pump below rated performance Clothes excessively wet after a cycle — pump not fully removing water before spin Water leaking from the pump area at the front bottom of the washer Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: DC97-20621C, DC97-17999N, DC97-20621A, 03DC31-00187A, AP7366238, ASM105564, PFIX17701443, PD00095227, PX3516-01, PS17701443, AP6807020, PS12592830. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select Samsung front-load washers and related Kenmore models: Samsung series — WF50R8500AW, WF45T6200AW, WF53BB8900 and related models Kenmore / Sears front-load washers (select Samsung-built models) Important: Before replacing the pump, check and clean the drain filter/coin trap located behind the lower access panel at the front of the washer. A clogged filter causes the same error codes as a failed pump and is the most common fixable cause of Samsung front-load drain errors. Always verify your model number before ordering. Key Features Removes water from the tub during drain and spin cycles for proper washer operation Resolves Samsung error codes 5C, SE, nd, 5E, and 4E caused by drain pump failure DC97-20621C is the current production revision — covers DC97-20621A and DC97-20621B as well Also replaces DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, and EAP12592830 Compatible with select Samsung series and Kenmore Samsung-built front-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number XPDC97-20621C Also Covers DC97-20621A (prior revisions) Part Type Front-Load Washer Drain Pump Assembly Condition Aftermarket Replacement Application Samsung Front-Load Washers  Error Codes Resolved 5C, SE, nd, 5E, 4E Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Place towels on the floor in front of the washer — residual water will drain when the pump is disconnected. The drain pump is accessed through the lower front panel. Remove the lower kick panel screws to expose the drain filter and pump area. First, drain residual water by removing the drain filter cap (have a shallow pan ready — up to a quart of water may flow out). After draining, disconnect the pump wiring harness. Release the hose clamps and disconnect the drain hoses from the pump. Unscrew or unclip the pump mounting hardware and remove the old pump. Install the new DC97-20621C pump in the same position, reconnect drain hoses and secure clamps, reconnect the wiring harness, and reinstall the front panel. Restore power and water and run a drain/spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels. Frequently Asked Questions What is the difference between DC97-20621C and DC97-20621A? These are successive production revisions of the same Samsung front-load washer drain pump assembly. DC97-20621A was the original version, DC97-20621B was an intermediate revision, and DC97-20621C is the current production part. All three are the same pump with minor manufacturing changes across production runs — they are fully interchangeable. If your washer's parts diagram or old pump label shows any of these numbers, this replacement covers all of them. What error codes indicate a drain pump failure on Samsung front-load washers? Error codes 5C, SE, nd, 5E, and 4E on Samsung front-load washers all indicate a drain fault — the washer was unable to drain within the expected time. Before replacing the pump, clean the drain filter/coin trap at the front lower access panel — lint, coins, and debris in the filter are among the most common causes of these error codes. If the filter is clean and the errors persist, the pump itself has failed and needs replacement. Where is the drain filter on my Samsung front-load washer? The drain filter (also called the coin trap) on Samsung front-load washers is located behind the lower front access panel, typically on the right side. Remove the lower kick panel by pressing the release tab or removing the screws. You will see a small cap or twist-out cover — that is the filter. Place a shallow pan under it and slowly unscrew the cap to allow water to drain out. Remove any debris from the filter, then replace the cap and reinstall the panel. Run a cycle to check if the error clears. If the filter was clogged, this may be all the repair needed. My washer makes a loud noise during draining — is it the pump? A loud humming or grinding during the drain cycle is a common sign of a failing pump. Humming without water movement means the motor is running but the impeller is not pumping — either jammed by debris or mechanically failed. Grinding suggests worn pump bearings or a damaged impeller. Check the drain filter first for foreign objects. If the filter is clear and the noise persists, the pump needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the specifications and performance of the original DC97-20621C drain pump assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly The DC97-19289F is a Genuine OEM Samsung replacement washer drain pump assembly compatible with a wide range of Samsung top-load washers in the WA40, WA41, WA42, WA44, WA45, WA48, WA50, WA52, and WA54 series, as well as select Kenmore models built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will display error codes 5C, SE, nd, 5E, FO2, or E5, leave standing water in the tub, stop mid-cycle, or produce unusual noise during draining. This complete drain pump assembly is rated 120V, 60Hz, 80W, 1.1A with a 30-minute on / 30-minute off duty cycle. It directly replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01. Note: the wire plug on the new pump may differ slightly from the original — if the connector does not match your washer's harness, transfer the wiring harness from the old pump to the new one. Installs in 20–30 minutes with basic hand tools. Quick Answer The DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly fixes Samsung top-load washers displaying error codes 5C, SE, nd, 5E, FO2, or E5, not draining, leaving standing water, or making loud noise during the drain cycle. 120V/60Hz/80W/1.1A, 30 min on/30 min off duty cycle. Compatible with Samsung WA40 through WA54 series and Kenmore (Samsung-built). Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, PX3516-01. Note: if wire plug differs, transfer harness from old pump. Common Problems This Part Fixes Error codes 5C, SE, nd, 5E, FO2, or E5 — washer cannot drain within the allotted time Washer not draining — standing water remaining in the tub after a cycle Washer stopping mid-cycle due to a drain fault Loud humming, grinding, or rattling noise during the drain cycle Water draining very slowly — worn pump motor below rated performance Water leaking from the drain pump area at the bottom of the washer Pump running continuously but water not being expelled from the tub Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: DC97-19289F, DC97-17349B, DC97-19289B,DC97-17366A, DC97-17366J, DC97-19289A,ASM772133, AP6806651, EAP12592631, PD00049911, PX3516-01, PS12592631. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select top-load washers from the following brands and series: Samsung top-load washers — WA40 series (WA400PJHDWR and related models) Samsung top-load washers — WA41 series (WA41A3000AW and related models) Samsung top-load washers — WA42 series Samsung top-load washers — WA44 series (WA44A3205AW and related models) Samsung top-load washers — WA45 series (WA45H7000AW, WA45M7050AW, WA45N3050AW, WA45T3200AW and related models) Samsung top-load washers — WA48 series (WA48H7400AW and related models) Samsung top-load washers — WA50 series (WA50F9A7DSP, WA50M7450AW and related models) Samsung top-load washers — WA52 series (WA52M7750AW, WA52M8650AW and related models) Samsung top-load washers — WA54 series (WA54M8750AV and related models) Samsung top-load washers — WA456DRHDSU series Kenmore / Sears top-load washers (select Samsung-built models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Removes water from the tub during the drain and spin cycles for proper washer operation Resolves Samsung error codes 5C, SE, nd, 5E, FO2, and E5 caused by drain pump failure Rated 120V, 60Hz, 80W, 1.1A — correct electrical specifications for compatible Samsung top-load models 30-minute on / 30-minute off duty cycle — matches the operational requirements of compatible models Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01 Wire plug may differ from original — transfer harness from old pump if connector does not match Compatible with Samsung WA40 through WA54 series and Kenmore Samsung-built top-load washers Genuine OEM part manufactured by Samsung to factory specifications — guaranteed fit and performance DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number DC97-19289F Also Replaces DC97-19289A, DC97-19289B (prior versions) Part Type Washer Drain Pump Assembly Condition Genuine OEM Application Samsung Top-Load Washers Voltage 120V AC Frequency 60 Hz Wattage 80W Amperage 1.1A Duty Cycle 30 minutes on / 30 minutes off Error Codes Resolved 5C, SE, nd, 5E, FO2, E5 Connector Note Wire plug may differ — transfer harness from old pump if needed Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Tilt the washer back or lay it on its side to access the drain pump at the bottom of the machine. Place towels and a shallow pan to catch residual water when the pump is disconnected. Note the wiring connector orientation before disconnecting — take a photo if needed. If the new pump's connector does not match the washer's harness, carefully transfer the wiring harness from the old pump to the new pump. Disconnect the drain hoses from the pump using pliers to loosen the clamps. Unscrew the pump mounting screws and remove the old pump. Install the new DC97-19289F pump in the same position, reconnect drain hoses and secure with clamps, and reconnect the wiring harness. Restore water supply and power, then run a drain cycle to verify proper drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels. Frequently Asked Questions What error codes indicate a drain pump failure on Samsung washers? Error codes 5C, SE, nd, 5E, FO2, and E5 on Samsung top-load washers all indicate a drain fault — the washer was unable to drain within the expected time. These codes can also be caused by a clogged drain filter, blocked hose, or kinked drain line, so check those first. If the filter and hose are clear and the error persists after clearing them, the drain pump is the most likely cause. What is the difference between DC97-19289F, DC97-19289A, and DC97-19289B? These are successive revisions of the same Samsung drain pump assembly. DC97-19289A was the original version, DC97-19289B was an update, and DC97-19289F is the current version. Samsung issues revised part numbers when minor production changes are made — all three perform the same function and the DC97-19289F is the correct current replacement for any of the earlier versions. The DC97-17349B, DC97-17366A, and DC97-17366J are additional older cross-references for this pump used on earlier Samsung top-load models. Why might the wire plug on the new pump differ from the original? Samsung revised the wiring connector on this drain pump across different production runs. If the DC97-19289F pump you receive has a different connector than your washer's harness, do not force the connection. Instead, carefully remove the wiring harness from the old pump and transfer it to the new pump — both versions use the same internal terminals and the harness swap is straightforward. This is a known and documented step for this part and does not affect performance or safety. Should I check the drain filter before replacing the pump? Yes — always check and clean the drain filter and inspect the drain hose for kinks or blockages before replacing the pump. A clogged filter or blocked hose can cause the same error codes as a failed pump and clearing the blockage may resolve the problem without needing a new part. On Samsung top-load washers the drain filter is typically located at the bottom front of the machine. If the filter and hose are clear and the error persists, the pump needs replacement. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Samsung to factory specifications. It is the exact same drain pump assembly installed in compatible Samsung and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 137311900 Washer Drain Pump Assembly – Compatible with Frigidaire & Electrolux Washers Product Description Restore proper water drainage and dependable washer operation with the XPARTCO 137311900 Washer Drain Pump Assembly. This high-quality aftermarket replacement pump is designed to efficiently remove water during drain and spin cycles. A worn or failing drain pump can cause standing water, slow draining, error codes, or loud humming noises. Replacing it with this reliable XPARTCO pump helps return your washer to smooth, consistent performance at a budget-friendly price. XPARTCO aftermarket parts are engineered to match original fit and function while offering a cost-effective alternative to OE or Genuine OEM components. Replaces Part Numbers 137311900, 2688889, PD00006068, EAP3655041, AP5630474, PS3655041. Compatibility This replacement washer drain pump assembly fits select Frigidaire, Electrolux, Crosley, Gibson, and Kenmore (Frigidaire-manufactured) washers. Example compatible models include (but are not limited to): Frigidaire FAFW3577KW0, FFTW4120SW Electrolux EIFLW55HIW0 Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Matches OEM fit and pumping performance 💧 Efficient Water Removal – Restores proper draining during cycles 🔇 Quiet, Smooth Operation – Helps eliminate humming or grinding noises 💪 Durable Motor & Housing – Built for reliable long-term use 💰 Cost-Effective Repair – Affordable alternative to OE and OEM pumps 📐 Product Specification Part Number: 137311900 Component Type: Washer Drain Pump Assembly Voltage: 120V AC Mounting: Direct-fit, bolt-on installation Application: Washer drain and spin system Quality Level: Aftermarket replacement (not OE / not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver, pliers ⚠️ Safety First: Unplug the washer and shut off the water supply before servicing. Basic Steps: Disconnect washer power and water supply. Access the drain pump from the bottom or rear of the washer. Remove hoses and electrical connectors. Remove mounting screws and take out the old pump. Install the new XPARTCO 137311900 drain pump assembly. Reconnect hoses and wiring, reassemble panels, and restore power. Run a test cycle to confirm proper draining. ⏱️ Time Required: 25–35 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket Appliance Parts 🔄 30-Day Return Policy Fix drainage issues and get your washer running smoothly again — Add to Cart Now for a dependable, budget-friendly repair!
