XPARTCO 8557403 Dryer High-Limit Thermostat with Thermistor Replaces WP8557403
The XPARTCO 8557403 is an aftermarket replacement dryer high-limit thermostat and thermistor sensor assembly compatible with a wide range of Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, and Magic Chef electric dryers — including the Whirlpool Duet and Maytag MED series. This single component combines two functions: the high-limit thermostat (rated L146-44C, opens at 295°F) acts as a resettable safety switch that cuts power to the heating element if the dryer air temperature exceeds safe limits, and the integrated 50-ohm thermistor continuously monitors air temperature and sends resistance-based readings to the control board to regulate the drying cycle.
When this part fails — whether the thermostat opens permanently or the thermistor provides incorrect temperature data — the dryer may produce no heat, run too hot, take too long to dry, overheat, or display temperature-related error codes. It measures 1-5/8"L x 1-5/8"W x 2"H with approximately 1-5/8" between mounting holes and is constructed from black/gray plastic and metal. It directly replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, and PS11746386. Note: the exhaust duct thermostat and thermal fuse are separate parts — if those have also failed, they must be ordered separately. Installs in 15–20 minutes with basic hand tools.
Quick Answer
The XPARTCO 8557403 Dryer High-Limit Thermostat with Thermistor fixes Whirlpool Duet, Maytag MED, and related dryers with no heat, overheating, or erratic temperature. Combined part: L146-44C high-limit thermostat (opens at 295°F, auto-resets) + 50-ohm NTC thermistor. 1-5/8"L x 1-5/8"W x 2"H, ~1-5/8" between mounting holes. Replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, PS11746386. For Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, and Admiral electric dryers.
Common Problems This Part Fixes
Dryer produces no heat — high-limit thermostat has failed open
Dryer overheating — thermostat not opening at the correct temperature
Dryer takes too long to dry — thermistor providing incorrect temperature readings to the control board
Dryer cycling on and off erratically — thermistor fault causing incorrect cycle control
Temperature-related error codes on models with digital displays
Multimeter test shows open circuit on the thermostat at room temperature
Multimeter test shows open or shorted thermistor (not ~50 ohms at room temperature)
Replaces Part Numbers
This thermostat/thermistor assembly directly replaces the following OEM and cross-reference part numbers:
WP8557403, 8557403, 1180102, AP6013164, AWP48681, EAP11746386, PD00003588, PS11746386.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This high-limit thermostat and thermistor is compatible with select electric dryers only from the following brands:
Whirlpool electric dryers — Duet, WED5000, WED5500, WED5600, WED5620, WED8000, WED8200, WED8500, WED9200, WED92HEF, WED7000 series and related models
Maytag electric dryers — MED3500, MED5630, MED6630, MED7230, MEDB835 series and related models
Kenmore / Sears electric dryers — 110-series (Whirlpool-built models)
Amana electric dryers (select models)
KitchenAid electric dryers (select models)
Jenn-Air electric dryers (select models)
Roper electric dryers
Admiral electric dryers
Norge electric dryers
Magic Chef electric dryers
Note: This part is for electric dryers only. The exhaust duct thermal fuse and cycling thermostat are separate parts — if those have also failed, they must be ordered separately. Always verify your model number before ordering.
Key Features
Combined high-limit thermostat and thermistor in a single assembly — replaces both functions in one part
High-limit thermostat rated L146-44C — opens at 295°F (146°C), resets automatically when cooled
Integrated 50-ohm NTC thermistor — continuously monitors dryer air temperature and sends readings to the control board for cycle regulation
Dimensions: 1-5/8"L x 1-5/8"W x 2"H; approx. 1-5/8" between mounting holes
Black/gray plastic and metal construction
Electric dryers only — not for gas dryer models
Replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, and PS11746386
Compatible with Whirlpool Duet, Maytag MED, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, and Magic Chef electric dryers
Aftermarket replacement built to OEM-equivalent quality standards
Quick DIY repair — installs in 15–20 minutes with basic hand tools
Product Specifications
Part Number
8557403
OEM Part Number
WP8557403
Part Type
Dryer High-Limit Thermostat with Integrated Thermistor Sensor
Condition
Aftermarket Replacement
Application
Electric Dryers Only
Thermostat Rating
L146-44C — opens at 295°F (146°C), auto-resets
Thermistor
50-ohm NTC (at room temperature ~25°C)
Dimensions
1-5/8"L x 1-5/8"W x 2"H
Mounting Hole Spacing
Approx. 1-5/8" center to center
Color
Black / Gray
Material
Plastic / Metal
Compatible Brands
Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, Magic Chef
Installation Notes
⚠️ Unplug Dryer Before Starting — Electric Dryers Only Disconnect power before beginning. The 8557403 thermostat/thermistor assembly is typically located on the heating element housing or duct inside the dryer — access it by removing the back panel. On Whirlpool Duet and Maytag front-load-style dryers, the component may be accessible by removing the lower front panel. Photograph all wire connections before disconnecting — the thermistor wires and thermostat wires must be reconnected to the correct terminals. Remove the two mounting screws and pull the old assembly off. Note the position and orientation before removing. Install the new 8557403 assembly in the same position and orientation, reconnect all wires, and reinstall the mounting screws and panel. Restore power and run a test heat cycle to confirm normal operation. Tools needed: Phillips screwdriver, 1/4" nut driver.
Frequently Asked Questions
What makes this part unusual — why does it combine a thermostat and a thermistor?
The WP8557403 is a combined assembly used on newer Whirlpool Duet and Maytag MED series dryers that use electronic temperature control rather than purely mechanical thermostats. The high-limit thermostat (L146-44C) provides the traditional safety function — it opens the circuit if dryer temperature exceeds 295°F. The integrated NTC thermistor continuously reports resistance-based temperature data to the electronic control board, which uses the data to regulate the heating element and control cycle timing. Both functions are built into a single compact housing, making this a unique part that replaces what older dryers used to handle with separate components.
How do I test the thermostat and thermistor?
Set your multimeter to continuity or resistance mode. For the thermostat portion: probe the thermostat terminals — at room temperature, a working thermostat shows closed continuity (near-zero resistance). An open circuit at room temperature confirms the thermostat has failed. For the thermistor portion: probe the thermistor terminals — at room temperature (approximately 25°C/77°F), a working 50-ohm NTC thermistor should read approximately 50 ohms. A reading of zero ohms (shorted) or open circuit (no continuity) confirms the thermistor has failed. Either failure mode warrants replacing the complete 8557403 assembly.
What is the difference between 8557403 and WP8557403?
These are the same part. WP8557403 is the updated Whirlpool OEM part number that superseded the original 8557403. The 1180102 is also a cross-reference for this same assembly. This aftermarket replacement is compatible with all of these numbers.
Do I also need to replace the thermal fuse or cycling thermostat?
The 8557403 replaces the high-limit thermostat and thermistor mounted on the heating element housing area. The exhaust duct thermal fuse (WP3392519 on most Whirlpool-family dryers) and cycling thermostat (WP3387134) are separate components located on the exhaust duct and are not included in or replaced by the 8557403. If your dryer has no heat, test all thermal components before ordering — check the 8557403 assembly, the thermal fuse, and the cycling thermostat, then order only what has failed. If an overheating event caused the high-limit to fail, the other thermal components may be stressed as well.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from plastic and metal with an L146-44C thermostat and 50-ohm NTC thermistor to match the specifications and performance of the original WP8557403 assembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

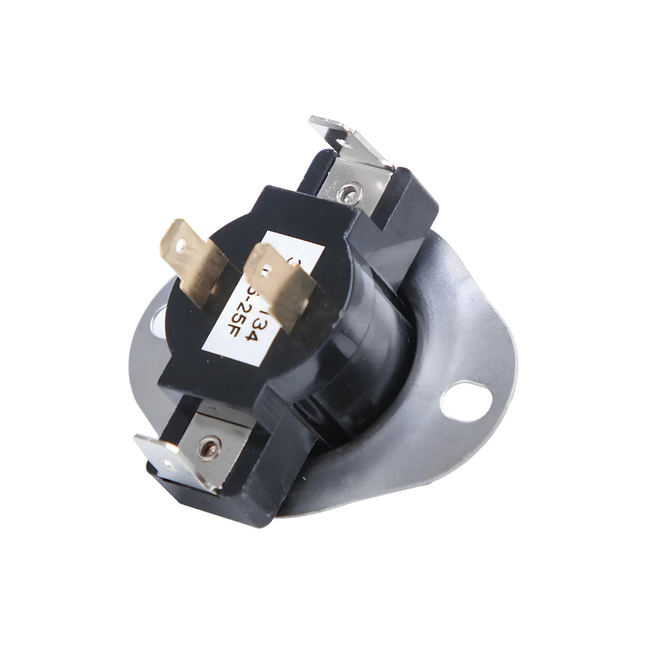

XPARTCO 3387134 Dryer Cycling Thermostat
The XPARTCO 3387134 is an aftermarket replacement dryer cycling thermostat, the operating thermostat that controls drying temperature. It switches the heating element off when the dryer reaches its set temperature and back on after it cools, keeping the inside of the dryer at a steady temperature throughout the cycle. This one is rated L155-25: it cuts out at approximately 155°F and cycles back on once the temperature drops about 25°F.
When a cycling thermostat fails, the dryer may stop heating, run too hot, or keep heating after the drum has stopped. This is a direct-fit aftermarket replacement for the original Whirlpool WP3387134, and it fits a wide range of Whirlpool-built dryers sold under the Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, Amana, and other brand names.
Quick Answer
The XPARTCO 3387134 Cycling Thermostat fixes a Whirlpool-built dryer that isn't heating, runs too hot, or has inconsistent drying temperatures. Rated L155-25, it cycles the heating element off at about 155°F and back on after a 25°F drop. Classic symptom: clothes come out damp or the dryer runs excessively hot, with no sign of a clogged vent.
Common Problems This Part Fixes
Dryer not heating
Dryer running too hot
Inconsistent drying temperatures
Heat staying on after the drum has stopped
Dryer won't start or the timer doesn't advance, if the thermostat has failed
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This cycling thermostat directly replaces the following part numbers:
3387134, WP3387134, 3387135, 3387139, 306910, 3-6910, 2011
These numbers span several generations of Whirlpool's own part numbering for this thermostat as model lines were updated. All are the correct replacement regardless of which number appears on your dryer's parts diagram.
Compatibility
This thermostat fits a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, Amana and related dryers, including these examples:
Kenmore 11060012000, 11060012001, 11060022010, 11060172000, 11060232000, 11060602990
Numerous additional Whirlpool-built dryer models
Note: This is the cycling (operating) thermostat, not the high limit thermostat or the thermal fuse, which are separate safety parts. The models above are a sample, not a full list. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering.
Key Features
Direct-fit aftermarket cycling thermostat for Whirlpool-built dryers
Rated L155-25: cuts out at about 155°F and cycles back on after a 25°F drop
Keeps dryer temperature steady by cycling the heating element on and off
Resolves no-heat, overheating, and inconsistent-temperature symptoms
Fits Whirlpool, Kenmore, Maytag, KitchenAid, and other Whirlpool-built dryers
Medium-difficulty repair with basic hand tools
Product Specifications
Part Number
XP3387134
OEM Part Number
3387134, WP3387134
Part Type
Dryer Cycling Thermostat
Condition
Aftermarket Replacement
Temperature Rating
L155-25 (Cuts Out ~155°F, 25°F Differential)
Application
Whirlpool, Kenmore, Maytag, KitchenAid & Related Dryers
Installation Notes
⚠️ Unplug Power Before Installing
Unplug the dryer or switch off its circuit breaker before beginning, and shut off the gas supply first on gas models. Wear work gloves, as the cabinet edges are sharp. Remove the panel that gives access to the heater housing per your model's service guide, note the wire terminal positions, and disconnect them from the old thermostat. Remove the thermostat, install the new one in the same position, and reconnect the wires. A screwdriver and needle-nose pliers are typically all you need. Before closing the dryer, clean the lint trap and check the exhaust vent for restrictions, since poor airflow is a common cause of overheating.
Frequently Asked Questions
My dryer isn't heating or runs too hot. Is this the part I need?
A failed cycling thermostat can cause either symptom. It may stay open and prevent heat, or stay closed and let the dryer overheat. Check for a clogged vent and test the thermostat for continuity before replacing it.
What's the difference between the cycling thermostat and the high limit thermostat?
The cycling thermostat controls normal drying temperature by switching the heating element on and off. The high limit thermostat and thermal fuse are separate safety devices that cut power if the dryer overheats. This listing is for the cycling thermostat only.
How do I test this thermostat?
With the dryer unplugged and the wires removed, check for continuity across the terminals with a multimeter at room temperature. A properly working cycling thermostat should show continuity when cool. No continuity means it has failed.
Will this fit my dryer?
It fits many Whirlpool-built dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping
✓ Quality Aftermarket Parts
✓ Compatibility Support
✓ Secure Checkout
W11281268 Genuine OEM Whirlpool Washer Drain Hose
The W11281268 is a genuine Whirlpool OEM external drain hose for Whirlpool, Maytag, and Amana washers. This hose carries wastewater from the washer to your house drain during the drain phase of every cycle, connecting to the washer's outlet spout on one end and to your standpipe or utility sink on the other.
This 6' black flexible hose features an elbow bracket and a grey 90-degree coupler end with a 1" inner diameter, and includes a metal clamp. The manufacturer has updated the design of the rubber fitting that attaches to the back of the washer since earlier versions of this hose were produced — the new fitting looks slightly different but fits and functions the same way as the original. Over time, drain hoses can crack, split, or become brittle with age, or may simply be missing if replaced or damaged during a move. A failing or missing hose typically shows up as water leaking or pooling near the back of the washer during the drain cycle, or no hose present at all on a newly acquired unit. It directly replaces WPW10267638, W10267638, W11250143, W11044871, W11198580, W11234073, and W11050506.
Quick Answer
The W11281268 Genuine OEM Whirlpool Washer Drain Hose fixes Whirlpool, Maytag, and Amana washers with a cracked, split, or missing drain hose, or water leaking near the back of the washer during the drain cycle. 6' black flexible hose, elbow bracket, 1" ID grey 90-degree coupler, metal clamp included. Replaces WPW10267638, W10267638, W11250143, W11044871, W11198580, W11234073, W11050506. You'll need to transfer your existing hose clamps onto the new hose during installation.
Common Problems This Part Fixes
Cracked, split, or leaking drain hose
Water pooling or leaking near the back of the washer during the drain cycle
Missing drain hose on a newly acquired or moved washer
Drain hose that's too short to reach the standpipe or utility sink
Brittle or deteriorated hose material from age
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drain hose directly replaces the following OEM and cross-reference part numbers:
W11281268, W11250143, W10267638, W11198580, WPW10267638, 4814006, W11044871, W11050506, W11234073, AP6784154, AWP44196, EAP12584563, FIX12584563, PD00044515, PS12584563.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain hose is compatible with select Whirlpool washers, and also fits select Maytag and Amana washers built on the Whirlpool platform.
Note: Whirlpool also sells a separate drain hose, W11244231, used on other Whirlpool and Maytag washer series (1CWTW4, 2DWTW, 3DWTW, 4GNTW4, 4KNTW, and related Kenmore 110.2 numbers) — this is a different part with its own cross-reference set. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which hose your washer needs.
Key Features
Genuine Whirlpool OEM part — factory-specified length, coupler, and fitting design
Carries wastewater from the washer to your house drain during the drain cycle
Resolves "cracked or leaking hose," "missing drain hose," and "hose too short" symptoms
6' black flexible hose with elbow bracket
Grey 90-degree coupler end, 1" inner diameter
Includes metal clamp
Direct drop-in replacement — matches the original fitting and length
Replaces WPW10267638, W10267638, W11250143, W11044871, W11198580, W11234073, and W11050506
Compatible with Whirlpool, Maytag, and Amana washers
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
W11281268
Part Type
Washer External Drain Hose
Condition
Genuine OEM
Brand
Whirlpool
Length
6'
Color
Black
Material
Rubber, flexible
Coupler End
Grey, 90-degree, 1" inner diameter
Includes
Elbow bracket, metal clamp
Repair Difficulty
Easy — basic hand tools, novice repair experience
Quantity
1 drain hose
Compatible Brands
Whirlpool, Maytag, Amana
Installation Notes
⚠️ Unplug Washer Before Starting — Transfer Your Old Clamps To The New Hose Unplug the washer, or shut off the house circuit breaker for the appliance, before beginning. Wear work gloves. Remove the back panel of the washer, then the lower front access panel to access the drain hose connection. Place a towel down before disconnecting any hoses to catch any remaining water. Squeeze the clamp ring with pliers and remove the old hose from the outlet spout on the back of the washer, and disconnect the other end from your standpipe or drain connection. You'll need to transfer your existing hose clamps onto the new W11281268, since a new one isn't included. Fit the new hose over the outlet spout and squeeze the clamp back into place with pliers, then reconnect the other end to your house drain. Reinstall the lower front access panel and back panel. Restore power and run a test cycle to confirm the hose is secure with no leaks. Tools needed: pliers, work gloves, towel.
Frequently Asked Questions
Is this repair difficult?
No, it's a very straightforward repair. Several customers describe it as simple as squeezing the clamp ring with pliers, fitting the new hose over the outlet spout, and moving the clamp back into place — no special tools or advanced skills required.
The rubber fitting looks different from my old hose. Did I get the wrong part?
No, this is expected. The manufacturer has updated the design of the rubber fitting that attaches to the back of the washer since earlier versions of this hose were made. The new fitting will fit and function exactly the same as the original, even though it may look slightly different.
Does this come with new hose clamps?
This hose includes its own metal clamp for the coupler end, but you'll still need to transfer your existing clamps from the old hose for the connections that don't come with a new one included. Keep your old clamps on hand during the swap rather than discarding them with the old hose.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original length, coupler design, and fitting configuration of the drain hose originally installed on your washer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DC62-30314V Washer Water Valve – Compatible with Samsung & Kenmore Washers
Product Description
Restore proper water filling and reliable washer performance with the XPARTCO DC62-30314V Washer Water Valve. This high-quality aftermarket replacement precisely controls hot and cold water flow into the washer during fill cycles. A faulty inlet valve can cause no-fill issues, slow filling, water leaks, or error codes. Replacing it with this durable XPARTCO valve helps restore correct water pressure and dependable wash operation.
Replaces Part Numbers
DC62-30314V, PD00054103, EAP11719664, AP5966634, 3992464, PS11719664.
Compatibility
This replacement washer water inlet valve fits select Samsung and Kenmore (Samsung-manufactured) washers.
Example compatible models include (but are not limited to):Samsung WF45R6100AW, WF42H5000AWKenmore 592.49045, 592.49303
Always verify your washer’s model number before ordering.Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Designed to match OEM fit and water-flow performance
💧 Accurate Water Control – Ensures proper filling during wash cycles
🔧 Durable Solenoid Design – Built for consistent operation and long service life
💰 Cost-Effective Repair – Reliable alternative to OEM pricing
🛡️ Fixes Common Issues – Resolves no-fill, slow fill, leaks, or water inlet errors
📐 Product Specification
Part Number: DC62-30314V
Component Type: Washer Water Inlet Valve
Voltage: 120V AC
Water Connections: Hot & Cold
Material: Reinforced plastic body with metal solenoids
Mounting: Rear cabinet direct-fit
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, pliers, towel or shallow pan
⚠️ Safety First: Unplug the washer and shut off the water supply before servicing.
Steps:
Disconnect power and turn off water supply.
Remove the rear access panel.
Disconnect inlet hoses and wiring harness.
Remove mounting screws and take out the old valve.
Install the new XPARTCO DC62-30314V valve and secure it.
Reconnect hoses and wiring, restore water and power, and test for leaks.
⏱️ Time Required: 20–30 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Restore proper washer filling and dependable performance — Add to Cart Now for a reliable, budget-friendly repair!
DD31-00016B Dishwasher Drain Pump Motor - Compatible with Samsung Dishwashers
Product Description
Restore your dishwasher’s performance with the DD31-00016B Dishwasher Drain Pump Motor. This genuine OEM replacement pump ensures efficient water drainage during wash and rinse cycles, preventing water pooling and error codes. Designed for Samsung dishwashers.
Replaces part numbers: DD31-00016B, AP7244901, PS17504318, EAP17504318, PD00089738.
Verify your model number or contact support for assistance.
Key Features:
✅ Brand Compatibility: Fits select Samsung dishwasher models.
💧 Specifications: OEM drain pump motor, 120V, 60Hz, 3.5" x 3.5" x 2.5", with plastic impeller and electrical connector for reliable drainage. DD31-00016B Motor Bldc PUMP; BD15-3C, 2800-3400RPM, 230
💰 Cost-Effective: OEM performance at a competitive price.
🛠️ Easy Installation: Requires a screwdriver, pliers, work gloves; typically installed in 20–40 minutes.
🛡️ Reliable Fixes: Resolves water pooling, poor drainage, or 5E/SE error codes.
Safety First: Unplug the dishwasher and turn off the water supply before installation to avoid shock or leaks.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your dishwasher running smoothly today!
Add to cart now for a budget-friendly fix!
W10428167 Dishwasher Pump and Motor Assembly
Pump & motor assembly, circulation and drain are handled by this assembly
Replaces Part Numbers: W10428167, 2024551, 3385003, 3385004, 8193511, 8193511A, 8283498, 8283502, AH3500988, EA3500988, AP5306229, PS3500988
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
W11612327 Dishwasher Genuine Circulation Pump
Circulation pump and motor assembly
Replaces Part Numbers: W11612327, W11024423, W10805387, W11521436, AP7194668, PS16744935.
Description: This Pump is a Genuine component for specific Whirlpool dishwasher models. It refers to the water pump component that circulates water throughout the dishwasher during cycles. Common cause of a faulty pump can include normal wear over many uses. The continuous motor operation puts strain on internal seals and impellers. Mineral deposits from hard water can also clog pump parts over time.
80040 Washer Agitator Dogs – Compatible with Whirlpool, Kenmore, Maytag, Roper, and Crosley Washers
Product Description
Restore your washer’s cleaning performance with the 80040 Washer Agitator Dogs. These Washer Agitator Dog set is a set of 4 replacement parts for select Kenmore, Maytag, roper, Whirlpool washing machine models. These are the little plastic cams that allow the top of your agitator to spin freely in one direction but keep it from spinning in the opposite direction, giving you a "ratcheting" effect. If they are worn out, the top of your agitator will spin freely in both directions and your clothes won't get fully washed.
Replaces Part Numbers
80040, 285612, 285770, 3109, 3366877, 387091, 80040VP, 99989668, AH388034, EA388034, LP338, EAP388034, PD00002340, AP3119063, PS388034, TJ90LP338.
Compatibility
This replacement agitator dog kit fits select Whirlpool, Kenmore, Maytag, Roper, Estate, Crosley, and Amana top-load washers.
Example compatible models include (but are not limited to): Whirlpool WTW4800XQ2, Kenmore 110.82980100, and Maytag MVWC415EW1.
Always verify your washer’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Designed to match OEM performance for Whirlpool-brand washers
⚙️ Restores Wash Action – Replaces worn agitator dogs for proper rotation and cleaning power
💪 Durable Nylon Design – Built for long-lasting use under heavy wash loads
🛠️ DIY Friendly – Installs easily with a socket wrench in minutes
🛡️ Fixes Common Issues – Solves slow or non-spinning upper agitator problems
📐 Product Specification
Part Number: 80040
Component Type: Washer Agitator Dogs (Set of 4)
Material: High-strength nylon
Mounting: Fits inside upper agitator cam assembly
Operating Conditions: Designed for top-load washers with dual agitators
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: 7/16-inch socket wrench, flathead screwdriver
⚠️ Safety First: Always unplug the washer before performing repairs to avoid electrical shock.
Steps:
Unplug the washer and remove the fabric softener dispenser and agitator cap.
Use a socket wrench to remove the bolt securing the agitator.
Lift off the upper agitator and remove the old agitator dogs.
Insert four new 80040 agitator dogs into the slots of the cam assembly.
Reassemble the agitator, tighten the bolt, and reinstall the dispenser cap.
⏱️ Time Required: 10–15 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
🧰 Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Restore strong wash performance — Add to Cart Now for a reliable, budget-friendly replacement!
WPW10605057 Genuine OEM Whirlpool Dishwasher Pump & Motor Assembly
The WPW10605057 is a genuine Whirlpool OEM circulation pump and diverter motor assembly for Whirlpool, Kenmore, KitchenAid, Jenn-Air, Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Ikea dishwashers. This assembly pumps water up through the spray arms throughout the wash cycle, and the integrated diverter motor controls which spray arm receives that water at any given moment. This assembly includes the circulation pump and diverter motor only — it does not include the drain pump, which is a separate component on this platform.
Over time, the pump motor's internal windings can wear out or fail electrically, or the diverter mechanism can stick or bind. A failing assembly typically shows up as a dishwasher that isn't washing dishes properly because water isn't circulating through the spray arms, or leaking from underneath the unit. Whirlpool's own guidance recommends checking the motor's resistance with a multimeter if water isn't circulating, to confirm the assembly before replacing it. It directly replaces AP6023350, WPW10482502, W10482502, W10605057, 3021439, 3023239, PS11756692, W10236194, W10534160N, W10300740, and W10500285.
Quick Answer
The WPW10605057 Genuine OEM Whirlpool Dishwasher Pump & Motor Assembly fixes Whirlpool, Kenmore, KitchenAid, Jenn-Air, Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Ikea dishwashers that aren't washing dishes properly because water isn't circulating, or that are leaking from underneath. Includes the circulation pump and diverter motor — not the drain pump. Replaces WPW10482502, W10482502, W10605057, 3023239, W10300740, W10500285, AP6023350, AWP51141, PD00026666, PS11756692. Check the motor's resistance with a multimeter before replacing to confirm this assembly is actually the cause.
Common Problems This Part Fixes
Dishes not getting clean because water isn't circulating through the spray arms
Dishwasher leaking from underneath the unit
Weak or absent water spray during the wash cycle
Motor humming without spraying water normally
Inconsistent washing results from cycle to cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dishwasher pump and motor assembly directly replaces the following OEM and cross-reference part numbers:
WPW10605057, WPW10482502, W10482502, W10605057, 3023239, W10300740, W10500285, AP6023350, AWP51141, PD00026666, PS11756692.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This pump and motor assembly is compatible with select Whirlpool dishwashers, and also fits select Kenmore, KitchenAid, Jenn-Air, Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Ikea dishwashers built on the Whirlpool platform, including model numbers such as KDTE104ESS, WDT710PAHZ, KDFE104DSS, WDT780SAEM, and WDT710PAHB.
Note — circulation pump only, not the drain pump: This assembly includes the circulation pump and diverter motor. The drain pump on this platform is a separate component and is not included with this assembly. If your dishwasher isn't draining rather than not washing properly, you likely need the drain pump instead. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which part your dishwasher needs.
Key Features
Genuine Whirlpool OEM part — factory-specified pump and diverter motor design
Includes the circulation pump and diverter motor, which controls spray arm water flow
Resolves "not washing properly," "water not circulating," and "leaking underneath" symptoms
Factory Certified Part built to Whirlpool's engineering specifications
Direct drop-in replacement — matches the original mounting and hose connections
Replaces WPW10482502, W10482502, W10605057, 3023239, W10300740, W10500285, AP6023350, AWP51141, PD00026666, PS11756692
Compatible with Whirlpool, Kenmore, KitchenAid, Jenn-Air, Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Ikea dishwashers
Genuine OEM replacement — guaranteed fit, materials, and performance
DIY-friendly repair, typically about 30 minutes
Product Specifications
Part Number
WPW10605057
Part Type
Dishwasher Circulation Pump & Diverter Motor Assembly
Condition
Genuine OEM
Brand
Whirlpool
Function
Circulates water through the spray arms; diverter motor controls spray arm flow
Includes Drain Pump
No — sold separately
Repair Difficulty
Moderate — approx. 30 minutes
Quantity
1 pump and motor assembly
Compatible Brands
Whirlpool, Kenmore, KitchenAid, Jenn-Air, Maytag, Amana, Magic Chef, Admiral, Norge, Roper, Ikea
Installation Notes
⚠️ Unplug Dishwasher And Shut Off Water Supply Before Starting Disconnect power at the outlet or shut off the circuit breaker, and shut off the water supply before beginning. Wear work gloves. Remove the lower dish rack, the impeller/spray arm, and the drain filter to access the interior floor of the tub. Working from underneath the dishwasher, release the drain hose from the pump using pliers, then hand-unscrew the drain pump and temperature sensor about a quarter-turn each, being careful to release the small clip holding the drain pump in place — leave both of these components in place, since they're not part of this replacement. Release the three levers that clamp the pump and motor assembly to the bottom of the dishwasher, positioned roughly at 0, 120, and 240 degrees around the assembly. Photograph the electrical connections before disconnecting anything, since keeping track of exactly how everything was wired makes reassembly straightforward. Pop the old assembly up and out through the bottom of the dishwasher. If your old assembly used a separate counterweight, transfer it to the new assembly. Install the new WPW10605057 assembly through the same opening, reconnect all electrical connections exactly as photographed, and re-engage the three clamping levers. Reconnect the drain pump, temperature sensor, and drain hose you set aside earlier. Reinstall the drain filter, spray arm/impeller, and lower rack. Restore water and power, then run a test cycle to confirm normal water circulation with no leaks underneath. Tools needed: multi-screwdriver, pliers, work gloves.
Frequently Asked Questions
My dishwasher isn't cleaning dishes well. How do I know if this is the right part?
Whirlpool's own guidance recommends checking the pump motor's resistance with a multimeter first if water isn't circulating properly. If the motor tests outside its expected resistance range, or shows no continuity at all, that confirms this assembly has failed and needs replacing rather than a different component being at fault.
Should I replace the drain pump at the same time?
Not necessarily — this assembly doesn't include the drain pump, and if your dishwasher is washing normally but just not draining, the drain pump (a separate part) is the more likely cause rather than this circulation assembly. If both symptoms are present, it's worth checking both components, but they aren't sold together in this listing.
Do I need to replace the counterweight or reuse the old one?
If your dishwasher's original assembly used a separate counterweight component, transfer it from the old assembly to the new one during installation rather than assuming a new one is included. Check your specific model's parts diagram if you're not sure whether this applies to your dishwasher.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original pump design, diverter motor function, and mounting configuration of the circulation pump and motor assembly originally installed in your dishwasher.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
WE04X36457 Genuine OEM GE Dryer Timer
The WE04X36457 is a genuine GE OEM electromechanical timer for GE electric and gas dryers. This timer is the sequencing control behind the dryer's operating cycle, using an internal motor-driven mechanism to advance the dryer through each stage — tumbling, heating, and cool-down — at the correct intervals for the selected cycle length.
Over time, the timer's internal gears or contacts can wear out or jam. A failing timer produces a range of symptoms depending on which function is affected: the dryer may not advance through the cycle, may not shut off when it should, may not start at all, or may run with no heat if the timer's contacts controlling the heat circuit are affected. This part carries the updated designation EAPX36457X1, which fits both old and new production serials. It directly replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501.
Quick Answer
The WE04X36457 Genuine OEM GE Dryer Timer fixes GE electric and gas dryers that won't advance through the cycle, won't shut off, won't start, or run with no heat. Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, 19-50425501. GE uses many similarly-numbered WE04X-prefix timers across different dryer models — always confirm your exact part number or model before ordering, since these timers are not interchangeable across models.
Common Problems This Part Fixes
Timer won't advance — dryer stays stuck at one point in the cycle
Dryer won't shut off, keeps running after the cycle should have ended
Dryer won't start at all
Dryer runs with no heat or insufficient heat
Unusual noise from the timer area during operation
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer timer directly replaces the following OEM and cross-reference part numbers:
WE04X36457, 19-50425501, 234D2377P006, 250426, E190094, FIX17873930, TMD1EM32, AGE143241, AP7243859, PD00092132, PS17873930.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This dryer timer is compatible with select GE electric and gas dryers, including model numbers GTD38EASW0WS, GTD38GASW0WS, GTX38EASW0WS, and GTX38GASW0WS.
Note: GE uses a large number of similarly-numbered WE04X-prefix timers across its dryer lineup, including WE04X20089, WE04X24549, WE04X24550, WE04X25280, WE04X25586, and WE04X20415, each fitting a different set of models. These are not interchangeable with this WE04X36457 timer. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Genuine GE OEM part — factory-specified timing mechanism and terminal layout
Electromechanical timer sequences tumbling, heating, and cool-down through the cycle
Resolves "won't advance," "won't shut off," "won't start," and "no heat" symptoms caused by timer failure
Updated designation EAPX36457X1 fits both old and new production serials
Direct drop-in replacement matching the original mounting and terminal layout
Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501
Compatible with GE electric and gas dryers
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
WE04X36457
Alternate/Updated Designation
EAPX36457X1
Part Type
Dryer Timer (Electromechanical)
Condition
Genuine OEM
Brand
GE
Controls
Tumbling, heating, and cool-down sequencing
Repair Difficulty
Easy to Moderate
Quantity
1 dryer timer
Compatible Brand
GE
Installation Notes
⚠️ Unplug Dryer Before Starting — Photograph Wiring Before Disconnecting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access the timer through the control console or back panel depending on your model. Photograph each wire's terminal position before disconnecting anything, since a dryer timer typically has multiple wires and mixing them up can cause a malfunction after reinstallation. Remove the mounting screws or clips securing the old timer, then disconnect its wiring. Install the new WE04X36457 in the same position, reconnecting each wire to its original terminal exactly as photographed. Secure the timer in its mounting position and reassemble the console or panel. Restore power and run a full test cycle to confirm the dryer advances properly through tumbling, heating, and shutoff at the correct times. Tools needed: Phillips screwdriver or nut driver (model-dependent), work gloves.
Frequently Asked Questions
My dryer won't shut off and keeps running. Is this the timer?
Yes, this is a well-documented symptom of a failing timer. If the internal gear motor or contacts jam, the timer can fail to advance to the "off" position at the end of the cycle, leaving the dryer running continuously past when it should have stopped.
My old part number doesn't say WE04X36457. Is this still the right timer?
If your old timer's part number is CKDX36457X, TMD1EM32, or 234D2377P006, or one of the other numbers listed in our cross-reference section, yes — this WE04X36457 timer, also designated EAPX36457X1, is the current replacement and fits both older and newer production serials.
There are so many similar-looking GE timer part numbers. How do I make sure I order the right one?
GE has released many timers with very similar WE04X-prefix numbers for different dryer models, and they are not interchangeable despite the resemblance. The safest approach is to match your dryer's full model number against this listing's compatibility, or check the exact part number printed on your old timer, rather than relying on how similar the numbers look.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism and terminal layout of the timer designed for your dryer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 303373K Dryer Drum Roller Replaces 12001541, WP6-3129480
The XPARTCO 303373K is an aftermarket replacement drum roller support wheel kit for Maytag dryers, and also fits select Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral models. This roller supports the rear of the dryer drum and allows it to spin smoothly against the rear bulkhead throughout the drying cycle, working together with the front drum supports to keep everything rotating evenly.
This kit includes 1 roller, 1 shaft (axle), 1 fiber washer, 1 nut, and 1 C-clip/retainer clip. The roller measures approximately 3" in diameter and 1-1/8" wide, fits a 1/2" shaft, and does not require lubrication. Finished in white or black, made of rubber, plastic, and metal. Over time, the roller's bearing wears out or the wheel develops flat spots from age and use. Symptoms of worn rollers include the dryer being noisy, failing to tumble, leaving marks on clothes, or failing to start. It directly replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, and 312948.
Quick Answer
The XPARTCO 303373K Dryer Drum Roller fixes Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers that are noisy, won't tumble, leave marks on clothes, or won't start. Single roller and shaft, 3" diameter, 1-1/8" wide, fits 1/2" shaft, no lubrication needed. Replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, 312948. For even wear, it's recommended to replace both rear drum rollers at the same time — you'll need two of this kit if your dryer uses two rear rollers.
Common Problems This Kit Fixes
Dryer noisy during operation
Drum won't tumble
Marks left on clothes
Dryer won't start
Squeaking noise during the drying cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer drum roller kit directly replaces the following OEM and cross-reference part numbers:
12001541, 12001541VP, 3-3373, 303373, 400518, W10116741, DE693, W10116741, Y303373, AH1570070, EA1570070, K35-248, AP4008534, AWP38865, EAP1570070, PD00004911, PS1570070, WP6-3129480, 6-3129480, 1480353, 3-12948, 312948, W10912638, WP6-3129480VP, Y312948, AP6009858, AWP48110, EAP2347258, PD00002609, PS11743031
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum roller kit is compatible with select Maytag dryers, and also fits select Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers built on the Maytag platform, including model numbers such as:
MDE5500AYW, MDE2600AYW, MDE4000AYW, MDE6800AYW, MDE7400AYW, MDE7500AYW, MDE8600AYW, MDE9606AYW
LDE4916ACE, LDE4916ACM, LDE4916ADE, LDE5916ACE, LDE5916ACM, LDE5916ADE
LDE7600ACL, LDE8426GGE, LDE8624ACE, LDE9206ACE, LDE9206ACM, LDE9206ADE, LDE9334ACE, LDE9806GGE, LDE512
LDG4916AAE, LDG4916AAM, LDG5916AAE, LDG5916AAM
LSE7806ACE, MDG9520BWW, DE303, DG7500
Note: Always verify your full model number before ordering, since Maytag uses several different drum roller designs across its dryer lineup. Contact our support team with your model number if you're unsure.
Key Features
Aftermarket replacement drum roller support wheel kit — single roller and shaft
Resolves "noisy," "won't tumble," "marks on clothes," and "won't start" symptoms caused by worn rollers
Kit includes 1 roller, 1 shaft, 1 fiber washer, 1 nut, and 1 C-clip
3" diameter, 1-1/8" wide, fits a 1/2" shaft
Self-lubricating bearing — no lubrication required
White or black finish, rubber/plastic/metal construction
Direct drop-in replacement matching the original mounting
Replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, and 312948
Compatible with Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
303373K
OEM Part Number
12001541
Part Type
Dryer Drum Roller Support Wheel Kit
Condition
Aftermarket Replacement
Kit Contents
1x Roller, 1x Shaft, 1x Fiber Washer, 1x Nut, 1x C-Clip
Roller Diameter
3"
Roller Width
1-1/8"
Shaft Fit
1/2"
Lubrication
Not required — self-lubricating bearing
Color
White / Black
Material
Rubber / Plastic / Metal
Repair Difficulty
Easy to Moderate
Quantity
1 drum roller (single kit)
Compatible Brands
Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, Admiral
Installation Notes
⚠️ Unplug Dryer Before Starting — Install The Snap Ring Before Assembling The Roller Onto The Shaft Disconnect power at the outlet before beginning. Wear work gloves. Remove the back panel of the dryer, then remove the drum to access the rear drum roller(s). Remove the old roller by taking off the retainer clip, sliding the roller off its shaft, and removing the shaft itself if it's also being replaced. One customer found it much easier to install the C-clip/snap ring onto the new shaft before assembling the rest of the roller, rather than after. Once assembled this way, you're only dealing with tightening a nut at the back, which can be finger-tightened and then given about a half turn with a 1/2" wrench — useful since one side of the mounting area can be tight to access. Install the new roller, shaft, fiber washer, and nut in the same position, following this assembly order. If your dryer uses two rear rollers and you've ordered a second kit to replace both, repeat this process for the other side. Reinstall the drum, making sure it seats correctly on the new roller(s). While the dryer is fully open, this is also a good opportunity to clean out any accumulated lint from inside the cabinet, since lint buildup here is a genuine fire hazard that isn't addressed by simply cleaning the lint trap. Reassemble the back panel. Restore power and run a test cycle to confirm quiet, smooth tumbling with no marks transferring to clothes. Tools needed: nut driver, 1/2" wrench, work gloves.
Frequently Asked Questions
My dryer squeaks. Is this the part I need?
Yes, squeaking is one of the most common symptoms of worn drum rollers. As the roller's bearing wears down, it can no longer support the drum's rotation smoothly, producing a squeaking or squealing noise that typically gets more noticeable over time.
Should I replace both rollers, or just the one that's obviously worn?
It's recommended to replace both rear drum support rollers at the same time for even wear, even if only one appears visibly worse than the other. This kit includes a single roller and shaft, so if your dryer uses two rear rollers, you'll want to order two of this kit to replace both together.
Do I need to lubricate these rollers?
No, these rollers use a self-lubricating bearing and do not require any additional lubrication during installation or afterward.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Maytag OEM part, but is manufactured to match the diameter, width, and shaft fit of the original 12001541 drum roller kit used in compatible Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
