XP5KV09A Microwave Line Fuse 0.9A, 5.0KV - Compatible with LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz Microwaves
Product Description
Protect your microwave’s electrical system with the replacement XP5KV09A Microwave Line Fuse from Parts-O-Matic. This high-quality fuse, designed for LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwaves, safeguards against power surges and electrical faults by breaking the circuit when current exceeds 0.9A at 5.0KV. Constructed as a fast-blow glass tube (6x40mm), this fuse ensures reliable operation and resolves issues like a non-working microwave, blown fuses, or power failures.
Note: Includes one fuse. Disconnect power before installation. Handle with care to avoid glass breakage.
Replacement Fuse for Part Numbers: XP5KV09A, F900mAL5KV, EAF36358314, DE91-70071A, DE91-70060B, F900mAL5KV, EAF36358314, AP5957954, PS10067115, WB26X35519, AP6997696. PS16542134, WB02X35377, AP6989400, PD00084692, PS16216933, WB27X35672, PD00078809, EAP16219548, AP6994733, PS16219548, EAF36358316, PD00051271, EAP10066444, AP5957955, PS10066444.
Compatibility:
Compatible with models including but not limited to:
LG: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses (e.g., LMHM2237ST, LMV2031ST, LMC1575ST)
Samsung: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Whirlpool: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwave models.
🔥 Specifications: replacement microwave line fuse, 0.9A, 5.0KV, fast-blow, glass tube, 6x40mm (1/4" x 1-5/8"), high-voltage protection, heat-resistant.
💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 10–20 minutes.
🛡️ Reliable Fixes: Resolves microwave not powering on, blown fuse issues, or intermittent power failures.
Installation Notes:
Safety First: Disconnect the microwave from the power source before installation.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Restore your microwave’s functionality today!
Add to cart now for a budget-friendly fix!
WB27X10880 Genuine OEM Microwave Magnetron
Description: This Magnetron is an OEM replacement part responsible for generating the microwave energy that heats and cooks your food. Located within the microwave's cooking chamber, typically behind the control panel and connected to the waveguide, the magnetron emits high-frequency microwaves, which are then distributed throughout the cooking cavity. This electromagnetic radiation excites water molecules in the food, causing them to heat up and cook the food quickly and efficiently.
Replaces Part Numbers: WB27X10880, 1167227, AH1019593, EA1019593, AP3860541, PS1019593.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
XPARTCO XPIBE1740 Microwave Light Bulb 40W Replaces 8206232A, WB25X10030
The XPARTCO XPIBE1740 is an aftermarket replacement 40-watt T8 appliance light bulb compatible with a wide range of microwaves, range hoods, refrigerators, ovens, and other kitchen appliances from GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, and more. It uses the standard E17 intermediate screw base found on most over-the-range and built-in microwave interior lights, range hood lights, and select appliance bulb sockets. With a clear T8 glass envelope, warm white 2800K color temperature, and 280-lumen output, it matches the brightness and look of the original OEM bulbs it replaces.
Specifications: 40W, 125V (AC 110-130V/60Hz), E17 intermediate screw base, T8 shape (1" diameter × 2-3/8" length), 280 lumens, warm white (~2800K), dimmable (compatible with microwave HIGH/LOW light settings), 1000-hour rated life, working temperature High Temp Resistance 300℃. It directly replaces 8206232A, 8206232, 8189961, 8204855, 8205422, 1890433, 0053437, 05200136, 05200137, AP4512653, R0712011, W10321375, W10598935, WB36X10003, WB25X10029, WB25X10030, WB25X10030-24PK, 261201500480, 3015548, 6912W1Z004B, AP5809052, PS2376034, and PS8767095. Installs in under 5 minutes — no tools required for the bulb itself.
Quick Answer
The XPARTCO XPIBE1740 Microwave Light Bulb (40W) replaces burned-out interior microwave lights, range hood lights, and select appliance bulbs across GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, and Hotpoint. T8 shape, 40W, 125V, E17 intermediate screw base. 1" diameter × 2-3/8" length. 280 lumens warm white (~2800K). Dimmable. 1000-hour life. Replaces 8206232A, 8206232, 8189961, 8204855, 8205422, 1890433, AP4512653, R0712011, W10321375, W10598935, WB36X10003, WB25X10029, WB25X10030, WB25X10030-24PK, 6912W1Z004B, AP5809052, PS2376034, PS8767095. Make sure your appliance uses an E17 intermediate base — not E26 standard, E12 candelabra, or E14 European.
Common Problems This Part Fixes
Microwave interior light not working — bulb burned out
Range hood light bulb burned out — under-cabinet area no longer illuminates when cooking
Over-the-range microwave under-cabinet light not working
Bulb flickering or dimming inconsistently — filament starting to fail
Bulb visibly burned out, broken, or rattling when shaken (broken filament)
Microwave light works only intermittently — bulb on the verge of failure
Replacement after long service life — most appliance bulbs last about 2,000 hours
Replaces Part Numbers
This 40W appliance light bulb directly replaces the following OEM and cross-reference part numbers from multiple brands:
8206232A, 8206443, 8183993, 0053437, 05200136, 05200137, 14209237, 14210453, 14210811, 14218311, 14218312, 14218318, 1890433, 2635-0004, 2635-0005, 2665-0003, 4158344, 4158365, 4158432, 4164062, 4166665, 4174608, 4338831, 4359625, 4393681, 53001372, 53422, 53437, 56001071, 56001089, 57001073, 7-47000, 7-47001, 747000, 747001, 8189961, 8204855, 8205422, 8205586, 8206232, R0712013, R0712015, R0713503, R9900310, W10321375, W10598935, Y0053422, Y0053437, Y05200136, Y05200137, Y747000, Y747001, AWP39609, PD00003046, AH2376034, EA2376034, AP4512653, PS2376034, WB25X10030, 261201500480, 3015548, AGE22225 PD00034740, AP5809052, PS8767095, 26QBP4093.
If your bulb part number isn't listed above, check that the base is E17 intermediate and the bulb is 40W — most appliance bulbs in this category are interchangeable. Contact our support team if you need confirmation.
Compatibility
This 40W E17 appliance light bulb is compatible with a wide range of microwaves, range hoods, refrigerators, and ovens using E17 intermediate base sockets, including:
GE over-the-range and countertop microwaves (interior lights)
GE Profile, Café, and Monogram microwaves and range hoods
Whirlpool microwaves and range hoods (over-the-range models)
KitchenAid microwaves (built-in and over-the-range)
Maytag microwaves (select models)
Amana microwaves (select models)
LG over-the-range microwaves
Frigidaire microwaves and range hoods (select models)
Kenmore / Sears microwaves (multi-brand-built models)
Hotpoint microwaves and range hoods
Corningware microwaves (select models)
Also fits select refrigerator interior light sockets, oven lights, and lava lamps using the same E17 base
Important — Check Your Base Type: This bulb uses an E17 intermediate screw base. It will NOT fit appliances designed for E26 (standard household), E12 (candelabra), or E14 (European) bases. The E17 base is the most common base for over-the-range microwaves and range hoods, but check your old bulb or appliance manual to confirm before ordering. Some newer LG microwaves use a 30W bulb instead of 40W — verify your wattage requirement as well.
Key Features
40-watt T8 appliance incandescent bulb — replaces burned-out interior lights in microwaves, range hoods, refrigerators, and select ovens
Standard E17 intermediate screw base — fits the most common appliance bulb socket
T8 shape: 1" (25mm) diameter × 2-3/8" (62mm) length — matches OEM bulb dimensions for clear cover fit
125V (works on AC 110-130V / 60Hz household power)
400 lumens of warm white light (~2800K) — matches the brightness and color of original incandescent OEM bulbs
Dimmable — compatible with microwave HIGH/LOW light settings without flicker
1000-hour rated lifetime — standard for appliance incandescent bulbs
Working temperature range: High Temp Resistance 300℃. — suitable for microwave and range hood heat environments
Replaces 8206232A, 1890433, AP4512653, WB25X10030, WB36X10003, W10321375, W10598935, 6912W1Z004B, and many additional cross-references
Multi-brand cross-compatibility: GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, Corningware
Aftermarket replacement built to OEM-equivalent quality standards
Quick DIY replacement — installs in under 5 minutes
Product Specifications
Part Number
XPIBE1740
Common OEM Replacements
8206232A, WB25X10030, WB36X10003, 6912W1Z004B
Part Type
Appliance Light Bulb (Incandescent)
Condition
Aftermarket Replacement
Application
Microwave, Range Hood, Refrigerator, Oven, Appliance Lights
Wattage
40W
Voltage
125V (operates AC 110-130V / 60Hz)
Base Type
E17 Intermediate Screw Base
Bulb Shape
T8
Dimensions
1" (25mm) D x 2-3/8" (62mm) L
Brightness
280 lumens
Color Temperature
Warm White (~2800K)
Cover
Clear glass
Dimmable
Yes — compatible with HIGH/LOW microwave settings
Lifetime
over 2,000+
Working Temperature
High Temp Resistance 300℃.
Compatible Brands
GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, Corningware
Installation Notes
⚠️ Let the Bulb Cool Completely Before Touching — Unplug Microwave Before replacing the bulb, unplug the microwave (or disconnect power at the breaker for hardwired range hoods) and allow the old bulb to cool completely — incandescent appliance bulbs run very hot, and the glass can stay hot for several minutes after the light is turned off. For an over-the-range microwave's interior light, the bulb is typically accessed through a small panel or by removing a screw-on cover inside the microwave cavity. For under-cabinet/exterior lights, access the bulb by removing the protective cover or vent grille on the bottom of the microwave or range hood. Unscrew the old bulb counterclockwise and dispose of it safely. Screw in the new XPIBE1740 bulb clockwise — hand-tight only, do not over-tighten. Avoid touching the glass envelope of the new bulb with bare fingers; skin oils on the glass can shorten bulb life. If you must touch the glass, wipe it down with a clean cloth before powering the appliance back on. Replace the cover, restore power, and confirm the light works. Tools needed: none for most models, or a small Phillips screwdriver if a panel/cover must be removed.
Frequently Asked Questions
How do I know if I need an E17, E26, or E12 base bulb?
The "E" number refers to the screw base diameter in millimeters. E17 (intermediate) is 17mm — the most common size for over-the-range microwave interior lights, range hood lights, and many appliance lights. E26 (medium/standard) is 26mm — typical household light bulbs (do NOT fit appliance sockets). E12 (candelabra) is 12mm — used for chandelier and decorative bulbs. E14 (European intermediate) is 14mm — common in Europe but rare in U.S. appliances. The XPIBE1740 is an E17 intermediate base. If your old bulb is noticeably smaller or larger than what you're holding, it's the wrong base — confirm by comparing dimensions or checking your appliance manual before ordering.
Can I use an LED bulb instead of this incandescent one?
In many appliances, yes — LED appliance bulbs with E17 intermediate bases are available and use significantly less power for similar brightness. However, LED bulbs sometimes have compatibility issues with the dimming/HIGH-LOW settings on microwaves, can flicker, or may not work with the appliance's lighting control circuit. The XPIBE1740 incandescent bulb is fully dimmable and a guaranteed direct match to the original appliance bulb's behavior. If you prefer LED for energy savings, confirm the LED is rated for appliance use, has an E17 base, and is dimmable for microwave applications before substituting.
My LG microwave's bulb says 30W — does this 40W bulb fit?
Physically, yes — both the 30W and 40W bulbs use the same E17 intermediate base and similar T8 shape. However, some LG microwave models specifically call for a 30W bulb (such as the 6912W1Z004B variant). Using a 40W bulb in a socket rated for 30W may cause the bulb to run hotter than designed, shortening its life or the surrounding socket components' life. Check your LG microwave's manual or the marking on the old bulb — if it specifies 30W, use a 30W bulb. The XPIBE1740 is 40W, suitable for the majority of microwaves that specify 40W bulbs.
Why do appliance bulbs burn out faster than regular household bulbs?
Appliance bulbs operate in harsher environments than typical household bulbs — high temperatures (microwaves and range hoods can hit 480°F nearby), heavy vibration from cooking appliances, repeated rapid on-off cycling, and frequent thermal shock from cooking steam. Even though they're rated for 1,000 hours of operation, real-world life in an appliance is often shorter than the same incandescent bulb in a household lamp. Buying multi-packs and replacing when one burns out is a common approach. Always allow the appliance to cool before swapping the bulb, and don't touch the new glass with bare fingers to maximize service life.
Is this an OEM or aftermarket part?
This is an aftermarket replacement bulb built to OEM-equivalent quality standards. It is not a branded GE, Whirlpool, or LG OEM bulb, but is manufactured to match the dimensions (T8, 1" × 2-3/8"), electrical specifications (40W, 125V, E17 base), brightness (400 lumens, warm white), and dimmable performance of the original appliance bulbs it replaces. Bulb spec compatibility (not brand) is what determines fit, so a properly specified aftermarket bulb performs identically to the OEM.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DG34-00027B Range Membrane Switch (Touchpad)
The XPARTCO DG34-00027B is an aftermarket replacement membrane switch touchpad for Samsung gas ranges. This is the keypad panel itself — the physical layer of touch-sensitive buttons you press to select temperature, set the time, and choose a cooking mode. Underneath a thin, durable overlay, this membrane switch reads each button press as a distinct signal and passes it along to the range's main control board, which then acts on the command. Unlike the main control board, this component doesn't process or execute anything on its own — it's purely the interface between your finger and the board.
Because of that division of labor, a failing membrane switch produces a very specific pattern that's easy to distinguish from a control board failure: certain buttons stop responding, specific functions become impossible to select, or particular settings can no longer be adjusted, while the rest of the panel — including the clock, display, and other buttons — continues working normally. If instead the entire display goes blank or the whole panel stops responding at once, that points to the main control board rather than this touchpad. It directly replaces DG34-00027A, AP5986689, and PS11735749.
Quick Answer
The XPARTCO DG34-00027B Range Membrane Switch (Touchpad) fixes Samsung gas ranges where certain buttons don't respond, specific functions can't be selected, or particular settings won't adjust — while the rest of the control panel, including the clock and display, still works normally. Replaces DG34-00027A, AP5986689, PS11735749. If the entire display is blank or completely unresponsive, or the clock works but no heating functions operate at all, the problem is more likely the main control board (such as our DE92-02588G listing) rather than this touchpad.
Common Problems This Part Fixes
Certain buttons on the control panel don't respond when pressed
Specific cooking functions or modes can't be selected
Particular temperature or time settings can't be adjusted
Some buttons work fine while others are unresponsive or intermittent
Touchpad feels unresponsive or requires repeated presses to register
Visible wear, cracking, or bubbling on the touchpad overlay surface
Buttons that used to work reliably have become inconsistent over time
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This range membrane switch touchpad directly replaces the following OEM and cross-reference part numbers:
DG34-00027B, DG34-00027A, AP5986689, ASM912846, EAP11735749, PD00027535, PS11735749
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This membrane switch touchpad is compatible with select Samsung gas ranges, including model numbers such as:
NX58H5600SS
NX58J5600SG
NX58F5700WS
NX58M5600SB
Note: Samsung uses several similarly-numbered membrane switch touchpads across its range lineup — including DG34-00025A (for NX58F5300SS/NX58F5500SS/NX58F5500SB), DG34-00020A (for NE594R0/NE59J3420/NE59J3421), and DG96-00850H (for NE63A6511) — each for different model groups and not interchangeable with this one. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which touchpad fits your range.
Key Features
Aftermarket replacement membrane switch touchpad — the touch-sensitive keypad interface for the control panel
Resolves "certain buttons unresponsive," "can't select specific functions," and "settings won't adjust" symptoms caused by a worn or damaged membrane
Durable overlay material designed for long-term wear resistance
Smooth surface that's easy to clean and maintain
Direct drop-in replacement — matches the original control panel mounting
Replaces DG34-00027A, AP5986689, and PS11735749
Aftermarket replacement built to OEM-equivalent quality standards
Straightforward DIY repair with basic tools
Product Specifications
Part Number
XPDG34-00027B
OEM Part Number
DG34-00027B (also DG34-00027A)
Part Type
Range Membrane Switch (Touchpad)
Condition
Aftermarket Replacement
Application
Gas Ranges
Color
Black
Function
Touch-sensitive keypad interface; passes button signals to the main control board
Quantity
1 membrane switch touchpad
Compatible Brand
Samsung
Installation Notes
⚠️ Unplug Range Or Shut Off Breaker Before Starting — Small Parts, Keep Away From Children Unplug the range or shut off the house circuit breaker before beginning to avoid electrical hazards. Wear work gloves. This part includes small components — keep them away from young children during installation. Access is typically through the front of the control panel: remove the screws or clips securing the panel trim, then carefully separate the old touchpad overlay from its mounting surface, since some models use an adhesive backing that may require gentle, even pressure to release cleanly without damaging the surrounding panel. Photograph the ribbon cable or connector routing before disconnecting anything. Disconnect the touchpad's ribbon cable or connector from the control board, and remove the old membrane switch fully. Position the new DG34-00027B so its buttons align correctly with the control panel cutout, press it into place evenly to seat any adhesive backing, and reconnect the ribbon cable or connector to the control board. Reinstall the panel trim and its screws or clips. Restore power and test every button on the touchpad to confirm each one now responds correctly. Tools needed: Phillips or flat-blade screwdriver (model-dependent), work gloves.
Frequently Asked Questions
Some buttons work but others don't. Is this the right part?
Yes, this is the classic symptom this touchpad addresses. Because the membrane switch is purely the physical button interface, individual sections of it can wear out or fail independently, leaving some buttons responsive while others stop working. If your clock, display, and some functions still work normally but specific buttons or settings don't respond, this touchpad — not the main control board — is the most likely cause.
My whole display is blank and nothing on the panel responds. Do I need this part?
Probably not. A completely blank or entirely unresponsive display points to the main control board rather than this touchpad, since the touchpad itself has no display and can't cause a total blackout on its own. Similarly, if your clock and timer work but no oven heating functions operate at all, that's also a control board symptom. This touchpad is the correct part specifically when some buttons or functions fail while the rest of the panel, including the display, continues working.
How do I know which specific membrane switch touchpad my range needs?
Samsung uses several different touchpads that look similar but serve different model groups — always check your full model number before ordering. This DG34-00027B fits NX58H5600SS, NX58J5600SG, NX58F5700WS, and NX58M5600SB specifically; other Samsung ranges use different part numbers such as DG34-00025A, DG34-00020A, or DG96-00850H. Contact our support team with your model number if you want to confirm before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the button layout, overlay material, and mounting configuration of the original DG34-00027B touchpad used in compatible Samsung gas ranges.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

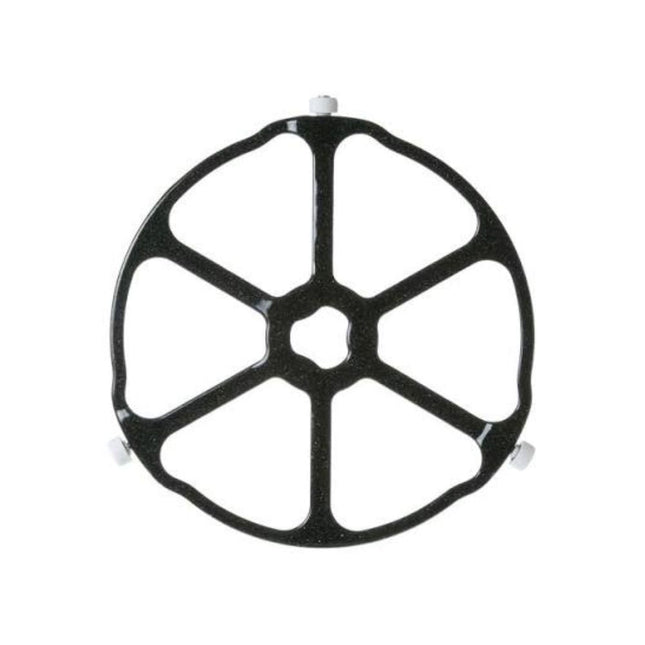

WB06X10775 Genuine OEM GE Microwave Turntable Ring
The WB06X10775 is a genuine GE OEM turntable ring assembly for GE, Hotpoint, Haier, Monogram, and Café microwaves. This ring sits beneath the glass turntable tray in the microwave cavity, and three small plastic wheels built into the assembly are what let the tray roll smoothly in a circle as it rotates. That even rotation is what keeps food moving through the microwave's cooking field consistently, helping avoid cold spots and uneven heating.
The three plastic wheels are a known weak point on this assembly — they're small, thin, and take on repeated stress every time the tray rotates, which makes them prone to cracking or breaking well before anything else on the ring fails. A worn or damaged ring typically shows up as a turntable that rotates unevenly, wobbles, makes noise during operation, or has stopped turning altogether, along with food that tilts or doesn't heat evenly as a result. It directly replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388
Quick Answer
The WB06X10775 Genuine OEM GE Microwave Turntable Ring fixes GE, Hotpoint, Haier, Monogram, and Café microwaves where the turntable rotates unevenly, wobbles, makes noise, or has stopped turning. Includes three plastic support wheels. Replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388. The three small plastic wheels are the most common failure point on this assembly — inspect them first if your tray isn't turning smoothly.
Common Problems This Part Fixes
Turntable rotates unevenly or intermittently
Turntable wobbles during operation
Noisy or grinding sound as the tray rotates
Turntable has stopped rotating altogether
Food tilting or not heating evenly due to inconsistent rotation
Visible cracks or breakage in the ring's support wheels
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave turntable ring directly replaces the following OEM and cross-reference part numbers:
WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This turntable ring is compatible with select GE microwaves, and also fits select Hotpoint, Haier, Monogram, and Café microwaves built on the GE platform, including model numbers such as JT3800SH8SS and other GE Adventium series microwaves.
Note: GE has released newer generation turntable rings for related models under different part numbers, including WB02X32600 and WB06X10651. Always verify your full model number before ordering, since these are not necessarily interchangeable with this ring. Contact our support team with your model number if you're unsure.
Key Features
Genuine GE OEM part — factory-specified wheel design and fit
Supports the glass turntable tray for smooth, even rotation
Resolves "uneven rotation," "wobbling," "noisy operation," and "won't turn" symptoms
Includes three plastic support wheels built into the ring assembly
Durable construction designed to withstand microwave heat and repeated use
Direct drop-in replacement — no tools required
Replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388
Compatible with GE, Hotpoint, Haier, Monogram, and Café microwaves
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
WB06X10775
Part Type
Microwave Turntable Ring Assembly
Condition
Genuine OEM
Brand
GE
Location
Beneath the glass turntable tray in the microwave cavity
Included Components
3 plastic support wheels
Repair Difficulty
Very Easy — no tools required
Quantity
1 turntable ring assembly
Compatible Brands
GE, Hotpoint, Haier, Monogram, Café
Installation Notes
This is a simple, tool-free repair. Unplug the microwave before beginning. Open the microwave door and lift out the glass turntable tray, setting it aside. Remove the old turntable ring from the center hub or cavity floor where it sits. Wipe away any crumbs, grease, or food debris from the area before installing the new ring, since buildup can interfere with smooth rotation. Place the new WB06X10775 ring onto the central hub, making sure it sits flat and rotates freely by hand. Set the glass tray back on top of the ring, and restore power. Run a quick test to confirm the tray rotates evenly and smoothly with no wobble or noise.
Frequently Asked Questions
Why do the wheels on this ring break so often?
The three plastic wheels are thin by design and carry the full weight of the glass tray and whatever food is on it, every time the tray rotates. That repeated stress over time makes them one of the more failure-prone components in the microwave, especially on models where the ring assembly has been identified as a known weak point. If your tray has stopped rotating smoothly, checking these wheels for cracks or breakage is the first thing to look at.
Do I need any tools to replace this?
No. The turntable ring simply lifts out and the new one sets back into place on the central hub — no tools, no disassembly required. Just make sure the microwave is unplugged first.
Should I clean the ring periodically instead of waiting for it to fail?
Yes, this is good practice. Periodically removing the ring and washing it with warm, soapy water clears grease and food debris that can affect rotation over time, and drying it thoroughly before reinstalling helps prevent sticking. Regular cleaning won't prevent the plastic wheels from eventually wearing out, but it does reduce added strain from debris buildup.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original wheel design and fit of the turntable ring assembly originally installed in your microwave.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
3405-001117 Genuine OEM Refrigerator Dispenser Control Switch - Compatible with Samsung
Product Description
Restore your refrigerator’s dispenser functionality with the 3405-001117 Genuine OEM Refrigerator Dispenser Control Switch. This Samsung-manufactured microswitch is designed for select Samsung refrigerators, controlling the activation of the water and ice dispenser mechanism. It ensures reliable dispensing, addressing issues like unresponsive or intermittent water/ice dispensing for a seamless user experience.
Note: Includes (1) dispenser control microswitch. Disconnect power before installation. Verify compatibility with your refrigerator model.
Replaces part numbers: 3405-001117, DA34-00011A, 110634, 3727507, PD00033242, EAP11712663, AP5962465, PS11712663.
Compatibility:
Compatible with select Samsung refrigerator models, including but not limited to:
Samsung: RS2530BBP, RS2530BSH, RS2530BWP, RS2555BB, RS2555SL, RS2555SW, RS2577BB, RS2577SL, RS2577SW, RS2630SH, RS2630WW, RS265LABP, RS265LAWP, RS277ACBP, RS277ACPN, RS277ACWP
Common models: Samsung RS253BABB, RS253BAVQ, RS255BABB, RS255BASB, RS257BARB
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Samsung refrigerators with water and ice dispensers.
🔧 Specifications: Genuine OEM Samsung microswitch, single-pole, double-throw (SPDT), 0.1A, 125/250V.
💪 Reliable Performance: Ensures precise activation of the water and ice dispenser mechanism.
🛠️ Easy Installation: Requires a screwdriver and pliers; typically installed in 15–20 minutes.
🛡️ Effective Fixes: Resolves unresponsive or intermittent water/ice dispensing issues.
Product Specification
Part Number: 3405-001117
Component Type: Refrigerator dispenser control switch
Material: Durable plastic housing with metal contacts
Operating Conditions: 0.1A, 125/250V, suitable for refrigerator dispenser environments
Compliance: UL-listed, Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the refrigerator from the power source before installation.
Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator’s dispenser working smoothly today!
Add to cart now for a reliable fix!
V-151-1C25 Micro Limit Switch
Contact Type: SPDT 1NO 1NC
Actuator Type: Short Hinge Lever
Rating: 15A 125 250VAC
Lever Length: 15mm / 0.6"
Rating: 15A,1/2HP, 125 250VAC; 0.6A,125VDC; 0.3A, 250VDC
IMPORTANT! You should call ahead to confirm availability of an item before going to the store. store's actual inventory can change from minute to minute. Calling the store will allow you to confirm that the item is still available. Some items may not be immediately available for pickup at your local store. Prices and availability may differ from web prices at local pickup location.
(5 Pack) EXP15A Ceramic Microwave Fuse
Fast Blow 15A, 250V
Replaces Part Numbers:
WB27X7, 14QBP15CFB, AP2626454, PS240270, M0805102, AP6014670, WPM0805102, 3601-001197, PS4131368, AP4046099, PS239596, AP3189379, WB08T10027, WB2X8151, WB27X10454.
This is an aftermarket part that can be used as a replacement for the OEM part.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
(6 Pack) EXPHV13 Microwave High Voltage Diode (Rectifier)
Replaces Part Numbers: W11256462, W10492278, W10886077, WPW10492276, WPW10575765, AP6784287, PS12584264, WPW10687786, W10687786, 4449228, AP6023790, PS11757136, 5304470521, AP4396425, PS2353199, WB27X10597, AH239740, EA239740, AP3192533, PS239740.
CL04-12A=500mA CL04-12 12kV
Description: This Diode Assembly is a replacement part for specific microwave models. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy. Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.
EXPHV13 Microwave High Voltage Diode – OEM-Quality Replacement
Replace your faulty diode with the EXPHV13, a high-quality, aftermarket microwave high voltage diode rated for 12,000V / 500mA. It restores proper heating function and is compatible with many leading microwave brands.
Key Features:
✅ Rated for 12kV, 500mA
✅ Direct replacement for most standard microwaves
✅ Solves issues like no heat, humming, or tripped breakers
✅ Easy-to-install universal fit for GE, LG, Whirlpool, Panasonic, etc.
⚠️ Always disconnect power before installation. For compatibility questions, contact us—we’re happy to help!
📦 Part Number: EXPHV13💯 30-Day Money Back Guarantee
XP5KV09A Microwave Line Fuse 900mA (0.9A), 5Kv - Compatible with LG, Samsung, Whirlpool Microwaves
Product Description
Protect your microwave’s electrical system with the replacement XP5KV09A Microwave Line Fuse from Parts-O-Matic. This high-quality fuse, designed for LG, Samsung, Whirlpool, microwaves, safeguards against power surges and electrical faults by breaking the circuit when current exceeds 0.9A at 5.0KV. Constructed as a fast-blow glass tube (6x40mm), this fuse ensures reliable operation and resolves issues like a non-working microwave, blown fuses, or power failures.
Note: Includes one fuse. Disconnect power before installation. Handle with care to avoid glass breakage.
Replacement Fuse for Part Numbers: XP5KV09A, F900mAL5KV, EAF36358314, DE91-70071A, DE91-70060B, F900mAL5KV, EAF36358314, AP5957954, PS10067115, WB26X35519, AP6997696. PS16542134, WB02X35377, AP6989400, PD00084692, PS16216933, WB27X35672, PD00078809, EAP16219548, AP6994733, PS16219548, EAF36358316, PD00051271, EAP10066444, AP5957955, PS10066444.
Compatibility:
Compatible with models including but not limited to:
LG: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses (e.g., LMHM2237ST, LMV2031ST, LMC1575ST)
Samsung: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Whirlpool: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, microwave models.
🔥 Specifications: replacement microwave line fuse, 0.9A, 5.0KV, fast-blow, glass tube, 6x40mm (1/4" x 1-5/8"), high-voltage protection, heat-resistant.
💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 10–20 minutes.
🛡️ Reliable Fixes: Resolves microwave not powering on, blown fuse issues, or intermittent power failures.
Installation Notes:
Safety First: Disconnect the microwave from the power source before installation.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Restore your microwave’s functionality today!
Add to cart now for a budget-friendly fix!
WB24T10029 Genuine OEM GE Range Surface Burner Control Switch
The WB24T10029 is a genuine GE OEM surface burner control switch — also called an infinite switch — for the 6-inch surface element on GE, Hotpoint, and select Kenmore electric ranges and cooktops. This switch is what the burner knob actually turns: it doesn't have fixed positions like a light switch, but instead cycles the element's power on and off at varying ratios as you rotate the knob, which is why it's called an "infinite" switch — it lets you dial in a continuous range of heat levels rather than a handful of fixed steps. Turn the knob to a low setting and the switch feeds the element power only briefly out of every few seconds; turn it toward high and the element stays powered for most of that same window.
This switch is rated for 1,500 watts and controls a 6-inch surface element, drawing 4.4–7.4A at 240V. Over years of use the internal contacts wear, pit, or weld from repeated on/off cycling, and moisture from boilovers or spills can corrode the switch body and cause it to short internally. A worn switch produces predictable symptoms: the burner won't turn on or off at all, it sticks at one heat level no matter where the knob is turned, or it works only intermittently. It directly replaces 769696, AP2024076, AH236754, EA236754, and PS236754. As a genuine OEM part, the WB24T10029 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance.
Quick Answer
The WB24T10029 Genuine OEM GE Range Surface Burner Control Switch fixes GE, Hotpoint, and Kenmore electric ranges where a surface burner won't turn on or off, stays at one heat level regardless of the knob setting, or works intermittently. This is the 6-inch element switch — 1,500W, 4.4–7.4A at 240V. Replaces 769696, AP2024076, AH236754, EA236754, PS236754. Not the same switch as the WB24T10025 used on the 8-inch element — check which burner is affected before ordering.
Common Problems This Part Fixes
Surface burner won't turn on at all when the knob is turned
Burner won't turn off — stays hot even with the knob at the off position
Burner stuck at one heat level regardless of where the knob is set
No ability to adjust temperature — always full blast or always low
Intermittent burner operation — works sometimes, not others
Burner cycles unpredictably, on and off faster or slower than the knob setting suggests
Knob feels loose, gritty, or doesn't click through its normal range of motion
Burner failure that followed a boilover or liquid spill on the control panel
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This range surface burner control switch directly replaces the following OEM and cross-reference part numbers:
WB24T10029, 769696, AP2024076, AH236754, EA236754, EAP236754, AGE22522, PD00008555, PS236754
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This surface burner control switch is compatible with select GE, Hotpoint, and Kenmore electric ranges and cooktops using a 6-inch surface element, across a very wide range of model families, including:
GE JB, JBP, JCBP, and JBS series electric ranges
GE RB and RA series electric ranges
Hotpoint RB series electric ranges (select GE-built models)
Select Kenmore electric ranges built on the GE platform
This switch fits several thousand model variants across GE's electric range lineup, including common families such as JB250, JB350, JB500, JB600 through JB870, JBP10 through JBP99, JCBP35 through JCBP85, JBS07, JBS27, JBS55, JBS60, JBS86, RA724, RB536, RB540, RB560, RB585, RB720, RB740, RB757, RB758, RB787, RB790, RB798, and RB800 — each spanning many color and revision suffixes. Because the model list is extremely long, always verify your full model number against your range's data label, located inside the storage drawer or along the back panel, before ordering.
Note — 6-inch element switch only: GE ranges typically pair a smaller 6-inch element with a larger 8-inch element, and each uses its own dedicated infinite switch. The WB24T10029 is the switch for the 6-inch element. The larger 8-inch element on the same range uses the separate WB24T10025 switch (replaces 769692, AP2024072, AH236750, EA236750, PS236750) instead. The two switches look nearly identical and are easy to mix up when ordering — before you buy, confirm which specific burner has failed and measure or check the element size. Contact our support team with your model number if you're unsure which switch you need.
Key Features
Genuine GE OEM part — factory-specified contact design and heat-cycling calibration
Infinite switch design allows continuous heat adjustment rather than a handful of fixed positions
Rated for the 6-inch surface element — 1,500 watts, 4.4–7.4A at 240V
Resolves "burner won't turn on," "burner won't turn off," "stuck at one heat level," and "intermittent operation" symptoms caused by worn or corroded switch contacts
Direct drop-in replacement — mounts to the same control panel bracket and wiring harness
Replaces 769696, AP2024076, AH236754, EA236754, and PS236754
Compatible with a wide range of GE, Hotpoint, and Kenmore electric range models
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
WB24T10029
Part Type
Range Surface Burner Control Switch (Infinite Switch)
Condition
Genuine OEM
Brand
GE
Element Size Controlled
6 in.
Wattage Rating
1,500 W
Amperage
4.4–7.4 A
Voltage
240V
Function
Cycles element power to allow continuous (infinite) heat adjustment
Mounting
Control panel bracket, knob shaft, and wiring harness terminals
Quantity
1 switch
Compatible Brands
GE, Hotpoint, select Kenmore
Installation Notes
⚠️ 240V Circuit — Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning — this switch operates on a 240V circuit, and working on it while powered presents a serious shock hazard. Wear work gloves. Access is from the front of the control panel: remove the burner knob (it typically pulls straight off, though some models use a small retaining clip or screw), then remove the screws securing the control panel or backsplash to reach the switch from behind. Photograph the wiring before disconnecting anything — this switch has multiple terminals and getting one out of order will affect either the wrong burner or its heat-cycling behavior. Disconnect the wire terminals from the old switch, noting or labeling each one, then remove the mounting screws or clips holding the switch to the panel and pull it free. Install the new WB24T10029 in the same orientation, reconnect each wire terminal exactly as labeled, and secure the mounting hardware. Reinstall the control panel or backsplash, press the knob back onto the shaft, restore power, and test the burner through its full range from low to high to confirm smooth, continuous heat adjustment. Tools needed: Phillips screwdriver, nut driver, wire terminal pliers (helpful but optional), work gloves.
Frequently Asked Questions
How do I know if I need the WB24T10029 or the WB24T10025?
It depends entirely on which burner has failed. Most GE ranges pair a smaller 6-inch element with a larger 8-inch element, and each has its own dedicated infinite switch. The WB24T10029 is for the 6-inch element; the WB24T10025 is for the 8-inch element. Look at your range and identify which specific burner is misbehaving, then measure that element's diameter if you're not sure — the two switches are not interchangeable even though they look nearly identical side by side.
What does "infinite switch" mean, and why does mine only work at one setting?
An infinite switch lets you dial in a continuous range of heat rather than a few fixed positions, by rapidly cycling the element's power on and off at a ratio set by the knob — low settings get short power pulses, high settings get long ones. When the internal contacts wear or weld together from years of cycling, the switch can get stuck feeding constant power (burner always hot) or stop switching at all (burner always off), regardless of where the knob is turned. That "stuck at one heat level" complaint is the classic symptom of a failing infinite switch.
A spill got into the control panel and now the burner won't turn off. Is that the switch?
Very likely, yes. Liquid boilovers and spills are one of the most common causes of infinite switch failure — moisture gets into the switch body, corrodes or bridges the internal contacts, and the switch can end up stuck feeding power continuously even with the knob turned to off. If you suspect this, shut off power to the range immediately at the breaker rather than relying on the knob, since a shorted switch may not respond to it at all.
My burner works but only at high heat no matter where I turn the knob. Could it be something else?
The infinite switch is the most common cause, but it's worth a quick visual check first. Make sure the knob itself is properly seated on its shaft — a knob that's been pushed on at the wrong angle, or whose shaft has worn round, can make it feel like the switch isn't responding even though it is. If the knob is properly seated and turns smoothly through its full range but the heat output doesn't change, the switch's internal contacts have failed and replacement is the correct fix.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original 1,500W, 4.4–7.4A, 240V electrical rating and the heat-cycling behavior of the infinite switch originally installed for the 6-inch element in your GE, Hotpoint, or Kenmore range.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
6324W1A001L Genuine LG OEM Microwave Magnetron
The 6324W1A001L is a genuine LG OEM magnetron for microwave ovens and microwave/oven combination units. The magnetron is the component that actually generates the microwave energy used to cook and heat food — it converts high-voltage electrical power into microwave-frequency radiation, which is then directed into the oven cavity by the waveguide to agitate water molecules in your food and produce heat. Without a functioning magnetron, every other part of the microwave can work perfectly — the turntable spins, the display counts down, the fan runs — while the food inside never actually heats up.
This is a genuine LG-manufactured magnetron used not only in LG microwaves but also, under LG's role as a shared component supplier, in microwaves sold under Frigidaire, Whirlpool, Kenmore, GE, Jenn-Air, Thermador, KitchenAid, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch branding. Measuring approximately 4.5"L x 4.25"W x 5"H. A failed magnetron produces a distinct symptom: the microwave runs normally in every other respect — it powers on, the turntable turns, the timer counts down — but the food inside stays cold. Sparking or arcing behind the waveguide cover, visible burn marks on the magnetron, or a burning smell are also signs of magnetron failure or damage. It directly replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208.
Quick Answer
The 6324W1A001L Genuine LG OEM Microwave Magnetron fixes microwaves and microwave/oven combos that run normally — turntable spins, display works, timer counts down — but the food never actually heats up. Also fixes sparking or arcing behind the waveguide cover. Approximately 4.5"L x 4.25"W x 5"H. Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, 1268208. Microwaves contain a high-voltage capacitor that stores a dangerous charge even after unplugging — always discharge it before accessing the magnetron.
Common Problems This Part Fixes
Microwave runs normally — turntable spins, display works, timer counts down — but food doesn't heat up
Microwave heats very weakly or inconsistently
Sparking or arcing visible behind the waveguide cover in the oven cavity
Burning smell coming from the microwave during or after use
Visible smoke from inside the cavity
Burn marks or visible damage on the magnetron itself
Loud humming with no heating effect on food
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave magnetron directly replaces the following OEM and cross-reference part numbers:
6324W1A001L, 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, WB26X32629, AP6888676, WB27X26081, WB27X10305, 4930994, WB27X10876.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This magnetron is compatible with select microwaves and microwave/oven combos from a wide range of brands, since LG manufactures this component for use across multiple appliance brands, including:
LG (including LRM2060ST and LMV2031ST models)
Kenmore, GE, Frigidaire, Whirlpool, and Amana
Jenn-Air, KitchenAid, Thermador, Gaggenau, and Bosch
Panasonic, Goldstar, and Crosley
Note: Even though this magnetron is used across many brands, magnetrons that look similar can have small but important variations in size and shape between models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Genuine LG OEM part — factory-specified microwave frequency output and mounting configuration
Generates the microwave energy that cooks and heats food
Resolves "runs but doesn't heat," "weak or inconsistent heating," "sparking behind the waveguide," and "burning smell" symptoms caused by magnetron failure
Approximately 4.5"L x 4.25"W x 5"H
Direct drop-in replacement — matches the original mounting bracket and waveguide alignment
Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208
Widely compatible across LG, Kenmore, GE, Frigidaire, Whirlpool, Jenn-Air, KitchenAid, Thermador, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch microwaves
Genuine OEM replacement — guaranteed fit, materials, and performance
Moderate DIY repair for those comfortable with microwave high-voltage safety procedures
Product Specifications
Part Number
6324W1A001L
Part Type
Microwave Magnetron
Condition
Genuine OEM
Brand
LG
Application
Microwave Ovens / Microwave-Oven Combos
Function
Generates the microwave energy used to heat and cook food
Dimensions
Approx. 4.5"L x 4.25"W x 5"H
Repair Difficulty
Moderate — high-voltage discharge required
Quantity
1 magnetron
Compatible Brands
LG, Kenmore, GE, Frigidaire, Whirlpool, Amana, Jenn-Air, KitchenAid, Thermador, Gaggenau, Bosch, Panasonic, Goldstar, Crosley
Installation Notes
⚠️ Danger — Microwave High-Voltage Capacitor Unplug the microwave before beginning any work. Microwaves contain a high-voltage capacitor that can store a dangerous, potentially lethal electrical charge even after the unit has been unplugged. Before opening the cabinet or touching any internal component, discharge the capacitor using an insulated screwdriver shorted across its terminals — never touch the capacitor or its terminals directly, and never work on a microwave's internals without performing this step first. If you are not fully comfortable and experienced with high-voltage discharge procedures, have a qualified appliance technician perform this repair instead.
⚠️ Test Other High-Voltage Components Before Assuming It's The Magnetron Wear work gloves. After confirming the capacitor is fully discharged, remove the outer cabinet to access the internal components. Before replacing the magnetron, it's worth testing the other high-voltage components — the transformer, diode, and capacitor — since a fault in any of these can produce similar "runs but doesn't heat" symptoms, and replacing the magnetron alone won't fix the problem if one of these other parts has actually failed. Photograph the magnetron's mounting and waveguide connection before removing anything. Disconnect the magnetron's electrical leads, remove the mounting screws securing it to the waveguide assembly, and carefully lift the old magnetron free. Install the new 6324W1A001L in the same orientation, aligning it correctly with the waveguide opening, and secure the mounting screws. Reconnect the electrical leads exactly as they were before removal. Reinstall the outer cabinet, restore power, and test with a cup of water to confirm normal heating without unusual sounds, sparking, or smoke. Tools needed: nut driver or socket set, Phillips screwdriver, insulated screwdriver for capacitor discharge, multimeter (for testing other components), work gloves.
Frequently Asked Questions
My microwave runs but doesn't heat anything. Is this the right part?
It's the most common cause of exactly that symptom. When the turntable spins, the display works, and the timer counts down normally, but food comes out just as cold as it went in, the magnetron has very likely failed. Other high-voltage components (the transformer, diode, or capacitor) can sometimes cause the same symptom, so if you're comfortable testing with a multimeter, it's worth ruling those out first — but a failed magnetron is the single most frequent cause reported for this exact complaint.
Why does the same part fit so many different brands?
LG manufactures magnetrons and other core components that get used across microwaves sold under many different brand names, since several appliance companies share manufacturing platforms or source key parts from the same suppliers rather than building everything in-house. This is a normal and well-documented part of how microwave manufacturing works — it doesn't mean the part is generic or lower quality, just that LG's magnetron design is used broadly across the industry.
I see sparking behind the cover inside the microwave. Is that the magnetron?
It can be. Sparking or arcing behind the waveguide cover, especially with visible smoke or a burning smell, points to damage in the magnetron or the waveguide area. Inspect the magnetron for burn marks once you've safely discharged the capacitor and opened the cabinet — if you see charring or damage, replacement is the correct fix. Stop using the microwave immediately if you notice sparking, smoke, or burning smells.
Do I need any special skills to replace this part?
This is a moderate DIY repair, and the key skill required isn't mechanical — it's safely discharging the microwave's high-voltage capacitor before doing anything else. If you're not fully confident performing that step correctly, this is a good repair to leave to a qualified appliance technician, since the capacitor can hold a dangerous charge even with the unit unplugged.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original microwave frequency output, mounting configuration, and dimensions of the magnetron originally installed in your microwave.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
