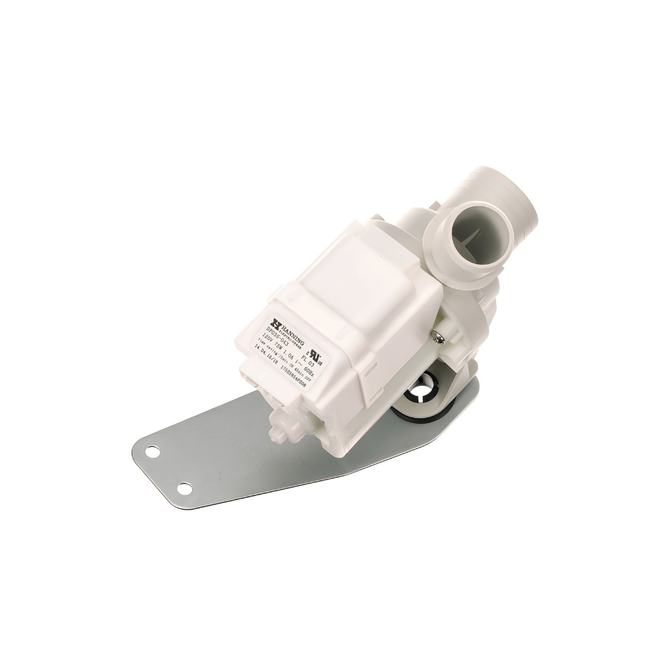

Genuine OEM WH23X10043 Washer Drain Pump
The WH23X10043 is a genuine OEM drain pump from GE for GE and Hotpoint washers. The drain pump pushes wash water out of the tub and through the drain hose during the drain portion of the cycle. When it clogs, wears out, or leaks, the washer may leave water in the drum, stop before the spin, throw drain-related problems, leak from the pump, or make unusual noise while draining.
This is a genuine OEM part, not an aftermarket equivalent, so the fit and operation match the original pump. It is a straightforward repair for most owners, usually under an hour, with a nutdriver, pliers and screwdrivers.
Quick Answer
The Genuine OEM WH23X10043 Drain Pump fixes a GE or Hotpoint washer that won't drain, leaves water in the drum, drains slowly, leaks from the pump, or makes noise while draining because the pump has failed. Genuine OEM from GE Appliances. Classic symptom: the cycle stalls with water still in the tub, or you hear the pump hum or grind but the water doesn't leave.
Common Problems This Part Fixes
Washer won't drain, or water is left in the drum after the cycle
Slow or incomplete draining
Water leaking from the pump
Unusual noise while the washer drains
Cycle stopping before the spin because the water hasn't drained
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drain pump is listed under the following part number:
WH23X10043, 2754597, DP035-043, AGE26084, AP5632594, EAP3654194, PD00023322, PS3654194
We have not found any superseded or alternate manufacturer numbers for this pump. If your old pump or parts diagram shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This drain pump is listed for washers from:
GE, including GBAN2800F0WW, GCWN4950D0WS, GHWN4250D0WW, GLWN5550D0WW, GMAN4250F0WS, and GTWN5650F2WS
Hotpoint, including HTAP1200D1WW and MTAP1200D0WW
Note: The model list above is only a sample, since retailers list 100 or more compatible models. Confirm fit by matching the number on your old pump or your parts diagram, or contact our support team with your model number and we'll verify before you order.
Key Features
Genuine OEM GE washer drain pump, not an aftermarket equivalent
Restores full draining so cycles finish and the washer can spin
Fits a wide range of GE and Hotpoint washers
Simple replacement, typically under an hour with basic hand tools
Product Specifications
Part Number
WH23X10043
OEM Part Number
WH23X10043
Part Type
Washer Drain Pump
Condition
Genuine OEM
Manufacturer
GE Appliances
Approx. Size
About 9 in H x 6 in L x 4 in Thick
Application
Select GE & Hotpoint Washers
Installation Notes
⚠️ Unplug Power and Expect Water Unplug the washer and turn off the water supply before starting. Work gloves are recommended. Put towels and a shallow pan under the work area, since some water will remain in the pump and hoses. Following your model's service guide, remove the panel needed to reach the pump, disconnect its wiring connector, and loosen the clamps holding the hoses. Pull the hoses off, remove the pump's mounting fasteners, and take out the old pump. Install the new pump in the same position, reattach the hoses with their clamps (replace worn clamps if needed), and reconnect the wiring. Replace the panel, restore power and water, and run a drain cycle while checking for leaks. Reviewers note the hose clamps can be difficult, so have pliers ready.
Frequently Asked Questions
My washer won't drain. Is this the part I need?
A failed or clogged drain pump is a common cause. Before replacing it, check the drain hose and the pump for a clog from a sock, coin, or lint. If the path is clear but the pump hums, grinds, leaks, or doesn't run, replacing it should fix the problem.
Will this fit my GE or Hotpoint washer?
It is listed for a wide range of GE and Hotpoint washers. Match the number on your old pump or parts diagram, or contact our support team with your model number and we'll confirm fit before you order.
Do I need special tools?
No. A nutdriver, pliers, and screwdrivers are typically all you need. Pliers help with the hose clamps.
Is this a genuine GE part?
Yes. This is a genuine OEM part from GE Appliances, not an aftermarket equivalent.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO WH11X34742 (OE) Washer Drain Pump – Compatible with GE & Hotpoint Washers
Product Description
Restore proper water drainage and dependable washer performance with the XPARTCO WH11X34742 (OE) Washer Drain Pump. This OE (Original Equipment) replacement is manufactured to match original factory design and performance specifications, ensuring efficient water removal during drain and spin cycles.
A failing drain pump can cause standing water, slow draining, excessive noise, or cycle interruption. Replacing it with this OE-spec XPARTCO pump helps restore smooth operation while offering a more cost-effective alternative to Genuine OEM parts.
XPARTCO OE parts are built to match original fit and function while maintaining affordability.
Replaces Part Numbers
WH11X34742, WH01X28078, PD00076830, EAP16729517, AP7192541, PS16729517
Compatibility
This OE washer drain pump fits select GE and Hotpoint top-load washers.
Common compatible models include (but are not limited to):
GE GTW335ASNWW, GTW465ASNWW
Hotpoint HTW240ASKWS
Always verify your washer’s model number before ordering.Contact our support team if you’re unsure.
✅ Key Features
🔄 OE (Original Equipment) Replacement – Matches original factory specifications
💧 Efficient Water Removal – Restores proper draining performance
🔇 Quiet Operation – Reduces humming or grinding noises
💪 Durable Motor & Housing – Designed for long service life
💰 Cost-Effective Alternative – OE quality without Genuine OEM pricing
📐 Product Specification
Part Number: WH11X34742
Component Type: Washer Drain Pump
Voltage: 120V AC
Mounting: Direct-fit, bolt-on installation
Application: Washer drain and spin system
Quality Level: OE (Original Equipment) – not Genuine OEM
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, nut driver, pliers
⚠️ Safety First: Unplug the washer and shut off the water supply before servicing.
Basic Steps:
Disconnect washer power and water supply.
Access the drain pump from the bottom or rear of the washer.
Remove hoses and electrical connectors.
Remove mounting screws and remove the old pump.
Install the new XPARTCO WH11X34742 (OE) drain pump.
Reconnect hoses and wiring, reassemble panels, and restore power.
Run a test cycle to confirm proper draining.
⏱️ Time Required: 25–35 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted OE Appliance Parts
🔄 30-Day Return Policy
Restore reliable washer draining with confidence — Add to Cart Now for a dependable OE-spec repair!
W11396717 Genuine OEM Whirlpool Washer Drain Pump Assembly
The W11396717 is a Genuine OEM Whirlpool replacement drain pump assembly compatible with select Whirlpool, Maytag, and Kenmore high-efficiency top-load washers — including the Whirlpool WTW5100, WTW6120, WTW7120, WTW8120, and WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, and MVW8230 series. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, or make loud humming, grinding, or rattling noises during the drain phase.
Rated 120V, 60Hz, 1.2A (CL.F duty class), this complete pump assembly is mounted to the underside of the outer tub and secured by three mounting screws. It directly replaces the earlier W11263349 as well as 4960510, AP6974116, PS12731177, and EAP12731177. Note: the pump is accessed from the bottom of the washer — the machine must be tilted or laid on its back to reach the mounting screws. Installs in 20–35 minutes with basic hand tools.
Quick Answer
The W11396717 Genuine OEM Whirlpool Washer Drain Pump fixes Whirlpool and Maytag HE top-load washers that won't drain, leave standing water, stop mid-cycle, or make loud noise during the drain cycle. 120V/60Hz/1.2A CL.F. Mounted on the underside of the outer tub — access by tilting the washer. Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177. Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers.
Common Problems This Part Fixes
Washer not draining — standing water remaining in the tub after a cycle
Washer stopping mid-cycle due to a drain fault
Loud humming during the drain phase — motor energized but pump not moving water
Grinding or rattling during drain — damaged impeller or worn bearings
Clothes excessively wet after a full cycle — pump not fully removing water before spin
Water draining very slowly — pump motor weakening below rated performance
Water leaking from the pump area underneath the washer
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
W11396717, W11263349, Hanyu B25-3A04, AP6974116, AWP44690, EAP12731177, PD00065247, PS12731177
W11396717 is the current production part number superseding W11263349. If your parts diagram shows W11263349, the W11396717 is the correct current replacement. Contact our support team if you need confirmation before ordering.
Compatibility
This drain pump is compatible with select HE top-load washers from the following brands and series:
Whirlpool top-load washers — WTW5100HC0, WTW5100HW0, WTW5105HC0, WTW5105HW0, WTW6120HC0, WTW6120HW0, WTW7120HC0, WTW7120HC1, WTW7120HW0, WTW8120HC0, WTW8120HW0, WTW8127LC1, WTW8127LW0, WTW8127LW1 and related models
Maytag top-load washers — MVW6200KW0, MVW6230HC0, MVW6230HW0, MVW6230RHW0, MVW7230HC0, MVW7230HC1, MVW7230HW0, MVW7230HW1, MVW7232HC0, MVW7232HC1, MVW7232HC2, MVW7232HW0, MVW7232HW1, MVW7232HW2, MVW8230HC0, 7MMVW7230LC0, 7MMVW7230LW0 and related models
Kenmore / Sears top-load washers — 11021112021, 11021652020, 11031652020 and related models
Note: This pump is mounted on the underside of the outer tub and requires tilting or laying the washer on its back for access. Always verify your model number before ordering.
Key Features
Removes water from the tub during drain and spin cycles for proper washer operation
Rated 120V, 60Hz, 1.2A (CL.F) — correct electrical specifications for compatible HE top-load washers
Current production part — directly supersedes W11263349
Mounted on the underside of the outer tub and secured by three mounting screws — tilt or lay washer on its back for access
Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177, and B25-3A04
Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers
Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance
DIY repair — installs in 20–35 minutes with basic hand tools
Product Specifications
Part Number
W11396717
Supersedes
W11263349
Part Type
HE Top-Load Washer Drain Pump Assembly
Condition
Genuine OEM
Application
Whirlpool / Maytag / Kenmore HE Top-Load Washers
Voltage
120V AC
Frequency
60 Hz
Amperage
1.2A
Duty Class
CL.F
Mounting
3 screws on underside of outer tub — tilt washer for access
Compatible Brands
Whirlpool, Maytag, Kenmore
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting — Work Gloves Recommended Disconnect power and turn off the water supply before beginning. Wear work gloves throughout. The drain pump is mounted on the underside of the outer tub — to access it, disconnect the water supply hoses, drain hose, and lid switch wiring, then carefully tilt the washer onto its back or side on a padded surface. Locate the pump on the bottom of the tub. Using a 5/16" nut driver, remove the three mounting screws securing the pump assembly to the tub. Release the two spring clamps with channel-lock pliers and disconnect the inlet and outlet hoses from the pump. Disconnect the wiring harness and remove the old pump. Install the new W11396717 pump in the same position, reconnect hoses and clamps, reconnect the wiring harness, and secure with the three mounting screws. Return the washer to upright, reconnect all hoses and wiring, restore power and water, and run a drain/spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, 5/16" nut driver, channel-lock pliers, padded surface for tilting, work gloves.
Frequently Asked Questions
What is the difference between W11396717 and W11263349?
These are the same drain pump assembly across two production revisions. W11263349 was the original part number, and W11396717 is the current updated version that supersedes it. Whirlpool issues updated part numbers when minor engineering changes are made during production. Both are the same pump with the same specifications, dimensions, and function. If your washer's parts diagram shows W11263349, the W11396717 is the correct current replacement to order.
Why does accessing this pump require tilting the washer?
On compatible Whirlpool WTW and Maytag MVW HE top-load washers, the drain pump is mounted directly to the underside of the outer tub — not on the cabinet side panel or behind a front access panel as on some other models. The pump's three mounting screws are only reachable from below the machine. The standard repair procedure is to unplug and disconnect the washer, tilt it onto its back or side on a padded surface, access the pump from underneath, and return the washer to upright after installation.
How do I know if it's the drain pump versus a blocked drain hose?
Before replacing the pump, check the drain hose for kinks or blockages — disconnect the hose and blow through it to confirm it is clear. Also check whether the drain hose standpipe height is within the recommended range (typically 39–96 inches from the floor). If the hose is clear and properly positioned but the washer still won't drain, listen during the drain phase: a completely silent drain cycle (motor not running) suggests a failed motor or control board issue, while a humming or grinding noise during drain confirms the pump motor is receiving power but the pump is mechanically failed and needs replacement.
Is this pump the same as the W10876600 used in older Whirlpool Cabrio models?
No — the W11396717 and the W10876600 are different drain pumps for different Whirlpool top-load washer generations. The W10876600 (and its successor WPW10730972) is used in older Whirlpool Cabrio and Maytag Centennial models. The W11396717 is used in newer WTW5100/6120/7120/8120 and MVW6200/6230/7230/7232/8230 series models. They are not interchangeable — verify your model number before ordering.
Is this an OEM or aftermarket part?
This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same drain pump assembly installed in compatible Whirlpool, Maytag, and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
WPW10352973 Washer Genuine Dispenser Actuator
Dispenser Drawer Switch Actuator for Washer
Replaces Part Numbers: WPW10352973, W10352973, W10065190, W10163975, W10283468, 8183186, AP6020256, PS11753574.
✅ Product Description:
Restore proper detergent dispensing with this genuine OEM WPW10352973 washer dispenser actuator. Designed to control the flow of detergent and fabric softener into your wash cycle, this part is a direct replacement for worn or non-functioning actuators in many Whirlpool, Maytag, Amana, Kenmore, and Crosley top-load washing machines.
Part Features:
Genuine OEM quality – built to factory specs
Replaces part numbers: WPW10352973, W10352973, W10065190, W10163975, W10283468, 8183186, AP6020256, PS11753574.
Controls dispenser drawer movement for proper release timing
Easy to install with basic tools
Fixes the following symptoms:
Dispenser drawer not opening
Detergent or softener not dispensing
Error codes related to actuator failure
Inconsistent or incomplete wash cycles
Compatible with:Many models from Whirlpool, Maytag, Kenmore, Amana, and more.(Check model number before ordering or contact us for fitment help.)
✅ Why Buy from Parts-O-Matic?
Guaranteed OEM-quality parts
Always Fast and Free U.S. shipping
Competitive pricing
Expert support for part compatibility
🛒 Get your washer working like new – order the WPW10352973 Dispenser Actuator now at Parts-O-Matic.com, and enjoy fast, free shipping with no minimum.
XPARTCO WE03X37317 - WE03X37318 Dryer Drum Glide Set
The XPARTCO WE03X37317 - WE03X37318 is an aftermarket replacement drum glide set for GE and Hotpoint dryers, also used on select Whirlpool and Kenmore dryers and washer-dryer combos. These plastic bearing slides are the wear pads at the front of the dryer that the drum rides on as it turns. As they wear down, the drum no longer sits and rolls smoothly, and the dryer starts to squeak, squeal, or rumble. In worse cases the drum catches or drags, and clothes can get snagged or marked between the drum and the front frame.
This set pairs both glide types used on these dryers: the WE03X37317 and the WE03X37318 front bearing slides. Because the slides wear at the same rate, replacing them together restores smooth, quiet drum rotation and avoids a repeat repair. Easy to install, typically 30–60 minutes.
Quick Answer
The XPARTCO WE03X37317 - WE03X37318 Drum Glide Set fixes a GE or Hotpoint dryer that squeaks, squeals, or rumbles loudly as the drum turns, or whose drum drags or catches. Replaces both the WE03X37317 and WE03X37318 front bearing slides. Classic symptom: a loud squeal or scraping noise from the drum area that gets worse over the cycle, sometimes with marks or snags on clothes.
Common Problems This Part Fixes
Loud squeaking, squealing, or scraping noise while the drum tumbles
Drum not spinning smoothly, or dragging and catching
Marks, wrinkles, or snags on clothes from items catching between the drum and the front frame
Excessive drum noise during drying cycles
Visibly worn, thin, or chewed-up plastic glides at the front of the drum
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This glide set replaces the following part numbers:
WE03X37317, WE1M1067, WE01M0316, WE03X37317-50PK, WE1M1067-100PK, WE1M316, WE1M481, WE1M507, AGE25692, AP5668531, AP7217723, FIX17137203, PD00089026, PS6447706, PS17137203, WE03X37318, WE1M504, WE01M0333, WE1M333, TJDE504, TJWE1M333, DE504, DE775, TJDE775, AH755842, EA755842, ERWE1M333, AGE25703, AP7217724, PD00088960, PS17137205
The first group of numbers (WE03X37317, WE1M1067, WE1M316, WE1M481, WE1M507, AP7217723, PS17137203) is for the gray glide. The second group (WE03X37318, WE1M504, WE01M0504, WE01M0333, WE1M333, AP7217724, PS17137205) is for the white glide. The AP/PS-prefixed numbers are third-party catalog cross-references for the same physical parts.
Compatibility
These glides are used on GE, Hotpoint, Whirlpool, and Kenmore dryers and washer-dryer combos, including models such as:
GE 61140418, 61140419, 61148418, 61148419
Numerous additional GE and Hotpoint dryer and washer-dryer combo models
Note: These glides fit a wide range of models, so the list above is only a sample. Compare the glides in your dryer, or your parts diagram, against the Replaces list above, or contact our support team with your model number and we'll verify fit before you order.
Key Features
Aftermarket replacement drum glide set covering both the WE03X37317 and WE03X37318 front bearing slides
Durable plastic bearing slides that let the drum rotate smoothly
Resolves squeaking, squealing, and dragging drum symptoms
Helps prevent clothes from being marked or snagged at the front of the drum
Replacing both glide types together avoids a repeat repair
Easy installation — typically 30–60 minutes
Product Specifications
Part Number
XPWE03X37317-WE03X37318
OEM Part Number
WE03X37317, WE03X37318
Part Type
Dryer Drum Glide (Front Bearing Slide) Set
Condition
Aftermarket Replacement
Set Includes
WE03X37317 and WE03X37318 Front Bearing Slides
Material
Plastic
Application
GE, Hotpoint, Whirlpool & Kenmore Dryers and Washer-Dryer Combos
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker, and shut off the gas supply first if it's a gas model. Remove the top and front panels per your model's service guide to expose the front of the drum, and disconnect any wiring that's in the way. Lift or support the drum enough to reach the worn glides, which are held in place at the front bearing support. Pull out the old glides, noting the position and orientation of each, and fit the new ones in the same positions. Reassemble the dryer and spin the drum by hand to confirm it turns smoothly before restoring power. Replace the glides as a set, since they wear at the same rate.
Frequently Asked Questions
My dryer squeals or rumbles loudly while tumbling — is this the part I need?
Worn drum glides are a very common cause of squeaking and scraping from the drum area. If the plastic glides look thin, grooved, or chewed up, replacing them should quiet the dryer and restore smooth rotation. Also check the drum rollers and idler pulley, which can cause similar noises.
Why are there two different part numbers?
GE uses two glide types at the front of the drum: glide (WE03X37317) and glide (WE03X37318). This set covers both, so you can replace the full set in one go.
Should I replace all the glides or just the worn ones?
Replace them together. The glides wear at about the same rate, so if one is worn the others are usually close behind.
Will this fit my Whirlpool or Kenmore dryer?
These glides are cross-listed for select Whirlpool and Kenmore dryers and washer-dryer combos as well as GE and Hotpoint. Compare the part numbers on your parts diagram against the Replaces list, or contact our support team with your model number and we'll confirm.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
WH23X28418 Washer Genuine GE OEM Drain Pump
The WH23X28418 is a Genuine GE OEM replacement drain pump and motor assembly compatible with select GE, Hotpoint, Haier, RCA, and Kenmore top-load and front-load washers. The drain pump removes water from the washer drum during the drain and spin cycles — expelling water and detergent through the drain hose so that clothing comes out clean and free of excess water. When the pump fails, the washer will not drain, may leave standing water in the tub, or may produce loud noises during the drain cycle.
This complete drain pump and motor assembly is rated at 120V, 60Hz, 1.25A with a duty cycle of 10 minutes on and 50 minutes off. It includes the pump and motor with harness — the harness and plug extend approximately 10 inches from the motor. The pump measures 5-1/4" L x 5-1/8" W x 5-1/2" H and includes a drain pump seal. It directly replaces WH23X24178 and WH23X27574, as well as several additional cross-reference numbers. Installs in 20–40 minutes with basic hand tools.
Quick Answer
The WH23X28418 Washer Genuine GE OEM Drain Pump fixes GE, Hotpoint, Haier, and RCA washers that won't drain, leave standing water in the tub, are noisy during draining, or leak around the pump area. Complete pump and motor with harness and drain pump seal. 120V/60Hz/1.25A. Dimensions 5-1/4" L x 5-1/8" W x 5-1/2" H; harness extends approx. 10". Replaces WH23X24178 and WH23X27574.
Common Problems This Part Fixes
Washer not draining — standing water remaining in the tub after a cycle
Washer stopping mid-cycle due to a drain fault or drain-related error code
Loud humming, grinding, or buzzing noise during the drain cycle
Washer pumps but will not spin — pump failure preventing cycle completion
Water leaking from around the drain pump area
Clothes not clean or coming out soaking wet due to incomplete drainage
Pump impeller jammed by debris causing motor burnout
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
WH23X24178, WH23X28418, WH23X27574, 290D1201G001, 290D1201G002, 290D1201G003, AGE26155, B40-3A01, B30-3A02, PD00055680, EAP12723115, AP6889136, PS12723115.
WH23X28418 is the current updated part number replacing the discontinued WH23X24178 and WH23X27574. If your washer documentation or old pump label shows either of those numbers, this is the correct replacement.
Compatibility
This drain pump is compatible with select washers from the following brands and series:
GE top-load washers — GTW220, GTW330, GTW335, GTW460, GTW465, GTW485, GTW490, GTW500, GTW680, GTW720, GTW725, GTW750 series and others
GE front-load washers — select GFW series models
Hotpoint top-load washers — HTW200, HTW240 series and others
Haier top-load washers — select models
RCA top-load washers — select models
Kenmore / Sears washers — select GE-built models
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
Removes water and detergent from the washer drum during drain and spin cycles
Complete assembly — includes pump motor, harness, and drain pump seal
Rated 120V, 60Hz, 1.25A with a 10-minute on / 50-minute off duty cycle
Dimensions: 5-1/4" L x 5-1/8" W x 5-1/2" H; harness and plug extend approximately 10" from motor
Plastic and metal construction rated CL.A — durable and chemical resistant
Includes drain pump seal to prevent leaks at the pump connection
Current updated replacement for discontinued WH23X24178 and WH23X27574 — direct fit
Note: The drain pump motor has been redesigned by the manufacturer — the replacement may look different from the original but fits and functions identically
Genuine GE OEM part — factory-exact fit, materials, and specifications
DIY-friendly repair — installs in 20–40 minutes with basic hand tools
Product Specifications
Part Number
WH23X28418
Supersedes
WH23X24178, WH23X27574 (both discontinued)
Part Type
Washer Drain Pump and Motor Assembly
Condition
Genuine OEM
Application
GE, Hotpoint, Haier, RCA Top-Load and Front-Load Washers
Voltage
120V AC
Frequency
60 Hz
Amperage
1.25A
Rating
CL.A
Duty Cycle
10 minutes ON / 50 minutes OFF
Dimensions
5-1/4" L x 5-1/8" W x 5-1/2" H
Harness Length
Approximately 10 inches from motor
Color
White / Black / Gray
Material
Plastic / Metal
Includes
Pump and motor with harness, drain pump seal
Compatible Brands
GE, Hotpoint, Haier, RCA, Kenmore
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Have towels and a shallow pan ready to catch residual water. For top-load GE washers, the drain pump is typically accessed from the bottom of the machine — carefully tilt the washer back onto a support or lay it on its side to reach the pump from underneath. Disconnect the outlet hose by loosening the hose clamp and pulling it free. Disconnect the electrical harness connector. Remove the mounting screws (typically three) securing the pump to the washer base. Twist and firmly pull the old pump out. Install the new WH23X28418 pump in reverse order — connect the hose, tighten the clamp, reconnect the harness, and secure the mounting screws. Restore power and water supply and run a test cycle to verify proper drainage and no leaks. Tools needed: Phillips screwdriver, flat-head screwdriver, slip-joint pliers, shallow pan.
Frequently Asked Questions
What is the relationship between WH23X28418, WH23X24178, and WH23X27574?
All three are GE washer drain pumps — WH23X28418 is the current updated part number that replaced both the discontinued WH23X24178 and WH23X27574. GE redesigned the pump motor during its production cycle, so the replacement may look slightly different from the original, but it fits and functions identically. If your washer uses either of the older numbers, order WH23X28418.
How do I know if my washer drain pump has failed?
The most common signs are standing water in the tub after a cycle, the washer stopping mid-cycle with a drain error, or loud humming during the drain phase — which indicates the motor is running but the impeller is not moving. A grinding or rattling noise suggests debris in the pump or physical damage. If the pump is completely silent during what should be the drain cycle, the motor has likely burned out and the pump needs replacement.
Does the WH23X28418 fit both top-load and front-load GE washers?
The WH23X28418 is primarily used in GE and Hotpoint top-load washers — the GTW and HTW series make up the majority of compatible models. It also fits select GE front-load models. Always verify your specific model number before ordering to confirm compatibility for your washer type.
What is the duty cycle rating and why does it matter?
The duty cycle of 10 minutes on / 50 minutes off means the pump motor is rated for up to 10 consecutive minutes of operation before requiring a 50-minute rest period. In normal washer operation this is never an issue — drain cycles are brief. However, if a drain fault causes the pump to run continuously without successfully draining, the motor can overheat. If you replace the pump due to burnout and the new pump also fails quickly, check for a drain hose blockage or control board fault that may be causing the pump to run without limit.
Is this an OEM or aftermarket part?
This is a Genuine OEM part manufactured by GE to factory specifications — the exact same drain pump and motor assembly installed in compatible models from the factory, with guaranteed fit, materials, and performance.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 285753A Washer Direct Drive Motor Coupler
The XPARTCO 285753A is an aftermarket replacement direct drive motor coupler (also called a motor coupling or drive coupler) compatible with a wide range of Whirlpool-family top-load washers including Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The motor coupler connects the drive motor shaft to the transmission — transferring the motor's power to the transmission to drive the agitator and spin the drum during wash and spin cycles. It is a deliberate weak point in the drivetrain: if the washer is overloaded, the coupler breaks apart first, protecting the far more expensive motor and transmission from damage.
This is the updated 285753A design with metal sleeves for added strength — it replaces all previous coupler styles and versions including the original 285753, 280152, 285743, and 285140. This kit includes 2 plastic coupling halves and 1 rubber isolation dampener. Dimensions approximately 2" L x 1-1/4" W x 2" H. Fits direct-drive top-load washers only — not compatible with belt-drive machines. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO 285753A Washer Motor Coupler fixes top-load washers that fill and drain normally but will not agitate or spin. The motor coupler connects the motor to the transmission — when it breaks, the motor runs but neither the agitator nor the drum moves. Kit includes 2 plastic coupling halves and 1 rubber dampener. Updated design with metal sleeves. Replaces all previous coupler versions including 285753, 280152, 285743, 285140. Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, and more direct-drive top-load washers.
Common Problems This Part Fixes
Washer fills with water and drains but will not agitate or spin
Motor runs (you can hear it) but agitator and drum do not move
Washer spins slowly or incompletely — clothes still very wet after spin cycle
Loud humming or buzzing from the motor area without agitation or spin
Burning rubber or plastic smell during the wash or spin cycle
Washer shakes excessively — broken coupler causing uneven power transfer
Broken plastic or rubber pieces visible inside the bottom of the washer cabinet
Replaces Part Numbers
This motor coupler directly replaces the following OEM and cross-reference part numbers:
285753A, 1195967, 21003, 280152, 285140, 285743, 285753, 285753AVP, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 661560, 80008, 8559748, AWP39583, PD00002353, AH1485646, EAP1485646, EA1485646, TJ285753, ER285753, AP3963893, PS1485646.
The 285753A replaces all previous motor coupler styles and versions. If your parts diagram shows any of the older numbers above, the 285753A is the correct current replacement.
Compatibility
This motor coupler is compatible with select direct-drive top-load washers from the following brands:
Whirlpool top-load washers (direct drive — no belt)
Kenmore / Sears top-load washers — 70 series, 80 series, 90 series, and 110 series (Whirlpool-built)
KitchenAid top-load washers
Maytag top-load washers (direct drive models)
Amana top-load washers
Roper top-load washers
Admiral top-load washers
Estate top-load washers
Crosley top-load washers
Inglis top-load washers
Magic Chef top-load washers
Important: The 285753A is for direct-drive top-load washers only — machines where the motor connects directly to the transmission without a belt. It is not compatible with front-load washers or older belt-drive top-load washers. If you can see a drive belt inside your washer cabinet, this is not the correct part.
Key Features
Connects the drive motor shaft to the transmission — transfers motor power to drive the agitator and spin drum
Intentional sacrificial part — designed to break before the motor or transmission during overload, saving far more expensive components
Updated 285753A design with metal sleeves — stronger than original all-plastic versions; replaces all previous coupler styles
Kit includes 2 plastic coupling halves and 1 rubber isolation dampener — complete assembly
Dimensions: approximately 2" L x 1-1/4" W x 2" H
Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef direct-drive washers
Replaces all previous coupler versions including 285753, 280152, 285743, and 285140
Aftermarket replacement built to OEM-equivalent quality standards
Cost-effective DIY repair — typically under $15 and 30–45 minutes of work
Product Specifications
Part Number
285753A
Part Type
Washer Direct Drive Motor Coupler (Motor Coupling Kit)
Condition
Aftermarket Replacement
Application
Direct-Drive Top-Load Washers (no belt)
Dimensions
Approx. 2" L x 1-1/4" W x 2" H
Color
Black / Off-White
Material
Rubber / Plastic / Metal (metal sleeve inserts)
Kit Includes
2 plastic coupling halves, 1 rubber isolation dampener
Compatible Brands
Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, Magic Chef
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Remove the washer's cabinet by releasing the top panel clips and removing the front panel screws — the motor and transmission are at the bottom of the machine. The motor coupler is a three-piece assembly between the motor shaft and the transmission input shaft. Pull the motor forward to release it from the mounting clips. The broken coupler pieces will likely fall out at this point — inspect the motor shaft and transmission shaft for any remaining plastic debris and clear it. Press the new rubber dampener onto the motor shaft coupling half first, then onto the transmission shaft coupling half, and snap the motor back into the mounting clips. Verify both coupler halves are seated securely and the rubber dampener is centered between them. Reassemble the front panel and top panel. Restore power and run a short cycle to confirm the agitator and spin function normally. Work gloves recommended — sharp sheet metal edges inside the cabinet. Tools needed: Phillips screwdriver, 1/4" nut driver, flat-head screwdriver, work gloves.
Frequently Asked Questions
What does the motor coupler do?
The motor coupler is a three-piece assembly — two plastic coupling halves and a rubber dampener — that connects the drive motor shaft to the transmission input shaft in direct-drive washing machines. The motor spins the coupler, which transfers that rotation to the transmission, which in turn drives the agitator and drum. The rubber dampener absorbs shock and vibration between the rigid motor and transmission shafts during direction changes. The coupler is intentionally designed as the weakest link in the drivetrain — if the washer is overloaded or the transmission seizes, the coupler breaks first to protect the far more expensive motor and transmission from damage.
My washer fills and drains but won't agitate or spin — is the motor coupler the cause?
Yes — this is the classic symptom of a broken motor coupler. Because the pump is typically driven directly by the motor before the coupler connection, a broken coupler allows the motor to run and the pump to drain normally, but neither the agitator nor the spin drum receives any power. If you can hear the motor running but nothing moves, open the washer cabinet and inspect the coupler — you will likely find broken plastic pieces at the bottom of the cabinet near the motor and transmission.
Why does the motor coupler break?
The most common cause is overloading — packing too many heavy items into the washer creates enough mechanical resistance that the coupler snaps rather than allowing the motor to be damaged. Other causes include a worn or seized transmission, a worn motor, normal wear over many years of use, or a single sudden jam caused by a foreign object. If your coupler breaks a second time shortly after replacement, inspect the transmission for signs of wear or binding — a stiff or seized transmission will continue to break new couplers.
What is the difference between 285753 and 285753A?
The 285753A is the updated current version that superseded the original 285753. The A version incorporates metal sleeve inserts in the plastic coupling halves for improved strength and durability compared to the original all-plastic design. The 285753A replaces all previous versions — including 285753, 280152, 285743, and 285140 — and is the correct part to order regardless of which older number is listed in your washer's parts diagram.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from rubber, plastic, and metal to match the dimensions and performance of the original 285753A motor coupler.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DC97-20621C Washer Drain Pump Assembly
The XPARTCO DC97-20621C is an aftermarket replacement drain pump assembly compatible with a wide range of Samsung front-load washers in the specific series, as well as select Kenmore front-load washers built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, leave standing water in the tub, stop mid-cycle, display error codes 5C, SE, nd, 5E, or 4E, or make loud grinding or humming noises during the drain phase.
The DC97-20621C is the current production revision of this pump, which also covers the earlier DC97-20621A variants — all three are the same pump in successive production runs. It also replaces DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, and EAP12592830. Before ordering, always check the drain filter/coin trap at the bottom front of the washer — a clogged filter is a common cause of drain error codes that does not require pump replacement. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO DC97-20621C Washer Drain Pump Assembly fixes Samsung front-load washers displaying error codes 5C, SE, nd, 5E, or 4E, not draining, leaving standing water, or making loud grinding or humming noises during the drain cycle. Covers DC97-20621A and DC97-20621B variants. Compatible with select Samsung series and Kenmore (Samsung-built). Replaces DC97-20621A, DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, EAP12592830. Check drain filter before replacing pump.
Common Problems This Part Fixes
Washer not draining — standing water remaining in the tub after a cycle
Error codes 5C, SE, nd, 5E, or 4E displayed — drain fault detected
Washer stopping mid-cycle due to a drain fault
Loud humming during the drain phase — pump motor running but not pumping
Grinding or rattling noise during drain — damaged impeller or worn pump bearings
Water draining very slowly — worn pump below rated performance
Clothes excessively wet after a cycle — pump not fully removing water before spin
Water leaking from the pump area at the front bottom of the washer
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
DC97-20621C, DC97-17999N, DC97-20621A, 03DC31-00187A, AP7366238, ASM105564, PFIX17701443, PD00095227, PX3516-01, PS17701443, AP6807020, PS12592830.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select Samsung front-load washers and related Kenmore models:
Samsung series — WF50R8500AW, WF45T6200AW, WF53BB8900 and related models
Kenmore / Sears front-load washers (select Samsung-built models)
Important: Before replacing the pump, check and clean the drain filter/coin trap located behind the lower access panel at the front of the washer. A clogged filter causes the same error codes as a failed pump and is the most common fixable cause of Samsung front-load drain errors. Always verify your model number before ordering.
Key Features
Removes water from the tub during drain and spin cycles for proper washer operation
Resolves Samsung error codes 5C, SE, nd, 5E, and 4E caused by drain pump failure
DC97-20621C is the current production revision — covers DC97-20621A and DC97-20621B as well
Also replaces DC97-17999N, DC31-00187A, PX3516-01, AP6807020, 4959632, PS12592830, and EAP12592830
Compatible with select Samsung series and Kenmore Samsung-built front-load washers
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
Part Number
XPDC97-20621C
Also Covers
DC97-20621A (prior revisions)
Part Type
Front-Load Washer Drain Pump Assembly
Condition
Aftermarket Replacement
Application
Samsung Front-Load Washers
Error Codes Resolved
5C, SE, nd, 5E, 4E
Compatible Brands
Samsung, Kenmore (Samsung-built)
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Place towels on the floor in front of the washer — residual water will drain when the pump is disconnected. The drain pump is accessed through the lower front panel. Remove the lower kick panel screws to expose the drain filter and pump area. First, drain residual water by removing the drain filter cap (have a shallow pan ready — up to a quart of water may flow out). After draining, disconnect the pump wiring harness. Release the hose clamps and disconnect the drain hoses from the pump. Unscrew or unclip the pump mounting hardware and remove the old pump. Install the new DC97-20621C pump in the same position, reconnect drain hoses and secure clamps, reconnect the wiring harness, and reinstall the front panel. Restore power and water and run a drain/spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels.
Frequently Asked Questions
What is the difference between DC97-20621C and DC97-20621A?
These are successive production revisions of the same Samsung front-load washer drain pump assembly. DC97-20621A was the original version, DC97-20621B was an intermediate revision, and DC97-20621C is the current production part. All three are the same pump with minor manufacturing changes across production runs — they are fully interchangeable. If your washer's parts diagram or old pump label shows any of these numbers, this replacement covers all of them.
What error codes indicate a drain pump failure on Samsung front-load washers?
Error codes 5C, SE, nd, 5E, and 4E on Samsung front-load washers all indicate a drain fault — the washer was unable to drain within the expected time. Before replacing the pump, clean the drain filter/coin trap at the front lower access panel — lint, coins, and debris in the filter are among the most common causes of these error codes. If the filter is clean and the errors persist, the pump itself has failed and needs replacement.
Where is the drain filter on my Samsung front-load washer?
The drain filter (also called the coin trap) on Samsung front-load washers is located behind the lower front access panel, typically on the right side. Remove the lower kick panel by pressing the release tab or removing the screws. You will see a small cap or twist-out cover — that is the filter. Place a shallow pan under it and slowly unscrew the cap to allow water to drain out. Remove any debris from the filter, then replace the cap and reinstall the panel. Run a cycle to check if the error clears. If the filter was clogged, this may be all the repair needed.
My washer makes a loud noise during draining — is it the pump?
A loud humming or grinding during the drain cycle is a common sign of a failing pump. Humming without water movement means the motor is running but the impeller is not pumping — either jammed by debris or mechanically failed. Grinding suggests worn pump bearings or a damaged impeller. Check the drain filter first for foreign objects. If the filter is clear and the noise persists, the pump needs replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the specifications and performance of the original DC97-20621C drain pump assembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
AAN73209838 Genuine OEM LG Washer Drain Pump & Cabinet Base Assembly
The AAN73209838 is a genuine LG OEM combined drain pump and cabinet base assembly for LG washers. This assembly bundles the washer's drain pump — which pumps water out of the drum and through the drain hose at the end of each cycle — together with the cabinet base structure it's mounted to. Because these two components ship together as one assembly, replacing this part addresses both the drain pump function and the base structure it sits in at the same time.
Common causes of failure include a worn or jammed drain pump motor, or physical damage or corrosion to the cabinet base itself over years of use. A failing assembly typically shows up as the washer failing to drain, unusual noise during the drain phase, or water leaking from underneath the unit.
Quick Answer
The AAN73209838 Genuine OEM LG Washer Drain Pump & Cabinet Base Assembly fixes LG washers that won't drain, make unusual noise during the drain phase, or are leaking water from underneath the unit. Combined drain pump and cabinet base assembly. This is a larger, heavier assembly than a standalone drain pump — installation involves more disassembly than a simple pump swap.
Common Problems This Part Fixes
Washer not draining — standing water left in the tub after a cycle
Unusual noise during the drain phase of the cycle
Water leaking from underneath the washer
Cycle stalling or failing to advance past the drain step
Visible damage or corrosion to the cabinet base structure
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
AAN73209838, 4873470, 4985882, AHA75673401, AP6991753, AP6991765, EAP12580277, EAP16222263, FIX16222263, PS12580277, PS16222263, ALG51685, PD00091778
We were not able to confirm additional cross-reference or superseding part numbers for this specific part from reliable sources at the time this page was built, so none are listed here rather than guessed. If you have a cross-reference number for your appliance, contact our support team and we will verify compatibility before you order.
Compatibility
This drain pump and cabinet base assembly is compatible with select LG top-load washers, including model numbers such as WT7060CW, WT7100CW, WT7250CW, WT7300CV, T1780WFHT, and T1789EFH5T/T1789EFH5U/T1789EFHT/T1789EFHKD variants.
Note: This is a combined assembly, not a standalone drain pump — if your washer only needs the pump replaced and the cabinet base is intact, ask our support team whether a standalone pump option is available for your model before ordering this larger assembly. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Genuine LG OEM part — factory-specified pump and base assembly
Combined drain pump and cabinet base assembly in a single part
Resolves "won't drain," "noisy drain phase," and "leaking underneath the washer" symptoms
Direct drop-in replacement — matches the original mounting and hose connections
Compatible with a range of LG top-load washer models
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
AAN73209838
Part Type
Washer Drain Pump & Cabinet Base Assembly
Condition
Genuine OEM
Brand
LG
Application
Top-Load Washers
Function
Pumps water from the drum through the drain hose; provides the cabinet base structure
Repair Difficulty
Moderate to Hard — larger assembly than a standalone pump
Quantity
1 combined assembly
Compatible Brand
LG
Installation Notes
⚠️ Unplug Washer And Shut Off Water Supply Before Starting — Remove Standing Water First Disconnect power at the outlet or shut off the circuit breaker, and shut off the water supply before beginning. Wear work gloves. If there's standing water left in the tub from the original failure, remove as much as possible by hand with a cup or towel before starting the repair. Because this is a combined pump and cabinet base assembly rather than a standalone pump, access typically requires tipping the washer back or removing more of the cabinet than a simple pump swap — check your model's service diagram for the exact disassembly sequence, since it varies by model. Photograph the wiring and hose connections before disconnecting anything. Disconnect the electrical connector and the drain hose connections from the old assembly, remove the fasteners securing it to the washer frame, and carefully remove it, noting how the base supports the rest of the cabinet. Install the new AAN73209838 assembly in the same position, reconnect the drain hose connections securely, reconnect the electrical connector fully, and secure all mounting fasteners. Reassemble the cabinet in reverse order, restore the water supply and power, then run a cycle and check underneath for leaks while confirming the tub drains completely at the end. Tools needed: Phillips screwdriver, socket set, pliers, towels or a small cup for removing standing water, work gloves.
Frequently Asked Questions
Do I need this whole assembly, or is there a smaller drain pump option for my model?
Some LG washer models offer a standalone drain pump as a separate, smaller part, while others require this combined pump-and-base assembly because the two are integrated on that particular platform. Check with our support team using your model number to confirm whether a standalone pump is available for your washer before ordering this larger assembly, since it can save you time and cost if a smaller part fits your model.
Why is this repair more involved than a typical drain pump replacement?
Because this part includes the cabinet base structure along with the pump, accessing and replacing it typically involves more disassembly than swapping a standalone pump alone — you're not just disconnecting a pump, you're also working with part of the washer's supporting frame. Budget more time for this repair than you would for a simple pump-only replacement, and consider having a second person help support the cabinet during removal and installation.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original pump design, hose connections, and cabinet base mounting configuration of the assembly originally installed in your washer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
W10335056 Washer Genuine OEM Water Level Switch Pressure Switch
Replaces Part Numbers: W10335056, 1617123, 3366846, AH3408073, EA3408073, AP4566382, PS3408073, W10335056VP.
Description: This Pressure Switch is a Genuine OEM part for specific Whirlpool washing machine models. This part ensures your machine fills with the correct amount of water for the selected cycle, preventing overfilling or insufficient water levels that can lead to suboptimal washing results. A faulty Pressure Switch can result from several issues, including clogging with detergent residue or debris, wear and tear from regular use, or electrical malfunctions affecting its responsiveness.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
WH23X10026 Washer Genuine OEM Drain Pump
Description: The GE drain pump assembly is an OEM replacement part responsible for removing wastewater, including dirty water and detergent residue, from the washer's tub during the drain cycle. This pump assembly consists of a motor and an impeller, which removes dirty water through the drain hose and out of the appliance. This part ensures that the washing machine efficiently drains water, allowing for the completion of the laundry cycle.
Replaces Part Numbers: WH23X10028, WH23X10026, WH23X10037, AP4324598, AH1766031, EA1766031, PS1766031.
California Residents only
WARNING: California’s Proposition 65
DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly
The DC97-19289F is a Genuine OEM Samsung replacement washer drain pump assembly compatible with a wide range of Samsung top-load washers in the WA40, WA41, WA42, WA44, WA45, WA48, WA50, WA52, and WA54 series, as well as select Kenmore models built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will display error codes 5C, SE, nd, 5E, FO2, or E5, leave standing water in the tub, stop mid-cycle, or produce unusual noise during draining.
This complete drain pump assembly is rated 120V, 60Hz, 80W, 1.1A with a 30-minute on / 30-minute off duty cycle. It directly replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01. Note: the wire plug on the new pump may differ slightly from the original — if the connector does not match your washer's harness, transfer the wiring harness from the old pump to the new one. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly fixes Samsung top-load washers displaying error codes 5C, SE, nd, 5E, FO2, or E5, not draining, leaving standing water, or making loud noise during the drain cycle. 120V/60Hz/80W/1.1A, 30 min on/30 min off duty cycle. Compatible with Samsung WA40 through WA54 series and Kenmore (Samsung-built). Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, PX3516-01. Note: if wire plug differs, transfer harness from old pump.
Common Problems This Part Fixes
Error codes 5C, SE, nd, 5E, FO2, or E5 — washer cannot drain within the allotted time
Washer not draining — standing water remaining in the tub after a cycle
Washer stopping mid-cycle due to a drain fault
Loud humming, grinding, or rattling noise during the drain cycle
Water draining very slowly — worn pump motor below rated performance
Water leaking from the drain pump area at the bottom of the washer
Pump running continuously but water not being expelled from the tub
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
DC97-19289F, DC97-17349B, DC97-19289B,DC97-17366A, DC97-17366J, DC97-19289A,ASM772133, AP6806651, EAP12592631, PD00049911, PX3516-01, PS12592631.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select top-load washers from the following brands and series:
Samsung top-load washers — WA40 series (WA400PJHDWR and related models)
Samsung top-load washers — WA41 series (WA41A3000AW and related models)
Samsung top-load washers — WA42 series
Samsung top-load washers — WA44 series (WA44A3205AW and related models)
Samsung top-load washers — WA45 series (WA45H7000AW, WA45M7050AW, WA45N3050AW, WA45T3200AW and related models)
Samsung top-load washers — WA48 series (WA48H7400AW and related models)
Samsung top-load washers — WA50 series (WA50F9A7DSP, WA50M7450AW and related models)
Samsung top-load washers — WA52 series (WA52M7750AW, WA52M8650AW and related models)
Samsung top-load washers — WA54 series (WA54M8750AV and related models)
Samsung top-load washers — WA456DRHDSU series
Kenmore / Sears top-load washers (select Samsung-built models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
Removes water from the tub during the drain and spin cycles for proper washer operation
Resolves Samsung error codes 5C, SE, nd, 5E, FO2, and E5 caused by drain pump failure
Rated 120V, 60Hz, 80W, 1.1A — correct electrical specifications for compatible Samsung top-load models
30-minute on / 30-minute off duty cycle — matches the operational requirements of compatible models
Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01
Wire plug may differ from original — transfer harness from old pump if connector does not match
Compatible with Samsung WA40 through WA54 series and Kenmore Samsung-built top-load washers
Genuine OEM part manufactured by Samsung to factory specifications — guaranteed fit and performance
DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
Part Number
DC97-19289F
Also Replaces
DC97-19289A, DC97-19289B (prior versions)
Part Type
Washer Drain Pump Assembly
Condition
Genuine OEM
Application
Samsung Top-Load Washers
Voltage
120V AC
Frequency
60 Hz
Wattage
80W
Amperage
1.1A
Duty Cycle
30 minutes on / 30 minutes off
Error Codes Resolved
5C, SE, nd, 5E, FO2, E5
Connector Note
Wire plug may differ — transfer harness from old pump if needed
Compatible Brands
Samsung, Kenmore (Samsung-built)
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Tilt the washer back or lay it on its side to access the drain pump at the bottom of the machine. Place towels and a shallow pan to catch residual water when the pump is disconnected. Note the wiring connector orientation before disconnecting — take a photo if needed. If the new pump's connector does not match the washer's harness, carefully transfer the wiring harness from the old pump to the new pump. Disconnect the drain hoses from the pump using pliers to loosen the clamps. Unscrew the pump mounting screws and remove the old pump. Install the new DC97-19289F pump in the same position, reconnect drain hoses and secure with clamps, and reconnect the wiring harness. Restore water supply and power, then run a drain cycle to verify proper drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels.
Frequently Asked Questions
What error codes indicate a drain pump failure on Samsung washers?
Error codes 5C, SE, nd, 5E, FO2, and E5 on Samsung top-load washers all indicate a drain fault — the washer was unable to drain within the expected time. These codes can also be caused by a clogged drain filter, blocked hose, or kinked drain line, so check those first. If the filter and hose are clear and the error persists after clearing them, the drain pump is the most likely cause.
What is the difference between DC97-19289F, DC97-19289A, and DC97-19289B?
These are successive revisions of the same Samsung drain pump assembly. DC97-19289A was the original version, DC97-19289B was an update, and DC97-19289F is the current version. Samsung issues revised part numbers when minor production changes are made — all three perform the same function and the DC97-19289F is the correct current replacement for any of the earlier versions. The DC97-17349B, DC97-17366A, and DC97-17366J are additional older cross-references for this pump used on earlier Samsung top-load models.
Why might the wire plug on the new pump differ from the original?
Samsung revised the wiring connector on this drain pump across different production runs. If the DC97-19289F pump you receive has a different connector than your washer's harness, do not force the connection. Instead, carefully remove the wiring harness from the old pump and transfer it to the new pump — both versions use the same internal terminals and the harness swap is straightforward. This is a known and documented step for this part and does not affect performance or safety.
Should I check the drain filter before replacing the pump?
Yes — always check and clean the drain filter and inspect the drain hose for kinks or blockages before replacing the pump. A clogged filter or blocked hose can cause the same error codes as a failed pump and clearing the blockage may resolve the problem without needing a new part. On Samsung top-load washers the drain filter is typically located at the bottom front of the machine. If the filter and hose are clear and the error persists, the pump needs replacement.
Is this an OEM or aftermarket part?
This is a Genuine OEM part manufactured by Samsung to factory specifications. It is the exact same drain pump assembly installed in compatible Samsung and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
