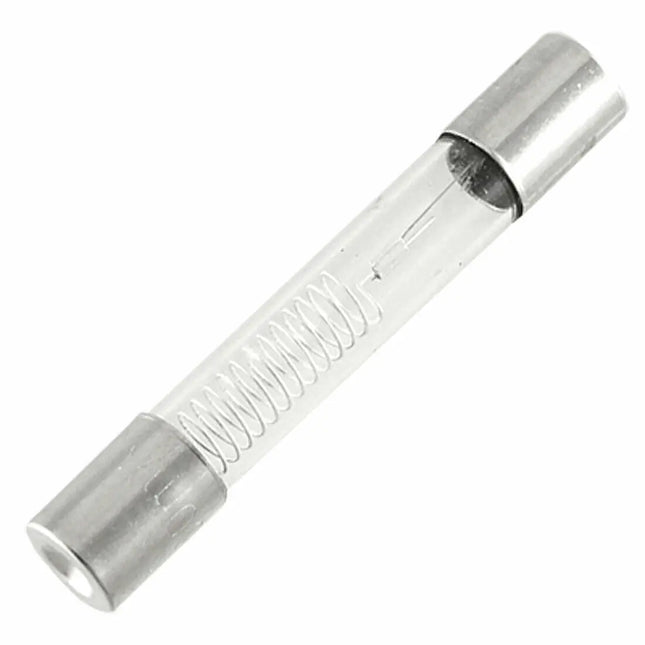

XPFH065A Microwave 5kV 0.65A High Voltage Fuse - Compatible with LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch and many other Microwaves
Product Description
Protect your microwave with the replacement XPFH065A Microwave 5kV 0.65A High Voltage Fuse. This replacement fuse safeguards the electrical system in LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, and many other microwaves by breaking the circuit during power surges or faults (0.65A, 5.0kV). Featuring a fast-blow glass fuse (6x40mm), it resolves issues like no power, blown fuses, or intermittent failures.
Note: Includes one fuse. Disconnect power before installation. Handle glass fuse carefully. Excess cable may need to be tied back.
Replaces part numbers: XPFH065A, XPFH-065-5KV, XPFH065A, XPFH-065-5KV, F650mA L5KV, EAF36358301, AP5249671, AH3620511, EA3620511, PS3620511.
Compatibility:
Compatible with models including but not limited to:
LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz: Select models requiring 0.65A, 5.0kV fuse
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwaves.
🔥 Specifications: replacement high voltage fuse with holder, 0.65A, 5.0kV, fast-blow, glass fuse.
💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 15–25 minutes.
🛡️ Reliable Fixes: Addresses microwave not powering on, blown fuses, or intermittent power issues.
Product Specification
Part Number: XPFH065A
Fuse Type: Fast-blow, high voltage
Current Rating: 0.65A (650mA)
Voltage Rating: 5.0kV (5000V)
Fuse Material: Glass tube
Fuse Dimensions: 6mm diameter x 40mm length (1/4" x 1-5/8")
Compliance: UL-listed components, Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the microwave from the power source before installation.
Shop for high-quality replacement appliance parts with a 30-day return policy. Get your microwave running today!
Add to cart now for a budget-friendly fix!
XPARTCO DE63-00666A Microwave Grease Filter
The XPARTCO DE63-00666A is an aftermarket replacement aluminum mesh grease filter for Samsung, GE, and Kenmore over-the-range microwaves. This 12-layer aluminum mesh filter sits in the vent opening on the bottom of the microwave and captures airborne grease from cooking below before it can be pulled into the microwave's internal fan, motor, and electronics. Over time the mesh becomes saturated with grease and cooking residue, which restricts airflow, reduces the range hood function's effectiveness, and — if left unreplaced — creates a fire hazard from trapped, hardened grease.
This is a direct-fit aftermarket replacement built to the same dimensions and 12-layer mesh construction as the original filter. Regular replacement (most manufacturers recommend every 1–2 years depending on cooking frequency) keeps ventilation performance up and reduces fire risk.
Quick Answer
The XPARTCO DE63-00666A Microwave Grease Filter fixes reduced range-hood suction, lingering cooking odors/smoke, or a visibly grease-clogged filter on Samsung, GE, and Kenmore over-the-range microwaves. 12-layer aluminum mesh, approx. 6-3/4" x 6-3/8". Classic symptom: weaker venting over the stovetop, or a filter that looks dark, gummy, or saturated with grease.
Common Problems This Part Fixes
Weak or reduced range-hood ventilation over the stovetop
Lingering smoke, steam, or cooking odors that don't clear
Visibly clogged, discolored, or grease-saturated filter mesh
Increased fire risk from accumulated grease buildup
Microwave fan sounds like it's working harder than normal
Grease dripping or residue visible around the vent opening
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This grease filter directly replaces the following part numbers:
DE63-00666A, AP5306190, ASM36232, EAP4228252, PD00031284, PS4228252, WB02X11534, 2309683, AP5331907, 2218485, AGE21451, AH3506741, EA3506741, PD00035255, PS3506741
AP5306190 was the earlier part number for this filter, later superseded by DE63-00666A under Samsung's current numbering. WB02X11534 is the equivalent GE-branded part number for the same physical filter design.
Note: DE63-00367G is a separate charcoal/carbon odor filter often sold alongside this aluminum grease filter for ductless (recirculating) installations. It is a different part and is not interchangeable with this grease filter — do not confuse the two when ordering.
Compatibility
This grease filter is compatible with the following Samsung and Kenmore over-the-range microwave models:
Samsung: CVM517P2M1S1, CVM521P2M1S1, DVM7195BL2TS, JNM7196DK4BB/WW, JVM-1950BTC01/STC01/WTC01, JVM7195DK4BB/WW, MC17J8000CG/CS, MC17J8100CS, MC17T8000CG/CS, ME16A4021AB/AS/AW, ME16H702SEB/SES
Kenmore: 40185052010, 40185052210, 40185052310, 40185053010, 40185053210, 40185053310, 40185059010, 40185059210
Note: Via the equivalent WB02X11534 part number, this same filter design is also used on select GE over-the-range microwaves. We were not able to confirm a specific GE model list at this time — if your microwave is GE-branded, compare your existing filter's dimensions (approximately 6-3/4" x 6-3/8") against this listing, or contact our support team with your model number to verify before ordering.
Key Features
Direct-fit aftermarket replacement grease filter for Samsung, GE, and Kenmore over-the-range microwaves
12-layer aluminum mesh construction traps airborne grease before it reaches internal components
Helps maintain proper range-hood ventilation performance
Reduces fire risk from accumulated grease buildup
No tools required — simple slide-in/slide-out installation
Aftermarket replacement built to OEM-equivalent dimensions and mesh layer count
Product Specifications
Part Number
XPDE63-00666A
OEM Part Number
DE63-00666A
Part Type
Microwave Aluminum Mesh Grease Filter
Condition
Aftermarket Replacement
Filter Construction
12-Layer Aluminum Mesh
Dimensions
Approx. 6-3/4" W x 6-3/8" H x 1/4" Thick
Application
Samsung, GE & Kenmore Over-the-Range Microwaves
Recommended Replacement Interval
Every 1–2 Years (Cooking-Frequency Dependent)
Installation Notes
ℹ️ No Tools Required Unplug the microwave or switch off its circuit breaker before beginning, as a safety precaution. Locate the grease filter along the bottom vent opening of the microwave — it typically has a small tab or handle and slides straight out once released from its retaining clips. Remove the old filter and note its orientation. Slide the new filter into the same position and orientation, pressing gently until it clicks or seats into the retaining clips. No screwdriver or other tools are needed. For best results, clean or replace this filter regularly, especially if you cook frequently or fry foods often, since grease buildup accelerates with heavier cooking use.
Frequently Asked Questions
How do I know if my grease filter needs replacing?
Look for a mesh filter that appears dark, gummy, or heavily coated with grease residue, or notice reduced ventilation performance and lingering cooking smoke or odors. Most manufacturers recommend replacing this filter every 1–2 years depending on how often you cook.
Can I wash and reuse the grease filter instead of replacing it?
Some aluminum mesh grease filters can be hand-washed with degreasing dish soap, but heavily saturated or discolored filters lose effectiveness over time even after washing. If yours is old, warped, or has visible buildup that won't clean out, replacement is the more reliable fix.
Is this the same as the charcoal/odor filter?
No. This is the aluminum mesh grease filter, which traps grease particles. The charcoal/carbon filter (DE63-00367G) is a separate component used for odor control in ductless recirculating installations. They are not interchangeable — check which one your microwave uses before ordering.
Will this fit my GE microwave?
This filter design is also sold under the GE part number WB02X11534 for the same physical filter. We don't have a confirmed GE model list, so compare your existing filter's dimensions against this listing or contact our support team with your model number to verify before ordering.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DE60-20066A Microwave Mounting Flat Bolt
The XPARTCO DE60-20066A is an aftermarket replacement mounting flat bolt for over-the-range microwaves, including Samsung and Maytag microwave and hood combinations. The flat bolt is the long mounting bolt that holds the microwave in place. If the original is stripped, damaged, or missing, the microwave may no longer stay securely mounted.
This bolt also replaces the GE WB01X10180 flat cab mounting bolt. Because it holds a heavy appliance in place, match it to the bolt you are replacing and make sure the microwave is properly supported while you work.
Quick Answer
The XPARTCO DE60-20066A Mounting Flat Bolt replaces a stripped, damaged, or missing mounting bolt on an over-the-range microwave. Replaces Samsung DE60-20066A and GE WB01X10180. Classic symptom: the microwave is loose on its mounting bracket, or one of the mounting bolts is stripped or missing.
Common Problems This Part Fixes
Stripped mounting bolt
Missing mounting bolt after the microwave was removed or moved
Microwave loose or not held securely against its mounting bracket
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This mounting flat bolt directly replaces the following part numbers:
DE60-20066A, ASM36399, AP4219712, OEM12659145, EAP4226718, PD00024313, PS4226718, WB01X10180, WB1X10180, AP3205964, AGE20652, AH651196, EA651196, OEM9617901, 942461, PD00035893, PS651196
DE60-20066A is the Samsung number and WB01X10180 is the GE number. Confirm against your microwave's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This bolt is listed for Samsung and Maytag over-the-range microwaves under DE60-20066A, and for GE, Hotpoint, and Kenmore microwaves under WB01X10180, including these examples:
Samsung ME18H704SFS/AA-00, ME17R7021ES/AA-00, SMH1816S/XAA-00, SMH9151ST/XAA-00
Maytag MMV1153BAS, MMV5165BAS, UMV1152CAS
GE CVM2072SM1SS, DVM1850DM2WW, DVM1850DM4BB
Kenmore 36362702200, 36362709200
Note: The models above are a small sample of longer lists, not full lists. Compare your old bolt's length and head style to this bolt, and contact our support team with your model number to verify fit before ordering.
Key Features
Aftermarket replacement mounting flat bolt for over-the-range microwaves
Replaces Samsung DE60-20066A and GE WB01X10180
Approximately 4 inches long
Restores a secure mount when the original bolt is stripped or missing
Product Specifications
Part Number
XPDE60-20066A
OEM Part Number
DE60-20066A, WB01X10180
Part Type
Microwave Mounting Flat Bolt
Condition
Aftermarket Replacement
Length
Approx. 4 Inches
Application
Over-the-Range Microwaves (Samsung, Maytag, GE, Hotpoint, Kenmore)
Installation Notes
⚠️ Unplug Power And Support The Microwave Unplug the microwave before beginning, and wear work gloves. An over-the-range microwave is heavy, so have a helper support it, or support it from below, while you remove or loosen any fasteners. Follow your model's installation guide. In general, you remove the screws covering the mounting bolts, loosen the mounting bracket screws, replace the old bolt with the new one, then reattach the bracket and cover screws. Return the microwave to position, make sure it is firmly seated and secure, and reconnect power.
Frequently Asked Questions
My microwave is loose on its mount. Is this the part I need?
If a mounting bolt is stripped, damaged, or missing, replacing it is the usual fix. Check the bracket and the other fasteners too, and do not rely on a microwave that is not securely mounted.
Is DE60-20066A the same as WB01X10180?
DE60-20066A is the Samsung number and WB01X10180 is the GE number. This bolt is listed as a replacement for both. Compare it to your old bolt, or contact our support team with your model number, before ordering.
How many bolts come in this order?
Retailers list the equivalent GE bolt as sold individually, but do not state a pack count for every listing. Contact our support team if you need to confirm the quantity.
Will this fit my microwave?
It is listed for many over-the-range microwaves, but the model lists above are only samples. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 5304512529 Microwave Door Switch – Compatible with Frigidaire, Electrolux, and Kenmore Microwaves
Product Description
Ensure safe and reliable operation with the XPARTCO 5304512529 Microwave Door Switch. This high-quality aftermarket replacement detects when the microwave door is closed, allowing the appliance to run safely. A faulty switch can cause the microwave not to start, stop mid-cycle, or operate with the door open — a serious safety concern. Replacing it with this durable XPARTCO switch restores proper interlock function and dependable performance.
Replaces Part Numbers
5304512529, 4584691, PD00051808, EAP12365114, AP6278576, PS12365114.
Compatibility
This replacement door switch fits select Frigidaire, Electrolux, and Kenmore microwave models.
Example compatible models include (but are not limited to): Frigidaire FFMV1645TS, Electrolux E30MO75HPS, and Kenmore 790.80353310.
Always verify your microwave’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Designed to meet OEM safety and performance standards
⚡ Restores Safe Operation – Ensures microwave only operates when the door is securely closed
💰 Budget-Friendly Fix – High-quality alternative to expensive OEM replacements
🛠️ Quick Installation – Direct-fit replacement; installs easily with basic tools
🛡️ Fixes Common Issues – Solves no-start, mid-cycle shutdowns, or unsafe door operation
📐 Product Specification
Part Number: 5304512529
Component Type: Microwave Door Interlock Switch
Material: Heat-resistant plastic housing with copper terminals
Mounting: Snap-in bracket installation
Operating Conditions: Designed for high-voltage microwave circuits
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, flathead screwdriver
⚠️ Safety First: Always unplug the microwave before servicing. Microwave capacitors can retain dangerous voltage even when unplugged — use extreme caution or contact a qualified technician.
Steps:
Disconnect power and remove the microwave cover.
Locate the door latch assembly containing the switches.
Disconnect wiring connectors and remove the old switch.
Install the new XPARTCO 5304512529 door switch into the same slot.
Reconnect wiring, reassemble the cover, and test door operation.
⏱️ Time Required: 15–20 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Protect your microwave’s performance and safety — Add to Cart Now for a reliable, budget-friendly replacement!
DE47-20059B Microwave Genuine Thermostat
Fits specific Samsung microwave models.
Replaces Part Numbers: DE47-20059B, 2079767, DE47-20059A, OEM18320450, AP4580112, PS4226453.Description: This Microwave Thermostat is an essential component for maintaining the optimal performance of your Samsung microwave. This genuine OEM part ensures precise temperature control, helping your appliance operate safely and efficiently. Designed specifically for Samsung microwave models, the thermostat guarantees a perfect fit and seamless integration with your existing system. By replacing a faulty or damaged thermostat with this high-quality part, you can restore your microwave's functionality and extend its lifespan. The Microwave Thermostat is built to withstand the demands of everyday use, providing reliable performance and consistent heating results. Easy to install, this thermostat allows you to perform repairs yourself, saving you time and the cost of professional service. Enhance your microwave reliability and enjoy peace of mind knowing you are using a genuine OEM part that delivers both quality and durability.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
XP20AGC Microwave Line Fuse
20A, Glass Fuse
6X32MM
Replaces Part Numbers: 5304509451, 5304464087, 5304488359, 4583647, AP6230606, PS12071294, WB27X11138, 1810711, 261201200040, AH3486694, EA3486694, AP4980426, PS3486694.
Description: This Fuse is a replacement part for select microwave models. It's a critical safety component designed to protect the microwave from electrical overload by breaking the circuit if the current is too high. This fuse is specifically tailored to fit and function properly with Frigidaire microwave models, ensuring safety and reliability.
5 Pack - XPFH065A Microwave 5kV 0.65A High Voltage Fuse - Compatible with LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch and many other Microwaves
Product Description
Protect your microwave with the replacement XPFH065A Microwave 5kV 0.65A High Voltage Fuse. This replacement fuse safeguards the electrical system in LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, and many other microwaves by breaking the circuit during power surges or faults (0.65A, 5.0kV). Featuring a fast-blow glass fuse (6x40mm), it resolves issues like no power, blown fuses, or intermittent failures.
Note: Includes one fuse. Disconnect power before installation. Handle glass fuse carefully. Excess cable may need to be tied back.
Replaces part numbers: XPFH065A, XPFH065A, XPFH-065-5KV, F650mA L5KV, EAF36358301, AP5249671, AH3620511, EA3620511, PS3620511.
Compatibility:
Compatible with models including but not limited to:
LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz: Select models requiring 0.65A, 5.0kV fuse
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwaves.
🔥 Specifications: replacement high voltage fuse with holder, 0.65A, 5.0kV, fast-blow, glass fuse.
💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 15–25 minutes.
🛡️ Reliable Fixes: Addresses microwave not powering on, blown fuses, or intermittent power issues.
Product Specification
Part Number: XPFH065A
Fuse Type: Fast-blow, high voltage
Current Rating: 0.65A (650mA)
Voltage Rating: 5.0kV (5000V)
Fuse Material: Glass tube
Fuse Dimensions: 6mm diameter x 40mm length (1/4" x 1-5/8")
Compliance: UL-listed components, Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the microwave from the power source before installation.
Shop for high-quality replacement appliance parts with a 30-day return policy. Get your microwave running today!
Add to cart now for a budget-friendly fix!
XPARTCO WB02X35488 (2 Pack) Microwave Halogen Light Bulb
Product Overview
The XPARTCO WB02X35488 Microwave Halogen Light Bulb provides bright interior illumination for your microwave, allowing you to clearly monitor cooking progress. Brighten your microwave with the replacement WB02X35488 Microwave Halogen Light Bulb. This high-quality Light bulb, designed for GE, Hotpoint, and Kenmore/Sears microwaves, provides clear illumination for the interior or surface below, ensuring easy monitoring of your cooking. Featuring a G8 bi-pin base (120V, 50W, 3000K warm white), this durable halogen bulb offers reliable performance and easy installation.
Quick Answer
If your microwave light is dim, flickering, or not working, the WB02X35488 halogen bulb may be burned out. Replacing it restores clear visibility while cooking.
Replaces Part Numbers
Replaces OEM part number: WB02X35488, WB08X10057, WB08X10051, WB25X25393, WB36X10292, AGE368071, PD00070655, EAP6989401, AP6989401, PS16216934.
Compatibility
This microwave halogen light bulb is compatible with select GE, Hotpoint, and other GE-manufactured microwaves.
GE: CSA1201RSS01, CSA1201RSS02, CSA1201RSS03, CVM1790SS1SS, CVM1790SS2SS, JVM1790BK01, JVM1790CK01, JVM1790SK01, JVM1790WK01, JNM3163RJ1SS, JNM3163RJ2SS, JNM3163RJ3SS
Hotpoint: Select models requiring WB08X10057 or compatible halogen bulbs
Kenmore/Sears: Select models requiring WB08X10057 or compatible halogen bulbs
Always verify your appliance model number before ordering.
Common Problems This Part Fixes
Microwave interior light not working
Dim or flickering light
Reduced visibility while cooking
Key Features
Bright halogen illumination
Restores clear interior visibility
High-quality aftermarket replacement
Easy bulb replacement design
Product Specifications
Part Number: WB02X35488
Part Type: Microwave Halogen Light Bulb, 120V, 50W, G8 bi-pin base, 1.69" x 0.5", 3000K warm white, 2400 lumens, dimmable, 2000-hour average life, copper contacts.
Brand: XPARTCO
Condition: New
OEM / Aftermarket: Aftermarket
Application: Microwave Interior Lighting
Troubleshooting Guide
No interior light → Burned out bulb
Flickering light → Failing bulb
Dim light → Aging or damaged bulb
When Should You Replace This Bulb?
Replace this bulb if your microwave interior light is not functioning properly or has become dim or inconsistent.
Installation Notes
⚠️ Disconnect power before installation. Allow the bulb to cool before handling and replace carefully according to your microwave model.
Related Parts
Microwave Door Switch
Control Panel
Turntable Motor
Frequently Asked Questions
Will this bulb fit my microwave?This bulb fits many GE and compatible models. Always verify your model number.
Is this a halogen bulb?Yes, this is a halogen light bulb designed for microwave use.
What are signs of a bad bulb?No light, dim light, or flickering indicates replacement is needed.
Is installation difficult?Most bulbs are easy to replace, but always follow your appliance manual.
Shop With Confidence
Parts-O-Matic is a U.S.-based appliance parts retailer specializing in OEM and high-quality replacement parts. We offer fast shipping, reliable products, and expert support.
Fast Shipping Quality Tested Parts Compatibility Support
XPHVP-16 Microwave Convection Oven High Voltage Diode – Replaces TurboChef 100481 – Compatible with Commercial & Residential Microwave Models
Product Description
Restore proper heating performance in your commercial or residential microwave with the XPHVP-16 Microwave Convection Oven High Voltage Diode. This high-quality aftermarket diode replaces TurboChef 100481 and is engineered to handle the elevated heat and voltage levels found in high-speed ovens and convection microwave systems. A failing HV diode can cause the microwave to run without heating, blow fuses, or produce loud humming sounds. Installing this XPHVP-16 diode restores safe high-voltage operation and consistent heating.
Replaces Part Numbers
XPHVP-16, TurboChef 100481, HV07-16, HVP-16, TBC100481, CKTE100481 equivalent high-voltage microwave diodes.
Compatibility
This aftermarket high-voltage diode replaces TurboChef 100481 and fits many commercial and household microwave or convection microwave ovens, including:
Fits specific TurboChef models including Bullet, ECO ST, Encore, Encore 2, G5, I3, NGC, NGC2, NGO, Sota/I1, TORNADO 2, i5.
Typical compatible equipment includes:TurboChef High-Speed Ovens, and other convection microwave systems requiring a 12–16kV diode.
Always verify electrical specifications before ordering.Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Designed to replace TurboChef 100481 and match OEM electrical performance
🔥 High-Heat & High-Voltage Rated – Built for demanding commercial microwave environments
💰 Cost-Effective Commercial Repair – A reliable alternative to costly OEM replacement parts
🛡️ Solves Common Issues – Fixes no-heat conditions, humming, blown fuses, and weak heating output
📐 Product Specification
Part Number: XPHVP-16
Replaces: TurboChef 100481
Component Type: High Voltage Rectifier Diode
Voltage Rating: 12–16 kV peak
Current Rating: Max. Forward Current 750MA
Polarity: Standard microwave HV polarity (stripe = cathode)
Material: Heat-resistant high-voltage diode with insulated leads
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Screwdriver, insulated gloves, needle-nose pliers
⚠️ Safety First: Microwave and commercial oven repairs involve dangerously high voltage even when unplugged. Only qualified technicians should replace HV components.
Steps (for trained professionals):
Disconnect power and properly discharge the HV capacitor.
Remove the microwave or oven’s service cover.
Locate the HV diode near the capacitor and transformer.
Remove the old diode and install the new XPHVP-16, ensuring correct polarity.
Reassemble unit and test heating performance.
⏱️ Time Required: 20–30 minutes (professional repair recommended)
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance & Commercial Equipment Parts Supplier
🔄 30-Day Return Policy
Restore powerful, consistent heating — Add to Cart Now for a reliable and cost-effective replacement!
