XPARTCO 00631633 Range Surface Burner Igniter Electrode The XPARTCO 00631633 is an aftermarket replacement gas range surface burner igniter electrode (also called a spark electrode) compatible with select Bosch, Thermador, and Gaggenau gas ranges and cooktops in the HDI, HGI, NGM, NGMP, HDIP, and HGIP series. The surface burner igniter electrode is the ceramic-tipped spark generator located at each gas burner position on the cooktop. When the burner is turned on, the ignition system sends a high-voltage pulse to the electrode, which generates a spark across the ceramic tip to ignite the gas flowing from the burner. When the electrode cracks, chips, or becomes contaminated with grease or food residue, the burner may fail to light, click continuously without igniting, or spark intermittently. This replacement electrode is constructed from high-quality ceramic and metal — the ceramic insulator body withstands the thermal cycling of repeated ignition, while the metal spark tip maintains reliable spark gap geometry over time. Sold individually — one electrode per order. It directly replaces AP5950372, 4162041, and PS10057850. Because a gas range typically has four or more burners with individual electrodes, compare your existing electrode's dimensions and mounting configuration before ordering to ensure a correct fit. Installs in minutes — no tools required in most cases. Quick Answer The XPARTCO 00631633 Range Surface Burner Igniter Electrode fixes Bosch, Thermador, and Gaggenau gas ranges where a surface burner won't light, clicks repeatedly without igniting, or sparks intermittently. Ceramic and metal construction. Sold individually — one electrode per order. Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, HGIP series. Replaces AP5950372, 4162041, PS10057850. Compare dimensions to your original before ordering — each burner position uses the same electrode style on compatible models. Common Problems This Part Fixes Gas burner will not light when the knob is turned Burner clicks repeatedly without igniting the gas Burner sparks intermittently — fires once or twice but does not sustain ignition Igniter clicks continuously even when the burner knob is in the off position One burner not lighting while other burners on the same range work normally Electrode tip visibly cracked, chipped, or heavily contaminated with baked-on grease Weak or inconsistent spark — arc not reaching the burner port reliably Replaces Part Numbers This igniter electrode directly replaces the following OEM and cross-reference part numbers: 00631633, 631633, ABS11789, AP5950372, EAP10057850, PD00044775, PS10057850 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This igniter electrode is compatible with select gas ranges and cooktops from the following brands and series: Bosch gas ranges — HDI8054U, HDI8056U, HGI8046UC, HGI8054UC, HGI8056UC series Bosch gas ranges — HDIP054U, HDIP056U, HGIP054UC, HGIP056UC series Bosch gas cooktops — NGM5055UC, NGM5455UC, NGM5655UC, NGM8055UC, NGM8065UC, NGM8655UC, NGM8665UC, NGMP055UC, NGMP655UC series Thermador gas ranges and cooktops (select models using the same electrode style) Gaggenau gas ranges and cooktops (select models using the same electrode style) Note: Before ordering, compare your existing igniter electrode's physical dimensions and mounting configuration to confirm this electrode is the correct fit for your burner position. Always verify your exact model number. If you are unsure, contact our support team with your model number for confirmation. Key Features Ceramic and metal spark electrode — generates the high-voltage spark that ignites the gas burner when the knob is turned High-quality ceramic insulator body — withstands repeated thermal cycling without cracking under normal use Durable metal spark tip — maintains reliable spark gap geometry for consistent ignition Replaces AP5950372, 4162041, and PS10057850 Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, and HGIP series gas ranges and cooktops Also compatible with select Thermador and Gaggenau gas ranges and cooktops Sold individually — one electrode per order; order as many as needed for your burner positions Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in minutes, no special tools required in most cases Product Specifications Part Number 00631633 Also Known As 631633 Part Type Gas Range Surface Burner Igniter Electrode (Spark Electrode) Condition Aftermarket Replacement Application Gas Ranges and Cooktops Material Ceramic / Metal Color White Sold As Single electrode — order quantity as needed Compatible Brands Bosch, Thermador, Gaggenau Installation Notes ⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Always turn off the gas supply at the shutoff valve and unplug the range from the electrical outlet before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician. ⚠️ Unplug Range and Turn Off Gas Before Starting With the range unplugged and gas supply off, remove the cooktop grates and burner caps to access the burner heads. The igniter electrode is the small ceramic component positioned beside each burner head, held in place by a mounting bracket and screw or a snap-in clip depending on the model. Disconnect the single wire connector from the old electrode. Remove the mounting screw and lift the old electrode out. Install the new 00631633 electrode in the same position, secure the mounting screw, and reconnect the wire connector. Replace the burner caps and grates. Restore power and gas supply, then test each burner for reliable ignition. If the burner still does not light after replacing the electrode, inspect the igniter wire and the electronic ignition module. Tools needed: Phillips or Torx screwdriver (for mounting bracket on some models); no tools needed on models with snap-in electrodes. Frequently Asked Questions What does the surface burner igniter electrode do? The igniter electrode is the component that creates the spark to light each gas burner. When you turn a burner knob past the "lite" position, the range's electronic ignition module sends a series of high-voltage pulses through the igniter wiring to the electrode at that burner. The electrode generates a visible spark across its ceramic tip to the grounded burner cap or burner head, and that spark ignites the gas flowing from the burner ports. Each burner position has its own dedicated electrode — failure of one electrode affects only that burner, while other burners on the same range continue to work normally. My burner clicks constantly even when turned off — is it the electrode? Constant clicking when a burner is in the off position is almost always caused by moisture or food residue in the igniter system rather than a failed electrode. When liquid boilover or steam gets into the burner cap area or electrode housing, it can cause the ignition module to fire continuously. Remove the burner cap and grate from the affected burner and allow everything to dry thoroughly — an hour in a warm oven (electric only, turned off) can help. Wipe the electrode tip clean with a dry cloth. If clicking persists after the components are completely dry and clean, the electrode or the ignition module may have been damaged by the moisture and needs replacement. How many electrodes do I need for my Bosch range? Most Bosch gas ranges have four surface burners, each with its own dedicated igniter electrode — so a full cooktop replacement typically requires four electrodes. This listing is for one electrode. If only one burner is not lighting, you likely only need one replacement. If multiple burners are failing, order one electrode for each affected burner. Because the electrodes on compatible Bosch models use the same part number across all burner positions, one order of multiple quantities covers all positions. Can I clean the electrode instead of replacing it? Yes — a contaminated or greasy electrode can often be cleaned successfully rather than replaced. Remove the electrode from the burner area and gently clean the ceramic tip and metal contact with a dry cloth or a soft toothbrush. Do not use water or liquid cleaners directly on the electrode — moisture in the ceramic can cause persistent clicking. If the ceramic body is cracked or the metal tip is corroded or missing, replacement is required. If the ceramic is intact and clean but the spark is still weak or absent, the electrode's spark gap geometry may have changed from thermal expansion and a replacement is the better fix. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Bosch OEM part, but is manufactured from high-quality ceramic and metal to match the dimensions and spark performance of the original 00631633 igniter electrode. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

RI1V120 Cooktop Re-ignition Spark Module  Re-ignition Module 1 Points Reignition Module 120 Volt Replaces Part Numbers: Whirlpool / KitchenAid W11319687, W11121317, AP6872103, PS12711722.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO 5304509706 Gas Oven Igniter Product Overview The XPARTCO 5304509706 Gas Oven Igniter is designed to ignite the gas burner and ensure consistent oven heating performance. This Oven Igniter is a replacement part for select Frigidaire, Kenmore, GE gas oven models, designed to ignite the gas in the oven burner to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating. Quick Answer If your gas oven is not heating, takes too long to preheat, or the burner does not ignite, the 5304509706 igniter may be weak or faulty. Replacing this igniter restores proper ignition and consistent oven performance. Replaces Part Numbers Replaces OEM part number: 5304509706, 316489402, 316489408, 316119301, 4545981, 012505482182, EAP12071409, AFR18015, PD00035904, AP6230715, PS12071409, WB2X10016, WB02X10016, 1704, EAP241804, AGE826644, PD00042950, AH241804, EA241804, AP2009619, PS241804. Compatibility This gas oven igniter is compatible with select Frigidaire, Electrolux, Kenmore, and other compatible gas ranges and ovens. Frigidaire Gas Ranges Electrolux Ovens GE Gas Ranges Kenmore Gas Ovens Always verify your appliance model number before ordering. Common Problems This Part Fixes Oven not heating Slow or delayed ignition Burner not lighting Gas smell due to ignition failure Key Features Designed for gas oven ignition Provides fast and reliable burner ignition High-quality aftermarket replacement Durable construction for long-lasting performance Product Specifications Part Number: XP5304509706 Part Type: Gas Oven Igniter Brand: XPARTCO Condition: New OEM / Aftermarket: Aftermarket Application: Gas Ovens & Ranges Troubleshooting Guide Oven not igniting → Faulty igniter Long preheat time → Weak igniter No flame despite gas flow → Igniter failure When Should You Replace This Igniter? Replace this igniter if your oven fails to heat, takes too long to preheat, or does not ignite the gas burner properly. Installation Notes ⚠️ Disconnect power and shut off gas before installation. Remove mounting screws, disconnect wiring, and install the new igniter carefully. Avoid touching the igniter surface with bare hands. Related Parts Gas Oven Safety Valve Oven Temperature Sensor Control Board Frequently Asked Questions Will this igniter fit my oven?This igniter fits many Frigidaire and compatible gas ovens. Always verify your model number. What does an oven igniter do?It ignites the gas burner and allows the oven to heat properly. What are signs of a bad igniter?Oven not heating, delayed ignition, or no flame during operation. Is this OEM or aftermarket?This is a high-quality aftermarket replacement part. Shop With Confidence Parts-O-Matic is a U.S.-based appliance parts retailer specializing in OEM and high-quality replacement parts. We offer fast shipping, reliable products, and expert support. Fast Shipping Quality Tested Parts Compatibility Support

Read more less

XPARTCO WB13K10003 Surface Burner Spark Electrode The XPARTCO WB13K10003 is an aftermarket replacement spark electrode for the surface burners on GE, Hotpoint, and Kenmore gas ranges. The electrode is the small ceramic-tipped component mounted at the burner head that actually creates the spark: when you turn the burner knob, the range's spark module sends a rapid series of high-voltage electrical pulses to the electrode, which arcs across a small gap to the metal burner cap. That spark ignites the gas flowing from the burner, and the clicking sound you hear while the knob is turned is literally the sound of that spark firing over and over until the burner catches. Because the electrode's ceramic insulator is what keeps that high-voltage pulse contained to a precise spark path, even small damage matters: a hairline crack in the ceramic can let voltage leak to ground instead of arcing at the tip, carbon and grease buildup on the tip can insulate it just enough to weaken the spark, and the metal tip itself can corrode or erode after years of sparking. A failing electrode typically shows up as a burner that clicks normally but is slow to catch, catches with a small "whoof" as gas builds up before ignition, or doesn't spark at all while the other burners on the same range work fine. It directly replaces AP2020574, 244911, AH231266, EA231266, and PS231266. GE's internal part number for this electrode is WG02F05048. Quick Answer The XPARTCO WB13K10003 Surface Burner Spark Electrode fixes GE, Hotpoint, and Kenmore gas ranges where a specific burner clicks but won't light, sparks weakly or intermittently, or ignites with a delayed "whoof" instead of catching right away. Ceramic-tipped spark electrode for the surface burner. Replaces AP2020574, 244911, AH231266, EA231266, PS231266. If a burner doesn't click at all, the problem is more likely the spark module or igniter switch — not this electrode. Common Problems This Part Fixes A specific surface burner clicks but won't ignite, while other burners work fine Burner sparks weakly, intermittently, or only from certain knob positions Delayed ignition — a noticeable pause with gas smell before the burner catches with a "whoof" Clicking sound that continues well after the burner has already lit Visible carbon buildup, grease, or discoloration on the electrode tip Cracked, chipped, or damaged ceramic insulator visible at the base of the electrode Electrode tip that looks corroded, pitted, or eroded compared to a new one No spark at all from one specific burner position Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This surface burner spark electrode directly replaces the following OEM and cross-reference part numbers: WB13K10003, WG02F05048, AP2020574, 244911, AH231266, AGE261531, PD00035924, EA231266, PS231266 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This spark electrode is compatible with select gas surface burners on ranges from the following brands: GE gas ranges — EGR2000, EGR3000, and EGR3001 series GE gas ranges — J2B900 and JGB910 series GE gas ranges — JGBP27 series Hotpoint gas ranges (select GE-built models) Kenmore gas ranges (select GE-built models) Westinghouse, Monogram, Café, Moffat, and Profile gas ranges (select GE-built models) Verified model numbers include: EGR2000EC0BB, EGR2000EC0CC, EGR2000EC0WW, EGR2000EC1BB, EGR2000EC1CC, EGR2000EC1WW, EGR3000ED0BB, EGR3000ED0CC, EGR3000ED0WW, EGR3000ED1BB, EGR3000ED2BB, EGR3000ED3BB, EGR3000EH1BB, EGR3001ED1SS, EGR3001ED2SS, EGR3001ED3SS, EGR3001EF1SS, EGR3001EH1SS, J2B900BEF1BB, J2B900CEF1CC, J2B900SEF1SS, J2B900SEF2SS, J2B900WEF1WW, JGB910BEC1BB through JGB910BEC4BB, JGB910CEC1CC through JGB910CEC4CC, JGB910SEC1SS through JGB910SEC3SS, JGB910WEC1WW through JGB910WEC4WW, and the JGBP27BEA1AD through JGBP27BEA5AD range. Note: GE uses several visually similar spark electrodes across its gas range lineup that differ in overall length and mounting angle — for example, a related electrode sold under WB13K10014 is used on other burner positions and model platforms. Some customers have reported this electrode arriving slightly longer than the original but still fitting with room to spare; if your range has very tight clearance underneath, verify your exact model number and burner position before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement ceramic-tipped spark electrode for gas surface burner ignition Directs high-voltage pulses from the spark module into a precise spark path at the burner cap Resolves "clicks but won't light," "weak or intermittent spark," and "delayed ignition" symptoms caused by a worn or damaged electrode Ceramic insulator construction resists heat and contains the spark path Direct drop-in replacement — mounts to the same burner head bracket and wire connector Replaces AP2020574, 244911, AH231266, EA231266, and PS231266 Compatible with GE, Hotpoint, Kenmore, Westinghouse, Monogram, Café, Moffat, and Profile gas ranges Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number WB13K10003 OEM Part Number WB13K10003 (WG02F05048) Part Type Gas Range Surface Burner Spark Electrode Condition Aftermarket Replacement Application Gas Range Surface Burner Ignition Tip Material Ceramic-insulated electrode tip Function Directs spark module pulses to ignite burner gas Mounting Burner head bracket with wire lead connector Quantity 1 electrode Compatible Brands GE, Hotpoint, Kenmore, Westinghouse, Monogram, Café, Moffat, Profile Installation Notes ⚠️ Danger — Gas Appliance Turn off the gas supply to the range at the shutoff valve and unplug the range (or shut off its circuit breaker) before beginning any work near the burners or gas line. After reassembly, check every disturbed connection for leaks using a soapy water solution — bubbling indicates a leak. If you ever smell gas at any point during this repair, do not attempt to light the range or operate any switches; leave the area immediately and contact your gas utility or a qualified technician. ⚠️ Handle The Ceramic Insulator Carefully Wear work gloves. Remove the burner grate and burner cap from the affected position to access the electrode underneath. Photograph the electrode's mounting position and wire connection before removing anything. Most electrodes are held in place with a single screw and connect to the spark module via a simple push-on wire terminal — disconnect the wire first, then remove the mounting screw and lift the old electrode free. The ceramic insulator is more fragile than it looks; avoid gripping or prying on it directly, and handle it by the mounting bracket instead. Install the new WB13K10003 in the same position and orientation, making sure the tip sits at the correct gap and angle relative to the burner cap — too far and the spark won't reach the gas port, too close and it can short against the burner base. Reconnect the wire terminal, secure the mounting screw, and reinstall the burner cap and grate. Restore the gas supply and power, then test ignition at that burner position and check for leaks at any connection you touched before considering the job complete. Tools needed: Phillips or flat-blade screwdriver (model-dependent), soapy water for leak testing, work gloves. Frequently Asked Questions My burner doesn't click at all when I turn the knob. Is this the right part? Probably not, at least not by itself. If a burner produces no clicking sound whatsoever, the issue is more likely the spark module (the component that generates the high-voltage pulses) or the igniter switch behind the knob, rather than the electrode itself — an electrode can't spark if it's never receiving a pulse in the first place. This electrode is the right fix when you hear clicking at that burner position but it fails to ignite, sparks weakly, or ignites with a delay. The burner lights but with a small "whoof" and a delay. Is that dangerous? A delayed ignition means gas is flowing and accumulating for a moment before the spark finally catches it, which is exactly the kind of small buildup that produces that "whoof" sound and flare. It's not something to ignore — a weak or intermittent electrode is the common cause, and replacing it restores immediate, reliable ignition. If delayed ignition continues after replacing the electrode, have the burner and gas supply checked by a qualified technician rather than continuing to use it. Can I clean the electrode instead of replacing it? Light cleaning can sometimes help if the tip is coated in grease or food residue — gently wiping the ceramic and metal tip with a dry cloth or a small amount of rubbing alcohol may restore a weak spark caused purely by surface buildup. But if you see a cracked or chipped ceramic insulator, a visibly eroded or pitted tip, or the spark still fails after cleaning, the electrode itself has degraded and cleaning won't fix that — replacement is the correct next step. One burner sparks weakly but the others are fine. Does that rule out the spark module? Yes, generally. The spark module typically drives all the surface burner electrodes from the same unit, so if only one position is affected while the rest spark normally, the shared module is very unlikely to be the cause — the problem is isolated to that one electrode (or its individual wire connection). If every burner is weak or unreliable at the same time, that points toward the spark module instead. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the ceramic insulator design, tip geometry, mounting bracket, and wire connector of the original WB13K10003 electrode used in compatible GE, Hotpoint, and Kenmore gas ranges. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

318254916 Oven Genuine OEM Bake Element Description: This oven bake element is a Genuine part responsible for generating the heat necessary for baking and roasting in a oven. This part is located at the bottom of the oven's interior cavity or beneath the oven floor or base. When the oven is in use and the bake function is selected, electric current flows through the bake element, causing it to heat up. This heat rises and circulates within the oven, providing the consistent and even temperature required for cooking. Replaces Part Numbers:  318254916, 318254915, 1940637, 318254903, 318254911, 7318254903, 7318254911, AH3497886, EA3497886, AP5270425, PS3497886.    California Residents only:  WARNING: California’s Proposition 65

Read more less

WB02X4221CM Gas Range Oven Igniter  Gas Oven Igniter  3.2 - 3.6 Amp igniter with 5.5" overall length. Fits Specific GE Gas Range, Oven Models. Replaces Part Numbers: WB2X4306, WB02X4221, WB02X4306, WB02X4752, WB2X4221, WB2X4752, AH242243, EA242243, AP2011155, PS242243.  Description: This Flat Style Oven Igniter Kit is a replacement part for specific GE gas oven models. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.  This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

WB06X10775 Genuine OEM GE Microwave Turntable Ring The WB06X10775 is a genuine GE OEM turntable ring assembly for GE, Hotpoint, Haier, Monogram, and Café microwaves. This ring sits beneath the glass turntable tray in the microwave cavity, and three small plastic wheels built into the assembly are what let the tray roll smoothly in a circle as it rotates. That even rotation is what keeps food moving through the microwave's cooking field consistently, helping avoid cold spots and uneven heating. The three plastic wheels are a known weak point on this assembly — they're small, thin, and take on repeated stress every time the tray rotates, which makes them prone to cracking or breaking well before anything else on the ring fails. A worn or damaged ring typically shows up as a turntable that rotates unevenly, wobbles, makes noise during operation, or has stopped turning altogether, along with food that tilts or doesn't heat evenly as a result. It directly replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388 Quick Answer The WB06X10775 Genuine OEM GE Microwave Turntable Ring fixes GE, Hotpoint, Haier, Monogram, and Café microwaves where the turntable rotates unevenly, wobbles, makes noise, or has stopped turning. Includes three plastic support wheels. Replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388. The three small plastic wheels are the most common failure point on this assembly — inspect them first if your tray isn't turning smoothly. Common Problems This Part Fixes Turntable rotates unevenly or intermittently Turntable wobbles during operation Noisy or grinding sound as the tray rotates Turntable has stopped rotating altogether Food tilting or not heating evenly due to inconsistent rotation Visible cracks or breakage in the ring's support wheels Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This microwave turntable ring directly replaces the following OEM and cross-reference part numbers: WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This turntable ring is compatible with select GE microwaves, and also fits select Hotpoint, Haier, Monogram, and Café microwaves built on the GE platform, including model numbers such as JT3800SH8SS and other GE Adventium series microwaves. Note: GE has released newer generation turntable rings for related models under different part numbers, including WB02X32600 and WB06X10651. Always verify your full model number before ordering, since these are not necessarily interchangeable with this ring. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified wheel design and fit Supports the glass turntable tray for smooth, even rotation Resolves "uneven rotation," "wobbling," "noisy operation," and "won't turn" symptoms Includes three plastic support wheels built into the ring assembly Durable construction designed to withstand microwave heat and repeated use Direct drop-in replacement — no tools required Replaces WB06X10775, AP4411764, 1473344, AH2353388, AGE21142, PD00028248, EA2353388, PS2353388 Compatible with GE, Hotpoint, Haier, Monogram, and Café microwaves Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB06X10775 Part Type Microwave Turntable Ring Assembly Condition Genuine OEM Brand GE Location Beneath the glass turntable tray in the microwave cavity Included Components 3 plastic support wheels Repair Difficulty Very Easy — no tools required Quantity 1 turntable ring assembly Compatible Brands GE, Hotpoint, Haier, Monogram, Café Installation Notes This is a simple, tool-free repair. Unplug the microwave before beginning. Open the microwave door and lift out the glass turntable tray, setting it aside. Remove the old turntable ring from the center hub or cavity floor where it sits. Wipe away any crumbs, grease, or food debris from the area before installing the new ring, since buildup can interfere with smooth rotation. Place the new WB06X10775 ring onto the central hub, making sure it sits flat and rotates freely by hand. Set the glass tray back on top of the ring, and restore power. Run a quick test to confirm the tray rotates evenly and smoothly with no wobble or noise. Frequently Asked Questions Why do the wheels on this ring break so often? The three plastic wheels are thin by design and carry the full weight of the glass tray and whatever food is on it, every time the tray rotates. That repeated stress over time makes them one of the more failure-prone components in the microwave, especially on models where the ring assembly has been identified as a known weak point. If your tray has stopped rotating smoothly, checking these wheels for cracks or breakage is the first thing to look at. Do I need any tools to replace this? No. The turntable ring simply lifts out and the new one sets back into place on the central hub — no tools, no disassembly required. Just make sure the microwave is unplugged first. Should I clean the ring periodically instead of waiting for it to fail? Yes, this is good practice. Periodically removing the ring and washing it with warm, soapy water clears grease and food debris that can affect rotation over time, and drying it thoroughly before reinstalling helps prevent sticking. Regular cleaning won't prevent the plastic wheels from eventually wearing out, but it does reduce added strain from debris buildup. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original wheel design and fit of the turntable ring assembly originally installed in your microwave. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

PB050061 Genuine OEM Jet Holder (DGCU) Models that Have Used This Part DGCU105 DGCU155 DGCU165   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

WB44T10109 Oven Genuine OEM Bake Element Replaces Part Numbers: WB44T10109, WB44T10081, 3027192, AP5688912, PS3510971. Description: This Oven Bake Element is a Genuine OEM part for specific GE oven models. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity.

Read more less

WP74003019 Oven Bake Element Also fits: Gemline #RP7019, Whirlpool #74003019, Zoppas #TS7019. Watts: 2800/2100, Volts: 240/208. With .250" male terminal push-in connections. UL Listed: Yes Description: This oven bake element is a Genuine part responsible for generating the heat necessary for baking and roasting in a oven. This part is located at the bottom of the oven's interior cavity or beneath the oven floor or base. When the oven is in use and the bake function is selected, electric current flows through the bake element, causing it to heat up. This heat rises and circulates within the oven, providing the consistent and even temperature required for cooking. Replaces Part Numbers:WP74003019, 74003019, 04000058, 1322, 74003019BU, 7406P064-60, 7406P092-60, F84-200, WP74003019VP, Y04000058, AP6010824, PS11744014.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

(4 Pack) XPARTCO 330031 Surface Burner Receptacle Kit The XPARTCO 330031 is a pack of 4 aftermarket replacement surface burner receptacle kits, also called surface element receptacles or terminal block kits, for Whirlpool-built electric ranges and cooktops. Each receptacle is the plug-in block that connects the range's wire harness to the surface element. When it burns, loosens, or corrodes, the element can heat poorly, heat intermittently, or stop heating entirely, even though the element itself is good. These kits are direct-fit aftermarket replacements for the Whirlpool 330031 and the many older numbers that it replaces. A 4-pack covers every burner on a standard four-burner range. If a burner has stopped working, test the element in another burner socket first. If the element works there, the receptacle is the likely cause. Quick Answer The (4 Pack) XPARTCO 330031 Receptacle Kit fixes an electric range or cooktop whose surface element won't heat, heats intermittently, or has a burned or damaged socket. Classic symptom: a known-good element works in another burner socket but not in this one. Common Problems This Part Fixes Surface element will not heat Element heats intermittently Burned, melted, or corroded receptacle block Loose element that doesn't seat firmly in the socket Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers These receptacle kits directly replace the following part numbers: 330031, 330031A, 12001673, 0089336, B5015402, C2711501, C2716501, M5D117, M5D71, R0157519, R0157526, R0157932, R0167091, R0167117, W10116799, W10116803, WB17X210, RR110 These are the main numbers that appear across retailer cross-reference lists. Retailers list many more older numbers for this kit. Confirm against your range's parts diagram, or contact our support team, if your range calls out a different number. Compatibility These receptacle kits are listed for electric Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, including these Kenmore examples: Kenmore 101936630, 101936634, 101938630, 101938635 Kenmore 119647811, 119648811, 119900871, 119901871 Note: The models above are a small sample of a longer list, not a full list. Receptacle styles differ between ranges, and some buyers report terminals that differ from their original. Compare the kit to your old receptacle, and contact our support team with your model number to verify fit before ordering. Key Features Pack of 4 direct-fit aftermarket receptacle kits for the 330031 surface element receptacle Connects the range's wire harness to the surface element Each kit includes the receptacle block, mounting brackets, high-temperature wire leads, and heat-shrink insulation Resolves no-heat and intermittent-heat problems caused by a burned receptacle Typically a 15 to 30 minute repair per burner Product Specifications Part Number XP330031 OEM Part Number 330031 Part Type Surface Burner (Element) Receptacle Kit Condition Aftermarket Replacement Quantity 4 Kits Application Electric Ranges & Cooktops Installation Notes ⚠️ Unplug Power Before Installing Unplug the range or switch off its circuit breaker before beginning, and wear work gloves. Remove the surface element and drip pan, lift the range top, and note which wire goes to which terminal before disconnecting them. Unscrew the old receptacle, fit the new one with the bracket that matches your receptacle, and attach the wires to the same terminals. Insulate the connections with the heat-shrink supplied, then reassemble and test. Frequently Asked Questions One burner won't heat. Is this the part I need? Try the element in another burner socket first. If it heats there, the receptacle or its wiring is the likely cause, and this kit is the repair. If it doesn't heat in the other socket, the element is the problem. The kit comes with two brackets. Which one do I use? Use only the bracket that matches your receptacle, as shown in the parts diagram or on your old receptacle. Is this a plug-in part for any electric range? No. It is listed for Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, and receptacle styles differ between models. We have not confirmed fit for GE, Hotpoint, or other brands. Compare it to your old receptacle, or contact our support team with your model number. How many kits come in this order? Each order includes 4 receptacle kits. Will this fit my range? It is listed for many Whirlpool-built ranges and cooktops, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

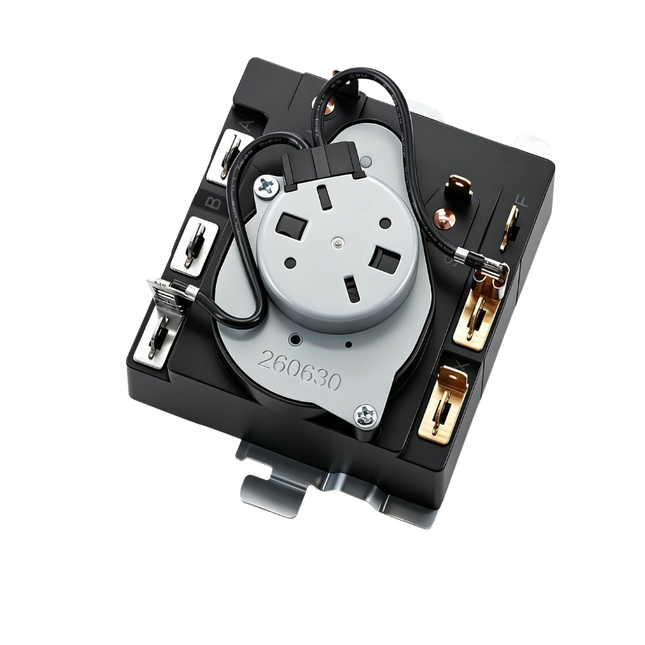

XPARTCO WE04X24550 Dryer Timer The XPARTCO WE04X24550 is an aftermarket replacement dryer timer for select GE dryers, replacing GE part WE04X24550. The timer controls the dryer's electrical components and the length of each drying cycle. When it fails, the dryer may not start, may stop partway through a cycle, or may not respond to the controls. A faulty timer is a less common cause of a drum that won't turn, so check the other common parts first. If they test fine, test the timer against your wiring diagram and replace it only if it is defective. Check your model number before ordering. Quick Answer The XPARTCO WE04X24550 Dryer Timer replaces the cycle timer on a compatible GE dryer when it has failed. Replaces WE04X24549. Classic symptoms: the dryer starts and then stops, the controls don't work, or the dryer overheats. Common Problems This Part Fixes Dryer starts and then stops Dryer controls don't work Drum not turning (check other parts first) Dryer overheating Dryer starts on its own Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following part numbers: WE04X24550, WE04X24549, 234D2377P003, 234D2377P004, 4546121, TMD14M30, TMD16M12, AGE25986, AP6031056, FIX11763064, OEM18093177, PD00039467, PS11763064 If your old timer shows a different number, contact our support team and we'll check whether it matches. Compatibility This timer is listed for select GE dryers, including these examples: GE GTD42GASJ0WW, GTD42GASJ1WW, GTX42GASJ0WW, GTX42GASJ1WW, GTX42GASJ2WW GE GTD42EASJ0WW, GTD42EASJ3WW, GTX42EASJ1WW GE GTD48EASW0WB, XTD72E8ST1WS Note: The models above are a small sample, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering. Key Features Aftermarket replacement for the GE WE04X24550 dryer timer Controls the dryer's electrical components and cycle length Replaces the earlier GE part WE04X24549 Product Specifications Part Number XPWE04X24550 OEM Part Number WE04X24550 Part Type Dryer Timer Condition Aftermarket Replacement Application Select GE Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer before you begin, and wear work gloves. Remove the console panel to reach the timer, note where each wire connects, and remove the knob and old timer. Install the new timer, reconnect the wiring in the same positions, and refit the knob and console. Restore power and test the dryer. Frequently Asked Questions My dryer drum stopped turning. Is this the part I need? Probably not first. A faulty timer is rarely the cause of a drum that stops turning. Check the drive belt, motor and thermal fuse first. If those work, test the timer with a multimeter against your wiring diagram. Is this an OEM or aftermarket part? This is an aftermarket replacement from XPARTCO, made to replace GE part WE04X24550. If you specifically need a genuine GE part, contact our support team. Will this fit my dryer? It is listed for select GE dryers, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order. Is this the same as other GE dryer timers? Not necessarily. GE uses different timer numbers for different dryers, so match the part number and your model number rather than assuming a similar-looking timer fits. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
