XPARTCO WR60X10220 Refrigerator Condenser Fan Motor The XPARTCO WR60X10220 is an aftermarket replacement condenser fan motor for GE frost-free refrigerators with a condenser coil. This motor lives in the compressor/machine compartment at the back or bottom of the refrigerator. Whenever the compressor runs, this fan runs right along with it, circulating air through the refrigerator's grille to cool both the compressor and the condenser coils as they work. It also plays a secondary role in helping evaporate excess water that collects in the drain pan. Because the condenser fan cools the mechanical side of the refrigeration system rather than circulating cold air to your food, a failing motor tends to affect the whole refrigerator's cooling capacity rather than just one compartment. The harness and plug extend approximately 8" from the motor body. Common failure causes include worn motor bearings, dust and debris buildup around the coils restricting airflow, and general electrical wear over time. Symptoms include a refrigerator that runs warm overall, a hot cabinet area near the back or bottom of the unit, a squealing or grinding noise, or the compressor running constantly as it struggles to shed heat. It directly replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, and SM10220. Quick Answer The XPARTCO WR60X10220 Refrigerator Condenser Fan Motor fixes GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café frost-free refrigerators with a hot cabinet area, squealing or grinding noise, or a fridge running warm overall. Harness and plug extend approximately 8" from the motor. Replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, SM10220. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments. Common Problems This Part Fixes Refrigerator running warm overall, in both the fresh food and freezer compartments Hot cabinet area noticeable near the back or bottom of the refrigerator Squealing, grinding, or buzzing noise coming from the compressor compartment Refrigerator running constantly as the compressor struggles to shed heat Water pooling or not evaporating properly in the drain pan Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand Excessive dust or debris buildup visible around the condenser coils and fan Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10220, WR60X10133, WR60X10171, WR60X10192, 197D1871P026, IS-2321GEN, AH1766247, EA1766247, EAP1766247, AP4298602, AGE29216, PD00001198, PS1766247, SM10220 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor is compatible with select GE, Hotpoint, and RCA frost-free refrigerators, and also fits select Kenmore, Haier, Monogram, and Café refrigerators built on the GE platform. Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our WR60X10185 or WR60X10318 listings), which sits behind the freezer's rear panel and circulates cold air to the food compartments. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat Resolves "hot cabinet area," "squealing or grinding noise," "runs warm overall," and "runs constantly" symptoms caused by fan failure Also helps evaporate excess water collecting in the drain pan Harness and plug extend approximately 8" from the motor body Sturdy construction built for long-term reliable performance Direct drop-in replacement matching the original mounting and blade fitment Replaces WR60X10133, WR60X10171, WR60X10192, AP4298602, 1257132, AH1766247, EA1766247, PS1766247, and SM10220 Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — typically under 30 minutes Product Specifications Part Number WR60X10220 OEM Part Number WR60X10220 Part Type Refrigerator Condenser Fan Motor Condition Aftermarket Replacement Brand GE Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor; aids drain pan evaporation Dimensions 2-1/2"H x 4"W x 11"D Harness/Plug Length Approx. 8" from motor Repair Difficulty Easy — under 30 minutes Quantity 1 fan motor Compatible Brands GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting Shut off power at the circuit breaker or fuse box, then pull the refrigerator away from the wall and disconnect the power cord from the outlet. Wear work gloves. Remove the condenser fan motor cover, typically held on by two screws, to access the motor. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring and the fan blade's position before disconnecting anything. Disconnect the power wire and the ground wire from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. If the old fan blade is seized onto the motor shaft, a firm, sudden strike (rather than steady pressure) will typically break the blade loose from the shaft without damaging the plastic blade, so it can be reused on the new motor. Mount the new WR60X10220 in the same position, reconnect the power and ground wires, and confirm the blade spins freely by hand without contacting the housing before reinstalling the fan cover. Restore power and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any hot cabinet area or noise has resolved. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My refrigerator has a hot spot on the cabinet and runs warm overall. Is this the right part? Yes, this is a classic symptom pair for a failing condenser fan motor. Without proper airflow across the condenser coils and compressor, heat builds up in the machine compartment (producing that hot cabinet area) while the whole refrigeration cycle loses efficiency, which shows up as both compartments running warmer than normal rather than just one. The old fan blade is stuck on the motor shaft. How do I remove it without breaking it? A gentle, steady pull often won't budge a seized blade, but a firm, sudden strike to the blade (rather than continuous pressure) will typically pop it loose from the metal shaft without damaging the plastic blade itself, so you can reuse it on the new motor if a blade isn't included. Work carefully and support the blade so it doesn't fall and crack once it releases. Could dirty condenser coils cause the same symptoms as a bad fan motor? Yes, and it's worth checking before you buy a new motor. A condenser fan pushing air through coils caked in dust, pet hair, or debris will struggle to cool the system properly even if the motor itself is working fine. Clean the coils and the fan blade thoroughly first; if the fan still doesn't spin freely, spins with a wobble, or doesn't run at all afterward, the motor itself has failed and this replacement is the correct fix. Does this fan also affect my drain pan? Yes, indirectly. In addition to cooling the compressor and condenser coils, this fan helps evaporate excess water that collects in the drain pan beneath the refrigerator. If the fan has failed, you may notice water pooling or not evaporating as it normally would, in addition to the more obvious cooling and noise symptoms. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the mounting configuration, dimensions, and airflow performance of the original WR60X10220 condenser fan motor used in compatible GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR60X10209 Genuine OEM GE Refrigerator DC Condenser Fan Motor The WR60X10209 is a Genuine OEM GE replacement DC condenser fan motor compatible with a wide range of GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café refrigerators in the GSS, GSL, HSS, PSS, PSC, GCE, PCE, and related series. The condenser fan motor is located near the compressor at the rear bottom of the refrigerator. It circulates air across the condenser coils to dissipate heat from the hot refrigerant before it returns to the evaporator — this is an essential step in the refrigeration cycle. Without the condenser fan running, heat builds up around the compressor and condenser coils, causing the refrigerator to run continuously, cool inefficiently, or trip the compressor's thermal overload protection. This Genuine OEM part is manufactured by GE to factory specifications. It is a DC voltage motor rated at 11.3V DC, 2.2W with a 4-pin plastic connector and four color-coded wires (white, blue, red, and yellow). It directly replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, WR60X10209-24PK, 1195784, AP4265957, AH1483567, EA1483567, and PS1483567. Installs in 15–30 minutes with basic hand tools. Quick Answer The WR60X10209 Genuine OEM GE Refrigerator DC Condenser Fan Motor fixes GE refrigerators that are not cooling properly, running continuously, making unusual noise from the back, or where the compressor is overheating. 11.3V DC, 2.2W, 4-pin connector (white/blue/red/yellow wires). Genuine OEM. Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, AP4265957, PS1483567. Compatible with GE GSS, GSL, HSS, PSS, PSC, GCE, PCE series and Hotpoint, RCA, Kenmore, Haier, Monogram, Café. Common Problems This Part Fixes Refrigerator not cooling properly — condenser fan not circulating air across coils Refrigerator running continuously without reaching set temperature Compressor overheating — heat not being dissipated from condenser area Unusual noise or grinding from the back or bottom of the refrigerator Condenser fan motor visibly not spinning when compressor is running Refrigerator cycling off frequently on thermal overload protection Food spoilage — refrigerator unable to maintain safe temperatures Replaces Part Numbers This condenser fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10209, 1195784, WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, 045900390950, 197D2407P013, AGE29194, AH1483567, EA1483567, EAP1483567, AP4265957, PD00001176, PS1483567. Contact our support team with your model number if you need confirmation before ordering. Compatibility This condenser fan motor is compatible with a wide range of refrigerators from the following GE product lines: GE refrigerators — GSS series (GSS22, GSS23, GSS25, GSS26 and related side-by-side models) GE refrigerators — GSL series (GSL22, GSL25 and related models) GE refrigerators — GCE series (GCE21, GCE23 and related models) GE refrigerators — PCE and PSS series (PCE23, PSS25, PSS26 and related Profile models) GE refrigerators — PSC series (PSC23, PSC25 and related Profile models) GE Monogram refrigerators — ZIS, ZISB series (select models) GE Café refrigerators (select models) Hotpoint refrigerators — HSS series (HSS22, HSS25 and related models) RCA refrigerators (select GE-built models) Kenmore / Sears refrigerators (select GE-built models) Haier refrigerators (select GE-platform models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance Circulates air across the condenser coils to dissipate heat from the refrigerant and maintain efficient refrigeration cycle operation DC voltage motor rated at 11.3V DC, 2.2W — runs on DC voltage supplied by the refrigerator's control board 4-pin plastic connector with color-coded wires (white, blue, red, yellow) — direct plug-in installation on compatible models Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, and AP4265957 Compatible with GE GSS/GSL/GCE/PCE/PSS/PSC, Hotpoint HSS, Kenmore, Haier, Monogram, Café, and RCA refrigerators DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number WR60X10209 Part Type Refrigerator DC Condenser Fan Motor Condition Genuine OEM Application Refrigerators (side-by-side, French door, bottom-freezer) Voltage 11.3V DC Wattage 2.2W Connector 4-pin plastic plug Wire Colors White, Blue, Red, Yellow Location Near compressor at rear bottom of refrigerator Compatible Brands GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator before beginning. Pull the refrigerator away from the wall to access the rear lower back panel. Remove the screws securing the back panel to expose the compressor, condenser coils, and condenser fan assembly. The condenser fan motor is mounted on a bracket near the compressor with the fan blade facing the condenser coil. Take a photo of the wire connector orientation before disconnecting. Disconnect the 4-pin wire connector from the motor. Remove the mounting screws securing the motor to the bracket and slide the old motor out. Note the orientation of the fan blade on the motor shaft — the blade must be reinstalled in the same direction on the new motor (or transferred from the old motor if the new motor does not include a blade). Install the new WR60X10209 motor, reconnect the wire connector, reinstall the back panel, restore power, and confirm the condenser fan spins when the compressor starts. Tools needed: Phillips screwdriver, 1/4" nut driver. Frequently Asked Questions What does the condenser fan motor do in a refrigerator? The condenser fan motor drives a fan blade that circulates ambient air across the condenser coils at the rear of the refrigerator. The condenser coils carry hot high-pressure refrigerant that has just been compressed — the fan removes heat from the refrigerant so it can cool, condense, and return to the evaporator to absorb heat from inside the refrigerator. Without the condenser fan running, heat builds up around the compressor and coils, causing the refrigerator to lose cooling efficiency, run continuously, or — in severe cases — trip the compressor's thermal overload and shut down entirely. Why does this motor use DC voltage instead of AC? Modern GE refrigerators use DC motors for the condenser fan because they are more energy-efficient, quieter, and easier to speed-control by the refrigerator's electronic control board than traditional AC motors. The refrigerator's main control board converts household 120V AC power to 11.3V DC to supply the condenser fan motor. This DC motor runs at a variable speed under board control, which allows GE's refrigerators to optimize fan speed based on cooling demand. How do I confirm the condenser fan motor has failed? Pull the refrigerator away from the wall, unplug it, and remove the rear lower panel. Spin the condenser fan blade by hand — if it is stiff, wobbles, or seizes, the motor bearing has failed. If the blade spins freely but the motor does not run when the refrigerator is plugged in and the compressor starts, check for DC voltage at the motor connector using a multimeter. If the board is supplying approximately 11–12V DC to the motor but the motor is not running, the motor has failed electrically. If no voltage is present, the control board may not be supplying power — a less common but possible failure mode. Does this motor come with the fan blade? The WR60X10209 is the motor only — the fan blade is typically not included and should be transferred from the old motor. When removing the old motor, carefully pull the fan blade off the motor shaft (it presses on — no hardware is typically needed). Press the blade onto the new motor shaft in the same orientation. If the fan blade is cracked or damaged, it should be replaced separately. Installing the blade in the wrong direction will reverse the airflow direction and reduce cooling efficiency. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same DC condenser fan motor installed in compatible GE, Hotpoint, and related brand refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR84X10055 Genuine OEM Condenser Fan Motor Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. Cross Reference Information: WR84X10055, 1093723, AH967775, EA967775, AP3797248, PS967775.     WARNING: California’s Proposition 65 (California Residents Only)

Read more less

XPARTCO DA97-15765C Refrigerator Condenser Fan Motor The XPARTCO DA97-15765C is an aftermarket replacement condenser fan motor assembly for Samsung French door refrigerators. This assembly includes both the motor and the fan blade together, and it lives in the compressor/machine compartment at the back or bottom of the refrigerator, where its job is to pull air across the condenser coils and compressor to carry heat away from the refrigeration system. That's a different job from an evaporator fan — this motor cools the mechanical side of the system rather than circulating cold air to your food, so a failing condenser fan tends to affect the whole refrigerator's cooling capacity rather than just one compartment. Rated 12V DC, 0.14A, 1.7W, running at approximately 1,120 RPM. On many Samsung models, a failed condenser fan motor triggers a 23C or 23E error code on the display, alongside symptoms like noticeable vibration or noise from the condenser area, elevated internal temperatures, or the over-temperature alarm sensor tripping. Common causes include normal wear on the motor bearings after prolonged use, blockages from dust and debris accumulation around the coils, or damage from moisture exposure. A fan blade that tries to spin but can't complete a full revolution, or that needs a manual nudge to keep turning, is a classic sign this assembly has started to fail. It directly replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328. Quick Answer The XPARTCO DA97-15765C Refrigerator Condenser Fan Motor fixes Samsung French door refrigerators where the whole unit runs warm, the compressor area is noisy or vibrating, a 23C or 23E error code appears, or the over-temperature alarm trips. Includes motor and fan blade. 12V DC, 0.14A, 1.7W, ~1,120 RPM. Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments. Common Problems This Part Fixes Both the fresh food and freezer compartments running warmer than normal at the same time 23C or 23E error code displayed on the control panel Noticeable vibration or unusual noise from the condenser/compressor area at the back or bottom of the cabinet Over-temperature alarm sensor tripping Fan blade that tries to spin but doesn't complete a full revolution Fan blade that stops spinning if not manually nudged to keep turning Refrigerator running constantly as the compressor struggles to keep up Excessive dust or debris buildup visible around the condenser coils and fan Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor assembly directly replaces the following OEM and cross-reference part numbers: DA97-15765C, DA97-15765A, DA97-15765D, DA97-12842A, DA97-12842B, DA97-12842D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328, OEM18003054, ASM138992, PD00050574 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor assembly is compatible with select Samsung French door refrigerators, including model numbers such as: RF220NCTABC, RF220NCTASG, RF220NCTASP, RF220NCTASR, RF220NCTAWW RF221NCTABC, RF221NCTASP, RF221NCTAWW RF22K9381SG F261BEAESR This assembly also fits many additional Samsung French door refrigerator models beyond those listed above. Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our DA31-00334C listing), which sits behind the freezer's rear panel and circulates cold air to the food compartments. It is also a different part family from our DA97-20025A condenser fan listing, which serves a different group of Samsung models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Complete assembly — includes both the motor and the fan blade Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat Resolves "whole fridge running warm," "23C or 23E error code," "noise or vibration from the compressor area," and "over-temperature alarm" symptoms caused by fan failure Rated 12V DC, 0.14A, 1.7W, approximately 1,120 RPM Direct drop-in replacement matching the original mounting and back panel cam-bracket attachment Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328 Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — typically completed in under an hour Product Specifications Part Number DA97-15765C OEM Part Number DA97-15765C Part Type Refrigerator Condenser Fan Motor Assembly (Motor + Blade) Condition Aftermarket Replacement Brand Samsung Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor Voltage 12V DC Amperage 0.14 A Wattage 1.7 W Speed ~1,120 RPM Related Error Codes 23C, 23E Quantity 1 fan motor assembly Compatible Brand Samsung Installation Notes ⚠️ Unplug Refrigerator Before Starting — Store Perishable Food Separately Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Remove all shelves from the upper refrigerator cabinet to improve access. Using a flat-blade screwdriver, gently ease the back panel away from the cabinet — on many models it's retained by a cam bracket and snaps into place, so it should release without excessive force. This exposes the condenser/circulating fan. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring harness connector and the fan blade's position before disconnecting anything. Remove the two screws holding the fan in place, unplug the fan lead harness connector, and remove the defective fan assembly. Install the new DA97-15765C in the same position, reconnect the harness plug, and reinstall and tighten the two mounting screws securely. Confirm the blade spins freely by hand without contacting the housing or coils before reinstalling the back panel — it should snap back into place via the cam bracket. Reinstall the shelves, restore power, and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any error code has cleared. Tools needed: flat-blade screwdriver, Phillips screwdriver, work gloves. Frequently Asked Questions My display shows a 23C or 23E error code. Does that mean I need this part? It's a strong indicator on many Samsung models, since these codes are commonly associated with condenser fan motor failure. Before ordering, it's still worth a quick visual check — clear any dust or debris from around the condenser coils and fan blade, since a heavily clogged condenser can sometimes trigger similar temperature-related codes. If the error persists after cleaning, or if the fan blade doesn't spin freely by hand, this assembly is the likely fix. The fan blade tries to spin but won't complete a full turn. Is that normal? No — this is a classic sign the motor bearings are wearing out or that something is obstructing the blade. A healthy condenser fan should spin freely and continuously once started. If you find yourself needing to give the blade a manual nudge to keep it turning, or it stalls partway through a rotation, the motor has failed and needs to be replaced rather than repeatedly restarted by hand. Both my fresh food and freezer sections are warm. Is this the right part? Yes, that pattern points toward the condenser fan rather than an evaporator fan. Because the condenser fan cools the compressor and coils that the entire refrigeration cycle depends on, a failing condenser fan tends to reduce cooling capacity across both compartments together, rather than leaving one side fine while the other struggles. Does this include the fan blade, or just the motor? This is a complete assembly that includes both the motor and the fan blade together, so there's no need to transfer a blade from your old unit or source one separately. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 0.14A, 1.7W, ~1,120 RPM), fan blade design, and mounting configuration of the original DA97-15765C condenser fan motor assembly used in compatible Samsung French door refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

DA97-15765C Refrigerator Genuine OEM Condenser Fan Motor Replaces Part Numbers: DA97-15765C, DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650. Description: This Refrigerator Condenser Fan Motor Assembly is an essential component designed to maintain optimal cooling performance in select Samsung refrigerator models. This Genuine OEM part ensures reliable operation by efficiently circulating air through the condenser coils, preventing overheating and maintaining consistent temperatures.

Read more less

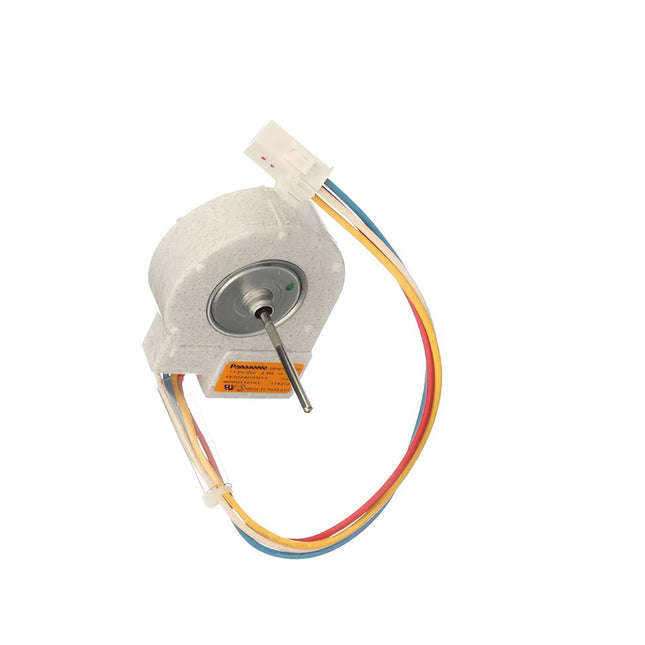

WR60X10209 (OE) Refrigerator Condenser Fan Motor The WR60X10209 is an OE (Original Equipment) DC condenser fan motor for GE refrigerators. This motor lives in the compressor/machine compartment at the back or bottom of the refrigerator. Whenever the compressor runs, this fan runs right along with it, circulating air across the condenser coils to help dissipate heat from the hot refrigerant before it moves on to the evaporator, keeping the compressor from overheating and the whole system running efficiently. Rated 11.3V DC, 2.2W, with a 4-pin plastic plug carrying 4 wires (white, blue, red, and yellow). The motor shaft measures 1/8" in diameter and 2-7/8" long. Common failure causes include worn motor bearings, dirty or obstructed condenser coils forcing the motor to work harder than intended, and general electrical wear. Symptoms include increased noise when the freezer door is opened, warm temperatures inside the refrigerator, and — left unaddressed — compressor overheating and food spoilage from a refrigerator that can no longer maintain temperature. It directly replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, AP4265957, and PS1483567. Quick Answer The WR60X10209 (OE) Refrigerator Condenser Fan Motor fixes GE, Hotpoint, RCA, and select Kenmore refrigerators with increased noise near the compressor compartment, warm temperatures inside the fridge, or early signs of compressor overheating. 11.3V DC, 2.2W, 4-pin/4-wire plug, 1/8" x 2-7/8" shaft. Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, AP4265957, PS1483567. This is the 12V DC condenser fan — if your refrigerator needs a 120V motor, see our WR60X10220 listing instead. Common Problems This Part Fixes Increased noise near the compressor compartment or when the freezer door is opened Warm temperatures inside the refrigerator Refrigerator running constantly as it struggles to maintain temperature Compressor overheating from restricted airflow around the condenser coils Food spoilage from a refrigerator that can't hold a consistent temperature Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand What Is an OE Part? OE (Original Equipment) means this part is manufactured by the same original supplier that produces the Genuine OEM version — identical fit, materials, and performance. The only difference is packaging: OE parts ship under our XPARTCO brand rather than the appliance manufacturer's branded box, which is why they can't be listed as Genuine OEM. You get factory-original quality at a more affordable price. Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10209, 1195784, WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, 045900390950, 197D2407P013, AGE29194, AH1483567, EA1483567, EAP1483567, AP4265957, PD00001176, PS1483567. The motor's own sticker also references production number 197D2407P013. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor is compatible with select GE and Hotpoint refrigerators, and also fits select RCA and Kenmore refrigerators built on the GE platform. Note — 12V DC, not 120V: This is the 12V DC condenser fan motor. If your refrigerator calls for a 120V motor instead, you need our WR60X10220 listing. This is also a condenser fan (cools the compressor and condenser coils), not an evaporator fan (circulates cold air to the food compartments) — a different part from our WR60X10074, WR60X10185, and WR60X10318 evaporator fan motor listings. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features OE (Original Equipment) condenser fan motor — draws air across the condenser coils to cool the refrigerant and compressor Resolves "noise near the compressor," "warm fridge temperatures," and "compressor overheating" symptoms caused by fan failure Rated 11.3V DC, 2.2W 4-pin plastic plug with 4 wires (white, blue, red, yellow) 1/8" diameter x 2-7/8" long shaft Direct drop-in replacement matching the original mounting and blade fitment Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, AP4265957, and PS1483567 Compatible with GE, Hotpoint, RCA, and select Kenmore refrigerators Product Specifications Part Number WR60X10209 Designation OE (Original Equipment) Part Type Refrigerator DC Condenser Fan Motor Brand GE Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor Voltage 11.3V DC Wattage 2.2 W Connector 4-pin plastic plug, 4-wire (white, blue, red, yellow) Shaft 1/8" diameter x 2-7/8" long Quantity 1 fan motor Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Danger — Authorized Service Part Required For Flammable Refrigerant Systems GE's own service guidance carries an explicit warning for this component: it is a manufacturer-authorized service part intended for use in refrigerator models that use a flammable refrigerant, such as R600a. Using an unauthorized or incorrectly rated service part in a unit that uses a flammable refrigerant could lead to a risk of fire or explosion. Before ordering or installing, confirm your refrigerator's refrigerant type and verify this part is correct for your specific model. If you have any doubt about your refrigerant type or the correct part for your unit, contact our support team with your model number before proceeding, or have a qualified appliance technician perform this repair. ⚠️ Unplug Refrigerator Before Starting Shut off power at the circuit breaker or fuse box, then pull the refrigerator away from the wall and disconnect the power cord from the outlet. Wear work gloves. Remove the condenser fan motor cover, typically held on by two screws, to access the motor. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring and the fan blade's position before disconnecting anything. Disconnect the 4-pin plug from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Mount the new WR60X10209 in the same position, reconnect the 4-pin plug fully, and confirm the blade spins freely by hand without contacting the housing before reinstalling the fan cover. Restore power and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions Why is there a fire/explosion warning on this part? Some refrigerators use a flammable refrigerant, such as R600a (isobutane), instead of older non-flammable refrigerants. Electrical components like fan motors sit near refrigerant lines and can be a source of ignition if a leak were ever present, which is why GE specifically requires an authorized, correctly rated service part for these systems rather than a generic substitute. This isn't a concern unique to this listing — it reflects GE's general guidance for electrical components used in flammable-refrigerant refrigerators, and confirming your model and refrigerant type before ordering is the appropriate precaution. My refrigerator is noisy and runs warm. Is this the condenser fan? It's a strong possibility, especially if the noise seems to come from the back or bottom of the unit and you notice both symptoms together. Without proper airflow across the condenser coils, heat builds up in the machine compartment, which reduces the whole refrigeration cycle's efficiency and shows up as warmer-than-normal temperatures throughout the fridge. Could dirty condenser coils cause the same symptoms as a bad fan motor? Yes, and it's worth checking before you buy a new motor. A condenser fan pushing air through coils caked in dust, pet hair, or debris will struggle to cool the system properly even if the motor itself is working fine. Clean the coils and the fan blade thoroughly first; if the fan still doesn't spin freely, spins with a wobble, or doesn't run at all afterward, the motor itself has failed and this replacement is the correct fix. Is this a genuine OEM part? This is an OE (Original Equipment) part sold under our XPARTCO brand. OE parts are manufactured by the same original supplier that produces the Genuine OEM part, so the fit, materials, and performance are identical — the difference is that OE parts ship in XPARTCO packaging rather than the appliance manufacturer's branded box, which is why we can't list them as Genuine OEM. This gives you factory-original quality at a more affordable price than the branded version. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ OE (Original Equipment) Quality ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

4681JB1029D Refrigerator Genuine OEM Condenser Fan Motor Fits Specific LG, Kenmore Refrigerator Models Replaces Part Numbers: 4681JB1029D, EAU61644104, 1267566, AH3523330, EA3523330, OEM17751134, AP4437783, PS3523330. Description: This Condenser Fan Motor is a Genuine part for specific LG, Kenmore refrigerator models. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor - Compatible with Samsung Product Description Ensure efficient cooling with the DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor. This Samsung-manufactured motor is designed as a replacement for select Samsung refrigerators. It powers the fan to circulate air over the condenser coils, dissipating heat to maintain optimal refrigeration performance. This part addresses issues like insufficient cooling, frost buildup, unusual noises (e.g., chirping, buzzing), or the refrigerator running too frequently, often caused by a faulty or worn motor. Note: Includes (1) condenser fan motor (fan blade not included). Disconnect power before installation. Verify compatibility with your refrigerator model. Replaces part numbers: DA31-00103A, IS-27210SCD6A, PD00002207, EAP4138348m AP4140906, 1472692, PS4138348. Compatibility: Compatible with select Samsung refrigerator models, including but not limited to: Samsung: RS2631SL, RS2631SL/XAA, RS2623WW/XAA, RS2624SW, RS2624SW/XAA, RS2624WW, RS2631SW, RS2631SW/XAA, RSC5DBSH, RS2621SW/XAA, RS2623BB, RS2623BB/XAA, RS2623SH, RS2623SL, RS2623VQ, RS2630SH, RS2630WW Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung refrigerators. 🔧 Specifications: Genuine OEM Samsung AC fan motor, 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft. 💪 Reliable Performance: Circulates air to dissipate heat from condenser coils for efficient cooling. 🛠️ Easy Installation: Requires screwdriver and pliers; typically installed in 15–30 minutes. 🛡️ Effective Fixes: Resolves insufficient cooling, frost buildup, noisy operation, or frequent running. Product Specification Part Number: DA31-00103A Component Type: Refrigerator condenser fan motor Material: Metal and plastic Electrical Specs: 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft, quick disconnect Compliance: UL-listed, Prop 65 warning for California. Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today! Add to cart now for a reliable fix!

Read more less

XPARTCO 4681JB1029D Refrigerator Condenser Fan Motor – Compatible with LG and Kenmore Refrigerators Product Description Keep your refrigerator running efficiently with the XPARTCO 4681JB1029D Refrigerator Condenser Fan Motor. This Condenser Fan Motor is a replacement part for specific LG, Kenmore refrigerator models. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator. Replaces Part Numbers 4681JB1029D, EAU61644104, 4681JB1029Q, 1267566, AH3523330, EA3523330, PD00008709, AP4437783, PS3523330. Compatibility This replacement condenser fan motor fits select LG and Kenmore refrigerators. Example compatible models include (but are not limited to): LG LFX25974ST, LG LFX28968ST, and Kenmore 795.71053.010. Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM performance for LG refrigerators 🌬️ Reliable Airflow – Circulates air over coils to prevent overheating and improve efficiency 💰 Cost-Effective Fix – Quality replacement at a lower cost than OEM parts 🛠️ DIY Installation – Plug-and-play wiring connector for easy setup 🛡️ Fixes Common Issues – Solves overheating, loud operation, or poor cooling problems 📐 Product Specification Part Number: 4681JB1029D Component Type: Refrigerator Condenser Fan Motor Assembly Material: Metal motor housing with plastic fan blade Mounting: Direct-fit on rear compressor compartment bracket Operating Conditions: Designed for continuous operation in refrigerator environments Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver, pliers ⚠️ Safety First: Always unplug the refrigerator before performing any repairs to prevent electrical shock. Steps: Disconnect power and pull refrigerator away from wall. Remove the rear access panel to expose the condenser area. Disconnect wiring harness and remove the old fan motor. Mount the new 4681JB1029D motor using the same screws. Reconnect the wiring harness and reinstall the rear panel. Plug in the refrigerator and confirm proper fan operation. ⏱️ Time Required: 20–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Keep your refrigerator cool and efficient — Add to Cart Now for a reliable, budget-friendly replacement!

Read more less

EAU63923602 Refrigerator Genuine OEM Condenser Fan Motor – Compatible with LG & Kenmore Refrigerators Product Description Restore proper airflow and efficient cooling with the EAU63923602 Refrigerator Genuine OEM Condenser Fan Motor. This factory-approved motor circulates air across the condenser coils to help dissipate heat from the refrigeration system. A failed condenser fan motor can cause the refrigerator to run warm, overheat, make loud noises, or stop cooling efficiently. Installing this Genuine OEM condenser fan motor ensures exact fit, quiet operation, and long-lasting performance. Replaces Part Numbers EAU63923602, ODM-001F-4B, PD00057884, EAP12383670, AP6317196, 4877338, PS12383670. Compatibility This Genuine OEM condenser fan motor fits select LG and Kenmore (LG-manufactured) refrigerators. Example compatible models include (but are not limited to):LG LFXS24623S, LFXC24726SKenmore 795.71033.010, 795.74023.411 Always verify your refrigerator’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🧩 Genuine OEM Replacement – Factory-certified for exact fit and reliability 🌬️ Restores Proper Airflow – Cools condenser coils for efficient operation 🔇 Quiet Performance – Smooth motor design reduces noise and vibration 💪 OEM-Grade Durability – Built for continuous operation in warm environments 🛡️ Fixes Common Issues – Solves warm temperatures, overheating, or loud fan noise 📐 Product Specification Part Number: EAU63923602 Component Type: Refrigerator Condenser Fan Motor Voltage: 120V AC Mounting: Rear lower condenser fan assembly Rotation: OEM-matched direction Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Unplug the refrigerator before servicing. Condenser components may be hot—allow time to cool. Steps: Disconnect power and remove the rear lower access panel. Locate the condenser fan motor assembly. Disconnect the wiring harness and remove mounting screws. Install the new EAU63923602 motor in the same position. Reconnect wiring, reinstall the panel, and restore power. Confirm proper fan operation and airflow. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Genuine OEM Replacement Part 🔄 30-Day Return Policy Restore efficient refrigerator cooling with confidence — Add to Cart Now for a factory-quality repair!

Read more less

EAU63923602 Refrigerator Condenser Fan Motor - Compatible with LG, Kenmore Refrigerators Product Description Restore your refrigerator’s cooling performance with the EAU63923602 Condenser Fan Motor. This replacement motor powers the condenser fan to dissipate heat from the coils, ensuring efficient cooling. Designed for select Kenmore, LG refrigerators, it fixes issues like poor cooling, freezer too warm, compressor overheating, or loud noises. Note: Includes one condenser fan motor. Take photos of wiring during disassembly and clean condenser coils before installation. Replaces part numbers: EAU63923602, ODM-001F-4B, PD00057884, EAP12383670, AP6317196, 4877338, PS12383670. Key Features: ✅ Brand Compatibility: Fits select LG, Kenmore refrigerator models. ❄️ Specifications: Condenser fan motor, 12V DC, 1A. 💰 Cost-Effective: OEM performance at a competitive price. 🛠️ Easy Installation: Requires a screwdriver, pliers, work gloves; typically installed in 20–40 minutes. 🛡️ Reliable Fixes: Resolves poor cooling, freezer too warm, compressor overheating, or noisy operation. Installation Notes: Safety First: Unplug the refrigerator before installation to avoid electrical shock. Clean condenser coils to ensure optimal performance. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your refrigerator running efficiently today! Add to cart now for a budget-friendly fix!
