279827 Genuine OEM Whirlpool Dryer Drive Motor
The 279827 is a Genuine OEM Whirlpool replacement dryer drive motor with pre-attached pulley, compatible with a wide range of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Estate, and Kenmore dryers. The drive motor is the component that powers everything that moves in your dryer — it turns the drum belt (which rotates the drum to tumble clothes) and simultaneously drives the blower wheel (which pushes heated air through the drum and out the exhaust vent). When the motor fails, the dryer either won't start, won't tumble, stops mid-cycle, or makes loud humming, buzzing, or grinding noises.
This is a dual-shaft motor: the drive shaft (1-3/4" long) connects to the drum belt via the pre-attached pulley, and the blower shaft (1-3/4" long) drives the blower wheel. The pulley is pre-attached and is not available separately — if your old motor's pulley is worn, this replacement includes a new one. As a Genuine OEM part manufactured by Whirlpool to factory specifications, the 279827 is one of the most widely used dryer motors across the Whirlpool platform, replacing over 70 legacy part numbers spanning decades of production. Key cross-references include W10448892, W10396029, W10194250, 8066206, 3395654, 3398046, 3391888, 3395652, AP3094245, PS334304, and EAP334304. Includes the motor assembly, two 1/8" insulated female terminals, and instructions. Before replacing the motor, check the thermal fuse (electric dryers) and door switch first — a blown fuse or failed switch produces identical no-start symptoms and is a far cheaper fix. Installs in 45–90 minutes with basic hand tools.
Quick Answer
The 279827 Genuine OEM Whirlpool Dryer Drive Motor fixes Whirlpool, Maytag, KitchenAid, Amana, Roper, Estate, and Kenmore dryers that won't start, won't tumble, stop mid-cycle, or make loud humming/buzzing/grinding noises. Dual-shaft drive motor with pre-attached pulley. Shaft lengths: blower 1-3/4", drive 1-3/4". Includes motor assembly + 2 insulated female terminals + instructions. Genuine OEM. Key cross-refs: W10448892, W10396029, W10194250, 8066206, 3395654, AP3094245, PS334304. Before replacing the motor: check the thermal fuse and door switch first — they're far cheaper fixes for no-start symptoms.
Common Problems This Part Fixes
Dryer won't start — motor has failed or seized
Dryer won't tumble — motor not powering the drum belt
Dryer stops mid-cycle — motor overheating or intermittently failing
Loud humming or buzzing when the start button is pressed — motor trying to start but can't
Grinding or squealing noise during operation — worn motor bearings
Motor runs but drum doesn't turn — pulley worn or belt slipping on a worn motor shaft
Dryer runs intermittently — motor cutting out from thermal overload
Burning smell from the motor area — overheating windings or seized bearings
Motor locked up or seized — bearings failed completely
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer drive motor directly replaces a large number of OEM and cross-reference part numbers spanning decades of Whirlpool-platform dryer production. Key replacements include:
279827, 3388235, 2019, 2584, 26000299992, 26000695925, 337099, 337100, 3388209, 3388234, 339088, 3391886, 3391887, 3392857, 339627, 339635, 339662, 339672, 340907, 343029, 345437, 348804, 349587, 349808, 3980069, 660199, 660617, 661654, 687499, 687988, 690094, 690870, 694051, 695089, 695925, 697075, 786067, 786090, 8066206, 8066207, 8115, 8528319, 8538262, 8539555, S87-531, W10194250, W10366770, W10396029, W10396032, W10448892, AH334304, AM211, EA334304, K35-099, OEM9282744, AP3094245, AWP39205, EAP334304, PD00002349, PS334304.
This is one of the most extensively cross-referenced parts in the Whirlpool catalog. If your old motor shows a part number not listed here, contact our support team with your dryer model number and we will verify compatibility.
Compatibility
This drive motor is compatible with select dryers from the following brands:
Whirlpool dryers — electric and gas models across many generations (WED, WGD, LER, LGR, LEQ, LGQ series and many more)
Maytag dryers — select Whirlpool-built models (MED, MGD, MEDC, MEDX series)
KitchenAid dryers (select models)
Jenn-Air dryers (select models)
Amana dryers — select models (NED, NGD series)
Magic Chef dryers (select models)
Admiral dryers (select models)
Norge dryers (select models)
Roper dryers (select models)
Estate dryers (select models)
Kenmore / Sears dryers — select Whirlpool-built models (110-series)
Important — Before Replacing the Motor: A dryer that won't start can be caused by several components that are far cheaper and easier to replace than the motor. Before ordering, check the thermal fuse (electric dryers — test for continuity with a multimeter), the door switch (test for continuity when pressed), and the start switch. All three produce identical no-start symptoms. Only replace the motor after ruling out these common causes — a motor replacement is a significant repair, and it's far cheaper to replace a $10 thermal fuse than a $150+ motor. Always verify your dryer model number before ordering.
Key Features
Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance
Dryer drive motor — powers the drum (via belt and pulley) and the blower wheel simultaneously
Dual-shaft design: drive shaft 1-3/4" and blower shaft 1-3/4"
Pre-attached pulley (pulley is not available separately — included with the motor)
Resolves "won't start," "won't tumble," "stops mid-cycle," "humming/buzzing," "grinding," and "burning smell" symptoms when caused by motor failure
Includes motor assembly, two 1/8" insulated female terminals, and instructions
One of the most widely used dryer motors across the Whirlpool platform — replaces 60+ legacy part numbers
Key cross-references: W10448892, W10396029, W10194250, 8066206, 3395654, 3398046, 3391888, AP3094245, PS334304, EAP334304
Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Estate, and Kenmore dryers
Designed for heavy daily use with minimal noise
DIY repair — installs in 45–90 minutes with basic hand tools
Product Specifications
Part Number
279827
Part Type
Dryer Drive Motor with Pulley
Condition
Genuine OEM
Application
Dryers — Electric & Gas (Whirlpool platform)
Drive Shaft Length
1-3/4"
Blower Shaft Length
1-3/4"
Pulley
Pre-attached (not sold separately)
Function
Powers drum rotation (via belt/pulley) and blower wheel
Kit Includes
Motor assembly, 2x 1/8" insulated female terminals, instructions
Compatible Brands
Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Estate, Kenmore
Installation Notes
⚠️ Disconnect Power Before Starting — 240V Circuit (Electric) or Gas Line (Gas) — Wear Work Gloves Disconnect power at the breaker before beginning — electric dryers operate on a 240V circuit and there is a serious risk of electrical shock. For gas dryers, also shut off the gas supply at the shutoff valve. Wear work gloves and safety glasses. Pull the dryer away from the wall. Remove the lint screen and the screws beneath it. For most Whirlpool-platform dryers, remove the top panel by releasing the spring clips at the front, then detach the front panel by removing the screws at the top corners. Disconnect the door switch wires and set the front panel aside. Support the drum and slide it forward to access the motor at the bottom rear. Remove the drum belt from the motor pulley and idler pulley. Photograph the motor's wiring connections before disconnecting. Disconnect the electrical connections from the motor. Remove the blower wheel from the old motor's blower shaft — this typically requires a clamp or clip removal (the blower wheel threads off counterclockwise on many models). Remove the motor mounting clip/bracket and lift out the old motor. Install the new 279827 motor in the same position. Transfer the blower wheel onto the new motor's blower shaft and secure it. Reinstall the motor mounting clip/bracket. Reconnect the electrical connections using the included insulated female terminals if needed (match your photos). Re-route the drum belt around the drum, through the idler pulley, and onto the motor pulley. Reassemble the front panel, top panel, and lint screen. Restore power (and gas for gas dryers) and run a test cycle — confirm the drum spins smoothly and heated air flows through the drum. Tools needed: Phillips screwdriver, nut driver, socket/ratchet set, putty knife (for spring clips), needle-nose pliers, work gloves, safety glasses.
Frequently Asked Questions
My dryer won't start — is the motor definitely the problem?
Not necessarily — and this is important because a motor replacement is a significant repair. A dryer that won't start can be caused by several components that are far cheaper and easier to replace. Before ordering the motor, check these first: 1) Thermal fuse (electric dryers) — a blown thermal fuse is the single most common cause of a no-start condition. Test for continuity with a multimeter; if it reads open, replace the fuse (~$10). 2) Door switch — test for continuity when pressed; if it's failed, the dryer won't start as a safety measure. 3) Start switch — if pressing the start button produces no response at all, the start switch itself may have failed. Only replace the motor after ruling these out. Signs that point specifically to the motor: a loud humming or buzzing when you press start (motor trying but can't turn), grinding or squealing from the motor area, or a motor that runs intermittently and cuts out.
Why does the motor hum but the drum doesn't turn?
A humming motor that won't turn is a classic sign of a seized or failing motor — the windings are energized (hence the hum) but the shaft can't rotate because the bearings have failed or the motor is mechanically stuck. This can also be caused by the blower wheel being jammed with lint or debris, preventing the shaft from turning — so before condemning the motor, check the blower wheel for obstructions. If the blower wheel spins freely and the motor still hums without turning, the motor has failed and needs replacement. Note: a humming motor that won't start will eventually trip the thermal fuse as a safety measure, so you may need to replace both the motor and the thermal fuse.
Why are there so many cross-reference part numbers for this motor?
The 279827 is one of the most extensively cross-referenced parts in the Whirlpool catalog because it's been the standard dryer drive motor across the Whirlpool platform for decades — spanning Whirlpool, Maytag, KitchenAid, Amana, Roper, Estate, Kenmore, and many other brands that Whirlpool manufactures for. Over the years, the motor has been assigned different part numbers by different brands, distributors, and catalog systems (W10448892, W10396029, 8066206, 3395654, 3398046, etc.), but they all point to the same motor. If your old motor shows ANY of those numbers, the 279827 is the correct replacement.
Does this motor come with the pulley?
Yes — the pulley is pre-attached to the motor and is not available separately. The pulley is what the drum belt rides on, transferring the motor's rotation to the drum. If your old motor's pulley was worn or grooved (a common cause of belt slipping and squealing), the new 279827 includes a fresh pulley. You will need to transfer the blower wheel from your old motor to the new one — the blower wheel is not included.
Should I replace the belt and idler pulley while changing the motor?
It's strongly recommended. When you replace the motor, the dryer is already apart and both the drum belt and idler pulley are right there in your hands. All three components wear from the same friction and heat cycles, and installing a new motor with a worn belt or a seized idler pulley puts unnecessary stress on the new motor from day one. Many technicians replace the belt, idler pulley, and drum support rollers as standard maintenance whenever the dryer is opened for a motor replacement — the combined cost of these parts is modest compared to the labor of disassembling the dryer again later.
Is this a Genuine OEM or aftermarket part?
This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same drive motor with pulley installed in compatible Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Estate, and Kenmore dryers from the factory — guaranteed fit, materials, and performance.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
WPW10448896 Dryer Genuine OEM Drive Motor
Replaces Part Number: WPW10448896, W10448896, 2312076, 8547170, 8571882, W10007310, W10136931, W10136932, W10396036, W10460374, AP6021554, PS11754878.
Description: This Dryer Drive Motor is a Genuine OEM part for specific Whirlpool, Kenmore, Maytag dryer models. This motor is responsible for turning the drum and the blower wheel, which allows for effective drying and air circulation within the dryer. Over time, the drive motor can wear out or fail due to mechanical stress, electrical issues, or general wear from regular use. Causes of a bad drive motor include motor burnout, worn bearings, or issues with the electrical connections.

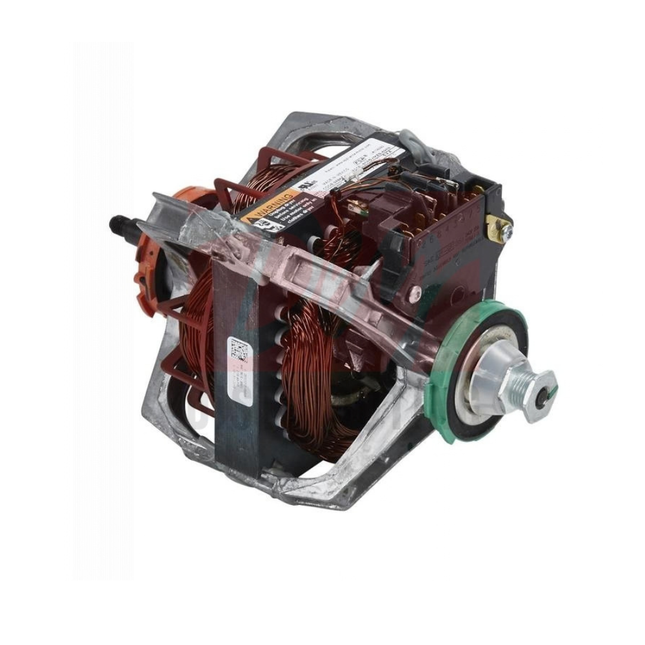

Genuine OEM W11511154 Dryer Drive Motor
The W11511154 is a genuine OEM dryer drum drive motor from Whirlpool, with the pulley for the drum belt included. It is the motor that turns the drum through the drive belt and also drives the blower that moves air through the dryer. When it fails or weakens, the dryer may not start, hum without turning, run loudly, stop partway through a cycle, or leave clothes damp because the drum or airflow isn't running properly.
This is a genuine OEM part, not an aftermarket equivalent, so the fit and the motor match what came with the dryer. It replaces several earlier Whirlpool drive motor numbers, including W11364931 and W11086656, both of which are now replaced by this number.
Quick Answer
The Genuine OEM W11511154 Dryer Drive Motor fixes a Whirlpool-built dryer that won't start, hums but the drum won't turn, runs noisily, or stops mid-cycle because the drive motor has failed. Genuine OEM from Whirlpool, with the pulley for the drum belt included. Classic symptom: you hear a hum or nothing at all when the dryer should be tumbling, even though the belt and power are fine.
Common Problems This Part Fixes
Dryer won't start, or hums without turning the drum
Drum stops turning during a cycle
Loud grinding, squealing, or rumbling from the motor area
Weak airflow or damp clothes from a failing blower drive
Dryer cycles interrupted by a motor that overheats or fails
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drive motor replaces the following part numbers:
W11511154, W11364931, W11086656, WPW10620755, W10620755, W10806758, W10806760, W11123147, W11322192, W11483444, W11493867, W11778635, W11322192, S58TVMZS-7220, Model S58SVMZS-7215, 524AF, AP6997567, AWP466032, FIX16227121, PD00095778, PS16227121
W11511154 is Whirlpool's current number for this motor. The earlier numbers above, including W11364931 and W11086656, have been superseded by it. The source list continues beyond those shown, so additional numbers may exist.
Compatibility
This drive motor is listed for dryers from:
Whirlpool
Maytag
Amana
Crosley
Inglis
Note: No full model list is published for this motor, and drive motors differ between dryer platforms. Confirm fit by matching the number on your old motor or your parts diagram against the Replaces list, or contact our support team with your model number and we'll verify before you order.
Key Features
Genuine OEM Whirlpool dryer drive motor, not an aftermarket equivalent
Includes the pulley for the drum belt
Current number, superseding W11364931, W11086656, and other earlier Whirlpool drive motors
Restores drum rotation and blower airflow
Product Specifications
Part Number
W11511154
OEM Part Number
W11511154
Part Type
Dryer Drum Drive Motor
Condition
Genuine OEM
Manufacturer
Whirlpool
Included
Motor with Pulley for Drum Belt
Application
Select Whirlpool, Maytag, Amana, Crosley & Inglis Dryers
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker, and shut off the gas supply first if it's a gas model. Following your model's service guide, remove the panels needed to reach the motor at the bottom of the cabinet. Take note of the belt routing, then release the drum belt and disconnect the motor's wiring harness. Remove the mounting hardware and take out the old motor. Install the new motor in the same position, make sure the pulley is on the shaft and aligned, and reconnect the wiring. Refit the drum belt following the original routing, replace the panels, and run the dryer to confirm the drum turns smoothly. It's a good time to check the belt and idler pulley for wear, since they affect the new motor's life.
Frequently Asked Questions
My dryer hums but the drum won't turn. Is this the part I need?
It could be the motor, but a broken drum belt is a more common cause. Open the dryer and check that the belt is intact and the drum turns by hand. If the belt and idler pulley are fine and the motor hums or doesn't run, the drive motor is the likely cause.
Does it include the pulley?
Yes. The motor comes with the pulley for the drum belt.
My old motor is marked W11364931 or W11086656. Will this work?
Yes. Both numbers are on the Replaces list and have been replaced by W11511154.
Is this a genuine Whirlpool part?
Yes. This is a genuine OEM Whirlpool part, not an aftermarket equivalent.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
W10410997 Dryer Genuine OEM Drive Motor
Replaces Part Number: W10410997, 2118675, 33001753, 33001853, 33001854, 33002237, 33002462, 33002478, W10410997VP, WFR181207, AH3500892, EA3500892, OEM21090894, AP5272723, PS3500892.
Description: This Dryer Drive Motor is a Genuine OEM part for specific Whirlpool, Kenmore, Maytag dryer models. This motor is responsible for turning the drum and the blower wheel, which allows for effective drying and air circulation within the dryer. Over time, the drive motor can wear out or fail due to mechanical stress, electrical issues, or general wear from regular use. Causes of a bad drive motor include motor burnout, worn bearings, or issues with the electrical connections.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
134196602CM Dryer Drive Motor
120V, 60Hz, 1/4 HP, main motor
Fits Specific Frigidaire dryer Models.
Replaces Part Numbers:134196602, 134196600, 134196601, AP6783327, PS12584805.
This is an aftermarket part that can be used as a replacement for the OEM part.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
XPARTCO Dryer Replacement Part

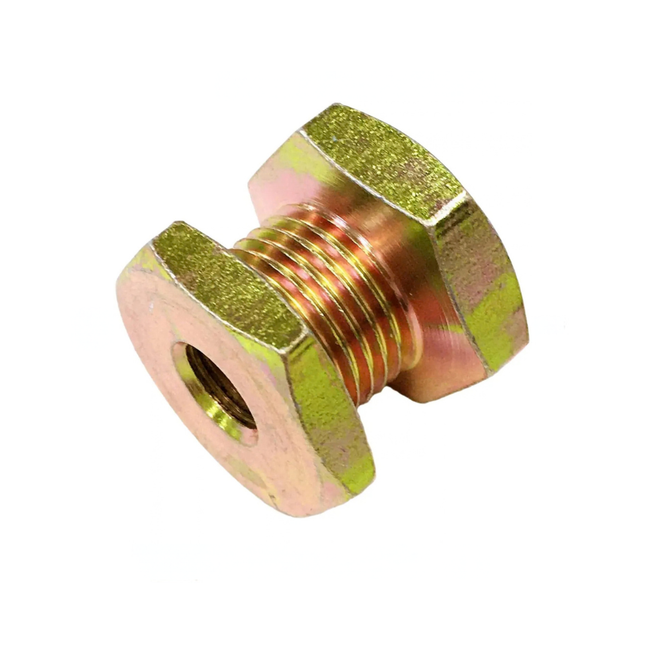

XPARTCO 754305 Dryer Motor Pulley for WP2200376 Replaces WP8066184
Quality aftermarket replacement motor pulley designed for compatible dryers using part numbers 754305, WP2200376, or WP8066184.
Product Description
The XPARTCO 754305 Dryer Motor Pulley is a quality aftermarket replacement part designed to restore proper belt drive operation in compatible dryers. The motor pulley mounts to the dryer motor shaft and transfers motor rotation to the drum belt so the drum can turn during the drying cycle.
This part is intended for applications calling for 754305 or WP2200376 and replaces WP8066184. A worn, damaged, loose, or stripped pulley can cause poor drum rotation, unusual belt noise, belt tracking problems, or a dryer drum that does not turn correctly.
Quick Answer
XPARTCO 754305 is a dryer motor pulley used in compatible applications specifying WP2200376. It also replaces WP8066184. This is a quality aftermarket replacement part for restoring the motor-to-belt drive connection.
Common Problems This Part Fixes
Dryer drum does not turn even though the motor runs
Drive belt slips or tracks incorrectly
Squealing, scraping, or clicking near the motor pulley
Pulley grooves are worn, chipped, cracked, or damaged
Pulley is loose or stripped on the motor shaft
Repeated belt wear caused by a damaged drive pulley
Replaces part Number
Use the following part numbers when checking fit and cross-reference information:
754305, WP2200376, WP8066184
Compatibility
Designed for select dryers that specify motor pulley part number 754305, WP2200376, or the replaced number WP8066184. Dryer pulleys can appear similar while differing in shaft fit, groove profile, diameter, or belt alignment.
Always verify the complete appliance model number and required part number before ordering. If you are unsure, compare your original pulley and model information before installation.
Key Features
XPARTCO quality aftermarket replacement part
Designed for compatible dryer motor assemblies
Transfers motor power to the dryer drive belt
Helps restore proper drum rotation
Direct replacement for specified compatible applications
Cross-references 754305, WP2200376, and WP8066184
Product Specifications
Brand
XPARTCO
Primary Part Number
754305
Compatible / Reference Number
WP2200376
Replaces
WP8066184
Part Type
Dryer Motor Pulley
Condition
New
Quality
Quality aftermarket replacement part
Application
Clothes Dryer
Primary Function
Transfers motor rotation to the dryer drive belt
Package Quantity
1 Motor Pulley
Troubleshooting Guide
Disconnect the dryer from electrical power before inspection or service.
Inspect the drive belt for glazing, cracking, stretching, fraying, or uneven wear.
Inspect the motor pulley grooves for wear, cracks, chips, deformation, or buildup.
Check that the pulley is secure on the motor shaft and does not wobble or slip.
Inspect the idler pulley and drum support components because related drive-system wear can produce similar symptoms.
After repair, confirm the belt is routed correctly and aligned in the motor pulley grooves before operating the dryer.
Safety: Unplug the dryer before service. If you are not comfortable working around electrical and mechanical components, installation should be performed by a qualified appliance technician.
When Should You Replace This Part?
The pulley is cracked, chipped, bent, or visibly worn
The pulley grooves no longer hold or guide the belt correctly
The pulley slips, wobbles, or does not stay secure on the motor shaft
The dryer has recurring belt tracking or belt wear problems traced to the motor pulley
Inspection confirms the original 754305, WP2200376, or WP8066184 pulley is damaged
Shop With Confidence
Choose XPARTCO for dependable appliance replacement parts and practical compatibility support. Verify your dryer model and required part number before ordering for the best fit.
XPARTCO Quality Aftermarket Fast U.S. Shipping Compatibility Support

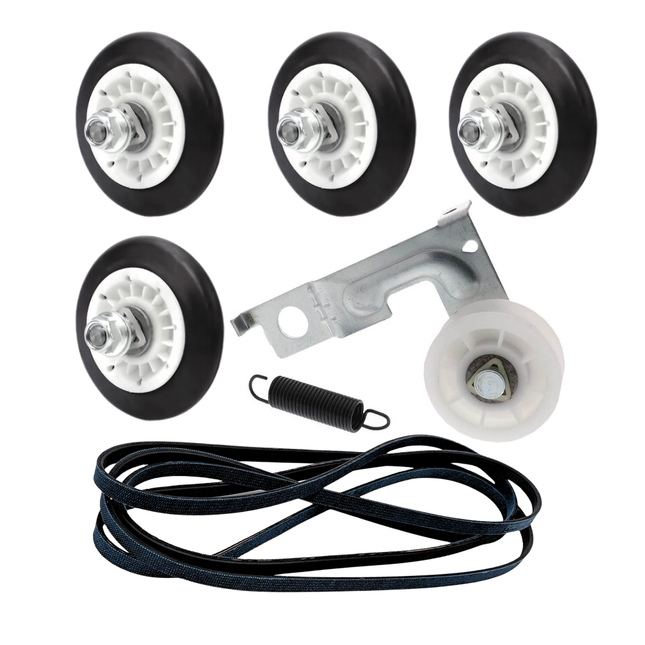

XPARTCO EXP445 Dryer Repair Kit Replaces 4581EL2002C, 4400EL2001F, 4561EL3002A
The XPARTCO EXP445 is a complete aftermarket dryer maintenance kit for LG-built dryers sold under the LG and Kenmore brands, bundling the three components that most commonly wear out together as a dryer ages: the drum support rollers, the drive belt, and the idler pulley. Rather than ordering these parts one at a time as each fails, this kit lets you service the whole drum support and drive system in a single repair — the recommended approach once any one of these parts shows wear, since they all take similar stress and tend to fail in the same general time frame.
This kit includes 4 drum support rollers with metal shafts and high-strength bearings, 1 reinforced rubber drive belt, and 1 idler pulley assembly. It directly replaces roller numbers 4581EL2002L, 4581EL2002H, 4581EL2002C, 4581EL2002A, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001F, AGM75510755, AP7220429, PS17269866; belt numbers 4400EL2001F, 4400EL2001A, 4400EL2001C, 4400EL2001E, 4115028, AP5972814, PS11705916; and idler pulley numbers 4561EL3002A, 4561EL3002B, AH3523033, EA3523033, AP4438243, PS3523033. Installs in 60–90 minutes with basic hand tools.
Quick Answer
The XPARTCO EXP445 Dryer Repair Kit fixes LG and Kenmore (LG-built) dryers with a loud rumbling/squeaking noise, a slipping or squealing belt, or a drum that won't turn — the classic signs that the drum support and drive system need a complete service. Includes 4 drum rollers, 1 drive belt, and 1 idler pulley. Replaces 4581EL2002L/H/C/A/D/E, 4581EL3001A/C/F, AGM75510755, AP7220429, PS17269866, 4400EL2001F/A/C/E, 4115028, AP5972814, PS11705916, 4561EL3002A/B, AH3523033, EA3523033, AP4438243, PS3523033. Classic symptom: loud rumbling that progresses to a squealing belt and, eventually, a drum that stops turning.
Common Problems This Part Fixes
Loud rumbling, thumping, or squeaking noise from the dryer during operation
High-pitched squealing noise, especially at startup or when the drum is heavily loaded
Dryer runs but the drum doesn't turn (motor runs, drum stays still)
Burning rubber smell from a slipping or worn belt
Drum riding unevenly, wobbling, or vibrating during the cycle
Belt visibly frayed, cracked, or glazed/shiny from slipping
What's In The Kit
Component
Qty
Replaces
Drum Support Roller (w/ shaft & bearing)
4
4581EL2002L, 4581EL2002H, 4581EL2002C, 4581EL2002A, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001F, AGM75510755, AP7220429, PS17269866
Drive Belt (reinforced rubber, poly-V)
1
4400EL2001F, 4400EL2001A, 4400EL2001C, 4400EL2001E, 4115028, AP5972814, PS11705916
Idler Pulley Assembly
1
4561EL3002A, 4561EL3002B, AH3523033, EA3523033, AP4438243, PS3523033
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This repair kit directly replaces the following OEM and cross-reference part numbers:
EXP445, 4581EL2002L, 4581EL2002H, 4581EL2002C, 4581EL2002A, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001F, AGM75510755, AP7220429, PS17269866, 4400EL2001F, 4400EL2001A, 4400EL2001C, 4400EL2001E, 4115028, AP5972814, PS11705916, 4561EL3002A, 4561EL3002B, AH3523033, EA3523033, AP4438243, PS3523033
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This repair kit is compatible with select LG-built dryers from the following brands:
LG dryers (including DLE7177WM, DLE5955W, DLEX3470V, and related models)
Kenmore / Sears dryers (select LG-built models, including 796.81022900)
Note: This kit is specific to LG's roller/belt/pulley platform and uses a different belt and roller design than Whirlpool-, GE-, or Samsung-built dryers. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Complete drum support and drive system service kit — rollers, belt, and idler pulley in one order
Resolves "rumbling," "squealing belt," "drum won't turn," and "burning smell" symptoms together
4 drum support rollers with metal shafts and high-strength bearings
1 reinforced rubber poly-V drive belt
1 idler pulley assembly that keeps tension on the belt
Services the components most likely to wear out together, reducing repeat repair trips
Replaces 4581EL2002L/H/C/A/D/E, 4581EL3001A/C/F, 4400EL2001F/A/C/E, 4561EL3002A/B, and additional cross-reference numbers
Compatible with LG and Kenmore (LG-built) dryers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
EXP445
Kit Type
Dryer Drum Roller, Belt & Idler Pulley Repair Kit
Condition
Aftermarket Replacement
Rollers Included
4 (with shaft, bearing, mounting hardware)
Belt Included
1 (reinforced rubber, poly-V)
Idler Pulley Included
1
Application
LG-Built Dryer Drum Support & Drive System
Compatible Brands
LG, Kenmore
Installation Notes
⚠️ Unplug Dryer Before Starting Disconnect power before beginning. Remove the front panel (typically held by spring clips or screws behind the door frame) and carefully lift the drum out, supporting it so it doesn't drop or scratch the cabinet. With the drum removed, replace all 4 drum support rollers on their shafts, securing each with its retaining nut/washer. Slip the old belt off the motor pulley and remove the old idler pulley from its mounting bracket. Install the new idler pulley, then route the new belt around the drum and motor pulley exactly as the old one was routed (photograph the belt routing before removal) — the belt typically threads under the idler pulley with the ribbed side against the drum. Reinstall the drum onto the new rollers, verify the belt sits centered and properly tensioned, and reinstall the front panel. Restore power and run a test cycle to confirm quiet, smooth operation. Tools needed: nut driver or socket set, putty knife (for spring clips, if applicable), and a camera or phone to document belt routing before disassembly.
Frequently Asked Questions
Why buy a full kit instead of just the failed part?
The rollers, belt, and idler pulley all experience similar wear over the dryer's life and tend to fail within a similar timeframe of each other. Since the drum has to come out to access any one of these parts, most technicians and experienced DIYers replace all three at once — it costs less in total labor and time than doing three separate repairs as each part fails one after another.
My dryer runs but the drum doesn't turn — is this the kit I need?
Yes, in most cases. A drum that doesn't turn while the motor runs is almost always caused by a broken drive belt or a seized idler pulley. Since this kit includes both, along with the rollers that are commonly worn by the time the belt fails, it addresses the full drive system in one repair.
Will this fit my Whirlpool, GE, or Samsung dryer?
No — this kit is specific to the LG-built roller/belt/pulley platform used in LG and select Kenmore dryers. Other brands use different roller, belt, and pulley designs that this kit will not fit. Confirm your appliance model number before ordering.
Do I need to photograph the belt routing before removing the old one?
Yes, strongly recommended. LG dryer belts route around the drum and motor pulley in a specific path, often threading under the idler pulley in a particular orientation. Photographing the routing before removal makes reinstallation straightforward and avoids a belt that runs off-track or slips after reassembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
EXP651 Dryer Belt and Idler Pulley Kit Replaces WPW10112954, W10837240
The EXP651 is an aftermarket dryer repair kit containing two essential drum drive components for select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers. The kit includes one drum belt (replaces WPW10112954) and one idler pulley assembly with bracket (replaces W10837240) — the two parts most commonly worn together when a dryer drum stops spinning or becomes noisy.
Replacing both the belt and idler pulley at the same time is the smart repair choice. Since the dryer must be disassembled to access either part, doing both in one repair saves you from having to take the machine apart again if the second part fails shortly after. This kit covers the two most common failure points in the Whirlpool-family dryer drum drive system.
Quick Answer
The EXP651 Dryer Belt and Idler Pulley Kit fixes dryers where the drum is not spinning, making loud squeaking or grinding noises, or the belt has broken. Includes one 93-1/4" x 5/16" 5-rib drum belt (WPW10112954) and one idler pulley assembly with bracket (W10837240). Compatible with select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers.
What's in the Kit
Part 1 of 2
Dryer Drum Belt — Replaces WPW10112954
93-1/4" L x 5/16" W x 1/8" H · 5-rib Multi-V rubber belt · Wraps around drum and connects to motor and idler pulleys to drive drum rotation
Part 2 of 2

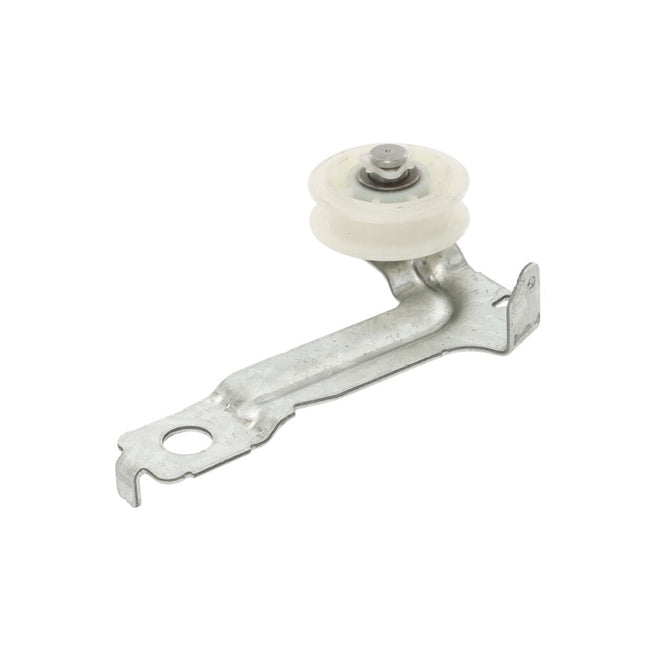

Idler Pulley Assembly with Bracket — Replaces W10837240
2-1/8" pulley diameter · 6-1/4" L x 1-1/4" W x 3-7/16" H overall · Plastic/metal construction · Maintains correct belt tension to spin the drum · Fits Whirlpool dryers with lint screen inside door
Common Problems This Kit Fixes
Dryer drum not spinning — motor runs but drum stays still
Loud squeaking, squealing, or grinding noise during operation
Clothes not tumbling during the drying cycle
Thumping or slapping noise when dryer is running
Belt slipping off or repeatedly breaking
Burning rubber smell coming from the dryer
Dryer drum turning erratically or stopping while motor continues to run
Replaces Part Numbers
Drum Belt (WPW10112954) cross-references:
WPW10112954, W10112954, 1447719, AWP48873, PD00003553, EAP11748388, AP6015116, PS11748388.
Idler Pulley Assembly (W10837240) cross-references:
W10837240, W10547287, W10547290, 3387372, 3388674, W10118754, W10118756, W10837240VP, AWP41730, PD00025564, FIX11726337, AP5988716, PS11726337, 279640, AP3094197, 279640VP, 2958, 3388672, 697692, TJ279640, W10468057, AH334244, EA334244, ER279640, PS334244.
If your part numbers are not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This kit is compatible with select dryers from the following brands:
Whirlpool dryers (gas and electric — fits models with lint screen inside door)
Maytag dryers (gas and electric)
Amana dryers
Kenmore / Sears dryers (select Whirlpool-built models)
KitchenAid dryers
Crosley dryers
Admiral dryers
Inglis dryers
Roper dryers
Note: The W10837240 idler pulley fits Whirlpool-family dryers with the lint screen located inside the door. If your dryer has the lint screen on top of the cabinet, a different idler pulley part number may be required. Contact our support team to confirm before ordering.
Key Features
Two-part kit covers the most common drum drive failures in Whirlpool-family dryers in a single repair
Belt: 93-1/4" L x 5/16" W, 5-rib Multi-V rubber — resists cracking, stretching, and heat damage
Idler pulley: 2-1/8" diameter pulley with arm and bracket — maintains correct belt tension for smooth drum rotation
Replacing both parts together saves a second disassembly if the other part fails soon after
Aftermarket replacement built to OEM-equivalent quality standards
Belt directly replaces WPW10112954 / W10112954 — no modification required
Idler pulley directly replaces W10837240 / W10547287 / W10547290 — no modification required
DIY-friendly repair — installs in 30–60 minutes with basic hand tools
Product Specifications
Kit Part Number
EXP651
Condition
Aftermarket Replacement
Application
Gas and Electric Dryers
Kit Includes
1x Drum Belt (WPW10112954), 1x Idler Pulley Assembly with Bracket (W10837240)
Belt Length
93-1/4 inches
Belt Width
5/16 inch
Belt Height
1/8 inch
Belt Ribs
5 ribs, 4 grooves (Multi-V)
Belt Material
Rubber
Pulley Diameter
2-1/8 inches
Pulley Overall Dimensions
6-1/4" L x 1-1/4" W x 3-7/16" H
Pulley Material
Plastic / Metal
Compatible Brands
Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, Roper
Installation Notes
⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. Remove the lint screen, then unscrew the Phillips screws inside the lint screen housing. Use a putty knife to release the top panel clips and lift the top panel. Remove the front panel to access the drum and drive components. Release belt tension at the old idler pulley, lift the drum slightly, and slide the old belt off. Remove the old idler arm assembly by unscrewing the mounting screw, then install the new W10837240 idler pulley assembly and secure with the screw. Loop the new WPW10112954 belt around the drum with the ribbed side facing inward, then route it around the new idler pulley and motor pulley. Consult your model's service manual or a model-specific repair video for the correct belt path. Reassemble and run a test cycle. Tools needed: Phillips screwdriver, putty knife or flat pry tool.
Frequently Asked Questions
Why should I replace the belt and idler pulley at the same time?
The belt and idler pulley wear together — when one fails, the other is usually close behind. Since the dryer must be fully disassembled to access either part, replacing both in a single repair saves you from having to take the machine apart again soon after. It also protects the new belt from being damaged by a worn pulley, and vice versa.
How does the W10837240 differ from other Whirlpool idler pulleys?
The W10837240 is the updated idler pulley arm and bracket assembly designed for Whirlpool-family dryers that have the lint screen inside the door. It replaces the older W10547287 and W10547290 assemblies. Some older or different Whirlpool models use a different idler pulley style — if you're unsure which one your dryer needs, contact our support team with your model number before ordering.
What is the difference between WPW10112954 and W10112954?
These are the same belt. WPW10112954 is the updated Whirlpool OEM part number that superseded the original W10112954. Both refer to the identical drum belt included in this kit.
Should I also replace the drum rollers at the same time?
It depends on the condition of your rollers. Since the dryer is already fully disassembled, it is a good opportunity to inspect the drum support rollers for flat spots, cracks, or wobbling. If they show any wear, replacing them at the same time is recommended to avoid a third disassembly. Check your model's roller part number before ordering.
Are these OEM or aftermarket parts?
Both parts in this kit are aftermarket replacements built to OEM-equivalent quality standards. They are not genuine Whirlpool OEM parts, but are manufactured to match the dimensions and performance of the original WPW10112954 belt and W10837240 idler pulley assembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DC93-00634A Dryer Idler Pulley
The XPARTCO DC93-00634A is an aftermarket replacement idler pulley assembly compatible with a wide range of Samsung dryers. The idler pulley rides against the drive belt and keeps it under proper tension as it wraps around the drum and motor pulley. Over time, the pulley wheel can wear, crack, or seize on its shaft, or the spring-loaded tensioner arm can bend or break, causing the belt to lose tension.
When this part fails, the dryer commonly won't spin at all even though the motor runs, makes a loud noise from the drive area, or the belt goes slack and starts slipping. It directly replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601. Installs in 30 minutes to 2 hours depending on how much disassembly your model requires.
Quick Answer
The XPARTCO DC93-00634A Dryer Idler Pulley fixes Samsung dryers that won't spin the drum even though the motor runs, make a loud noise from the drive belt area, or have a loose/slipping belt. Replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601. Classic symptom: motor hums and runs, but the drum doesn't turn — "no spin, no start."
Common Problems This Part Fixes
Dryer motor runs but the drum doesn't spin ("no spin, no start")
Loud noise or rattling coming from the drive belt/motor area
Drive belt slipping, loose, or off-track
Visible cracks, wear, or seizing on the pulley wheel
Bent or broken tensioner arm/spring
Squeaking noise from the pulley as it rotates
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This idler pulley directly replaces the following OEM and cross-reference part numbers:
DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This idler pulley is compatible with a wide range of Samsung dryers, including:
Samsung DV337AEG/XAA-0000
Samsung DV45H7000EW/A2-0000
Samsung DV45K6200EZ/A3
Samsung DV203AEW/XAA-0000, DV203AGS, and related models
Note: This idler pulley is specific to the Samsung drive belt platform and does not fit LG, Whirlpool, GE, or other brands, which use different pulley designs. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Direct-fit replacement Samsung dryer idler pulley assembly
Resolves "no spin, no start," "loud noise," and "loose/slipping belt" symptoms
Maintains proper belt tension as the belt wraps around the drum and motor pulley
Spring-loaded tensioner arm matches original design for correct belt tension
Replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601
Compatible with a wide range of Samsung dryer models
Aftermarket replacement built to OEM-equivalent quality standards
Exact-fit design — no modification needed for installation
Product Specifications
Part Number
XPDC93-00634A
OEM Part Number
DC93-00634A
Part Type
Dryer Idler Pulley Assembly
Condition
Aftermarket Replacement
Function
Maintains drive belt tension
Application
Samsung Dryer Drive Belt System
Compatible Brand
Samsung
Installation Notes
⚠️ Unplug Dryer Before Starting Disconnect power before beginning. Remove the front panel and/or top panel as needed to access the drum and drive belt (access point varies by model). Photograph the belt routing before removing anything. Relieve tension on the drive belt by pressing the idler pulley toward the motor, then slip the belt off the pulley and motor shaft. Remove the mounting screw or clip holding the idler pulley bracket in place and remove the old pulley assembly. Install the new DC93-00634A pulley in the same position and secure it. Route the new belt back around the drum and motor pulley, using the idler pulley to apply tension, matching your photos of the original routing. Reassemble any panels removed for access, restore power, and run a test cycle to confirm the drum spins smoothly and quietly. Tools needed: Phillips or nut driver, putty knife (for panel clips, if applicable).
Frequently Asked Questions
My dryer's motor runs but the drum won't spin — is this the part?
This is the classic "no spin, no start" symptom of a failed idler pulley or a broken drive belt. If the pulley wheel is cracked, seized, or the tensioner arm is bent or broken, the belt loses tension and can no longer transfer power from the motor to the drum. Inspect the belt for damage as well, since a broken belt often accompanies a worn idler pulley.
Do I need to replace the drive belt at the same time?
Not necessarily, but it's worth inspecting closely while you have the drum accessible. If the idler pulley failed due to age or wear, the belt has often experienced similar stress and may be worn, glazed, or close to failing itself. Many technicians replace both together to avoid a repeat repair.
Will this fit my LG or Whirlpool dryer?
No — this idler pulley is specific to the Samsung drive belt platform. LG, Whirlpool, GE, and other brands use different idler pulley and belt tensioning designs that are not interchangeable with this part. Confirm your appliance model number before ordering.
How long does this repair typically take?
Most installers report 30 minutes to 2 hours depending on how much disassembly your specific model requires to access the belt and pulley. Front panel removal is usually the more time-consuming part; the pulley swap itself is quick once accessed.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
4681EA2001T Genuine OEM LG Washer Drain Pump Motor
The 4681EA2001T is a genuine LG OEM drain pump motor for LG and Kenmore front-load washers, and also fits washer/dryer combo units. This motor is responsible for removing water from the washer at the end of the wash and spin cycles, expelling it through the drain hose so the machine can move on to the next stage of the cycle.
This part is the motor only — you'll reuse your existing pump housing. It includes the pump impeller, which is not sold separately. Rated 120V-127V, 60Hz, 85W, 1.4A, with a flow rate of 45L per minute. Measures approximately 6.57" x 4.29" x 3.5". As of April 2025, the design of this drain pump motor changed to a gray housing, replacing the earlier black housing — this is expected and doesn't affect fit or function. Common failure causes include a worn or seized motor and general electrical wear. Symptoms of a failing drain pump motor include the washer not draining, unusual noise during the drain cycle, an OE error code, or leaking near the pump if the motor fails while still under load. It directly replaces 4681EA2001D, 4681EA2001U, 4681EA2001N, 4681EA1007G, 4681EA1007D, LP2001T, AP5328388, 2003273, 1468049, DP040-038, EAP3523278, EAP3579318, and 5214FR4006L.
Quick Answer
The 4681EA2001T Genuine OEM LG Washer Drain Pump Motor fixes LG and Kenmore front-load washers (and washer/dryer combos) that aren't draining, are making unusual noise during the drain cycle, or are showing an OE error code. 120V-127V, 60Hz, 85W, 1.4A, 45L/min. Replaces 4681EA2001D, 4681EA2001U, 4681EA2001N, 4681EA1007G, 4681EA1007D, LP2001T, AP5328388, 2003273, 1468049, DP040-038, EAP3523278, EAP3579318, 5214FR4006L. This is the motor only — reuse your existing pump housing when installing. As of April 2025, the new housing color is gray instead of the older black; this is a normal design change and not a compatibility issue.
Common Problems This Part Fixes
Washer not draining — standing water left in the tub after a cycle
Unusual noise during the drain cycle
OE error code displayed on the control panel
Washer taking longer than normal to drain
Leaking near the pump area
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drain pump motor directly replaces the following OEM and cross-reference part numbers:
4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, DP040-038, ALG51292, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump motor is compatible with select LG front-load washers, and also fits select Kenmore Elite washers built on the LG platform, and washer/dryer combo units, including model numbers such as WM2101HW, WM3270CW, WM3431HS, WM3770HVA, WM3001HWA, WM8000HVA, WM8000HWA, WM2550HRCA, WM2550HWCA, GCW1069CS, WM3550HWCA, WM3070HRA, WM4070HVA, WM3070HWA, WM2350HRC, WM3360HVCA, WM2350HWC, GCW1069QS, WM2650HRA, WM3360HRCA, WM3360HWCA, WM3150HVC, WM2650HWA, WM2655HVA, WM3885HCCA, WM3150HWC, WM3885HWCA, WM2250CW, WM2450HRA, WM3987HW, WM3470HVA, WM3470HWA, LSWF388HVS, WM3550HVCA, WM2455HG, WM2277HB, WM2487HRMA, and Kenmore 79641072310.
Note: Always verify your full model number before ordering, since LG uses several different drain pump designs across its washer lineup. Contact our support team with your model number if you're unsure.
Key Features
Genuine LG OEM part — factory-specified motor design and impeller
Pumps wastewater out of the tub through the drain hose
Resolves "not draining," "unusual noise during drain," and "OE error code" symptoms caused by motor failure
Includes pump impeller (not sold separately)
Reuses your existing pump housing — motor only
Rated 120V-127V, 60Hz, 85W, 1.4A, 45L/min flow rate
Direct drop-in replacement matching the original mounting and connections
Replaces 4681EA2001D, 4681EA2001U, 4681EA2001N, 4681EA1007G, 4681EA1007D, LP2001T, AP5328388, 2003273, 1468049, DP040-038, EAP3523278, EAP3579318, and 5214FR4006L
Compatible with LG and Kenmore front-load washers and washer/dryer combo units
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
4681EA2001T
Part Type
Washer Drain Pump Motor
Condition
Genuine OEM
Brand
LG
Application
Front-Load Washers, Washer/Dryer Combos
Voltage
120V-127V
Frequency
60 Hz
Wattage
85 W
Amperage
1.4 A
Flow Rate
45 L/min
Dimensions
Approx. 6.57" x 4.29" x 3.5"
Housing
Not included — reuse existing pump housing
Housing Color (as of April 2025)
Gray (previously black)
Repair Difficulty
Medium — 30 to 60 minutes
Quantity
1 drain pump motor
Compatible Brands
LG, Kenmore
Installation Notes
⚠️ Unplug Washer And Shut Off Water Supply Before Starting — Have Towels Ready For Draining Water Disconnect power at the outlet or shut off the circuit breaker, and shut off the water supply before beginning. Wear work gloves. Lay towels down in front of the washer before starting, and have a pail ready. Remove the detergent drawer and check the drain filter (bottom lower left panel door) to confirm it's clean and the drain line isn't blocked before assuming the motor is at fault. Many customers find it easier to access the pump from underneath by carefully laying the washer on its back — be prepared for a significant amount of additional water to drain out onto the floor once you do this, so keep towels close by. With access to the pump, disconnect the electrical connector from the old motor and separate the motor from the pump housing, which you'll reuse with the new motor. Attach the new 4681EA2001T motor to your existing pump housing, transferring the impeller setup as needed. Reconnect the electrical connector fully. Stand the washer back upright, reinstall the detergent drawer, and reconnect the water supply and power. Test the new pump to confirm it drains properly before considering the repair complete. Tools needed: Phillips screwdriver, locking pliers, needle nose pliers, small flathead screwdriver, towels, work gloves.
Frequently Asked Questions
My washer shows an OE error code and isn't draining. Is this the part I need?
Likely yes. An OE error code on LG washers is commonly tied to a drain issue, and a bad drain pump motor is one of the most frequent causes. Before replacing the motor, it's worth checking that the drain filter and coin trap (if your model has one) are clean and that the drain line itself isn't blocked, since those are simpler and cheaper things to rule out first.
Does this come with the pump housing?
No, this is the motor only, and it includes the pump impeller, which isn't sold separately. You'll reuse your existing pump housing during installation rather than replacing it as part of this repair.
The new motor's housing looks a different color than I expected. Did I get the wrong part?
No, this is expected. As of April 2025, LG changed the design of this drain pump motor to use a gray housing in place of the earlier black housing. This is a normal manufacturing update and doesn't affect fit or function.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original motor design, impeller, and electrical rating of the drain pump motor originally installed in your washer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
