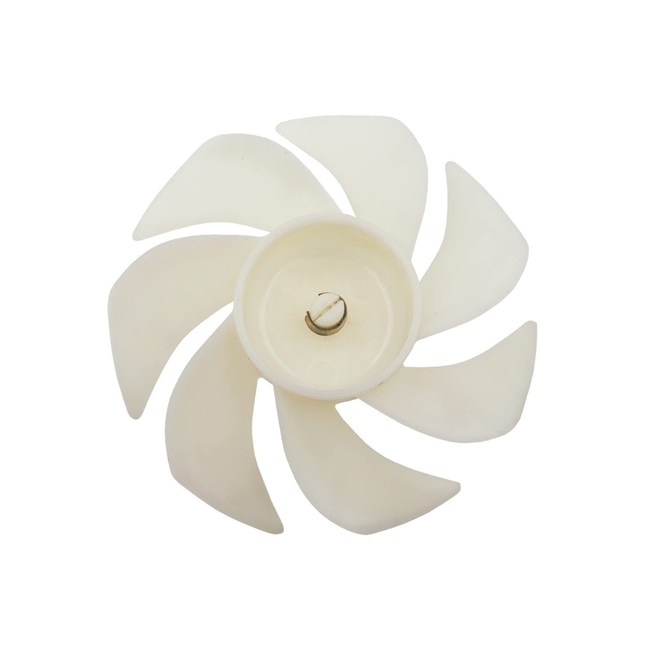

5901JA1021A Genuine OEM LG Refrigerator Evaporator Fan Blade
The 5901JA1021A is a genuine LG OEM evaporator fan blade for LG and select Kenmore refrigerators. This is the plastic blade itself — not the motor — that mounts onto the evaporator fan motor's shaft and physically moves air through the evaporator fins and interior compartment as it spins, which is what carries cooled air to the fresh food and freezer sections and helps maintain efficient, even cooling.
Over time, the blade can crack, chip, or warp from ice contact, age, or physical damage, even while the motor underneath it is still working perfectly fine. A damaged fan blade typically shows up as reduced airflow and less effective cooling, a wobbling or unbalanced sound as the fan spins, or visible cracks and missing pieces on the blade itself. Since this is the blade only, it's a straightforward and inexpensive fix when the motor is still good but the blade has failed. It directly replaces 5901JJ1005A, AP4457221, 1268187, AH3528674, EA3528674, and PS3528674.
Quick Answer
The 5901JA1021A Genuine OEM LG Refrigerator Evaporator Fan Blade fixes LG and select Kenmore refrigerators with reduced cooling airflow, a wobbling or unbalanced fan noise, or a cracked/chipped/missing fan blade. Replaces 5901JJ1005A, AP4457221, 1268187, AH3528674, EA3528674, PS3528674. This is the blade only, not the motor — if your fan motor itself has failed (won't spin, no power, electrical fault), you need a motor replacement instead, such as our EAU61524007 listing.
Common Problems This Part Fixes
Reduced airflow and less effective cooling despite the fan motor running
Wobbling, unbalanced, or rattling sound as the fan spins
Visible cracks, chips, or missing sections on the fan blade
Fan blade that has broken away from the motor shaft
Inconsistent cooling performance in the refrigerator or freezer
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan blade directly replaces the following OEM and cross-reference part numbers:
5901JA1021A, 5901JJ1005A, 1268187, ADP73694301, ALG51767, AP4457221, EAP3528674, PD00009011
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan blade is compatible with select LG refrigerators, and also fits select Kenmore refrigerators built on the LG platform, including model numbers such as 71052, 71053, 71059, 71073, 71602, 71603, and 71609.
Note — blade only, not the motor: This listing is for the fan blade component only. If your evaporator fan motor itself has failed electrically (won't spin at all, no power, humming with no rotation), you need a full motor replacement instead of just this blade. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which part your refrigerator needs.
Key Features
Genuine LG OEM part — factory-specified blade design and shaft fit
Mounts directly onto the existing evaporator fan motor shaft
Resolves "reduced airflow," "wobbling fan noise," and "cracked or chipped blade" symptoms
Inexpensive fix when only the blade — not the motor — has failed
Durable plastic construction designed for the freezer environment
Direct drop-in replacement — no tools required on most models
Replaces 5901JJ1005A, AP4457221, 1268187, AH3528674, EA3528674, and PS3528674
Compatible with LG and select Kenmore refrigerators
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
5901JA1021A
Part Type
Refrigerator Evaporator Fan Blade (Blade Only)
Condition
Genuine OEM
Brand
LG
Material
Plastic
Function
Moves air through the evaporator fins and compartment when mounted to the fan motor shaft
Includes Motor
No — blade only
Repair Difficulty
Very Easy — typically no tools required
Quantity
1 fan blade
Compatible Brands
LG, Kenmore
Installation Notes
⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Access is typically through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator fan. If there's significant frost or ice around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing. Photograph the old blade's orientation on the motor shaft before removing it. Gently pull the old fan blade off the motor shaft — it typically presses on and off without tools. Press the new 5901JA1021A blade onto the same motor shaft in the same orientation, seating it fully. Confirm the blade spins freely by hand without wobbling or contacting the housing before reassembling the back panel. Restore power and monitor cooling performance over the next 24 hours to confirm normal, even airflow has returned. Tools needed: Phillips screwdriver (for the rear panel), work gloves.
Frequently Asked Questions
How do I know if I need just the blade or the whole motor?
Check whether the motor is actually turning. If you can see or hear the motor shaft spinning but the blade is cracked, wobbling, or missing pieces, this blade-only replacement is the correct and less expensive fix. If the motor itself isn't turning at all — no spin, no hum, or an electrical fault — the motor has failed and needs to be replaced instead, which is a different part from this blade.
My fan makes a wobbling or rattling noise. Is that the blade?
It's a strong possibility, especially if the motor itself sounds otherwise normal. A cracked, chipped, or unevenly worn blade can throw off the fan's balance as it spins, producing a rattling or wobbling sound distinct from the grinding noise typically associated with a failing motor bearing.
Do I need any tools to replace this blade?
No, in most cases. The blade presses onto and off of the motor shaft without tools — you'll just need a screwdriver to access the rear panel covering the evaporator fan area, but the blade swap itself is tool-free.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original blade design and motor shaft fit of the evaporator fan blade originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
Genuine OEM WR60X46085 Refrigerator Condenser Motor Fan Blade
The WR60X46085 is a genuine OEM condenser Motor fan blade assembly for GE, Hotpoint, and RCA refrigerators. The blade presses onto the condenser fan motor shaft and pulls air across the condenser coil and compressor, carrying heat away so the sealed system can cool properly. When a blade cracks, loses a vane, or works loose on the shaft, the fan becomes noisy or unbalanced, or stops moving air, and the compressor and condenser start running hot.
This is a genuine OEM part from GE Appliances, not an aftermarket equivalent, so the blade matches the original factory fit and balance. Note that this is the blade only. The condenser fan motor is a separate part, so if the motor itself has failed, the blade alone will not fix the problem.
Quick Answer
The Genuine OEM WR60X46085 Condenser Motor Fan Blade fixes a GE, Hotpoint, or RCA refrigerator with a noisy, rattling, or vibrating condenser fan, or a fan that spins without moving air because the blade is cracked, damaged, or loose. Genuine OEM, replaces the earlier WR60X10207 and WR60X10088 blades. Classic symptom: rattling or buzzing from the bottom rear of the refrigerator, or a warm cabinet with a compressor that runs constantly.
Common Problems This Part Fixes
Rattling, buzzing, or vibrating noise from the condenser fan area
Visibly cracked, chipped, or broken blade vanes
Blade loose on the motor shaft or spinning without moving air
Compressor running constantly or running hot from poor condenser airflow
Refrigerator not cooling well because heat isn't being removed from the condenser coil
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan blade replaces the following part numbers:
WR60X46085, WR60X10207, WR60X10088, AGE1580527, AP8075891, EAP1022410, PD00097217, PS1022410
GE has superseded WR60X10088 with WR60X10207, and WR60X10207 with the current WR60X46085. If your parts diagram or old blade shows either earlier number, the WR60X46085 is the current genuine replacement.
Compatibility
This blade is listed for refrigerators from the following brands:
GE refrigerators
Hotpoint refrigerators
RCA refrigerators
Note: A full model list isn't shown here, so confirm fit by matching the number on your old blade or your refrigerator's parts diagram against the Replaces list above, or contact our support team with your model number and we'll verify before you order. This is the blade only. The condenser fan motor is sold separately.
Key Features
Genuine OEM GE condenser Motor fan blade assembly, not an aftermarket equivalent
Current part number, superseding WR60X10207 and WR60X10088
Restores quiet, balanced airflow across the condenser coil
Authorized by GE for refrigerator models using flammable refrigerant such as R600a
Blade only. Motor not included
Simple replacement, typically 15–30 minutes
Product Specifications
Part Number
WR60X46085
OEM Part Number
WR60X46085
Part Type
Refrigerator Condenser Motor Fan Blade
Condition
Genuine OEM
Manufacturer
GE Appliances
Supersedes
WR60X10207, WR60X10088
Included
Condenser Fan Blade Only
Application
GE, Hotpoint & RCA Refrigerators
Installation Notes
⚠️ Unplug Power Before Installing Unplug the refrigerator before starting. Pull the unit out and remove the rear or lower access panel to reach the condenser fan, which sits near the compressor. Pull the old blade off the motor shaft, noting how far it sits on the shaft and which way it faces. Press the new blade on to the same position, making sure it spins freely without touching the shroud or motor. While the panel is off, vacuum dust from the condenser coil and fan area, since buildup is a common cause of overheating. Replace the panel, push the refrigerator back, and restore power.
Frequently Asked Questions
My refrigerator is making a rattling noise at the back — is this the part I need?
It could be. A cracked, chipped, or loose condenser fan blade is a common source of rattling or vibration near the compressor. Inspect the blade for damage and check that it spins freely. If the blade looks fine but the fan won't turn, the condenser fan motor may be the problem instead.
Does this include the motor?
No. This is the fan blade only. The condenser fan motor is a separate part.
My old blade is a WR60X10207 or WR60X10088. Will this work?
Yes. WR60X46085 is the current GE part number that supersedes both earlier numbers.
Is this a genuine GE part?
Yes. This is a genuine OEM part from GE Appliances, not an aftermarket equivalent.
Will this fit my refrigerator?
It is listed for GE, Hotpoint, and RCA refrigerators. Match the number on your old blade or parts diagram against the Replaces list, or contact our support team with your model number and we'll confirm fit before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO DA97-15765C Refrigerator Condenser Fan Motor
The XPARTCO DA97-15765C is an aftermarket replacement condenser fan motor assembly for Samsung French door refrigerators. This assembly includes both the motor and the fan blade together, and it lives in the compressor/machine compartment at the back or bottom of the refrigerator, where its job is to pull air across the condenser coils and compressor to carry heat away from the refrigeration system. That's a different job from an evaporator fan — this motor cools the mechanical side of the system rather than circulating cold air to your food, so a failing condenser fan tends to affect the whole refrigerator's cooling capacity rather than just one compartment.
Rated 12V DC, 0.14A, 1.7W, running at approximately 1,120 RPM. On many Samsung models, a failed condenser fan motor triggers a 23C or 23E error code on the display, alongside symptoms like noticeable vibration or noise from the condenser area, elevated internal temperatures, or the over-temperature alarm sensor tripping. Common causes include normal wear on the motor bearings after prolonged use, blockages from dust and debris accumulation around the coils, or damage from moisture exposure. A fan blade that tries to spin but can't complete a full revolution, or that needs a manual nudge to keep turning, is a classic sign this assembly has started to fail. It directly replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328.
Quick Answer
The XPARTCO DA97-15765C Refrigerator Condenser Fan Motor fixes Samsung French door refrigerators where the whole unit runs warm, the compressor area is noisy or vibrating, a 23C or 23E error code appears, or the over-temperature alarm trips. Includes motor and fan blade. 12V DC, 0.14A, 1.7W, ~1,120 RPM. Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments.
Common Problems This Part Fixes
Both the fresh food and freezer compartments running warmer than normal at the same time
23C or 23E error code displayed on the control panel
Noticeable vibration or unusual noise from the condenser/compressor area at the back or bottom of the cabinet
Over-temperature alarm sensor tripping
Fan blade that tries to spin but doesn't complete a full revolution
Fan blade that stops spinning if not manually nudged to keep turning
Refrigerator running constantly as the compressor struggles to keep up
Excessive dust or debris buildup visible around the condenser coils and fan
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator condenser fan motor assembly directly replaces the following OEM and cross-reference part numbers:
DA97-15765C, DA97-15765A, DA97-15765D, DA97-12842A, DA97-12842B, DA97-12842D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328, OEM18003054, ASM138992, PD00050574
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This condenser fan motor assembly is compatible with select Samsung French door refrigerators, including model numbers such as:
RF220NCTABC, RF220NCTASG, RF220NCTASP, RF220NCTASR, RF220NCTAWW
RF221NCTABC, RF221NCTASP, RF221NCTAWW
RF22K9381SG
F261BEAESR
This assembly also fits many additional Samsung French door refrigerator models beyond those listed above.
Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our DA31-00334C listing), which sits behind the freezer's rear panel and circulates cold air to the food compartments. It is also a different part family from our DA97-20025A condenser fan listing, which serves a different group of Samsung models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs.
Key Features
Complete assembly — includes both the motor and the fan blade
Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat
Resolves "whole fridge running warm," "23C or 23E error code," "noise or vibration from the compressor area," and "over-temperature alarm" symptoms caused by fan failure
Rated 12V DC, 0.14A, 1.7W, approximately 1,120 RPM
Direct drop-in replacement matching the original mounting and back panel cam-bracket attachment
Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328
Aftermarket replacement built to OEM-equivalent quality standards
DIY-friendly repair — typically completed in under an hour
Product Specifications
Part Number
DA97-15765C
OEM Part Number
DA97-15765C
Part Type
Refrigerator Condenser Fan Motor Assembly (Motor + Blade)
Condition
Aftermarket Replacement
Brand
Samsung
Location
Compressor/machine compartment (back or bottom of cabinet)
Function
Cools the condenser coils and compressor
Voltage
12V DC
Amperage
0.14 A
Wattage
1.7 W
Speed
~1,120 RPM
Related Error Codes
23C, 23E
Quantity
1 fan motor assembly
Compatible Brand
Samsung
Installation Notes
⚠️ Unplug Refrigerator Before Starting — Store Perishable Food Separately Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Remove all shelves from the upper refrigerator cabinet to improve access. Using a flat-blade screwdriver, gently ease the back panel away from the cabinet — on many models it's retained by a cam bracket and snaps into place, so it should release without excessive force. This exposes the condenser/circulating fan. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring harness connector and the fan blade's position before disconnecting anything. Remove the two screws holding the fan in place, unplug the fan lead harness connector, and remove the defective fan assembly. Install the new DA97-15765C in the same position, reconnect the harness plug, and reinstall and tighten the two mounting screws securely. Confirm the blade spins freely by hand without contacting the housing or coils before reinstalling the back panel — it should snap back into place via the cam bracket. Reinstall the shelves, restore power, and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any error code has cleared. Tools needed: flat-blade screwdriver, Phillips screwdriver, work gloves.
Frequently Asked Questions
My display shows a 23C or 23E error code. Does that mean I need this part?
It's a strong indicator on many Samsung models, since these codes are commonly associated with condenser fan motor failure. Before ordering, it's still worth a quick visual check — clear any dust or debris from around the condenser coils and fan blade, since a heavily clogged condenser can sometimes trigger similar temperature-related codes. If the error persists after cleaning, or if the fan blade doesn't spin freely by hand, this assembly is the likely fix.
The fan blade tries to spin but won't complete a full turn. Is that normal?
No — this is a classic sign the motor bearings are wearing out or that something is obstructing the blade. A healthy condenser fan should spin freely and continuously once started. If you find yourself needing to give the blade a manual nudge to keep it turning, or it stalls partway through a rotation, the motor has failed and needs to be replaced rather than repeatedly restarted by hand.
Both my fresh food and freezer sections are warm. Is this the right part?
Yes, that pattern points toward the condenser fan rather than an evaporator fan. Because the condenser fan cools the compressor and coils that the entire refrigeration cycle depends on, a failing condenser fan tends to reduce cooling capacity across both compartments together, rather than leaving one side fine while the other struggles.
Does this include the fan blade, or just the motor?
This is a complete assembly that includes both the motor and the fan blade together, so there's no need to transfer a blade from your old unit or source one separately.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 0.14A, 1.7W, ~1,120 RPM), fan blade design, and mounting configuration of the original DA97-15765C condenser fan motor assembly used in compatible Samsung French door refrigerators.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
AEB73764520 Genuine OEM LG Refrigerator Fan Grille Assembly
The AEB73764520 is a genuine LG OEM fan grille assembly for LG refrigerators. This grille sits around the evaporator fan, holding and directing the air the fan pushes so cold air is guided evenly throughout the refrigerator and freezer compartments rather than dispersing unevenly right at the fan. It also serves a protective role, shielding the spinning fan blade from accidental contact while still allowing full, unrestricted airflow through its vents.
Made of durable plastic, this grille can crack, warp, or break over time from the cold temperature cycling inside the freezer compartment, or from accidental impact during cleaning or organizing frozen food. A damaged grille typically shows up as uneven cooling or airflow within the compartment, since air isn't being properly guided and distributed, or in cases of significant damage, a fan blade that's no longer adequately shielded. Because parts that look similar can have small but meaningful differences in size and shape, it's important to confirm this exact part number matches your refrigerator before ordering, rather than relying on general appearance.
Quick Answer
The AEB73764520 Genuine OEM LG Refrigerator Fan Grille Assembly fixes LG refrigerators with a cracked, warped, or broken fan grille causing uneven cooling or airflow, or where the fan is no longer properly shielded. Genuine LG replacement part. Parts that look similar can have small but meaningful size and shape differences — always verify your exact model number before ordering.
Common Problems This Part Fixes
Uneven cooling or airflow within the refrigerator or freezer compartment
Visible cracks, warping, or breakage in the grille around the evaporator fan
Fan blade no longer adequately shielded due to grille damage
Grille that has come loose or won't seat securely in place
Reduced airflow efficiency affecting overall cooling performance
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
AEB73764520, 4952727, ALG53451, AP6873098, EAP12714296, PS12714296, PD00069980.
We were not able to confirm additional cross-reference or superseding part numbers for this specific part from reliable sources at the time this page was built, so none are listed here rather than guessed. If you have a cross-reference number for your appliance, contact our support team and we will verify compatibility before you order.
Compatibility
This fan grille assembly is compatible with select LG refrigerators, including French door and Door-in-Door smart refrigerator models such as LFXS26973S, LFXS26596S, and LFXS28596S.
Note: Parts that appear similar can have small but important differences in size and shape between LG refrigerator platforms. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Genuine LG OEM part — factory-specified fit and airflow design
Holds and guides air from the evaporator fan for even, consistent cold air distribution
Resolves "uneven cooling," "poor airflow," and "cracked or broken grille" symptoms
Also shields the fan blade from accidental contact
Durable plastic construction
Direct drop-in replacement matching the original mounting
Compatible with select LG French door and Door-in-Door refrigerators
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
AEB73764520
Part Type
Refrigerator Fan Grille Assembly
Condition
Genuine OEM
Brand
LG
Location
Around the evaporator fan
Function
Guides evaporator fan airflow and shields the fan blade
Material
Plastic
Quantity
1 fan grille assembly
Compatible Brand
LG
Installation Notes
⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves to protect your hands. Access is typically through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator fan area where the grille is mounted. Photograph the grille's orientation and any mounting clips or screws before removing it. Carefully remove the old grille from around the fan, taking care not to contact the fan blade itself. Install the new AEB73764520 grille in the same position, securing any clips or screws to hold it firmly in place. Reassemble the back panel, restore power, and monitor the refrigerator over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My cooling seems uneven, with some areas colder than others. Could this grille be the cause?
Yes, this is possible if the grille is cracked, warped, or has come loose. This grille's job is to guide the evaporator fan's airflow evenly throughout the compartment, so damage or misalignment can cause cold air to concentrate in some areas while other spots don't get adequate circulation.
Why does this part need to match my model so precisely?
Fan grille assemblies that look very similar at a glance can have small differences in size and shape between different LG refrigerator platforms, since the grille has to fit precisely around the specific fan and duct assembly used in your model. Ordering based on a general resemblance rather than confirming your exact model number risks a poor fit that doesn't seat or seal correctly.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original mounting and airflow design of the fan grille assembly originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
DA31-00146E Genuine OEM Refrigerator Evaporator Fan Motor - Compatible with Samsung, Maytag
Product Description
Maintain optimal cooling with the DA31-00146E Genuine OEM Refrigerator Evaporator Fan Motor. This Samsung-manufactured motor is designed as a replacement for select Samsung and Maytag refrigerators. It powers the fan to circulate air through the freezer and refrigerator compartments, ensuring even temperature distribution and efficient cooling. This part addresses issues like fridge/freezer too warm, frost buildup, unusual noises, or the appliance not shutting off, often caused by a faulty or seized motor.
Note: Includes (1) evaporator fan motor (fan blade not included). Disconnect power before installation. Verify compatibility with your refrigerator model.
Replaces part numbers: DA31-00146E, 1486536, DA31-00146G, DREP3020LA/HAL, PD00002015, AP4136569, PS4138376.
Compatibility:
Compatible with select refrigerator models, including but not limited to:
Samsung: RFG238AABPXAA0000, RS25H5111BC/AA, RS265TDBP/XAA, RS267TDBP/XAA, RH25H5611BC/AA, RH25H5611WW/AA, DFSF9VKBABB, DFSS9VKBASS
Maytag: Various models (verify with model number)
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Samsung and Maytag refrigerators.
🔧 Specifications: Genuine OEM Samsung BLDC fan motor, 3.21W, 12VDC, 2520RPM, 1-1/2" shaft.
💪 Reliable Performance: Circulates air to maintain consistent temperatures and cool evaporator coils.
🛠️ Easy Installation: Requires screwdriver and pliers; typically installed in 30–60 minutes.
🛡️ Effective Fixes: Resolves warm fridge/freezer, frost buildup, noisy operation, or failure to shut off.
Product Specification
Part Number: DA31-00146E
Component Type: Refrigerator evaporator fan motor
Material: Metal and plastic
Electrical Specs: 3.21W, 12VDC, 2520RPM, 1-1/2" shaft
Compliance: UL-listed, Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the refrigerator from the power source before installation.
Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today!
Add to cart now for a reliable fix!
XPARTCO W10124096 Refrigerator Condenser Fan Motor
The XPARTCO W10124096 is an aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators, including Kenmore, Maytag, KitchenAid, Amana, and Jenn-Air models. The condenser fan motor pulls air across the condenser coils to carry heat away from the refrigerant. When the motor wears out or fails, the refrigerator may run warmer than normal, cool poorly, or make unusual noise.
The kit includes the fan motor, a fan blade, and a jumper wire harness for installations where the original motor used a 3-pin connector. It replaces many earlier Whirlpool motor numbers, so the new kit may look different from your original motor. This is the condenser fan, near the compressor, not the evaporator fan inside the freezer or fresh food compartment.
Quick Answer
The XPARTCO W10124096 Condenser Fan Motor Kit fixes a Whirlpool-built refrigerator that runs warm, cools poorly, or makes noise because the condenser fan motor has failed. Kit includes the motor, fan blade, and jumper harness. Classic symptom: the compressor area is noisy, or the condenser fan doesn't spin while the compressor runs.
Common Problems This Part Fixes
Refrigerator running warmer than usual or cooling poorly
Noisy refrigerator near the compressor
Condenser fan not running
Worn or damaged condenser fan motor or blade
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan motor kit directly replaces the following part numbers:
W10124096, 1378525, 2188538, 2188727, 2188728, 2188729, 2188732, 2188891, 2206005, 2315538, 2315558, W10124096VP, W10130108, W10204250, W10509333, W10861645, AH1957416, AP4318657, AWP40429, EA1957416, EAP1957416, PD00002509, PS1957416
These numbers span several generations of Whirlpool's own part numbering for this motor. Confirm against your refrigerator's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This condenser fan motor kit is listed for Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, and Jenn-Air refrigerators, including these examples:
Models ED5FHAXSB03, 8ET1FTKXKT05, GI15NDXTB0, 7GD27DIXHB00
Models 10644022600, 10653254200, BRS62ABANA00, MSD2658KES02
Note: The models above are a small sample of a list of hundreds, not a full list. Some retailer lists include drawer and bin models, so verify fit with your full model number. Contact our support team to confirm fit before ordering.
Key Features
Aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators
Kit includes the fan motor, fan blade, and a jumper wire harness for 3-pin connectors
Moves air across the condenser coils to help the refrigerator cool
Resolves warm-running and noise problems caused by a failed motor
Replaces 13 earlier Whirlpool part numbers
Product Specifications
Part Number
XPW10124096
OEM Part Number
W10124096
Part Type
Refrigerator Condenser Fan Motor Kit
Condition
Aftermarket Replacement
Kit Includes
Fan Motor, Fan Blade, Jumper Wire Harness
Application
Whirlpool, Kenmore, Maytag, KitchenAid, Amana & Jenn-Air Refrigerators
Installation Notes
⚠️ Unplug Power Before Installing Unplug the refrigerator before beginning, and move perishable food to a cooler or another refrigerator. Wear work gloves. Follow your model's service guide to reach the condenser fan, which is near the compressor. Note how the wiring is connected, disconnect it, and remove the old motor and blade. Fit the new motor and blade in the same position and reconnect the wiring. Use the supplied jumper harness only if your original motor used a 3-pin connector. Restore power and check that the fan runs.
Frequently Asked Questions
My refrigerator is running warm. Is this the part I need?
A failed condenser fan motor is one possible cause, since the condenser can't shed heat without airflow. Check that the condenser coils are clean and that the fan turns freely. If the fan doesn't run or the motor is noisy or worn, this kit is the repair.
Is this the condenser fan or the evaporator fan?
This is the condenser fan motor, which cools the condenser coils near the compressor. The evaporator fan is a different part located inside the cabinet. Check your parts diagram if you are unsure.
When do I use the jumper wire harness?
The kit includes a jumper harness for installations where the original motor used a 3-pin connector. If your original connector is different, compare it to the new motor, or contact our support team.
Will this fit my refrigerator?
It is listed for hundreds of Whirlpool-built refrigerators, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor
The XPARTCO WR60X26866 is an aftermarket replacement axial evaporator fan motor for the fresh food section of select GE French door refrigerators, including the CFE28, CFE29, CWE23, CYE22, CYE23, DFE28, DFE29, GFD28, GFE26, GFE27, GFE28, GFE29, GFS26, GFS28, GNE26, GNE29, GYE22, GYS22, PFD28, PFE28, PFE29, PWE23, PYD22, PYE22, PYE23, and ZWE23 series. The evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air inside the refrigerator. Without a functioning evaporator fan, the refrigerator compartment cannot maintain its target temperature even when the compressor and condenser are running normally — the cold air generated at the evaporator simply isn't being circulated to the food storage areas.
The WR60X26866 is a DC motor rated at 13.6V DC, 0.16A, with a fan housing measuring 3-4/7"L x 2"W x 3-1/8"H, plus a multi-color wire harness and plug approximately 11-1/2" long. It includes the axial fan blade and harness as a complete assembly. It directly replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, and PS12172983. Important: if your refrigerator was built between May 2014 and March 2015 with serial range FF–HD, the unit's software must be updated before installing this fan motor — see FAQ below. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor fixes GE French door refrigerators where the fridge isn't cooling but the freezer is cold, the evaporator coils are frosted over, the ice maker isn't working due to insufficient cooling, or there's loud humming or grinding from the freezer area. Axial fan motor, 13.6V DC, 0.16A. Fan housing: 3-4/7"L x 2"W x 3-1/8"H; harness ~11-1/2"L. Replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, PS12172983. Note: May 2014 – Mar 2015 build refrigerators (serial range FF–HD) require a software update before installation.
Common Problems This Part Fixes
Refrigerator not cooling properly while the freezer remains cold — classic evaporator fan failure
Freezer cold but fridge warm — fresh food compartment air not being circulated
Frosty or frozen evaporator coils due to insufficient air circulation
Ice maker failure caused by inadequate cooling in the compartment
Loud humming, grinding, or buzzing noise from the freezer or fresh food compartment
Refrigerator running continuously without reaching set temperature
Fan blade not spinning freely or seized when checked by hand
Multimeter shows no continuity through the motor windings
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE French door refrigerators, including:
GE refrigerators — CFE28, CFE29, CWE23, CYE22, CYE23 series (CFE28TP2MBS1, CFE28USHNSS, CWE23SP2MBS1, CYE22TP2MBS1 and related)
GE refrigerators — DFE28, DFE29 series (DFE28JELCDS and related)
GE refrigerators — GFD28, GFE26, GFE27, GFE28, GFE29 series (GFD28GBLBTS, GFE26GGHEBB and related)
GE refrigerators — GFS26, GFS28, GNE26, GNE29 series
GE refrigerators — GYE22, GYS22 series (GYE22HMKEES and related)
GE refrigerators — PFD28, PFE28, PFE29 series (PFE28KELFDS and related)
GE refrigerators — PWE23 series (PWE23KSKDSS and related)
GE refrigerators — PYD22, PYE22, PYE23 series (PYE22KSKBSS and related)
GE refrigerators — ZWE23 series and select related Café and Profile French door models
Important — Software Update Requirement: If your GE refrigerator was manufactured between May 2014 and March 2015 with a serial number in the range FF–HD, the refrigerator's control software must be updated by GE factory service (or via Software Update Module WR98R882802) before installing this fan motor. Installing the new motor without the software update on these affected units may result in improper performance. Check your refrigerator's serial number plate before ordering.
Key Features
Axial evaporator fan motor for the fresh food section of GE French door refrigerators
Pulls air through the evaporator coils to remove heat and circulate cold air through the refrigerator compartment
DC motor — rated 13.6V DC, 0.16A — runs on DC voltage from the refrigerator control board
Includes the axial fan blade and pre-attached multi-color wire harness with plug
Fan housing dimensions: 3-4/7"L x 2"W x 3-1/8"H; harness and plug approximately 11-1/2" long
Quiet operation — engineered to minimize hum and vibration in the refrigerator cabinet
Plastic and metal construction, black housing with multi-color harness
Replaces an extensive list of GE part numbers including WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, and additional cross-references
Compatible with GE, GE Café, and GE Profile French door refrigerators in the CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GYE, GYS, PFD, PFE, PWE, PYD, PYE, and ZWE series
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
Part Number
WR60X26866
Part Type
Refrigerator Evaporator Fan Motor (Fresh Food / Axial)
Condition
Aftermarket Replacement
Application
GE French Door Refrigerators
Voltage
13.6V DC
Amperage
0.16A
Fan Type
Axial
Fan Housing Dimensions
3-4/7"L x 2"W x 3-1/8"H
Harness Length
Approximately 11-1/2 inches
Color
Black housing with multi-color harness
Material
Plastic / Metal
Includes
Axial fan motor assembly with harness
Software Update Required
For May 2014 – Mar 2015 builds (serial range FF–HD) — use WR98R882802
Compatible Brands
GE, GE Café, GE Profile
Installation Notes
⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor for the fresh food section is mounted on the back wall of the fresh food (refrigerator) compartment, behind an access panel. Take a photo of the existing fan position and wire harness routing before disconnecting. Remove the shelves and any internal components blocking access to the back wall, then remove the screws holding the rear access panel in place. Disconnect the fan motor's wire harness connector and remove the mounting screws securing the old motor. Note the fan blade orientation on the motor shaft. Install the new WR60X26866 motor assembly in the same position with the blade facing the same direction, reconnect the wiring harness, and reinstall the mounting screws and access panel. Replace the shelves and other internal components, restore power, and confirm the fan spins and the refrigerator cools properly. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves.
Frequently Asked Questions
My fridge is warm but my freezer is cold — is the evaporator fan motor the problem?
Yes — this is one of the most recognizable symptoms of evaporator fan motor failure on GE French door refrigerators with a separate fresh food evaporator. The freezer side has its own cooling circuit and remains cold, while the fresh food side relies on this fan to circulate air across its evaporator coils. When the fan fails, the freezer continues working but the fresh food compartment loses its cold air supply, warming up while the freezer stays at temperature. If you also notice frost building up on the evaporator coils behind the back panel of the fresh food compartment, the fan failure is confirmed.
What is the software update requirement for May 2014 – March 2015 refrigerators?
GE issued a software update for certain refrigerators manufactured between May 2014 and March 2015 (serial range FF–HD) before they could properly support newer revisions of the WR60X26866 evaporator fan motor. If your refrigerator falls in this date and serial range, the control software must be updated before installing this fan motor — either by GE factory service or by using the Software Update Module part WR98R882802. Installing the new fan on an unupdated unit can result in improper performance. Check the serial number plate inside your refrigerator (typically on the left side wall) to confirm whether your unit is affected. Refrigerators built outside this range do not require the update.
How do I test if the evaporator fan motor has failed?
Unplug the refrigerator, then access the fan behind the rear panel of the fresh food compartment. First, try turning the fan blade by hand — if it doesn't spin freely, is stiff, or seizes, the motor bearing has failed. Next, listen during normal operation — if the motor is unusually noisy or makes a grinding sound, the bearings are worn even if it still spins. Finally, with the unit unplugged and the motor disconnected, use a multimeter on the motor windings to check for continuity. If the windings show no continuity, the motor has failed electrically. Also check for approximately 11–14V DC at the connector when the refrigerator is running — if voltage is present but the motor doesn't spin, the motor has failed.
My fridge has two evaporator fans — which one does this replace?
Some GE French door refrigerators have separate evaporator fan motors for the freezer and the fresh food sections. The WR60X26866 is the fresh food evaporator fan motor — it's the axial fan located behind the rear panel of the fresh food compartment, not in the freezer. If your symptom is "freezer cold, fridge warm," this is the correct part. If your symptom is "freezer warm" or "ice maker not making ice but fridge is fine," the freezer evaporator fan motor (a different part number) is more likely the cause. Confirm which compartment has the cooling problem before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the dimensions, fan housing, electrical specifications, and pre-attached wire harness configuration of the original WR60X26866 evaporator fan motor.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 4681JB1029A Refrigerator Evaporator Fan Motor – Compatible with LG and Kenmore Refrigerators
Product Description
Keep your refrigerator cooling evenly with the XPARTCO 4681JB1029A Refrigerator Evaporator Fan Motor. This Fan Motor is a replacement component for specific LG, Kenmore refrigerator models. It operates the circulation fan located in the back of the refrigerator compartment, distributing cool air evenly throughout. The motor enables constant airflow across shelves and compartments to maintain consistent temperatures and humidity levels. Causes of a bad fan motor include failure of bearings or windings due to prolonged use.
Replaces Part Numbers
4681JB1029A, EAU60694507, 1330410, 4681JB1010C, 4681JB1017A, 4681JB1017D, 4681JB1027A, EAU61762902, EAU41921810, PD00037982, EAP3523328, AH3523328, EA3523328, AP4438221, PS3523328.
Compatibility
This replacement evaporator fan motor fits select LG and Kenmore refrigerators.
Example compatible models include (but are not limited to): LG LFX25960ST, LG LFX28968ST, and Kenmore 795.77543600.
Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
🔄 Aftermarket Replacement – Built to meet OEM airflow and reliability standards
❄️ Efficient Air Circulation – Distributes cold air evenly through refrigerator and freezer
💰 Affordable Solution – Quality replacement at a lower cost than OEM parts
🛠️ DIY Installation – Simple plug-in wiring connector for quick installation
🛡️ Fixes Common Issues – Solves frost buildup, uneven cooling, or noisy fan problems
📐 Product Specification
Part Number: 4681JB1029A
Component Type: Refrigerator Evaporator Fan Motor
Material: Metal motor housing with balanced plastic fan blade
Mounting: Direct-fit replacement in freezer evaporator compartment
Operating Conditions: Designed for continuous low-temperature operation
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, nut driver
⚠️ Safety First: Always unplug the refrigerator before performing repairs to prevent electrical shock.
Steps:
Unplug the refrigerator.
Remove shelves and freezer rear panel to access the evaporator area.
Disconnect the wiring harness and mounting screws on the old fan motor.
Install the new XPARTCO 4681JB1029A motor, reconnect wiring, and secure the panel.
Restore power and verify quiet, consistent airflow.
⏱️ Time Required: 20–25 minutes
📦 Shop With Confidence
🚚 Free Shipping on All Orders
⚙️ Trusted Appliance Parts Supplier
🔄 30-Day Return Policy
Restore efficient, even cooling — Add to Cart Now for a reliable, budget-friendly repair!
WR60X31997 Genuine OEM GE Refrigerator Ice Box Fan Motor
The WR60X31997 is a genuine GE OEM ice box fan motor assembly for GE, Hotpoint, Haier, Monogram, and Café refrigerators. This motor is situated in the freezer section and circulates cold air specifically around the ice box area, playing a direct role in ice production as well as general cooling and airflow in that part of the freezer. Consistent airflow here is what keeps the ice maker producing normally and prevents warm spots from developing nearby.
Rated 12V DC, 0.23A. Common causes of failure include a malfunctioning motor, worn-out bushings that hinder smooth rotation, or damaged fan blades that restrict airflow; mineral buildup can also gradually degrade the fan's efficiency over time. A failing ice box fan produces a recognizable set of symptoms: reduced or inadequate ice production, items in the freezer warming up or defrosting even with the door shut, unusual sounds or vibration when the fan runs, or uneven frost patterns suggesting the airflow in that area isn't circulating properly. It directly replaces PD00071430, 4964240, AP6978662, PS12744140, and EAP12744140.
Quick Answer
The WR60X31997 Genuine OEM GE Refrigerator Ice Box Fan Motor fixes GE, Hotpoint, Haier, Monogram, and Café refrigerators with reduced or inadequate ice production, freezer items warming up despite the door being shut, unusual fan noise or vibration, or uneven frost patterns. 12V DC, 0.23A. Replaces PD00071430, 4964240, AP6978662, PS12744140, EAP12744140.
Common Problems This Part Fixes
Reduced or inadequate ice production from the ice maker
Items in the freezer warming up or partially defrosting even with the door shut
Unusual sounds or vibrations coming from the ice box fan area
Uneven frost patterns suggesting ineffective air circulation
Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand
Freezer running less efficiently overall near the ice box area
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator ice box fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X31997, 4964240, AP6978662, EAP12744140, Nidec Model G11I12MS1AZ-57, PS12744140, AGE29835, PD00071430
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This ice box fan motor is compatible with select GE refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, Profile, Fisher & Paykel, and Kenmore/Sears refrigerators built on the GE platform, including model numbers such as CQE28DM5NBS5, CVE28DM5NBS5, CVE28DM5NCS5, and CVE28DM5NS5.
Note: This is the ice box fan motor specifically, a different component from GE's general evaporator fan motors used elsewhere in the freezer. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs.
Key Features
Genuine GE OEM part — factory-specified motor and blade design
Circulates cold air around the ice box area, supporting ice production and nearby cooling
Resolves "inadequate ice production," "items warming up," "unusual noise," and "uneven frost" symptoms caused by fan motor failure
Premium motor coil and quality bearings for smooth, low-noise operation
Rated 12V DC, 0.23A
Direct drop-in replacement matching the original mounting and blade fitment
Replaces PD00071430, 4964240, AP6978662, PS12744140, and EAP12744140
Compatible with GE, Hotpoint, Haier, Monogram, Café, Profile, Fisher & Paykel, and Kenmore/Sears refrigerators
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
WR60X31997
Part Type
Refrigerator Ice Box Fan Motor Assembly
Condition
Genuine OEM
Brand
GE
Location
Freezer section, ice box area
Function
Circulates cold air to support ice production and cooling near the ice box
Voltage
12V DC
Amperage
0.23 A
Quantity
1 fan motor assembly
Compatible Brands
GE, Hotpoint, Haier, Monogram, Café, Profile, Fisher & Paykel, Kenmore/Sears
Installation Notes
⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Access the ice box fan by locating the panel or housing covering it in the freezer's ice box area — this may require removing the ice maker or nearby components for clearance depending on your model. Photograph the wiring and the fan blade's orientation before disconnecting anything. Disconnect the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Mount the new WR60X31997 in the same position, reconnect the wiring harness connector, and confirm the blade spins freely by hand without contacting the housing before reassembling any panels or components you removed for access. Restore power and monitor ice production and freezer temperature over the next 24 hours to confirm normal operation has returned. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My ice maker is producing less ice than usual. Could this fan be the cause?
Yes, this is one of the more common symptoms of a failing ice box fan. Since this fan circulates cold air specifically around the ice box area, reduced airflow from a struggling or seized motor can directly slow down ice production, even if the rest of the freezer seems to be cooling normally.
Items near the ice box seem to be warming up even though the freezer door is shut. Is that related?
Yes. If this fan isn't circulating air properly, the area around the ice box can lose consistent cooling even while the rest of the freezer stays cold, since that zone depends specifically on this fan for airflow. This localized warming, paired with reduced ice production, is a strong combined signal pointing to this fan.
Is this the same as a general evaporator fan motor?
No, this is a distinct component. The ice box fan motor circulates air specifically around the ice box area to support ice production and nearby cooling, while a general evaporator fan motor circulates air across the evaporator coil for the freezer and fresh food compartments more broadly. The two serve different roles and are not interchangeable — always confirm which fan your model needs using your parts diagram or model number.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original motor design, blade fitment, and mounting configuration of the ice box fan motor originally installed in your refrigerator.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor - Compatible with Samsung
Product Description
Ensure efficient cooling with the DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor. This Samsung-manufactured motor is designed as a replacement for select Samsung refrigerators. It powers the fan to circulate air over the condenser coils, dissipating heat to maintain optimal refrigeration performance. This part addresses issues like insufficient cooling, frost buildup, unusual noises (e.g., chirping, buzzing), or the refrigerator running too frequently, often caused by a faulty or worn motor.
Note: Includes (1) condenser fan motor (fan blade not included). Disconnect power before installation. Verify compatibility with your refrigerator model.
Replaces part numbers: DA31-00103A, IS-27210SCD6A, PD00002207, EAP4138348m AP4140906, 1472692, PS4138348.
Compatibility:
Compatible with select Samsung refrigerator models, including but not limited to:
Samsung: RS2631SL, RS2631SL/XAA, RS2623WW/XAA, RS2624SW, RS2624SW/XAA, RS2624WW, RS2631SW, RS2631SW/XAA, RSC5DBSH, RS2621SW/XAA, RS2623BB, RS2623BB/XAA, RS2623SH, RS2623SL, RS2623VQ, RS2630SH, RS2630WW
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Samsung refrigerators.
🔧 Specifications: Genuine OEM Samsung AC fan motor, 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft.
💪 Reliable Performance: Circulates air to dissipate heat from condenser coils for efficient cooling.
🛠️ Easy Installation: Requires screwdriver and pliers; typically installed in 15–30 minutes.
🛡️ Effective Fixes: Resolves insufficient cooling, frost buildup, noisy operation, or frequent running.
Product Specification
Part Number: DA31-00103A
Component Type: Refrigerator condenser fan motor
Material: Metal and plastic
Electrical Specs: 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft, quick disconnect
Compliance: UL-listed, Prop 65 warning for California.
Installation Notes:
Safety First: Disconnect the refrigerator from the power source before installation.
Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today!
Add to cart now for a reliable fix!
WR60X26866 Genuine OEM GE Refrigerator Axial Evaporator Fan Motor
The WR60X26866 is a Genuine OEM GE replacement axial evaporator fan motor manufactured by GE to factory specifications, designed as a direct fit for the fresh food section of select GE French door refrigerators, including the CFE28, CFE29, CWE23, CYE22, CYE23, DFE28, DFE29, GFD28, GFE26, GFE27, GFE28, GFE29, GFS26, GFS28, GNE26, GNE29, GYE22, GYS22, PFD28, PFE28, PFE29, PWE23, PYD22, PYE22, PYE23, and ZWE23 series. The evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air inside the refrigerator. Without a functioning evaporator fan, the refrigerator compartment cannot maintain its target temperature even when the compressor and condenser are running normally — the cold air generated at the evaporator simply isn't being circulated to the food storage areas.
The WR60X26866 is a DC motor rated at 13.6V DC, 0.16A, with a fan housing measuring 3-4/7"L x 2"W x 3-1/8"H, plus a multi-color wire harness and plug approximately 11-1/2" long. It includes the axial fan blade and harness as a complete assembly. It directly replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, and PS12172983. Important: if your refrigerator was built between May 2014 and March 2015 with serial range FF–HD, the unit's software must be updated before installing this fan motor — see FAQ below. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The WR60X26866 Genuine OEM GE Refrigerator Axial Evaporator Fan Motor fixes GE French door refrigerators where the fridge isn't cooling but the freezer is cold, the evaporator coils are frosted over, the ice maker isn't working due to insufficient cooling, or there's loud humming or grinding from the freezer area. Axial fan motor, 13.6V DC, 0.16A. Fan housing: 3-4/7"L x 2"W x 3-1/8"H; harness ~11-1/2"L. Replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, PS12172983. Note: May 2014 – Mar 2015 build refrigerators (serial range FF–HD) require a software update before installation.
Common Problems This Part Fixes
Refrigerator not cooling properly while the freezer remains cold — classic evaporator fan failure
Freezer cold but fridge warm — fresh food compartment air not being circulated
Frosty or frozen evaporator coils due to insufficient air circulation
Ice maker failure caused by inadequate cooling in the compartment
Loud humming, grinding, or buzzing noise from the freezer or fresh food compartment
Refrigerator running continuously without reaching set temperature
Fan blade not spinning freely or seized when checked by hand
Multimeter shows no continuity through the motor windings
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE French door refrigerators, including:
GE refrigerators — CFE28, CFE29, CWE23, CYE22, CYE23 series (CFE28TP2MBS1, CFE28USHNSS, CWE23SP2MBS1, CYE22TP2MBS1 and related)
GE refrigerators — DFE28, DFE29 series (DFE28JELCDS and related)
GE refrigerators — GFD28, GFE26, GFE27, GFE28, GFE29 series (GFD28GBLBTS, GFE26GGHEBB and related)
GE refrigerators — GFS26, GFS28, GNE26, GNE29 series
GE refrigerators — GYE22, GYS22 series (GYE22HMKEES and related)
GE refrigerators — PFD28, PFE28, PFE29 series (PFE28KELFDS and related)
GE refrigerators — PWE23 series (PWE23KSKDSS and related)
GE refrigerators — PYD22, PYE22, PYE23 series (PYE22KSKBSS and related)
GE refrigerators — ZWE23 series and select related Café and Profile French door models
Important — Software Update Requirement: If your GE refrigerator was manufactured between May 2014 and March 2015 with a serial number in the range FF–HD, the refrigerator's control software must be updated by GE factory service (or via Software Update Module WR98R882802) before installing this fan motor. Installing the new motor without the software update on these affected units may result in improper performance. Check your refrigerator's serial number plate before ordering.
Key Features
Axial evaporator fan motor for the fresh food section of GE French door refrigerators
Pulls air through the evaporator coils to remove heat and circulate cold air through the refrigerator compartment
DC motor — rated 13.6V DC, 0.16A — runs on DC voltage from the refrigerator control board
Includes the axial fan blade and pre-attached multi-color wire harness with plug
Fan housing dimensions: 3-4/7"L x 2"W x 3-1/8"H; harness and plug approximately 11-1/2" long
Quiet operation — engineered to minimize hum and vibration in the refrigerator cabinet
Plastic and metal construction, black housing with multi-color harness
Replaces an extensive list of GE part numbers including WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, and additional cross-references
Compatible with GE, GE Café, and GE Profile French door refrigerators in the CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GYE, GYS, PFD, PFE, PWE, PYD, PYE, and ZWE series
Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance
DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
Part Number
WR60X26866
Part Type
Refrigerator Evaporator Fan Motor (Fresh Food / Axial)
Condition
Genuine OEM
Application
GE French Door Refrigerators
Voltage
13.6V DC
Amperage
0.16A
Fan Type
Axial
Fan Housing Dimensions
3-4/7"L x 2"W x 3-1/8"H
Harness Length
Approximately 11-1/2 inches
Color
Black housing with multi-color harness
Material
Plastic / Metal
Includes
Axial fan motor assembly with harness
Software Update Required
For May 2014 – Mar 2015 builds (serial range FF–HD) — use WR98R882802
Compatible Brands
GE, GE Café, GE Profile
Installation Notes
⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor for the fresh food section is mounted on the back wall of the fresh food (refrigerator) compartment, behind an access panel. Take a photo of the existing fan position and wire harness routing before disconnecting. Remove the shelves and any internal components blocking access to the back wall, then remove the screws holding the rear access panel in place. Disconnect the fan motor's wire harness connector and remove the mounting screws securing the old motor. Note the fan blade orientation on the motor shaft. Install the new WR60X26866 motor assembly in the same position with the blade facing the same direction, reconnect the wiring harness, and reinstall the mounting screws and access panel. Replace the shelves and other internal components, restore power, and confirm the fan spins and the refrigerator cools properly. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves.
Frequently Asked Questions
My fridge is warm but my freezer is cold — is the evaporator fan motor the problem?
Yes — this is one of the most recognizable symptoms of evaporator fan motor failure on GE French door refrigerators with a separate fresh food evaporator. The freezer side has its own cooling circuit and remains cold, while the fresh food side relies on this fan to circulate air across its evaporator coils. When the fan fails, the freezer continues working but the fresh food compartment loses its cold air supply, warming up while the freezer stays at temperature. If you also notice frost building up on the evaporator coils behind the back panel of the fresh food compartment, the fan failure is confirmed.
What is the software update requirement for May 2014 – March 2015 refrigerators?
GE issued a software update for certain refrigerators manufactured between May 2014 and March 2015 (serial range FF–HD) before they could properly support newer revisions of the WR60X26866 evaporator fan motor. If your refrigerator falls in this date and serial range, the control software must be updated before installing this fan motor — either by GE factory service or by using the Software Update Module part WR98R882802. Installing the new fan on an unupdated unit can result in improper performance. Check the serial number plate inside your refrigerator (typically on the left side wall) to confirm whether your unit is affected. Refrigerators built outside this range do not require the update.
How do I test if the evaporator fan motor has failed?
Unplug the refrigerator, then access the fan behind the rear panel of the fresh food compartment. First, try turning the fan blade by hand — if it doesn't spin freely, is stiff, or seizes, the motor bearing has failed. Next, listen during normal operation — if the motor is unusually noisy or makes a grinding sound, the bearings are worn even if it still spins. Finally, with the unit unplugged and the motor disconnected, use a multimeter on the motor windings to check for continuity. If the windings show no continuity, the motor has failed electrically. Also check for approximately 11–14V DC at the connector when the refrigerator is running — if voltage is present but the motor doesn't spin, the motor has failed.
My fridge has two evaporator fans — which one does this replace?
Some GE French door refrigerators have separate evaporator fan motors for the freezer and the fresh food sections. The WR60X26866 is the fresh food evaporator fan motor — it's the axial fan located behind the rear panel of the fresh food compartment, not in the freezer. If your symptom is "freezer cold, fridge warm," this is the correct part. If your symptom is "freezer warm" or "ice maker not making ice but fridge is fine," the freezer evaporator fan motor (a different part number) is more likely the cause. Confirm which compartment has the cooling problem before ordering.
Is this an OEM or aftermarket part?
This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same axial evaporator fan motor installed in compatible GE, GE Café, and GE Profile French door refrigerators from the factory — guaranteed fit, materials, and performance.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
