WPW10547292 Genuine OEM Whirlpool Dryer Idler Pulley The WPW10547292 is a genuine Whirlpool OEM idler pulley assembly for Whirlpool, Maytag, and Kenmore dryers. This pulley sits to the left of the motor, just below the drum belt, and its job is to ride against the belt and keep constant tension on it as the motor turns — without that tension, the belt would sag, slip on the motor pulley, and fail to reliably turn the drum. The pulley wheel itself spins freely on a bearing mounted to a bracket, so as the belt moves, the pulley spins along with it under light load. Over time, the bearing inside the pulley wheel wears out, causing it to spin roughly, seize partially, or bind up entirely instead of turning freely. When that happens, the belt drags against a pulley that should be spinning smoothly with it, generating friction, heat, and noise. A worn idler pulley produces a very recognizable symptom: a persistent squeaking or squealing sound during operation that often gets more noticeable over time, and in more advanced cases, a drum that struggles to spin or doesn't spin at all, or a burning smell as the seized pulley drags against the belt. It directly replaces W10547292, WPW10547292VP, AP6022817, 8547160, PS11756154, and LP16246. Quick Answer The WPW10547292 Genuine OEM Whirlpool Dryer Idler Pulley fixes Whirlpool, Maytag, and Kenmore dryers with a persistent squeaking or squealing noise during operation, a drum that struggles to spin, or a burning smell from a seized pulley dragging against the belt. Mounts to the left of the motor, below the belt. Replaces W10547292, WPW10547292VP, AP6022817, 8547160, PS11756154, LP16246. Consider replacing the drum belt (8544742/WP8544742) at the same time — a seized idler pulley is a common cause of premature belt wear, and you'll already have the cabinet open. Common Problems This Part Fixes Persistent squeaking or squealing noise during operation Noise that gradually gets louder or more frequent over time Drum that struggles to spin, spins intermittently, or won't spin at all Burning smell coming from inside the dryer cabinet Pulley wheel that feels stiff, gritty, or seized when checked by hand Drive belt showing premature wear or fraying from dragging against a bound-up pulley Noise that stops and starts depending on drum rotation or load size Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer idler pulley directly replaces the following OEM and cross-reference part numbers: WPW10547292, W10547292, WPW10547292VP, AP6022817, 8547160, EAP11756154, PS11756154, AWP50878, PD00003590, LP16246 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley is compatible with select Whirlpool, Maytag, and Kenmore dryers, including model numbers such as: Whirlpool: WED7300XW0, WED7800XB0, WED8100BW0, WED8500BC0, WED8500BR0, WED8500BW0, WED8600YW0, WED8600YW1, 7MWGD7800XW0, 7MWGD8800AW0, 7MWGD8800AW1 Whirlpool (Y-prefix): YWED8000BW0, YWED8100BW0, YWED8200YW2, YWED8400YW2, YWED8500BC0, YWED8500BW0, YWED8800YC2, YWED8800YW2, YWED8900BC0, YWED8900BW0, YMEDB980BW0 Maytag: 7MMGDB850WL0, 7MMGDB950AG0, MEDB200VQ1, MEDB725BW0, MEDB800VB0, MEDB850WL1, MEDB850WR1 Kenmore: 110.78102310, 11067032600, 11067032601, 11067042600, 11067042601, 11067052600, 11067062600, 11067072600, 11067082600, 11067086600 Note: Whirlpool uses several different idler pulley designs across its dryer lineup, and they are NOT interchangeable. This WPW10547292 pulley is a separate part from the W10837240 pulley (used on Cabrio, Duet, and Bravos XL platforms) and the 279640 pulley (an older, differently-shaped design). Fitting the wrong pulley can result in a bracket that doesn't mount correctly or a wheel that doesn't align with your belt. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which pulley fits your dryer. Key Features Genuine Whirlpool OEM part — factory-specified bearing and bracket design Maintains constant tension on the drive belt so it can turn the drum smoothly Resolves "squeaking or squealing noise," "drum won't spin," and "burning smell" symptoms caused by a worn or seized pulley bearing Complete wheel-and-bracket assembly — no need to source parts separately Direct drop-in replacement — mounts to the original bracket position with the same bolt Replaces W10547292, WPW10547292VP, AP6022817, 8547160, PS11756154, and LP16246 Compatible with Whirlpool, Maytag, and Kenmore dryers Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WPW10547292 Part Type Dryer Idler Pulley Assembly (Wheel + Bracket) Condition Genuine OEM Brand Whirlpool Location Left of the motor, below the drum belt Function Maintains tension on the drive belt as it turns the drum Fuel Type Electric and gas dryers Companion Part 8544742 / WP8544742 drum belt (check/replace if pulley failed) Repair Difficulty Medium — requires some disassembly Quantity 1 idler pulley assembly Compatible Brands Whirlpool, Maytag, Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — On Gas Models, Shut Off The Gas Supply Too Disconnect power at the outlet or shut off the circuit breaker before beginning. On a gas dryer, also close the gas shutoff valve before moving the cabinet. Wear work gloves. Remove the lint filter, then remove the screws along the top edge of the front panel and take the panel off. With the front open, locate the belt tensioner pulley — it sits to the left of the motor, just below the belt. Use a socket wrench with an extension to loosen the pulley's mounting bolt, then remove the old pulley assembly, releasing the belt from it as you go. Slide the new WPW10547292 assembly onto the mounting post, making sure the grooves line up correctly so the belt seats snugly against the wheel, then re-tighten the mounting bolt securely. Before closing everything up, spin the new pulley by hand to confirm it turns freely with no grinding or resistance, and inspect the belt for wear, glazing, or fraying — replace it as well if it shows any of these signs, since a worn belt will quickly wear out even a brand-new pulley. Reinstall the front panel and its screws, restore power, and run a short empty cycle listening for the squeak to confirm it's resolved. Tools needed: 1/4" nut driver, 3/8" socket wrench with extension, Phillips screwdriver, work gloves. Frequently Asked Questions My dryer squeaks constantly. Is this definitely the idler pulley? It's one of the most common causes of a persistent squeak, especially if the noise is steady and present throughout the cycle rather than only at certain moments. The pulley's internal bearing wears out over years of use, and a worn bearing produces exactly this kind of ongoing squeal as it spins roughly instead of smoothly. If you can access the pulley and spin it by hand, feeling any grinding or stiffness confirms the diagnosis. Is this a hard repair, or can I do it myself? It's a moderate repair — you'll need to remove the front panel and access the area behind the motor, which some customers describe as needing to "pull the entire dryer apart" to reach the pulley. It's very doable with basic hand tools and some patience, but budget more time than a simple part swap, and expect to use a socket wrench with an extension to reach the mounting bolt in that tighter space. Should I replace the belt while I'm already in there? It's worth strongly considering. A seized or dragging pulley puts extra wear on the belt, so if your pulley failed from being seized rather than just noisy, the belt may already be showing damage. Since you'll already have the cabinet open and the belt exposed, inspecting it — and replacing it if it shows glazing, cracking, or fraying — saves you from repeating this same teardown again soon after. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original bearing design, bracket shape, and mounting configuration of the idler pulley assembly originally installed in your Whirlpool, Maytag, or Kenmore dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

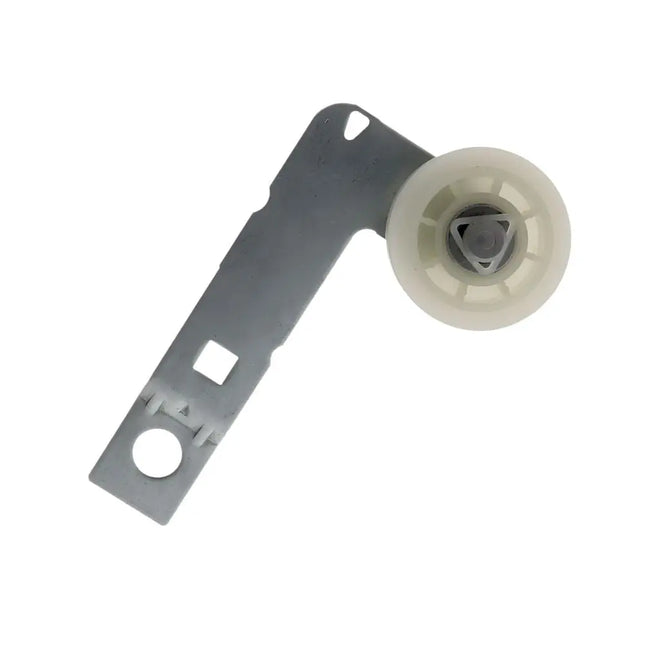

XPARTCO W10837240 Dryer Idler Pulley The XPARTCO W10837240 is an aftermarket replacement idler pulley assembly compatible with select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers. The idler pulley maintains correct tension on the drive belt, allowing the belt to spin the dryer drum smoothly and consistently. When the idler pulley wears out, the belt loses tension — causing squeaking, grinding noises, or a drum that stops spinning entirely. This complete assembly includes the idler arm, pulley, and bracket — everything needed for a direct drop-in installation. The pulley is 2-1/8 inches in diameter and the overall assembly measures 6-1/4" L x 1-1/4" W x 3-7/16" H. It directly replaces OEM part numbers W10837240, W10547287, and W10547290, and fits Whirlpool-family dryers with the lint screen located inside the door. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO W10837240 Dryer Idler Pulley fixes dryers that are squeaking, grinding, or have a drum that won't spin due to lost belt tension. Includes idler arm, pulley, and bracket. Pulley diameter 2-1/8". Compatible with select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers. Fits models with lint screen inside the door. Common Problems This Part Fixes Loud squeaking or squealing noise during dryer operation Grinding or rumbling noise as the drum rotates Dryer drum not spinning — belt loses tension when pulley bearing fails Belt repeatedly slipping off or breaking due to improper tension Dryer drum turning erratically or stopping while motor continues to run Excessive vibration or shaking during the drying cycle Visible wear, cracking, or a pulley that no longer spins freely on its shaft Replaces Part Numbers This idler pulley assembly directly replaces the following OEM and cross-reference part numbers: W10837240, W10547287, W10547290, 3387372, 3388674, W10118754, W10118756, W10837240VP, PD00025564, FIX11726337, AP5988716, PS11726337, 279640, AP3094197, 279640VP, 2958, 3388672, 697692, TJ279640, W10468057, AH334244, EA334244, ER279640, PS334244. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley is compatible with select dryers from the following brands: Whirlpool dryers (gas and electric — fits models with lint screen inside door) Maytag dryers (gas and electric) Amana dryers Kenmore / Sears dryers (select Whirlpool-built models) KitchenAid dryers Crosley dryers Admiral dryers Inglis dryers Roper dryers Important: The W10837240 fits Whirlpool-family dryers with the lint screen located inside the door. If your dryer has the lint screen on top of the cabinet, a different idler pulley may be required. Contact our support team with your model number to confirm before ordering. Key Features Maintains correct tension on the drive belt for smooth, consistent drum rotation every cycle Complete assembly — includes idler arm, 2-1/8" diameter pulley, and bracket — ready to install Overall dimensions: 6-1/4" L x 1-1/4" W x 3-7/16" H Durable plastic and metal construction — resists wear and heat damage Direct replacement for W10837240, W10547287, and W10547290 — no modification required Updated design replaces older W10547287 and W10547290 assemblies Aftermarket replacement built to OEM-equivalent quality standards Often replaced together with the drum belt (WPW10112954 or 661570V) for a complete drum drive repair DIY-friendly repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number W10837240 Part Type Dryer Idler Pulley Assembly with Arm and Bracket Condition Aftermarket Replacement Application Gas and Electric Dryers Pulley Diameter 2-1/8 inches Overall Dimensions 6-1/4" L x 1-1/4" W x 3-7/16" H Material Plastic / Metal Color White Includes Idler arm, pulley, and bracket assembly Lint Screen Location Fits dryers with lint screen inside the door Compatible Brands Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, Roper Often Replaced With WPW10112954 or 661570V Drum Belt Installation Notes ⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. Remove the lint screen and unscrew the Phillips screws inside the lint screen housing. Use a putty knife to release the top panel clips and lift the top panel. Remove the front panel to access the drum and drive components. Release the drive belt tension by pushing the idler arm, then slide the belt off the idler pulley. Remove the mounting screw securing the old idler arm assembly and lift it out. Install the new W10837240 idler assembly, secure with the mounting screw, then re-route the drive belt around the new pulley and motor pulley. Reassemble the front panel, top panel, and restore power before running a test cycle. Tip: While the dryer is open, inspect the drum belt (WPW10112954) and drum support rollers for wear and replace if needed. Tools needed: Phillips screwdriver, putty knife or flat pry tool. Frequently Asked Questions What does the idler pulley do? The idler pulley is a spring-tensioned wheel mounted on an arm and bracket inside the dryer. It presses against the drive belt to maintain the correct tension needed to keep the belt gripping the drum and motor pulley. Without proper tension, the belt slips, loses contact, or causes the drum to stop spinning. A worn or seized idler pulley is one of the most common causes of dryer squeaking and drum spin failure. Does W10837240 replace W10547287 and W10547290? Yes. The W10837240 is the updated part number that directly supersedes both the W10547287 and W10547290 idler pulley assemblies. If your dryer originally used either of those older part numbers, the W10837240 is the correct current replacement. How do I know if my lint screen is inside the door? Open the dryer door and look for a slot or housing just inside the door opening — typically at the top or bottom of the door opening — where you pull out the lint filter. If the filter pulls out from inside the door frame, the W10837240 is designed for your dryer style. If the lint screen pulls out from the top of the dryer cabinet, contact our support team with your model number to identify the correct idler pulley for your machine. Should I replace the drive belt at the same time? Yes — since the dryer is already disassembled to replace the idler pulley, it is highly recommended to also inspect and replace the drum belt (WPW10112954) at the same time. The belt and idler pulley wear together, and a worn belt on a new pulley — or vice versa — significantly shortens the life of the new part. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from durable plastic and metal to match the dimensions and performance of the original W10837240 idler pulley assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

Genuine Whirlpool WP6-3037050 Dryer Idler Pulley - Compatible with Maytag, Whirlpool, Kenmore Product Description Ensure smooth dryer operation with the Genuine Whirlpool WP6-3037050 Dryer Idler Pulley. This OEM part is designed for select Maytag, Whirlpool, and Kenmore dryers, maintaining precise tension on the dryer drum belt to support efficient drum rotation. Constructed with high-quality materials, it delivers superior durability, addressing issues like drum not tumbling, squeaking noises, or belt slippage. Note: Includes one idler pulley with bearing. Disconnect power before installation. Lubricate periodically to extend lifespan. Replaces part numbers: WP6-3037050, 6-3037050, 3-3705, 303705, DE405, ER303705, K35-266, TJ90DE405, WP6-3037050VP, Y303705, PS11743028, EAP11743028, AP6009855, PS11743028. Compatibility: Compatible with models including but not limited to: Maytag: LDG7600ABL, DG7500, LDG7800ABW, LDE9606ACE, LDG8410ABW, LDG4910AAW, LDG7500AAW, LDG7480ABW, GDE7500, LDG7600AGW Whirlpool: LTE6234DQ0, LER4634JQ0, LGR4634EZ0 Kenmore: 110.97561601, 110.97561801 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Maytag, Whirlpool, and Kenmore dryers. 🔐 Specifications: OEM idler pulley with bearing, designed for precise belt tension. 💪 Reliable Performance: High-quality construction ensures long-lasting operation and smooth drum rotation. 🛠️ Easy Installation: Requires screwdriver, putty knife, and nut driver; typically installed in 30–45 minutes. 🛡️ Effective Fixes: Resolves drum not tumbling, squealing or thumping noises, or belt slippage. Product Specification Part Number: Genuine Whirlpool WP6-3037050 Component Type: Dryer idler pulley Material: Plastic wheel with metal bearing Mounting: Spring-loaded arm, screw-mounted, located near motor and drum Operating Conditions: Suitable for household dryer environments Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the dryer from the power source before installation. Shop for high-quality Genuine appliance parts with a 30-day return policy. Keep your dryer running smoothly today! Add to cart now for a reliable fix!

Read more less

XPARTCO DC93-00634A Dryer Idler Pulley  The XPARTCO DC93-00634A is an aftermarket replacement idler pulley assembly compatible with a wide range of Samsung dryers. The idler pulley rides against the drive belt and keeps it under proper tension as it wraps around the drum and motor pulley. Over time, the pulley wheel can wear, crack, or seize on its shaft, or the spring-loaded tensioner arm can bend or break, causing the belt to lose tension. When this part fails, the dryer commonly won't spin at all even though the motor runs, makes a loud noise from the drive area, or the belt goes slack and starts slipping. It directly replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601. Installs in 30 minutes to 2 hours depending on how much disassembly your model requires. Quick Answer The XPARTCO DC93-00634A Dryer Idler Pulley fixes Samsung dryers that won't spin the drum even though the motor runs, make a loud noise from the drive belt area, or have a loose/slipping belt. Replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601. Classic symptom: motor hums and runs, but the drum doesn't turn — "no spin, no start." Common Problems This Part Fixes Dryer motor runs but the drum doesn't spin ("no spin, no start") Loud noise or rattling coming from the drive belt/motor area Drive belt slipping, loose, or off-track Visible cracks, wear, or seizing on the pulley wheel Bent or broken tensioner arm/spring Squeaking noise from the pulley as it rotates Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This idler pulley directly replaces the following OEM and cross-reference part numbers: DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley is compatible with a wide range of Samsung dryers, including: Samsung DV337AEG/XAA-0000 Samsung DV45H7000EW/A2-0000 Samsung DV45K6200EZ/A3 Samsung DV203AEW/XAA-0000, DV203AGS, and related models Note: This idler pulley is specific to the Samsung drive belt platform and does not fit LG, Whirlpool, GE, or other brands, which use different pulley designs. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure. Key Features Direct-fit replacement Samsung dryer idler pulley assembly Resolves "no spin, no start," "loud noise," and "loose/slipping belt" symptoms Maintains proper belt tension as the belt wraps around the drum and motor pulley Spring-loaded tensioner arm matches original design for correct belt tension Replaces DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, AP6038887, ASM34631, EAP11771601, PD00032419, PS11771601 Compatible with a wide range of Samsung dryer models Aftermarket replacement built to OEM-equivalent quality standards Exact-fit design — no modification needed for installation Product Specifications Part Number XPDC93-00634A OEM Part Number DC93-00634A Part Type Dryer Idler Pulley Assembly Condition Aftermarket Replacement Function Maintains drive belt tension Application Samsung Dryer Drive Belt System Compatible Brand Samsung Installation Notes ⚠️ Unplug Dryer Before Starting Disconnect power before beginning. Remove the front panel and/or top panel as needed to access the drum and drive belt (access point varies by model). Photograph the belt routing before removing anything. Relieve tension on the drive belt by pressing the idler pulley toward the motor, then slip the belt off the pulley and motor shaft. Remove the mounting screw or clip holding the idler pulley bracket in place and remove the old pulley assembly. Install the new DC93-00634A pulley in the same position and secure it. Route the new belt back around the drum and motor pulley, using the idler pulley to apply tension, matching your photos of the original routing. Reassemble any panels removed for access, restore power, and run a test cycle to confirm the drum spins smoothly and quietly. Tools needed: Phillips or nut driver, putty knife (for panel clips, if applicable). Frequently Asked Questions My dryer's motor runs but the drum won't spin — is this the part? This is the classic "no spin, no start" symptom of a failed idler pulley or a broken drive belt. If the pulley wheel is cracked, seized, or the tensioner arm is bent or broken, the belt loses tension and can no longer transfer power from the motor to the drum. Inspect the belt for damage as well, since a broken belt often accompanies a worn idler pulley. Do I need to replace the drive belt at the same time? Not necessarily, but it's worth inspecting closely while you have the drum accessible. If the idler pulley failed due to age or wear, the belt has often experienced similar stress and may be worn, glazed, or close to failing itself. Many technicians replace both together to avoid a repeat repair. Will this fit my LG or Whirlpool dryer? No — this idler pulley is specific to the Samsung drive belt platform. LG, Whirlpool, GE, and other brands use different idler pulley and belt tensioning designs that are not interchangeable with this part. Confirm your appliance model number before ordering. How long does this repair typically take? Most installers report 30 minutes to 2 hours depending on how much disassembly your specific model requires to access the belt and pulley. Front panel removal is usually the more time-consuming part; the pulley swap itself is quick once accessed. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WP6-3705180 Dryer Idler Pulley Arm Replaces Part Numbers: WP6-3705180, 6-3705180, 1472858, 33001782, 33001840, AP6009860, PS11743033. Description: The Idler Pulley Arm is a Genuine OEM replacement part for Whirlpool dryers. As a connecting part, it works to route the drive belt and suspend the idler pulley. Mounted on a pivoting bracket, the durable arm positions the idler pulley to maintain proper belt tension over the lifter roll and drum. 🔧 WP6-3705180 Dryer Genuine OEM Idler Pulley Arm Get your dryer spinning smoothly again with the WP6-3705180 Genuine OEM Idler Pulley Arm, a reliable, factory-certified replacement designed to restore quiet and efficient drum rotation. This part keeps proper tension on the drum belt, preventing slippage, squeaks, and extended drying times. If your dryer is noisy, slow, or not spinning, this small part could be the big fix you need. ✅ Key Features: OEM Quality Guaranteed – Model: WP6-3705180 (Replaces 6-3705180) Heavy-Duty Construction – Handles high heat and constant friction Quiet & Smooth Performance – Eliminates squealing or grinding DIY-Friendly Installation – No special tools required Multi-Brand Fit – Works with Whirlpool, Maytag, Crosley & more 💡 Why Buy from Parts-O-Matic?At Parts-O-Matic, we specialize in genuine OEM appliance parts— With fast shipping, expert support, and a perfect fit guarantee, we help you fix it fast and fix it right. 🔄 Replaces Part Numbers: WP6-3705180, 6-3705180, 1472858, 33001782, 33001840, AP6009860, PS11743033. 🧰 Compatible Brands: Maytag Whirlpool Crosley Magic Chef Need help confirming compatibility? Message us—our experts are here to help!

Read more less

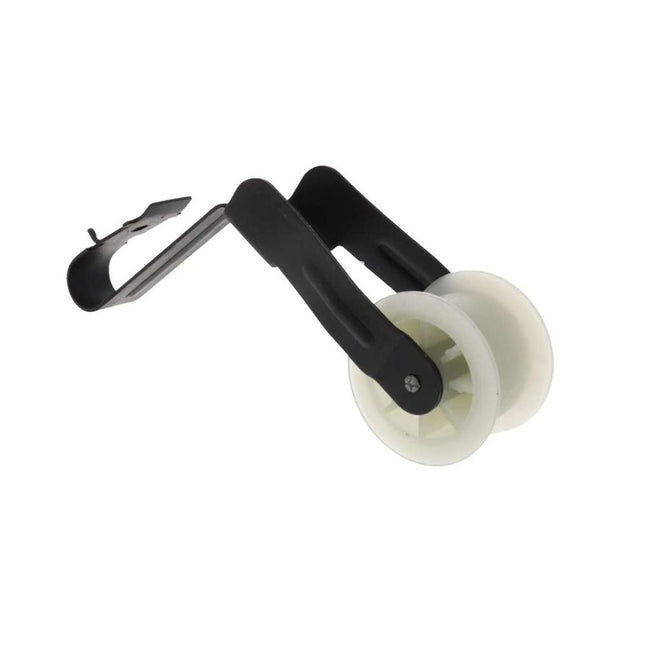

XPARTCO 691366 Dryer Idler Pulley Assembly Replaces WP691366 The XPARTCO 691366 is an aftermarket replacement dryer idler pulley assembly compatible with a wide range of Whirlpool-family dryers — particularly models with the lint filter on top — including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Crosley, Estate, Inglis, Admiral, Magic Chef, and Norge. The idler pulley assembly is a spring-tensioned arm and wheel that presses against the drum drive belt to maintain correct belt tension as it wraps around the drum and motor pulley. Without proper tension, the belt slips off the motor pulley, causing the drum to stop spinning. A worn idler pulley bearing also causes squealing, squeaking, or thumping noises during operation. This is a complete idler arm and pulley assembly — it includes both the spring arm and the wheel, and mounts directly to the existing bracket in the dryer. Overall dimensions are 6"L x 1-5/8"W x 3-7/8"H with a 1-7/8" diameter pulley wheel. It replaces older Teflon friction-style idler pulleys and provides a smoother, longer-lasting ball-bearing wheel. It directly replaces WP691366, 691366, 239477, 337116, 337407, 3394332, 347034, 347226, 4319391, 688166, W10612905, AP6010582, PS11743765, and over 20 additional cross-reference numbers. Often replaced together with the drum belt (341241) and drum support rollers (349241T) as the 4392065 maintenance kit. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO 691366 Dryer Idler Pulley Assembly fixes Whirlpool-family dryers that are squealing, thumping, or where the drum stops spinning because the belt has lost tension. Complete arm and pulley assembly. 6"L x 1-5/8"W x 3-7/8"H overall, 1-7/8" pulley diameter. Replaces older Teflon friction pulleys with ball-bearing wheel. Compatible with Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, and more. Replaces WP691366, 239477, 337116, 3394332, 347034, AP6010582, PS11743765. Often replaced with 341241 belt and 349241T rollers. Common Problems This Part Fixes Drum not spinning — belt has lost tension and slipped off the motor pulley Loud squealing or squeaking noise during the drying cycle — worn idler pulley bearing Thumping or clunking noise as the pulley wheel wobbles on a worn bearing Belt repeatedly slipping or falling off after being reinstalled Grinding noise from the idler pulley area — bearing fully failed Dryer drum spinning intermittently due to inconsistent belt tension Idler pulley arm visibly cracked, broken, or wheel no longer spinning freely Replaces Part Numbers This idler pulley assembly directly replaces the following OEM and cross-reference part numbers: WP691366, 691366, 239477, 26000691366, 337116, 337407, 337510, 3388345, 338946, 3394332, 347034, 347226, 347277, 4319391, 688166, 691366BULK, 8207, 99989677, DE412, K35-163, W10612905, WP691366VP, AWP48059, EAP11743765, AP6010582, PD00002256, PS11743765. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley assembly is compatible with select gas and electric dryers from the following brands — particularly models with the lint filter on top: Whirlpool dryers (gas and electric — WED, WGD, LE, LG, and related series with top lint filter) Kenmore / Sears dryers (Whirlpool-built models) Maytag dryers (gas and electric) Amana dryers KitchenAid dryers Roper dryers Crosley dryers Estate dryers Inglis dryers Admiral dryers Magic Chef dryers Norge dryers Note: The 691366 idler pulley is for older Whirlpool-family dryers with the lint filter on top. Newer Whirlpool dryers with the lint screen inside the door use the W10837240 idler pulley arm assembly instead. Always verify your model number before ordering. Key Features Complete idler arm and pulley assembly — includes both the spring-tensioned arm and the pulley wheel Maintains correct drive belt tension so the belt grips the drum and motor pulley without slipping Redesigned ball-bearing pulley wheel replaces older Teflon friction-style pulleys for longer service life and quieter operation Overall dimensions: 6"L x 1-5/8"W x 3-7/8"H; pulley wheel diameter: 1-7/8" Plastic arm with metal shaft and ball-bearing pulley wheel Replaces WP691366, 239477, 337116, 3394332, 347034, AP6010582, and over 30 additional cross-reference numbers Compatible with 12 major appliance brands on the Whirlpool top-lint-filter platform Often replaced together with the drum belt (341241) and drum rollers (349241T) — all three included in the 4392065 maintenance kit Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number 691366 OEM Part Number WP691366 Part Type Dryer Idler Pulley Assembly (Arm and Wheel) Condition Aftermarket Replacement Application Gas and Electric Dryers (lint filter on top models) Overall Dimensions 6"L x 1-5/8"W x 3-7/8"H Pulley Wheel Diameter 1-7/8 inches Material Plastic arm / Metal shaft / Ball-bearing pulley wheel Color Black / White Includes Complete idler arm and pulley assembly Often Replaced With 341241 Drum Belt, 349241T Drum Rollers (4392065 kit) Compatible Brands Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Crosley, Estate, Inglis, Admiral, Magic Chef, Norge Installation Notes ⚠️ Unplug Dryer Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the lint screen and unscrew the screws inside the lint screen housing. Use a putty knife to release the top panel spring clips and lift the top panel. Remove the front panel to fully access the drum drive components. Release belt tension by pushing the idler pulley arm toward the motor and sliding the belt off. Note how the belt is routed before removing — take a photo. Unclip or unscrew the old idler pulley assembly from its mounting bracket. Install the new 691366 idler pulley in the same position. Re-route the belt around the drum (ribbed side in), under the idler pulley, and around the motor pulley, then release the idler arm to create tension. Reassemble the front and top panels, restore power, and run a test cycle. Tip: while the dryer is open, inspect and replace the drum belt (341241) and drum support rollers (349241T) if worn. Tools needed: Phillips screwdriver, 1/4" or 5/16" nut driver, putty knife. Frequently Asked Questions What does the idler pulley do? The idler pulley is a spring-loaded arm and wheel assembly that presses against the drive belt between the drum and the motor pulley, keeping the belt under constant tension. This tension is what allows the belt to grip both the drum and the motor pulley without slipping as the motor spins. Without proper tension — or with a pulley bearing that has failed — the belt slips, the drum stops spinning, and the dryer produces heat but does not tumble clothes. A worn bearing also creates the high-pitched squealing sound that is the most common sign of idler pulley failure. What is the difference between 691366 and WP691366? These are the same idler pulley assembly. WP691366 is the updated Whirlpool OEM part number that superseded the original 691366. The W10612905 is also a cross-reference for the same assembly. This aftermarket replacement is compatible with all three numbers. What is the difference between 691366 and W10837240? Both are Whirlpool dryer idler pulley assemblies, but for different dryer generations. The 691366 (WP691366) is used on older Whirlpool-family dryers with the lint filter on top of the dryer. The W10837240 is a larger, redesigned idler arm and bracket assembly used on newer Whirlpool-family dryers with the lint screen inside the door. They are not interchangeable. Always verify your model number to confirm which idler pulley is correct for your dryer. Should I also replace the belt and drum rollers at the same time? Yes — since the dryer must be disassembled to replace the idler pulley, this is the ideal time to also inspect and replace the drum belt (341241) and rear drum support rollers (349241T). All three parts are part of the same drum drive system and wear at similar rates. The 4392065 maintenance kit includes all three together and is the recommended approach for a complete drum drive repair — one teardown covers everything. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from durable plastic and metal with a ball-bearing pulley wheel to match the dimensions and performance of the original WP691366 idler pulley assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

EXP651 Dryer Belt and Idler Pulley Kit Replaces WPW10112954, W10837240 The EXP651 is an aftermarket dryer repair kit containing two essential drum drive components for select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers. The kit includes one drum belt (replaces WPW10112954) and one idler pulley assembly with bracket (replaces W10837240) — the two parts most commonly worn together when a dryer drum stops spinning or becomes noisy. Replacing both the belt and idler pulley at the same time is the smart repair choice. Since the dryer must be disassembled to access either part, doing both in one repair saves you from having to take the machine apart again if the second part fails shortly after. This kit covers the two most common failure points in the Whirlpool-family dryer drum drive system. Quick Answer The EXP651 Dryer Belt and Idler Pulley Kit fixes dryers where the drum is not spinning, making loud squeaking or grinding noises, or the belt has broken. Includes one 93-1/4" x 5/16" 5-rib drum belt (WPW10112954) and one idler pulley assembly with bracket (W10837240). Compatible with select Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, and Roper dryers. What's in the Kit Part 1 of 2 Dryer Drum Belt — Replaces WPW10112954 93-1/4" L x 5/16" W x 1/8" H · 5-rib Multi-V rubber belt · Wraps around drum and connects to motor and idler pulleys to drive drum rotation Part 2 of 2 Idler Pulley Assembly with Bracket — Replaces W10837240 2-1/8" pulley diameter · 6-1/4" L x 1-1/4" W x 3-7/16" H overall · Plastic/metal construction · Maintains correct belt tension to spin the drum · Fits Whirlpool dryers with lint screen inside door Common Problems This Kit Fixes Dryer drum not spinning — motor runs but drum stays still Loud squeaking, squealing, or grinding noise during operation Clothes not tumbling during the drying cycle Thumping or slapping noise when dryer is running Belt slipping off or repeatedly breaking Burning rubber smell coming from the dryer Dryer drum turning erratically or stopping while motor continues to run Replaces Part Numbers Drum Belt (WPW10112954) cross-references: WPW10112954, W10112954, 1447719, AWP48873, PD00003553, EAP11748388, AP6015116, PS11748388. Idler Pulley Assembly (W10837240) cross-references: W10837240, W10547287, W10547290, 3387372, 3388674, W10118754, W10118756, W10837240VP, AWP41730, PD00025564, FIX11726337, AP5988716, PS11726337, 279640, AP3094197, 279640VP, 2958, 3388672, 697692, TJ279640, W10468057, AH334244, EA334244, ER279640, PS334244. If your part numbers are not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This kit is compatible with select dryers from the following brands: Whirlpool dryers (gas and electric — fits models with lint screen inside door) Maytag dryers (gas and electric) Amana dryers Kenmore / Sears dryers (select Whirlpool-built models) KitchenAid dryers Crosley dryers Admiral dryers Inglis dryers Roper dryers Note: The W10837240 idler pulley fits Whirlpool-family dryers with the lint screen located inside the door. If your dryer has the lint screen on top of the cabinet, a different idler pulley part number may be required. Contact our support team to confirm before ordering. Key Features Two-part kit covers the most common drum drive failures in Whirlpool-family dryers in a single repair Belt: 93-1/4" L x 5/16" W, 5-rib Multi-V rubber — resists cracking, stretching, and heat damage Idler pulley: 2-1/8" diameter pulley with arm and bracket — maintains correct belt tension for smooth drum rotation Replacing both parts together saves a second disassembly if the other part fails soon after Aftermarket replacement built to OEM-equivalent quality standards Belt directly replaces WPW10112954 / W10112954 — no modification required Idler pulley directly replaces W10837240 / W10547287 / W10547290 — no modification required DIY-friendly repair — installs in 30–60 minutes with basic hand tools Product Specifications Kit Part Number EXP651 Condition Aftermarket Replacement Application Gas and Electric Dryers Kit Includes 1x Drum Belt (WPW10112954), 1x Idler Pulley Assembly with Bracket (W10837240) Belt Length 93-1/4 inches Belt Width 5/16 inch Belt Height 1/8 inch Belt Ribs 5 ribs, 4 grooves (Multi-V) Belt Material Rubber Pulley Diameter 2-1/8 inches Pulley Overall Dimensions 6-1/4" L x 1-1/4" W x 3-7/16" H Pulley Material Plastic / Metal Compatible Brands Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Crosley, Admiral, Inglis, Roper Installation Notes ⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. Remove the lint screen, then unscrew the Phillips screws inside the lint screen housing. Use a putty knife to release the top panel clips and lift the top panel. Remove the front panel to access the drum and drive components. Release belt tension at the old idler pulley, lift the drum slightly, and slide the old belt off. Remove the old idler arm assembly by unscrewing the mounting screw, then install the new W10837240 idler pulley assembly and secure with the screw. Loop the new WPW10112954 belt around the drum with the ribbed side facing inward, then route it around the new idler pulley and motor pulley. Consult your model's service manual or a model-specific repair video for the correct belt path. Reassemble and run a test cycle. Tools needed: Phillips screwdriver, putty knife or flat pry tool. Frequently Asked Questions Why should I replace the belt and idler pulley at the same time? The belt and idler pulley wear together — when one fails, the other is usually close behind. Since the dryer must be fully disassembled to access either part, replacing both in a single repair saves you from having to take the machine apart again soon after. It also protects the new belt from being damaged by a worn pulley, and vice versa. How does the W10837240 differ from other Whirlpool idler pulleys? The W10837240 is the updated idler pulley arm and bracket assembly designed for Whirlpool-family dryers that have the lint screen inside the door. It replaces the older W10547287 and W10547290 assemblies. Some older or different Whirlpool models use a different idler pulley style — if you're unsure which one your dryer needs, contact our support team with your model number before ordering. What is the difference between WPW10112954 and W10112954? These are the same belt. WPW10112954 is the updated Whirlpool OEM part number that superseded the original W10112954. Both refer to the identical drum belt included in this kit. Should I also replace the drum rollers at the same time? It depends on the condition of your rollers. Since the dryer is already fully disassembled, it is a good opportunity to inspect the drum support rollers for flat spots, cracks, or wobbling. If they show any wear, replacing them at the same time is recommended to avoid a third disassembly. Check your model's roller part number before ordering. Are these OEM or aftermarket parts? Both parts in this kit are aftermarket replacements built to OEM-equivalent quality standards. They are not genuine Whirlpool OEM parts, but are manufactured to match the dimensions and performance of the original WPW10112954 belt and W10837240 idler pulley assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

Y54414 Dryer Idler Pulley Replaces WPY54414 The Y54414 is a genuine Whirlpool OEM idler pulley wheel and bearing assembly for Whirlpool dryers, and also fits select Maytag, Amana, Caloric, Crosley, Kenmore, and Speed Queen models. This pulley puts tension on the drive belt as it rides against it, and correct tension is what allows the belt to grip properly and spin the drum smoothly throughout the drying cycle. Available in beige or black, this pulley wheel is 2" wide with a metallic bearing at its center, and mounts beneath the drum using two 5/16" screws. Over time, the bearing wears out or the wheel becomes damaged, and once that happens, the pulley can no longer maintain proper belt tension. Symptoms of a failing idler pulley include the dryer making noise during operation, failing to start, or failing to tumble, even though other parts of the drying cycle — like heating — may continue working normally. It directly replaces WPY54414, WPY54414VP, 14218926, 54414, 54414-REPL, 54414-2, R0609504, R0609504-REPL, AP6024203, AP6329060, PS11757553, EAP11757553, PS17001032, D510142P, 510142P, and 510142. Quick Answer The Y54414 Dryer Idler Pulley fixes Whirlpool, Maytag, Amana, Caloric, Crosley, Kenmore, and Speed Queen dryers making noise during operation, failing to start, or failing to tumble — even while other functions like heating still work. 2" pulley wheel with metallic bearing, beige or black. Replaces WPY54414, WPY54414VP, 14218926, 54414, 54414-REPL, 54414-2, R0609504, R0609504-REPL, AP6024203, AP6329060, PS11757553, EAP11757553, PS17001032, D510142P, 510142P, 510142. This pulley is located beneath the drum — removing the blower housing and motor first makes access considerably easier. Common Problems This Part Fixes Dryer making noise during operation Dryer fails to start Dryer fails to tumble Dryer dries clothes but makes a terrible or unusual noise while doing so Belt slipping or losing tension Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer idler pulley directly replaces the following OEM and cross-reference part numbers: WPY54414, Y54414, 14218926, 54414, R0609504, WPY54414VP, 54414-REPL, R0609504-REPL, AP6024203, AWP51465, EAP11757553, PD00002420, PS11757553, D510142P, 510142P, 510142, D510142, 510142P, 510142, 54414, 54415, 54415P, AP6329060, ASQ376005, PD00042476, PS17001032, DE407 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley is compatible with select Whirlpool dryers, and also fits select Maytag, Amana, Caloric, Crosley, Kenmore, and Speed Queen dryers built on the Whirlpool platform, including model numbers such as SDG3606AWW, LG8469W2, SDE3606AYW, SDE4606AYW, SDG4606AWW, and LEA30AW. Note: This is a different idler pulley from our 279640 listing, used on other Whirlpool/Kenmore dryer models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which pulley your dryer needs. Key Features Genuine Whirlpool OEM part — factory-specified pulley wheel and bearing design Maintains proper tension on the drive belt for smooth drum rotation Resolves "noisy operation," "won't start," and "won't tumble" symptoms caused by pulley failure 2" wide pulley wheel with metallic bearing Available in beige or black Mounts beneath the drum with two 5/16" screws Direct drop-in replacement matching the original mounting Replaces WPY54414, WPY54414VP, 14218926, 54414, 54414-REPL, 54414-2, R0609504, R0609504-REPL, AP6024203, AP6329060, PS11757553, EAP11757553, PS17001032, D510142P, 510142P, and 510142 Compatible with Whirlpool, Maytag, Amana, Caloric, Crosley, Kenmore, and Speed Queen dryers Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number Y54414 OEM Part Number WPY54414 Part Type Dryer Idler Pulley Wheel & Bearing Assembly Condition Genuine OEM Color Beige or Black Wheel Width 2" Bearing Metallic, center-mounted Location Beneath the drum Mounting Two 5/16" screws Repair Difficulty Moderate — drum removal required for access Quantity 1 idler pulley Compatible Brands Whirlpool, Maytag, Amana, Caloric, Crosley, Kenmore, Speed Queen Installation Notes ⚠️ Unplug Dryer Before Starting — Remove The Blower Housing And Motor First For Easier Access Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. This pulley is located beneath the drum, so the drum will need to be removed to access it. Per official guidance, it's also recommended to remove the blower housing and motor from the dryer for easier access to the idler pulley. With the drum out and access clear, locate the idler pulley and remove the two 5/16" screws securing it in place. Take out the old pulley. Install the new Y54414 in the same position, making sure it's seated correctly against where the belt will ride, and secure it with the two 5/16" screws. Reinstall the motor and blower housing if removed, then reinstall the drum. Reroute the drive belt around the drum, motor pulley, and this idler pulley, matching the original path. Reassemble any panels removed for access. Restore power and run a test cycle to confirm quiet, smooth tumbling with proper belt tension. Tools needed: 5/16" nut driver or socket, Phillips screwdriver, work gloves. Frequently Asked Questions My dryer dries clothes fine but makes a terrible noise. Is this the part I need? Yes, this is a documented symptom of a worn idler pulley. One customer described exactly this: "The dryer would dry clothes but made a terrible noise" — after watching a repair video to identify the correct part, they confirmed this idler pulley was the cause, since a worn or damaged pulley can still allow the dryer to function while producing noticeable noise as it rubs or wobbles against the belt. Is there an easier way to access this pulley than pulling out the whole drum? The drum does need to come out since this pulley sits beneath it, but official guidance recommends also removing the blower housing and motor from the dryer, which makes reaching and working with the idler pulley considerably easier than trying to access it with those components still in place. My dryer won't start at all. Could this pulley really be the cause? Yes, on some models. If the idler pulley fails to put proper tension on the belt, some dryers won't allow the cycle to start at all rather than simply running without tumbling, since certain safety interlocks depend on normal belt tension and drum movement. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original pulley wheel size, bearing type, and mounting configuration of the idler pulley originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

EXP653 Dryer Idler Pulley and Belt Set Replaces 6602-001655, DC93-00634A The EXP653 is an aftermarket replacement drum belt and idler pulley set for Samsung electric dryers, and also fits select Kenmore, Amana, and Maytag models built on the Samsung platform. These two components work together: the drum belt wraps around the drum and motor pulley to transmit rotation and keep the drum tumbling, while the idler pulley rides against the belt to maintain proper tension so it doesn't slip or sag during operation. Over time, the belt wears, cracks, or glazes over, and the idler pulley's bearing wears out, causing it to spin roughly or seize. Because these two parts work together in the same drive path and tend to wear on a similar timeline, they're commonly sold and replaced as a set. Symptoms of failure include the dryer not starting, the drum not tumbling or spinning, and noise issues such as squealing or grinding during operation. It directly replaces 6602-001655, 6602-001314, 5PH2337, EXP645, PD00002012, EAP2407938, AP4373659, PS4133825 (drum belt), and DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, PD00032419, EAP11771601, AP6038887, and PS11771601 (idler pulley). Quick Answer The EXP653 Dryer Idler Pulley and Belt Set fixes Samsung, Kenmore, Amana, and Maytag electric dryers that won't start, won't tumble or spin, or make squealing/grinding noise during operation. Includes drum belt and idler pulley. Replaces 6602-001655, 6602-001314, 5PH2337, EXP645, PD00002012, EAP2407938, AP4373659, PS4133825, DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, PD00032419, EAP11771601, AP6038887, PS11771601. These two parts wear together — replacing both at once, rather than just the one that failed, helps avoid reopening the dryer again soon after. What's In The Set Component Replaces Function Drum Belt 6602-001655 Wraps around the drum and motor pulley to transmit rotation and keep the drum tumbling. Idler Pulley DC93-00634A Rides against the belt to maintain proper tension so it doesn't slip or sag. Common Problems This Set Fixes Dryer won't start Drum won't tumble or spin Squealing or grinding noise during operation Belt slipping or sagging, causing inconsistent tumbling Vibration or rattling from the belt/pulley area Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer idler pulley and belt set directly replaces the following OEM and cross-reference part numbers: 6602-001655, 6602-001314, 5PH2337, PD00002012, EXP645, EAP2407938, AP4373659, ASM874658, PS4133825, DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, EXP645, 4455850, PD00032419, EAP11771601, AP6038887, ASM34631, PS11771601. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This set is compatible with select Samsung electric dryers, and also fits select Kenmore, Amana, and Maytag dryers built on the Samsung platform, including model numbers such as: DV42H5000EW/A3, DV42H5000GW/A3, DV42H5200EF/A3, DV42H5200EP/A3, DV42H5200EW/A3, DV42H5200GF/A3, DV42H5200GP/A3, DV42H5200GW/A3 DV42H5400EF/A3, DV42H5400EW/A3, DV42H5400GF/A3, DV42H5400GW/A3, DV42H5600EP/A3, DV42H5600EW/A3, DV42H5600GP/A3, DV42H5600GW/A3 DV45H6300EG/A3, DV45H6300EW/A3, DV45H6300GG/A3, DV45H7000EW/A2, DV48H7400EW/A2, DV48J7700EW DV45K6200EW/A3, DV45K7600EW/A3, DV40J3000EW/A2, DV48J7770EP, DV50F9A6EVW/A2, DV52J8700EP/A2, DV52J8700EW DV330AEB/XAA, DV331AER/XAA, DV350AEP/XAA, DV350AER/XAA, DV350AEW/XAA DV455EVGSGR/AA, DV455EVGSWR/AA, DV455GVGSGR/AA, DV455GVGSWR/AA DV456ETHDSU/AA, DV456EWHDSU/AA, DV456EWHDWR/AA, DV456GWHDSU/AA, DV456GWHDWR/AA DV457EVGSGR/AA, DV457EVGSWR/AA, DV457GVGSGR/AA, DV457GVGSWR/AA Note: Always verify your full model number before ordering, since Samsung uses different belt lengths and pulley designs across its dryer lineup. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement set — drum belt and idler pulley in one purchase Resolves "won't start," "won't tumble or spin," and "squealing/grinding noise" symptoms Restores smooth drum rotation with proper belt tracking and tension Reduces noise and vibration from a worn belt or seized pulley Direct drop-in replacement matching the original belt length and pulley mounting Replaces 6602-001655, 6602-001314, 5PH2337, EXP645, PD00002012, EAP2407938, AP4373659, PS4133825, DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, 4455850, PD00032419, EAP11771601, AP6038887, and PS11771601 Compatible with Samsung, Kenmore, Amana, and Maytag electric dryers Built to OEM-equivalent quality standards Product Specifications Part Number EXP653 Set Contents 1x Drum Belt (replaces 6602-001655), 1x Idler Pulley (replaces DC93-00634A) Condition Aftermarket Replacement Application Samsung Electric Dryers Belt Material Black rubber Pulley Material Metal alloy Repair Difficulty Moderate — front/top panel removal required Compatible Brands Samsung, Kenmore, Amana, Maytag Installation Notes ⚠️ Unplug Dryer Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Remove the top and front panels of the dryer to access the drum, belt, and idler pulley. Remove the old drum belt from around the drum and motor pulley. Remove the old idler pulley from its mounting bracket. Install the new EXP653 idler pulley in the same position, making sure it spins freely by hand before continuing. Route and install the new drum belt correctly around the drum and motor pulley, matching the original path exactly, and re-tension it through the idler pulley. Reinstall the drum if it was removed, then reassemble the front and top panels. Restore power and run a test cycle to confirm quiet, smooth operation with the drum tumbling normally and no squealing or grinding noise. Tools needed: 1/4" nut driver, Phillips screwdriver, work gloves. Frequently Asked Questions My dryer won't start. Could that really be the belt or pulley? Yes, on some models a broken belt or seized idler pulley can prevent the dryer from starting a cycle at all, since certain safety switches rely on normal drum movement or belt tension to allow the cycle to proceed. If your dryer hums or clicks but won't fully start, or starts and immediately stops, this set is worth checking alongside more obvious suspects like the door switch. Do I need to replace both the belt and the pulley, or just the one that failed? You can replace just the failed component if you've confirmed which one is actually bad, but these two parts share the same drive path and tend to wear out around the same time — a seized pulley can accelerate belt wear, and a worn belt puts extra strain on the pulley. Replacing both together, since you'll already have the dryer open, helps avoid a second teardown soon after. My dryer squeals during operation. Is that this set? Yes, squealing or grinding noise is one of the most common symptoms addressed by this belt and pulley set, typically caused by a worn idler pulley bearing or a belt that's slipping due to lost tension. Is this an OEM or aftermarket part? This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the belt length, rib pattern, and pulley design of the original 6602-001655 belt and DC93-00634A idler pulley used in compatible Samsung, Kenmore, Amana, and Maytag electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 4561EL3002A Dryer Idler Pulley Assembly The XPARTCO 4561EL3002A is an aftermarket replacement dryer idler pulley assembly compatible with select LG and Kenmore electric and gas dryers. The idler pulley assembly is a spring-tensioned arm, pulley wheel, and spring kit that presses against the drive belt to keep it under constant tension as it wraps around the drum and motor pulley. Without correct belt tension, the belt slips, the drum stops spinning, and the dryer tumbles clothes poorly or not at all. A worn idler pulley bearing is also one of the most common causes of squealing, squeaking, and thumping noises in LG dryers. This complete assembly includes the idler arm, pulley wheel, and idler spring. Overall dimensions are 5-3/4"L x 2-1/4"W x 3-7/8"H with a 2-1/4" diameter pulley wheel. Constructed from plastic and metal in white, black, and gray. It directly replaces 4561EL3002B, DE3002A, 4980EL3004, 1267530, AP4438243, AH3523033, EA3523033, EAP3523033, PD00001729, and PS3523033. Note: the pulley wheel only (without arm and spring) is sold separately as APN4560EL3001A — this listing is for the complete idler assembly. Often replaced together with the drum belt (4400EL2001A) and drum rollers (4581EL2002A) for a complete drum drive repair. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO 4561EL3002A Dryer Idler Pulley Assembly fixes LG and Kenmore dryers that are squealing, thumping, or where the drum has stopped spinning because belt tension is lost. Complete assembly — idler arm, pulley wheel, and spring included. 5-3/4"L x 2-1/4"W x 3-7/8"H overall; 2-1/4" pulley diameter. Replaces 4561EL3002B, DE3002A, 4980EL3004, 1267530, AP4438243, AH3523033, EAP3523033, PS3523033. Often replaced with drum belt (4400EL2001A) and drum rollers (4581EL2002A). Common Problems This Part Fixes Drum not spinning — belt has lost tension and slipped off Loud squealing or squeaking noise during the drying cycle — worn idler pulley bearing Thumping or clunking noise as the pulley wheel wobbles on a worn axle Belt repeatedly falling off after reinstallation — idler no longer maintaining tension Grinding noise from the idler area — bearing completely failed Drum spinning intermittently due to inconsistent belt tension Idler arm visibly cracked or pulley wheel no longer spinning freely by hand Replaces Part Numbers This idler pulley assembly directly replaces the following OEM and cross-reference part numbers: 4561EL3002A, 1267530, 4561EL3002B, ALG51226, AH3523033, AP4438243, EA3523033, EAP3523033, PD00001729, PS3523033 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This idler pulley assembly is compatible with select LG and Kenmore gas and electric dryers: LG electric dryers — DLE series (DLE0442W, DLE1001W, DLE2250W, DLE2350W, DLE3133W, DLE3777W, DLE4801W, DLE5001W, DLE5955W, DLE7177WM and related models) LG electric dryers — DLEX series (DLEX3885W, DLEX5780VE and related models) LG gas dryers — DLG series (DLG0452W, DLG2251W, DLG2351W, DLG3744W, DLG3788W, DLG5002W, DLG5966W and related models) LG gas dryers — DLGX series (DLGX3886W and related models) Kenmore / Sears dryers — 796-series (LG-built electric and gas models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Complete idler pulley assembly — includes idler arm, pulley wheel, and idler spring Maintains correct drive belt tension so the drum spins smoothly and quietly during every drying cycle Overall dimensions: 5-3/4"L x 2-1/4"W x 3-7/8"H; pulley wheel diameter: 2-1/4" Plastic arm and housing with metal pulley shaft — durable construction for continuous operation Replaces 4561EL3002B, DE3002A, 4980EL3004, AP4438243, AH3523033, EAP3523033, and PS3523033 Note: pulley wheel only (without arm and spring) is sold separately as APN4560EL3001A — this listing is the complete assembly Often replaced together with drum belt (4400EL2001A) and drum rollers (4581EL2002A) Compatible with LG DLE, DLEX, DLG, DLGX series and Kenmore 796-series dryers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number XP4561EL3002A Also Replaces 4561EL3002B (prior revision) Part Type Dryer Idler Pulley Assembly (Arm, Wheel, and Spring) Condition Aftermarket Replacement Application LG and Kenmore Gas and Electric Dryers Overall Dimensions 5-3/4"L x 2-1/4"W x 3-7/8"H Pulley Wheel Diameter 2-1/4 inches Material Plastic / Metal Color White / Black / Gray Includes Idler arm, pulley wheel, and idler spring — complete assembly Pulley Wheel Only APN4560EL3001A (sold separately — not this listing) Often Replaced With 4400EL2001A Drum Belt, 4581EL2002A Drum Rollers Compatible Brands LG, Kenmore (LG-built) Installation Notes ⚠️ Unplug Dryer Before Starting — Wear Work Gloves Disconnect power (and shut off gas for gas dryers) before beginning. Wear work gloves — there are sharp sheet metal edges inside the LG dryer cabinet. Access the idler pulley by removing the back panel of the dryer (on most LG models) or the front panel and top panel. Take a photo of the belt routing around the drum, motor pulley, and idler pulley before removing anything — this is essential for correct reassembly. Release belt tension by pressing the idler arm toward the motor and sliding the belt free. Remove the idler spring from its anchor point, then unclip or unscrew the idler arm from its mounting bracket. Install the new 4561EL3002A idler assembly in the same position — hook the spring onto its anchor point first, then mount the arm. Re-route the belt around the drum (ribbed side in), under the idler pulley, and around the motor pulley, then allow the idler arm to tension the belt. Reassemble panels, restore power, and run a test cycle. Tip: while the dryer is open, inspect and replace the drum belt (4400EL2001A) and drum rollers (4581EL2002A) if worn. Tools needed: Phillips screwdriver, Torx screwdriver (T20 on some models), needle-nose pliers, work gloves. Frequently Asked Questions What does the dryer idler pulley do? The idler pulley is a spring-loaded arm and wheel assembly that presses against the drive belt between the drum and the motor pulley, keeping the belt under constant tension. This tension is what allows the belt to grip both the drum surface and the motor pulley so the motor's rotation is transmitted to spin the drum. Without proper tension — or with a pulley bearing that has seized or worn out — the belt slips, the drum stops spinning, and the dryer produces heat without tumbling clothes. A worn bearing also creates the high-pitched squealing noise that is the most recognizable symptom of idler pulley failure on LG dryers. What is the difference between 4561EL3002A and 4561EL3002B? These are the same LG dryer idler pulley assembly across two production revisions. The 4561EL3002B was an earlier version and the 4561EL3002A is the current part number. Both are the same functional assembly — if your dryer's parts diagram shows 4561EL3002B, the 4561EL3002A is the correct current replacement and is covered by this listing. Should I also replace the drum belt and rollers at the same time? Yes — since the dryer must be disassembled to replace the idler pulley, this is the ideal time to also inspect and replace the drum belt (4400EL2001A) and drum support rollers (4581EL2002A). All three parts form the drum drive system and wear at similar rates. A worn roller or belt is often what caused the idler pulley to wear prematurely. Replacing all three in one repair eliminates the most common drum drive failure points and prevents a repeat teardown in the near future. Can I just replace the pulley wheel without the arm and spring? Yes — the pulley wheel alone (without the arm and spring) is sold separately as part number APN4560EL3001A. If only the wheel bearing has failed and the arm and spring are in good condition, you can order just the wheel. However, if the arm is cracked, the spring has lost tension, or both the wheel and arm have significant wear, ordering the complete 4561EL3002A assembly is more cost-effective and ensures the entire idler system is renewed in a single repair. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from plastic and metal to match the dimensions and performance of the original 4561EL3002A idler pulley assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
