WP4449751 Genuine OEM Whirlpool Oven High Limit Thermostat The WP4449751 is a Genuine OEM Whirlpool replacement oven high limit thermostat compatible with a wide range of Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens, wall ovens, microwave-oven combinations, and ranges. The high limit thermostat is a critical safety device mounted near the oven cavity — it continuously monitors the oven's temperature and cuts off electrical power to the heating element if the oven exceeds its safe operating temperature. When the oven temperature drops back to normal, the thermostat closes and allows normal operation to resume. This backup safety layer protects against fires, damage to the oven, and unsafe cooking conditions when the main temperature control fails. Rated to trip at approximately 335°F (170°C). Common causes for the high limit thermostat to trip include a faulty control board, cooling fan failure, blocked ventilation, poor door sealing, disrupted air circulation, or an abnormal self-cleaning cycle. As a Genuine OEM part manufactured by Whirlpool to factory specifications, the WP4449751 directly replaces 4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, and AH11742549. Installs in 30–45 minutes with basic hand tools by experienced DIYers. This is a safety component in a 240V oven circuit — proceed only if you're comfortable with high-voltage electrical work, or call a qualified appliance technician. Quick Answer The WP4449751 Genuine OEM Whirlpool Oven High Limit Thermostat fixes Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and Kenmore ovens with symptoms including oven not heating, oven overheating, uneven heating, oven failing to start, and self-clean door won't unlock after cycle. 335°F (170°C) trip temperature — cuts off power to heating element on overheat, then resets when temperature returns to normal. Genuine OEM. Replaces 4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, AH11742549. Compatible with WOS/WOD wall ovens, KOSE/KODE/KOCE series, JJW/JMW/JDRP/JDR series, and many more. Common Problems This Part Fixes Oven not heating at all — high limit thermostat tripped open Oven overheating — thermostat failing to trip when needed (rare failure mode) Inconsistent oven temperatures leading to undercooked or overcooked food Oven fails to start when powered on Oven door won't unlock after a self-cleaning cycle completes Uneven heating — hot spots or cold spots inside the oven cavity Oven cuts off heat mid-cycle without reaching set temperature F-code or thermostat-related error displayed on the control panel Multimeter continuity test on the thermostat shows an open circuit at room temperature Visible damage or discoloration on the thermostat housing from a prior overheat event Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This oven high limit thermostat directly replaces the following OEM and cross-reference part numbers: WP4449751, 4449751, 1550872, AP6009390, AWP47600, EAP2375382, PD00025977, PS11742549 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This high limit thermostat is compatible with select ovens, wall ovens, ranges, and microwave-oven combinations from the following brands: Whirlpool wall ovens — WOS series (WOS31ES0JS, WOS51EC0AS, WOS51EC0HS, WOS51EC7HW02, WOS51EC7HW21, WOS72EC0HS/HV, WOS72EC7HS/HV, WOS92EC0/EC7 all revisions, WOS97ES0ES series) Whirlpool double wall ovens — WOD series (WOD51EC0AW03, WOD51EC7HS, WOD93EC7AS) Whirlpool combination wall ovens — WOC54EC0/EC7 series KitchenAid wall ovens — KOSE, KODE, and KOCE series (KOSE500ESS, KODE500ESS, KOCE500ESS, KOCE500EBL00/EBL01/EBL02/EBL04/EBL05) Jenn-Air wall ovens — JJW, JMW, JDRP, and JDR series (JJW2427DB/DS 00/01, JJW2430DS, JJW3430DS, JMW2430DS, JDRP430HL/HM 00/01, JDRP430WP00, JDRP436HL/HM/WP series, JDRP536HL/HM/WP series) Maytag wall ovens and ranges (select models) Amana wall ovens (select models — AWO6313SFB00/02, AWO6313SFS00/02, AWO6313SFW00/02) KitchenAid ranges — KDRS407 series (KDRS407VBK01, KDRS407VBU01, KDRS407VSS00) Whirlpool ranges — IBD350DS00, IBS300DS00, IBS350DS00 series Magic Chef, Admiral, Norge, Roper wall ovens (select Whirlpool-built models) Kenmore / Sears wall ovens (select Whirlpool-built models) Suitable for single or double electric wall ovens and microwave-oven combination units Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance High limit thermostat (safety switch) — cuts off power to the oven's heating element when temperature exceeds 335°F (170°C) to prevent overheating damage or fire Auto-reset design — closes and restores normal operation when the oven temperature returns to safe range Precision-calibrated to Whirlpool factory specifications for accurate trip temperature and reliable safety response One-year Whirlpool warranty on Genuine OEM parts Replaces 4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, and AH11742549 Compatible with Whirlpool WOS/WOD/WOC series, KitchenAid KOSE/KODE/KOCE series, Jenn-Air JJW/JMW/JDRP/JDR series, plus Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens Fits single wall ovens, double wall ovens, ranges, and microwave-oven combination units Resolves "oven won't heat," "overheating," "uneven heating," "self-clean door stuck locked," and "won't start" symptoms when caused by a failed high limit thermostat For experienced DIYers or qualified appliance technicians — this is a safety component in a 240V oven circuit Installation typically takes 30–45 minutes with basic hand tools Product Specifications Part Number WP4449751 Part Type Oven High Limit Thermostat (Safety Switch) Condition Genuine OEM Application Wall Ovens, Ranges, Microwave-Oven Combinations (Whirlpool platform) Trip Temperature 335°F (170°C) Type Auto-Reset (closes when temperature returns to safe range) Warranty One-Year Whirlpool Warranty (Genuine OEM) Compatible Brands Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore Installation Notes ⚠️ Turn Off Power at Breaker Before Starting — This Is a 240V Oven Circuit — Wear Work Gloves Disconnect power at the household breaker before beginning — this is a 240V circuit and there is a serious risk of electrical shock if power is not fully disconnected. Verify power is off with a voltage tester before touching any wiring. Wear work gloves and safety glasses. Allow the oven to cool completely before beginning (several hours after any recent cooking). The high limit thermostat is typically mounted on the rear or side of the oven cavity, accessed by removing the back panel of the appliance (for freestanding ranges) or the front trim/service panel (for wall ovens). The exact location varies by model — consult your appliance's service diagram before starting. Photograph all wire connections and mounting details before disconnecting anything. Disconnect the wire terminals from the old thermostat (typically two spade-terminal wires). Remove the mounting screws or clips holding the thermostat to the oven cavity, and lift it out. Install the new WP4449751 in the exact same position and orientation — the thermostat must be in good thermal contact with the oven cavity to function correctly. Secure the mounting hardware and reconnect the wires to their correct terminals. Reinstall the access panels. Restore power at the breaker and test the oven — start with a low-temperature bake cycle to confirm normal heating operation before running a high-temperature or self-clean cycle. Tools needed: Phillips screwdriver, 1/4" nut driver, voltage tester (essential), work gloves, safety glasses. Frequently Asked Questions Why did my high limit thermostat trip in the first place? A high limit thermostat trips because the oven exceeded its safe operating temperature — meaning something upstream in the temperature control chain failed to shut off the heating element when it should have. Common causes are: a failed oven control board (relay stuck closed), a failed cooling fan (allowing the oven cavity or electronics to overheat), blocked or restricted ventilation, poor door sealing (letting the cavity overheat), disrupted air circulation, or an abnormal self-cleaning cycle. Before installing the new thermostat, investigate and address the underlying cause — otherwise the new thermostat will trip again in short order. Also inspect the ventilation, oven door gasket, and cooling fan while you have the appliance open. What's the difference between a high limit thermostat and the operating thermostat? These are two different components serving two different roles. The operating thermostat (or the oven control board with its temperature sensor) is the primary component that maintains the oven at your set temperature by cycling the heating element on and off during normal operation — it opens and closes at your selected temperature (e.g., 350°F). The high limit thermostat (WP4449751) is a backup safety device that only trips when the oven temperature far exceeds normal operation (335°F over the cavity's safe threshold), typically because the operating thermostat or control has failed. If the high limit thermostat trips, both need to be checked — the operating thermostat may also need replacement. Does the high limit thermostat reset itself, or does it need to be replaced after tripping? The WP4449751 is an auto-reset thermostat — it closes automatically once the oven cools back to a safe temperature, allowing normal operation to resume. If your oven is heating normally again after cooling, the thermostat is likely still functional (the underlying overheating cause needs investigation). However, if the thermostat has failed permanently open — often the result of repeated overheat events or age — it will need replacement. Test with a multimeter set to continuity: a working thermostat shows continuity at room temperature. If it reads open (infinite resistance) when cold, it has failed and needs replacement. Why does my self-cleaning cycle leave the oven door locked and the oven won't heat? This is a classic symptom of a high limit thermostat that tripped during the self-clean cycle. Self-cleaning cycles run at extreme temperatures (800–1000°F) and stress every component in the oven — if the ventilation, door gasket, or cooling fan can't keep up, the high limit thermostat will trip open. Once tripped, the oven can't heat OR unlock the self-clean door lock mechanism, leaving the door stuck closed. Once the thermostat cools and closes (or is replaced), the door lock releases and normal operation resumes. If self-clean cycles routinely trip the thermostat, investigate whether the ventilation, cooling fan, or door gasket are causing the problem. Can I do this repair myself, or should I hire a technician? Replacing an oven high limit thermostat is a manageable DIY repair for someone comfortable with mechanical work and electrical connections, but this is a 240V circuit and the thermostat is a safety component — any error can create a serious safety risk. If you have experience with appliance repair, follow the safety precautions carefully (breaker off, voltage tester, correct thermostat orientation), and can confirm the wiring connections are secure, this is a feasible DIY. If you've never worked with 240V appliance circuits before, hiring a qualified appliance technician is the safer option. Also identify and address whatever caused the original overheat event — otherwise the new thermostat will trip again. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same high limit thermostat installed in compatible Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens from the factory — guaranteed fit, materials, and performance. Backed by Whirlpool's one-year warranty on Genuine OEM parts. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 4449751 Oven High Limit Thermostat Replaces WP4449751 The XPARTCO 4449751 is an aftermarket replacement oven high limit thermostat compatible with a wide range of Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens, wall ovens, microwave-oven combinations, and ranges. The high limit thermostat is a critical safety device mounted near the oven cavity — it continuously monitors the oven's temperature and cuts off electrical power to the heating element if the oven exceeds its safe operating temperature. When the oven temperature drops back to normal, the thermostat closes and allows normal operation to resume. This backup safety layer protects against fires, damage to the oven, and unsafe cooking conditions when the main temperature control fails. Rated to trip at approximately 335°F (170°C). Common causes for the high limit thermostat to trip include a faulty control board, cooling fan failure, blocked ventilation, poor door sealing, disrupted air circulation, or an abnormal self-cleaning cycle. It directly replaces WP4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, and AH11742549. Installs in 30–45 minutes with basic hand tools by experienced DIYers. This is a safety component in a 240V oven circuit — proceed only if you're comfortable with high-voltage electrical work, or call a qualified appliance technician. Quick Answer The XPARTCO 4449751 Oven High Limit Thermostat fixes Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and Kenmore ovens with symptoms including oven not heating, oven overheating, uneven heating, oven failing to start, and self-clean door won't unlock after cycle. 335°F (170°C) trip temperature — cuts off power to heating element on overheat, then resets when temperature returns to normal. Replaces WP4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, AH11742549. Compatible with WOS/WOD wall ovens, KOSE/KODE/KOCE series, JJW/JMW/JDRP/JDR series, and many more. Common Problems This Part Fixes Oven not heating at all — high limit thermostat tripped open Oven overheating — thermostat failing to trip when needed (rare failure mode) Inconsistent oven temperatures leading to undercooked or overcooked food Oven fails to start when powered on Oven door won't unlock after a self-cleaning cycle completes Uneven heating — hot spots or cold spots inside the oven cavity Oven cuts off heat mid-cycle without reaching set temperature F-code or thermostat-related error displayed on the control panel Multimeter continuity test on the thermostat shows an open circuit at room temperature Visible damage or discoloration on the thermostat housing from a prior overheat event Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This oven high limit thermostat directly replaces the following OEM and cross-reference part numbers: WP4449751, 4449751, 1550872, AP6009390, AWP47600, EAP2375382, PD00025977, PS11742549 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This high limit thermostat is compatible with select ovens, wall ovens, ranges, and microwave-oven combinations from the following brands: Whirlpool wall ovens — WOS series (WOS31ES0JS, WOS51EC0AS, WOS51EC0HS, WOS51EC7HW02, WOS51EC7HW21, WOS72EC0HS/HV, WOS72EC7HS/HV, WOS92EC0/EC7 all revisions, WOS97ES0ES series) Whirlpool double wall ovens — WOD series (WOD51EC0AW03, WOD51EC7HS, WOD93EC7AS) Whirlpool combination wall ovens — WOC54EC0/EC7 series KitchenAid wall ovens — KOSE, KODE, and KOCE series (KOSE500ESS, KODE500ESS, KOCE500ESS, KOCE500EBL00/EBL01/EBL02/EBL04/EBL05) Jenn-Air wall ovens — JJW, JMW, JDRP, and JDR series (JJW2427DB/DS 00/01, JJW2430DS, JJW3430DS, JMW2430DS, JDRP430HL/HM 00/01, JDRP430WP00, JDRP436HL/HM/WP series, JDRP536HL/HM/WP series) Maytag wall ovens and ranges (select models) Amana wall ovens (select models — AWO6313SFB00/02, AWO6313SFS00/02, AWO6313SFW00/02) KitchenAid ranges — KDRS407 series (KDRS407VBK01, KDRS407VBU01, KDRS407VSS00) Whirlpool ranges — IBD350DS00, IBS300DS00, IBS350DS00 series Magic Chef, Admiral, Norge, Roper wall ovens (select Whirlpool-built models) Kenmore / Sears wall ovens (select Whirlpool-built models) Suitable for single or double electric wall ovens and microwave-oven combination units Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Aftermarket replacement built to OEM-equivalent quality standards High limit thermostat (safety switch) — cuts off power to the oven's heating element when temperature exceeds 335°F (170°C) to prevent overheating damage or fire Auto-reset design — closes and restores normal operation when the oven temperature returns to safe range Precision-calibrated to Whirlpool factory specifications for accurate trip temperature and reliable safety response Replaces WP4449751, 1550872, AP6009390, AH2375382, EA2375382, PS2375382, PS11742549, EAP11742549, and AH11742549 Compatible with Whirlpool WOS/WOD/WOC series, KitchenAid KOSE/KODE/KOCE series, Jenn-Air JJW/JMW/JDRP/JDR series, plus Maytag, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens Fits single wall ovens, double wall ovens, ranges, and microwave-oven combination units Resolves "oven won't heat," "overheating," "uneven heating," "self-clean door stuck locked," and "won't start" symptoms when caused by a failed high limit thermostat For experienced DIYers or qualified appliance technicians — this is a safety component in a 240V oven circuit Installation typically takes 30–45 minutes with basic hand tools Product Specifications Part Number 4449751 OEM Part Number WP4449751 Part Type Oven High Limit Thermostat (Safety Switch) Condition Aftermarket Replacement Application Wall Ovens, Ranges, Microwave-Oven Combinations (Whirlpool platform) Trip Temperature 335°F (170°C) Type Auto-Reset (closes when temperature returns to safe range) Compatible Brands Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore Installation Notes ⚠️ Turn Off Power at Breaker Before Starting — This Is a 240V Oven Circuit — Wear Work Gloves Disconnect power at the household breaker before beginning — this is a 240V circuit and there is a serious risk of electrical shock if power is not fully disconnected. Verify power is off with a voltage tester before touching any wiring. Wear work gloves and safety glasses. Allow the oven to cool completely before beginning (several hours after any recent cooking). The high limit thermostat is typically mounted on the rear or side of the oven cavity, accessed by removing the back panel of the appliance (for freestanding ranges) or the front trim/service panel (for wall ovens). The exact location varies by model — consult your appliance's service diagram before starting. Photograph all wire connections and mounting details before disconnecting anything. Disconnect the wire terminals from the old thermostat (typically two spade-terminal wires). Remove the mounting screws or clips holding the thermostat to the oven cavity, and lift it out. Install the new 4449751 in the exact same position and orientation — the thermostat must be in good thermal contact with the oven cavity to function correctly. Secure the mounting hardware and reconnect the wires to their correct terminals. Reinstall the access panels. Restore power at the breaker and test the oven — start with a low-temperature bake cycle to confirm normal heating operation before running a high-temperature or self-clean cycle. Tools needed: Phillips screwdriver, 1/4" nut driver, voltage tester (essential), work gloves, safety glasses. Frequently Asked Questions Why did my high limit thermostat trip in the first place? A high limit thermostat trips because the oven exceeded its safe operating temperature — meaning something upstream in the temperature control chain failed to shut off the heating element when it should have. Common causes are: a failed oven control board (relay stuck closed), a failed cooling fan (allowing the oven cavity or electronics to overheat), blocked or restricted ventilation, poor door sealing (letting the cavity overheat), disrupted air circulation, or an abnormal self-cleaning cycle. Before installing the new thermostat, investigate and address the underlying cause — otherwise the new thermostat will trip again in short order. Also inspect the ventilation, oven door gasket, and cooling fan while you have the appliance open. What's the difference between a high limit thermostat and the operating thermostat? These are two different components serving two different roles. The operating thermostat (or the oven control board with its temperature sensor) is the primary component that maintains the oven at your set temperature by cycling the heating element on and off during normal operation — it opens and closes at your selected temperature (e.g., 350°F). The high limit thermostat (WP4449751) is a backup safety device that only trips when the oven temperature far exceeds normal operation (335°F over the cavity's safe threshold), typically because the operating thermostat or control has failed. If the high limit thermostat trips, both need to be checked — the operating thermostat may also need replacement. Does the high limit thermostat reset itself, or does it need to be replaced after tripping? The WP4449751 is an auto-reset thermostat — it closes automatically once the oven cools back to a safe temperature, allowing normal operation to resume. If your oven is heating normally again after cooling, the thermostat is likely still functional (the underlying overheating cause needs investigation). However, if the thermostat has failed permanently open — often the result of repeated overheat events or age — it will need replacement. Test with a multimeter set to continuity: a working thermostat shows continuity at room temperature. If it reads open (infinite resistance) when cold, it has failed and needs replacement. Why does my self-cleaning cycle leave the oven door locked and the oven won't heat? This is a classic symptom of a high limit thermostat that tripped during the self-clean cycle. Self-cleaning cycles run at extreme temperatures (800–1000°F) and stress every component in the oven — if the ventilation, door gasket, or cooling fan can't keep up, the high limit thermostat will trip open. Once tripped, the oven can't heat OR unlock the self-clean door lock mechanism, leaving the door stuck closed. Once the thermostat cools and closes (or is replaced), the door lock releases and normal operation resumes. If self-clean cycles routinely trip the thermostat, investigate whether the ventilation, cooling fan, or door gasket are causing the problem. Can I do this repair myself, or should I hire a technician? Replacing an oven high limit thermostat is a manageable DIY repair for someone comfortable with mechanical work and electrical connections, but this is a 240V circuit and the thermostat is a safety component — any error can create a serious safety risk. If you have experience with appliance repair, follow the safety precautions carefully (breaker off, voltage tester, correct thermostat orientation), and can confirm the wiring connections are secure, this is a feasible DIY. If you've never worked with 240V appliance circuits before, hiring a qualified appliance technician is the safer option. Also identify and address whatever caused the original overheat event — otherwise the new thermostat will trip again. Is this a Genuine OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the trip temperature (335°F / 170°C), auto-reset function, terminal configuration, and fit of the original WP4449751 high limit thermostat used in compatible Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and Kenmore ovens. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WPW10181986 Oven Genuine Temperature Sensor Replaces Part Number: WPW10181986, W10181986, 1394200, 8273902, W10131826, OEM24065802, AP6016450, PS11749737. Description: This Oven Sensor Assembly is a Genuine OEM part for select Whirlpool oven models, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.     California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

316490000 Oven Genuine OEM Temperature Sensor Product Overview The 316490000 Oven Genuine OEM Temperature Sensor is designed to accurately monitor oven temperature and ensure proper heating performance.  This Oven Sensor Assembly is a Genuine OEM part for select Frigidaire oven models, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.  Quick Answer If your oven is overheating, not heating properly, or showing incorrect temperature readings, the 316490000 temperature sensor may be faulty. Replacing it restores accurate temperature control and consistent cooking results. Replaces Part Numbers Replaces OEM part number: 316490000, 316490003, 1197392, 316490002, 612058426864, 7316490000, AH1528542, EAP1528542, AFR16190, PD00000483, OEM15854618, AP3963654, PS1528542. Compatibility This oven temperature sensor is compatible with select Frigidaire, Electrolux, Kenmore, and other compatible ranges and ovens. Frigidaire Ranges & Ovens Electrolux Appliances Kenmore Ranges Always verify your appliance model number before ordering. Common Problems This Part Fixes Oven overheating or under-heating Inaccurate temperature readings Uneven cooking results Error codes related to temperature sensor Key Features Genuine OEM temperature sensor Accurate temperature monitoring Reliable and durable construction Restores proper oven performance Product Specifications Part Number: 316490000 Part Type: Oven Temperature Sensor Brand: OEM Condition: New OEM / Aftermarket: Genuine OEM Application: Ovens & Ranges Troubleshooting Guide Oven too hot or too cold → Faulty temperature sensor Food overcooking or under-cooking → Incorrect temperature readings Error codes displayed → Sensor failure likely When Should You Replace This Sensor? Replace this sensor if your oven temperature is inconsistent, inaccurate, or if error codes indicate a sensor issue. Installation Notes ⚠️ Disconnect power before installation. Remove mounting screws, disconnect wiring, and install the new sensor securely. Refer to your appliance manual if needed. Related Parts Oven Control Board Heating Element Thermostat Components Frequently Asked Questions Will this sensor fit my oven?This sensor fits many Frigidaire and compatible models. Always verify your model number. What does an oven temperature sensor do?It monitors oven temperature and sends signals to maintain accurate heat levels. What are signs of a bad sensor?Inconsistent temperatures, error codes, or improper cooking results. Is this OEM?Yes, this is a genuine OEM temperature sensor. Shop With Confidence Parts-O-Matic is a U.S.-based appliance parts retailer specializing in OEM and high-quality replacement parts. We offer fast shipping, reliable products, and expert support. Fast Shipping Genuine OEM Parts Compatibility Support

Read more less

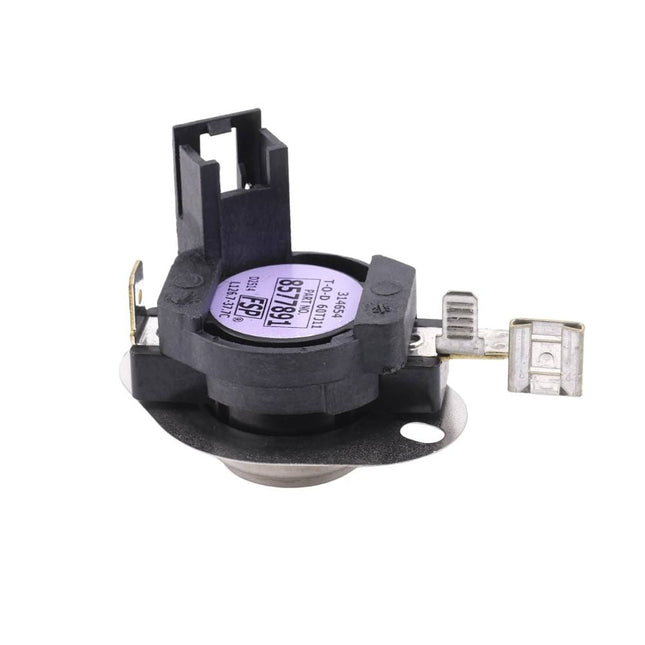

WP8577891 Genuine OEM Whirlpool Dryer High-Limit Thermostat The WP8577891 is a genuine Whirlpool OEM high-limit thermostat for Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers. This part combines two functions in a single component: it acts as a safety mechanism that shuts off the heating element when the dryer overheats, and it includes an inlet thermistor that monitors the temperature of the inlet air feeding into the dryer. Rated L260-68F: the heating element cuts out once internal temperature reaches 260°F, and kicks back in once temperature drops to 192°F, a 68°F differential built into the design. Weighing approximately 0.08 lbs, with package dimensions of 4.33" x 3.43" x 0.79". Because this is a safety-critical component, a malfunctioning thermostat can shut off the dryer even when it isn't actually overheating, in addition to producing the more expected overheating symptom if it fails to trip when it should. Symptoms include the dryer overheating, blown thermal fuses, or the dryer shutting off unexpectedly during a cycle. It directly replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753. Quick Answer The WP8577891 Genuine OEM Whirlpool Dryer High-Limit Thermostat fixes Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers with overheating, blown thermal fuses, or unexpected shutoffs during a cycle. L260-68F rating. Replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753. Test the old thermostat's continuity with a multimeter before ordering — one customer found this quick check would have confirmed the part was actually needed before they bought a replacement. Common Problems This Part Fixes Dryer overheating during a cycle Dryer blowing thermal fuses repeatedly Dryer shutting off unexpectedly, even when it doesn't seem to be overheating Dryer not heating properly due to a malfunctioning safety cutoff Irregular or inconsistent drying cycles Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer high-limit thermostat directly replaces the following OEM and cross-reference part numbers: WP8577891, 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This high-limit thermostat is compatible with select Whirlpool electric dryers, and also fits select Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers built on the Whirlpool platform, including model numbers such as MED6600TQ0, WED6200SW0, WED6200SW1, WED6600VU0, WED6600VW0, WED6600WL0, YMED6600TQ0, YWED6200SW1, YWED6600VU0, YWED6600VW0, and YWED6600WL0. Note: Always verify your full model number before ordering, since Whirlpool uses different high-limit thermostat designs across its dryer lineup. Contact our support team with your model number if you're unsure. Key Features Genuine Whirlpool OEM part — factory-specified opening and reset temperatures Combines high-limit thermostat and inlet thermistor functions in one component Resolves "overheating," "blown thermal fuses," and "unexpected shutoff mid-cycle" symptoms L260-68F rating — opens at 260°F Automatically resetting — no replacement needed after each trip Direct drop-in replacement matching the original mounting and terminal configuration Replaces 8577891, 314654, AP6013527, AWP48573, EAP11746753, OEM18040590, L260-68F, L126.7-37.7C, PD00003286, PS11746753 Compatible with Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, and Roper dryers Genuine OEM replacement — guaranteed fit, materials, and performance Approximately 30-minute repair Product Specifications Part Number WP8577891 Part Type Dryer High-Limit Thermostat with Inlet Thermistor Condition Genuine OEM Brand Whirlpool Rating L260-68F Type Automatically resetting Weight Approx. 0.08 lbs Package Dimensions 4.33" x 3.43" x 0.79" Repair Difficulty Easy — approx. 30 minutes Quantity 1 high-limit thermostat Compatible Brands Whirlpool, Maytag, Jenn-Air, Kenmore, KitchenAid, Amana, Magic Chef, Admiral, Norge, Roper Installation Notes ⚠️ Unplug Dryer Before Starting — Test With A Multimeter Before Assuming It's This Part Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Unscrew and remove the dryer's exhaust vent hose, then use a nut driver to remove the back panel. Locate the high-limit thermostat, typically mounted near the heating element housing. Before removing the old part, test it with a multimeter set to continuity — a healthy thermostat shows continuity; one that doesn't should be replaced. Photograph the wiring before disconnecting anything. Disconnect the wire terminals from the old thermostat, remove its mounting screw, and pull it free. Install the new WP8577891 in the same position, reconnect the wire terminals, and secure the mounting screw. Reattach the back panel and exhaust vent hose. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: nut driver, flat-head screwdriver, multimeter, work gloves. Frequently Asked Questions How do I know if this thermostat has actually failed before I order one? Test the old thermostat with a multimeter set to continuity before ordering — it's a simple, quick check. One customer specifically noted they wished they had tested the part first: they ordered a replacement, then discovered testing the old one with a multimeter was easy to do and would have confirmed whether they actually needed the new part before buying it. My dryer shuts off even though it doesn't feel like it's overheating. Could this still be the thermostat? Yes. A malfunctioning high-limit thermostat can shut off the dryer even when actual temperatures are normal, not just when the dryer is genuinely running too hot. If your dryer stops mid-cycle without an obvious overheating cause, this thermostat is worth testing. Should I replace other parts at the same time as this thermostat? If your dryer has also blown a thermal fuse, it's worth replacing the fuse and any related thermal cutoff components together with this thermostat, since they often fail from the same underlying overheating cause. Also check your exhaust venting for restrictions while you have the dryer open, since blocked airflow is a common root cause of repeated thermal component failures. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original opening and reset temperatures and mounting configuration of the high-limit thermostat originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WB27X11212 Microwave Thermostat – Compatible with GE, Hotpoint & Kenmore Microwaves Product Description Ensure safe microwave operation with the XPARTCO WB27X11212 Microwave Thermostat. This high-quality aftermarket replacement monitors internal temperatures and shuts off power if overheating is detected. A faulty thermostat can cause the microwave to shut off unexpectedly, fail to heat, or stop mid-cycle. Replacing it with this reliable XPARTCO thermostat restores proper temperature regulation and protects critical internal components. Replaces Part Numbers WB27X11212, 3026293, SE-7350-006, KSD201 - 120C, WB24X28948, WB27X10854, AP5791056, PS8754627. Compatibility This replacement microwave thermostat fits select GE, Hotpoint, and Kenmore microwave ovens. Example compatible models include (but are not limited to):GE JVM1540DM5BB, JVM3160RFSSHotpoint RVM5160DHBBKenmore 363.62709300 Always verify your microwave’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM temperature-sensing performance 🌡️ Overheat Protection – Prevents damage by cutting power at unsafe temperatures 💰 Cost-Effective Repair – Reliable solution without OEM pricing 🛠️ Direct-Fit Design – Installs easily with existing mounting and wiring 🛡️ Fixes Common Issues – Solves random shut-offs, no-heat conditions, or thermal errors 📐 Product Specification Part Number: WB27X11212 Component Type: Microwave Thermostat / Thermal Switch Temperature Rating: OEM-equivalent cutoff Material: Metal housing with bimetal thermal disc Mounting: Screw-mounted Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, needle-nose pliers ⚠️ Safety First: Unplug the microwave and discharge high-voltage components before servicing. Microwave repairs involve HIGH VOLTAGE. Steps: Disconnect power and remove the microwave cover. Locate the thermostat mounted near the magnetron or cavity. Disconnect wires and remove mounting screws. Install the new XPARTCO WB27X11212 thermostat. Reconnect wiring, reinstall the cover, and restore power. Test microwave operation. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Protect your microwave and restore safe operation — Add to Cart Now for a dependable, budget-friendly repair!

Read more less

316233903 Oven Genuine Temperature Sensor Replaces Part Numbers:  316233903, 316217008, 316233902, 316233900, AP5998652, PS11731754. Description: This Oven Temperature Sensor is a Genuine part for select Frigidaire, Kenmore oven models. It monitors and regulates the oven's temperature by sending accurate temperature readings to the control board. This ensures that the oven maintains the desired cooking temperature throughout the baking or roasting process.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set The XPARTCO DC96-00887C / DC47-00018A is an aftermarket replacement 2-piece thermal protection set for Samsung and select Kenmore electric dryers. These two components sit in different locations along the same heating circuit and guard against overheating in different ways. The DC47-00018A is a true cycling high-limit thermostat — it opens at approximately 260°F to cut power to the heating element, then automatically closes again once the temperature drops to around 210°F, letting the dryer resume heating without any part replacement needed. The DC96-00887C, despite frequently being labeled a "thermostat" by third-party sellers, is actually a one-time thermal fuse mounted with its bracket on the blower housing — once it opens from excess heat, it stays open permanently and must be physically replaced. Because these two parts monitor different points in the same circuit, they tend to be replaced together when a dryer has been running hot: if the high-limit thermostat has been cycling excessively or failed to catch a temperature spike, the downstream thermal fuse can end up blowing as the last line of defense. Symptoms of failure in this circuit include no heat or insufficient heat, drying that takes too long, the dryer shutting off too soon, or the timer failing to advance. It directly replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, AP6008689 (DC96-00887C); and 35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, AP6008682, WP35001092 (DC47-00018A). Quick Answer The XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set fixes Samsung and select Kenmore electric dryers with no heat or insufficient heat, drying that takes too long, premature shutoff, or a timer that won't advance. Set includes the DC47-00018A cycling high-limit thermostat (260°F open / 210°F reset) and the DC96-00887C thermal fuse with bracket. Replaces the full cross-reference sets listed below for both parts. Despite common marketplace labeling, the DC96-00887C is a one-time thermal fuse, not a resettable thermostat — it must be replaced once it blows, while the DC47-00018A resets itself automatically. What's In This Set Component Type Function DC47-00018A Cycling High-Limit Thermostat Opens at ~260°F to cut heat, automatically resets and closes again around 210°F. No replacement needed after each trip. DC96-00887C Thermal Fuse (with bracket) Mounted on the blower housing. Permanently opens if temperature exceeds safe limits. Cannot reset — must be replaced once blown. Common Problems This Set Fixes Dryer has no heat or insufficient heat Drying takes too long to complete a cycle Dryer shuts off too soon, before clothes are fully dry Timer will not advance through the cycle Dryer that stopped working suddenly after running unusually hot Dryer with a history of repeated thermal fuse failures Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer thermostat/thermal fuse set directly replaces the following OEM and cross-reference part numbers: DC96-00887C, DC96-00887A, AP5966894, PS4276292, WP35001193, 35001193, AP6008689, PS11741829, DC47-00018A, AP4201898, PS4205217, 35001092, WP35001092 AP6008682, PS11741822, EXPDC47-00018A, L260-50F If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This set is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as: DV5471AEW/XAA DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2 DV400EWHDWR/AA DVE50M7450W/A3 Note: Always verify your full model number before ordering, since Samsung uses several different thermal protection components across its dryer lineup. Contact our support team with your model number if you're unsure. Key Features 2-piece set covering both the cycling high-limit thermostat and the blower housing thermal fuse DC47-00018A thermostat opens at approximately 260°F and resets automatically around 210°F DC96-00887C thermal fuse ships with its mounting bracket included Resolves "no heat," "insufficient heat," "takes too long to dry," and "shuts off too soon" symptoms Addresses two failure points in the same overheat-protection circuit at once No special tools required for installation Replaces the full cross-reference sets for both DC96-00887C and DC47-00018A listed above Compatible with Samsung and select Kenmore electric dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Set Contents 1x DC47-00018A high-limit thermostat, 1x DC96-00887C thermal fuse with bracket Condition Aftermarket Replacement Application Samsung Electric Dryers DC47-00018A Type Automatically resetting, cycling high-limit thermostat DC47-00018A Open Temperature ~260°F DC47-00018A Reset Temperature ~210°F DC96-00887C Type One-time thermal fuse — non-resettable DC96-00887C Location Blower housing Repair Difficulty Easy to Moderate — no special tools required Compatible Brands Samsung, select Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Note Which Component Goes Where Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel, near the blower housing and heater duct assembly where both components are mounted. Photograph the wiring connections before disconnecting anything, since the thermal fuse and thermostat can look similar at a glance and are easy to install in the wrong position. Test each old component with a multimeter for continuity if you want to confirm which has actually failed before replacing both — the DC47-00018A thermostat and DC96-00887C fuse can each be checked this way. Remove each old component from its mounting position, noting orientation and location, and disconnect its wiring. Install the DC47-00018A thermostat and the DC96-00887C fuse (with its bracket) from this set in the same positions as the parts they replace, reconnecting wiring exactly as photographed. Reassemble the panel, restore power, and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips or nut driver (model-dependent), multimeter (recommended), work gloves. Frequently Asked Questions Is DC96-00887C really a thermostat, or something else? Different sellers call it different things. This is a genuinely common point of confusion in the marketplace, and it's worth clearing up: DC96-00887C is actually a one-time thermal fuse mounted with its bracket on the blower housing, even though many third-party listings label it a "thermostat." The distinction matters for how you diagnose and handle it — once this fuse blows from excess heat, it stays open permanently and must be physically replaced, unlike a true thermostat (like the DC47-00018A in this same set) which resets itself automatically once things cool down. Why replace both parts together instead of just the one that failed? These two components sit at different points in the same overheat-protection circuit, and a problem with one often puts stress on the other. If the high-limit thermostat has been cycling excessively or didn't catch a temperature spike in time, the downstream thermal fuse can end up blowing as the last line of defense. Replacing both together addresses the full circuit rather than risking a second failure and a second repair shortly after. My dryer shuts off before the load is fully dry. Is that this set? It's a strong possibility. If the high-limit thermostat is tripping prematurely — opening at a lower temperature than it should, or failing to reset properly — the dryer can cut heat and end the cycle early even though the load isn't actually dry yet. This is one of the more common symptoms this thermostat set addresses. Is this an OEM or aftermarket set? This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Samsung OEM set, but each component is manufactured to match the electrical specifications, opening/reset temperatures, and mounting configuration of the original DC96-00887C thermal fuse and DC47-00018A high-limit thermostat used in compatible Samsung and Kenmore electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

DG32-00002B Range Oven Genuine Temperature Sensor Replaces Part Numbers: DG32-00002B, 2087461, DG32-00002A, AP4343210, PS4240743. Description: This Range Oven Temperature Sensor ensures precise temperature control for your cooking needs. This genuine OEM part is designed specifically for Samsung ranges, guaranteeing a perfect fit and reliable performance. By accurately monitoring oven temperatures, it helps maintain consistent cooking results, preventing under-cooked or burnt meals. Installing this sensor is straightforward, allowing you to restore your oven's functionality without hassle. Its durable construction ensures long-lasting use, providing peace of mind and enhancing your appliance's efficiency. Whether you're baking, roasting, or broiling, the Range Oven Temperature Sensor delivers the accuracy you expect from a high-quality component.

Read more less

XPARTCO 279973 Dryer Thermostat Kit The XPARTCO 279973 is an aftermarket replacement dryer thermostat and thermal cut-off kit compatible with a wide range of Whirlpool-family electric dryers including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral. The kit contains two components — the high-limit thermostat (L295-80F) and the thermal cut-off fuse — both located on the heating element housing. Together they protect the dryer's heating element from overheating: the high-limit thermostat monitors element temperature and cuts power if it exceeds safe levels, then resets when cooled. The thermal cut-off fuse is a backup one-time device that permanently opens the circuit if the thermostat fails to protect the element. Both parts are mounted on the side of the heating element housing and can be accessed through the dryer's back panel. The thermal cut-off fuse is a non-resettable one-time device — once it opens, it must be replaced. The 279973 kit includes both parts, an instruction sheet, and hardware. It directly replaces 3391913, 3404151, 3404152, 3977395, 8318314, 897710, 279973VP, AP3094323, and several additional cross-reference numbers. Note: this kit is for electric dryers only. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO 279973 Dryer Thermostat Kit fixes Whirlpool-family electric dryers with no heat, overheating, or a dryer that shuts off too early. Kit includes the L295-80F high-limit thermostat (auto-reset, opens at 295°F) and the thermal cut-off fuse (352°F, one-time). Both mount on the heating element housing. Electric dryers only. Replaces 3391913, 3404151, 8318314, 897710, AP3094323. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral. Common Problems This Kit Fixes Dryer produces no heat — thermal cut-off fuse or high-limit thermostat has failed Dryer overheats — clothes or drum too hot at the end of a cycle Dryer shuts off early before clothes are dry Dryer takes multiple cycles or very long time to dry clothes Repeated no-heat failures — underlying overheating condition affecting the element housing components Dryer tumbles normally but produces no heat at all What's in the Kit Part 1 of 2 High-Limit Thermostat (L295-80F) Opens at 295°F — cuts power to the heating element if temperature exceeds safe levels · Auto-resets when cooled · Located on the heating element housing · Should show closed continuity (near-zero resistance) at room temperature Part 2 of 2 Thermal Cut-Off Fuse (352°F) Opens at 352°F — one-time backup safety device on the heating element housing · Permanently interrupts power to the heating element if the high-limit thermostat fails to protect it · Cannot be reset — must be replaced if blown · Should show closed continuity at room temperature when working Replaces Part Numbers This thermostat kit directly replaces the following OEM and cross-reference part numbers: 279973, 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, ER279973, PD00002626, EAP334387, AWP39286, AH334387, AP3094323, EA334387, PS334387. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermostat kit is compatible with select electric dryers only from the following brands: Whirlpool electric dryers (Duet, Cabrio, and standard series) Kenmore / Sears electric dryers (Whirlpool-built models) Maytag electric dryers KitchenAid electric dryers Amana electric dryers Inglis electric dryers Roper electric dryers Admiral electric dryers Important: This kit is for electric dryers only. Gas dryers use a different burner assembly and require a different thermostat kit (XP6974 for Whirlpool-family gas dryers). Always verify your dryer type and model number before ordering. Also: if the thermal cut-off fuse has blown, always check for a clogged exhaust vent before replacing — a blocked vent is the most common root cause of overheating and repeated fuse failures. Key Features 2-part kit — high-limit thermostat and thermal cut-off fuse, both on the heating element housing High-limit thermostat (L295-80F) — opens at 295°F to cut element power, auto-resets when cooled Thermal cut-off fuse (352°F) — one-time backup safety device; permanently opens if thermostat fails to protect the element Both parts located on the heating element housing — accessible from the dryer back panel Replacing both together ensures complete thermal protection is restored on the element housing Replaces 3391913, 3404151, 8318314, 897710, AP3094323, and over 10 additional cross-reference numbers Electric dryers only — not for gas dryer models Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, and Admiral electric dryers Aftermarket replacement built to OEM-equivalent quality standards Installs in 20–30 minutes with basic hand tools Product Specifications Kit Part Number 279973 Condition Aftermarket Replacement Application Electric Dryers Only Kit Includes 1x High-Limit Thermostat (L295-80F), 1x Thermal Cut-Off Fuse (352°F), hardware, instruction sheet High-Limit Thermostat Rating L295-80F — opens at 295°F, resets at 215°F — auto-resets Thermal Cut-Off Fuse Trip Temp 352°F — one-time, non-resettable Location Heating element housing (both parts) Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Inglis, Roper, Admiral Installation Notes ⚠️ Unplug Dryer Before Starting — Electric Dryers Only Disconnect power before beginning. Remove the back panel of the dryer by unscrewing the perimeter screws to expose the heating element housing. Both the high-limit thermostat and thermal cut-off fuse are mounted on the side of the heating element housing — the thermostat is typically the larger component and the thermal cut-off fuse is smaller. Test each component with a multimeter before removing (both should show closed continuity at room temperature; the failed one will read open). Photograph the wiring before disconnecting. Disconnect the wires, remove the mounting screws, and install the new components in the same positions. Reconnect the wires and mounting screws, reinstall the back panel, restore power, and run a test cycle to confirm heat. Tip: Before running the dryer, clean the full length of the exhaust duct — a clogged vent is the most common cause of overheating and a blown thermal cut-off fuse. Tools needed: Phillips screwdriver, 1/4" nut driver, multimeter. Frequently Asked Questions What is the difference between the high-limit thermostat and the thermal cut-off fuse in this kit? The high-limit thermostat (L295-80F) is a resettable safety switch that opens at 295°F to cut power to the heating element and resets automatically when the temperature drops. It is the primary protection against overheating during normal operation. The thermal cut-off fuse is a one-time backup device rated at 352°F — it permanently opens the circuit if the heating element temperature climbs beyond the point the thermostat should have caught. Once the cut-off fuse opens, it must be replaced; it does not reset on its own. If the cut-off fuse has blown, it usually means the high-limit thermostat also failed to do its job and should be replaced at the same time — which is exactly what this kit provides. How do I test these parts with a multimeter? Unplug the dryer and remove the back panel to access the heating element housing. Disconnect each component from the wiring and probe both terminals with a multimeter set to continuity or resistance mode. At room temperature, both the high-limit thermostat and the thermal cut-off fuse should show closed continuity (near-zero resistance). Any component that reads open circuit (no continuity) has failed and needs to be replaced. The thermal cut-off fuse reads open even after it cools — it is non-resettable. The high-limit thermostat may read open at room temperature if it has failed internally rather than by an overheat trip. How is the 279973 kit different from the XP6974 thermostat kit? The 279973 is a 2-part kit — high-limit thermostat and thermal cut-off fuse — designed specifically for the heating element housing of Whirlpool-family electric dryers. The XP6974 is a 4-part kit — cycling thermostat, thermal fuse, high-limit thermostat, and thermal cut-off — designed for Whirlpool-family gas and electric dryers, covering both the exhaust duct components and the burner/element housing components. If your electric dryer is showing no-heat and you need only the heating element housing components, the 279973 kit covers exactly those two parts. If you want to replace all thermal components in one repair, the XP6974 covers a broader set. Why does the thermal cut-off fuse keep blowing? If the thermal cut-off fuse blows repeatedly after replacement, it almost always means there is an underlying overheating condition causing the heating element housing to run hotter than it should. The most common cause is a clogged or restricted exhaust vent — lint accumulation in the duct reduces airflow, trapping heat inside the dryer cabinet and around the element. Other causes include a failed cycling thermostat that is not regulating element temperature correctly, a stuck heating element relay, or a dryer in an enclosed space with inadequate ventilation. Always clean the full exhaust duct and check the cycling thermostat (WP3387134) before replacing the thermal cut-off fuse a second time. Is this an OEM or aftermarket part? This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the temperature ratings and specifications of the original 279973 high-limit thermostat and thermal cut-off fuse kit. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
