Search results for "range surface"

S48D21 8" Range Surface Element Product Title Aftermarket S48D21 8" Range Surface Element - Compatible with Whirlpool, Maytag, Kenmore, Jenn-Air, Amana Electric Ranges Product Description Revive your electric range’s cooking performance with the Aftermarket S48D21 8" Range Surface Element from Parts-O-Matic. This high-quality aftermarket burner element replaces the original S48D21, delivering 2100 watts at 240V with a 4-turn coil design for efficient and even heating. Ideal for select Whirlpool, Maytag, Kenmore, Jenn-Air, Amana, and other brand electric ranges, it addresses issues like uneven heating, slow warm-up, or non-functional burners. Enjoy free shipping on all orders at Parts-O-Matic! Key Features: ✅ Broad Compatibility: Fits select Whirlpool, Maytag, Kenmore, Jenn-Air, Amana, and other electric range models. 🔥 Efficient Heating: 8" diameter, 4-turn coil delivers 2100 watts at 240V for consistent, even cooking. 💰 Cost-Effective Alternative: Aftermarket part offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Plug-in design with Y-style bracket; requires no tools and takes 5–10 minutes to install. 🛡️ Fixes Common Issues: Resolves uneven heating, slow warm-up, or burners that fail to heat. Compatibility: Compatible with models including but not limited to: Whirlpool: RF110AXSQ0, RF262LXSB, RF365PXKW0 Maytag: MER4110AAH, MER4120AAQ Kenmore: 629.4297, 629.60003600 (pre-2004 models) Jenn-Air: JES9750AAB Amana: AER5511AAQ Replaces part numbers: TJ90SP21MA, 14215226, 1938283, 309917, 403782, 404110, 406000, 814154, ERS48D21, SE302, SP21MA, SU214, SU302, TS4D8221, TS4D8221PB, TS4D8221SR, TS4D8221WI, YSP21MA, AP4503257. Verify compatibility with your appliance brand and model number, please contact Parts-O-Matic support for assistance. Installation Notes: Tools Needed: None for standard installation; a flathead screwdriver may help for stubborn connections. Safety First: Unplug the range before installation to avoid electrical shock. Steps: Remove the old burner element by gently pulling it from the receptacle, align the Y-style bracket of the new S48D21 element, and plug it into the socket. Ensure the element sits flat in the drip pan. If the burner is not level, adjust the connection bolts to ensure they are parallel and push down gently. Installation takes 5–10 minutes. Note: A slight burning smell during first use is normal due to a protective coating; this will dissipate after 15–20 minutes. Download our installation guide or watch our YouTube tutorial for step-by-step instructions. Shop Parts-O-Matic for high-quality aftermarket appliance parts with free shipping on all orders and a 30-day return policy. Restore your range’s cooking performance today! Add to cart now for an affordable fix with free shipping on your entire order!

Read more less

W11047722 Genuine OEM Range Radiant Surface Element - Compatible with Whirlpool, KitchenAid, Maytag Product Description Restore your range’s cooking performance with the W11047722 Genuine OEM Range Radiant Surface Element. This Whirlpool-manufactured element is designed for select Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, and other compatible ranges. It provides even heat distribution for reliable cooking, addressing issues like uneven heating, no heat, or burnt-out elements. This single element is rated at 2500W and 240V, ensuring efficient operation for large to medium cookware. Note: Includes (1) radiant surface element. Disconnect power before installation. Verify compatibility with your range model. Replaces part numbers: W11047722, WP8273992, W10248262, 8273992, AP6041999, PS11775308, 316135401, 316224200, 316224201, 318198835, PD00044547, EAP11775308, FIX11775308, AH2361362, EA2361362, AP4416812, PS2361362.  Compatibility: Compatible with select range models, including but not limited to: Whirlpool: WFE525S0HV0, WFE525S0HZ0, WFE525S0JB0, WFE525S0JS0, WFE525S0JW0 KitchenAid: KSEG700EBS0, KSEG700ESS0, KSEG700EWH0 Maytag: MER6600FB0, MER6600FW0, MER6600FZ0 Jenn-Air: JEC3430BB00, JEC3430BS00 Amana: AER6603SFB0, AER6603SFS0, AER6603SFW0 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, KitchenAid, Maytag, Jenn-Air, and Amana ranges. 🔧 Specifications: 2500W, 240V, 9 3/4-inch radiant element, glass-ceramic construction. 💪 Reliable Performance: Delivers consistent heat for efficient cooking. 🛠️ Easy Installation: Requires screwdriver and gloves; typically installed in 15–30 minutes. 🛡️ Effective Fixes: Resolves uneven heating, no heat, or burnt-out element issues. Product Specification Part Number: W11047722 Component Type: Radiant surface element Material: Glass-ceramic with metal heating coil Dimensions: Approximately 9 3/4" diameter Electrical Specs: 2500W, 240V Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the range from the power source before installation. Shop for high-quality appliance parts with a 30-day return policy. Keep your range cooking efficiently today! Add to cart now for a reliable fix!

Read more less

WPW10242957 Range Genuine OEM Surface Element Radiant Surface Element Radiant surface element, 2000 watts Replaces Part Numbers: WPW10242957, W10242957, 1873054, 4343098, 8053622, 8272568, 8523695, OEM24070458, AP6017614, PS11750913. Description: This Radiant Surface Element is an OEM replacement part for specific Whirlpool, Maytag electric ranges and cooktops.    California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

WPW10187839 Range Surface Triple Radiant Element Radiant Surface Element For glass cooktops and freestanding ranges. Replaces Part Numbers: W11563195, WPW10187839, W10187839, W11318371, AP7040341, PS16620520. Description: This Triple Radiant Surface Element is a Genuine OEM replacement part for specific Maytag, Whirlpool ranges and cooktops models. This component features three individual electric coils contained within a single mounting unit. This triple element provides versatile cooking options with three distinct zones that heat up rapidly and evenly. Whether simmering a sauce or boiling water, this element allows home chefs to prepare multiple recipe components simultaneously. Precise thermostat controls maintain selected temperatures accurately. This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

12500039 Range Genuine OEM Radiant Surface Element Radiant heating element. 6" smoothtop range element with overheat limit switch For glass cooktops and freestanding ranges. Replaces Part Numbers:W10823704, 12500039, 74002653, WP74002653, 04100415, 0E00602299, 3189893, 3196428, 4454863, 71001423, 74001011, 74002651, 74005476, 7406P034-60, 7406P053-60, 7406P058-60, 7406P074-60, 8185657, 8203553, AP6030932, PS11764912, W10823736, Y04100415, Y0E00602299.  Description: This Radiant Surface Element is a Genuine OEM part for specific Maytag, Whirlpool ranges models. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.  Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

W11517959 Range Genuine Dual Radiant Surface Element Replaces Part Numbers: W11517959, W10823729, W10169799, W10275048, W10350485, WPW10169799, AP7012212, PS16543522.  Dual Radiant surface heating element. For glass cooktops and freestanding ranges. Description: The Surface Element is a Genuine OEM part for select Whirlpool range models. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Read more less

WB24X25013 Genuine OEM GE Range Surface Burner Infinite Switch Replaces WB24X47186. The WB24X25013 is a genuine GE OEM infinite control switch for a dual (bridge) surface element on GE, Hotpoint, and select Kenmore electric ranges — the kind of burner with an inner coil and an outer coil that can be run together for a large pot or as the inner coil alone for a small pan. Because it's governing two coil zones instead of one, this switch uses six terminal connections rather than the three or four found on a standard single-element infinite switch, and it mounts to the control panel with a distinctive figure-8 style shaft and two female mounting holes. Like any infinite switch, it doesn't have fixed heat positions — instead it rapidly cycles power to the element(s) on and off at a ratio set by the knob, giving continuous heat adjustment from warm to high rather than a handful of steps. Rated for 240VAC at 15 amps. Over years of cycling, the internal contacts on a switch like this wear, pit, or weld together, and boilovers or spills can corrode the switch body and cause it to fail. A worn switch on a dual-element burner can produce an unusually wide symptom set: the whole burner may fail, or just the outer ring may stop responding while the inner coil still works, or the burner may stay on continuously regardless of the knob position. It directly replaces WB24X47186, 191D4774P005, AP5999509, PS11729102, EAP11729102, and 4464832. As a genuine OEM part, the WB24X25013 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance. Quick Answer The WB24X25013 Genuine OEM GE Range Surface Burner Infinite Switch fixes GE, Hotpoint, and Kenmore electric ranges with a dual (bridge) element burner where the burner won't turn on or off, only the outer ring fails to work while the inner coil still heats, the burner stays on continuously, or heat can't be adjusted. Six-terminal switch, figure-8 shaft, 240VAC / 15A. Replaces WB24X47186, 191D4774P005, AP5999509, PS11729102, EAP11729102, 4464832. Not the same switch as a standard single-element infinite switch — this one is specific to dual/bridge burners with an inner and outer coil. Common Problems This Part Fixes Dual-element burner won't turn on at all when the knob is turned Outer ring of a dual/bridge element won't activate while the inner coil still works Burner won't turn off — stays hot even with the knob at the off position Burner stuck at one heat level regardless of where the knob is set No ability to adjust temperature — always full blast or always low Intermittent burner operation — works sometimes, not others Knob feels loose, gritty, or doesn't turn smoothly through its range Burner failure that followed a boilover or liquid spill on the control panel Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface burner infinite switch directly replaces the following OEM and cross-reference part numbers: WB24X25013, WB24X47186, 191D4774P005, AGE1543754, AP7216136, PS11729102, PS17872685, EAP11729102, 4464832, 191D4774P005, MDSA-W767-GEM If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dual-element infinite switch is compatible with select GE, Hotpoint, and Kenmore electric ranges equipped with a dual (bridge) surface element, including model families such as: GE JB6, JB7, and JB8 series electric ranges (including JB630, JB640, JB645, and JB655) GE JBS series electric ranges GE JS6 and JS7 series electric ranges (including the JS760 series) GE GRS and GRF series electric ranges Hotpoint electric ranges (select GE-built models) Select Kenmore electric ranges built on the GE platform Verified model numbers include: JB645RK6SS, JS760EP6ES, JS760DP6WW, JS760SP7SS, JS760DP7WW, JS760SP6SS, JS760FP7DS, JS760FP6DS, JS760EP7ES, JB860EJAES, JB860FJADS, and GRS500PV1SS. Note: This is a six-terminal switch built specifically for a dual (bridge) element with a figure-8 style shaft and two female mounting holes — it is NOT interchangeable with a standard single-element infinite switch such as the WB24T10029 or WB24T10025, which use fewer terminals and a different shaft profile. Fitting a standard single-element switch to a dual-element burner circuit will not correctly control both coil zones. Always verify your full model number and confirm the affected burner is a dual/bridge element before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified contact design for dual-element switching Six-terminal design controls both the inner coil and outer ring of a dual (bridge) surface element Figure-8 style shaft with two female mounting holes matched to the original control panel bracket Infinite switch design allows continuous heat adjustment rather than a handful of fixed positions Rated 240VAC at 15 amps Resolves "burner won't turn on," "outer ring not working," "won't turn off," and "stuck at one heat level" symptoms caused by worn or corroded switch contacts Direct drop-in replacement — mounts to the same control panel bracket and wiring harness Replaces 191D4774P005, AP5999509, PS11729102, EAP11729102, and 4464832 Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB24X25013 Part Type Range Surface Burner Infinite Switch (Dual/Bridge Element) Condition Genuine OEM Brand GE Element Type Controlled Dual (bridge) surface element — inner coil + outer ring Terminal Connections 6 Shaft Style Figure-8 Mounting Two female mounting holes Voltage 240VAC Amperage 15A Function Cycles element power to allow continuous (infinite) heat adjustment across both coil zones Quantity 1 switch Compatible Brands GE, Hotpoint, select Kenmore Installation Notes ⚠️ 240V Circuit — Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning — this switch operates on a 240V circuit, and working on it while powered presents a serious shock hazard. Wear work gloves. Remove the burner knob (it typically pulls straight off, though some models use a small retaining clip) then remove the screws securing the control panel or backsplash to reach the switch from behind. Photograph the wiring before disconnecting anything — this is a six-terminal switch, and getting even one wire out of place can miswire the inner coil, the outer ring, or both. Label each wire as you remove it. Disconnect all six terminal connections from the old switch, then remove the mounting screws from the two mounting holes and pull the switch free from its figure-8 shaft opening. Install the new WB24X25013 in the same orientation, reconnect each of the six wires exactly as labeled, and secure the mounting hardware. Reinstall the control panel or backsplash, press the knob back onto the shaft, restore power, and test the burner at every knob position — confirm the inner coil and outer ring both activate correctly (together and, if your model supports it, with the outer ring switched off independently) before considering the repair complete. Tools needed: Phillips screwdriver, nut driver, wire terminal pliers (helpful but optional), work gloves. Frequently Asked Questions How do I know if my burner uses a dual-element switch like this one? Look at the burner element itself: a dual (bridge) element has two distinct coil rings — a smaller inner coil and a larger outer ring — usually with a separate control or a knob position that lets you activate just the inner coil for a small pan or both rings together for a large pot. A standard single-ring element has only one coil and uses a simpler switch with fewer terminals. If your range has this two-ring burner design, the WB24X25013 (or the exact switch behind it) is the correct type — but always confirm your model number, since dual-element switches vary by range generation. Only the outer ring of my dual burner doesn't work. Is it the switch or the element? It could be either, and it's worth narrowing down before ordering. If the inner coil heats normally but the outer ring never activates at any knob position, check the outer ring element itself first — a broken element coil is a common and cheaper fix than a switch. If the outer ring element tests fine but the switch's six-terminal wiring specific to the outer coil circuit has failed or corroded, the infinite switch is the correct replacement. Can I use a standard single-element infinite switch instead if this one is out of stock? No. A standard single-element switch has fewer terminals and cannot correctly control the two separate coil zones of a dual (bridge) burner. Wiring a single-element switch into a dual-element circuit will leave one coil zone permanently uncontrolled or non-functional. Always order the six-terminal dual-element switch specified for your model. What does "infinite switch" mean? An infinite switch lets you dial in a continuous range of heat rather than a few fixed positions, by rapidly cycling the element's power on and off at a ratio set by the knob — low settings get short power pulses, high settings get long ones. When the internal contacts wear or weld together from years of cycling, the switch can get stuck feeding constant power (burner always hot) or stop switching at all (burner always off), regardless of where the knob is turned. A spill got into the control panel and now the burner won't turn off. Is that the switch? Very likely, yes. Liquid boilovers and spills are one of the most common causes of infinite switch failure — moisture gets into the switch body, corrodes or bridges the internal contacts, and the switch can end up stuck feeding power continuously even with the knob turned to off. If you suspect this, shut off power to the range immediately at the breaker rather than relying on the knob, since a shorted switch may not respond to it at all. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original six-terminal wiring, figure-8 shaft, 240VAC/15A electrical rating, and dual-coil switching behavior of the infinite switch originally installed for the dual (bridge) element in your GE, Hotpoint, or Kenmore range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

318258203 Genuine OEM Frigidaire Range Radiant Bridge Surface Burner Element The 318258203 is a Genuine OEM Frigidaire replacement radiant bridge surface burner element compatible with select Frigidaire, Electrolux, and Kenmore electric ranges and cooktops. This is a dual surface bridge element — it spans two separate burner zones and bridges them together to create one large, elongated heating surface ideal for griddles, fish pans, and oversized cookware. Rated at 1800W / 2600W, it uses an exposed resistance wire (haliant-style) to generate heat directly on the glass-ceramic cooktop surface. As a Genuine OEM part manufactured by Frigidaire to factory specifications, the 318258203 is a direct factory-exact replacement. It also replaces the earlier 7318258203 part number. The element uses exposed resistance wire to heat the cooking surface — note that minor surface cracks in the glass covering do not affect heating performance. Before installation, photograph the original element's wire terminal connections so you can reconnect the new element correctly. Always unplug the range before beginning. Installs in 20–30 minutes with basic hand tools. Quick Answer The 318258203 Genuine OEM Frigidaire Radiant Bridge Surface Burner Element fixes electric ranges where the bridge burner zone is not heating, heats unevenly, or the element has visibly burned out. Dual bridge element rated 1800W/2600W. Haliant-style exposed resistance wire. Replaces 7318258203. Compatible with Frigidaire, Electrolux, and Kenmore electric ranges. Genuine OEM — factory-exact fit and performance. Common Problems This Part Fixes Bridge burner zone not heating at all when activated Bridge element heating only on one side — uneven heating across the element Visible burn marks, breaks, or open spots on the resistance wire Bridge burner zone glowing on one side but not the other Element cycles on and off erratically instead of maintaining steady heat Cooktop surface shows discoloration or hot spots directly above the element area Replaces Part Numbers This burner element directly replaces the following OEM and cross-reference part numbers: 318258203, 1197704, 7318258203, AH1529079, AFR16668, AP3965799, EA1529079, PD00057059, PS1529079. Contact our support team with your model number if you need confirmation before ordering. Compatibility This bridge surface element is compatible with select electric ranges and cooktops from the following brands: Frigidaire electric ranges and cooktops Electrolux electric ranges and cooktops Kenmore / Sears electric ranges (Frigidaire/Electrolux-built models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by Frigidaire to factory specifications — guaranteed fit and performance Dual bridge element — spans two burner zones to create one large elongated cooking surface for griddles and oversized cookware Rated 1800W / 2600W — dual-power design for large-surface cooking flexibility Haliant-style exposed resistance wire heating — heats the glass-ceramic surface directly and efficiently Replaces 7318258203 and cross-references AH1529079, AFR16668, AP3965799, EA1529079, PD00057059, PS1529079. Compatible with Frigidaire, Electrolux, and Kenmore electric ranges Note: photograph terminal wiring before removal to ensure correct reconnection Product Specifications Part Number 318258203 Also Replaces 7318258203 Part Type Radiant Bridge Surface Burner Element (Dual / Haliant-style) Condition Genuine OEM Application Electric Ranges and Cooktops (glass-ceramic surface) Wattage 1800W / 2600W (dual power) Element Type Haliant — exposed resistance wire on element surface Element Style Bridge (spans two burner zones) Compatible Brands Frigidaire, Electrolux, Kenmore Installation Notes ⚠️ Unplug Range Before Starting Unplug the range or turn off the circuit breaker before beginning. Allow the cooktop to cool completely before touching the element. Photograph the existing element's terminal wiring connections before disconnecting anything — the terminal block connections must be replicated exactly on the new element. Lift the glass-ceramic cooktop surface by opening the front and removing the retaining screws (typically under the front trim), then prop the top open. Unplug the element's terminal connections from the terminal block. Remove the element bracket screws and lift the old element out. Position the new 318258203 element in the same location, secure the mounting bracket, and reconnect the terminal wires in the same positions as documented in your photo. Lower the cooktop, restore power, and test both bridge element power settings. Note: do not touch the haliant wire surface of the element during installation. Tools needed: Phillips screwdriver, 1/4" nut driver. Frequently Asked Questions What is a bridge burner element and what is it used for? A bridge burner element connects two adjacent burner zones on a glass-ceramic electric cooktop into one elongated heating surface. When activated, the bridge element heats the entire combined area — ideal for using a griddle, roasting pan, fish pan, or any large flat-bottomed cookware that spans more than one standard burner. When the bridge is not in use, each adjacent zone functions as its own independent standard burner. The bridge element activates when the bridge control is selected on the range's control panel. What is a haliant element and how is it different from a standard radiant element? A haliant (also called halogent or exposed coil radiant) element uses resistance wire that is partially exposed on the surface of the element body, rather than sheathed inside a smooth glass tube. Both types heat the glass-ceramic surface above them, but haliant elements tend to heat up faster and can reach higher surface temperatures than sheathed radiant elements. Minor surface cracks in the element's glass material do not affect heating performance — the resistance wire is what generates heat, and it functions independently of the outer covering. How do I test if the bridge element has failed? The most reliable test is a continuity check with a multimeter. Unplug the range, lift the cooktop, and disconnect the element's terminal wires. Probe the element's terminal connections with a multimeter set to resistance mode. A working element will show a resistance reading (typically between 10–100 ohms for the heating coil). An open circuit (no continuity / infinite resistance) confirms the element has burned out. You can also visually inspect the haliant wire for visible breaks, dark spots, or melted areas — any visible break in the wire confirms failure. Why is it important to photograph the terminal wiring before removing the old element? Bridge elements have multiple terminal connections for the dual power settings (1800W and 2600W). The wires must be connected to the correct terminals on the new element to ensure both power levels work correctly. If the wires are connected in the wrong order, the element may not heat at all, heat only on one setting, or may not be protected by the correct thermal limiter. Always take a clear photo of the old element's terminal connections before disconnecting anything, and use that photo as a reference when connecting the new element. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by Frigidaire to factory specifications. It is the exact same bridge surface element installed in compatible Frigidaire and Electrolux ranges from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 00631633 Range Surface Burner Igniter Electrode The XPARTCO 00631633 is an aftermarket replacement gas range surface burner igniter electrode (also called a spark electrode) compatible with select Bosch, Thermador, and Gaggenau gas ranges and cooktops in the HDI, HGI, NGM, NGMP, HDIP, and HGIP series. The surface burner igniter electrode is the ceramic-tipped spark generator located at each gas burner position on the cooktop. When the burner is turned on, the ignition system sends a high-voltage pulse to the electrode, which generates a spark across the ceramic tip to ignite the gas flowing from the burner. When the electrode cracks, chips, or becomes contaminated with grease or food residue, the burner may fail to light, click continuously without igniting, or spark intermittently. This replacement electrode is constructed from high-quality ceramic and metal — the ceramic insulator body withstands the thermal cycling of repeated ignition, while the metal spark tip maintains reliable spark gap geometry over time. Sold individually — one electrode per order. It directly replaces AP5950372, 4162041, and PS10057850. Because a gas range typically has four or more burners with individual electrodes, compare your existing electrode's dimensions and mounting configuration before ordering to ensure a correct fit. Installs in minutes — no tools required in most cases. Quick Answer The XPARTCO 00631633 Range Surface Burner Igniter Electrode fixes Bosch, Thermador, and Gaggenau gas ranges where a surface burner won't light, clicks repeatedly without igniting, or sparks intermittently. Ceramic and metal construction. Sold individually — one electrode per order. Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, HGIP series. Replaces AP5950372, 4162041, PS10057850. Compare dimensions to your original before ordering — each burner position uses the same electrode style on compatible models. Common Problems This Part Fixes Gas burner will not light when the knob is turned Burner clicks repeatedly without igniting the gas Burner sparks intermittently — fires once or twice but does not sustain ignition Igniter clicks continuously even when the burner knob is in the off position One burner not lighting while other burners on the same range work normally Electrode tip visibly cracked, chipped, or heavily contaminated with baked-on grease Weak or inconsistent spark — arc not reaching the burner port reliably Replaces Part Numbers This igniter electrode directly replaces the following OEM and cross-reference part numbers: 00631633, 631633, ABS11789, AP5950372, EAP10057850, PD00044775, PS10057850 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This igniter electrode is compatible with select gas ranges and cooktops from the following brands and series: Bosch gas ranges — HDI8054U, HDI8056U, HGI8046UC, HGI8054UC, HGI8056UC series Bosch gas ranges — HDIP054U, HDIP056U, HGIP054UC, HGIP056UC series Bosch gas cooktops — NGM5055UC, NGM5455UC, NGM5655UC, NGM8055UC, NGM8065UC, NGM8655UC, NGM8665UC, NGMP055UC, NGMP655UC series Thermador gas ranges and cooktops (select models using the same electrode style) Gaggenau gas ranges and cooktops (select models using the same electrode style) Note: Before ordering, compare your existing igniter electrode's physical dimensions and mounting configuration to confirm this electrode is the correct fit for your burner position. Always verify your exact model number. If you are unsure, contact our support team with your model number for confirmation. Key Features Ceramic and metal spark electrode — generates the high-voltage spark that ignites the gas burner when the knob is turned High-quality ceramic insulator body — withstands repeated thermal cycling without cracking under normal use Durable metal spark tip — maintains reliable spark gap geometry for consistent ignition Replaces AP5950372, 4162041, and PS10057850 Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, and HGIP series gas ranges and cooktops Also compatible with select Thermador and Gaggenau gas ranges and cooktops Sold individually — one electrode per order; order as many as needed for your burner positions Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in minutes, no special tools required in most cases Product Specifications Part Number 00631633 Also Known As 631633 Part Type Gas Range Surface Burner Igniter Electrode (Spark Electrode) Condition Aftermarket Replacement Application Gas Ranges and Cooktops Material Ceramic / Metal Color White Sold As Single electrode — order quantity as needed Compatible Brands Bosch, Thermador, Gaggenau Installation Notes ⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Always turn off the gas supply at the shutoff valve and unplug the range from the electrical outlet before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician. ⚠️ Unplug Range and Turn Off Gas Before Starting With the range unplugged and gas supply off, remove the cooktop grates and burner caps to access the burner heads. The igniter electrode is the small ceramic component positioned beside each burner head, held in place by a mounting bracket and screw or a snap-in clip depending on the model. Disconnect the single wire connector from the old electrode. Remove the mounting screw and lift the old electrode out. Install the new 00631633 electrode in the same position, secure the mounting screw, and reconnect the wire connector. Replace the burner caps and grates. Restore power and gas supply, then test each burner for reliable ignition. If the burner still does not light after replacing the electrode, inspect the igniter wire and the electronic ignition module. Tools needed: Phillips or Torx screwdriver (for mounting bracket on some models); no tools needed on models with snap-in electrodes. Frequently Asked Questions What does the surface burner igniter electrode do? The igniter electrode is the component that creates the spark to light each gas burner. When you turn a burner knob past the "lite" position, the range's electronic ignition module sends a series of high-voltage pulses through the igniter wiring to the electrode at that burner. The electrode generates a visible spark across its ceramic tip to the grounded burner cap or burner head, and that spark ignites the gas flowing from the burner ports. Each burner position has its own dedicated electrode — failure of one electrode affects only that burner, while other burners on the same range continue to work normally. My burner clicks constantly even when turned off — is it the electrode? Constant clicking when a burner is in the off position is almost always caused by moisture or food residue in the igniter system rather than a failed electrode. When liquid boilover or steam gets into the burner cap area or electrode housing, it can cause the ignition module to fire continuously. Remove the burner cap and grate from the affected burner and allow everything to dry thoroughly — an hour in a warm oven (electric only, turned off) can help. Wipe the electrode tip clean with a dry cloth. If clicking persists after the components are completely dry and clean, the electrode or the ignition module may have been damaged by the moisture and needs replacement. How many electrodes do I need for my Bosch range? Most Bosch gas ranges have four surface burners, each with its own dedicated igniter electrode — so a full cooktop replacement typically requires four electrodes. This listing is for one electrode. If only one burner is not lighting, you likely only need one replacement. If multiple burners are failing, order one electrode for each affected burner. Because the electrodes on compatible Bosch models use the same part number across all burner positions, one order of multiple quantities covers all positions. Can I clean the electrode instead of replacing it? Yes — a contaminated or greasy electrode can often be cleaned successfully rather than replaced. Remove the electrode from the burner area and gently clean the ceramic tip and metal contact with a dry cloth or a soft toothbrush. Do not use water or liquid cleaners directly on the electrode — moisture in the ceramic can cause persistent clicking. If the ceramic body is cracked or the metal tip is corroded or missing, replacement is required. If the ceramic is intact and clean but the spark is still weak or absent, the electrode's spark gap geometry may have changed from thermal expansion and a replacement is the better fix. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Bosch OEM part, but is manufactured from high-quality ceramic and metal to match the dimensions and spark performance of the original 00631633 igniter electrode. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

MEE64286201 Range Genuine OEM Surface Element Radiant Surface Element Replaces Part Numbers: MEE64286201, MEE62385201, AP7178808, PS16662929, AP5683233, PS7795472. Description: This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.  Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Read more less

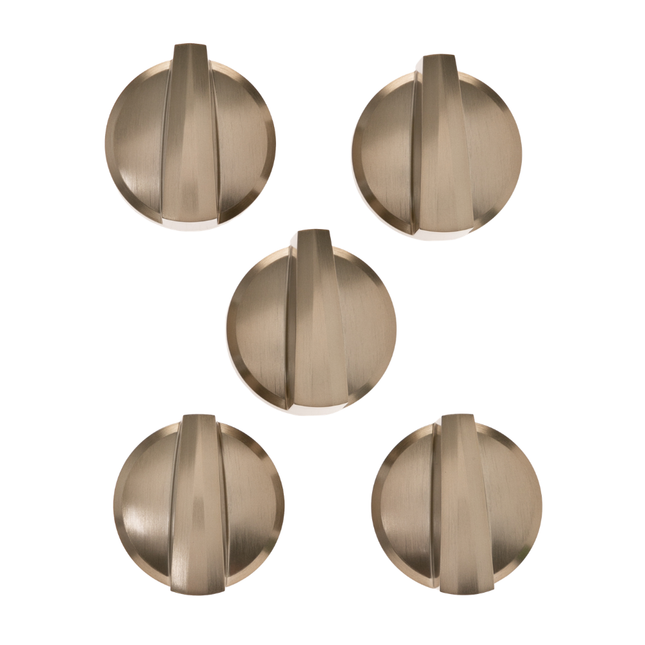

WB03X43926 Genuine OEM GE Range Surface Burner Control Knob Set The WB03X43926 is a genuine GE OEM surface burner knob kit, including 5 stainless steel knobs for GE, Hotpoint, Haier, Monogram, and Café ranges. These are the knobs you turn to light and adjust each surface burner — each one fits onto a control shaft behind the panel, and its position controls the heat setting for that burner. Since this kit includes a full set of five, it's designed for replacing every burner knob on the range at once rather than mismatching a single new knob against several older, worn ones. Over years of use, the finish on plastic-coated or stainless-finished knobs can crack, peel, or start to bubble, and the knobs themselves can become loose or worn at the point where they grip the control shaft. A full-set replacement gives your range a uniform, refreshed look while also resolving any individual knobs that have become difficult to turn or read. Weighing approximately 2.64 oz total, this kit requires no tools to install — each knob simply pulls straight off its post and the new one presses straight back on. It directly replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, and WB03K10294. Quick Answer The WB03X43926 Genuine OEM GE Range Surface Burner Control Knob Set fixes GE, Hotpoint, Haier, Monogram, and Café ranges with burner knobs that are cracked, peeling, bubbling, loose, or simply worn-looking after years of use. Set of 5 stainless steel knobs. Replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, WB03K10294. No tools required — each knob pulls straight off and the new one presses straight on. Common Problems This Part Fixes Burner knobs with cracked, peeling, or bubbling finish Knobs that feel loose or wobbly on the control shaft Knobs that are hard to read due to worn or faded markings Mismatched or inconsistent-looking knobs across the range from replacing them one at a time Knobs that have become difficult to turn smoothly General wear after many years of daily cooking use Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface burner knob set directly replaces the following OEM and cross-reference part numbers: WB03X43926, WB03K10303, WB03K10305, WB03K10208, WB03K10221, WB03K10294, AP7187858, OEM21563583, AGE21567, PD00074146 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This burner knob set is compatible with select GE ranges, and also fits select Hotpoint, Haier, Monogram, and Café ranges built on the GE platform. Note: This is the stainless steel finish knob set. GE also sells a visually different black plastic knob (WB03T10236) for other range models — the two are not interchangeable, so confirm your original knob's finish and shaft style before ordering. Always verify your full model number before ordering, since GE uses several different knob designs across its range lineup. Contact our support team with your model number if you're unsure which knob set fits your range. Key Features Genuine GE OEM part — factory-specified fit and finish Complete set of 5 stainless steel surface burner knobs for a uniform look across the range Resolves "cracked or peeling finish," "loose knob," and "worn markings" symptoms No tools required — pulls straight off the post, presses straight back on Compatible with the same control shaft used across a range of GE-platform ranges Replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, and WB03K10294 Compatible with GE, Hotpoint, Haier, Monogram, and Café ranges Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB03X43926 Part Type Range Surface Burner Control Knob Set Condition Genuine OEM Brand GE Kit Contents 5 surface burner knobs Finish Stainless steel Weight Approx. 2.64 oz. (full set) Mount Style Push-fit onto control shaft Repair Difficulty Very Easy — no tools required Quantity 1 set (5 knobs) Compatible Brands GE, Hotpoint, Haier, Monogram, Café Installation Notes ⚠️ Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Remove each old knob by pulling it straight off its post — on most models this requires no tools, just firm, even pressure. Align each new knob from the WB03X43926 set with its corresponding control panel position and indicator arrow, then press it firmly onto the post until it seats flush. Repeat for all five burner positions. There's no need to remove the knobs for normal baking, broiling, or self-clean use once installed. Restore power and test that each knob turns smoothly through its full range, with the markings lining up correctly against the indicator arrow at each setting. Tools needed: none. Frequently Asked Questions My knobs' finish is bubbling after many years. Is this the right fix? Yes, this is a common wear pattern on older knobs — one customer described replacing 14-year-old knobs whose coating had started to bubble, and found the swap simple enough to do entirely by hand with no tools. If your knobs are showing this kind of surface wear, a full set replacement gives your range a consistent, refreshed look across all burners. Do I need to remove these knobs before running a self-clean cycle? No — these knobs are designed to be left in place during normal oven use, including self-clean cycles. One customer specifically noted using the self-clean feature without removing the knobs and had no issues. Can I buy just one replacement knob instead of the full set of 5? This particular listing is sold as a complete 5-knob set rather than individually. If only one knob has failed, you may still prefer the full set for a matching, uniform appearance across the range, especially if the remaining original knobs are also showing age. Contact our support team if you're looking for a single replacement knob instead. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original stainless steel finish, shaft fit, and marking layout of the surface burner knobs originally installed on your range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WB24T10029 Genuine OEM GE Range Surface Burner Control Switch The WB24T10029 is a genuine GE OEM surface burner control switch — also called an infinite switch — for the 6-inch surface element on GE, Hotpoint, and select Kenmore electric ranges and cooktops. This switch is what the burner knob actually turns: it doesn't have fixed positions like a light switch, but instead cycles the element's power on and off at varying ratios as you rotate the knob, which is why it's called an "infinite" switch — it lets you dial in a continuous range of heat levels rather than a handful of fixed steps. Turn the knob to a low setting and the switch feeds the element power only briefly out of every few seconds; turn it toward high and the element stays powered for most of that same window. This switch is rated for 1,500 watts and controls a 6-inch surface element, drawing 4.4–7.4A at 240V. Over years of use the internal contacts wear, pit, or weld from repeated on/off cycling, and moisture from boilovers or spills can corrode the switch body and cause it to short internally. A worn switch produces predictable symptoms: the burner won't turn on or off at all, it sticks at one heat level no matter where the knob is turned, or it works only intermittently. It directly replaces 769696, AP2024076, AH236754, EA236754, and PS236754. As a genuine OEM part, the WB24T10029 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance. Quick Answer The WB24T10029 Genuine OEM GE Range Surface Burner Control Switch fixes GE, Hotpoint, and Kenmore electric ranges where a surface burner won't turn on or off, stays at one heat level regardless of the knob setting, or works intermittently. This is the 6-inch element switch — 1,500W, 4.4–7.4A at 240V. Replaces 769696, AP2024076, AH236754, EA236754, PS236754. Not the same switch as the WB24T10025 used on the 8-inch element — check which burner is affected before ordering. Common Problems This Part Fixes Surface burner won't turn on at all when the knob is turned Burner won't turn off — stays hot even with the knob at the off position Burner stuck at one heat level regardless of where the knob is set No ability to adjust temperature — always full blast or always low Intermittent burner operation — works sometimes, not others Burner cycles unpredictably, on and off faster or slower than the knob setting suggests Knob feels loose, gritty, or doesn't click through its normal range of motion Burner failure that followed a boilover or liquid spill on the control panel Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface burner control switch directly replaces the following OEM and cross-reference part numbers: WB24T10029, 769696, AP2024076, AH236754, EA236754, EAP236754, AGE22522, PD00008555, PS236754 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This surface burner control switch is compatible with select GE, Hotpoint, and Kenmore electric ranges and cooktops using a 6-inch surface element, across a very wide range of model families, including: GE JB, JBP, JCBP, and JBS series electric ranges GE RB and RA series electric ranges Hotpoint RB series electric ranges (select GE-built models) Select Kenmore electric ranges built on the GE platform This switch fits several thousand model variants across GE's electric range lineup, including common families such as JB250, JB350, JB500, JB600 through JB870, JBP10 through JBP99, JCBP35 through JCBP85, JBS07, JBS27, JBS55, JBS60, JBS86, RA724, RB536, RB540, RB560, RB585, RB720, RB740, RB757, RB758, RB787, RB790, RB798, and RB800 — each spanning many color and revision suffixes. Because the model list is extremely long, always verify your full model number against your range's data label, located inside the storage drawer or along the back panel, before ordering. Note — 6-inch element switch only: GE ranges typically pair a smaller 6-inch element with a larger 8-inch element, and each uses its own dedicated infinite switch. The WB24T10029 is the switch for the 6-inch element. The larger 8-inch element on the same range uses the separate WB24T10025 switch (replaces 769692, AP2024072, AH236750, EA236750, PS236750) instead. The two switches look nearly identical and are easy to mix up when ordering — before you buy, confirm which specific burner has failed and measure or check the element size. Contact our support team with your model number if you're unsure which switch you need. Key Features Genuine GE OEM part — factory-specified contact design and heat-cycling calibration Infinite switch design allows continuous heat adjustment rather than a handful of fixed positions Rated for the 6-inch surface element — 1,500 watts, 4.4–7.4A at 240V Resolves "burner won't turn on," "burner won't turn off," "stuck at one heat level," and "intermittent operation" symptoms caused by worn or corroded switch contacts Direct drop-in replacement — mounts to the same control panel bracket and wiring harness Replaces 769696, AP2024076, AH236754, EA236754, and PS236754 Compatible with a wide range of GE, Hotpoint, and Kenmore electric range models Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB24T10029 Part Type Range Surface Burner Control Switch (Infinite Switch) Condition Genuine OEM Brand GE Element Size Controlled 6 in. Wattage Rating 1,500 W Amperage 4.4–7.4 A Voltage 240V Function Cycles element power to allow continuous (infinite) heat adjustment Mounting Control panel bracket, knob shaft, and wiring harness terminals Quantity 1 switch Compatible Brands GE, Hotpoint, select Kenmore Installation Notes ⚠️ 240V Circuit — Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning — this switch operates on a 240V circuit, and working on it while powered presents a serious shock hazard. Wear work gloves. Access is from the front of the control panel: remove the burner knob (it typically pulls straight off, though some models use a small retaining clip or screw), then remove the screws securing the control panel or backsplash to reach the switch from behind. Photograph the wiring before disconnecting anything — this switch has multiple terminals and getting one out of order will affect either the wrong burner or its heat-cycling behavior. Disconnect the wire terminals from the old switch, noting or labeling each one, then remove the mounting screws or clips holding the switch to the panel and pull it free. Install the new WB24T10029 in the same orientation, reconnect each wire terminal exactly as labeled, and secure the mounting hardware. Reinstall the control panel or backsplash, press the knob back onto the shaft, restore power, and test the burner through its full range from low to high to confirm smooth, continuous heat adjustment. Tools needed: Phillips screwdriver, nut driver, wire terminal pliers (helpful but optional), work gloves. Frequently Asked Questions How do I know if I need the WB24T10029 or the WB24T10025? It depends entirely on which burner has failed. Most GE ranges pair a smaller 6-inch element with a larger 8-inch element, and each has its own dedicated infinite switch. The WB24T10029 is for the 6-inch element; the WB24T10025 is for the 8-inch element. Look at your range and identify which specific burner is misbehaving, then measure that element's diameter if you're not sure — the two switches are not interchangeable even though they look nearly identical side by side. What does "infinite switch" mean, and why does mine only work at one setting? An infinite switch lets you dial in a continuous range of heat rather than a few fixed positions, by rapidly cycling the element's power on and off at a ratio set by the knob — low settings get short power pulses, high settings get long ones. When the internal contacts wear or weld together from years of cycling, the switch can get stuck feeding constant power (burner always hot) or stop switching at all (burner always off), regardless of where the knob is turned. That "stuck at one heat level" complaint is the classic symptom of a failing infinite switch. A spill got into the control panel and now the burner won't turn off. Is that the switch? Very likely, yes. Liquid boilovers and spills are one of the most common causes of infinite switch failure — moisture gets into the switch body, corrodes or bridges the internal contacts, and the switch can end up stuck feeding power continuously even with the knob turned to off. If you suspect this, shut off power to the range immediately at the breaker rather than relying on the knob, since a shorted switch may not respond to it at all. My burner works but only at high heat no matter where I turn the knob. Could it be something else? The infinite switch is the most common cause, but it's worth a quick visual check first. Make sure the knob itself is properly seated on its shaft — a knob that's been pushed on at the wrong angle, or whose shaft has worn round, can make it feel like the switch isn't responding even though it is. If the knob is properly seated and turns smoothly through its full range but the heat output doesn't change, the switch's internal contacts have failed and replacement is the correct fix. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original 1,500W, 4.4–7.4A, 240V electrical rating and the heat-cycling behavior of the infinite switch originally installed for the 6-inch element in your GE, Hotpoint, or Kenmore range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less
