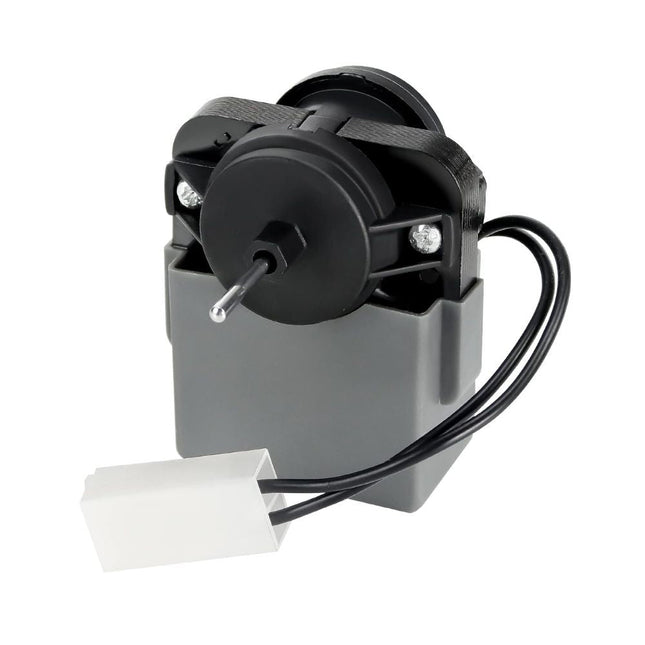

XPARTCO 2315539 Refrigerator Evaporator Fan Motor Replaces WP2315539
The XPARTCO 2315539 is an aftermarket replacement refrigerator/freezer evaporator fan motor compatible with a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Admiral, Estate, Inglis, Ikea, and Gladiator refrigerators. The evaporator fan motor is located in the freezer section and circulates air across the evaporator coils — the cold air generated at the coils is then pushed throughout the freezer and the fresh food compartment. When this motor fails, the most common symptom is excessive noise from the freezer area, and often the refrigerator section won't cool properly even though the freezer remains cold.
This motor includes the incorporated wire harness and plug. Rated 115V, 60Hz, with clockwise rotation. It directly replaces WP2315539, WP2315539VP, 2219689, 2225625, W10438708, 1372146, 1518337, AP3996841, AP6007247, ESF-U2B, EAP11740359, PD00021608, PS11740359, and PS1518337. Important: don't forget to transfer the two rubber grommets from your old motor to the new one for proper mounting. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO 2315539 Refrigerator Evaporator Fan Motor fixes Whirlpool, Kenmore, Maytag, KitchenAid, and Amana refrigerators with excessive noise from the freezer area, ice buildup in the freezer, or where the fresh food section is warm but the freezer is still cold. Includes incorporated wire harness and plug. 115V, 60Hz, clockwise rotation. Transfer rubber grommets from old motor for mounting. Replaces WP2315539, WP2315539VP, 2219689, 2225625, W10438708, 1372146, AP3996841, AP6007247, ESF-U2B, EAP11740359, PS11740359, PS1518337.
Common Problems This Part Fixes
Excessive noise from the freezer area — most common symptom of evaporator fan motor failure
Loud humming, whining, grinding, or scraping noises during operation
Freezer compartment cold but fresh food section warm — cool air not being circulated
Heavy ice buildup on the evaporator coils or rear freezer wall
Refrigerator running continuously trying to maintain temperature
Fan blade not spinning freely or seized when checked by hand
Motor failing continuity test with a multimeter
Visible damage to the fan motor housing or harness
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WP2315539, 2315539, W10438708, 1372146, 2219689, 2225625, ESF-U2B, AP6007247, AWP47336, EAP11740359, PD00003243, PS11740359.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select refrigerators from the following brands:
Whirlpool refrigerators (top-mount, side-by-side, and Gold series — select models)
Kenmore / Sears refrigerators (Whirlpool-built — select 106-series and related models)
Maytag refrigerators (select models)
KitchenAid refrigerators (select models)
Amana refrigerators (select models)
Roper refrigerators (select models)
Crosley refrigerators (select models)
Admiral refrigerators (select models)
Estate refrigerators (select models)
Inglis refrigerators (select models)
Ikea refrigerators (select Whirlpool-built models)
Gladiator refrigerators (select models)
Note: This motor includes an incorporated wire harness. If your old motor has a separate wire harness (not incorporated), confirm the correct part with our support team before ordering. Always verify your model number first. Remember to transfer the two rubber grommets from your old motor to the new one — they're essential for proper mounting.
Key Features
Refrigerator/freezer evaporator fan motor — circulates cold air from the evaporator coils throughout both the freezer and fresh food compartments
Includes incorporated wire harness and plug — direct plug-in installation
Rated 115V, 60Hz — correct electrical specifications for compatible Whirlpool-platform refrigerators
Clockwise motor rotation
Replaces WP2315539, WP2315539VP, 2219689, 2225625, W10438708, 1372146, AP3996841, AP6007247, ESF-U2B, PS11740359, PS1518337, and additional cross-references
Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Admiral, Estate, Inglis, Ikea, and Gladiator refrigerators
Important: transfer the two rubber grommets from the old motor to the new one for proper mounting
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 30–45 minutes with basic hand tools
Product Specifications
Part Number
2315539
OEM Part Number
WP2315539
Part Type
Refrigerator Evaporator Fan Motor (Freezer Section)
Condition
Aftermarket Replacement
Application
Refrigerators (Whirlpool platform)
Voltage
115V AC
Frequency
60 Hz
Rotation
Clockwise
Wire Harness
Incorporated wire harness and plug included
Mounting
Transfer two rubber grommets from old motor
Compatible Brands
Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Admiral, Estate, Inglis, Ikea, Gladiator
Installation Notes
⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located behind the rear access panel inside the freezer compartment. Remove the freezer shelves and any internal components blocking access to the rear panel. Remove the screws holding the rear access panel to expose the evaporator coils and fan motor (a 1/4" hex driver is commonly needed). Photograph the wire connections and fan blade orientation before disconnecting. Disconnect the wire harness connector from the old motor. Note the orientation of the fan blade on the motor shaft and the position of the two rubber mounting grommets — both must be transferred to the new motor. Remove the mounting screws or release the motor from its bracket, and pull the old motor free. Transfer the rubber grommets and fan blade (if not pre-installed) to the new 2315539 motor in the same orientation. Install the new motor in the same position, reconnect the wire harness, and reinstall the access panel and shelves. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. Tools needed: 1/4" hex driver, Phillips screwdriver, flathead screwdriver, work gloves.
Frequently Asked Questions
My freezer is making loud noise — is it the evaporator fan motor?
Yes, this is the most recognizable symptom of a failed evaporator fan motor on Whirlpool-platform refrigerators. When the motor's bearings wear out, it produces loud humming, whining, grinding, or scraping noises during operation. The noise often varies as the fan speed changes or as ice builds up around the fan blade. To confirm, unplug the refrigerator and access the fan behind the rear freezer panel — try turning the blade by hand. If it doesn't spin freely, is stiff, or seizes, the motor bearing has failed and needs replacement.
My freezer is cold but my fridge is warm — could this be the cause?
Yes — on many Whirlpool-platform refrigerators, the freezer's evaporator fan motor is responsible for circulating cool air from the freezer evaporator into the fresh food compartment as well. When this fan fails, the freezer's own compartment may stay cold because the cold air is generated right there, but the fresh food section warms up because no air is being moved into it. If your fridge is warm while the freezer remains cold, this is a likely cause — especially if you also hear unusual noise from the freezer area or see ice buildup on the evaporator coils.
What is the difference between 2315539 and WP2315539?
These are the same evaporator fan motor. WP2315539 is the updated Whirlpool OEM part number that superseded the original 2315539. The 2219689, 2225625, W10438708, and ESF-U2B are also cross-references for this same motor across various Whirlpool catalog revisions and production runs. This aftermarket replacement is compatible with all of these numbers.
Why do I need to transfer the rubber grommets from the old motor?
The two rubber grommets seat between the motor housing and the mounting bracket inside the refrigerator. They isolate the motor from the cabinet to dampen vibration and reduce noise during operation, and they also keep the motor properly positioned in its mount. The new 2315539 typically ships without these grommets — they are reused from the old motor. Remove them carefully from the old motor before discarding it, and slide them onto the new motor in the same positions. Without the grommets, the motor may run noisily or vibrate excessively.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, electrical specifications (115V AC, 60Hz, clockwise rotation), incorporated wire harness, and function of the original WP2315539/2315539 evaporator fan motor.
