Cooking Appliances Parts

(5 Pack) 20A Ceramic Fuse 6.35 x 32 mm, 20A 250V - Compatible with GE, Whirlpool, Kenmore, Maytag, Frigidaire, LG, Samsung and Other Appliances Product Description Protect your appliances with the replacement 20A Slow-Blow Ceramic Fuse 6.35 x 32 mm, 20A 250V. This high-quality time-delay (slow-blow) ceramic cartridge fuse is designed for GE, Whirlpool, Kenmore, and other appliances like microwaves, washers, dryers, and spa control systems. With a ceramic body for durability and heat resistance, this fuse (6.35 x 32 mm, 20A, 250V AC) safeguards circuits from over current and short circuits while tolerating brief surges. It addresses issues like appliance failure, power loss, or blown fuses.  Note: Includes one ceramic fuse. Disconnect power before installation. Verify fuse size and rating match your appliance’s requirements. Replaces part numbers: EXP20A, MDA-20, 0326020.HXP, 0326020.MXDP, BK1-MDP-20-R, BK-MDP-V-20-R, GSA20, 8020.0605, 8020.0605.G, WB27X10388, AP3094537, AH334641, EA334641, EAP334641, PS334641, WP4375321, W11305892, W11305905, AP6009296, PS11742452, 3601-001198, AP4046006, PS4131369, 5F1CD2031S, AP4565040, 1206681, 4922155, WB27X11151, AP4980434, PS3486702, WB27X11151, AP4980434, PS3486702, WB2X3910, PS242167, AP2010811, WB2X3910, WB27X995, WB27X945, B27X10388, PS239525, AP2631556, WP8183507, 8183507, PS11745084, AP6011884, M0805101, AP6014669, PS11747931, WPM0805101, 5304423383, PS472662, AP2151673, EA472662, WB27X10928, AP3994062, WB27X10388, AH1481237, EA1481237, PS1481237, W11707984, W10138793, AP7225218, PS17629444, 3B74133Q, AP4440371, PS3522743, 5F1CD0202S, 5F1CD2031S, 3B74133K. AH3522741, EA3522741, AP4438152, PS3522741. Compatibility: Compatible with appliances including but not limited to: GE Microwaves: JE1860SH04, JVM1540SM5SS, JVM1440WH04 Whirlpool Microwaves: MH1150XMQ0, MH2175XSB0 Kenmore Microwaves: 721.62649200, 665.68612800 Whirlpool Washers: WTW5300SQ0, LSQ9544KQ0 Whirlpool Dryers: WED5300SQ0 Balboa Spa Control Systems: 30123 Other Brands: KitchenAid, Maytag, Amana, Hotpoint, and other appliances requiring 6.35 x 32 mm, 20A 250V slow-blow fuses Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select GE, Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Hotpoint, LG, Samsung and other appliances requiring 6.35 x 32 mm, 20A 250V fuses. 🔥 Specifications: replacement slow-blow ceramic fuse, 6.35 x 32 mm (1/4" x 1-1/4"), 20A, 250V AC, ceramic body, time-delay, 3.35–3.5 mOhms resistance, cylindrical, holder/clip mount. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires insulated gloves, needle-nose pliers; typically installed in 5–15 minutes. 🛡️ Reliable Fixes: Resolves appliance failure, power loss, or blown fuse issues in microwaves, washers, dryers, and spa systems. Installation Notes: Safety First: Disconnect the appliance from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your appliances running safely and efficiently today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO EXPHV10 Microwave High Voltage Diode The XPARTCO EXPHV10 is a universal aftermarket replacement high voltage diode (rectifier) compatible with most major microwave brands including GE, Whirlpool, Maytag, Samsung, LG, Frigidaire, Panasonic, Sharp, KitchenAid, and Kenmore. The high voltage diode is a critical component in the microwave's high-voltage circuit, working alongside the high-voltage capacitor and transformer to convert alternating current (AC) to direct current (DC) — providing the high-voltage DC power required by the magnetron to generate microwave energy and heat food. When the diode fails — due to electrical surges, overheating, or normal wear — the magnetron cannot receive the correct power supply, resulting in a microwave that runs but does not heat. A failed diode may also cause the high-voltage fuse to blow repeatedly. Rated at 12,000V DC (12 kV) with a 500mA current capacity, the EXPHV10 is a universal cross-brand replacement that meets or exceeds OEM specifications across hundreds of microwave models. ⚡ HIGH VOLTAGE SAFETY WARNING — READ BEFORE SERVICING Microwaves contain a high-voltage capacitor that can store a lethal electrical charge of up to 2,100 volts even when the microwave is unplugged. Do NOT touch any internal components without first discharging the capacitor. If you are not experienced with high-voltage appliance repair, do not attempt this repair yourself — contact a qualified appliance technician. Always unplug the microwave before opening the cabinet and discharge the capacitor using a properly insulated discharge tool before handling any internal parts. Quick Answer The XPARTCO EXPHV10 Microwave High Voltage Diode fixes microwaves that run but produce no heat, have a repeatedly blown fuse, or have a humming sound with no heating. It converts AC to DC power for the magnetron and is rated 12,000V DC / 500mA. Universal fit — compatible with most GE, Whirlpool, Maytag, Samsung, LG, Frigidaire, Panasonic, Sharp, KitchenAid, and Kenmore microwaves. Common Problems This Part Fixes Microwave runs (turntable spins, light works) but does not heat food High-voltage fuse blows repeatedly after replacement Loud humming or buzzing sound with no heating Microwave takes much longer than normal to heat food Microwave heats unevenly or inconsistently Replaces Part Numbers This diode directly replaces the following OEM and cross-reference part numbers: HV10, EXPHV10, 2CL70, 2CL77, W11256462, W10886077, AWP43735, PD00047836, AP6784287, PS12584264, WB27X1160, AGE22195, PD00026293, AP2026385, PS239843, DE91-70063D, DE91-70063A, ASM94577, PD00033057, AP4236698, PS4235633, 5304417430, AP2151558, PS472334, 6021W3B001U, AP4439834, PS3528798, 6851W1A002E, ALG51731, PD00006373, AP5203812, PS3529603, 5304456178, AP3960683, PS1532581, 3518400800, AP7110292, 5304509479, 5304472472, AFR17769, PD00040522, AP4433625, PS12071314, WPR9800486, AWP128355, PD00004942, AP6014695, PS11747959, 11QBP0237, AP5633255, PS4085135, WB27X10744, AP3792899, PS953886, WB27X35382, WB27X10930, WB18X10449, WB27X10892, WB27X10965, WB27X11035, AP6992536, PS16219547, WB27X10562, AGE1037090, AP3187536, PS239704, WP13091701, AWP634588, PD00035043, AP6005641 PS11738693, WB27X10687, AGE1019656, PD00032466, AP3207509, PS953843, WB27X10107, AP2026017, PS239224, WB27X10037, AGE22509 PD00031660, AP2025948, PS239148, WPDE91-70063D, AWP547793, PD00034036, AP6014620, PS11747873, 6021W3B001V, 6021W3B001R, AP5632506 EAP3528799, ALG51931, PD00008859, AP4438526, PS3528799, WB27X21012, AGE360033, PD00037340, AP5791119, PS8754690, 00625682, 10001605, ABS11495, PD00047510, AP5804800, PS8770335, CL04-12. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This universal high voltage diode is compatible with most microwave ovens from the following brands: GE and Hotpoint microwaves Whirlpool microwaves Maytag microwaves KitchenAid microwaves Samsung microwaves LG microwaves Frigidaire and Electrolux microwaves Panasonic microwaves Sharp microwaves Kenmore / Sears microwaves Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Converts AC to DC power in the microwave's high-voltage circuit — enabling the magnetron to generate microwave energy and heat food Rated 12,000V DC (12 kV) / 500mA — meets or exceeds OEM electrical specifications Universal fit — compatible with most major microwave brands across hundreds of models Aftermarket replacement built to OEM-equivalent quality standards Pre-terminated leads — direct drop-in replacement, no modification required Compact insulated design for safe and easy installation Budget-friendly fix for one of the most common microwave no-heat failures Product Specifications Part Number EXPHV10 Part Type High Voltage Diode (Rectifier) Condition Aftermarket Replacement Application Microwave Oven High Voltage Circuit Voltage Rating 12,000V DC (12 kV) Current Rating 500 mA Material Insulated Epoxy Body Terminals Pre-terminated leads Fit Type Universal — fits most major microwave brands Compatible Brands GE, Whirlpool, Maytag, KitchenAid, Samsung, LG, Frigidaire, Panasonic, Sharp, Kenmore Installation Notes ⚡ DANGER — HIGH VOLTAGE — DISCHARGE CAPACITOR BEFORE SERVICING Microwaves store a lethal charge in the high-voltage capacitor even when unplugged. You must discharge the capacitor before touching any internal parts. Use a properly insulated discharge tool or resistor — never a screwdriver or bare wire. Once the capacitor is safely discharged: unplug the microwave and remove the outer cover. Locate the high voltage diode — it is connected between the high-voltage capacitor and the chassis ground. Disconnect both leads, note the orientation/polarity, remove the old diode, and install the new EXPHV10 in the same position and orientation. Reconnect leads, reassemble the cover, and test heating operation. Time required: approximately 20–25 minutes. If you are unsure about any step, contact a qualified appliance technician. Frequently Asked Questions Will the EXPHV10 fit my microwave? The EXPHV10 is a universal replacement diode compatible with most GE, Whirlpool, Maytag, KitchenAid, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwaves. Use the model search above to verify, or contact our support team before ordering. What does the high voltage diode do? The high voltage diode works with the capacitor and transformer to convert AC power to high-voltage DC power — typically around 4,000 to 5,000 volts. This DC voltage powers the magnetron, which generates the microwave energy that heats food. A failed diode prevents the magnetron from receiving proper power, resulting in a microwave that runs but does not heat. How do I test if my microwave diode is bad? After safely discharging the capacitor, use a multimeter set to the diode test mode. A good diode will show continuity in one direction and no continuity in the other (one-way electrical flow). A bad diode will show either no continuity in both directions (open) or continuity in both directions (shorted). A shorted diode will also cause the fuse to blow repeatedly. My microwave fuse keeps blowing — is the diode the problem? A shorted high voltage diode is one of the most common causes of a repeatedly blown microwave fuse. When the diode shorts, it draws excess current which blows the fuse. If you replace only the fuse and it blows again immediately, test the diode and capacitor as well before replacing the fuse again. Is this an OEM or aftermarket part? This is an aftermarket universal replacement part built to OEM-equivalent electrical specifications. It is not a genuine OEM part from any specific brand, but is rated at 12,000V DC / 500mA — meeting or exceeding the requirements of most microwave high-voltage circuits. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WG447 Microwave Mica Sheet, Waveguide Cover – Compatible with Whirlpool, GE, Samsung, LG, Panasonic, and More Product Description Protect your microwave’s internal components with the WG447 Microwave Mica Sheet / Waveguide Cover. Microwave mica chips can effectively prevent water or oil and other substances from splashing on the magnetron or other components during the heating process of food. Protect the microwave oven from burning. Size can be cut: The waveguide cover size is 10 cm*10.8 cm (3.93 in x 4.65 in), you could cut it into any size to fit your microwave oven. Easy to cut. Widely used: As a kind of heat resisting and insulating product. Mica Plates is widely used in household appliances such as hair dryers, toasters, microwave ovens, warmers, etc.  Replaces Part Numbers universal microwave mica sheet equivalents. Size can be cut: The waveguide cover size is 10 cm*10.8 cm (3.93 in x 4.65 in), you could cut it into any size to fit your microwave oven. Easy to cut.   Compatibility This replacement waveguide cover fits a wide range of Whirlpool, GE, Samsung, LG, Panasonic, Emerson, Sharp, Kenmore, and other microwaves that use a cut-to-fit mica sheet. Common compatible models include (but are not limited to):Whirlpool WMH31017HS, GE JVM3160RFSS, Samsung ME18H704SFS, LG LMV1762ST, Panasonic NN-SN766S. Always compare dimensions before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Universal cut-to-fit design matches OEM insulation and heat resistance ⚡ Restores Safe Operation – Prevents arcing, sparking, and microwave energy leakage 🔥 Heat & Moisture Resistant – Made from high-grade mica composite ✂️ Easy to Trim – Can be cut to match original waveguide cover size 🛡️ Fixes Common Issues – Solves sparking, burning smell, and uneven heating caused by damaged covers 📐 Product Specification Part Number: WG447 Component Type: Microwave Mica Sheet / Waveguide Cover Material: Heat-resistant mica composite Dimensions: Approx. 6" × 6" (can be trimmed to size) Thickness: Standard 0.3–0.4 mm mica sheet Mounting: Press-fit or screw-secured depending on model Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Scissors or utility knife (for trimming), screwdriver (if applicable) ⚠️ Safety First: Always unplug the microwave before servicing. Do not operate the microwave without a waveguide cover. Steps: Disconnect power and remove the old burned or damaged mica cover. Use the old cover as a template to trim the new WG447 mica sheet. Align the new cover over the waveguide opening. Press into clips or secure with screws depending on your model. Restore power and test heating performance. ⏱️ Time Required: 5–10 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Stop microwave sparking and restore safe heating — Add to Cart Now for a quick, reliable fix!

Read more less

MWC21095 Microwave High Voltage Capacitor (2100VAC, 0.95µF) The MWC21095 is a universal high voltage capacitor for microwave ovens, part of the high-voltage power supply circuit that steps up household voltage to the extreme level the magnetron needs to generate cooking power. Working alongside the high-voltage diode and transformer, this capacitor doubles the rectified voltage feeding the magnetron — it's a core piece of why a microwave can produce thousands of volts internally from a standard household outlet. Rated 2100VAC, 0.95µF, ±3% tolerance, oval aluminum can construction with two male terminals spaced 1/4" (6.35mm) apart. Overall dimensions approximately 3.35"H (body) x 2.75"W x 2.05"D, with the terminal housing adding roughly 1.3" to the total height. Over time, the internal dielectric can break down from repeated high-voltage cycling, causing the capacitor to lose capacitance or fail outright — sometimes shorting internally. Symptoms of a failing capacitor include the microwave running (light on, turntable turning, fan running) but not heating food, a buzzing or humming noise from the high-voltage compartment, arcing or sparking sounds, or the microwave tripping a breaker shortly after starting. ⚠️ Extreme Danger — Lethal Voltage Risk A microwave's high voltage capacitor can retain a lethal electrical charge for a long time after the microwave has been unplugged — this is one of the most dangerous components in any household appliance to work on. Even with the microwave fully unplugged, this capacitor can still deliver a fatal shock if handled incorrectly. Before touching any component in the high-voltage compartment, the capacitor must be safely discharged by shorting both terminals to the chassis ground using an insulated-handle screwdriver, and that discharge should be verified with a multimeter before proceeding. If you are not fully trained and confident in safely discharging a high voltage capacitor, do not attempt this repair — have a qualified appliance technician replace this part instead. This applies every time, regardless of how long the microwave has been unplugged. Quick Answer The MWC21095 Microwave High Voltage Capacitor fixes microwave ovens that run (light, turntable, fan all working) but don't heat food, make a buzzing or arcing sound from the high-voltage compartment, or trip the breaker shortly after starting. 2100VAC, 0.95µF, ±3%, oval, 2 male terminals (1/4"/6.35mm spacing). Retains a lethal electrical charge even after unplugging — must be properly discharged before any handling. Common Problems This Part Fixes Microwave runs (light on, turntable turning, fan running) but doesn't heat food Buzzing or humming noise from the high-voltage compartment Arcing or sparking sound during operation Microwave trips the breaker shortly after starting a cook cycle Microwave that used to heat inconsistently and has now stopped heating altogether Visible bulging, leaking, or discoloration on the capacitor can Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers TJ13QBP21095, 13QBP0300, 13QBP21095, AP5633423, RC-QZA234WRE0, RC-QZB011MRE0, RCQZA331WRZZ, 5304513458, PD00065299, EAP12365444, 4584979, AP6301645, PS12365444, 00631397, 631397, PD00044249, EAP10057840, 4161979, AP5950362, PS10057840, WB27X11031, PD00040188, EAP2339855, 1474116, AP4362390, PS2339855, WB27X10073, PD00045875, EAP239187, 769853, AP2025984, PS239187, WB27X11011, PD00087136, EAP2345628, 1474103, AP4368101, PS2345628, 2501-001016, 2028385, AP4033712, PS4130923, 8206562, PD00074258, EAP1486840, 1200936, AP3890709, PS1486840, 5304528930, 5304464253, AP7017693, PS2203382, WB27X10009, 254534, AH239117, EA239117, AP2025928, PS239117, WP815073, AP6011690, PS11744888, 2501-000260, AP4033659, PS4130923 This is a universal component rather than a single-manufacturer part, so the specific OEM number your microwave's label references will vary by brand (GE, Whirlpool, Frigidaire, Samsung, LG, and others). This capacitor is a correct replacement for any microwave capacitor matching the 2100VAC, 0.95µF specification. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This capacitor is a universal replacement compatible with household microwave ovens across all major brands — GE, Whirlpool, Frigidaire, Samsung, LG, and others — wherever the original capacitor is rated: 2100VAC 0.95µF (or a rating within roughly 10–20% higher than your original — see FAQ) Oval shape with 2 male terminals, 1/4" (6.35mm) spacing Note: Voltage rating must match your original capacitor exactly — never substitute a lower voltage rating, and don't assume a higher voltage rating is automatically safe on this component the way it is with an HVAC run capacitor, since the high-voltage diode in the circuit must also be rated to match. Capacitance (µF) has more tolerance than voltage: a modest increase over the original rating is generally acceptable, but always try to match as closely as possible. If you're unsure whether this capacitor matches your microwave's original specification, check the rating printed on your existing capacitor's can before ordering, or contact our support team for help confirming compatibility. Key Features Universal microwave high voltage capacitor — a core component of the high-voltage power supply circuit 2100VAC, 0.95µF, ±3% tolerance Oval aluminum can construction for durability Resolves "runs but doesn't heat," "buzzing or arcing noise," and "trips the breaker" symptoms caused by capacitor failure 2 male terminals, 1/4" (6.35mm) spacing, for a direct plug-on fit to standard microwave wiring Compatible with GE, Whirlpool, Frigidaire, Samsung, LG, and most other major microwave brands Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number MWC21095 Part Type Microwave High Voltage Capacitor Condition New — Universal Replacement Part Voltage Rating 2100VAC Capacitance 0.95 µF (mfd) Tolerance ±3% Shape Oval Terminals 2 male, 1/4" (6.35mm) spacing Overall Height 8.5cm / 3.35 in. Body Height 7cm / 2.75 in. Body Width 5.2cm / 2.05 in. Terminal Housing Height 3.3cm / 1.3 in. Material Aluminum can Application Household Microwave Ovens Quantity 1 high voltage capacitor Compatible Brands Universal — GE, Whirlpool, Frigidaire, Samsung, LG, and most other major brands Installation Notes ⚠️ Extreme Danger — Discharge Fully Before Any Contact Unplug the microwave and wait, but never assume the capacitor is safe based on time alone. Remove the outer cabinet to access the high-voltage compartment. Before touching anything else, discharge the capacitor by shorting both terminals to the chassis ground using an insulated-handle screwdriver — do this deliberately and do not rush. Verify the capacitor reads no charge with a multimeter before proceeding. Never assume a capacitor is discharged just because time has passed, and never touch the terminals directly, even with the microwave unplugged. If you are not completely confident performing this discharge procedure safely, stop and have a qualified appliance technician complete this repair. ⚠️ Match The Terminal Wiring Exactly Wear insulated gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on both terminals before disconnecting anything. Remove the mounting bracket or strap holding the old capacitor in place, and disconnect each wire from its terminal. Install the new MWC21095 in the same mounting position, and reconnect each wire to its matching terminal exactly as photographed — the two terminals are not interchangeable in some circuit configurations, so accuracy here matters. Secure the mounting bracket or strap. Reinstall the outer cabinet before restoring power. Plug the microwave back in and test with a cup of water to confirm normal heating without unusual noise. Frequently Asked Questions Is it really dangerous to work on this even with the microwave unplugged? Yes, genuinely. This is one of the most dangerous repairs a person can attempt on a household appliance, because this capacitor is specifically capable of retaining a lethal electrical charge long after the microwave has lost power. Unplugging the microwave is a necessary first step, but it does not make the capacitor safe to touch on its own — proper discharge with an insulated tool, verified with a multimeter, is required every time before any contact with this component. My microwave runs completely normally — light, turntable, fan — but food doesn't heat. Is this the capacitor? It's one of the most common causes of exactly that symptom. Since the capacitor is part of the circuit that generates the high voltage the magnetron needs, a failed capacitor can leave every other function of the microwave working normally while the actual cooking power is missing entirely. Can I use a capacitor with a slightly different µF rating than my original? Some tolerance is generally acceptable here — a modest increase over your original rating, often cited as up to roughly 10-20% higher, typically works fine, since the capacitance value isn't as tightly critical to the magnetron's operation as some assume. That said, always aim to match your original rating as closely as possible, and never substitute a different voltage rating; the voltage must match your original capacitor exactly. Should I replace the high-voltage diode at the same time? It's worth considering. The capacitor and diode work together in the same high-voltage circuit, and a failure in one can sometimes stress or damage the other. If your capacitor failed and you're already taking the precautions needed to safely access this compartment, it may be a reasonable time to inspect or replace the diode as well, particularly if the microwave shows signs of a more significant electrical fault. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because high voltage capacitors of this type are a standardized component defined by their electrical specifications, this capacitor is a correct replacement for any microwave's original capacitor sharing the same 2100VAC, 0.95µF rating — regardless of which brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO EXP497 Microwave Door Switch (Normally Open) The XPARTCO EXP497 is an aftermarket replacement Normally Open (NO) microwave door interlock switch compatible with a wide range of GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, and Sharp microwaves. The door interlock switch is one of several safety switches in the microwave door system. It allows the microwave to operate only when the door is fully closed — when the door closes, the switch is mechanically activated, completing the circuit and signaling the control board that it's safe for the magnetron to fire. When the door is open, the switch is released and the circuit is broken, preventing the microwave from generating microwave radiation. This switch is rated for 16A at 125/250V AC, giving it the heavy-load capacity required for microwave door safety circuits. It directly replaces an extensive list of cross-reference part numbers from multiple manufacturers, including 3B73362F, SZM-V16-FA-63, WB24X816, WB24X829, WB24X10180, 6600W1K003C, WP56001036, 5304408938, AP4437957, PS3522738, and dozens more. Important: confirm your original switch is a Normally Open (NO) type before ordering — this part will not replace Normally Closed (NC) or COM-style switches. Installs in 15–25 minutes with basic hand tools. Quick Answer The XPARTCO EXP497 Microwave Door Switch (Normally Open) fixes microwaves that won't start, won't heat, stop mid-cycle, or won't shut off when the door opens. Universal-fit Normally Open (NO) interlock switch, 16A at 125/250V AC. Replaces 3B73362F, SZM-V16-FA-63, WB24X816, WB24X829, WB24X10180, 6600W1K003C, WP56001036, 5304408938, AP4437957, PS3522738 (and many more). Compatible with GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, and Sharp microwaves. Important: confirm your original switch is "Normally Open" before ordering. Common Problems This Part Fixes Microwave won't start when the door is closed and the start button is pressed Microwave runs but produces no heat — turntable spins, light works, but food doesn't warm Microwave starts and then immediately stops mid-cycle Microwave continues running with the door open (unsafe failure mode — replace immediately) Intermittent start failure — works sometimes, doesn't work other times Door switch button visibly stuck, broken, or fails to click when pressed Multimeter continuity test on the switch shows it doesn't change state when actuated Replaces Part Numbers This Normally Open microwave door switch directly replaces an extensive list of OEM and cross-reference part numbers: 3B73362F, 3B73362E, 6600W1K003D, 6600W1K004C, 6600W1K004F, AH3522738, EA3522738, AP4437957, PS3522738, WB24X816, WB24X0816, AP2024324, QSWMA085WRE0, QSWMA168WRZZ, WB24X10180, AH2370055, EA2370055, AP4484237, PS2370055, 00606693, 00415824, 1386418, 35-00-780, 415824, 606693, AH3477005, EA3477005, PS3477005, AP4070531, PS8726630, 00633795, 00415825, 35-00-781, 415825, 4162223, AP5952985, PS10060855, WB23X10019, 1810578, AH3486591, EA3486591, AP4980343, PS3486591, WB24X10204, WB24X10148, WB24X28940, 251201600929, 3025958, AP5790848, PS8754454, 5304408938, 5304430284, 639405, AH471434, EA471434, AP2151217, PS471434, WB24X10047, WB24X10029, WB24X0815, WB24X10072, WB24X10113, WB24X815, AH237015, EA237015, AP2622452, PS237015, 5304408938, 5304430284, 639405, AH471434, EA471434, AP2151217, PS471434, 5304423463, 892734, AH472733, EA472733, AP2151744, PS472733, 5304493153, 5304440026, 3018427, 5303319558, 5304467694, 75304440026, 75304467694, AP5804011, PS8769124, WB24X10139 1086028, AH953555, EA953555, PS953555, AP3792702, WB24X10140 AH953556, EA953556, AP3792654, PS953556, WB24X829, WB24X10038, WB24X368, WB24X384, WB24X414, WB24X426, WB24X439, WB24X441, WB24X445, WB24X796, WB24X5228, WB24X796, AP2024337, AH237421, EA237421, PS237421, WP56001036, 56001036, 0053464, R0654097, AP6009674, PS11742843, 3405-001034, 3405-000178, 111698, 2028597, AP4044834, PS4131192, WB24X823, WB24X0820, WB24X0823, WB24X820, AH237415, EA237415, AP2024331, PS237415, 5304509460, 5304520020, 5304464099, 4583656, AP6230615, PS12071303, WB24X28941, AH1019163, EA1019163, MW-7100-33, AP3866977, PS1019163, 5304493153, 5304440026, 3018427, 5303319558, 5304467694, 75304440026, 75304467694, AP5804011, PS8769124, D3V-16G-3C25, SZM-V16-FA63. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This Normally Open door switch is compatible with select microwaves from a wide range of brands: GE microwaves (countertop, over-the-range, and built-in models) Whirlpool microwaves Samsung microwaves LG microwaves — MV, LMV, LMH, MQ, MS, LMA, LMVM series (MV1560M, MV1310W, MV1560T, LMV1625B, LMA2112WT, MS1443ASV, LMH1017CVST and many more) Frigidaire microwaves Kenmore / Sears microwaves (multi-brand built models) Panasonic microwaves Sharp microwaves Bosch microwaves (select models — cross-references 00606693, 00633795) Important — Confirm Switch Type Before Ordering: This is a Normally Open (NO) switch. Microwaves typically use 2–3 door switches: one Normally Open and one or two Normally Closed/COM. They are not interchangeable. Inspect your original switch's markings or test it with a multimeter before ordering — if your failed switch is Normally Closed, you need the EXP499 instead. If you're unsure, contact our support team with your microwave model number. Key Features Normally Open (NO) microwave door interlock switch — closes the circuit when the door is closed, allowing the microwave to operate Rated 16A at 125/250V AC — heavy-duty capacity for microwave door safety circuits Universal fit — replaces door switches from GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, Sharp, and Bosch Replaces 50+ OEM and aftermarket cross-reference part numbers across multiple appliance brands Common alternate part numbers include 3B73362F, SZM-V16-FA-63, D3V-16G-3C25, AP4437957, and PS3522738 Important: verify your switch is Normally Open before ordering — NOT a replacement for Normally Closed (use EXP499) or COM-style switches Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number EXP497 Part Type Microwave Door Interlock Switch (Normally Open) Condition Aftermarket Replacement Application Microwaves (cross-brand) Switch Type Normally Open (NO) Max Current 16A Voltage Rating 125/250V AC Common OEM Equivalents 3B73362F, SZM-V16-FA-63, D3V-16G-3C25 Compatible Brands GE, Whirlpool, Samsung, LG, Frigidaire, Kenmore, Panasonic, Sharp, Bosch Installation Notes ⚠️ High-Voltage Safety Warning — Microwave Capacitor Microwaves contain a high-voltage capacitor that can hold a lethal electrical charge even after the appliance is unplugged. Before opening the microwave cabinet to access the door switches, always unplug the unit and discharge the high-voltage capacitor using proper safety procedure (with an insulated screwdriver across the capacitor terminals while wearing insulated gloves). If you are not familiar with safely discharging a microwave capacitor, have this repair done by a qualified technician. ⚠️ Wear Work Gloves — Identify Switch Position Before Removing Disconnect power before beginning. Wear work gloves to protect your hands. After safely discharging the high-voltage capacitor, remove the microwave's outer cabinet or control panel as needed to access the door interlock switch assembly — typically located behind the right side of the door frame on most microwaves. Take a photo of all switch positions and wire connections before disconnecting anything. Microwaves usually have 2–3 switches in the door interlock assembly: confirm which one is the Normally Open switch (the EXP497 fits this position only). Disconnect the wires from the old switch — make a note of which wire goes where. Release the switch from its mounting tabs and pull it free. Install the new EXP497 in the same position with the same wire connections. Reassemble the cabinet, restore power, and test the microwave by closing the door and confirming it starts and heats normally, then opening the door and confirming it shuts off immediately. Tools needed: Phillips screwdriver, work gloves, insulated tools (for capacitor discharge). Frequently Asked Questions What's the difference between a Normally Open and Normally Closed microwave door switch? Microwave door interlock systems use both types together to provide redundant safety. A Normally Open (NO) switch — like the EXP497 — has open contacts at rest; when the door closes and pushes the switch button, the contacts close to complete a circuit, signaling "door closed." A Normally Closed (NC) switch is the opposite — contacts are closed at rest and open when the door pushes the button. Most microwaves use one or more of each type wired together so the control system can confirm the door is genuinely closed from multiple inputs. They are not interchangeable — you must replace each switch with the same type. If your switch is NC, order the EXP499 instead. How do I know if I need the Normally Open or Normally Closed switch? The easiest way is to read the part number printed on the side of the failed switch and compare it to the cross-reference lists for the EXP497 (Normally Open) versus the EXP499 (Normally Closed). If the markings are unreadable, you can also test the switch with a multimeter set to continuity mode: with the switch at rest (button released), a Normally Open switch reads open (no continuity) and a Normally Closed switch reads closed (continuity). Replacing each switch with the same type is essential — installing the wrong type can prevent the microwave from starting or create unsafe conditions. My microwave runs but doesn't heat — could this be the door switch? Yes — this is one of the most recognizable symptoms of a failed door switch in a multi-switch interlock system. A microwave that turns on (light, fan, turntable) but does not heat often has a failed door switch in one of the door positions while the others continue to work. The control system may allow the auxiliary components to run but blocks the magnetron from firing without confirmation from all switches. Check all door switches systematically — one Amazon review noted a customer needed three identical switches to fully repair their microwave because the third switch (at the top of the door) was the actual cause of the no-heat condition. Replacing all door switches together is a common approach. My microwave keeps running with the door open — what should I do? This is a serious safety concern. Disconnect power to the microwave immediately and do not use it until the door switch is replaced. A microwave that continues to run with the door open exposes you to microwave radiation, which can cause serious injury. This usually indicates one or more door switches are stuck in the "door closed" position. Replace the failed switches with matching NO or NC type (EXP497 for NO, EXP499 for NC) before using the microwave again. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a manufacturer-branded OEM switch from any single brand, but is manufactured to match the dimensions, contact configuration, and 16A/125-250V AC rating of the dozens of OEM door switches it cross-references across multiple appliance brands. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO EXP480 Microwave Door Switch (NC - NO) Normally Closed / Open The XPARTCO EXP480 is a universal replacement door interlock switch for microwave ovens and microwave/oven combination units. This is a critical safety component: microwave door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing any possibility of microwave radiation escaping the cavity while the door isn't fully closed and latched. This switch combines both a normally closed (NC) and normally open (NO) contact set in a single body, matching the dual-contact design used across a wide range of microwave door latch mechanisms. Rated 16A maximum current, 250VAC maximum voltage, with an IP40 protection rating. Over time, these switch contacts can wear, pit, or fuse together from repeated cycling and the electrical load they carry every time the door opens and closes. A failing interlock switch typically shows up as a microwave that won't start at all, a display that works but the unit won't heat, or in less common but more serious cases, a switch that has fused shut and continues carrying current even when it shouldn't. It directly replaces 28QBP0496, W10211972, 4375346, W10330566, WPW10330566, 1472224, 4393442, 4393498, 4393570, 4393697, 4393881, 461967848881, 8206345, W10131248, W10217468, AH2338920, EA2338920, AP4357880, PS2338920, KW3A-16Z0-A200-76, W10727360, W10269457, 3379124, AP5950105, and PS10057151. Quick Answer The XPARTCO EXP480 Microwave Door Switch (NC - NO) fixes microwave ovens and microwave/oven combos that won't start, won't heat, or have a door latch mechanism that isn't reliably cutting power when the door opens. 16A, 250VAC, combined NC/NO contact design. Replaces 28QBP0496, W10211972, 4375346, W10330566, WPW10330566, 1472224, 4393442, 4393498, 4393570, 4393697, 4393881, 461967848881, 8206345, W10131248, W10217468, AH2338920, EA2338920, AP4357880, PS2338920, KW3A-16Z0-A200-76, W10727360, W10269457, 3379124, AP5950105, PS10057151. Never operate a microwave with a bypassed, disconnected, or suspected-faulty door interlock switch — these switches exist to prevent radiation exposure and must always be replaced with a properly rated part, never removed or defeated. Common Problems This Part Fixes Microwave won't start at all, even though the display and buttons respond normally Microwave display and timer work, but the unit won't heat Microwave stops working intermittently, especially around the door latch Clicking or buzzing sound from the door area without the microwave starting Breaker tripping when the door is opened, indicating a switch contact that has fused shut Door that doesn't feel like it's latching securely Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This microwave door switch directly replaces the following OEM and cross-reference part numbers: 28QBP0496, W10211972, 4375346, W10330566, WPW10330566, 1472224, 4393442, 4393498, 4393570, 4393697, 4393881, 461967848881, 8206345, W10131248, W10217468, AH2338920, EA2338920, AP4357880, PS2338920, W10727360, W10269457, 3379124, AP5950105, PS10057151 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This door switch is a universal replacement compatible with convection microwave ovens, grill microwave ovens, microwave/oven combination units, and solo microwave ovens across many brands, wherever the original switch matches this NC/NO contact configuration and electrical rating. Note: Microwave door interlock systems typically use two or three separate switches working together (primary interlock, monitor/secondary switch, and sometimes a third safety switch), and not all of them share this same NC/NO configuration. Confirm which specific switch position has failed on your microwave, and match the contact configuration and electrical rating exactly — never substitute a switch with a different configuration. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which switch your microwave needs. Key Features Universal replacement microwave door interlock switch — combined NC (normally closed) and NO (normally open) contact design Resolves "won't start," "won't heat," and "intermittent operation near the door latch" symptoms caused by switch failure Rated 16A, 250VAC maximum IP40 protection rating Safety approved: CCC, CE, UL, VDE Suitable for convection, grill, combination, and solo microwave ovens Direct drop-in replacement matching the original mounting and terminal configuration Replaces a wide range of OEM part numbers across Whirlpool, GE, and related platforms — see full list above Built to OEM-equivalent quality standards Product Specifications Part Number EXP480 Part Type Microwave Door Interlock Switch (NC/NO Combination) Condition New — Universal Replacement Part Contact Configuration Normally Closed (NC) + Normally Open (NO) Max. Current 16A Max. Voltage 250VAC Operating Temperature -25°C to +85°C Protection Degree IP40 Contact Form SPDT Terminal Size 6.3mm (approx. 1/4") Operating Force 25g (0.245N) – 400g (3.92N) Material Plastic Color Gray Safety Approvals CCC, CE, UL, VDE Application Convection, Grill, Combination, and Solo Microwave Ovens Quantity 1 door interlock switch Installation Notes ⚠️ Danger — Never Bypass A Door Interlock Switch Unplug the microwave before beginning any work, and if it's a built-in or over-the-range unit, shut off power at the breaker as well. Microwave ovens also contain a high-voltage capacitor that can retain a dangerous electrical charge even after the unit is unplugged — avoid touching internal components near the capacitor and magnetron. Door interlock switches are a critical safety system: they exist specifically to cut power the instant the door opens, preventing microwave radiation from escaping the cavity. Never operate a microwave with an interlock switch disconnected, bypassed, or jumpered, even temporarily — doing so can expose you and others to microwave radiation. If you are not fully comfortable working inside a microwave's internal compartment, have a qualified appliance technician perform this repair instead. ⚠️ Photograph Wiring Before Disconnecting — Match The Failed Switch Exactly Wear work gloves. Remove the outer cabinet or access panel per your model's service instructions to reach the door switch assembly, typically located near the door latch mechanism. Photograph the wiring on the old switch before disconnecting anything, and confirm you're replacing the correct switch position if your microwave uses multiple interlock switches. Disconnect the wire terminals from the old switch, remove its mounting screws, and pull it free. Install the new EXP480 in the same position, reconnect each wire terminal to its original position, and secure the mounting screws. Reinstall the cabinet or access panel. Restore power and test that the microwave starts normally with the door closed, and — this is the critical safety check — confirm the unit stops heating immediately when the door is opened during a test run with a cup of water. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My microwave stopped working. How do I know if it's actually a door switch and not something else? A common pattern is a microwave where the display and buttons respond normally, but pressing start does nothing, or the unit hums without heating — this points toward the door interlock circuit rather than the control board. Since these switches also serve a critical safety function, if you suspect a fault in this area, it's best to have it properly diagnosed and replaced rather than working around the symptom. Is it safe to just disconnect a faulty interlock switch so the microwave will run? No — this is not safe under any circumstances. Door interlock switches exist specifically to cut power to the magnetron the instant the door opens, preventing microwave radiation from escaping. Bypassing, disconnecting, or jumpering one of these switches removes that protection and can expose you and anyone nearby to microwave radiation, even if the microwave otherwise appears to run normally. Always replace a faulty switch with a correctly rated new one rather than working around it. My microwave trips the breaker whenever I open the door. What does that mean? This can indicate that one of the door switches — often the one that should open when the door opens — has fused or welded its contacts shut from repeated electrical stress, so it continues carrying current when it shouldn't. This is a genuine safety concern and the affected switch should be replaced promptly rather than continuing to use the microwave. My microwave uses more than one door switch. How do I know which one to replace? Most microwaves use two or three separate interlock switches working together, and they don't always share the same contact configuration. Check your appliance's parts diagram or the physical switch you're replacing to confirm it matches this NC/NO combination design before ordering, and always test or verify function with a multimeter if you're uncertain which specific switch has failed. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

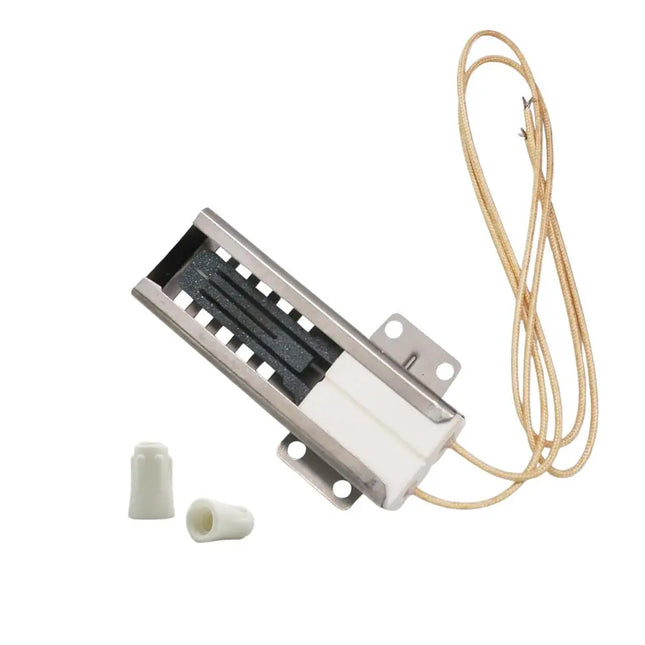

XPARTCO 316489403 Gas Oven Igniter The XPARTCO 316489403 is an aftermarket replacement gas oven igniter compatible with a wide range of Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Tappan, White-Westinghouse, Ikea, and Kenmore gas ranges, ovens, and stoves. The oven igniter is the component that lights the gas burner — when you set the oven to bake or broil, electricity flows through the igniter, heating it until it glows bright orange. This heat both ignites the gas and draws enough current to open the gas safety valve, releasing gas to the burner. When the igniter weakens with age, it may still glow but no longer pull enough current to open the safety valve — so the oven fails to light, takes a long time to heat, or heats unevenly. This is a flat-style, open-cage igniter. Electrical rating: 3.2–3.6 amps, 120V AC. Made of silicon carbide and ceramic for high heat resistance and long service life. Overall dimensions: 3-1/2"L x 1-3/4"W x 13/16"H with a 1.5" ceramic block; the lead and plug measure approximately 16" long. Includes the flat-style igniter assembly with bracket and leads/plug. It directly replaces 316489403, 5304508786, 7316489403, 501RB, 1513415, AH2364063, AP4433236, EA2364063, EAP2364063, PD00000756, and PS2364063. Important: the igniter element is fragile — handle it only by the bracket, never by the element itself. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO 316489403 Gas Oven Igniter fixes Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Tappan, White-Westinghouse, Ikea, and Kenmore gas ovens that won't light, take too long to heat, heat unevenly, or where you smell gas because the igniter is too weak to open the safety valve. Flat-style open-cage igniter. 3.2–3.6A, 120V AC. Silicon carbide/ceramic. Overall 3-1/2"L x 1-3/4"W x 13/16"H, 16" lead. Replaces 5304508786, 7316489403, 501RB, 1513415, AH2364063, AP4433236, EA2364063, EAP2364063, PD00000756, PS2364063. Handle by the bracket only — the element is fragile. Common Problems This Part Fixes Oven won't light or heat at all — igniter too weak to open the gas safety valve Oven takes a long time to reach temperature — igniter glowing but drawing insufficient current Oven heats unevenly or undercooks food — weak or slow ignition Igniter glows but the burner never ignites — classic sign of a degraded igniter Igniter doesn't glow at all — burned out or open circuit (no power reaching the burner) Gas smell when the safety valve opens but the burner doesn't light Oven runs erratically or won't maintain temperature Igniter visibly cracked, broken, or with a damaged element Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This gas oven igniter directly replaces the following OEM and cross-reference part numbers: 316489403, 5304508786, 7316489403, Model 501RB, AH2364063, EA2364063, EAP2364063, AFR16172, AP4433236, PD00000756, PS2364063. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Note: on some models this is the broil (upper) igniter, and the bake (lower) igniter is a different part — see the FAQ below on bake vs broil igniters. Compatibility This gas oven igniter is compatible with select gas ranges, ovens, and stoves from the following brands: Frigidaire gas ranges and ovens — including many Frigidaire Gallery models (LGGF, FGGF, FFGF series and related) Electrolux gas ranges and ovens (select models) Crosley gas ranges and ovens (select models) Gibson gas ranges and ovens (select models) Kelvinator gas ranges and ovens (select models) Tappan gas ranges and ovens (select models) White-Westinghouse gas ranges and ovens (select models) Ikea gas ranges and ovens (select Frigidaire-built models) Kenmore / Sears gas ranges and ovens (select Frigidaire-built models, including 790-series) Note: This igniter fits specific models — always verify against your appliance's model number before ordering. On ranges with two igniters (a bake igniter and a broil igniter), confirm which one you need (see the bake-vs-broil FAQ below). Contact our support team with your model number if you're unsure. Key Features Gas oven igniter — heats up to ignite the burner and draws current to open the gas safety valve Flat-style, open-cage design Resolves "won't light," "slow to heat," "uneven heating," "glows but won't ignite," and "gas smell" symptoms caused by a weak or failed igniter Electrical rating: 3.2–3.6 amps, 120V AC Silicon carbide and ceramic construction — high heat resistance and long service life Overall dimensions: 3-1/2"L x 1-3/4"W x 13/16"H with a 1.5" ceramic block; lead and plug approximately 16" long Includes the flat-style igniter assembly with bracket and leads/plug (some kits include ceramic wire nuts) Replaces 5304508786, 7316489403, 501RB, 1513415, AH2364063, AP4433236, EA2364063, EAP2364063, PD00000756, and PS2364063 Compatible with Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Tappan, White-Westinghouse, Ikea, and Kenmore gas ranges and ovens Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number 316489403 Part Type Gas Oven Igniter (Flat Style, Open Cage) Condition Aftermarket Replacement Application Gas Ranges, Ovens, and Stoves (Frigidaire platform) Amperage 3.2–3.6 Amps Voltage 120V AC Igniter Style Flat, open cage Overall Dimensions 3-1/2"L x 1-3/4"W x 13/16"H Ceramic Block 1.5" L Lead Length Approximately 16" Material Silicon carbide / ceramic / metal Color Almond / White / Gray Includes Igniter assembly with bracket and leads/plug Compatible Brands Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Tappan, White-Westinghouse, Ikea, Kenmore Installation Notes ⚠️ Gas Appliance Safety Warning This part is installed in a gas oven. Shut off the gas supply to the range at the shutoff valve and disconnect electrical power at the breaker before beginning any repair. After installation, if you smell gas at any point, leave the area immediately and contact your gas utility provider. If you're not comfortable working around gas components, have this repair done by a qualified appliance technician. Improper gas appliance repairs can cause fire, explosion, or carbon monoxide hazards. ⚠️ Handle the Igniter by the Bracket Only — The Element Is Fragile Disconnect power at the breaker and shut off the gas supply before beginning. Wear work gloves and safety glasses. The silicon carbide igniter element is extremely fragile and cracks easily — handle the new igniter only by its metal bracket, never by touching the element itself. Skin oils and any impact can shorten its life or break it. Locate the igniter: the bake igniter is beneath the oven floor panel (remove the oven racks, then the floor panel, and on some models the bottom drawer for access), while the broil igniter is mounted near the top of the oven cavity. Photograph the wiring connection before disconnecting. Disconnect the old igniter's wire leads at the connector (they're often joined with ceramic wire nuts). Remove the screws securing the old igniter bracket and lift it out. Install the new 316489403 by securing its bracket in the same position and orientation, then connect the wire leads (use the included or existing ceramic wire nuts — regular wire nuts can't handle the heat). Route the leads away from the burner flame. Restore gas and power. Test by setting the oven to bake (or broil, if that's the igniter you replaced) — the igniter should glow bright orange within a minute or so, and the burner should light within about 60–90 seconds. Tools needed: Nut driver, Phillips screwdriver, work gloves, safety glasses. Frequently Asked Questions My igniter glows but the oven won't light — do I still need to replace it? Yes — this is actually the most common way an oven igniter fails, and it's counterintuitive. The igniter has two jobs: to get hot enough to ignite the gas, AND to draw enough electrical current to open the gas safety valve. As an igniter ages, it can still glow (so it looks like it's working) but weaken to the point where it no longer pulls enough current to open the safety valve — so no gas is released and the burner never lights. If your igniter glows orange but the burner doesn't light within about 90 seconds, the igniter is weak and needs replacement. A good rule of thumb: if it takes more than 90 seconds from glow to flame, the igniter is on its way out. Is the 316489403 the bake igniter or the broil igniter? This is an important distinction, and there's genuine confusion in the industry about it. On many Frigidaire gas ranges, the 316489403 is used as the broil (upper) igniter with an approximately 14–16" lead, while the bake (lower) igniter is a different part — 5304506545 (which superseded 316489404) — often with a shorter lead. However, some sources and parts diagrams list them differently or even reversed, and on some models the 316489403 serves the bake position. The safest approach: look up YOUR specific model number to confirm which igniter you need, and compare your old igniter's lead length to the replacement. If your old igniter's leads reach a connector far from the igniter (14–16"), the 316489403 with its 16" lead is likely correct. Contact our support team with your model number and we'll confirm. Why do I smell gas when I try to use the broiler? If you smell gas when the broiler's safety valve opens but the burner doesn't light, it usually means the igniter isn't getting hot enough (or drawing enough current) to ignite the gas that's being released — so raw gas escapes before shutting off. This points to a weak igniter. To confirm which part is at fault: with the gas off, do a voltage test at the oven safety valve on the broil side — you should read between 3.0 and 3.3 VAC. If the voltage is correct but the burner won't light, the igniter is the problem. If there's no proper voltage, or the burner tube has spider webs or debris blocking it, address those first. Also inspect the gas supply tube from the safety valve to the burner for damage or loose connections. Why do I need to handle the igniter so carefully? The igniter's heating element is made of silicon carbide, a material that's excellent at withstanding heat but is brittle and cracks easily from impact or flexing. Even touching the element with bare fingers can leave oils that create hot spots and shorten its life, and a small bump can crack it invisibly, causing premature failure. Always handle the new igniter by its metal bracket, never by the element or the ceramic block. When installing, be careful not to bump the element against the oven walls or burner. This care is the single biggest factor in whether your new igniter lasts years or fails early. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire/Electrolux OEM part, but is manufactured from silicon carbide and ceramic to match the electrical specifications (3.2–3.6A, 120V AC), flat open-cage style, dimensions (3-1/2"L x 1-3/4"W x 13/16"H, 16" lead), and ignition function of the original 316489403 gas oven igniter used in compatible Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Tappan, White-Westinghouse, Ikea, and Kenmore gas ranges and ovens. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WB03T10325 Range Surface Burner Control Knob Replaces Part Numbers: WB03T10325, 2691864, AP5690210, PS3510510. Description: This Range Knob is a replacement part for specific GE ranges and oven models. It is used to control the temperature and settings of the stove's burners or oven functions, providing an interface for selecting heat levels and cooking modes.   This is an aftermarket part that can be used as a replacement for the OEM part.
