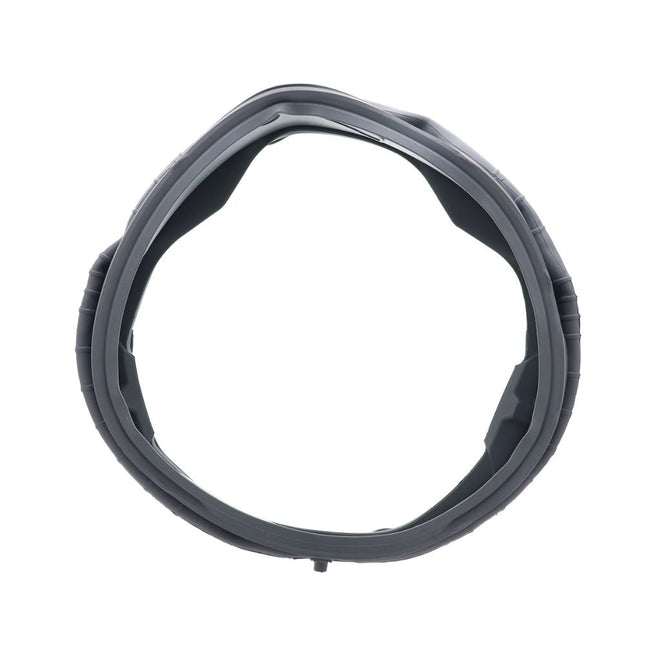

XPARTCO MDS47123601 Washer Door Boot Gasket Seal
The XPARTCO MDS47123601 is an aftermarket replacement front-load washer door boot seal (also called a door gasket or door diaphragm) compatible with select LG and Kenmore front-load washers in the WM2801, WM2901, and WM3001 series. The door boot gasket is the flexible rubber bellows seal that stretches between the door opening on the washer cabinet and the drum opening. It creates a watertight seal every time the door is closed and also acts as a flexible connector that accommodates drum movement during the spin cycle. When the gasket tears, cracks, develops holes, or accumulates mold that cannot be cleaned away, water leaks from the door area and the washer must be repaired before it can be used safely.
Made from durable EPDM rubber, this door boot gasket is a direct replacement for OEM part MDS47123601 and cross-references AP4998888, AH3535209, EA3535209, PS3535209, and 1464249. Compatible LG models include WM2801HLA, WM2801HRA, WM2801HWA, WM2901HVA, WM3001HPA, WM3001HRA, and WM3001HWA, as well as Kenmore 796-series models built on the LG platform. Installs in 30–60 minutes with basic hand tools.
Quick Answer
The XPARTCO MDS47123601 Washer Door Boot Gasket fixes LG and Kenmore front-load washers that are leaking water from the door area, have a visibly torn or cracked door seal, or have persistent mold that cannot be cleaned. EPDM rubber. Compatible with LG WM2801, WM2901, WM3001 series and Kenmore 796-series. Replaces AP4998888, AH3535209, PS3535209, and 1464249. Installs in 30–60 minutes.
Common Problems This Part Fixes
Water leaking from the front of the washer, around the door opening
Puddles of water on the floor in front of the washer during or after a cycle
Visible tear, crack, puncture, or hole in the door boot seal
Persistent mold or mildew inside the folds of the gasket that cannot be cleaned away
Gasket pulling away from the drum opening or door frame
Musty or mildew odor coming from the washer that persists despite cleaning
Small items (coins, socks) getting stuck in a damaged or separated gasket
Replaces Part Numbers
This door boot gasket directly replaces the following OEM and cross-reference part numbers:
MDS47123601, AH3535209, ALG55741, AP4998888, EA3535209, EAP3535209, PD00041241, PS3535209.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Note: the MDS47123602 is a different gasket for a different series of LG models — verify your model number before ordering.
Compatibility
This door boot gasket is compatible with select front-load washers from the following brands and models:
LG WM2801HLA, WM2801HRA, WM2801HWA
LG WM2901HVA
LG WM3001HPA, WM3001HRA, WM3001HWA
LG F1314FDS, F1314FDS1, F1314FDS2
LG F1354FDS, F1354FDS1, F1354FDS3
LG F1355FDS5
Kenmore 796.41022900, 796.41028900, 796.41029900, 796.42192900, 796.42198900, 796.42199900
Important: LG uses several different door boot gaskets across its front-load washer lineup — the MDS47123601 is specific to the WM2801, WM2901, and WM3001 series. Other LG models use MDS47123602, MDS47123604, MDS47123608, or other variants. Always verify your exact model number before ordering.
Key Features
Creates a watertight seal between the washer door and drum opening on every wash cycle
Flexible EPDM rubber bellows design accommodates drum movement during high-speed spin cycles
Durable EPDM rubber — resistant to detergent, hot water, and the repeated flexing of normal wash use
Direct replacement for MDS47123601 — compatible with LG WM2801, WM2901, WM3001 series and Kenmore 796-series models
Cross-references AP4998888, AH3535209, EA3535209, PS3535209, and 1464249
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
Part Number
MDS47123601
Part Type
Front-Load Washer Door Boot Gasket / Door Seal / Door Diaphragm
Condition
Aftermarket Replacement
Material
EPDM Rubber
Color
Gray
Application
Front-Load Washers
Compatible Series
LG WM2801, WM2901, WM3001 series; Kenmore 796-series (LG-built)
Compatible Brands
LG, Kenmore
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Unplug the washer and turn off the water supply before beginning. Door boot gasket replacement on LG front-load washers requires removing the front panel and sometimes the top panel. Start by opening the door and carefully prying the outer spring retaining ring off the door gasket using a flat pry tool — work around the ring carefully to avoid tearing the new gasket. Pull the outer lip of the old gasket away from the door frame. Remove the front panel by unscrewing the lower panel screws and releasing the door latch, then unscrew the front panel screws. Reach inside to access the inner spring retaining ring on the drum side of the gasket, and remove the inner retaining ring. Disconnect the drain tube from the gasket (on models with one) and pull the old gasket off the drum. Install the new MDS47123601 gasket by seating the inner lip on the drum flange and reinstalling the inner retaining spring. Reconnect the drain tube if applicable. Reinstall the front panel, then seat the outer lip over the door frame and press the outer retaining spring back into place. Restore water supply and power, then run a rinse cycle to check for leaks. Tip: use a spring removal tool (available separately) to make reinstalling the retaining springs significantly easier. Tools needed: Phillips screwdriver, flat pry tool or spring removal tool.
Frequently Asked Questions
What is the difference between MDS47123601 and MDS47123602?

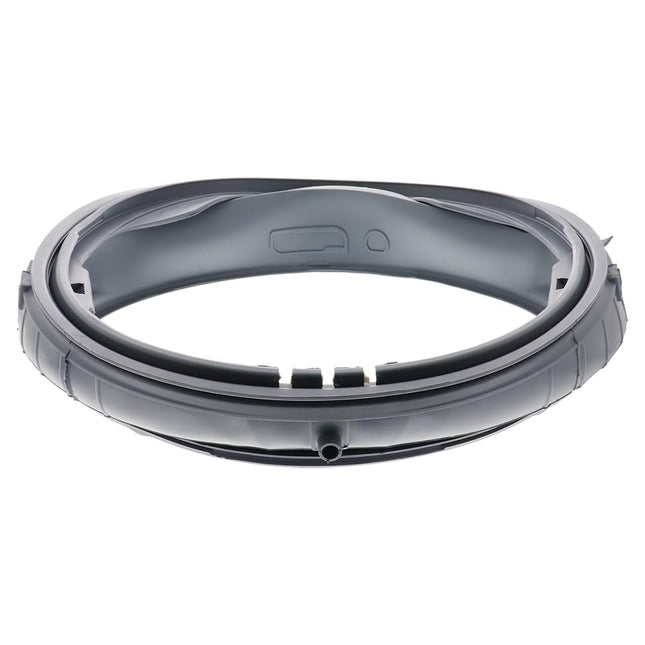

These are two different door boot gaskets for different LG washer model series — they are not interchangeable. The MDS47123601 is for the WM2801, WM2901, and WM3001 series. The MDS47123602 is used on a different set of LG front-load models including the WM3250, WM3050, and WM3370 series. Always verify your exact LG model number before ordering to confirm which gasket your washer requires.
Can I clean the door boot gasket instead of replacing it?
If the gasket is in good physical condition but has mold or mildew buildup in the folds, cleaning is often effective. Wipe the inside and outside of the gasket with a solution of warm water and white vinegar or a diluted bleach solution (1/4 cup bleach per quart of water), getting into the folds where mold accumulates. Leave the door open between washes to allow the gasket to dry out. However, if the gasket has a physical tear, hole, crack, or is pulling away from the door frame, it must be replaced — cleaning will not restore a structural seal.
How long does it take to replace the door boot gasket?
For most DIYers, door boot gasket replacement on LG front-load washers takes approximately 30–60 minutes. The most time-consuming steps are removing the front panel and working with the inner and outer retaining springs. A spring removal tool (sold separately) makes reinstalling the retaining springs significantly faster and reduces the risk of tearing the new gasket during installation. Watching a model-specific installation video before starting is highly recommended.
Will water in the drum area cause mold on the new gasket?
Yes — mold on door boot gaskets is a very common issue with front-load washers because water and detergent residue tend to sit in the folds of the gasket between washes. To prevent mold on the new gasket, leave the washer door slightly open after each wash cycle to allow the interior and gasket to dry out. Periodically wipe the inside of the gasket folds with a clean dry cloth after washing. Running a monthly machine clean cycle or empty hot wash with washer cleaner also helps reduce residue buildup.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable EPDM rubber to match the dimensions and sealing performance of the original MDS47123601 door boot gasket.
