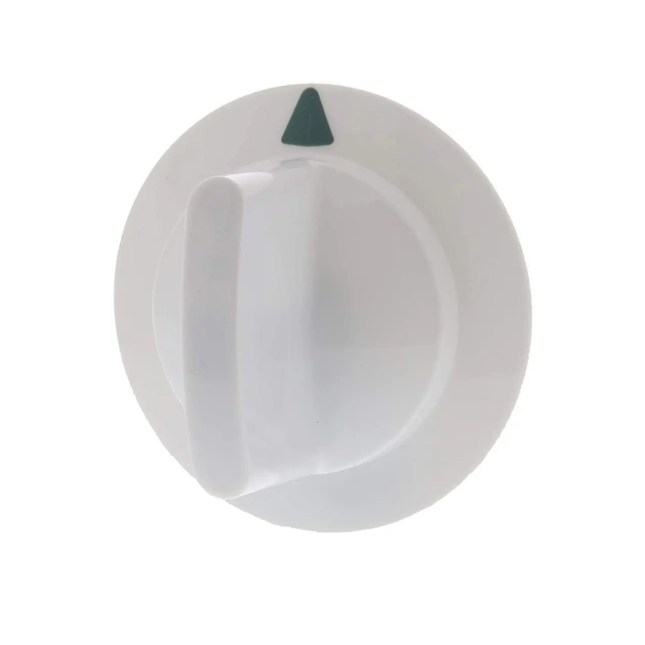

XPARTCO WE1M652 Dryer Timer Knob
The XPARTCO WE1M652 is an aftermarket replacement timer control knob for GE dryers, and also fits select Hotpoint and Kenmore models. This knob mounts onto the timer's D-shaped shaft and is what you turn to select and adjust the dryer's cycle setting — it's the direct physical interface between you and the timer mechanism inside the control panel.
Finished in white, this knob measures 3" in diameter and accepts a D-shaped shaft. Over time, the knob can crack, break, or simply be lost, or the shaft opening can wear enough that the knob spins freely without actually turning the timer setting. A worn or damaged knob typically shows up as a cracked or broken knob, a knob that won't stay seated on the shaft, a knob that spins without adjusting the cycle, or cycle markings that have become worn and unreadable. It directly replaces 1264289, AH1482196, EA1482196, AP3995164, AGE25175, EAP1482196, PD00024388, PS1482196.
Quick Answer
The XPARTCO WE1M652 Dryer Timer Knob fixes GE, Hotpoint, and Kenmore dryers with a cracked, broken, or missing timer knob, a knob that spins without adjusting the cycle, or worn cycle markings. White, 3" diameter, D-shaped shaft. Replaces 1264289, AH1482196, EA1482196, AP3995164, AGE25175, EAP1482196, PD00024388, PS1482196. Not the same as the similarly-numbered WE1M654 — using the wrong knob can throw off your dryer's cycle timing even though it may physically fit.
Common Problems This Part Fixes
Timer knob cracked, broken, or missing
Knob won't stay seated on the timer shaft
Knob spins freely without adjusting the timer setting
Cycle indicator markings worn or unreadable
Difficulty selecting or adjusting the dryer's cycle setting
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer timer knob directly replaces the following OEM and cross-reference part numbers:
WE1M652, 1264289, AH1482196, EA1482196, AP3995164, AGE25175, EAP1482196, PD00024388, PS1482196
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This timer knob is compatible with select GE dryers, and also fits select Hotpoint and Kenmore dryers built on the GE platform, including model numbers such as HTDX100EM8WW, HTDX100ED6WW, HTDX100EM6WW, HTDX100GM8WW, and HTDX100ED2WW.
Note — not the same as WE1M654: A similarly-numbered knob, WE1M654, is a separate part used on different models. GE's own support has confirmed that installing the wrong knob can throw off your dryer's cycle timing, causing the cycle to cut off before reaching the correct "off" position, even if the wrong knob appears to fit. Always confirm your exact model number before ordering. Contact our support team with your model number if you're unsure which knob your dryer needs.
Key Features
Aftermarket replacement timer control knob — direct interface for selecting the dryer's cycle setting
Resolves "cracked or broken knob," "spins without adjusting," and "won't stay on the shaft" symptoms
White finish, 3" diameter
Accepts a D-shaped shaft
Reinforced metal ring at the stem for improved durability against cracking
Direct drop-in replacement — no tools required for most installations
Replaces 1264289, AH1482196, EA1482196, AP3995164, AGE25175, EAP1482196, PD00024388, PS1482196
Compatible with GE, Hotpoint, and Kenmore dryers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
WE1M652
OEM Part Number
WE1M652
Part Type
Dryer Timer Control Knob
Condition
Aftermarket Replacement
Color
White
Diameter
3"
Dimensions
1-3/4"H x 2-3/4"W x 2-3/4"D
Shaft Type
D-shaped
Reinforcement
Metal ring at stem
Repair Difficulty
Very Easy — no tools typically required
Quantity
1 timer knob
Compatible Brands
GE, Hotpoint, Kenmore
Installation Notes
⚠️ Unplug Dryer Before Starting — The Fit Can Be Snug Disconnect power at the outlet before beginning. Remove the old knob by pulling it straight off the control shaft — no tools are typically required, though some customers have found the fit quite snug and needed a firm, steady pull with some leverage to remove the old knob or seat the new one fully. Align the D-shaped socket on the new WE1M652 with the flat side of the timer shaft, then press the new knob firmly onto the shaft until it's fully seated. Restore power and test that the knob turns the timer setting correctly through its full range, confirming the dryer starts and progresses through the cycle as expected. Tools needed: none typically required.
Frequently Asked Questions
My old knob cracked and I replaced it with a similar-looking one, but now my drying time seems off. What happened?
This is a documented issue when the wrong knob is installed. GE's own support has confirmed that a similarly-numbered knob, WE1M654, is not correct for all models and, if installed on the wrong dryer, causes the cycle to cut off before reaching the true "off" position, throwing off drying time even though the knob may physically fit onto the shaft. If your timing seems off after a knob replacement, double-check that WE1M652 (not WE1M654) is the correct part for your specific model.
My knob spins freely without changing the cycle. Is this the right part?
Yes, this is one of the most common symptoms this knob resolves. If the knob's D-shaped socket has worn out or become stripped, it can no longer grip the timer's shaft properly, letting the knob spin without actually turning the internal timer mechanism.
Is this hard to install?
No, it's one of the simplest dryer repairs — the old knob pulls straight off the shaft and the new one presses straight on, with no tools needed. Some customers have noted the fit is quite snug and takes a bit of extra force to fully seat, but no special skills or hardware are required.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the size, D-shaped shaft fit, and white finish of the original WE1M652 timer knob used in compatible GE, Hotpoint, and Kenmore dryers.
