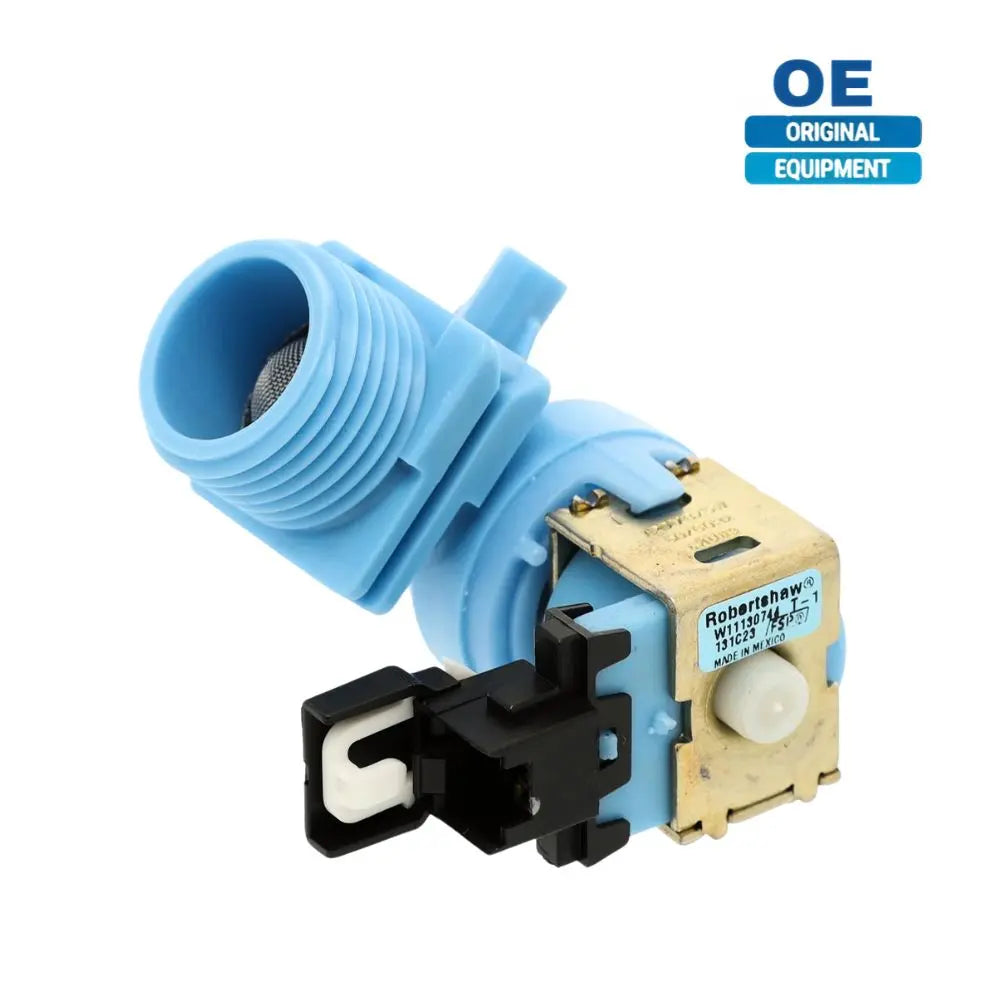

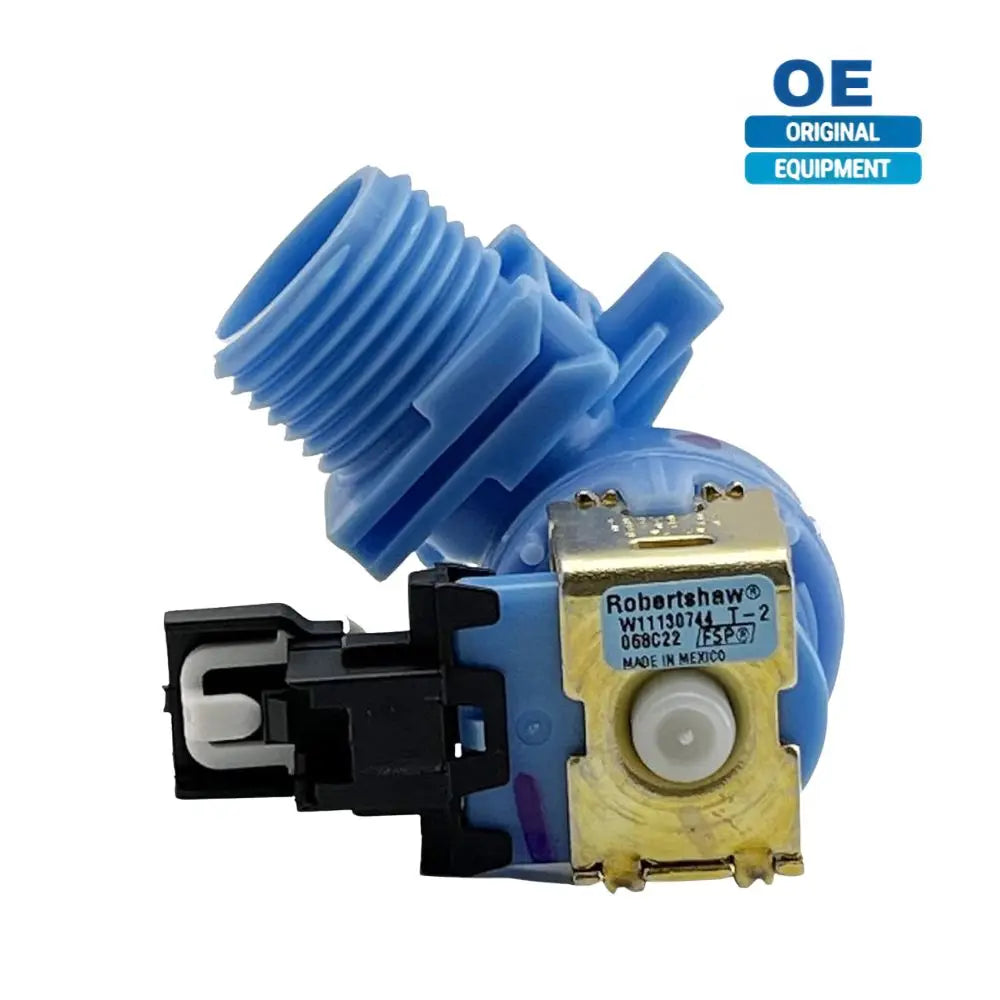

XPARTCO W11175771 Dishwasher Water Inlet Valve
The XPARTCO W11175771 is an aftermarket replacement dishwasher water inlet valve compatible with a wide range of Whirlpool, KitchenAid, Maytag, Amana, Kenmore, Jenn-Air, Crosley, Magic Chef, Admiral, Norge, and Roper dishwashers. The water inlet valve is a solenoid-operated valve that controls the flow of water from the household supply line into the dishwasher tub during each wash and rinse cycle. When the control board calls for water, it energizes the solenoid coil to open the valve and allow water to flow in. When the dishwasher has received the correct amount of water, the solenoid de-energizes and the valve closes.
When the water inlet valve fails — or when its internal screen becomes clogged with mineral deposits — the dishwasher may not fill with water, fill too slowly, stop mid-cycle, overfill, leak between cycles, or make an unusual high-pitched whining or buzzing noise during the fill phase. Note: the internal screen on this valve is not designed to be cleaned or serviced — if it is clogged, the full valve assembly should be replaced. This valve directly replaces W10195047, W10872255, W10327250, W10327249, W11130744, W11130743, AP6339872, W10316814, PS11752927, and additional cross-reference numbers. Installs in 20–30 minutes with basic hand tools.
What is OE ?: “OE” (Original Equipment) parts are built to the same specifications, materials, and performance standards as the original factory parts. They offer identical fit and function to OEM (Original Equipment Manufacturer) components but are typically sold under independent brands like XPARTCO for better affordability.
Quick Answer
The XPARTCO W11175771 Dishwasher Water Inlet Valve fixes Whirlpool-family dishwashers that won't fill, fill too slowly, stop mid-cycle, overfill, leak between cycles, or make a high-pitched whining noise during fill. Solenoid-operated. Note: internal screen is not serviceable — replace the full valve if clogged. Replaces W10195047, W10872255, W10327250, W10327249, W11130744, AP6339872, W10316814, PS11752927. Compatible with Whirlpool, KitchenAid, Maytag, Amana, Kenmore, Jenn-Air, and more.
Common Problems This Part Fixes
- Dishwasher not filling with water when a cycle is started
- Dishwasher filling very slowly — valve screen clogged or solenoid weakening
- Dishwasher stopping mid-cycle due to insufficient water supply
- Dishwasher overfilling — valve not closing completely
- Water leaking into the dishwasher tub when the appliance is not running
- High-pitched whining or buzzing noise during the water fill phase
- Dishes not getting clean — insufficient water reaching the spray arms
Replaces Part Numbers
This water inlet valve directly replaces the following OEM and cross-reference part numbers:
W11175771, W10195047, W10872255, W10327250, W10327249, W11130744, W11130743, W11130743-15, AP6339872, W10316814, AP4326875, AH2580162, EA2580162, EAP11752927, PS11752927, PD00000397
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select dishwashers from the following brands and series:
- Whirlpool dishwashers — WDF, WDT, WDP series (WDF520PADM, WDT730PAHZ, WDT720PADM, WDF330PAHS, WDF530PSY and related models)
- KitchenAid dishwashers (select KDTM, KDTE, KDFE series models)
- Maytag dishwashers (select MDB series models)
- Amana dishwashers (select ADB series models — ADB1100, ADB1300, ADB1400, ADB1500 and related)
- Kenmore / Sears dishwashers — 665 series and 662 series (Whirlpool-built models)
- Jenn-Air dishwashers (select models)
- Crosley dishwashers (select models)
- Magic Chef dishwashers (select models)
- Admiral dishwashers (select models)
- Norge dishwashers (select models)
- Roper dishwashers (select models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Solenoid-operated valve — opens on command from the control board to deliver the correct amount of water for each wash and rinse cycle
- Resolves no-fill, slow-fill, mid-cycle stop, overfill, between-cycle drip, and high-pitched whining symptoms
- Note: the internal inlet screen is not designed to be cleaned or serviced — if clogged with mineral deposits, replace the complete valve assembly
- Replaces W10195047, W10872255, W10327250, W11130744, AP6339872, W10316814, PS11752927, and over 10 additional cross-reference numbers
- Compatible with Whirlpool, KitchenAid, Maytag, Amana, Kenmore 665/662 series, Jenn-Air, Crosley, Magic Chef, Admiral, Norge, and Roper dishwashers
- “OE” (Original Equipment) parts are built to the same specifications, materials, and performance standards as the original factory parts. They offer identical fit and function to OEM (Original Equipment Manufacturer) components but are typically sold under independent brands like XPARTCO for better affordability.
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number |
W11175771-OE |
| Part Type |
Dishwasher Water Inlet Valve (Solenoid-Operated) |
| Condition |
Aftermarket Replacement |
| Application |
Built-In and Portable Dishwashers |
| Screen Note |
Internal screen is not serviceable — replace full valve if clogged |
| Compatible Brands |
Whirlpool, KitchenAid, Maytag, Amana, Kenmore, Jenn-Air, Crosley, Magic Chef, Admiral, Norge, Roper |
Installation Notes
⚠️ Unplug Dishwasher and Shut Off Water Before Starting Disconnect power and shut off the water supply valve under the sink before beginning. Wear work gloves — there are sharp metal edges inside the dishwasher cabinet. The water inlet valve is located behind the lower access panel at the front bottom of the dishwasher. Remove the screws securing the kick plate and lower access panel. The valve is mounted to the inside of the dishwasher cabinet near the left front corner. Photograph the wire harness connection and supply line routing before disconnecting. Use an adjustable wrench to disconnect the water supply line from the valve inlet. Disconnect the wire harness from the solenoid terminals. Unscrew the valve mounting bracket and remove the old valve. Install the new W11175771 valve in the same position, reconnect the wire harness and supply line, and secure the mounting bracket. Reinstall the access panel, restore water supply and power, and run a short wash cycle to verify normal filling and check for leaks. Tools needed: Phillips screwdriver, adjustable wrench, work gloves.
Frequently Asked Questions
What does the dishwasher water inlet valve do?
The water inlet valve is an electrically controlled solenoid valve that opens on command from the dishwasher's control board to allow household water pressure to push water through the supply line and into the dishwasher tub. It opens at the start of each wash or rinse cycle and closes once the correct water level is reached. A failed valve — whether stuck open, stuck closed, or with a burned-out solenoid coil — prevents the dishwasher from filling correctly, which affects washing performance and can trigger cycle errors.
Can I clean the valve screen instead of replacing the valve?
No — the internal screen on the W11175771 is integrated into the valve body and is not designed to be removed, cleaned, or serviced. If mineral deposits or debris have clogged the screen, the complete valve assembly must be replaced. Attempting to disassemble the valve to clean the screen typically damages the valve body or solenoid and makes the valve unusable. If slow fill is your symptom, replacing the valve is the correct repair.
My dishwasher makes a high-pitched whining sound when filling — is it the valve?
Yes — a high-pitched whining or buzzing noise specifically during the fill phase of a dishwasher cycle is a very common sign of a failing or partially clogged water inlet valve. The noise is caused by the solenoid vibrating or the water flow being restricted through a partially blocked screen. If the whining only occurs during fill and the dishwasher is otherwise washing normally, the valve is beginning to fail — replacing it before it fails completely prevents a mid-cycle no-fill issue.
What is the difference between W11175771, W10327250, and W10195047?
These are all part numbers for the same dishwasher water inlet valve across different production runs. W10195047 was an early version, W10327250 and W10872255 were later updates, W11130744 was a further revision, and W11175771 is the current production part number. Whirlpool updates part numbers when minor manufacturing changes are made — all of these are the same valve and are fully interchangeable. If your dishwasher's parts diagram shows any of these older numbers, the W11175771 is the correct current replacement.
What is OE ?
“OE” (Original Equipment) parts are built to the same specifications, materials, and performance standards as the original factory parts. They offer identical fit and function to OEM (Original Equipment Manufacturer) components but are typically sold under independent brands like XPARTCO for better affordability.
