XPARTCO 8318084 Washer Lid Switch Replaces WP8318084
The XPARTCO 8318084 is an aftermarket replacement lid switch assembly compatible with a wide range of Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, and Admiral direct-drive top-load washing machines. The lid switch is a safety component located under the control panel at the top rear left corner of the washer — it detects whether the lid is open or closed and prevents the washer from spinning and agitating when the lid is open. When the lid is closed, the switch signals the control that it's safe to operate. Without a functioning lid switch, the washer may refuse to start, won't spin, won't agitate, won't drain, or stop advancing through its cycle.
Gray and white plastic housing. Electrical rating: 125–250V, 50–60Hz, 1/2 HP. Dimensions: 3"L x 2"W x 1-15/16"H. Features 3 flat terminals that the wiring harness plugs onto, plus a green grounding wire. It directly replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957, and 11480-61. This is one of the most widely used lid switches across the Whirlpool direct-drive platform, fitting hundreds of top-load washer models. Installs in 15–30 minutes with basic hand tools.
Quick Answer
The XPARTCO 8318084 Washer Lid Switch fixes Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, and Crosley direct-drive top-load washers that won't start, won't spin, won't agitate, won't drain, won't advance through the cycle, or have a burning smell from the motor. Gray/white, 125–250V, 50–60Hz, 1/2 HP. 3"L x 2"W x 1-15/16"H. 3 flat terminals + green grounding wire. Replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957. Classic symptom: won't spin but may still fill.
Common Problems This Part Fixes
Washer won't spin — the classic lid switch failure symptom on direct-drive washers
Washer won't start at all — control not detecting a closed lid
Washer won't agitate — lid switch blocking motor engagement
Washer won't drain — drain is tied to the spin/lid interlock on many models
Wash cycle not advancing past fill — stuck waiting for lid-closed signal
Burning smell from the motor area — motor stalling because the switch won't engage
Lid won't close properly or switch doesn't activate when lid is shut
Intermittent operation — washer sometimes works, sometimes doesn't, depending on lid position
Lid switch visibly cracked, broken, or with a failed lever
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer lid switch directly replaces the following OEM and cross-reference part numbers:
WP8318084, 8318084, WP8318084VP, ES8084, TJ90ES8084, 045903691979, 11480-61, PN8318084, AWP48129, EAP11745957, 11480-61, PN8318084, PD00002474, AP6012742, PS11745957.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lid switch assembly is compatible with select direct-drive top-load washing machines from the following brands:
Whirlpool top-load washers — direct-drive models (including 1CLBR, 1CLSQ, 1CLSR, LSQ, LSR, LSW, WTW series and many more)
Kenmore and Kenmore Elite top-load washers (select Whirlpool-built models — 110-series)
KitchenAid top-load washers (select models)
Roper top-load washers (select models)
Estate top-load washers (select models)
Maytag top-load washers (select Whirlpool-built models)
Amana top-load washers (select models)
Magic Chef top-load washers (select models)
Crosley top-load washers (select models)
Admiral top-load washers (select models)
Note: This lid switch is specific to direct-drive top-load washers on the Whirlpool platform. It is NOT the same switch used on stacked laundry centers, washer/dryer combos, or front-load washers — those use different lid switch or door lock part numbers. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
Direct-drive washer lid switch assembly — detects whether the lid is open or closed and prevents spinning, agitating, and draining when the lid is open
Resolves "won't start," "won't spin," "won't agitate," "won't drain," "cycle not advancing," and "burning smell" symptoms caused by lid switch failure
Gray and white plastic housing — durable construction
Electrical rating: 125–250V, 50–60Hz, 1/2 HP
Dimensions: 3"L x 2"W x 1-15/16"H
3 flat terminals that the wiring harness plugs onto, plus a green grounding wire
Located under the control panel on the top rear left corner of the washer
One of the most widely used lid switches on the Whirlpool direct-drive platform — fits hundreds of top-load washer models
Replaces WP8318084, WP8318084VP, AP3180933, AP6012742, AH886960, EA886960, EAP11745957, ES8084, TJ90ES8084, PD00002474, PN8318084, PS886960, PS11745957, and 11480-61
Compatible with Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, and Admiral direct-drive top-load washers
Aftermarket replacement built to OEM-equivalent quality standards
Quick DIY repair — installs in 15–30 minutes with basic hand tools
Product Specifications
Part Number
8318084
OEM Part Number
WP8318084
Part Type
Washer Lid Switch Assembly (Direct-Drive Top-Load)
Condition
Aftermarket Replacement
Application
Direct-Drive Top-Load Washing Machines (Whirlpool platform)
Voltage
125–250V
Frequency
50–60 Hz
Motor Rating
1/2 HP
Dimensions
3"L x 2"W x 1-15/16"H
Terminals
3 flat terminals + green grounding wire
Color
Gray / White
Material
Plastic housing
Location
Under the control panel, top rear left corner
Compatible Brands
Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, Magic Chef, Crosley, Admiral
Installation Notes
⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The lid switch is located under the control panel at the top rear left corner of the washer. To access it, you'll need to remove the control panel: on most direct-drive washers, use a putty knife or flat-blade screwdriver to release the spring clips at the bottom edge of the control panel (typically two clips), then flip the control panel up and back on its hinges to rest against the wall behind the washer. You should now see the lid switch mounted on the left side with two screws. Photograph the wiring before disconnecting. Unplug the wiring harness from the 3 flat terminals on the old lid switch — note how the harness connects. Remove the two mounting screws holding the old switch in place. Also disconnect the green grounding wire (it's attached separately with its own screw). Remove the old switch. Install the new 8318084 switch in the same position using the two mounting screws. Reconnect the green grounding wire with its screw. Plug the wiring harness back onto the 3 flat terminals, matching your photos. Flip the control panel back down and press it into place until the spring clips snap. Plug the washer back in and test by closing the lid and running a cycle — confirm the washer starts, agitates, spins, and drains. Tools needed: Phillips screwdriver, putty knife or flat-blade screwdriver (for spring clips), work gloves.
Frequently Asked Questions
My washer won't spin but still fills — is the lid switch the problem?
Very likely, yes. On direct-drive top-load washers, the lid switch is a safety interlock that prevents spinning and agitating when the lid is open. When the switch fails, the control never receives the "lid closed" signal, so it blocks the spin (and often the agitate and drain) as a safety measure — but filling still works because that doesn't require the lid interlock. If your washer fills but won't advance past that point, or agitates but refuses to spin, the lid switch is the prime suspect. You can confirm by testing the switch for continuity with a multimeter when the lever is pressed — a working switch shows continuity when activated.
Why would a bad lid switch cause a burning smell?
This happens when the motor tries to engage but the lid switch isn't signaling correctly, causing the motor to stall or repeatedly attempt to start without completing the cycle. A stalling direct-drive motor generates heat that produces a burning smell. If you notice a burning smell AND the washer isn't spinning or agitating properly, check the lid switch first — it's far more likely (and cheaper) than a motor failure. If the burning smell continues after replacing the switch, have the motor and motor coupling inspected by a technician.
What's the difference between 8318084 and WP8318084?
These are the same lid switch across production revisions. 8318084 was the original part number and WP8318084 is the Whirlpool-era part number (with the "WP" prefix Whirlpool adopted). WP8318084VP is a variant packaging code. All are physically and functionally identical — if your washer's parts diagram shows any of these numbers, this listing is the correct replacement. The many additional cross-references (AP3180933, AP6012742, ES8084, PS886960, PS11745957, etc.) are catalog identifiers from various parts distributors for the same switch.
Does this fit my stacked laundry center or front-load washer?
No — the 8318084 is specifically designed for standalone direct-drive top-load washers on the Whirlpool platform. Stacked washer/dryer laundry centers use different lid switch part numbers (such as the 3355806 for Whirlpool thin twin units), and front-load washers use door lock assemblies instead of lid switches. Always search by your appliance's model number to confirm the correct part. Contact our support team with your model number if you're unsure which switch fits your machine.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications (125–250V, 50–60Hz, 1/2 HP), dimensions (3"L x 2"W x 1-15/16"H), 3-flat-terminal configuration, grounding wire, and lid-detection function of the original WP8318084 lid switch used in compatible Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Amana, and related direct-drive top-load washers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 17438200000160 Gas Dryer Flame Switch
The XPARTCO 17438200000160 is an aftermarket replacement gas dryer flame switch compatible with select Midea, Insignia gas dryers, including the MLG45N1BWW, MLG45N3BMG, MLG45N3BWW, MLG52S7AWW, CDG41N1AW/CDG45N1AW series, NSDRE67WH8A, NSFDRG67WH8A, NSDRE67WH8AC, NSTDRG75W1. The flame switch is a safety component mounted on the burner assembly that confirms a flame is actually present after the gas valve opens and the igniter lights the burner. If the switch does not detect a flame within the expected window, it signals the control board to shut off the gas valve, preventing unburned gas from continuing to flow into the dryer cabinet.
When the flame switch fails, the dryer may not heat at all, may shut off the burner shortly after ignition (short-cycling the flame), may trip a no-heat fault code on models with digital displays, or — in rarer failure modes — may fail to shut off gas flow appropriately, which is a safety-relevant failure. It directly replaces 17438200000160 (Midea OEM). Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO 17438200000160 Gas Dryer Flame Switch fixes Midea gas dryers that won't heat, where the burner lights and then shuts off shortly after ignition, or where a no-heat fault is displayed. Mounted on the burner assembly — confirms flame presence after ignition and signals the control board to keep the gas valve open. Genuine Midea OEM part number. Compatible with Midea MLG45N1BWW, MLG45N3BMG, MLG45N3BWW, MLG52S7AWW, CDG41N1AW, and CDG45N1AW gas dryers.
Common Problems This Part Fixes
Gas dryer not heating — flame switch not confirming flame presence to the control board
Burner lights briefly and then shuts off — flame switch failing to maintain the "flame confirmed" signal
No-heat fault code displayed on models with digital control panels
Dryer runs and tumbles normally but produces no heat
Burner repeatedly cycling on and off rapidly during a heat cycle
Visible damage, corrosion, or carbon buildup on the flame switch near the burner
Replaces Part Numbers
This flame switch directly replaces the following part number:
17438200000160, AP7153000, PS18188577.
This is the Midea, Insignia manufacturer part number used across multiple Midea gas dryer models. Contact our support team with your model number if you need confirmation before ordering.
Compatibility
This flame switch is compatible with select Midea, Insignia gas dryers, including:
Midea MLG45N1BWW gas dryer
Midea MLG45N3BMG gas dryer
Midea MLG45N3BWW gas dryer
Midea MLG52S7AWW gas dryer (8.0 cu. ft. front load)
Midea CDG41N1AW gas dryer (Criterion, air vent)
Midea CDG45N1AW gas dryer (Criterion, air vent)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
Confirms flame presence at the burner after ignition and signals the control board accordingly
Safety component — helps ensure the gas valve closes promptly if a flame is not detected
Mounts directly to the burner assembly in the same position as the original switch
Genuine Midea manufacturer part number — designed as a direct fit for compatible models
Compatible with Midea MLG45N1BWW, MLG45N3BMG, MLG45N3BWW, MLG52S7AWW, CDG41N1AW, and CDG45N1AW gas dryers
Installs in 30–45 minutes with basic hand tools
Product Specifications
Part Number
XP17438200000160
Part Type
Gas Dryer Flame Switch
Condition
Aftermarket Replacement
Application
Gas Dryers (Midea platform)
Location
Mounted on the burner assembly
Compatible Brands
Midea
Installation Notes
⚠️ Gas Appliance Safety Warning This part is installed in a gas dryer. Always unplug the dryer and shut off the gas supply at the shutoff valve before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. Do not restore power or gas until the repair is fully complete and all connections are confirmed secure. If you are not comfortable working on gas appliances or safety-relevant flame-detection components, have this part installed by a qualified technician.
⚠️ Wear Work Gloves — Access Requires Cabinet Disassembly Disconnect power and shut off gas before beginning. Wear work gloves throughout — there are sharp metal edges inside the dryer cabinet. Remove the lint filter and the screws securing the lint filter housing. Release the top panel locking clips with a putty knife and lift the top panel. Disconnect the door switch harness and remove the front panel to access the drum and burner assembly. Locate the flame switch mounted on the burner assembly — it is positioned to detect the flame produced once the igniter lights the gas. Photograph the wire connections before disconnecting. Disconnect the wires from the old flame switch, remove the mounting screw, and pull the switch free. Install the new 17438200000160 flame switch in the same position, secure the mounting screw, and reconnect the wires. Reassemble the front panel, drum, and top panel in reverse order. Restore gas and power, and run a test heat cycle to confirm the burner ignites and stays lit normally. Tools needed: Phillips screwdriver, putty knife, work gloves.
Frequently Asked Questions
What does the flame switch do, and how is it different from an igniter?
The igniter is the component that heats up and ignites the gas at the burner. The flame switch is a separate safety component that confirms a flame is actually present after the igniter has done its job and the gas valve has opened. If the flame switch does not detect the expected flame condition, it signals the control system to close the gas valve, stopping gas flow. This two-part system — ignition plus flame confirmation — is a standard safety design in gas dryers and gas appliances generally, ensuring gas does not continue flowing if combustion isn't actually occurring.
My burner lights and then shuts off after a few seconds — is this the flame switch?
Yes, this is a common symptom of a failing flame switch. If the switch is not reliably maintaining its "flame detected" signal to the control board even though the burner is genuinely lit, the system may interpret this as a flame failure and shut the gas valve as a safety precaution — causing the burner to repeatedly light and then extinguish. This short-cycling pattern during what should be a continuous heat cycle is a strong indicator that the flame switch needs replacement.
Why is this called a "flame switch" rather than a "flame sensor"?
Different manufacturers use different terminology for similar flame-detection safety components. On Whirlpool-family gas dryers, this type of part is typically called a "flame sensor" — a bimetal-style sensor near the igniter that closes a circuit when it senses sufficient heat. Midea's parts catalog labels this specific component the "flame switch," and it serves an analogous safety role within the Midea gas burner system: confirming the presence of a flame after ignition. The terminology differs by manufacturer, but the safety function is similar in concept.
Why does this repair require opening the whole dryer cabinet?
On Midea gas dryers, the flame switch is mounted directly on the burner assembly inside the dryer cabinet, which is only accessible after removing the lint filter housing, releasing the top panel, and removing the front panel. This is a more involved repair than swapping an externally accessible part, but it follows the same general gas dryer disassembly procedure used for replacing igniters, thermal fuses, and other burner-area components. Since the cabinet must be opened, it can be a good opportunity to inspect other burner components (igniter, gas valve coils) for wear at the same time.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is manufactured to match the dimensions, mounting configuration, and function of the original 17438200000160 Midea flame switch.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

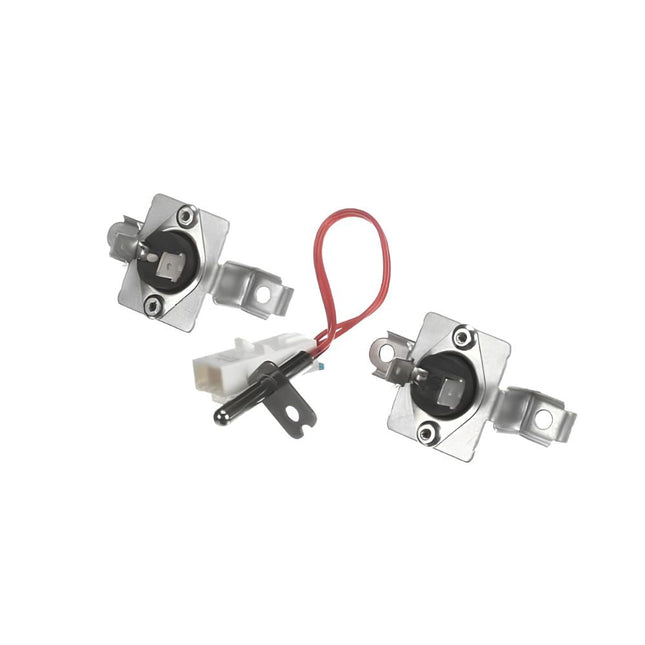

XPARTCO AGM30045804 Dryer Thermostat Kit
The XPARTCO AGM30045804 is an aftermarket replacement high-limit thermostat and thermistor kit for LG dryers. These two components work together in the same temperature-regulation circuit: the thermistor is a temperature sensor, mounted in the blower housing with its wire harness included, that continuously reports drum temperature to the control board so it can fine-tune heat output throughout the cycle. The high-limit thermostat is a safety switch that automatically shuts off the heating element if temperatures climb past a safe threshold, then resets itself once the dryer cools, without needing to be replaced the way a thermal fuse does.
Because these two parts share the same circuit and tend to wear or fail around a similar timeline, LG sells and services them together as one kit rather than as separate individual parts. Symptoms of failure in this circuit include the dryer overheating (which can scorch clothing or, left unaddressed, pose a fire risk), the dryer running with little or no heat, drying times that have become inconsistent, an error code related to temperature control on the display, or clothes coming out damp after a full cycle. It directly replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335. As an aftermarket replacement, the AGM30045804 kit is built to OEM-equivalent quality standards.
Quick Answer
The XPARTCO AGM30045804 Dryer Thermostat Kit fixes LG (and select Kenmore, GE-branded LG-built) dryers with overheating, little or no heat, inconsistent drying times, a temperature-related error code, or clothes coming out damp after a full cycle. High-limit thermostat + thermistor with wire harness. Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, PS16732335. If you've already replaced the high-limit thermostat alone and the problem returns, this combined kit — which also addresses the thermistor — is the next step.
What's In The Kit
Component
Function
High-Limit Thermostat
Automatically shuts off the heating element if temperature exceeds safe limits, then resets itself once the dryer cools.
Thermistor (with wire harness)
Continuously senses drum/blower housing temperature and reports it to the control board to regulate heat output throughout the cycle.
Common Problems This Kit Fixes
Dryer overheating, sometimes scorching or damaging clothing
Dryer running with little or no heat
Inconsistent drying times — cycle shuts off too early or runs longer than necessary
Temperature-related error code displayed on the control panel
Clothes remaining damp after a full drying cycle
High-limit thermostat that keeps tripping repeatedly
Dryer that has already had its high-limit thermostat replaced once but the problem returned
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermistor and thermostat kit directly replaces the following OEM and cross-reference part numbers:
AGM30045804, 6931EL3003C, 6931EL3004B, 6931EL3002B, 6931EL3003F, 6931EL3003G, 6323EL2001B, ALG53406, AP7206815, EAP16732335, PD00079467, PS16732335, AGM75510744, EAP16746326, PD00083166, ALG53211, AP7195784, PS16746326.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This kit is compatible with select LG dryers, and also fits select Kenmore and GE-branded dryers built on the LG platform.
Note: A specific verified model list was not consistently available across sources at the time this page was built. Some parts diagrams reference additional related thermostat components (such as a separate blower thermostat) beyond what's included in this kit — if your repair involves more than a high-limit thermostat and thermistor, or if you're unsure exactly what's failed on your model, contact our support team with your model number and we'll help confirm which parts you need before you order.
Key Features
Aftermarket replacement built to match LG's factory-specified resistance values and switch thresholds
Combined kit addresses the high-limit thermostat and thermistor together, since both share the same temperature-regulation circuit
Resolves "overheating," "little or no heat," "inconsistent drying," and "damp clothes after a full cycle" symptoms
Thermistor ships with its wire harness included
High-limit thermostat resets automatically after tripping — no replacement needed after each trip
Direct drop-in replacement for both original components
Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335
Compatible with LG and select Kenmore and GE-branded LG-built dryers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Part Number
AGM30045804
Part Type
Dryer High-Limit Thermostat and Thermistor Kit
OEM Part Number
AGM30045804
Condition
Aftermarket Replacement
Brand
LG
Kit Contents
High-limit thermostat + thermistor with wire harness
Thermistor Location
Blower housing
High-Limit Thermostat Type
Automatically resetting
Repair Difficulty
Easy to Moderate — 30 to 60 minutes
Compatible Brands
LG, select Kenmore, GE (LG-built models)
Installation Notes
⚠️ Unplug Dryer Before Starting — Let It Cool Fully First Disconnect power at the outlet or shut off the circuit breaker before beginning, and allow the dryer to cool completely if it was recently run. Wear work gloves. Access on many LG models follows this general sequence: remove the lint screen, then remove the two front panel screws underneath it, the two screws on the face of the panel, and the two screws holding the blower cover in place. Disconnect the door switch connector and remove the front panel. With the front open, release the drive belt from the tensioner and remove the drum to access the blower housing where the thermistor is located. Photograph the wiring connections before disconnecting anything, since the thermistor and high-limit thermostat can be easy to confuse with other similar-looking components nearby. Disconnect and remove the old thermistor and high-limit thermostat, noting their exact mounting positions. Install the new components from this kit in the same positions, reconnecting wiring exactly as photographed. Reinstall the drum, re-tension the belt over the tensioner, and reassemble the front panel, blower cover, and lint screen area in reverse order. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
I already replaced the high-limit thermostat, but it keeps tripping. Why would I need this kit instead?
This is a well-documented pattern. If the thermistor — the sensor that reports temperature to the control board — is misreading heat, the control can keep driving the heating element past the point where the high-limit thermostat has to trip repeatedly to protect the dryer, even with a brand-new thermostat installed. Replacing the thermistor alongside the thermostat addresses the root cause rather than just the symptom, which is exactly why LG packages them together as one kit.
What's the difference between the thermistor and the high-limit thermostat?
The thermistor is a sensor, not a switch — it's a variable resistor whose resistance changes with temperature, and the control board reads that value continuously to regulate heat output throughout the cycle. The high-limit thermostat is a safety switch that does one job: it shuts off the heating element automatically if temperature exceeds a safe limit, then resets itself once things cool down. A failing thermistor causes inconsistent or inaccurate heat regulation; a failing high-limit thermostat causes the dryer to shut off unexpectedly or fail to protect against overheating.
My parts diagram shows more thermostat-like parts than what's in this kit. Did I order the wrong thing?
Not necessarily — some LG dryer models have additional related components, such as a separate blower thermostat, that are not part of this specific kit. This kit covers the high-limit thermostat and thermistor. If your repair calls for additional related parts, or if you're not sure exactly which components your model needs, contact our support team with your model number and we'll help you confirm the complete parts list before you order.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the resistance values, switch threshold, and wire harness configuration of the original AGM30045804 high-limit thermostat and thermistor kit used in compatible LG, Kenmore, and GE-branded LG-built dryers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
WE4M488 Dryer Control Board
Replaces Part Numbers: WE4M488, 2218486, WE4M331, WE4M388, AH3487192, EA3487192, AP4980176, PS3487192.
California Residents only
WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov
🚪 EXP571 Dryer Door Catch
This Dryer Door Catch is a replacement part for specific Maytag, Kenmore, LG, Frigidaire, GE, Amana, Whirlpool dryer models. It includes the door catch. This part ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently. Common causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly. Fix a loose or non-latching dryer door with this aftermarket replacement for part number Exp571. This dryer door catch holds the dryer door securely closed during operation to ensure proper airflow and drying performance. Designed to fit specific Maytag, Kenmore, LG, Frigidaire, GE, Amana, Whirlpool dryer models.
✅ Key Features:
High-quality aftermarket replacement
Made from durable plastic for long-lasting use
Designed to securely latch the door shut
Simple snap-in installation — no tools required
Helps prevent cycle interruption due to door opening
🔁 Replaces OEM Part Numbers:
WP71002106, WP3389441, 3389441, 71002106, AP6010685, PS11743869, AP6008299, PS11741434, WE1X1195, AP2042209, PS266896, 131658800, AP2107362, PS418433, 5307521419, 10690002, 10690001.
⚠️ Common Symptoms Fixed:
Dryer door won’t stay closed
Dryer won’t start due to open door switch
Door pops open during a cycle
Visible wear or damage to original catch
🧰 Compatible Brands:
✔️ Frigidaire✔️ Electrolux✔️ Kenmore (Frigidaire-built)✔️ Whirlpool✔️ Maytag✔️ Crosley✔️ White-Westinghouse
📌 Need help verifying compatibility? Send us your dryer’s model number — we’ll check it for you.
🚚 Why Buy from Parts-O-Matic ?
✅ Reliable aftermarket performance
✅ Always Fast and Free U.S. shipping
✅ Easy DIY repair with trusted support
✅ Backed by excellent customer service
🛒 Fix your dryer’s latching issue today — order the EXP71 dryer door catch from parts-o-matic.com, and enjoy fast, free U.S. shipping!
XPARTCO 3387134 - 3392519 Dryer Cycling Thermostat and Thermal Fuse Set - Compatible with Whirlpool, Kenmore, Maytag
Product Description
Maintain safe and efficient dryer operation with the XPARTCO 3387134 - 3392519 Dryer Cycling Thermostat and Thermal Fuse Set. This replacement kit includes one cycling thermostat (3387134, L155-25) and one thermal fuse (3392519), designed as a replacement for select Whirlpool, Kenmore, Maytag, and other compatible dryers. The cycling thermostat regulates drum temperature, while the thermal fuse prevents overheating by cutting power if temperatures exceed safe limits. This set addresses issues like overheating, insufficient heat, no heat, or prolonged drying times. Test the thermal fuse first if the dryer won't heat, as it typically fails before the thermostat.
Note: Includes (1) cycling thermostat and (1) thermal fuse. Disconnect power before installation. Verify compatibility with your dryer model.
Replaces part numbers:
Cycling Thermostat: WP3387134, 3387134, 3387135, 3387139, 3-6910, 306910, 326801, 661512, L150-15F, L155-25F, AP6008270, PS11741405.
Thermal Fuse: 3392519, WP3392519, 3388651, WE4X857, G4AP0500, 6L4101091C, ET401, 3388651, 694511, 80005, PS11741460, AP6008325.
Compatibility:
Compatible with select dryer models, including but not limited to:
Whirlpool: LE5700XKW0, LE5920XKW0, WED4815EW1, WED4910XQ1, WED5300SQ0
Kenmore: 110.97591420, 110.97591220, 110.97592420, 110.60072990
Maytag: MDE5500AYW, MDE6000AYW, MDE7600AYW
Roper: RED4440VQ1, REX5634KQ1
Amana: NED4655EW0
KitchenAid: KEYE760WWH0
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Maytag, Roper, Amana, KitchenAid, and other dryers.
🔧 Specifications: Replacement kit with one cycling thermostat (L155-25 SPST, 120V, 2W) and one thermal fuse (250°F limit, non-resettable).
💪 Reliable Performance: Regulates drum temperature and prevents overheating for safe, efficient drying.
🛠️ Easy Installation: Requires a screwdriver and pliers; typically installed in 15–30 minutes.
🛡️ Effective Fixes: Resolves overheating, insufficient heat, no heat, or prolonged drying times.
Product Specification
Part Number: XPARTCO 3387134 - 3392519
Component Type: Dryer cycling thermostat and thermal fuse kit
Material: Plastic and metal
Electrical Specs:
Cycling Thermostat: 120V, 2W; L155-25 SPST, opens at 155°F, closes at 130°F
Thermal Fuse: 250°F limit, 125/250V, non-resettable
Compliance: Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the dryer from the power source before installation.
Shop for high-quality appliance parts with a 30-day return policy. Keep your dryer running safely and efficiently today!
Add to cart now for a reliable fix!
279769 Dryer Thermostat Kit - Compatible with Whirlpool, Kenmore, Maytag
Product Description
Keep your dryer running safely with the replacement 279769 Dryer Thermostat Kit. This kit is designed for select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers, featuring a high-limit thermostat (L250-80F) and a thermal cut-off fuse (352F) to prevent overheating. It addresses issues like no heat, not enough heat, overheating, or failure to start, offering a cost-effective alternative to OEM parts.
Note: Includes one high-limit thermostat, one thermal cut-off fuse. Disconnect power before installation. Check dryer venting for blockages to prevent repeat failures.
Replaces part numbers: 279769, 2004, 279548, 2796769, 279769VP, 2821, 3387812, 3389946, 3398671, 3977394, 695563, 80001, SET184, AH334278, EA334278, EAP334278, PD00002485, AP3094224, PS334278.
Compatibility:
Compatible with models including but not limited to:
Whirlpool: NGD4655EW, WGD4815EW, WGD5000DW, MGDC215EW, MGDX655DW
Kenmore: 110.60022010, 110.70102312, 110.78002012
Maytag: MEDC215EW1, MGDX655DW1
Roper: RED4640YQ0
Estate: EED4400WQ0
KitchenAid: YKEHS01PMT0
Verify your model number or contact our support team for assistance.
Key Features:
✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Maytag, Roper, Estate, KitchenAid, and other dryers.
🔥 Specifications: High-limit thermostat (L250-80F), thermal cut-off fuse (352F).
💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price.
🛠️ Easy Installation: Requires screwdriver, pliers, work gloves; typically installed in 15–20 minutes.
🛡️ Effective Fixes: Resolves no heat, not enough heat, overheating, or failure to start.
Product Specification
Part Number: 279769
Component Type: Dryer thermostat kit
Material: Metal and plastic
Dimensions: High-limit thermostat: 2" L x 1-1/2" W; Thermal cut-off fuse: 2" L x 1-1/2" W (Based on web:6, web:16)
Weight: 2.4 oz (Based on web:1, web:15)
Electrical Specs: High-limit thermostat: L250-80F (121°C); Thermal cut-off fuse: 352F (178°C)
Mounting: Screw-mounted on heater housing.
Operating Conditions: Suitable for high-heat dryer environments
Compliance: Prop 65 warning for California
Installation Notes:
Safety First: Disconnect the dryer from the power source before installation.
Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your dryer running safely today!
Add to cart now for a budget-friendly fix!
EBR39528803 Dryer Control Board
Fits Specific LG Dryer Model
Genuine LG part.
Main Pcb Power Control Board Assembly
Replaces Part Numbers: EBR39528803, AP7210327, PS16878888.
XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set
The XPARTCO DC96-00887C / DC47-00018A is an aftermarket replacement 2-piece thermal protection set for Samsung and select Kenmore electric dryers. These two components sit in different locations along the same heating circuit and guard against overheating in different ways. The DC47-00018A is a true cycling high-limit thermostat — it opens at approximately 260°F to cut power to the heating element, then automatically closes again once the temperature drops to around 210°F, letting the dryer resume heating without any part replacement needed. The DC96-00887C, despite frequently being labeled a "thermostat" by third-party sellers, is actually a one-time thermal fuse mounted with its bracket on the blower housing — once it opens from excess heat, it stays open permanently and must be physically replaced.
Because these two parts monitor different points in the same circuit, they tend to be replaced together when a dryer has been running hot: if the high-limit thermostat has been cycling excessively or failed to catch a temperature spike, the downstream thermal fuse can end up blowing as the last line of defense. Symptoms of failure in this circuit include no heat or insufficient heat, drying that takes too long, the dryer shutting off too soon, or the timer failing to advance. It directly replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, AP6008689 (DC96-00887C); and 35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, AP6008682, WP35001092 (DC47-00018A).
Quick Answer
The XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set fixes Samsung and select Kenmore electric dryers with no heat or insufficient heat, drying that takes too long, premature shutoff, or a timer that won't advance. Set includes the DC47-00018A cycling high-limit thermostat (260°F open / 210°F reset) and the DC96-00887C thermal fuse with bracket. Replaces the full cross-reference sets listed below for both parts. Despite common marketplace labeling, the DC96-00887C is a one-time thermal fuse, not a resettable thermostat — it must be replaced once it blows, while the DC47-00018A resets itself automatically.
What's In This Set
Component
Type
Function
DC47-00018A
Cycling High-Limit Thermostat
Opens at ~260°F to cut heat, automatically resets and closes again around 210°F. No replacement needed after each trip.
DC96-00887C
Thermal Fuse (with bracket)
Mounted on the blower housing. Permanently opens if temperature exceeds safe limits. Cannot reset — must be replaced once blown.
Common Problems This Set Fixes
Dryer has no heat or insufficient heat
Drying takes too long to complete a cycle
Dryer shuts off too soon, before clothes are fully dry
Timer will not advance through the cycle
Dryer that stopped working suddenly after running unusually hot
Dryer with a history of repeated thermal fuse failures
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermostat/thermal fuse set directly replaces the following OEM and cross-reference part numbers:
DC96-00887C, DC96-00887A, AP5966894, PS4276292, WP35001193, 35001193, AP6008689, PS11741829, DC47-00018A, AP4201898, PS4205217, 35001092, WP35001092 AP6008682, PS11741822, EXPDC47-00018A, L260-50F
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This set is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as:
DV5471AEW/XAA
DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2
DV400EWHDWR/AA
DVE50M7450W/A3
Note: Always verify your full model number before ordering, since Samsung uses several different thermal protection components across its dryer lineup. Contact our support team with your model number if you're unsure.
Key Features
2-piece set covering both the cycling high-limit thermostat and the blower housing thermal fuse
DC47-00018A thermostat opens at approximately 260°F and resets automatically around 210°F
DC96-00887C thermal fuse ships with its mounting bracket included
Resolves "no heat," "insufficient heat," "takes too long to dry," and "shuts off too soon" symptoms
Addresses two failure points in the same overheat-protection circuit at once
No special tools required for installation
Replaces the full cross-reference sets for both DC96-00887C and DC47-00018A listed above
Compatible with Samsung and select Kenmore electric dryers
Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
Set Contents
1x DC47-00018A high-limit thermostat, 1x DC96-00887C thermal fuse with bracket
Condition
Aftermarket Replacement
Application
Samsung Electric Dryers
DC47-00018A Type
Automatically resetting, cycling high-limit thermostat
DC47-00018A Open Temperature
~260°F
DC47-00018A Reset Temperature
~210°F
DC96-00887C Type
One-time thermal fuse — non-resettable
DC96-00887C Location
Blower housing
Repair Difficulty
Easy to Moderate — no special tools required
Compatible Brands
Samsung, select Kenmore
Installation Notes
⚠️ Unplug Dryer Before Starting — Note Which Component Goes Where Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel, near the blower housing and heater duct assembly where both components are mounted. Photograph the wiring connections before disconnecting anything, since the thermal fuse and thermostat can look similar at a glance and are easy to install in the wrong position. Test each old component with a multimeter for continuity if you want to confirm which has actually failed before replacing both — the DC47-00018A thermostat and DC96-00887C fuse can each be checked this way. Remove each old component from its mounting position, noting orientation and location, and disconnect its wiring. Install the DC47-00018A thermostat and the DC96-00887C fuse (with its bracket) from this set in the same positions as the parts they replace, reconnecting wiring exactly as photographed. Reassemble the panel, restore power, and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips or nut driver (model-dependent), multimeter (recommended), work gloves.
Frequently Asked Questions
Is DC96-00887C really a thermostat, or something else? Different sellers call it different things.
This is a genuinely common point of confusion in the marketplace, and it's worth clearing up: DC96-00887C is actually a one-time thermal fuse mounted with its bracket on the blower housing, even though many third-party listings label it a "thermostat." The distinction matters for how you diagnose and handle it — once this fuse blows from excess heat, it stays open permanently and must be physically replaced, unlike a true thermostat (like the DC47-00018A in this same set) which resets itself automatically once things cool down.
Why replace both parts together instead of just the one that failed?
These two components sit at different points in the same overheat-protection circuit, and a problem with one often puts stress on the other. If the high-limit thermostat has been cycling excessively or didn't catch a temperature spike in time, the downstream thermal fuse can end up blowing as the last line of defense. Replacing both together addresses the full circuit rather than risking a second failure and a second repair shortly after.
My dryer shuts off before the load is fully dry. Is that this set?
It's a strong possibility. If the high-limit thermostat is tripping prematurely — opening at a lower temperature than it should, or failing to reset properly — the dryer can cut heat and end the cycle early even though the load isn't actually dry yet. This is one of the more common symptoms this thermostat set addresses.
Is this an OEM or aftermarket set?
This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Samsung OEM set, but each component is manufactured to match the electrical specifications, opening/reset temperatures, and mounting configuration of the original DC96-00887C thermal fuse and DC47-00018A high-limit thermostat used in compatible Samsung and Kenmore electric dryers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO 134719300 Dryer Drum Belt
The XPARTCO 134719300 is an aftermarket replacement dryer drum drive belt compatible with a wide range of Frigidaire, Electrolux, Crosley, Kenmore, White-Westinghouse, and Gibson dryers. The drum belt is a critical component that connects the motor pulley to the drum, enabling the drum to rotate during drying cycles. The belt wraps around the drum circumference, passes over an idler pulley (which maintains tension), and connects to the drive motor pulley. When the motor runs, it drives the belt, which rotates the drum to tumble clothes for even drying. Over time, drive belts fail due to normal wear from friction and heat, cracking or fraying from age and repeated flexing, stretching that reduces tension and causes slipping, contamination from lint buildup, or sudden breakage from overloading or mechanical stress.
Constructed from durable black rubber with reinforced fabric or cord embedded inside for strength and flexibility, designed to withstand thousands of hours of operation under high temperatures and constant friction. Dimensions: 90"L x 5/16"W x 1/8"H with 5 ribs and 4 grooves. It directly replaces 134719300, 137315300, 7134719300, LB5300, 1482960, AP4368788, EAP2349294, PD00000843, and PS2349294. Important: install the belt with the grooves facing DOWN, against the drum. Often replaced together with the idler pulley (134793500/134793511, sold separately) as a paired repair since both wear together. Installs in 30–60 minutes with basic hand tools.
Quick Answer
The XPARTCO 134719300 Dryer Drum Belt fixes Frigidaire, Electrolux, Crosley, Kenmore, White-Westinghouse, and Gibson dryers where the drum won't turn (motor runs but drum stays still), the drum spins slowly, the dryer makes loud squealing or squeaking noises, or clothes take too long to dry. 90"L x 5/16"W x 1/8"H. 5 ribs, 4 grooves. Black rubber. Replaces 137315300, 7134719300, LB5300, 1482960, AP4368788, EAP2349294, PD00000843, PS2349294. Install with grooves facing DOWN against the drum. Often paired with idler pulley (134793500/134793511, sold separately).
Common Problems This Part Fixes
Dryer drum doesn't turn — motor runs but drum stays still (belt snapped)
Dryer drum rotates slowly or intermittently — belt worn or slipping
Loud squealing, squeaking, or thumping noises during operation — belt cracked, glazed, or misaligned
Dryer won't start — belt switch (on some models) tripped by broken belt
Clothes taking much longer than normal to dry — drum not tumbling clothes effectively
Visible cracks, fraying, or glazing on the belt surface
Belt broken completely — often heard as a loud snap during operation
Drum spins freely by hand with no resistance — clear sign the belt has snapped
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer drum belt directly replaces the following OEM and cross-reference part numbers:
134719300, 137315300, 7134719300, AFR14405, AP4368788, EAP2349294, LB5300, PD00000843, PS2349294.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This dryer drum belt is compatible with select dryers from the following brands:
Frigidaire dryers (select electric and gas models) — including FDEB34RGS1/GS2, FDEB55RGS0/GS1, FDER436RHS0 and related models
Electrolux dryers (select models)
Crosley dryers — CDE4500KW0, CDE4700LB0/LW0, CDE4701QW0, CDE7300RW0, CDE7400QW0/QW1, CDE7500KB0/KR0/KW0, CDE7700LR0/LW0, CDEC450KW0, CDEC750KW0, CDG4500KW0, CDG4700LB0/LW0, CDG4701QW0, CDG7300RW0/RW1, CDG7400QW0, CDG7500KB0/KR0/KW0, CDG7700LW0/LW1 series
Kenmore / Sears dryers — select Frigidaire/Electrolux-built models
White-Westinghouse dryers (select models)
Gibson dryers (select models)
Note: When you replace the drum belt, this is also the ideal time to inspect the idler pulley (134793500 or 134793511, sold separately) — it wears from the same friction cycles as the belt, and if it's rough, seized, or noisy, the new belt will wear out prematurely. Many customers replace both together as a matched set. Always verify your dryer model number before ordering.
Key Features
Dryer drum drive belt — connects the motor pulley to the drum to enable tumbling during drying cycles
Resolves "drum won't turn," "loud squealing noise," and "long dry times" symptoms when caused by belt failure
Durable black rubber construction with reinforced fabric/cord for strength and flexibility
Engineered to withstand thousands of hours of high-temperature, high-friction operation
Dimensions: 90" L x 5/16" W x 1/8" H with 5 ribs and 4 grooves
Install with grooves facing DOWN against the drum for proper engagement
Replaces 137315300, 7134719300, LB5300, 1482960, AP4368788, EAP2349294, PD00000843, and PS2349294
Compatible with Frigidaire, Electrolux, Crosley (CDE/CDG series), Kenmore, White-Westinghouse, and Gibson dryers
Often replaced together with the idler pulley (134793500/134793511, sold separately) as a paired repair
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
Part Number
XP134719300
Part Type
Dryer Drum Drive Belt
Condition
Aftermarket Replacement
Application
Dryers (Frigidaire/Electrolux platform)
Length
90"
Width
5/16"
Thickness
1/8"
Ribs / Grooves
5 ribs / 4 grooves
Color
Black
Material
Rubber with reinforced fabric/cord
Installation Orientation
Grooves face DOWN against the drum
Often Paired With
Idler Pulley (134793500 or 134793511, sold separately)
Compatible Brands
Frigidaire, Electrolux, Crosley, Kenmore, White-Westinghouse, Gibson
Installation Notes
⚠️ Unplug Dryer Before Starting — Wear Work Gloves — Grooves Face DOWN Disconnect power at the breaker or outlet before beginning. Wear work gloves to protect your hands from sharp sheet metal edges inside the dryer cabinet. Remove the top and/or front panels of the dryer to access the drum — the specific procedure varies by model, but typically involves removing 2–4 screws under the top edge or lint trap area, then lifting or tilting the top panel forward. Once the top is off, disconnect the door switch wire harness and lift the front panel free. This exposes the drum, motor, and idler pulley. Photograph the belt routing before disassembly if any belt fragments remain — you'll need to match the routing pattern with the new belt. Remove any pieces of the old broken belt from around the drum, motor pulley, and idler pulley. Support the drum from underneath (a wooden block or two can help hold it in position). Route the new 134719300 belt around the drum in the same position as the old belt — approximately 4-6 inches from the front lip of the drum. Install with the grooves facing DOWN, against the drum surface — this is essential for proper engagement with the motor pulley. From under the drum, route the belt over the idler pulley and around the drive motor pulley in a Z-shape. Rotate the drum by hand a few full turns to confirm the belt seats correctly and rides smoothly. Verify the drum rotates freely without binding — if it doesn't, the belt is twisted, kinked, or misrouted; fix it before reassembling. Reinstall the front and top panels, reconnect the door switch, restore power, and run a test cycle to confirm normal operation. Tools needed: Phillips screwdriver, wooden block, side cutters (for removing broken belt fragments), flathead screwdriver, work gloves.
Frequently Asked Questions
My dryer runs but the drum won't turn — is the belt the problem?
Almost certainly, yes. When the motor runs (you hear the humming/whirring) but the drum stays still, the belt has almost always snapped or is slipping badly. To confirm without opening the dryer: reach in through the door and try turning the drum by hand. If it spins freely with no resistance whatsoever, the belt is broken. If it turns but feels notchy or resistant, the belt may still be intact but the drum bearings or rollers could be the issue. In either case, opening the dryer to inspect the belt visually is the definitive check — a snapped belt will be lying in the bottom of the cabinet.
Why do I have to install the belt with grooves facing down?
The dryer's motor pulley is a smooth, un-grooved cylinder — the belt runs against it with the flat (smooth) side. The drum, on the other hand, needs the grooves to positively engage and drive without slipping under load. So the grooved side faces the drum (down when you're routing the belt around the drum from above), and the smooth side wraps around the motor pulley and idler pulley. Installing the belt backwards with grooves facing up will cause the belt to slip against the drum immediately and can burn out the new belt within a few minutes of operation.
Should I replace the idler pulley at the same time?
Yes, it's strongly recommended. The idler pulley (134793500 or 134793511 on many compatible dryers) maintains constant tension on the drum belt as the drum rotates. It wears from the same friction cycles as the belt — when the belt fails, the idler pulley bearings have typically also been stressed and are near end-of-life. Since the dryer is already open and the pulley is right there next to the belt, replacing both saves you a repeat repair when the pulley fails a few months later. Signs of a worn idler pulley: rough or noisy rotation when spun by hand, visible wear grooves, or seized bearings.
What's the difference between 134719300 and 137315300?
These are the same drive belt across production revisions. 137315300 was a Frigidaire OEM part number and 134719300 is the current cross-referenced part number that covers the same belt. Both are physically and functionally identical — if your dryer's parts diagram shows either number, this listing is the correct replacement. LB5300 and 7134719300 are additional catalog references for the same belt.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire/Electrolux OEM part, but is manufactured from durable rubber with reinforced fabric/cord to match the dimensions (90"L x 5/16"W x 1/8"H), rib and groove pattern (5 ribs, 4 grooves), and drive function of the original 134719300 drum belt used in compatible Frigidaire, Electrolux, Crosley, Kenmore, White-Westinghouse, and Gibson dryers.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
AGM30045804 Genuine OEM LG Dryer Thermistor and Thermostat Kit
The AGM30045804 is a genuine LG OEM high-limit thermostat and thermistor kit for LG dryers. These two components work together in the same temperature-regulation circuit: the thermistor is a temperature sensor, mounted in the blower housing with its wire harness included, that continuously reports drum temperature to the control board so it can fine-tune heat output throughout the cycle. The high-limit thermostat is a safety switch that automatically shuts off the heating element if temperatures climb past a safe threshold, then resets itself once the dryer cools, without needing to be replaced the way a thermal fuse does.
Because these two parts share the same circuit and tend to wear or fail around a similar timeline, LG sells and services them together as one kit rather than as separate individual parts. Symptoms of failure in this circuit include the dryer overheating (which can scorch clothing or, left unaddressed, pose a fire risk), the dryer running with little or no heat, drying times that have become inconsistent, an error code related to temperature control on the display, or clothes coming out damp after a full cycle. It directly replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335.
Quick Answer
The AGM30045804 Genuine OEM LG Dryer Thermistor and Thermostat Kit fixes LG (and select Kenmore, GE-branded LG-built) dryers with overheating, little or no heat, inconsistent drying times, a temperature-related error code, or clothes coming out damp after a full cycle. High-limit thermostat + thermistor with wire harness. Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, PS16732335. If you've already replaced the high-limit thermostat alone and the problem returns, this combined kit — which also addresses the thermistor — is the next step.
What's In The Kit
Component
Function
High-Limit Thermostat
Automatically shuts off the heating element if temperature exceeds safe limits, then resets itself once the dryer cools.
Thermistor (with wire harness)
Continuously senses drum/blower housing temperature and reports it to the control board to regulate heat output throughout the cycle.
Common Problems This Kit Fixes
Dryer overheating, sometimes scorching or damaging clothing
Dryer running with little or no heat
Inconsistent drying times — cycle shuts off too early or runs longer than necessary
Temperature-related error code displayed on the control panel
Clothes remaining damp after a full drying cycle
High-limit thermostat that keeps tripping repeatedly
Dryer that has already had its high-limit thermostat replaced once but the problem returned
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermistor and thermostat kit directly replaces the following OEM and cross-reference part numbers:
AGM30045804, 6931EL3003C, 6931EL3004B, 6931EL3002B, 6931EL3003F, 6931EL3003G, 6323EL2001B, ALG53406, AP7206815, EAP16732335, PD00079467, PS16732335
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This kit is compatible with select LG dryers, and also fits select Kenmore and GE-branded dryers built on the LG platform.
Note: A specific verified model list was not consistently available across sources at the time this page was built. Some parts diagrams reference additional related thermostat components (such as a separate blower thermostat) beyond what's included in this kit — if your repair involves more than a high-limit thermostat and thermistor, or if you're unsure exactly what's failed on your model, contact our support team with your model number and we'll help confirm which parts you need before you order.
Key Features
Genuine LG OEM part — factory-specified resistance values and switch thresholds
Combined kit addresses the high-limit thermostat and thermistor together, since both share the same temperature-regulation circuit
Resolves "overheating," "little or no heat," "inconsistent drying," and "damp clothes after a full cycle" symptoms
Thermistor ships with its wire harness included
High-limit thermostat resets automatically after tripping — no replacement needed after each trip
Direct drop-in replacement for both original components
Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335
Compatible with LG and select Kenmore and GE-branded LG-built dryers
Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
Part Number
AGM30045804
Part Type
Dryer High-Limit Thermostat and Thermistor Kit
Condition
Genuine OEM
Brand
LG
Kit Contents
High-limit thermostat + thermistor with wire harness
Thermistor Location
Blower housing
High-Limit Thermostat Type
Automatically resetting
Repair Difficulty
Easy to Moderate — 30 to 60 minutes
Compatible Brands
LG, select Kenmore, GE (LG-built models)
Installation Notes
⚠️ Unplug Dryer Before Starting — Let It Cool Fully First Disconnect power at the outlet or shut off the circuit breaker before beginning, and allow the dryer to cool completely if it was recently run. Wear work gloves. Access on many LG models follows this general sequence: remove the lint screen, then remove the two front panel screws underneath it, the two screws on the face of the panel, and the two screws holding the blower cover in place. Disconnect the door switch connector and remove the front panel. With the front open, release the drive belt from the tensioner and remove the drum to access the blower housing where the thermistor is located. Photograph the wiring connections before disconnecting anything, since the thermistor and high-limit thermostat can be easy to confuse with other similar-looking components nearby. Disconnect and remove the old thermistor and high-limit thermostat, noting their exact mounting positions. Install the new components from this kit in the same positions, reconnecting wiring exactly as photographed. Reinstall the drum, re-tension the belt over the tensioner, and reassemble the front panel, blower cover, and lint screen area in reverse order. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
I already replaced the high-limit thermostat, but it keeps tripping. Why would I need this kit instead?
This is a well-documented pattern. If the thermistor — the sensor that reports temperature to the control board — is misreading heat, the control can keep driving the heating element past the point where the high-limit thermostat has to trip repeatedly to protect the dryer, even with a brand-new thermostat installed. Replacing the thermistor alongside the thermostat addresses the root cause rather than just the symptom, which is exactly why LG packages them together as one kit.
What's the difference between the thermistor and the high-limit thermostat?
The thermistor is a sensor, not a switch — it's a variable resistor whose resistance changes with temperature, and the control board reads that value continuously to regulate heat output throughout the cycle. The high-limit thermostat is a safety switch that does one job: it shuts off the heating element automatically if temperature exceeds a safe limit, then resets itself once things cool down. A failing thermistor causes inconsistent or inaccurate heat regulation; a failing high-limit thermostat causes the dryer to shut off unexpectedly or fail to protect against overheating.
My parts diagram shows more thermostat-like parts than what's in this kit. Did I order the wrong thing?
Not necessarily — some LG dryer models have additional related components, such as a separate blower thermostat, that are not part of this specific kit. This kit covers the high-limit thermostat and thermistor. If your repair calls for additional related parts, or if you're not sure exactly which components your model needs, contact our support team with your model number and we'll help you confirm the complete parts list before you order.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It includes the same resistance values, switch threshold, and wire harness configuration as the high-limit thermostat and thermistor originally installed in your dryer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
XPARTCO XP6974 Dryer Thermostat Kit Replaces WP3387134, WP3392519, W10900067, 279816
The XPARTCO XP6974 is an aftermarket dryer thermostat kit containing four thermal components for Whirlpool-family electric and gas dryers including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The kit includes the cycling thermostat (WP3387134), thermal fuse (WP3392519), high-limit thermostat and thermal cut-off kit (279816 / W10900067) — the complete set of heat-sensing and safety components that regulate dryer temperature and prevent dangerous overheating.
These four components work together to control and protect the dryer's heating system. When any one of them fails, the dryer may produce no heat, overheat, run too long, or stop mid-cycle. Because a failed thermal fuse is almost always caused by an underlying overheating condition that also stresses the other components, replacing all four together in a single repair is the recommended approach. Includes all wiring hardware needed for installation. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO XP6974 Dryer Thermostat Kit fixes Whirlpool-family dryers that produce no heat, overheat, take too long to dry, or stop mid-cycle. Includes all four thermal components: cycling thermostat (L155-25), thermal fuse (196°F), high-limit thermostat (L250-80), and thermal cut-off (309°F). Compatible with Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef electric and gas dryers.
Common Problems This Kit Fixes
Dryer produces no heat — thermal fuse or high-limit thermostat has blown
Dryer takes multiple cycles or very long time to dry clothes
Dryer overheats — clothes or drum too hot to touch after a cycle
Dryer shuts off mid-cycle and will not restart
Dryer tumbles normally but generates no heat at all
Dryer runs too long because cycling thermostat is not regulating temperature
Repeated thermal fuse failures — underlying thermostat fault causing recurring overheating
What's in the Kit
Part 1 of 4
WP3387134 Cycling Thermostat
Rated L155-25 · Monitors drum air temperature and cycles the heating element on and off to maintain the set drying temperature · Located on the exhaust duct or blower housing · Should show closed continuity at room temperature
Part 2 of 4
WP3392519 Thermal Fuse
Opens at 196°F (91°C) · One-time safety device located on the exhaust duct · Permanently interrupts power to the heating element if the dryer overheats · Cannot be reset — must be replaced if blown · Most common cause of no-heat in Whirlpool-family dryers
Part 3 of 4
High-Limit Thermostat (279816 / W10900067)
Rated L250-80 · Mounted on the heating element housing · Opens at approximately 250°F to cut power to the heating element if temperature exceeds safe limits · Resets automatically when it cools · Should show closed continuity at room temperature
Part 4 of 4
Thermal Cut-Off Fuse (3977393 / 279816 kit)
Opens at 309°F · Backup one-time safety device on the heating element housing · Permanently interrupts power to the heating element if the high-limit thermostat fails to open · Cannot be reset — must be replaced if blown
Replaces Part Numbers
WP3387134 Cycling Thermostat cross-references:
WP3387134, WP3387134VP, 3387134, 3387135, 3387139, 306910, 3-6910, ET187, AP6008270, PS11741405
WP3392519 Thermal Fuse cross-references:
WP3392519, WP3392519VP, 3392519, 3388651, 694511, 80005, ET401, G4AP0500, AP6008325, PS11741460
279816 High-Limit Thermostat and Thermal Cut-Off Kit cross-references:
279816, 279816VP, W10900067, 3977393, 3977767, WP3977767, WP3977767VP, 3399848, 3399693, 2651, AP3094244, AH334299, EA334299, EAP334299, PS334299
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This thermostat kit is compatible with select gas and electric dryers from the following brands:
Whirlpool dryers (gas and electric)
Kenmore / Sears dryers (Whirlpool-built models)
Maytag dryers (gas and electric)
Amana dryers
KitchenAid dryers
Roper dryers
Admiral dryers
Estate dryers
Crosley dryers
Inglis dryers
Magic Chef dryers
Important: If your thermal fuse has blown, always check for the root cause before replacing — a clogged exhaust vent is the most common cause of dryer overheating. Clean the full length of the exhaust duct before or after this repair. If the vent is clear, a failed cycling thermostat or high-limit thermostat is likely the root cause.
Key Features
Complete 4-part thermal kit — covers the cycling thermostat, thermal fuse, high-limit thermostat, and thermal cut-off in a single repair
Cycling thermostat (L155-25) — regulates drum temperature to maintain consistent, efficient drying
Thermal fuse (196°F) — one-time safety device that permanently interrupts heat if the dryer overheats
High-limit thermostat (L250-80, ~250°F) — cuts power to the heating element when temperature exceeds safe limits; auto-resets
Thermal cut-off (309°F) — backup one-time safety device protecting against heating element runaway
Replacing all four parts together ensures the complete thermal circuit is renewed — prevents recurrence if a failing thermostat caused the fuse to blow
Includes all wiring hardware for installation
Compatible with 11 major appliance brands on the Whirlpool platform
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
Kit Part Number
XP6974
Condition
Aftermarket Replacement
Application
Gas and Electric Dryers
Kit Includes
1x WP3387134 Cycling Thermostat, 1x WP3392519 Thermal Fuse, 1x High-Limit Thermostat (L250-80), 1x Thermal Cut-Off Fuse (309°F), wiring hardware
Cycling Thermostat Rating
L155-25 (closes at 155°F, opens at 25°F differential)
Thermal Fuse Trip Temp
196°F (91°C) — one-time, non-resettable
High-Limit Thermostat Rating
L250-80 (opens at ~250°F) — auto-resets
Thermal Cut-Off Trip Temp
309°F — one-time, non-resettable
Compatible Brands
Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, Magic Chef
Installation Notes
⚠️ Unplug Dryer and Shut Off Gas Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the back panel of the dryer to access the heating element housing and exhaust duct. The thermal fuse (WP3392519) and cycling thermostat (WP3387134) are located on the exhaust duct or blower housing — disconnect the wires, unscrew the mounting screws, and install the new parts in the same positions. The high-limit thermostat and thermal cut-off (279816 kit) are located on the heating element housing — disconnect the wires and unscrew the mounting screws to remove the old parts and install the new ones. Reconnect all wires to the correct terminals — take a photo before disconnecting to reference during reinstallation. Reassemble the back panel, restore power, and run a test cycle to verify heat. Tip: Before running the dryer, also clean the full length of the exhaust duct — a clogged vent is the most common root cause of dryer overheating and repeated thermal fuse failures. Tools needed: Phillips screwdriver, 1/4" nut driver, needle-nose pliers.
Frequently Asked Questions
What does each part in this kit do?
The cycling thermostat (WP3387134) monitors the air temperature in the exhaust duct and cycles the heating element on and off to maintain the correct drying temperature — it is the part that controls how hot the dryer gets during normal operation. The thermal fuse (WP3392519) is a one-time safety device that permanently cuts power to the heating element if the dryer overheats above 196°F — it is the most common cause of no-heat in Whirlpool-family dryers. The high-limit thermostat opens at approximately 250°F to cut heating element power if temperature gets too high, and resets automatically when it cools. The thermal cut-off is a backup one-time fuse on the heating element that opens at 309°F if the high-limit thermostat fails to protect the heater.
Why should I replace all four parts instead of just the one that failed?
When a thermal fuse blows, it almost always blew because the dryer overheated — and that overheating event put significant stress on all the other thermal components as well. A failing cycling thermostat is the most common cause of repeated thermal fuse failures: if the cycling thermostat stops regulating temperature correctly, the dryer runs too hot, the high-limit thermostat is repeatedly stressed, and the thermal fuse eventually blows. Replacing just the fuse without replacing the cycling thermostat means the same overheating will blow the new fuse. Replacing all four parts at once eliminates that risk in a single repair.
How do I test these parts with a multimeter?
Set the multimeter to continuity or resistance mode. The thermal fuse (WP3392519), cycling thermostat (WP3387134), and high-limit thermostat should all show closed continuity (near-zero resistance) at room temperature. The thermal cut-off should also show closed continuity at room temperature. Any part that reads open (no continuity / infinite resistance) at room temperature has failed and needs to be replaced. A blown thermal fuse or cut-off will always read open — they are one-time devices and cannot reset.
What causes the thermal fuse to blow repeatedly?
The most common cause by far is a clogged exhaust vent — lint accumulation inside the dryer duct restricts airflow, causing heat to build up inside the dryer cabinet until the thermal fuse trips. Always clean the full length of the exhaust duct before and after replacing these parts. Other causes include a failing cycling thermostat that is not regulating temperature correctly, a stuck heating element relay, or a dryer placed in an enclosed space without adequate ventilation.
Is this kit compatible with both electric and gas dryers?
Yes — the XP6974 kit is compatible with both electric and gas Whirlpool-family dryers. Both types use the same cycling thermostat (WP3387134) and thermal fuse (WP3392519). The high-limit thermostat and thermal cut-off (279816 kit) are located on the heating element in electric models and on the burner assembly area in gas models. Always verify your specific model number before ordering to confirm all four parts apply to your dryer.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
