Search results for "Flame Sensor"

WPW10181986 Oven Genuine Temperature Sensor Replaces Part Number: WPW10181986, W10181986, 1394200, 8273902, W10131826, OEM24065802, AP6016450, PS11749737. Description: This Oven Sensor Assembly is a Genuine OEM part for select Whirlpool oven models, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.     California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

Choice 240597203 Refrigerator Temperature Sensor Replaces 240597220 The Choice 240597203 is an aftermarket replacement refrigerator temperature sensor compatible with a wide range of Frigidaire, Electrolux, Kenmore (253/106/795 prefix), Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators and household freezers. This NTC (negative temperature coefficient) thermistor continuously monitors the temperature inside the refrigerator or freezer compartment and sends resistance-based readings to the main control board, which uses this data to cycle the compressor, fans, and defrost heaters to maintain accurate temperatures. As the thermistor heats up or cools down, its electrical resistance changes predictably, allowing the control board to calculate the exact temperature in real time. When this sensor fails or drifts out of range, the refrigerator may run too cold or too warm, cycle excessively, freeze up the evaporator, fail to maintain set temperatures, or display OP error codes. Rated 10K Ohm NTC, with a 5/16" diameter probe, 12" wire, and overall dimensions of 3-5/8"L x 5/8"W x 5/16"H (sensor probe itself measures ~1-3/16"L x 5/16" diameter). Compatible with 20-28 cubic foot North American household refrigerators in French door, side-by-side, top-freezer, and bottom-freezer configurations (post-2005 production). It directly replaces 240597203, 240597220, 240597201, 240597202, 7240597203, AP4032998, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, and PS17647917. Not compatible with mini fridges, car refrigerators, commercial units, wine coolers, or ice makers. Installs in 15–20 minutes with basic hand tools. Quick Answer The Choice 240597203 Refrigerator Temperature Sensor fixes Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators that run too cold or warm, cycle excessively, freeze up the evaporator, or display OP error codes. NTC thermistor — 10K Ohm at room temperature. 5/16" probe diameter, 12" wire. Overall 3-5/8"L x 5/8"W x 5/16"H. Replaces 240597220, 240597201, 240597202, 7240597203, AP4032998, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, PS17647917. For 20–28 cu ft household refrigerators built 2005 or later. Common Problems This Part Fixes Refrigerator running too cold or too warm — sensor not accurately reporting temperature Inconsistent temperatures — fluctuating cooling that can't maintain set point OP error code displayed on the control panel (open sensor circuit) Excessive frost or ice buildup on evaporator coils from erratic defrost timing Refrigerator running continuously without cycling off Freezer over-freezing food or fresh food compartment freezing groceries Food spoilage from temperature instability Multimeter test shows 0 ohms (shorted), infinite resistance (open), or drifted resistance instead of the expected ~10K Ohms at room temperature Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: 240597220, 240597203, 240597201, 240597202, 7240597203, 4985585, AFR15666, AP7243155, EAP17647917, OEM21729474, PD00088922, PS17647917. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select household refrigerators and freezers from the following brands (20–28 cu ft, built 2005 or later): Frigidaire refrigerators — Gallery and Professional series, plus standard Frigidaire models (BFHS2611LM, BGHS2634KE, BGHS2634KP, BGHS2644KF, CRSH237LB, PRFG2383AF, PRFC2383AF, ERFG2393AS2, FRSS2323AS8, FFHB2740PP5A and many related models) Frigidaire upright freezers — FFFH21F7QW, FGU19F6QWB and related models Electrolux refrigerators — EI24RD65KS0, EI24RD65HS0, EI24RD65HS1, E24RD75KPS0 and related models Kenmore / Sears refrigerators — 253-prefix, 106-prefix, and 795-prefix models (select Frigidaire/Electrolux-built units) Crosley refrigerators (select Frigidaire-built models) White-Westinghouse refrigerators (select models) Kelvinator refrigerators (select models) Gibson refrigerators (select models) Tappan refrigerators (select models) Viking refrigerators (select Frigidaire-platform models) Ikea refrigerators (select Frigidaire-platform models) Not compatible with: mini fridges, car refrigerators, commercial refrigerators/freezers, wine coolers, or dedicated ice makers. Verify your refrigerator was produced after 2005 and check the original part number on the fridge nameplate matches one of the cross-references listed. Contact our support team with your model number if you're unsure. Key Features NTC (negative temperature coefficient) thermistor — resistance changes predictably with temperature, allowing precise temperature monitoring Rated 10K Ohms at room temperature (approximately 25°C / 77°F) Sends real-time temperature data to the main control board to regulate compressor cycling, fan operation, and defrost timing Sensor probe: 5/16" diameter x 1-3/16" length · Overall assembly: 3-5/8"L x 5/8"W x 5/16"H · 12" wire lead White plastic/metal construction with glossy finish Resolves OP error codes when caused by an open sensor circuit Compatible with 20–28 cu ft French door, side-by-side, top-freezer, and bottom-freezer refrigerators built 2005 or later Replaces 18+ OEM and cross-reference part numbers including 240597220, 240597201, 240597202, AP4032998, AH1765215, PS1765215, PS17647917 Compatible with Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 240597203CM Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Aftermarket Replacement Application Household Refrigerators and Freezers (Frigidaire/Electrolux platform, 20–28 cu ft, 2005+) Sensor Type NTC (Negative Temperature Coefficient) Resistance 10K Ohms at room temperature Probe Dimensions 5/16" Diameter x 1-3/16" Length Overall Dimensions 3-5/8"L x 5/8"W x 5/16"H Wire Length 12" Color White Finish Glossy Material Plastic / Metal Error Codes Resolved OP (open sensor circuit) Compatible Brands Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. Depending on your refrigerator model, the fresh-food temperature sensor is typically located behind the air tower or damper assembly on the rear interior wall of the refrigerator compartment; the freezer temperature sensor is typically located behind the rear freezer access panel near the evaporator coils. Confirm which sensor location matches your symptom and the parts diagram for your specific model before starting. Remove all shelves, drawers, and any items blocking access to the sensor location. Remove the screws holding the air tower/damper cover (fresh food side) or rear freezer access panel to expose the sensor. Photograph the sensor position, wire routing, and connector before removing. Disconnect the wire connector (gently — the connector can be fragile) and release the sensor from its mounting clip. Fully insert the new 240597203 sensor probe into the card slot (no exposure) and secure with the mounting clip. Reconnect the wire connector — plug wiring terminals tightly to avoid poor contact. Use cable ties to secure any loose wire routing as before. Reinstall the cover or panel, replace the shelves and drawers, and plug the refrigerator back in. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, cable ties, multimeter (for testing), work gloves. Frequently Asked Questions What does OP error code mean on my Frigidaire refrigerator? The OP error code (Open) indicates the control board is detecting an open circuit on a temperature sensor input — meaning the sensor is failing to send a resistance signal, either because the sensor itself has failed open internally, the wire has broken, or the connector isn't seated. Replacing the temperature sensor typically resolves the code when the sensor itself is the cause. If the code persists after replacement, check the wire harness between the sensor and the control board for damage, and confirm the connector is fully seated. If the OP code appears alongside other symptoms like frost buildup and cooling issues that persist after sensor replacement, the defrost temperature sensor (on the Harness-Low Side, a different part number) may also need to be replaced, or the main control board may be at fault. How do I test if the temperature sensor has failed? Unplug the refrigerator, disconnect the sensor's wire connector, and set your multimeter to resistance mode. At room temperature (approximately 25°C / 77°F), a working NTC thermistor should read approximately 10K Ohms. If the sensor reads 0 ohms, it has shorted internally. If it reads infinite resistance (open circuit, often shown as "OL" on the multimeter), the sensor has failed open. If it reads significantly off from 10K (for example 8.4K or 5K at room temp), the sensor has drifted and is no longer providing accurate readings — replacement is recommended. Any of these results confirms the sensor needs replacement. My refrigerator has multiple temperature sensors — which one do I replace? Frigidaire refrigerators typically use multiple temperature sensors: one in the fresh food compartment (behind the air tower/damper), one in the freezer compartment (near the evaporator coils), and often a separate defrost temperature sensor on the Harness-Low Side. The 240597203 is used as the fresh food or freezer compartment temperature sensor. If your symptom is "fresh food too warm" or "freezer over-freezing," the fresh food sensor is the likely candidate. If your symptom is "freezer icing up despite defrost heater working," the defrost temperature sensor may be the culprit — a different part number. Check your refrigerator's parts diagram to confirm the correct sensor location for your specific symptom. Does this sensor fit my Kenmore refrigerator? On many Kenmore refrigerators, yes — Sears sells Kenmore-branded refrigerators that are manufactured by Frigidaire/Electrolux, Whirlpool, LG, and Samsung. The 240597203 sensor fits Kenmore refrigerators with model numbers beginning with the 253, 106, or 795 prefixes that are Frigidaire/Electrolux-built. Kenmore refrigerators built by other manufacturers (Whirlpool, LG, Samsung) use different sensors. Check the first three digits of your Kenmore model number — if it's 253, 106, or 795 and falls within the compatible model list, this is the correct part. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire/Electrolux OEM part, but is manufactured to match the electrical specifications (10K Ohm NTC), probe dimensions (5/16" diameter x 1-3/16" length), wire length (12"), and connector configuration of the original 240597203 temperature sensor used in compatible refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

17438200000404 Genuine OEM Midea Dryer Temperature Sensor (Thermistor) The 17438200000404 is a Genuine OEM Midea replacement dryer temperature sensor (thermistor) compatible with an extensive range of Midea, Criterion, and Insignia electric and gas dryers. This NTC (negative temperature coefficient) thermistor continuously monitors air temperature inside the dryer and sends resistance-based readings to the control board, which uses this data to regulate heating element cycling, prevent overheating, and maintain consistent drying temperatures throughout the cycle. As the thermistor heats up, its electrical resistance decreases in a predictable way, allowing the control board to calculate the exact temperature in real time. When this sensor fails — whether shorted, open, or providing drifted/inaccurate readings — the dryer may overheat, may not heat at all, may dry clothes unevenly, may take much longer than normal to complete a cycle, or may trigger a not-heating fault on models with digital displays. As a Genuine OEM part manufactured by Midea to factory specifications, the 17438200000404 directly replaces WF-123X2060 (an alternate catalog cross-reference used by some suppliers, including for compatible Maytag-branded Midea-built units). Installs in 20–30 minutes with basic hand tools. Quick Answer The 17438200000404 Genuine OEM Midea Dryer Temperature Sensor (Thermistor) fixes Midea, Criterion, and Insignia dryers that are overheating, not heating, drying unevenly, or taking too long to dry. NTC thermistor — resistance drops as temperature rises; ~10,000–12,000 ohms at room temperature (70°F). Genuine OEM. Replaces WF-123X2060. Compatible with Midea MLE41N1AWW, MLE45N1AWW/BWW, MLE45N3BMG/BWW, MLE52N3AWW, MLE52S7AGS/AWW, MLG45N1AWW/BWW, MLG45N3BMG/BWW, MLG52S7AGS/AWW, Criterion CDE41N1AW/CDG41N1AW, and a wide range of Insignia models. Common Problems This Part Fixes Dryer overheating — thermistor not accurately reporting rising temperature to the control board Dryer not heating at all — thermistor circuit open or shorted Dryer drying clothes unevenly — inconsistent temperature regulation during the cycle Dryer taking much longer than normal to complete a cycle Not-heating fault code displayed on models with digital control panels Multimeter test shows 0 ohms (shorted) or infinite resistance (open) instead of the expected NTC reading Dryer cycling heat on and off erratically Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: 17438200000404, WF-123X2060,  AP7157538, PS18188581 Contact our support team with your model number if you need confirmation before ordering. Compatibility This temperature sensor is compatible with an extensive range of Midea, Criterion, and Insignia dryers, including: Midea electric dryers — MLE41N1AWW, MLE41N1AWWC, MLE45N1AWW, MLE45N1BWW, MLE45N1BWWC, MLE45N3BMG, MLE45N3BWW, MLE52N3AWW, MLE52S7AGS, MLE52S7AWW Midea gas dryers — MLG45N1AWW, MLG45N1BWW, MLG45N3BMG, MLG45N3BWW, MLG52S7AGS, MLG52S7AWW Midea — CLADE67W, MDD160A2301E1305, MDD160VG012F0110EUS13 Criterion — CDE41N1AW (electric), CDG41N1AW (gas) Insignia electric dryers — NSDRE67WH8A, NSDRE67WH8AC, NSFDRE67WH8A, NSFDRE67WH8AC, NSFDRE77WH8B, NSFDRE77WH8BC, NSTDRE67W1, NSTDRE75W1 Insignia gas dryers — NSFDRG67WH8A, NSTDRG67W1, NSTDRG75W1 Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by Midea to factory specifications — guaranteed fit and performance NTC (negative temperature coefficient) thermistor — resistance decreases predictably as temperature rises, allowing precise temperature monitoring Sends real-time temperature data to the control board to regulate heating element cycling and prevent overheating Approximately 10,000–12,000 ohms of resistance at room temperature (around 70°F) when functioning correctly Compatible across both electric and gas Midea-platform dryers, including Criterion and Insignia house-brand models Replaces WF-123X2060 Installs in 20–30 minutes with basic hand tools Product Specifications Part Number 17438200000404 Part Type Dryer Temperature Sensor (NTC Thermistor) Condition Genuine OEM Application Electric and Gas Dryers (Midea platform) Sensor Type NTC (Negative Temperature Coefficient) Resistance at Room Temp Approximately 10,000 – 12,000 ohms (~70°F) Location Blower housing/exhaust duct or drum cavity, depending on model Compatible Brands Midea, Criterion, Insignia Installation Notes ⚠️ Unplug Dryer Before Starting (Shut Off Gas First on Gas Models) Disconnect power before beginning (and shut off the gas supply first if you have a gas dryer model). Midea dryers typically have 2–3 temperature sensors: an exhaust thermistor on the blower housing or exhaust duct, a drum thermistor inside the drum cavity, and on heat pump models, an evaporator thermistor — confirm which sensor location matches your symptom and part diagram before starting. Access the sensors by removing the back panel on vented models, or the side/bottom panels on heat pump models. Photograph the connector position before disconnecting. Unplug the old sensor's connector and inspect it for corrosion or heat discoloration on the wires — discoloration indicates prior overheating in that area. Remove the mounting clip or screw securing the old sensor and pull it free. Install the new 17438200000404 sensor in the same position, reseat the connector firmly, and secure the mounting hardware. Reassemble the panel, restore power, and run a test heat cycle to confirm normal temperature regulation. Tools needed: Phillips screwdriver, multimeter (for testing). Frequently Asked Questions How do I test if the temperature sensor (thermistor) has failed? Unplug the dryer, disconnect the sensor's connector, and set your multimeter to resistance mode. At room temperature (around 70°F), a working NTC thermistor should read approximately 10,000 to 12,000 ohms. If the sensor reads 0 ohms, it has shorted internally. If it reads infinite resistance (open circuit, often shown as "OL" on the multimeter), the sensor has failed open. Either reading confirms the sensor needs replacement. If you have multiple sensors testing bad at the same time, check the shared ground wire — a broken ground connection can cause all sensors on that circuit to read as open even if the individual sensors are fine. My Midea dryer has more than one temperature sensor — how do I know which one to replace? Midea dryers typically use 2–3 temperature sensors depending on the model: an exhaust thermistor mounted on the blower housing or exhaust duct, a drum thermistor inside the drum cavity, and — on heat pump/ventless models — an evaporator thermistor in the refrigerant circuit area. The 17438200000404 is used across this Midea/Criterion/Insignia platform, but confirming the exact mounting location for your specific symptom (e.g., overheating vs. uneven drying) and model number before ordering will help ensure you're replacing the correct sensor. What is the difference between 17438200000404 and WF-123X2060? These are the same temperature sensor. WF-123X2060 is an alternate catalog cross-reference number used by some parts suppliers for the identical Midea-manufactured thermistor — it appears in listings for compatible Maytag-branded Midea-built units as well as the standard Midea, Criterion, and Insignia models. If your dryer's parts diagram shows either number, the 17438200000404 is the correct part. Does this sensor fit my Insignia or Criterion dryer? Yes — Insignia (Best Buy) and Criterion (Sears/Kmart) are house brands whose dryers in this size and configuration are manufactured by Midea and use the same internal components, including this temperature sensor. Confirmed compatible models include Insignia NSDRE67WH8A, NSFDRE67WH8A, NSFDRE77WH8B, NSTDRE67W1, NSTDRE75W1 (electric) and NSFDRG67WH8A, NSTDRG67W1, NSTDRG75W1 (gas), as well as Criterion CDE41N1AW (electric) and CDG41N1AW (gas). Always verify your specific model number before ordering. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by Midea to factory specifications. It is the exact same NTC thermistor temperature sensor installed in compatible Midea, Criterion, and Insignia dryers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DA32-10104N Refrigerator Temperature Sensor The XPARTCO DA32-10104N is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. This sensor is mounted on or near the evaporator coil and continuously monitors the internal temperature of the refrigerator compartment, transmitting real-time readings to the electronic control board. Based on the data received from the sensor, the control board regulates the compressor, evaporator fan motor, and defrost system to maintain the set temperature. When this sensor fails or drifts out of calibration, the control board receives inaccurate temperature readings — leading to a refrigerator that runs too cold, too warm, or triggers a 5E/SE error code. Features a 9-inch cord for easy installation and a sensitive thermal element with temperature detection accuracy of ±0.1°C. Quick Answer The XPARTCO DA32-10104N Refrigerator Temperature Sensor fixes refrigerators that are too warm, too cold, display a 5E/SE error code, or have inconsistent temperatures that spoil food. It monitors internal refrigerator temperature and sends data to the control board to regulate cooling. Compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Common Problems This Part Fixes Refrigerator running too warm — food spoiling faster than normal Refrigerator running too cold — food or drinks freezing in the fresh food section 5E or SE error code displayed on the control panel Inconsistent or fluctuating temperatures inside the refrigerator Compressor running continuously without reaching set temperature Excessive frost or ice buildup on evaporator coils Replaces Part Numbers This sensor directly replaces the following OEM and cross-reference part numbers: DA32-10104N, DA32-10104V, 2030330, ASM1216617, PD00026468, EAP4138666, AP4979323, PS4138666. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: Samsung French door refrigerators Samsung side-by-side refrigerators Samsung bottom freezer refrigerators Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Monitors internal refrigerator temperature and sends real-time data to the electronic control board Fixes 5E/SE error codes caused by a faulty or out-of-calibration temperature sensor Temperature detection accuracy of ±0.1°C for precise cooling control 9-inch cord length for easy installation and connection to the control board Aftermarket replacement built to OEM-equivalent quality standards Direct drop-in replacement — no modification required DIY-friendly repair — installs with basic hand tools in 30–45 minutes Product Specifications Part Number DA32-10104N Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Refrigerator Temperature Control System Cord Length 9 inches Detection Accuracy ±0.1°C Resistance at 70°F ~9.3K ohms Resistance at 90°F ~7.7K ohms Resistance at 100°F ~6.2K ohms Resistance at 120°F ~4.3K ohms Compatible Brands Samsung Installation Notes ⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. The DA32-10104N sensor is located near the evaporator coil, typically behind the rear panel inside the refrigerator or freezer compartment. Remove the panel, locate the sensor along the yellow wire, disconnect the old sensor from its plug, and connect the new sensor in the same position. Reassemble the panel and restore power. Allow 24 hours for the refrigerator to return to normal operating temperature. Tip: Before replacing, test the old sensor with a multimeter — resistance readings outside the values in the specs table above confirm a faulty sensor. Consult your refrigerator's service manual for model-specific instructions. Frequently Asked Questions Will the DA32-10104N fit my Samsung refrigerator? This sensor is compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering. What does the temperature sensor do? The temperature sensor (thermistor) continuously monitors the internal temperature of the refrigerator and sends readings to the electronic control board. The control board uses this data to regulate the compressor, fans, and defrost system to maintain the set temperature. When the sensor fails or drifts out of range, the control board receives inaccurate data and cannot maintain proper cooling. What are signs that my temperature sensor needs replacement? Common signs include: the refrigerator running too warm or too cold, food spoiling faster than normal, a 5E or SE error code on the display, inconsistent temperatures, or the compressor running continuously without reaching the set temperature. How do I test the DA32-10104N sensor before replacing it? Use a multimeter to measure the resistance across the sensor terminals. At 70°F the reading should be approximately 9.3K ohms, at 90°F approximately 7.7K ohms, at 100°F approximately 6.2K ohms, and at 120°F approximately 4.3K ohms. Readings significantly outside these values indicate a faulty sensor that needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, accurate temperature sensing at a more affordable price point. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

240597220 Genuine OEM Frigidaire Refrigerator Temperature Sensor The 240597220 is a Genuine OEM Frigidaire replacement refrigerator temperature sensor compatible with a wide range of Frigidaire, Electrolux, Kenmore (253/106/795 prefix), Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators and household freezers. This NTC (negative temperature coefficient) thermistor continuously monitors the temperature inside the refrigerator or freezer compartment and sends resistance-based readings to the main control board, which uses this data to cycle the compressor, fans, and defrost heaters to maintain accurate temperatures. As the thermistor heats up or cools down, its electrical resistance changes predictably, allowing the control board to calculate the exact temperature in real time. When this sensor fails or drifts out of range, the refrigerator may run too cold or too warm, cycle excessively, freeze up the evaporator, fail to maintain set temperatures, or display OP error codes. Rated 10K Ohm NTC, with a 5/16" diameter probe, 12" wire, and overall dimensions of 3-5/8"L x 5/8"W x 5/16"H (sensor probe itself measures ~1-3/16"L x 5/16" diameter). Compatible with 20-28 cubic foot North American household refrigerators in French door, side-by-side, top-freezer, and bottom-freezer configurations (post-2005 production). 240597220 is the current OEM part number, superseding 240597203, 240597201, and 240597202. It also replaces 7240597203, AP4032998, AP7243155, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, and PS17647917. Not compatible with mini fridges, car refrigerators, commercial units, wine coolers, or ice makers. Installs in 15–20 minutes with basic hand tools. Quick Answer The 240597220 Genuine OEM Frigidaire Refrigerator Temperature Sensor fixes Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators that run too cold or warm, cycle excessively, freeze up the evaporator, or display OP error codes. NTC thermistor — 10K Ohm at room temperature. 5/16" probe diameter, 12" wire. Overall 3-5/8"L x 5/8"W x 5/16"H. Genuine OEM. Supersedes 240597203, 240597201, 240597202. Also replaces 7240597203, AP4032998, AP7243155, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, PS17647917. For 20–28 cu ft household refrigerators built 2005 or later. Common Problems This Part Fixes Refrigerator running too cold or too warm — sensor not accurately reporting temperature Inconsistent temperatures — fluctuating cooling that can't maintain set point OP error code displayed on the control panel (open sensor circuit) Excessive frost or ice buildup on evaporator coils from erratic defrost timing Refrigerator running continuously without cycling off Freezer over-freezing food or fresh food compartment freezing groceries Food spoilage from temperature instability Multimeter test shows 0 ohms (shorted), infinite resistance (open), or drifted resistance instead of the expected ~10K Ohms at room temperature Replaces Part Numbers This temperature sensor is the current OEM part number and supersedes the following OEM and cross-reference part numbers: 240597220, 240597203, 240597201, 240597202, 7240597203, 4985585, AFR15666, AP7243155, EAP17647917, OEM21729474, PD00088922, PS17647917. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select household refrigerators and freezers from the following brands (20–28 cu ft, built 2005 or later): Frigidaire refrigerators — Gallery and Professional series, plus standard Frigidaire models (BFHS2611LM, BGHS2634KE, BGHS2634KP, BGHS2644KF, CRSH237LB, PRFG2383AF, PRFC2383AF, ERFG2393AS2, FRSS2323AS8, FFHB2740PP5A and many related models) Frigidaire upright freezers — FFFH21F7QW, FGU19F6QWB and related models Electrolux refrigerators — EI24RD65KS0, EI24RD65HS0, EI24RD65HS1, E24RD75KPS0 and related models Kenmore / Sears refrigerators — 253-prefix, 106-prefix, and 795-prefix models (select Frigidaire/Electrolux-built units) Crosley refrigerators (select Frigidaire-built models) White-Westinghouse refrigerators (select models) Kelvinator refrigerators (select models) Gibson refrigerators (select models) Tappan refrigerators (select models) Viking refrigerators (select Frigidaire-platform models) Ikea refrigerators (select Frigidaire-platform models) Not compatible with: mini fridges, car refrigerators, commercial refrigerators/freezers, wine coolers, or dedicated ice makers. Verify your refrigerator was produced after 2005 and check the original part number on the fridge nameplate matches one of the cross-references listed. Contact our support team with your model number if you're unsure. Key Features NTC (negative temperature coefficient) thermistor — resistance changes predictably with temperature, allowing precise temperature monitoring Rated 10K Ohms at room temperature (approximately 25°C / 77°F) Sends real-time temperature data to the main control board to regulate compressor cycling, fan operation, and defrost timing Sensor probe: 5/16" diameter x 1-3/16" length · Overall assembly: 3-5/8"L x 5/8"W x 5/16"H · 12" wire lead White plastic/metal construction with glossy finish Resolves OP error codes when caused by an open sensor circuit Compatible with 20–28 cu ft French door, side-by-side, top-freezer, and bottom-freezer refrigerators built 2005 or later Current OEM part number — supersedes 240597203, 240597201, 240597202 and replaces AP4032998, AH1765215, PS1765215, PS17647917 and additional cross-references Compatible with Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Genuine OEM part manufactured by Frigidaire/Electrolux to factory specifications — guaranteed fit and performance Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 240597220 Supersedes 240597203, 240597201, 240597202 Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Genuine OEM Application Household Refrigerators and Freezers (Frigidaire/Electrolux platform, 20–28 cu ft, 2005+) Sensor Type NTC (Negative Temperature Coefficient) Resistance 10K Ohms at room temperature Probe Dimensions 5/16" Diameter x 1-3/16" Length Overall Dimensions 3-5/8"L x 5/8"W x 5/16"H Wire Length 12" Color White Finish Glossy Material Plastic / Metal Error Codes Resolved OP (open sensor circuit) Compatible Brands Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. Depending on your refrigerator model, the fresh-food temperature sensor is typically located behind the air tower or damper assembly on the rear interior wall of the refrigerator compartment; the freezer temperature sensor is typically located behind the rear freezer access panel near the evaporator coils. Confirm which sensor location matches your symptom and the parts diagram for your specific model before starting. Remove all shelves, drawers, and any items blocking access to the sensor location. Remove the screws holding the air tower/damper cover (fresh food side) or rear freezer access panel to expose the sensor. Photograph the sensor position, wire routing, and connector before removing. Disconnect the wire connector (gently — the connector can be fragile) and release the sensor from its mounting clip. Fully insert the new 240597220 sensor probe into the card slot (no exposure) and secure with the mounting clip. Reconnect the wire connector — plug wiring terminals tightly to avoid poor contact. Use cable ties to secure any loose wire routing as before. Reinstall the cover or panel, replace the shelves and drawers, and plug the refrigerator back in. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, cable ties, multimeter (for testing), work gloves. Frequently Asked Questions What does OP error code mean on my Frigidaire refrigerator? The OP error code (Open) indicates the control board is detecting an open circuit on a temperature sensor input — meaning the sensor is failing to send a resistance signal, either because the sensor itself has failed open internally, the wire has broken, or the connector isn't seated. Replacing the temperature sensor typically resolves the code when the sensor itself is the cause. If the code persists after replacement, check the wire harness between the sensor and the control board for damage, and confirm the connector is fully seated. If the OP code appears alongside other symptoms like frost buildup and cooling issues that persist after sensor replacement, the defrost temperature sensor (on the Harness-Low Side, a different part number) may also need to be replaced, or the main control board may be at fault. How do I test if the temperature sensor has failed? Unplug the refrigerator, disconnect the sensor's wire connector, and set your multimeter to resistance mode. At room temperature (approximately 25°C / 77°F), a working NTC thermistor should read approximately 10K Ohms. If the sensor reads 0 ohms, it has shorted internally. If it reads infinite resistance (open circuit, often shown as "OL" on the multimeter), the sensor has failed open. If it reads significantly off from 10K (for example 8.4K or 5K at room temp), the sensor has drifted and is no longer providing accurate readings — replacement is recommended. Any of these results confirms the sensor needs replacement. My refrigerator has multiple temperature sensors — which one do I replace? Frigidaire refrigerators typically use multiple temperature sensors: one in the fresh food compartment (behind the air tower/damper), one in the freezer compartment (near the evaporator coils), and often a separate defrost temperature sensor on the Harness-Low Side. The 240597203 is used as the fresh food or freezer compartment temperature sensor. If your symptom is "fresh food too warm" or "freezer over-freezing," the fresh food sensor is the likely candidate. If your symptom is "freezer icing up despite defrost heater working," the defrost temperature sensor may be the culprit — a different part number. Check your refrigerator's parts diagram to confirm the correct sensor location for your specific symptom. Does this sensor fit my Kenmore refrigerator? On many Kenmore refrigerators, yes — Sears sells Kenmore-branded refrigerators that are manufactured by Frigidaire/Electrolux, Whirlpool, LG, and Samsung. The 240597203 sensor fits Kenmore refrigerators with model numbers beginning with the 253, 106, or 795 prefixes that are Frigidaire/Electrolux-built. Kenmore refrigerators built by other manufacturers (Whirlpool, LG, Samsung) use different sensors. Check the first three digits of your Kenmore model number — if it's 253, 106, or 795 and falls within the compatible model list, this is the correct part. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Frigidaire/Electrolux to factory specifications. It is the exact same temperature sensor installed in compatible Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

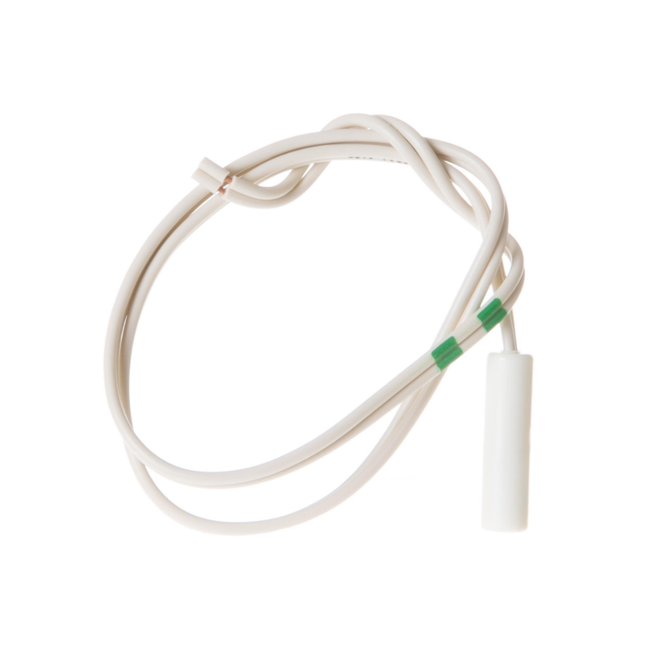

WR55X10025 Genuine OEM GE Refrigerator Temperature Sensor The WR55X10025 is a genuine GE OEM temperature sensor, also called a thermistor, for GE, Hotpoint, and Kenmore refrigerators. This sensor measures air temperature inside the refrigerator or freezer compartment and reports it continuously to the main control board, which uses that reading to regulate the cooling cycle. On some models, this same sensor design also serves as the defrost sensor mounted on the evaporator coil, monitoring temperature there to help manage the defrost cycle. Because the control board relies entirely on this sensor's reading to make cooling decisions, a failing or inaccurate sensor can cause the refrigerator to run too cold, too warm, or run for excessively long periods as it tries to correct a temperature it's misreading. On models where it doubles as a defrost sensor, a failure here can also contribute to frost or ice buildup in the freezer. This is a relatively inexpensive part, and it's commonly the actual cause behind symptoms that get mistakenly blamed on the main control board. It directly replaces AP3185407, 914093, AH304103, EA304103, PS304103, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11150, WR55X11151, and WR55X11152. Quick Answer The WR55X10025 Genuine OEM GE Refrigerator Temperature Sensor fixes GE, Hotpoint, and Kenmore refrigerators that run too cold, too warm, run for excessively long periods, or (on models where this sensor doubles as a defrost sensor) show frost or ice buildup in the freezer. A healthy sensor reads approximately 5,000 ohms at 77°F. Replaces AP3185407, 914093, AH304103, EA304103, PS304103, and a wide range of WR50X/WR55X-prefix numbers listed below. This is an inexpensive part that's frequently the actual cause behind symptoms mistakenly blamed on the main control board — worth testing or replacing before assuming a costlier board repair is needed. Common Problems This Part Fixes Refrigerator running too cold Refrigerator running too warm Refrigerator running for excessively long periods Freezer not defrosting properly (on models where this sensor also serves as the defrost sensor) Freezer too cold or showing frost buildup Display temperature reading that doesn't match the actual temperature inside the compartment Inconsistent or fluctuating cooling performance Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select GE, Hotpoint, and Kenmore refrigerators, and is used broadly across most GE side-by-side and French door refrigerator configurations. Note: While this sensor is used across a very broad range of GE refrigerator models, always verify your full model number before ordering, since some models use a different sensor design. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified resistance curve for accurate temperature reporting Measures air temperature and reports it continuously to the main control board Also used as a defrost sensor on the evaporator coil on select models Resolves "too cold," "too warm," "runs too long," and "display reading doesn't match actual temperature" symptoms Direct drop-in replacement — matches the original mounting and wiring Replaces a wide range of WR50X and WR55X-prefix part numbers listed above Compatible with GE, Hotpoint, and Kenmore refrigerators Genuine OEM replacement — guaranteed fit, materials, and performance DIY-friendly repair, typically completed in under an hour Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Genuine OEM Brand GE Function Measures compartment or evaporator temperature and reports it to the control board Typical Resistance Approx. 5,000 ohms at 77°F Repair Difficulty Easy — typically under 1 hour Quantity 1 temperature sensor Compatible Brands GE, Hotpoint, Kenmore Installation Notes ⚠️ Danger — Authorized Service Part Required For Flammable Refrigerant Systems GE's own service guidance carries an explicit warning for this component: it is a manufacturer-authorized service part intended for use in refrigerator models that use a flammable refrigerant, such as R600a. Using an unauthorized or incorrectly rated service part in a unit that uses a flammable refrigerant could lead to a risk of fire or explosion. Before ordering or installing, confirm your refrigerator's refrigerant type and verify this part is correct for your specific model. If you have any doubt about your refrigerant type or the correct part for your unit, contact our support team with your model number before proceeding, or have a qualified appliance technician perform this repair. ⚠️ Unplug Refrigerator Before Starting — Test With A Multimeter Before Replacing Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Before replacing, it's worth testing the old sensor with a multimeter set to ohms — a healthy sensor reads approximately 5,000 ohms at 77°F; a reading well outside that range, or an open circuit, confirms a failed sensor. Locate the sensor, typically mounted on an interior wall of the compartment or clipped to the evaporator coil depending on your model. Photograph the wiring and mounting position before disconnecting anything. Disconnect the sensor's wire connector, remove any mounting clip or bracket, and pull the old sensor free. When positioning the new WR55X10025, make sure it sits in open air away from direct contact with ice buildup areas, since ice touching the sensor can cause it to read colder than the compartment's actual temperature. Reconnect the wire connector and secure the mounting clip. Restore power and monitor the refrigerator over the next 24 hours, comparing the display temperature to an independent thermometer placed in the compartment to confirm accuracy. Tools needed: multimeter, work gloves. Frequently Asked Questions How do I test whether this sensor has actually failed? Use a multimeter set to ohms and test the sensor across its two terminals. A healthy sensor typically reads approximately 5,000 ohms at 77°F room temperature; a reading significantly outside that range, or no reading at all (open circuit), confirms the sensor has failed and should be replaced. My display shows a temperature that doesn't match how cold the fridge actually feels. Could positioning be the issue, not the sensor itself? Yes, this is a documented and somewhat subtle failure mode. If the sensor ends up positioned too close to an area where ice or frost accumulates, the ice's surface temperature can pull the sensor's reading colder than the actual compartment air temperature, causing the display to show a colder number than reality — sometimes off by several degrees. One customer traced exactly this issue to ice buildup near the sensor location and resolved it by ensuring the new sensor sat clear of that ice-prone area during installation. Could my problem actually be the control board instead of this sensor? It's worth testing this sensor first before assuming a control board issue. This is a relatively inexpensive part, and it's commonly the actual root cause behind symptoms that get misdiagnosed as a control board failure, since the board is only ever as accurate as the temperature data it receives. Testing or simply replacing this sensor is a low-cost step worth taking before pursuing a more expensive board repair. Why is there a fire/explosion warning on this part? Some refrigerators use a flammable refrigerant, such as R600a (isobutane), instead of older non-flammable refrigerants. Electrical components near refrigerant lines can be a source of ignition if a leak were ever present, which is why GE requires an authorized, correctly rated service part for these systems rather than a generic substitute. Confirming your model and refrigerant type before ordering is the appropriate precaution. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original resistance curve and mounting configuration of the temperature sensor originally installed in your refrigerator. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

W11126005CM Dishwasher Wash Vane Sensor Description: This Sensor is a replacement component specifically designed for certain Whirlpool dishwasher models. It plays a crucial role in monitoring cycle conditions like temperature and soil levels to automatically customize wash sequences. Causes of a bad sensor can include leaking or faulty wiring disrupting signals over time, mineral buildup gumming internal mechanisms, or damage from impact. Replaces Part Numbers: W11126005, W11503875, W10380177, W10380483, W10647239, AP6261394, PS12114437. This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: California’s Proposition 65

Read more less

W10467289 Washer Genuine OEM Temperature Sensor Replaces Part Numbers: WPW10467289, W10467289, 2629420, 8181705, 8182291, 8540225, 8540226, W10176658, W10176659, OEM18065663, AP6021886,, PS11755214. Description: This Water Temperature Sensor is a Genuine OEM part for specific Kenmore, Whirlpool washing machine models. This sensor ensures the water is reaching the proper temperature at each stage of the wash cycle.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

6500JB1008A Refrigerator Genuine OEM Temperature Sensor Replaces Part Numbers: 6500JB1008A, 1395582, AH3529164, EA3529164, AP4440683, PS3529164.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

DA32-10105RCM Refrigerator Temperature Sensor  Replaces Part Numbers: DA32-10105R, DA32-00006W, DA32-00006U, 2030342, DA32-00006B, DA32-00006C, DA32-00006D, DA32-00006L, DA32-00006M, DA32-00006T, DA32-00006V, AP4135567, PS4138681. 1" probe, 25.75" lead with two pin connectors. Fits Specific Samsung Refrigerator Models. This Defrost Sensor is a replacement part designed specific Samsung refrigerator models. This sensor, sometimes referred to as a defrost thermostat or defrost temperature sensor, is an integral part of your refrigerator's defrost system.   This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

DA32-00006W Genuine Samsung OEM Refrigerator Thermistor Refrigerator defrost temperature sensor. Replaces Part Numbers: DA32-10105R, DA32-00006W, DA32-00006U, 2030342, DA32-00006B, DA32-00006C, DA32-00006D, DA32-00006L, DA32-00006M, DA32-00006T, DA32-00006V, AP4135567, PS4138681. The Samsung Defrost Sensor is a genuine part designed specifically for Samsung refrigerators. This sensor, sometimes referred to as a defrost thermostat or defrost temperature sensor, is an integral part of your refrigerator's defrost system.

Read more less

XPARTCO WR55X10025 Refrigerator Temperature Sensor The XPARTCO WR55X10025 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with a wide range of GE, Hotpoint, Haier, Café, and Monogram refrigerators. The temperature sensor monitors air temperature inside the fresh food and freezer compartments and sends that data to the main control board, which uses it to regulate cooling cycles and maintain the correct set temperature. When the sensor fails, the refrigerator may run too warm, too cold, or experience erratic defrost behavior. This sensor measures approximately 1-1/4 inches long and includes 18-inch wire leads. It is constructed from white plastic and is used in both fresh food and freezer compartments depending on the model — on some models it also functions as a defrost sensor on the evaporator coil. It directly replaces OEM part numbers WR55X10025 and a large number of earlier GE thermistor part numbers. Sold individually — some models require two sensors. Installs in under 30 minutes with basic hand tools. Quick Answer The XPARTCO WR55X10025 Refrigerator Temperature Sensor fixes GE and Hotpoint refrigerators that are too warm, too cold, not defrosting, or over-defrosting. The thermistor monitors compartment temperature and communicates with the control board. Approx. 1-1/4" long with 18" leads, white plastic. Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators. Sold individually. Common Problems This Part Fixes Refrigerator compartment running too warm — food spoiling faster than normal Refrigerator running too cold — food or liquids freezing in the fresh food section Freezer section not maintaining correct temperature Refrigerator not defrosting or defrosting too frequently Excessive frost or ice buildup on evaporator coils Refrigerator and freezer both warming up after extended defrost cycles Erratic cooling — temperatures fluctuating unpredictably Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Haier refrigerators (select GE-platform models) Café refrigerators Monogram refrigerators Note: Some GE refrigerator models use two or more temperature sensors. This part is sold individually. Check your model's parts diagram or contact our support team to confirm how many sensors your model requires before ordering. Key Features Monitors fresh food and freezer compartment temperatures and communicates readings to the main control board Also functions as a defrost sensor on the evaporator coil on applicable models Fits both fresh food and freezer positions White plastic construction — durable and resistant to refrigerator temperature extremes Direct replacement for WR55X10025 and over 30 earlier GE thermistor part numbers Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators Sold individually — verify quantity needed for your model before ordering Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 30 minutes with basic hand tools Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Fresh food compartment, freezer compartment, and evaporator coil (defrost sensor) depending on model Sensor Body Length Approximately 1-1/4 inches Color White Material Plastic Includes Sensor with wire leads Sold As Single sensor (some models require 2 — verify before ordering) Compatible Brands GE, Hotpoint, Haier, Café, Monogram Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning any repair. To access the fresh food thermistor, locate the sensor on the left wall of the fresh food compartment — it may be clipped into a housing or bracket. Disconnect the wire connector and pull the old sensor out of its bracket. Slide the new WR55X10025 sensor into the bracket and reconnect the wire connector. To access the freezer or evaporator thermistor, remove the freezer shelves and back panel, then locate the sensor clipped to the evaporator coil bracket. Remove any tie wrap securing the sensor, pull the old sensor from the bracket, insert the new sensor, and reconnect the wire connector. Reinstall the back panel and shelves, restore power, and verify the refrigerator returns to the correct set temperature. Tools needed: Phillips screwdriver, flat pry tool (for panel clips), work gloves. Frequently Asked Questions How many temperature sensors does my GE refrigerator have? The number of sensors varies by model. Many GE French door and side-by-side refrigerators use two or three WR55X10025 sensors — one in the fresh food compartment, one in the freezer, and sometimes one on the evaporator coil. Check your model's parts diagram or contact our support team with your model number to confirm how many you need before ordering. What is a thermistor and how does it work? A thermistor is a type of resistor whose electrical resistance changes with temperature. The main control board sends a small voltage through the thermistor and measures the resistance — a higher resistance means a lower temperature, and a lower resistance means a higher temperature. The board uses this reading to decide when to run the compressor and fans to maintain the set temperature. A failed thermistor sends incorrect readings, causing the refrigerator to over-cool, under-cool, or malfunction during defrost cycles. Can a faulty temperature sensor cause the refrigerator to not defrost? Yes. On models where the WR55X10025 also serves as the defrost sensor on the evaporator coil, a faulty sensor can cause the control board to incorrectly time or skip defrost cycles entirely — leading to excessive frost or ice buildup on the evaporator coils. This frost buildup can eventually block airflow and cause both the refrigerator and freezer sections to warm up. How do I know if my temperature sensor is the cause of my cooling problem? The most reliable way to test the thermistor is with a multimeter. Disconnect the sensor and measure its resistance at room temperature — a working WR55X10025 should read approximately 16,000 ohms at 32°F, dropping as temperature increases. An open circuit (infinite resistance) or short circuit (zero resistance) reading confirms the sensor has failed. If resistance is within the normal range but the refrigerator still has issues, the control board or other components may be at fault. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable plastic to match the dimensions and performance specifications of the original WR55X10025 temperature sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less
