3405-001117 Genuine OEM Refrigerator Dispenser Control Switch - Compatible with Samsung Product Description Restore your refrigerator’s dispenser functionality with the 3405-001117 Genuine OEM Refrigerator Dispenser Control Switch. This Samsung-manufactured microswitch is designed for select Samsung refrigerators, controlling the activation of the water and ice dispenser mechanism. It ensures reliable dispensing, addressing issues like unresponsive or intermittent water/ice dispensing for a seamless user experience. Note: Includes (1) dispenser control microswitch. Disconnect power before installation. Verify compatibility with your refrigerator model. Replaces part numbers: 3405-001117, DA34-00011A, 110634, 3727507, PD00033242, EAP11712663, AP5962465, PS11712663. Compatibility: Compatible with select Samsung refrigerator models, including but not limited to: Samsung: RS2530BBP, RS2530BSH, RS2530BWP, RS2555BB, RS2555SL, RS2555SW, RS2577BB, RS2577SL, RS2577SW, RS2630SH, RS2630WW, RS265LABP, RS265LAWP, RS277ACBP, RS277ACPN, RS277ACWP Common models: Samsung RS253BABB, RS253BAVQ, RS255BABB, RS255BASB, RS257BARB Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung refrigerators with water and ice dispensers. 🔧 Specifications: Genuine OEM Samsung microswitch, single-pole, double-throw (SPDT), 0.1A, 125/250V. 💪 Reliable Performance: Ensures precise activation of the water and ice dispenser mechanism. 🛠️ Easy Installation: Requires a screwdriver and pliers; typically installed in 15–20 minutes. 🛡️ Effective Fixes: Resolves unresponsive or intermittent water/ice dispensing issues. Product Specification Part Number: 3405-001117 Component Type: Refrigerator dispenser control switch Material: Durable plastic housing with metal contacts Operating Conditions: 0.1A, 125/250V, suitable for refrigerator dispenser environments Compliance: UL-listed, Prop 65 warning for California Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator’s dispenser working smoothly today! Add to cart now for a reliable fix!

Read more less

XPARTCO Refrigerator Replacement Part XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058 Aftermarket LED driver/circuit board only for compatible 2-plug WPW10515058-style refrigerator light assemblies. Product Overview The XPARTCO W10515058B Refrigerator LED Light Driver Board is an aftermarket replacement circuit/driver board for select refrigerator light assemblies that use the WPW10515058 / W10515058 2-plug configuration. Board only: the plastic light housing and lens/cover are not included. Quick Answer Use W10515058B when the compatible WPW10515058-style light assembly has a failed electronic board but the existing housing and lens can be reused. Verify your original part number and connector configuration before ordering. Common Problems This Part May Fix Refrigerator interior LED light does not illuminate LED light flickers or operates intermittently Light remains dim despite a good connection Existing light housing and lens are reusable but the electronic board has failed Replaces and Cross-References WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867 These numbers identify the compatible OEM light assembly family. W10515058B is an XPARTCO aftermarket driver board only, not the complete Whirlpool light housing/lens assembly. Compatibility Designed for refrigerators that use the WPW10515058 2-plug LED light assembly. Compatible model examples include: MSF25D4MDE03 MSF21D4MDH00 MSF25D4MDM02 WRS325FDAB02 WRS325FDAM04 KSF22C4CYY01 106.41122211 106.51139214 106.51799411 106.41152211 106.51722410 106.41159211 Important: Partial model list only. Confirm the complete refrigerator model and original light part number before ordering. WPW10515058 uses a 2-plug configuration; WPW10515057 is a different 1-plug light and should not be substituted by appearance alone. Key Features XPARTCO aftermarket replacement Electronic LED driver/circuit board only For compatible WPW10515058 2-plug light assemblies Allows reuse of the original housing and lens when serviceable Designed for select Whirlpool-built refrigerator platforms Product Specifications XPARTCO Part Number W10515058B Part Type Refrigerator LED Light Driver / Circuit Board Brand XPARTCO Condition New Replacement Type Aftermarket Compatible OEM Assembly WPW10515058 / W10515058 Connector Family 2-Plug WPW10515058 Style Housing Included No Lens / Cover Included No Package Quantity 1 Driver Board Installation Notes Disconnect refrigerator power before service. Remove the existing LED light assembly according to the appliance service procedure. Confirm the original assembly is WPW10515058 / W10515058 or a verified equivalent and uses the 2-plug configuration. Transfer the replacement board into the existing serviceable housing/lens as applicable. Reconnect wiring securely and reinstall the light assembly. Restore power and verify proper lighting operation. Diagnostic note: Multiple dark or flickering refrigerator LEDs can sometimes be caused by another failed module, wiring problem, or control issue. Diagnose the lighting circuit before replacing parts unnecessarily. Frequently Asked Questions Does W10515058B include the plastic light housing and lens? No. This listing is for the LED driver/circuit board only. Reuse your existing housing and lens if they are in serviceable condition. Does it replace WPW10515058? It is designed as a board-only aftermarket repair option for compatible WPW10515058-style 2-plug light assemblies. It is not a complete OEM light assembly. Is this the same as WPW10515057? No. WPW10515057 is the similar 1-plug light family. WPW10515058 is the 2-plug family. Is this Genuine Whirlpool OEM? No. W10515058B is an XPARTCO aftermarket replacement board. Shop With Confidence Verify your refrigerator model, original light part number, and connector configuration before ordering. XPARTCO ReplacementBoard Only2-Plug Light FamilyCompatibility Support

Read more less

XPARTCO Refrigerator Replacement Part XPARTCO W10515057B Refrigerator LED Light Board Replaces WPW10515057 Aftermarket LED light circuit board only for compatible 1-plug WPW10515057-style refrigerator light assemblies. Reuse the original housing and tapered lens/cover. Product Overview The XPARTCO W10515057B Refrigerator LED Light Board is an aftermarket replacement circuit/driver board for select refrigerator light assemblies that use the WPW10515057 / W10515057 1-plug configuration. Board only: the plastic light housing and lens/cover are not included. Quick Answer Use W10515057B when the compatible WPW10515057-style light assembly has a failed electronic board but the existing housing and lens can be reused. Verify your original part number and connector configuration before ordering. Common Problems This Part May Fix Refrigerator interior LED light does not illuminate LED light flickers or operates intermittently Light remains dim despite a good connection Existing light housing and lens are reusable but the electronic board has failed Replaces and Cross-References WPW10515057, W10515057, W10398007, AP6022533, AWP51164, EAP11755866, PD00031142, PS11755866 These numbers identify the compatible OEM light assembly family. W10515057B is an XPARTCO aftermarket LED light board only, not the complete Whirlpool light housing/lens assembly. Compatibility Designed for refrigerators that use the WPW10515057 1-plug LED light assembly. Compatible model examples include: 8WRS25KNBF02 MSF21D4MDH01 WRS322FDAM02 106.51129211 WRS322FNAH00 MSF25D4MDE02 WRS3L5FNDH00 KSF22C4CYY00 WRS325FDAT04 WRS335FDDB02 WRS537SIAM01 WRS325FDAB05 Important: Partial model list only. Confirm the complete refrigerator model and original light part number before ordering. WPW10515057 is the 1-plug light family; WPW10515058 is the different 2-plug light and should not be substituted by appearance alone. Key Features XPARTCO aftermarket replacement Electronic LED light circuit board only For compatible WPW10515057 1-plug light assemblies Allows reuse of the original housing and lens when serviceable Designed for select Whirlpool-built refrigerator platforms Product Specifications XPARTCO Part Number W10515057B Part Type Refrigerator LED Light Light Circuit Board Brand XPARTCO Condition New Replacement Type Aftermarket Compatible OEM Assembly WPW10515057 / W10515057 Connector Family 1-Plug WPW10515057 Style Housing Included No Lens / Cover Included No Package Quantity 1 LED Light Board Installation Notes Disconnect refrigerator power before service. Remove the existing LED light assembly according to the appliance service procedure. Confirm the original assembly is WPW10515057 / W10515057 or a verified equivalent and uses the 1-plug configuration. Transfer the replacement board into the existing serviceable housing/lens as applicable. Reconnect wiring securely and reinstall the light assembly. Restore power and verify proper lighting operation. Diagnostic note: Multiple dark or flickering refrigerator LEDs can sometimes be caused by another failed module, wiring problem, or control issue. Diagnose the lighting circuit before replacing parts unnecessarily. Frequently Asked Questions Does W10515057B include the plastic light housing and lens? No. This listing is for the LED light circuit board only. Reuse your existing housing and lens if they are in serviceable condition. Does it replace WPW10515057? It is designed as a board-only aftermarket repair option for compatible WPW10515057-style 1-plug light assemblies. It is not a complete OEM light assembly. Is this the same as WPW10515058? No. WPW10515058 is the similar 2-plug light family; WPW10515057 is the 1-plug family. Is this Genuine Whirlpool OEM? No. W10515057B is an XPARTCO aftermarket replacement board. Shop With Confidence Verify your refrigerator model, original light part number, and connector configuration before ordering. XPARTCO ReplacementBoard Only1-Plug Light FamilyCompatibility Support

Read more less

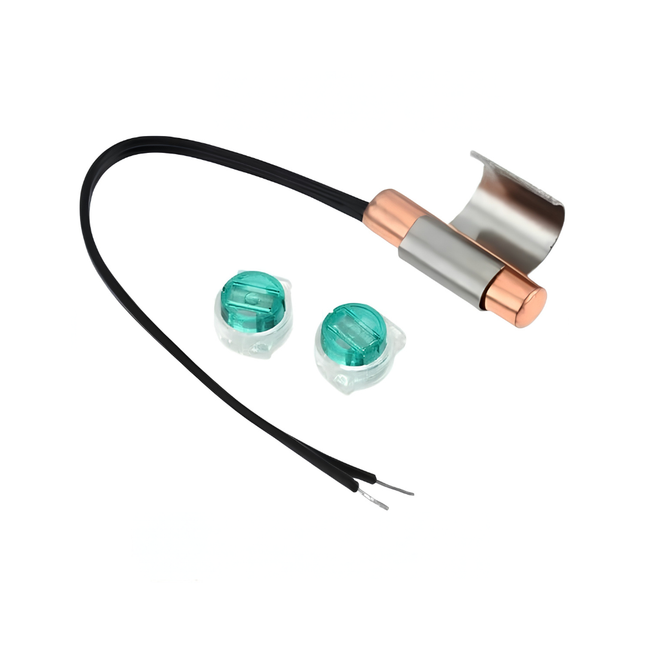

XPARTCO W10316760 Refrigerator Thermistor Sensor The XPARTCO W10316760 is an aftermarket replacement temperature thermistor compatible with a wide range of Whirlpool-built refrigerators sold under the Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef brands. The thermistor sits inside the fresh food or freezer compartment and continuously reports internal temperature back to the electronic control board, which uses that reading to cycle the compressor, evaporator fan, and damper to keep the compartment in range. When the thermistor drifts out of calibration or fails outright, the control board loses an accurate temperature signal and the refrigerator commonly responds with erratic cooling, a warmer-than-normal compartment, food freezing when it shouldn't, or a flashing/blank temperature display. This XPARTCO version is built with a quick-connect mounting clip, so it plugs in without cutting or splicing wires — unlike the genuine Whirlpool OEM part, which ships as a splice-in kit requiring you to cut the old thermistor's leads and join the new ones with included wire connectors. It directly replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944, and additional cross-reference numbers listed below. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO W10316760 Refrigerator Thermistor Sensor fixes Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators that are running warm, running constantly, freezing food unexpectedly, or showing a flashing/blank temperature display. This version uses a quick-connect clip — no wire cutting or splicing like the genuine Whirlpool splice-kit version requires. Replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944. Classic symptom: fridge or freezer running warmer than the setting, or running nonstop. Common Problems This Part Fixes Refrigerator or freezer running noticeably warmer than the temperature setting Fridge running constantly and never cycling off Temperature display flashing, showing dashes, or displaying an error code Food freezing in the fresh food compartment when it shouldn't be Compressor and fans not cycling normally, or running nonstop Inconsistent or swinging temperature readings on the display One compartment (fridge or freezer) running warm while the other stays normal Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator thermistor directly replaces the following OEM and cross-reference part numbers: W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermistor is used across a wide range of Whirlpool-built refrigerators from the following brands: Whirlpool refrigerators (including WRF535SMBM00, WRX735SDBM00, and related French door / side-by-side models) KitchenAid refrigerators (including KBFS22EWBL1, KBFS22EWMS1, KBFS22EWMS3, KBFS22EWMS5, KBFS22EWMS7, KBFS22EWWH1) Maytag refrigerators (select Whirlpool-built models, including KRFF302ESS) Jenn-Air refrigerators (select Whirlpool-built models, including MFI2269VEM) Amana refrigerators (select models) Inglis refrigerators (select models) Magic Chef refrigerators (select models) Note: Many of these refrigerators use separate thermistors for the fresh food and freezer compartments, so confirm which sensor location your model uses before ordering — appearance can be similar across positions. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure. Key Features Direct-fit replacement refrigerator temperature thermistor — reports compartment temperature to the electronic control board Resolves "running warm," "running constantly," "freezing food," and "flashing display" symptoms caused by thermistor failure Quick-connect mounting clip — no wire cutting or splicing required Matches OEM electrical resistance curve for accurate temperature sensing Approximate lead length ~5 inches Replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944, and additional cross-reference numbers Compatible with Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number XPW10316760 OEM Part Number W10316760 Part Type Refrigerator Temperature Thermistor / Sensor Condition Aftermarket Replacement Application Whirlpool-Built Refrigerators (Fresh Food / Freezer Compartment) Mounting Quick-connect clip (no splicing) Approx. Lead Length ~5 inches (may vary by model) Compatible Brands Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, Magic Chef Installation Notes ⚠️ Disconnect Power Before Starting Unplug the refrigerator or shut off power at the breaker before accessing internal panels. Locate the thermistor at its mounting position inside the fresh food or freezer compartment (location varies by model — consult your model's parts diagram if unsure). Photograph the wire routing before disconnecting. On this XPARTCO version, simply unplug the old thermistor's connector from the wiring harness — no cutting or splicing needed. Release the old thermistor from its mounting clip or bracket and remove it. Install the new thermistor in the same position, securing it in its mounting clip. Plug the new thermistor's connector into the wiring harness, matching your photos. Reassemble any panels removed for access. Restore power and allow the refrigerator several hours to stabilize before checking temperatures. Tools needed: nut driver or screwdriver (for panel access), needle-nose pliers (for mounting clip). Frequently Asked Questions Is this the same as the genuine Whirlpool W10316760 thermistor? It's a direct-fit aftermarket equivalent, not the genuine Whirlpool part. The key functional difference is installation: the genuine OEM version ships as a splice-in kit requiring you to cut the old wires and use included splice connectors, while this XPARTCO version has a quick-connect clip that simply plugs in — no splicing tools needed. Will this fit my refrigerator? W10316760 and its cross-reference numbers span a wide range of Whirlpool-built models across several brands. Confirm fit using your refrigerator's exact model number before ordering, since visually similar thermistors are used across different platforms and compartment locations. Contact our support team with your model number if you're unsure. My fridge is warm but the freezer is fine (or vice versa) — could this part be the cause? Yes. Most of these refrigerators use separate thermistors for the fresh food and freezer compartments, so a single failed sensor can cause one section to run warm while the other stays normal. Confirm which sensor location your model uses before ordering. Do I need any tools to install this? Basic hand tools to access the interior panel (typically a nut driver or screwdriver) plus needle-nose pliers to release the old mounting clip. Because this version uses a plug-style connector, no wire strippers, cutters, or splice connectors are needed — unlike the genuine OEM splice-kit version. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical resistance curve, mounting position, and temperature-sensing function of the original W10316760 thermistor used in compatible Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

DA32-00029X Genuine OEM Samsung Refrigerator Temperature Sensor The DA32-00029X is a Genuine OEM Samsung replacement refrigerator temperature sensor compatible with select Samsung side-by-side and French door refrigerators, as well as related Kenmore Samsung-built models. This NTC (negative temperature coefficient) thermistor continuously monitors the temperature inside the refrigerator and sends resistance-based readings to the electronic control board, which uses this data to cycle the compressor, fans, and defrost heaters to maintain accurate, consistent temperatures throughout the appliance. As the thermistor heats up or cools down, its electrical resistance changes predictably, allowing the control board to calculate the exact temperature in real time. When this sensor fails — whether shorted, open, or providing drifted/inaccurate readings — the refrigerator may run too cold or too warm, cycle excessively, fail to maintain set temperatures, run continuously, ice up the evaporator, or display temperature-related fault codes. As a Genuine OEM part manufactured by Samsung to factory specifications, the DA32-00029X is rated approximately 13.2 kΩ at 20°C (68°F) when functioning correctly. It is one of the variants in the DA32-00029 sensor family — Samsung uses different production-run variants (M, N, Q, U, X) across model generations, all functionally similar but with different wire harness connectors. Installs in 20–30 minutes with basic hand tools. Quick Answer The DA32-00029X Genuine OEM Samsung Refrigerator Temperature Sensor fixes Samsung side-by-side and French door refrigerators that run too cold or warm, cycle excessively, freeze up the evaporator, fail to maintain set temperatures, or display temperature-related fault codes. Genuine OEM Samsung NTC thermistor — approximately 13.2 kΩ at 20°C (68°F). One of the DA32-00029 series variants (M, N, Q, U, X) — confirm your specific variant by connector style before ordering. Common Problems This Part Fixes Refrigerator running too cold or too warm — sensor not accurately reporting temperature to the control board Inconsistent temperatures — fluctuating cooling that can't maintain set point Excessive or frequent defrost cycles — control board misreading temperature Refrigerator running continuously without cycling off Heavy frost or ice buildup on the evaporator coils caused by erratic defrost timing Food spoilage from temperature instability Temperature-related error codes displayed on the control panel Multimeter test shows 0 ohms (shorted) or infinite resistance (open) instead of the expected ~13.2 kΩ at room temperature Replaces Part Numbers This temperature sensor directly replaces the following Samsung part number: DA32-00029X, EAP16732853, FIX16732853, ASM30292, AP7188139, OEM21564426, PD00090960, PS16732853. The DA32-00029X is part of the broader DA32-00029 sensor family — variants M, N, Q, U, and X are functionally similar Samsung temperature sensors used across different model generations, but with different wire harness connector configurations. They are not automatically interchangeable — match the variant suffix (or the connector style) to your refrigerator. Contact our support team with your model number if you need confirmation before ordering. Compatibility This temperature sensor is compatible with select Samsung side-by-side and French door refrigerators, including: Samsung side-by-side refrigerators (select models in the RS-series with the matching DA32-00029X connector) Samsung 3-door French door refrigerators in 17.5 cu. ft., 19.5 cu. ft., and related capacities (Black Stainless Steel, Black, White, and Stainless Look finishes) Samsung 4-door French door refrigerators (select RF-series models with the matching DA32-00029X connector) Kenmore / Sears refrigerators (select Samsung-built models) Important — Match the Variant to Your Refrigerator: Samsung uses several variants of the DA32-00029 temperature sensor (M, N, Q, U, X) across different model generations. The sensors are similar in function and resistance value, but the wire harness connectors differ — using the wrong variant means the connector won't fit. Before ordering, verify your refrigerator's parts diagram specifies DA32-00029X (not DA32-00029M, N, Q, or U), or visually confirm the connector on your old sensor matches the new one. Contact our support team with your model number if you're unsure. Key Features Genuine OEM part manufactured by Samsung to factory specifications — guaranteed fit and performance NTC (negative temperature coefficient) thermistor — resistance changes predictably with temperature, allowing precise temperature monitoring Sends real-time temperature data to the control board to regulate compressor cycling, fan operation, and defrost timing Approximately 13.2 kΩ of resistance at 20°C (68°F) when functioning correctly Wire harness with connector attached for direct plug-in installation (variant-specific connector — see compatibility note) One of the DA32-00029 series variants (M, N, Q, U, X) — match to your refrigerator's variant suffix Compatible with select Samsung side-by-side, 3-door French door, and 4-door French door refrigerators, plus Kenmore Samsung-built models Installs in 20–30 minutes with basic hand tools Product Specifications Part Number DA32-00029X Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Genuine OEM Application Side-by-Side and French Door Refrigerators (Samsung platform) Sensor Type NTC (Negative Temperature Coefficient) Resistance at 20°C Approximately 13.2 kΩ (68°F) Variant Family DA32-00029 (M, N, Q, U, X variants) Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. Samsung refrigerators typically have multiple temperature sensors — fresh food compartment, freezer compartment, and evaporator/defrost sensors — confirm which sensor location matches your symptom and parts diagram before starting. The fresh food and freezer sensors are typically clipped to a wall or shelf bracket inside each compartment, while evaporator/defrost sensors are mounted near the evaporator coils behind a rear access panel. Take a photo of the sensor mounting and wire routing before removing. Disconnect the sensor's wire connector (gently — the molex connectors can be fragile) and release the sensor from its mounting clip. Inspect the connector for corrosion or heat discoloration on the wires — discoloration indicates prior overheating in that area. Install the new DA32-00029X sensor in the same position, reseat the connector firmly, and secure the mounting clip. Restore power, allow several hours for the refrigerator to return to its set temperature, and confirm stable temperature operation before reloading with food. Tools needed: Phillips screwdriver, multimeter (for testing), work gloves. Frequently Asked Questions How do I know if the temperature sensor has failed? Unplug the refrigerator, disconnect the sensor's connector, and set your multimeter to resistance mode. At room temperature (around 20°C/68°F), a working NTC thermistor should read approximately 13.2 kΩ. If the sensor reads 0 ohms, it has shorted internally. If it reads infinite resistance (open circuit, often shown as "OL" on the multimeter), the sensor has failed open. Either reading confirms the sensor needs replacement. If the sensor reads close to 13.2 kΩ at room temperature but the refrigerator still has temperature problems, the control board or another sensor in the system may be the actual cause. My Samsung refrigerator has multiple temperature sensors — which one do I replace? Samsung refrigerators typically use multiple temperature sensors: one in the fresh food compartment, one in the freezer compartment, and one near the evaporator coils (often called the defrost sensor). The DA32-00029X is used as the fresh food or freezer compartment temperature sensor on select Samsung models. Confirm the exact mounting location for your specific symptom (e.g., fresh food too warm vs. freezer too cold) and your refrigerator's parts diagram before ordering. The evaporator/defrost sensor is typically a different part number, so don't assume the DA32-00029X covers all sensor positions. What is the difference between DA32-00029X and DA32-00029M, N, Q, or U? These are all variants of the same Samsung refrigerator temperature sensor family. They share the same NTC thermistor design and resistance characteristics (approximately 13.2 kΩ at 20°C), but use different wire harness connector configurations to match different refrigerator generations and wiring designs. The X variant is used on select Samsung side-by-side and French door models, while M, N, Q, and U variants appear on other model groups. They are not automatically interchangeable — match the variant to your refrigerator's exact part diagram, or visually compare connector styles before ordering. My Samsung fridge is icing up the back wall — could this be the sensor? Possibly, yes. If the temperature sensor near the evaporator (the defrost sensor) is misreporting temperature, the control board may not trigger the defrost cycle when needed, allowing ice to build up on the evaporator coils. Eventually this ice migrates to the rear interior wall as a frozen sheet. If your symptom is back-wall icing combined with poor cooling, the evaporator sensor is a likely cause — but confirm whether the DA32-00029X is the evaporator sensor on your specific model, or whether your model uses a different part number for that position. Always verify against your model's parts diagram. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by Samsung to factory specifications. It is the exact same temperature sensor installed in compatible Samsung side-by-side and French door refrigerators (and Kenmore Samsung-built models) from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DA32-00024W Refrigerator Temperature Sensor The XPARTCO DA32-00024W is an aftermarket replacement temperature sensor for Samsung refrigerators. This sensor senses the temperature inside the refrigerator and sends that information to the electronic control board, which uses it to regulate cooling and, on many models, manage the defrost cycle. The manufacturer designation for this sensor is "SENSOR TEMP;NW2,5V,R-DEF," indicating its role in the defrost-related temperature monitoring circuit. Over time, the sensor's electronics can drift out of calibration or fail outright from age or moisture exposure. A failing sensor typically shows up as inconsistent cooling, temperatures that run warmer or colder than the set point, or increased energy consumption as the refrigerator's control struggles to compensate for inaccurate temperature readings. It directly replaces AP5579174, 3955001, and PS4138632. Quick Answer The XPARTCO DA32-00024W Refrigerator Temperature Sensor fixes Samsung refrigerators with inconsistent cooling, temperatures running warmer or colder than expected, or increased energy consumption. Replaces AP5579174, 3955001, PS4138632. This sensor is tied to defrost-related temperature monitoring on many models — if you're also seeing frost buildup or defrost cycle issues, this sensor is worth checking alongside the defrost thermostat or heater. Common Problems This Part Fixes Inconsistent cooling in the refrigerator or freezer compartment Temperature running warmer or colder than the set point Increased energy consumption from the refrigerator overcompensating Temperature fluctuations affecting food freshness Defrost cycle irregularities on models where this sensor is part of that circuit Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator temperature sensor directly replaces the following OEM and cross-reference part numbers: DA32-00024W, 3955001, AP5579174, ASM30135, EAP4138632, PD00030760, PS4138632. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select Samsung refrigerators, including model numbers RS25H5111SR and RF4287HARS. Note: Samsung uses several different temperature sensors across its refrigerator lineup, including sensors for different compartments and functions. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which sensor your refrigerator needs. Key Features Aftermarket replacement temperature sensor — monitors internal refrigerator temperature Resolves "inconsistent cooling," "temperature off target," and "high energy use" symptoms caused by sensor failure Reports temperature data to the electronic control board for cooling and defrost regulation Direct drop-in replacement — no modification required Replaces AP5579174, 3955001, and PS4138632 Compatible with Samsung refrigerators Aftermarket replacement built to OEM-equivalent quality standards Straightforward installation Product Specifications Part Number XPDA32-00024W OEM Part Number DA32-00024W Part Type Refrigerator Temperature Sensor Condition Aftermarket Replacement Brand XPARTCO Manufacturer Designation SENSOR TEMP;NW2,5V,R-DEF Function Senses internal temperature and reports to the electronic control Repair Difficulty Easy Quantity 1 temperature sensor Compatible Brand Samsung Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator and safely store any food that could spoil while the power is off before installing this part. Wear work gloves to protect your hands. Locate the old temperature sensor per your model's service diagram, since its position varies by refrigerator model. Photograph the wiring connection before disconnecting anything. Disconnect the wiring harness from the old sensor, remove any mounting clips or fasteners holding it in place, and pull it free. Install the new DA32-00024W in the same position, reconnect the wiring harness fully, and secure any mounting hardware. Restore power and monitor the refrigerator's temperature over the next 24 hours to confirm consistent, accurate cooling has returned. Tools needed: Phillips screwdriver (model-dependent), work gloves. Frequently Asked Questions My refrigerator's temperature seems inconsistent. Is this the part I need? Yes, this is a common symptom of a failing temperature sensor. Since this sensor is what reports internal temperature to the control board, a drifting or failed sensor can cause the refrigerator to run warmer or colder than intended, or to cycle inconsistently as the control tries to work from inaccurate data. What does the "R-DEF" in this sensor's designation mean? This suggests the sensor plays a role in the refrigerator's defrost-related temperature monitoring on applicable models. If you're seeing frost buildup or defrost cycle problems in addition to general cooling inconsistency, this sensor is worth checking alongside other defrost system components, such as the defrost thermostat or heater. Is this a difficult repair? No, replacing this sensor is generally a straightforward repair once you've located its mounting position, which can vary by model. It typically involves disconnecting a wiring harness and removing a small mounting clip or fastener. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the sensing function, voltage reference, and mounting configuration of the original DA32-00024W sensor used in compatible Samsung refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

5304509493 Electric Range Oven Genuine OEM Control Board Genuine Frigidaire part Replaces Part Numbers: 5304509493, 316557115, 4547461, AFR17844, A03619506, EAP12114577, SF5401-S9506, PD00038168, AP6248375, PS12114577

Read more less

240597220 Genuine OEM Frigidaire Refrigerator Temperature Sensor The 240597220 is a Genuine OEM Frigidaire replacement refrigerator temperature sensor compatible with a wide range of Frigidaire, Electrolux, Kenmore (253/106/795 prefix), Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators and household freezers. This NTC (negative temperature coefficient) thermistor continuously monitors the temperature inside the refrigerator or freezer compartment and sends resistance-based readings to the main control board, which uses this data to cycle the compressor, fans, and defrost heaters to maintain accurate temperatures. As the thermistor heats up or cools down, its electrical resistance changes predictably, allowing the control board to calculate the exact temperature in real time. When this sensor fails or drifts out of range, the refrigerator may run too cold or too warm, cycle excessively, freeze up the evaporator, fail to maintain set temperatures, or display OP error codes. Rated 10K Ohm NTC, with a 5/16" diameter probe, 12" wire, and overall dimensions of 3-5/8"L x 5/8"W x 5/16"H (sensor probe itself measures ~1-3/16"L x 5/16" diameter). Compatible with 20-28 cubic foot North American household refrigerators in French door, side-by-side, top-freezer, and bottom-freezer configurations (post-2005 production). 240597220 is the current OEM part number, superseding 240597203, 240597201, and 240597202. It also replaces 7240597203, AP4032998, AP7243155, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, and PS17647917. Not compatible with mini fridges, car refrigerators, commercial units, wine coolers, or ice makers. Installs in 15–20 minutes with basic hand tools. Quick Answer The 240597220 Genuine OEM Frigidaire Refrigerator Temperature Sensor fixes Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators that run too cold or warm, cycle excessively, freeze up the evaporator, or display OP error codes. NTC thermistor — 10K Ohm at room temperature. 5/16" probe diameter, 12" wire. Overall 3-5/8"L x 5/8"W x 5/16"H. Genuine OEM. Supersedes 240597203, 240597201, 240597202. Also replaces 7240597203, AP4032998, AP7243155, AH1765215, EA1765215, EAP1765215, EAP17647917, 1258948, 4985585, OEM21729470, PD00000590, PD00088922, PS1765215, PS17647917. For 20–28 cu ft household refrigerators built 2005 or later. Common Problems This Part Fixes Refrigerator running too cold or too warm — sensor not accurately reporting temperature Inconsistent temperatures — fluctuating cooling that can't maintain set point OP error code displayed on the control panel (open sensor circuit) Excessive frost or ice buildup on evaporator coils from erratic defrost timing Refrigerator running continuously without cycling off Freezer over-freezing food or fresh food compartment freezing groceries Food spoilage from temperature instability Multimeter test shows 0 ohms (shorted), infinite resistance (open), or drifted resistance instead of the expected ~10K Ohms at room temperature Replaces Part Numbers This temperature sensor is the current OEM part number and supersedes the following OEM and cross-reference part numbers: 240597220, 240597203, 240597201, 240597202, 7240597203, 4985585, AFR15666, AP7243155, EAP17647917, OEM21729474, PD00088922, PS17647917. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select household refrigerators and freezers from the following brands (20–28 cu ft, built 2005 or later): Frigidaire refrigerators — Gallery and Professional series, plus standard Frigidaire models (BFHS2611LM, BGHS2634KE, BGHS2634KP, BGHS2644KF, CRSH237LB, PRFG2383AF, PRFC2383AF, ERFG2393AS2, FRSS2323AS8, FFHB2740PP5A and many related models) Frigidaire upright freezers — FFFH21F7QW, FGU19F6QWB and related models Electrolux refrigerators — EI24RD65KS0, EI24RD65HS0, EI24RD65HS1, E24RD75KPS0 and related models Kenmore / Sears refrigerators — 253-prefix, 106-prefix, and 795-prefix models (select Frigidaire/Electrolux-built units) Crosley refrigerators (select Frigidaire-built models) White-Westinghouse refrigerators (select models) Kelvinator refrigerators (select models) Gibson refrigerators (select models) Tappan refrigerators (select models) Viking refrigerators (select Frigidaire-platform models) Ikea refrigerators (select Frigidaire-platform models) Not compatible with: mini fridges, car refrigerators, commercial refrigerators/freezers, wine coolers, or dedicated ice makers. Verify your refrigerator was produced after 2005 and check the original part number on the fridge nameplate matches one of the cross-references listed. Contact our support team with your model number if you're unsure. Key Features NTC (negative temperature coefficient) thermistor — resistance changes predictably with temperature, allowing precise temperature monitoring Rated 10K Ohms at room temperature (approximately 25°C / 77°F) Sends real-time temperature data to the main control board to regulate compressor cycling, fan operation, and defrost timing Sensor probe: 5/16" diameter x 1-3/16" length · Overall assembly: 3-5/8"L x 5/8"W x 5/16"H · 12" wire lead White plastic/metal construction with glossy finish Resolves OP error codes when caused by an open sensor circuit Compatible with 20–28 cu ft French door, side-by-side, top-freezer, and bottom-freezer refrigerators built 2005 or later Current OEM part number — supersedes 240597203, 240597201, 240597202 and replaces AP4032998, AH1765215, PS1765215, PS17647917 and additional cross-references Compatible with Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Genuine OEM part manufactured by Frigidaire/Electrolux to factory specifications — guaranteed fit and performance Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 240597220 Supersedes 240597203, 240597201, 240597202 Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Genuine OEM Application Household Refrigerators and Freezers (Frigidaire/Electrolux platform, 20–28 cu ft, 2005+) Sensor Type NTC (Negative Temperature Coefficient) Resistance 10K Ohms at room temperature Probe Dimensions 5/16" Diameter x 1-3/16" Length Overall Dimensions 3-5/8"L x 5/8"W x 5/16"H Wire Length 12" Color White Finish Glossy Material Plastic / Metal Error Codes Resolved OP (open sensor circuit) Compatible Brands Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. Depending on your refrigerator model, the fresh-food temperature sensor is typically located behind the air tower or damper assembly on the rear interior wall of the refrigerator compartment; the freezer temperature sensor is typically located behind the rear freezer access panel near the evaporator coils. Confirm which sensor location matches your symptom and the parts diagram for your specific model before starting. Remove all shelves, drawers, and any items blocking access to the sensor location. Remove the screws holding the air tower/damper cover (fresh food side) or rear freezer access panel to expose the sensor. Photograph the sensor position, wire routing, and connector before removing. Disconnect the wire connector (gently — the connector can be fragile) and release the sensor from its mounting clip. Fully insert the new 240597220 sensor probe into the card slot (no exposure) and secure with the mounting clip. Reconnect the wire connector — plug wiring terminals tightly to avoid poor contact. Use cable ties to secure any loose wire routing as before. Reinstall the cover or panel, replace the shelves and drawers, and plug the refrigerator back in. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, cable ties, multimeter (for testing), work gloves. Frequently Asked Questions What does OP error code mean on my Frigidaire refrigerator? The OP error code (Open) indicates the control board is detecting an open circuit on a temperature sensor input — meaning the sensor is failing to send a resistance signal, either because the sensor itself has failed open internally, the wire has broken, or the connector isn't seated. Replacing the temperature sensor typically resolves the code when the sensor itself is the cause. If the code persists after replacement, check the wire harness between the sensor and the control board for damage, and confirm the connector is fully seated. If the OP code appears alongside other symptoms like frost buildup and cooling issues that persist after sensor replacement, the defrost temperature sensor (on the Harness-Low Side, a different part number) may also need to be replaced, or the main control board may be at fault. How do I test if the temperature sensor has failed? Unplug the refrigerator, disconnect the sensor's wire connector, and set your multimeter to resistance mode. At room temperature (approximately 25°C / 77°F), a working NTC thermistor should read approximately 10K Ohms. If the sensor reads 0 ohms, it has shorted internally. If it reads infinite resistance (open circuit, often shown as "OL" on the multimeter), the sensor has failed open. If it reads significantly off from 10K (for example 8.4K or 5K at room temp), the sensor has drifted and is no longer providing accurate readings — replacement is recommended. Any of these results confirms the sensor needs replacement. My refrigerator has multiple temperature sensors — which one do I replace? Frigidaire refrigerators typically use multiple temperature sensors: one in the fresh food compartment (behind the air tower/damper), one in the freezer compartment (near the evaporator coils), and often a separate defrost temperature sensor on the Harness-Low Side. The 240597203 is used as the fresh food or freezer compartment temperature sensor. If your symptom is "fresh food too warm" or "freezer over-freezing," the fresh food sensor is the likely candidate. If your symptom is "freezer icing up despite defrost heater working," the defrost temperature sensor may be the culprit — a different part number. Check your refrigerator's parts diagram to confirm the correct sensor location for your specific symptom. Does this sensor fit my Kenmore refrigerator? On many Kenmore refrigerators, yes — Sears sells Kenmore-branded refrigerators that are manufactured by Frigidaire/Electrolux, Whirlpool, LG, and Samsung. The 240597203 sensor fits Kenmore refrigerators with model numbers beginning with the 253, 106, or 795 prefixes that are Frigidaire/Electrolux-built. Kenmore refrigerators built by other manufacturers (Whirlpool, LG, Samsung) use different sensors. Check the first three digits of your Kenmore model number — if it's 253, 106, or 795 and falls within the compatible model list, this is the correct part. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Frigidaire/Electrolux to factory specifications. It is the exact same temperature sensor installed in compatible Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, and Ikea refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO HS810 Refrigerator 3-in-1 Hard Start Kit 1/12 to 1/5 HP 120V The XPARTCO XPHS810 is a universal 3-in-1 hard start kit that combines a solid-state starting relay, a start capacitor, and thermal overload protection into a single prewired unit for refrigerator and freezer compressors rated 1/12 to 1/5 HP at 120V (110–125VAC). It's designed as a direct equivalent to the widely used Supco RCO810 and similar kits, giving a struggling compressor extra starting torque to overcome internal friction and gas pressure at startup — commonly used to fix the classic "click-buzz-click" no-start symptom without replacing the entire compressor. The kit is fully prewired with color-coded leads (typically black = Common, white = Start, red = Run) and mounts directly onto the compressor's terminal pins, with instructions printed on the unit itself. It directly replaces Supco RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, and Mars 32781. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO HS810 3-in-1 Hard Start Kit fixes refrigerators and freezers whose compressor makes a repeated "click-buzz-click" sound and fails to start, or that shut off on thermal overload during startup. Combines relay, start capacitor, and overload protector in one prewired unit for 1/12 to 1/5 HP compressors, 120V, 3.5A RLA. Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, Mars 32781. Do not install on LG linear/inverter compressors — see Installation Notes. Common Problems This Part Fixes Compressor makes a repeated "click-buzz-click" noise and fails to start Refrigerator or freezer runs warm because the compressor won't stay running Compressor hums but doesn't start, then trips off on overload Refrigerator cycles on and off rapidly without reaching temperature Older or worn compressor that starts hard, especially after a power outage ⚠ Capacitor Hazard — Read Before Servicing This kit contains a start capacitor, which can store a dangerous electrical charge even after the refrigerator is unplugged. Always disconnect power before servicing, and discharge the capacitor safely (using an insulated-handle resistor tool or by briefly shorting the terminals with an insulated screwdriver) before handling it. Never touch capacitor terminals with bare hands. If you are not comfortable working around stored electrical charge, have this repair performed by a qualified technician. Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This 3-in-1 hard start kit directly replaces the following OEM and cross-reference part numbers: XPHS810, RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, Mars 32781 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This universal hard start kit is compatible with refrigerator and freezer compressors in the following range: Compressors rated 1/12 HP through 1/5 HP 120V (110–125VAC) single-phase compressors Standard PSC (permanent split capacitor) and RSIR compressor types across Whirlpool, GE, Frigidaire, LG, Samsung, and most other major brands Important: Do NOT install this kit on LG linear/inverter compressors, or any compressor using a variable-speed inverter board (often labeled "Inverter," "Linear," "BLDC," or "Digital"). Connecting a standard hard start kit to an inverter-driven compressor can destroy the inverter control board. Check your compressor's label before ordering, or contact our support team with your model number if you're unsure. Key Features 3-in-1 design combines starting relay, start capacitor, and thermal overload protector in one prewired unit Delivers additional starting torque to help a struggling compressor overcome startup friction and gas pressure Resolves "click-buzz-click," "won't start," and "trips on overload" symptoms on eligible compressors Rated for 1/12 to 1/5 HP compressors at 120V, 3.5A RLA Prewired, color-coded leads with instructions printed on the unit for straightforward installation Can operate with or without an existing run capacitor Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, and Mars 32781 Aftermarket replacement built to OEM-equivalent quality and safety standards Product Specifications Part Number XPHS810 Equivalent To Supco RCO810 / RC0810 Part Type 3-in-1 Refrigerator/Freezer Hard Start Kit (Relay, Capacitor, Overload) Condition Aftermarket Replacement HP Range 1/12 to 1/5 HP Voltage 120V (110–125VAC) Current Rating 3.5A RLA Terminal / Wire Color Code Black = Common (C), White = Start (S), Red = Run (R) — typical; confirm against included diagram Not Compatible With LG linear/inverter compressors Installation Notes ⚠️ Unplug Refrigerator Before Starting — Discharge Capacitor Safely Disconnect power before beginning. Before touching any wiring, check your compressor's data label to confirm it is NOT a linear/inverter/BLDC compressor — this kit is not compatible with those and can damage the inverter board if connected. Access the compressor compartment, typically at the rear or bottom of the unit. Remove the existing relay/overload assembly by gently pulling it straight off the compressor terminal pins — do not force or twist. Use a multimeter to confirm which pins are Common (C), Start (S), and Run (R) if not already labeled. Connect the hard start kit's wires to the matching pins. Wire the kit's main power leads into the refrigerator's supply wiring using wire nuts, following the included diagram. Secure the kit with zip ties or its mounting strap to prevent vibration damage during compressor operation. Restore power and confirm the compressor starts smoothly without repeated clicking. Tools needed: nut driver or screwdriver, digital multimeter, wire nuts, insulated screwdriver (for capacitor discharge). Frequently Asked Questions My compressor makes a clicking or buzzing sound and won't start — will this fix it? A hard start kit resolves this in many cases, especially on older or worn compressors that struggle to overcome internal gas pressure at startup. However, "click-buzz-click" can also indicate a failing compressor winding or a compressor nearing end of life. If the hard start kit doesn't resolve the issue, the compressor itself may need replacement — a hard start kit can extend a marginal compressor's life but can't revive one with failed internal windings. Can I use this on any refrigerator? This kit works on standard PSC and RSIR compressors within the 1/12 to 1/5 HP range at 120V. It is NOT compatible with LG linear/inverter compressors or any variable-speed inverter-driven compressor — connecting it to one of those can destroy the inverter control board. Check your compressor's label for "Inverter," "Linear," "BLDC," or "Digital" before ordering. Do I need to remove my existing start capacitor or relay first? Yes — remove the old relay/overload assembly from the compressor terminal pins before installing this kit. The XPHS810 is designed to work with or without an existing separate run capacitor remaining in the circuit, but the old start relay and any old start capacitor should be removed and replaced by this kit, not left in place alongside it. Is this safe to install myself? Many DIYers install hard start kits successfully, but this repair involves a capacitor that can hold a dangerous electrical charge even after the unit is unplugged, plus correctly identifying compressor terminals. If you're not comfortable working around stored electrical charge or don't have a multimeter to confirm terminal identification, we'd recommend having a qualified technician perform this repair. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WH22X37840 Genuine OEM GE Washer Main Control Board The WH22X37840 is a genuine GE OEM main control board for GE and Profile UltraFresh front-load washers. This board is the washer's central processor — it reads every button press and cycle selection, drives the motor and inverter, opens and closes the water valves, runs the drain pump, and continuously monitors water level through an integrated water pressure switch built into the board itself. Because so many functions route through this single board, a failing control board can produce almost any symptom: a washer that won't power on, won't start a cycle, stalls partway through, fails to fill or drain, or runs a cycle that doesn't match what was selected on the display. This board revises and supersedes WH22X36637, and also replaces WH22X29532, WH22X30898, WH22X32057, WH22X32457, WH22X34659, WH22X35517, WH22X36857, and WH22X37839. As a genuine OEM part, the WH22X37840 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance. Important: this board is not universal across GE's front-load lineup. It must be matched to your specific model and, after installation, programmed with the correct "personality" code for your washer before it will operate properly. Quick Answer The WH22X37840 Genuine OEM GE Washer Main Control Board fixes GE and Profile UltraFresh front-load washers that won't power on, won't start, stall mid-cycle, fail to fill or drain, run the wrong cycle, or have an unresponsive control panel. Genuine OEM, includes an integrated water pressure switch. Revises WH22X36637; also replaces WH22X29532, WH22X30898, WH22X32057, WH22X32457, WH22X34659, WH22X35517, WH22X36857, WH22X37839. Fits GFW650S, GFW850S, PFW870S, and PFW950S platforms. Requires programming a model-specific "personality" code after install, and the drain pump must be confirmed good before installing — a failed pump can damage a new board. Common Problems This Part Fixes Washer won't power on or the display stays completely dark Washer won't start a cycle even though buttons respond and lights come on Cycle stalls or stops partway through with no error explanation Washer won't fill with water, or fills but never advances to wash Washer won't drain or won't spin at the end of a cycle Control panel unresponsive — button presses do nothing, or the wrong cycle runs Display shows scrambled characters, flashing LEDs, or a persistent error code Washer runs erratically — random starts, stops, or cycle changes on its own Board that failed after repeated cycles where the drain pump was struggling Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer main control board directly replaces the following OEM and cross-reference part numbers: WH22X37840, WH22X36637, WH22X35517, WH22X34659, WH22X30898, WH22X29532, WH22X32057, WH22X32457, WH22X36857, WH22X37839, AP7245609, AGE26864, PD00089582, PS17874601. WH22X36637 was the immediately preceding number that GE revised to WH22X37840. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This main control board is compatible with select GE and Profile UltraFresh front-load washers, including: GE front-load washers — GFW650S series GE front-load washers — GFW850S series GE Profile front-load washers — PFW870S series GE Profile front-load washers — PFW950S series Verified model numbers include: GFW650SPN0SN, GFW650SPN1SN, GFW650SPN3SN, GFW650SPN4SN, GFW650SSN4WW, and PFW955SPW0DS. Note: This board only works for the specific GE and Profile models listed above and must be programmed with the correct personality code for your washer after installation. It is NOT a universal front-load control board. If your model number is not listed above, ordering this board is likely to result in a board that installs but never runs correctly. Always verify your full model number before ordering, and contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified firmware, relay switching, and sensor interface Functions as the washer's central processor, coordinating the motor, inverter, water valves, and drain pump Includes an integrated water pressure switch — not available or serviceable as a separate part Resolves "won't power on," "won't start," "stalls mid-cycle," "won't fill or drain," and "unresponsive control panel" symptoms caused by control board failure Revises and directly replaces WH22X36637 and 7 additional legacy board numbers Direct drop-in replacement for the original board mounting and harness connectors Fits GFW650S, GFW850S, PFW870S, and PFW950S GE and Profile UltraFresh platforms Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WH22X37840 Part Type Washer Main Control Board (Electronic Control Module) Condition Genuine OEM Brand GE / GE Profile Application GE and Profile UltraFresh Front-Load Washers Integrated Components Water pressure switch (built into board, not separately serviceable) Programming Required Yes — model-specific personality code must be set after installation Supersedes WH22X36637 Repair Difficulty Medium — top panel removal and electrical connections required Quantity 1 control board Compatible Models GFW650S, GFW850S, PFW870S, PFW950S series Installation Notes ⚠️ 240V Circuit — Unplug Washer Before Starting. Verify Drain Pump First. Board Requires Programming. Disconnect power at the outlet or shut off the circuit breaker before beginning; front-load washers on this platform run on a 120V/240V circuit and internal components can retain a charge briefly after power is removed. Before replacing the board, confirm the drain pump is working correctly. A drain pump that has been struggling, clogged, or intermittently failing can send the control board erratic electrical feedback that damages a brand-new board the same way it damaged the old one — replacing the board alone, without checking the pump, is one of the most common reasons a "new" board fails again within days. Access is typically through the top panel: remove the rear top screws and slide the panel back, then locate the control board housing (commonly behind the top-front console or in a housing near the top of the cabinet, depending on model). Photograph all harness connections before disconnecting anything — this board has numerous connectors and getting even one out of place will cause a no-start or miswired symptom. Ground yourself before handling the board to avoid static damage to its electronics. Remove the mounting screws, disconnect each harness connector, and lift the old board free. Install the new WH22X37840 in the same orientation, reconnect every harness connector exactly as photographed, and secure the mounting screws. Before closing the washer back up, you must program the board with the personality code specific to your model. This is done through a button sequence on the control panel — press and release Start repeatedly until the display shows the personality ID number for your model, then confirm to save it; the control will return to an idle state once accepted. GE's official instructions (publication 99-3000289) detail the exact sequence and a Field Service Mode test if the LEDs don't flash correctly after programming — follow those instructions rather than guessing at the code, since an incorrect personality setting will cause the washer to behave unpredictably. Once programmed, reassemble the top panel, restore power, and run a full test cycle to confirm normal fill, wash, drain, and spin behavior. Tools needed: Phillips screwdriver, nut driver, anti-static wrist strap (recommended), and access to GE's personality programming instructions for your model. Frequently Asked Questions Do I really need to program the board after installing it? Yes — this is not optional. The WH22X37840 is shared across several GE and Profile washer models, and it needs to be told which specific model it's installed in through a "personality" code before it will run correctly. Skipping this step, or entering the wrong code, will leave the washer behaving unpredictably even though the board itself is functioning normally. GE provides official programming instructions (publication 99-3000289) with the button sequence for your model — follow those closely rather than guessing. Why does the listing say to check the drain pump before installing this board? Because on this platform, a failing or clogged drain pump can feed electrical strain back into the control board that damages it over time — the same failure that likely killed your original board. If you install a new board without addressing a bad drain pump, there's a real risk of burning out the replacement as well. Before installing, run the pump through a diagnostic or physically inspect it for clogs, a seized impeller, or electrical failure, and address any issues found there first. My washer won't power on at all. Is this the right part? It's a strong candidate, but rule out the obvious first: confirm the outlet has power, check that the washer's power cord and connection are intact, and check the home's circuit breaker or a blown fuse. If those are all fine and the washer still shows zero signs of life — no lights, no display, no response to any button — the main control board has very likely failed and this board is the correct replacement. What's the difference between WH22X37840 and WH22X36637? They are the same board across production revisions. WH22X36637 was the prior GE part number and WH22X37840 is the current number that supersedes it. If your washer's parts diagram shows WH22X36637 or any of the older numbers (WH22X29532, WH22X30898, WH22X32057, WH22X32457, WH22X34659, WH22X35517), this listing is the correct replacement — it installs and programs the same way. Does this board include the water pressure switch? Yes. The water pressure switch that monitors fill level is integrated directly into this control board and is not available as a separate part per GE. If your washer's issue turns out to be water-level detection specifically — overfilling, underfilling, or an error related to water level — this board is the correct and only OEM fix, since the pressure switch cannot be replaced on its own. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It carries the same firmware, relay switching, integrated water pressure switch, and harness layout as the control board originally installed in your washer, and it is the officially supported replacement for your model once the correct personality code is programmed. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 2188820 Refrigerator Thermistor (Sensor) Replaces WP2188820 The XPARTCO 2188820 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador refrigerators. The thermistor is an NTC (negative temperature coefficient) sensor that continuously monitors the air temperature inside the refrigerator or freezer compartment and sends resistance-based readings to the electronic control board. The control board uses these readings to regulate compressor run time and fan operation, maintaining the set temperature accurately and efficiently. This thermistor features an NTC resistance of 50K ohms at 25°C (27K ohms at 0°C/32°F) and a standard wire length of approximately 5.3 inches (13.46 cm), compatible with low-voltage refrigerator control boards (5V/12V). It directly replaces WP2188820, 2213442, AP6006068, PS11739132, and 1057764. Note: this thermistor is compatible with non-WISE system refrigerators only — it is not compatible with newer Whirlpool refrigerators using the WISE (Whirlpool Intelligent Smart Energy) control system. Installs in under 15 minutes. Quick Answer The XPARTCO 2188820 Refrigerator Thermistor fixes Whirlpool-family refrigerators that are too warm, too cold, have erratic temperatures, run the compressor too long, or display temperature-related error codes. NTC sensor, 50K ohm at 25°C, ~5.3" wire. Non-WISE system models only. Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador. Replaces WP2188820, 2213442, AP6006068, PS11739132. Common Problems This Part Fixes Refrigerator not maintaining set temperature — too warm or too cold Freezer section too warm or food not freezing properly Compressor running continuously without cycling off Temperature fluctuating erratically despite stable ambient conditions Refrigerator temperature-related error codes displayed on the control panel Excessive frost buildup caused by incorrect temperature regulation Food or beverages freezing in the fresh food section Replaces Part Numbers This refrigerator thermistor directly replaces the following OEM and cross-reference part numbers: WP2188820, 2188820, 2213442, EAP11739132, AWP46934, PD00033406, AP6006068, PS11739132. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermistor is compatible with select refrigerators from the following brands and series: Whirlpool refrigerators — 5VW, GC3, EC3, GC5 series Kenmore / Sears refrigerators — 106 series (Whirlpool-built models) KitchenAid refrigerators — KSCS, KSSS, JS series Maytag refrigerators (select models) Jenn-Air refrigerators (select models) Dacor refrigerators (select models) Thermador refrigerators (select models) Important — WISE System Compatibility: The 2188820 thermistor is compatible with non-WISE system refrigerators only. It is not compatible with newer Whirlpool refrigerators equipped with the WISE (Whirlpool Intelligent Smart Energy) control system. If your refrigerator uses the WISE system, this thermistor will not work correctly. Verify your model number before ordering, or contact our support team to confirm compatibility. Key Features NTC (negative temperature coefficient) thermistor — resistance decreases as temperature increases, allowing precise temperature monitoring 50K ohm resistance at 25°C (27K ohm at 0°C/32°F) — matches original WP2188820 specifications Wire length approximately 5.3 inches (13.46 cm) — standard length matching OEM dimensions Low-voltage design compatible with 5V/12V refrigerator control boards Continuously sends temperature readings to the control board to regulate compressor and fan operation Non-WISE system compatible only — verify your model before ordering Direct replacement for WP2188820, 2213442, AP6006068, and PS11739132 Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, and Thermador refrigerators Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 15 minutes Product Specifications Part Number 2188820 OEM Part Number WP2188820 Part Type Refrigerator Temperature Sensor (NTC Thermistor) Condition Aftermarket Replacement Sensor Type NTC (Negative Temperature Coefficient) Resistance at 25°C 50,000 ohms (50K ohm) Resistance at 0°C (32°F) 27,000 ohms (27K ohm) Wire Length Approximately 5.3 inches (13.46 cm) Voltage 5V / 12V (low voltage) WISE System Compatibility Non-WISE models only Compatible Brands Whirlpool, Kenmore, KitchenAid, Maytag, Jenn-Air, Dacor, Thermador Installation Notes ⚠️ Unplug Refrigerator Before Starting Disconnect power before beginning. The thermistor location varies by model — it is typically clipped to a bracket on the interior side wall of the fresh food or freezer compartment, or mounted near the evaporator coil. Consult your model's parts diagram or service manual to confirm the exact location before disassembly. Open the sensor cover or unclip the sensor bracket, disconnect the wiring connector, and pull the old thermistor out. Insert the new 2188820 thermistor, reconnect the wiring connector, and snap the cover or bracket back into place. Ensure the sensor head is positioned close to the compartment wall and the wiring is not pinched. Restore power and monitor the refrigerator temperature over the next few hours to confirm stable, accurate cooling. Tools needed: Phillips screwdriver (for panel access on some models); no tools needed for sensor replacement itself. Frequently Asked Questions What is the difference between 2188820 and WP2188820? These are the same thermistor. WP2188820 is the updated Whirlpool OEM part number that superseded the original 2188820. The 2213442 is also a cross-reference for the same part. This aftermarket replacement is compatible with all three numbers. What does an NTC thermistor do and how do I know if mine has failed? An NTC thermistor is a resistor whose resistance decreases as temperature increases. The control board sends a small voltage through the thermistor and measures the resulting resistance — a lower resistance means warmer temperature, and a higher resistance means cooler temperature. The board uses this reading to decide when to run the compressor and fans. A failed thermistor either reads open circuit (no continuity), short circuit (zero resistance), or provides incorrect readings that cause the refrigerator to run too warm, too cold, or cycle erratically. Test with a multimeter at room temperature — a working 2188820 should read approximately 50K ohms at 25°C (77°F). Significant deviation indicates failure. How do I know if my refrigerator uses the WISE system? The WISE (Whirlpool Intelligent Smart Energy) system was introduced on newer Whirlpool refrigerator models and uses a different thermistor specification that is not interchangeable with the 2188820. Models that use the WISE system are typically marked in the product documentation or on the control board. The easiest way to confirm compatibility is to verify your model number with our support team before ordering, or check whether WP2188820 appears in your model's official parts diagram. If your parts diagram lists WP2188820, this replacement is compatible. Where is the thermistor located in my refrigerator? The thermistor location varies by model and brand. On Whirlpool and KitchenAid models, it is commonly found on the interior side wall of the fresh food compartment clipped to a plastic housing. On some models it is located near the evaporator coil behind the freezer back panel. On Kenmore 106 series models, it may be on the fresh food section wall or inside the back panel. Consult your specific model's parts diagram or search for a model-specific installation video to locate the sensor before disassembling the refrigerator. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with an NTC thermistor rated to the same 50K ohm specification as the original WP2188820 to match the performance and accuracy of the factory sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR55X10025 Refrigerator Temperature Sensor The XPARTCO WR55X10025 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with a wide range of GE, Hotpoint, Haier, Café, and Monogram refrigerators. The temperature sensor monitors air temperature inside the fresh food and freezer compartments and sends that data to the main control board, which uses it to regulate cooling cycles and maintain the correct set temperature. When the sensor fails, the refrigerator may run too warm, too cold, or experience erratic defrost behavior. This sensor measures approximately 1-1/4 inches long and includes 18-inch wire leads. It is constructed from white plastic and is used in both fresh food and freezer compartments depending on the model — on some models it also functions as a defrost sensor on the evaporator coil. It directly replaces OEM part numbers WR55X10025 and a large number of earlier GE thermistor part numbers. Sold individually — some models require two sensors. Installs in under 30 minutes with basic hand tools. Quick Answer The XPARTCO WR55X10025 Refrigerator Temperature Sensor fixes GE and Hotpoint refrigerators that are too warm, too cold, not defrosting, or over-defrosting. The thermistor monitors compartment temperature and communicates with the control board. Approx. 1-1/4" long with 18" leads, white plastic. Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators. Sold individually. Common Problems This Part Fixes Refrigerator compartment running too warm — food spoiling faster than normal Refrigerator running too cold — food or liquids freezing in the fresh food section Freezer section not maintaining correct temperature Refrigerator not defrosting or defrosting too frequently Excessive frost or ice buildup on evaporator coils Refrigerator and freezer both warming up after extended defrost cycles Erratic cooling — temperatures fluctuating unpredictably Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Haier refrigerators (select GE-platform models) Café refrigerators Monogram refrigerators Note: Some GE refrigerator models use two or more temperature sensors. This part is sold individually. Check your model's parts diagram or contact our support team to confirm how many sensors your model requires before ordering. Key Features Monitors fresh food and freezer compartment temperatures and communicates readings to the main control board Also functions as a defrost sensor on the evaporator coil on applicable models Fits both fresh food and freezer positions White plastic construction — durable and resistant to refrigerator temperature extremes Direct replacement for WR55X10025 and over 30 earlier GE thermistor part numbers Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators Sold individually — verify quantity needed for your model before ordering Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 30 minutes with basic hand tools Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Fresh food compartment, freezer compartment, and evaporator coil (defrost sensor) depending on model Sensor Body Length Approximately 1-1/4 inches Color White Material Plastic Includes Sensor with wire leads Sold As Single sensor (some models require 2 — verify before ordering) Compatible Brands GE, Hotpoint, Haier, Café, Monogram Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning any repair. To access the fresh food thermistor, locate the sensor on the left wall of the fresh food compartment — it may be clipped into a housing or bracket. Disconnect the wire connector and pull the old sensor out of its bracket. Slide the new WR55X10025 sensor into the bracket and reconnect the wire connector. To access the freezer or evaporator thermistor, remove the freezer shelves and back panel, then locate the sensor clipped to the evaporator coil bracket. Remove any tie wrap securing the sensor, pull the old sensor from the bracket, insert the new sensor, and reconnect the wire connector. Reinstall the back panel and shelves, restore power, and verify the refrigerator returns to the correct set temperature. Tools needed: Phillips screwdriver, flat pry tool (for panel clips), work gloves. Frequently Asked Questions How many temperature sensors does my GE refrigerator have? The number of sensors varies by model. Many GE French door and side-by-side refrigerators use two or three WR55X10025 sensors — one in the fresh food compartment, one in the freezer, and sometimes one on the evaporator coil. Check your model's parts diagram or contact our support team with your model number to confirm how many you need before ordering. What is a thermistor and how does it work? A thermistor is a type of resistor whose electrical resistance changes with temperature. The main control board sends a small voltage through the thermistor and measures the resistance — a higher resistance means a lower temperature, and a lower resistance means a higher temperature. The board uses this reading to decide when to run the compressor and fans to maintain the set temperature. A failed thermistor sends incorrect readings, causing the refrigerator to over-cool, under-cool, or malfunction during defrost cycles. Can a faulty temperature sensor cause the refrigerator to not defrost? Yes. On models where the WR55X10025 also serves as the defrost sensor on the evaporator coil, a faulty sensor can cause the control board to incorrectly time or skip defrost cycles entirely — leading to excessive frost or ice buildup on the evaporator coils. This frost buildup can eventually block airflow and cause both the refrigerator and freezer sections to warm up. How do I know if my temperature sensor is the cause of my cooling problem? The most reliable way to test the thermistor is with a multimeter. Disconnect the sensor and measure its resistance at room temperature — a working WR55X10025 should read approximately 16,000 ohms at 32°F, dropping as temperature increases. An open circuit (infinite resistance) or short circuit (zero resistance) reading confirms the sensor has failed. If resistance is within the normal range but the refrigerator still has issues, the control board or other components may be at fault. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable plastic to match the dimensions and performance specifications of the original WR55X10025 temperature sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
