Search results for "contactor"

XPARTCO DA97-15765C Refrigerator Condenser Fan Motor The XPARTCO DA97-15765C is an aftermarket replacement condenser fan motor assembly for Samsung French door refrigerators. This assembly includes both the motor and the fan blade together, and it lives in the compressor/machine compartment at the back or bottom of the refrigerator, where its job is to pull air across the condenser coils and compressor to carry heat away from the refrigeration system. That's a different job from an evaporator fan — this motor cools the mechanical side of the system rather than circulating cold air to your food, so a failing condenser fan tends to affect the whole refrigerator's cooling capacity rather than just one compartment. Rated 12V DC, 0.14A, 1.7W, running at approximately 1,120 RPM. On many Samsung models, a failed condenser fan motor triggers a 23C or 23E error code on the display, alongside symptoms like noticeable vibration or noise from the condenser area, elevated internal temperatures, or the over-temperature alarm sensor tripping. Common causes include normal wear on the motor bearings after prolonged use, blockages from dust and debris accumulation around the coils, or damage from moisture exposure. A fan blade that tries to spin but can't complete a full revolution, or that needs a manual nudge to keep turning, is a classic sign this assembly has started to fail. It directly replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328. Quick Answer The XPARTCO DA97-15765C Refrigerator Condenser Fan Motor fixes Samsung French door refrigerators where the whole unit runs warm, the compressor area is noisy or vibrating, a 23C or 23E error code appears, or the over-temperature alarm trips. Includes motor and fan blade. 12V DC, 0.14A, 1.7W, ~1,120 RPM. Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments. Common Problems This Part Fixes Both the fresh food and freezer compartments running warmer than normal at the same time 23C or 23E error code displayed on the control panel Noticeable vibration or unusual noise from the condenser/compressor area at the back or bottom of the cabinet Over-temperature alarm sensor tripping Fan blade that tries to spin but doesn't complete a full revolution Fan blade that stops spinning if not manually nudged to keep turning Refrigerator running constantly as the compressor struggles to keep up Excessive dust or debris buildup visible around the condenser coils and fan Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor assembly directly replaces the following OEM and cross-reference part numbers: DA97-15765C, DA97-15765A, DA97-15765D, DA97-12842A, DA97-12842B, DA97-12842D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328, OEM18003054, ASM138992, PD00050574 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor assembly is compatible with select Samsung French door refrigerators, including model numbers such as: RF220NCTABC, RF220NCTASG, RF220NCTASP, RF220NCTASR, RF220NCTAWW RF221NCTABC, RF221NCTASP, RF221NCTAWW RF22K9381SG F261BEAESR This assembly also fits many additional Samsung French door refrigerator models beyond those listed above. Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our DA31-00334C listing), which sits behind the freezer's rear panel and circulates cold air to the food compartments. It is also a different part family from our DA97-20025A condenser fan listing, which serves a different group of Samsung models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Complete assembly — includes both the motor and the fan blade Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat Resolves "whole fridge running warm," "23C or 23E error code," "noise or vibration from the compressor area," and "over-temperature alarm" symptoms caused by fan failure Rated 12V DC, 0.14A, 1.7W, approximately 1,120 RPM Direct drop-in replacement matching the original mounting and back panel cam-bracket attachment Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328 Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — typically completed in under an hour Product Specifications Part Number DA97-15765C OEM Part Number DA97-15765C Part Type Refrigerator Condenser Fan Motor Assembly (Motor + Blade) Condition Aftermarket Replacement Brand Samsung Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor Voltage 12V DC Amperage 0.14 A Wattage 1.7 W Speed ~1,120 RPM Related Error Codes 23C, 23E Quantity 1 fan motor assembly Compatible Brand Samsung Installation Notes ⚠️ Unplug Refrigerator Before Starting — Store Perishable Food Separately Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Remove all shelves from the upper refrigerator cabinet to improve access. Using a flat-blade screwdriver, gently ease the back panel away from the cabinet — on many models it's retained by a cam bracket and snaps into place, so it should release without excessive force. This exposes the condenser/circulating fan. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring harness connector and the fan blade's position before disconnecting anything. Remove the two screws holding the fan in place, unplug the fan lead harness connector, and remove the defective fan assembly. Install the new DA97-15765C in the same position, reconnect the harness plug, and reinstall and tighten the two mounting screws securely. Confirm the blade spins freely by hand without contacting the housing or coils before reinstalling the back panel — it should snap back into place via the cam bracket. Reinstall the shelves, restore power, and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any error code has cleared. Tools needed: flat-blade screwdriver, Phillips screwdriver, work gloves. Frequently Asked Questions My display shows a 23C or 23E error code. Does that mean I need this part? It's a strong indicator on many Samsung models, since these codes are commonly associated with condenser fan motor failure. Before ordering, it's still worth a quick visual check — clear any dust or debris from around the condenser coils and fan blade, since a heavily clogged condenser can sometimes trigger similar temperature-related codes. If the error persists after cleaning, or if the fan blade doesn't spin freely by hand, this assembly is the likely fix. The fan blade tries to spin but won't complete a full turn. Is that normal? No — this is a classic sign the motor bearings are wearing out or that something is obstructing the blade. A healthy condenser fan should spin freely and continuously once started. If you find yourself needing to give the blade a manual nudge to keep it turning, or it stalls partway through a rotation, the motor has failed and needs to be replaced rather than repeatedly restarted by hand. Both my fresh food and freezer sections are warm. Is this the right part? Yes, that pattern points toward the condenser fan rather than an evaporator fan. Because the condenser fan cools the compressor and coils that the entire refrigeration cycle depends on, a failing condenser fan tends to reduce cooling capacity across both compartments together, rather than leaving one side fine while the other struggles. Does this include the fan blade, or just the motor? This is a complete assembly that includes both the motor and the fan blade together, so there's no need to transfer a blade from your old unit or source one separately. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 0.14A, 1.7W, ~1,120 RPM), fan blade design, and mounting configuration of the original DA97-15765C condenser fan motor assembly used in compatible Samsung French door refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 3949238 Washer Lid Switch Replaces WP3949238 The XPARTCO 3949238 is an aftermarket replacement lid switch assembly for Whirlpool top-load washers, and also fits select Kenmore models. This switch confirms the lid is closed before the washer will spin — a pin on the underside of the lid pushes against the switch's lever, telling the machine it's safe to proceed with the cycle. Includes a 3-wire lead and a metal shield for added durability. Over time, the switch's internal contacts can wear out or fail electrically. If your washer will agitate but won't spin, this switch is a strong candidate for the cause. Symptoms of a failing lid switch include the washer not spinning, not draining, not starting, not agitating, the cycle failing to advance, or the lid not closing properly. It directly replaces WP3949238, 3949238, WP3949238VP, 10800-61, AP6008880, AWP47911, EAP11742021, OEM18026649, PD00002488, PS11742021. Quick Answer The XPARTCO 3949238 Washer Lid Switch fixes Whirlpool and Kenmore top-load washers that won't spin, won't drain, won't start, won't agitate, won't advance through the cycle, or have a lid that won't close properly. Includes 3-wire lead, metal shield. Replaces WP3949238, 3949238, WP3949238VP, 10800-61, AP6008880, AWP47911, EAP11742021, OEM18026649, PD00002488, PS11742021. If your washer agitates fine but won't spin, that's the classic symptom pointing to this switch. Common Problems This Part Fixes Washer not spinning Washer not draining Washer not starting Washer not agitating Cycle not advancing Lid or door won't close properly Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer lid switch directly replaces the following OEM and cross-reference part numbers: WP3949238, 3949238, WP3949238VP, 10800-61, AP6008880, AWP47911, EAP11742021, OEM18026649, PD00002488, PS11742021 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch is compatible with select Whirlpool top-load washers, and also fits select Kenmore washers built on the Whirlpool platform, including model numbers such as 11015732400, 11015842400, 11015852400, 11020692000, 11020602992, 11020612990, 11020612991, 11020622990, 11020622991, 11020632990, 11020632991, 11020642990, 11020642991, 11021894000, 11022292100, 11022294100, 11022422100, 11022432100, 11022442100, 11022622100, 11022632100, 11022642100, 11022652100, 11022662100, 11022692100, 11022692101, 11022702100, 11022702101, 11022712100, 11022722100, and 11022722101. Note — not the same as 3949247: A similarly-numbered switch, 3949247, is a separate part used on different models. Whirlpool also uses several other distinct lid switch designs, including the direct-drive style (8318084) and the thin-twin style (3355806), which are not interchangeable with this switch. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which switch your washer needs. Key Features Aftermarket replacement lid switch assembly — confirms the lid is closed before allowing the washer to spin Resolves "won't spin," "won't drain," "won't start," "won't agitate," "cycle not advancing," and "lid won't close" symptoms 3-wire lead with metal shield for added durability Direct drop-in replacement matching the original mounting and connection Replaces WP3949238, 3949238, WP3949238VP, 10800-61, AP6008880, AWP47911, EAP11742021, OEM18026649, PD00002488, PS11742021 Compatible with Whirlpool and Kenmore top-load washers Aftermarket replacement built to OEM-equivalent quality standards Requires basic hand tools, some disassembly, novice repair experience Product Specifications Part Number 3949238 OEM Part Number WP3949238 Part Type Washer Lid Switch Assembly Condition Aftermarket Replacement Wiring 3-wire lead Shield Metal Function Confirms lid is closed before allowing the washer to spin Repair Difficulty Easy — basic hand tools, novice repair experience Quantity 1 lid switch assembly Compatible Brands Whirlpool, Kenmore Installation Notes ⚠️ Unplug Washer And Shut Off Water Supply Before Starting Unplug your washer and turn off the water supply before you begin — make sure both the hot and cold water supplies are shut off. Remove the screws located on the back of the washer cabinet, usually located at the top of the access panel. Lift or tilt the top of the washer to access the lid switch, typically mounted near the lid opening. Photograph the wiring before disconnecting anything. Disconnect the wire connectors from the old switch and remove the mounting screws securing it in place. Install the new 3949238 in the same position, reconnect the wire connectors fully, and secure the mounting screws. Reassemble the washer cabinet and secure its screws. Restore power and water, then run a test cycle with the lid closed to confirm the washer spins normally. Tools needed: multi screwdriver. Frequently Asked Questions My washer agitates but won't spin. Is this the part I need? Yes, this is the classic and most reliable symptom of a failed lid switch. This switch confirms to the washer's control system that the lid is closed before allowing the spin cycle to run — a failed switch commonly still allows agitation while preventing spin, since spin specifically requires the lid-closed signal. Is this the same as the 3949247 switch I've seen listed nearby? No, these are separate lid switch part numbers, despite the similar numbering. 3949247 is used on different models. Always confirm your exact part number from your washer's parts diagram or the sticker on your old switch before ordering. Is this a difficult repair? No, this is a straightforward repair requiring basic hand tools and some cabinet disassembly, suitable for a novice DIYer. A multi screwdriver is typically all that's needed. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the wiring, mounting, and switching function of the original WP3949238 lid switch assembly used in compatible Whirlpool and Kenmore top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

3148953CM Surface Burner Infinite Switch 240V, 7.5-9.3A switch for 8" elements. Fits specific Whirlpool electric ranges. Replaces Part Numbers: WP3148953, 3148953, 492439, AP6007658, PS11740775, WP3148953VP. Description The Infinite Control Switch is a replacement part for specific Whirlpool ranges and cooktop models. This part allows for precise adjustment of the heat level, enabling users to achieve the perfect temperature for various cooking techniques, from simmering to boiling. Causes of a bad Infinite Control Switch can range from electrical issues, such as short circuits or worn contacts, to mechanical failures within the switch itself.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO 3355806 Washer Lid Switch Replaces WP3355806 The XPARTCO 3355806 is an aftermarket replacement stackable washer lid switch assembly compatible with a wide range of Whirlpool, Kenmore, Roper, Estate, KitchenAid, Maytag, Admiral, Amana, Crosley, Inglis, and Magic Chef stacked washer/dryer laundry centers (thin twin and space-saver units). The lid switch is a safety component mounted near the top of the washer — it detects whether the lid is open or closed and prevents the washer from spinning while the lid is open. When you close the lid, a pin on the lid activates the lever on the switch, signaling the control that it's safe to spin. Without a functioning lid switch, the washer won't spin as a safety measure, even though it may still fill and agitate normally. The switch commonly fails in one of two ways: the plastic body cracks from the lid being slammed over time, or the internal switch contacts wear out and can no longer signal that the lid is closed. Features an 11" wiring harness with round plugs and a 7/8" block connector. It directly replaces WP3355806, WP3355806VP, 3355806, 520880, AP6008072, AP2947199, AH11741201, EA11741201, EAP11741201, PS11741201, PS341529, and PD00002599. Installs in 15–30 minutes with basic hand tools and novice repair experience. Quick Answer The XPARTCO 3355806 Washer Lid Switch fixes Whirlpool, Kenmore, Roper, Estate, and KitchenAid stacked washer/dryer laundry centers where the washer won't spin but still agitates and fills, the machine doesn't detect the lid is closed, or the washer won't start. Stackable washer lid switch assembly — 11" harness with round plugs, 7/8" block. Replaces WP3355806, WP3355806VP, 520880, AP6008072, AP2947199, AH11741201, EA11741201, EAP11741201, PS11741201, PS341529. Compatible with Whirlpool LTE5243/LTG5243 series, Roper RTE5243/RTG5243, and Kenmore thin twin models. Classic symptom: won't spin but still agitates. Common Problems This Part Fixes Washer won't spin but still agitates and fills — the classic lid switch failure symptom Washer won't start at all — control not detecting a closed lid Machine doesn't recognize the lid is closed even when it is Lid switch body cracked from the lid being slammed over time Internal switch contacts worn out — no longer signaling lid closed Washer stops mid-cycle when it should transition to spin Clothes coming out sopping wet because the spin cycle never runs Intermittent operation — washer sometimes spins, sometimes doesn't, depending on lid position Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer lid switch directly replaces the following OEM and cross-reference part numbers: WP3355806, ER3355806, 3355806, AP6008072, AWP47529, EAP11741201, PD00002599, PS11741201. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch assembly is compatible with select stacked washer/dryer laundry centers (thin twin / space-saver units) from the following brands: Whirlpool laundry centers — LTE5243DQ0-DQ8, LTE5243DT2-DT7, LTE5243DZ0/DZ1/DZ2, LTE5243BN0/BN1, LTG5243DQ0-DQC, LTG5243DT3/DT4/DT7/DT8, LTG5243DZ1/DZ2, LTG5243BN0/BN1 series and related Whirlpool laundry centers — WET4024EW and related stacked models Roper laundry centers — RTE5243BL0, RTE5243BW0, RTG5243BL0, RTG5243BW0 series Kenmore / Sears laundry centers — thin twin models (110.9975820, 110088732791-11088754793, 11098573100-11098573800 series and related) Estate, KitchenAid, Maytag, Admiral, Amana, Crosley, Inglis, Magic Chef — select stacked washer/dryer models Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Stackable washer lid switch assembly — detects whether the lid is open or closed and prevents spinning when the lid is open Resolves the classic "won't spin but still agitates" symptom of lid switch failure Restores the safety interlock and allows the washer to complete its spin cycle Features an 11" wiring harness with round plugs and a 7/8" block connector Designed for thin twin, space-saver, and other stacked washer/dryer laundry centers Replaces WP3355806, WP3355806VP, 520880, AP6008072, AP2947199, AH11741201, EA11741201, EAP11741201, PS11741201, PS341529, and PD00002599 Compatible with Whirlpool LTE5243/LTG5243 series, Roper RTE5243/RTG5243 series, and Kenmore thin twin laundry centers, plus Estate, KitchenAid, Maytag, Admiral, Amana, Crosley, Inglis, and Magic Chef stacked units Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number 3355806 OEM Part Number WP3355806 Part Type Stackable Washer Lid Switch Assembly Condition Aftermarket Replacement Application Stacked Washer/Dryer Laundry Centers (Whirlpool platform) Harness Length 11" with round plugs Block Connector 7/8" Function Prevents washer spin when lid is open Location Near top of washer, behind front panel Compatible Brands Whirlpool, Kenmore, Roper, Estate, KitchenAid, Maytag, Admiral, Amana, Crosley, Inglis, Magic Chef Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Work Gloves Unplug the appliance (or shut off the house circuit breaker) and turn off the hot and cold water supplies before beginning. Wear work gloves to protect your hands. On these stacked laundry centers, the lid switch is accessed by removing the front panel or the top panel — unscrew the screws along the edge of the panel and set it aside. Note: on some Whirlpool space-saver units, the hardest part of the job is getting the washer lid off to access the switch, so take your time and consult a model-specific diagram or video. Once the panel is off, locate the lid switch assembly near the top of the machine. Photograph the wiring harness connections before disconnecting anything. Unscrew the retaining screws that hold the lid switch in place, then carefully disconnect the wiring harness from the switch. Connect the wiring harness to the terminals on the new 3355806 switch, following the diagram on the switch for proper installation. Secure the new switch in place with the retaining screws. Reinstall the panel and secure it with the screws. Turn the water supplies back on, plug the washer back in, and test by closing the lid and running a cycle — the machine should advance to spin when the lid is shut. Tools needed: Multi-screwdriver, socket wrench (some models), work gloves. Frequently Asked Questions My washer agitates and fills but won't spin — is the lid switch the cause? Yes — this is the single most common and telling symptom of a failed lid switch. The lid switch is a safety interlock that prevents the drum from spinning while the lid is open. When the switch fails (cracked body or worn internal contacts), the control never receives the "lid closed" signal, so it blocks the spin cycle as a safety measure — but agitation and fill still work because those don't require the lid interlock. If your washer runs through wash and agitate normally but stops when it should spin, leaving clothes sopping wet, the lid switch is the prime suspect. You can confirm by testing the switch for continuity with a multimeter when the lever is pressed. What causes the lid switch to fail? There are two common failure modes. First, the plastic body of the switch can crack over time from the lid being closed hard or slammed repeatedly — the repeated impact stresses the housing until it fractures. Second, the internal electrical contacts wear out from thousands of open/close cycles and can no longer make a reliable connection to signal that the lid is closed. Either way, the fix is the same: replace the lid switch assembly. To extend the life of the new switch, close the lid gently rather than letting it slam. What's the difference between 3355806 and WP3355806? These are the same lid switch across production revisions. 3355806 was the original part number and WP3355806 is the Whirlpool-era part number (with the "WP" prefix Whirlpool adopted) for the same switch. WP3355806VP is a variant packaging code. All are physically and functionally identical — if your laundry center's parts diagram shows any of these numbers, this listing is the correct replacement. The cross-references 520880, AP6008072, and PS11741201 are additional catalog identifiers for the same part. Does this fit my thin twin or space-saver laundry center? This lid switch is specifically designed for stacked washer/dryer laundry centers — the "thin twin," space-saver, and similar stacked units from Whirlpool and its related brands. It fits the Whirlpool LTE5243/LTG5243 series, Roper RTE5243/RTG5243 series, and a wide range of Kenmore thin twin models, among others. Check your model number against the compatibility list above. If your unit is a standalone (non-stacked) top-load washer, it likely uses a different lid switch — contact our support team with your model number and we'll confirm the correct part. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the fit, 11" harness with round plugs, 7/8" block connector, terminal configuration, and lid-detection function of the original WP3355806 lid switch used in compatible Whirlpool, Kenmore, Roper, Estate, and related stacked washer/dryer laundry centers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor The XPARTCO W10613606 is an aftermarket replacement compressor start relay and capacitor assembly compatible with a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, and Magic Chef refrigerators. The start relay is a small but critical electrical component that plugs directly onto the compressor terminals and provides the initial power surge needed to start the compressor motor. Once the compressor reaches operating speed, the relay drops out — leaving the compressor to run on its own. The capacitor (rated 15µF ±5%, 250VAC) works alongside the relay to store and release the burst of electrical energy needed on startup. When the start relay fails, the compressor cannot start — causing the refrigerator to stop cooling entirely. A failed relay typically produces a clicking sound every few minutes as the compressor tries and fails to start, followed by a short rest, then another attempt. This kit includes both the start relay and the CBB61 capacitor. It directly replaces W10416065, 8208290, 8208368, C8931605, 67003186, 67005560, 67005561, 67005562, 67003764, 8171210, and several additional cross-reference numbers. Installs in under 15 minutes — no tools required in most cases. Quick Answer The XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor fixes refrigerators that are not cooling, are too warm, or are making a repeated clicking sound every few minutes as the compressor tries to start. Plugs directly onto the compressor terminals. Kit includes start relay and 15µF 250VAC CBB61 capacitor. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, and more. Replaces W10416065, 8208290, C8931605, 67005560, and more. No tools required — installs in under 15 minutes. Common Problems This Part Fixes Refrigerator not cooling — compressor not running Freezer section too warm or not freezing Both refrigerator and freezer compartments gradually warming up Repeated clicking sound every 2–5 minutes from behind or underneath the refrigerator Compressor hums briefly then shuts off without reaching operating temperature Refrigerator runs but cannot maintain set temperature Shaking the start relay reveals a rattling sound inside — confirms internal failure Replaces Part Numbers This start relay and capacitor kit directly replaces the following OEM and cross-reference part numbers: W10613606, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, W10416065, 8171210, 8208290, 8208368, W10244032, 302TFBYY, SSP14R302TFR,  AWP41206, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This start relay and capacitor is compatible with select refrigerators from the following brands: Whirlpool refrigerators (side-by-side, French door, bottom-freezer) Kenmore / Sears refrigerators (select Whirlpool-built models) Maytag refrigerators KitchenAid refrigerators Amana refrigerators Jenn-Air refrigerators Admiral refrigerators Crosley refrigerators Dacor refrigerators Hardwick refrigerators Inglis refrigerators Litton refrigerators Magic Chef refrigerators Important: Always verify your refrigerator's model number and compare the old relay's shape and terminal configuration to the new part before installing. Some models may require trimming the wire connector tabs for a proper fit. Contact our support team with your model number if you need confirmation before ordering. Key Features Provides the initial electrical surge needed to start the compressor motor — without it, the compressor cannot run and the refrigerator cannot cool Kit includes both the start relay and the CBB61 run capacitor (15µF ±5%, 250VAC) — everything needed in one package Plugs directly onto the compressor terminals — no wiring or soldering required in most cases Quick rattle test — shake the old relay; if it rattles, the internal contacts have failed and it needs replacement Replaces W10416065, 8208290, C8931605, and over a dozen additional cross-reference part numbers Compatible with 13 major appliance brands on the Whirlpool platform Aftermarket replacement built to OEM-equivalent quality standards Fast DIY repair — installs in under 15 minutes, no tools required in most cases Product Specifications Part Number W10613606 Part Type Refrigerator Compressor Start Relay and Capacitor Kit Condition Aftermarket Replacement Application Refrigerator Compressor (side-by-side, French door, bottom-freezer) Capacitor Type CBB61 Run Capacitor Capacitor Rating 15µF ±5%, 250VAC Kit Includes 1x Start relay, 1x CBB61 capacitor Installation Plug-in — no tools required in most cases Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, Magic Chef Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning. Move the refrigerator away from the wall to access the rear or lower back panel. Remove the rear access panel by unscrewing the retaining screws to expose the compressor. The compressor is a large black dome-shaped component — the start relay and capacitor assembly plugs onto the side terminals. Grip the old relay firmly and pull it straight off the compressor pins. Shake it — if it rattles, the internal contacts have failed and replacement is confirmed. Compare the old relay to the new W10613606 to confirm the terminal layout matches. Align the new relay with the compressor pins and press it firmly on. Reinstall the access panel, restore power, and listen for the compressor to start and run normally within a few minutes. Note: Some models may require trimming the wire connector tabs or reversing the connector orientation for a proper fit — do not force the connection. Tools needed: Phillips screwdriver (for panel access only). Frequently Asked Questions What does the compressor start relay do? The start relay plugs onto the compressor terminals and provides the brief but powerful surge of electrical current needed to start the compressor motor from a standstill. Once the compressor reaches operating speed — usually within a second or two — the relay drops out and the compressor runs on its own. Without a working start relay, the compressor cannot start at all, and the refrigerator stops cooling. The capacitor works alongside the relay to store and deliver the extra energy needed on startup. How do I know if my start relay has failed? The most reliable quick test is the rattle test: unplug the refrigerator, pull the start relay off the compressor, and shake it near your ear. A working relay is silent. A failed relay will rattle — the internal contacts have broken free and are loose inside the casing. Another sign is a repeated clicking sound every 2–5 minutes from the back of the refrigerator, where the compressor attempts to start, fails, trips the overload protector, rests, and tries again. If the fridge is warm and you hear clicking, check the relay first. What is the difference between the start relay and the capacitor? The start relay is the switching device that connects and disconnects the start winding of the compressor motor during startup. The capacitor stores a charge and releases it during startup to give the motor the additional torque it needs to get moving under load. Together they work as a startup system for the compressor. This kit includes both — replacing both at the same time ensures the complete startup circuit is fresh and reliable. My fridge is still not cooling after replacing the start relay — what else could it be? If replacing the start relay does not restore cooling, other possible causes include a failed compressor (the compressor runs but no longer builds pressure), a refrigerant leak in the sealed system, a failed start capacitor (if not replaced along with the relay), a bad overload protector, or a faulty main control board. Listen carefully after installing the new relay — if the compressor now starts and runs but the fridge still doesn't cool after several hours, a sealed system issue or refrigerant problem is likely and will require a certified technician. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and terminal configuration of the original W10613606 start relay and capacitor assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

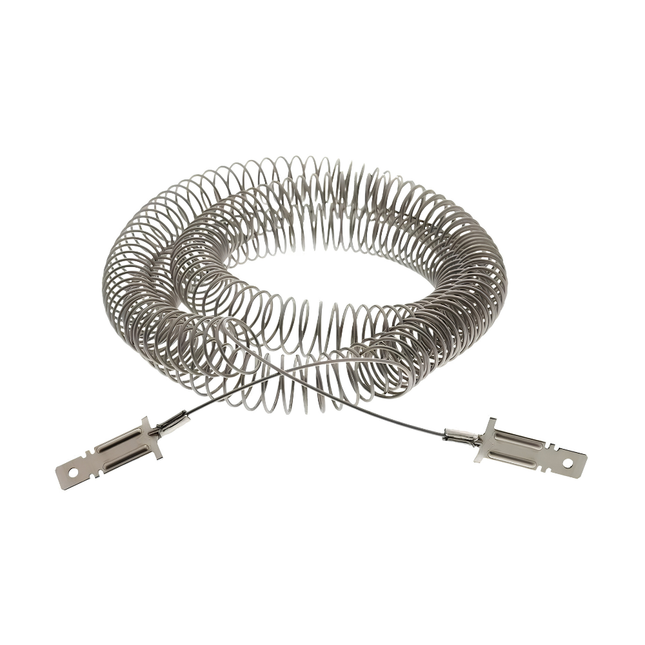

XPARTCO 5300622034 Dryer Heating Element Coil (Restring) The XPARTCO 5300622034 is an aftermarket replacement heating coil, sold as a restring, for Frigidaire-built electric dryers. A restring replaces the burned-out coil inside your dryer's existing heater housing, so you do not need to replace the whole heater assembly. It is a cost-saving repair for a dryer that runs but no longer makes heat. This is a direct-fit aftermarket replacement for the original Frigidaire coil. It has 5/16" terminals. A version with 1/4" terminals has a different part number, so check the terminals on your old coil before ordering. Quick Answer The XPARTCO 5300622034 Heating Element Coil fixes a Frigidaire, Tappan, White-Westinghouse, Gibson, or Kelvinator electric dryer that tumbles but doesn't heat, or heats weakly. It restrings the existing element housing with 5/16" terminals. Classic symptom: the drum spins and the timer runs, but clothes come out cold and damp. Common Problems This Part Fixes Dryer runs but produces no heat Clothes come out damp after a full cycle Dryer heats weakly or takes very long to dry Visible break or burn in the heating coil Coil failure confirmed by a continuity test Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This heating element coil directly replaces the following part number: 5300622034, 137392700C, AFR16756, AH451032, AP2135128, EA451032, OEM6405393, EAP451032, PD00000199, PS451032 No other Frigidaire part numbers were confirmed for this coil. A similar restring with 1/4" terminals is sold under a different number and is not interchangeable. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number. Compatibility This coil is listed for Frigidaire, Tappan, White-Westinghouse, Gibson, Kelvinator, and GE electric dryers, including these examples: DE27A8WAFC, DE27S8WAGC, DE600ADD3, DE600ADW3 F31C336CS0, F31C546CS0, F31C747CS0 FDE116RBW0, FDE216RBS0, FDE336RBS0, FDE436RBS0, FDE546RBS0 Note: The models above are a sample of a much longer list, not a full list. This coil has 5/16" terminals. Dryers using a 1/4" terminal coil need a different part, so compare the terminals on your old element before ordering, or contact our support team to verify fit. Key Features Direct-fit aftermarket heating coil for Frigidaire-built electric dryers Restring design reuses your existing heater housing 5/16" terminals Resolves no-heat and weak-heat problems caused by a failed coil Fits many Frigidaire, Tappan, White-Westinghouse, Gibson, and Kelvinator models Product Specifications Part Number XP5300622034 OEM Part Number 5300622034 Part Type Dryer Heating Element Coil (Restring) Condition Aftermarket Replacement Terminal Size 5/16" Application Frigidaire-Built Electric Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning. Wear work gloves, as the cabinet and heater housing edges are sharp. Remove the panel that gives access to the heater housing per your model's service guide, and disconnect the wires, noting their positions. Remove the old coil and install the new one following the original coil's path through the insulators, then reassemble. Before testing, make sure no part of the coil touches the metal housing. Clean the lint trap and check the exhaust vent for restrictions, since poor airflow shortens element life. Frequently Asked Questions My dryer spins but won't heat. Is this the part I need? A burned-out heating coil is a common cause. Unplug the dryer and test the element for continuity first. If there is no continuity, the coil has failed. A tripped thermal fuse or a failed thermostat can cause the same symptom, so check those too. What is a restring? A restring is a replacement coil that you install in your dryer's existing heater housing, instead of replacing the entire heater assembly. It is usually the lower-cost repair if the housing is in good condition. What are the terminal sizes? This coil has 5/16" terminals. A similar coil with 1/4" terminals has a different part number, so compare the terminals on your old element before ordering. Will this fit my dryer? It is listed for many Frigidaire-built electric dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 3406107 Dryer Door Switch Replaces WP3406107 The XPARTCO 3406107 is an aftermarket replacement door switch for Whirlpool, Kenmore, Maytag, and KitchenAid dryers. Mounted inside the upper corner of the front panel, this safety switch has a spring-loaded black tab that gets pressed in when the door closes. That contact tells the control board the door is shut, which is required before the dryer will start, and it also powers the interior drum light. Over time the switch's internal contacts wear out or the tab loses spring tension, and the dryer either won't start at all or runs with the door open — a safety condition the switch is specifically designed to prevent. This is a three-wire SPDT (single pole, double throw) switch built to the same dimensions and mounting points as the original, and it's designed to remain compatible with older two-wire harnesses as well. Direct-fit aftermarket replacement, no wiring modifications needed. Quick Answer The XPARTCO 3406107 Dryer Door Switch fixes a dryer that won't start, runs with the door open, or has a dead interior light. Direct-fit replacement for OEM WP3406107. Classic symptom: pressing start does nothing until you push and hold the door shut, or the drum light never comes on. Common Problems This Part Fixes Dryer won't start even though the door is closed Dryer runs with the door open (safety switch failure) Interior drum light doesn't turn on Door doesn't seem to latch or seal properly against the switch tab Drum doesn't spin, or cycle stops intermittently Touchpad or start button appears unresponsive Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This door switch directly replaces the following part numbers: WP3406107, WPW10569603, 3406107, 3406109, W10569603, 3405100, 3405101, 3406100, 3406101, ES6107, 528948, 11259-65, PD00002378, EAP11741701, AP6008561, AWP47183, PS11741701 This switch design was updated to a three-wire configuration at some point in its production history (superseding older 3405100/3405101/3406100/3406101 numbers), but the current three-wire version remains compatible with older two-wire harnesses, so it's a safe direct replacement across all of these part numbers. Compatibility This door switch is compatible with a wide range of Whirlpool, Kenmore, Maytag, and KitchenAid dryers, including units across the: Whirlpool/Kenmore Series 60, 70, 80, 90, 500, 600, 700, and 800 dryer lines AED4475TQ1, MEDC400VW0, and numerous additional model numbers Note: This switch has been used across a very wide range of Whirlpool-built dryers (including Kenmore, Maytag, and KitchenAid badged units) spanning many production years, so the list above is only a sample. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering. Key Features Direct-fit aftermarket door safety switch for Whirlpool-built dryers Three-wire SPDT design, backward-compatible with two-wire harnesses Controls both the start-permission safety interlock and the interior drum light Resolves no-start, runs-with-door-open, and dead-light symptoms White plastic and metal tab construction, approx. 6.5" length Straightforward swap — typically 15–30 minutes with basic hand tools Product Specifications Part Number 3406107 OEM Part Number WP3406107 Part Type Dryer Door Safety Switch Condition Aftermarket Replacement Switch Type SPDT (Single Pole, Double Throw) Wire Configuration Three-Wire (Backward-Compatible with Two-Wire Harnesses) Length Approx. 6.5 Inches Color / Material White; Plastic & Metal Construction Application Whirlpool, Kenmore, Maytag & KitchenAid Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning. The switch is mounted inside the upper corner of the front panel, so you'll need to remove the front panel or top panel per your model's service guide to access it. Disconnect the wire connector from the old switch, then remove the mounting screw(s) holding it in place. Install the new switch in the same position, reconnect the wire connector, and reinstall the panel. Before closing everything up, you can test the switch by pressing the black tab — you should feel spring resistance and hear or feel a distinct click. Restore power and confirm the dryer starts normally with the door closed and stops when the door is opened. Frequently Asked Questions My dryer won't start — is this the part I need? This is one of the most common causes of a dryer that won't start even with the door closed. Try pressing the black tab on the switch by hand — if it feels loose, doesn't click, or offers no resistance, the switch has likely failed and needs replacement. My dryer runs even with the door open — is that dangerous? Yes, this indicates the door safety switch has failed in a way that no longer prevents operation with the door open, which is a safety hazard. Replace the switch promptly and avoid running the dryer with the door open in the meantime. My dryer has a two-wire connector — will this three-wire switch still work? Yes. This switch was redesigned to a three-wire configuration but remains compatible with older two-wire wiring harnesses, so it's a safe direct replacement regardless of which wire configuration your dryer currently has. Does this switch also control the interior light? Yes. This switch serves a dual function — it's the safety interlock that permits the dryer to run only with the door closed, and it also powers the interior drum light when the door is open. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR60X10318 Genuine OEM GE Refrigerator Evaporator Fan Motor The WR60X10318 is a genuine GE OEM evaporator fan motor assembly used in side-by-side refrigerators, complete with an integrated 2-wire thermistor built right into its 6-pin wiring harness. This motor draws air across the evaporator coil and circulates it through both the fresh food and freezer compartments, while the built-in thermistor reports temperature back to the control board so it can regulate cooling accurately. Because the thermistor and fan motor arrive as a single assembly, a fault in either function shows up together, and replacing this one part addresses both. The harness and plug measure approximately 13-7/8" in length. Common failure causes include worn motor bearings that eventually seize the shaft entirely, debris or ice buildup around the fan blade, and general electrical wear over time. On this side-by-side platform, a classic failure sequence is a bearing that starts out noisy, then progressively worsens until the motor freezes up completely — once the fan stops moving air, the evaporator coil often ices over heavily since moisture keeps accumulating with nowhere for the resulting cold air to go. Symptoms include unusual noise from the freezer, inconsistent or warm temperatures in either compartment, visible frost buildup on the coil, and a refrigerator that runs continuously trying to compensate. It directly replaces AP4981643, PS3487992, EAP3487992, and 1812462. Quick Answer The WR60X10318 Genuine OEM GE Refrigerator Evaporator Fan Motor fixes GE side-by-side refrigerators with unusual noise from the freezer, warm or inconsistent temperatures, frost or ice buildup on the evaporator coil, or a refrigerator running constantly. Complete assembly with integrated 2-wire thermistor on a 6-pin, 13-7/8" harness. Replaces AP4981643, PS3487992, EAP3487992, 1812462. Not the same part as our WR60X10307 or WR60X10185 listings — those are separate motors for different GE refrigerator platforms. Common Problems This Part Fixes Unusual noise — grinding, buzzing, or humming — coming from the freezer compartment Inconsistent or warm temperatures in the fresh food or freezer compartment, or both Visible frost or ice buildup on the evaporator coil Refrigerator running continuously as it struggles to maintain temperature Fan motor bearing noise that has progressively worsened, sometimes ending in the motor seizing entirely Freezer icing over heavily while temperatures in both compartments climb Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10318, AP4981643, AGE29310, OEM14944938, PD00023381, PS3487992, EAP3487992, 1812462 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE side-by-side refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, and Kenmore refrigerators built on the GE platform. In rare instances, this part is also referenced for compatibility with some LG models. Note: GE uses several different evaporator fan motors across its refrigerator lineup. This WR60X10318 assembly is a separate part from our WR60X10307 and WR60X10185 listings, which serve different model platforms and have their own distinct cross-reference numbers. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Genuine GE OEM part — factory-specified motor, blade, and integrated thermistor design Complete assembly — includes the fan motor plus a 2-wire thermistor built into the 6-pin harness Resolves "unusual noise from the freezer," "warm or inconsistent temperatures," "frost or ice buildup," and "runs continuously" symptoms caused by fan motor failure Approximately 13-7/8" harness and plug length Direct drop-in replacement matching the original mounting and blade fitment Replaces AP4981643, PS3487992, EAP3487992, and 1812462 Genuine OEM replacement — guaranteed fit, materials, and performance DIY-friendly repair, though side-by-side units can have tight working clearance around the fan Product Specifications Part Number WR60X10318 Part Type Refrigerator Evaporator Fan Motor Assembly (with Thermistor) Condition Genuine OEM Brand GE Application Side-by-Side Refrigerators Integrated Component 2-wire thermistor built into the wiring harness Harness Connector 6-pin Harness/Plug Length Approx. 13-7/8 in. Production Numbers 197D4964G011, FDQT26GE7 Quantity 1 fan motor assembly Compatible Brands GE, Hotpoint, Haier, Monogram, Café, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Side-by-Side Units May Have Tight Clearance Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. On side-by-side models, access can be tight: you may need to remove the rear interior panel, the ice maker, and a fan cover to reach the motor, so budget extra time and patience compared to a simpler platform. If the evaporator coil is heavily iced over, let the unit sit unplugged with the door open for several hours, or run a manual defrost, before continuing — ice can make the old motor difficult to remove cleanly and may be masking the actual point of failure. Photograph the 6-pin wiring harness connector and the fan blade's orientation before disconnecting anything. Remove the mounting screws holding the fan assembly in place, unplug the wiring harness connector, and slide the old assembly out of its housing. Slide the new WR60X10318 assembly into the same housing, secure it with the mounting screws, and reconnect the harness connector fully. Confirm the blade spins freely by hand without contacting the housing before reassembling the fan cover, ice maker, and rear panel. Restore power, open the door to test the fan, and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, 1/4" and 5/16" nut drivers, work gloves, and a headlamp or flashlight for visibility in tight spaces. Frequently Asked Questions My freezer is heavily iced over and both compartments are warm. Is this the fan motor? Yes, this is a very common failure sequence on this platform. Once the evaporator fan motor's bearings wear out and the motor slows or seizes, air stops circulating away from the coil, moisture keeps condensing on it, and ice builds up heavily. Once that happens, both the freezer and fresh food compartments typically lose cooling together, since neither is getting circulated cold air anymore. Thawing the ice and confirming the fan motor doesn't spin freely by hand will confirm this diagnosis. Does this include the thermistor, or do I need to buy that separately? It's included. This assembly ships with a 2-wire thermistor built directly into the 6-pin wiring harness, so you don't need to source or install a separate thermistor component — replacing this one part addresses both the fan motor and the thermistor together. Why is access so tight on my side-by-side refrigerator? Side-by-side refrigerators tend to pack components more tightly than French door or top-freezer models, and this evaporator fan often sits behind the ice maker and a dedicated fan cover in addition to the rear interior panel. Removing all of these takes more time than a simpler platform, but the fan motor itself installs the same straightforward way once you have access — a headlamp or flashlight helps considerably in the tighter space. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It includes the same motor design, fan blade, integrated thermistor, and 6-pin harness configuration as the evaporator fan motor assembly originally installed in your side-by-side refrigerator. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10006355 Washer Shift Actuator  Fits specific Maytag, Kenmore, Whirlpool top-load machine models. Replaces Part Numbers: WPW10006355, W10006355, AP6014711, PS11747977. Description: This Shift Actuator is a replacement part for specific Maytag, Kenmore, Whirlpool washing machine models. It is an electronic component located inside the transmission that controls the shifting between wash cycles. The shift actuator receives signals from the washer control board to change modes, initiating proper movements to advance the cycle.   This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

WB03X43926 Genuine OEM GE Range Surface Burner Control Knob Set The WB03X43926 is a genuine GE OEM surface burner knob kit, including 5 stainless steel knobs for GE, Hotpoint, Haier, Monogram, and Café ranges. These are the knobs you turn to light and adjust each surface burner — each one fits onto a control shaft behind the panel, and its position controls the heat setting for that burner. Since this kit includes a full set of five, it's designed for replacing every burner knob on the range at once rather than mismatching a single new knob against several older, worn ones. Over years of use, the finish on plastic-coated or stainless-finished knobs can crack, peel, or start to bubble, and the knobs themselves can become loose or worn at the point where they grip the control shaft. A full-set replacement gives your range a uniform, refreshed look while also resolving any individual knobs that have become difficult to turn or read. Weighing approximately 2.64 oz total, this kit requires no tools to install — each knob simply pulls straight off its post and the new one presses straight back on. It directly replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, and WB03K10294. Quick Answer The WB03X43926 Genuine OEM GE Range Surface Burner Control Knob Set fixes GE, Hotpoint, Haier, Monogram, and Café ranges with burner knobs that are cracked, peeling, bubbling, loose, or simply worn-looking after years of use. Set of 5 stainless steel knobs. Replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, WB03K10294. No tools required — each knob pulls straight off and the new one presses straight on. Common Problems This Part Fixes Burner knobs with cracked, peeling, or bubbling finish Knobs that feel loose or wobbly on the control shaft Knobs that are hard to read due to worn or faded markings Mismatched or inconsistent-looking knobs across the range from replacing them one at a time Knobs that have become difficult to turn smoothly General wear after many years of daily cooking use Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface burner knob set directly replaces the following OEM and cross-reference part numbers: WB03X43926, WB03K10303, WB03K10305, WB03K10208, WB03K10221, WB03K10294, AP7187858, OEM21563583, AGE21567, PD00074146 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This burner knob set is compatible with select GE ranges, and also fits select Hotpoint, Haier, Monogram, and Café ranges built on the GE platform. Note: This is the stainless steel finish knob set. GE also sells a visually different black plastic knob (WB03T10236) for other range models — the two are not interchangeable, so confirm your original knob's finish and shaft style before ordering. Always verify your full model number before ordering, since GE uses several different knob designs across its range lineup. Contact our support team with your model number if you're unsure which knob set fits your range. Key Features Genuine GE OEM part — factory-specified fit and finish Complete set of 5 stainless steel surface burner knobs for a uniform look across the range Resolves "cracked or peeling finish," "loose knob," and "worn markings" symptoms No tools required — pulls straight off the post, presses straight back on Compatible with the same control shaft used across a range of GE-platform ranges Replaces AP7187858, WB03K10305, WB03K10303, WB03K10208, WB03K10221, and WB03K10294 Compatible with GE, Hotpoint, Haier, Monogram, and Café ranges Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB03X43926 Part Type Range Surface Burner Control Knob Set Condition Genuine OEM Brand GE Kit Contents 5 surface burner knobs Finish Stainless steel Weight Approx. 2.64 oz. (full set) Mount Style Push-fit onto control shaft Repair Difficulty Very Easy — no tools required Quantity 1 set (5 knobs) Compatible Brands GE, Hotpoint, Haier, Monogram, Café Installation Notes ⚠️ Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Remove each old knob by pulling it straight off its post — on most models this requires no tools, just firm, even pressure. Align each new knob from the WB03X43926 set with its corresponding control panel position and indicator arrow, then press it firmly onto the post until it seats flush. Repeat for all five burner positions. There's no need to remove the knobs for normal baking, broiling, or self-clean use once installed. Restore power and test that each knob turns smoothly through its full range, with the markings lining up correctly against the indicator arrow at each setting. Tools needed: none. Frequently Asked Questions My knobs' finish is bubbling after many years. Is this the right fix? Yes, this is a common wear pattern on older knobs — one customer described replacing 14-year-old knobs whose coating had started to bubble, and found the swap simple enough to do entirely by hand with no tools. If your knobs are showing this kind of surface wear, a full set replacement gives your range a consistent, refreshed look across all burners. Do I need to remove these knobs before running a self-clean cycle? No — these knobs are designed to be left in place during normal oven use, including self-clean cycles. One customer specifically noted using the self-clean feature without removing the knobs and had no issues. Can I buy just one replacement knob instead of the full set of 5? This particular listing is sold as a complete 5-knob set rather than individually. If only one knob has failed, you may still prefer the full set for a matching, uniform appearance across the range, especially if the remaining original knobs are also showing age. Contact our support team if you're looking for a single replacement knob instead. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original stainless steel finish, shaft fit, and marking layout of the surface burner knobs originally installed on your range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

S48D21 8" Range Surface Element Product Title Aftermarket S48D21 8" Range Surface Element - Compatible with Whirlpool, Maytag, Kenmore, Jenn-Air, Amana Electric Ranges Product Description Revive your electric range’s cooking performance with the Aftermarket S48D21 8" Range Surface Element from Parts-O-Matic. This high-quality aftermarket burner element replaces the original S48D21, delivering 2100 watts at 240V with a 4-turn coil design for efficient and even heating. Ideal for select Whirlpool, Maytag, Kenmore, Jenn-Air, Amana, and other brand electric ranges, it addresses issues like uneven heating, slow warm-up, or non-functional burners. Enjoy free shipping on all orders at Parts-O-Matic! Key Features: ✅ Broad Compatibility: Fits select Whirlpool, Maytag, Kenmore, Jenn-Air, Amana, and other electric range models. 🔥 Efficient Heating: 8" diameter, 4-turn coil delivers 2100 watts at 240V for consistent, even cooking. 💰 Cost-Effective Alternative: Aftermarket part offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Plug-in design with Y-style bracket; requires no tools and takes 5–10 minutes to install. 🛡️ Fixes Common Issues: Resolves uneven heating, slow warm-up, or burners that fail to heat. Compatibility: Compatible with models including but not limited to: Whirlpool: RF110AXSQ0, RF262LXSB, RF365PXKW0 Maytag: MER4110AAH, MER4120AAQ Kenmore: 629.4297, 629.60003600 (pre-2004 models) Jenn-Air: JES9750AAB Amana: AER5511AAQ Replaces part numbers: TJ90SP21MA, 14215226, 1938283, 309917, 403782, 404110, 406000, 814154, ERS48D21, SE302, SP21MA, SU214, SU302, TS4D8221, TS4D8221PB, TS4D8221SR, TS4D8221WI, YSP21MA, AP4503257. Verify compatibility with your appliance brand and model number, please contact Parts-O-Matic support for assistance. Installation Notes: Tools Needed: None for standard installation; a flathead screwdriver may help for stubborn connections. Safety First: Unplug the range before installation to avoid electrical shock. Steps: Remove the old burner element by gently pulling it from the receptacle, align the Y-style bracket of the new S48D21 element, and plug it into the socket. Ensure the element sits flat in the drip pan. If the burner is not level, adjust the connection bolts to ensure they are parallel and push down gently. Installation takes 5–10 minutes. Note: A slight burning smell during first use is normal due to a protective coating; this will dissipate after 15–20 minutes. Download our installation guide or watch our YouTube tutorial for step-by-step instructions. Shop Parts-O-Matic for high-quality aftermarket appliance parts with free shipping on all orders and a 30-day return policy. Restore your range’s cooking performance today! Add to cart now for an affordable fix with free shipping on your entire order!

Read more less

(4 Pack) XPATC5 Furnace & Air Conditioner Control Circuit Board 5 Amp Fuse – Universal HVAC Replacement Product Description Protect your HVAC system’s control board with the XPATC5 Furnace & Air Conditioner Control Circuit Board 5 Amp Fuse (4 Pack). These high-quality aftermarket blade fuses are designed to safeguard furnace and air conditioner control boards from electrical overloads and short circuits. A blown 5-amp fuse can cause the HVAC system to stop working entirely. Replacing it with reliable XPATC5 fuses helps restore operation while protecting sensitive electronic components. XPATC5 fuses are commonly used in residential HVAC systems and are ideal to keep on hand for quick repairs. Replaces Part Numbers ATC-5, ATO-5, 5 Amp HVAC Control Fuse, Furnace Control Board Fuse, Air Conditioner 5A Fuse Compatibility This 5 amp HVAC control board fuse is compatible with many furnace and air conditioner systems from manufacturers including Carrier, Trane, Lennox, Goodman, Rheem, York, and others that use standard ATC/ATO 5-amp blade fuses. Always verify fuse amperage and type before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Built to OEM-equivalent electrical specifications ⚡ 5 Amp Rating – Protects HVAC control boards from overloads 🧯 Critical Safety Component – Helps prevent damage to circuit boards 📦 Convenient 4-Pack – Keep spares on hand for future service 💰 Cost-Effective Solution – Affordable alternative to OEM HVAC fuses 📐 Product Specification Part Number: XPATC5 Component Type: HVAC Control Board Fuse Amperage Rating: 5 Amp Voltage Rating: 32V Fuse Style: ATC / ATO Blade Fuse Quantity: 4-Pack Application: Furnace & air conditioner control boards Quality Level: Aftermarket replacement (not OEM) 🛠️ Installation Notes Tools Needed: Needle-nose pliers or fuse puller ⚠️ Safety First: Always turn off power to the HVAC system before replacing fuses to avoid electrical shock or equipment damage. Basic Steps: Shut off power to the furnace or air conditioner. Open the control board access panel. Locate the blown 5-amp fuse. Remove and replace it with a new XPATC5 fuse. Restore power and test system operation. ⏱️ Time Required: 5 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket HVAC Parts 🔄 30-Day Return Policy Protect your HVAC system and keep it running — Add to Cart Now for a reliable, budget-friendly solution!

Read more less
