XPARTCO EAU63923603 Refrigerator Evaporator Fan Motor The XPARTCO EAU63923603 is an aftermarket replacement evaporator fan motor assembly compatible with a wide range of LG and Kenmore LG-built French door, side-by-side, and bottom-freezer refrigerators — including the LFCC, LFCS, LFXC, LFXS, LMXC, LMXS, LRDCS, LRFCS, LRFDS, LRFWS, LRFXS, LRMVS, LRMXC, and LRMXS series. The evaporator fan motor draws air across the cold evaporator coils and circulates it through the fresh food compartment. This constant airflow is what keeps the refrigerator section at temperature. When the fan motor fails, the most telling symptom is that the refrigerator section runs warm while the freezer stays cold — because the coils are still producing cold, but nothing is moving that air up into the fridge. Electrical specs: DC 12V, 1.0A, with a 4-pin connector. Motor body: 75 x 55 x 25 mm. Shaft: 46 mm (1.81") long, 3.0 mm diameter. Lead length: 70 cm (27.5"). Housing made from durable ABS plastic with quality metal internal components. It directly replaces EAU63923603, EAU65058305, EAU63923606, AP6317197, PS12383671, EAP12383671, and PD00045140. Note: this is an upgraded replacement design — the motor body may look slightly larger than your original, but the mounting holes and connector locations are identical, so fit and compatibility are unchanged. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO EAU63923603 Refrigerator Evaporator Fan Motor fixes LG and Kenmore LG-built refrigerators where the fridge section is warm but the freezer is cold, cooling is insufficient, the freezer has excessive frost, the fan is noisy, or the fan doesn't spin at all. DC 12V, 1.0A, 4-pin connector. Body 75x55x25mm · Shaft 46mm L x 3.0mm dia · 70cm (27.5") lead. ABS housing. Replaces EAU65058305, EAU63923606, AP6317197, PS12383671, EAP12383671, PD00045140. Compatible with LG LFCC/LFCS/LFXC/LFXS/LMXC/LMXS/LRDCS/LRFCS/LRFDS/LRFWS/LRFXS/LRMVS/LRMXC/LRMXS series. Upgraded design — may look slightly larger, but mounting holes and connector are identical. Common Problems This Part Fixes Refrigerator (fresh food) compartment warm while the freezer stays cold — the signature symptom of evaporator fan motor failure Insufficient cooling throughout the refrigerator Uneven or inconsistent temperatures between compartments Excessive frost buildup in the freezer or on the evaporator coils Unusual or loud noises coming from the fan area — failing motor bearings or a blade rubbing on frost Fan motor doesn't run or the fan blade doesn't spin at all Visible damage or obstruction to the motor or fan blades Refrigerator running continuously to compensate for poor air circulation Food spoiling faster than normal in the fresh food compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: EAU63923603, EAU63923606, EAU65058305, AP7178305, ALG53955, AP6317197, PD00045140, PS12383671. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. LG uses several different evaporator fan motors across its refrigerator lineup — verify your original motor's part number and connector before ordering. Compatibility This evaporator fan motor is compatible with select LG and Kenmore refrigerators, including: LG French door refrigerators — LFCC22426S (/00, /01), LFCC23596S (/01), LFCS27596S (/00, /01), LFCS28768S (/00) series LG French door refrigerators — LFXC22526D (/00, /02, /04, /10), LFXC22526S (/00, /01), LFXC22596D (/00), LFXC22596S (/00, /01) series LG French door refrigerators — LFXS26596D (/01), LFXS26596M (/00), LFXS26596S (/00, /01), LFXS26973D (/00), LFXS28566D, LFXS28566S, LFXS28596D, LFXS28596M, LFXS28596S, LFXS28968D, LFXS28968S series LG French door refrigerators — LMXC22626D, LMXC22626S, LMXS28596M, LMXS28596S, LMXS28626S, LMXS28636S series LG refrigerators — LRDCS2603S, LRFCS2503S, LRFDS2503S, LRFWS2906D, LRFWS2906S, LRFXS2503S, LRFXS2503D series LG refrigerators — LRMVS2806D, LRMVS2806S, LRMXC2206D, LRMXC2206S, LRMXS2806S series Kenmore / Sears refrigerators — select LG-built models (including 795-series such as 79574109810) Note: This is an upgraded replacement design — the motor body may appear slightly larger than your original, but the mounting holes and connector locations are identical, so fit and compatibility are unchanged. LG uses several different evaporator fan motors across its lineup with different voltages and connectors — verify your original motor's part number and 4-pin connector before ordering. Contact our support team with your model number if you're unsure. Key Features Evaporator fan motor assembly — circulates air across the evaporator coils and through the fresh food compartment for efficient, even cooling Resolves the classic "fridge warm, freezer cold" symptom of evaporator fan failure Also fixes insufficient cooling, excessive frost, unusual fan noise, and a fan that won't spin Electrical specs: DC 12V, 1.0A with a 4-pin connector Motor body: 75 x 55 x 25 mm · Shaft: 46 mm (1.81") long x 3.0 mm diameter · Lead length: 70 cm (27.5") Durable ABS plastic housing with quality metal internal components for long service life Upgraded design — body may be slightly larger than the original, but mounting holes and connector locations are identical Cost-effective repair — restores cooling performance instead of replacing the whole refrigerator Replaces EAU65058305, EAU63923606, AP6317197, PS12383671, EAP12383671, and PD00045140 Compatible with LG LFCC, LFCS, LFXC, LFXS, LMXC, LMXS, LRDCS, LRFCS, LRFDS, LRFWS, LRFXS, LRMVS, LRMXC, LRMXS series and Kenmore LG-built refrigerators Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number EAU63923603 Part Type Refrigerator Evaporator Fan Motor Assembly Condition Aftermarket Replacement Application French Door, Side-by-Side & Bottom-Freezer Refrigerators (LG platform) Voltage DC 12V Current 1.0A Connector 4-pin Motor Body Dimensions 75 x 55 x 25 mm Shaft Length 46 mm (1.81") Shaft Diameter 3.0 mm Lead Length 70 cm (27.5") Housing Material ABS plastic Design Note Upgraded — body may be slightly larger; mounting holes and connector identical Compatible Brands LG, Kenmore (LG-built) Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located behind the rear evaporator access panel. Remove the shelves, drawers, and any items blocking access to the back wall of the compartment. If there's frost or ice buildup on the panel or coils, allow it to thaw completely before continuing — never chip or pry ice off the evaporator coils, as the aluminum fins damage easily and a damaged coil is a far more expensive repair. Remove the screws securing the rear access panel and lift it away to expose the evaporator coils and fan motor. Photograph the wiring connection, fan blade position, and motor orientation before disconnecting anything. Disconnect the 4-pin wiring connector by gently pulling the plug. Remove the fan blade from the motor shaft (note its orientation — it must go back the same way), then remove the mounting screws holding the motor in place and lift out the old motor. Install the new EAU63923603 motor in the same position and orientation — the mounting holes and connector location match the original even though the body may look slightly larger. Secure the mounting hardware, reinstall the fan blade on the 3.0 mm shaft, and reconnect the 4-pin wiring connector until it seats firmly. Confirm the fan blade spins freely by hand without rubbing on any surrounding surface. Reinstall the rear access panel, shelves, and drawers. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions My refrigerator section is warm but the freezer is still cold — is this the fan motor? This is the single most common and telling symptom of a failed evaporator fan motor. Here's why: the evaporator coils (which produce the cold) sit in the freezer section, and the evaporator fan is what pushes that cold air into the fresh food compartment. When the fan motor fails, the freezer stays cold (it's right next to the coils) but the fridge warms up because no air is being circulated to it. If your freezer is cold and your fridge is warm, the evaporator fan motor is the prime suspect. You can confirm by listening for the fan when the compressor runs, or by opening the rear evaporator panel to see if the fan spins. The new motor looks bigger than my old one — is it the right part? Yes — this is an upgraded replacement design, and it's normal for the motor body to appear slightly larger than the original LG unit. What matters is that the mounting holes and connector locations are identical to the original, so it bolts into the same position and plugs into the same 4-pin harness. The shaft (46 mm long, 3.0 mm diameter) also matches, so your existing fan blade transfers over. Compatibility is unchanged. If you have any concern, compare the mounting hole spacing and the connector to your old motor before installing. Why is my evaporator fan making noise? A noisy evaporator fan usually means one of two things: the motor bearings are wearing out (producing grinding, buzzing, or squealing), or the fan blade is rubbing against frost or ice that has built up around it. If frost buildup is the cause, that often points to a secondary problem in the defrost system (defrost heater, sensor, or control) allowing ice to accumulate where it shouldn't. Replacing a worn-out fan motor resolves the bearing noise. If heavy frost keeps returning after replacement, investigate the defrost system next. LG has several similar fan motors — how do I know this is the right one? LG uses several different evaporator fan motors across its refrigerator lineup, and while they look similar, they differ in voltage, current, shaft dimensions, and connector style. The EAU63923603 is a DC 12V / 1.0A motor with a 4-pin connector, 46 mm shaft, and 70 cm lead, used across the LFCC/LFCS/LFXC/LFXS/LMXC/LMXS/LRDCS/LRFCS/LRFDS/LRFWS/LRFXS/LRMVS/LRMXC/LRMXS series. Before ordering, find the part number printed on your old motor and confirm it's EAU63923603 or one of the listed cross-references (EAU65058305, EAU63923606, AP6317197, PS12383671). If your motor shows a different number, contact our support team with your model number and we'll confirm the correct motor. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured with an ABS housing and quality metal internal components to match the electrical specifications (DC 12V, 1.0A), 4-pin connector, shaft dimensions (46 mm x 3.0 mm), mounting hole pattern, and cooling function of the original EAU63923603 evaporator fan motor used in compatible LG and Kenmore LG-built refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W11590294 Gas Oven Igniter The XPARTCO W11590294 is an aftermarket replacement flat-style silicon carbide gas oven igniter compatible with select Whirlpool, Amana, Maytag, KitchenAid, Crosley, Jenn-Air, Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges in the WFG, AGR, VRGW, and related series. The oven igniter is a silicon carbide heating element mounted next to the oven burner tube. When a bake or broil cycle is started, the igniter draws electrical current through the gas safety valve, which holds the valve open — and simultaneously heats to ignition temperature to light the gas. The igniter must draw at least 3.2 amps to hold the gas valve fully open; as the silicon carbide element ages and weakens, it draws progressively less current, causing the oven to take too long to light, not light at all, or glow without ever opening the gas valve. This flat-style igniter is rated 3.3–3.6 amps at 120V and measures approximately 4" wide x 1" high. It features a silicon carbide element, high-temperature ceramic housing, and metal bracket. The current part number W11590294 directly supersedes W11208965, W11613927, and W11506321 — all four are the same igniter across successive production revisions. It also replaces 4977065, AP7193166, PS16744629, and EAP16744629. Pre-attached wire connectors included. Note: do not touch the silicon carbide element with bare hands — skin oils cause premature burnout. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO W11590294 Gas Oven Igniter fixes Whirlpool-family gas ovens that won't heat, where the igniter glows but the burner never lights, or where preheat takes too long. Flat silicon carbide igniter, 3.3–3.6A, 120V, approx. 4"W x 1"H. Do not touch element with bare hands. Replaces W11208965, W11613927, W11506321, 4977065, AP7193166, PS16744629. Compatible with Whirlpool WFG320/WFG505, Amana AGR4203/AGR6303, Crosley VRGW, Maytag, KitchenAid, and more. Common Problems This Part Fixes Oven not heating — igniter not reaching operating temperature or gas valve not opening Igniter glows orange or red but the oven burner never lights Oven takes more than 90 seconds to ignite — igniter too weak to fully open the gas valve Oven preheats very slowly — weakened igniter limiting gas valve opening Gas smell when oven is turned on but burner does not light Igniter visibly cracked, broken, or burned out Bake or broil function not working on compatible models Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: W11590294, W11208965, W11506321, W11613927, AP7193166, AWP45526, EAP16744629, PD00083398, PS16744629. W11590294 is the current production part number superseding W11208965, W11613927, and W11506321 — all four are the same igniter. If your parts diagram shows any of these numbers, this replacement is correct. Contact our support team with your model number if you need confirmation before ordering. Compatibility This oven igniter is compatible with select gas ranges and ovens from the following brands and series: Whirlpool gas ranges — WFG320 series (WFG320M0MB0, WFG320M0MS0, WFG320M0MW0 and related models) Whirlpool gas ranges — WFG505 series (WFG505M0BS4, WFG505M0BW3, WFG505M0MB0, WFG505M0MS0, WFG505M0MW0 and related models) Amana gas ranges — AGR4203 series (AGR4203MNB0, AGR4203MNW0 and related models) Amana gas ranges — AGR6303 series (AGR6303MMB0, AGR6303MMW0 and related models) Crosley gas ranges — VRGW series (VRGW3150RB0, VRGW3150RW0, VRGW3162RB0, VRGW3162RS0, VRGW3162RW0 and related models) Maytag gas ranges (select models) KitchenAid gas ranges (select models) Jenn-Air gas ranges (select models) Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Flat-style silicon carbide oven igniter — heats to ignition temperature and draws current through the gas safety valve to hold it open so gas can flow to the burner Draws 3.3–3.6 amps at 120V — correct amperage range to reliably open the oven gas safety valve on compatible models Dimensions: approximately 4" wide x 1" high Silicon carbide element, high-temperature ceramic housing, metal mounting bracket Pre-attached wire connectors included — direct plug-in installation on compatible models Current production part superseding W11208965, W11613927, and W11506321 Do not touch the silicon carbide element with bare hands — skin oils cause premature burnout Compatible with Whirlpool WFG320/WFG505, Amana AGR4203/AGR6303, Crosley VRGW, Maytag, KitchenAid, and related brands Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number XPW11590294 Supersedes W11208965, W11613927, W11506321 Part Type Gas Oven Flat Igniter (Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens Igniter Style Flat silicon carbide element Amperage Draw 3.3 – 3.6 Amps Voltage 120V AC Dimensions Approximately 4" W x 1" H Material Silicon carbide / Ceramic / Metal / Plastic Color White / Silver Connector Pre-attached wire connectors Handling Note Do not touch element — skin oils cause premature burnout Compatible Brands Whirlpool, Amana, Maytag, KitchenAid, Crosley, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Kenmore Installation Notes ⚠️ Gas Appliance Safety Warning This part is installed in a gas range. Always unplug the range and shut off the gas supply at the shutoff valve before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. Do not restore power or gas until the repair is fully complete and all connections are confirmed secure. ⚠️ Handle With Care — Do Not Touch the Igniter Element The silicon carbide igniter element is fragile and sensitive to skin oils. Handle only by the bracket and wiring — never touch the silicon carbide element itself. To install: unplug the range and shut off gas. Remove the oven racks and oven bottom panel to expose the burner assembly. Locate the old igniter mounted next to the oven burner tube. Disconnect the igniter's wire connectors and remove the two mounting screws securing the bracket. Note the wire routing inside the range cavity before removing — be careful not to let the burner wires fall back into the range body. Connect the new W11590294 igniter's pre-attached connectors to the matching wires from the range. Mount the new igniter in the same position with the two bracket screws. Reinstall the oven bottom panel and racks. Restore gas and power, then run a bake cycle and confirm the igniter glows and the burner lights within 60–90 seconds. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions What is the relationship between W11590294, W11208965, W11613927, and W11506321? These are all part numbers for the same gas oven igniter across successive production revisions by Whirlpool. W11506321 was an earlier version, W11613927 and W11208965 were subsequent updates, and W11590294 is the current production number. All four are the same flat silicon carbide igniter with the same specifications, dimensions, and function. If your range's parts diagram or old igniter shows any of these numbers, this replacement covers all of them. My oven igniter glows but the burner never lights — is this the right part? Yes — an igniter that glows but fails to light the burner is the most common symptom of a weakened igniter. The gas safety valve requires at least 3.2 amps of current draw through the igniter to hold it open. As the silicon carbide element ages, it draws less current — eventually reaching a point where it glows visibly but no longer draws enough current to fully open the gas valve. If the igniter glows for more than 90 seconds without the burner lighting, it needs replacement. The W11590294 is rated 3.3–3.6 amps, which is the correct range to reliably activate the safety valve on compatible models. What is the difference between W11590294 and W11176454? Both are flat silicon carbide oven igniters for Whirlpool-family gas ranges, but for different model series. The W11590294 is used on the WFG320, WFG505, and related entry-level Whirlpool and Amana gas ranges. The W11176454 (which replaces W10914411) is used on higher-end Whirlpool, Amana, and Maytag models across a broader range of WFG, MGR, and related series. They have the same amperage rating and igniter style but are not always interchangeable — always verify your model number before ordering to confirm which igniter is correct for your range. How do I test if the oven igniter has failed? The most practical test is observation: if the igniter glows for more than 90 seconds without the burner lighting, the igniter is too weak. For a more precise test, use a multimeter in resistance mode — disconnect the igniter and measure resistance across the element. A working W11590294-style igniter typically reads between 40–100 ohms at room temperature. An open circuit (infinite resistance) means the element has burned through completely. You can also test in operation by measuring current draw at the igniter circuit — a reading below 3.2 amps indicates the igniter is too weak to reliably open the gas valve. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from silicon carbide, ceramic, metal, and plastic to match the amperage draw, dimensions, and performance of the original W11590294 gas oven igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 349241T Dryer Drum Roller Set (2-Pack) The XPARTCO 349241T is an aftermarket replacement dryer rear drum support roller set compatible with a wide range of Whirlpool-family 29-inch dryers including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, Admiral, and Magic Chef. The drum support rollers are cylindrical rubber-and-metal wheels mounted on shafts at the rear of the dryer cabinet that cradle and support the outer edge of the drum as it rotates. Without the rollers, the drum would drag directly on the cabinet, causing rapid wear and generating the loud thumping or squealing noise that indicates failing rollers. This set includes 2 drum rollers, 4 tri-ring retaining clips, and 2 retaining washers — everything needed for a complete rear roller replacement. Each roller measures 3-1/4"L x 1"W x 3-1/4"H and is constructed from rubber over a metal bearing hub with a plastic axle support. Both rollers must always be replaced at the same time. The set directly replaces 349241, 349241TVP, 8170, 8205, 337089, 340352, 661562, 3389901, 3397588, 3397590, AP3098345, PS347627, and several additional cross-reference numbers. Often replaced together with the drum belt (341241) and idler pulley (691366 or 279640) for a complete drum drive repair. Installs in 30–60 minutes with basic hand tools. Quick Answer The XPARTCO 349241T Dryer Drum Roller Set fixes Whirlpool-family 29" dryers that are squealing, thumping, rumbling, or where the drum is not turning smoothly. Set of 2 rollers with 4 tri-rings and 2 retaining washers. 3-1/4"L x 1"W x 3-1/4"H each. Replace both rollers at the same time. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, Admiral, and Magic Chef 29" dryers. Replaces 349241, 8170, 8205, 337089, 3389901, AP3098345, PS347627. Common Problems This Part Fixes Loud thumping, rumbling, or squealing noise during the drying cycle Grinding or scraping sound when the drum is turning Drum turning unevenly or wobbling during operation Drum not spinning — rollers so worn they can no longer support the drum Squealing or squeaking that gets worse over time as roller bearings degrade Marks or scuff lines on clothes — drum dragging against the dryer cabinet Excessive vibration during the drying cycle Replaces Part Numbers This drum roller set directly replaces the following OEM and cross-reference part numbers: 349241T, 26000349241, 337089, 3389901, 3397588, 3397590, 340352, 3436, 349241, 349241TVP, 661562, 8170, 8205, 99989678, 99989679, AWP39168, AH347627, EA347627, K34-895, PD00002257, EAP347627, AP3098345, PS347627.  If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drum roller set is compatible with select 29-inch gas and electric dryers from the following brands: Whirlpool dryers (gas and electric — 29" models) Kenmore / Sears dryers (Whirlpool-built models) Maytag dryers KitchenAid dryers Amana dryers Roper dryers Crosley dryers Estate dryers Inglis dryers Admiral dryers Magic Chef dryers Note: The 349241T rollers are for 29-inch Whirlpool-family dryers. Newer Whirlpool Duet front-load dryers and larger-capacity models use different roller part numbers (such as WPW10314173 / 8536974). Always verify your model number before ordering. Key Features Set of 2 rear drum support rollers — supports and cradles the drum as it rotates for smooth, quiet operation Includes all hardware: 2 rollers, 4 tri-ring retaining clips, 2 retaining washers — everything needed for a complete installation Dimensions: 3-1/4"L x 1"W x 3-1/4"H per roller Rubber wheel over metal bearing hub with plastic axle support — designed to resist wear and heat under continuous drum load Both rollers must be replaced at the same time — replacing only one results in uneven drum support and accelerated wear on the new roller Often replaced together with the drum belt (341241) and idler pulley (691366 or 279640) for a complete drum drive repair Compatible with 11 major appliance brands on the Whirlpool 29-inch platform Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–60 minutes with basic hand tools Product Specifications Part Number 349241T Part Type Dryer Rear Drum Support Roller Set Condition Aftermarket Replacement Application 29-inch Gas and Electric Dryers Quantity Set of 2 rollers (replace both at the same time) Roller Dimensions 3-1/4"L x 1"W x 3-1/4"H (per roller) Material Rubber wheel / Metal bearing hub / Plastic axle support Color Black / White Kit Includes 2 drum rollers, 4 tri-ring retaining clips, 2 retaining washers Often Replaced With 341241 Drum Belt, 691366 or 279640 Idler Pulley Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, Admiral, Magic Chef Installation Notes ⚠️ Unplug Dryer Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the lint screen and unscrew the screws inside the lint screen housing. Use a putty knife to release the top panel spring clips and lift the top panel. Remove the front panel to access the drum. Release the drive belt from the idler pulley, lift the drum forward, and set it aside. The rear drum support rollers are mounted on shafts on the rear bulkhead — each roller is secured with a tri-ring clip and a retaining washer. Use needle-nose pliers to remove the old tri-ring clips, then slide the old rollers off the shafts. Install the new rollers, new retaining washers, and new tri-ring clips on the shafts. Reinstall the drum, re-route the belt around the motor and idler pulley, and reassemble the front and top panels. Restore power and run a test cycle to verify quiet, smooth drum operation. Tip: while the dryer is open, inspect and replace the drum belt (341241) and idler pulley (691366 or 279640) if worn. Tools needed: Phillips screwdriver, 1/4" or 5/16" nut driver, putty knife, needle-nose pliers. Frequently Asked Questions What do the drum support rollers do? The rear drum support rollers are cylindrical wheels mounted on fixed shafts at the back of the dryer cabinet. As the drum rotates, its rear outer rim rests on these rollers, which carry the drum's weight and allow it to spin smoothly and quietly. When the rubber wheels wear down or the bearing hubs corrode, the drum no longer rides smoothly on the rollers — causing thumping, rumbling, or squealing noises that get progressively worse. In severe cases, worn rollers allow the drum to sag and drag against the cabinet rear panel. Why must I replace both rollers at the same time? Both rear drum support rollers carry the same load and experience the same wear through every drying cycle. When one roller fails, the other has been under the same stress for the same number of cycles and is almost certainly near the end of its useful life. Replacing only the failed roller leaves one worn roller supporting the drum unevenly, which puts extra stress on the new roller and causes it to wear out much faster. Replace both rollers at the same time to ensure even drum support and get the full service life from the new parts. Should I also replace the belt and idler pulley at the same time? Yes — this is the ideal time. Since the dryer must be fully disassembled to access the rear drum rollers, replacing the drum belt (341241) and idler pulley (691366 or 279640) at the same time is strongly recommended. All three parts wear at similar rates, and a worn belt or idler pulley is often what caused the rollers to wear prematurely. Doing all three in one repair eliminates the most common drum drive failure points and saves you from repeating the teardown in the near future. The 4392065 maintenance kit includes all three parts together. What causes dryer drum rollers to wear out? Drum rollers wear naturally over time from the continuous load of supporting the rotating drum. The most common accelerating factors are operating the dryer with a worn or broken belt (which allows the drum to sag and puts extra weight on the rollers), running very large or heavy loads frequently, and allowing lint to accumulate around the roller shafts, which causes the bearings to run dry and wear faster. Regular dryer maintenance — including cleaning lint from around the drum and periodically checking the belt — helps extend roller life. Is this an OEM or aftermarket part? This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from rubber, metal, and plastic to match the dimensions and load-bearing performance of the original 349241T drum roller set. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

WH10X29537 Front Load Washer Door Fits specific GE Washer models. Description: This Washer Door is a Genuine OEM replacement part for GE washing machines. It is the main access point to the washer drum, allowing you to load and unload your laundry with a secure and tight seal during operation.

Read more less

XP-WSM1175 Wire Stripper

Read more less

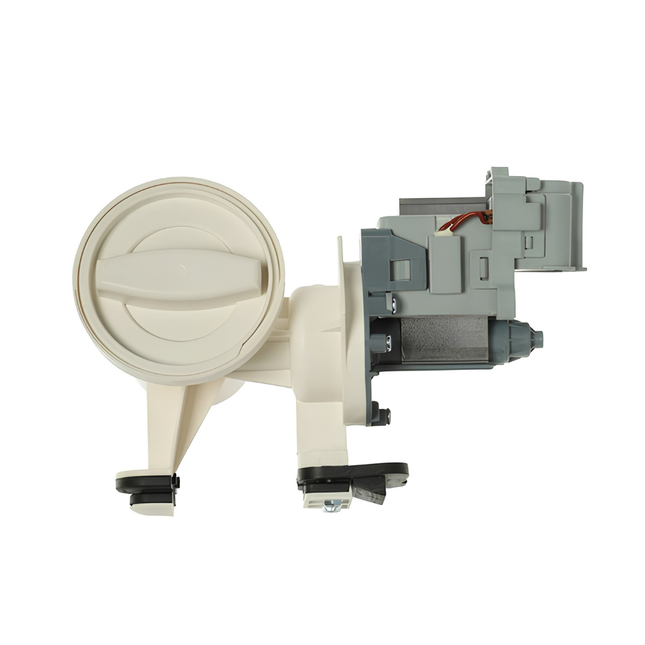

Genuine OEM WPW10730972 Washer Drain Pump The Genuine OEM Whirlpool WPW10730972 is the drain pump assembly for select Whirlpool, Maytag, Kenmore and Inglis washers. The pump removes water from the washer during the drain portion of the cycle. It has two ports and includes a removable filter. When it fails, the washer may not drain or may leak. This is the original Whirlpool part, not an aftermarket equivalent. It is sold individually. Check your model number before ordering. Quick Answer The Genuine OEM WPW10730972 Drain Pump replaces the drain pump on a compatible washer when it has failed. Replaces W10730972, W10130913, W10117829, W10183434, W10190647, W10190648, W10201457, 8540024, 8540025, 8540027, 8540028 and 8540996. Classic symptoms: the washer won't drain, or water leaks from the pump area. Common Problems This Part Fixes Washer won't drain Water draining slowly or poorly Leaking from the pump Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This drain pump replaces or supersedes the following part numbers: WPW10730972, W10730972, W10130913, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, WPW10730972VP, B40-3A01, AP6023956, AWP50633, EAP11757304, PD00025949, PS11757304 If your old pump shows a different number, contact our support team and we'll check whether it matches. Compatibility This drain pump is listed for Whirlpool, Maytag, Kenmore and Inglis washers, including these examples: Whirlpool WFW9200SQ10, WFW9400SWA10, WFW8500SR00, CET8000AQ1, CGT9000GQ0 Maytag MHWZ400TQ00, MLE20PDAZW0, MLG20PDCWW0 Kenmore 11046462501, 11047512601, 11047542603 Note: The models above are a sample of a much longer list, not a full list. Some models list the pump as an optional part, not one included with the washer. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering. Key Features Genuine OEM Whirlpool part, not an aftermarket equivalent Complete drain pump assembly with a removable filter Replaces twelve earlier Whirlpool pump part numbers Sold individually Product Specifications Part Number WPW10730972 OEM Part Number WPW10730972 Part Type Washer Drain Pump Condition Genuine OEM Manufacturer Whirlpool Quantity 1 Pump Application Select Whirlpool, Maytag, Kenmore and Inglis Washers Installation Notes ⚠️ Disconnect Power Before Installing Unplug the washer and wear work gloves. Remove the bottom front panel, and have a pan ready to catch the water left in the pump and hoses. Release the hose clamps with pliers, disconnect the hoses and the electrical connector, then remove the two mounting nuts or screws and slide the old pump out. Install the new pump, reconnect the hoses and wiring, and run a rinse cycle to check for leaks before you replace the panel. Frequently Asked Questions My washer won't drain. Is this the part I need? It can be. Owners often find coins, hairpins and other small objects in the pump, so check the trap and pump for debris first. If the impeller has broken or the pump is noisy or hot to the touch, replace the pump. Is this an OEM or aftermarket part? This is a genuine OEM part from Whirlpool, not an aftermarket equivalent. Is the filter sold separately? No. The filter is part of the pump, so you replace the whole assembly if the filter needs replacing. Will this fit my washer? It is listed for many Whirlpool-built models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

9759242 Oven Thermal Fuse  This non resettable oven thermal cut out fuse acts as a safety cutting power to the oven if it becomes over heated. Replaces Part Numbers:  WP9759242, 9759242, 4452223, OEM18042050, AP6014015, PS11747248, WP9759242VP Description: This Thermal Fuse is a Genuine part for specific KitchenAid, Kenmore, Whirlpool oven models. It acts as a safety device that cuts off power to the oven if it overheats, preventing potential damage or fire hazards. Common causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or faulty oven components that cause overheating. When the fuse blows, it disrupts the electrical circuit, rendering the oven inoperative until the fuse is replaced.   California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

WPW10181986 Oven Genuine Temperature Sensor Replaces Part Number: WPW10181986, W10181986, 1394200, 8273902, W10131826, OEM24065802, AP6016450, PS11749737. Description: This Oven Sensor Assembly is a Genuine OEM part for select Whirlpool oven models, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.     California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO XPIBE1740 Microwave Light Bulb 40W Replaces 8206232A, WB25X10030 The XPARTCO XPIBE1740 is an aftermarket replacement 40-watt T8 appliance light bulb compatible with a wide range of microwaves, range hoods, refrigerators, ovens, and other kitchen appliances from GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, and more. It uses the standard E17 intermediate screw base found on most over-the-range and built-in microwave interior lights, range hood lights, and select appliance bulb sockets. With a clear T8 glass envelope, warm white 2800K color temperature, and 280-lumen output, it matches the brightness and look of the original OEM bulbs it replaces. Specifications: 40W, 125V (AC 110-130V/60Hz), E17 intermediate screw base, T8 shape (1" diameter × 2-3/8" length), 280 lumens, warm white (~2800K), dimmable (compatible with microwave HIGH/LOW light settings), 1000-hour rated life, working temperature High Temp Resistance 300℃. It directly replaces 8206232A, 8206232, 8189961, 8204855, 8205422, 1890433, 0053437, 05200136, 05200137, AP4512653, R0712011, W10321375, W10598935, WB36X10003, WB25X10029, WB25X10030, WB25X10030-24PK, 261201500480, 3015548, 6912W1Z004B, AP5809052, PS2376034, and PS8767095. Installs in under 5 minutes — no tools required for the bulb itself. Quick Answer The XPARTCO XPIBE1740 Microwave Light Bulb (40W) replaces burned-out interior microwave lights, range hood lights, and select appliance bulbs across GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, and Hotpoint. T8 shape, 40W, 125V, E17 intermediate screw base. 1" diameter × 2-3/8" length. 280 lumens warm white (~2800K). Dimmable. 1000-hour life. Replaces 8206232A, 8206232, 8189961, 8204855, 8205422, 1890433, AP4512653, R0712011, W10321375, W10598935, WB36X10003, WB25X10029, WB25X10030, WB25X10030-24PK, 6912W1Z004B, AP5809052, PS2376034, PS8767095. Make sure your appliance uses an E17 intermediate base — not E26 standard, E12 candelabra, or E14 European. Common Problems This Part Fixes Microwave interior light not working — bulb burned out Range hood light bulb burned out — under-cabinet area no longer illuminates when cooking Over-the-range microwave under-cabinet light not working Bulb flickering or dimming inconsistently — filament starting to fail Bulb visibly burned out, broken, or rattling when shaken (broken filament) Microwave light works only intermittently — bulb on the verge of failure Replacement after long service life — most appliance bulbs last about 2,000 hours Replaces Part Numbers This 40W appliance light bulb directly replaces the following OEM and cross-reference part numbers from multiple brands: 8206232A, 8206443, 8183993, 0053437, 05200136, 05200137, 14209237, 14210453, 14210811, 14218311, 14218312, 14218318, 1890433, 2635-0004, 2635-0005, 2665-0003, 4158344, 4158365, 4158432, 4164062, 4166665, 4174608, 4338831, 4359625, 4393681, 53001372, 53422, 53437, 56001071, 56001089, 57001073, 7-47000, 7-47001, 747000, 747001, 8189961, 8204855, 8205422, 8205586, 8206232, R0712013, R0712015, R0713503, R9900310, W10321375, W10598935, Y0053422, Y0053437, Y05200136, Y05200137, Y747000, Y747001, AWP39609, PD00003046, AH2376034, EA2376034, AP4512653, PS2376034, WB25X10030, 261201500480, 3015548, AGE22225 PD00034740, AP5809052, PS8767095, 26QBP4093. If your bulb part number isn't listed above, check that the base is E17 intermediate and the bulb is 40W — most appliance bulbs in this category are interchangeable. Contact our support team if you need confirmation. Compatibility This 40W E17 appliance light bulb is compatible with a wide range of microwaves, range hoods, refrigerators, and ovens using E17 intermediate base sockets, including: GE over-the-range and countertop microwaves (interior lights) GE Profile, Café, and Monogram microwaves and range hoods Whirlpool microwaves and range hoods (over-the-range models) KitchenAid microwaves (built-in and over-the-range) Maytag microwaves (select models) Amana microwaves (select models) LG over-the-range microwaves Frigidaire microwaves and range hoods (select models) Kenmore / Sears microwaves (multi-brand-built models) Hotpoint microwaves and range hoods Corningware microwaves (select models) Also fits select refrigerator interior light sockets, oven lights, and lava lamps using the same E17 base Important — Check Your Base Type: This bulb uses an E17 intermediate screw base. It will NOT fit appliances designed for E26 (standard household), E12 (candelabra), or E14 (European) bases. The E17 base is the most common base for over-the-range microwaves and range hoods, but check your old bulb or appliance manual to confirm before ordering. Some newer LG microwaves use a 30W bulb instead of 40W — verify your wattage requirement as well. Key Features 40-watt T8 appliance incandescent bulb — replaces burned-out interior lights in microwaves, range hoods, refrigerators, and select ovens Standard E17 intermediate screw base — fits the most common appliance bulb socket T8 shape: 1" (25mm) diameter × 2-3/8" (62mm) length — matches OEM bulb dimensions for clear cover fit 125V (works on AC 110-130V / 60Hz household power) 400 lumens of warm white light (~2800K) — matches the brightness and color of original incandescent OEM bulbs Dimmable — compatible with microwave HIGH/LOW light settings without flicker 1000-hour rated lifetime — standard for appliance incandescent bulbs Working temperature range: High Temp Resistance 300℃.  — suitable for microwave and range hood heat environments Replaces 8206232A, 1890433, AP4512653, WB25X10030, WB36X10003, W10321375, W10598935, 6912W1Z004B, and many additional cross-references Multi-brand cross-compatibility: GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, Corningware Aftermarket replacement built to OEM-equivalent quality standards Quick DIY replacement — installs in under 5 minutes Product Specifications Part Number XPIBE1740 Common OEM Replacements 8206232A, WB25X10030, WB36X10003, 6912W1Z004B Part Type Appliance Light Bulb (Incandescent) Condition Aftermarket Replacement Application Microwave, Range Hood, Refrigerator, Oven, Appliance Lights Wattage 40W Voltage 125V (operates AC 110-130V / 60Hz) Base Type E17 Intermediate Screw Base Bulb Shape T8 Dimensions 1" (25mm) D x 2-3/8" (62mm) L Brightness 280 lumens Color Temperature Warm White (~2800K) Cover Clear glass Dimmable Yes — compatible with HIGH/LOW microwave settings Lifetime over 2,000+ Working Temperature High Temp Resistance 300℃.  Compatible Brands GE, Whirlpool, KitchenAid, Maytag, Amana, LG, Frigidaire, Kenmore, Hotpoint, Corningware Installation Notes ⚠️ Let the Bulb Cool Completely Before Touching — Unplug Microwave Before replacing the bulb, unplug the microwave (or disconnect power at the breaker for hardwired range hoods) and allow the old bulb to cool completely — incandescent appliance bulbs run very hot, and the glass can stay hot for several minutes after the light is turned off. For an over-the-range microwave's interior light, the bulb is typically accessed through a small panel or by removing a screw-on cover inside the microwave cavity. For under-cabinet/exterior lights, access the bulb by removing the protective cover or vent grille on the bottom of the microwave or range hood. Unscrew the old bulb counterclockwise and dispose of it safely. Screw in the new XPIBE1740 bulb clockwise — hand-tight only, do not over-tighten. Avoid touching the glass envelope of the new bulb with bare fingers; skin oils on the glass can shorten bulb life. If you must touch the glass, wipe it down with a clean cloth before powering the appliance back on. Replace the cover, restore power, and confirm the light works. Tools needed: none for most models, or a small Phillips screwdriver if a panel/cover must be removed. Frequently Asked Questions How do I know if I need an E17, E26, or E12 base bulb? The "E" number refers to the screw base diameter in millimeters. E17 (intermediate) is 17mm — the most common size for over-the-range microwave interior lights, range hood lights, and many appliance lights. E26 (medium/standard) is 26mm — typical household light bulbs (do NOT fit appliance sockets). E12 (candelabra) is 12mm — used for chandelier and decorative bulbs. E14 (European intermediate) is 14mm — common in Europe but rare in U.S. appliances. The XPIBE1740 is an E17 intermediate base. If your old bulb is noticeably smaller or larger than what you're holding, it's the wrong base — confirm by comparing dimensions or checking your appliance manual before ordering. Can I use an LED bulb instead of this incandescent one? In many appliances, yes — LED appliance bulbs with E17 intermediate bases are available and use significantly less power for similar brightness. However, LED bulbs sometimes have compatibility issues with the dimming/HIGH-LOW settings on microwaves, can flicker, or may not work with the appliance's lighting control circuit. The XPIBE1740 incandescent bulb is fully dimmable and a guaranteed direct match to the original appliance bulb's behavior. If you prefer LED for energy savings, confirm the LED is rated for appliance use, has an E17 base, and is dimmable for microwave applications before substituting. My LG microwave's bulb says 30W — does this 40W bulb fit? Physically, yes — both the 30W and 40W bulbs use the same E17 intermediate base and similar T8 shape. However, some LG microwave models specifically call for a 30W bulb (such as the 6912W1Z004B variant). Using a 40W bulb in a socket rated for 30W may cause the bulb to run hotter than designed, shortening its life or the surrounding socket components' life. Check your LG microwave's manual or the marking on the old bulb — if it specifies 30W, use a 30W bulb. The XPIBE1740 is 40W, suitable for the majority of microwaves that specify 40W bulbs. Why do appliance bulbs burn out faster than regular household bulbs? Appliance bulbs operate in harsher environments than typical household bulbs — high temperatures (microwaves and range hoods can hit 480°F nearby), heavy vibration from cooking appliances, repeated rapid on-off cycling, and frequent thermal shock from cooking steam. Even though they're rated for 1,000 hours of operation, real-world life in an appliance is often shorter than the same incandescent bulb in a household lamp. Buying multi-packs and replacing when one burns out is a common approach. Always allow the appliance to cool before swapping the bulb, and don't touch the new glass with bare fingers to maximize service life. Is this an OEM or aftermarket part? This is an aftermarket replacement bulb built to OEM-equivalent quality standards. It is not a branded GE, Whirlpool, or LG OEM bulb, but is manufactured to match the dimensions (T8, 1" × 2-3/8"), electrical specifications (40W, 125V, E17 base), brightness (400 lumens, warm white), and dimmable performance of the original appliance bulbs it replaces. Bulb spec compatibility (not brand) is what determines fit, so a properly specified aftermarket bulb performs identically to the OEM. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10276397 Washer Drain Pump Replaces WPW10276397 The XPARTCO W10276397 is an aftermarket replacement washer drain pump and motor assembly compatible with a wide range of Whirlpool-family top-load washers including Whirlpool Cabrio, Maytag Centennial, Amana, Kenmore, Roper, Crosley, and Inglis. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, display error code F9E1, stop mid-cycle, or produce unusual humming or grinding noises during the drain phase. This complete drain pump and motor assembly uses a Hanyu B40-3A motor (also marked 91PS3132) and includes the integrated impeller — the impeller is not sold separately. It directly replaces WPW10276397, W10276397, WPW10276397VP, 1874334, B40-3A, LP397, AP6018417, PS11751719, and several additional cross-reference numbers. Before ordering, confirm that the drain hose and any coin trap or filter are clear — a blocked hose or clogged filter can mimic pump failure symptoms. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO W10276397 Washer Drain Pump fixes Whirlpool Cabrio and Maytag Centennial top-load washers that won't drain, leave standing water, display error code F9E1, or make humming/grinding noises during the drain cycle. Complete pump and motor assembly with integrated impeller. Motor: Hanyu B40-3A / 91PS3132. Replaces WPW10276397, 1874334, B40-3A, LP397, AP6018417, PS11751719. Compatible with Whirlpool Cabrio, Maytag Centennial/MVWC/MVWX, Amana, Kenmore, Roper, Crosley, and Inglis top-load washers. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Error code F9E1 displayed — drain pump fault or slow drain detected Washer stopping mid-cycle due to a drain fault Loud humming during the drain phase — motor running but impeller not pumping Grinding or rattling noise during drain — physical damage to impeller or pump housing Water draining very slowly — worn pump motor below rated flow Water leaking from the drain pump area Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: WPW10276397, W10276397, 1874334, AP6018417, AWP50231 EAP11751719 FIX11751719, OEM24073670, PD00003595, PS11751719, WPW10276397VP If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select top-load washers from the following brands and series: Whirlpool top-load washers — Cabrio series (WTW4800, WTW4810, WTW4850, WTW4900, WTW5000, WTW5200, WTW5300, WTW5500, WTW5600, WTW5640, WTW5700 and related models) Maytag top-load washers — Centennial series (MVWC200, MVWC215, MVWC300, MVWC400, MVWC415, MVWC416, MVWC425, MVWC465 and related models) Maytag top-load washers — MVWX series (MVWX500, MVWX550, MVWX600, MVWX700 and related models) Amana top-load washers (ATW, NTW series and related models) Kenmore / Sears top-load washers — 110 series (Whirlpool-built Cabrio-platform models) Roper top-load washers (RTW series) Crosley top-load washers (CAE series) Inglis top-load washers (select models) Note: This pump is for top-load washers only. Always verify your exact model number before ordering. Check and clear the drain hose and any coin trap before replacing the pump — a blocked hose can produce the same symptoms as a failed pump. Key Features Removes water from the tub during the drain and spin cycles for proper washer operation Complete pump and motor assembly — includes integrated impeller (impeller not sold separately) Motor: Hanyu B40-3A / 91PS3132 — matched to original pump specifications Resolves error code F9E1 (drain pump fault / slow drain) on compatible Whirlpool and Maytag top-load washers Replaces WPW10276397, W10276397, 1874334, B40-3A, LP397, and AP6018417 Compatible with Whirlpool Cabrio, Maytag Centennial/MVWX, Amana, Kenmore, Roper, Crosley, and Inglis top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number W10276397 OEM Part Number WPW10276397 Part Type Washer Drain Pump and Motor Assembly Condition Aftermarket Replacement Application Top-Load Washers (Cabrio, Centennial, and related platforms) Motor Hanyu B40-3A / 91PS3132 Includes Pump motor and integrated impeller assembly Error Code Resolved F9E1 (drain pump fault / slow drain) Compatible Brands Whirlpool, Maytag, Amana, Kenmore, Roper, Crosley, Inglis Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Place towels and a shallow pan near the pump access area to catch residual water. The drain pump is located beneath the washer tub on Cabrio and Centennial models — access it by removing the front lower panel or by tilting the washer back and working from underneath. Disconnect the drain hose clamp and hose from the pump, then disconnect the wire harness connector. Unscrew the pump mounting screws and remove the old pump. Before installing the new pump, verify the drain hose and any coin trap or filter are completely clear of debris — a blocked hose or trap will cause the new pump to fail again. Install the new W10276397 pump in the same position, reconnect the hose and wire harness, and secure the mounting screws. Restore power and water and run a drain or spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels. Frequently Asked Questions What does error code F9E1 mean on Whirlpool Cabrio and Maytag Centennial washers? F9E1 indicates a drain fault — the washer was unable to drain within the expected time during the cycle. It can be caused by a clogged drain hose, a blocked coin trap or filter, a kinked drain hose, or a failed drain pump motor. Always check and clear the drain hose and filter before replacing the pump — a blockage is often the cause and clearing it resolves the error without needing a new pump. If the hose and filter are clear and the error persists, the pump motor has likely failed. What is the difference between W10276397 and WPW10276397? These are the same drain pump assembly. WPW10276397 is the updated Whirlpool OEM part number that superseded the original W10276397. The 1874334 and B40-3A are also cross-references for this same pump. This aftermarket replacement is compatible with all of these numbers. My washer hums but won't drain — is it the pump? A humming sound during the drain cycle without water being expelled usually means the pump motor is receiving power and running, but the impeller is not turning — either because it is jammed with debris or because the impeller shaft has broken. First check for and remove any foreign objects (coins, lint, small clothing items) from the pump area. If the impeller is clear and the pump still hums without draining, the motor or impeller is mechanically failed and the pump assembly needs replacement. Does this pump fit the Whirlpool Cabrio and Maytag Bravos washers? The W10276397 is compatible with Whirlpool Cabrio and Maytag Centennial top-load washers on the VM transmission platform. Maytag Bravos XL and Bravos X models may also be compatible depending on the specific model number — verify your exact model before ordering. Contact our support team if you need confirmation for a specific Bravos model. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with a Hanyu B40-3A motor to match the specifications and performance of the original WPW10276397 drain pump assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

31001192 Genuine OEM Dryer Cycling Thermostat Replaces Part Numbers: WP31001192, 31001192, 487706, 53-2880, AP6007590, PS11740707.  Description: This Dryer Cycling Thermostat is a Genuine OEM replacement part for Select Maytag, Kenmore, Whirlpool dryer models. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results

Read more less

6600JB3001C Refrigerator Dispenser Switch – Replacement for GE, LG and Kenmore Product Overview This Dispenser Switch is a replacement part for specific LG, Kenmore, GE refrigerator models. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use. Replaces Part Numbers This dispenser switch replaces part numbers 6600JB3001C, 1268245, 1395586, 6600JB3001B, 6600JB3001H, PD00025340, EAP3529276, AH3529276, EA3529276, AP4441530, PS3529276, WR23X10783, 2695743, WR23X10171, WR23X10224, AP5688654, PS8259956. Engineered to deliver OEM-level performance and compatibility. Compatible Brands Compatible with LG and Kenmore refrigerators manufactured by LG. Fits various French door, side-by-side, and bottom-freezer models with front panel dispensers. Fixes the Following Issues Water or ice dispenser not working Dispenser works only when pressed a certain way No power reaching water or ice components Intermittent or unresponsive dispenser control Why Buy from Parts‑O‑Matic Durable and reliable aftermarket replacement Fast and free U.S. shipping Simple to install with plug-in compatibility Trusted by appliance repair techs and homeowners
