Cooking Appliances Parts

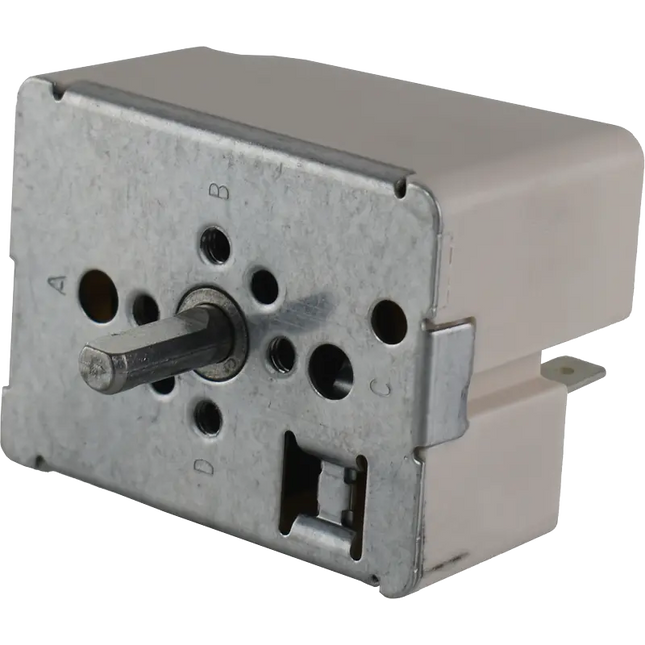

WB24X25013 Genuine OEM GE Range Surface Burner Infinite Switch Replaces WB24X47186. The WB24X25013 is a genuine GE OEM infinite control switch for a dual (bridge) surface element on GE, Hotpoint, and select Kenmore electric ranges — the kind of burner with an inner coil and an outer coil that can be run together for a large pot or as the inner coil alone for a small pan. Because it's governing two coil zones instead of one, this switch uses six terminal connections rather than the three or four found on a standard single-element infinite switch, and it mounts to the control panel with a distinctive figure-8 style shaft and two female mounting holes. Like any infinite switch, it doesn't have fixed heat positions — instead it rapidly cycles power to the element(s) on and off at a ratio set by the knob, giving continuous heat adjustment from warm to high rather than a handful of steps. Rated for 240VAC at 15 amps. Over years of cycling, the internal contacts on a switch like this wear, pit, or weld together, and boilovers or spills can corrode the switch body and cause it to fail. A worn switch on a dual-element burner can produce an unusually wide symptom set: the whole burner may fail, or just the outer ring may stop responding while the inner coil still works, or the burner may stay on continuously regardless of the knob position. It directly replaces WB24X47186, 191D4774P005, AP5999509, PS11729102, EAP11729102, and 4464832. As a genuine OEM part, the WB24X25013 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance. Quick Answer The WB24X25013 Genuine OEM GE Range Surface Burner Infinite Switch fixes GE, Hotpoint, and Kenmore electric ranges with a dual (bridge) element burner where the burner won't turn on or off, only the outer ring fails to work while the inner coil still heats, the burner stays on continuously, or heat can't be adjusted. Six-terminal switch, figure-8 shaft, 240VAC / 15A. Replaces WB24X47186, 191D4774P005, AP5999509, PS11729102, EAP11729102, 4464832. Not the same switch as a standard single-element infinite switch — this one is specific to dual/bridge burners with an inner and outer coil. Common Problems This Part Fixes Dual-element burner won't turn on at all when the knob is turned Outer ring of a dual/bridge element won't activate while the inner coil still works Burner won't turn off — stays hot even with the knob at the off position Burner stuck at one heat level regardless of where the knob is set No ability to adjust temperature — always full blast or always low Intermittent burner operation — works sometimes, not others Knob feels loose, gritty, or doesn't turn smoothly through its range Burner failure that followed a boilover or liquid spill on the control panel Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface burner infinite switch directly replaces the following OEM and cross-reference part numbers: WB24X25013, WB24X47186, 191D4774P005, AGE1543754, AP7216136, PS11729102, PS17872685, EAP11729102, 4464832, 191D4774P005, MDSA-W767-GEM If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dual-element infinite switch is compatible with select GE, Hotpoint, and Kenmore electric ranges equipped with a dual (bridge) surface element, including model families such as: GE JB6, JB7, and JB8 series electric ranges (including JB630, JB640, JB645, and JB655) GE JBS series electric ranges GE JS6 and JS7 series electric ranges (including the JS760 series) GE GRS and GRF series electric ranges Hotpoint electric ranges (select GE-built models) Select Kenmore electric ranges built on the GE platform Verified model numbers include: JB645RK6SS, JS760EP6ES, JS760DP6WW, JS760SP7SS, JS760DP7WW, JS760SP6SS, JS760FP7DS, JS760FP6DS, JS760EP7ES, JB860EJAES, JB860FJADS, and GRS500PV1SS. Note: This is a six-terminal switch built specifically for a dual (bridge) element with a figure-8 style shaft and two female mounting holes — it is NOT interchangeable with a standard single-element infinite switch such as the WB24T10029 or WB24T10025, which use fewer terminals and a different shaft profile. Fitting a standard single-element switch to a dual-element burner circuit will not correctly control both coil zones. Always verify your full model number and confirm the affected burner is a dual/bridge element before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified contact design for dual-element switching Six-terminal design controls both the inner coil and outer ring of a dual (bridge) surface element Figure-8 style shaft with two female mounting holes matched to the original control panel bracket Infinite switch design allows continuous heat adjustment rather than a handful of fixed positions Rated 240VAC at 15 amps Resolves "burner won't turn on," "outer ring not working," "won't turn off," and "stuck at one heat level" symptoms caused by worn or corroded switch contacts Direct drop-in replacement — mounts to the same control panel bracket and wiring harness Replaces 191D4774P005, AP5999509, PS11729102, EAP11729102, and 4464832 Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WB24X25013 Part Type Range Surface Burner Infinite Switch (Dual/Bridge Element) Condition Genuine OEM Brand GE Element Type Controlled Dual (bridge) surface element — inner coil + outer ring Terminal Connections 6 Shaft Style Figure-8 Mounting Two female mounting holes Voltage 240VAC Amperage 15A Function Cycles element power to allow continuous (infinite) heat adjustment across both coil zones Quantity 1 switch Compatible Brands GE, Hotpoint, select Kenmore Installation Notes ⚠️ 240V Circuit — Unplug Range Or Shut Off Breaker Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning — this switch operates on a 240V circuit, and working on it while powered presents a serious shock hazard. Wear work gloves. Remove the burner knob (it typically pulls straight off, though some models use a small retaining clip) then remove the screws securing the control panel or backsplash to reach the switch from behind. Photograph the wiring before disconnecting anything — this is a six-terminal switch, and getting even one wire out of place can miswire the inner coil, the outer ring, or both. Label each wire as you remove it. Disconnect all six terminal connections from the old switch, then remove the mounting screws from the two mounting holes and pull the switch free from its figure-8 shaft opening. Install the new WB24X25013 in the same orientation, reconnect each of the six wires exactly as labeled, and secure the mounting hardware. Reinstall the control panel or backsplash, press the knob back onto the shaft, restore power, and test the burner at every knob position — confirm the inner coil and outer ring both activate correctly (together and, if your model supports it, with the outer ring switched off independently) before considering the repair complete. Tools needed: Phillips screwdriver, nut driver, wire terminal pliers (helpful but optional), work gloves. Frequently Asked Questions How do I know if my burner uses a dual-element switch like this one? Look at the burner element itself: a dual (bridge) element has two distinct coil rings — a smaller inner coil and a larger outer ring — usually with a separate control or a knob position that lets you activate just the inner coil for a small pan or both rings together for a large pot. A standard single-ring element has only one coil and uses a simpler switch with fewer terminals. If your range has this two-ring burner design, the WB24X25013 (or the exact switch behind it) is the correct type — but always confirm your model number, since dual-element switches vary by range generation. Only the outer ring of my dual burner doesn't work. Is it the switch or the element? It could be either, and it's worth narrowing down before ordering. If the inner coil heats normally but the outer ring never activates at any knob position, check the outer ring element itself first — a broken element coil is a common and cheaper fix than a switch. If the outer ring element tests fine but the switch's six-terminal wiring specific to the outer coil circuit has failed or corroded, the infinite switch is the correct replacement. Can I use a standard single-element infinite switch instead if this one is out of stock? No. A standard single-element switch has fewer terminals and cannot correctly control the two separate coil zones of a dual (bridge) burner. Wiring a single-element switch into a dual-element circuit will leave one coil zone permanently uncontrolled or non-functional. Always order the six-terminal dual-element switch specified for your model. What does "infinite switch" mean? An infinite switch lets you dial in a continuous range of heat rather than a few fixed positions, by rapidly cycling the element's power on and off at a ratio set by the knob — low settings get short power pulses, high settings get long ones. When the internal contacts wear or weld together from years of cycling, the switch can get stuck feeding constant power (burner always hot) or stop switching at all (burner always off), regardless of where the knob is turned. A spill got into the control panel and now the burner won't turn off. Is that the switch? Very likely, yes. Liquid boilovers and spills are one of the most common causes of infinite switch failure — moisture gets into the switch body, corrodes or bridges the internal contacts, and the switch can end up stuck feeding power continuously even with the knob turned to off. If you suspect this, shut off power to the range immediately at the breaker rather than relying on the knob, since a shorted switch may not respond to it at all. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original six-terminal wiring, figure-8 shaft, 240VAC/15A electrical rating, and dual-coil switching behavior of the infinite switch originally installed for the dual (bridge) element in your GE, Hotpoint, or Kenmore range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WB24X10146 Microwave Door Switch - Compatible with GE, Haier, Hotpoint Microwaves Product Description Ensure safe operation of your microwave with the replacement WB24X10146 Microwave Door Switch. This high-quality door interlock switch, designed for GE, Haier, and Hotpoint microwaves, prevents the appliance from operating when the door is open, protecting against radiation leaks and electrical hazards. Made from durable plastic and metal with a blade terminal and push-button actuator, this switch (16A, 125/250V) addresses issues like the microwave not starting, running with the door open, or intermittent power. Note: Includes one door interlock switch. Disconnect power before installation. Replaces part numbers: WB24X10146, WB24X28941, MW-7100-33, PD00039881, AP3866977, 1166990, AH1019163, EA1019163, PS1019163. Compatibility: Compatible with models including but not limited to: GE: CEB1590SJ1SS, CEB1599EL1DS, CEB1599ELDS, CEB1599SJ1SS, CEB515P2N1SS, JNM3161DF2BB, JNM3161DF4CC, JVM3160DF2WW, JVM3160RF3SS, PEB1590DJ1BB, PEB9159DJ1WW, PVM9005SJ1SS Haier: HMV1472B1HS, HMV1472BHS, HVM7167RN1SS Hotpoint: Models requiring WB24X10146 or compatible switches Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select GE, Haier, and Hotpoint microwave models. 🔥 Specifications: replacement door interlock switch, 16A, 125/250V, normally open, blade terminal, push-button actuator, plastic/metal construction, gray color, 3/8"H x 7/8"W x 1-1/2"D, 1-way circuit, IP00 rating. 💰 Cost-Effective Alternative: replacement switch offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires Phillips screwdriver, needle-nose pliers, work gloves; typically installed in 15–30 minutes. 🛡️ Reliable Fixes: Resolves issues like microwave not starting, running with door open, or intermittent power. Installation Notes: Safety First: Disconnect the microwave from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your microwave running safely and efficiently today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO DG44-01002A Surface Element Infinite Switch The XPARTCO DG44-01002A is an aftermarket replacement dual element infinite switch (energy regulator) for Samsung electric ranges. This switch does two jobs at once: it regulates how much electrical current reaches its surface element, which is what lets you dial in a precise heat level rather than just on/off, and it also controls the "hot surface" indicator light associated with that burner, letting you know when the element is still hot after use. Over time, the internal contacts in this switch can wear, stick, or fail electrically. Because a single switch controls both functions, a failing switch can produce two very different-looking symptoms depending on which function is affected: the burner may stay stuck on high heat regardless of the dial setting, fail to produce any heat at all, or the hot surface indicator light may stay on for hours after the surface has completely cooled, even though the element itself tests fine. It directly replaces 2087510, MDSA-W21-SKM, MDSA-W888-UNM, MDSA-W888-UM, AP4337066, PS4240803, and EAP4240803. Quick Answer The XPARTCO DG44-01002A Surface Element Infinite Switch fixes Samsung electric ranges where a burner is stuck on high heat regardless of the dial setting, won't produce any heat at all, or the hot surface indicator light stays on for hours after the surface has cooled. Dual element design. Replaces 2087510, MDSA-W21-SKM, MDSA-W888-UNM, MDSA-W888-UM, AP4337066, PS4240803, EAP4240803. This switch controls both the element and its indicator light — if your indicator light won't turn off even though the burner is cool, this switch (not the element) is the cause. Common Problems This Part Fixes Burner stuck on high heat regardless of the dial setting Burner won't produce any heat at all Hot surface indicator light stays on for hours after the burner has completely cooled Inconsistent heating — burner doesn't hold the selected temperature level Unresponsive burner controls Burner that heats erratically rather than at a steady, selected level Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range surface element infinite switch directly replaces the following OEM and cross-reference part numbers: DG44-01002A, 2087510, , MDSA-W21-SKM, PS4240803, AP4337066, EAP4240803, ASM37999, PD00006793, 737534552513 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This infinite switch is compatible with select Samsung electric ranges in the FCQ3, FE71, FER3, FTQ3, and NE59 series, including model numbers such as NE59J3420 and NE59J4310. Note: This is the switch, not the radiant heating element itself — the companion element is a separate part, DG47-00022A. If you're diagnosing a burner problem, it's worth testing both parts, since either one failing can cause similar symptoms. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement dual element infinite switch (energy regulator) Controls both the surface element's heat output and its hot surface indicator light Resolves "stuck on high heat," "won't heat at all," and "indicator light stays on" symptoms caused by switch failure Direct drop-in replacement — matches the original mounting and wire connections Replaces 2087510, MDSA-W21-SKM, MDSA-W888-UNM, MDSA-W888-UM, AP4337066, PS4240803, and EAP4240803 Compatible with Samsung electric ranges in the FCQ3, FE71, FER3, FTQ3, and NE59 series Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair, typically 10 to 15 minutes Product Specifications Part Number XPDG44-01002A OEM Part Number DG44-01002A Part Type Range Surface Element Infinite Switch (Energy Regulator) Condition Aftermarket Replacement Brand Samsung Design Dual element Function Regulates surface element heat output; controls hot surface indicator light Related Part DG47-00022A radiant element (sold separately) Repair Difficulty Easy — 10 to 15 minutes Quantity 1 infinite switch Compatible Brand Samsung Installation Notes ⚠️ Unplug Range Before Starting — Photograph Wiring Before Disconnecting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically from the rear of the control panel or the underside of the cooktop, depending on your model. Photograph the wiring connections on the old switch before disconnecting anything, since correct wire placement is essential for the switch to control the right burner and indicator light. Remove the screws securing the old switch, gently pry it out, and mark or note each wire's position for reference. Disconnect the wires from the old switch and remove it fully. Install the new DG44-01002A in the same position, reconnect each wire to its original terminal exactly as photographed, and secure the mounting screws. Restore power and test the burner across its full range of settings, confirming both the heat output and the indicator light behave correctly. Tools needed: screwdriver, pliers, pen or pencil for marking wires, work gloves. Frequently Asked Questions My hot surface light stays on for hours even though the burner has cooled down. Is this the switch? Yes. This is a documented symptom specific to this switch, since it controls both the surface element and its indicator light together. If the light isn't going out even though the surface itself is cool to the touch, the switch — not the element — is the correct part to replace. My burner is stuck on high heat no matter what setting I choose. Is that the switch or the element? It could be either, so it's worth testing both with a multimeter before replacing. Test the radiant element first — it should read between 0 and 120 ohms if it's working correctly. Then test the infinite switch itself: remove it, connect a multimeter probe to each prong, and turn the switch to an on position. No continuity indicates the switch is the issue. Several customers have confirmed this exact symptom by swapping switches between two burners and watching the problem follow the switch, which is also a reliable way to isolate the cause if you have two dual-element burners. Should I replace the element (DG47-00022A) at the same time? Not necessarily, but it's worth testing both parts if you're not sure which one has failed, since a bad element and a bad switch can produce overlapping symptoms. If your multimeter tests confirm only the switch has failed, replacing just this part is sufficient. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the dual-element switching function, wire terminal configuration, and mounting design of the original DG44-01002A infinite switch used in compatible Samsung electric ranges. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

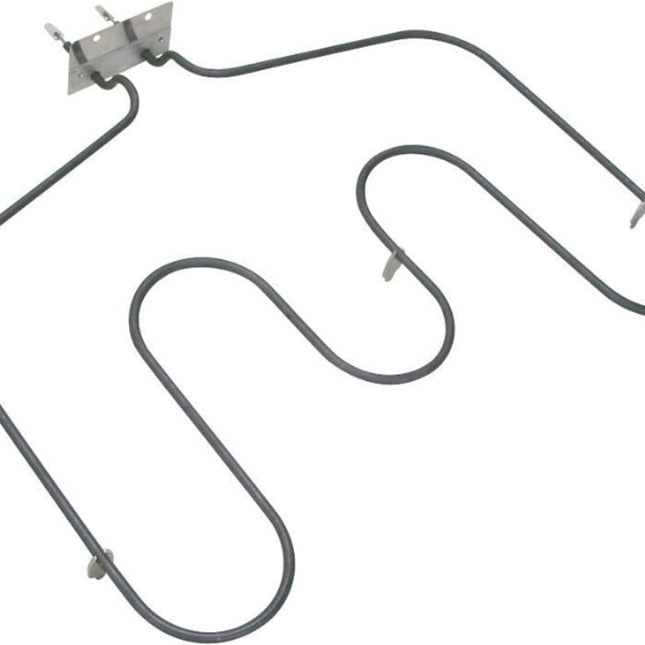

WB44X5082 Genuine OEM GE Oven Bake Element The WB44X5082 is a Genuine OEM GE replacement oven bake element compatible with a wide range of GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café electric ranges, wall ovens, and oven/range combos. The bake element is the lower heating element in an electric oven — it provides the primary heat source for baking, roasting, and preheating. When the bake element is working correctly, it glows red hot during the bake cycle. When it fails, the oven will not heat at all, will take much longer to preheat, or will bake unevenly — relying only on the broil element for heat. This Genuine OEM part is manufactured by GE to factory specifications. It is a rabbit-ears style element rated at 2300W / 236V with screw-on terminals, measuring 18-1/4" wide x 14-1/2" deep to the mounting flange. It replaces a large number of older GE bake element part numbers including WB44X5061, WB44X5072, WB44X5085, WB44X6082, WB44X0192, WB44X10003, WB44X1126, WB44X192, AP2031084, 3358, and 8030, among many others. Installs in 15–20 minutes with a Phillips screwdriver. Quick Answer The WB44X5082 Genuine OEM GE Oven Bake Element fixes GE electric ovens that won't heat, take too long to preheat, bake unevenly, or where the lower element is visibly burned or broken. Rabbit-ears style, 2300W/236V, 18-1/4" W x 14-1/2" D, screw-on terminals. Genuine OEM. Compatible with GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café electric ovens. Replaces WB44X5061, WB44X5072, WB44X5085, AP2031084, 3358, and more. Common Problems This Part Fixes Oven not heating at all — bake element has failed or burned out Oven taking much longer than normal to preheat Food baking unevenly — bottom of food undercooked while top is done Bake element not glowing red during the bake cycle Visible burn marks, blistering, holes, or breaks on the lower heating element Oven heating only from the top (broil element running but bake element not) Oven trips the circuit breaker when the bake cycle is selected Replaces Part Numbers This bake element directly replaces the following OEM and cross-reference part numbers: WB44X5082, RP44X5082, TS44X5082, WB44X0192, WB44X10003, WB44X1126, WB44X192, WB44X5061, WB44X5072, WB44X5082R, WB44X5085, WB44X6082, WR44X5082R, AGE23057, PD00000981, AH249466, EA249466, AP2031084, PS249466.  Contact our support team with your model number if you need confirmation before ordering. Compatibility This bake element is compatible with select electric ranges, wall ovens, and oven/range combos from the following brands: GE electric ranges and wall ovens Hotpoint electric ranges and ovens RCA electric ranges and ovens Kenmore / Sears electric ranges (GE-built models) Haier electric ovens (select GE-platform models) Monogram electric wall ovens Café electric ovens Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance Primary heat source for baking, roasting, and preheating in compatible electric ovens Rabbit-ears style element — standard lower oven bake element design for GE electric ranges Rated 2300W / 236V — correct wattage for compatible GE electric ovens Dimensions: 18-1/4" wide x 14-1/2" deep to mounting flange Screw-on terminals — simple, tool-free wire connection Replaces over 20 older GE bake element part numbers including WB44X5061, WB44X5072, and WB44X5085 Compatible with GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café electric ovens DIY-friendly repair — installs in 15–20 minutes with a Phillips screwdriver Product Specifications Part Number WB44X5082 Part Type Oven Bake Element (Lower Heating Element) Condition Genuine OEM Application Electric Ranges, Wall Ovens, and Oven/Range Combos Element Style Rabbit-ears (standard lower bake element) Wattage 2300W Voltage 236V Width 18-1/4 inches Depth 14-1/2 inches (to mounting flange) Terminal Type Screw-on terminals Compatible Brands GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café Installation Notes ⚠️ Unplug Range or Turn Off Breaker Before Starting Disconnect power before beginning and allow the oven to cool completely. Open the oven door. The bake element is the lower element at the bottom of the oven cavity. Remove the two Phillips screws securing the element bracket to the rear oven wall. Carefully pull the element forward toward the door — the wires connecting to the element terminals are typically only a few inches long, so pull gently and do not jerk the element free. Note the position of the two wires on the screw terminals before disconnecting — they are interchangeable on most models but it is good practice to reconnect them in the same positions. Unscrew the terminal screws, remove the old element, and connect the new WB44X5082 element to the same terminals. Slide the element back into position and secure the mounting bracket screws. Restore power and run a bake cycle to verify the element heats and glows red. Tools needed: Phillips screwdriver only. Frequently Asked Questions How do I know if my bake element has failed? The most obvious sign is an oven that does not heat, takes much longer than usual to preheat, or bakes food unevenly with the bottom undercooked. When the bake element is working, it should glow bright red during a bake cycle — if it does not glow at all, the element has failed. You can also visually inspect the element for burn marks, blistering, cracks, or visible holes or breaks in the coil. A multimeter continuity test will confirm failure: a working element shows continuity, while a failed element reads open circuit. If the element trips the circuit breaker when the bake cycle is selected, a shorted element is the likely cause. Why does my oven still heat a little even with a failed bake element? Electric ovens have two heating elements — the bake element at the bottom and the broil element at the top. When the bake element fails, the control board may still energize the broil element to try to reach the set temperature. This results in an oven that heats slowly and unevenly — hot at the top and cool at the bottom — and often never reaches the set temperature. Food will be overcooked on top and undercooked on the bottom, or baking times will be significantly longer than normal. Does the WB44X5082 replace WB44X5061, WB44X5072, and WB44X5085? Yes — the WB44X5082 is the current GE bake element that supersedes all three of those earlier part numbers, as well as WB44X6082, WB44X0192, WB44X10003, and several others. GE has consolidated multiple older bake element part numbers into the WB44X5082 over successive production runs. If your oven's parts diagram lists any of these older numbers, the WB44X5082 is the correct current replacement. Are the two wires on the bake element interchangeable? On most GE electric ranges, the two wires connecting to the bake element terminals are interchangeable — there is no positive or negative polarity for a resistance heating element. Either wire can connect to either terminal and the element will heat correctly. However, GE specifically recommends photographing or noting which wire connects to which terminal before disconnecting, especially on models where the wires are color-coded for other control functions. When in doubt, reconnect in the same positions as the original. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same bake element installed in compatible GE, Hotpoint, and related brand electric ovens from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

(5 Pack) EXP25A Ceramic Line Fuse, Fast Blow,  25A, 250V  It can be used in many applications.    California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

6324W1A001L Genuine LG OEM Microwave Magnetron The 6324W1A001L is a genuine LG OEM magnetron for microwave ovens and microwave/oven combination units. The magnetron is the component that actually generates the microwave energy used to cook and heat food — it converts high-voltage electrical power into microwave-frequency radiation, which is then directed into the oven cavity by the waveguide to agitate water molecules in your food and produce heat. Without a functioning magnetron, every other part of the microwave can work perfectly — the turntable spins, the display counts down, the fan runs — while the food inside never actually heats up. This is a genuine LG-manufactured magnetron used not only in LG microwaves but also, under LG's role as a shared component supplier, in microwaves sold under Frigidaire, Whirlpool, Kenmore, GE, Jenn-Air, Thermador, KitchenAid, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch branding. Measuring approximately 4.5"L x 4.25"W x 5"H. A failed magnetron produces a distinct symptom: the microwave runs normally in every other respect — it powers on, the turntable turns, the timer counts down — but the food inside stays cold. Sparking or arcing behind the waveguide cover, visible burn marks on the magnetron, or a burning smell are also signs of magnetron failure or damage. It directly replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208. Quick Answer The 6324W1A001L Genuine LG OEM Microwave Magnetron fixes microwaves and microwave/oven combos that run normally — turntable spins, display works, timer counts down — but the food never actually heats up. Also fixes sparking or arcing behind the waveguide cover. Approximately 4.5"L x 4.25"W x 5"H. Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, 1268208. Microwaves contain a high-voltage capacitor that stores a dangerous charge even after unplugging — always discharge it before accessing the magnetron. Common Problems This Part Fixes Microwave runs normally — turntable spins, display works, timer counts down — but food doesn't heat up Microwave heats very weakly or inconsistently Sparking or arcing visible behind the waveguide cover in the oven cavity Burning smell coming from the microwave during or after use Visible smoke from inside the cavity Burn marks or visible damage on the magnetron itself Loud humming with no heating effect on food Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This microwave magnetron directly replaces the following OEM and cross-reference part numbers: 6324W1A001L, 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, WB26X32629, AP6888676, WB27X26081, WB27X10305, 4930994, WB27X10876. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This magnetron is compatible with select microwaves and microwave/oven combos from a wide range of brands, since LG manufactures this component for use across multiple appliance brands, including: LG (including LRM2060ST and LMV2031ST models) Kenmore, GE, Frigidaire, Whirlpool, and Amana Jenn-Air, KitchenAid, Thermador, Gaggenau, and Bosch Panasonic, Goldstar, and Crosley Note: Even though this magnetron is used across many brands, magnetrons that look similar can have small but important variations in size and shape between models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine LG OEM part — factory-specified microwave frequency output and mounting configuration Generates the microwave energy that cooks and heats food Resolves "runs but doesn't heat," "weak or inconsistent heating," "sparking behind the waveguide," and "burning smell" symptoms caused by magnetron failure Approximately 4.5"L x 4.25"W x 5"H Direct drop-in replacement — matches the original mounting bracket and waveguide alignment Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208 Widely compatible across LG, Kenmore, GE, Frigidaire, Whirlpool, Jenn-Air, KitchenAid, Thermador, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch microwaves Genuine OEM replacement — guaranteed fit, materials, and performance Moderate DIY repair for those comfortable with microwave high-voltage safety procedures Product Specifications Part Number 6324W1A001L Part Type Microwave Magnetron Condition Genuine OEM Brand LG Application Microwave Ovens / Microwave-Oven Combos Function Generates the microwave energy used to heat and cook food Dimensions Approx. 4.5"L x 4.25"W x 5"H Repair Difficulty Moderate — high-voltage discharge required Quantity 1 magnetron Compatible Brands LG, Kenmore, GE, Frigidaire, Whirlpool, Amana, Jenn-Air, KitchenAid, Thermador, Gaggenau, Bosch, Panasonic, Goldstar, Crosley Installation Notes ⚠️ Danger — Microwave High-Voltage Capacitor Unplug the microwave before beginning any work. Microwaves contain a high-voltage capacitor that can store a dangerous, potentially lethal electrical charge even after the unit has been unplugged. Before opening the cabinet or touching any internal component, discharge the capacitor using an insulated screwdriver shorted across its terminals — never touch the capacitor or its terminals directly, and never work on a microwave's internals without performing this step first. If you are not fully comfortable and experienced with high-voltage discharge procedures, have a qualified appliance technician perform this repair instead. ⚠️ Test Other High-Voltage Components Before Assuming It's The Magnetron Wear work gloves. After confirming the capacitor is fully discharged, remove the outer cabinet to access the internal components. Before replacing the magnetron, it's worth testing the other high-voltage components — the transformer, diode, and capacitor — since a fault in any of these can produce similar "runs but doesn't heat" symptoms, and replacing the magnetron alone won't fix the problem if one of these other parts has actually failed. Photograph the magnetron's mounting and waveguide connection before removing anything. Disconnect the magnetron's electrical leads, remove the mounting screws securing it to the waveguide assembly, and carefully lift the old magnetron free. Install the new 6324W1A001L in the same orientation, aligning it correctly with the waveguide opening, and secure the mounting screws. Reconnect the electrical leads exactly as they were before removal. Reinstall the outer cabinet, restore power, and test with a cup of water to confirm normal heating without unusual sounds, sparking, or smoke. Tools needed: nut driver or socket set, Phillips screwdriver, insulated screwdriver for capacitor discharge, multimeter (for testing other components), work gloves. Frequently Asked Questions My microwave runs but doesn't heat anything. Is this the right part? It's the most common cause of exactly that symptom. When the turntable spins, the display works, and the timer counts down normally, but food comes out just as cold as it went in, the magnetron has very likely failed. Other high-voltage components (the transformer, diode, or capacitor) can sometimes cause the same symptom, so if you're comfortable testing with a multimeter, it's worth ruling those out first — but a failed magnetron is the single most frequent cause reported for this exact complaint. Why does the same part fit so many different brands? LG manufactures magnetrons and other core components that get used across microwaves sold under many different brand names, since several appliance companies share manufacturing platforms or source key parts from the same suppliers rather than building everything in-house. This is a normal and well-documented part of how microwave manufacturing works — it doesn't mean the part is generic or lower quality, just that LG's magnetron design is used broadly across the industry. I see sparking behind the cover inside the microwave. Is that the magnetron? It can be. Sparking or arcing behind the waveguide cover, especially with visible smoke or a burning smell, points to damage in the magnetron or the waveguide area. Inspect the magnetron for burn marks once you've safely discharged the capacitor and opened the cabinet — if you see charring or damage, replacement is the correct fix. Stop using the microwave immediately if you notice sparking, smoke, or burning smells. Do I need any special skills to replace this part? This is a moderate DIY repair, and the key skill required isn't mechanical — it's safely discharging the microwave's high-voltage capacitor before doing anything else. If you're not fully confident performing that step correctly, this is a good repair to leave to a qualified appliance technician, since the capacitor can hold a dangerous charge even with the unit unplugged. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original microwave frequency output, mounting configuration, and dimensions of the magnetron originally installed in your microwave. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

W10918546CM Gas Oven Igniter Replaces Part Numbers: W10918546, W10140611, 98005652, W10918546VP, WPW10140611, AP6037202, PS11770066. 3.4 - 3.6 Amp, 1.5" block, 3.75" cage, 10" leads w/male pins. Bake igniter for specific single burner Whirlpool range models. Description: This Oven Igniter is a replacement part for select Maytag, Kenmore, Whirlpool gas oven models, responsible for igniting the gas burner that heats the oven. It works by drawing electrical current through the igniter filament, heating it to a high temperature until it glows and ignites the gas to start the cooking process. This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less
