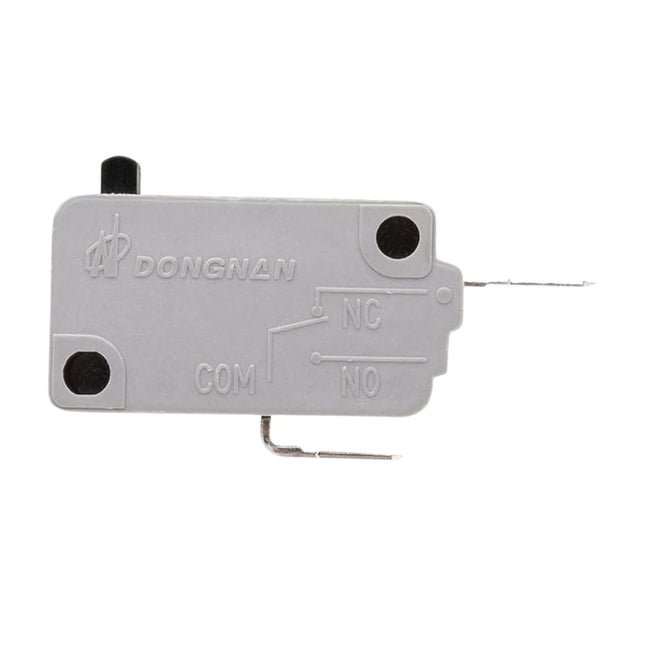

XPG499 Microwave Door Switch (Normally Closed)
The XPG499 is a universal microwave door interlock switch, Normally Closed (NC) type, for household microwave ovens. Most microwaves use three door switches working together, and each has a distinct job: the primary switch is the direct control point that energizes the microwave's heating circuit when the door closes; a secondary switch backs it up; and this NC switch typically serves as the monitor, or "watchdog," switch. Its role is different from the others — rather than simply turning the microwave on and off, this switch is designed to detect a failure in the primary switch. If the primary switch ever sticks closed when it shouldn't (for example, if the door opens but the primary switch fails to cut power), this NC switch is positioned to intentionally create a short that blows the line fuse, forcing a complete shutdown and preventing the microwave from operating with the door open.
Rated 16A, 125/250VAC, built from high-temperature-resistant plastic rated for continuous exposure from -40°C to 105°C, with a mechanical life of roughly 50,000 cycles. Measures approximately 1.09" x 0.63" x 0.41" (28 x 16 x 10mm). Because this switch performs a safety-monitoring function rather than a simple on/off role, a failed unit can produce one of two very different symptoms depending on how it fails: the microwave may not start at all (won't heat, sometimes displaying a door-related message), or — if it fails in a way that stops performing its watchdog function — the fuse it's meant to protect can blow unexpectedly.
⚠️ Critical Safety Function — Switch Type And Position Must Match Exactly Microwave door interlock switches work together as a system, and each switch (primary, secondary, and this monitor/NC switch) performs a specific job in a specific position. Installing a switch of the wrong type, or in the wrong position, can allow the microwave to operate with the door open or partially open — a serious radiation exposure hazard. Always confirm you are replacing a switch with the exact same type (Normally Closed vs. Normally Open) in the exact same position it came from, and never substitute switch types to "make it work." Microwave shielding and interlock switches should be tested for proper operation after any interlock switch replacement, and having a qualified appliance technician verify the repair is strongly recommended given the safety function this component performs.
Quick Answer
The XPG499 Microwave Door Switch (Normally Closed) fixes household microwave ovens where the microwave won't start, displays a door-related error, or where the monitor fuse has blown unexpectedly. 16A, 125/250VAC, Normally Closed type. This is the Normally Closed (monitor/watchdog) switch — it is not interchangeable with the Normally Open switches also used in most microwave door interlock systems.
Common Problems This Part Fixes
Microwave won't start when the door is closed
Microwave display shows a door-related message or error
Microwave line fuse has blown unexpectedly, with no other apparent cause
Microwave that intermittently starts and stops, sometimes resolved by jiggling or pressing the door
Complete loss of power to the microwave following a door-related fault
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
WB24X830, AH237422, EA237422, WB24X0800, WB24X0830, WB24X10075, WB24X800, AP2024338, PS237422, WB24X25397, WB24X817, WB24X10112, WB24X0817, AP6037282, PS11766871, 00606695, 1386420, 606695, AH3477007, EA3477007, AP4067354, PS3477007, PS8726632, 5304408937, 5304509459, 5304464098, 4583655, AP6230614, PS12071302, ANE61784L0AG, AP7040623, WB24X10205, WB24X10147, 251201600930, 3025959, AP5790849, PS8754455, W10269458, W10211973, 1550016, 4393598, 8206347, AH2361111, EA2361111, AP4429884, PS2361111, 6600W1K001C, AP4650823, PS3529293, WB24X824, 253814, WB24X0824, AH237416, EA237416, AP2024332, PS237416, 5304456101, 1198245, 75304456101, AH1532505, EA1532505, AP3960662, PS1532505, 6600W1K001R, 1583495, AH3598700, EA3598700, AP5254801, PS3598700, 3405-001033, DE34-20019A, WP3405-001033, 2028596, 3405-000176, AP4044665, PS4131191, WB24X804 253795, WB24X0422, WB24X0804, WB24X422, AH237397, EA237397, AP2024313, PS237397, WB24X10189, 1810588, AH3486597, EA3486597, AP4980349, PS3486597, WB02X21314, AP5789839, 261201600170, 5304522843, AP6979709, EAP12746329, PD00081362, PS12746329, WB24X10069, AP3189717, 911027, PS237034, W11580028, W11305909, AP7180501, PD00092925, PS16660616, 5304503483, 5304507612, PS11728400, AP5987109, 4378650, PS11728400, 3B73361E, 1325767, 3B73361D, 6600W1K003C, 6600W1K004B, AH3522736, EA3522736, AP4629337, PS3522736.
This is a universal component rather than a single-manufacturer part, so the specific OEM number your microwave's label references will vary by brand. We were only able to confirm one directly cross-referenced Normally Closed part number from reliable sources at the time this page was built, so we've listed only that number rather than guessing — many similarly-numbered microwave door switches (including several "KW3A"-family and GE WB24X-series numbers) are actually Normally Open and are not correct substitutes for this part. This switch is a correct replacement for any microwave's original Normally Closed door switch matching the 16A, 125/250VAC specification. If you have your original part number, contact our support team and we will verify compatibility before you order.
Compatibility
This switch is a universal replacement compatible with household microwave ovens across all major brands — GE, Whirlpool, Frigidaire, Samsung, LG, and others — wherever the original switch is:
Normally Closed (NC) type
Rated 16A, 125/250VAC (or lower voltage/current rating than your original)
A comparable physical size and terminal configuration to your original switch
Note: Most microwaves use three door switches (typically two Normally Open plus this one Normally Closed switch), and they are not interchangeable with each other — each performs a distinct role in the safety interlock system. Before ordering, confirm which switch has failed and its type (check the switch itself, or test with a multimeter for continuity in its resting/unactuated state). Always verify your original switch's terminal count and wiring configuration before ordering. Contact our support team if you'd like help confirming compatibility.
Key Features
Universal Normally Closed microwave door interlock switch
Serves as the monitor/watchdog switch in a standard 3-switch interlock system, providing redundant safety against a stuck primary switch
Rated 16A, 125/250VAC
High-temperature-resistant plastic housing, rated -40°C to 105°C
Mechanical life of approximately 50,000 cycles
Compact size: approximately 1.09" x 0.63" x 0.41" (28 x 16 x 10mm)
Resolves "won't start," "door-related error message," and "unexpected fuse failure" symptoms caused by switch failure
Compatible with GE, Whirlpool, Frigidaire, Samsung, LG, and most other major microwave brands
Built to meet or exceed industry-standard specifications for this switch class
Product Specifications
Part Number
XPG499
Part Type
Microwave Door Interlock Switch — Normally Closed (Monitor/Watchdog)
Condition
New — Universal Replacement Part
Switch Type
Normally Closed (NC)
Current Rating
16A
Voltage Rating
125VAC / 250VAC
Housing Material
High-temperature-resistant plastic
Operating Temperature Range
-40°C to 105°C
Mechanical Life
Approx. 50,000 cycles
Dimensions
1.09" x 0.63" x 0.41" (28 x 16 x 10mm)
Application
Household Microwave Ovens
Quantity
1 door switch
Compatible Brands
Universal — GE, Whirlpool, Frigidaire, Samsung, LG, and most other major brands
Installation Notes
⚠️ Unplug Microwave Before Starting — Be Aware Of The High Voltage Capacitor Nearby Unplug the microwave before beginning any work, and never operate it with the cabinet open. Depending on your model, accessing the door switches may bring you into or near the high-voltage compartment, which houses the high voltage capacitor — a component capable of retaining a lethal electrical charge even after the microwave is unplugged. If your repair requires removing the outer cabinet, treat the high-voltage compartment as energized and follow proper capacitor discharge procedures (shorting both capacitor terminals to chassis ground with an insulated tool, verified with a multimeter) before touching anything near it, even if your work is focused on the door switches themselves. If you are not confident performing this safely, have a qualified appliance technician complete this repair.
⚠️ Photograph Switch Positions Before Removing Anything Wear insulated gloves and safety glasses. Remove the outer cabinet or access panel per your model's service diagram to reach the door switch mounting plate, typically near the front of the microwave behind the control panel or door frame. Before disconnecting anything, photograph each switch's position and wiring — with three switches often mounted close together, it's easy to confuse which is which, and the Normally Closed switch is not interchangeable with the Normally Open switches. Test the suspected faulty switch with a multimeter for continuity in its resting (unactuated) position to confirm it's the correct one to replace. Disconnect the wires from the old switch, noting or labeling each connection, and remove it from its mounting position. Install the new XPG499 in the same position, reconnect each wire to its correct terminal exactly as photographed, and secure the switch in its mount. Reassemble the cabinet or access panel. Plug the microwave back in and test that it starts normally with the door closed and stops immediately when the door is opened during operation, confirming the interlock system is functioning correctly before returning the microwave to normal use.
Frequently Asked Questions
What's the difference between this switch and the Normally Open switches in my microwave?
Most microwaves use three switches with different jobs: a primary switch that directly turns the heating circuit on when the door closes, a secondary switch that backs it up, and this Normally Closed switch, which typically acts as a monitor or "watchdog." Rather than simply switching power on and off, this switch is designed to detect a failure in the primary switch — if the primary switch ever fails to cut power when the door opens, this NC switch is positioned to intentionally blow the line fuse and force a complete shutdown, which is a critical safety backup. The three switches are not interchangeable.
My microwave's fuse keeps blowing for no obvious reason. Could this switch be the cause?
Yes, this is a documented failure pattern. Because this switch's specific job is to blow the fuse if it detects the primary switch has failed to open, a malfunctioning NC switch — or a primary switch that's genuinely sticking — can cause repeated, seemingly unexplained fuse failures. If your microwave keeps blowing fuses, it's worth having both the primary switch and this monitor switch tested rather than just replacing fuses repeatedly.
How do I know which of the three switches has actually failed?
Testing each switch individually with a multimeter, in its resting (unactuated) position, is the most reliable way — a Normally Closed switch should show continuity when not pressed, and a Normally Open switch should show no continuity when not pressed. If a switch doesn't match its expected resting state, or shows no continuity in either position, it has likely failed. Given the safety function these switches serve, if you're not confident testing and diagnosing them yourself, this is a reasonable repair to have a qualified technician handle.
Is this a genuine OEM part?
This is a universal replacement part rather than a brand-specific OEM part. Because Normally Closed microwave door switches of this type are a standardized component defined by their electrical rating and switch behavior, this switch is a correct replacement for any microwave's original NC door switch sharing a comparable rating and terminal configuration — regardless of which brand originally installed it.
