Drain Pumps

XPARTCO 4681EA2001T Washer Drain Pump Motor The XPARTCO 4681EA2001T is an aftermarket replacement drain pump motor assembly compatible with a wide range of LG and Kenmore front-load washers. The drain pump motor forces water out of the washer drum through the drain hose during and after the wash and spin cycles — when it fails, the washer will not drain, will display an OE error code, leave standing water in the drum, or produce a loud humming or grinding noise during the drain phase. This drain pump motor is rated at 120V–127V, 60Hz, 85W, 1.4A with a flow rate of 45 liters per minute and a spin speed of 1,100–1,200 RPM. It is made from durable metal and ABS plastic and includes the pump impeller and a removable filter housing with sealing ring for quieter, smoother operation. Note: this is the motor assembly only — it reuses the existing pump housing from your washer. It directly replaces 4681EA2001N, 4681EA1007G, 4681EA1007D, AP5328388, and several additional cross-reference numbers. Installs in 30–60 minutes with basic hand tools. Quick Answer The XPARTCO 4681EA2001T Washer Drain Pump Motor fixes LG and Kenmore front-load washers showing OE error codes, not draining, leaving standing water, or making loud humming or grinding sounds during the drain cycle. Rated 120V–127V/60Hz/85W/1.4A, 45L/min, 1,100–1,200 RPM. Includes impeller and removable filter housing. Motor assembly only — reuses existing pump housing. Replaces 4681EA2001N, AP5328388, 4681EA1007G, and more. Common Problems This Part Fixes OE error code displayed — washer cannot drain within the allotted time Washer not draining — standing water remaining in the drum after a cycle Loud humming or buzzing during the drain cycle — motor running but impeller not turning Grinding or rattling noise during draining — physical damage to pump components Washer stopping mid-cycle due to a drain fault Washer draining very slowly — worn pump motor below rated flow Water leaking from the drain pump area Replaces Part Numbers This drain pump motor directly replaces the following OEM and cross-reference part numbers: 4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, DP040-038, ALG51292, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318. 4681EA2001T is the current updated part number — it is the manufacturer-approved replacement for the older 4681EA2001N. If your washer or parts diagram shows 4681EA2001N, order 4681EA2001T. Compatibility This drain pump motor is compatible with select front-load washers from the following brands: LG front-load washers — WM2xxx, WM3xxx, WM4xxx, WM5xxx, WM8xxx, WM9xxx series Kenmore / Sears front-load washers (select LG-built models, including 796-series) Important: This is the pump motor assembly only — it installs into your washer's existing pump housing. The pump housing is not included and is reused from your old assembly. Always verify your model number before ordering. Contact our support team if you're unsure. Key Features Forces water out of the drum through the drain hose during wash and spin cycles at 45 liters per minute Rated 120V–127V, 60Hz, 85W, 1.4A — correct electrical specifications for compatible LG and Kenmore models Spin speed: 1,100–1,200 RPM for powerful, efficient drainage Includes pump impeller and removable filter housing with sealing ring Removable filter housing allows easy cleaning without full pump disassembly Sealing ring reduces vibration and noise during operation Durable metal and ABS plastic construction — built to withstand repeated high-volume drainage cycles Motor assembly only — installs into existing pump housing, no housing replacement needed Resolves OE error code on compatible LG and Kenmore front-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–60 minutes with basic hand tools Product Specifications Part Number 4681EA2001T Also Replaces 4681EA2001N (updated current replacement) Part Type Washer Drain Pump Motor Assembly Condition Aftermarket Replacement Application LG and Kenmore Front-Load Washers Voltage 120V – 127V AC Frequency 60 Hz Wattage 85W Amperage 1.4A Flow Rate 45 liters per minute Spin Speed 1,100 – 1,200 RPM Material Metal / ABS Plastic Includes Motor assembly, impeller, removable filter housing, sealing ring Note Motor assembly only — existing pump housing is reused Compatible Brands LG, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Place towels and a shallow pan at the front of the washer to catch residual water. Open the small access panel at the lower front of the washer and drain any remaining water through the drain hose or filter port. Remove the front panel of the washer by unscrewing the top panel screws, then removing the door gasket retaining wire and door latch screws to free the front panel. With the front panel removed, the drain pump assembly is now visible at the lower front. Use a flat-head screwdriver to release the pump mounting clip, then disconnect the drain hoses using pliers to loosen the clamps. Disconnect the wire harness from the pump motor. Pull the motor assembly out of the pump housing. Install the new 4681EA2001T motor into the existing housing, reconnect the hoses and wire harness, secure the pump clip, and reassemble the front panel. Restore power and water supply, then run a drain/spin cycle to verify proper drainage. Tools needed: Phillips screwdriver, flat-head screwdriver, needle-nose pliers, slip-joint pliers, shallow pan. Frequently Asked Questions What is the difference between 4681EA2001T and 4681EA2001N? These are the same drain pump motor — 4681EA2001T is the updated current part number that replaced the older 4681EA2001N. LG issued the updated number during a production cycle revision. If your washer or its documentation shows 4681EA2001N, 4681EA2001D, or any other older variant, the 4681EA2001T is the correct replacement to order. What does the OE error code mean on an LG washer? OE (or OE error) stands for "Outlet Error" — it means the washer was unable to drain within the expected time. Common causes include a clogged drain filter, a blocked or kinked drain hose, or a failed drain pump motor. Before replacing the motor, check and clean the drain filter and inspect the drain hose for kinks or blockages. If both are clear and the washer still shows OE, the pump motor has likely failed and needs replacement. Does this include the pump housing? No — the 4681EA2001T is the motor assembly only. It installs into your washer's existing pump housing, which is not included and does not need to be replaced in most cases. If your pump housing is cracked or damaged, you will need to source it separately. In most repairs, the housing is reused and only the motor assembly is replaced. Should I check the drain filter before replacing the pump motor? Yes — always check and clean the drain filter first. LG front-load washers have a coin trap and filter at the lower front that should be cleaned regularly. A heavily clogged filter or a foreign object jammed in the impeller can cause OE errors and loud humming without the pump motor being permanently damaged. Remove the filter, clear debris from the impeller area, and test the washer. If the problem persists after cleaning, the motor is the likely culprit. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable metal and ABS plastic to match the electrical specifications and performance of the original 4681EA2001T drain pump motor assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

DC31-00181CCM Washer Circulation Pump 120V, 60Hz, 0.65A Re-circulation pump. Fits select Samsung front load washer models. Replaces Part Numbers: DC31-00181C, DC31-00030E, DC31-00030J, DC96-01113G, 4813796, DC31-30008F, AP6025315, PS11758869. Description: This Washer Motor AC Re-circulation Pump motor is an essential component for maintaining your washer's optimal performance. This replacement part ensures reliable operation by efficiently circulating water within the motor, preventing overheating and extending the lifespan of your appliance. Designed specifically for select Samsung washer models.   This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

137221600 (OE) Washer Drain Pump – Compatible with Frigidaire & Electrolux Washers Product Description Restore proper water drainage and dependable washer performance with the 137221600 (OE) Washer Drain Pump. This OE (Original Equipment) replacement is manufactured to match the original factory design, fit, and performance specifications. A failing drain pump can cause standing water, slow draining, loud noises, or interrupted cycles. Replacing it with this OE-spec pump helps return your washer to reliable operation while offering a more cost-effective alternative to Genuine OEM parts. ℹ️ What is OE? OE (Original Equipment) parts are produced to the same design and performance standards as the original factory part but are not sold under the appliance brand’s OEM label. They provide the same fit and function at a more affordable price. Replaces Part Numbers 137221600, 131724000, 134051200, 134740500, 137108100, 137151800, 137151800KITK, 2754548, TJ137108100, ER137108100, PD00000118, EAP7783938, BPX401-72J, AP5684706, PS7783938, Also replaces GE WH23X10041, 2119312, WH23X10009, WH23X10017, WH23X10031, WH23X10034, AH3502779, EA3502779, AP5324214, PS3502779. Compatibility This OE washer drain pump fits select Frigidaire, Electrolux, Crosley, Gibson, and Kenmore (Frigidaire-manufactured) washers. Example compatible models include (but are not limited to): Frigidaire FWT445GES0, GLTF2940ES Electrolux EWFLS70JSS Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 OE (Original Equipment) Replacement – Matches original factory specifications 💧 Efficient Water Removal – Restores proper draining during wash and spin cycles 🔇 Quiet Operation – Helps reduce humming or grinding noises 💪 Durable Motor & Housing – Designed for long service life 💰 Cost-Effective Alternative – OE quality without Genuine OEM pricing 📐 Product Specification Part Number: 137221600 Component Type: Washer Drain Pump Voltage: 120V AC Mounting: Direct-fit, bolt-on installation Application: Washer drain and spin system Quality Level: OE (Original Equipment) – not Genuine OEM 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver, pliers ⚠️ Safety First: Unplug the washer and shut off the water supply before servicing. Basic Steps: Disconnect washer power and water supply. Access the drain pump from the bottom or rear of the washer. Remove hoses and electrical connectors. Remove mounting screws and take out the old pump. Install the new 137221600 OE drain pump. Reconnect hoses and wiring, reassemble panels, and restore power. Run a test cycle to confirm proper draining. ⏱️ Time Required: 25–35 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted OE Appliance Parts 🔄 30-Day Return Policy Restore proper washer drainage with confidence — Add to Cart Now for a dependable OE-spec repair!

Read more less

XPARTCO WH11X39237 Washer Drain Pump The XPARTCO WH11X39237 is an aftermarket replacement drain pump and filter assembly compatible with select GE, GE Profile, and GE 2-in-1 Washer/Dryer Combo front-load washers in the GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series. The drain pump is responsible for removing water from the washer drum during the drain and spin cycles — when it fails, the washer will not drain, will leave standing water in the drum, or will produce unusual noises during the drain cycle. This complete drain pump and filter assembly operates at 120V, 60Hz, 1.2A and includes the pump motor, impeller housing, and integrated filter. It directly replaces the discontinued WH11X29539 — WH11X39237 is the current manufacturer-approved updated part number. Also replaces AP6986715, 4962370, B25-3A04, and several additional cross-reference numbers. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO WH11X39237 Washer Drain Pump fixes GE front-load washers that won't drain, leave standing water in the drum, display drain error codes, or make loud humming or grinding noises during the drain cycle. Complete pump and filter assembly. 120V/60Hz/1.2A. Replaces discontinued WH11X29539. Compatible with GE GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series. Common Problems This Part Fixes Washer not draining — standing water remaining in the drum after a cycle Drain error codes displayed on GE front-load washers (e.g. E23, E24, or pump-related codes) Loud humming, grinding, or buzzing noise during the drain cycle Washer stopping mid-cycle due to a drain fault Water leaking from around the drain pump area Drain pump running continuously but water not being expelled Pump impeller jammed by debris and motor burned out Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: WH11X39237, WH11X29539, Hanyu B25-3A04, 9019841, PD00094541, AGE1260100, AP8054992, PS18351790. WH11X39237 is the current manufacturer-approved replacement for the discontinued WH11X29539. If your appliance documentation lists WH11X29539, this is the correct updated part. Compatibility This drain pump is compatible with select front-load washers and laundry combos from the following GE product lines: GE front-load washers — GFW510 series GE front-load washers — GFW550 series GE front-load washers — GFW650 series GE front-load washers — GFW655 series GE front-load washers — GFW850 series GE Profile front-load washers — PFW870, PFW950, PFW955 series GE Profile front-load washers — PFQ83 series GE 2-in-1 Washer/Dryer Combo (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Complete drain pump and filter assembly — pump motor, impeller housing, and integrated filter all included Removes water from the drum during drain and spin cycles for proper washer operation Integrated filter traps lint, coins, and debris to prevent pump impeller damage and clogs Electrical specs: 120V, 60Hz, 1.2A — correct for compatible GE front-load models WH11X39237 is the current manufacturer-approved replacement for discontinued WH11X29539 Direct replacement — installs into existing pump housing with no modification required Aftermarket replacement built to OEM-equivalent quality standards Compatible with GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series DIY-friendly repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number WH11X39237 Supersedes WH11X29539 (discontinued) Part Type Washer Drain Pump and Filter Assembly Condition Aftermarket Replacement Application GE Front-Load Washers and 2-in-1 Washer/Dryer Combos Voltage 120V AC Frequency 60 Hz Amperage 1.2A Includes Pump motor, impeller housing, and integrated filter Compatible Series GFW510, GFW550, GFW650, GFW655, GFW850, PFW870, PFW950, PFW955, PFQ83 Compatible Brands GE, GE Profile Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Place towels and a shallow pan under the pump access area to catch residual water. Remove the front lower access panel of the washer. Before removing the pump, first clean the pump filter (WH23X38617) and check for a clogged filter or debris in the pump housing — a jammed impeller is sometimes mistaken for a failed pump. If the pump motor is confirmed failed, disconnect the wire harness and drain hoses from the old pump assembly, then unscrew or unclip the pump from the mounting bracket. Install the new WH11X39237 pump assembly, reconnect the drain hoses and secure with clamps, reconnect the wire harness, and reinstall the access panel. Restore power and water supply, then run a drain-only cycle to verify proper drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan or towels. Frequently Asked Questions What is the difference between WH11X39237 and WH11X29539? These are the same drain pump assembly — WH11X39237 is the current updated part number that GE issued to replace the discontinued WH11X29539. If your washer's documentation, parts diagram, or old pump label shows WH11X29539, the WH11X39237 is the correct replacement to order. Should I check the pump filter before replacing the drain pump? Yes — always check and clean the pump filter (WH23X38617) before replacing the drain pump. A heavily clogged filter can restrict water flow enough to mimic pump failure symptoms, and a foreign object jammed in the impeller can stall the pump motor without permanently damaging it. Remove the filter, clear any debris from the housing and impeller, and test the washer again. If the pump still fails to drain after cleaning, then pump replacement is the next step. How do I know if my drain pump has failed? A failed drain pump typically causes the washer to stop mid-cycle with a drain error code, or to finish a cycle with standing water in the drum. You may also hear a loud humming noise during the drain phase — this indicates the motor is running but the impeller is not turning (jammed or broken). A grinding noise suggests physical damage to the impeller or pump housing. If the pump is completely silent during the drain cycle despite power being delivered to it, the motor has likely burned out. Is the WH11X39237 compatible with GE Profile and GE 2-in-1 models? Yes — the WH11X39237 is compatible with select GE Profile front-load washers in the PFW870, PFW950, PFW955, and PFQ83 series, as well as select GE 2-in-1 Washer/Dryer Combo models. Always verify your specific model number before ordering to confirm compatibility. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the electrical specifications and physical dimensions of the original WH11X39237 drain pump assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

Genuine Whirlpool WPW10605427 Washer Drain Pump - Compatible with Whirlpool, Maytag, KitchenAid, Amana, Kenmore Product Description Restore your washer’s performance with the Genuine Whirlpool WPW10605427 Washer Drain Pump. This OEM drain pump is designed for select Whirlpool, Maytag, KitchenAid, Amana, and Kenmore washing machines, efficiently circulating and draining water during wash and rinse cycles. It addresses issues like failure to drain, leaking, or unusual noises, delivering reliable performance as an authentic Whirlpool part. Note: Includes one drain pump with electrical connector. Disconnect power before installation. Inspect pump filter and drain hoses for clogs to ensure optimal performance. Replaces part numbers: WPW10605427, WPW10425238, W10425238, W10605427, W10799064, W10799065, W10903216, W10918044, PD00038328, EAP11756700, AP6023357, PS11756700. Compatibility: Compatible with models including but not limited to: Whirlpool: WFW72HEDW0, WFW75HEFW0, WFW90HEFC0, WFW92HEFW0 Maytag: MHW3500FW0, MHW5500FC0, MHW7100DW0 KitchenAid: KSMW1030SS0 Amana, Kenmore: (select models, verify compatibility) Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Maytag, KitchenAid, Amana, and Kenmore washing machines. 💧 Specifications: OEM drain pump, 120V, stainless steel and plastic construction. 💪 Reliable Performance: Authentic Whirlpool part ensures long-lasting durability. 🛠️ Easy Installation: Requires screwdriver, pliers, and work gloves; typically installed in 15–30 minutes. 🛡️ Effective Fixes: Resolves failure to drain, leaking, or unusual noises during operation. Product Specification Part Number: Genuine Whirlpool WPW10605427 Component Type: Washer drain pump Material: Stainless steel and plastic Electrical Specs: 120 volts, AC Mounting: Screw-mounted, typically at the bottom rear of the washer Operating Conditions: Suitable for household washing machine environments Compliance: UL-listed, Prop 65 warning for California Installation Notes: Safety First: Disconnect the washer from the power source before installation. Shop for high-quality Genuine appliance parts with a 30-day return policy. Keep your washer draining efficiently today! Add to cart now for a reliable fix!

Read more less

WH11X34740 Washer Genuine OEM Drain Pump Assembly – Compatible with GE & Hotpoint Washers Product Description Restore proper draining and reliable washer operation with the WH11X34740 Washer Drain Pump Assembly. This Genuine OEM replacement pump is responsible for removing water from the washer during drain and spin cycles. A failing drain pump can cause standing water, slow draining, loud grinding noises, or error codes. Replacing it with this Genuine OEM assembly helps ensure efficient water removal and dependable washing performance. Replaces Part Numbers WH23X25518, WH23X10038, WH23X25461, PD00079543, EAP16743374, AP7195487, PS16743374. Compatibility This Genuine OEM replacement washer drain pump assembly fits select GE and Hotpoint washers. Example compatible models include (but are not limited to): GE GTW465ASNWW, GTW335ASNWW Hotpoint HTW240ASKWS Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Genuine OEM – Genuine OEM part 💧 Efficient Water Removal – Restores proper draining during cycles 🔇 Quiet Operation – Helps eliminate grinding or buzzing noises 💪 Durable Motor Construction – Designed for long service life 📐 Product Specification Part Number: WH11X34740 Component Type: Washer Drain Pump Assembly Voltage: 120V AC Mounting: Direct-fit, bolt-on installation Application: Washer drain and spin system Quality Level: Genuine OEM 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver, pliers ⚠️ Safety First: Unplug the washer and shut off the water supply before servicing. Basic Steps: Disconnect washer power and water supply. Access the drain pump from the bottom or rear of the washer. Remove hoses and electrical connectors. Remove mounting screws and take out the old pump. Install the new WH11X34740 drain pump assembly. Reconnect hoses and wiring, reassemble panels, and restore power. Run a test cycle to confirm proper draining. ⏱️ Time Required: 25–35 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket Appliance Parts 🔄 30-Day Return Policy Restore proper washer draining and prevent water buildup — Add to Cart Now for a dependable, budget-friendly repair!

Read more less

DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly The DC97-19289F is a Genuine OEM Samsung replacement washer drain pump assembly compatible with a wide range of Samsung top-load washers in the WA40, WA41, WA42, WA44, WA45, WA48, WA50, WA52, and WA54 series, as well as select Kenmore models built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will display error codes 5C, SE, nd, 5E, FO2, or E5, leave standing water in the tub, stop mid-cycle, or produce unusual noise during draining. This complete drain pump assembly is rated 120V, 60Hz, 80W, 1.1A with a 30-minute on / 30-minute off duty cycle. It directly replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01. Note: the wire plug on the new pump may differ slightly from the original — if the connector does not match your washer's harness, transfer the wiring harness from the old pump to the new one. Installs in 20–30 minutes with basic hand tools. Quick Answer The DC97-19289F Genuine OEM Samsung Washer Drain Pump Assembly fixes Samsung top-load washers displaying error codes 5C, SE, nd, 5E, FO2, or E5, not draining, leaving standing water, or making loud noise during the drain cycle. 120V/60Hz/80W/1.1A, 30 min on/30 min off duty cycle. Compatible with Samsung WA40 through WA54 series and Kenmore (Samsung-built). Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, PX3516-01. Note: if wire plug differs, transfer harness from old pump. Common Problems This Part Fixes Error codes 5C, SE, nd, 5E, FO2, or E5 — washer cannot drain within the allotted time Washer not draining — standing water remaining in the tub after a cycle Washer stopping mid-cycle due to a drain fault Loud humming, grinding, or rattling noise during the drain cycle Water draining very slowly — worn pump motor below rated performance Water leaking from the drain pump area at the bottom of the washer Pump running continuously but water not being expelled from the tub Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: DC97-19289F, DC97-17349B, DC97-19289B,DC97-17366A, DC97-17366J, DC97-19289A,ASM772133, AP6806651, EAP12592631, PD00049911, PX3516-01, PS12592631. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select top-load washers from the following brands and series: Samsung top-load washers — WA40 series (WA400PJHDWR and related models) Samsung top-load washers — WA41 series (WA41A3000AW and related models) Samsung top-load washers — WA42 series Samsung top-load washers — WA44 series (WA44A3205AW and related models) Samsung top-load washers — WA45 series (WA45H7000AW, WA45M7050AW, WA45N3050AW, WA45T3200AW and related models) Samsung top-load washers — WA48 series (WA48H7400AW and related models) Samsung top-load washers — WA50 series (WA50F9A7DSP, WA50M7450AW and related models) Samsung top-load washers — WA52 series (WA52M7750AW, WA52M8650AW and related models) Samsung top-load washers — WA54 series (WA54M8750AV and related models) Samsung top-load washers — WA456DRHDSU series Kenmore / Sears top-load washers (select Samsung-built models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Removes water from the tub during the drain and spin cycles for proper washer operation Resolves Samsung error codes 5C, SE, nd, 5E, FO2, and E5 caused by drain pump failure Rated 120V, 60Hz, 80W, 1.1A — correct electrical specifications for compatible Samsung top-load models 30-minute on / 30-minute off duty cycle — matches the operational requirements of compatible models Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01 Wire plug may differ from original — transfer harness from old pump if connector does not match Compatible with Samsung WA40 through WA54 series and Kenmore Samsung-built top-load washers Genuine OEM part manufactured by Samsung to factory specifications — guaranteed fit and performance DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number DC97-19289F Also Replaces DC97-19289A, DC97-19289B (prior versions) Part Type Washer Drain Pump Assembly Condition Genuine OEM Application Samsung Top-Load Washers Voltage 120V AC Frequency 60 Hz Wattage 80W Amperage 1.1A Duty Cycle 30 minutes on / 30 minutes off Error Codes Resolved 5C, SE, nd, 5E, FO2, E5 Connector Note Wire plug may differ — transfer harness from old pump if needed Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Tilt the washer back or lay it on its side to access the drain pump at the bottom of the machine. Place towels and a shallow pan to catch residual water when the pump is disconnected. Note the wiring connector orientation before disconnecting — take a photo if needed. If the new pump's connector does not match the washer's harness, carefully transfer the wiring harness from the old pump to the new pump. Disconnect the drain hoses from the pump using pliers to loosen the clamps. Unscrew the pump mounting screws and remove the old pump. Install the new DC97-19289F pump in the same position, reconnect drain hoses and secure with clamps, and reconnect the wiring harness. Restore water supply and power, then run a drain cycle to verify proper drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan, towels. Frequently Asked Questions What error codes indicate a drain pump failure on Samsung washers? Error codes 5C, SE, nd, 5E, FO2, and E5 on Samsung top-load washers all indicate a drain fault — the washer was unable to drain within the expected time. These codes can also be caused by a clogged drain filter, blocked hose, or kinked drain line, so check those first. If the filter and hose are clear and the error persists after clearing them, the drain pump is the most likely cause. What is the difference between DC97-19289F, DC97-19289A, and DC97-19289B? These are successive revisions of the same Samsung drain pump assembly. DC97-19289A was the original version, DC97-19289B was an update, and DC97-19289F is the current version. Samsung issues revised part numbers when minor production changes are made — all three perform the same function and the DC97-19289F is the correct current replacement for any of the earlier versions. The DC97-17349B, DC97-17366A, and DC97-17366J are additional older cross-references for this pump used on earlier Samsung top-load models. Why might the wire plug on the new pump differ from the original? Samsung revised the wiring connector on this drain pump across different production runs. If the DC97-19289F pump you receive has a different connector than your washer's harness, do not force the connection. Instead, carefully remove the wiring harness from the old pump and transfer it to the new pump — both versions use the same internal terminals and the harness swap is straightforward. This is a known and documented step for this part and does not affect performance or safety. Should I check the drain filter before replacing the pump? Yes — always check and clean the drain filter and inspect the drain hose for kinks or blockages before replacing the pump. A clogged filter or blocked hose can cause the same error codes as a failed pump and clearing the blockage may resolve the problem without needing a new part. On Samsung top-load washers the drain filter is typically located at the bottom front of the machine. If the filter and hose are clear and the error persists, the pump needs replacement. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Samsung to factory specifications. It is the exact same drain pump assembly installed in compatible Samsung and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

AHA75673404 Washer Genuine OEM Drain Pump Replaces Part Numbers: AHA75673404, AHA75673402, AGF30196101, AP6978814, PS12748410 Description: This Drain Pump Assembly is a Genuine OEM part compatible with Specific LG washer models. It is responsible for pumping water out of the washing machine during the drain cycle.

Read more less

WP3363394 Genuine OEM Washer Drain Pump  Direct Drive Washer Drain Pump for Whirlpool, Kenmore, Roper, Estate, Kirkland, and many more  Replaces Part Number: 3363394, 21024, 3296, 3348014, 3348015, 3348215, 3352492, 62516, 63347, 64076, 8235, AP6008107, PS11741239. This pump fits most direct drive washers. The pump outlet is about 1 1/4". The pump comes fully-boxed, brand new, in its original packaging.

Read more less

4681EA2001T (OE) LG Washer Drain Pump Motor - Compatible with LG, Kenmore Product Description Restore efficient drainage to your washer with the 4681EA2001T for LG Washer Drain Pump Motor. This OE part is designed for select LG and Kenmore front-load washers, expelling water from the drum after wash cycles to ensure proper operation. It addresses issues like water not draining, unusual noises, leaks, or error codes, delivering reliable performance with compatible genuine LG quality. Note: Includes one drain pump motor with impeller (housing not included; reuse existing pump housing). Disconnect power and water supply before installation. Inspect drain hoses and filter for clogs to prevent repeat failures. Replaces part numbers: 4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318. Compatibility: Compatible with models including but not limited to: LG: WM3001HWA, WM8000HVA, WM8000HWA, WM2550HRCA, WM2550HWCA, WM3550HWCA, WM3070HRA, WM4070HVA, WM3070HWA, WM2350HRC, WM3360HVCA, WM2350HWC, WM2650HRA, WM3360HRCA, WM3360HWCA, WM3150HVC, WM2650HWA, WM2655HVA, WM3885HCCA, WM3150HWC, WM3885HWCA, WM2250CW, WM2450HRA, WM3987HW, WM3470HVA, WM3470HWA, WM3550HVCA, WM2455HG, WM2277HB, WM2487HRMA, WM2101HW, WM3270CW, WM3431HS, WM3770HVA Kenmore: 796.403119, 796.41072310, 796.412722 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select LG and Kenmore front-load washers. 🔧 Specifications: 120V, 60Hz, 80W, 1.4A motor pumps water and soap out of the washer drum. 🛠️ Easy Installation: Requires screwdriver, pliers, nut driver; typically installed in 20–60 minutes with YouTube video guidance. 🛡️ Effective Fixes: Resolves draining issues, leaks, noisy operation, or "OE" error codes. Product Specification Part Number: 4681EA2001T - OE Component Type: Washer drain pump motor with impeller Material: Durable plastic and metal Mounting: Fits into existing pump housing, secured with screws and connected to wiring Electrical Specs: 120V, 60Hz, 80W, 1.4A, CL.F Operating Conditions: Suitable for high-volume water drainage in front-load washers Compliance: UL-listed component, Prop 65 warning for California Installation Notes: Safety First: Disconnect the washer from the power source and water supply before installation. Tip: Access the pump by removing the washer’s front or bottom panel; use a screwdriver and pliers to disconnect hoses and wiring, and ensure proper alignment when installing the new pump. Watch YouTube videos for step-by-step guidance. Check drain hoses and filter for clogs to avoid straining the new pump. Shop for LG OE parts with a 30-day return policy. Keep your washer draining efficiently today! Add to cart now for a reliable fix!

Read more less

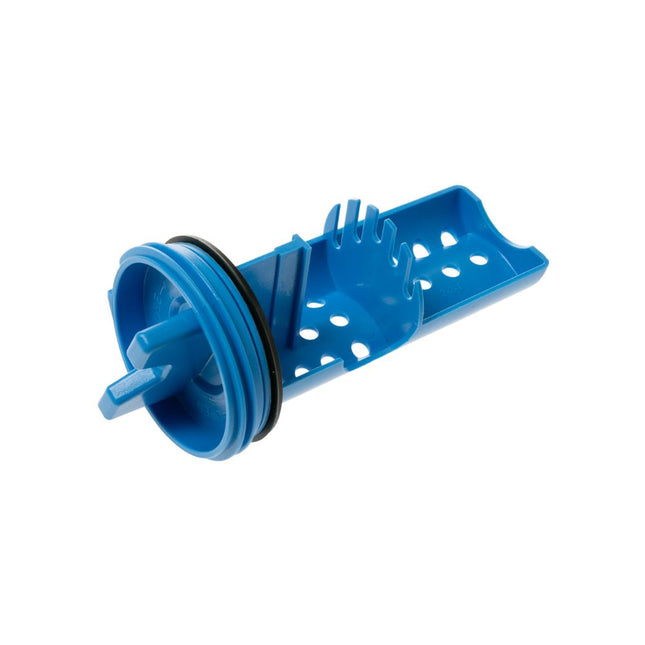

WH23X38617 Genuine OEM GE Washer Drain Pump Filter with Seal The WH23X38617 is a Genuine OEM GE replacement drain pump filter with seal, compatible with select GE, GE Profile, and GE 2-in-1 Washer/Dryer Combo models. The pump filter sits inside the drain pump housing and traps lint, coins, hair, and small debris before they reach the pump impeller. Keeping this filter clean and intact is essential for proper drainage — a clogged or damaged filter causes slow draining, standing water in the tub, and can strain the drain pump over time. This genuine OEM part is manufactured by GE to factory specifications and includes both the pump filter and the seal. The seal prevents leaks at the pump clean-out when the filter is installed correctly. The filter body is blue plastic with rubber seal components, measuring approximately 6" L x 3" W x 3" H. It directly replaces part number AP7243923 and installs with a simple counterclockwise removal and clockwise installation — no special tools required. Quick Answer The WH23X38617 Genuine OEM GE Washer Drain Pump Filter with Seal fixes GE washers that drain slowly, leave standing water in the tub, or leak near the pump access panel. The filter traps lint and debris to protect the pump impeller. Includes filter and seal. Blue plastic/rubber, approx. 6" L x 3" W x 3" H. Twist-out installation — no tools needed. Compatible with GE, GE Profile, and GE 2-in-1 Washer/Dryer Combo models. Common Problems This Part Fixes Washer draining slowly or not draining at all after a wash cycle Standing water remaining in the drum at the end of a cycle Water leaking from the pump filter access panel at the front of the washer Error codes related to drain or pump failure on compatible GE models Unusual noise from the drain pump caused by debris reaching the impeller Cracked, stripped, or missing filter cap allowing debris into the pump housing Damaged or deteriorated seal causing leaks at the filter access port Replaces Part Numbers This drain pump filter directly replaces the following part numbers: WH23X38617, WH23X38617, FIX17874614, AGE1014282, PD00090185, AP7243923, PS17874614. Contact our support team with your model number if you need help confirming compatibility before ordering. Compatibility This drain pump filter is compatible with select washers and laundry centers from the following GE product lines: GE front-load washers (select models) GE Profile front-load washers (select models) GE 2-in-1 Washer/Dryer Combo (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance Traps lint, coins, hair, and small debris to protect the drain pump impeller from damage Includes both the pump filter and seal — everything needed for a complete replacement Seal prevents water leaks at the pump filter access port when the filter is properly installed Blue plastic and rubber construction — durable and chemical resistant Dimensions: approximately 6" L x 3" W x 3" H Twist-out installation — turns counterclockwise to remove, clockwise to install; no special tools required Should be cleaned regularly (every 1–3 months) and replaced when cracked, stripped, or leaking Product Specifications Part Number WH23X38617 Part Type Washer Drain Pump Filter with Seal Condition Genuine OEM Application Front-load washers and 2-in-1 washer/dryer combos Approximate Dimensions 6" L x 3" W x 3" H Color Blue Material Plastic / Rubber Includes Pump filter and seal Installation Twist-out / twist-in — no special tools required Compatible Brands GE, GE Profile Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before servicing the drain pump filter. Place towels or a shallow pan beneath the filter access panel to catch residual water — there will always be some water remaining in the pump housing when you remove the filter. Locate the pump filter access panel at the lower front of the washer and open or remove it. Turn the old WH23X38617 filter counterclockwise to loosen and remove it. Clear any debris from the filter housing and wipe the area clean. Install the new filter and seal by inserting it into the housing and turning it clockwise until snug — do not overtighten. Close or reinstall the access panel, restore water supply and power, then run a short cycle to verify proper drainage and confirm there are no leaks at the filter port. Tip: Clean the pump filter every 1–3 months as part of regular washer maintenance to prevent buildup. Tools needed: None for the filter itself; a screwdriver may be needed to open the access panel on some models. Frequently Asked Questions What does the drain pump filter do? The drain pump filter catches lint, coins, hair, buttons, and other small items before they can reach the drain pump impeller. Without the filter, debris can jam or damage the impeller — leading to pump failure, loud grinding noises, or a washer that won't drain. The filter also acts as a cleanout access point so you can periodically remove accumulated debris without disassembling the pump. How often should I clean or replace the pump filter? GE recommends cleaning the pump filter every 1–3 months depending on how frequently you run the washer and how much lint your laundry produces. The filter should be replaced rather than just cleaned if it is cracked, stripped at the threads, or if the seal is damaged or missing — a compromised filter or seal will leak water from the access port. Why is water leaking from the front of my GE washer near the bottom? A leak at the lower front of the washer near the pump access panel is most often caused by a damaged or deteriorated pump filter seal, a cracked filter body, or a filter that is not fully tightened. Replacing the WH23X38617 pump filter and seal resolves this in most cases. Make sure the new filter is hand-tightened snugly — do not overtighten, as this can crack the housing. Will there be water when I remove the pump filter? Yes — there is always residual water in the drain pump housing. Before removing the filter, place towels and a shallow pan or tray directly under the access panel to catch the water. The amount varies depending on how much water remains in the washer after the last cycle. Running a drain-only cycle immediately before removing the filter will minimize the amount of water released. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same pump filter and seal that GE installs in compatible models from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W11396717 Washer Drain Pump Fits specific Whirlpool, Maytag Washer models. Replaces Part Numbers: W11396717, W11263349, AP6974116, PS12731177 Description; This Water Pump is a replacement component for specific Maytag, Kenmore, Whirlpool front-loading washing machine models. As an important internal component, this pump circulates water to flush away dirt and debris during wash cycles. It works in conjunction with the wash arm and impeller to properly distribute cleaning water. This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less
