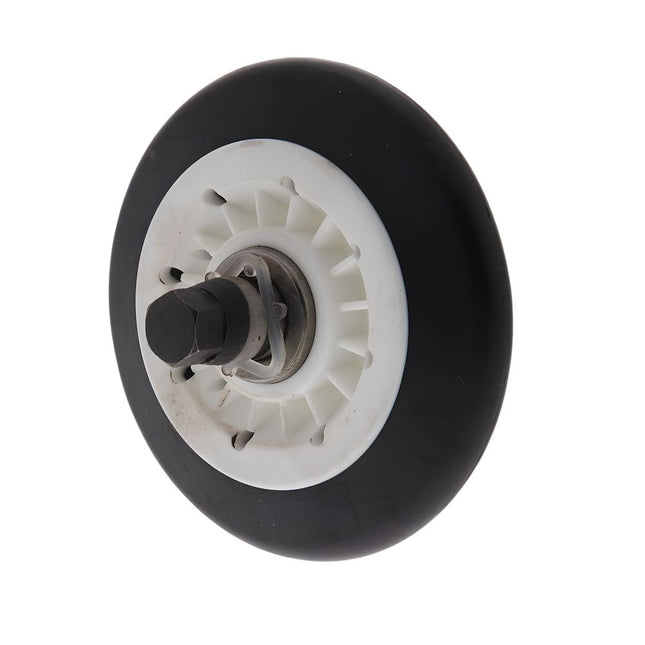

XPARTCO 4581EL2002C Dryer Drum Roller Assembly
The XPARTCO 4581EL2002C is an aftermarket replacement dryer drum support roller assembly compatible with select LG and Kenmore electric and gas dryers. The drum support rollers are cylindrical rubber-and-metal wheels mounted on fixed shafts inside the dryer cabinet that cradle and support the outer rim of the drum as it rotates. LG dryers use four support rollers — two at the front and two at the rear of the drum. When the roller wheels wear down, crack, or the axle bushings degrade, the drum no longer rides smoothly and begins to wobble, causing loud thumping, rumbling, or squealing noises, or preventing the drum from turning at all.
This roller assembly includes one roller with center bushing design, one shaft (with threaded end on one side and hex end on the other), and two tri-ring retaining clips. Sold individually — LG dryers use four rollers total, and all four should be replaced at the same time. Dimensions: 3"L x 2-3/8"W x 3"H. The 4581EL2002C is the current revision covering the earlier A, B, D, and E variants. It directly replaces 4581EL2002A, 4581EL2002B, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001E, 4581EL3001F, DE2002A, 2701044, AP5688895, EAP8260240, and PS8260240. Often replaced together with the drum belt (4400EL2001A) and idler pulley (4561EL3002A). Installs in 30–60 minutes with basic hand tools.
Quick Answer
The XPARTCO 4581EL2002C Dryer Drum Roller fixes LG and Kenmore dryers that are thumping, rumbling, squealing, or where the drum has stopped turning. Sold individually — order 4 to replace all rollers at the same time. Includes roller, shaft, and 2 tri-ring clips. 3"L x 2-3/8"W x 3"H. Replaces 4581EL2002A, 4581EL2002B, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001F, DE2002A, 2701044, AP5688895, PS8260240. Often replaced with drum belt (4400EL2001A) and idler pulley (4561EL3002A).
Common Problems This Part Fixes
Loud thumping or rumbling noise during the drying cycle — worn drum roller wheels
Squealing or squeaking noise — roller bushing or axle degrading
Drum turning unevenly or wobbling — rollers no longer supporting the drum evenly
Drum not spinning at all — rollers so worn the drum has dropped off the support path
Scraping or grinding noise — roller wheel surface worn flat and dragging against the drum rim
Excessive vibration during the drying cycle
Marks or scuff lines on clothes — drum dragging against the cabinet from unsupported movement
Replaces Part Numbers
This drum roller directly replaces the following OEM and cross-reference part numbers:
581EL2002L, AGM75510755, 4581EL2002H, 4581EL2002C, 4581EL2002A, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001F, AP7220429, PS17269866
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum roller is compatible with select LG and Kenmore gas and electric dryers:
LG electric dryers — DLE series (DLE0332W, DLE0442W, DLE1310W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2532W, DLE3733W, DLE4801W, DLE5001W, DLE5955W, DLE7177WM and related models)
LG electric dryers — DLEX series (DLEX3885W, DLEX5780VE, DLEX7177WM and related models)
LG gas dryers — DLG series (DLG2251W, DLG2351W, DLG3171W, DLG3744W, DLG3788W, DLG5002W and related models)
LG gas dryers — DLGX series (DLGX3886W and related models)
Kenmore / Sears dryers — 796-series (LG-built electric and gas models)
Important: This roller is sold individually. LG dryers use four drum support rollers — replace all four at the same time for even drum support and longest service life. Order 4 of this part per repair.
Key Features
Supports and cradles the drum rim as it rotates for smooth, quiet operation
Center bushing design — rubber wheel over plastic hub with metal shaft for durability and smooth rotation
Sold individually — order 4 per repair (LG dryers use 4 rollers: 2 front, 2 rear)
Kit includes: 1 roller assembly, 1 dual-end shaft (threaded and hex), 2 tri-ring retaining clips
Dimensions: 3"L x 2-3/8"W x 3"H per roller
4581EL2002C is the current revision — covers 4581EL2002A, B, D, and E variants
Replaces 4581EL2002A, 4581EL2002B, 4581EL3001A, 4581EL3001C, DE2002A, 2701044, AP5688895, and PS8260240
Often replaced together with drum belt (4400EL2001A) and idler pulley (4561EL3002A)
Compatible with LG DLE, DLEX, DLG, DLGX series and Kenmore 796-series dryers
Aftermarket replacement built to OEM-equivalent quality standards
DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
Part Number
4581EL2002C
Also Replaces
4581EL2002A, 4581EL2002B (prior revisions)
Part Type
Dryer Drum Support Roller Assembly
Condition
Aftermarket Replacement
Application
LG and Kenmore Gas and Electric Dryers
Quantity
Sold individually — order 4 per repair
Dimensions
3"L x 2-3/8"W x 3"H (per roller)
Design
Center bushing — rubber wheel / plastic hub / metal shaft
Material
Rubber / Plastic / Metal
Color
Black / Red
Includes
1 roller assembly, 1 dual-end shaft, 2 tri-ring retaining clips
Often Replaced With
4400EL2001A Drum Belt, 4561EL3002A Idler Pulley
Compatible Brands
LG, Kenmore (LG-built)
Installation Notes
⚠️ Unplug Dryer Before Starting — Wear Work Gloves Disconnect power (and shut off gas for gas dryers) before beginning. Wear work gloves — there are sharp sheet metal edges inside the LG dryer cabinet. Access the drum rollers by removing the rear panel of the dryer (most LG models). Take a photo of the belt routing and roller positions before removing anything. Release the drive belt from the idler pulley, lift the drum, and set it aside. Each drum roller is mounted on a fixed shaft in the dryer cabinet — the roller is held by two tri-ring retaining clips. Use needle-nose pliers to remove the old clips, slide the old roller off the shaft, and slide the new roller on. Install the new tri-ring clips to secure the roller. Repeat for all four rollers. Reinstall the drum, re-route the belt, and reassemble the rear panel. Restore power and run a test cycle to confirm quiet, smooth drum operation. Tip: while the dryer is open, also replace the drum belt (4400EL2001A) and idler pulley (4561EL3002A) if worn. Tools needed: Phillips screwdriver, Torx screwdriver (T20 on some models), needle-nose pliers, work gloves.
Frequently Asked Questions
How many drum rollers does my LG dryer have, and how many should I order?
LG dryers use four drum support rollers — two mounted at the front of the drum cavity and two at the rear. This listing is for a single roller. To replace all four at once (which is always recommended), order four of this part. Replacing all four at the same time ensures even drum support and eliminates the risk of a second disassembly in the near future when the remaining old rollers wear out.
What is the difference between 4581EL2002C and 4581EL2002A or 4581EL2002B?
These are successive production revisions of the same LG drum roller assembly. 4581EL2002A was the original, 4581EL2002B and C were updates, and D and E are further revisions. All variants are the same roller in terms of dimensions and function — if your dryer's parts diagram shows any of these part numbers, the 4581EL2002C is the correct current replacement. The 4581EL3001A, 4581EL3001C, and 4581EL3001E numbers are also alternate cross-references for this same roller family.
Should I replace the drum belt and idler pulley at the same time?
Yes — since the dryer must be fully disassembled to replace the drum rollers, this is the ideal time to also inspect and replace the drum belt (4400EL2001A) and idler pulley assembly (4561EL3002A). All three parts form the drum drive system and wear at similar rates. A worn belt or idler pulley is often what caused the rollers to wear prematurely in the first place. Replacing all three in one repair eliminates the most common LG dryer drum noise failure points and saves you from repeating the disassembly in the near future.
What causes LG dryer drum rollers to wear out?
Drum rollers wear naturally from the continuous load of supporting the rotating drum over thousands of drying cycles. Common factors that accelerate wear include operating the dryer with consistently very large or heavy loads, running cycles that are much longer than necessary (which increases total roller rotation time), lint buildup around the roller shafts causing the axle bushings to run dry, and a worn or broken drive belt that lets the drum sag and adds extra weight to the rollers. Regular dryer maintenance — including cleaning lint from around the drum and checking the belt — helps extend roller life.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from rubber, plastic, and metal to match the dimensions and load-bearing performance of the original 4581EL2002C drum roller assembly.
