Washer Belts, Pulleys, Suspension & Transmission Parts

ACP72929002CM Washer Shift Actuator Coupling Assembly Shift actuator. Fits specific LG top load washer models. Replaces Part Numbers: ACP72929002, 4323EA2001C, 1958330, 2653835, ACP73029001, AH3522903, EA3522903, 4323EA2001B, 1327673, AH3577589, EA3577589, AP5674447, AP5258825, PS7786658, PS3522903, AP5245586, PS3577589 Description: This Top Load Washer Coupling Assembly is a replacement component specifically designed for specific LG brand top-loading washing machine models. This assembly connects the agitator shaft to the transmission inside the washer, allowing oscillating motions to be transferred through the transmission from the motor.   This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

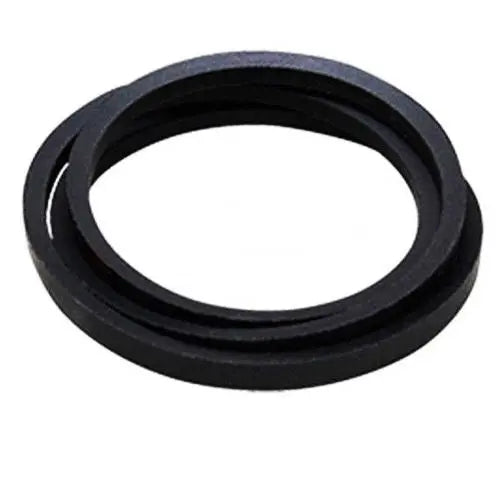

134511600 Genuine OEM Frigidaire Washer Drive Belt The 134511600 is a Genuine OEM Frigidaire replacement washer drive belt compatible with a wide range of Frigidaire, Electrolux, Gibson, Kelvinator, Kenmore, Tappan, White-Westinghouse, and Crosley top-load and laundry center washers — including the FLS, FWS, FLEB, GLWS, FEZ, FGZ, and related series. The drive belt is a wrapped V-style rubber belt that connects the motor pulley to the washer tub, transferring the motor's rotation to spin the basket during the wash and spin cycles. When the belt breaks, wears out, or stretches, the motor continues to run but the basket stops rotating — the washer fills with water and drains but does not agitate or spin, leaving clothes soaking wet. This is a Genuine OEM part manufactured by Frigidaire to factory specifications. The belt measures approximately 32-1/4" in length (30" inner circumference) x 1/2" wide x 5/16" high — a wrapped V-belt profile that seats on the motor pulley. It directly replaces 1156860, 131234000, 131686100, 134161100, 145371, 3204418, F145371, F145371-000, AP3867042, AH1146950, EA1146950, EAP1146950, LB117, PD00000111, and PS1146950. Installs in 15–30 minutes with basic hand tools. Quick Answer The 134511600 Genuine OEM Frigidaire Washer Drive Belt fixes Frigidaire-platform top-load washers that won't agitate, won't spin, pump and drain but don't spin, make a burning rubber smell, or are noisy. Wrapped V-belt, approx. 32-1/4"L (30" inner circumference) x 1/2"W x 5/16"H, black rubber. Genuine OEM. Replaces 1156860, 131234000, 131686100, 134161100, 3204418, F145371, AP3867042, AH1146950, EA1146950, LB117, PS1146950. Compatible with Frigidaire, Electrolux, Gibson, Kelvinator, Kenmore, Tappan, White-Westinghouse, and Crosley. Common Problems This Part Fixes Washer not agitating — belt has broken or slipped off the motor pulley Washer pumps and drains normally but does not spin clothes — belt failed Washer fills and drains but drum never moves — no belt drive to the basket Burning rubber smell during the wash or spin cycle — belt slipping on the motor pulley Squealing or grinding noise during operation — worn or slipping belt Washer spinning slowly or unevenly — stretched belt losing grip on the pulley Belt visibly cracked, frayed, broken, or missing inside the washer cabinet Replaces Part Numbers This washer drive belt directly replaces the following OEM and cross-reference part numbers: 134511600, 1156860, 131234000, 131686100, 134161100, 145371, 3204418, AH1146950, EA1146950, F145371, F145371-000, AP3867042, PS1146950. Contact our support team with your model number if you need confirmation before ordering. Compatibility This washer drive belt is compatible with select top-load washers and laundry centers from the following brands and series: Frigidaire washers — FLS, FWS, FLEB, FEZ, FGZ, FLSG, GLWS, GLET, FWX, GWS series and related models Electrolux washers (select Frigidaire-platform models) Gibson washers (select models) Kelvinator washers (select models) Kenmore / Sears washers — 41 series and other Frigidaire/Electrolux-built models Tappan washers (select models) White-Westinghouse washers (select models) Crosley washers (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by Frigidaire to factory specifications — guaranteed fit and performance Wrapped V-belt style — connects the motor pulley to the washer tub to spin the basket during agitation and spin cycles Dimensions: approximately 32-1/4"L (30" inner circumference) x 1/2"W x 5/16"H Black rubber construction — designed to withstand continuous flexing and motor load under normal wash conditions Replaces 1156860, 131234000, 131686100, 134161100, 3204418, F145371, AP3867042, LB117, PS1146950, and additional cross-references Compatible with Frigidaire, Electrolux, Gibson, Kelvinator, Kenmore, Tappan, White-Westinghouse, and Crosley washers DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number 134511600 Part Type Washer Drive Belt (Wrapped V-Belt) Condition Genuine OEM Application Top-Load Washers and Laundry Centers Belt Style Wrapped V-belt Length (overall) Approximately 32-1/4 inches Inner Circumference Approximately 30 inches Width 1/2 inch Height 5/16 inch Material Rubber Color Black Quantity Sold individually (1 belt) Compatible Brands Frigidaire, Electrolux, Gibson, Kelvinator, Kenmore, Tappan, White-Westinghouse, Crosley Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. On most compatible Frigidaire-platform washers, the drive belt is accessed by removing the back panel or by laying the washer on its side to access the motor and pulley from the bottom. The belt wraps around the motor pulley (small, at the motor shaft) and the transmission pulley or basket (large, beneath the tub). Release the old belt by slipping it off the motor pulley — the motor may need to be slightly unbolted and shifted to relieve tension, depending on your model. Route the new 134511600 belt around both pulleys in the same path as the original and seat it firmly in the V-groove on each pulley. If the motor position is adjustable, re-tension the belt so it deflects no more than 1/2 inch when pressed in the middle. Reinstall the back panel, restore power and water, and run a test cycle to confirm the basket agitates and spins normally. Tools needed: Phillips screwdriver, socket set or adjustable wrench. Frequently Asked Questions What does the washer drive belt do? The drive belt is the power transmission link between the motor and the washer basket. The motor turns a small drive pulley on its shaft, and the drive belt wraps around both the motor pulley and the larger transmission or basket pulley, transferring the motor's rotation to spin the basket. Without an intact, properly tensioned belt, the motor runs but the basket stays still — the washer fills with water, pumps it out, but never agitates or spins clothes. A broken, cracked, or slipping drive belt is one of the most common causes of washer failure on Frigidaire-platform top-load models. What is the difference between 134511600 and 1156860? These are the same drive belt. 1156860 is an older cross-reference part number and item number for the same belt that Frigidaire consolidated into the current part number 134511600. The 134161100, 131234000, 131686100, and 3204418 numbers are also cross-references for this same belt from various parts catalog revisions. All are covered by this OEM belt. My washer pumps but won't spin — is it the belt? A washer that pumps and drains normally but does not spin the basket is a classic drive belt failure symptom on Frigidaire-platform top-load washers. Since the drain pump is typically driven separately from the basket, a broken belt will stop basket rotation while leaving the pump functioning normally. Open the back panel and visually inspect the belt — if it is broken, stretched to the point of slipping, or missing entirely, replacing the 134511600 belt will restore normal spin and agitation. If the belt looks intact but the basket still doesn't turn, check the motor capacitor or idler pulley. Should I also inspect the idler pulley when replacing this belt? Yes — since the washer must be partially disassembled to replace the belt, this is a good opportunity to inspect the idler pulley for wear. The idler pulley maintains belt tension on compatible models — if the pulley bearing is worn or the spring tension is reduced, the belt will slip even when new, causing a burning rubber smell and poor spin performance. The Frigidaire washer idler pulley is sold separately (part 131462600 or 134371700 depending on model). If the idler pulley wobbles or the wheel doesn't spin freely by hand, replace it at the same time as the belt. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by Frigidaire to factory specifications. It is the exact same drive belt installed in compatible Frigidaire, Electrolux, Gibson, and related brand top-load washers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

8540101CM Washer Drive Belt Washing machine inner tub drive belt 6 Rib, 51.33" Description: The Drive Belt is a replacement for specific Whirlpool, Maytag, Kenmore washer models. It transmits power from the washer motor to the tub, causing it to rotate during wash and spin cycles Causes of a worn drive belt can include repetitive cycles over years of use. The belt undergoes stress each time the tub is set in motion. Damage from slipping off pulleys during operation can also affect the belt. Replaces Part NumbersWP8540101, 8540101, 8540348, AP6013037, PS11746258 This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: California’s Proposition 65

Read more less

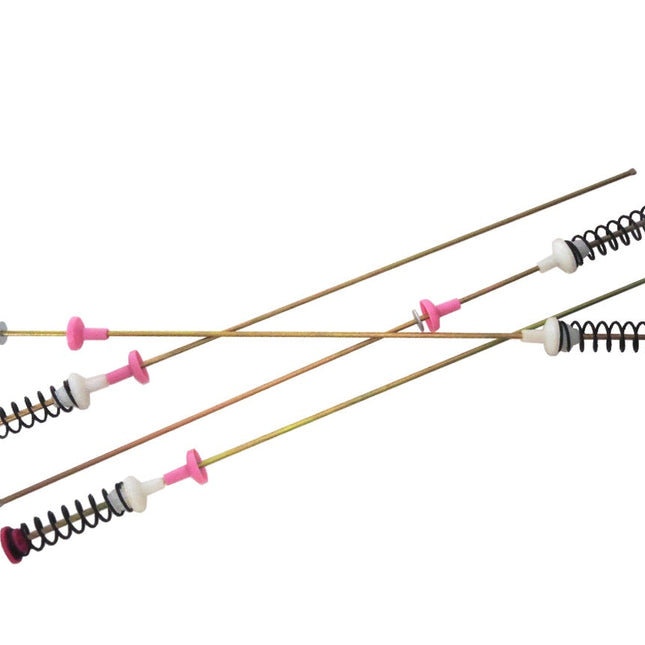

ERP DC97-05280W Washer Suspension Rod Replaces Part Numbers: DC97-05280W, 3998024, AP5966911, PS11719937   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO W10734521 Washer Clutch Slider Kit The XPARTCO W10734521 is an aftermarket replacement washer clutch slider kit compatible with a wide range of Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, and Kirkland HE top-load washers. The clutch slider kit is part of the drive system that engages and disengages the inner tub from the gearcase — it's responsible for transitioning the washer between agitation and spin modes. The slider gear works together with the electromagnetic clutch and gearcase to move the inner tub during the wash and spin portions of every cycle. When the slider or its spring fails, the washer typically won't spin properly, won't agitate, makes grinding noise, or leaves clothes soaking wet at the end of a cycle. This kit includes the slider, spring support, 30mm spiral, and bolt. Slider dimensions: 2-7/8" outer diameter x 7/8" deep. Support spring: 1-5/8" outer diameter x 1-1/8" long. Spiral: 1-5/16" outer diameter. Bolt: 7/8" head diameter x 1" high. Construction is metal and plastic in black, white, and gray. Important: this is the slider kit only — it does NOT include the electromagnetic clutch (sold separately as W10754448). The current W10734521 part number supersedes the earlier W10006484, W10006494, W10275082, W10447975, and W10905025. It also replaces 3452506, AP5952873, EAP10060062, PD00025495, and PS10060062. Installs in 60–90 minutes with basic hand tools. Quick Answer The XPARTCO W10734521 Washer Clutch Slider Kit fixes Whirlpool, Maytag, Kenmore, KitchenAid, and related HE top-load washers that won't spin or agitate properly, won't transition between cycle phases, leave clothes soaking wet, or make grinding noise during the spin cycle. Slider kit only — electromagnetic clutch (W10754448) is sold separately. Includes slider (2-7/8" OD), spring support (1-5/8" OD), 30mm spiral, and bolt. Replaces W10006484, W10006494, W10275082, W10447975, W10905025, 3452506, AP5952873, EAP10060062, PD00025495, PS10060062. Common Problems This Part Fixes Washer won't spin or spins very slowly — slider not engaging the gearcase for spin mode Washer won't agitate — slider not transitioning the drive system to agitation mode Clothes left soaking wet at the end of the cycle — incomplete spin Grinding, rattling, or clunking noise during the spin or agitation phase Washer fills and drains normally but never spins or agitates Worn or broken slider gear teeth visible on the drive assembly Weak or broken slider spring — washer drive losing positive engagement Repeated cycle interruptions in the spin or agitation portion of cycles What's in the Kit Part 1 Slider Gear 2-7/8" outer diameter x 7/8" deep · Slides over the drive assembly shaft to engage/disengage the gearcase for agitation and spin transitions · Install with the teeth facing outward Part 2 Spring Support 1-5/8" outer diameter x 1-1/8" long · Provides return tension for the slider · Replace whenever the gearcase or slider is replaced — spring can weaken over time Part 3 30mm Spiral 1-5/16" outer diameter · Spiral retaining component that holds the slider assembly together on the drive shaft Part 4 Bolt 7/8" head diameter x 1" high · Secures the assembly Replaces Part Numbers This clutch slider kit directly replaces the following OEM and cross-reference part numbers: W10734521, 3452506, W10006484, W10006494, W10275082, W10447975, AP5952873, AWP41487, EAP10060062, PD00025495, PS10060062. W10734521 is the current production part superseding W10006484, W10006494, W10275082, W10447975, and W10905025. Contact our support team with your model number if you need confirmation before ordering. Compatibility This clutch slider kit is compatible with select HE top-load washers from the following brands: Whirlpool top-load washers (Cabrio, WTW5000, WTW5500, WTW5700, WTW6000, WTW6200, WTW6400, WTW7000, WTW7120, WTW8000, WTW8200, WTW8500, WTW8700 series and related models) Maytag top-load washers (Bravos and Centennial series and related models) Kenmore / Sears top-load washers (Whirlpool-built — select 110-series and related models) KitchenAid top-load washers (select models) Amana top-load washers (select models) Crosley top-load washers (select models) Estate top-load washers (select models) Jenn-Air top-load washers (select models) Roper top-load washers (select models) Magic Chef top-load washers (select models) Admiral top-load washers (select models) Kirkland top-load washers (select models) Important — Slider Kit Only, NOT Clutch: This is the clutch slider kit (slider, spring, spiral, bolt) — it does not include the electromagnetic clutch assembly. The electromagnetic clutch is part number W10754448 and is sold separately. If you need both components, order each part separately. Many repair scenarios call for replacing both at the same time, since both wear together. Always verify your model number and confirm exactly which component has failed before ordering. Key Features Complete slider repair kit — slider, spring support, 30mm spiral, and bolt included as a matched set Works with the electromagnetic clutch and gearcase to drive the inner tub during agitation and spin modes Resolves "won't spin," "won't agitate," and "clothes left soaking wet" symptoms when the slider has worn or the spring has weakened Current production part number — supersedes W10006484, W10006494, W10275082, W10447975, and W10905025 Slider: 2-7/8" outer diameter x 7/8" deep · Spring: 1-5/8" OD x 1-1/8"L · Spiral: 1-5/16" OD · Bolt: 7/8" head x 1"H Metal and plastic construction in black, white, and gray Important: slider kit only — electromagnetic clutch (W10754448) sold separately For full performance, replace all components in the kit together as a set Compatible with Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, and Kirkland HE top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 60–90 minutes with basic hand tools Product Specifications Part Number W10734521 Supersedes W10006484, W10006494, W10275082, W10447975, W10905025 Part Type Washer Clutch Slider Kit Condition Aftermarket Replacement Application HE Top-Load Washers (Whirlpool platform) Includes 1x Slider, 1x Spring Support, 1x 30mm Spiral, 1x Bolt Slider Dimensions 2-7/8" Outer Diameter x 7/8" Deep Spring Support Dimensions 1-5/8" Outer Diameter x 1-1/8" Long Spiral Dimensions 1-5/16" Outer Diameter Bolt Dimensions 7/8" Head Diameter x 1" High Material Metal / Plastic Color Black / White / Gray Electromagnetic Clutch NOT included — see W10754448 (sold separately) Compatible Brands Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Crosley, Estate, Jenn-Air, Roper, Magic Chef, Admiral, Kirkland Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Work Gloves Disconnect power and turn off the water supply before beginning. Place towels under the washer — some residual water may spill from hoses during disassembly. Wear work gloves to protect your hands. Unthread the hot and cold water supply hoses from the inlet valve ports. Disconnect the drain hose from the outlet port using channel-lock pliers to release the spring clamp. Carefully tip the washer onto its side or back on a padded surface to access the underside. Disconnect the wiring harnesses to the drive motor and pull the rotor free — be prepared for some resistance, as the permanent magnets in the rotor require some effort to remove. Use a small awl inserted between the slider gear teeth to release the spring retainer. With the retainer released, pull off the old spring and slider gear. Note the orientation of the slider — teeth facing outward. Install the new W10734521 components in sequence: slide the new slider gear onto the drive assembly shaft with teeth facing outward, install the new spring support and 30mm spiral, and secure with the new bolt. Reinstall the rotor (the magnets will pull it into place), reconnect the wiring harnesses, return the washer to upright, reconnect supply hoses and drain hose, restore power and water, and test the spin cycle for proper function. Tools needed: Phillips screwdriver, socket set, channel-lock pliers, small awl, padded surface for tipping, work gloves. Frequently Asked Questions What's the difference between W10734521 and W10754448? These are two different parts in the same drive system. The W10734521 is the clutch slider kit — it includes the slider gear, spring support, spiral, and bolt that physically engage/disengage the inner tub from the gearcase to transition between agitation and spin modes. The W10754448 is the electromagnetic clutch itself — the electrical component that drives the engagement. Both can fail independently, and many repair scenarios call for replacing both at the same time since they work together. Confirm exactly which component has failed before ordering, or order both if you're rebuilding the drive system as a full repair. My washer won't spin — is it the slider or something else? A washer that won't spin can have several causes: a failed slider kit, a failed electromagnetic clutch (W10754448), a damaged drive belt, a failed motor or rotor, a broken lid switch, or — on some models — a failed gearcase. The slider kit is one of the more common causes when the symptom is "fills and drains but won't spin" with no obvious noise or burning smell. Before replacing the slider, check that the lid latch strike (W11457841 on some models) is engaging properly, the drive belt is intact, and the motor is functioning. If those check out and the slider gear shows visible wear, missing teeth, or a stretched spring, the W10734521 kit is the right repair. Should I replace all parts in the kit together? Yes — for the kit to perform as designed, all components should be replaced as a matched set. The slider, spring support, spiral, and bolt all work together — if one is worn, the others have typically experienced the same load and wear. Reusing old components alongside new ones can cause premature failure of the new parts and a repeat repair. The W10734521 kit is priced and packaged for a complete replacement, so install all four pieces during your repair. What is the difference between W10734521 and the older part numbers it replaces? W10734521 is the current production version of this slider kit. It directly supersedes W10006484, W10006494, W10275082, W10447975, and W10905025 — all of which were earlier OEM part numbers for variations of the same slider kit across production revisions. Whirlpool consolidated these into the W10734521 to streamline the parts catalog. If your washer's parts diagram shows any of these older numbers, the W10734521 is the correct current replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from metal and plastic to match the dimensions, gear profile, and drive engagement function of the original W10734521 clutch slider kit used in compatible Whirlpool, Maytag, Kenmore, and related HE top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

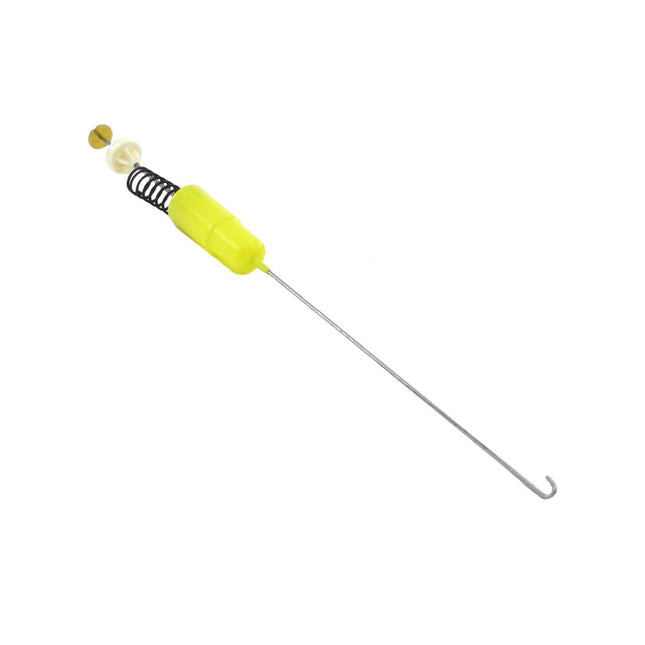

XPARTCO W11130359 Washer Suspension Rod Kit – Compatible with Whirlpool, Maytag, Amana, Crosley, and Roper Washers Product Description Reduce vibration and restore smooth, stable operation with the XPARTCO W11130359 Washer Suspension Rod Kit. This high-quality aftermarket replacement supports the washer tub and absorbs movement during wash and spin cycles. Worn or broken suspension rods can cause loud banging noises, excessive shaking, or unbalanced loads. Replacing them with this reliable XPARTCO kit ensures balanced performance and extends the life of your washer. Replaces Part Numbers W11130359, W11027215, 4813873, W10594082, W10785954, W10821704, W10901060, W11033536, W11226784, AP6261901, PD00042502, EAP12347544, PS12347544. Compatibility This replacement suspension rod kit fits select Whirlpool, Maytag, Amana, Crosley, and Roper top-load washers. Example compatible models include (but are not limited to): Whirlpool WTW5000DW1, Maytag MVWC565FW0, and Amana NTW4516FW3. Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Built to match OEM performance and stability 🌀 Reduces Vibration – Keeps washer tub balanced during spin cycles 💰 Cost-Effective Solution – High-quality kit at a lower cost than OEM parts 🛠️ Complete Kit – Includes four suspension rods, bushings, and suspension springs 🛡️ Fixes Common Issues – Solves excessive shaking, banging, or unbalanced load problems 📐 Product Specification Part Number: W11130359 Component Type: Washer Suspension Rod Kit Includes: 4 suspension rods with springs and mounting bushings Material: Heavy-duty steel with corrosion-resistant coating Mounting: Direct-fit installation under washer tub Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, pliers, socket wrench ⚠️ Safety First: Always unplug the washer before performing repairs to prevent electrical shock or injury. Steps: Disconnect power and remove the washer lid or top panel. Support the washer tub with a sturdy object or strap. Remove the old suspension rods from their mounting holes. Install the new XPARTCO W11130359 rods one by one, attaching springs and bushings. Reassemble panels, plug in the washer, and run a test cycle to confirm smooth operation. ⏱️ Time Required: 30–40 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Eliminate noise and vibration — Add to Cart Now for a stable, long-lasting repair!

Read more less

W10775188 Washer Genuine OEM Washplate Replaces Part Numbers: W10775188, 4282681, W10698538, W10834891, AP5959417, PS11699797. W10775188 Washer Washplate – Genuine OEM Part Restore optimal cleaning power with the W10775188 Washer Washplate. This Genuine OEM part replaces a worn or damaged washplate to ensure efficient agitation and even cleaning performance. Key Features: ✅ Genuine OEM Part – built to factory specs 🔁 Replaces: 4282681, W10698538, W10834891, AP5959417, PS11699797 🌀 Provides powerful agitation for deep cleaning 🛠️ Fits select Whirlpool, Maytag, and Amana top-load washers 🧰 Easy to install – includes center bolt ⚠️ Always unplug your washer before servicing. Need help with compatibility? Contact us! 📦 Part Number: W10775188

Read more less
