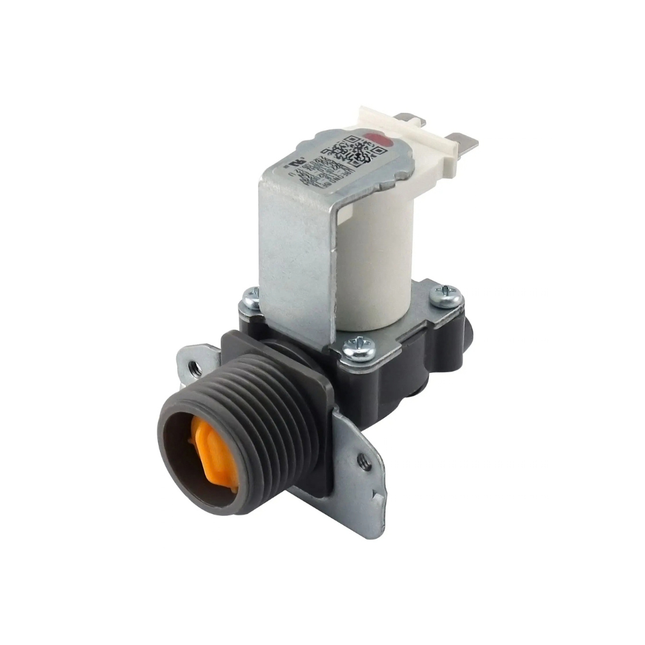

5220FR2006H Washer Genuine OEM Water Inlet Valve (Hot) The 5220FR2006H is a genuine LG OEM hot water inlet valve for LG front-load washers, and also fits select Kenmore models. This valve connects to your home's hot water line and controls the flow of hot water into the tub during the fill portion of each cycle, opening as the cycle calls for hot water and closing once the correct fill level and temperature mix are reached. The valve has a standard hose fitting inlet and a single water outlet. Common causes of failure include mineral or sediment buildup inside the valve body and general electrical wear in the solenoid. Symptoms of a failing valve include the washer not filling, not stopping when it should, not starting, leaking water, not washing properly, no hot water reaching the tub, or an IE error code displayed on the control panel. It directly replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427. Quick Answer The 5220FR2006H Washer Genuine OEM Water Inlet Valve (Hot) fixes LG and select Kenmore front-load washers with no hot water, won't fill, won't stop filling, won't start, leaking, or an IE error code. Standard hose fitting inlet, 1 outlet. Replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427. This is the hot water valve — a separate but related cold water valve is used alongside it. If both valves are original and the same age, consider replacing both together while you have the washer open. Common Problems This Part Fixes No hot water reaching the tub Washer not filling with water Washer not stopping fill when it should Washer not starting Water leaking from the valve area IE error code displayed on the control panel Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer hot water inlet valve directly replaces the following OEM and cross-reference part numbers: 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This hot water inlet valve is compatible with select LG front-load washers, and also fits select Kenmore washers built on the LG platform, including model numbers such as WM2240CW, WM2250CW, WM2277HW, WM3170CW, WM3250HV, 40272, 40441 (ABWESEU), 41002, 41003, 41172 (ABWEPEU), 41172 (ABWESEU), 41182, 41262 (ABWEPEU), 41262 (ABWEVEU), and 41283. Note: This is the hot water valve. Our 5220FR2008C listing is the related cold water valve, and our 5220FR2008F listing is a closely related water inlet and dispenser valve assembly used on other models — these are separate parts serving different roles or platforms. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which valve your washer needs. Key Features Genuine LG OEM part — factory-specified solenoid design and flow rate Regulates hot water flow into the tub during fill Resolves "no hot water," "won't fill," "won't stop filling," "won't start," "leaking," and "IE error code" symptoms Standard hose fitting inlet, 1 water outlet Direct drop-in replacement — matches the original mounting and hose connections Replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427 Compatible with LG and select Kenmore front-load washers Genuine OEM replacement — guaranteed fit, materials, and performance Simple 15-minute DIY repair Product Specifications Part Number 5220FR2006H Part Type Washer Hot Water Inlet Valve Condition Genuine OEM Brand LG Application Front-Load Washers Inlet Standard hose fitting Outlet 1 Related Part 5220FR2008C cold water valve (sold separately) Repair Difficulty Easy — approx. 15 minutes Quantity 1 valve Compatible Brands LG, Kenmore Installation Notes ⚠️ Shut Off Water Supply And Unplug Washer Before Starting Turn off the water supply and unplug the washing machine from the wall before beginning. Wear work gloves. Locate the top cover of your washer — depending on your model, it may be located along the side or in the back — and use a flat-blade screwdriver to gently pry it off. Locate the hot water valve and disconnect the water supply hose from it, using locking pliers to loosen the hose clamp before carefully pulling the hose away. Unscrew the screws holding the valve in place and gently remove it from the washer. Mount the new 5220FR2006H valve in place and replace the screws. Reconnect the water supply hose to the valve and tighten the hose clamp using locking pliers. Turn the water supply back on and plug the washer back in. Test the new valve by running a load of laundry and checking for any leaks. Tools needed: flat-blade screwdriver, locking pliers, work gloves. Frequently Asked Questions My washer isn't getting hot water. Is this the part I need? Yes, this is the most direct symptom of a failed hot water inlet valve. Since this valve is what admits hot water from your household supply into the washer, a solenoid failure or internal blockage can prevent hot water from entering properly, even if cold water fill still works normally. My washer shows an IE error code. Could this valve be the cause? Yes, an IE error code on LG washers is commonly tied to a fill issue, and a failed inlet valve — hot or cold — is one of the most frequent causes. Confirm which side (hot or cold) is actually affected before ordering, since these are separate parts. Should I replace the cold water valve at the same time? It's worth considering, especially if both valves are the same age. One customer specifically purchased both the hot and cold water inlet valves together during a single repair, along with a new drain pump motor, rather than tackling each part separately over multiple repairs. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original solenoid design, flow rate, and connection type of the hot water inlet valve originally installed in your washer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

ERP 4901ER2003A Washing Machine Shock Absorber   Replaces Part Numbers: 4901ER2003A, 1335104, AH3583320, AP5226074, EA3583320, PS3583320, 383EER3001G, 383EER3001A, 1461630, 383EER3001F, 383EER3001H, 383EER3001K, 383EER3001L, AH3522311, AP4437743, EA3522311, PS3522311, WP34001303, 34001303, 1122379, DC66-00343C, AP6008426, PS11741563.   This is an aftermarket part that can be used as a replacement for the OEM part. WARNING: California’s Proposition 65 (California Residents Only)

Read more less

204698 Washer Door Lock Replaces Part Numbers:204698, 213385, 2-4698, OEM20986763, AP6995586, PS2017106. Description: This Lid Lock Kit is a replacement part for specific Speed Queen washing machine models. It is made up of lid lock components and mounting hardware that allow the washer lid to securely lock into place during operation. This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

WH13X25296 Washer Water Valve Replaces Part Numbers: WH13X26534, WH13X25296, WH13X25297, AP6891106, PS12726768. Description: The Water Inlet Valve Assembly is a replacement part for specific GE washing machine models. It is responsible for regulating the flow of water into the washing machine during designated cycles. The water inlet valve opens and closes to allow water to enter the tub at the correct times and pressures. It works in coordination with other components to fill and drain the tub as needed.   This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less
