Refrigerator Fan Motors, Condenser & Evaporator and Fan Blades

XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor The XPARTCO WR60X10074 is an aftermarket replacement evaporator fan motor with thermistor for GE and Hotpoint refrigerators. This motor is located at the back of the freezer and circulates air across the evaporator coils, which convert refrigerant into cooling capacity — the fan is what carries that cooled air into both the freezer and fresh food compartments. Bundled with this motor is a separate thermistor that snaps onto the top portion of the evaporator and sends temperature signals back to the main control board, letting it regulate cooling accurately. Rated 9.75V DC, 3.25W — the same base motor used in our WR60X10185 listing, but this version ships with the thermistor included. GE's own guidance is direct on this point: the thermistor should be replaced at the same time as the evaporator fan, since the two are serviced together under this part number rather than sold and swapped independently. Common failure causes include worn motor bearings and general electrical wear. Symptoms include unusual noise from the freezer, a refrigerator or freezer section running too warm, or inconsistent temperatures overall. It directly replaces AP3191003, 914169, 197D4492G001, and 197D2039P013. Quick Answer The XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor fixes GE and Hotpoint refrigerators with unusual noise from the freezer, a refrigerator or freezer section running too warm, or inconsistent cooling overall. 9.75V DC, 3.25W, includes thermistor. Replaces AP3191003, 914169, 197D4492G001, 197D2039P013. This is the motor-plus-thermistor version — if your old connector has no thermistor wire, you need our WR60X10185 listing instead; this is also a different assembly from our WR60X10318 side-by-side listing, which has the thermistor integrated into the motor's own harness rather than as a separate snap-on piece. Common Problems This Part Fixes Unusual noise — humming, buzzing, or grinding — coming from the freezer Fresh food compartment or freezer running too warm Inconsistent or fluctuating refrigerator temperatures Refrigerator running constantly as it struggles to maintain temperature Fan motor that has gone silent after previously running normally Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10074, 197D4492G001, 914169, AH304658, AP3191003, AGE29122, PD00001062, EA304658, PS304658 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE and Hotpoint refrigerators, including model numbers such as DSS25PFMCCC. Note — check your connector before ordering: This motor includes the thermistor. If your old motor's connector has no thermistor wire — a plain 4-wire harness with 2 empty pin slots on a 6-pin connector — you need our WR60X10185 listing instead (no thermistor). If your connector has a dedicated light connector, you need WR23X10467. This part is also a separate assembly from our WR60X10318 listing, a side-by-side platform motor with the thermistor built directly into its own 6-pin harness rather than snapping onto the evaporator as a separate piece. Even between similar GE thermistor-equipped motors, always verify your full model number, since GE support has confirmed these are not automatically interchangeable without checking your specific model. Contact our support team with your model number if you're unsure which motor your refrigerator needs. Key Features Aftermarket replacement evaporator fan motor — circulates air across the evaporator coils to cool the freezer and fresh food compartments Includes a separate thermistor that snaps onto the top of the evaporator and reports temperature to the main control board Resolves "unusual noise," "running too warm," and "inconsistent cooling" symptoms caused by fan motor or thermistor failure Rated 9.75V DC, 3.25W Direct drop-in replacement matching the original mounting and blade fitment Replaces AP3191003, 914169, 197D4492G001, and 197D2039P013 Compatible with GE and Hotpoint refrigerators Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number WR60X10074 OEM Part Number WR60X10074 Part Type Refrigerator Evaporator Fan Motor with Thermistor Condition Aftermarket Replacement Brand GE Location Back of the freezer, over the evaporator coils Voltage 9.75V DC Wattage 3.25 W Includes Thermistor Yes — snaps onto the top of the evaporator, sold together Weight Approx. 0.6 lb. Quantity 1 fan motor + 1 thermistor Compatible Brands GE, Hotpoint Installation Notes ⚠️ Unplug Refrigerator Before Starting — Replace The Thermistor Along With The Motor Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Access is through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator coil, fan, and thermistor. If there's significant frost or ice around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing. Photograph the wiring harness connector, the fan blade's orientation, and the thermistor's snap-on position before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Unsnap the old thermistor from the top of the evaporator and disconnect its wiring as well. Install both the new motor and the new thermistor together, even if only one of them tested as failed — GE's own guidance is to replace the thermistor whenever the evaporator fan is replaced, since they're serviced as a pair under this part number. Mount the new motor in the same position, reconnect the wiring harness connector, and snap the new thermistor onto the same spot on the evaporator, reconnecting its wiring. Confirm the fan blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions Do I really need to replace the thermistor if only the fan motor stopped working? GE's official guidance is yes — the thermistor should be replaced along with the evaporator fan whenever this part number is used, since they're sold and serviced together as a pair rather than as fully independent components. That said, some technicians have successfully replaced just the fan motor alone in certain situations; if you want to attempt a fan-only swap, test your existing thermistor first and keep in mind this isn't the manufacturer-recommended approach. How do I know if I need this motor or the WR60X10185 (no thermistor) version? Look at your old motor's electrical connector before ordering. This WR60X10074 motor comes with a thermistor — if your connector has a thermistor wire running to it, this is the correct part. If your connector is a plain 4-wire harness with no thermistor wire and two empty pin positions on a 6-pin plug, you need our WR60X10185 listing instead, which does not include a thermistor. My fridge isn't cooling but the fan seems to spin fine. Could it still be this part? Yes — if the fan is spinning but the fridge still isn't cooling properly, the thermistor half of this assembly is worth suspecting, since a faulty thermistor can send incorrect temperature readings to the control board even while the fan motor itself works fine. One customer confirmed their control board and thermistor initially "checked good" before eventually tracing a similar symptom to fan circulation — so it's worth testing both components rather than assuming the fan alone is the issue. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the 9.75V, 3.25W motor design, blade fitment, and thermistor function of the original WR60X10074 evaporator fan motor and thermistor used in compatible GE and Hotpoint refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

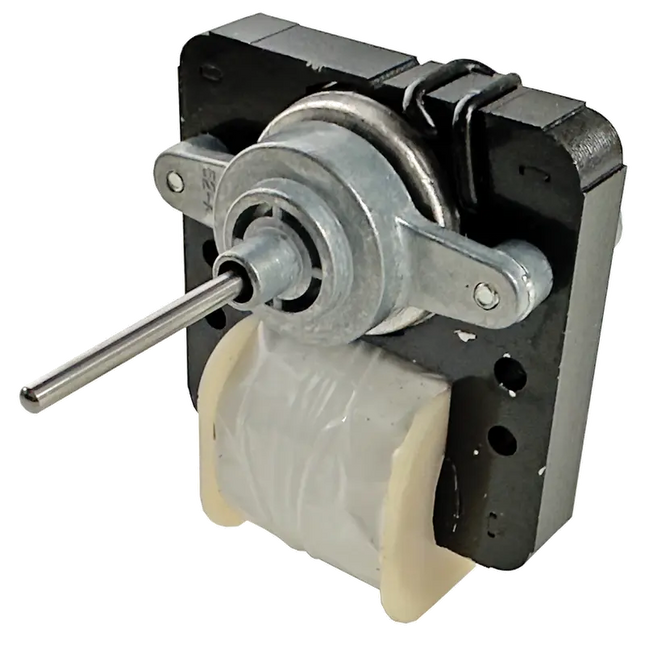

ERP WR60X203 Refrigerator Evaporator Fan Motor 120V, 60Hz, .21A, 3000RPM. 1-1/2" shaft. Has 2 (1/4") and 1 (3/16") terminals.   Replaces Part Numbers: WR60X203, 305540, AH304745, AP2071899, EA304745, PS304745, WR60X0191, WR60X0203, WR60X191   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO W10124096 Refrigerator Condenser Fan Motor The XPARTCO W10124096 is an aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators, including Kenmore, Maytag, KitchenAid, Amana, and Jenn-Air models. The condenser fan motor pulls air across the condenser coils to carry heat away from the refrigerant. When the motor wears out or fails, the refrigerator may run warmer than normal, cool poorly, or make unusual noise. The kit includes the fan motor, a fan blade, and a jumper wire harness for installations where the original motor used a 3-pin connector. It replaces many earlier Whirlpool motor numbers, so the new kit may look different from your original motor. This is the condenser fan, near the compressor, not the evaporator fan inside the freezer or fresh food compartment. Quick Answer The XPARTCO W10124096 Condenser Fan Motor Kit fixes a Whirlpool-built refrigerator that runs warm, cools poorly, or makes noise because the condenser fan motor has failed. Kit includes the motor, fan blade, and jumper harness. Classic symptom: the compressor area is noisy, or the condenser fan doesn't spin while the compressor runs. Common Problems This Part Fixes Refrigerator running warmer than usual or cooling poorly Noisy refrigerator near the compressor Condenser fan not running Worn or damaged condenser fan motor or blade Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This condenser fan motor kit directly replaces the following part numbers: W10124096, 1378525, 2188538, 2188727, 2188728, 2188729, 2188732, 2188891, 2206005, 2315538, 2315558, W10124096VP, W10130108, W10204250, W10509333, W10861645, AH1957416, AP4318657, AWP40429, EA1957416, EAP1957416, PD00002509, PS1957416 These numbers span several generations of Whirlpool's own part numbering for this motor. Confirm against your refrigerator's parts diagram, or contact our support team, if your model calls out a different number. Compatibility This condenser fan motor kit is listed for Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, and Jenn-Air refrigerators, including these examples: Models ED5FHAXSB03, 8ET1FTKXKT05, GI15NDXTB0, 7GD27DIXHB00 Models 10644022600, 10653254200, BRS62ABANA00, MSD2658KES02 Note: The models above are a small sample of a list of hundreds, not a full list. Some retailer lists include drawer and bin models, so verify fit with your full model number. Contact our support team to confirm fit before ordering. Key Features Aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators Kit includes the fan motor, fan blade, and a jumper wire harness for 3-pin connectors Moves air across the condenser coils to help the refrigerator cool Resolves warm-running and noise problems caused by a failed motor Replaces 13 earlier Whirlpool part numbers Product Specifications Part Number XPW10124096 OEM Part Number W10124096 Part Type Refrigerator Condenser Fan Motor Kit Condition Aftermarket Replacement Kit Includes Fan Motor, Fan Blade, Jumper Wire Harness Application Whirlpool, Kenmore, Maytag, KitchenAid, Amana & Jenn-Air Refrigerators Installation Notes ⚠️ Unplug Power Before Installing Unplug the refrigerator before beginning, and move perishable food to a cooler or another refrigerator. Wear work gloves. Follow your model's service guide to reach the condenser fan, which is near the compressor. Note how the wiring is connected, disconnect it, and remove the old motor and blade. Fit the new motor and blade in the same position and reconnect the wiring. Use the supplied jumper harness only if your original motor used a 3-pin connector. Restore power and check that the fan runs. Frequently Asked Questions My refrigerator is running warm. Is this the part I need? A failed condenser fan motor is one possible cause, since the condenser can't shed heat without airflow. Check that the condenser coils are clean and that the fan turns freely. If the fan doesn't run or the motor is noisy or worn, this kit is the repair. Is this the condenser fan or the evaporator fan? This is the condenser fan motor, which cools the condenser coils near the compressor. The evaporator fan is a different part located inside the cabinet. Check your parts diagram if you are unsure. When do I use the jumper wire harness? The kit includes a jumper harness for installations where the original motor used a 3-pin connector. If your original connector is different, compare it to the new motor, or contact our support team. Will this fit my refrigerator? It is listed for hundreds of Whirlpool-built refrigerators, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

ERP DA31-00020E Refrigerator Evaporator Motor Replaces Part Numbers: DA31-00020E, 2030081, DA31-00020E-, AP4136543, PS4138293.    This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less
