Refrigerator Fan Motors, Condenser & Evaporator and Fan Blades

WP2315548 Refrigerator Genuine Evaporator Fan Motor  Replaces Part Numbers: WP2315548, 2315548, 1194733, 2220149, AP6007249, PS11740361. Description: The Evaporator Fan Motor is a Genuine OEM part for specific Whirlpool, Maytag refrigerator models. It is responsible for circulating cold air within the fridge and freezer compartments, helping to maintain even temperatures and keep food fresh. Causes of a bad evaporator fan motor include failure due to normal wear and tear over time, damage due to improper cleaning, or issues with the motor's electronic components.

Read more less

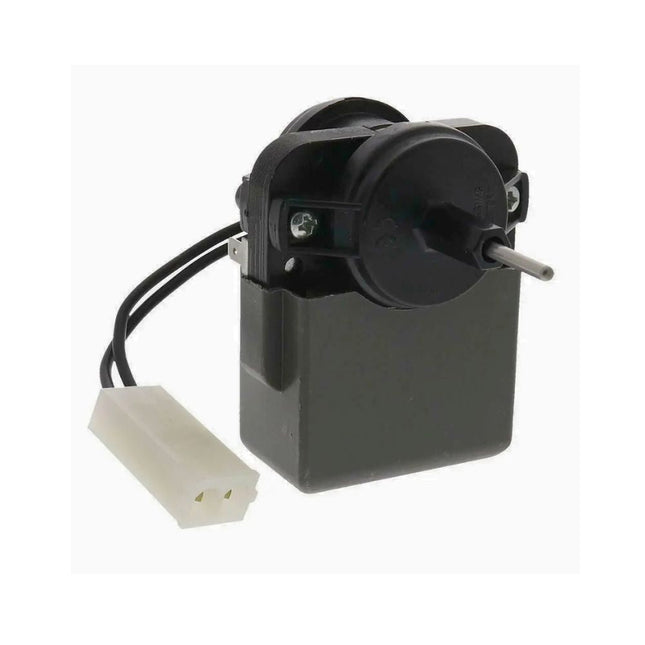

XPARTCO 2315549 Refrigerator Evaporator Fan Motor Replaces WP2315549 The XPARTCO 2315549 is an aftermarket replacement evaporator fan motor for Whirlpool-built side-by-side refrigerators, located in the freezer section. This small motor pulls cold air off the evaporator coil and pushes it through the duct system to both the freezer and fresh food compartments. Without it circulating air, the coil itself keeps getting cold, but that cold air never reaches your food — the freezer, being closest to the coil, may hold up reasonably well for a while, but the fresh food compartment depends entirely on ducted airflow and drifts warmer and warmer as circulation weakens or stops. This motor ships complete with its wiring harness, so nothing needs to be spliced or transferred from the old unit. Common failure modes include worn motor bearings that let the blade wobble or bind, ice buildup on the coil that jams the blade, and electrical failure of the motor windings. A simple way to check before ordering: with the refrigerator unplugged, try turning the fan blade by hand — it should spin freely with no grinding or resistance. It directly replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362. Quick Answer The XPARTCO 2315549 Refrigerator Evaporator Fan Motor fixes Whirlpool-built side-by-side refrigerators with uneven cooling between compartments, frost buildup on the evaporator coil, unusual humming or buzzing noise, or a fresh food section that runs warmer than the freezer. Includes wiring harness. Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, EAP11740362. Double-check the part number carefully — this is a different motor from our similarly numbered 2315539 listing, and the two are easy to mix up. Common Problems This Part Fixes Fresh food compartment running warmer than the freezer, or warmer than it used to Uneven temperatures between shelves or between the fresh food and freezer sides Frost or ice buildup accumulating on or around the evaporator coil Unusual humming, buzzing, or grinding noise coming from inside the freezer Noise that stops when the freezer door is opened and starts again once it's closed Refrigerator running constantly as the compressor tries to compensate for poor circulation Fan blade that doesn't spin freely, or spins with noticeable resistance, when checked by hand Fridge section too warm or too cold, freezer section too warm or too cold Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: 2315549, WP2315549, 2220569, 1193008, AP6007250, PS11740362, EAP11740362, ESF-U2A If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select Whirlpool-built side-by-side refrigerators across the Whirlpool family of brands, including: Whirlpool side-by-side refrigerators Maytag, Amana, and KitchenAid refrigerators (select Whirlpool-built models) Jenn-Air, Admiral, Norge, and Roper refrigerators (select models) Inglis refrigerators (select models) Select Kenmore and Ikea refrigerators built on the Whirlpool platform Verified model numbers include: 7GS2FHAXTA02, 7GS5FHAXTA00, ED2DHEXWB00, and ED2DHEXWL00. Note — easy to confuse with 2315539: This part is 2315549, production number ESF-U2A. It is a separate, distinct motor from our 2315539 listing (production number ESF-U2B, replacing 2219689, 2225625, and W10438708), which serves a different set of models. The two part numbers differ by only a single transposed digit and are frequently mistyped or mixed up when ordering — double-check your old motor's part number or your appliance's full model number carefully before ordering. Contact our support team with your model number if you're unsure which motor you need. Key Features Aftermarket replacement evaporator fan motor with wiring harness included — nothing to splice or transfer Circulates cold air from the evaporator coil throughout the freezer and fresh food compartments Resolves "fresh food too warm," "uneven cooling," "frost buildup," and "humming or buzzing noise" symptoms caused by fan motor failure Direct drop-in replacement matching the original mounting and blade fitment Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362 Compatible with Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, and select Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair — typically 15 to 30 minutes Product Specifications Part Number 2315549 OEM Part Number WP2315549 Production Number ESF-U2A Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Brand Whirlpool Location Freezer section, behind the rear panel near the evaporator coil Kit Contents Fan motor with wiring harness Application Side-by-Side Refrigerators Repair Difficulty Easy — 15 to 30 minutes Quantity 1 fan motor Compatible Brands Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Let The Freezer Thaw If Iced Over Disconnect power at the outlet before beginning, and move all food from the freezer to a cooler for the duration of the repair. Wear work gloves. Access is through the freezer's rear interior panel: remove the shelving and bins as needed, then remove the screws securing the back panel and set it aside to expose the evaporator coil and fan assembly. If you see significant frost or ice buildup around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing — ice can be masking the actual failure and can make the old motor difficult to remove cleanly. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free — on many models the blade is a separate piece that pulls off the motor shaft. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation. Mount the new 2315549 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions How is this different from your 2315539 listing? The numbers look almost identical. They are genuinely different motors that happen to have nearly identical part numbers — 2315549 versus 2315539, just one transposed digit. This 2315549 motor carries production number ESF-U2A and replaces WP2315549, 2220569, and 1193008. Our separate 2315539 listing carries production number ESF-U2B and replaces a different set of numbers (2219689, 2225625, W10438708) for a different group of models. Because the numbers are so easy to mix up, we'd strongly recommend double-checking the exact number on your old motor, or your full refrigerator model number, before ordering either one. My freezer seems fine but the fresh food section is warm. Is this the fan motor? Yes, this is a very common and telling symptom pattern. The freezer compartment sits right next to the evaporator coil and can stay reasonably cold through simple proximity even with poor air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area. How can I test the motor before ordering a replacement? With the refrigerator unplugged and the rear freezer panel removed, try turning the fan blade by hand. It should spin freely and smoothly with no grinding, binding, or resistance. If it doesn't turn freely, or doesn't turn at all, the motor has very likely failed. Also listen for humming or buzzing while the refrigerator is running — a motor trying and failing to turn often makes noise without actually moving air. There's a lot of frost around the fan and coil. Should I address that first? It's worth understanding which came first. Excess frost can be a cause of fan failure — a jammed, ice-bound blade can burn out the motor over time — or a result of it, since poor air circulation lets moisture condense and freeze unevenly around the coil area. Either way, thawing the ice out fully before installing the new motor makes the repair easier and lets you confirm the blade spins freely once everything is defrosted. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the mounting, wiring harness configuration, and airflow performance of the original WP2315549 evaporator fan motor used in compatible Whirlpool-built side-by-side refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

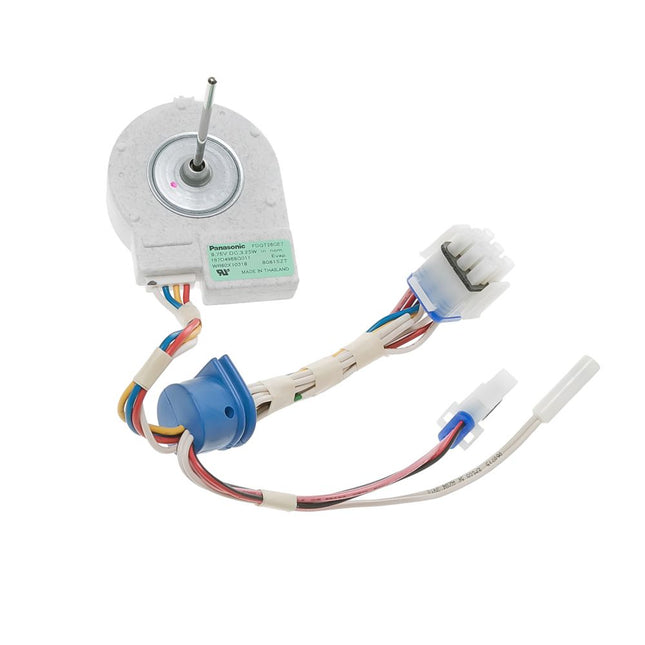

WR60X10318 Genuine OEM GE Refrigerator Evaporator Fan Motor The WR60X10318 is a genuine GE OEM evaporator fan motor assembly used in side-by-side refrigerators, complete with an integrated 2-wire thermistor built right into its 6-pin wiring harness. This motor draws air across the evaporator coil and circulates it through both the fresh food and freezer compartments, while the built-in thermistor reports temperature back to the control board so it can regulate cooling accurately. Because the thermistor and fan motor arrive as a single assembly, a fault in either function shows up together, and replacing this one part addresses both. The harness and plug measure approximately 13-7/8" in length. Common failure causes include worn motor bearings that eventually seize the shaft entirely, debris or ice buildup around the fan blade, and general electrical wear over time. On this side-by-side platform, a classic failure sequence is a bearing that starts out noisy, then progressively worsens until the motor freezes up completely — once the fan stops moving air, the evaporator coil often ices over heavily since moisture keeps accumulating with nowhere for the resulting cold air to go. Symptoms include unusual noise from the freezer, inconsistent or warm temperatures in either compartment, visible frost buildup on the coil, and a refrigerator that runs continuously trying to compensate. It directly replaces AP4981643, PS3487992, EAP3487992, and 1812462. Quick Answer The WR60X10318 Genuine OEM GE Refrigerator Evaporator Fan Motor fixes GE side-by-side refrigerators with unusual noise from the freezer, warm or inconsistent temperatures, frost or ice buildup on the evaporator coil, or a refrigerator running constantly. Complete assembly with integrated 2-wire thermistor on a 6-pin, 13-7/8" harness. Replaces AP4981643, PS3487992, EAP3487992, 1812462. Not the same part as our WR60X10307 or WR60X10185 listings — those are separate motors for different GE refrigerator platforms. Common Problems This Part Fixes Unusual noise — grinding, buzzing, or humming — coming from the freezer compartment Inconsistent or warm temperatures in the fresh food or freezer compartment, or both Visible frost or ice buildup on the evaporator coil Refrigerator running continuously as it struggles to maintain temperature Fan motor bearing noise that has progressively worsened, sometimes ending in the motor seizing entirely Freezer icing over heavily while temperatures in both compartments climb Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10318, AP4981643, AGE29310, OEM14944938, PD00023381, PS3487992, EAP3487992, 1812462 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE side-by-side refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, and Kenmore refrigerators built on the GE platform. In rare instances, this part is also referenced for compatibility with some LG models. Note: GE uses several different evaporator fan motors across its refrigerator lineup. This WR60X10318 assembly is a separate part from our WR60X10307 and WR60X10185 listings, which serve different model platforms and have their own distinct cross-reference numbers. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Genuine GE OEM part — factory-specified motor, blade, and integrated thermistor design Complete assembly — includes the fan motor plus a 2-wire thermistor built into the 6-pin harness Resolves "unusual noise from the freezer," "warm or inconsistent temperatures," "frost or ice buildup," and "runs continuously" symptoms caused by fan motor failure Approximately 13-7/8" harness and plug length Direct drop-in replacement matching the original mounting and blade fitment Replaces AP4981643, PS3487992, EAP3487992, and 1812462 Genuine OEM replacement — guaranteed fit, materials, and performance DIY-friendly repair, though side-by-side units can have tight working clearance around the fan Product Specifications Part Number WR60X10318 Part Type Refrigerator Evaporator Fan Motor Assembly (with Thermistor) Condition Genuine OEM Brand GE Application Side-by-Side Refrigerators Integrated Component 2-wire thermistor built into the wiring harness Harness Connector 6-pin Harness/Plug Length Approx. 13-7/8 in. Production Numbers 197D4964G011, FDQT26GE7 Quantity 1 fan motor assembly Compatible Brands GE, Hotpoint, Haier, Monogram, Café, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Side-by-Side Units May Have Tight Clearance Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. On side-by-side models, access can be tight: you may need to remove the rear interior panel, the ice maker, and a fan cover to reach the motor, so budget extra time and patience compared to a simpler platform. If the evaporator coil is heavily iced over, let the unit sit unplugged with the door open for several hours, or run a manual defrost, before continuing — ice can make the old motor difficult to remove cleanly and may be masking the actual point of failure. Photograph the 6-pin wiring harness connector and the fan blade's orientation before disconnecting anything. Remove the mounting screws holding the fan assembly in place, unplug the wiring harness connector, and slide the old assembly out of its housing. Slide the new WR60X10318 assembly into the same housing, secure it with the mounting screws, and reconnect the harness connector fully. Confirm the blade spins freely by hand without contacting the housing before reassembling the fan cover, ice maker, and rear panel. Restore power, open the door to test the fan, and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, 1/4" and 5/16" nut drivers, work gloves, and a headlamp or flashlight for visibility in tight spaces. Frequently Asked Questions My freezer is heavily iced over and both compartments are warm. Is this the fan motor? Yes, this is a very common failure sequence on this platform. Once the evaporator fan motor's bearings wear out and the motor slows or seizes, air stops circulating away from the coil, moisture keeps condensing on it, and ice builds up heavily. Once that happens, both the freezer and fresh food compartments typically lose cooling together, since neither is getting circulated cold air anymore. Thawing the ice and confirming the fan motor doesn't spin freely by hand will confirm this diagnosis. Does this include the thermistor, or do I need to buy that separately? It's included. This assembly ships with a 2-wire thermistor built directly into the 6-pin wiring harness, so you don't need to source or install a separate thermistor component — replacing this one part addresses both the fan motor and the thermistor together. Why is access so tight on my side-by-side refrigerator? Side-by-side refrigerators tend to pack components more tightly than French door or top-freezer models, and this evaporator fan often sits behind the ice maker and a dedicated fan cover in addition to the rear interior panel. Removing all of these takes more time than a simpler platform, but the fan motor itself installs the same straightforward way once you have access — a headlamp or flashlight helps considerably in the tighter space. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It includes the same motor design, fan blade, integrated thermistor, and 6-pin harness configuration as the evaporator fan motor assembly originally installed in your side-by-side refrigerator. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

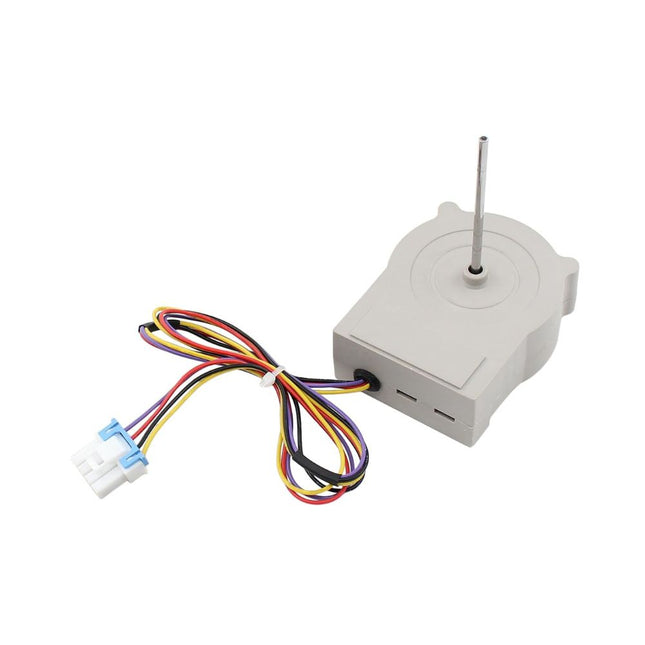

XPARTCO EAU63103201 Refrigerator Evaporator Fan Motor The XPARTCO EAU63103201 is an aftermarket replacement evaporator fan motor for LG and select Kenmore/Kenmore Elite refrigerators. On this platform, the fan sits behind a panel near the crisper drawers and circulates air specifically through the fresh food compartment — a different physical location than the freezer-mounted evaporator fans found on many other brands. When this motor slows down or fails, the fresh food section is the part of the refrigerator most directly affected, since it depends on this fan to keep cold air moving across the compartment. Rated 12V DC at 1A with a 4-pin connector, this motor has a 2.36" (60mm) shaft length and a 0.12" (3.16mm) shaft diameter, with roughly a 20.5" (56cm) wire lead. Common failure modes include worn motor bearings that let the blade wobble or bind, and general electrical wear from age. A fridge running warm, not cold at all, or making unusual noise from behind the crisper area are all signs pointing to this motor. It directly replaces 4391461, AP6317185, PS11761147, EAP11761147, and PD00051700. Also identified by its production number, ODM-001F-41. Quick Answer The XPARTCO EAU63103201 Refrigerator Evaporator Fan Motor fixes LG and select Kenmore/Kenmore Elite refrigerators where the fresh food compartment runs too warm or isn't cooling at all, or there's unusual noise from behind the crisper drawer area. DC 12V, 1A, 4-pin connector, 2.36" (60mm) shaft length, 0.12" (3.16mm) shaft diameter. Replaces 4391461, AP6317185, PS11761147, EAP11761147, PD00051700. LG uses several similarly-numbered EAU-prefix fan motors across its lineup — this is a different part from the EAU63923603/EAU65058305 assembly used on other LG models, so verify your exact model number before ordering. Common Problems This Part Fixes Fresh food compartment running too warm Refrigerator not cooling at all in the fresh food section Unusual noise coming from behind the crisper drawer area Fan motor that won't run due to aging or internal damage Refrigerator running constantly as it struggles to maintain temperature Fan blade that doesn't spin freely, or spins with noticeable resistance, when checked by hand Frost or condensation forming near the fan location behind the crisper panel Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: EAU63103201, ODM-001F-41, 4391461, ALG1473540, AP6317185, PS11761147, OEM18086529, EAP11761147, PD00051700 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select LG refrigerators, and also fits select Kenmore and Kenmore Elite refrigerators built on the LG platform, including model numbers such as: LG LRSES2706V, LRSPS2706V LG LSXC22396D, LSXC22396S, LSXC22426S, LSXC22436S LG LSXC22486D, LSXC22486S LG LSXS26326B, LSXS26326S, LSXS26326W LG LSXS26336S, LSXS26336V, LSXS26336D LG LSXS26386S, LSXS26396S Kenmore 795.5173381, 795.5173781, 795.5183241, 795.5183242, 795.5183341, 795.5183941, 795.5183942, 795.5185361, 795.5185761, 795.5186261, 795.5186361, 795.5186761, 795.5186961 Note: LG uses several different evaporator fan motors across its refrigerator lineup with similar EAU-prefix part numbers. This EAU63103201 motor is a separate, distinct part from the EAU63923603 / EAU65058305 fan motor assembly used on other LG models (such as the LFXS28596S, LMXS28626S, LFXS26596S, and LFXS26973D series) — the two are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Aftermarket replacement evaporator fan motor — circulates air through the fresh food compartment Resolves "fresh food too warm," "not cooling at all," and "noise behind the crisper drawer" symptoms caused by fan motor failure Rated 12V DC, 1A, with a 4-pin connector for direct plug-and-play electrical fit 2.36" (60mm) shaft length, 0.12" (3.16mm) shaft diameter Approximately 20.5" (56cm) wire lead Direct drop-in replacement matching the original mounting and blade fitment Replaces 4391461, AP6317185, PS11761147, EAP11761147, and PD00051700 Compatible with LG and select Kenmore/Kenmore Elite refrigerators Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair — just a screwdriver needed on most models Product Specifications Part Number XPEAU63103201 OEM Part Number EAU63103201 (ODM-001F-41) Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Compatible Brand LG, Kenmore Location Behind panel near the crisper drawers, fresh food compartment Voltage 12V DC Amperage 1 A Connector 4-pin Shaft Length 2.36 in. (60mm) Shaft Diameter 0.12 in. (3.16mm) Wire Lead Length Approx. 20.5 in. (56cm) Color Gray Material Plastic and metal Quantity 1 fan motor Compatible Brands LG, Kenmore, Kenmore Elite Installation Notes ⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning. Wear work gloves. Access on this platform is different from many other brands: rather than removing a rear panel inside the freezer, slide the crisper drawer out fully, then remove the panel behind or above the drawer area to expose the fan motor. Photograph the wiring connector and the fan blade's position before disconnecting anything. Disconnect the 4-pin electrical connector from the old motor, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation on the 60mm shaft. Mount the new EAU63103201 in the same position, reconnect the 4-pin connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the panel and sliding the crisper drawer back into place. Restore power and monitor the fresh food compartment over the next several hours to confirm normal cooling has returned. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions Why is this fan located near the crisper drawers instead of in the freezer? LG's refrigerator platform routes cold air to the fresh food compartment differently than many other brands, with this particular fan positioned behind a panel near the crisper drawer area rather than inside the freezer compartment. That's simply a difference in refrigerator design between manufacturers — it doesn't affect the fan's job, which is still to keep cold air circulating through the fresh food section, but it does mean the access point for this repair looks different from what you might expect if you've worked on a different brand before. My fridge section is warm but everything else seems fine. Is this the right part? Yes, this is the classic symptom this motor addresses. Since this fan specifically circulates air through the fresh food compartment, a failure here tends to affect that section directly — a warm fridge with an otherwise normally-functioning freezer points squarely at this motor rather than at the compressor or refrigerant system. There are several similar LG fan motor part numbers online. How do I know I have the right one? LG's EAU-prefix fan motors can look similar at a glance, but they aren't interchangeable — for example, the EAU63923603/EAU65058305 assembly used on models like the LFXS28596S and LMXS28626S is a completely different part from this EAU63103201 motor. The safest way to confirm is to check your refrigerator's full model number against a verified compatibility list, or contact our support team with your model number before ordering. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the electrical specifications (12V DC, 1A, 4-pin connector), shaft dimensions, and mounting configuration of the original EAU63103201 evaporator fan motor used in compatible LG and Kenmore refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR60X31522 GE Refrigerator Evaporator Fan Motor The WR60X31522 is a OE replacement evaporator fan motor compatible with select GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators. The evaporator fan motor is located at the back of the freezer compartment and circulates air across the evaporator coils — converting the heat from the air into cool air that's then distributed throughout both the freezer and fresh food sections. Without a properly functioning evaporator fan, the refrigerator can't move cold air where it's needed, causing the fresh food and/or freezer sections to warm up, ice to build up on the coils, and the compressor to run continuously trying to compensate. This 115V AC motor is rated at 60Hz, 3.3W and uses a 2-pin connector plus ground wire. Dimensions are 3-1/4"L x 2-3/8"W x 3-3/8"H, with a harness and plug extending approximately 3-1/2" from the motor. Construction is plastic and metal in marbled white & gray. Note: this listing is for the motor with harness only — the fan blade may need to be transferred from the old motor. It directly replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, and PS12741350. Installs in 30–45 minutes with basic hand tools. Quick Answer The WR60X31522 Genuine OEM GE Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators that aren't cooling properly, have heavy frost buildup on the evaporator coils, run continuously, or are noisy from the freezer compartment. 115V AC, 60Hz, 3.3W. 2-pin connector + ground wire. 3-1/4"L x 2-3/8"W x 3-3/8"H. Marbled white & gray. Replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, PS12741350. Common Problems This Part Fixes Refrigerator fresh food and/or freezer sections not cooling properly Heavy frost or ice buildup on the evaporator coils ("Antarctica" frost) Loud whining, grinding, or scraping noise from the freezer compartment Fan blade not spinning when checked by hand or stiff/seized rotation Refrigerator running continuously trying to maintain temperature Compressor running but cool air not being circulated Motor failing continuity test with a multimeter Visible damage to the fan motor or its harness Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X31522, WR60X23584, WR60X10141, WR60X10346, WR60X28783, WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X27646, WR60X28784, WR60X31122, AGE29819, 115V-60Hz 3.3W, 197D2038P031, FDQR002GSL, PD00062864, AP6977246, PS12741350. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE, Hotpoint, RCA, and Americana refrigerators, typically top-mount freezer units: GE top-mount refrigerators (select models) GE Profile and Café refrigerators (select models) Hotpoint refrigerators (select models) RCA refrigerators (select GE-built models) Americana refrigerators (select GE-built models) Note: Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style refrigerators. Confirm the failed motor's location and that the WR60X31522 part number matches your refrigerator's parts diagram before ordering. Always verify your appliance model number first. Key Features Evaporator fan motor for the freezer compartment of compatible GE/Hotpoint top-mount refrigerators Pulls air through the evaporator coils to remove heat and circulate cool air throughout the refrigerator 115V AC, 60Hz, 3.3W — correct electrical specifications for compatible GE-platform refrigerators 2-pin connector plus ground wire — direct plug-in installation with the included harness Dimensions: 3-1/4"L x 2-3/8"W x 3-3/8"H; harness and plug extend approximately 3-1/2" from the motor Marbled white & gray plastic and metal construction Replaces 18 OEM and aftermarket cross-reference part numbers including WR60X10045, WR60X10141, WR60X23584, WR60X27646, WR60X28783, WR60X31122, and PS12741350 Compatible with GE, Hotpoint, RCA, and Americana refrigerators (top-mount freezer units) Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number WR60X31522-OE Part Type Refrigerator Evaporator Fan Motor (Freezer Section) Condition OE Replacement Application Top-Mount Freezer Refrigerators (GE platform) Voltage 115V AC Frequency 60 Hz Wattage 3.3W Connector 2-pin connector plus ground wire Dimensions 3-1/4"L x 2-3/8"W x 3-3/8"H Harness Length Approximately 3-1/2" from motor Color Marbled White & Gray / Gray Material Plastic / Metal Includes Evaporator fan motor with harness and plug (fan blade may need to be transferred from old motor) Compatible Brands GE, Hotpoint, RCA, Americana Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located at the back of the freezer compartment, behind an interior access panel. Remove the freezer shelves and any internal components blocking access to the rear panel. Remove the screws holding the rear access panel in place to expose the evaporator coils and fan motor. Photograph the wire connections and fan blade orientation before disconnecting. Disconnect the 2-pin wire harness connector and the ground wire from the old motor. Note the orientation of the fan blade on the motor shaft — the blade typically presses onto the shaft and may need to be transferred to the new motor. Remove the mounting screws or release the motor from its mounting bracket, and pull the old motor free. Carefully transfer the fan blade to the new WR60X31522 motor in the same orientation (or use a new blade if you have one). Install the new motor in the same position, reconnect the wire harness and ground wire, and reinstall the access panel and shelves. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves. Frequently Asked Questions How do I know if the evaporator fan motor has failed? The most common symptoms are: the refrigerator or freezer is warmer than its set temperature even though the compressor sounds like it's running normally; heavy frost or ice buildup on the evaporator coils behind the freezer access panel ("Antarctica" frost); and loud whining, grinding, or scraping noise from the freezer area. To confirm: unplug the refrigerator, remove the rear freezer access panel, and try turning the fan blade by hand. If it doesn't spin freely or is stiff/seized, the motor bearing has failed. You can also test for motor continuity with a multimeter — no continuity confirms electrical failure. My refrigerator has two evaporator fans — which one does this replace? Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style GE and Hotpoint refrigerators. If your symptom is "freezer not cooling properly" or "frost on freezer coils," this is the correct part. If your symptom is specifically "fresh food section warm while freezer is fine" on a French door refrigerator, you may need a different fan motor — contact our support team with your model number to confirm. Does this motor come with the fan blade? No — the WR60X31522 listing is for the motor with harness and plug only. The fan blade is typically transferred from the old motor: carefully pull it off the old motor shaft (it presses on, no hardware needed), and press it onto the new motor shaft in the same orientation. If your old fan blade is damaged or cracked, it should be replaced separately. Installing the blade in the wrong direction will reverse the airflow and reduce cooling performance. What's the difference between the WR60X31522 (115V AC) and DC motors like the WR60X10209 or WR60X26866? GE refrigerators use different fan motor technologies across model generations. The WR60X31522 is a 115V AC motor with a 2-pin connector plus ground — used in many GE and Hotpoint top-mount freezer refrigerators. The WR60X10209 and WR60X26866 are DC voltage motors (around 11–14V DC) used in newer GE French door refrigerators with electronic control boards that supply variable DC voltage for energy-efficient variable-speed fan operation. These are not interchangeable — always verify the correct part number for your specific refrigerator model before ordering. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same evaporator fan motor installed in compatible GE, Hotpoint, RCA, and Americana refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor (OE) The XPARTCO WR60X26866 (OE — Original Equipment specification) is replacement axial evaporator fan motor built to OEM specifications, designed as a direct fit for the fresh food section of select GE French door refrigerators, including the CFE28, CFE29, CWE23, CYE22, CYE23, DFE28, DFE29, GFD28, GFE26, GFE27, GFE28, GFE29, GFS26, GFS28, GNE26, GNE29, GYE22, GYS22, PFD28, PFE28, PFE29, PWE23, PYD22, PYE22, PYE23, and ZWE23 series. The evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air inside the refrigerator. Without a functioning evaporator fan, the refrigerator compartment cannot maintain its target temperature even when the compressor and condenser are running normally — the cold air generated at the evaporator simply isn't being circulated to the food storage areas. The WR60X26866 is a DC motor rated at 13.6V DC, 0.16A, with a fan housing measuring 3-4/7"L x 2"W x 3-1/8"H, plus a multi-color wire harness and plug approximately 11-1/2" long. It includes the axial fan blade and harness as a complete assembly. It directly replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, and PS12172983. Important: if your refrigerator was built between May 2014 and March 2015 with serial range FF–HD, the unit's software must be updated before installing this fan motor — see FAQ below. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor (OE) fixes GE French door refrigerators where the fridge isn't cooling but the freezer is cold, the evaporator coils are frosted over, the ice maker isn't working due to insufficient cooling, or there's loud humming or grinding from the freezer area. Axial fan motor, 13.6V DC, 0.16A. Fan housing: 3-4/7"L x 2"W x 3-1/8"H; harness ~11-1/2"L. Replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, PS12172983. Note: May 2014 – Mar 2015 build refrigerators (serial range FF–HD) require a software update before installation. Common Problems This Part Fixes Refrigerator not cooling properly while the freezer remains cold — classic evaporator fan failure Freezer cold but fridge warm — fresh food compartment air not being circulated Frosty or frozen evaporator coils due to insufficient air circulation Ice maker failure caused by inadequate cooling in the compartment Loud humming, grinding, or buzzing noise from the freezer or fresh food compartment Refrigerator running continuously without reaching set temperature Fan blade not spinning freely or seized when checked by hand Multimeter shows no continuity through the motor windings Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE French door refrigerators, including: GE refrigerators — CFE28, CFE29, CWE23, CYE22, CYE23 series (CFE28TP2MBS1, CFE28USHNSS, CWE23SP2MBS1, CYE22TP2MBS1 and related) GE refrigerators — DFE28, DFE29 series (DFE28JELCDS and related) GE refrigerators — GFD28, GFE26, GFE27, GFE28, GFE29 series (GFD28GBLBTS, GFE26GGHEBB and related) GE refrigerators — GFS26, GFS28, GNE26, GNE29 series GE refrigerators — GYE22, GYS22 series (GYE22HMKEES and related) GE refrigerators — PFD28, PFE28, PFE29 series (PFE28KELFDS and related) GE refrigerators — PWE23 series (PWE23KSKDSS and related) GE refrigerators — PYD22, PYE22, PYE23 series (PYE22KSKBSS and related) GE refrigerators — ZWE23 series and select related Café and Profile French door models Important — Software Update Requirement: If your GE refrigerator was manufactured between May 2014 and March 2015 with a serial number in the range FF–HD, the refrigerator's control software must be updated by GE factory service (or via Software Update Module WR98R882802) before installing this fan motor. Installing the new motor without the software update on these affected units may result in improper performance. Check your refrigerator's serial number plate before ordering. Key Features Axial evaporator fan motor for the fresh food section of GE French door refrigerators Pulls air through the evaporator coils to remove heat and circulate cold air through the refrigerator compartment DC motor — rated 13.6V DC, 0.16A — runs on DC voltage from the refrigerator control board Includes the axial fan blade and pre-attached multi-color wire harness with plug Fan housing dimensions: 3-4/7"L x 2"W x 3-1/8"H; harness and plug approximately 11-1/2" long Quiet operation — engineered to minimize hum and vibration in the refrigerator cabinet Plastic and metal construction, black housing with multi-color harness Replaces an extensive list of GE part numbers including WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, and additional cross-references Compatible with GE, GE Café, and GE Profile French door refrigerators in the CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GYE, GYS, PFD, PFE, PWE, PYD, PYE, and ZWE series Aftermarket Original Equipment (OE) replacement — built to OEM specifications for direct fit and performance DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WR60X26866-OE Part Type Refrigerator Evaporator Fan Motor (Fresh Food / Axial) Condition OEM Replacement Application GE French Door Refrigerators Voltage 13.6V DC Amperage 0.16A Fan Type Axial Fan Housing Dimensions 3-4/7"L x 2"W x 3-1/8"H Harness Length Approximately 11-1/2 inches Color Black housing with multi-color harness Material Plastic / Metal Includes Axial fan motor assembly with harness Software Update Required For May 2014 – Mar 2015 builds (serial range FF–HD) — use WR98R882802 Compatible Brands GE, GE Café, GE Profile Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor for the fresh food section is mounted on the back wall of the fresh food (refrigerator) compartment, behind an access panel. Take a photo of the existing fan position and wire harness routing before disconnecting. Remove the shelves and any internal components blocking access to the back wall, then remove the screws holding the rear access panel in place. Disconnect the fan motor's wire harness connector and remove the mounting screws securing the old motor. Note the fan blade orientation on the motor shaft. Install the new WR60X26866 motor assembly in the same position with the blade facing the same direction, reconnect the wiring harness, and reinstall the mounting screws and access panel. Replace the shelves and other internal components, restore power, and confirm the fan spins and the refrigerator cools properly. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves. Frequently Asked Questions My fridge is warm but my freezer is cold — is the evaporator fan motor the problem? Yes — this is one of the most recognizable symptoms of evaporator fan motor failure on GE French door refrigerators with a separate fresh food evaporator. The freezer side has its own cooling circuit and remains cold, while the fresh food side relies on this fan to circulate air across its evaporator coils. When the fan fails, the freezer continues working but the fresh food compartment loses its cold air supply, warming up while the freezer stays at temperature. If you also notice frost building up on the evaporator coils behind the back panel of the fresh food compartment, the fan failure is confirmed. What is the software update requirement for May 2014 – March 2015 refrigerators? GE issued a software update for certain refrigerators manufactured between May 2014 and March 2015 (serial range FF–HD) before they could properly support newer revisions of the WR60X26866 evaporator fan motor. If your refrigerator falls in this date and serial range, the control software must be updated before installing this fan motor — either by GE factory service or by using the Software Update Module part WR98R882802. Installing the new fan on an unupdated unit can result in improper performance. Check the serial number plate inside your refrigerator (typically on the left side wall) to confirm whether your unit is affected. Refrigerators built outside this range do not require the update. How do I test if the evaporator fan motor has failed? Unplug the refrigerator, then access the fan behind the rear panel of the fresh food compartment. First, try turning the fan blade by hand — if it doesn't spin freely, is stiff, or seizes, the motor bearing has failed. Next, listen during normal operation — if the motor is unusually noisy or makes a grinding sound, the bearings are worn even if it still spins. Finally, with the unit unplugged and the motor disconnected, use a multimeter on the motor windings to check for continuity. If the windings show no continuity, the motor has failed electrically. Also check for approximately 11–14V DC at the connector when the refrigerator is running — if voltage is present but the motor doesn't spin, the motor has failed. My fridge has two evaporator fans — which one does this replace? Some GE French door refrigerators have separate evaporator fan motors for the freezer and the fresh food sections. The WR60X26866 is the fresh food evaporator fan motor — it's the axial fan located behind the rear panel of the fresh food compartment, not in the freezer. If your symptom is "freezer cold, fridge warm," this is the correct part. If your symptom is "freezer warm" or "ice maker not making ice but fridge is fine," the freezer evaporator fan motor (a different part number) is more likely the cause. Confirm which compartment has the cooling problem before ordering. Is this an OEM or aftermarket part? This is a “OE (Original Equipment) parts are manufactured to meet the same specifications, materials, and performance standards as the original factory-installed components. XPARTCO parts are engineered to provide equivalent fit and function to OEM components while offering reliable quality at a competitive price.” Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

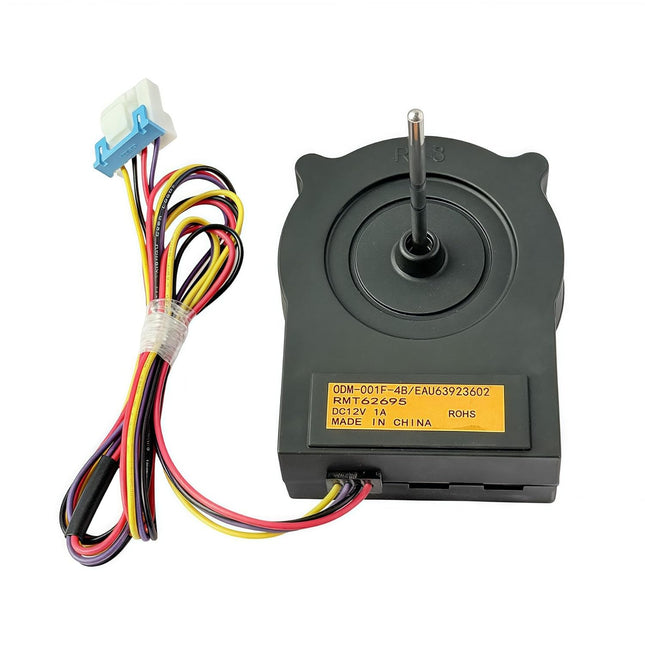

EAU63923602 Refrigerator Genuine OEM Condenser Fan Motor – Compatible with LG & Kenmore Refrigerators Product Description Restore proper airflow and efficient cooling with the EAU63923602 Refrigerator Genuine OEM Condenser Fan Motor. This factory-approved motor circulates air across the condenser coils to help dissipate heat from the refrigeration system. A failed condenser fan motor can cause the refrigerator to run warm, overheat, make loud noises, or stop cooling efficiently. Installing this Genuine OEM condenser fan motor ensures exact fit, quiet operation, and long-lasting performance. Replaces Part Numbers EAU63923602, ODM-001F-4B, PD00057884, EAP12383670, AP6317196, 4877338, PS12383670. Compatibility This Genuine OEM condenser fan motor fits select LG and Kenmore (LG-manufactured) refrigerators. Example compatible models include (but are not limited to):LG LFXS24623S, LFXC24726SKenmore 795.71033.010, 795.74023.411 Always verify your refrigerator’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🧩 Genuine OEM Replacement – Factory-certified for exact fit and reliability 🌬️ Restores Proper Airflow – Cools condenser coils for efficient operation 🔇 Quiet Performance – Smooth motor design reduces noise and vibration 💪 OEM-Grade Durability – Built for continuous operation in warm environments 🛡️ Fixes Common Issues – Solves warm temperatures, overheating, or loud fan noise 📐 Product Specification Part Number: EAU63923602 Component Type: Refrigerator Condenser Fan Motor Voltage: 120V AC Mounting: Rear lower condenser fan assembly Rotation: OEM-matched direction Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Unplug the refrigerator before servicing. Condenser components may be hot—allow time to cool. Steps: Disconnect power and remove the rear lower access panel. Locate the condenser fan motor assembly. Disconnect the wiring harness and remove mounting screws. Install the new EAU63923602 motor in the same position. Reconnect wiring, reinstall the panel, and restore power. Confirm proper fan operation and airflow. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Genuine OEM Replacement Part 🔄 30-Day Return Policy Restore efficient refrigerator cooling with confidence — Add to Cart Now for a factory-quality repair!

Read more less

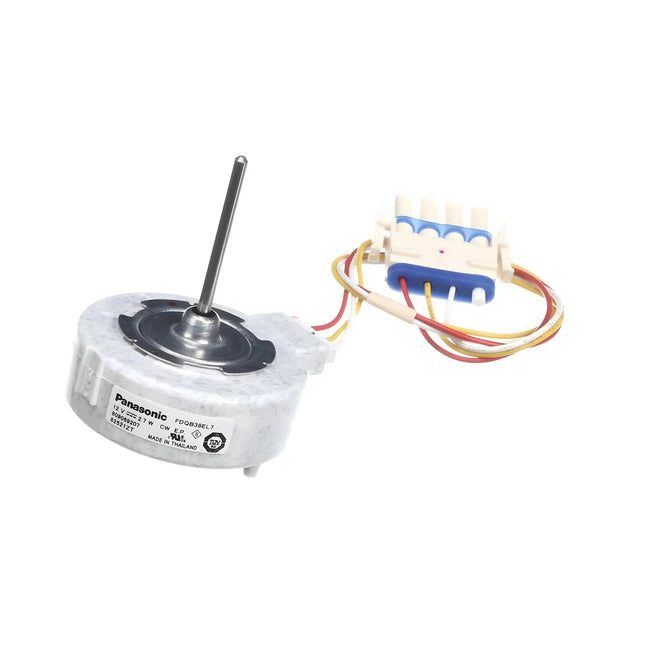

809069207 Refrigerator Genuine OEM Evaporator Fan Motor – Compatible with Frigidaire, Electrolux, and Kenmore Refrigerators Product Description Restore powerful and consistent cooling with the 809069207 Refrigerator Genuine OEM Evaporator Fan Motor. This factory-approved motor circulates cold air throughout the refrigerator and freezer compartments, ensuring even temperature distribution. A failing fan motor can cause warm spots, frost buildup, poor cooling, or unusual noises. Replacing it with this Genuine OEM part ensures dependable performance and the same airflow efficiency your appliance had when new. Replaces Part Numbers 809069207, PD00064424, EAP12705983, AP6834878, PS12705983. Compatibility This Genuine OEM evaporator fan motor fits select Frigidaire, Electrolux, and Kenmore refrigerators. Example compatible models include (but are not limited to):Frigidaire FFHS2622MB3, FFSS2615TS0, Electrolux EI23CS55GS1, and Kenmore 253.7031321A. Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🧩 Genuine OEM Replacement – Factory-certified for perfect fit and long-lasting performance ❄️ Restores Air Circulation – Ensures even cooling in fresh food and freezer sections 🔇 Quiet Motor Operation – Balanced OEM motor design lowers noise and vibration 💪 High Durability – Built with premium materials for extended service life 🛡️ Fixes Common Issues – Solves poor cooling, frost buildup, noisy fan, or warm temperatures 📐 Product Specification Part Number: 809069207 Component Type: Refrigerator Evaporator Fan Motor Material: Reinforced plastic fan housing with factory motor Voltage: 115V AC (model dependent) Mounting: Direct-fit motor mounted behind freezer interior panel Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Always unplug the refrigerator before servicing to avoid electrical shock. Steps: Disconnect power and remove freezer shelves and panels. Locate the evaporator fan assembly. Disconnect the wiring harness and remove the old motor. Install the new 809069207 motor in the same location. Reassemble interior panels and restore power. Allow several minutes for airflow to stabilize. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Genuine OEM Replacement Part 🔄 30-Day Return Policy Restore powerful, even cooling — Add to Cart Now for a factory-quality repair!

Read more less

5304523741 Refrigerator Genuine OEM Evaporator Fan Motor – Compatible with Frigidaire, Electrolux, and Kenmore Refrigerators Product Description Keep your refrigerator cooling efficiently with the 5304523741 Refrigerator Genuine OEM Evaporator Fan Motor. This factory-approved replacement circulates cold air from the evaporator throughout the refrigerator and freezer compartments. A failing fan motor can cause uneven temperatures, frost buildup, or warm sections in your fridge. Installing this genuine OEM part ensures quiet, dependable air circulation and consistent cooling performance. Replaces Part Numbers 5304523741, AP6983831, EAP12746805, 4960926, PD00067011, PS12746805. Compatibility This genuine OEM fan motor fits select Frigidaire, Electrolux, and Kenmore refrigerators. Example compatible models include (but are not limited to): Frigidaire FFSS2615TS0, Electrolux LFHB2751TF, and Kenmore 253.70313214. Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Genuine OEM Replacement – Factory-approved motor for reliable cooling performance ❄️ Efficient Air Circulation – Distributes cold air evenly throughout the compartments 💰 Energy-Efficient Operation – Restores temperature consistency and reduces compressor strain 🛠️ DIY Friendly – Direct-fit replacement installs in minutes 🛡️ Fixes Common Issues – Solves warm freezer, frost buildup, or noisy fan motor problems 📐 Product Specification Part Number: 5304523741 Component Type: Refrigerator Evaporator Fan Motor Material: Metal and high-temperature plastic housing Mounting: Direct-fit replacement in freezer compartment Operating Conditions: Designed for continuous low-temperature operation Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Always unplug the refrigerator before servicing to prevent electrical shock. Steps: Disconnect power and remove freezer shelves and back panel. Locate and disconnect the wiring harness from the old fan motor. Remove mounting screws and take out the old motor and fan blade. Transfer the fan blade (if required) to the new 5304523741 motor. Mount the new motor, reconnect wiring, and reinstall back panel. Restore power and confirm even cooling and quiet operation. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders 🧊 Genuine OEM Replacement Part 🔄 30-Day Return Policy Keep your refrigerator running at peak performance — Add to Cart Now for a genuine, factory-approved repair!

Read more less

DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor - Compatible with Samsung Product Description Ensure efficient cooling with the DA31-00103A Genuine OEM Refrigerator Condenser Fan Motor. This Samsung-manufactured motor is designed as a replacement for select Samsung refrigerators. It powers the fan to circulate air over the condenser coils, dissipating heat to maintain optimal refrigeration performance. This part addresses issues like insufficient cooling, frost buildup, unusual noises (e.g., chirping, buzzing), or the refrigerator running too frequently, often caused by a faulty or worn motor. Note: Includes (1) condenser fan motor (fan blade not included). Disconnect power before installation. Verify compatibility with your refrigerator model. Replaces part numbers: DA31-00103A, IS-27210SCD6A, PD00002207, EAP4138348m AP4140906, 1472692, PS4138348. Compatibility: Compatible with select Samsung refrigerator models, including but not limited to: Samsung: RS2631SL, RS2631SL/XAA, RS2623WW/XAA, RS2624SW, RS2624SW/XAA, RS2624WW, RS2631SW, RS2631SW/XAA, RSC5DBSH, RS2621SW/XAA, RS2623BB, RS2623BB/XAA, RS2623SH, RS2623SL, RS2623VQ, RS2630SH, RS2630WW Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung refrigerators. 🔧 Specifications: Genuine OEM Samsung AC fan motor, 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft. 💪 Reliable Performance: Circulates air to dissipate heat from condenser coils for efficient cooling. 🛠️ Easy Installation: Requires screwdriver and pliers; typically installed in 15–30 minutes. 🛡️ Effective Fixes: Resolves insufficient cooling, frost buildup, noisy operation, or frequent running. Product Specification Part Number: DA31-00103A Component Type: Refrigerator condenser fan motor Material: Metal and plastic Electrical Specs: 115V, 60Hz, 0.16A, 1300RPM, 1-5/8" shaft, quick disconnect Compliance: UL-listed, Prop 65 warning for California. Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop for high-quality appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today! Add to cart now for a reliable fix!

Read more less

Genuine OEM 808602602 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire, Kenmore, Crosley, White-Westinghouse Refrigerators Product Description Restore optimal cooling with the Genuine OEM 808602602 Refrigerator Evaporator Fan Motor. This authentic Frigidaire-manufactured motor, designed for Frigidaire, Kenmore, Crosley, and White-Westinghouse refrigerators, powers the evaporator fan to circulate cold air throughout the refrigerator and freezer compartments. Constructed with durable ABS plastic and metal (120V, 60Hz, 0.1A, 6W), this motor resolves issues like inconsistent temperatures, frost buildup, or excessive noise. Note: Includes one evaporator fan motor with wiring harness. Disconnect power before installation. Take photos of wiring during disassembly for accurate replacement. Replaces part numbers: 808602602, 241854601, 808602601, 4931129, PD00055240, EAP12729077, AP6893151, PS12729077. Compatibility: Compatible with models including but not limited to: Frigidaire: FFSS2625TS2, FFSS2625TS1, FFSS2625TP2, FFSS2625TE1, FFSS2625TE2, FFSS2625TP1, BFHS2611LM0, BFHS2611LM1, BFHS2611LM2, DFHS2313MF0, DFHS2313MF1, FFHS2311LB0, FFHS2311LW0 Kenmore: 25355333607 Crosley: CRSH232PB0, CRSH232PB1, CRSH232PB2, CRSH232PB3, CRSH232PB5, CRSH232PB6, CRSH232PB7A, CRSH232PB8A, CRSH232PB9A, CRSH232PBEA White-Westinghouse: FFSS2625TS2, FFSS2625TS1, FFSS2625TP2, FFSS2625TE1, FFSS2625TE2, FFSS2625TP1 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Frigidaire, Kenmore, Crosley, and White-Westinghouse refrigerator models. 🔥 Specifications: Genuine OEM evaporator fan motor, 120V, 60Hz, 0.1A, 6W, 4-pin connector, ABS plastic/metal construction, 1.25 lbs, corrosion-resistant. 💰 Premium Quality: Authentic Frigidaire part ensures reliability and compatibility, backed by manufacturer standards. 🛠️ Easy Installation: Requires Phillips screwdriver, work gloves; typically installed in 20–40 minutes. 🛡️ Reliable Fixes: Resolves inconsistent temperatures, frost/ice buildup, uneven cooling, or excessive fan noise. Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop Parts-O-Matic for authentic OEM appliance parts with a 30-day return policy. Ensure consistent cooling in your refrigerator today! Add to cart now for a reliable, OEM-quality fix!

Read more less

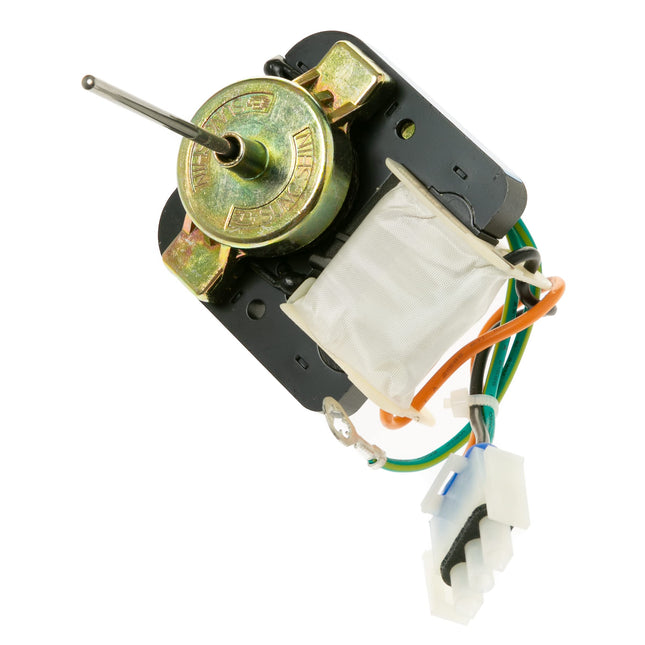

WR60X10172 Refrigerator Genuine Evaporator Fan Motor 115V, .20A, 60Hz, 2800RPM, 2-5/8" shaft, Has quick disconnect. Replaces Part Numbers: WR60X10172, 1164351, AH967024, AP3855311, EA967024, IS-23210GEVA, PS967024, WR60X10057, WR60X10117, WR60X10190, WR60X10197.
