Refrigerator Fan Motors, Condenser & Evaporator and Fan Blades

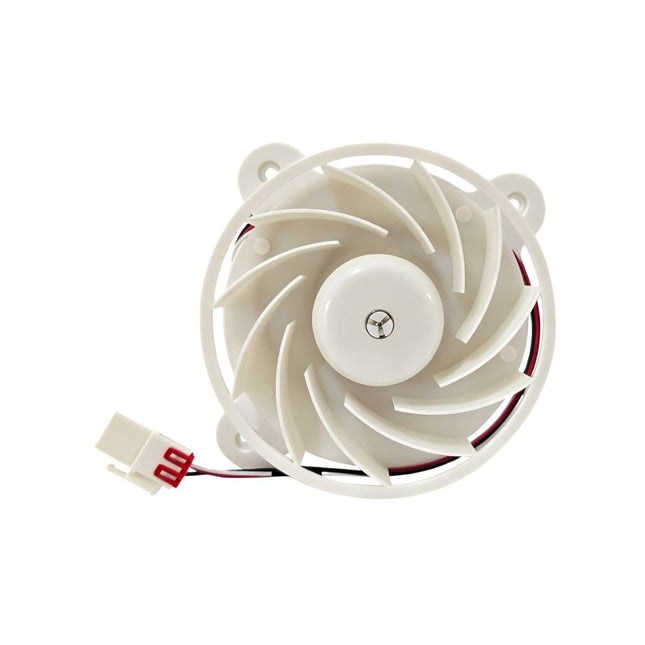

XPARTCO DA31-00334C Refrigerator Evaporator Fan Motor The XPARTCO DA31-00334C is an aftermarket replacement evaporator fan motor for Samsung bottom-mount and side-by-side refrigerators. This small brushless DC (BLDC) motor sits behind the freezer's rear panel, directly in front of the evaporator coil, and its job is to pull cold air off that coil and push it through the duct system into both the freezer and fresh food compartments. Without it circulating air, the coil itself keeps getting cold, but that cold air never reaches your food — the freezer may still work reasonably well since it sits closer to the coil, while the fresh food side drifts warmer and warmer since it depends entirely on ducted airflow from the back. Rated at 12V DC, 2.5W, 0.12A, running at approximately 1,870 RPM. As a brushless design, this motor has no physical brushes to wear out, so failure typically comes from a worn bearing that lets the blade wobble or bind, a winding that has burned out electrically, or a blade that has become jammed by a chunk of built-up frost or freezer debris. It directly replaces DA31-00287B, DA31-00334A, DA31-00305A, DA96-00968A, AP6803162, 3954921, AP5948644, PS9494284, EAP9494284, PS12590897, and EAP12590897. Also compatible with select Kenmore refrigerators built on the Samsung platform. Quick Answer The XPARTCO DA31-00334C Refrigerator Evaporator Fan Motor fixes Samsung bottom-mount and side-by-side refrigerators with uneven cooling, a fresh food compartment that's warmer than it should be, frost or ice buildup at the back or bottom of the freezer, or a grinding/buzzing noise from inside the cabinet. Brushless DC (BLDC) motor, 12V DC, 2.5W, 0.12A, ~1,870 RPM. Replaces DA31-00287B, DA31-00334A, DA31-00305A, DA96-00968A, AP6803162, 3954921, AP5948644, PS9494284, EAP9494284, PS12590897, EAP12590897. Verify your model number before ordering — Samsung uses several different evaporator fan motors, and this is not the same part as our DA81-06013A listing. Common Problems This Part Fixes Fresh food compartment running warmer than the freezer, or warmer than it used to Uneven temperatures between shelves or between the fresh food and freezer sides Frost or ice buildup accumulating at the back panel or bottom of the freezer Grinding, buzzing, or rattling noise coming from inside the refrigerator cabinet Noise that stops when the freezer door is opened and starts again once it's closed Freezer holding temperature reasonably well while the fresh food side drifts warm Fan blade that doesn't spin freely, or spins with noticeable wobble, when checked by hand Refrigerator running constantly as the compressor tries to compensate for poor air circulation Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: DA31-00334C, DA31-00287B, DA96-00968A, 12035GE-12M-YT, 12V DC 0.26A, ARES2120RA, Model # 12035GE-12M-YT, AP6803162, ASM1061854, EAP12590897, PD00075168, PS12590897. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select Samsung bottom-mount and side-by-side refrigerators, and also fits select Kenmore refrigerators built on the Samsung platform. Note — not the same motor as DA81-06013A: Samsung uses several different evaporator fan motor designs across its refrigerator lineup. The DA31-00334C is a distinct part from our DA81-06013A listing, which is built for a different model family and has its own connector and mounting configuration. Fitting the wrong motor can result in a connector that won't mate with your wiring harness or a fan blade that doesn't clear the housing correctly. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor fits your refrigerator. Key Features Brushless DC (BLDC) evaporator fan motor — no brushes to wear out over time Circulates cold air from the evaporator coil throughout the freezer and fresh food compartments Resolves "fresh food too warm," "uneven cooling," "frost buildup," and "grinding or buzzing noise" symptoms caused by fan motor failure Rated 12V DC, 2.5W, 0.12A, approximately 1,870 RPM Direct drop-in replacement matching the original mounting bracket and blade fitment Replaces DA31-00287B, DA31-00334A, DA31-00305A, DA96-00968A, AP6803162, 3954921, AP5948644, PS9494284, EAP9494284, PS12590897, and EAP12590897 Compatible with select Samsung and Kenmore (Samsung-platform) refrigerators Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number XPDA31-00334C OEM Part Number DA31-00334C Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Brand Samsung Motor Type Brushless DC (BLDC) Voltage 12V DC Wattage 2.5 W Amperage 0.12 A Speed ~1,870 RPM Application Bottom-Mount and Side-by-Side Refrigerators Quantity 1 fan motor Compatible Brands Samsung, select Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Let The Freezer Thaw If Iced Over Disconnect power at the outlet before beginning, and remove all food from the freezer to a cooler for the duration of the repair. Wear work gloves. Access is through the freezer's rear interior panel: remove the shelving and bins as needed, then remove the screws securing the back panel and set it aside to expose the evaporator coil and fan assembly. If you see significant frost or ice buildup around the fan or coil, let the unit sit unplugged with the door open for a few hours (or run a manual defrost) before continuing, since ice can be masking the actual point of failure and can also make the old motor difficult to remove cleanly. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free — on many models the blade is a separate piece that pulls off the motor shaft. Transfer the fan blade to the new motor if it isn't included, or install the new blade supplied with this motor, matching the original orientation. Mount the new DA31-00334C in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions My freezer seems fine but the fresh food section is warm. Is this really the fan motor? Yes, this is a very common and telling symptom pattern. The freezer compartment sits right next to the evaporator coil and can stay reasonably cold through simple proximity even with poor air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area, while the freezer may seem to lag only slightly behind. I hear a grinding or buzzing noise that stops when I open the freezer door. What does that mean? This is a classic symptom of a worn fan motor bearing or a blade that's catching on built-up frost. Opening the door often triggers the refrigerator's internal light switch or door sensor, which can cut power to the fan momentarily — the noise stops because the fan stops spinning, then resumes once the door closes and the fan restarts. If you can see or reach the fan blade with the freezer open, check whether it spins freely and smoothly by hand; a blade that wobbles, binds, or contacts the housing points to the motor as the cause. There's a lot of frost around the back panel of my freezer. Should I fix that before replacing the fan? It's worth understanding which came first. Excess frost can be a cause of fan failure — a jammed blade can burn out the motor over time — or a result of it, since poor air circulation lets moisture condense and freeze unevenly around the coil area. Either way, thawing the ice out fully before you install the new motor makes the repair easier and lets you confirm the blade spins freely once everything is defrosted, rather than immediately jamming again on refrozen ice. Do I need to transfer the fan blade from my old motor? It depends on what's included with your specific order — check whether a blade came with your new motor before removing the old one. If a blade is not included, the blade from your original motor typically pulls off the shaft and can be transferred over. Photograph the blade's orientation on the shaft before removing it so you can reinstall it the same way; an improperly oriented blade can affect airflow or contact the housing. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 2.5W, 0.12A, ~1,870 RPM), brushless motor design, and mounting configuration of the original DA31-00334C evaporator fan motor used in compatible Samsung and Kenmore refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

EAU63923602 Refrigerator Condenser Fan Motor - Compatible with LG, Kenmore Refrigerators Product Description Restore your refrigerator’s cooling performance with the EAU63923602 Condenser Fan Motor. This replacement motor powers the condenser fan to dissipate heat from the coils, ensuring efficient cooling. Designed for select Kenmore, LG refrigerators, it fixes issues like poor cooling, freezer too warm, compressor overheating, or loud noises. Note: Includes one condenser fan motor. Take photos of wiring during disassembly and clean condenser coils before installation. Replaces part numbers: EAU63923602, ODM-001F-4B, PD00057884, EAP12383670, AP6317196, 4877338, PS12383670. Key Features: ✅ Brand Compatibility: Fits select LG, Kenmore refrigerator models. ❄️ Specifications: Condenser fan motor, 12V DC, 1A. 💰 Cost-Effective: OEM performance at a competitive price. 🛠️ Easy Installation: Requires a screwdriver, pliers, work gloves; typically installed in 20–40 minutes. 🛡️ Reliable Fixes: Resolves poor cooling, freezer too warm, compressor overheating, or noisy operation. Installation Notes: Safety First: Unplug the refrigerator before installation to avoid electrical shock. Clean condenser coils to ensure optimal performance. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your refrigerator running efficiently today! Add to cart now for a budget-friendly fix!

Read more less

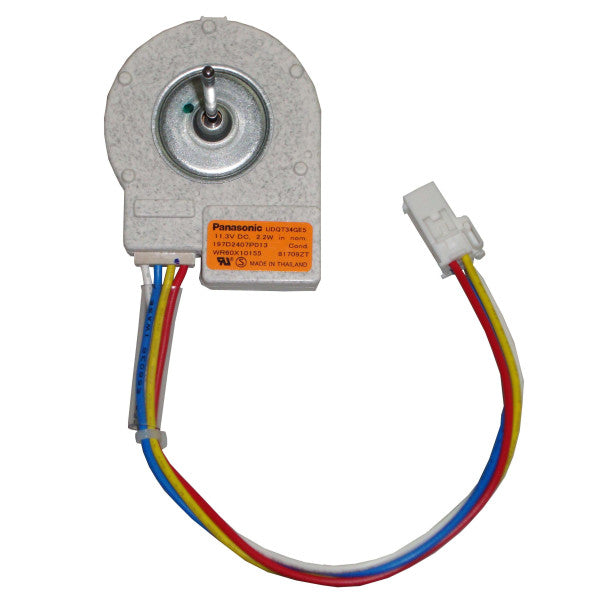

WR60X10209 Genuine OEM GE Refrigerator DC Condenser Fan Motor The WR60X10209 is a Genuine OEM GE replacement DC condenser fan motor compatible with a wide range of GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café refrigerators in the GSS, GSL, HSS, PSS, PSC, GCE, PCE, and related series. The condenser fan motor is located near the compressor at the rear bottom of the refrigerator. It circulates air across the condenser coils to dissipate heat from the hot refrigerant before it returns to the evaporator — this is an essential step in the refrigeration cycle. Without the condenser fan running, heat builds up around the compressor and condenser coils, causing the refrigerator to run continuously, cool inefficiently, or trip the compressor's thermal overload protection. This Genuine OEM part is manufactured by GE to factory specifications. It is a DC voltage motor rated at 11.3V DC, 2.2W with a 4-pin plastic connector and four color-coded wires (white, blue, red, and yellow). It directly replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, WR60X10209-24PK, 1195784, AP4265957, AH1483567, EA1483567, and PS1483567. Installs in 15–30 minutes with basic hand tools. Quick Answer The WR60X10209 Genuine OEM GE Refrigerator DC Condenser Fan Motor fixes GE refrigerators that are not cooling properly, running continuously, making unusual noise from the back, or where the compressor is overheating. 11.3V DC, 2.2W, 4-pin connector (white/blue/red/yellow wires). Genuine OEM. Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, AP4265957, PS1483567. Compatible with GE GSS, GSL, HSS, PSS, PSC, GCE, PCE series and Hotpoint, RCA, Kenmore, Haier, Monogram, Café. Common Problems This Part Fixes Refrigerator not cooling properly — condenser fan not circulating air across coils Refrigerator running continuously without reaching set temperature Compressor overheating — heat not being dissipated from condenser area Unusual noise or grinding from the back or bottom of the refrigerator Condenser fan motor visibly not spinning when compressor is running Refrigerator cycling off frequently on thermal overload protection Food spoilage — refrigerator unable to maintain safe temperatures Replaces Part Numbers This condenser fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10209, 1195784, WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, 045900390950, 197D2407P013, AGE29194, AH1483567, EA1483567, EAP1483567, AP4265957, PD00001176, PS1483567. Contact our support team with your model number if you need confirmation before ordering. Compatibility This condenser fan motor is compatible with a wide range of refrigerators from the following GE product lines: GE refrigerators — GSS series (GSS22, GSS23, GSS25, GSS26 and related side-by-side models) GE refrigerators — GSL series (GSL22, GSL25 and related models) GE refrigerators — GCE series (GCE21, GCE23 and related models) GE refrigerators — PCE and PSS series (PCE23, PSS25, PSS26 and related Profile models) GE refrigerators — PSC series (PSC23, PSC25 and related Profile models) GE Monogram refrigerators — ZIS, ZISB series (select models) GE Café refrigerators (select models) Hotpoint refrigerators — HSS series (HSS22, HSS25 and related models) RCA refrigerators (select GE-built models) Kenmore / Sears refrigerators (select GE-built models) Haier refrigerators (select GE-platform models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance Circulates air across the condenser coils to dissipate heat from the refrigerant and maintain efficient refrigeration cycle operation DC voltage motor rated at 11.3V DC, 2.2W — runs on DC voltage supplied by the refrigerator's control board 4-pin plastic connector with color-coded wires (white, blue, red, yellow) — direct plug-in installation on compatible models Replaces WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X10216, WR60X24483, and AP4265957 Compatible with GE GSS/GSL/GCE/PCE/PSS/PSC, Hotpoint HSS, Kenmore, Haier, Monogram, Café, and RCA refrigerators DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number WR60X10209 Part Type Refrigerator DC Condenser Fan Motor Condition Genuine OEM Application Refrigerators (side-by-side, French door, bottom-freezer) Voltage 11.3V DC Wattage 2.2W Connector 4-pin plastic plug Wire Colors White, Blue, Red, Yellow Location Near compressor at rear bottom of refrigerator Compatible Brands GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator before beginning. Pull the refrigerator away from the wall to access the rear lower back panel. Remove the screws securing the back panel to expose the compressor, condenser coils, and condenser fan assembly. The condenser fan motor is mounted on a bracket near the compressor with the fan blade facing the condenser coil. Take a photo of the wire connector orientation before disconnecting. Disconnect the 4-pin wire connector from the motor. Remove the mounting screws securing the motor to the bracket and slide the old motor out. Note the orientation of the fan blade on the motor shaft — the blade must be reinstalled in the same direction on the new motor (or transferred from the old motor if the new motor does not include a blade). Install the new WR60X10209 motor, reconnect the wire connector, reinstall the back panel, restore power, and confirm the condenser fan spins when the compressor starts. Tools needed: Phillips screwdriver, 1/4" nut driver. Frequently Asked Questions What does the condenser fan motor do in a refrigerator? The condenser fan motor drives a fan blade that circulates ambient air across the condenser coils at the rear of the refrigerator. The condenser coils carry hot high-pressure refrigerant that has just been compressed — the fan removes heat from the refrigerant so it can cool, condense, and return to the evaporator to absorb heat from inside the refrigerator. Without the condenser fan running, heat builds up around the compressor and coils, causing the refrigerator to lose cooling efficiency, run continuously, or — in severe cases — trip the compressor's thermal overload and shut down entirely. Why does this motor use DC voltage instead of AC? Modern GE refrigerators use DC motors for the condenser fan because they are more energy-efficient, quieter, and easier to speed-control by the refrigerator's electronic control board than traditional AC motors. The refrigerator's main control board converts household 120V AC power to 11.3V DC to supply the condenser fan motor. This DC motor runs at a variable speed under board control, which allows GE's refrigerators to optimize fan speed based on cooling demand. How do I confirm the condenser fan motor has failed? Pull the refrigerator away from the wall, unplug it, and remove the rear lower panel. Spin the condenser fan blade by hand — if it is stiff, wobbles, or seizes, the motor bearing has failed. If the blade spins freely but the motor does not run when the refrigerator is plugged in and the compressor starts, check for DC voltage at the motor connector using a multimeter. If the board is supplying approximately 11–12V DC to the motor but the motor is not running, the motor has failed electrically. If no voltage is present, the control board may not be supplying power — a less common but possible failure mode. Does this motor come with the fan blade? The WR60X10209 is the motor only — the fan blade is typically not included and should be transferred from the old motor. When removing the old motor, carefully pull the fan blade off the motor shaft (it presses on — no hardware is typically needed). Press the blade onto the new motor shaft in the same orientation. If the fan blade is cracked or damaged, it should be replaced separately. Installing the blade in the wrong direction will reverse the airflow direction and reduce cooling efficiency. Is this a Genuine OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same DC condenser fan motor installed in compatible GE, Hotpoint, and related brand refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

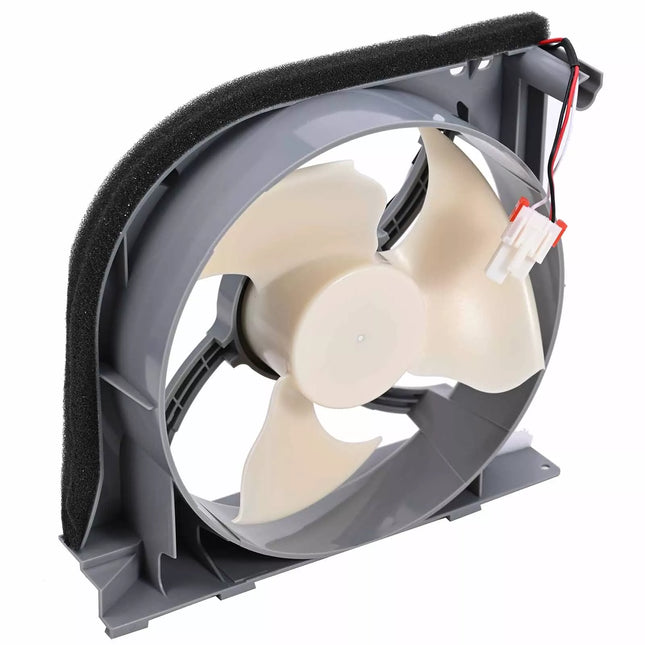

XPARTCO DA97-15765C Refrigerator Condenser Fan Motor The XPARTCO DA97-15765C is an aftermarket replacement condenser fan motor assembly for Samsung French door refrigerators. This assembly includes both the motor and the fan blade together, and it lives in the compressor/machine compartment at the back or bottom of the refrigerator, where its job is to pull air across the condenser coils and compressor to carry heat away from the refrigeration system. That's a different job from an evaporator fan — this motor cools the mechanical side of the system rather than circulating cold air to your food, so a failing condenser fan tends to affect the whole refrigerator's cooling capacity rather than just one compartment. Rated 12V DC, 0.14A, 1.7W, running at approximately 1,120 RPM. On many Samsung models, a failed condenser fan motor triggers a 23C or 23E error code on the display, alongside symptoms like noticeable vibration or noise from the condenser area, elevated internal temperatures, or the over-temperature alarm sensor tripping. Common causes include normal wear on the motor bearings after prolonged use, blockages from dust and debris accumulation around the coils, or damage from moisture exposure. A fan blade that tries to spin but can't complete a full revolution, or that needs a manual nudge to keep turning, is a classic sign this assembly has started to fail. It directly replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328. Quick Answer The XPARTCO DA97-15765C Refrigerator Condenser Fan Motor fixes Samsung French door refrigerators where the whole unit runs warm, the compressor area is noisy or vibrating, a 23C or 23E error code appears, or the over-temperature alarm trips. Includes motor and fan blade. 12V DC, 0.14A, 1.7W, ~1,120 RPM. Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments. Common Problems This Part Fixes Both the fresh food and freezer compartments running warmer than normal at the same time 23C or 23E error code displayed on the control panel Noticeable vibration or unusual noise from the condenser/compressor area at the back or bottom of the cabinet Over-temperature alarm sensor tripping Fan blade that tries to spin but doesn't complete a full revolution Fan blade that stops spinning if not manually nudged to keep turning Refrigerator running constantly as the compressor struggles to keep up Excessive dust or debris buildup visible around the condenser coils and fan Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor assembly directly replaces the following OEM and cross-reference part numbers: DA97-15765C, DA97-15765A, DA97-15765D, DA97-12842A, DA97-12842B, DA97-12842D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, 4959328, OEM18003054, ASM138992, PD00050574 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor assembly is compatible with select Samsung French door refrigerators, including model numbers such as: RF220NCTABC, RF220NCTASG, RF220NCTASP, RF220NCTASR, RF220NCTAWW RF221NCTABC, RF221NCTASP, RF221NCTAWW RF22K9381SG F261BEAESR This assembly also fits many additional Samsung French door refrigerator models beyond those listed above. Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our DA31-00334C listing), which sits behind the freezer's rear panel and circulates cold air to the food compartments. It is also a different part family from our DA97-20025A condenser fan listing, which serves a different group of Samsung models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Complete assembly — includes both the motor and the fan blade Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat Resolves "whole fridge running warm," "23C or 23E error code," "noise or vibration from the compressor area," and "over-temperature alarm" symptoms caused by fan failure Rated 12V DC, 0.14A, 1.7W, approximately 1,120 RPM Direct drop-in replacement matching the original mounting and back panel cam-bracket attachment Replaces DA97-15765A, DA97-12842A, DA97-12842B, DA97-12842D, DA97-15765D, AP6001015, PS11733650, EAP11733650, DA31-00340A, RMF002ASSA, and 4959328 Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — typically completed in under an hour Product Specifications Part Number DA97-15765C OEM Part Number DA97-15765C Part Type Refrigerator Condenser Fan Motor Assembly (Motor + Blade) Condition Aftermarket Replacement Brand Samsung Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor Voltage 12V DC Amperage 0.14 A Wattage 1.7 W Speed ~1,120 RPM Related Error Codes 23C, 23E Quantity 1 fan motor assembly Compatible Brand Samsung Installation Notes ⚠️ Unplug Refrigerator Before Starting — Store Perishable Food Separately Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Remove all shelves from the upper refrigerator cabinet to improve access. Using a flat-blade screwdriver, gently ease the back panel away from the cabinet — on many models it's retained by a cam bracket and snaps into place, so it should release without excessive force. This exposes the condenser/circulating fan. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring harness connector and the fan blade's position before disconnecting anything. Remove the two screws holding the fan in place, unplug the fan lead harness connector, and remove the defective fan assembly. Install the new DA97-15765C in the same position, reconnect the harness plug, and reinstall and tighten the two mounting screws securely. Confirm the blade spins freely by hand without contacting the housing or coils before reinstalling the back panel — it should snap back into place via the cam bracket. Reinstall the shelves, restore power, and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any error code has cleared. Tools needed: flat-blade screwdriver, Phillips screwdriver, work gloves. Frequently Asked Questions My display shows a 23C or 23E error code. Does that mean I need this part? It's a strong indicator on many Samsung models, since these codes are commonly associated with condenser fan motor failure. Before ordering, it's still worth a quick visual check — clear any dust or debris from around the condenser coils and fan blade, since a heavily clogged condenser can sometimes trigger similar temperature-related codes. If the error persists after cleaning, or if the fan blade doesn't spin freely by hand, this assembly is the likely fix. The fan blade tries to spin but won't complete a full turn. Is that normal? No — this is a classic sign the motor bearings are wearing out or that something is obstructing the blade. A healthy condenser fan should spin freely and continuously once started. If you find yourself needing to give the blade a manual nudge to keep it turning, or it stalls partway through a rotation, the motor has failed and needs to be replaced rather than repeatedly restarted by hand. Both my fresh food and freezer sections are warm. Is this the right part? Yes, that pattern points toward the condenser fan rather than an evaporator fan. Because the condenser fan cools the compressor and coils that the entire refrigeration cycle depends on, a failing condenser fan tends to reduce cooling capacity across both compartments together, rather than leaving one side fine while the other struggles. Does this include the fan blade, or just the motor? This is a complete assembly that includes both the motor and the fan blade together, so there's no need to transfer a blade from your old unit or source one separately. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 0.14A, 1.7W, ~1,120 RPM), fan blade design, and mounting configuration of the original DA97-15765C condenser fan motor assembly used in compatible Samsung French door refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR49X25197 Refrigerator Genuine OEM Axial Evaporator Motor Replaces WR60X26866 The WR49X25197 is a genuine GE OEM axial evaporator fan motor for the fresh food evaporator on select GE French door refrigerators. Unlike a standard evaporator fan motor, this is an axial-design motor purpose-built for the fresh food side of the refrigeration system, using its blade geometry to move air efficiently and quietly through that compartment's evaporator coil for precise, consistent temperature control. Rated 13.6VDC, 0.16A. Manufactured by Nidec, designation V80E14MS2A3-57A611. Over time, motor bearings wear out or the motor can fail electrically, and symptoms typically include the fresh food compartment running warm while the freezer remains unaffected, unusual noise from the fresh food evaporator area, or inconsistent cooling in that compartment specifically, since this motor doesn't serve the freezer side at all. It directly replaces WR60X26866, WR60X10341, WR60X24303, WR60X26033, WR60X10356, WR60X10357, WR60X26030, 239D1412P001, 239D1412P006, and AP6278228. Quick Answer The WR49X25197 Genuine OEM GE Axial Evaporator Motor fixes GE French door refrigerators where the fresh food compartment specifically runs warm, there's unusual noise from the fresh food evaporator area, or fresh food cooling is inconsistent while the freezer works fine. 13.6VDC, 0.16A axial motor. Replaces WR60X26866, WR60X10341, WR60X24303, WR60X26033, WR60X10356, WR60X10357, WR60X26030, 239D1412P001, 239D1412P006, AP6278228. If your refrigerator was manufactured between May 2014 and March 2015 (serial range HD–FF), the control software must also be updated by factory service or a Software Update Module (WR98R882802) for this motor to perform correctly. Common Problems This Part Fixes Fresh food compartment running warm while the freezer stays normal Unusual noise coming from the fresh food evaporator area Inconsistent or fluctuating temperature in the fresh food section specifically Fresh food evaporator fan not spinning or spinning intermittently Reduced airflow affecting fresh food cooling performance Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator axial evaporator motor directly replaces the following OEM and cross-reference part numbers: WR49X25197, WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This axial evaporator motor is compatible with select GE French door refrigerators. Note — fresh food evaporator only, and a software caveat for certain units: This motor serves the fresh food evaporator specifically — a different application from a general freezer evaporator fan motor. Additionally, if your refrigerator was manufactured between May 2014 and March 2015 (serial range HD through FF), the refrigerator's control software must be updated by factory service, or with a Software Update Module (WR98R882802), for this motor to perform correctly after installation. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified axial blade design for the fresh food evaporator Resolves "fresh food running warm," "unusual noise from the fresh food evaporator," and "inconsistent fresh food cooling" symptoms Rated 13.6VDC, 0.16A Manufactured by Nidec, designation V80E14MS2A3-57A611 Direct drop-in replacement matching the original mounting and blade fitment Replaces WR60X26866, WR60X10341, WR60X24303, WR60X26033, WR60X10356, WR60X10357, WR60X26030, 239D1412P001, 239D1412P006, and AP6278228 Compatible with GE French door refrigerators Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WR49X25197 OEM Part Number WR60X26866 Part Type Axial Evaporator Fan Motor (Fresh Food) Condition Genuine OEM Brand GE Application French Door Refrigerators — Fresh Food Evaporator Voltage 13.6VDC Amperage 0.16A Motor Manufacturer Nidec (V80E14MS2A3-57A611) Motor Type Axial Software Update Caveat Required for units mfg. May 2014–March 2015, serial range HD–FF (WR98R882802) Quantity 1 evaporator motor Compatible Brand GE Installation Notes ⚠️ Unplug Refrigerator Before Starting — Check Your Manufacture Date For A Software Update Requirement Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Before starting, check your refrigerator's serial number/manufacture date sticker (typically inside the fresh food compartment) — if your unit was made between May 2014 and March 2015 with a serial range of HD through FF, plan for a control software update via factory service or a Software Update Module (WR98R882802) after installing this motor, since without it the new motor may not perform correctly. Access to the fresh food evaporator is typically through an interior panel in the fresh food compartment, separate from the freezer's evaporator access — check your model's service diagram. If there's frost or ice buildup around the fan or coil, let the unit sit unplugged with the door open for a few hours before continuing. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the wiring harness connector from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Mount the new WR49X25197 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the panel. Restore power and monitor the fresh food compartment over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My fresh food section runs warm but the freezer is fine. Is this the right part? Yes, this is exactly the symptom pattern this motor addresses, since it's dedicated specifically to the fresh food evaporator rather than serving both compartments. If your freezer is cooling normally and only the fresh food section is warm or inconsistent, this axial motor is a strong candidate for the cause. Do I really need a software update after installing this motor? Only if your refrigerator falls into a specific manufacturing window: units made between May 2014 and March 2015, identifiable by a serial range of HD through FF. For those units, GE's own guidance states the control software must be updated by factory service or with a Software Update Module (WR98R882802) for the new motor to perform correctly. If your refrigerator falls outside that date range, this step isn't necessary — check your serial number sticker to confirm which category your unit falls into. Is this the same as a regular evaporator fan motor? Not quite — this is an axial-design motor built specifically for the fresh food evaporator on GE French door refrigerators, distinct from general evaporator fan motors that serve the freezer side or both compartments together. Always confirm your model number and which compartment's fan has failed before ordering. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original axial motor design, blade fitment, and electrical rating of the fresh food evaporator motor originally installed in your refrigerator. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10822580 Refrigerator Evaporator Fan Motor The XPARTCO W10822580 is an aftermarket replacement evaporator fan motor for Whirlpool refrigerators, and also fits select Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea models. This motor circulates air through the fresh food compartment, drawing it across the evaporator coils to pull out heat and maintain efficient, consistent cooling. Finished in white. Common causes of failure include worn motor bearings or electrical failure over time. Symptoms of a failing evaporator fan motor include the refrigerator section running too warm or too cold, the freezer section running too warm or too cold, leaking water, frost buildup, or unusual noises. As with many refrigerator symptoms, these can also be caused by other components, so this is intended as a guideline rather than a certain diagnosis. It directly replaces W11671461, W10822580, W10255195, W11212356, 2259385, W10436861, UDQT22WP1, AP7214718, AWP46180, EAP2355714, PD00087470, PS2355714. Quick Answer The XPARTCO W10822580 Refrigerator Evaporator Fan Motor fixes Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea refrigerators running too warm or too cold in either compartment, leaking water, showing frost buildup, or making unusual noises. White finish. Replaces W11671461, W10822580, W10255195, W11212356, 2259385, W10436861, UDQT22WP1, AP7214718, AWP46180, EAP2355714, PD00087470, PS2355714. These symptoms are a guideline, not a certain diagnosis — other refrigerator components can cause the same issues, so confirm your model number and consider other possibilities if replacing this motor doesn't resolve the problem. Common Problems This Part Fixes Refrigerator section too warm Refrigerator section too cold Freezer section too warm Freezer section too cold Leaking water Frost buildup Unusual noises Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: W11671461, W10822580, W10255195, W11212356, 2259385, W10436861, UDQT22WP1, AP7214718, AWP46180, EAP2355714, PD00087470, PS2355714 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select Whirlpool refrigerators, and also fits select Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea refrigerators built on the Whirlpool platform, including select side-by-side models. Note: Always verify your full model number before ordering, since Whirlpool uses several different evaporator fan motors across its refrigerator lineup. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement evaporator fan motor — circulates air through the fresh food compartment across the evaporator coils Resolves "too warm," "too cold," "leaking water," "frost buildup," and "unusual noise" symptoms White finish Direct drop-in replacement matching the original mounting and connections Replaces W11671461, W10822580, W10255195, W11212356, 2259385, W10436861, UDQT22WP1, AP7214718, AWP46180, EAP2355714, PD00087470, PS2355714 Compatible with Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea refrigerators Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number XPW10822580 OEM Part Number W10822580 Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Color White Function Circulates air through the fresh food compartment across the evaporator coils Repair Difficulty Easy to Moderate Quantity 1 evaporator fan motor Compatible Brands Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, Ikea Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves. Locate the evaporator fan motor, typically found behind an interior panel covering the evaporator coil assembly in the freezer or fresh food compartment depending on your model. If there's noticeable frost or ice buildup around the fan or coil, allow it to fully defrost before continuing. Remove the panel to access the fan motor, then disconnect the wiring harness from the old motor. Remove the mounting screws or clips securing the old motor and pull it free, along with the fan blade if it doesn't transfer separately. Install the new W10822580 in the same position, reconnect the wiring harness fully, and secure the mounting hardware. Reinstall the interior panel. Restore power and monitor the refrigerator's temperature over the next 24 hours to confirm normal, quiet operation and consistent cooling. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My refrigerator is running warm. Is this the part I need? It's a strong possibility, since this is one of the more common causes of a refrigerator or freezer running warmer than normal. That said, per the parts distributor's own guidance, this is intended as a general guideline rather than a certain diagnosis, since other components can produce the same symptom. Confirming with a technician or checking related parts first can help avoid an unnecessary purchase if something else turns out to be the cause. My refrigerator has frost buildup. Could this motor be involved? Yes, this is one of the documented symptoms tied to this motor. If airflow through the evaporator area isn't circulating properly due to a failing fan motor, frost can build up excessively in ways that wouldn't happen with normal airflow. Should I check anything before replacing this motor? If there's frost or ice buildup around the fan or evaporator coil, it's worth letting that clear before installing the new motor, since built-up ice can restrict the fan's movement and give a false impression that the motor itself has failed. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the motor design, dimensions, and connection type of the original W10822580 evaporator fan motor used in compatible Whirlpool, Roper, Admiral, Maytag, and related refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

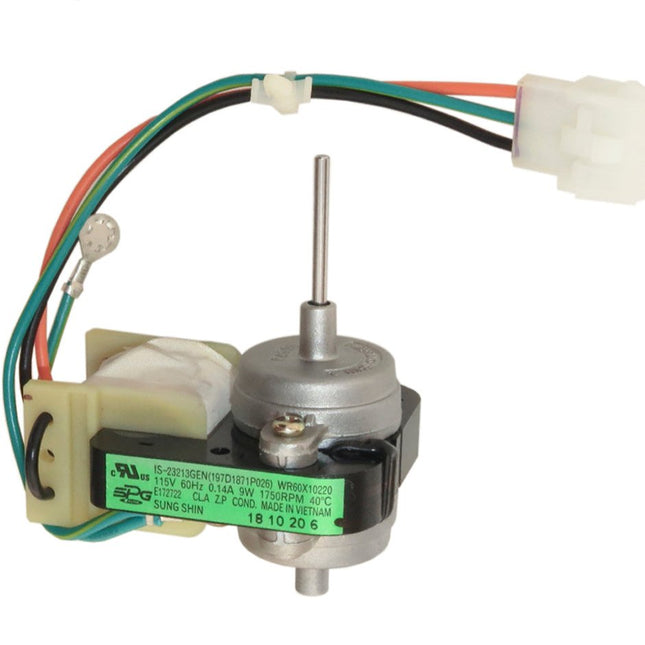

XPARTCO WR60X10220 Refrigerator Condenser Fan Motor The XPARTCO WR60X10220 is an aftermarket replacement condenser fan motor for GE frost-free refrigerators with a condenser coil. This motor lives in the compressor/machine compartment at the back or bottom of the refrigerator. Whenever the compressor runs, this fan runs right along with it, circulating air through the refrigerator's grille to cool both the compressor and the condenser coils as they work. It also plays a secondary role in helping evaporate excess water that collects in the drain pan. Because the condenser fan cools the mechanical side of the refrigeration system rather than circulating cold air to your food, a failing motor tends to affect the whole refrigerator's cooling capacity rather than just one compartment. The harness and plug extend approximately 8" from the motor body. Common failure causes include worn motor bearings, dust and debris buildup around the coils restricting airflow, and general electrical wear over time. Symptoms include a refrigerator that runs warm overall, a hot cabinet area near the back or bottom of the unit, a squealing or grinding noise, or the compressor running constantly as it struggles to shed heat. It directly replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, and SM10220. Quick Answer The XPARTCO WR60X10220 Refrigerator Condenser Fan Motor fixes GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café frost-free refrigerators with a hot cabinet area, squealing or grinding noise, or a fridge running warm overall. Harness and plug extend approximately 8" from the motor. Replaces AP4298602, 1257132, AH1766247, EA1766247, PS1766247, WR60X10133, WR60X10171, WR60X10192, SM10220. This cools the compressor and condenser coils — a different part and symptom pattern than an evaporator fan, which only affects internal air circulation to the food compartments. Common Problems This Part Fixes Refrigerator running warm overall, in both the fresh food and freezer compartments Hot cabinet area noticeable near the back or bottom of the refrigerator Squealing, grinding, or buzzing noise coming from the compressor compartment Refrigerator running constantly as the compressor struggles to shed heat Water pooling or not evaporating properly in the drain pan Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand Excessive dust or debris buildup visible around the condenser coils and fan Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator condenser fan motor directly replaces the following OEM and cross-reference part numbers: WR60X10220, WR60X10133, WR60X10171, WR60X10192, 197D1871P026, IS-2321GEN, AH1766247, EA1766247, EAP1766247, AP4298602, AGE29216, PD00001198, PS1766247, SM10220 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This condenser fan motor is compatible with select GE, Hotpoint, and RCA frost-free refrigerators, and also fits select Kenmore, Haier, Monogram, and Café refrigerators built on the GE platform. Note — condenser fan, not evaporator fan: This motor cools the compressor and condenser coils in the machine compartment at the back or bottom of the refrigerator. It is a completely different part from an evaporator fan motor (such as our WR60X10185 or WR60X10318 listings), which sits behind the freezer's rear panel and circulates cold air to the food compartments. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs. Key Features Aftermarket replacement condenser fan motor — draws air across the condenser coils and compressor to remove system heat Resolves "hot cabinet area," "squealing or grinding noise," "runs warm overall," and "runs constantly" symptoms caused by fan failure Also helps evaporate excess water collecting in the drain pan Harness and plug extend approximately 8" from the motor body Sturdy construction built for long-term reliable performance Direct drop-in replacement matching the original mounting and blade fitment Replaces WR60X10133, WR60X10171, WR60X10192, AP4298602, 1257132, AH1766247, EA1766247, PS1766247, and SM10220 Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — typically under 30 minutes Product Specifications Part Number WR60X10220 OEM Part Number WR60X10220 Part Type Refrigerator Condenser Fan Motor Condition Aftermarket Replacement Brand GE Location Compressor/machine compartment (back or bottom of cabinet) Function Cools the condenser coils and compressor; aids drain pan evaporation Dimensions 2-1/2"H x 4"W x 11"D Harness/Plug Length Approx. 8" from motor Repair Difficulty Easy — under 30 minutes Quantity 1 fan motor Compatible Brands GE, Hotpoint, RCA, Kenmore, Haier, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting Shut off power at the circuit breaker or fuse box, then pull the refrigerator away from the wall and disconnect the power cord from the outlet. Wear work gloves. Remove the condenser fan motor cover, typically held on by two screws, to access the motor. Before condemning the motor, clear away any dust, lint, or debris built up around the condenser coils and fan blade — restricted airflow from a dirty coil produces symptoms similar to a failing motor and costs nothing to rule out. Photograph the wiring and the fan blade's position before disconnecting anything. Disconnect the power wire and the ground wire from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. If the old fan blade is seized onto the motor shaft, a firm, sudden strike (rather than steady pressure) will typically break the blade loose from the shaft without damaging the plastic blade, so it can be reused on the new motor. Mount the new WR60X10220 in the same position, reconnect the power and ground wires, and confirm the blade spins freely by hand without contacting the housing before reinstalling the fan cover. Restore power and monitor the refrigerator over the next 24 hours to confirm normal, even cooling has returned and any hot cabinet area or noise has resolved. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My refrigerator has a hot spot on the cabinet and runs warm overall. Is this the right part? Yes, this is a classic symptom pair for a failing condenser fan motor. Without proper airflow across the condenser coils and compressor, heat builds up in the machine compartment (producing that hot cabinet area) while the whole refrigeration cycle loses efficiency, which shows up as both compartments running warmer than normal rather than just one. The old fan blade is stuck on the motor shaft. How do I remove it without breaking it? A gentle, steady pull often won't budge a seized blade, but a firm, sudden strike to the blade (rather than continuous pressure) will typically pop it loose from the metal shaft without damaging the plastic blade itself, so you can reuse it on the new motor if a blade isn't included. Work carefully and support the blade so it doesn't fall and crack once it releases. Could dirty condenser coils cause the same symptoms as a bad fan motor? Yes, and it's worth checking before you buy a new motor. A condenser fan pushing air through coils caked in dust, pet hair, or debris will struggle to cool the system properly even if the motor itself is working fine. Clean the coils and the fan blade thoroughly first; if the fan still doesn't spin freely, spins with a wobble, or doesn't run at all afterward, the motor itself has failed and this replacement is the correct fix. Does this fan also affect my drain pan? Yes, indirectly. In addition to cooling the compressor and condenser coils, this fan helps evaporate excess water that collects in the drain pan beneath the refrigerator. If the fan has failed, you may notice water pooling or not evaporating as it normally would, in addition to the more obvious cooling and noise symptoms. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the mounting configuration, dimensions, and airflow performance of the original WR60X10220 condenser fan motor used in compatible GE, Hotpoint, RCA, Kenmore, Haier, Monogram, and Café refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

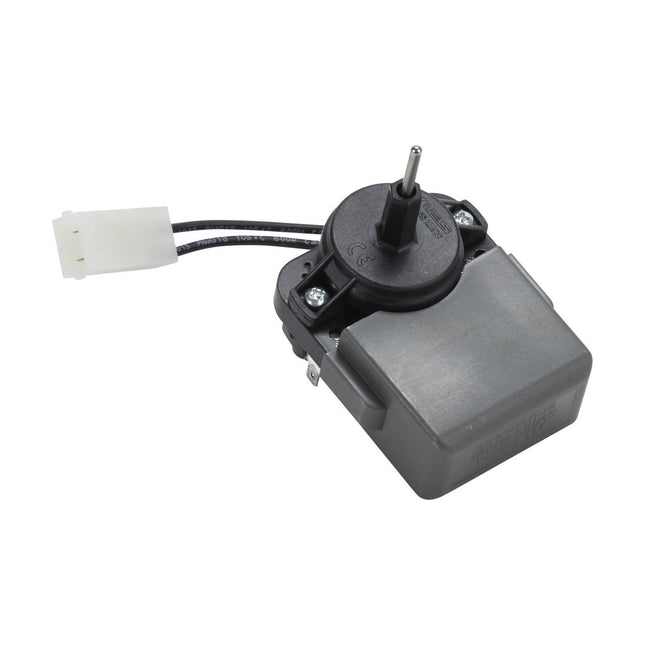

XPARTCO 2315549 Refrigerator Evaporator Fan Motor Replaces WP2315549 The XPARTCO 2315549 is an aftermarket replacement evaporator fan motor for Whirlpool-built side-by-side refrigerators, located in the freezer section. This small motor pulls cold air off the evaporator coil and pushes it through the duct system to both the freezer and fresh food compartments. Without it circulating air, the coil itself keeps getting cold, but that cold air never reaches your food — the freezer, being closest to the coil, may hold up reasonably well for a while, but the fresh food compartment depends entirely on ducted airflow and drifts warmer and warmer as circulation weakens or stops. This motor ships complete with its wiring harness, so nothing needs to be spliced or transferred from the old unit. Common failure modes include worn motor bearings that let the blade wobble or bind, ice buildup on the coil that jams the blade, and electrical failure of the motor windings. A simple way to check before ordering: with the refrigerator unplugged, try turning the fan blade by hand — it should spin freely with no grinding or resistance. It directly replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362. Quick Answer The XPARTCO 2315549 Refrigerator Evaporator Fan Motor fixes Whirlpool-built side-by-side refrigerators with uneven cooling between compartments, frost buildup on the evaporator coil, unusual humming or buzzing noise, or a fresh food section that runs warmer than the freezer. Includes wiring harness. Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, EAP11740362. Double-check the part number carefully — this is a different motor from our similarly numbered 2315539 listing, and the two are easy to mix up. Common Problems This Part Fixes Fresh food compartment running warmer than the freezer, or warmer than it used to Uneven temperatures between shelves or between the fresh food and freezer sides Frost or ice buildup accumulating on or around the evaporator coil Unusual humming, buzzing, or grinding noise coming from inside the freezer Noise that stops when the freezer door is opened and starts again once it's closed Refrigerator running constantly as the compressor tries to compensate for poor circulation Fan blade that doesn't spin freely, or spins with noticeable resistance, when checked by hand Fridge section too warm or too cold, freezer section too warm or too cold Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: 2315549, WP2315549, 2220569, 1193008, AP6007250, AWP47338, PD00002704, PS11740362, EAP11740362, ESF-U2A If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select Whirlpool-built side-by-side refrigerators across the Whirlpool family of brands, including: Whirlpool side-by-side refrigerators Maytag, Amana, and KitchenAid refrigerators (select Whirlpool-built models) Jenn-Air, Admiral, Norge, and Roper refrigerators (select models) Inglis refrigerators (select models) Select Kenmore and Ikea refrigerators built on the Whirlpool platform Verified model numbers include: 7GS2FHAXTA02, 7GS5FHAXTA00, ED2DHEXWB00, and ED2DHEXWL00. Note — easy to confuse with 2315539: This part is 2315549, production number ESF-U2A. It is a separate, distinct motor from our 2315539 listing (production number ESF-U2B, replacing 2219689, 2225625, and W10438708), which serves a different set of models. The two part numbers differ by only a single transposed digit and are frequently mistyped or mixed up when ordering — double-check your old motor's part number or your appliance's full model number carefully before ordering. Contact our support team with your model number if you're unsure which motor you need. Key Features Aftermarket replacement evaporator fan motor with wiring harness included — nothing to splice or transfer Circulates cold air from the evaporator coil throughout the freezer and fresh food compartments Resolves "fresh food too warm," "uneven cooling," "frost buildup," and "humming or buzzing noise" symptoms caused by fan motor failure Direct drop-in replacement matching the original mounting and blade fitment Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362 Compatible with Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, and select Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair — typically 15 to 30 minutes Product Specifications Part Number 2315549 OEM Part Number WP2315549 Production Number ESF-U2A Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Brand Whirlpool Location Freezer section, behind the rear panel near the evaporator coil Kit Contents Fan motor with wiring harness Application Side-by-Side Refrigerators Repair Difficulty Easy — 15 to 30 minutes Quantity 1 fan motor Compatible Brands Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Let The Freezer Thaw If Iced Over Disconnect power at the outlet before beginning, and move all food from the freezer to a cooler for the duration of the repair. Wear work gloves. Access is through the freezer's rear interior panel: remove the shelving and bins as needed, then remove the screws securing the back panel and set it aside to expose the evaporator coil and fan assembly. If you see significant frost or ice buildup around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing — ice can be masking the actual failure and can make the old motor difficult to remove cleanly. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free — on many models the blade is a separate piece that pulls off the motor shaft. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation. Mount the new 2315549 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions How is this different from your 2315539 listing? The numbers look almost identical. They are genuinely different motors that happen to have nearly identical part numbers — 2315549 versus 2315539, just one transposed digit. This 2315549 motor carries production number ESF-U2A and replaces WP2315549, 2220569, and 1193008. Our separate 2315539 listing carries production number ESF-U2B and replaces a different set of numbers (2219689, 2225625, W10438708) for a different group of models. Because the numbers are so easy to mix up, we'd strongly recommend double-checking the exact number on your old motor, or your full refrigerator model number, before ordering either one. My freezer seems fine but the fresh food section is warm. Is this the fan motor? Yes, this is a very common and telling symptom pattern. The freezer compartment sits right next to the evaporator coil and can stay reasonably cold through simple proximity even with poor air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area. How can I test the motor before ordering a replacement? With the refrigerator unplugged and the rear freezer panel removed, try turning the fan blade by hand. It should spin freely and smoothly with no grinding, binding, or resistance. If it doesn't turn freely, or doesn't turn at all, the motor has very likely failed. Also listen for humming or buzzing while the refrigerator is running — a motor trying and failing to turn often makes noise without actually moving air. There's a lot of frost around the fan and coil. Should I address that first? It's worth understanding which came first. Excess frost can be a cause of fan failure — a jammed, ice-bound blade can burn out the motor over time — or a result of it, since poor air circulation lets moisture condense and freeze unevenly around the coil area. Either way, thawing the ice out fully before installing the new motor makes the repair easier and lets you confirm the blade spins freely once everything is defrosted. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the mounting, wiring harness configuration, and airflow performance of the original WP2315549 evaporator fan motor used in compatible Whirlpool-built side-by-side refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DA31-00342A Refrigerator Evaporator Fan Motor - Compatible with Samsung Refrigerators Product Description Restore optimal cooling in your refrigerator with the replacement DA31-00342A Refrigerator Evaporator Fan Motor. This high-quality replacement evaporator fan motor, designed for Samsung refrigerators, circulates chilled air through the fresh food and freezer compartments to maintain even temperatures. Constructed from durable plastic with sticky insulation and a silent sponge for quiet operation, this DC motor (12V, 4.2W, 0.35A, 1850 RPM) addresses issues like temperature fluctuations, frost buildup, or noisy operation. Note: Includes one evaporator fan motor with 3-pin connector and 60cm wire;. Disconnect power before installation. Replaces part numbers: DA31-00342A, EAP12590899, 4982090, ARES2130RA, PD00080451, EAP12590899, AP6803165, PS12590899 Compatibility: Compatible with models including but not limited to: Samsung: DA31-00342A Refrigerator FAN is the correct replacement for model numbers. RM80F22WEWAA RM70F22NERAA RM80F23VMRAA RF32CG5B10SRAA RF27CG5B10SRAA DRZ30980RAP/DA DRZ30980LAP/DA DRZ36980RAP/DA DRZ36980LAP/DA RQ48T9432T1/AA RS28A5F61SG/AA RS27T5202SR/AA RQ48T94B277/AA RS28A500ASR/AA RS28A500ASG/AA RS22T5561SR/AA RF32CG5N10SRAA RS27T5200WW/AA RS23A500ASG/AA RS28A5F61SR/AA RF32CG5900MTAC RS23CB7600QLAA RF32CG5900SRAA RF27CG5900SRAA RF32CG5100SRAA RF26CG7400SRAA RF27CG5400SRAA RF32CG5400MTAA RF31CG7400MTAA RF27CG5100SRAA RS23CB760012AA RF31CG7200SRAA RF32CG5100MTAA RF27CG5010S9AA RF32CG5400SRAA RF32CG5300SRAA RS28CB7600QLAA RS28CB760012AA RF31CG7400SRAA RF31CG7220SRAA DRZ36980RAP/DA DRZ30990LAP/DA DRZ30980RAP/DA DRZ36980LAP/DA DRZ30990RAP/DA DRZ30980LAP/DA RS22T5561SG/AA RS27T5561SG/AA RS23A500ASR/AA RS27T5561SR/AA RS27T5201SR/AA RS27T5200SR/AA RS22T5561SR RS27T5200SG/AA RS22T5201SR/AA Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung refrigerator models. 🔥 Specifications: replacement evaporator fan motor, DC 12V, 4.2W, 0.35A, 1850 RPM, 3-pin connector, 60cm/23.62" wire length, 5.3" fan diameter, plastic construction with sticky insulation and silent sponge for quiet operation. 💰 Cost-Effective Alternative: replacement motor offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires a Phillips screwdriver, work gloves; typically installed in 30–60 minutes. 🛡️ Reliable Fixes: Resolves poor cooling, frost buildup, noisy operation (grinding or buzzing), or evaporator coil freezing. Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today! Add to cart now for a budget-friendly fix!

Read more less

WR60X31522 Genuine OEM GE Refrigerator Evaporator Fan Motor The WR60X31522 is a Genuine OEM GE replacement evaporator fan motor compatible with select GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators. The evaporator fan motor is located at the back of the freezer compartment and circulates air across the evaporator coils — converting the heat from the air into cool air that's then distributed throughout both the freezer and fresh food sections. Without a properly functioning evaporator fan, the refrigerator can't move cold air where it's needed, causing the fresh food and/or freezer sections to warm up, ice to build up on the coils, and the compressor to run continuously trying to compensate. This 115V AC motor is rated at 60Hz, 3.3W and uses a 2-pin connector plus ground wire. Dimensions are 3-1/4"L x 2-3/8"W x 3-3/8"H, with a harness and plug extending approximately 3-1/2" from the motor. Construction is plastic and metal in marbled white & gray. Note: this listing is for the motor with harness only — the fan blade may need to be transferred from the old motor. It directly replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, and PS12741350. Installs in 30–45 minutes with basic hand tools. Quick Answer The WR60X31522 Genuine OEM GE Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators that aren't cooling properly, have heavy frost buildup on the evaporator coils, run continuously, or are noisy from the freezer compartment. 115V AC, 60Hz, 3.3W. 2-pin connector + ground wire. 3-1/4"L x 2-3/8"W x 3-3/8"H. Marbled white & gray. Replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, PS12741350. Common Problems This Part Fixes Refrigerator fresh food and/or freezer sections not cooling properly Heavy frost or ice buildup on the evaporator coils ("Antarctica" frost) Loud whining, grinding, or scraping noise from the freezer compartment Fan blade not spinning when checked by hand or stiff/seized rotation Refrigerator running continuously trying to maintain temperature Compressor running but cool air not being circulated Motor failing continuity test with a multimeter Visible damage to the fan motor or its harness Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X31522, WR60X23584, WR60X10141, WR60X10346, WR60X28783, WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X27646, WR60X28784, WR60X31122, AGE29819, 115V-60Hz 3.3W, 197D2038P031, UDQR002GLL, FDQR002GSL, AGE29819, PD00062864, AP6977246, PS12741350. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE, Hotpoint, RCA, and Americana refrigerators, typically top-mount freezer units: GE top-mount refrigerators (select models) GE Profile and Café refrigerators (select models) Hotpoint refrigerators (select models) RCA refrigerators (select GE-built models) Americana refrigerators (select GE-built models) Note: Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style refrigerators. Confirm the failed motor's location and that the WR60X31522 part number matches your refrigerator's parts diagram before ordering. Always verify your appliance model number first. Key Features Evaporator fan motor for the freezer compartment of compatible GE/Hotpoint top-mount refrigerators Pulls air through the evaporator coils to remove heat and circulate cool air throughout the refrigerator 115V AC, 60Hz, 3.3W — correct electrical specifications for compatible GE-platform refrigerators 2-pin connector plus ground wire — direct plug-in installation with the included harness Dimensions: 3-1/4"L x 2-3/8"W x 3-3/8"H; harness and plug extend approximately 3-1/2" from the motor Marbled white & gray plastic and metal construction Replaces 18 OEM and aftermarket cross-reference part numbers including WR60X10045, WR60X10141, WR60X23584, WR60X27646, WR60X28783, WR60X31122, and PS12741350 Compatible with GE, Hotpoint, RCA, and Americana refrigerators (top-mount freezer units) Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number WR60X31522 Part Type Refrigerator Evaporator Fan Motor (Freezer Section) Condition Genuine OEM Application Top-Mount Freezer Refrigerators (GE platform) Voltage 115V AC Frequency 60 Hz Wattage 3.3W Connector 2-pin connector plus ground wire Dimensions 3-1/4"L x 2-3/8"W x 3-3/8"H Harness Length Approximately 3-1/2" from motor Color Marbled White & Gray / Gray Material Plastic / Metal Includes Evaporator fan motor with harness and plug (fan blade may need to be transferred from old motor) Compatible Brands GE, Hotpoint, RCA, Americana Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located at the back of the freezer compartment, behind an interior access panel. Remove the freezer shelves and any internal components blocking access to the rear panel. Remove the screws holding the rear access panel in place to expose the evaporator coils and fan motor. Photograph the wire connections and fan blade orientation before disconnecting. Disconnect the 2-pin wire harness connector and the ground wire from the old motor. Note the orientation of the fan blade on the motor shaft — the blade typically presses onto the shaft and may need to be transferred to the new motor. Remove the mounting screws or release the motor from its mounting bracket, and pull the old motor free. Carefully transfer the fan blade to the new WR60X31522 motor in the same orientation (or use a new blade if you have one). Install the new motor in the same position, reconnect the wire harness and ground wire, and reinstall the access panel and shelves. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves. Frequently Asked Questions How do I know if the evaporator fan motor has failed? The most common symptoms are: the refrigerator or freezer is warmer than its set temperature even though the compressor sounds like it's running normally; heavy frost or ice buildup on the evaporator coils behind the freezer access panel ("Antarctica" frost); and loud whining, grinding, or scraping noise from the freezer area. To confirm: unplug the refrigerator, remove the rear freezer access panel, and try turning the fan blade by hand. If it doesn't spin freely or is stiff/seized, the motor bearing has failed. You can also test for motor continuity with a multimeter — no continuity confirms electrical failure. My refrigerator has two evaporator fans — which one does this replace? Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style GE and Hotpoint refrigerators. If your symptom is "freezer not cooling properly" or "frost on freezer coils," this is the correct part. If your symptom is specifically "fresh food section warm while freezer is fine" on a French door refrigerator, you may need a different fan motor — contact our support team with your model number to confirm. Does this motor come with the fan blade? No — the WR60X31522 listing is for the motor with harness and plug only. The fan blade is typically transferred from the old motor: carefully pull it off the old motor shaft (it presses on, no hardware needed), and press it onto the new motor shaft in the same orientation. If your old fan blade is damaged or cracked, it should be replaced separately. Installing the blade in the wrong direction will reverse the airflow and reduce cooling performance. What's the difference between the WR60X31522 (115V AC) and DC motors like the WR60X10209 or WR60X26866? GE refrigerators use different fan motor technologies across model generations. The WR60X31522 is a 115V AC motor with a 2-pin connector plus ground — used in many GE and Hotpoint top-mount freezer refrigerators. The WR60X10209 and WR60X26866 are DC voltage motors (around 11–14V DC) used in newer GE French door refrigerators with electronic control boards that supply variable DC voltage for energy-efficient variable-speed fan operation. These are not interchangeable — always verify the correct part number for your specific refrigerator model before ordering. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same evaporator fan motor installed in compatible GE, Hotpoint, RCA, and Americana refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

809069201 Refrigerator Genuine OEM Evaporator Fan Motor Fits specific Frigidaire, Electrolux refrigerator models. Description: This Evaporator Fan Motor is an OEM part for specific Frigidaire refrigerator models. It circulates air over the evaporator coils and throughout the refrigerator and freezer compartments, ensuring even cooling and maintaining the desired temperatures. Replaces Part Numbers:809069206, 809069201, AP7014188, PS16544514. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO WR60X25858 Refrigerator Evaporator Fan Motor The XPARTCO WR60X25858 is an aftermarket replacement freezer evaporator fan motor for GE refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, Profile, and Kenmore models. Located in the freezer compartment, this motor circulates air across the evaporator coil and out into the freezer and, on many models, the fresh food compartment, drawing heat out of the air to maintain consistent, efficient cooling throughout the appliance. Rated 13.6V DC, 0.23 amps, with fan dimensions of approximately 4.5" x 4.5" and a wiring harness and plug extending about 8.25" from the frame. Common causes of failure include worn motor bearings or electrical failure over time. Symptoms of a failing evaporator fan motor include the freezer failing to cool properly and warming up, insufficient airflow, excessive frost buildup, higher-than-normal freezer temperatures, or unusual noise — often caused by frost or ice rubbing against the fan blade as it turns. It directly replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431. Quick Answer The XPARTCO WR60X25858 Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators with a freezer that's warming up, insufficient airflow, excessive frost, or unusual noise from the fan area. 13.6V DC, 0.23A, ~4.5" x 4.5", 8.25" harness. Replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431. If your freezer isn't cold, check the evaporator fan first — but while you're in there, cleaning frost or ice off the fan blade and vacuuming the condenser coils are worthwhile companion steps. Common Problems This Part Fixes Freezer not cooling properly, warming up Insufficient airflow through the freezer compartment Excessive frost buildup Higher-than-normal freezer temperatures Unusual noise from the fan area, including frost or ice rubbing on the blade Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This freezer evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators built on the GE platform, including model numbers such as DFE29JSDFSS and DFE29JGDAWW. Note: GE uses several different evaporator fan motors across its refrigerator lineup, including WR60X26866 and WR60X26033 for other models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor your refrigerator needs. Key Features Aftermarket replacement motor — built to OEM-equivalent design and airflow rating Circulates air across the evaporator coil to draw heat out and cool the freezer Resolves "freezer warming up," "insufficient airflow," "excessive frost," and "unusual noise" symptoms Rated 13.6V DC, 0.23 amps Approximately 4.5" x 4.5", with an 8.25" wiring harness and plug Direct drop-in replacement matching the original mounting and connections Replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431 Compatible with GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair, typically 15 to 30 minutes Product Specifications Part Number XPWR60X25858 OEM Part Number WR60X25858 Part Type Freezer Evaporator Fan Motor Condition Aftermarket Replacement Brand GE Location Freezer compartment Voltage 13.6V DC Amperage 0.23 A Fan Dimensions Approx. 4.5" x 4.5" Harness/Plug Length Approx. 8.25" from frame Repair Difficulty Easy — 15 to 30 minutes Quantity 1 fan motor Compatible Brands GE, Hotpoint, Haier, Monogram, Café, Profile, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Clear Any Frost Or Ice From The Fan Area Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves. Locate the evaporator fan motor in the freezer compartment, typically behind an interior panel covering the evaporator coil assembly. If there's noticeable frost or ice buildup around the fan or coil, allow it to fully defrost before continuing — restricted airflow from ice is a common contributor to fan motor strain and noise. Remove the panel to access the fan motor, then disconnect the wiring harness from the old motor. Remove the mounting screws or clips securing the old motor and pull it free, along with the fan blade if it doesn't transfer separately. Install the new WR60X25858 in the same position, reconnect the wiring harness fully, and secure the mounting hardware. Reinstall the interior panel. While you're in this area, vacuuming out any accessible condenser coils is a good complementary maintenance step. Restore power and monitor the freezer's temperature over the next 24 hours to confirm normal, quiet operation and consistent cooling. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My freezer isn't cold anymore. Is this the part I need? Yes, this is one of the most common causes of a freezer that won't cool. One customer specifically reached out after their freezer wasn't cold, watched a diagnostic video explaining the evaporator fan's role, and confirmed this motor was the cause before ordering the replacement. I hear a strange noise from inside my freezer. Could this be the fan motor? Yes, this is a well-documented symptom. Noise often occurs when the fan motor itself is wearing out, or when frost or ice has built up enough to rub against the spinning fan blade. Clearing any ice buildup before replacing the motor helps you confirm whether the noise was from ice contact or the motor itself. Should I do anything else while I have the freezer open for this repair? It's a good opportunity to check for and clear any frost or ice buildup around the fan and coil area, since restricted airflow can contribute to fan strain. One customer also vacuumed out the condenser coils during the same repair, which is a reasonable companion maintenance step while everything is accessible. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the motor design, voltage, and connection type of the original WR60X25858 evaporator fan motor used in compatible GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout
