Refrigerator Fan Motors, Condenser & Evaporator and Fan Blades

XPARTCO 2315549 Refrigerator Evaporator Fan Motor Replaces WP2315549 The XPARTCO 2315549 is an aftermarket replacement evaporator fan motor for Whirlpool-built side-by-side refrigerators, located in the freezer section. This small motor pulls cold air off the evaporator coil and pushes it through the duct system to both the freezer and fresh food compartments. Without it circulating air, the coil itself keeps getting cold, but that cold air never reaches your food — the freezer, being closest to the coil, may hold up reasonably well for a while, but the fresh food compartment depends entirely on ducted airflow and drifts warmer and warmer as circulation weakens or stops. This motor ships complete with its wiring harness, so nothing needs to be spliced or transferred from the old unit. Common failure modes include worn motor bearings that let the blade wobble or bind, ice buildup on the coil that jams the blade, and electrical failure of the motor windings. A simple way to check before ordering: with the refrigerator unplugged, try turning the fan blade by hand — it should spin freely with no grinding or resistance. It directly replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362. Quick Answer The XPARTCO 2315549 Refrigerator Evaporator Fan Motor fixes Whirlpool-built side-by-side refrigerators with uneven cooling between compartments, frost buildup on the evaporator coil, unusual humming or buzzing noise, or a fresh food section that runs warmer than the freezer. Includes wiring harness. Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, EAP11740362. Double-check the part number carefully — this is a different motor from our similarly numbered 2315539 listing, and the two are easy to mix up. Common Problems This Part Fixes Fresh food compartment running warmer than the freezer, or warmer than it used to Uneven temperatures between shelves or between the fresh food and freezer sides Frost or ice buildup accumulating on or around the evaporator coil Unusual humming, buzzing, or grinding noise coming from inside the freezer Noise that stops when the freezer door is opened and starts again once it's closed Refrigerator running constantly as the compressor tries to compensate for poor circulation Fan blade that doesn't spin freely, or spins with noticeable resistance, when checked by hand Fridge section too warm or too cold, freezer section too warm or too cold Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers: 2315549, WP2315549, 2220569, 1193008, AP6007250, AWP47338, PD00002704, PS11740362, EAP11740362, ESF-U2A If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select Whirlpool-built side-by-side refrigerators across the Whirlpool family of brands, including: Whirlpool side-by-side refrigerators Maytag, Amana, and KitchenAid refrigerators (select Whirlpool-built models) Jenn-Air, Admiral, Norge, and Roper refrigerators (select models) Inglis refrigerators (select models) Select Kenmore and Ikea refrigerators built on the Whirlpool platform Verified model numbers include: 7GS2FHAXTA02, 7GS5FHAXTA00, ED2DHEXWB00, and ED2DHEXWL00. Note — easy to confuse with 2315539: This part is 2315549, production number ESF-U2A. It is a separate, distinct motor from our 2315539 listing (production number ESF-U2B, replacing 2219689, 2225625, and W10438708), which serves a different set of models. The two part numbers differ by only a single transposed digit and are frequently mistyped or mixed up when ordering — double-check your old motor's part number or your appliance's full model number carefully before ordering. Contact our support team with your model number if you're unsure which motor you need. Key Features Aftermarket replacement evaporator fan motor with wiring harness included — nothing to splice or transfer Circulates cold air from the evaporator coil throughout the freezer and fresh food compartments Resolves "fresh food too warm," "uneven cooling," "frost buildup," and "humming or buzzing noise" symptoms caused by fan motor failure Direct drop-in replacement matching the original mounting and blade fitment Replaces WP2315549, 2220569, 1193008, AP6007250, PS11740362, and EAP11740362 Compatible with Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, and select Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair — typically 15 to 30 minutes Product Specifications Part Number 2315549 OEM Part Number WP2315549 Production Number ESF-U2A Part Type Refrigerator Evaporator Fan Motor Condition Aftermarket Replacement Brand Whirlpool Location Freezer section, behind the rear panel near the evaporator coil Kit Contents Fan motor with wiring harness Application Side-by-Side Refrigerators Repair Difficulty Easy — 15 to 30 minutes Quantity 1 fan motor Compatible Brands Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Inglis, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Let The Freezer Thaw If Iced Over Disconnect power at the outlet before beginning, and move all food from the freezer to a cooler for the duration of the repair. Wear work gloves. Access is through the freezer's rear interior panel: remove the shelving and bins as needed, then remove the screws securing the back panel and set it aside to expose the evaporator coil and fan assembly. If you see significant frost or ice buildup around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing — ice can be masking the actual failure and can make the old motor difficult to remove cleanly. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the motor's wiring harness connector, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free — on many models the blade is a separate piece that pulls off the motor shaft. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation. Mount the new 2315549 in the same position, reconnect the wiring harness connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even cooling has returned. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions How is this different from your 2315539 listing? The numbers look almost identical. They are genuinely different motors that happen to have nearly identical part numbers — 2315549 versus 2315539, just one transposed digit. This 2315549 motor carries production number ESF-U2A and replaces WP2315549, 2220569, and 1193008. Our separate 2315539 listing carries production number ESF-U2B and replaces a different set of numbers (2219689, 2225625, W10438708) for a different group of models. Because the numbers are so easy to mix up, we'd strongly recommend double-checking the exact number on your old motor, or your full refrigerator model number, before ordering either one. My freezer seems fine but the fresh food section is warm. Is this the fan motor? Yes, this is a very common and telling symptom pattern. The freezer compartment sits right next to the evaporator coil and can stay reasonably cold through simple proximity even with poor air circulation, but the fresh food compartment depends entirely on the fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area. How can I test the motor before ordering a replacement? With the refrigerator unplugged and the rear freezer panel removed, try turning the fan blade by hand. It should spin freely and smoothly with no grinding, binding, or resistance. If it doesn't turn freely, or doesn't turn at all, the motor has very likely failed. Also listen for humming or buzzing while the refrigerator is running — a motor trying and failing to turn often makes noise without actually moving air. There's a lot of frost around the fan and coil. Should I address that first? It's worth understanding which came first. Excess frost can be a cause of fan failure — a jammed, ice-bound blade can burn out the motor over time — or a result of it, since poor air circulation lets moisture condense and freeze unevenly around the coil area. Either way, thawing the ice out fully before installing the new motor makes the repair easier and lets you confirm the blade spins freely once everything is defrosted. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the mounting, wiring harness configuration, and airflow performance of the original WP2315549 evaporator fan motor used in compatible Whirlpool-built side-by-side refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DA31-00342A Refrigerator Evaporator Fan Motor - Compatible with Samsung Refrigerators Product Description Restore optimal cooling in your refrigerator with the replacement DA31-00342A Refrigerator Evaporator Fan Motor. This high-quality replacement evaporator fan motor, designed for Samsung refrigerators, circulates chilled air through the fresh food and freezer compartments to maintain even temperatures. Constructed from durable plastic with sticky insulation and a silent sponge for quiet operation, this DC motor (12V, 4.2W, 0.35A, 1850 RPM) addresses issues like temperature fluctuations, frost buildup, or noisy operation. Note: Includes one evaporator fan motor with 3-pin connector and 60cm wire;. Disconnect power before installation. Replaces part numbers: DA31-00342A, EAP12590899, 4982090, ARES2130RA, PD00080451, EAP12590899, AP6803165, PS12590899 Compatibility: Compatible with models including but not limited to: Samsung: DA31-00342A Refrigerator FAN is the correct replacement for model numbers. RM80F22WEWAA RM70F22NERAA RM80F23VMRAA RF32CG5B10SRAA RF27CG5B10SRAA DRZ30980RAP/DA DRZ30980LAP/DA DRZ36980RAP/DA DRZ36980LAP/DA RQ48T9432T1/AA RS28A5F61SG/AA RS27T5202SR/AA RQ48T94B277/AA RS28A500ASR/AA RS28A500ASG/AA RS22T5561SR/AA RF32CG5N10SRAA RS27T5200WW/AA RS23A500ASG/AA RS28A5F61SR/AA RF32CG5900MTAC RS23CB7600QLAA RF32CG5900SRAA RF27CG5900SRAA RF32CG5100SRAA RF26CG7400SRAA RF27CG5400SRAA RF32CG5400MTAA RF31CG7400MTAA RF27CG5100SRAA RS23CB760012AA RF31CG7200SRAA RF32CG5100MTAA RF27CG5010S9AA RF32CG5400SRAA RF32CG5300SRAA RS28CB7600QLAA RS28CB760012AA RF31CG7400SRAA RF31CG7220SRAA DRZ36980RAP/DA DRZ30990LAP/DA DRZ30980RAP/DA DRZ36980LAP/DA DRZ30990RAP/DA DRZ30980LAP/DA RS22T5561SG/AA RS27T5561SG/AA RS23A500ASR/AA RS27T5561SR/AA RS27T5201SR/AA RS27T5200SR/AA RS22T5561SR RS27T5200SG/AA RS22T5201SR/AA Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Samsung refrigerator models. 🔥 Specifications: replacement evaporator fan motor, DC 12V, 4.2W, 0.35A, 1850 RPM, 3-pin connector, 60cm/23.62" wire length, 5.3" fan diameter, plastic construction with sticky insulation and silent sponge for quiet operation. 💰 Cost-Effective Alternative: replacement motor offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires a Phillips screwdriver, work gloves; typically installed in 30–60 minutes. 🛡️ Reliable Fixes: Resolves poor cooling, frost buildup, noisy operation (grinding or buzzing), or evaporator coil freezing. Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today! Add to cart now for a budget-friendly fix!

Read more less

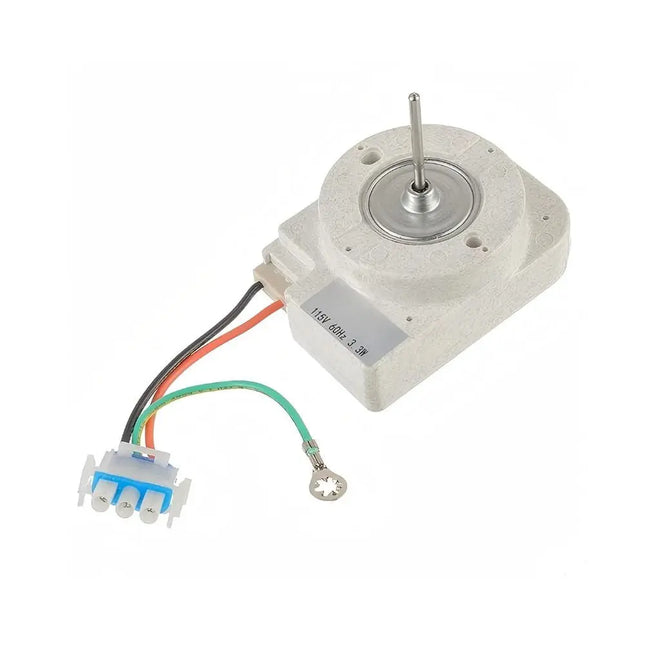

WR60X31522 Genuine OEM GE Refrigerator Evaporator Fan Motor The WR60X31522 is a Genuine OEM GE replacement evaporator fan motor compatible with select GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators. The evaporator fan motor is located at the back of the freezer compartment and circulates air across the evaporator coils — converting the heat from the air into cool air that's then distributed throughout both the freezer and fresh food sections. Without a properly functioning evaporator fan, the refrigerator can't move cold air where it's needed, causing the fresh food and/or freezer sections to warm up, ice to build up on the coils, and the compressor to run continuously trying to compensate. This 115V AC motor is rated at 60Hz, 3.3W and uses a 2-pin connector plus ground wire. Dimensions are 3-1/4"L x 2-3/8"W x 3-3/8"H, with a harness and plug extending approximately 3-1/2" from the motor. Construction is plastic and metal in marbled white & gray. Note: this listing is for the motor with harness only — the fan blade may need to be transferred from the old motor. It directly replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, and PS12741350. Installs in 30–45 minutes with basic hand tools. Quick Answer The WR60X31522 Genuine OEM GE Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, RCA, and Americana top-mount freezer refrigerators that aren't cooling properly, have heavy frost buildup on the evaporator coils, run continuously, or are noisy from the freezer compartment. 115V AC, 60Hz, 3.3W. 2-pin connector + ground wire. 3-1/4"L x 2-3/8"W x 3-3/8"H. Marbled white & gray. Replaces WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X10141, WR60X10346, WR60X23584, WR60X27646, WR60X28783, WR60X28784, WR60X31122, WR60X31523, 4959523, 197D2038P031, AP6977246, EAP12741350, PD00062864, PS12741350. Common Problems This Part Fixes Refrigerator fresh food and/or freezer sections not cooling properly Heavy frost or ice buildup on the evaporator coils ("Antarctica" frost) Loud whining, grinding, or scraping noise from the freezer compartment Fan blade not spinning when checked by hand or stiff/seized rotation Refrigerator running continuously trying to maintain temperature Compressor running but cool air not being circulated Motor failing continuity test with a multimeter Visible damage to the fan motor or its harness Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X31522, WR60X23584, WR60X10141, WR60X10346, WR60X28783, WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X27646, WR60X28784, WR60X31122, AGE29819, 115V-60Hz 3.3W, 197D2038P031, UDQR002GLL, FDQR002GSL, AGE29819, PD00062864, AP6977246, PS12741350. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE, Hotpoint, RCA, and Americana refrigerators, typically top-mount freezer units: GE top-mount refrigerators (select models) GE Profile and Café refrigerators (select models) Hotpoint refrigerators (select models) RCA refrigerators (select GE-built models) Americana refrigerators (select GE-built models) Note: Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style refrigerators. Confirm the failed motor's location and that the WR60X31522 part number matches your refrigerator's parts diagram before ordering. Always verify your appliance model number first. Key Features Evaporator fan motor for the freezer compartment of compatible GE/Hotpoint top-mount refrigerators Pulls air through the evaporator coils to remove heat and circulate cool air throughout the refrigerator 115V AC, 60Hz, 3.3W — correct electrical specifications for compatible GE-platform refrigerators 2-pin connector plus ground wire — direct plug-in installation with the included harness Dimensions: 3-1/4"L x 2-3/8"W x 3-3/8"H; harness and plug extend approximately 3-1/2" from the motor Marbled white & gray plastic and metal construction Replaces 18 OEM and aftermarket cross-reference part numbers including WR60X10045, WR60X10141, WR60X23584, WR60X27646, WR60X28783, WR60X31122, and PS12741350 Compatible with GE, Hotpoint, RCA, and Americana refrigerators (top-mount freezer units) Genuine OEM part manufactured by GE to factory specifications — guaranteed fit and performance DIY repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number WR60X31522 Part Type Refrigerator Evaporator Fan Motor (Freezer Section) Condition Genuine OEM Application Top-Mount Freezer Refrigerators (GE platform) Voltage 115V AC Frequency 60 Hz Wattage 3.3W Connector 2-pin connector plus ground wire Dimensions 3-1/4"L x 2-3/8"W x 3-3/8"H Harness Length Approximately 3-1/2" from motor Color Marbled White & Gray / Gray Material Plastic / Metal Includes Evaporator fan motor with harness and plug (fan blade may need to be transferred from old motor) Compatible Brands GE, Hotpoint, RCA, Americana Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located at the back of the freezer compartment, behind an interior access panel. Remove the freezer shelves and any internal components blocking access to the rear panel. Remove the screws holding the rear access panel in place to expose the evaporator coils and fan motor. Photograph the wire connections and fan blade orientation before disconnecting. Disconnect the 2-pin wire harness connector and the ground wire from the old motor. Note the orientation of the fan blade on the motor shaft — the blade typically presses onto the shaft and may need to be transferred to the new motor. Remove the mounting screws or release the motor from its mounting bracket, and pull the old motor free. Carefully transfer the fan blade to the new WR60X31522 motor in the same orientation (or use a new blade if you have one). Install the new motor in the same position, reconnect the wire harness and ground wire, and reinstall the access panel and shelves. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves. Frequently Asked Questions How do I know if the evaporator fan motor has failed? The most common symptoms are: the refrigerator or freezer is warmer than its set temperature even though the compressor sounds like it's running normally; heavy frost or ice buildup on the evaporator coils behind the freezer access panel ("Antarctica" frost); and loud whining, grinding, or scraping noise from the freezer area. To confirm: unplug the refrigerator, remove the rear freezer access panel, and try turning the fan blade by hand. If it doesn't spin freely or is stiff/seized, the motor bearing has failed. You can also test for motor continuity with a multimeter — no continuity confirms electrical failure. My refrigerator has two evaporator fans — which one does this replace? Some refrigerator models have two evaporator fan motors — one in the fresh food section and one in the freezer section. The WR60X31522 is typically the freezer-section evaporator fan motor on top-mount style GE and Hotpoint refrigerators. If your symptom is "freezer not cooling properly" or "frost on freezer coils," this is the correct part. If your symptom is specifically "fresh food section warm while freezer is fine" on a French door refrigerator, you may need a different fan motor — contact our support team with your model number to confirm. Does this motor come with the fan blade? No — the WR60X31522 listing is for the motor with harness and plug only. The fan blade is typically transferred from the old motor: carefully pull it off the old motor shaft (it presses on, no hardware needed), and press it onto the new motor shaft in the same orientation. If your old fan blade is damaged or cracked, it should be replaced separately. Installing the blade in the wrong direction will reverse the airflow and reduce cooling performance. What's the difference between the WR60X31522 (115V AC) and DC motors like the WR60X10209 or WR60X26866? GE refrigerators use different fan motor technologies across model generations. The WR60X31522 is a 115V AC motor with a 2-pin connector plus ground — used in many GE and Hotpoint top-mount freezer refrigerators. The WR60X10209 and WR60X26866 are DC voltage motors (around 11–14V DC) used in newer GE French door refrigerators with electronic control boards that supply variable DC voltage for energy-efficient variable-speed fan operation. These are not interchangeable — always verify the correct part number for your specific refrigerator model before ordering. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by GE to factory specifications. It is the exact same evaporator fan motor installed in compatible GE, Hotpoint, RCA, and Americana refrigerators from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

809069201 Refrigerator Genuine OEM Evaporator Fan Motor Fits specific Frigidaire, Electrolux refrigerator models. Description: This Evaporator Fan Motor is an OEM part for specific Frigidaire refrigerator models. It circulates air over the evaporator coils and throughout the refrigerator and freezer compartments, ensuring even cooling and maintaining the desired temperatures. Replaces Part Numbers:809069206, 809069201, AP7014188, PS16544514. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO WR60X25858 Refrigerator Evaporator Fan Motor The XPARTCO WR60X25858 is an aftermarket replacement freezer evaporator fan motor for GE refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, Profile, and Kenmore models. Located in the freezer compartment, this motor circulates air across the evaporator coil and out into the freezer and, on many models, the fresh food compartment, drawing heat out of the air to maintain consistent, efficient cooling throughout the appliance. Rated 13.6V DC, 0.23 amps, with fan dimensions of approximately 4.5" x 4.5" and a wiring harness and plug extending about 8.25" from the frame. Common causes of failure include worn motor bearings or electrical failure over time. Symptoms of a failing evaporator fan motor include the freezer failing to cool properly and warming up, insufficient airflow, excessive frost buildup, higher-than-normal freezer temperatures, or unusual noise — often caused by frost or ice rubbing against the fan blade as it turns. It directly replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431. Quick Answer The XPARTCO WR60X25858 Refrigerator Evaporator Fan Motor fixes GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators with a freezer that's warming up, insufficient airflow, excessive frost, or unusual noise from the fan area. 13.6V DC, 0.23A, ~4.5" x 4.5", 8.25" harness. Replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431. If your freezer isn't cold, check the evaporator fan first — but while you're in there, cleaning frost or ice off the fan blade and vacuuming the condenser coils are worthwhile companion steps. Common Problems This Part Fixes Freezer not cooling properly, warming up Insufficient airflow through the freezer compartment Excessive frost buildup Higher-than-normal freezer temperatures Unusual noise from the fan area, including frost or ice rubbing on the blade Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This freezer evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE refrigerators, and also fits select Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators built on the GE platform, including model numbers such as DFE29JSDFSS and DFE29JGDAWW. Note: GE uses several different evaporator fan motors across its refrigerator lineup, including WR60X26866 and WR60X26033 for other models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor your refrigerator needs. Key Features Aftermarket replacement motor — built to OEM-equivalent design and airflow rating Circulates air across the evaporator coil to draw heat out and cool the freezer Resolves "freezer warming up," "insufficient airflow," "excessive frost," and "unusual noise" symptoms Rated 13.6V DC, 0.23 amps Approximately 4.5" x 4.5", with an 8.25" wiring harness and plug Direct drop-in replacement matching the original mounting and connections Replaces WR60X25858, WR60X10340, 4931166, 239D1371P002, U11P14MS7AA3-57A61, AGE29632, AP6891698, EAP12727431, PD00054264, PS12727431 Compatible with GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair, typically 15 to 30 minutes Product Specifications Part Number XPWR60X25858 OEM Part Number WR60X25858 Part Type Freezer Evaporator Fan Motor Condition Aftermarket Replacement Brand GE Location Freezer compartment Voltage 13.6V DC Amperage 0.23 A Fan Dimensions Approx. 4.5" x 4.5" Harness/Plug Length Approx. 8.25" from frame Repair Difficulty Easy — 15 to 30 minutes Quantity 1 fan motor Compatible Brands GE, Hotpoint, Haier, Monogram, Café, Profile, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Clear Any Frost Or Ice From The Fan Area Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves. Locate the evaporator fan motor in the freezer compartment, typically behind an interior panel covering the evaporator coil assembly. If there's noticeable frost or ice buildup around the fan or coil, allow it to fully defrost before continuing — restricted airflow from ice is a common contributor to fan motor strain and noise. Remove the panel to access the fan motor, then disconnect the wiring harness from the old motor. Remove the mounting screws or clips securing the old motor and pull it free, along with the fan blade if it doesn't transfer separately. Install the new WR60X25858 in the same position, reconnect the wiring harness fully, and secure the mounting hardware. Reinstall the interior panel. While you're in this area, vacuuming out any accessible condenser coils is a good complementary maintenance step. Restore power and monitor the freezer's temperature over the next 24 hours to confirm normal, quiet operation and consistent cooling. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My freezer isn't cold anymore. Is this the part I need? Yes, this is one of the most common causes of a freezer that won't cool. One customer specifically reached out after their freezer wasn't cold, watched a diagnostic video explaining the evaporator fan's role, and confirmed this motor was the cause before ordering the replacement. I hear a strange noise from inside my freezer. Could this be the fan motor? Yes, this is a well-documented symptom. Noise often occurs when the fan motor itself is wearing out, or when frost or ice has built up enough to rub against the spinning fan blade. Clearing any ice buildup before replacing the motor helps you confirm whether the noise was from ice contact or the motor itself. Should I do anything else while I have the freezer open for this repair? It's a good opportunity to check for and clear any frost or ice buildup around the fan and coil area, since restricted airflow can contribute to fan strain. One customer also vacuumed out the condenser coils during the same repair, which is a reasonable companion maintenance step while everything is accessible. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the motor design, voltage, and connection type of the original WR60X25858 evaporator fan motor used in compatible GE, Hotpoint, Haier, Monogram, Café, Profile, and Kenmore refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less
