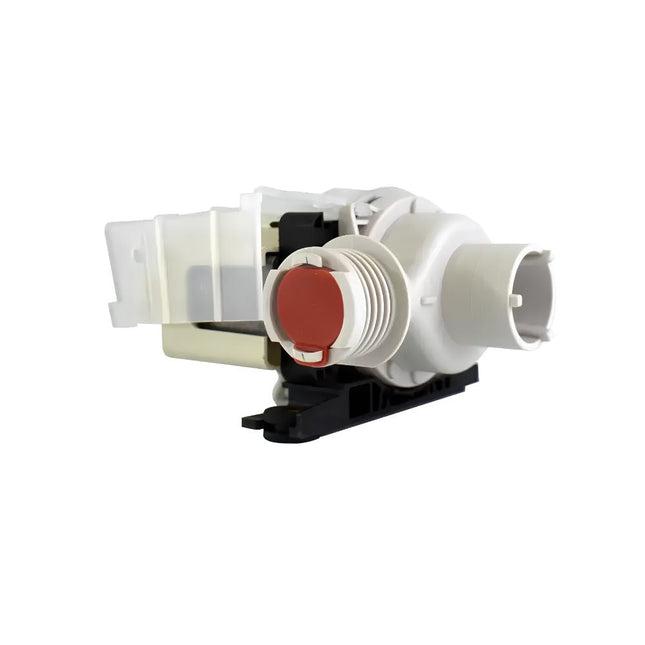

137221600 (OE) Washer Drain Pump The 137221600 (OE) is an Original Equipment (OE) replacement washer drain pump compatible with a wide range of Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers — including popular Affinity series and washer-dryer combo models. The drain pump is mounted at the base of the washer and is responsible for evacuating the wash and rinse water from the tub through the drain hose at the end of each cycle. When the drain pump fails, the washer can't drain — leaving clothes soaking wet, water pooling in the tub, and the wash cycle unable to advance to spin. Common failure symptoms include humming without pumping (blocked or seized impeller), leaks from the pump housing, loud grinding or clicking noises, and complete pump silence when a drain cycle should be running. Rated 120V AC, 60Hz, 85W, 1.25A. Based on the Askol M65 design, with a firmly attached red flapper to prevent drain backflow into the tub. Constructed from strong, durable plastic to resist cracking and leaking through many years of cycling. Package includes the drain pump, mounting base, and mounting screw. This part directly replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, and PS7783938. Important: before installing the new pump, clean any lint or debris from the rubber boot, verify the drain hose is clear and properly fastened, and check the pump filter for blockage — installing a new pump on a system with the underlying blockage will not resolve the drainage problem. Installs in 30–60 minutes with basic hand tools. Quick Answer The 137221600 (OE) Washer Drain Pump fixes Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers that won't drain, leave clothes soaking wet, are noisy or humming during the drain cycle, or display an E11 error code. 120V AC, 60Hz, 85W, 1.25A. Askol M65 design with red backflow flapper. Kit includes pump + mounting base + screw. Original Equipment (OE) — same design and performance as the factory part, without the OEM label. Replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, PS7783938. Common Problems This Part Fixes Washer not draining — pump failed to remove water at the end of the wash or rinse cycle Clothes left soaking wet at the end of the cycle — no drain, so no spin can start Water leaking from the bottom of the washer — cracked pump housing or failed seal Loud humming noise but no water flowing — pump motor running against a seized impeller or blockage Grinding, clicking, or unusual noises during the drain cycle E11 error code displayed on the control panel (drain fault) Washer pumps but won't spin — drain cycle can't complete, blocking spin Cycles taking much longer than normal as the washer tries to drain Pump silent during drain — motor windings open or electrical fault Impeller broken, cracked, or missing pieces after opening the pump Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: 137221600, 131724000, 134051200, 134740500, 137108100, 137151800, 137151800KITK, 2754548, TJ137108100, ER137108100, PD00000118, EAP7783938, BPX401-72J, AFR14249, AP5684706, PS7783938, Also replaces GE WH23X10041, 2119312, WH23X10009, WH23X10017, WH23X10031, WH23X10034, AH3502779, EA3502779, AP5324214, PS3502779. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump is compatible with select front-load washers and washer-dryer combos from the following brands: Frigidaire front-load washers — Affinity series (FAFW3001LW3, FAFW3801LW3 and related), FEX831FS2/FS4, FTF2140ES1, FWS445RFS2, FWX445RFS3 series Frigidaire front-load washers — ATF6000ES1, ATF8000FS1, ATFB6700FS0 series Frigidaire front-load washers — GLTF2940ES3, GLTF2940FS1 and related GLTF series Frigidaire washer-dryer combos — CWS3600AS1 and related Electrolux front-load washers — select models Crosley front-load washers — select models Gibson front-load washers — select models Kelvinator front-load washers — select models Kenmore / Sears front-load washers — select Frigidaire-built models (41744052400, 41744052401, 41744052500, 41744082500, 41748102700, 41748106700, 41748116700, 41790812995 and related 417-series) Tappan front-load washers — select models Westinghouse front-load washers — select models Note: The redesigned 137221600 may look slightly different from your original (e.g., white or gray housing vs. original black), but functions identically. Ensure proper orientation and flapper alignment during installation. Always verify your appliance model number before ordering. Key Features Original Equipment (OE) replacement — produced to the same design and performance standards as the factory part but not sold under the appliance brand's OEM label; provides the same fit and function at a more affordable price Drain pump — removes water from the washer tub through the drain hose at the end of the wash and rinse cycles Resolves "won't drain," "won't spin," "wet clothes," "E11 error," and "humming pump" symptoms 120V AC, 60Hz, 85W, 1.25A — correct electrical specifications for compatible Frigidaire-platform washers Askol M65 design with red backflow flapper to prevent water from flowing back into the tub Strong, durable plastic construction resistant to cracking and leaking Kit includes: 1x drain pump, 1x mounting base, 1x mounting screw Replaces 15+ OEM and cross-reference part numbers including 137108100, 137151800, 131724000, 134051200, 134740500, 134740800, AP5684706, and PS7783938 Compatible with Frigidaire (Affinity, FEX, FTF, FWS, FWX, ATF, ATFB, GLTF, CWS series), Electrolux, Crosley, Gibson, Kelvinator, Kenmore (417-series), Tappan, and Westinghouse front-load washers and washer-dryer combos DIY repair — installs in 30–60 minutes with basic hand tools Product Specifications Part Number 137221600-OE Designation OE (Original Equipment) Part Type Washer Drain Pump Condition OE Replacement Application Front-Load Washers and Washer-Dryer Combos (Frigidaire/Electrolux platform) Voltage 120V AC Frequency 60 Hz Wattage 85W Amperage 1.25A Design Askol M65 with red backflow flapper Material Durable plastic Includes 1x Drain Pump, 1x Mounting Base, 1x Mounting Screw Error Codes Resolved E11 (drain fault) Compatible Brands Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, Westinghouse Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Work Gloves — Check for Blockage First Disconnect power at the outlet or breaker and shut off both water supplies at the wall before beginning. Wear work gloves to protect your hands — pump components can have sharp edges. Have towels ready — residual water remains in the pump housing and hoses. Important: before replacing the pump, check for the underlying cause of the drain problem. Inspect the pump filter (accessible on many models via the lower front kick panel), the drain hose for kinks, and the rubber boot at the bottom of the tub for lint, coins, buttons, or other debris — installing a new pump on a system with an unresolved blockage will not fix the drain problem. Remove the appropriate access panel (typically the rear or front lower kick panel — model-dependent) to expose the pump. Photograph the wire harness and hose connections before disconnecting. Disconnect the electrical wire connectors from the pump motor. Squeeze the hose clamps with pliers and slide them back to release the tub-to-pump hose and the pump-to-drain-hose from the pump. Remove the 2 mounting screws holding the pump to its base and lift the old pump out. Clean any residual debris from the rubber boot, hoses, and pump filter area. Install the new 137221600 (OE) pump using the included mounting base and screw. Reconnect the hoses with the clamps, orient the red backflow flapper correctly, and reconnect the electrical connectors. Reinstall the access panel, restore water and power, and run a rinse cycle to test drainage and check for leaks at all connections. Tools needed: Phillips screwdriver, needle-nose pliers, channel-lock pliers, small flathead screwdriver, towel, work gloves. Frequently Asked Questions What does "OE" mean and how is it different from Genuine OEM? OE (Original Equipment) parts are produced to the same design and performance standards as the original factory part, but they are not sold under the appliance brand's OEM label. They provide the same fit and function as the OEM part at a more affordable price. The 137221600 (OE) drain pump matches the electrical specifications (120V, 60Hz, 85W, 1.25A), Askol M65 design, and physical fit of the original Frigidaire OEM part, and installs identically. The main difference from a Genuine OEM Frigidaire part is the branding and warranty — the OE version delivers equivalent performance and durability without the OEM price premium. My washer won't drain — is it always the pump? Not always. Before replacing the pump, check for these common causes: 1) Clogged pump filter — most Frigidaire front-load washers have a filter accessible via the lower front kick panel; coins, buttons, lint, and small items can block it. 2) Kinked or clogged drain hose — inspect the entire drain hose from the pump to the wall standpipe or sink. 3) Blocked rubber boot — small items can get stuck between the tub and the pump inlet. 4) Failed lid lock/door switch — if the washer doesn't detect a locked door, it won't run the drain cycle. If all of these check out and the pump still isn't draining (or is humming without moving water), the pump has failed and this is the correct repair. What is the E11 error code on my Frigidaire washer? E11 on Frigidaire and Electrolux front-load washers indicates a drain fault — the control board is not detecting successful drainage within the expected time. Common causes are a failed drain pump, a clogged pump filter, a kinked or clogged drain hose, or debris blocking the impeller. If you've verified the filter and hose are clear but the code persists, replacing the 137221600 drain pump typically resolves it. If the code returns after replacement, check the wire harness between the pump and the control board. Does the pump come with everything I need for installation? Yes — the 137221600 (OE) package includes the drain pump itself, a mounting base, and a mounting screw. This is everything you need for the pump replacement itself. However, you should reuse the original hose clamps and hoses from your old pump (they should still be in good condition). If you find that the rubber boot at the base of the tub is cracked, hardened, or torn during the repair, that's a separate part that would need to be ordered — inspect it before completing the reinstallation. The new pump looks different from my old one — is it the right part? Very likely, yes. The 137221600 has been through several revisions over its production history — some housings are black, others white or gray, and the exact shape can vary slightly across production runs. As long as the mounting bolt pattern, hose inlet/outlet sizes, and electrical connector are the same, and the specs match (120V, 60Hz, 85W, Askol M65 design), the pump will function identically to your original. During installation, focus on correct orientation and flapper alignment — the flapper (red) must be positioned so it opens outward toward the drain hose direction to prevent backflow. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ OE (Original Equipment) Quality ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

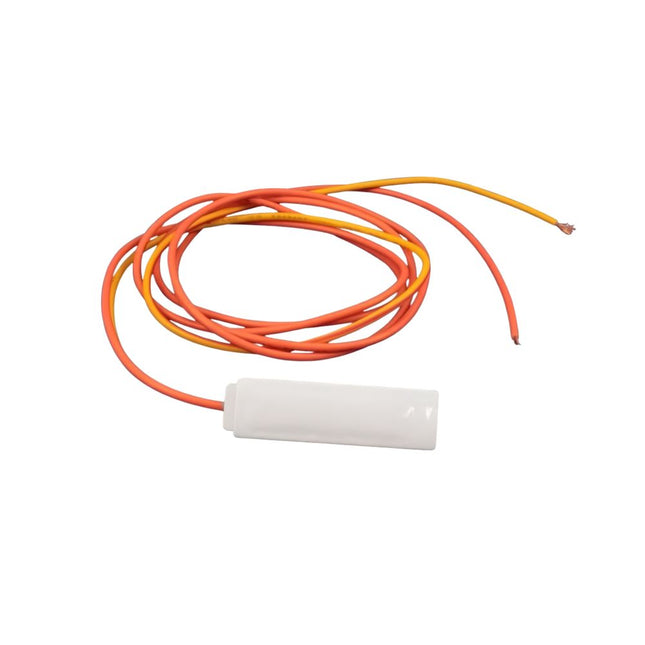

XPARTCO WH12X10334 Washer Lid Switch with Wire Harness The XPARTCO WH12X10334 is an aftermarket replacement washer lid switch assembly with wire harness compatible with select GE, Hotpoint, RCA, and Kenmore top-load washers — including the GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and HSWP1000 series. The lid switch is a magnetic switch mounted near the lid hinge that detects whether the washer lid is open or closed. A magnet attached to the lid activates the switch when the lid closes — a small pin on the switch presses against an internal lever to signal the control board that it is safe to agitate or spin. This safety mechanism prevents the washer from running with the lid open. When the lid switch fails, the washer may not start, may fill with water but not proceed to the wash cycle, may stop mid-cycle, may not spin or agitate even with the lid closed, or may display lid-related error codes on models with digital displays. This assembly includes the switch and attached wire harness. It directly replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WH12X10334 Washer Lid Switch fixes GE, Hotpoint, RCA, and Kenmore top-load washers that won't start, fill but don't proceed to wash, stop mid-cycle, or won't spin or agitate with the lid closed. Magnetic switch with wire harness — pin-and-lever design. Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, PS1482372. Compatible with GE GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and Hotpoint HSWP1000 series. Common Problems This Part Fixes Washer not starting — lid switch not signaling the lid is closed Washer filling with water but not proceeding to the wash cycle Washer stopping mid-cycle even though the lid is closed Washer not agitating or spinning despite the lid being closed Washer running intermittently — switch contact making and losing connection Lid-related error codes displayed on models with digital control panels Washer running with the lid open — switch stuck closed (less common but possible safety concern) Replaces Part Numbers This lid switch assembly directly replaces the following OEM and cross-reference part numbers: WH12X10334, 1256927, AGE26415, AH1482372, AP3968471, EA1482372, EAP1482372, PD00001112, PS1482372 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch assembly is compatible with select top-load washers from the following brands and series: GE top-load washers — GTWN4250D0WS, GTWN4250D1WS, GTWN4250M1WS series GE top-load washers — GCWN4950D2WS series GE top-load washers — GTW180SCJ0WW series GE top-load washers — GTWN2800D0WW series GE top-load washers — GTWN5550D0WW series GE top-load washers — GTUP270EM4WW series Hotpoint top-load washers — HSWP1000M4WW series RCA top-load washers (select GE-built models) Kenmore / Sears top-load washers (select GE-built models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Magnetic lid switch detects whether the washer lid is open or closed and signals the control board accordingly Pin-and-lever design — the lid's magnet activates the switch, which presses an internal pin against a lever to confirm the lid is closed Prevents the washer from agitating or spinning when the lid is open — important safety function Includes pre-attached wire harness for direct connection to the washer's wiring Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372 Compatible with GE, Hotpoint, RCA, and Kenmore top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WH12X10334 Part Type Washer Lid Switch Assembly with Wire Harness Condition Aftermarket Replacement Application Top-Load Washers Switch Type Magnetic, pin-and-lever activation Includes Lid switch and attached wire harness Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The lid switch is located near the lid hinge area at the top of the washer cabinet. Use a putty knife to release the spring clips along the front edge of the top panel (or console, depending on model), then lift the top panel to access the switch from underneath. Locate the lid switch — it is typically mounted near the hinge or under the console. Photograph the wire connections before disconnecting. Disconnect the wire harness connector, or if your model requires it, cut and splice the wires using wire strippers and crimpers. Remove the mounting screws (typically a 1/4" nut driver) and remove the old switch. Install the new WH12X10334 switch in the same position, secure the mounting screws, and reconnect or re-splice the wire harness. Reinstall the top panel by aligning and pressing down until the spring clips engage. Restore power and test by closing the lid and starting a cycle to confirm the washer agitates and spins normally. You can test the old switch's continuity with a multimeter before removal to confirm it has failed. Tools needed: Putty knife, 1/4" nut driver, wire strippers, crimpers. Frequently Asked Questions What does the washer lid switch do? The lid switch is a safety device that detects whether the washer lid is open or closed. A magnet attached to the underside of the lid activates the switch when the lid closes, which presses a small pin against an internal lever to send a signal to the control board confirming the lid is securely shut. The washer's control board uses this signal to allow agitation and spin — both of which are blocked whenever the lid is detected as open, as a safety measure to prevent injury from a spinning or moving basket. My washer fills with water but won't start the wash cycle — is it the lid switch? Yes — this is one of the most common lid switch failure symptoms. The washer is able to complete the fill phase because filling is typically not gated by the lid switch, but the agitation and spin phases require lid switch confirmation that the lid is closed. If the switch has failed and is not properly signaling lid closure, the washer fills normally but then stalls before agitating. According to repair technicians, when a washer fills and drains but does not agitate or spin, the lid switch is the first part that should be checked and is often the cause. How do I test if the lid switch has failed? Unplug the washer and access the switch as described in the installation notes. Disconnect the wire harness and set your multimeter to continuity or resistance mode. With the lid closed and the magnet engaging the switch pin, a working switch should show closed continuity. With the lid open (pin released), the switch should show open continuity. If the switch shows the same reading (either always open or always closed) regardless of lid position, the switch has failed and needs replacement. Could a bad lid switch cause water filling and draining issues too? In some specific cases, yes — some owners have reported resolving combinations of fill, drain, and spin issues by ultimately tracing the root cause back to a faulty lid switch, even after replacing other components like the water level pressure switch or control board. If you've already addressed other suspected causes for irregular cycle behavior and the symptoms persist, testing or replacing the lid switch is a low-cost troubleshooting step worth trying before assuming a major component (like the control board) needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the magnetic switch design and wire harness configuration of the original WH12X10334 lid switch assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W11316255 Washer Water Valve – Replaces W11688994 – Compatible with Whirlpool & Maytag Washers Product Description Restore proper water fill performance and reliable washing cycles with the XPARTCO W11316255 Washer Water Valve. This high-quality aftermarket replacement controls the flow of hot water into the washer during fill cycles. This Water Inlet Valve is a replacement part for specific Whirlpool washing machine models. It controls the flow of water into the washer tub at designated stages in the washing process. Water enters through the valve inlet and is distributed to internal components like the detergent dispenser, water pipes, and sump hoses. Common causes of a bad valve can include mineral scale buildup inhibiting proper flow regulation over time, or cracks and leaks from wear and tear on rubber gaskets and seals.  XPARTCO provides cost-effective aftermarket appliance parts engineered to match original fit and function. Replaces Part Numbers W11688994, W11316255, W11036928, W11486360, AP7218602, PS17216729. Compatibility This replacement washer water inlet valve fits select Whirlpool, Maytag, Amana, and Kenmore (Whirlpool-manufactured) washers. Common compatible models include (but are not limited to): Whirlpool WTW5057LW Whirlpool WTW5105HW Maytag MVW4505MW Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Matches OEM fit and water flow performance 💧 Accurate Water Control – Restores proper hot water fill ⚙️ Fixes Common Fill Issues – Resolves no-fill, slow-fill, or overfill problems 💪 Durable Solenoid Construction – Designed for reliable long-term use 💰 Cost-Effective Repair – Affordable alternative to OEM water valves 📐 Product Specification Part Number: W11316255 Component Type: Washer Water Inlet Valve Voltage: 120V AC Water Ports: Hot inlet (model dependent) Mounting: Direct-fit, screw-mounted Application: Washer fill system Quality Level: Aftermarket replacement (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, pliers ⚠️ Safety First: Unplug the washer and shut off the water supply before servicing. Basic Steps: Disconnect washer power and turn off water supply. Remove the rear access panel to reach the inlet valve. Disconnect water hoses and electrical connectors. Remove mounting screws and remove the old valve. Install the new XPARTCO W11316255 water valve. Reconnect hoses and wiring, reassemble panels, and restore power. Run a test cycle to check for proper filling and leaks. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket Appliance Parts 🔄 30-Day Return Policy Restore proper washer filling and dependable performance — Add to Cart Now for a reliable, budget-friendly repair!

Read more less

WH11X34740 Washer Genuine OEM Drain Pump Assembly – Compatible with GE & Hotpoint Washers Product Description Restore proper draining and reliable washer operation with the WH11X34740 Washer Drain Pump Assembly. This Genuine OEM replacement pump is responsible for removing water from the washer during drain and spin cycles. A failing drain pump can cause standing water, slow draining, loud grinding noises, or error codes. Replacing it with this Genuine OEM assembly helps ensure efficient water removal and dependable washing performance. Replaces Part Numbers WH23X25518, WH23X10038, WH23X25461, PD00079543, EAP16743374, AP7195487, PS16743374. Compatibility This Genuine OEM replacement washer drain pump assembly fits select GE and Hotpoint washers. Example compatible models include (but are not limited to): GE GTW465ASNWW, GTW335ASNWW Hotpoint HTW240ASKWS Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Genuine OEM – Genuine OEM part 💧 Efficient Water Removal – Restores proper draining during cycles 🔇 Quiet Operation – Helps eliminate grinding or buzzing noises 💪 Durable Motor Construction – Designed for long service life 📐 Product Specification Part Number: WH11X34740 Component Type: Washer Drain Pump Assembly Voltage: 120V AC Mounting: Direct-fit, bolt-on installation Application: Washer drain and spin system Quality Level: Genuine OEM 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver, pliers ⚠️ Safety First: Unplug the washer and shut off the water supply before servicing. Basic Steps: Disconnect washer power and water supply. Access the drain pump from the bottom or rear of the washer. Remove hoses and electrical connectors. Remove mounting screws and take out the old pump. Install the new WH11X34740 drain pump assembly. Reconnect hoses and wiring, reassemble panels, and restore power. Run a test cycle to confirm proper draining. ⏱️ Time Required: 25–35 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket Appliance Parts 🔄 30-Day Return Policy Restore proper washer draining and prevent water buildup — Add to Cart Now for a dependable, budget-friendly repair!

Read more less

XPARTCO AJU75152601 Washer Water Inlet Valve Replaces 5221EA1008F, AJU73213301 The XPARTCO AJU75152601 is an aftermarket replacement washer water inlet valve assembly compatible with select LG and Kenmore top-load washers in the WT1, WT4, WT5, WT6, and WT7 series. This is a multi-port valve assembly that controls water flow from the household supply lines into the washer tub and dispenser compartments. The assembly contains multiple solenoid-operated valve ports: hot water inlet, cold water inlet, bleach dispenser valve, fabric softener dispenser valve, and jet spray valve — all integrated into a single assembly that connects to the washer's control board via wiring harnesses. When the water inlet valve fails — or when one individual port fails — the washer may not fill at all, fill too slowly, fill with the wrong temperature, overfill, fail to dispense bleach or fabric softener, or leak from the valve body. The valve solenoids operate at 12V DC. This kit includes the complete valve assembly and two AGM73269501 inlet screens. It directly replaces AJU73213301, 5221EA1008F, 5221EA1008P, AGF76283896, AP6308239, TAW35618287, AH3527446, AJU75152603, EA3527446, PS3527446, and PS12374721. Installs in 15–25 minutes with basic hand tools. Quick Answer The XPARTCO AJU75152601 Washer Water Inlet Valve fixes LG and Kenmore top-load washers that won't fill, fill slowly, fill with wrong temperature, won't dispense bleach or fabric softener, overfill, or leak from the valve. Multi-port assembly with hot, cold, bleach, fabric softener, and jet spray valves. 12V DC solenoids. Includes 2 AGM73269501 inlet screens. Compatible with LG WT1xxx–WT7xxx and Kenmore 796-series. Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, PS12374721. Common Problems This Part Fixes Washer not filling with water at all when a cycle is started Washer filling very slowly — one or more valve ports partially blocked or failing Washer filling with only hot or only cold water — one temperature solenoid has failed Washer overfilling or filling continuously — valve port stuck open Bleach dispenser not dispensing during the wash cycle Fabric softener not dispensing at the correct rinse cycle point Jet spray not activating during fill Water dripping into the tub between cycles — valve port not closing completely Water leaking from the valve body or connection points at the back of the washer Replaces Part Numbers This water inlet valve directly replaces the following OEM and cross-reference part numbers: 5221EA1008F, AJU73213301, AJU75152601, AH3527446, AJU75152603, EA3527446, PS3527446, ALG53778, AP6308239, PD00042814, PS12374721, TAW35618287. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water inlet valve is compatible with select LG and Kenmore top-load washers from the following series: LG top-load washers — WT1 series (WT1101CW, WT1201CW, WT1201CV, WT1301CW, WT1501CW, WT1701CW, WT1701CV, WT1801HVA, WT1801HWA and related models) LG top-load washers — WT4 series (WT4801CW, WT4870CW, WT4970CW and related models) LG top-load washers — WT5 series (WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5270CW, WT5480CW, WT5680HVA, WT5680HWA and related models) LG top-load washers — WT6 series (select models) LG top-load washers — WT7 series (WT7200CW, WT7200CV, WT7500CW, WT7600HKA and related models) Kenmore / Sears top-load washers — 796-series (79631512210, 79631512211, 79631522211, 79631502210, 79631502211 and related models) Note: Always verify your exact model number before ordering. Newer LG WT7100/WT7150/WT7400/WT7405 series models use the AJU75152602 valve instead. Contact our support team with your model number to confirm the correct valve for your washer. Key Features Multi-port valve assembly — controls hot water, cold water, bleach dispenser, fabric softener dispenser, and jet spray from a single replaceable assembly 12V DC solenoid operation — responds to signals from the washer's control board to deliver the correct water to each compartment Resolves fill, dispenser, overfill, and drip-when-off symptoms in a single replacement Kit includes complete valve assembly and 2x AGM73269501 replacement inlet screens ABS plastic and stainless steel construction — durable and resistant to mineral buildup Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, and over 10 additional cross-reference numbers Compatible with LG WT1xxx through WT7xxx and Kenmore 796-series top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number AJU75152601 Also Replaces AJU73213301, 5221EA1008F (current supersession) Part Type Washer Water Inlet Valve Assembly (Multi-Port) Condition Aftermarket Replacement Application LG and Kenmore Top-Load Washers Valve Ports Hot water, cold water, bleach dispenser, fabric softener dispenser, jet spray Solenoid Voltage 12V DC Material ABS plastic / Stainless steel Kit Includes Valve assembly + 2x AGM73269501 inlet screens Compatible Series LG WT1xxx, WT4xxx, WT5xxx, WT6xxx, WT7xxx; Kenmore 796-series Compatible Brands LG, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve assembly is mounted on the upper rear of the washer — the external supply hoses connect to the hot and cold inlet ports. Photograph all wire harness connections and hose routing before disconnecting anything. Before installing, install the new inlet screens (AGM73269501) included in the kit into the hot and cold inlet ports of the new valve. Disconnect the old valve's external supply hoses, internal hoses, and wire harness connectors. Unscrew the mounting screws and remove the old valve. Install the new AJU75152601 valve, reconnect all hoses and wire harnesses in the same positions as documented in your photos, and secure the mounting screws. Reconnect the external supply hoses, restore water supply and power, and run a fill cycle to verify proper filling, confirm all dispenser ports activate at the correct cycle points, and check for leaks. Tools needed: Phillips screwdriver, pliers. Frequently Asked Questions What is the difference between AJU75152601, AJU73213301, and 5221EA1008F? These are all part numbers for the same LG washer water inlet valve assembly used across different production runs. 5221EA1008F was the original part number, AJU73213301 was an updated version, and AJU75152601 is the current part number. All three are interchangeable. If your washer's documentation, parts diagram, or old valve label shows any of these numbers, this replacement is the correct current part to order. My washer won't dispense fabric softener — is this the right part? Yes — the fabric softener dispenser solenoid is one of the ports integrated into the AJU75152601 valve assembly. When the fabric softener dispenser fails to activate at the right point in the rinse cycle, it is almost always because the solenoid valve controlling that port has failed. Since it is part of the same multi-port valve assembly, replacing the AJU75152601 resolves fabric softener, bleach, and jet spray dispenser issues in the same repair. Individual ports cannot be replaced — the complete assembly must be replaced when any one port fails. What are the AGM73269501 inlet screens included in the kit? The AGM73269501 screens are small mesh filters that install inside the hot and cold water inlet ports of the valve. They trap mineral deposits and debris from the household water supply before they can reach the valve seats and solenoid mechanisms. The kit includes two screens — one for the hot inlet and one for the cold inlet. Installing these fresh screens with the new valve helps extend valve life, especially in areas with hard water. If the old valve failed due to mineral clogging rather than solenoid failure, cleaning the supply hoses before installation is also recommended. How do I know if the water inlet valve has failed vs. the control board? You can test the valve solenoids with a multimeter. Disconnect the harness from a solenoid coil and probe both terminals — a working solenoid coil shows a resistance reading (typically 200–500 ohms); an open circuit confirms the solenoid has failed. If all solenoid coils test good but the valve still does not operate, the control board may not be sending the correct 12V DC signal to the solenoids — this requires checking voltage at the solenoid connectors with the washer powered and in a fill cycle, which is a more advanced diagnostic step. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from ABS plastic and stainless steel to match the port configuration, solenoid specifications, and dimensions of the original AJU75152601 water inlet valve assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W11210459 Washer Water Inlet Valve The XPARTCO W11210459 is an aftermarket replacement washer water inlet valve assembly compatible with select Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, and Roper top-load washers in the WTW4xxx, WTW5xxx, MVWC4xx, MVWC5xx, NTW, and related series. The water inlet valve is a solenoid-operated valve mounted on the back of the washer that controls the flow of water from the household supply lines into the washer tub. When the control board calls for water during a fill or rinse cycle, it energizes the valve's solenoid coil to open the valve and allow water to flow in. When the correct water level is reached, the solenoid de-energizes and the valve closes. When the water inlet valve fails, the washer may not fill with water at all, fill too slowly, fill with an incorrect temperature, overfill, or drip water into the tub when it should be closed. This valve assembly directly replaces W10701459, W10838319, W10869799, W11025984, W11038711, W11210459VP, AP6329217, and PS12349267. Installs in 15–20 minutes with basic hand tools. Quick Answer The XPARTCO W11210459 Washer Water Inlet Valve fixes Whirlpool-family top-load washers that won't fill, fill slowly, fill with the wrong water temperature, overfill, or drip water into the tub between cycles. Compatible with Whirlpool WTW4xxx/WTW5xxx, Maytag MVWC4xx/MVWC5xx, Kenmore, Amana NTW, Crosley, Inglis, and Roper top-load washers. Replaces W10701459, W10838319, W10869799, W11025984, W11038711, AP6329217, PS12349267. Common Problems This Part Fixes Washer not filling with water at all when a cycle is started Washer filling very slowly — taking much longer than normal to reach the correct water level Washer filling with only cold water on a warm or hot cycle — or only hot on a cold cycle Washer overfilling or filling continuously — valve stuck open Water dripping or trickling into the tub when the washer is not running Water leaking from the back of the washer near the valve body Washer not advancing past the fill portion of the cycle Replaces Part Numbers This water inlet valve directly replaces the following OEM and cross-reference part numbers: W11210459, W10701459, W10838319, W11038711, 4591321, W10869799, W11025984, 33190189, 33190190, W10423122, W10423124, AWP43369, PD00042885, EAP12349267, AP6329217, PS12349267. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water inlet valve is compatible with select top-load washers from the following brands and series: Whirlpool top-load washers — WTW4616, WTW4715, WTW4810, WTW4815, WTW4816, WTW4850, WTW4855, WTW4915, WTW4950, WTW4955, WTW5000 series and related models Maytag top-load washers — MVWC215, MVWC415, MVWC416, MVWC465, MVWC555 series and related models Kenmore / Sears top-load washers — 110 series (Whirlpool-built models) Amana top-load washers — NTW4516, NTW4655 series and related models Crosley top-load washers (select models) Inglis top-load washers (select models) Roper top-load washers (select models) Note: Always verify your exact model number before ordering. The W11210459 is a specific-fit valve — not universal. Contact our support team if you need confirmation before ordering. Key Features Solenoid-operated valve — opens and closes on command from the control board to deliver the correct amount of hot and cold water during wash and rinse cycles Complete valve assembly — direct plug-in replacement for compatible models Resolves not-filling, slow-filling, wrong-temperature, overfill, and drip-when-off symptoms Replaces W10701459, W10838319, W10869799, W11025984, W11038711, and AP6329217 Compatible with Whirlpool WTW4xxx/WTW5xxx, Maytag MVWC series, Amana NTW series, Kenmore 110 series, Crosley, Inglis, and Roper top-load washers Top-load washer application — not for Whirlpool front-load models Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number W11210459 Part Type Washer Water Inlet Valve Assembly Condition Aftermarket Replacement Application Top-Load Washers Valve Type Solenoid-operated water inlet valve Compatible Series WTW4xxx, WTW5xxx, MVWC4xx, MVWC5xx, NTW, Kenmore 110 Compatible Brands Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Roper Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve is mounted on the upper rear of the washer — the external supply hoses connect to the inlet ports and internal hoses route water into the tub. Photograph all wire harness connections and hose routing before disconnecting anything. Use pliers to loosen the hose clamps and disconnect the internal hoses. Unscrew the mounting screws holding the valve to the washer cabinet and disconnect the wire harness. Remove the old valve and install the new W11210459 in the same position. Reconnect the wire harness, internal hoses with clamps, and mounting screws. Reconnect the external supply hoses, restore water and power, then run a fill cycle and check for leaks. Tools needed: Phillips screwdriver, pliers. Frequently Asked Questions What is the difference between the W11210459 and the W10683603 water inlet valves? Both are Whirlpool-platform top-load washer water inlet valves, but they are different assemblies for different model generations and are not interchangeable. The W10683603 (WPW10683603) is a larger dual-valve assembly with an integrated thermistor and vacuum break, used on older Whirlpool-family top-load models. The W11210459 is a newer valve assembly used on more recent Whirlpool WTW4xxx/WTW5xxx and Maytag MVWC series top-load washers. Always use your specific model number to confirm which valve is correct for your washer before ordering. How do I know if the water inlet valve has failed? Common signs of a failed water inlet valve are the washer not filling with water, filling very slowly, filling only on one temperature setting, overfilling, or water dripping into the tub when the washer is off. You can test the valve's solenoid coils with a multimeter — each coil should show a resistance reading (typically 200–500 ohms) rather than open circuit. A coil reading open circuit has failed. Before testing the valve, check that the household water supply is fully open, the fill hoses are not kinked, and the inlet screens inside the valve ports are not clogged with mineral deposits. What are the small screens inside the valve inlet ports for? The small mesh screens inside the hot and cold water inlet ports of the valve are sediment filters that prevent mineral deposits and debris from the household water supply from reaching the valve seats and solenoid mechanisms. Over time — especially in areas with hard water — these screens can become clogged with mineral buildup and restrict water flow, causing the same slow-fill symptoms as a failed valve. Before replacing the valve, remove and inspect the inlet screens. If they are clogged, clean them with a soft brush and white vinegar or replace them. If cleaning the screens does not restore normal fill speed, the valve itself needs replacement. My washer fills with only cold water — is the water inlet valve the cause? Filling with only cold water when a warm or hot cycle is selected usually points to the hot water solenoid coil having failed. Each solenoid controls one temperature port independently — a failed hot coil means only the cold port opens. Test both solenoid coils with a multimeter as described above. Also check that your household hot water supply valve is fully open and that hot water is reaching the back of the washer in the supply hose before assuming the valve has failed. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the specifications and performance of the original W11210459 water inlet valve assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

EXPW79SC (4 Pack) Washing Machine Fill Hose Gasket with Screen 4 Pack compatible with 5/ 8 inch washing machine and 3/4 inch garden hose Fine Screen the rubber washer with stainless steel filter mesh, serves as a flow restrictor can reduce the waste of water effectively
